Shuttle Computer Group XPC SA76 User Manual
XPC User Guide
For the : SA76
Shuttle®
XPC Installation Guide
Copyright
©2009 by Shuttle® Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means such as electronic,
mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise, without prior
written permission from Shuttle® Inc.
Other brands and product names used herein are for identification purposes only and may
be trademarks of their respective owners.
Disclaimer
Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
Shuttle® Inc. makes no representation or warranty regarding the contents of this manual. Information in this manual had been carefully checked for accuracy;however, no
guarantee is given as to the correctness of the contents. For continuing product improvement, Shuttle® Inc. reserves the right to revise the manual or make changes to the specifications of this product at any time without notice and obligation to any person or entity
regarding such change. The information contained in this manual is provided for general
use by customers.
This device complies to Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must withstand any background interference including those that may
cause undesired operation.
Trademarks
Shuttle is a registered trademark of Shuttle Inc.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice
Other brand and product names used herein are for identification purposes only and
may be trademarks of their respective owners.
Safety Information
Read the following precautions before setting up a Shuttle XPC.
CAUTION
Incorrectly replacing the battery may damage this computer. Replace only
with the same or equivalent as recommended by Shuttle. Dispose of used
batteries according to the manufacturer's instructions.
Laser compliance statement
The optical disc drive in this PC is a laser product.
The drive's classication label is located on the drive.
CLASS 1 LASER PRODUCT
CAUTION： INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
Installation Notices
Do not place this device
underneath heavy loads
or in an unstable position.
Do not use or expose this device
around magnetic elds as magnetic
interference may affect the
performance of the device.
Do not expose this device to
high levels of direct sunlight,
high-humidity or wet conditions.
Do not block the air vents
to this device or impede the
airow in any way.
TABLE OF CONTENTS
Driver and Software Installation...................................................................................1
Mainboard Driver CD .............................................................................................1
Install Mainboard Software .............................................................................2
Appendix......................................................................................................................3
Enter the BIOS ........................................................................................................3
The Main Menu .......................................................................................................4
Standard CMOS Features ..............................................................................4
Advanced BIOS Features ...............................................................................6
Advanced Chipset Features ............................................................................9
Integrated Peripherals .................................................................................12
Power Management Setup ...........................................................................15
PnP/PCI Congurations ............................................................................... 17
PC Health Status ..........................................................................................18
Frequency/Voltage Control ...........................................................................19
Load Default Settings ....................................................................................21
Set Supervisor/User Password .....................................................................21
Save & Exit Setup .........................................................................................22
Exit Without Saving ......................................................................................22
Driver and Software Installation
Motherboard Driver DVD
Note : The DVD contents attached in SA76 motherboard are subject to
change without notice. The product's specifications will depend
upon the actually shipping product.
The Motherboard Driver DVD contains all the motherboard drivers necessary to
optimize the performance of this XPC in a Windows® OS. Install these drivers after
installing Microsoft® Windows®.
Navigation Bar Description :
Install Motherboard Drivers -
Install Realtek Audio Driver,
Install AMD VGA Driver,
Install Marvell Gigabit LAN Driver,
Install AMD Raid Driver.
Install Utilities - Install Adobe Reader,
Install Norton Internet Security software.
User Manuals -
SA76 Manual/SA76 Quick Guide in PDF format.
Install AMD Chipset Driver,
English
Link to Shuttle Website - Link to shuttle website homepage.
Browse this DVD - Allows you to see contents of this DVD.
1
English
Installing Motherboard Software
Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on Autorun
icon in My Computer to bring up Shuttle Mainboard Software Setup screen.
Click the “Install Motherboard Drivers“ bar. Individually install the following drivers.
Install AMD Chipset Driver
Install Realtek Audio Driver
Install AMD VGA Driver
Install Marvell Gigabit LAN Driver
Install AMD Raid Driver
2
Appendix
BIOS Settings
The SA76 BIOS ROM has a built-in Setup program that allows users to modify basic
system configuration. This information is stored in battery-backed RAM so that it
retains Setup information even if the system power is turned off.
The system BIOS manages and executes variety of hardware related functions including:
System date and time
Hardware execution sequence
Power management functions
Allocation of system resources
Enter the BIOS
To enter the BIOS (Basic Input / Output System) utility, follow these steps:
Step1. Power on the computer. The system will perform its POST (Power-On
Self Test) routine checks.
English
Step2. Press the <Del> key immediately, or at the following message:
Press DEL to enter SETUP, or simultaneously press <Ctrl>,<Alt>,
<Esc> keys
1. If you miss wordings mentioned in step2 (the message disappears
before you can respond) and you still wish to enter BIOS Setup,
restart the system and try again by turning the computer OFF and
ON again or by pressing the <RESET> switch located at the
computer’s front-panel. You may also reboot by simultaneously
pressing the <Ctrl>,<Alt>, <Del> keys simultaneously.
2. If you do not press the keys in time and system does not boot, the
screen will prompt an error message, and you will be given the
following options:
"Press F1 to Continue, DEL to Enter Setup”
Step3. When you enter the BIOS program, the CMOS Setup Utility will display the
Main Menu, as shown in the next section.
3
English
The Main Menu
Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.
Note that a brief description of each highlighted selection appears at
the bottom of the screen.
Setup Items
The main menu includes the following main setup categories. Recall
that some systems may not include all entries.

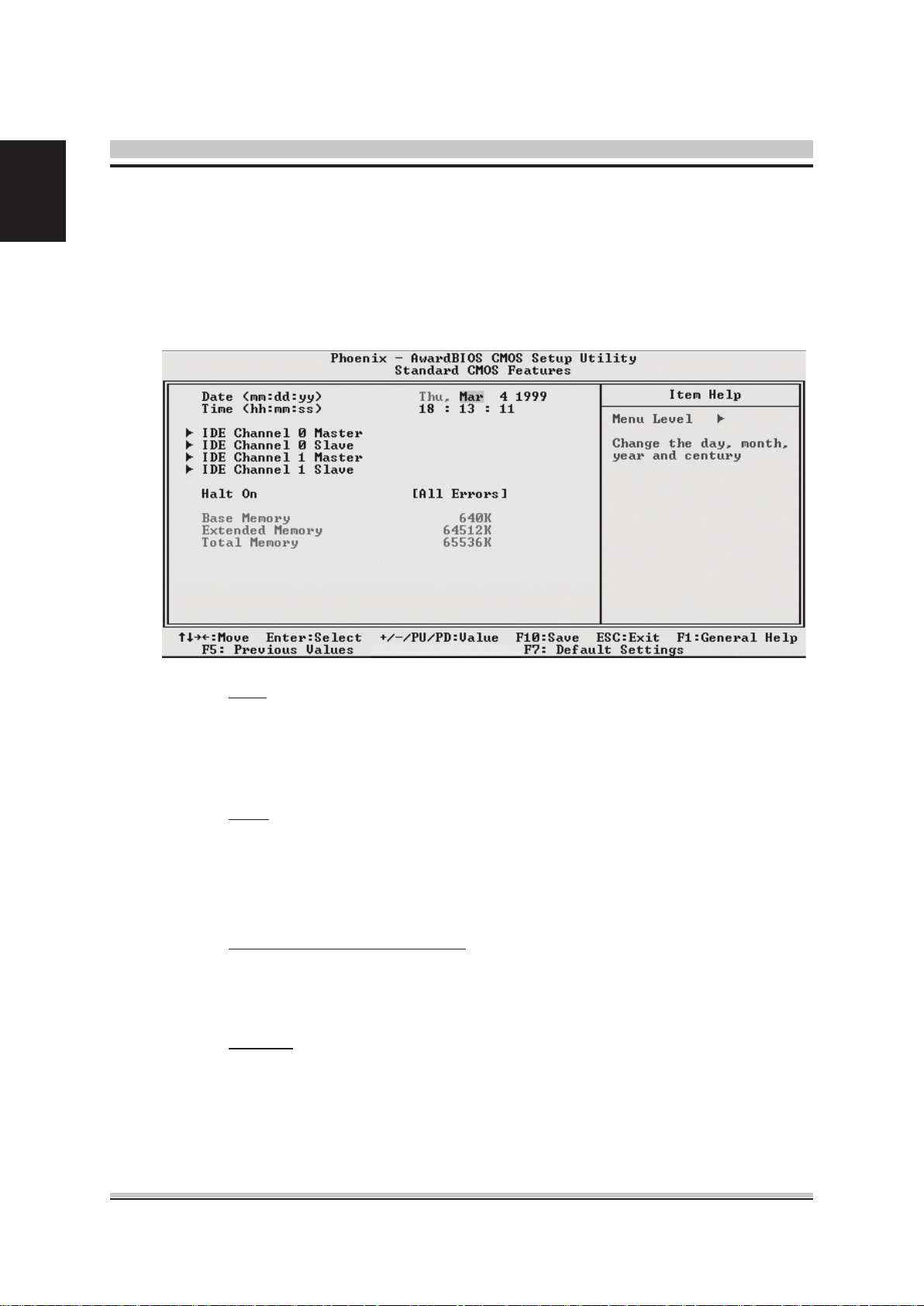

Standard CMOS Features
Use this menu for basic system configuration.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your power management settings.
4
