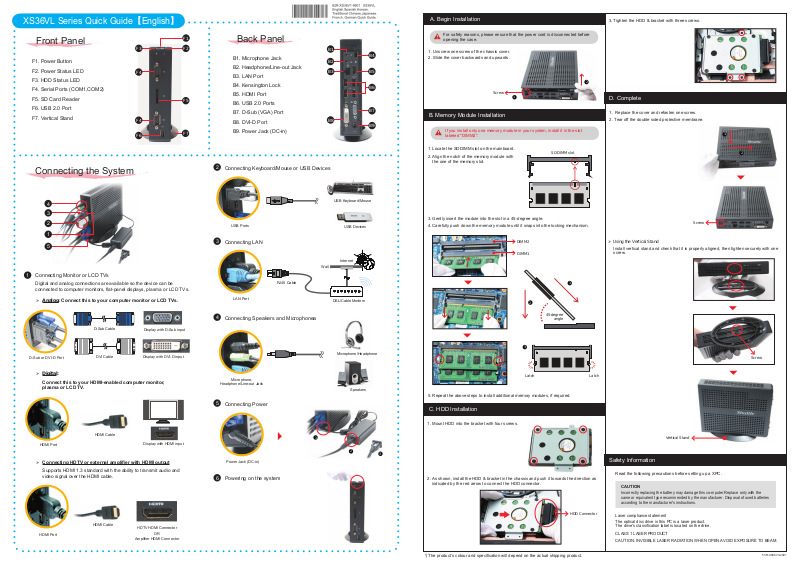

Shuttle XS36VL Quick Start Manual

XS36VL Series Quick Guide【English】

A. Begin Installation

3. Tighten the HDD & bracket with three screws.

__p

Front Panel

F1. Power Button

F2. Power Status LED

F3. HDD Status LED

F4. Serial Ports (COM1,COM2)

F5. SD Card Reader

F6. USB 2.0 Port

F7. Vertical Stand

Connecting the System

F3

F4

F4

F6

F1
F2

F5

F7

Back Panel

B1. Microphone Jack

B2. Headphone/Line-out Jack

B3. LAN Port

B4. Kensington Lock

B5. HDMI Port

B6. USB 2.0 Ports

B7. D-Sub (VGA) Port

B8. DVI-D Port

B9. Power Jack (DC-in)

2

Connecting Keyboard/Mouse or USB Devices

B1

B2
B3

B8

B4

B5

B6

B7

B9

For safety reasons, please ensure that the power cord is disconnected before
opening the case.

1. Unscrew one screw of the chassis cover.

2. Slide the cover backwards and upwards.

Screw

B. Memory Module Installation

If you install only one memory module in your system, install it in the slot
labeled "DIMM2".

1. Locate the SODIMM slot on the mainboard.

2. Align the notch of the memory module with
the one of the memory slot.

2

1

SODIMM slot

D. Complete

1. Replace the cover and refasten one screw.

2. Tear o󰘯 the double sided protective membrane.

1

2

4

3

2

1

5

1

Connecting Monitor or LCD TVs

Digital and analog connections are available so the device can be
connected to computer monitors, 󰘱at-panel displays, plasma or LCD TVs.

Analog: Connect this to your computer monitor or LCD TVs.

D-Sub Cable

Display with D-Sub input

USB Ports

3

Connecting LAN

RJ45 Cable

LAN Port

4

Connecting Speakers and Microphonea

USB Keyboard/Mouse

Internet

Wall

DSL/Cable Modem

USB Devices

3. Gently insert the module into the slot in a 45-degree angle.

4. Carefully push down the memory module until it snaps into the locking mechanism.

DIMM2

DIMM1

1

2

45-degree

angle

Screw

Using the Vertical Stand

Install vertical stand and check that it is properly aligned, then tighten securely with one

screw.

D-Sub or DVI-D Port

Digital:

DVI Cable

Display with DVI-D input

Connect this to your HDMI-enabled computer monitor,
plasma or LCD TV.

HDMI Cable

HDMI Port

Connecting HDTV or external amplier with HDMI output

Display with HDMI input

Supports HDMI 1.3 standard with the ability to transmit audio and
video signal over the HDMI cable.

3

Microphone/Headphone

5

Microphone,

Headphone/Line-out Jack

Speakers

5. Repeat the above steps to install additional memory modules, if required.

Connecting Power

Latch

Latch

Screw

C. HDD Installation

1. Mount HDD into the bracket with four screws.

Power Jack (DC-in)

6

Powering on the system

1

2

3

Safety Information

2. As shown, install the HDD & bracket in the chassis and push it towards the direction as
indicated by the red arrow to connect the HDD connector.

Read the following precautions before setting up a XPC.

CAUTION

Incorrectly replacing the battery may damage this co-mputer.Replace only with the
same or equivalent type recommended by the manufacturer. Disposal of used batteries
according to the manufacturer's instructions.

Vertical Stand

HDMI Port

HDMI Cable

HDTV HDMI Connector

OR

Ampli󰘰er HDMI Connector

L

The product’s colour and speci󰘰cation will depend on the actual shipping product.

HDD Connector

Laser compliance statement
The optical disc drive in this PC is a laser product.

The drive's classi󰘰cation label is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN.AVOID EXPOSURE TO BEAM.

53R-XS36V3-2401
