Shuttle XS35V2 Quick Start Manual

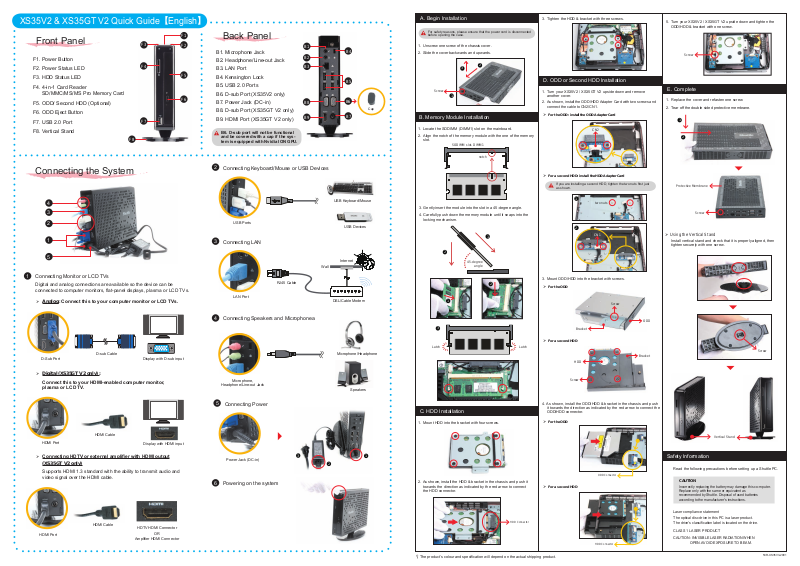

XS35V2 & XS35GT V2 Quick Guide【English】

__p

Front Panel

F1. Power Button

F2. Power Status LED

F3. HDD Status LED

F4. 4-in-1 Card Reader SD/MMC/MS/MS Pro Memory Card

F5. ODD/ Second HDD (Optional)

F6. ODD Eject Button

F7. USB 2.0 Port

F8. Vertical Stand

Back Panel

B1. Microphone Jack B2. Headphone/Line-out Jack B3. LAN Port B4. Kensington Lock B5. USB 2.0 Ports B6. D-sub Port (XS35V2 only) B7. Power Jack (DC-in) B8. D-sub Port (XS35GT V2 only) B9. HDMI Port (XS35GT V2 only)

B6. D-sub port will not be functional and be covered with a cap if the system is equipped with Nvidia ION GPU.

B2 B3

Cap

A. Begin Installation

For safety reasons, please ensure that the power cord is disconnected before opening the case.

1. Unscrew one screw of the chassis cover.

2. Slide the cover backwards and upwards.

Screw

B. Memory Module Installation

1. Locate the SODIMM (DIMM1) slot on the mainboard.

2. Align the notch of the memory module with the one of the memory slot.

SODIMM slot- DIMM1

3. Tighten the HDD & bracket with three screws.

D. ODD or Second HDD Installation

1. Turn your XS35V2 / XS35GT V2 upside down and remove another cover.

2. As shown, install the ODD/HDD Adapter Card with two screws and connect the cable to CN2/CN1.

For the ODD: install the ODD Adapter Card

CN2

5. Turn your XS35V2 / XS35GT V2 upside down and tighten the ODD/HDD & bracket with one screw.

Screw

E. Complete

1. Replace the cover and refasten one screw.

2. Tear o󰘯 the double sided protective membrane.

Connecting the System

Connecting Monitor or LCD TVs

Digital and analog connections are available so the device can be connected to computer monitors, 󰘱at-panel displays, plasma or LCD TVs.

Analog: Connect this to your computer monitor or LCD TVs.

Connecting Keyboard/Mouse or USB Devices

USB Ports

Connecting LAN

RJ45 Cable

LAN Port

USB Keyboard/Mouse

Internet

Wall

DSL/Cable Modem

USB Devices

notch

3. Gently insert the module into the slot in a 45-degree angle.

4. Carefully push down the memory module until it snaps into the locking mechanism.

45-degree

angle

For a second HDD: install the HDD Adapter Card

If you are installing a second HDD, tighten the two nuts 󰘰rst just as shown.

two nuts

CN1

3. Mount ODD/HDD into the bracket with screws.

For the ODD

Screw

Protective Membrane

Screw

Using the Vertical Stand

Install vertical stand and check that it is properly aligned, then

tighten securely with one screw.

D-sub Cable

D-Sub Port

Display with D-sub input

Digital (XS35GT V2 only) :

Connect this to your HDMI-enabled computer monitor, plasma or LCD TV.

HDMI Cable

HDMI Port

Display with HDMI input

Connecting HDTV or external amplier with HDMI output  (XS35GT V2 only)

Supports HDMI 1.3 standard with the ability to transmit audio and video signal over the HDMI cable.

Connecting Speakers and Microphonea

Microphone,

Headphone/Line-out Jack

Connecting Power

Power Jack (DC-in)

Powering on the system

Microphone/Headphone

Speakers

ODD

Bracket

For a second HDD

Latch Latch

Bracket

HDD

Screw

4. As shown, install the ODD/HDD & bracket in the chassis and push

C. HDD Installation

1. Mount HDD into the bracket with four screws.

2. As shown, install the HDD & bracket in the chassis and push it towards the direction as indicated by the red arrow to connect the HDD connector.

it towards the direction as indicated by the red arrow to connect the ODD/HDD connector.

For the ODD

ODD Connector

For a second HDD

Vertical Stand

Safety Information

Read the following precautions before setting up a Shuttle PC.

CAUTION

Incorrectly replacing the battery may damage this co-mputer. Replace only with the same or equivalent as recommended by Shuttle. Disposal of used batteries according to the manufacturer's instructions.

Screw

HDMI Port

HDMI Cable

HDTV HDMI Connector

Ampli󰘰er HDMI Connector

HDD Connector

The product’s colour and speci󰘰cation will depend on the actual shipping product.

HDD Connector

Laser compliance statement The optical disc drive in this PC is a laser product.

The drive's classi󰘰cation label is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN.AVOID EXPOSURE TO BEAM.

53R-XS35V3-2001
