Shuttle XS35GT V2 Quick Manual

__p

53R-XS35V3-2001

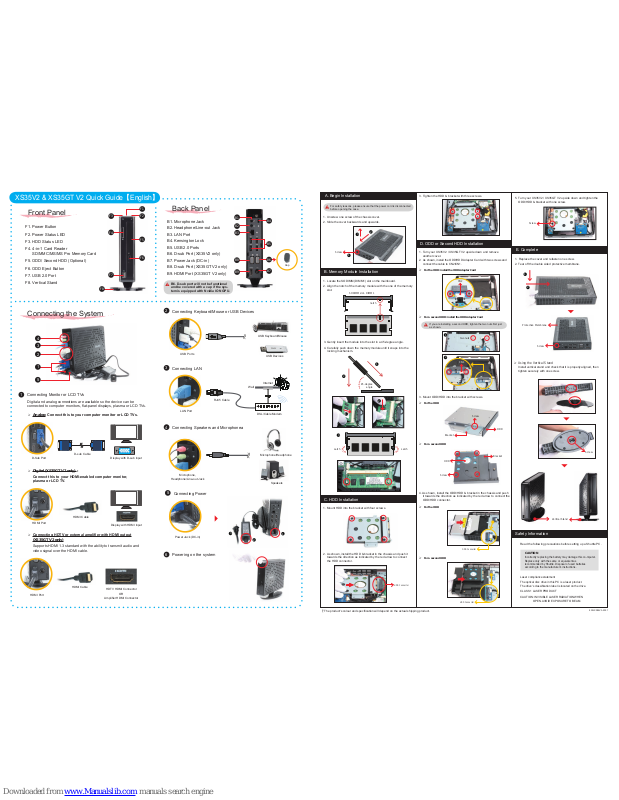

XS35V2 & XS35GT V2 Quick Guide【English】

Front Panel

Back Panel

F1. Power Button

F2. Power Status LED

F3. HDD Status LED

F4. 4-in-1 Card Reader
SD/MMC/MS/MS Pro Memory Card

F5. ODD/ Second HDD (Optional)

F6. ODD Eject Button

F7. USB 2.0 Port

F8. Vertical Stand

B1. Microphone Jack
B2. Headphone/Line-out Jack
B3. LAN Port
B4. Kensington Lock
B5. USB 2.0 Ports
B6. D-sub Port (XS35V2 only)
B7. Power Jack (DC-in)
B8. D-sub Port (XS35GT V2 only)
B9. HDMI Port (XS35GT V2 only)

F7

F4

F5

F6

F8

F1
F2

F3

A. Begin Installation

1. Unscrew one screw of the chassis cover.

2. Slide the cover backwards and upwards.

For safety reasons, please ensure that the power cord is disconnected
before opening the case.

B. Memory Module Installation

45-degree

angle

1. Locate the SODIMM (DIMM1) slot on the mainboard.

2. Align the notch of the memory module with the one of the memory
slot.

3. Gently insert the module into the slot in a 45-degree angle.

4. Carefully push down the memory module until it snaps into the
locking mechanism.

C. HDD Installation

2

1

2. As shown, install the HDD & bracket in the chassis and push it
towards the direction as indicated by the red arrow to connect
the HDD connector.

D. ODD or Second HDD Installation

5. Turn your XS35V2 / XS35GT V2 upside down and tighten the
ODD/HDD & bracket with one screw.

1. Turn your XS35V2 / XS35GT V2 upside down and remove
another cover.

2. As shown, install the ODD/HDD Adapter Card with two screws and
connect the cable to CN2/CN1.

For the ODD: install the ODD Adapter Card

If you are installing a second HDD, tighten the two nuts 󰘰rst just
as shown.

3. Mount ODD/HDD into the bracket with screws.

Safety Information

Read the following precautions before setting up a Shuttle PC.

Laser compliance statement
The optical disc drive in this PC is a laser product.

The drive's classi󰘰cation label is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN
OPEN.AVOID EXPOSURE TO BEAM.

CAUTION

Incorrectly replacing the battery may damage this co-mputer.
Replace only with the same or equivalent as
recommended by Shuttle. Disposal of used batteries
according to the manufacturer's instructions.

3

Latch Latch

notch

SODIMM slot- DIMM1

4. As shown, install the ODD/HDD & bracket in the chassis and push
it towards the direction as indicated by the red arrow to connect the
ODD/HDD connector.

For a second HDD: install the HDD Adapter Card

CN2

HDD Connector

3

Screw

2

1

1

2

CN1

1. Mount HDD into the bracket with four screws.

two nuts

1

2

For the ODD

For a second HDD

For the ODD

For a second HDD

Screw

HDD

Bracket

Screw

ODD Connector

HDD Connector

ODD

Bracket

Screw

L

The product’s colour and speci󰘰cation will depend on the actual shipping product.

3. Tighten the HDD & bracket with three screws.

Connecting the System

5

Connecting Power

1

Connecting Monitor or LCD TVs

Digital and analog connections are available so the device can be
connected to computer monitors, 󰘱at-panel displays, plasma or LCD TVs.

2

Connecting Keyboard/Mouse or USB Devices

3

Connecting LAN

4

Connecting Speakers and Microphonea

6

Powering on the system

Connecting HDTV or external amplier with HDMI output
 (XS35GT V2 only)

Supports HDMI 1.3 standard with the ability to transmit audio and
video signal over the HDMI cable.

Analog: Connect this to your computer monitor or LCD TVs.

Digital (XS35GT V2 only) :

Connect this to your HDMI-enabled computer monitor,
plasma or LCD TV.

D-Sub Port

D-sub Cable

Display with D-sub input

Display with HDMI input

HDMI Port

HDMI Cable

HDMI Cable

HDTV HDMI Connector

OR

Ampli󰘰er HDMI Connector

HDMI Port

1

5

2

3

4

LAN Port

RJ45 Cable

Wall

Internet

DSL/Cable Modem

USB Ports

USB Devices

USB Keyboard/Mouse

Microphone,

Headphone/Line-out Jack

Microphone/Headphone

Speakers

Power Jack (DC-in)

1

2

3

B6. D-sub port will not be functional
and be covered with a cap if the sys­tem is equipped with Nvidia ION GPU.

B2

B1

B3

B9

B4

B7

B5

B8

Cap

B6

1. Replace the cover and refasten one screw.

2. Tear o󰘯 the double sided protective membrane.

E. Complete

Using the Vertical Stand

Install vertical stand and check that it is properly aligned, then

tighten securely with one screw.

Screw

Screw

Vertical Stand

Protective Membrane

1

2
