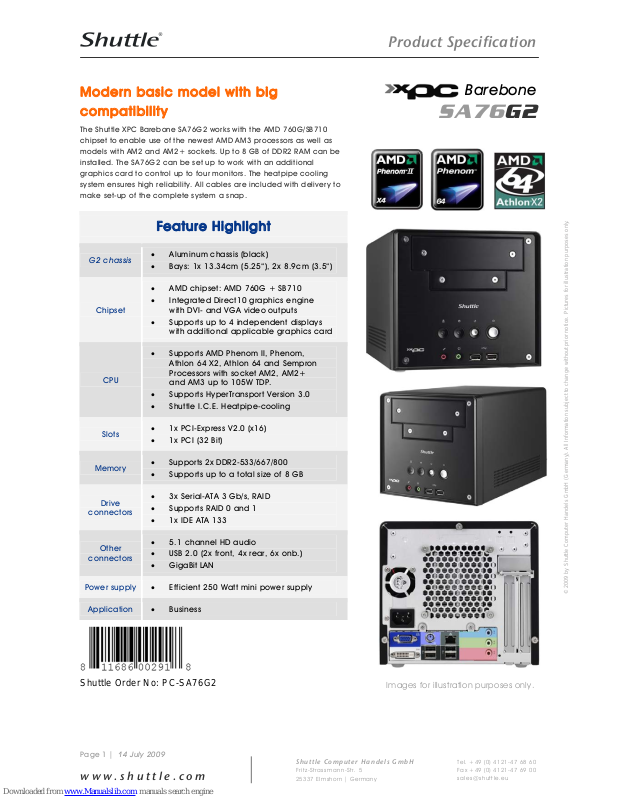

Shuttle XPC Barebone SA76G2 Specifications
Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
sales@shuttle.eu
Page 1 | 14 July 2009
© 2009 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without prior notice. Pictures for illustration purposes only.
Modern basic model with big
compatibility
The Shuttle XPC Barebone SA76G2 works with the AMD 760G/SB710
chipset to enable use of the newest AMD AM3 processors as well as
models with AM2 and AM2+ sockets. Up to 8 GB of DDR2 RAM can be
installed. The SA76G2 can be set up to work with an additional
graphics card to control up to four monitors. The heatpipe cooling
system ensures high reliability. All cables are included with delivery to
make set-up of the complete system a snap.
Feature Highlight
G2 chassis
• Aluminum chassis (black)
• Bays: 1x 13.34cm (5.25“), 2x 8.9cm (3.5“)
Chipset
• AMD chipset: AMD 760G + SB710
• Integrated Direct10 graphics engine
with DVI- and VGA video outputs
• Supports up to 4 independent displays
with additional applicable graphics card
CPU
• Supports AMD Phenom II, Phenom,
Athlon 64 X2, Athlon 64 and Sempron
Processors with socket AM2, AM2+
and AM3 up to 105W TDP.
• Supports HyperTransport Version 3.0
• Shuttle I.C.E. Heatpipe-cooling
Slots
• 1x PCI-Express V2.0 (x16)
• 1x PCI (32 Bit)
Memory
• Supports 2x DDR2-533/667/800
• Supports up to a total size of 8 GB
Drive
connectors
• 3x Serial-ATA 3 Gb/s, RAID
• Supports RAID 0 and 1
• 1x IDE ATA 133
Other
connectors
• 5.1 channel HD audio
• USB 2.0 (2x front, 4x rear, 6x onb.)
• GigaBit LAN
Power supply
• Efficient 250 Watt mini power supply
Application
• Business
Shuttle Order No: PC-SA76G2
B
arebone
SA76G2
Images for illustration purposes only.
Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
sales@shuttle.eu
Page 2 | 14 July 2009
© 2009 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without prior notice. Pictures for illustration purposes only.
Shuttle XPC Barebone SA76G2 – Special Product Features
The Shuttle XPC series is the keyword in artistic design
from Shuttle.
There are different chassis designs to choose from. No matter whether
it’s for use in the home or the office, for high adrenaline or laid back
users, there is a Shuttle Mini-PC in the XPC series to suit every taste.
Cover and front plate of the G2-design chassis are completely made
of aluminum. This leads to a stylish-robust appearance and makes it to
a popular design for many users.
SA76G2 supports AMD Phenom II Processors
Realize new possibilities for connecting with friends, family, and digital
entertainment with the phenomenal performance of the AMD Phenom
and Phenom II series quad-core processor. Built from the ground up for
true quad-core performance, AMD Phenom processors speed through
advanced multitasking, critical business productivity, advanced visual
design and modeling, serious gaming, and visually stunning digital
media and entertainment.
Integrated Cooling Engine (I.C.E.)
Shuttle's XPCs offer the power of a desktop PC in a form factor onethird the size. In order to ensure proper airflow inside a smaller unit,
more advanced cooling technologies have been developed and
implemented in the Shuttle XPC. Shuttle's industry-leading I.C.E.
heatpipe technology delivers efficient cooling and is exceptionally
quiet.
Supports up to 8GB DDR2 800 Dual Channel Memory
The SA76G2 features 2x DDR2 memory slots and supports up to 8GB of
RAM. It is optimized for future high-memory-demand applications such
as high definition video and games.
ATI SurroundView™ Technology
The Shuttle XPC Barebone SA76G2 features ATI Hybrid Graphics
technology which enables ATI SurroundView™ multi-monitor
technology, providing support for 4 independent monitors when an
applicable integrated GPU is combined with a discrete GPU. It means
you can definitely work under the environment with better desktop
productivity and ultimate flexibility at the same time.
PCI-Express V2.0 for high-performance graphics cards
The Shuttle XPC Barebone SA76G2 is equipped with one PCI-Express
x16 Version 2.0 slot delivering a bandwidth of up to 16GB/s, twice the
speed of PCI-E 1.0, thus providing plenty of potential for the newest
graphics cards. It is downward compatible, allowing use for most of the
present graphics cards as well.
