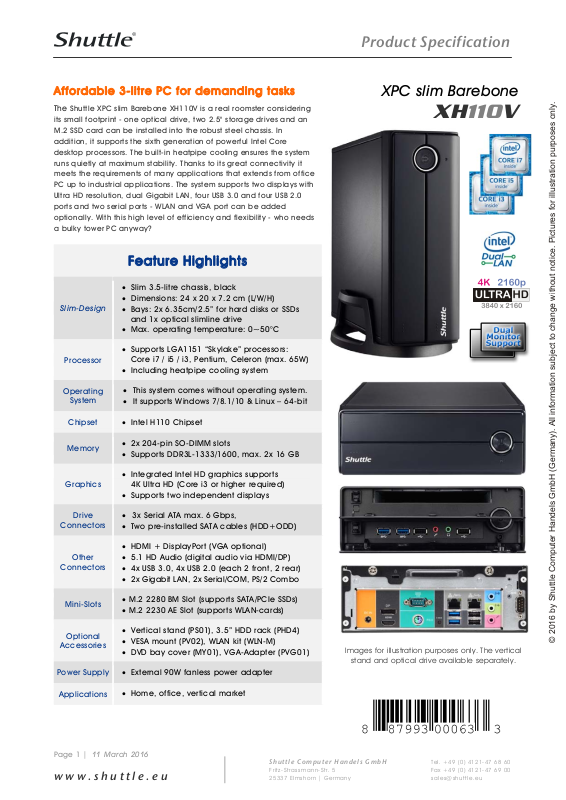

Product Specification

Affordable 3-litre PC for demanding tasks

The Shuttle XPC slim Barebone XH110V is a real roomster considering

its small footprint - one optical drive, two 2.5" storage drives and an
M.2 SSD card can be installed into the robust steel chassis. In
addition, it supports the sixth generation of powerful Intel Core
desktop processors. The built-in heatpipe cooling ensures the system
runs quietly at maximum stability. Thanks to its great connectivity it
meets the requirements of many applications that extends from office
PC up to industrial applications. The system supports two displays with
Ultra HD resolution, dual Gigabit LAN, four USB 3.0 and four USB 2.0
ports and two serial ports - WLAN and VGA port can be added
optionally. With this high level of efficiency and flexibility - who needs
a bulky tower PC anyway?

Feature Highlights

 Slim 3.5-litre chassis, black
 Dimensions: 24 x 20 x 7.2 cm (L/W/H)

Slim-Design

Processor

Operating

System

 Bays: 2x 6.35cm/2.5” for hard disks or SSDs

and 1x optical slimline drive

 Max. operating temperature: 0~50°C

 Supports LGA1151 “Skylake” processors:

Core i7 / i5 / i3, Pentium, Celeron (max. 65W)

 Including heatpipe cooling system

 This system comes without operating system.
 It supports Windows 7/8.1/10 & Linux – 64-bit

XPC slim Barebone

XH110V

ses

llus

ures f
c

ce

n

e

chan

ec

n su

rma

Chipset

Memory

Graphics

Drive

Connectors

Other

Connectors

Mini-Slots

Optional

Accessories

Power Supply

Applications

 Intel H110 Chipset

 2x 204-pin SO-DIMM slots
 Supports DDR3L-1333/1600, max. 2x 16 GB

 Integrated Intel HD graphics supports

4K Ultra HD (Core i3 or higher required)

 Supports two independent displays

 3x Serial ATA max. 6 Gbps,
 Two pre-installed SATA cables (HDD+ODD)

 HDMI + DisplayPort (VGA optional)
 5.1 HD Audio (digital audio via HDMI/DP)
 4x USB 3.0, 4x USB 2.0 (each 2 front, 2 rear)
 2x Gigabit LAN, 2x Serial/COM, PS/2 Combo

 M.2 2280 BM Slot (supports SATA/PCIe SSDs)
 M.2 2230 AE Slot (supports WLAN-cards)

 Vertical stand (PS01), 3.5” HDD rack (PHD4)
 VESA mount (PV02), WLAN kit (WLN-M)
 DVD bay cover (MY01), VGA-Adapter (PVG01)

 External 90W fanless power adapter

 Home, office, vertical market

Images for illustration purposes only. The vertical

stand and optical drive available separately.

All

German

els Gm

er Han
u

le

Page 1 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

X

V

A

V

X

Product Specification

Shuttle XPC slim Barebone XH110V – Front and Back Panel

Front Panel

Button for accessing the I/O ports

B

Button for accessing the optical drive

C

LED indicator for hard disk activity

D

Power on button with LED

E

5.25“ bay for optical slimline drive (DVD or
Blu-ray)

F

B C

AD

E F F G H I G

LK JNMJ K

O R T U W

Q

S

YP

2x USB 3.0 port

G

2x USB 2.0 port

H

Microphone input

I

Headphone output

Back Panel

J

2x perforation for optional WLAN antenna

K

2x thumbscrew

L

Hole for Kensington Lock

M

Dual Gigabit network (RJ45)

N

RS232 serial interface (COM port)

O

DC-in Connector for power adapter
Supports 12V and 19V input voltage

P

HDMI Video/Audio output

Q

DisplayPort Video/Audio output

R

PS/2 Combo

S

RS232/422/485 serial interface (COM port)

T

Clear CMOS button

U

2x USB 3.0
2x USB 2.0

W

Microphone input
Headphone / line-out

Y

Audio line-in

Supports three drives

ses

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

els Gm

er Han
u

le

The Shuttle XPC slim Barebone XH110V supports one optical drive in 5.25” slimline format and two 2.5” drives (e.g.

2.5” hard disk and 2.5” SSD). A second 2.5” drive requires an additional SATA cable and mounting screws which are
not included. The storage drives (hard disk and optical drive) are not included in the delivery of the XH110.
Notice: For high ambient temperatures over 40°C we strongly recommend to use SSDs instead of hard disk drives.

Page 2 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

A

V

Product Specification

Shuttle XPC slim Barebone XH110V – Mainboard

ses

P

B

Q

llus

C
D
E
F

G

H

I

J

K
L

M

N

R

S

T

U

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

O

Back Panel Connectors

A

CMOS Battery

B

Front Audio Header

C

M.2 2280 Slot for SSD

D

VGA Onboard Connector

E

2x USB 2.0 Header

F

USB 2.0 Header

G

Intel H110 Chipset

H

Page 3 | 11 March 2016

www.shuttle.eu

3x SATA 6G Connector

I

LPC Connector

J

COM Port Header (RS232)

K

COM Port Voltage Jumper

L

2x SO-DIMM Memory Slot

M

Front USB 3.0 Connector

N

System FAN Connector

O

SATA-Power 12V

P

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

SATA-Power 5V

Q

M.2 2230 Slot for WLAN

R

Always-Power-On Jumper

S

LGA1151 CPU Socket

T

CPU FAN Connector

U

Front Button/LED Connector

V

Tel. [phone]
Fax [phone]
[e-mail]

els Gm

er Han
u

le

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Optional Accessories for Shuttle XPC slim Barebone XH110V

Product Specification

Vertical Stand (PS01)

The Shuttle XPC slim Barebone XH110V is to be

used in horizontal operation by default. The optional

stand PS01 allows it to be used in upright position

also.

VESA 75/100 mount (PV02)

The optional VESA mount allows it to be installed on

to walls or to be attached to the rear side of a

monitor.

WLAN-Kit (WLN-M)

Wireless LAN adapter (M.2-2230 card) with two
external antennas supports IEEE 802.11ac and

Bluetooth 4.0

3.5“ Hard Disk Rack (PHD4)

PHD4 allows for installation of one 3.5" hard drive.

However doing so means no other drives, such as a

slimline DVD drive or one 2.5" HDD/SSD, can be

installed.

ses

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

Page 4 | 11 March 2016

www.shuttle.eu

Drive Bay Cover

Cover for the slimline drive bay.

Please contact Shuttle for "Mylar POI-MY01". [6]

els Gm

er Han
u

VGA-Port Adapter (PVG01)

Optional D-Sub VGA Video Output.

Note: Using PVG01 means one serial port (COM2)

less can be used at the backpanel.

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

le

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Product Specification

Connectivity / Applications

The Shuttle XPC slim Barebone XH110V's wealth of ports qualifies it for a wide range
of applications and external devices.

ses

Point-of-Sales

Office Display

Dual Network

(POS)

PC Speakers

Audio

Peripherals

RS232
RS422
RS485

HDMI / VGA

HDMI / DP

2x RJ45

USB 2.0 / PS/2

HDMI / DP

USB 3.0

Automation

Home Cinema &

Digital Audio

The XH110V is your powerful 3.5-litre Slim PC solution for high performance
driven applications, e.g.:

 Digital Signage (supports 4K resolution)

Digital Signage

USB Hard Disk

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

els Gm

 In-store Audio/Video entertainment
 Gambling

er Han
u

 Home-Media
 Office

le

 Call Centre
 Education
 Kiosk
 Point of Sales (POS)
 Medical
 Automation
 Small Server

Page 5 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Product Specification

Shuttle XPC slim Barebone XH110V – Product Features

The 3.5-litre chassis - a clean and modern look

Shuttle has always placed great emphasis on the interior and exterior
aesthetics of their Mini-PCs with the belief that a good blend of style
and form factor allow the Mini-PC to be attractive, versatile and work

7.3

well in almost any environment. And the Shuttle XPC slim Barebone
XH110V was designed just like that and shines in a clean and modern

m

c

2

.

2

0

c

m

4

2

appearance. The optical drive and front panel connectors are
elegantly concealed behind drive doors to provide maximum
protection. This tiny tot barely stands 7.3 cm in height with a volume of

3.5 litres.

What does Barebone mean?

The Shuttle XPC slim Barebone XH110V consists of a stylish case with
pre-installed mainboard, cooling system and external power adapter.
Despite its small form factor, it offers outstanding connectivity,
functionality and performance. For a complete Mini-PC system, a few
components still need to be added. The Mini-PC is customisable and
takes socket LGA1151 processors (TDP max. 65W), DDR3L SO-DIMM
memoy, one slimline SATA optical drive and one 2.5” hard disk (or SSD).
Once the desired operation system is installed, the XH110V is ready to
use. Moreover, the system comes with pre-routed cables to reduce
clutter, increase airflow and ease component installation.

Supports Intel 14nm Skylake Processors

Skylake is the codename for Intel's 6th Generation of Intel Core
Processors introduced in 2015 along with the 100 Series chipsets. The
XPC slim Barebone XH110V supports the desktop version with socket
LGA1151 (TDP max. 65W), while the previous generation (LGA1150) is
not compatible. The Skylake Series represents a “Tock” in Intel’s “Tick­Tock” strategy. A "Tock" means a new microarchitecture is introduced,
whereas a "Tick" stands for a die shrink of the process technology.

ses

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

Page 6 | 11 March 2016

www.shuttle.eu

Low noise thanks to heatpipe cooling system

An active dual-fan heatpipe cooling system ensures whisper-quiet
operation and system stability. A heatpipe is a hollow tube containing
a liquid to transfer heat. As the liquid evaporates, it carries heat to the
cool end, where it condenses and then runs back to the hot end.
Heatpipes thus have a much higher effective thermal conductivity than
solid materials. Please keep the vent holes clear.

Extended temperature range and reliability

The Shuttle XPC slim Barebone XH110V is outstandingly robust thanks to
its tough alu chassis, and with an operating temperature range of 0­50°C it is suitable for use in the most demanding environments.
Designed entirely with all solid capacitors, XH110V is guaranteed to
deliver maximum stability, reliability and longer system lifetime for long­term applications like digital signage.
Notice: for high ambient temperature over 40°C we recommend to use
Solid State Disks (SSDs) instead of Hard Disk Drives (HDDs).

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

els Gm

er Han
u

le

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Product Specification

Great Connectivity

On the front, elegantly hidden from view behind drive doors, the panel
reveals four USB ports two of which are USB 3.0. There are also two

3.5mm jacks for headphones and microphone. In addition, the back
panel offers a wide range of I/O connectivity as well.

ses

Dual Display with HDMI and DisplayPort

The Shuttle XPC slim Barebone XH110V features two digital video
outputs: one HDMI 1.4 and one DisplayPorts 1.2. Dual View technology
offers multiple display support on up to two separate monitors. This
helps improve on productivity by allowing for spreading multiple
windows across two monitors while working with them simultaneously.
Optionally you can also add a D-Sub/VGA port to the back panel
(accessory PVG01).

Supports 4K Ultra HD at 60Hz

The XH110V supports displays running at 4K (3840 x 2160 / 2160p) high
resolution when connected to its DisplayPort video output. As the
successor to the Full HD standard, Ultra HD delivers a four times higher
resolution with a wider colour space and colour depth.
An Intel Core i3 processor or higher is recommended for smooth 4K
(2160p) video playback.

llus

ures f
c

ce

n

e

chan

ec

Two serial ports

Many PCs do not have these legacy ports any longer, since they have
been superseded and replaced by USB for most consumer appli­cations, but they are still commonly used for applications such as
industrial automation systems, scientific analysis, POS systems and other
industrial applications. The XH110V features two serial RS-232 ports
which also support both 5 or 12V auxiliary voltage. The left COM port
also supports the RS422 and RS485 standard.
Note: the right COM port can optionally exchanged into a VGA port
with the accessory PVG01.

n su

rma

All

German

Page 7 | 11 March 2016

www.shuttle.eu

M.2-2280-Slot for SSD cards

The M.2-2280 BM slot supports M.2 SSD storage cards with SATA or with
the more advanced PCIe interface.
Type 2280 means, it supports the usual M.2 cards with a width of 22mm
and a length of 80mm, but also 2242 and 2260 standard cards are
supported.

M.2-2230-Slot for optional WLAN

The M.2-2230 AE slot is intended for Wireless LAN (Wifi), Bluetooth,
GSM/UMTS cards and other.
Shuttle offers the optional accessory „WLN-M“ (see picture on the left),
which adds WLAN 802.11ac and Bluetooth 4.0 to your Shuttle XPC slim
Barebone XH110V.

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

els Gm

er Han
u

le

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Product Specification

Kensington Lock

This is a small, metal-reinforced hole as part of an anti-theft system.
(Lock and cable not included)

ses

llus

Power on after Power fail

The BIOS setup provides a "Power-On after Power Fail" function that can
be found under "Power Management Configuration". As the name
indicates, this function determines the PC's behaviour after power
failure: (1) unconditional power on, (2) restore former status or (3) keep
system turned off. As a matter of the nature of this function, it may fail
after short power failures. This is why the Shuttle XPC slim Barebone
XH110V also comes with a hardware-based solution. By removing the
appropriate Jumper (see image) the system will start unconditionally
once power is applied.

ures f
c

ce

n

e

chan

ec

Input voltage: 12V or 19V

A 90 Watt power adapter with 19 Volt output voltage is included in
scope of delivery. Alternatively, XH110V can also be supplied with a
power souce of 12 Volt ±5%.

n su

rma

All

German

els Gm

er Han
u

le

Page 8 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Product Specification

Comparison of the 3-litre XPC slim Barebones

Barebone Model

Availability

Supported
Processors

Chipset

Memory (max.)

Multi-Monitoring

Mini-Slots

Front Panel
Connectors

Back Panel
Connectors

Perforations

Optional
Accessories

Note: PVG01 and H­RS232 cannot be
used simultaneously.

XH81 / XH81V XH97V XH110 / XH110V XH170V

September 2014 October 2014 Q1 / 2016 September 2015

4. Gen. Intel Core Processors
Socket LGA1150 “Haswell”, TDP max. 65W

Intel H81 Intel H97

2x 8 GB DDR3-1600, SO-DIMM (204 pins)

max. 2 displays max. 3 displays max. 2 displays max. 3 displays

Mini-PCIe (mSATA)
Mini-PCIe (for WLAN)

Power-Button, Power-LED, HDD-LED
2x USB 2.0, 2x USB 3.0, 2x Audio

1x HDMI 1.4
1x DisplayPort 1.2

4x USB 2.0 2x USB 3.0

2x GigaBit LAN

2x COM (RS232) 1x COM (RS232)

3x Audio 3x Audio 3x Audio 3x Audio

− 1x eSATA (3G) PS/2 Port (Combo) 1x eSATA (3G)

Clear CMOS Button Clear CMOS Button Clear CMOS Button Clear CMOS Button

2x WLAN antenna
1x Kensington Lock
1x VGA adapter

Vertical Stand (PS01) Vertical Stand (PS01) Vertical Stand (PS01) Vertical Stand (PS01)

VESA mount (PV02) VESA mount (PV02) VESA mount (PV02) VESA mount (PV02)

WLAN-Kit (WLN-S/-P) WLAN-Kit (WLN-S/-P)

3.5“ HDD rack (PHD4) 3.5“ HDD rack (PHD4) 3.5“ HDD rack (PHD4) 3.5“ HDD rack (PHD4)

Cover/Mylar for the
slimline bay (MY01)
(for XH81V only)

3x COM-Ports (PCM3)
(for XH81 only)

1x COM-Port (H-RS232) 1x COM-Port (H-RS232) 1x COM-Port (H-RS232) 1x COM-Port (H-RS232)

VGA adapter (PVG01) − VGA adapter (PVG01) −

Mini-PCIe (mSATA)
Mini-PCIe (for WLAN)

1x HDMI 1.4
2x DisplayPort 1.2

2x USB 2.0

1x GigaBit LAN

2x WLAN antenna
1x Kensington Lock

Cover/Mylar for the
slimline bay (MY01)

− − −

6. Gen. Intel Core Processors
Socket LGA1151 “Skylake”, TDP max. 65W

Intel H110 Intel H170

2x 16 GB DDR3L-1600, SO-DIMM (204 pins)

M.2-2280 (PCIe, SATA)
M.2-2230 (for WLAN)

Power-Button, Power-LED, HDD-LED
2x USB 2.0, 2x USB 3.0, 2x Audio

1x HDMI 1.4
1x DisplayPort 1.2

2x USB 3.0
2x USB 2.0

2x GigaBit LAN

2x COM (RS232)

2x WLAN antenna
1x Kensington Lock
1x VGA adapter

WLAN-Kit (WLN-M)

Cover/Mylar for the
slimline bay (MY01)
(for XH110V only)

M.2-2280 (SATA)
Mini-PCIe (for WLAN)

1x HDMI 1.4
2x DisplayPort 1.2

2x USB 3.0
2x USB 2.0

1x GigaBit LAN

1x COM (RS232)

2x WLAN antenna
1x Kensington Lock

WLAN-Kit (WLN-S/-P)

Cover/Mylar for the
slimline bay (MY01)

← Front Views →

XH81V / XH110V (Cover) XH81V White XH81 (Open Front)

ses

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

els Gm

er Han
u

le

← Rear Views →

XH81, XH81V XH110, XH110V XH97V, XH170V

Page 9 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Product Specification

Shuttle XPC slim Barebone XH110V - Specifications

Chassis

Storage Bays

Operation

System

Slim 3-litre chassis, colour: black
Dimensions: 240 x 200 x 72 mm (LWH) = 3.5-litre
Weight: 2.2 kg net, 3.5 kg gross
Covers for optical drive and front panel connectors
Hole for Kensington Lock at the back panel
Operation position horizontal or even vertical with the optional stand PS01

This system features three drive bays:

1) supports one optical drive (ODD) in 5.25" slimline format with max. 12.7 mm height ­this bay can alternatively be used for a 2.5" drive

2) upper 2.5" bay supports one 2.5" drive with max. 12.7 mm height

3) lower 2.5" bay supports one 2.5" drive with max. 9.5 mm height
The system includes the following pre-installed cables:

- 2x Power cable for 2.5" drives (5 Volt [9])

- 1x SATA cable for one 2.5" drive

- 1x combo connector (SATA and power) for an optical slimline drive (DVD or Bluray)
Important note: This system is ready for one 2.5" drive (SSD or hard disk) and one
DVD/Blu-ray drive in slimline format to be installed.
For further 2.5" drives, additional SATA cables and screws are required. For a possible
third 2.5" drive also a Y power cable is required. (All not included)

This system comes without operating system.
It is compatible with Windows 7 / 8.1 / 10 and Linux – 64-bit.

ses

llus

ures f
c

ce

n

e

chan

ec

n su

rma

Mainboard

Chipset

BIOS

Power

Adapter

Mainboard FH110V, Mini-ITX form factor 17 x 17 cm, 8 layer design
Chipset: Intel® H110 Chipset
(Intel® GL82H110 PCH, Codename "Sunrise Point")
AMI BIOS in 8 Mbit EEPROM with SPI interface
All capacitors are high quality solid capacitors
Supports hardware monitoring and watch dog functionality
Supports Unified Extensible Firmware Interface (UEFI)
Supports power on after power failure [1]

External 90 W power adapter (fanless)
Input: 100~240 V AC, 50/60 Hz
Output: 19 V DC, max. 4.74 A, max. 90 W output wattage
AC Connector with protective-earth contacts, cable length: 1.7m
DC Connector: 5.5 / 2.5mm (outer/inner diameter)
Note: This system can also be powered by a power adapter with an output voltage of
12V DC.

All

German

els Gm

er Han
u

le

Page 10 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Processor

A

Support

Heatpipe

Cooling

Memory
Support

Socket LGA 1151 (H4) supports the sixth generation of
Intel Core i7 / i5 / i3, Pentium and Celeron processors
Maximum supported processor power consumption (TDP) = 65W
Codename "Skylake", 14nm process technology, up to 8 MB of L3 cache
Not compatible with Intel Xeon E3 V5 processors with Socket LGA1151 and processors
with the older Socket LGA 1150.
Does not support the unlock-function of Intel K-Series processors.
The processor integrates PCI-Express, memory controller and the graphics engine on
the same die (performance features depending on processor type)
Please refer to the support list for detailed processor support information at
global.shuttle.com.

Processor cooling with heatpipe technology and two fans (6cm)

2x SO-DIMM slot with 204 pins
Supports DDR3L-1333/1600 (PC3-10600/12800) SDRAM at 1.35V [12]
Supports Dual Channel mode
Supports max. 16 GB per DIMM, maximum total size of 32 GB
Supports two unbuffered DIMM modules (no ECC)

Product Specification

ses

llus

ures f
c

ce

n

e

chan

Integrated

Graphics

Audio

Dual Gigabit

LAN

Controller

The features of the integrated Intel HD graphics function
depend on the processor type used.
Supports DirectX 12, OGL 5.x, OCL 2.x
The PC features the following video outputs:

- HDMI v1.4 (supports 1080p/60 and 2160p/30)

- DisplayPort v1.2 (supports 1080p/60 and 2160p/60)

- optional: VGA / 15-pin D-Sub (supports analog video)
Supports displays with 4K Ultra HD resolution at 3840 x 2160
Supports two independent displays simultaneously
Supports Blu-ray (BD) playback with HDCP content protection [3]
DisplayPort and HDMI support multi-channel digital audio over the same cable
Maximum shared memory of 1760 MB

udio Realtek® ALC 662 5.1-channel High-Definition Audio

Three analog audio connectors (3.5mm) at the back panel:

1) Front line-out (headphones)

2) Rear Surround line-out (shared with microphone input)

3) Center line-out (shared with line-in)
Digital audio output is provided by HDMI and DisplayPort.

Dual network with two RJ45 ports
Used network chips:

1) Intel i211 Ethernet Controller with MAC, PHY and PCIe interface

2) Intel i219LM PHY connected to the MAC of the processor
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)
Supports Teaming mode [10]

ec

n su

rma

All

German

els Gm

er Han
u

le

Page 11 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

M.2-2280 Slot

M.2-2230 Slot

Drive

Connectors

The M.2 2280 BM slot provides the following interfaces:

- PCI-Express v2.0 X4

- SATA v3.0 (6 Gbps)
It supports M.2 cards with a width of 22 mm
and a length of 42, 60 or 80 mm (type 2242, 2260, 2280).
Supports M.2 SSDs with SATA or PCIe interface.

The M.2 2230 AE slot provides the following interfaces:

- PCI-Express v2.0 X1

- USB 2.0
It supports M.2 cards with a width of 22 mm and a length of 30 mm. This slot is intended
for Wireless LAN (Wifi), Bluetooth, GSM/UMTS cards and other. A SATA interface for SSD
cards is not available here.

3x Serial-ATA connector, max. 6 Gbps
Supports Intel® Rapid Storage Technology 13 (RST)
Supports NCQ and AHCI
Note: The package includes pre-installed cables (for SATA and power) and mounting
screws for one 2.5" drive and one optical slimline drive.

Product Specification

ses

llus

ures f
c

ce

n

e

Front Panel
Connectors

Back Panel
Connectors

Other

Onboard

Connectors

Microphone input
Audio Line-out (headphones)
2x USB 3.0
2x USB 2.0
Power button
Power LED (blue)
HDD LED (yellow)

1x DisplayPort 1.2 audio/video output [2]
1x HDMI 1.4 audio/video output
2x USB 3.0
2x USB 2.0
2x GigaBit LAN (RJ45)
1x COM (RS232)
1x COM (RS232/422/485)
3x Audio 3.5mm ( Line-in, Line-out, Mic-in)
1x PS/2 Combo port (supports keyboard and mouse) [11]
1x Clear CMOS Button
2x Perforation for Wireless LAN antennas
1x Hole for Kensington Lock

Power on after power fail (hardware solution by jumper) [1]
Front connectors for power button, LEDs, USBs, audio ports
USB 2.0 headers (5-pin)
RS232 COM port (2x10-pin header - occupied)
Two 4-pin fan connectors (one occupied by the CPU cooling system)
LPC interface (2x10-pin header, 2 mm pitch)

chan

ec

n su

rma

All

German

els Gm

er Han
u

le

Page 12 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Supplied

Accessories

Optional

Accessories

Environmental

Specifications

Multi-language installation guide (EN, DE, FR, ES, JP, KR, SC, TC)
Driver DVD
Pre-installed SATA and power cables for one 2.5" drive and one slimline drive
External power adapter with 1.7m AC power cord (with protective-earth contacts)
Protector cap for the CPU socket (do not use if heat-pipe or fan is mounted)
CPU heatpipe cooling system with heatsink compound
Bag with screws

(1) Vertical stand (PS01)
(2) VESA mount (PV02)
(3) WLAN module (WLN-M) [4]
(4) Cover for slimline drive bay [6]
(5) 3.5" Hard Disk Rack (PHD4) [8]
(6) D-Sub/VGA port adapter (PVG01) [13]

Operating temperature range: 0~50°C [7]
Relative humidity range: 10~90% (non-condensing)

Product Specification

ses

llus

ures f
c

ce

n

EMI: FCC, CE, BSMI, C-Tick
Safety: CB, BSMI, ETL
Others: RoHS, Energy Star V5.0, EuP Lot 6

Conformity

and

Certifications

[1] Power on after power fail:
The BIOS setup provides a "Power-On after Power Fail" function that can be found under "Power Management
Configuration". As the name indicates, this function determines the PC's behaviour after power failure: (1)
unconditional power on, (2) restore former status or (3) keep system turned off. As a matter of the nature of this
function, it may fail after short power failures. This is why this PC also comes with a hardware-based solution. By
removing the appropriate jumper, the system will start unconditionally once power is supplied.

[2] How to convert DisplayPort into HDMI/DVI
The DisplayPort outputs can be converted to HDMI or DVI by an additional, passive adapter cable. For example:
DELOCK 82590: 1m, DisplayPort (male, 20p) to HDMI-A (male, 19p)
DELOCK 82435: 5m, DisplayPort (male, 20p) to DVI-D (male, 24p)
The integrated graphics automatically detects the connected display and puts out the appropriate electric signal ­either DisplayPort (without an adapter) or HDMI/DVI (with an adapter).
However, a monitor with a DisplayPort connector cannot be connected to the HDMI port with a simple, passive
adapter.

[3] For Blu-ray playback appropriate software and a Blu-ray drive is required (not included).

[4] Optional Wireless LAN module:
This Slim PC supports an optional WLAN module which consists of an M.2 expansion card with IEEE 802.11ac,
Bluetooth 4.0 functionality and two external antennas with appropriate cables. Shuttle offers its suitable accessory
kit "WLN-M".

[5] 4K Ultra-HD resolution
A 4K-display with Ultra HD resolution (3840 x 2160) should be connected via DisplayPort, as only this port supports a

This device is classed as a technical information equipment (ITE) in class B and is
intended for use in living room and office. The CE-mark approves the conformity by the
EU-guidelines:

- EMV-guideline 89/336/EWG electromagnetic tolerance

- LVD-guideline 73/23/EWG use of electric devices
within certain voltage limits

e

chan

ec

n su

rma

All

German

els Gm

er Han
u

le

Page 13 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

higher refresh rate of 60Hz. Certain displays (e.g. Dell UP2414Q) however require MST mode (Multi-Stream Transport)
to be enabled which sends two separate images at half resolution each to the display. These two images are then
combined and put in correct order by the Intel graphics driver when in Collage mode. Please note that HBR2­mode (High Bit Rate 2) must be supported by each display to have two of them run at 4K resolution.
The video playback performance depends on the video format, bit rate and the processor used. Daily office
applications usually won't require the system to run under full load, however for smooth 4K (2160p) video playback
requirements are different. An Intel Core i3 processor or higher is required here, since the performance of the
integrated graphics engine of a Celeron or Pentium processor does not suffice.

[6] Optional accessory: Drive bay cover
This accessory provides three additional COM ports to the front panel which means the upper bay can no longer
be used for an optical drive.

[7] High ambient temperature
For high ambient temperature over 40°C we strongly recommend to use SSDs instead of hard disk drives.

[8] The optional accessory PHD4 allows for installation of one 3.5" hard drive. However doing so means no other
drives such as a slimline DVD drive or a 2.5" HDD/SSD can be used.

[9] Power connector for SATA drives
The supplied power cables for SATA drives provide a voltage of 5V. Only in very exceptional cases a 2.5" hard disk
also requires a 12V line, which is not supported out-of-the-box (only via an optional adapter, included by PHD4).

[10] Teaming Mode
The teaming function allows for grouping both available network adapters to work as one single adapter. The
benefit of this approach is that it enables load balancing and failover.
Driver download: https://downloadcenter.intel.com/download/21642

[11] Why may the PS/2 port help install Windows 7?
The Intel® 100 chipset series has done away with support for the Enhanced Host Controller Interface (EHCI) which is
the driver software for the USB 2.0 ports. The new chipset only supports the updated Extensible Host Controller
Interface (xHCI for USB 3.0) which is not supported by the original Windows 7 installation disk. This means, that
peripheral devices connected by USB (like keyboard, mouse and external optical drive) will not work during
Windows 7 Installation. There are two solutions: (1) use a PS/2 keyboard or a PS/2 mouse and install Windows 7 from
an internal Slimline DVD drive or (2) add the required USB 3.0 drivers to the Windows 7 installation files - this
procedure is explained in the Shuttle FAQ section at global.shuttle.com.

[12] Memory compatibility
This mainboard supports DDR3L-1333/1600 SO-DIMM memory modules. DDR3L has a lower operation voltage
(1.35V) compared to DDR3 (1.5V). However, some modules are approved for both voltages.
Memory modules that are designed for higher frequencies can also be used. The installed modules then run as
DDR3L-1600.
An SO-DIMM is a small outline version of a DIMM. These are particularly designed for small PCs and laptops where
full-size DIMMs wouldn't fit.

[13] Optional D-Sub/VGA connector
The mainboard features one analog graphics port. This 15-pin D-Sub VGA connector can be lead to the outside of
the backpanel by using an optional adapter PVG01. However doing so means one serial port (COM2) less can be
used at the backpanel.

Product Specification

ses

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

els Gm

er Han
u

le

Page 14 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Shuttle XPC slim Barebone XH110V – Required Components

The following components need to be added to make it a fully-configured Mini-PC:

Slim SATA DVD drive

12.7mm height

LGA1151 processor

TDP max. 65W

Core i7 / i5 / i3, Pentium

or Celeron

and/or Solid State Disk (SSD)

max. height: 9.5mm and 12.5mm)

2.5” SATA hard disk

(two drives supported,

Product Specification

Optional:
M.2 2280 SSD module (SATA/PCIe)

One or two memory modules:
DDR3L-1333/1600 SO-DIMM
max. 16 GB each

Windows / Linux
Operating System

ses

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

els Gm

er Han
u

Optional Accessories

3.5“ Rack

PHD4

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Mylar Cover

MY01

VGA Adapter

PVG01

Tel. [phone]
Fax [phone]
[e-mail]

VESA

PV02

WLAN

WLN-M

Stand

PS01

Page 15 | 11 March 2016

www.shuttle.eu

le

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Product Specification

6th Generation Intel Core Desktop Processor Family

Socket LGA1151 14nm “Skylake-S” processor overview (Date: September 2015)

Processors with TDP>65W are not supported (marked in red)

ses

Name Model

6700K

Core i7

6700

6700T

6600K

6600

6600T

Core i5

6500

6500T

6400

6400T

6320

6300

Core i3

6300T

6100

Cores/

Threads

CPU

Clock

Turbo
Clock

Cache TDP

Graphics

Engine

Graphics

Clock

4 / 8 4.0 GHz 4.2 GHz 8 MB 91 W HD 530 350~1150 MHz

4 / 8 3.4 GHz 4.0 GHz 8 MB 65 W HD 530 350~1150 MHz

4 / 8 2.8 GHz 3.6 GHz 8 MB 35 W HD 530 350~1100 MHz

4 / 4 3.5 GHz 3.9 GHz 6 MB 91 W HD 530 350~1150 MHz

4 / 4 3.3 GHz 3.9 GHz 6 MB 65 W HD 530 350~1150 MHz

4 / 4 2.7 GHz 3.5 GHz 6 MB 35 W HD 530 350~1100 MHz

4 / 4 3.2 GHz 3.6 GHz 6 MB 65 W HD 530 350~1150 MHz

4 / 4 2.5 GHz 3.1 GHz 6 MB 35 W HD 530 350~1100 MHz

4 / 4 2.7 GHz 3.3 GHz 6 MB 65 W HD 530 350~1150 MHz

4 / 4 2.2 GHz 2.8 GHz 6 MB 35 W HD 530 350~1100 MHz

2 / 4 3.9 GHz − 4 MB 51 W HD 530 350~1150 MHz

2 / 4 3.8 GHz − 4 MB 51 W HD 530 350~1150 MHz

2 / 4 3.3 GHz − 4 MB 35 W HD 530 350~1100 MHz

2 / 4 3.7 GHz − 4 MB 51 W HD 530 350~1150 MHz

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

6100T

G4520

G4500

Pentium

G4500T

G4400

G4400T

G3920

Celeron

G3900

G3900T

K = unlocked, S = Performance optimized lifestyle, T = Power optimized lifestyle

Note: The Shuttle XPC slim Barebone XH110V does not support the unlock-function of Intel K-Series processors.

Please refer to the support list for detailed processor support information at global.shuttle.com.

2 / 4 3.2 GHz − 4 MB 35 W HD 530 350~1100 MHz

2 / 2 3.6 GHz − 3 MB 51 W HD 530 350~1050 MHz

2 / 2 3.5 GHz − 3 MB 51 W HD 530 350~1050 MHz

2 / 2 3.0 GHz − 3 MB 35 W HD 530 350~950 MHz

2 / 2 3.3 GHz − 3 MB 54 W HD 510 350~1050 MHz

2 / 2 2.9 GHz − 3 MB 35 W HD 510 350~950 MHz

2 / 2 2.9 GHz − 2 MB 47 W HD 510 350~950 MHz

2 / 2 2.8 GHz − 2 MB 47 W HD 510 350~950 MHz

2 / 2 2.6 GHz − 2 MB 35 W HD 510 350~950 MHz

German

els Gm

er Han
u

le

Page 16 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]
