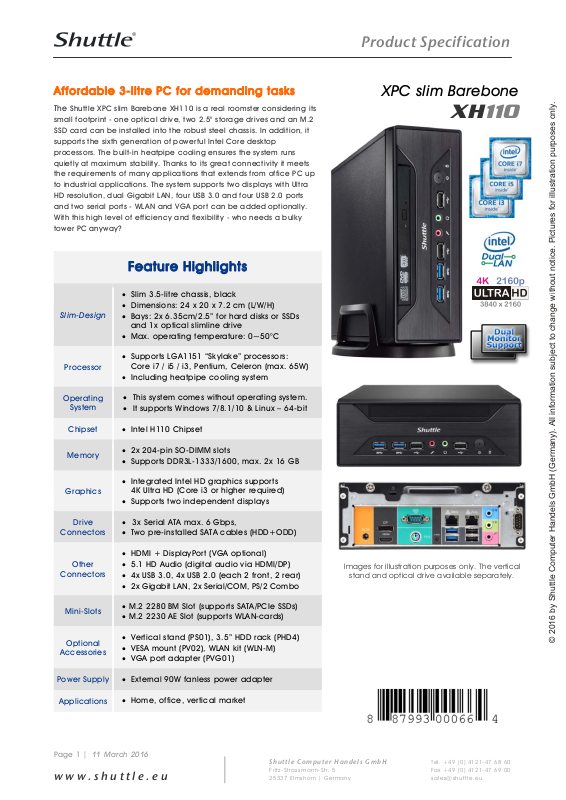

Product Specification

Affordable 3-litre PC for demanding tasks

The Shuttle XPC slim Barebone XH110 is a real roomster considering its

small footprint - one optical drive, two 2.5" storage drives and an M.2
SSD card can be installed into the robust steel chassis. In addition, it
supports the sixth generation of powerful Intel Core desktop
processors. The built-in heatpipe cooling ensures the system runs
quietly at maximum stability. Thanks to its great connectivity it meets
the requirements of many applications that extends from office PC up
to industrial applications. The system supports two displays with Ultra
HD resolution, dual Gigabit LAN, four USB 3.0 and four USB 2.0 ports
and two serial ports - WLAN and VGA port can be added optionally.
With this high level of efficiency and flexibility - who needs a bulky
tower PC anyway?

Feature Highlights

 Slim 3.5-litre chassis, black
 Dimensions: 24 x 20 x 7.2 cm (L/W/H)

Slim-Design

Processor

 Bays: 2x 6.35cm/2.5” for hard disks or SSDs

and 1x optical slimline drive

 Max. operating temperature: 0~50°C

 Supports LGA1151 “Skylake” processors:

Core i7 / i5 / i3, Pentium, Celeron (max. 65W)

 Including heatpipe cooling system

XPC slim Barebone

XH110

ses

llus

ures f
c

ce

n

e

chan

ec

n su

Operating

System

Chipset

Memory

Graphics

Drive

Connectors

Other

Connectors

Mini-Slots

Optional

Accessories

 This system comes without operating system.
 It supports Windows 7/8.1/10 & Linux – 64-bit

 Intel H110 Chipset

 2x 204-pin SO-DIMM slots
 Supports DDR3L-1333/1600, max. 2x 16 GB

 Integrated Intel HD graphics supports

4K Ultra HD (Core i3 or higher required)

 Supports two independent displays

 3x Serial ATA max. 6 Gbps,
 Two pre-installed SATA cables (HDD+ODD)

 HDMI + DisplayPort (VGA optional)
 5.1 HD Audio (digital audio via HDMI/DP)
 4x USB 3.0, 4x USB 2.0 (each 2 front, 2 rear)
 2x Gigabit LAN, 2x Serial/COM, PS/2 Combo

 M.2 2280 BM Slot (supports SATA/PCIe SSDs)
 M.2 2230 AE Slot (supports WLAN-cards)

 Vertical stand (PS01), 3.5” HDD rack (PHD4)
 VESA mount (PV02), WLAN kit (WLN-M)
 VGA port adapter (PVG01)

Images for illustration purposes only. The vertical

stand and optical drive available separately.

rma

All

German

els Gm

er Han
u

le

Power Supply

Applications

Page 1 | 11 March 2016

www.shuttle.eu

 External 90W fanless power adapter

 Home, office, vertical market

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

V

A

V

Product Specification

Shuttle XPC slim Barebone XH110 – Front and Back Panel

Front Panel

5.25“ bay for optical slimline drive (DVD or
Blu-ray)

B

2x USB 3.0 port

C

2x USB 2.0 port

D

Microphone input

E

Headphone output

F

A B B C D E C

JI MHH IL

K

N Q R S U

P

T

F G

WO

Power on button with LED

G

LED indicator for hard disk activity

Back Panel

H

2x perforation for optional WLAN antenna

I

2x thumbscrew

J

Hole for Kensington Lock

K

RS232/422/485 serial interface (COM port)

L

Dual Gigabit network (RJ45)

M

RS232 serial interface (COM port)

N

DC-in Connector for power adapter
Supports 12V and 19V input voltage

O

HDMI Video/Audio output

P

DisplayPort Video/Audio output

Q

PS/2 Combo

R

Clear CMOS button

S

2x USB 3.0

T

2x USB 2.0

U

Microphone input
Headphone / line-out

W

Audio line-in

ses

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

Supports three drives

The Shuttle XPC slim Barebone XH110 supports one optical drive in 5.25” slimline format and two 2.5” drives (e.g. 2.5”
hard disk and 2.5” SSD). A second 2.5” drive requires an additional SATA cable and mounting screws which are not
included. The storage drives (hard disk and optical drive) are not included in the delivery of the XH110. Notice: For
high ambient temperatures over 40°C we strongly recommend to use SSDs instead of hard disk drives.

Page 2 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

els Gm

er Han
u

le

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

A

V

Product Specification

Shuttle XPC slim Barebone XH110 – Mainboard

ses

P

B

Q

llus

C
D
E
F

G

H

I

J

K
L

M

N

R

S

T

U

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

O

Back Panel Connectors

A

CMOS Battery

B

Front Audio Header

C

M.2 2280 Slot for SSD

D

VGA Onboard Connector

E

2x USB 2.0 Header

F

USB 2.0 Header

G

Intel H110 Chipset

H

Page 3 | 11 March 2016

www.shuttle.eu

3x SATA 6G Connector

I

LPC Connector

J

COM Port Header (RS232)

K

COM Port Voltage Jumper

L

2x SO-DIMM Memory Slot

M

Front USB 3.0 Connector

N

System FAN Connector

O

SATA-Power 12V

P

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

SATA-Power 5V

Q

M.2 2230 Slot for WLAN

R

Always-Power-On Jumper

S

LGA1151 CPU Socket

T

CPU FAN Connector

U

Front Button/LED Connector

V

Tel. [phone]
Fax [phone]
[e-mail]

els Gm

er Han
u

le

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Optional Accessories for Shuttle XPC slim Barebone XH110

Product Specification

Vertical Stand (PS01)

The Shuttle XPC slim Barebone XH110 is to be used
in horizontal operation by default. The optional stand

PS01 allows it to be used in upright position also.

ses

llus

VESA 75/100 mount (PV02)

The optional VESA mount allows it to be installed on

to walls or to be attached to the rear side of a

monitor.

ures f
c

ce

n

e

WLAN-Kit (WLN-M)

chan

ec

n su

rma

All

German

Wireless LAN adapter (M.2-2230 card) with two
external antennas supports IEEE 802.11ac and

Bluetooth 4.0

3.5“ Hard Disk Rack (PHD4)

PHD4 allows for installation of one 3.5" hard drive.

However doing so means no other drives, such as a

slimline DVD drive or one 2.5" HDD/SSD, can be

installed.

VGA-Port Adapter (PVG01)

Optional D-Sub VGA Video Output.

Note: Using PVG01 means one serial port (COM2)

less can be used at the backpanel.

els Gm

er Han
u

le

Page 4 | 11 March 2016

www.shuttle.eu

Shuttle Computer Handels GmbH

Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany

Tel. [phone]
Fax [phone]
[e-mail]

©

201

6 b

y Shut

t

C

omp

t

d

bH (

y).

info

tio

b

j

t t

o

g

w

i

thout

oti

.

P

i

t

or i

tration purp

o

only

.

Product Specification

Connectivity / Applications

The Shuttle XPC slim Barebone XH110's wealth of ports qualifies it for a wide range
of applications and external devices.

ses

Point-of-Sales

Office Display

Dual Network

(POS)

PC Speakers

Audio

Peripherals

RS232
RS422
RS485

HDMI / VGA

HDMI / DP

2x RJ45

USB 2.0 / PS/2

HDMI / DP

USB 3.0

Automation

Home Cinema &

Digital Audio

The XH110 is your powerful 3.5-litre Slim PC solution for high performance
driven applications, e.g.:

 Digital Signage (supports 4K resolution)

Digital Signage

USB Hard Disk

llus

ures f
c

ce

n

e

chan

ec

n su

rma

All

German

els Gm

 In-store Audio/Video entertainment
 Gambling

er Han
u

 Home-Media
 Office

le

 Call Centre
 Education
 Kiosk
 Point of Sales (POS)
 Medical
 Automation
 Small Server
