All-in-One PC for POS, POI, Kiosk
Applications
The Shuttle X PC all-in-one X50V7 is the latest addi tion to the X50 Se ries
and is powe red by Intel's Celeron 4205U processor. The new Whiske y
Lake-U p rocessor arch itecture helps improve on power consumption
and computing power. Thanks to its passive cooling, the s ystem is
virtually noiseless, maintenance-free and approved for 24/7 nonstop
operation. Particularly suitable for ve rtical applic ations is the a rrange ment of connecto rs at the bottom and the IP54 complia nt front panel
which is dust-protected and protected fro m splashing of water .
Feature Highlights
All-in-One
Design
XPC all-in-one with touchscreen
Small: 39 1 x 327 x 42 mm (WHL)
Stand can also be used as a handle
100 mm VESA mount capable
IP54 compliant front panel
Approved for 24/7 nonstop operation
Display &
Graphics
39.6 cm (15.6”) resistive touchscreen with a
1366 x 768 r esolution
Integrated Intel UHD 610 graphics
HDMI 1.4a + D-Sub/VGA Video output
CPU &
Cooling
Intel Celeron 4205U, 1.8 GHz, 15 W TDP
Fanless heatpipe cooling system
Storage
(not
included)
Supports max. 2x 32 GB DDR4-2133 SO-DIMM
Supports one 2.5" SATA hard disk / SSD
Supports one M.2-2280 SSD (SATA / PCIe)
Supports internal USB stick (USB 2.0, type A)
Operating
System
Operating syst em is not included
Supports Windows 10 (64-bit) & Linux (64-bit)
Connectivity
HDMI 1.4a, D-Sub/VGA
4x USB 3.2 Gen 1 (5 Gbps), 2x USB 2.0,
internal: 1x USB 2.0 Type A
Microphone input, headphones output
Gigabit LAN, Wireless LAN 802.11ac, BT 4.2
Optional: 4x RS232, 1x LPT, 1x RJ11
Built-in
SD card reader
2.0 Megapixel HD webcam
2x 2 W speakers
Electret Condenser Microphone
Power Supply
External fanless power adapter, 65 W
Warranty
24 months Bring-in Service
15.6”
Touchscreen
Nonstop
operating
Fanless
cooling
Front protected:
dust & water
Up to four
COM ports
Supports
Windows 10 &
Linux (64-bit)
Wireless and
Wired Network
2x USB 3.0
4x USB 2.0
Watchdog
Hardware
Images for illustration purposes only.
XPC all-in-one Barebone
X 50V7 Black
Shuttle
Product
Color
Processor
Model
Cores /
Threads
CPU clock /
Turbo
L3-
Cache
Intel
Graphics
X50V7
Black or White
Celeron 4205U
2 / 2
1.8 / – GHz
2 MB
UHD 610
X50V7U3
Black or White
Core i3-8145U
2 / 4
2.1 / 3.9 GHz
3 MB
UHD 620
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 2 | 11 November 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V7 − Overview
1
Touchscreen LCD display
10
Hole with Power Button
19
DC-input for Power Adapter
2
Webcam
11
SD Card Reader
20
2x USB 2.0
3
Microphone
12
2x USB 3.2 Gen 1
21
RJ45 Gigabit LAN
4
Power on LED
13
Clear CMOS Button
22
2x USB 3.2 Gen 1
5
Hard disk LED
14
Stand (handle)
23
HDMI Video Output
6
Stereo speakers
15
Ventilation holes
24
Audio Line-out (headphones)
7
Stylus with holder
16
Kensington lock
25
Microphone Input
8
Power-on button
17
D-Sub/VGA Video Output
9
2x Perforation for optional
WLAN/LTE antenna
18
Vesa Mount 100x100mm
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 3 | 11 November 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V7 − Mainboard
Connector for optional
COM/LPT adapter
(CON3)POS01 or PCL71
SATA 6 Gbps
for 2.5” drive
5-wire touch screen
connector (JP8)
SD card reader
SO-DIMM memory slots
(max. 2x 32 GB DDR4)
USB 3.0 (= USB 3.2 Gen 1)
USB 2.0
USB 3.0 (= USB 3.2 Gen 1)
Onboard Clear CMOS
button (SW1)
Onboard power button
(SW2)
M.2-2230 slot
occupied with WLAN card
CMOS battery
D-Sub VGA port
eDP connector (EDP1)
USB 2.0 (5) for
onboard Type-A connector
M.2-2280 SSD-Slot
Microphone in (MIC1)
Webcam conn. (CON9)
Power button connector
(SW3)
Power connector for the
accessory POS01 (CON6)
Speakers connector (SPK1)
Debug port (DBG1)
LED connector (LED1)
Processor
USB 2.0
USB 3.0
USB 3.0
DC-Input
RJ45 LAN
HDMI
Line-out
Mic-in
Installable Components:
2.5” SATA drive:
Hard disk or SSD
(max. 12.5 mm)
2x DDR4 SO-DIMM
USB 2.0 Stick
M.2-2280 SSD
(80, 60, 42 mm)
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 4 | 11 November 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V7 – Special Features
All applications at your fingertips
The innovative touchscr een techno logy delivers t he simplest oper ation
possible and makes the screen the centre of action . Its high-quality
design lets you control the whole range of multimedia - music, movies,
video playback and web browsers start by just touching the screen.
All-in-One PC
Your complete PC system with many components already built in
comes in just one singl e device! This includes the webcam,
microphone, mainboard, display, touchscreen input int erface, wireless
LAN module and speakers. It helps you save space, looks s imply stylish
and reduces cabl e clutter.
24/7 nonstop-operation
The Shuttle XPC all-in-one X50 V7 is officially appro ved for 24/7
permanent operation. Thanks to its low power consumpt ion and
completely passive cooling, this PC runs highly reliably making it
perfectly suitable for digital signage a nd POI/POS applicati ons.
Conditions for permanent use:
Free circulation of air amongst the PC must be guaranteed
Ventilation holes must be kept clear
If a hard disk is installed, this m ust also b e approved for
permanent operation by its manufacturer.
Fanless and quiet
The Shuttle XPC all-in-one X50V7 uses a passive thermal module with
heatpipes to lead heat out of the cas e quickly and evenly. The unique
fanless design mak es it perfect to be used in noise -sensitive
environments such as living rooms, hospitals, libraries etc. As an
additional benefit, fan less cases rarely gather dust on the inside and
stay cleaner than others. So it's not only quiet and low in energy use,
but also virtually maintenance -free.
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 5 | 11 November 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Connects to two external Full HD displays
The Shuttle XPC all-in-one X50 V7 features two video outputs: One
analog D-Sub/ VGA connector and one HDMI connector. Two external
Full HD displays c an be connected in extended m ode. Now add the
built-in display of the X50V7 and there are thr ee displays showing
differ ent content.
Protection Class IP54
The front panel of the Shuttle XPC all-in-one X50V7 is dust-protected
and protected from splashing of water according to IP prot ection class
54. Consequently, this All-in-One PC can be used for those indoor
applications, where the touchscreen may be exposed to humidity and
occasional splashing of water. This is particularly welcome in
restaurants, laboratories, production or other places.
Supports high-performance M.2 SSDs
The M.2 slot (type 2280) is equipped with 4X PCI -Express v3.0 lanes and
SATA 3.0 interface. Modern M.2 SSDs with PCI Express interface (P CIe)
and NVMe provide a sign ificant higher bandwidth a s those using t he
older SATA standard. Type 2280 means it sup ports the usual M.2 cards
with a width of 22 mm and a length of 80 mm.
Optimised Cable Management
Most of the connectors are now located on the back panel facing
down. This leads to an effective cable manageme nt making for a
clean, tidy appearance on the desk.
On the left side sit thos e connectors which need to be access ed from
the front: the card reader and two USB ports .
Optional COM, LPT, DIO ports
Shuttle offers two opti onal accessories in order to add legacy ports to
the Shuttle XPC all- in-one X50V7. While t he Shuttle XPC Accessory
PCL71 adds two serial COM ports and one paral lel LPT port, the POS01
adds two more COM ports (with RJ45 connector) and one Digital I/O 12
V / 24 V (RJ11) for a cash drawer, for examp le. COM ports are still
common in industrial automation systems, scientific analysis, POS
systems and other industrial applications.
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 6 | 11 November 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Power on after Power fail
The BIOS setup provides a "Power-On after Power Fail " function that can
be found under "Power Management Configuration" where the PC's
behaviour after power failur e can be determined .
Hidden Power Button
Left photo: The power button can be deactivated to prev ent
unauthorised use. Just disconn ect the appropriate cable from its
header inside the chass is (see red circle).
Right photo: The power button can still be pressed using a straightened
paper clip.
Internal USB Slot
The Shuttle XPC all-in-one X50 V7 features an internal USB 2.0 connector
(type A) for a USB stick of max. 9 cm in length. This onboard conn ector
support USB sticks (such as flas h memory, WLAN or LTE/4G ) or other USB
devices like a radio module for home automation or RFID .
Perforations for two optional external antennas
Der Shuttle XPC all-in-one X50V7 features tw o 7.5 mm perfor ations for
the installation of two external WLAN or LTE/4G antennas .

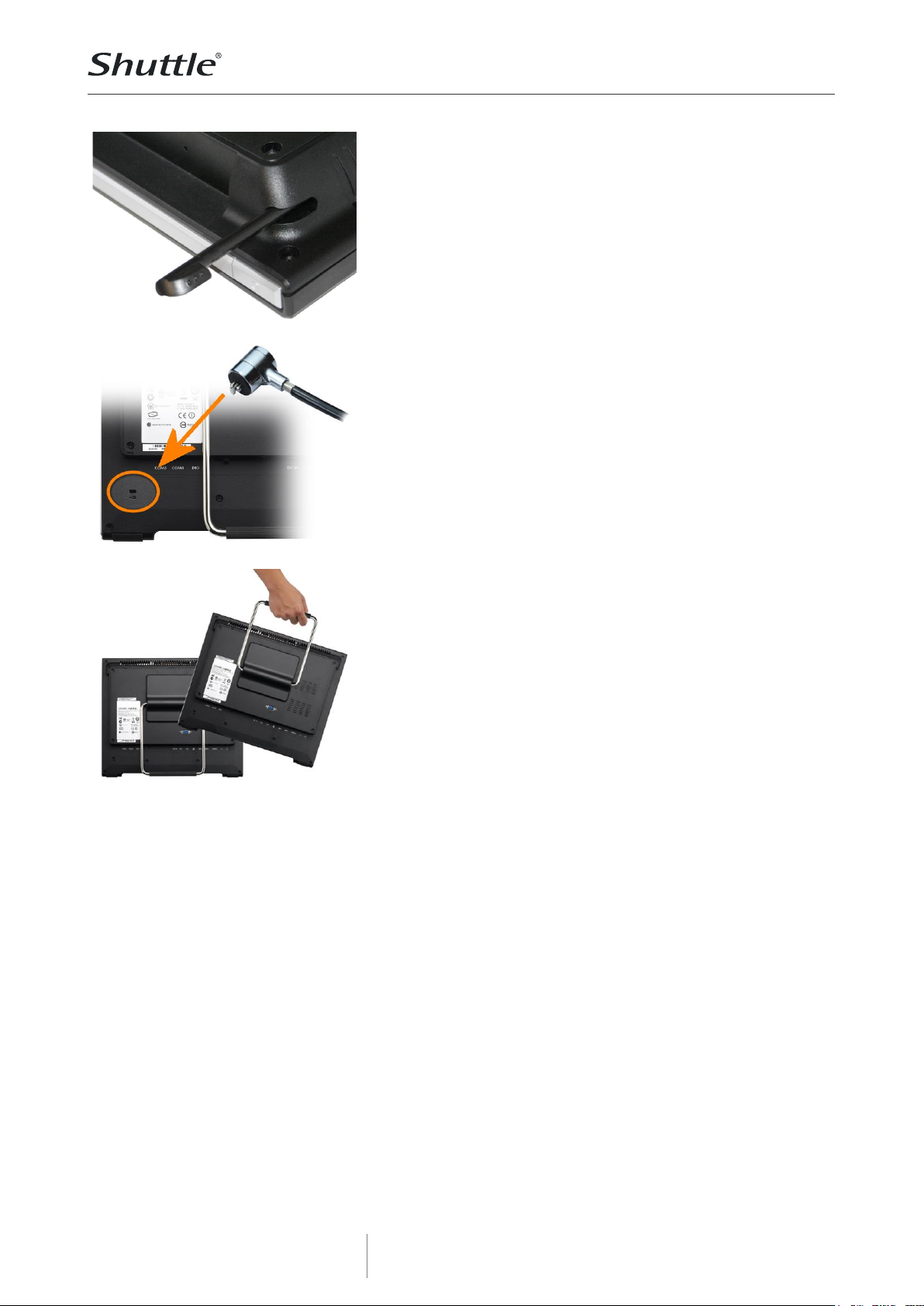

VESA mount
The stand on the r ear can easily be removed to unveil four VESA
mounting screw holes that can be used for mounting arms and other
mounting devices from a variety of manufacturers.
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 7 | 11 November 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Stylus for the touchscreen
The Shuttle XPC all-in-one X50 V7 is equipped with a 5-wire resistive
touchscreen for simple operation by finger (even with gloves) or stylus.
The stylus comes supplied as standard and sits in an opening locat ed
on the top of the chassis. Using the stylus res ults in a smoother and
more precise input than just using a finger .
Kensington Lock
This is a small, m etal-reinforced hole as part of an anti-theft syst em.
(Lock and cable not included .)
Carrying handle
The practical stand can be pulled upwards so that it can also be used
as a handle making the Shuttle XPC all-in-one X50V7 easy to carry.
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 8 | 11 November 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V7 − Range of Applications
Digital Signage
Visual advertising,
Info Terminal
POS
Checkout system in Retail
Stores, Restaurants, Hotels
POS Radio
Playing advertising
and music
Call System
e.g. for nurses (hospital)
or security personnel
Smart Home Control
Surveillance,
Home Automation
Device Control
e.g. for copy
machines
Device Control
e.g. for health services or
fitness equipment
Communication Device
e.g. for the elderly
Visualisation
e.g. for industrial production
machines
On a boat
e.g. for navigation and
entertainment
Data Collector
e.g. Recording of
working hours
Entertainment
e.g. at the dentist or
in the waiting room
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 9 | 11 November 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V7 – Specifications
Fanless and
silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust -free and thus virtually maintenance -free
24/7
nonstop
operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must be kept clear.
- If a hard disk is installed, this must also be approved for permanent
operation by its manufacturer.
IP54
protected
The front panel is dust-protected and prot ected from splashing of water according to
protection class IP54.
Chassis
Colour: black
Dimensions: 391 x 327 x 42 mm (W x H x D)
100mm VESA mount capable
Mounting hole for Kensington lock
Weight: 3.6 kg n et, 4.8 kg gros s
Operating
System
This system comes without operating system.
It is compatible with:
- Windows 10 (64-bit)
- Linux (64-bit)
Touchscreen
Touchscreen function support s fingertip input
Resistive 5-wire sin gle-touch technology
Stylus for the built-in touchscreen
15.6”
Display
39.6 cm / 15.6" L CD display, ratio: 16:9 wid escreen panel
Resolution: 1366 x 768 = 1.05 Megapixel
Backlight unit: High power LED, Luminance: 220 cd/sqm
Glass thickness: 0 .5 mm
Processor
Model: Intel Celeron 4205U (ULV)
System-on-a- chip architecture (SoC) with integrated memor y and graphics controller: no
chipset required
FCBGA1528 package - directly soldered onto the mainboard
Code name: Whiskey Lake U (8th Generation Intel Cor e)
Cores / Threads: 2 / 2
Clock rate: 1.8 GHz
L1/L2/L3 Cache: 128 kB / 512 kB / 2048 kB
TDP wattage: 15 W maximum
Manufacturing process: 3rd generation enhanced 14nm++
Maximum Tjunction Temperature: 100 °C
Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 10 | 11 Novembe r 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Integrated
Graphics
Intel UHD Graphics 610
GPU clock frequency: 300~900 MHz
Execution Units (EUs): 12
Supports DirectX 12
Supports full H264 , H265 8/10 bit, VP8/9, VC-1, AVC hardwar e decoding
Supports Quick Sync Video and Clear Video H D tec hnology
Up to three
displays
Two video ports support two additional independent screens:
1) HDMI 1.4a supports 1920 x 1080 @ 60 Hz or 3840 x 2160 @ 30 Hz
2) VGA / D-Sub analog vid eo supports 1920 x 1080 @ 60 Hz
Special conditions for op eration in Multi-Monitor mode:
1) Clone mode: all displays show the same content at 1366 x 768 resolution
2) Extended mode: all displays show different content
BIOS
AMI BIOS in 8 MByte EEP ROM wit h SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S4, S5 A CPI states
Supports hardware monitoring and watch dog functionality
Supports Firmware TPM v2.0 functionality
Memory
2x SO-DIMM slot with 260 pins
Supports DDR4-2133 (PC4-17000) SDRAM at 1.2 V
Supports Dual Channel mode
Supports a maximum of 32 GB per DIMM, maximum total size: 64 GB
Supports two unbuffered DIMM modules (no ECC or registered)
Storage
Supports one SATA hard disk or one SATA SSD drive in 6.35 cm /2.5 " format
The SATA 3.0 interface supports up to 600 MB/s d ata transfer speed (6 Gbit/s).
Supports one drive with up to 12.5 mm in heig ht
M.2-2280
Slot
The M.2 2280 BM slot provides the following interfaces:
- PCI-Express Gen. 3.0 X4 with up to 32 Gbps Dat a Transfer Speed
- SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm
and a length of 80 mm (type 2280) .
Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe SSDs (w ith M key)
Card
Reader
Integrated card read er supports SD, S DHC and SDXC memory flash cards
Webcam
Integrated 2.0 Megapixel (1600 x 1200) HD webcam
Microphone
Speakers
Front panel with integrated Electret Condenser Microp hone and
2x 2W speakers
Audio
Realtek ALC269 Audio Codec
Two analog audio connectors (3 .5 mm) on the bottom side:
1) Line- out (headphones )
2) Microphone input
Digita l Audio is supported via HDMI.
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 11 | 11 Novembe r 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Wired
Network
Intel i211 Ethernet Controll er with MAC, PHY and P CIe interface
Supports 10 / 100 / 1.000 MB it/s operation
Supports WAKE ON LAN (WOL) from S3, S4 modes
Supports network boot by Preboot eXecution Envir onment (PX E)
Wireless
Network
Built-in M.2-2230-A/E WLAN card with connectors f or tw o external antennas
WLAN Controller Realtek RTL8821AE
Supports WiFi IEEE 802.11b/g/n/ac o n the 2.4 / 5 GHz band, 1T1R
Supports 20 / 40 / 80 MHz channel bandwidth
Security: supports WPA( -PSK), WPA2(-PSK), WEP 64/128 bit, IEEE 802.11x, IEEE 802.11i
Supports Bluetooth 4.0 on the 2.4 GHz band
Front LEDs
Power LED (blue)
Hard disk LED (orange)
Connectors
left side
Power button
2x USB 3 .2 Gen 1 (5 Gbps)
SD card reader
Hole with power button
Hole with Clear CMOS button
Perforation for optional WLAN/LTE antenna (diameter: 6.5 mm)
Connectors
bottom side
HDMI 1.4a (supports digital video and digital a udio)
2x USB 3 .2 Gen 1 (5 Gbps)
2x USB 2.0
Gigabit Network (LAN, RJ45)
Audio Line-out / headphon es (3.5 mm jack)
Microphone input (3.5 mm jack)
DC input for external power adapt er (5.5 / 2.5 mm)
Perforation for optional WLAN/LTE antenna (diameter: 6.5 mm)
Optional: 2x COM/serial (RJ45), DIO (RJ11) for cas h drawer (accessory POS01)
Connectors
rear side
VGA connector (D-Sub 15 p ol., analog video)
Optional: 2x COM/serial (D-Sub), 1x LPT/parallel (accessory: PCL71 or POS01)
Connectors
onboard
Internal USB 2.0 type A connector f or a USB stick
Serial ATA (6 Gbps)
Serial ATA power connector
3x USB 2.0 header (all occupied)
eDP connector (Embedded Di splayPort) - occupied by t he display
Connector for optional COM/LPT adapter POS01 or PCL71
Power
Adapter
External 65 W power adapter (fanless)
Input: 100~240 V A C, 50/60 Hz, ma x. 1.6 A
Output: 19 V DC, max. 3.42 A, max. 65 W
DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
Note: The X50V7 also supports a 60 W pow er adapter with 12 V DC output voltage
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 12 | 11 Novembe r 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
DC Input
DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external
power source with either 12V±5% or 19V±5%.
Included
Accessories
Quick Guide
Driver DVD
External Power Adapter (65W / 19 V) with Power cord
Serial ATA cable f or the 2.5" drive
Screws
Optional
Accessories
PCL71: COM / LPT adapter:
- 1 x Parallel (25p D -Sub)
- 2 x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
POS01: COM / LPT adapter:
- 1 x Parallel (25p D -Sub)
- 2 x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
- 2 x Serial RS232 (8p RJ45)
- 1 x DIO/RJ11 conn ector for cash drawer supports 12 / 24V
PF55: Carrying bag
Environ-
mental
criteria
Operating temperature: 0~40 °C
Humidity: 10~90 %, n on-condensing
Certification
and
Compliance
EMI: CE, FCC, BSMI
Safety: CB, BSMI, ETL
Other compliances: RoHS, ErP Lot6, Energy Star v5.0
Conformity
This device is classed as a techn ical information equipment (ITE) in class B and is
intended for use in living room and office. The CE -mark approves the conform ity b y the
EU dir ectives:
(1) 2014/30/EU relating to electr omagnetic compatibility (EMC),
(2) 2014/35/EU relating to Electr ical Equipment designed for use withi n certain volta ge
limits (LVD),
(3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP),
(4) 2014/53/EU Rad io Equipment Directive (RED)
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 13 | 11 Novembe r 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50 Series
Product Comparison
Model
X50V4
X50V5 Series
X50V6 Series
X50V7 Series
Processor
Intel ULV processor
Code name: Haswell-U
22 nm, 15 W TDP
Intel ULV processor
Code name: Skylake-U
14 nm, 15 W TDP
Intel ULV processor
Code name: Kaby Lake-U
14 nm, 15 W TDP
Intel ULV processor
Code name: Whiskey Lake-U
14 nm, 15 W TDP
SKUs
X50V4: Celeron 2957U
X50V5: Celeron 3855U
X50V5U3: Core i3-6100U
X50V6: Celeron 3865U
X50V6U3: Core i3-7100U
X50V7: Celeron 4205U
X50V7U3: Core i3-8145U
Operation
System
Support
Windows 7 – 64 -bit
Windows 8.1 – 64-bit
Windows 10 – 64-bit
Linux – 64-bit
Windows 7 – 64 -bit
Windows 8.1 – 64-bit
Windows 10 – 64-bit
Linux – 64-bit
Windows 10 – 64-bit
Linux – 64-bit
Windows 10 – 64-bit
Linux – 64-bit
SSD Card
Support
mSATA
M.2-2280BM
(PCIe x4, SATA)
M.2-2280BM
(PCIe x4, SATA)
M.2-2280BM
(PCIe x4, SATA)
Memory
Support
Max. 1x 8 GB
DDR3L-1600
204-pin SO-DIMM
Max. 1x 16 GB
DDR3L-1600
204-pin SO-DIMM
Max. 2x 16 GB
DDR4-2133
260-pin SO-DIMM
Max. 2x 32 GB
DDR4-2133 (Celeron)
DDR4-2400 (Core i3)
260-pin SO-DIMM
USB
2x USB 3.2 Gen 1
4x USB 2.0
1x USB 2.0 onboard
2x USB 3.2 Gen 1
4x USB 2.0
1x USB 2.0 onboard
2x USB 3.2 Gen 1
4x USB 2.0
1x USB 2.0 onboard
4x USB 3.2 Gen 1
2x USB 2.0
1x USB 2.0 onboard
Wired LAN
Realtek RTL8411
Gigabit LAN
Intel i219LM
Gigabit LAN
Intel i211
Gigabit LAN
Intel i211
Gigabit LAN
Wireless LAN
Realtek RTL8188EE
IEEE 802.11n
Internal antenna
Realtek RTL8821AE
IEEE 802.11ac + BT
2x internal antenna
Realtek RTL8188EE
IEEE 802.11n
Internal antenna
Realtek RTL8821CE-CG
IEEE 802.11ac, BT 4.2
2x internal antenna
Perforation
for optional
antenna
1x 9 mm for TV/SAT
1x 9 mm for TV/SAT
1x 9 mm for TV/SAT
2x 6.3 mm for WLAN/LTE
Power adapter
65 W / 19 V
65 W / 19 V
(supports 60 W / 12 V)
65 W / 19 V
(supports 60 W / 12 V)
65 W / 19 V
(supports 60 W / 12 V)
TPM
-
Firmware TPM v2.0
(since 2016-09-13)
Firmware TPM v2.0
Firmware TPM v2.0
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @s hut tle. eu
Page 14 | 11 Novembe r 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one − Comparison
Touch Display
Model
Processor
Colour
UPC Code
11.6”
1366 x 768 pixels
Capacitive
P20U
Intel Celeron 3865U
Black
887993001487
15.6”
1366 x 768 pixels
Resistive
X50V7
Intel Celeron 4205U
Black
887993002149
White
887993002156
X50V7U3
Intel Core i3-8145U
Black
887993002163
White
887993002170
15.6”
1920 x 1080 pixels
Capacitive
P51U
Intel Celeron 4205U
Black
887993001791
P51U3
Intel Core i3-8145U
Black
887993002187
19.5”
1600 x 900 pixels
Capacitive
P90U
Intel Celeron 3865U
Black
887993001661
White
887993001890
P90U3
Intel Core i3-7100U
Black
887993001685
White
887993001906
P90U5
Intel Core i5-7200U
Black
887993001678
P20U (11.6”)
X50V7 (15.6”)
P51U (15.6”)
P90U (19.5”)
Loading...
