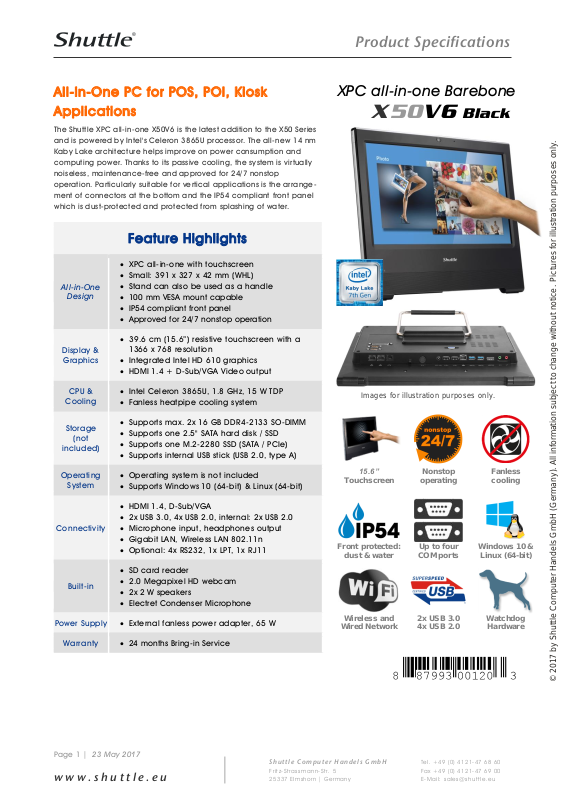

All-in-One PC for POS, POI, Kiosk
Applications
The Shuttle X PC all-in-one X50V6 is the latest addi tion to the X50 Se ries
and is powe red by Intel's Celeron 3865U processor. The all -new 14 nm
Kaby L ake architecture helps im prove on powe r consumption a nd
computing powe r. Thanks to its passive cooling, the sys tem is virtuall y
noiseless, maintenance-free and approved for 2 4/7 nonstop
operation. Particularly suitable for ve rtical applic ations is the a rrange ment of connecto rs at the bottom and the IP54 compliant front panel
which is dust-protected and protected fro m splashing of water.
Feature Highlights
All-in-One
Design
XPC all-in-one with touchscreen
Small: 39 1 x 327 x 42 mm (WHL)
Stand can also be used as a handle
100 mm VESA mount capable
IP54 compliant front panel
Approved for 24/7 nonstop operation
Display &
Graphics
39.6 cm (15.6”) resistive touchscreen with a
1366 x 768 r esolution
Integrated Intel HD 610 graphics
HDMI 1.4 + D-Sub/VGA Video output
CPU &
Cooling
Intel Celeron 3865U, 1.8 GHz, 15 W TDP
Fanless heatpipe cooling system
Storage
(not
included)
Supports max. 2x 16 GB DDR4-2133 SO-DIMM
Supports one 2.5" SATA hard disk / SSD
Supports one M.2-2280 SSD (SATA / PCIe)
Supports internal USB stick (USB 2.0, type A)
Operating
System
Operating system is not included
Supports Windows 10 (64-bit) & Linux (64-bit)
Connectivity
HDMI 1.4, D-Sub/ VGA
2x USB 3.0, 4x USB 2.0, internal: 2x USB 2.0
Microphone input, headphones output
Gigabit LAN, Wireless LAN 802.11n
Optional: 4x RS232, 1x LPT, 1x RJ11
Built-in
SD card reader
2.0 Megapixel HD webcam
2x 2 W speakers
Electret Condenser Microphone
Power Supply
External fanless power adapter, 65 W
Warranty
24 months Bring-in Service
15.6”
Touchscreen
Nonstop
operating
Fanless
cooling
Front protected:
dust & water
Up to four
COM ports
Windows 10 &
Linux (64-bit)
Wireless and
Wired Network
2x USB 3.0
4x USB 2.0
Watchdog
Hardware
Images for illustration purposes only.
XPC all-in-one Barebone
X 50V6 Black
Page 2
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 2 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V6 − Overview
2
3
4
5
6
6
8
7
1
3
1
0
1
1
1
2
9
18
19
13
16 20 21 22 23 24 25 26 27
14
16 8
15
1
Touchscreen LCD display
10
SD Card Reader
19
Optional: 4x COM, LPT, RJ11 (POS01)
2
Webcam
11
2x USB 2.0
20
Perforation for TV antenna (9 mm)
3
Microphone
12
Clear CMOS Button
21
DC-input for Power Adapter
4
Power on LED
13
Stand (handle)
22
2x USB 2.0
5
Hard disk LED
14
Cooling Vents
23
RJ45 Gigabit LAN
6
Stereo speakers
15
Kensington lock
24
2x USB 3.0
7
Power-on button
16
D-Sub/VGA Video Output
25
HDMI Video Output
8
Stylus with holder
17
Vesa Mount 100x100mm
26
Audio Line-out (headphones)
9
Power Button
18
Optional: 2x COM + LTP (PCL71)
27
Microphone Input
Page 3
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 3 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V6 − Mainboard
Connector for optional
COM/LPT adapter
(CON3)POS01 or PCL71
SATA 6 Gbps
for 2.5” drive
5-wire touch screen
connector (JP8)
SD card reader
SO-DIMM memory slots
(max. 2x 16 GB DDR4)
USB 2.0
USB 2.0
USB 2.0
Onboard Clear CMOS
button (SW1)
Onboard power button
(SW2)
M.2-2230 slot
occupied with WLAN card
CMOS battery
D-Sub VGA port
eDP connector (EDP1)
USB 2.0 (5) for
onboard Type-A connector
Always power-on
jumper (JP7)
M.2-2280 SSD-Slot
Microphone in (MIC1)
Webcam conn. (CON9)
Power button connector
(SW3)
Power connector for the
accessory POS01 (CON6)
Speakers connector
(SPK1)
Debug port (DBG1)
LED connector (LED1)
Processor
USB 2.0
USB 3.0
USB 3.0
DC-Input
RJ45 LAN
HDMI
Line-out
Mic-in
BIOS EEPROM
Installable Components:
2.5” SATA drive:
Hard disk or SSD
(max. 12.5 mm)
2x DDR4 SO-DIMM
USB 2.0 Stick
M.2-2280 SSD
(80, 60, 42 mm)
Page 4
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 4 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V6 – Special Features
All applications at your fingertips
The innovative touchscr een techno logy delivers t he sim plest operation
possible and makes the screen the centre of action . Its high-quality
design lets you control the whole range of multimedia - music, movies,
video playback and web browsers start by just touching the screen.
All-in-One PC
Your complete PC system with many components already bu ilt i n
comes in just one singl e device! This includes the webcam,
microphone, mainboard, display, touchscreen input int erface, wireless
LAN module and speakers. It helps you save space, looks s imply stylish
and reduces cable clutter.
24/7 nonstop operation
The Shuttle XPC all-in-one X50 V6 is officially appro ved for 24/7
permanent operation. Thanks to its low power consumpt ion and
completely passive cooling, this PC runs highly reliable making it
perfectly suitable for digital signage and POI/POS applications.
Conditions for permanent use:
Ambient temperature while under load: 5 - 35 °C
Air humidity while under load: 10 - 80 % (not condensing)
Free circulation of air amongst the PC must be guaranteed
Ventilation holes must be kept clear
If a hard disk is installed, this m ust also b e approved for
permanent operation by its manufacturer.
Fanless and quiet
The Shuttle XPC all-in-one X50V6 uses a passive thermal module with
heatpipes to lead heat out of the cas e quickly and evenly. The unique
fanless design mak es it perfect to be used in noise -sensitive
environments such as living rooms , hos pitals, libraries etc. As an
additional benefit, fan less cases rarely gather dust on the inside and
stay cleaner than others. So it's not only quiet and low in en ergy use,
but also virtually maintenance -free.
Page 5
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 5 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Connects to two external Full HD displays
The Shuttle XPC all-in-one X50 V6 features two video outputs: One
analog D-Sub/ VGA connector and one HDMI connector. Two external
Full HD displays c an be connected in extended m ode. Now add the
built-in display of the X50V6 and there are three displays showing
differ ent content.
Protection Class IP54
The front panel of the Shuttle XPC all-in-one X50V6 is dust-protected
and protected from splashing of water according to IP prot ection class
54. Consequently, this All-in-One PC can be used for those indoor
applications, where the touchscreen may be exposed to humidity and
occasional splashing of water. This is particularly welcome in
restaurants, laboratories, production or other places.
Supports high-performance M.2 SSDs
The M.2 slot (type 2280) is fully -equipped with 4X PCI -Express v3.0 lanes
and SATA 3.0 interfaces . Modern M.2 SSDs with PCI Express interface
(PCIe) and NVMe provide a sign ificant higher bandw ith compared to
the usual SATA standard . Type 2280 means it supports the usual M.2
cards with a width of 22 mm and a length of 80 mm, but also 2242 and
2260 standard cards are supp orted .
Optimised Cable Management
Most of the connectors are now located at the back panel facing
down. This leads to an effective cable management making for a
clean, tidy appearance on the desk.
On the left side sit thos e connectors which need to be access ed from
the front: the card reader and two USB ports .
Connects to two external Full HD displays
The Shuttle XPC all-in-one X50 V6 features two video outputs: One
analog D-Sub/ VGA connector and one HDMI connector. Two external
Full HD displays can be connected in extend ed mode. Now add the
built-in display of the X50V6 and there are three displays showing
differ ent content.
Page 6
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 6 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Optional COM, LPT, DIO ports
Shuttle offers two opti onal accessories in order to add lega cy ports t o
the Shuttle XPC all- in-one X50V6. While t he Shuttle Accessory PCL71
adds two serial COM ports and one para llel LPT port, the POS01 adds
two more COM ports (with RJ45 connector) and one Digital I/O 12 V /
24 V (RJ11) for a ca sh drawer, for exam ple. COM ports are still
common ly used for applications such as industrial aut om ation systems,
scientific analysis, POS systems and other industrial applications.
Power on after Power fail
The BIOS setup provides a "Power-On after Power Fail " function that can
be found under "Power Management Configuration" w here the PC's
behaviour aft er power failure can be determined .
Always Power-on Jumper
The Shuttle XPC all-in-one X50 V6 also comes with a hardware -based
solution. By removing Jumper 7, the system will start unconditionally
once power is applied.
Hidden Power Button
The power button can be deactivated to prevent unauthorized use. Still
it can be used with a straightened paper clip as shown on the left .
Internal USB Slot and perforation for external antenna
The Shuttle XPC all-in-one X50 V6 features an internal USB 2.0 connector
(type A) for a USB stick of m ax. 9 cm in length and a 9 mm perforation
for an optional antenna. The internal USB connector for expansion
sticks (such as flash memory, DVB-T, SAT, 3G) or other USB devices like a
radio module for home automation or RFID. Furthermore, ther e is a free
USB header available on the mainboard.
Page 7
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 7 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
VESA mount
The stand on the r ear can easily be removed to unveil four VESA
mounting screw holes that can be used for mounting arms and other
mounting devices from a variety of ma nufacturers.
Stylus for the touchscreen
The Shuttle XPC all-in-one X50 V6 is equipped with a 5-wire resistive
touchscreen for simple operation by finger (even with gloves) or stylus.
The stylus comes supplied as standard and sits in an opening locat ed
at the top of the chass is. Using the stylus results in a sm oother and more
precise input than just using a finger .
Kensington Lock
This is a small, m etal-reinforced hole as part of an anti-theft syst em.
(Lock and cable not included .)
Carrying handle
The practical stand can be pulled upwards to also serve as a handle
making the Shuttle XPC all-in-one X50V6 easy to carry. Clever!
Page 8
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 8 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V6 − Range of Applications
Office Work
Word and spreadsheet
processing, email, internet
Control
Surveillance,
Home Automation,
Control device
P.O.S.
Point of sales
Communication
Email, VoIP, Messenger,
Blog, Video Conferencing
Digital Signage
Visual advertising,
entertainment, displaying
information in public areas
Instore Radio
Playing advertising
and music
Page 9
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 9 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50V6 – Specifications
Fanless and
silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust -free and thus virtually maintenance -free
24/7
nonstop
operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must be kept clear.
- If a hard disk is installed, this must also be approved for permanent
operation by its manufacturer.
IP54
protected
The front panel is dust-protected and protected from splashing of water according to
protection class IP54.
Chassis
Colour: black
Dimensions: 391 x 327 x 42 mm (W x H x D)
100mm VESA mount capable
Mounting hole for Kensington lock
Weight: 3.6 kg n et, 4.8 kg gros s
Operation
System
This system comes without operating system.
It is compatible with:
- Windows 10 (64-bit)
- Linux (64-bit)
Touchscreen
Touchscreen function support s fingertip input
Resistive 5-wire sin gle-touch technology
Stylus for the touchscr een includ ed
15.6”
Display
39.6 cm / 15.6" LCD display, ratio: 16:9 widescreen panel
Resolution: 1366 x 768 = 1.05 Megapixel
Backlight unit: High power L ED, Lumina nce: 220 cd/sqm
Glass thickness: 0 .5 mm
Processor
Model: Intel Celeron 3865U (ULV)
System-on-a- chip architecture (SoC): no chipset required
BGA1356 package - directly soldered onto the mainboard
Code name: Kaby Lake-U (7th Generation Intel Core)
Cores / Threads: 2 / 2, Clo ck rate: 1 .8 GHz
L1/L2/L3 Cache: 128 kB / 512 kB / 2048 kB
Memory controller: DDR4 -2133 D ual Channel (1.2 V)
TDP wattage: 15 W maximum
Manufacturing process: 14 nm
Maximum Tjunction Temperature: 100 °C
Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2
Integrated graphics engine
Page 10
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 10 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Integrated
Graphics
Intel HD Graphics 610
GPU clock frequency: 300~900 MHz
Execution Units (EUs): 12
Supports DirectX 12
Supports full H264 , H265 8/10 bit , VP8/9, VC-1, AVC hardwar e decoding
Supports Quick Sync Video and Clear Video H D tec hnology
Up to three
displays
Two video ports support two additional independent screens:
1) HDMI 1.4 supports 1920 x 1080 @ 60 Hz or 3840 x 2160 @ 30 Hz
2) VGA / D-Sub analog video supports 1920 x 1080 @ 60 Hz
Special conditions for operation in Multi-Monitor ing mode:
1) Clone mode: all displays show the same content at 1 366 x 768 resolut ion
2) Extended mode: all displays show different content
BIOS
AMI BIOS in 8 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S4, S5 A CPI states
Supports hardware monitoring and wa tch dog functionality
Supports Firmware TPM v2.0 functionality
Memory
2x SO-DIMM slot with 260 pins
Supports DDR4-2133 (PC4-17000) SDRAM at 1.2 V
Supports Dual Channel mode
Supports a maximum of 16 GB per DIMM, maximum total size: 32 GB
Supports two unbuf fered DIMM modules (no ECC or registered)
Storage
Supports one SATA hard disk or one SATA SSD drive in 6.35 cm /2.5 " format
The SATA 3.0 interface supports up to 600 MB/s d ata transfer speed (6 Gbit/s).
Supports one drive with up to 12.5 mm in heig ht
M.2-2280
Slot
The M.2 2280 BM slot provides the following interfaces:
- PCI-Express Gen. 3.0 X4 with up to 32 Gbps Dat a Transfer Speed
- SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm
and a length of 42 , 60 or 80 mm (type 2242, 2260, 2280).
Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe SSDs (w ith M key)
Card
Reader
Integrated card reader supports SD, S DHC and SDXC memory flash cards
Webcam
Integrated 2.0 Megapixel (1600 x 1200) HD webcam
Microphone
Speakers
Front panel with integrated Electret Condenser Microphone and
2x 2W speakers
Audio
Realtek ALC269 Audio Codec
Two analog audio connectors (3.5 mm) on the bott om side:
1) Line- out (headphones )
2) Microphone input
Digita l Audio is supported via HDMI.
Page 11
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 11 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Wired
Network
Intel i211 Ethernet Contr oller with MAC, PHY and PCIe interface
Supports 10 / 100 / 1.000 MB it/s operation
Supports WAKE ON LAN (WOL) from S3, S4 modes
Supports network boot by Preboot eXecution Envir onment (PX E)
Wireless
Network
WLAN chip: Realtek 8188EE
Supports IEEE 802.11b/g/n for 2.4 GHz band
Speed: max. 150Mbps up-/downstream
Security: WPA/WPA2, WEP
M.2-2230AE card with internal antenna
Front LEDs
Power LED (blue)
Hard disk LED (orange)
Connectors
left side
Power button
2x USB 2.0
SD card reader
Hole with power button
Hole with Clear CMOS button
Connectors
bottom side
HDMI 1.4 (supports digital video and digital audio)
2x USB 3.0
2x USB 2.0
Gigabit Network (LAN, RJ45)
Audio Line-out / headphon es (3.5 mm jack)
Microphone input (3.5 mm jack)
DC input for external pow er adapter (5.5 / 2.5 mm)
Perforation for optional TV/3G antenna (diameter: 9 mm)
Optional: 2x COM/serial (RJ45), DIO (RJ11) for cas h drawer (accessory POS01)
Connectors
rear side
VGA connector (D-Sub 15 p ol., analog video)
Optional: 2x COM/serial (D-Sub), 1x LPT/parallel (accessory: PCL71 or POS01)
Connectors
onboard
Internal USB 2.0 type A connector for a USB stick
Serial ATA (6 Gbps)
Serial ATA power connector
3x USB 2.0 header (all occupied)
eDP connector (Embedded Di splayPort) - occupied by t he displa y
Connector for optional COM/LPT adapter POS01 or PCL71
Power
Adapter
External 65 W power adapter (fanless)
Input: 100~240 V A C, 50/60 Hz, ma x. 1.6 A
Output: 19 V DC, max. 3.42 A, max. 65 W
DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
Note: The X50V6 also supports a 60 W pow er adapter with 12 V DC output voltage
DC Input
DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external
power source with either 12V±5% or 19V±5%.
Page 12
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 12 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Included
Accessories
Quick Guide
Driver DVD
External Power Adapter (65W / 19 V) with Power cord
Serial ATA cable for the 2.5" drive
Screws
Optional
Accessories
PCL71: COM / LPT adapter:
- 1 x Parallel (25p D -Sub)
- 2 x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
POS01: COM / LPT adapter:
- 1 x Parallel (25p D -Sub)
- 2 x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
- 2 x Serial RS232 (8p RJ45)
- 1 x DIO/RJ11 conn ector for cash drawer supports 12 / 24V
PF55: Carrying bag
Environ-
mental
criteria
Operating temperature: 0~40 °C
Humidity: 10~90 %
Certification
and
Compliance
EMI: CE, FCC, BSMI
Safety: CB, BSMI, ETL
Other compliances: RoHS, ErP Lot6, Energy Star v5.0
Conformity
This device is classed as a technical information equipment (ITE) in class B and is
intended for use in living room and office. The CE -mark approves the conform ity b y the
EU dir ectives:
(1) 2004/108/EC relating to electromagnetic compatibility (EMC),
(2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage
limits (LVD),
(3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP),
(4) 1999/5/EC related t o Rad io an d Telecommunications Terminal Eq uipment (R&TTE)
Page 13
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 13 | 23 May 2017
© 2017 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X50 Series
Product Comparison
Model
X50V4
X50V5 Series
X50V6 Series
Processor
Intel ULV processor
Code name: Haswell-U
22 nm, 15 W TDP
Intel ULV processor
Code name: Skylake-U
14 nm, 15 W TDP
Intel ULV processor
Code name: Kaby Lake-U
14 nm, 15 W TDP
SKUs
X50V4: Celeron 2957U
X50V5: Celeron 3855U
X50V5U3: Core i3-6100U
X50V6: Celeron 3865U
Operation System
Support
Windows 7 – 64-bit
Windows 8.1 – 64-bit
Windows 10 – 64-bit
Linux – 64-bit
Windows 7 – 64-bit
Windows 8.1 – 64-bit
Windows 10 – 64-bit
Linux – 64-bit
Windows 10 – 64-bit
Linux – 64-bit
SSD Card Support
mSATA
M.2-2280BM
(PCIe x4, SATA)
M.2-2280BM
(PCIe x4, SATA)
Memory Support
Max. 1x 8 GB
DDR3L-1600
204-pin SO-DIMM
Max. 1x 16 GB
DDR3L-1600
204-pin SO-DIMM
Max. 2x 16 GB
DDR4-2133
260-pin SO-DIMM
Wired LAN
Realtek RTL8411
Gigabit LAN
Intel i219LM
Gigabit LAN
Intel i211
Gigabit LAN
Wireless LAN
Realtek RTL8188EE
IEEE 802.11n
Internal antenna
Realtek RTL8821AE
IEEE 802.11ac + BT
2x internal antenna
Realtek RTL8188EE
IEEE 802.11n
Internal antenna
Power adapter
65 W / 19 V
65 W / 19 V
(supports 60 W / 12 V)
65 W / 19 V
(supports 60 W / 12 V)
TPM
-
Firmware TPM v2.0
(since 2016-09-13)
Firmware TPM v2.0
Loading...
