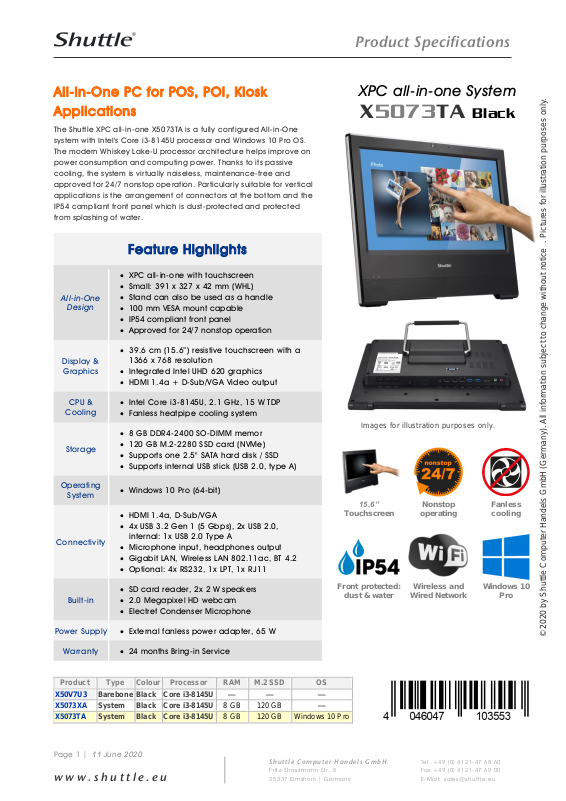

Page 1
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 1 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
All-in-One PC for POS, POI, Kiosk
Applications
The Shuttle X PC all-in-one X5073TA is a fully configured A ll -in-One
system with Intel's Core i3-8145U processor and Windows 10 Pro OS.
The mo dern Whiskey Lake-U processor architecture helps improve o n
power consumptio n and computing power. Thanks to its pass ive
cooling, the sys tem is virtuall y noiseless, maintenance-free an d
approved for 24/ 7 nonsto p ope ration. Particularly su itable for ve rtical
applic ations is the arrangement of connectors at the bottom and the
IP5 4 compliant front panel which i s dust-protected and pro tected
from splash ing o f water.
Feature Highlights
All-in-One
Design
XPC all-in-one with touchscreen
Small: 39 1 x 327 x 42 mm (WHL)
Stand can also be used as a handle
100 mm VESA mount capable
IP54 compliant front panel
Approved for 24/7 nonstop operation
Display &
Graphics
39.6 cm (15.6”) resistive touchscreen with a
1366 x 768 r esolution
Integrated Intel UHD 620 graphics
HDMI 1.4a + D-Sub/VGA Video output
CPU &
Cooling
Intel Core i3-8145 U, 2.1 GHz, 15 W TDP
Fanless heatpipe cooling system
Storage
8 GB DDR4-2400 SO-DIMM memor
120 GB M.2-2280 SSD card (NVMe)
Supports one 2.5" SATA hard disk / SSD
Supports internal USB stick (USB 2.0, type A)
Operating
System
Windows 10 Pro (64-bit)
Connectivity
HDMI 1.4a, D-Sub/VGA
4x USB 3.2 Gen 1 (5 Gbps), 2x USB 2.0,
internal: 1x USB 2.0 Type A
Microphone input, headphones output
Gigabit LAN, Wireless LAN 802.11ac, BT 4.2
Optional: 4x RS232, 1x LPT, 1x RJ11
Built-in
SD card reader , 2x 2 W speakers
2.0 Megapixel HD webcam
Electret Condenser Microphone
Power Supply
External fanless power adapter, 65 W
Warranty
24 months Bring-in Service
15.6”
Touchscreen
Nonstop
operating
Fanless
cooling
Front protected:
dust & water
Wireless and
Wired Network
Windows 10
Pro
Images for illustration purposes only.
XPC all-in-one System
X5073TA Black
Product
Type
Colour
Processor
RAM
M.2 SSD
OS
X50V7U3
Barebone
Black
Core i3-8145U
— — —
X5073XA
System
Black
Core i3-8145U
8 GB
120 GB
—
X5073TA
System
Black
Core i3-8145U
8 GB
120 GB
Windows 10 Pro
Page 2
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 2 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X5073TA − Overview
1
Touchscreen LCD display
10
Hole with Power Button
19
DC-input for Power Adapter
2
Webcam
11
SD Card Reader
20
2x USB 2.0
3
Microphone
12
2x USB 3.2 Gen 1
21
RJ45 Gigabit LAN
4
Power on LED
13
Clear CMOS Button
22
2x USB 3.2 Gen 1
5
Hard disk LED
14
Stand (handle)
23
HDMI Video Output
6
Stereo speakers
15
Ventilation holes
24
Audio Line-out (headphones)
7
Stylus with holder
16
Kensington lock
25
Microphone Input
8
Power-on button
17
D-Sub/VGA Video Output
9
2x Perforation for optional
WLAN/LTE antenna
18
Vesa Mount 100x100mm
Page 3
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 3 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X5073TA – Special Features
All applications at your fingertips
The innovative touchscr een techno logy delivers t he simplest operation
possible and makes the screen the centre of action . Its high-quality
design lets you control the whole range of multimedia - music, movies,
video playback and web browsers start by just touching the screen.
All-in-One PC
Your complete PC s ystem with many component s already built in
comes in just one singl e device! This includes the webcam,
microphone, mainboard, display, tou chscreen inp ut interface, wireless
LAN module and speakers. It helps you save space, looks s imply stylish
and reduces cabl e clutter.
24/7 nonstop-operation
The Shuttle XPC all-in-one X5073TA is offi cially approved for 24/7
permanent operation. Thanks to its low power consumption and
completely passive cooling, this PC runs highly reliably making it
perfectly suitable for digital signage and POI/POS applications.
Conditions for permanent use:
Free circulation of air amongst the PC must be guaranteed
Ventilation holes must be kept clear
Fanless and quiet
The Shuttle XPC all-in-one X5073TA uses a passive thermal module with
heatpipes to lead heat out of the cas e quickly and evenly. The unique
fanless design mak es it perfect to be used in noise -sensitive
environments such as living rooms , hos pitals, libraries etc. As an
additional benefit, fan less cases rarely gather dust on the inside and
stay cleaner than others. So it's not on ly quiet and low in energy use,
but also virtually maintenance -free.
Connects to two external Full HD displays
The Shuttle XPC all-in-one X5073TA features two video outputs: One
analog D-Sub/ VGA connector and one HDMI connector . Two external
Full HD displays c an be connected in extended m ode. Now add the
built-in display of the X5073TA and there are three displays showing
differ ent content.
Page 4
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 4 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Protection Class IP54
The front panel of the Shuttle XPC all-in-one X5073TA is dust-protected
and protected from splashing of water according to IP prot ection class
54. Consequently, this All-in-One PC can be used for those indoor
applications, where the touchscreen may be exposed to humidity and
occasional splashing of water. This is particularly welcome in
restaurants, laboratories, production or other places.
Optimised Cable Management
Most of the connectors are now located on the back panel facing
down. This leads to an effective cable management making for a
clean, tidy appear ance on the desk.
On the left side sit thos e connectors which need to be access ed from
the front: the card reader and two USB ports .
Power on after Power fail
The BIOS setup provides a "Power-On after Power Fail " function that can
be found under "Power Management Configuration" where the PC's
behaviour after power failur e can be determined .
Hidden Power Button
Left photo: The power button can be deactivated to prev ent
unauthorised use. Just disconn ect the appropriate cable from its
header inside the chassis (see red circle).
Right photo: The power button can still be pressed using a straightened
paper clip.
Page 5
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 5 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
VESA mount
The stand on the r ear can easily be removed to unveil four VESA
mounting screw holes that can be used for mounting arms and other
mounting devices from a variety of manufacturers.
Stylus for the touchscreen
The Shuttle XPC all-in-one X5073TA is equipped with a 5-wir e resistive
touchscreen for simple operation by finger (even with gloves) or stylus.
The stylus comes supplied as standard and sits in an opening locat ed
on the top of the chassis. Using the stylus res ults in a smoother and
more precise input than just using a finger .
Kensington Lock
This is a small, m etal-reinforced hole as part of an anti-theft syst em.
(Lock and cab le not included .)
Carrying handle
The practical stand can be pulled upwards so that it can also be used
as a handle making the Shuttle XPC all-in-one X5073TA easy to carry.
Page 6
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 6 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X5073TA − Range of Applications
Digital Signage
Visual advertising,
Info Terminal
POS
Checkout system in Retail
Stores, Restaurants, Hotels
POS Radio
Playing advertising
and music
Call System
e.g. for nurses (hospital)
or security personnel
Smart Home Control
Surveillance,
Home Automation
Device Control
e.g. for copy
machines
Device Control
e.g. for health services or
fitness equipment
Communication Device
e.g. for the elderly
Visualisation
e.g. for industrial production
machines
On a boat
e.g. for navigation and
entertainment
Data Collector
e.g. Recording of
working hours
Entertainment
e.g. at the dentist or
in the waiting room
Page 7
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 7 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one X5073TA – Specifications
Fanless and
silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust -free and thus virtually maintenance -free
24/7
nonstop
operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must be kept clear.
- If a hard disk is installed, this must also be approved for permanent
operation by its manufacturer.
IP54
protected
The front panel is dust-protected and prot ected from splashing of water according to
protection class IP54.
Chassis
Colour: black
Dimensions: 391 x 327 x 42 mm (W x H x D)
100mm VESA mount capable
Mounting hole for Kensington lock
Weight: 3.6 kg n et, 4.8 kg gros s
Operating
System
Windows 10 Pro (64-bit)
Touchscreen
Touchscreen function support s fingertip input
Resistive 5-wire sin gle-touch technology
Stylus for the built-in touchscreen
15.6”
Display
39.6 cm / 15.6" L CD display, ratio: 16:9 wid escreen panel
Resolution: 1366 x 768 = 1.05 Megapixel
Backlight unit: High power LED, Luminance: 220 cd/sqm
Glass thickness: 0 .5 mm
Processor
Model: Intel Core i3-8145U (ULV)
System-on-a- chip architecture (SoC) with integrated memor y and graphics controller: no
chipset required
FCBGA1528 package - directly soldered onto the mainboard
Code name: Whiskey Lake U (8th Generat ion Intel Core)
Cores / Threads: 2 / 4
Clock rate: 1.8 GHz, max. Turbo Frequency: 3.9 GHz
L1/L2/L3 Cache: 128 kB / 512 kB / 4 MB
TDP wattage: 15 W maximum
Manufacturing process: 3rd-generation enhanced 14nm++
Maximum Tjunction Temperature: 100 °C
Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2
Page 8
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 8 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Integrated
Graphics
Intel UHD Graphics 620
GPU clock frequency: 300~1000 MHz
Execution Units (EUs): 24
Supports DirectX 12
Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardwar e decoding
Supports Quick Sync Video and Clear Video H D tec hnology
Up to three
displays
Two video ports support two additional independent screens:
1) HDMI 1.4a supports 1920 x 1080 @ 60 Hz or 3840 x 2160 @ 30 Hz
2) VGA / D-Sub analog video supports 1920 x 1080 @ 60 Hz
Special conditions for op eration in Multi-Monitor mode:
1) Clone mode: all displays show the same content at 1366 x 768 resolution
2) Extended mode: all displays show different content
BIOS
AMI BIOS in 8 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S4, S5 A CPI states
Supports hardware monitoring and watch dog functionality
Supports Firmware TPM v2.0 functionality
Memory
8 GB DDR4-2400 (PC4-19200) SDRAM at 1.2 V
SO-DIMM format with 260 pins
Supports a maximum of 32 GB per DIMM
Maximum total size: 64 GB
M.2 SSD
120 GB SSD card in M.2-2280 format (M key)
PCIe interface, supports NVMe
Optional
Storage
Supports one SATA hard disk or one SATA SS D drive in 6.35 cm /2.5 " format
The SATA 3.0 interface supports up to 600 MB/s d ata transfer speed (6 Gbit/s).
Supports one drive with up to 12.5 mm in heig ht
Card
Reader
Integrated card reader supports SD, S DHC and SDXC memory flash cards
Webcam
Integrated 2.0 Megapixel (1600 x 1200) HD webcam
Microphone
Speakers
Front panel with integrated Electret Condenser Microp hone and
2x 2W speakers
Audio
Realtek ALC269 Audio Codec
Two analog audio connectors (3.5 mm) on the bott om side:
1) Line- out (headphones)
2) Microphone input
Digita l Audio is supported via HDMI.
Page 9
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 9 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Wired
Network
Intel i211 Ethernet Controll er with MAC, PHY and P CIe interface
Supports 10 / 100 / 1.000 MB it/s operation
Supports WAKE ON LAN (WOL) from S3, S4 modes
Supports network boot by Preboot eX ecution Environment (PXE)
Wireless
Network
Built-in M.2-2230-A/E WLAN card with connectors f or tw o external antennas
WLAN Controller Realtek RTL8821AE
Supports WiFi IEEE 802.11b/g/n/ac o n the 2.4 / 5 GHz band, 1T1R
Supports 20 / 40 / 80 MHz channel bandwidt h
Security: supports WPA( -PSK), WPA2(-PSK), WEP 64/128 bit, IEEE 802.11x, IEEE 802.11i
Supports Bluetooth 4.0 on the 2.4 GHz band
Front LEDs
Power LED (blue)
Hard disk LED (orange)
Connectors
left side
Power button
2x USB 3 .2 Gen 1 (5 Gbps)
SD card reader
Hole with power button
Hole with Clear CMOS button
Perforation for optional WLAN/LTE antenna (diameter: 6.5 mm)
Connectors
bottom side
HDMI 1.4a (supports digital video and digital audio)
2x USB 3 .2 Gen 1 (5 Gbps)
2x USB 2.0
Gigabit Network (LAN, RJ45)
Audio Line-out / headphon es (3.5 mm jack)
Microphone input (3.5 mm jack)
DC input for external power adapt er (5.5 / 2.5 mm)
Perforation for optional WLAN/LTE antenna (diameter: 6.5 mm)
Optional: 2x COM/serial (RJ45), DIO (RJ11) for cas h drawer (accessory POS01)
Connectors
rear side
VGA connector (D-Sub 15 p ol., analog video)
Optional: 2x COM/serial (D-Sub), 1x LPT/parallel (accessory: PCL71 or POS01)
Connectors
onboard
Internal USB 2.0 type A connector for a USB stick
Serial ATA (6 Gbps)
Serial ATA power conn ector
3x USB 2.0 header (all occupied)
eDP connector (Embedded Di splayPort) - occupied by t he display
Connector for optional COM/LPT adapter POS01 or PCL71
Power
Adapter
External 65 W power adapter (fanless)
Input: 100~240 V A C, 50/60 H z, max. 1.6 A
Output: 19 V DC, max. 3.42 A, max. 65 W
DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
Note: The X5073TA also supports a 60 W power adapt er with 12 V DC output voltage
Page 10
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: sa les @shu tt le. eu
Page 10 | 11 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
DC Input
DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external
power source with either 12V±5% or 19V±5%.
Included
Accessories
Quick Guide
Driver DVD
External Power Adapter (65W / 19 V) with Power cord
Serial ATA cable for the 2.5" drive
Screws
Optional
Accessories
PCL71: COM / LPT adapter:
- 1 x Parallel (25p D -Sub)
- 2 x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
POS01: COM / LPT adapter:
- 1 x Parallel (25p D -Sub)
- 2 x Serial RS232 (9p D-Sub) supports 0 / 5 / 12V
- 2 x Serial RS232 (8p RJ45)
- 1 x DIO/RJ11 conn ector for cash drawer supports 12 / 24V
PF55: Carrying bag
Environ-
mental
criteria
Operating temperature: 0~40 °C
Humidity: 10~90 %, n on-condensing
Certification
and
Compliance
EMI: CE, FCC, BSMI
Safety: CB, BSMI, ETL
Other compliances: RoHS, ErP Lot6, Energy Star v5.0
Conformity
This device is classed as a techn ical information equipment (ITE) in class B and is
intended for use in living room and office. The CE -mark approves the conform ity b y the
EU dir ectives:
(1) 2014/30/EU relating to electr omagnetic compatibility (EMC),
(2) 2014/35/EU rel ating to Electrical Equipment designed for use within certain voltage
limits (LVD),
(3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP),
(4) 2014/53/EU Radio Equipment Directive (RED)
Loading...
