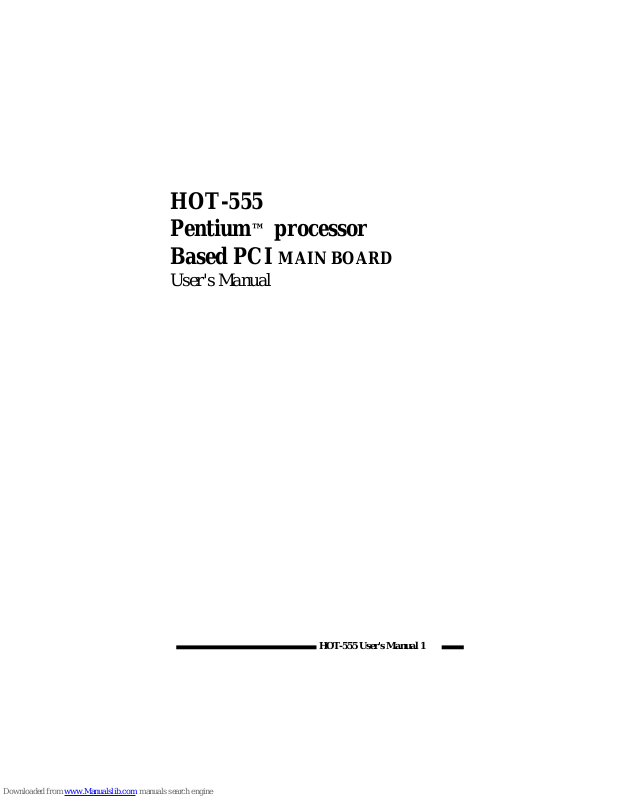

HOT-555 User's Manual 1
HOT-555 Pentium™ processor Based PCI MAIN BOARD
User's Manual
FCC Notice:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/television technician for help and for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful “How to Identify
and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office. Washington, DC 20402, Stock 004-000-00345-4
FCC Warning
The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment.
Note : In order for an installation of this product to maintain compliance with the limits for a Class B device, shielded cables and power cord must be used.
NOTICE
Copyright 1996. All Right Reserved Manual Ver 1.1 All information, documentation, and specifications contained in this manual are subject to change without prior
notification by the manufacturer. The author assumes no responsibility for any errors or omissions which may appear in this document nor does it
make a commitment to update the information contained herein.
TRADEMARKS
Intel is a registered trademark of Intel Corporation Pentium Processor is a registered trademark of Intel Corporation PC/AT is a registered trademark of International Business Machine Corporation. PS/2 is a registered trademark of IBM Corporation. All other brand and product names referred to in this manual are trademarks or registered trademarks of their
respective holders.
HOT-555 User's Manual 3
TABLE OF CONTENTS
PREFACE ............................................................................................ 4
CHAPTER 1 INTRODUCTION.................................................................. 5
Specification.......................................................................................................5
CHAPTER 2 HARDWARE INSTALLATION .................................................. 7
Jumpers ...............................................................................................................8
CPU Clock Speed Selection..............................................................................8
Onboard Regulator Output Selection - JP4, 10, 13, 36.................................9
Flash EPROM Jumper - JP18.........................................................................10
Clear CMOS - JP21 .........................................................................................10
Clear Password - JP9.......................................................................................10
Connectors & Sockets......................................................................................11
CHAPTER 3 MEMORY CONFIGURATION ............................................... 12
CHAPTER 4 AWARD BIOS SETUP....................................................... 15
The Main Menu................................................................................................16
Standard CMOS Setup....................................................................................18
BIOS Features Setup .......................................................................................20
Chipset Features Setup....................................................................................22
Power Management Setup...............................................................................25
PCI Configuration Setup.................................................................................27
Integrated Peripherals......................................................................................29
Password Setting..............................................................................................31
HOT-555 User's Manual 4
HOT-555 mainboard is a highly integrated IBM PC/AT compatible system board. The design will accept Intel Pentium, Cyrix 6x86 and AMD5k86 processors and also features high-performance pipeline burst secondary cache memory support with size of 256KB. The memory subsystem is designed to support up to 128 MB of EDO RAM, Standard Fast Page DRAM and SDRAM in standard 72-pin SIMM socket and 168-pin DIMM socket. A type 7 Pentium processor socket provides access to future processor enhancements.
HOT-555 provides a new level of I/O integration. Intel's 82430VX PCIset chipset provides increased integration and improved performance over other chipset designs. The 82430VX PCIset chipset provides an integrated Bus Mastering IDE controller with two high performance IDE interfaces for up to four IDE devices.
The onboard Super I/O controller provides the standard PC I/O functions: floppy interface, two FIFO serial ports, an IrDA device port and a SPP/EPP/ ECP capable parallel port.
Up to three PCI local bus slots provide a high bandwidth data path for data­movement intensive functions such as graphics, and up to three ISA slots complete the I/O function.
The HOT-555 provides the foundation for cost effective, high performance, highly expandable platforms, which deliver the latest in Pentium processor and I/O standard
Preface
HOT-555 User's Manual 5
Chapter1 Introduction
Specification
CPU Function
Pentium processor clock : 75~200MHz Cyrix 6x86 CPU clock : 100~133MHz AMD5k86 CPU clock : 66~100MHz
Chipset
Intel PCISet 82437VX, 82438VX and 82371SB
Memory
Supports two banks of EDO RAM, Fast Page and Sync. DRAM ranging from 8MB to 128MB
Supports 4MB, 8MB, 16MB, 32MB 72-pins SIMMs and 8MB, 16MB, 32MB 168-pin DIMMs
Cache Memory
Integrated L2 write-back cache controller
- 256KB Direct Mapped Pipeline Burst Cache
Power Management Function
Provides four power management modes : Full on, Doze, Standby, and Suspend
Supports Microsoft APM Provides EPMI (External Power Management Interrupt) pin
HOT-555 User's Manual 6
Expansions
32-bit PCI bus slot x 3 16-bit ISA bus slot x 3 2-channel PCI IDE port
- Support up to 4 IDE devices
- PIO Mode 4 transfers up to 16 MB/sec
- Integrated 8 x 32-bit buffer for PCI IDE burst transfers One floppy port One parallel port
- Supports SPP (PS/2 compatible bidirectional Parallel Port), EPP (Enhanced Parallel Port), and ECP (Extended Capabilities Port) high performance parallel port.
Two serial ports
- Supports 16C550 compatible UARTS.
- Supports IrDA (Infra-red) communication. One PS/2 mouse port USB (Universal Serial Bus) port
Board Design
Dimension 220mm x 230mm
HOT-555 User's Manual 7
Jumpers
Chapter2 Hardware Installation
HOT-555 User's Manual 8
CPU Clock Speed Selection
HOT-555 mainboard features a clock generator to provide adjustable system clock frequency. Jumpers JP27 and JP28 determine the system clock frequency from 50MHz to 66MHz.
HOT-555 mainboard also provides Jumpers JP23 and JP24 to figure up CPU core clock multiplier. By inserting or removing jumper caps on JP23 and JP24, the user can change the Host Bus Clock /CPU Core Clock ratio from 1 : 1.5 to 1 : 3.
CPU CLOCK SPEED JP27 JP28
SYSTEM
CLOCK
JP23 JP24
CPU Bus/Core RATIO
75 MHz Pentium Processor
CLOSE CLOSE 50 MHz
OPEN OPEN 1 : 1.5
90 MHz Pentium Processor
CLOSE OPEN 60 MHz
OPEN OPEN 1 : 1.5
100 MHz Pentium Processor
OPEN CLOSE 66 MHz
OPEN OPEN 1 : 1.5
120 MHz Pentium Processor
CLOSE OPEN 60 MHz
CLOSE OPEN 1 : 2
133 MHz Pentium Processor
OPEN CLOSE 66 MHz
CLOSE OPEN 1 : 2
150 MHz Pentium Processor
CLOSE CLOSE 50 MHz
OPEN CLOSE 1 : 3
180 MHz Pentium Processor
CLOSE OPEN 60 MHz
OPEN CLOSE 1 : 3
200 MHz Pentium Processor
OPEN CLOSE 66 MHz
OPEN CLOSE 1 : 3
125 MHz Pentium Processor
CLOSE CLOSE 50 MHz
CLOSE CLOSE 1 : 2.5
150 MHz Pentium Processor
CLOSE OPEN 60 MHz
CLOSE CLOSE 1 : 2.5
166 MHz Pentium Processor
OPEN CLOSE 66 MHz
CLOSE CLOSE 1 : 2.5
66 MHz AMD5k86 - P75
OPEN CLOSE 66 MHz
CLOSE OPEN 1 : 1
75 MHz AMD5k86 - P75
CLOSE CLOSE 50 MHz
OPEN OPEN 1 : 1.5
90 MHz AMD5K86 - P90
CLOSE OPEN 60 MHz
OPEN OPEN 1 : 1.5
100 MHz AMD5k86 - P100
OPEN CLOSE 66 MHz
OPEN OPEN 1 : 1.5
100 MHz Cyrix 6x86 - P120+
CLOSE CLOSE 50 MHz
OPEN OPEN 1 : 2
110 MHz Cyrix 6x86 - P133+
OPEN OPEN 55 MHz
OPEN OPEN 1 : 2
120 MHz Cyrix 6x86 - P150+
CLOSE OPEN 60 MHz
OPEN OPEN 1 : 2
133 MHz Cyrix 6x86 - P166+
OPEN CLOSE 66 MHz
OPEN OPEN 1 : 2
HOT-555 User's Manual 9
HOT-555 mainboard is designed an onboard voltage regulator to provide single 3.3V voltage ranger (VIO=VCORE) for Intel Pentium P54C, Cyrix 6x86 and AMD5k86 processors, and also provide dual 3.3/2.5V voltage ranger (VIO, VCORE separated ) for Intel P55C processors and Cyrix/AMD future processors.
Single Voltage Output (VIO=VCORE)
Onboard Regulator Output Selection - JP4, 10, 13, 36
Dual Voltage Output (VIO, VCORE separated)
Voltage
Output-Vio
JP4 JP13
3.3 V 5 - 6 CLOSE
OPEN
3.45 V
3 - 4 CLOSE
3.6 V
1 - 2 CLOSE
Voltage
Output-Vcore
JP10 JP36
2.5 V
ALL OPEN 3 - 4, 5 - 6 CLOSE
2.6 V ALL OPEN 3 - 4, 7 - 8 CLOSE
2.7 V 1 - 2 CLOSE 3 - 4 CLOSE
2.8 V
3 - 4 CLOSE 3 - 4 CLOSE
2.9 V
5 - 6 CLOSE 3 - 4 CLOSE
3.0 V
7 - 8 CLOSE 3 - 4 CLOSE
Voltage Output JP4 JP10, JP13, JP36
3.3 V
5 - 6 CLOSE
JP10 : All OPEN, JP13 : CLOSE, JP36 : 1 - 2 CLOSE
3.45 V
3 - 4 CLOSE
3.6 V 1 - 2 CLOSE
Note :
1. It is highly recommended that a CPU cooling fan is attached to the CPU to ensure system stability.
2. Make sure none of the CPU cooling fan assembly the heat sink on the regulator to avoid damage to system.
HOT-555 User's Manual 10
HOT-555 mainboard supports jumper JP21 for discharge mainboard's CMOS memory. The CMOS memory retains the system configuration information in the component of R.T.C.
You should short this jumper for a moment when you wish to clear CMOS memory, and then make sure open this jumper for normal operation to retain your new CMOS data.
Note: Clear CMOS & R.T.C function available only when "DS12887A" or "DS12B887" are in use.
There are different ways to discharge CMOS memory between "DS12887A" and "DS12B887".
DS12887A - Turn off power, close jumper JP21 for 2 to 3 seconds then release and CMOS will be discharged.
DS12B887 - Close jumper JP21, turn on power durning 2 to 3 seconds then release JP21 and turn off power, CMOS will be discharged.
Clear CMOS - JP21
Flash EPROM Jumper - JP18
HOT-555 mainboard supports two types of flash EPROM, 5 volt and 12 volt. By setting up jumper JP18, you can update both types of flash EPROM with new system BIOS files as they come available. JP18 Pin 2-3 Closed for 5V, Pin 1-2 Close for 12V.
BIOS UPGRADES
Flash memory makes distributing BIOS upgrades easy. A new version of the BIOS can be installed from a diskette.
The flash upgrade utility, Awdflash.exe, has two notice for BIOS upgrades:
Flash utility can't work under protected/virtual mode. Memory manager like QEMM.386, EMM386 should not be loaded. (or Simply bypass all config.sys and autoexec.bat on system boot up.
Flash utility supports both 5V and 12V Flash EEPROM.
HOT-555 User's Manual 11
Clear Password - JP9
Allows system password to be cleared by shorting jumper JP9 and turning the system on, "Password is cleared by jumper, (JCP) !" message will shown up on power-on screen. The system should then be turned off and the jumper JP9 should be returned to OPEN to restore normal operation. The procedure should only be done if the user password has been forgotten. (This function may not available when Cyrix 6x86 CPU is in use)

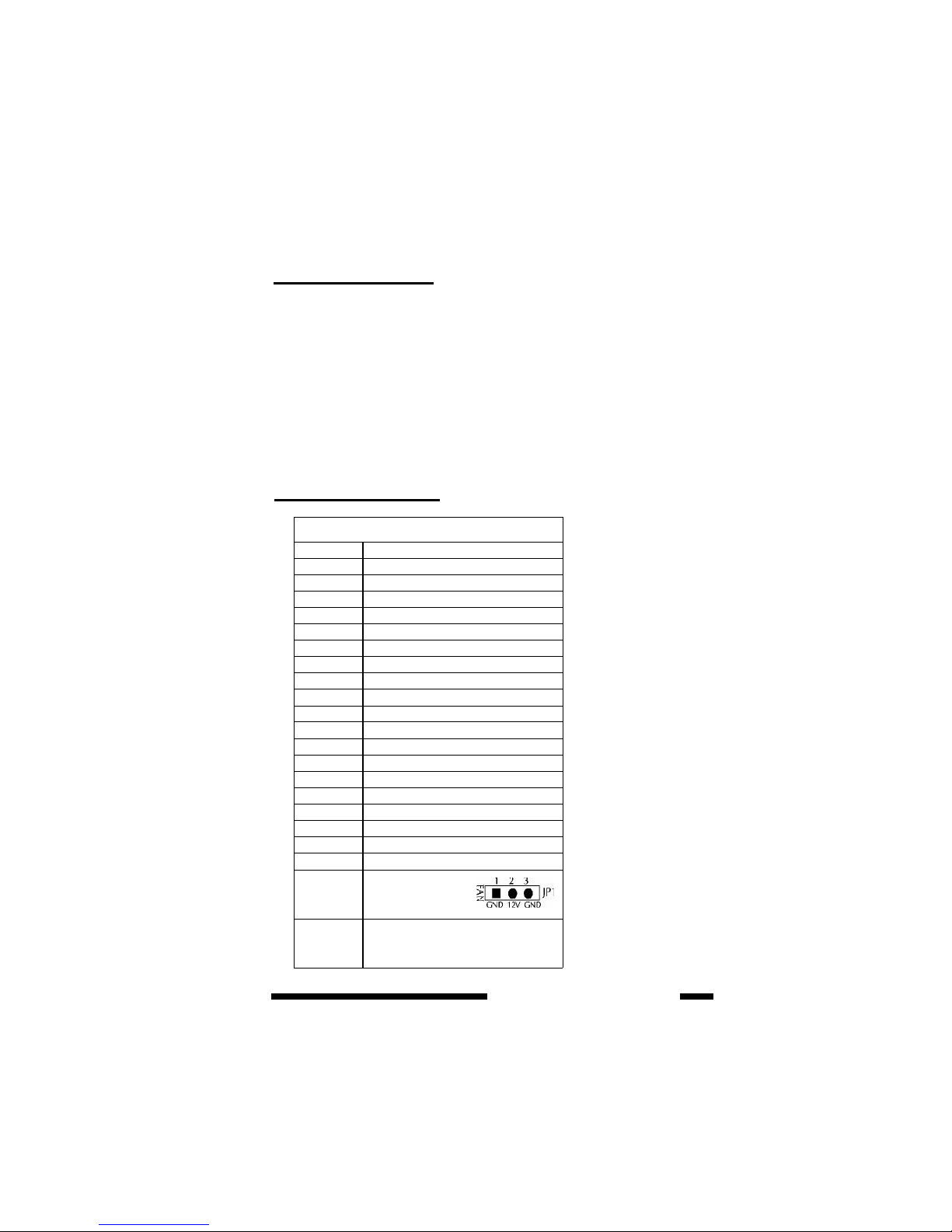

Connectors & Sockets
Connectors & Sockets
ITEM FUNCTION
J2, J3, J4, J5 On-board SIMM sockets
DIM1, DIM2 On-board DIMM sockets J17, J18, J19 On-board PCI Slots J20, J21, J22 On-board ISA Slots
J6 On-board PCI Primary IDE Connector
J7 On-board PCI Secondary IDE Connector CN1 On-board Floppy Controller Connector CN4 On-board Parallel Port Connector CN2 On-board Serial port-1 Connector CN3 On-board Serial Port-2 Connector
J99 On-board PS/2 Mouse Port Connector J14 Power LED and Keylock Connector
J12 PC Speaker Connector JP12 Hardware Reset Switch Connector JP17 Green LED JP15 EPMI Connector JP22 On-board Enhanced IDE R/W LED Connector
J10, J11 Universal Serial Bus (USB) Connectors
JP3 IrDA Communication Port Connector
JP1 Cooling Fan Connector
JP7
Display type (Color/Mono) Switcher Open for Monochrome Close for EGA/CGA VGA display card don't care
HOT-555 User's Manual 12
Chapter3 Memory Configuration
The HOT-555 mainboard provides four 72-pin SIMM sockets and two 168­pin DIMM sockets that make it possible to install up to 128MB of RAM. The SIMM socket support 4MB, 8MB, 16MB, and 32MB single- or double­side fast page or EDO DRAM modules. Memory timing requires 70 ns fast page devices or, for optimum performance, 60 ns EDO DRAM or 70 ns Synchronous DRAM may be used. Both parity and non-parity memory are supported.
The four SIMM sockets are arranged in two banks of two sockets each and the two DIMM sockets are arranged in two banks of one socket each. Each bank provides a 64/72-bit wide data path.
Both SIMMs in a bank must be of the same memory size and type, although the different types of memory may differ between banks. It is possible to have 70 ns fast page DRAM in one bank and 60 ns EDO DRAM in the other.
The DIMM socket share the same address lines with SIMM socket, there have some restriction of memory configuration, please refer to Table 3-1, Table 3-2, and Table 3-3.
Table 3-1. Restriction of Memory Configuration
SIMM 1, 2
( J2, J3 )
SIMM 3, 4
( J4, J5 )
DIMM 1 ( DIM1 )
DIMM 2 ( DIM 2)
Description
Single-bank Single-bank Single-bank Single-bank
Single-bank SIMM include 4 MB and 16 MB. Double-bank SIMM include 8 MB and 32 MB.
Single-bank DIMM include 8 MB and 32 MB Double-bank DIMM include 16 MB.
Single-bank Double-bank Single-bank Not Available
Double-bank Single-bank Not Available Single-bank
Empty Empty Double-bank Double-bank
Double-bank Double-bank Not Available Not Available
Single-bank Empty Single-bank Double-bank
Empty Single-bank Double-bank Single-bank
HOT-555 User's Manual 13
Table 3-2. Memory Configuration Table
SIMM 1, 2 SIMM 3, 4 DIMM 1 DIMM 2 TOTAL
4 MB Empty Empty Empty 8 MB
8 MB Empty Empty Empty 16 MB 16 MB Empty Empty Empty 32 MB 32 MB Empty Empty Empty 64 MB Empty 4 MB Empty Empty 8 MB Empty 8 MB Empty Empty 16 MB Empty 16 MB Empty Empty 32 MB Empty 32 MB Empty Empty 64 MB Empty Empty 8 MB Empty 8 MB Empty Empty 16 MB Empty 16 MB Empty Empty 32 MB Empty 32 MB Empty Empty Empty 8 MB 8 MB Empty Empty Empty 16 MB 16 MB Empty Empty Empty 32 MB 32 MB Empty Empty 8 MB 8 MB 16 MB Empty Empty 16 MB 16 MB 32 MB Empty Empty 32 MB 32 MB 64 MB
4 MB 4 MB Empty Empty 16 MB
4 MB 4 MB 8 MB Empty 24 MB
4 MB 4 MB 8 MB 8 MB 32 MB
4 MB 4 MB 32 MB Empty 48 MB
4 MB 4 MB 32 MB 32 MB 80 MB
4 MB 8 MB Empty Not Available 24 MB
4 MB 8 MB 8 MB Not Available 32 MB
4 MB 8 MB 32 MB Not Available 56 MB
4 MB 16 MB Empty Empty 40 MB
4 MB 16 MB 8 MB Empty 48 MB
4 MB 16 MB 8 MB 8 MB 56 MB
4MB 16 MB 32 MB Empty 72 MB 4 MB 16 MB 32 MB 32 MB 104 MB 4 MB 32 MB Empty Not Available 72 MB 4 MB 32 MB 8 MB Not Available 80 MB 4 MB 32 MB 32 MB Not Available 104 MB
HOT-555 User's Manual 14
Table 3-3. Memory Configuration Table Continued
SIMM 1, 2 SIMM 3, 4 DIMM 1 DIMM 2 TOTAL
8 MB 8 MB Not Available Not Available 32 MB 8 MB 16 MB Not Available Empty 48 MB 8 MB 16 MB Not Available 8 MB 56 MB 8 MB 16 MB Not Available 32 MB 80 MB 8 MB 32 MB Not Available Not Available 80 MB 8 MB Empty Not Available 8 MB 24 MB 8 MB Empty Not Available 16 MB 32 MB
8 MB Empty Not Available 32 MB 48 MB 16 MB 16 MB Empty Empty 64 MB 16 MB 16 MB 8 MB Empty 72 MB 16 MB 16 MB 8 MB 8 MB 80 MB 16 MB 16 MB 32 MB Empty 96 MB 16 MB 16 MB 8 MB 32 MB 104 MB 16 MB 16 MB 32 MB 32 MB 128 MB 16 MB Empty Empty 8 MB 40 MB 16 MB Empty Empty 16 MB 48 MB 16 MB Empty Empty 32 MB 64 MB 16 MB Empty 8 MB 8 MB 48 MB 16 MB Empty 8 MB 16 MB 56 MB 16 MB Empty 8 MB 32 MB 72 MB 16 MB Empty 32 MB 8 MB 72 MB 16 MB Empty 32 MB 16 MB 80 MB 16 MB Empty 32 MB 32 MB 96 MB 32 MB 32 MB Not Available Not Available 128 MB 32 MB Empty Not Available 8 MB 72 MB 32 MB Empty Not Available 16 MB 80 MB 32 MB Empty Not Available 32 MB 96 MB
HOT-555 User's Manual 15
HOT-555's BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed RAM so that it retains the Setup information when the power is turned off.
Entering Setup
Power on the computer and press <Del> immediately will allow you to enter Setup. The other way to enter Setup is to power on the computer, when the below message appear briefly at the bottom of the screen during the POST (Power On Self Test), press <Del> key or simultaneously press <Ctrl>,<Alt>, and <Esc> keys.
TO ENTER SETUP BEFORE BOOT PRESS CTRL-ALT-ESC OR DEL KEY
If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF the ON or pressing the "RESET" button on the system case. You may also restart by simultaneously press <Ctrl>,<Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to,
PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP
Chapter4 Award BIOS Setup
HOT-555 User's Manual 16

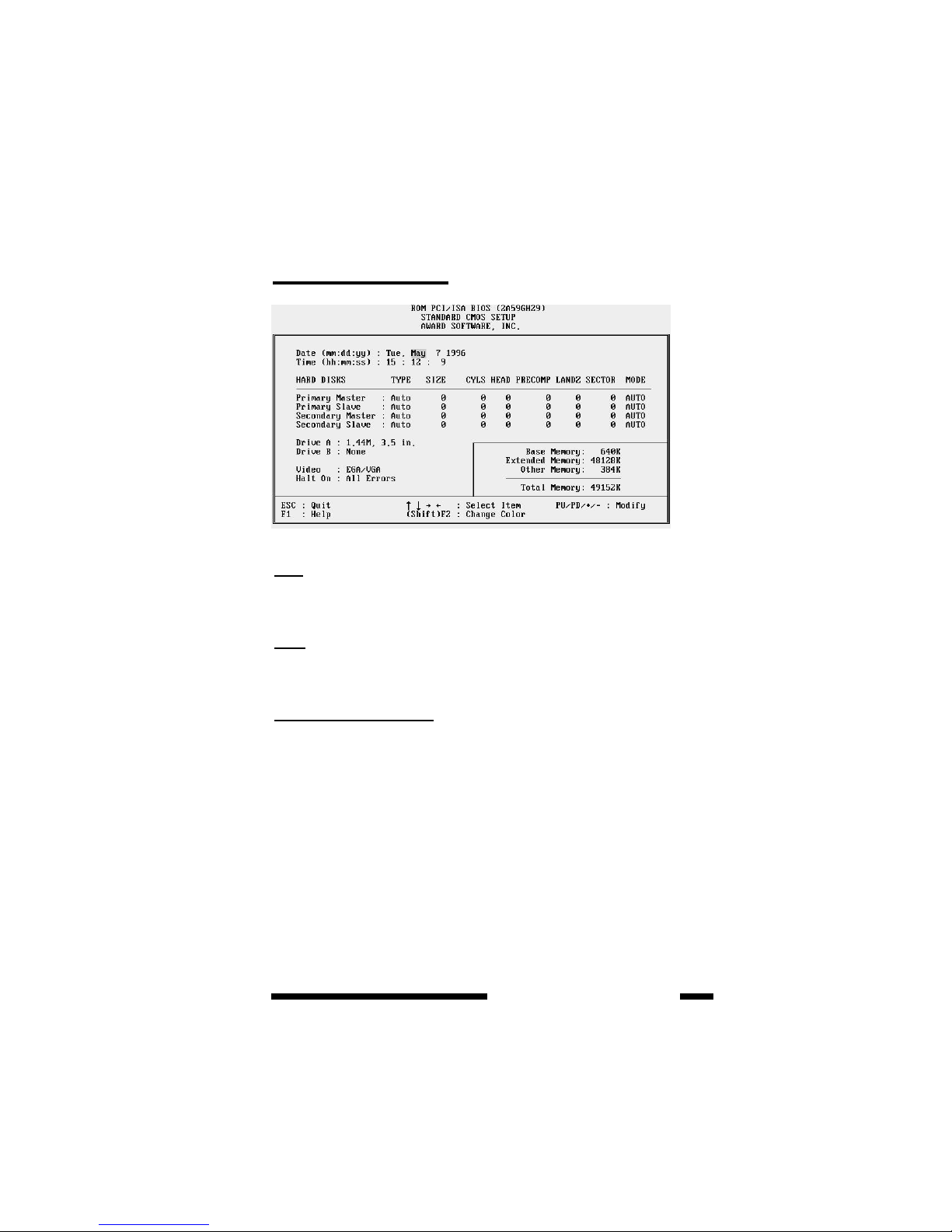

Standard CMOS setup
This setup page includes all the items in a standard compatible BIOS.

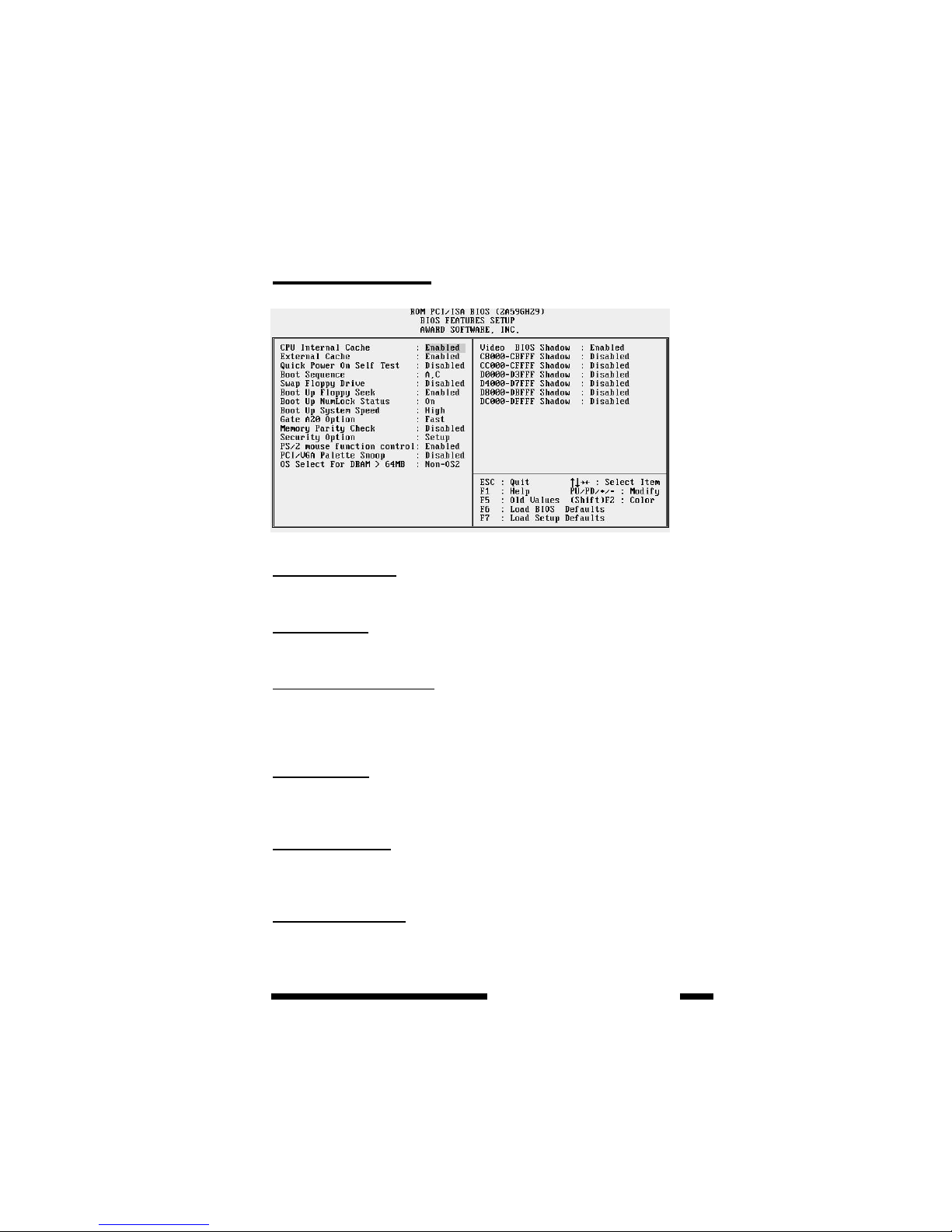

BIOS features setup
This setup page includes all the items of Award special enhanced features.

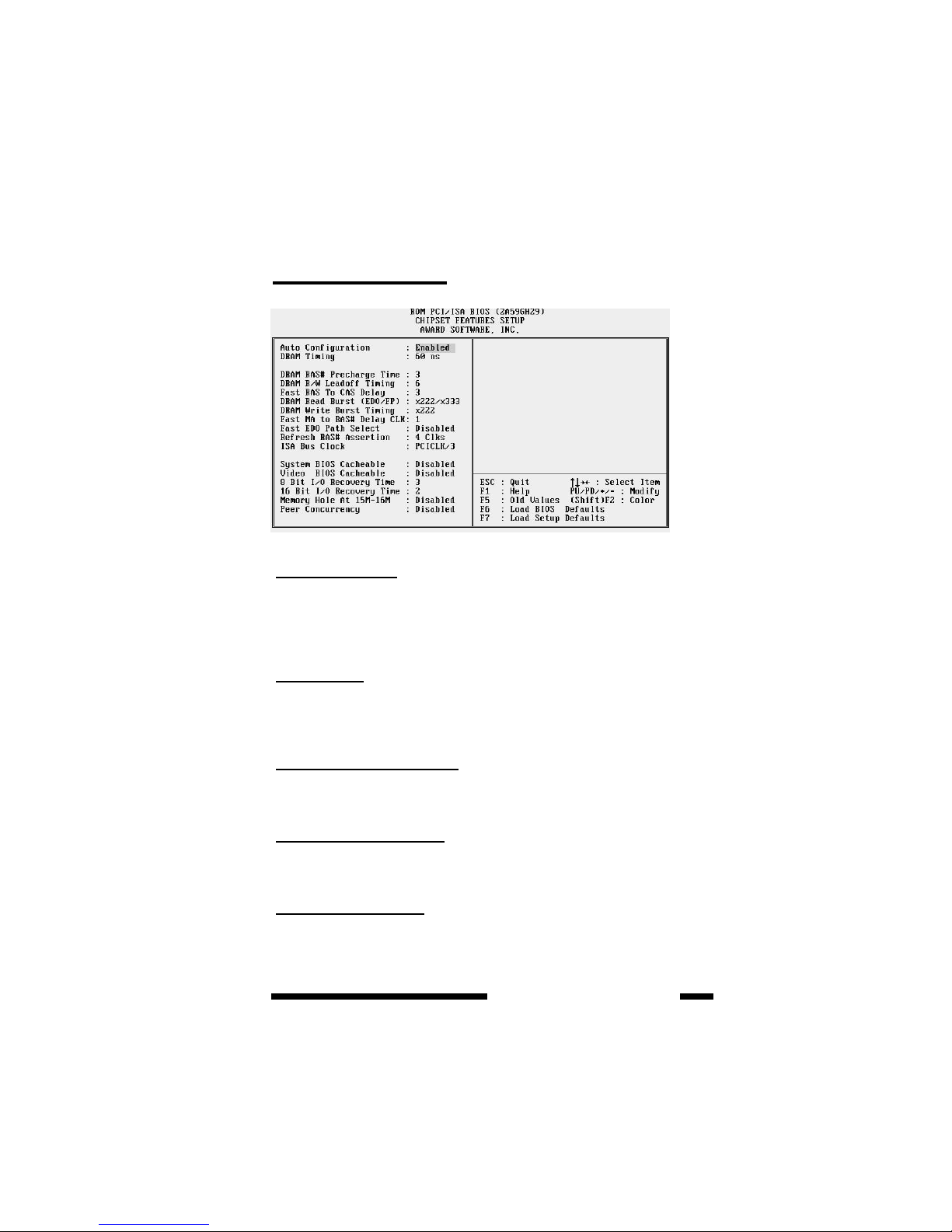

Chipset features setup
This setup page includes all the items of chipset features.

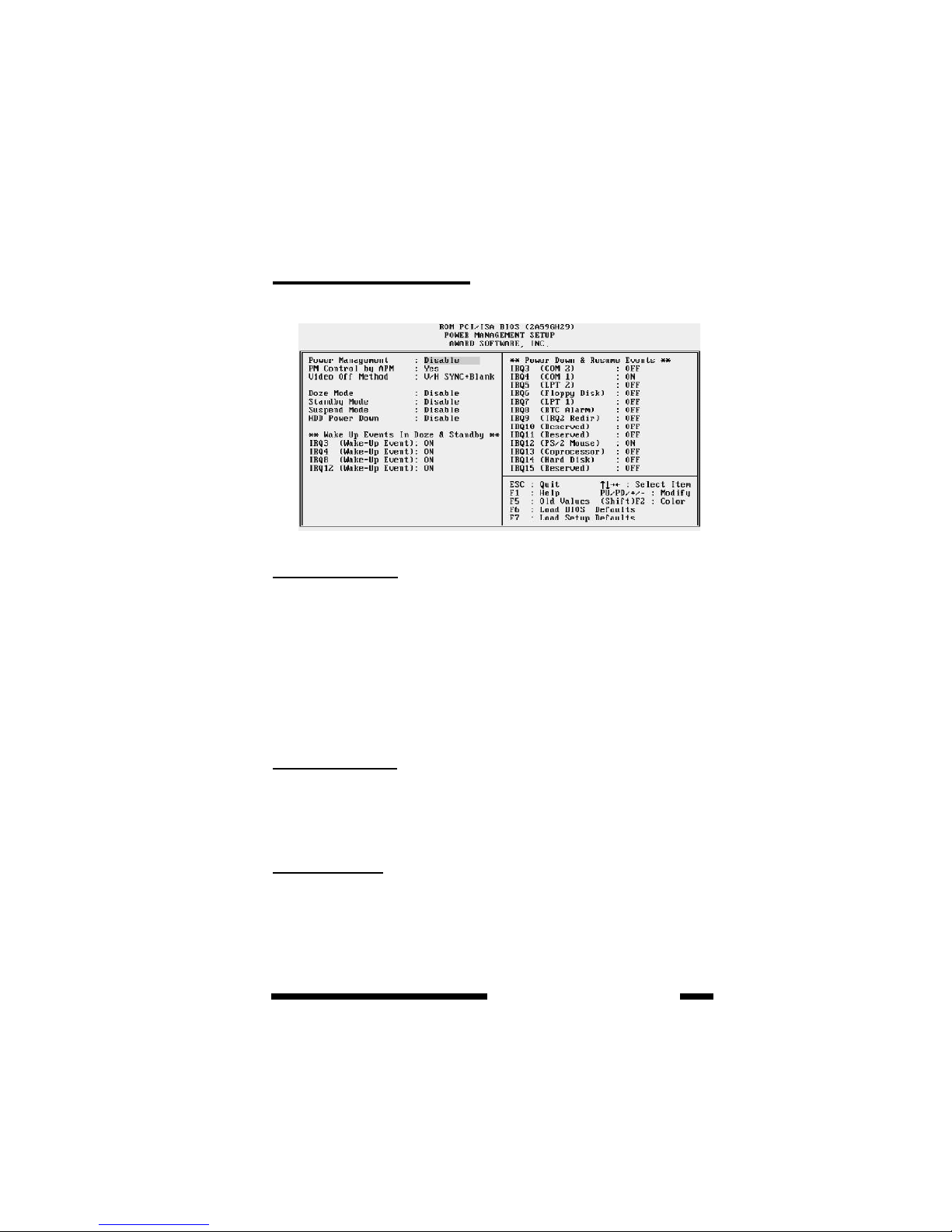

Power Management Setup
This setup page includes all the items of Power Management features.

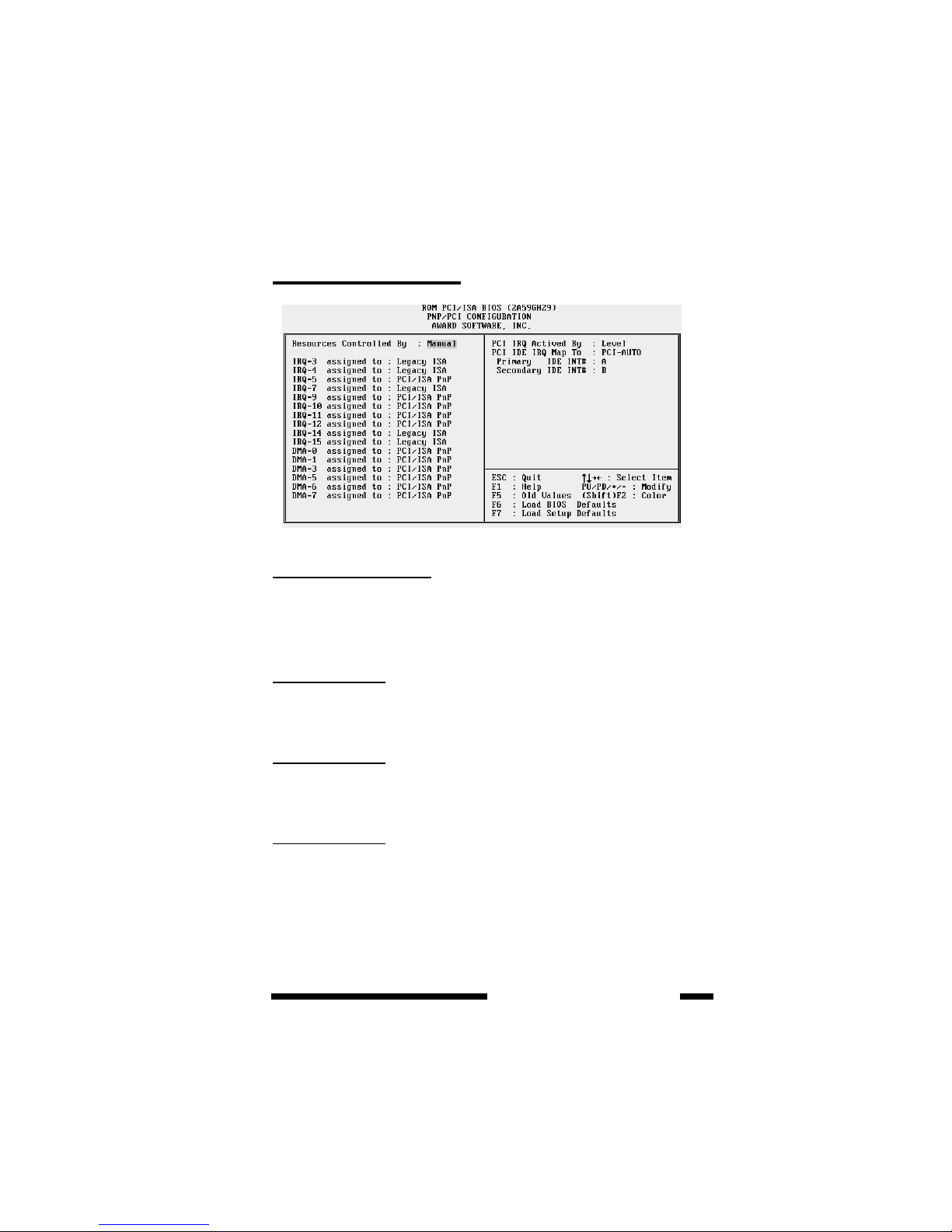

PCI Configuration setup
This category specifies the value (in units of PCI bus blocks) of the latency timer for this PCI bus master and the IRQ level for PCI device. Power-on with BIOS defaults
Load BIOS Defaults
BIOS defaults loads the values required by the system for the maximum performance. However, you may change the parameter through the Option Setup Menu.

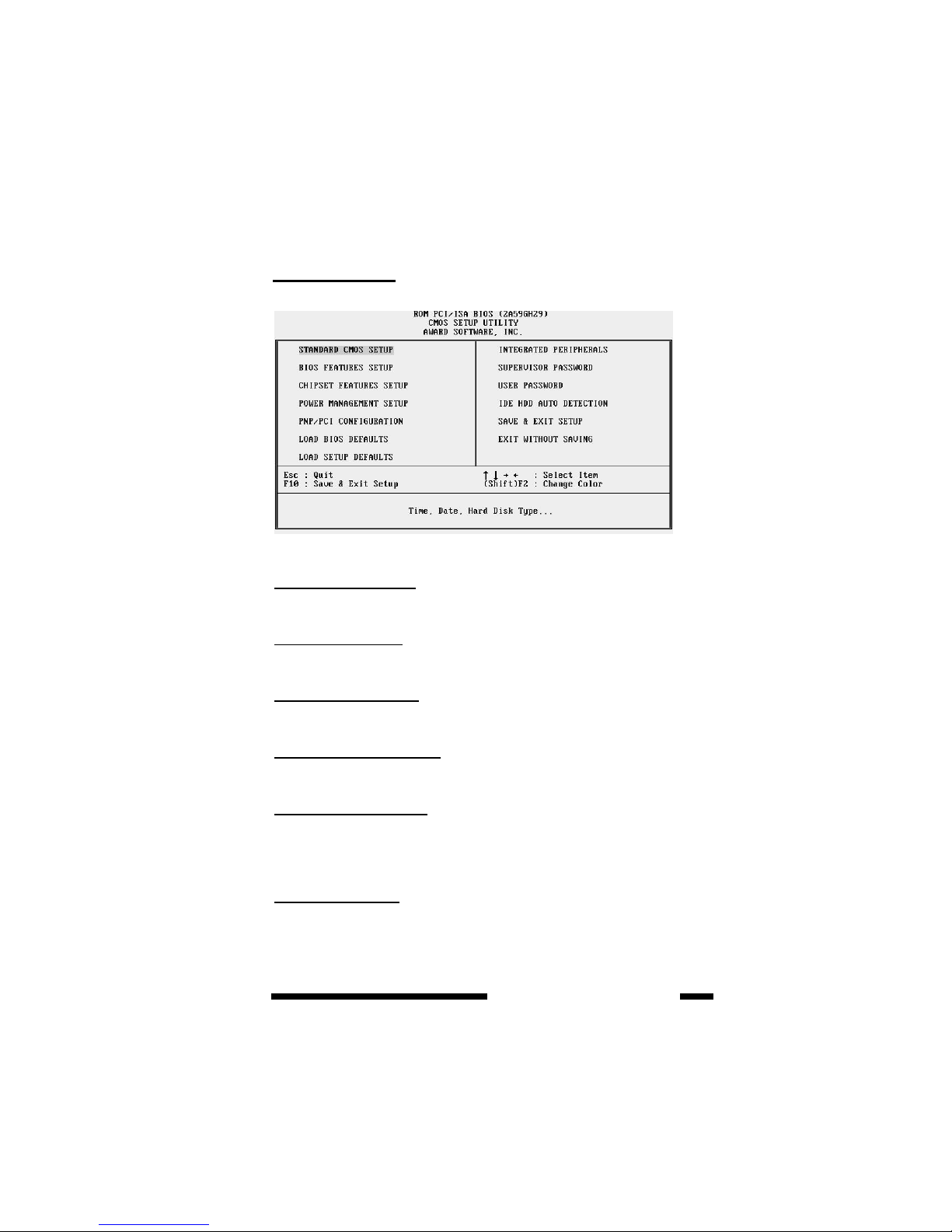

The Main Menu
HOT-555 User's Manual 17
Load Setup Defaults
Setup defaults loads the values required by the system for the minimum performance. However, you may change the parameter through the Setup Menu.

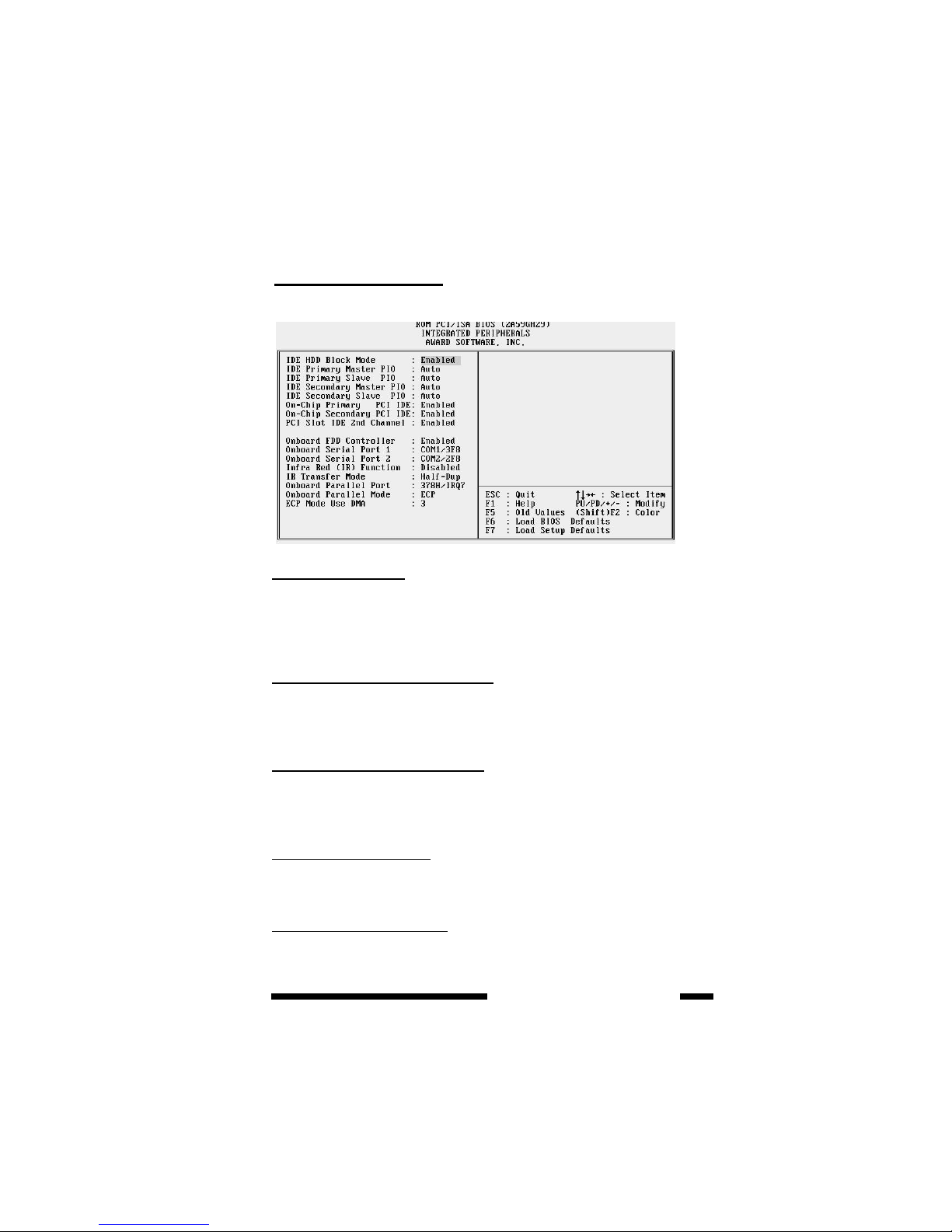

Integrated Peripherals
This setup page includes all the items of peripheral features.
IDE HDD auto detection
Automatically configure IDE hard disk drive parameters.

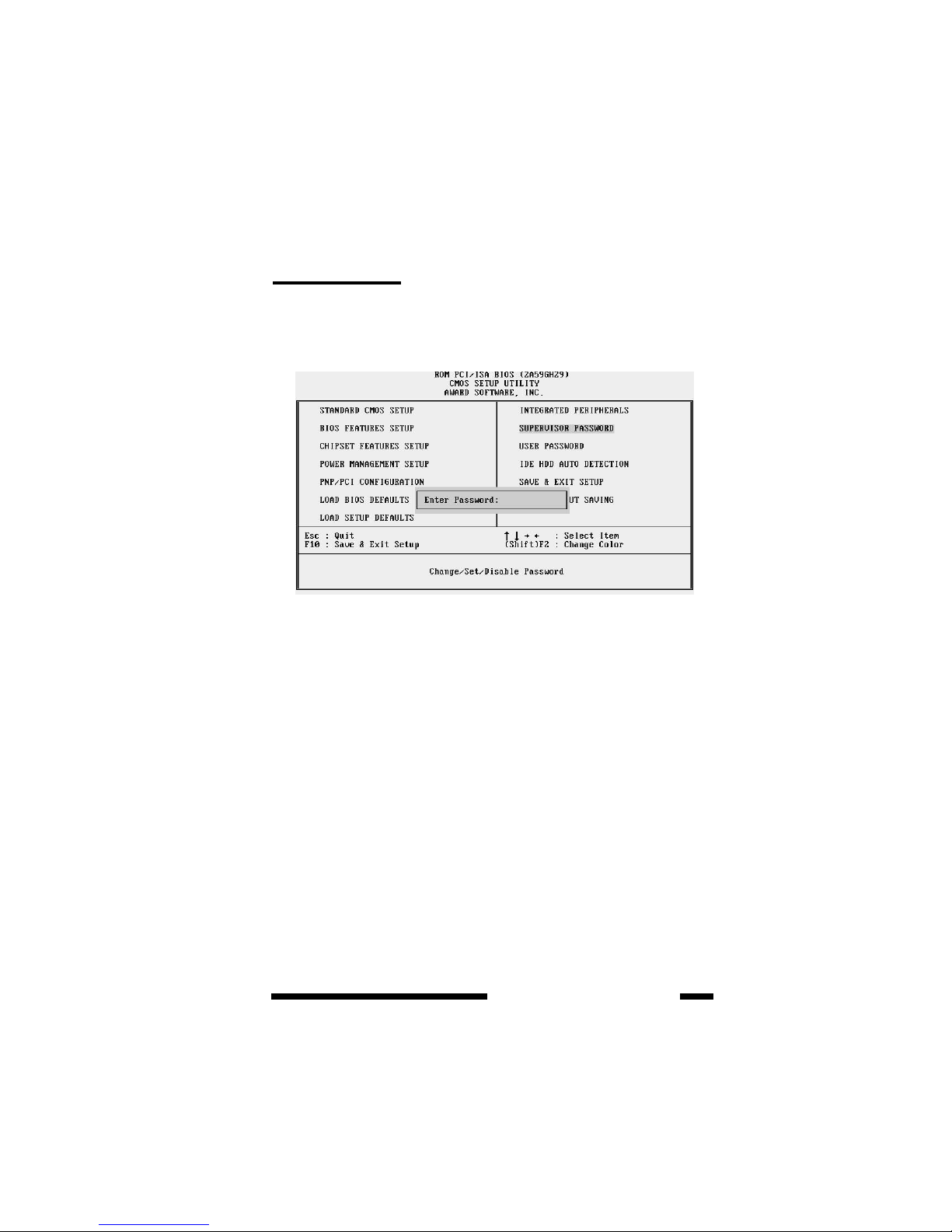

Supervisor Password
Change, set, or disable supervisor password. It allows you to limit access to the system and Setup, or just to Setup.
User Password
Change, set, or disable user password. It allows you to limit access to the system and Setup, or just to Setup.
Save & Exit setup
Save CMOS value change to CMOS and exit setup
Exit without saving
Abandon all CMOS value changes and exit setup.
HOT-555 User's Manual 18
Standard CMOS Setup
Date
The date format is <day>, <date> <month> <year>. Press <F3> to show the calendar.
Time
The time format is <hour> <minute> <second>. The time is calculated base on the 24-hour military-time clock. For example. 5 p.m. is 17:00:00.
Drive C type/Drive D type
The category identify the types of hard disk drive C or drive D that has been installed in the computer. There are 46 predefined types and a user definable type. Type 1 to Type 46 are predefined. Type User is user­definable.
Press PgUp or PgDn to select a numbered hard disk type or type the number and press <Enter>. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Type User to define your own drive type manually.
If you select Type User, related information is asked to be entered to the following items. Enter the information directly from the keyboard and press <Enter>. Those information should be provided in the documentation from your hard disk vendor or the system manufacturer.
HOT-555 User's Manual 19
The user may also set those items to AUTO to auto configure hard disk drives parameter when system power-on.
If a hard disk drive has not been installed select NONE and press <Enter>.
Drive A type/Drive B type
The category identify the types of floppy disk drive A or drive B that has been installed in the computer.
Video
The category selects the type of adapter used for the primary system monitor that must matches your video display card and monitor. Although secondary monitors are supported, you do not have to select the type in Setup.
Error halt
The category determines whether the computer will stop off an error is detected during power up.
Memory
The category is display-only which is determined by POST (Power On Self Test) of the BIOS.
Base Memory
The POST of the BIOS will determine the amount of base (or conven­tional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the mainboard, or 640K for systems with 640K or more memory installed on the mainboard.
Extended Memory
The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1MB in the CPU's memory address map.
HOT-555 User's Manual 20
BIOS Features Setup
CPU Internal Cache
This category enables CPU internal cache to speed up memory access.
External Cache
This category enables external cache to speed up memory access.
Quick Power On Self Test
This category speeds up Power On Self Test (POST) after you power on the computer. If it is set to Enabled, BIOS will shorten or skip some check items during POST.
Boot Sequence
This category determines which drive computer searches first for the disk operating system. Default value is A, C.
Swap Floppy Drive
When this category enables, the BIOS will swap floppy drive assignments so that Drive A: will function as Drive B: and Drive B: as Drive A:.
Boot Up Floppy Seek
During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks.
HOT-555 User's Manual 21
Boot Up NumLock Status
When this option enables, BIOS turns on Num Lock when system is powered on so the end user can use the arrow keys on both the numeric keypad and the keyboard.
Boot Up System Speed
This option sets the speed of the CPU at system boot time. The settings are High or Low.
Gate A20 Option
When this category sets to Normal, the A20 signal is controlled by keyboard controller. When this category sets to Fast, the A20 signal is controlled by post 92 or chipset specific method.
Security Option
This category allows you to limit access to the system and Setup, or just to Setup. When System is selected, the system will not boot and access to Setup will be denied if the correct password is not entered at the prompt. When Setup is selected, the system will boot, but access to Setup will be denied if the correct password is not entered at the prompt.
PS/2 Mouse Control Function
This category to set the PS/2 mouse be used or not. If there a PS/2 mouse attached to your system, this category must be enabled, if not, please disabled this category to release IRQ12 for PCI device.
PCI VGA Palette Snoop
This category must be set to enabled if there is any ISA VGA adapter card installed in the system, and disabled if there is any PCI VGA adapter card installed in the system.
OS Select For DRAM > 64MB
If there over 64MB memory on your system, please set this category to OS2 for total memory detection under OS/2 operating system, otherwise set to Non-OS2.
Video BIOS Shadow/XXXXX-XXXXX Shadow
These categories determine whether Video BIOS or optional ROM will be copied to RAM.
HOT-555 User's Manual 22
Chipset Features Setup
Auto Configuration
This category auto configure categories of DRAM RAS# Precharge time, DRAM R/W Leadoff Timing, Fast RAS to CAS Delay, DRAM Read Burst, DRAM Write Burst Timing, Fast MA to RAS# Delay CLK, Fast EDO Path Select, Refresh RAS# Assertion, ISA Bus Clock by different system clock.
DRAM Timing
This category set the DRAM Read/Write timings that system used. When category of "Auto Configuration" is disabled, this category will not show up.
DRAM RAS# Precharge Time
This category set the DRAM RAS Precharge Timing. The options are 4 and 3 CLKs.
DRAM R/W Leadoff Timing
This category set the RAS DRAM Read/Write Leadoff timings for page/ row miss cycles. The options are 7/6 and 6/5 CLKs.
Fast RAS To CAS Delay
This category set the DRAM RAS to CAS Delay to controls the DRAM page miss and row miss leadoff timings. The options are 3 and 2 CLKs.
HOT-555 User's Manual 23
DRAM Read Burst (EDO/FP)
This category set the EDO/FP DRAM Read Burst Timing. The timing used depends on the type of DRAM (EDO burst mode or standard fast page mode) on a per-bank basis. The options are x222/x333, x333/x444, and x444/x444.
DRAM Write Burst Timing
This category set the DRAM Write Burst Timing. The timing used depends on the type of DRAM (standard page mode or EDO burst mode) on a per­bank basis. The options are x4444, x3333, and x2222.
Fast MA to RAS# Delay CLK
This category is used to set Fast MA (Memory Address) to RAS# Delay which control DRAM Row Miss timings
Fast EDO Path Select
This category is used to defined fast path is selected for CPU to DRAM read cycles for the leadoff, the options are "Enable" or "Disable".
Refresh RAS# Assertion
This category is used to set the number of clocks RAS# is asserted for Refresh cycles.
SDRAM (CAS Lat/RAS-to-CAS)
This category is used to set CAS# Latency and RAS# to CAS# clock for SDRAM. If SDRAMs absent, this category will not show up.
ISA Clock
This category allows the user to set ISA clock that divide from PCI clock by 3 or by 4. For example, if 166MHz Pentium processor is used, PCI clock will be 33MHz, ISA Clock will be 8.25MHz when PCI clock divided by 4, and 11MHz when PCI clock divided by 3.
System BIOS Cacheable
This category allows the user to set whether the system BIOS F000~FFFF areas are cacheable or non-cacheable.
HOT-555 User's Manual 24
Video BIOS Cacheable
This category allows the user to set whether the video BIOS C000~C7FF areas are cacheable or non-cacheable.
8 Bit I/O Recovery Time
This category is used to add additional recovery delay between CPU or PCI master originated 8-bit I/O cycles to the ISA Bus.
16-Bit I/O Recovery Time
This category is used to add additional recovery delay between CPU or PCI master originated 16-bit I/O cycles to the ISA Bus.
Memory Hole At 15M-16M
This category is used to enable a memory hole in DRAM space. CPU cycles matching an enabled hole are passed on to PCI. Note that a selected hole is not remapped.
Peer Concurrency
This category is used to defined PCI Concurrency is "Enable" or "Disable" setting.
HOT-555 User's Manual 25
Power Management Setup
Power Management
This category determines the options of the power management function. Default value is Disable. The following pages tell you the options of each item & describe the meanings of each options.
Disabled Global Power Management will be disabled. User Define Users can configure their own power management. Min Saving Predefined timer values are used such that all tim-
ers are in their maximum value. Max
Saving Predefined timer values are used such that all tim-
ers minimum value.
PM Control by APM
If this category set to No, system BIOS will ignore APM when power is managing the system. If this category setup to Yes, system BIOS will wait for APM's prompt before it enter any PM mode e.g. DOZE, STANDBY or SUSPEND .
Video Off Method
Blank ScreenThe system BIOS will only blanks off the screen
when disabling video. V/H SYN In
addition to Blank Screen, BIOS will also turn +Blank off the V-SYNC & H-SYNC signals from VGA cards
to monitor. DPMS
HOT-555 User's Manual 26
This function is enabled for only the VGA card
supporting DPM.
Doze Mode
1 Min~1 Hr Defines the continuous idle time before the sys-
tem entering DOZE mode. Disable
System will never enter DOZE mode.
Standby Mode
1 Min~1 Hr Defines the continues idle time before the sys-
tem entering STANDBY mode. Disable
System will never enter STANDBY mode.
Suspend Mode
1 Min~1 Hr Defines the continuous idle time before the sys-
tem entering SUSPEND mode. Disable
System will never enter SUSPEND mode.
HDD Power Down
1~15Min Defines the continuous HDD idle time before the
HDD entering power saving mode (motor off). Suspend
BIOS will turn the HDD's motor off when system
is in SUSPEND mode. Disable HDD's
motor will not off.
IRQ3, 5, 8, 12 **Wake-Up Events In Doze & Standby**
If this category sets to Off, the IRQ3, 5, 8 or 12 event's activity will not reactivates the system from Doze and Standby mode.
If this category sets to On, the IRQ3, 5, 8 or 12 event's activity will reactivate system from Doze and Standby mode.
*Power Down & Resume Events **
If these categories sets to Off, the event's activity will not be monitored to enter power management.
If this category sets to On, the event's activity will be monitored to enter power management.
COM Post Accessed LPT Ports Accessed Drive Ports Accessed IRQ 3 (COM 2) IRQ 4 (COM1) IRQ 5 (LPT 2) IRQ 6 (Floppy Disk) IRQ 7 (LPT 1) IRQ 8 (RTC Alarm) IRQ 9 (IRQ 2 Redir) IRQ 10 (Reserved) IRQ 11 (Reserved) IRQ 12 (PS/2 Mouse) IRQ 13(Copro-) IRQ 14 (Hard Disk) IRQ 15 (Reserved)
HOT-555 User's Manual 27
PCI Configuration Setup
Resources Controlled By
The options in these categories are Auto, Manual. Auto : BIOS will auto configurate system IRQs and DMAs resources. Manual : System IRQs and DMAs are adjusted by the user.
IRQ 3 assigned to
The system BIOS will assign IRQ 3 to legacy ISA or PCI/ISA PnP. IRQ3 default assign to legacy ISA for COM2.
IRQ 4 assigned to
The system BIOS will assign IRQ 4 to legacy ISA or PCI/ISA PnP. IRQ4 default assign to legacy ISA for COM1.
IRQ 5 assigned to
The system BIOS will assign IRQ 5 to legacy ISA or PCI/ISA PnP. IRQ5 default assign to PCI/ISA PnP for PCI or ISA PnP devices.
HOT-555 User's Manual 28
IRQ 7 assigned to
The system BIOS will assign IRQ 7 to legacy ISA or PCI/ISA PnP. IRQ7 default assign to legacy ISA for LPT1.
IRQ 9 assigned to
The system BIOS will assign IRQ 9 to legacy ISA or PCI/ISA PnP. IRQ9 default assign to PCI/ISA PnP for PCI or ISA PnP devices.
IRQ 10 assigned to
The system BIOS will assign IRQ 10 to legacy ISA or PCI/ISA PnP. IRQ10 default assign to PCI/ISA PnP for PCI or ISA PnP devices.
IRQ 11 assigned to
The system BIOS will assign IRQ 11 to legacy ISA or PCI/ISA PnP. IRQ11 default assign to PCI/ISA PnP for PCI or ISA PnP devices.
IRQ 12 assigned to
The system BIOS will assign IRQ 12 to legacy ISA or PCI/ISA PnP. IRQ12 default assign to PCI/ISA PnP for PCI or ISA PnP devices. Since
PS/2 mouse uses the same IRQ, if there are a PS/2 mouse on your system, assign IRQ12 to legacy ISA to avoid system conflict.
IRQ 14 assigned to
The system BIOS will assign IRQ 14 to legacy ISA or PCI/ISA PnP. IRQ14 default assign to legacy ISA for primary IDE controller.
IRQ 15 assigned to
The system BIOS will assign IRQ 15 to legacy ISA or PCI/ISA PnP. IRQ15 default assign to legacy ISA for secondary IDE controller.
DMA-0, 1, 3, 5, 6, 7 assigned to
The system BIOS will assign DMAs to legacy ISA or PCI/ISA PnP. DMA 0, 1, 3, 5, 6 and 7 channel default assign to PCI/ISA PnP.
HOT-555 User's Manual 29
Integrated Peripherals
IDE HDD Block Mode
This category is used to set IDE HDD Block Mode. If your IDE Hard Disk supports block mode, then you can enable this function to speed up the HDD access time. If not, please disable this function to avoid HDD access error.
IDE Primary/Secondary Master PIO
In this category, there are five modes defined in manual mode and one automatic mode. There are 0, 1, 2, 3, 4, and AUTO. The default settings for on board Primary/Secondary Master PIO timing is Auto.
IDE Primary/Secondary Slave PIO
In this category, there are five modes defined in manual mode and one automatic mode. There are 0, 1, 2, 3, 4, and AUTO. The default settings for on board Primary/Secondary Slave PIO timing is Auto.
On-Chip Primary PCI IDE
This category is used to defined on chip Primary PCI IDE controller is "Enable" or "Disable" setting.
On-Chip Secondary PCI IDE
This category is used to defined on chip Secondary PCI IDE controller is "Enable" or "Disable" setting.
HOT-555 User's Manual 30
PCI Slot IDE 2nd channel
This category is used to defined add-on PCI IDE secondary controller is "Enable" or "Disable" setting.
Onboard FDC Control
This category specifies onboard floppy disk drive controller. This setting allows you to connect your floppy disk drives to the onboard floppy connector. Choose the "Disabled" settings if you have a separate control card.
Onboard Serial Port 1/Port 2
This category is used to define onboard serial port 1/Port2 to COM1/3F8H, COM2/2F8H , COM3/3E8H , COM4/2E8H or Disabled.
Infra Red (IR) Function
HOT-555 main board support IrDA(HPSIR) and Amplitudes Shift Keyed IR(ASKIR) infrared through COM 2 port. This category specifies onboard Infra Red mode to HPSIR, ASKIR or Disabled.
IR Transfer Mode
This category specifies onboard infrared transfer mode to full-duplicate or half-duplicate .
Onboard Parallel Port
This category specifies onboard parallel port address to 378H, 278H, 3BCH or Disabled.
Onboard Printer Mode
This category specifies onboard parallel port mode. The options are SPP (Standard Parallel Port), EPP (Enhanced Parallel Port), ECP (Extended Capabilities Port), and EPP+ECP .
ECP Mode Use DMA
This category specifies DMA (Direct Memory Access) channel when ECP device is in use. The options are DMA 1 and DMA 3.
This category will not show up when SPP and EPP printer mode is selected
HOT-555 User's Manual 31
Password Setting
This section describes the two access modes that can be set using the options found on the Supervisor Password and User Password.
Supervisor Password and User Password
The options on the Password screen menu make it possible to restrict access to the Setup program by enabling you to set passwords for two different access modes: Supervisor mode and User mode.
In general, Supervisor mode has full access to the Setup options, whereas User mode has restricted access to the options. Thus by setting separate Supervisor and User password, a system supervisor can limit who can change critical Setup values.
Enter Password
Type the password, up to eight characters, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.
To disable password, just press <Enter> when you are prompted to enter password. A message will confirm the password being disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
HOT-555 User's Manual 32
Password Disable
If you select System at Security Option of BIOS Features Setup Menu, you will be prompted for the password every time the system is rebooted or any time you try to enter Setup. If you select Setup at Security Option of BIOS Features Setup Menu, you will be prompted only when you try to enter Setup.
Warning : Retain a safe record of your password. If you've forgotten or loosed the password, the only way to access the system is to clear CMOS memory, please refer to "Clear CMOS" or "Clear Password" section.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
