Shuttle FS51 User Manual

FS51
Pentium 4 / Celeron , 478-pin Processor
Based DDR MAIN BOARD
User's Manual
M656
Pentium 4 / Celeron, 478-pin Processor Based DDR Mainboard Manual Version 2.0
Copyright
Copyright© 2002 by Creative Technology Ltd. All Rights Reserved. No part of this publication may be reproduced, transcribed, stored in a retrieval
system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual or otherwise, without prior written permission from Creative Technology Ltd.
Disclaimer
Creative Technology Ltd shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual. Information in this manual has been carefully checked for reliability; however, no guarantee is given as to the correctness of the contents. In the interest of continued product improvement, this company reserves the right to revise the manual or include changes in the specifications of the product described within it at any time without notice and without obligation to notify any person of such revision or changes. The information contained in this manual is provided for general use by the customers.
Trademarks
Shuttle is a registered trademark of Shuttle Inc. Intel, Pentium is a registered trademark of Intel Corporation. SIS is a registered trademark of SIS Corporation. PS/2 is a registered trademark of IBM Corporation. AWARD is a registered trademark of Award Software Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other brand and product names used herein are for identification purposes only and may be trademarks of their respective owners.
- 1 -
TABLE OF CONTENTS
WHAT'S IN THE MANUAL .................................................................... 5
Quick Reference ............................................................................................... 5
About This Manual ........................................................................................... 5
1 INTRODUCTION ................................................................................ 6
1.1 TO DIFFERENT USERS ............................................................................. 6
FIRST-TIME DIY SYSTEM BUILDER ........................................................... 6
EXPERIENCED DIY USER ........................................................................ 6
SYSTEM INTEGRATOR............................................................................... 6
1.2 ITEM CHECKLIST: ...................................................................................... 7
2 FEATURES ........................................................................................ 8
2.1 SPECIFICATIONS ....................................................................................... 8
3 HARDWARE INSTALLATION .......................................................... 11
3.1 STEP BY STEP INSTALLATION ................................................................11
Accessories of FS51.............................................................................11
STEP 1 CPU Installation........................................................................ 12
STEP 2 Set Jumpers............................................................................. 14
STEP 3 Install DDR SDRAM System Memory........................................ 14
STEP 4 Install Internal Peripherals in System Case ................................ 15
STEP 5 Mount the Mainboard on the Computer Chassis........................ 16
STEP 6 Connect Front Panel Switches/LEDs/Speaker/USB ................. 17
STEP 7 Connect IDE and Floppy Disk Drives........................................ 18
STEP 8 Connect Other Internal Peripherals............................................ 18
STEP 9 Connect the Power Supply........................................................ 19
STEP 10 Install Add-on Cards in Expansion Slots.................................. 19
STEP 11 Connect External Peripherals to Back-Panel........................... 20
STEP 12 First Time System Boot Up..................................................... 21
STEP 13 Install Drivers & Software Components ................................... 22
- 2 -
3.2 JUMPER SETTINGS ................................................................................. 23
JUMPERS & CONNECTORS GUIDE.................................................... 24
Jumpers
Clear CMOS Setting (JP1) ................................................................... 27
Back-Panel Connectors
COM1/2 Port Connectors ...................................................................... 28
VGA Port Connector.............................................................................. 28
IEEE 1394 Port Connectors................................................................... 28
10/100 base-T LAN Port Connector....................................................... 28
USB0/1 Port Connectors ....................................................................... 29
PS/2 Keyboard & PS/2 Mouse Connectors............................................ 29
Bass/Center-Out Port Connector ........................................................... 29
Line-Out (Front-Out) Port Connector....................................................... 29
Line-In (Rear-Out) Port Connector......................................................... .30
SPDIF In Port ....................................................................................... .30
Front-Panel Connectors
ATX Power On/Off Switch Connector (PWON) ....................................... 31
HDD LED Connector (HLED) ................................................................ 31
Green LED / Power LED Connector (GLED/PLED)............................... 32
Hardware Reset Connector (RST) ......................................................... 32
Extended USB Headers (JP3/JP10)...................................................... 33
Front-Panel 1394 Header (JP5)............................................................. 33
Parallel Port Header (JP11) ................................................................... 34
Front-Panel Microphone and Line_out Header (JP4).............................. 34
Internal Peripherals Connectors
Enhanced IDE and Floppy Connector .................................................... 35
Other Connectors
ATX Power Supply Connector (CN5 and JP7)........................................ 36
- 3 -
CPU and System Fan Connector - FAN1/2/3) ........................................ 37
Audio CD_IN Connector (CN3) (Black) .................................................. 37
Wireless Keyboard and Mouse Connectors (JP2).................................. 38
SPDIF Ext/In/Out Headers (JP9) ............................................................ 38
3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 39
INSTALL MEMORY ............................................................................... 39
UPGRADE MEMORY............................................................................ 39
4 SOFTWARE UTILITY ...................................................................... 40
4.1 Mainboard CD Overview ......................................................................... 40
4.2 Install SIS VGA Driver .............................................................................. 41
4.3 Install SIS AGP Driver .............................................................................. 42
4.4 Install Audio Driver .................................................................................. 43
4.5 Install LAN Driver ..................................................................................... 44
Install WIN98 LAN driver ........................................................................ 44
4.6 Install USB 2.0 Driver............................................................................... 47
4.7 View the User's Manual ........................................................................... 48
5 BIOS SETUP ................................................................................... 49
5.1 ENTER BIOS ............................................................................................. 49
5.2 THE MAIN MENU ...................................................................................... 50
STANDARD CMOS FEATURES ............................................................... 52
ADVANCED BIOS FEATURES................................................................. 55
ADVANCED CHIPSET FEATURES .......................................................... 59
INTEGRATED PERIPHERALS .................................................................. 61
POWER MANAGEMENT SETUP.............................................................. 65
PNP/PCI CONFIGURATIONS .................................................................... 68
PC HEALTH STATUS................................................................................ 70
FREQUENCY/VOLTAGE CONTROL......................................................... 72
- 4 -
LOAD FAIL-SAFE DEFAULTS .................................................................. 73
LOAD OPTIMIZED DEFAULTS ................................................................. 73
SET PASSWORD ..................................................................................... 74
SAVE & EXIT SETUP................................................................................ 74
EXIT WITHOUT SAVING ............................................................................ 75
- 5 -
WHAT'S IN THE MANUAL
Quick Reference
Hardware Installation >> Step-by-Step ................................................ Page 11
Jumper Settings >> A Closer Look ...................................................... Page 23
Drivers/Software Utilities >> How to Install ......................................... Page 40
BIOS Setup >> How to Configure ......................................................... Page 49
About This Manual
For First-Time DIY System Builder .........................................................Page 6
For Experienced DIY User ...................................................................... Page 6
For System Integrator ............................................................................. Page 6
- 6 -
1 INTRODUCTION
Congratulations on making an excellent decision in purchasing the FS51 mainboard.
1.1 T o Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is easier than you think. To make your first computer DIY experience successful,
sectionsection
sectionsection
section
3.1 Hardware installation3.1 Hardware installation
3.1 Hardware installation3.1 Hardware installation
3.1 Hardware installation, a step-by-step fashion for all the first time DIY system builder was designed. Prior to installation, we also suggest you to read the whole manual carefully to gain a complete understanding of your new FS51 mainboard.
Experienced DIY User
You will find that installing your new FS51 mainboard is easy. Bundled with an array of onboard functions, the highly-integrated FS51 mainboard provides you with a total solution to build the most stable and reliable system.
Section Section
Section Section
Section
3.2 Jumper Settings3.2 Jumper Settings
3.2 Jumper Settings3.2 Jumper Settings
3.2 Jumper Settings and
Chapter 4 Drivers/Software Utilities Chapter 4 Drivers/Software Utilities
Chapter 4 Drivers/Software Utilities Chapter 4 Drivers/Software Utilities
Chapter 4 Drivers/Software Utilities show how
to optimise your new mainboard.
Chapter 5 BIOSChapter 5 BIOS
Chapter 5 BIOSChapter 5 BIOS
Chapter 5 BIOS
SetupSetup
SetupSetup
Setup also contains the relevant information on how to tune up your system to achieve higher perfor­mance.
System Integrator
You have wisely chosen FS51 to construct your system. FS51 incorporates all the state-of-the-art technology of the SiS 651 chipset from SiS. It integrates the most advanced functions you can find in a compact Flex ATX board.
- 7 -
1.2 Item Checklist:
The complete package should include:
- One piece FS51 Mainboard
- One piece of ATA
133/100
Ribbon Cable
- One piece of Floppy Ribbon Cable
- One piece of twin ports USB Cable
(optional)
- FS51 User's Manual
- One piece of Bundled CD-ROM containing:
Ø FS51 user's manual saved in PDF format Ø SiS Chipset driver Ø Realtek Audio driver Ø SiS VGA driver Ø LAN driver Ø Award Flashing Utility
UW230040A 0203 952004AF
ICS
AMIC
A290021TL-70
0122T
B3X5A
JP10
JP3
JP9
USB
USB
SPDIF
JP8
JP1
CN3CD-IN
1394
PCI1
AGP
FAN3
1
1
1
1
1
1
1
1
1
JP11
JP11
1
IDE1
FDD
IDE2
CN5
JP7
ATXPWR
DIMM1
FAN2
FAN1
DIMM2
C
651
SIS'01 PLD4892 0145EA
SiS
C
962
SIS'00
ELD2691
0138EA
SiS
24103S1 216E
ALC650
GLED/PLED
HLED
+
+--+
-
RST
PWON
- 8 -
2 FEATURES
FS51 mainboard is carefully designed for the demanding PC user who wants high perfor­mance and maximum intelligent features in a compact package.
2.1 Specifications
-
CPU Support
Intel Pentium 4 / Celeron, 478-pin processors with 400/533 MHz FSB.
-
Chipset
Features SiS 651 N.B. and SiS 962L S.B.. Onboard Lan Realtek 8100B, supports 10Mb/s and 100Mb/s operation. Onboard 1394 VIA VT6306, supports 400Mb/s, 200Mb/s, 100Mb/s data transfer rate.
-
Jumperless CPU Configuration
Soft-configuration FSB (The FSB speed is software configurable from 100MHz to 166MHz in the Frequency/Voltage Control of BIOS setup program.)
-
On Board 6 Channel AC97 Audio
Compliant with AC'97 2.2 specifications. 6 channel slot selectable DAC Output for multi-channel applications.
-
Versatile Memory Support
Two
184-pin
DIMM slots to support up to 2GB of PC1600, PC2100 or
PC2700 compliant DDR SDRAM module.
-
AGP Expansion Slot
Provides one 32-bit AGP slot which supports 2X / 4X AGP device.
-
PCI Expansion Slots
Provides one 32-bit PCI slot.
-
6 USB 2.0 Interface Onboard
Ø 2 x USB 2.0 connectors on back-panel and one set of dual USB port
headers on mainboard.
- 9 -
-
I/O Interface
Provides a variety of I/O interfaces: Ø 1 x Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB
format .
Ø 2 x DB9 Serial connectors 16550 UART compatible. Ø 1 x DB15 VGA connector. Ø 1 x SPDIF-In port. Ø 2 x 1394 connectors. Ø 1 x RJ45 LAN connector. Ø 1 x PS/2 mouse connector. Ø 1 x PS/2 Keyboard connector. Ø 1 x Line-Out (Front-Out) port. Ø 1 x Line-In port, shared with rear speaker output when multi-channel
audio is enabled.
Ø 1 x Bass/Center-Out port.
-
PCI Bus Master IDE Controller Onboard
Two Ultra DMA
133/100
Bus Master Dual-channel IDE ports provide support to a maximum of four IDE devices (one Master and one Slave per channel). The IDE Bus implements data transfer speeds of up to
133/100
MB/sec and
also supports Enhanced PIO Modes. 80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CD-
ROM, CD-R, CD-RW, and LS-120 Supports.
-

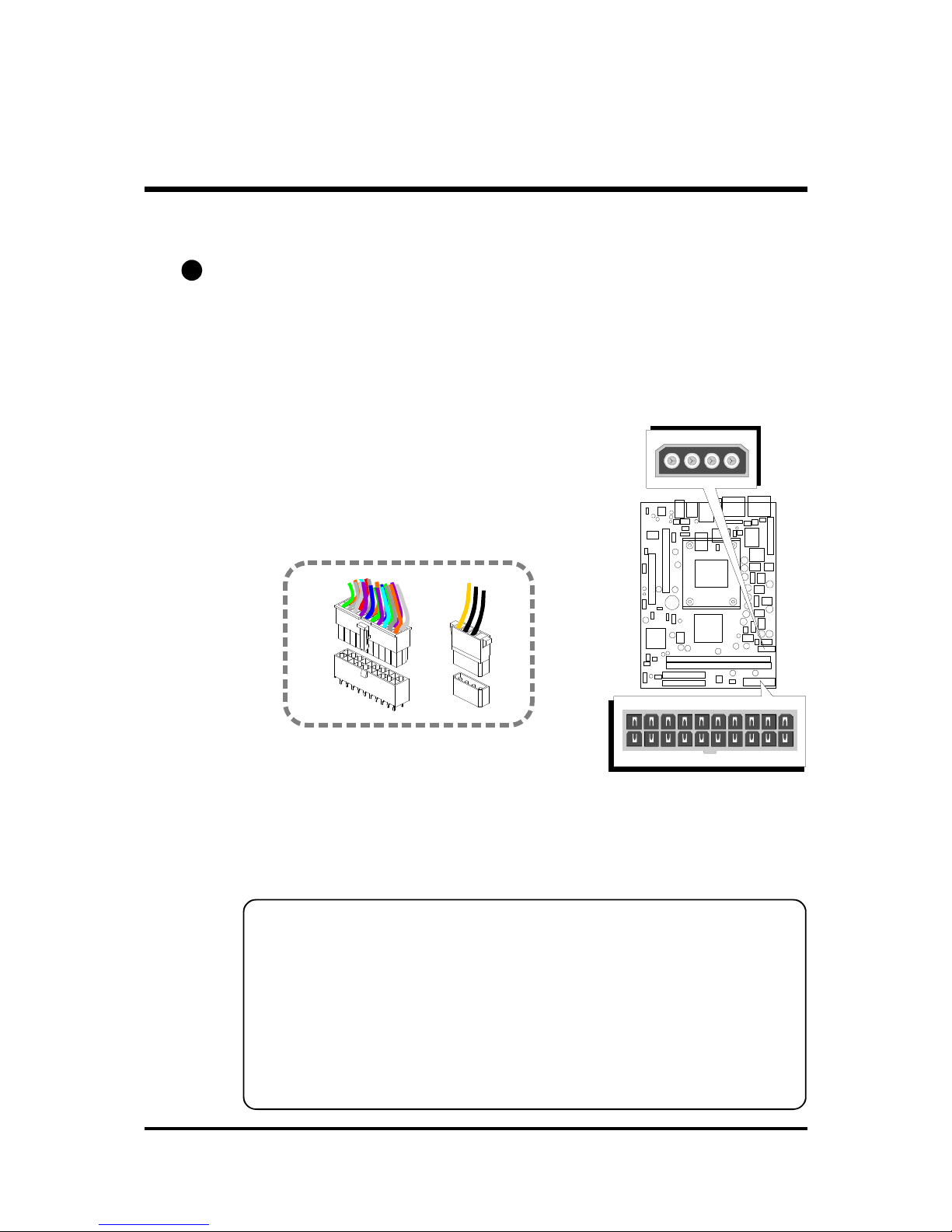

ATX Power Supply Connector
ATX power supply unit can be connected to the onboard 20-pin Pentium 4 standard ATX power connectors, supporting Suspend and Soft-On/Off by dual-function power button.
The Pentium 4 ATX power include other 4-pin +12V ATX power connector.
-
Advanced Configuration and Power Interface
Features four power saving modes: S1 (Snoop), S3 (Suspend to RAM), S4 (Suspend to DISK), and S5 (Soft-Off). ACPI provides more efficient Energy Saving Features controlled by your operating system that supports OS Direct Power Management (OSPM) functionality.
- 10 -
-
System BIOS
Provides licensed Award BIOS V6.0 PG on 2Mb Flash core and supports Green PC, Desktop Management Interface (DMI).
-
Form Factor
System board conforms to form factor ATX specification. Board dimension: 254mm x 185mm.
-
Advanced Features
Ø
Low EMI -
Built in spread spectrum and automatic clock shut-off of
unused PCI/SDRAMS slots to reduce EMI.
Ø
Dual Function Power Button -
The system can be in one of two states, one is Suspend mode and the other is Soft-Off mode. Pressing the power button for less than 4 seconds places the system into Suspend mode. When the power button is pressed longer than 4 seconds, system enters Soft-Off mode.
Ø
Modem Ring Power-On -
The system can be powered on automatically
by the activation of modem ringing.
Ø
CPU Host/SDRAM Clock Setting
- Allows users to adjust CPU Host
Clock, and SDRAM, and Clock in BIOS.
Ø
CPU Multiplier Setting
- Allows users to adjust CPU Multiplier in BIOS.
-
Intelligent Features
Ø
Voltage Monitoring -
Monitors various voltages of key elements, such as the CPU, and other critical system voltage levels to ensure stable current passing through mainboard components.
Ø
Fan Status Monitoring -
To prevent CPU from overheating, the CPU fan is monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is required.)
Ø
Temperature Monitoring -
To allow users to make sure whether the
CPU or system runs in a suitable temperature.
Ø
CPU Fan AutoGuardian -
This SMART Bios enabled 3 phase Variable
Fan Speed and CPU Temperature Control feature.
- 11 -
3 HARDWARE INSTALLATION
Before removing or installing any of these devices including CPU, DIMMs, Add-On Cards, Cables, please make sure to unplug the onboard power connector.
This section outlines how to install and configure your mainboard. Refer to the following mainboard layout to help you to identify various jumpers, connectors, slots, and ports. Then follow these steps designed to guide you through a quick and correct installation of your system.
3.1 Step-by-Step Installation
Accessories Of FS51
UW230040A 0203 952004AF
ICS
AMIC
A290021TL-70
0122T
B3X5A
JP10
JP3
JP9
USB
USB
SPDIF
JP8
JP1
CN3CD-IN
1394
PCI1
AGP
FAN3
1
1
1
1
1
1
1
1
1
JP11
JP11
1
IDE1
FDD
IDE2
CN5
JP7
ATXPWR
DIMM1
FAN2
FAN1
DIMM2
C
651
SIS'01
PLD4892
0145EA
SiS
C
962L
SIS'00
ELD2691
0138EA
SiS
24103S1 216E
ALC650
GLED/PLED
HLED
+
+- -+
-
RST
PWON
PS/2 Keyboard/Mouse Connectors
COM1 & VGA Connectors
Parallel Connector
SPDIF In Port
COM2 Connectors
LAN & USB 2.0/1.1 Connectors
1394
Connectors
1394 Header - JP5
RTL8100B LAN Controller
1394 Controller
5.1 Channel Audio Connectors
FAN1
Programmable 2Mb Flash
EEPROM
One PCI Slot
Front Audio Header -
JP4
One AGP Slots
Onboard CD-IN Connector - CN3
Wireless KB and MS -Header JP2
SPDIF Ext/In/Out
s -Header
JP9
Clear CMOS-
JP1
Front-Panel Connectors - JP8
Extended USB
Header
2.0/1.1
- JP10
Extended USB
Header
2.0/1.1
- JP3
Two 184-pin DDR-SDRAM DIMM Slots
Two IDE Connectors
One Floppy Connector
ATX Power Connector
FAN2
SOCKET 478
FAN3 Audio Controller
ATX 12V Power Connector - JP7
SiS 962L Chipset
SiS 651 Chipset
- 12 -
Step 1
CPU Installation:
This mainboard supports Intel® Pentium® 4 /Celeron, Socket 478 series CPU. Please follow the steps below to finish CPU installation.
Be careful of CPU orientation when you plug it into CPU socket.
1. Pull up the CPU socket lever up to 90-degree angle.
2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into the socket.
CPU socket lever up to 90 degree
CPU pin 1 and cut edge
- 13 -
3. Press down the CPU socket lever and finish CPU installation.
Note:
If you do not match the CPU socket Pin 1 and CPU cut edge well, it may damage the CPU.
4. The Intel Pentium 4 /Celeron processor requires a set of heatsink/fan to en sure proper cooling of the processor. If heatsink/fan have not been already bundled with your CPU, you must purchase the heatsink/fan separately and have it installed. Plug the cable through the heatsink/fan in the CPU fan power connector located nearby. Note that there are several types of CPU fan connectors. Normally, if your mainboard supports the hard ware moni toring function, a 3-pin fan power connector should allow your system to detect the CPU fan's speed . The CPU fan can also run with a 2-pin fan power connector, however, detection of CPU fan's speed is not supported. Another type of CPU fan may feature a large 4-pin fan power connector, which does not support CPU fan's speed detection and must be directly connected to the system's power supply unit.
- 14 -
Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings have been set for the common usage standard of this mainboard. Therefore, you do not need to reset the jumpers unless you require to clear the CMOS.
For first-time DIY system builders, we recommend that you do not change the default jumper settings if you are not totally familiar with the mainboard configuration procedures. The factory-set default settings are tuned for opti­mum system performance. For the advanced users who wish to customize their system, section
3.2 Jumper Settings
will provide detailed information
on how to configure your mainboard manually.
Step 3
Install DDR SDRAM System Memory
To install memory, insert DDR SDRAM memory module(s) in DIMM slot(s). Note that DDR SDRAM modules are directional and cannot be inserted into the DIMM slots unless properly oriented. After the module is fully inserted into the DIMM slots, lift the clips of both sides of the DIMM slot to lock the module in place.
DDR SDRAM
- 15 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we recommend that you first assemble all the internal peripheral devices into the computer housing, including but not limited to the hard disk drive (IDE/ HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit. This will greatly facilitate in making the connections to the mainboard de­scribed below.
To install IDE & FDD drives, follow this procedure:
1. Set the required jumpers on each device according to the instructions provided by the manufacturer. (IDE devices, HDD, and CD-ROM, have to set jumpers to Master or Slave mode depending on whether you install more than one device of each kind.)
2. Connect IDE cable and FDD cable on the back-panel of the internal peripheral devices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually red or magenta) connected to pin#1 both on the mainboard IDE or FDD connector and on the device as well.
3. Connect an available power cable from your system power supply unit to the back-panel of each peripheral device. Note that the power cable is
directional and cannot fit in if not properly positioned.
- 16 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions both on your computer chassis and on the mainboard. To choose the correct mounting holes, keep the back-panel of the mainboard in a close fit with your system case.
2. After deciding on the proper mounting holes, position the studs between the frame of the chassis and the mainboard. The studs are used to fix the mainboard and to keep a certain distance between the system's chassis and the mainboard, in order to avoid any electrical shorts between the board and the metal frame of the chassis. (If your computer case is already equipped with mounting studs, you will need to tighten the screws to secure it to the mainboard.)
Note:
In most computer housings, you will be able to find 4 or more attachment points to install mounting studs and then fix the mainboard. If there aren't enough matching holes, then make sure to install at least 4 mounting studs to ensure proper attachment of the mainboard.
- 17 -
Step 6
Connect Front Panel Switches/LEDs/Speaker/USB
You can find there are several different cables already existing in the system case and originating from the computer's front-panel devices (HDD LED, Power LED, Reset Switch, or USB devices etc.) These cables serve to connect the front-panel switches, LEDs, and USB connectors to the mainboard's front­panel connectors group (JP3, JP8, JP10), as shown below.
1. ATX Soft Power On/Off (PWON)
2. HDD-LED (HLED)
3. Green-LED and Power-LED (GLED/PLED)
4. Hardware Reset Switch Button (RST)
5. Extended USB Header
1
- +
- +
+ -
RST
HLED
GLED
PLED
PWON
1
3
4
2
J P 8
1
G L
E D /
P L E D
H L E D
+
+
-
-
+
-
R S T
P W
O N
J P 3
U S B
1
J P 1 0
U S B
1
N/A
GND
USBD1+
USBD1-
+5V
KEY
GND
USBD0+
USBD0-
+5V
1 2 3 4 5 6 7 8 9 10
USB port 2USB port 3
JP3 / JP10
5
- 18 -
Step 7
Connect IDE and Floppy Disk Drives
1. IDE cable connectors
2. Floppy cable connector
Step 8
Connect Other Internal Peripherals
1. CD-IN (CN3), Microphone and Line-Out (JP4) connectors
2. 1394 header (JP5)
1
1
IDE1
IDE2
1
F D D
CN3
CD-IN
1
J P 4
1
1
1394 JP5
- 19 -
3. Wireless keyboard and mouse headers (JP2)
Step 9
Connect the Power Supply
1. System power connector
Step 10
Install Add-on Cards in Expansion Slots
1. Accelerated Graphics Port (AGP) Card
1. PCI Card
1
CN5 ATXPWR
1
JP7
JP2
1
- 20 -
Step 11
Connect External Peripherals to Back-Panel
You are now ready to put the computer case back together and proceed to the external peripherals connections to your system's back-panel.
1. COM1 Port
2. COM2 Port
3. VGA Port
4. SPDIF In Port
5. 1394 Ports
6. LAN Port
7. USB0/1 Ports
8. PS/2 Mouse
9. PS/2 Keyboard
10. Audio Line-Out (Front-Out) Port
11. Audio Line-In (Rear-Out) Port
12. Audio Bass/Center-Out Port
2
3 75
61 8
9 10
1112
4
- 21 -
Step 12
First Time System Boot Up
To assure the completeness and correctness of your system installation, you may check the above installation steps once again before you boot up your system for the first time.
1. Insert a bootable system floppy disk (DOS 6.2x, Windows 95/98/NT, or others) which contains FDISK and FORMAT utilities into the FDD.
2. Turn on the system power.
3. First, you must use the FDISK utility to create a primary partition of the hard disk. You can also add an extended partition if your primary
partition does not use all of the available hard disk space. If you choose to add an extended partition, you will have to create one or more logical partitions to occupy all the space available to the extended partition. The FDISK utility will assign a drive letter (i.e., C:, D:, E:,...) to each partition which will be shown in the FDISK program. After FDISK procedure, reboot your system by using the same system floppy disk.
Note:
DOS 6.2x and Windows 95A can only support up to 2.1GB of HDD partition. If you use the FDISK utility with one of the
operating systems mentioned above, you can only install your
HDD into partitions no larger than 2.1GB each.
4. Now, use the FORMAT utility to format all the partitions you've created. When formatting the primary partition (C:), make sure to use the FORM-
AT C: /S command.
Note:
FORMAT C: /S can transfer all the necessary system files into the primary partition of your hard disk. Then, your HDD will become
a bootable drive.
5. Install all the necessary drivers for CD-ROM, Mouse, etc.
6. Setup the complete operating system according to your OS installation guide.
- 22 -
Step 13
Install Drivers & Software Components
Please note that all the system utilities and drivers are designed for Win 9x/ 2000/ME/XP/NT operating systems only. Make sure your operating system is already installed before running the drivers installation CD-ROM programs.
1. Insert the FS51 bundled CD-ROM into your CD-ROM drive. The
autorun program will display the drivers main installation window on screen.
2. Choose "Install SIS VGA Device Driver" and complete it.
3. Choose "Install SIS AGP Driver" and complete it.
4. Choose "Install Audio Device Driver" and complete it.
5. Choose "Install LAN Driver" and complete it.
6. Exit from the autorun drivers installation program.
] Please refer to
Chapter 4 Software Utility
to install driver.
- 23 -
3.2 Jumper Settings
Several hardware settings are made through the use of mini jumpers to con­nect jumper pins on the mainboard. Pin #1 could be located at any corner of each jumper, you just find the location with a white right angle which stands for pin 1#. There are several types of pin 1# shown as below:
3-pin and multi (>3) pin jumpers shown as following: Pin #1 to the left:
Pin #1 on the top:
Pin #1 to the right:
Pin #1 on the bottom:
Jumpers with two pins are shown as for Close [On] or for Open [Off]. To Short jumper pins, simply place a plastic mini jumpers over the desired pair of pins.
Caution!
1. Do not remove the mainboard from its antistatic protective packaging until you are ready to install it.
2. Carefully hold the mainboard by its edges and avoid touching its components. When putting the mainboard down, place it on top of its original packaging film, on an even surface, and components side up.
3. Wear an antistatic wrist strap or take other suitable measures to prevent electrostatic discharge (ESD) whenever handling this equipment.
- 24 -
Jumpers & Connectors Guide
Use the mainboard layout on page 11 to locate CPU socket, memory banks, expansion slots, jumpers and connectors on the mainboard during the instal­lation. The following list will help you to identify jumpers, slots, and connec­tors along with their assigned functions:
CPU/Memory/Expansion Slots
Socket478 : CPU Socket for Pentium 4 processors DIMM1/2 : Two184-pin DIMM Slots for 64, 128, 256, 512 MB,
and 1GB of 2.5V DDR SDRAM (The total installed memory does not exceed 2GB)
AGP : One AGP 2X / 4X Slot
B1~B2
B3
B7
B11
B4~B6
D2~D3
B8~B10
C1~C4
D1
C7
A1
C5
C6
E4
E7
E5
E6
C8
E1
E3
E2
E1
- 25 -
PCI : Two 32-bit PCI Expansion Slot
Jumpers
JP1 : Clear CMOS setting
Back Panel Connectors
COM1/2 : Serial port 1/2 (DB9 male)
VGA : VGA port (DB15 female) 1394 : 2 x 1394 (0/1) Ports LAN : 10/100 base-T LAN Port USB : 2 USB 2.0/1.1 (0/1) (Universal Serial Bus) ports MS : PS/2 mouse port KB : PS/2 keyboard port BASS/CENTER : Audio Bass/Center-Out Port LINE-OUT : Audio Line-Out (Front-Out) Port LINE-IN : Line-In (Rear-Out) Port SPDIF : SPDIF In Port
Front Panel Connectors
PWON : ATX power on/off momentary type switch HLED : IDE drive active LED GLED/PLED : Green LED (ON when system stays in power saving
mode) / System power LED RST : Hardware reset switch JP3/JP10 : Extended USB Header (USB2.0/1.1) JP5 : Front Panel 1394 header JP11 : Parallel Connector
JP4 : Front-Panel Microphone and Line-Out Connector
Internal Peripherals Connectors
FDD : Floppy disk drive interface IDE1 : IDE primary interface (Dual-channel) IDE2 : IDE secondary interface (Dual-channel)
Other Connectors
CN5/JP7 : ATX power connector FAN1 : System fan connector FAN2 : Chipset fan connector
C1
C2
C3
C4
D2
D3
D1
C5
E1
E3
E2
C6
B2B1
B3
B4
B5
B6
B7
B8
B9
B10
B11
C7 C8
A1
- 26 -
E4
E5
E6
E7
FAN3 : CPU fan connector CN3 : Audio CD_IN connector JP2 : Wireless Keyboard and Mouse connector JP9 : SPDIF Ext/In/Out connectors
- 27 -
A1
1
1
JP1
1
Jumpers
Clear CMOS Setting (JP1)
JP1 is used to clear CMOS data. Clearing CMOS will result in the perma­nently erasing previous system configuration settings and the restoring origi­nal (factory-set) system settings.
Pin 1-2 (Default)
Pin 2-3 (Clear CMOS)
Step 1.Step 1.
Step 1.Step 1.
Step 1. Turn off the system power (PC-> Off). Step 2.Step 2.
Step 2.Step 2.
Step 2. Remove ATX Power cable from ATX Power connector. Step 3.Step 3.
Step 3.Step 3.
Step 3. Remove jumper cap from JP1 pins 1-2. Step 4.Step 4.
Step 4.Step 4.
Step 4. Place the jumper cap on JP1 pin 2-3 for a few seconds. Step 5.Step 5.
Step 5.Step 5.
Step 5. Return the jumper cap to pin 1-2. Step 6.Step 6.
Step 6.Step 6.
Step 6. Plug ATX Power cable into ATX Power connector. Step 7.Step 7.
Step 7.Step 7.
Step 7. Turn on the system power (PC-> On).
- 28 -
F
Back-Panel Connectors
COM1/2 Port Connectors
This mainboard can accommodate one serial device on COM1/2. Attach a serial device cable to the DB9 serial port COM1/2 at the back­panel of your computer.
VGA Connector
One 15-pin VGA connector is located at the rear panel of the mainboard.
IEEE 1394 Port Connectors
This mainboard offers two 1394 ports on back-panel. Plug each device jack into an available 1394 connector.
10/100 base-T LAN Port Connector
This mainboard can accommodate one device on LAN. Attach a RJ45 cable to the LAN port at the back-panel of your computer.
B1
B2
B3
B4
B5
COM1 Port COM2 Port
VGA Port
IEEE1394 Port 1
IEEE1394 Port 0
LAN Port
- 29 -
USB Port 0/1 Connectors
Two female connectors USB0/USB1 share the same USB (Universal Serial Bus) bracket at the rear panel of your mainboard. Plug each USB device jack into an available USB0/USB1 connec­tor.
PS/2 Keyboard & PS/2 Mouse Connectors
Two 6-pin female PS/2 Keyboard & Mouse connectors are located at the rear panel of the mainboard. Depending on the computer housing you use (desktop or tower), the PS/2 Mouse connector is situated at the top of the PS/2 Keyboard connector when the mainboard is laid into a desktop, as opposed to a tower where the PS/2 Mouse connector is located at the right of the PS/2 Keyboard's. Plug the PS/2 Keyboard & Mouse jacks into their corresponding connectors.
Bass/Center-Out Port Connector
Bass/Center-Out is a stereo output port through which the combined signal of all internal and external audio sources on the board is output. It can be con­nected to 1/8-inch TRS stereo head­phones or to bass/center amplified speakers.
Line-Out (Front-Out) Port Connector
Line-Out is a stereo output port through which the combined signal of all inter­nal and external audio sources on the board is output. It can be connected to 1/8-inch TRS stereo headphones or to amplified speakers.
B8
B9
B6
B7
Bass/Center-Out Port
PS/2 Keyboard
PS/2 Mouse
USB Port 1
USB Port 0
Line-Out Port (Front-Out)
- 30 -
Line-In (Rear-Out) Port Connector
Line-In is a stereo line-level input port that accepts a 1/8-inch TRS stereo plug. It can be used as a source for digital sound recording, a source to be mixed with the output, or both.
SPDIF In Port
SPDIF In connector can accept digital audio data from Optic fiber.
B10
Line-In Port (Rear-Out)
B11
SPDIF In Port
- 31 -
F
Front-Panel Connectors
ATX Power On/Off Switch Connector (PWON)
The Power On/Off Switch is a momentary type switch used for turning on or off the system ATX power supply. Attach the connector cable from the Power Switch to the 2-pin (PWON) header on the mainboard.
HDD LED Connector (HLED)
Attach the connector cable from the IDE device LED to the 2-pin (HLED) header. The HDD LED lights up whenever an IDE device is active.
C1
C2
Note :
Please note that all the LED connectors are directional. If your chassis's LED does not light up while running, please simply reverse the
direction.
JP8
1
GLED/PLED
HLED
+
+
-
-
+
-
RST
PWON
JP8
1
GLED/PLED
HLED
+
+
-
-
+
-
RST
PWON
- 32 -
C4
C3
+
-
-
+
GLED
PLED
2 4
2 4
JP8
1
GLED/PLED
HLED
+
+
-
-
+
-
RST
PWON
JP8
1
GLED/PLED
HLED
+
+
-
-
+
-
RST
PWON
Green LED / Power LED Connector (GLED/PLED)
This header is dual color LED function. Dual color LED function is defined by either Power LED or Green LED, the
header can be in these states. The Green LED indicates that the system is currently in one of the power saving
mode (Doze/Standby/Suspend). When the system resumes to normal opera­tion mode, the Green LED will go off, power LED on.
This Power LED will go off during power saving mode. Attach a 2-pin Green LED/Power LED cable to (GLED/PLED) header.
Hardware Reset Connector (RST)
Attach the 2-pin hardware reset switch cable to the (RST) header. Pressing the reset switch causes the system to restart.
- 33 -
C5
Pins Assignment: 1=TPA+ 2=TPA­3=GND 4=GND 5=TPB+ 6=TPB­7=+12V 8=+12V 9=KEY 10=GND
JP10
USB
1
JP3
USB
1
C6
2port USB
9
7
5
3
1
10
8
6
4
2
3port USB
2468
10
1
3579
1JP5
Extended USB Header (JP3/JP10)
The headers are used to connect the cable attached to USB connectors which are mounted on front panel or back panel. The USB cable is optional at the time of purchase.
Pins Assignment: 1=+5V 3=USBD0- 5=USBD0+ 7=GND 9=KEY
2=+5V 4=USBD1- 6=USBD1+ 8=GND 10=N/A
Front-Panel 1394 Header - JP5
The header is used to connect the cable attached to 1394 connector which are mounted on front panel or back panel. The 1394 cable is optional at the time of purchase.
- 34 -
Front-Panel Microphone and Line_out Header (JP4)
This header allows users to install auxiliary front-oriented microphone and line­out ports for easier access. Either the Mic and Line_out connector on back­panel or JP4 header are available at the same time. If you would like to use this JP4 header on front-panel, please remove all jumpers from JP4 and install your special Extra Mic / Line_out cable instead.
Pins Assignment:
1=AUD_MIC 2=AUD_GND 3=AUD_MIC_BIAS 4=AUD_VCC 5=AUD_FRONT_R 6=AUD_RET_R
7=HP_ON 8=KEY 9=AUD_FRONT_L 10=AUD_RET_L
C7
Parallel Port Header (JP11)
One DB25 male parallel port header is located at the rear panel of the mainboard. The header is used to connect the cable attached to parallel con­nector. The parallel cable and connector are optional at the time of purchase.
1
C8
2 4 6 8 10
1 3 5 7 9
JP4
1
Front Audi o
- 35 -
Important:
Ribbon cables are directional, therefore, always connect the red cable stripe on the same side as pin #1 of the IDE1/IDE2 or FDC connector on the mainboard.
1
1
IDE1
IDE2
1
FDD
D1
D2 D3
F
Internal Peripherals Connectors
Enhanced IDE and Floppy Connectors
The mainboard features two 40-pin dual-channel IDE device connectors which (IDE1/IDE2) provide support for up to four IDE devices, such as CD­ROM and Hard Disk Drives (H.D.D.).
This mainboard also includes one 34-pin floppy disk controller (FDC) to accommodate the Floppy Disk Drive (FDD). It also comes with one 80-pin ATA
133/100
ribbon cable to connect to IDE H.D.D. and one 34-pin rib-
bon cable for F.D.D. connection.
- 36 -
F
Other Connectors
ATX Power Supply Connectors (CN5 and JP7)
This motherboard uses 20-pin (CN5) Pentium 4 standard ATX power header, and JP7 with 1X4-pin +12V PC ATX power supply headers.
Please make sure you plug in the right direction.
Note
This motherboard can't support AC power resumes from power failure, you must press power button to power-on.
Note 1:
The ATX power connector is directional and cannot be mserted un less the guides match perfectly making sure that pin#1 is properly positioned.
Note 2:
Make sure the latch of the ATX power connector clicks into place to ensure a solid attachment.
Note 3:
Your ATX power supply must be supplied to ACPI +5V standby power and at least 720mA compatible.
Note 4:
Make sure your power supply have enough power for higher speed processor installed.
E1
P3/P4 ATX Power supply headers
CN5 JP7
1
1
CN5
JP7
ATXPWR
- 37 -
E5
FAN1/2/3 with rotate sense.
SENSE
GND +12V
1
FAN3
1
FAN 2
1
1
FAN 1
E2
E3
E4
CN3
CD-IN
1
CPU and System Fan Connectors - FAN1/2/3
The mainboard provides three onboard 12V cooling fan power connectors to support System (FAN1), Chipset (FAN2), or CPU (FAN3) cooling fans.
Note:
Both cable wiring and type of plug may vary , depending on the fan manufacturer. Keep in mind that the red wire should always be connected to the +12V header and the black wire to the ground (GND) header.
Audio CD_IN Connector (CN3) (Black)
Port CN3 is used to attach an audio connector cable from the CD-ROM drive.
4
3
2
1
CD_IN Left CD_IN Right
GND
- 38 -
E6
E7
Pin Assignments: JP9 1=+12V 2=VCC 3=N/A 4=SPDIF-OUT 5=SPDIF-IN 6=GND 7=N/A 8=N/A 9=KEY 10=GND
1 3 5 7
2 4 6 8
JP2
1
9
7
5
3
1
10
8
6
4
2
1
SPDIF
JP9
Wireless Keyboard and Mouse Connector (JP2)
Port JP2 can be used to connect wireless keyboard and mouse device.
Pin Assignments: 1=+5V 2=KEY 3=MS-DT 4=KB-DT 5=MS-CK 6=KB-CK 7=GND 8=GND
SPDIF Ext/In/Out Headers (JP9)
Port JP9 can be used to connect special device.
- 39 -
3.3 System Memory Configuration
The FS51 mainboard has two 184-pin DIMM slots that allow you to install from 64MB up to 2GB of system memory.
Each 184-pin DIMM (Dual In-line Memory Module) Slot can accommodate 64MB, 128MB, 256MB, 512MB, and 1GB of PC1600/PC2100/PC2700 compliant 2.5V single (1 Bank) or double (2 Bank) side 64-bit wide data path DDR SDRAM modules.
Install Memory:
Install memory in any or all of the slots and in any combination shown as follows.
Note: Maximum installed memory is 2GB.
Note:
You do not need to set any jumper to configure memory since the BIOS utility can detect the system memory automatically. You can check the total system memory value in the BIOS Standard CMOS Setup menu.
Upgrade Memory:
You can easily upgrade the system memory by inserting additional DDR SDRAM modules in available DIMM slots. The total system memory is calculated by simply adding up the memory in all DIMM slots. After up­grade, the new system memory value will automatically be computed and displayed in the field " Standard CMOS Setup" of BIOS setup program.
DIMM Socket Memory Modules
Module
Quantity
DIMM 1
16MB, 32MB, 64MB, 128MB, 256MB, 512M ,and 1GB 184-pin 2.5V DDR SDRAM DIMM
x 1
DIMM 2
16MB, 32MB, 64MB, 128MB, 256MB, 512M ,and 1GB 184-pin 2.5V DDR SDRAM DIMM
x 1
- 40 -
4 SOFTWARE UTILITY
4.1 Mainboard CD Overview
Note:
The CD contents attached in FS51 mainboard are subject to
change without notice.
To start your mainboard CD disc, just insert it into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click or run D:\Autorun.exe (assuming that your CD-ROM drive is drive D:)
Navigation Bar Description:
F
Install VGA Device Driver
- Installing SIS VGA driver.
F
Install AGP Driver
- Installing SIS chipset driver.
F
Install Audio Device Driver
- Installing Audio driver.
F
Install LAN Driver
- Installing LAN driver.
F
Manual
- FS51 Series mainboard user's manual in PDF format.
F
Browse this CD
- Allows you to see contents of this CD.
F
Link to Creative SLiX Homepage
- Link to Creative SLiX website
homepage.
F
Quit
- Close this CD.
] The NT Audio/VGA/LAN Device Driver and Win 9x LAN Device Driver
must be installed manually.
- 41 -
4.2 Install SIS VGA Driver
Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in
My Computer
to run
Mainboard Software Setup
.
Select using your pointing device (e.g. mouse) on the “
Install VGA Device
Driver
" bar to install SIS VGA driver.
Once you made your selection, a Setup window will run the installation automatically. When installation is done, make sure you
reboot
the system.
- 42 -
4.3 Install SIS AGP Driver
Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in
My Computer
to run
Mainboard Software Setup
.
Select using your pointing device (e.g. mouse) on the “
Install SIS AGP
Driver"
bar to install SIS chipset driver.
Once you made your selection, a Setup window will run the installation automatically. When installation is done, make sure you
reboot
the system.
- 43 -
4.4 Install Audio Driver
Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in
My Computer
to run
Mainboard Software Setup
.
Select using your pointing device (e.g. mouse) on the “
Install Audio De-
vice Driver"
bar to install Hardware Audio driver.
Once you made your selection, a Setup window will run the installation automatically. When installation is done, make sure you
reboot
the system.
Note: Under Audio Accessories ->Sound Manager on the task bar in Win-
dows, default setting AC97 Audio configuration for "Swap Center / Subwoofer Output" is Disabled. For use with Creative 5.1 speaker, please "Enable" this function.
- 44 -
4.5 Install LAN Driver
Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in
My Computer
to run
Mainboard Software Setup
.
Select using your pointing device (e.g. mouse) on the “
Install LAN Driver
bar to install LAN driver.
Once you made your selection, a Setup window will run the installation automatically. When installation is done, make sure you
reboot
the system.
Install WIN98 LAN driver The LAN Device Driver can't install automatically, you need double click on
My Computer
->
Control Panel
->
System
icon to go to
System Prop-
erties.
Select tab
"Device Manager"
.
You will find a yellow "?" mark at
PCI
Ethernet Controller,
that means the
driver is not recognize. Double click on the
Ethernet
Controller.
- 45 -
Then
PCI Ethernet Controller Prop-
erties
windows will appear on your
screen. Click on the
"Reinstall Driver"
bar to
install driver.
The
Update Device Driver Wizard
windows will appear on your screen. Click on
"Next"
bar to continue.
Please choose
"Display a list of the drivers" in a specific location, so you can select the driver you want" to manually install the driver, and click on
"Next"
bar to continue.
Select
"Network adapters"
bar for
LAN device and click on
"Next"
bar to
continue.
- 46 -
Insert the support CD by the mainboard manufacturer and choose "
Have Disk"
bar to continue next step.
Indicate the driver's location as "D:\lan\WIN98\NETRTS5.INF"
(Assuming CD-ROM drive is Drive D:)
Select
"Realtek RTL8139/810X
Family PCI Fast Ethernet NIC"
to
install, and then click
"OK"
.
Make sure
"Realtek RTL8139/810X
Family PCI Fast Ethernet NIC"
driver
is chasen, and click
"Next"
. The system will then do the setup procedure automatically.
After completing the update, Click "Finish" to reboot the system.
- 47 -
4.6 Install USB 2.0 Driver
Select using your pointing device (e.g. mouse) on the
"Install USB 2.0
Driver"
bar to install audio driver.
Once you made your selection, a Setup window will run the installation automatically. When installation is done, make sure you
reboot
the system.
Note .
Only visible on Windows XP or 2000. USB 2.0 is not supported on Windows ME.
After restart, you may check Network adapters under the location.
Shown in the figure on the right.
- 48 -
Online Information
windows will then appear on your screen. Click on the
"
Install Acrobat Reader
" bar if you need to install acrobat reader.
Then click on
"Manual"
bar to view user's manual.
4.7 View the User's Manual
Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on AutoRun icon in
My Computer
to run
Mainboard Software Setup
.
Select using your pointing device (e.g. mouse) on the "
Manual
" bar.
- 49 -
FS51 BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This information is stored in battery-backed RAM so that it retains the Setup information even if the system power is turned off.
The system BIOS is managing and executing a variety of hardware related functions in the system, including:
System date and time Hardware execution sequence Power management functions Allocation of system resources
5.1 Enter the BIOS
To enter the BIOS (Basic Input / Output System) utility, follow these steps:
Step 1.
Power on the computer, and the system will perform its POST (Power-On Self Test) routine checks.
Step 2.
Press <Del> key immediately, or at the following message: Press DEL to enter SETUP",or simultaneously press <Ctrl>, <Alt>, <Esc> keys
Note 1.
If you miss trains of words mentioned in step 2 (the message disappears before you can respond) and you still wish to enter BIOS Setup, restart the system and try again by turning the computer OFF and ON again or by pressing the <RESET> switch located at the computer's front-panel. You may also reboot by simultaneously pressing the <Ctrl>, <Alt>, <Del> keys.
Note 2.
If you do not press the keys in time and system does not boot, the screen will prompt an error message, and you will be given the following options:
" Press F1 to Continue, DEL to Enter Setup "
Step 3.
As you enter the BIOS program, CMOS Setup Utility will prompt you the Main Menu, as shown in the next section.
Note 3.
The setting is set to default, please refer to the next section before changing the bios settings manually:
5 BIOS SETUP
- 50 -
5.2 The Main Menu
Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.
Note that a brief description of each highlighted selection appears at the bottom of the screen.
Setup Items
The main menu includes the following main setup categories. Recall that some systems may not include all entries.
Standard CMOS Features
Use this menu for basic system configuration.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and opti­mize your system's performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
- 51 -
PnP / PCI Configurations
This entry appears if your system supports PnP / PCI.
PC Health Status
This entry shows the current system temperature, Voltage, and FAN speed.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the minimal/stable performance of your system to operate.
Load Optimized Defaults
Use this menu to load the BIOS default values that are factory-set for optimal performance system operation. While Award has designed the custom BIOS to maximize performance, the factory has the right to change these defaults to meet users' needs.
Set Password
Use this menu to change, set, or disable password. It allows you to limit access to the system and Setup, or only to Setup.
Save & Exit Setup
Save CMOS value changes in CMOS and exit from setup.
Exit Without Saving
Abandon all CMOS value changes and exit from setup.
- 52 -
Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
DateDate
DateDate
Date
<Month> <DD> <YYYY> Set the system date. Note that the 'Day' automatically changes when
you set the date.
TimeTime
TimeTime
Time
<HH : MM : SS> The time is converted based on the 24-hour military-time clock. For
example, 5 p.m. is 17:00:00.
IDE Primary MasterIDE Primary Master
IDE Primary MasterIDE Primary Master
IDE Primary Master
Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.
IDE Primary SlaveIDE Primary Slave
IDE Primary SlaveIDE Primary Slave
IDE Primary Slave
Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.
- 53 -
IDE Secondary MasterIDE Secondary Master
IDE Secondary MasterIDE Secondary Master
IDE Secondary Master
Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.
IDE Secondary SlaveIDE Secondary Slave
IDE Secondary SlaveIDE Secondary Slave
IDE Secondary Slave
Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.
Drive A/Drive BDrive A/Drive B
Drive A/Drive BDrive A/Drive B
Drive A/Drive B
Select the type of floppy disk drive installed in your system. The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,
1.44M, 3.5 in, or 2.88M, 3.5 in.
Floppy 3 Mode SupportFloppy 3 Mode Support
Floppy 3 Mode SupportFloppy 3 Mode Support
Floppy 3 Mode Support
This item enable/disable the Floppy mode 3 options. This mode is used mostly in Japan PC. The choice: Disabled, Drive A, Drive B, or Both.
VideoVideo
VideoVideo
Video
Select the default video device. The choice: EGA/VGA, CGA 40, CGA 80, or MONO.
Halt OnHalt On
Halt OnHalt On
Halt On
Select the situation in which you want the BIOS to stop the POST process and notify you. The choice: All Errors, No Errors, All, But Keyboard, All, But
Diskette, or All, But Disk/Key.
Base MemoryBase Memory
Base MemoryBase Memory
Base Memory
Displays the amount of conventional memory detected during boot up. The choice: N/A.
Extended MemoryExtended Memory
Extended MemoryExtended Memory
Extended Memory
Displays the amount of extended memory detected during boot up. The choice: N/A.
Total MemoryTotal Memory
Total MemoryTotal Memory
Total Memory
Displays the total memory available in the system. The choice: N/A.
************************************************************************************************************
************************************************************************************************************
******************************************************
IDE Adapters
The IDE adapters control the hard disk drive. Use a separate sub-menu to configure each hard disk drive.
- 54 -
IDE HDD Auto-DetectionIDE HDD Auto-Detection
IDE HDD Auto-DetectionIDE HDD Auto-Detection
IDE HDD Auto-Detection Press <Enter> to auto-detect HDD on this channel. If detection is successful, it fills the remaining fields on this menu.
Press Enter
IDE Primary MasterIDE Primary Master
IDE Primary MasterIDE Primary Master
IDE Primary Master Selecting 'manual' lets you set the remaining fields on this screen and select the type of fixed disk. "User Type" will let you select the number of cylinders, heads, etc., Note: PRECOMP=65535 means NONE !
The choice: None, Auto, or Manual.
Access ModeAccess Mode
Access ModeAccess Mode
Access Mode Choose the access mode for this hard disk.
The choice: CHS, LBA, Large, or Auto.
CapacityCapacity
CapacityCapacity
Capacity Disk drive capacity (Approximated). Note that this size is usually slightly greater than the size of a formatted disk given by a disk check­ing program.
Auto-Display your disk drive size.
The following options are selectable only if the 'IDE Primary Master' item is set to 'Manual'
CylinderCylinder
CylinderCylinder
Cylinder Set the number of cylinders for this hard disk.
Min = 0, Max = 65535
HeadHead
HeadHead
Head Set the number of read/write heads.
Min = 0, Max = 255
PrecompPrecomp
PrecompPrecomp
Precomp Warning: Setting a value of 65535 means no hard disk.
Min = 0, Max = 65535
Landing zoneLanding zone
Landing zoneLanding zone
Landing zone Set the Landing zone size.
Min = 0, Max = 65535
SectorSector
SectorSector
Sector Number of sector per track.
Min = 0, Max = 255
************************************************************************************************************
************************************************************************************************************
******************************************************
- 55 -
Advanced BIOS Features
This section allows you to configure your system for basic operation. You have the opportunity to select the system's default speed, boot-up sequence, keyboard operation, shadowing, and security.
Virus WarningVirus Warning
Virus WarningVirus Warning
Virus Warning
Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enables and someone attempts to write data into this area, BIOS will show a warning message on screen, and an alarm beep.
EnabledEnabled
EnabledEnabled
Enabled Activates automatically when the system boots up,
causing a warning message to appear when anything attempts to access the boot sector or hard disk partition table.
DisabledDisabled
DisabledDisabled
Disabled No warning message will appear when anything
attempts to access the boot sector or hard disk partition table.
The choice: Enabled or Disabled.
CPU L1 & L2 CacheCPU L1 & L2 Cache
CPU L1 & L2 CacheCPU L1 & L2 Cache
CPU L1 & L2 Cache
This item enables CPU L1 internal and CPU L2 cache to speed up memory access.
The choice: Enabled or Disabled.
- 56 -
CPU L2 Cache ECC CheckingCPU L2 Cache ECC Checking
CPU L2 Cache ECC CheckingCPU L2 Cache ECC Checking
CPU L2 Cache ECC Checking
When you select Enabled, memory checking is enabled when the CPU internal L2 cache contains ECC SRAMs.
The choice: Enabled or Disabled.
Quick Power On Self TestQuick Power On Self Test
Quick Power On Self TestQuick Power On Self Test
Quick Power On Self Test
This item speeds up Power-On Self Test (POST) after you power on the computer. If it is set to enabled, BIOS will shorten or skip some check items during POST.
The choice: Enabled, or Disabled.
First/Second/Third Boot DeviceFirst/Second/Third Boot Device
First/Second/Third Boot DeviceFirst/Second/Third Boot Device
First/Second/Third Boot Device
The BIOS attempts to load the operating system from the devices in the sequence selected in these items.
The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1,
HDD-2, HDD-3, ZIP100, LAN, USB-FDD, USB-ZIP, USB-CDROM, USB-HDD or Disabled.
Boot Other DeviceBoot Other Device
Boot Other DeviceBoot Other Device
Boot Other Device
Select Your Boot Device Priority. The choice: Enabled or Disabled.
Swap Floppy DriveSwap Floppy Drive
Swap Floppy DriveSwap Floppy Drive
Swap Floppy Drive
If the system has two floppy drives, you can swap the logical drive name assignment.
The choice: Enabled or Disabled.
Boot Up Floppy SeekBoot Up Floppy Seek
Boot Up Floppy SeekBoot Up Floppy Seek
Boot Up Floppy Seek
Seeks disk drives during boot-Up. Disabling speed boots up. The choice: Enabled or Disabled.
Boot Up NumLock StatusBoot Up NumLock Status
Boot Up NumLock StatusBoot Up NumLock Status
Boot Up NumLock Status
Selects power-on state for NumLock. Off: Keypad is arrow key. On: Keypad is numeric key. The choice: Off or On.
Typematic Rate SettingTypematic Rate Setting
Typematic Rate SettingTypematic Rate Setting
Typematic Rate Setting
Keystrokes repeat at a rate determined by the keyboard controller. When this controller enabled, the typematic rate and typematic delay can be selected.
The choice: Enabled or Disabled.
- 57 -
Typematic Rate (Chars/Sec)
This item sets how many times the keystroke will be repented in a second when you hold the key down.
Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.
Typematic Delay (Msec)
Sets the delay time after the key is held down before it begins to repeat the keystroke.
Ø The choice: 250, 500, 750, or 1000.
Security Option
Select whether the password is required every time the system boots or only when you enter setup.
System
The system will not boot and access to Setup will be denied if the correct password is not entered promptly.
Setup
The system will boot, but access to Setup will be denied if the correct password is not entered promptly.
Ø The choice: System or Setup.
Note: To disabled security, select PASSWORD SETTING at Main
Menu, and then you will be asked to enter password. Do not type anything and just press <Enter>; it will disable security.
Once the security is disabled, the system will boot, and you can enter Setup freely.
APIC Mode
Selects enable/disable IO APIC function Ø The choice: Enabled or Disabled.
MPS Version Control For OS
Selects the operating system multiprocessor support version. Ø The choice: 1.1 or 1.4
OS Select For DRAM > 64MB
Selects the operating system that is running with greater than 64MB of RAM in the system. Set to OS2 if using more than 64MB and running OS2.
Ø The choice: Non-OS2 or OS2.
- 58 -
HDD S.M.A.R.T. CapabiliryHDD S.M.A.R.T. Capabiliry
HDD S.M.A.R.T. CapabiliryHDD S.M.A.R.T. Capabiliry
HDD S.M.A.R.T. Capabiliry
This item enable/disable the HDD system management function. The choice: Enabled or Disabled.
Report No FDD For Win 95Report No FDD For Win 95
Report No FDD For Win 95Report No FDD For Win 95
Report No FDD For Win 95
Whether report no FDD runs for Win 95 or not. The choice: Yes or No.
Video BIOS ShadowVideo BIOS Shadow
Video BIOS ShadowVideo BIOS Shadow
Video BIOS Shadow
Determines whether video BIOS will be copied to RAM for faster execution. However, it is optional depending on chipset design. Video Shadow will increase the video speed. The choice: Enabled or Disabled.
Small Logo(EPA) ShowSmall Logo(EPA) Show
Small Logo(EPA) ShowSmall Logo(EPA) Show
Small Logo(EPA) Show
This item allows you to enable/disable the EPA Logo. The choice: Enabled or Disabled.
- 59 -
Advanced Chipset Features
This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache. It also coordinates communications between the conventional ISA bus and the PCI bus. It states that these items should never need to be altered.
The default settings have been chosen because they provide the best operating conditions for your system. If you discovered that data was being lost while using your system, you might consider making any changes.
Advanced DRAM Control 1Advanced DRAM Control 1
Advanced DRAM Control 1Advanced DRAM Control 1
Advanced DRAM Control 1
Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.
System PerformanceSystem Performance
System PerformanceSystem Performance
System Performance This item select the system timing(Safe/Normal/Fast/Turbo/Ultra) for DDR SDRAM,
The Choice: Safe Mode, Normal Mode, Fast Mode, Turbo Mode, or
Ultra Mode.
CAS Latency SettingCAS Latency Setting
CAS Latency SettingCAS Latency Setting
CAS Latency Setting This item select the CAS latency for DDR SDRAM The Choice: 2T, 2.5T, or 3T.
- 60 -
DRAM Addr/Cmd RateDRAM Addr/Cmd Rate
DRAM Addr/Cmd RateDRAM Addr/Cmd Rate
DRAM Addr/Cmd Rate This item select the Cmd Rate of DDR SDRAM(1T/2T). The Choice: Auto Mode, 1T, or 2T.
Prefetch CachingPrefetch Caching
Prefetch CachingPrefetch Caching
Prefetch Caching
This item enable/disable the Prefetch cache function of DRAM control­ler.
The Choice: Enabled or Disabled.
System BIOS CacheableSystem BIOS Cacheable
System BIOS CacheableSystem BIOS Cacheable
System BIOS Cacheable
The Choice: Enabled or Disabled.
Video RAM CacheableVideo RAM Cacheable
Video RAM CacheableVideo RAM Cacheable
Video RAM Cacheable
The Choice: Enabled or Disabled.
Memory Hole at 15M-16MMemory Hole at 15M-16M
Memory Hole at 15M-16MMemory Hole at 15M-16M
Memory Hole at 15M-16M
You can reserve this area of system memory for ISA adapter ROM. When this area is reserved, it cannot be cached. The user information of periph­erals that need to use this area of system memory ususlly discusses their memory requirements.
The Choice: Enabled or Disabled.
AGP Aperture Size (MB)AGP Aperture Size (MB)
AGP Aperture Size (MB)AGP Aperture Size (MB)
AGP Aperture Size (MB)
Select the size of Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated to graphics memory address space. Host cycles that hit the aperture range are for­warded to the AGP without any translation.
The Choice: 4M, 8M, 16M, 32M, 64M, 128M, or 256M.
Graphic Window WR CombinGraphic Window WR Combin
Graphic Window WR CombinGraphic Window WR Combin
Graphic Window WR Combin
This item enable/disable the write combine function for Graphic ad­dress space.
The Choice: Enabled or Disabled.
AGP Fast WriteAGP Fast Write
AGP Fast WriteAGP Fast Write
AGP Fast Write
The Choice: Enabled or Disabled.
AGP sideband addressAGP sideband address
AGP sideband addressAGP sideband address
AGP sideband address
This item enable/disable the AGP sideband addressing capability for AGP cards.
The Choice: Enabled or Disabled.
AGP CapabilityAGP Capability
AGP CapabilityAGP Capability
AGP Capability
This item select the AGP supported mode The Choice: Auto, 2X, or 4X.
- 61 -
Integrated Peripherals
SIS OnChip IDE DeviceSIS OnChip IDE Device
SIS OnChip IDE DeviceSIS OnChip IDE Device
SIS OnChip IDE Device
Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.
Internal PCI/IDEInternal PCI/IDE
Internal PCI/IDEInternal PCI/IDE
Internal PCI/IDE This chipset contains and internal PCI IDE interface with support for two
IDE channels. The choice: Disabled, Primary, Secondary, or Both.
IDE Primary/Secondary Master/Slave PIOIDE Primary/Secondary Master/Slave PIO
IDE Primary/Secondary Master/Slave PIOIDE Primary/Secondary Master/Slave PIO
IDE Primary/Secondary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE inter­face supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.
The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.
Primary/Secondary Master/Slave UltraDMAPrimary/Secondary Master/Slave UltraDMA
Primary/Secondary Master/Slave UltraDMAPrimary/Secondary Master/Slave UltraDMA
Primary/Secondary Master/Slave UltraDMA Ultra DMA/100 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If both of your hard drive and your system software support Ultra DMA/133/100, select Auto to enable BIOS support.
The choice: Auto or Disabled.
- 62 -
IDE Burst ModeIDE Burst Mode
IDE Burst ModeIDE Burst Mode
IDE Burst Mode Selecting Enabled reduces latency between each drive read/write cycle, but may cause instability in IDE subsystems that cannot support such fast performance. If you are getting disk drive errors, try setting this value to Disabled. This field does not appear when the lnternal PCI/IDE field, above, is Disabled.
The choice: Enabled or Disabled.
SIS OnChip PCI DeviceSIS OnChip PCI Device
SIS OnChip PCI DeviceSIS OnChip PCI Device
SIS OnChip PCI Device
Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.
SiS USB ControllerSiS USB Controller
SiS USB ControllerSiS USB Controller
SiS USB Controller Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have USB peripherals. The choice: Enabled or Disabled.
USB Ports NumberUSB Ports Number
USB Ports NumberUSB Ports Number
USB Ports Number The Choice: 6 Ports, 5 Ports, 4 Ports or 3 Ports.
USB 2.0 SupportsUSB 2.0 Supports
USB 2.0 SupportsUSB 2.0 Supports
USB 2.0 Supports The Choice: Enabled or Disabled.
USB Keyboard SupportsUSB Keyboard Supports
USB Keyboard SupportsUSB Keyboard Supports
USB Keyboard Supports This item is used to defined USB Keyboard is Enabled or Disabled. The Choice: Enabled or Disabled.
SiS AC97 AudioSiS AC97 Audio
SiS AC97 AudioSiS AC97 Audio
SiS AC97 Audio This item allows you to control the onboard AC97 Audio.
The Choice: Enabled or Disabled.
Onboard Super IO DeviceOnboard Super IO Device
Onboard Super IO DeviceOnboard Super IO Device
Onboard Super IO Device
Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.
Onboard FDC ControllerOnboard FDC Controller
Onboard FDC ControllerOnboard FDC Controller
Onboard FDC Controller Select Enabled if your system has a floppy disk controller (FDC) in-
stalled on the system board and you want to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field.
The choice: Enabled or Disabled.
- 63 -
Onboard Serial Port1/Port2Onboard Serial Port1/Port2
Onboard Serial Port1/Port2Onboard Serial Port1/Port2
Onboard Serial Port1/Port2 Select an address and corresponding interrupt for the first and second serial ports.
The choice: 3E8/IRQ4, 2E8/IRQ3, 3F8/IRQ4, 2F8/IRQ3,Auto, or
Disabled.
Onboard Parallel PortOnboard Parallel Port
Onboard Parallel PortOnboard Parallel Port
Onboard Parallel Port The Choice: Disabled, 378/IRQ7, 278/IRQ5 or 3BC/IRQ7.
Parallel Port ModeParallel Port Mode
Parallel Port ModeParallel Port Mode
Parallel Port Mode The Choice: SPP, EPP, ECP or ECP + EPP mode.
ECP Mod Use DMAECP Mod Use DMA
ECP Mod Use DMAECP Mod Use DMA
ECP Mod Use DMA The Choice: 1 or 3.
IDE HDD Block ModeIDE HDD Block Mode
IDE HDD Block ModeIDE HDD Block Mode
IDE HDD Block Mode
The chipset contains a PCI IDE interface with support for two IED channels. Select Enabled to activate the primary and/or secondary IDE interface. Select Disabled to deactivate this interface, if you install a primary and/or secondary add-in IDE interface IDE interface.
The choice: Enabled or Disabled.
Onboard LAN Boot ROMOnboard LAN Boot ROM
Onboard LAN Boot ROMOnboard LAN Boot ROM
Onboard LAN Boot ROM
This item is used to determine initial device when system power on. The choice: Enabled or Disabled.
Init Display FirstInit Display First
Init Display FirstInit Display First
Init Display First
This item is used to determine initial device when system power on. The choice: AGP or PCI Slot.
AGP Auto CalibrationAGP Auto Calibration
AGP Auto CalibrationAGP Auto Calibration
AGP Auto Calibration
This item enable/disable the AGP driving functions. The choice: Enabled or Disabled.
OnChip VGAOnChip VGA
OnChip VGAOnChip VGA
OnChip VGA
This item allows you to control the onboard VGA. The Choice: Enabled or Disabled.
System Share Memory SizeSystem Share Memory Size
System Share Memory SizeSystem Share Memory Size
System Share Memory Size
This Item can be selected by BIOS. The choice: 4MB, 8MB, 16MB, 32MB, or 64MB.
- 64 -
SiS301 Display TypeSiS301 Display Type
SiS301 Display TypeSiS301 Display Type
SiS301 Display Type
The Choice: H/W Default, A-V PAL OTV, A-V PAL UTV, A-V NTSC
OTV, A-V NTSC UTV, S-V PAL OTV, S-V PAL UTV, S-V NTSC OTV or S-V NTSC UTV.
LCD & TV SelectLCD & TV Select
LCD & TV SelectLCD & TV Select
LCD & TV Select
The Choice: Off, LCD, TV or LCD + TV.
USB0 Access InterfaceUSB0 Access Interface
USB0 Access InterfaceUSB0 Access Interface
USB0 Access Interface
This item select the USB0 data transfer use PCI bus or Embedded(MuTIOL) bus. The MuTIOL bus is faster.
The choice: Embedded Bus, or PCI Bus.
USB1 Access InterfaceUSB1 Access Interface
USB1 Access InterfaceUSB1 Access Interface
USB1 Access Interface
This item select the USB1 data transfer use PCI bus or Embedded(MuTIOL) bus. The MuTIOL bus is faster.
The choice: Embedded Bus, or PCI Bus.
USB2 Access InterfaceUSB2 Access Interface
USB2 Access InterfaceUSB2 Access Interface
USB2 Access Interface
This item select the USB2 data transfer use PCI bus or Embedded(MuTIOL) bus. The MuTIOL bus is faster.
The choice: Embedded Bus, or PCI Bus.
USB2.0 Access InterfaceUSB2.0 Access Interface
USB2.0 Access InterfaceUSB2.0 Access Interface
USB2.0 Access Interface
This item select the USB2.0 data transfer use PCI bus or Embedded(MuTIOL) bus. The MuTIOL bus is faster.
The choice: Embedded Bus, or PCI Bus.
- 65 -
Power Management Setup
The Power Management Setup allows you to configure your system to most effectively saving energy while operating in a manner consistent with your own style of computer use.
ACPI FunctionACPI Function
ACPI FunctionACPI Function
ACPI Function
This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI)
The choice: Enabled or Disabled.
ACPI Suspend TypeACPI Suspend Type
ACPI Suspend TypeACPI Suspend Type
ACPI Suspend Type
This item allows you to select sleep state when suspend. The choice: S1(POS), S3(STR), or S1 & S3.
Power Management Suspend ModePower Management Suspend Mode
Power Management Suspend ModePower Management Suspend Mode
Power Management Suspend Mode
This item allows you to decide the timing to enter suspend mode. The choice: User Define, Min Saving, Max Saving.
Video Off OptionVideo Off Option
Video Off OptionVideo Off Option
Video Off Option
When enabled, this feature allows the VGA adapter to operate in a power saving mode.
Always OnAlways On
Always OnAlways On
Always On Monitor will remain on during power saving
mode.
Suspend --> OffSuspend --> Off
Suspend --> OffSuspend --> Off
Suspend --> Off Monitor is blanked when the system enters
the Suspend mode.
Susp,Stby --> OffSusp,Stby --> Off
Susp,Stby --> OffSusp,Stby --> Off
Susp,Stby --> Off Monitor is blanked when the system enters
either Suspend or Standby modes.
All Modes --> OffAll Modes --> Off
All Modes --> OffAll Modes --> Off
All Modes --> Off Monitor is blanked when the system enters
any power saving mode.
The choice: Always On, Suspend ->Off, Susp,stby -> Off, or All
Modes -> Off.
- 66 -
Video Off MethodVideo Off Method
Video Off MethodVideo Off Method
Video Off Method
This determines the manner in which the monitor is blanked.
V/H SYNC+BlankV/H SYNC+Blank
V/H SYNC+BlankV/H SYNC+Blank
V/H SYNC+Blank This selection will cause the system to turn off
the vertical and horizontal synchronization ports and write blanks to the video buffer.
Blank ScreenBlank Screen
Blank ScreenBlank Screen
Blank Screen This option only writes blanks to the video
buffer.
DPMS SupportedDPMS Supported
DPMS SupportedDPMS Supported
DPMS Supported Initial display power management signaling.
The choice: V/H SYNC+Blank, Blank Screen, or DPMS Supported.
Switch FunctionSwitch Function
Switch FunctionSwitch Function
Switch Function
Enables you to set the System Management Interrupt (SMI) button function in DOS. The choice: Disabled or Break / wake.
MODEM Use IRQMODEM Use IRQ
MODEM Use IRQMODEM Use IRQ
MODEM Use IRQ
This determines the IRQ which the MODEM can use. The choice: 3, 4, 5, 7, 9, 10, 11, or Auto.
HDD Off AfterHDD Off After
HDD Off AfterHDD Off After
HDD Off After
The IDE hard drive will spin down if it is not accessed within a specified length of time. Options are from 1 Min to 15 Min and Disable.
The choice: Disabled, 1 Min ~ 15 Min.
Power Button OverridePower Button Override
Power Button OverridePower Button Override
Power Button Override
Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state when the system has "hung.".
The choice: Instant-Off or Delay 4 Sec.
Power State Resume ControlPower State Resume Control
Power State Resume ControlPower State Resume Control
Power State Resume Control
This item enables your computer to automatically restart or return to its last operating status after power returns from a power failure. The choice: Always Off, Always On, Keep Pre-state.
PM Wake Up EventsPM Wake Up Events
PM Wake Up EventsPM Wake Up Events
PM Wake Up Events
Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.
IRQ [3-7, 9-15], NMIIRQ [3-7, 9-15], NMI
IRQ [3-7, 9-15], NMIIRQ [3-7, 9-15], NMI
IRQ [3-7, 9-15], NMI When enabled, any event occurring at IRQs 3 through 15 (excluding IRQ 8) will awaken a system, which has been powered down.
- 67 -
The choice: Enabled, Disabled.
IRQ 8 Break SuspendIRQ 8 Break Suspend
IRQ 8 Break SuspendIRQ 8 Break Suspend
IRQ 8 Break Suspend This field allows you to enable or disable monitoring of IRQ8 so that it
does not awaken the system from a suspend mode. The choice: Enabled, Disabled.
RING Power Up ControlRING Power Up Control
RING Power Up ControlRING Power Up Control
RING Power Up Control When set to Enabled, the system power will be turned on if there is any
modem activity. The choice: Enabled, Disabled.
PCIPME Power Up ControlPCIPME Power Up Control
PCIPME Power Up ControlPCIPME Power Up Control
PCIPME Power Up Control When set to Enabled, system power will be turned on if there is any
PCI card activity from PCI cards that trigger a PME event, such as LAN or Modem cards. The choice: Enabled, Disabled.
USB Port Wake Up ControlUSB Port Wake Up Control
USB Port Wake Up ControlUSB Port Wake Up Control
USB Port Wake Up Control This item enable/disable the USB wakeup function.
The choice: Enabled, Disabled.
Power Up by AlarmPower Up by Alarm
Power Up by AlarmPower Up by Alarm
Power Up by Alarm When set to Enabled, the following three fields become available and
you can set the month, date (day of the month), hour, minute and second to turn on your system. The choice: Enabled, Disabled.
Month AlarmMonth Alarm
Month AlarmMonth Alarm
Month Alarm This is for specifying the alarm month which system will awaken
the system from suspend mode. The choice: NA, 1 ~ 12.
Day of Month AlarmDay of Month Alarm
Day of Month AlarmDay of Month Alarm
Day of Month Alarm This item selects the alarm date.
Key in a DEC number: Min=0, Max=31.
Time (hh : mm : ss) AlarmTime (hh : mm : ss) Alarm
Time (hh : mm : ss) AlarmTime (hh : mm : ss) Alarm
Time (hh : mm : ss) Alarm This item selects the alarm Time.
[hh] Key in a DEC number: Min=0, Max=23. [mm/ss] Key in a DEC number: Min=0, Max=59.
- 68 -
PnP/PCI Configurations
This section describes the configuration of PCI bus system. PCI or Personal Computer Interconnection is a system which allows I/O devices to operate at the speed CPU itself keeps when CPU communicating with its own special components. This section covers some very technical items, and it is strongly recommended that only experienced users should make any changes to the default settings.
Reset Configuration DataReset Configuration Data
Reset Configuration DataReset Configuration Data
Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit from Setup if you have installed a new device or software and the system reconfiguration has caused such a serious conflict that the operating system can not boot.
The choice: Enabled or Disabled .
Resource Controlled ByResource Controlled By
Resource Controlled ByResource Controlled By
Resource Controlled By
The Award Plug-and-Play BIOS has the capacity to automatically configure all of the boot and Plug-and-Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug-and-Play operating system such as Windows 95.
If you set this field to "manual" , choose specific resources by going into each of the sub-menu that follows this field (a sub-menu is proceeded by a ">").
The choice: Auto(ESCD) or Manual.
- 69 -
IRQ ResourcesIRQ Resources
IRQ ResourcesIRQ Resources
IRQ Resources
When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.
IRQ3/4/5/7/9/10/11/12/14/15 assignedIRQ3/4/5/7/9/10/11/12/14/15 assigned
IRQ3/4/5/7/9/10/11/12/14/15 assignedIRQ3/4/5/7/9/10/11/12/14/15 assigned
IRQ3/4/5/7/9/10/11/12/14/15 assigned This item allows you to determine the IRQ assigned to the ISA bus and
is not available to any PCI slot. Legacy ISA for devices is compliant with the original PC AT bus specification; PCI/ISA PnP for devices is compli­ant with the Plug-and-Play standard whether designed for PCI or ISA bus architecture.
The choice: PCI Device or Reserved.
PCI/VGA Palette SnoopPCI/VGA Palette Snoop
PCI/VGA Palette SnoopPCI/VGA Palette Snoop
PCI/VGA Palette Snoop
It determines whether the MPEG ISA/VESA VGA Cards can work with PCI/VGA or not. If you have MPEG ISA/VESA VGA Cards and PCI/ VGA Card worked, Enable this field. Otherwise, please Disable it.
The choice: Enabled or Disabled.
INT Pin 1~4 AssignmentINT Pin 1~4 Assignment
INT Pin 1~4 AssignmentINT Pin 1~4 Assignment
INT Pin 1~4 Assignment
Names the interrupt request (IRQ) line assigned to a device connected to the PCI interface on your system.
The choice: Auto , 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.
- 70 -
PC Health Status
CPU Fan AutoGuardianCPU Fan AutoGuardian
CPU Fan AutoGuardianCPU Fan AutoGuardian
CPU Fan AutoGuardian
This SMART Bios enabled 3 phase Variable Fan Speed and CPU tem­perature Control feature.
The choice: Enabled or Disabled.
This feature is controlled via Bios, in which the CPU fan rotational speed sensing / control is governed by CPU temperature setting preselected in Bios.
By default, "CPU Fan AutoGuardian" feature under PC Health Status is enabled.
Note:Note:
Note:Note:
Note: Before manually modifying the CPU fan setting, please make sure
both fan connectors are plug into the correct fan connector designations on the mainboard.
Our default for fan cooler is set to Fan 3.Our default for fan cooler is set to Fan 3.
Our default for fan cooler is set to Fan 3.Our default for fan cooler is set to Fan 3.
Our default for fan cooler is set to Fan 3.
- 71 -
User Set CPU FanUser Set CPU Fan
User Set CPU FanUser Set CPU Fan
User Set CPU Fan
Enabled you to choose one specific fan for further setting. The choice: Fan 1, Fan 2 or Fan 3.
Fan Speed Up When CPU TempFan Speed Up When CPU Temp
Fan Speed Up When CPU TempFan Speed Up When CPU Temp
Fan Speed Up When CPU Temp
Enabled 3 phase smart control to the Selected fan. This feature ranges from 48
0
C to 80 0C, in an increment of 4 0C. The default
temperature is at 72
0
C.
The choice: 48
0
C, 52 0C, 56 0C, 60 0C, 64 0C, 68 0C, 72 0C, 76 0C,
80
0
C.
Take our default Setting for example, 1st and 2nd phase Variable Fan Speed and CPU temperature Control is as defined by "Fan Speed Up When CPU Temp". If actual CPU temp (reported by BIOS) stays below 72
0
C then CPU fan speed will run at a
quiet modequiet mode
quiet modequiet mode
quiet mode (1st phase) of
approximately 2000 RPM.
But when the actual CPU temp goes above the pre-selected 72 0C temperature threshold, then CPU fan speed will automatically engage into
normal mode normal mode
normal mode normal mode
normal mode (2nd phase) of about 3000 RPM. Automatically by
the Smart Bios feature, this increase of fan rotation speed will effectively cool down the CPU temperature. And when the CPU temperature drops back below the 72
0
C temperature threshold, CPU fan speed will again automatically shift back to the quiet mode (1st phase) of about 2000 RPM in order to reduce fan noise level.
Fail-safe modeFail-safe mode
Fail-safe modeFail-safe mode
Fail-safe mode (3rd phase) Variable Fan Speed and CPU temperature Control is as predefined at 80
0
C. Where in the event of system and CPU operating under extreme working conditions, and if CPU temperature is raised above 80
0
C then the Smart Bios will engage the CPU fan in Fail-safe mode to rotate at about 3500 RPM. Please note that the higher fan speed, the fan cooler will be
become slightly noisier in order to compensate for the increase in CPU temperature.
Warning: Warning:
Warning: Warning:
Warning: It is strongly recommended to disable CPU Fan AutoGuardian feature, if you wish to use other fan cooler, allowing the fan to run at its default speed.
- 72 -
!!
!!
!
Frequency/Voltage Control
Auto Detect DIMM/PCI ClkAuto Detect DIMM/PCI Clk
Auto Detect DIMM/PCI ClkAuto Detect DIMM/PCI Clk
Auto Detect DIMM/PCI Clk
This item allows you to enable/disable auto detection DIMM/PCI Clock. " The choice: Enabled, or Disabled.
Spread SpectrumSpread Spectrum
Spread SpectrumSpread Spectrum
Spread Spectrum
This item allows you to enable/disable the spread spectrum modulation. " The choice: Enabled, or Disabled.
CPU : DRAM Clock RatioCPU : DRAM Clock Ratio
CPU : DRAM Clock RatioCPU : DRAM Clock Ratio
CPU : DRAM Clock Ratio
This item allows you to adjust CPU and DRAM Ratio.
" If CPU Clock set 100MHz~132MHz, then choice: 1:1, 3:4, or 3:5. " If CPU Clock set 133MHz~165MHz, then choice: 4:3, 1:1, or 4:5.
CPU ClockCPU Clock
CPU ClockCPU Clock
CPU Clock
This item allows the user to adjust CPU Host Clock. Min: 100 Max: 165 " Key in a DEC number: (Between Min and Max.)
DRAM FrequencyDRAM Frequency
DRAM FrequencyDRAM Frequency
DRAM Frequency
This item show DRAM frequency.
- 73 -
!!
!!
!
Load Fail-Safe Defaults
When you press <Enter> on this item, you will get a confirmation dialog box with a message similar to:
Load Fail-Safe Defaults (Y/N) ? NLoad Fail-Safe Defaults (Y/N) ? N
Load Fail-Safe Defaults (Y/N) ? NLoad Fail-Safe Defaults (Y/N) ? N
Load Fail-Safe Defaults (Y/N) ? N
Pressing 'Y' loads the BIOS default values for the most stable, minimal performance system operations.
!!
!!
!
Load Optimized Defaults
When you press <Enter> on this item, you will get a confirmation dialog box with a message similar to:
Load Optimized Defaults (Y/N) ? NLoad Optimized Defaults (Y/N) ? N
Load Optimized Defaults (Y/N) ? NLoad Optimized Defaults (Y/N) ? N
Load Optimized Defaults (Y/N) ? N
Pressing 'Y' loads the default values that are factory-set for optimal performance system operation.
- 74 -
!!
!!
!
Set Password
This item is to set supervisor password. Please follow below steps.
New Password Setting :New Password Setting :
New Password Setting :New Password Setting :
New Password Setting :
1. While pressing <Enter> key to start setting password function, a
dialog box appears to ask you Enter password: “.
2. Key in a new password now. However, the password can not be
over eight characters or numbers.
3. Then system will request you to confirm new password by asking
you to key in new password again.
4. Once the confirmation is completed, new code takes effect.
No Password Setting :No Password Setting :
No Password Setting :No Password Setting :
No Password Setting :
5. If you want to delete password, just press <Enter> key instead of
new password while password input is requested. And the other procedures are the same as above password setting.
If You Forget Password :If You Forget Password :
If You Forget Password :If You Forget Password :
If You Forget Password :
6. While being asked of password, you just forget it and you must
access the system. The only way is to turn off system and clear CMOS memory. Please take reference in page 27 for clear CMOS setting.
- 75 -
!!
!!
! Save & Exit Setup
Pressing <Enter> on this item asks for confirmation:
Save to CMOS and EXIT (Y/N)? YSave to CMOS and EXIT (Y/N)? Y
Save to CMOS and EXIT (Y/N)? YSave to CMOS and EXIT (Y/N)? Y
Save to CMOS and EXIT (Y/N)? Y
Pressing "Y" stores the selections made in the menus of CMOS - a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.
!!
!!
! Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? YQuit without saving (Y/N)? Y
Quit without saving (Y/N)? YQuit without saving (Y/N)? Y
Quit without saving (Y/N)? Y
This allows you to exit from Setup without storing in CMOS any change. The previous selections remain in effect. This exits from the Setup utility and restarts your computer.
Loading...
