Shuttle FB75 User Manual

FB75

Intel Pentium 4
478-pin Processor
with 533/800 MHz FSB
Based Dual Channel DDR MAINBOARD

User's Manual

Shuttle® FB75

Intel Pentium 4
478-pin Processor
with 533/800 MHz FSB
Based Dual Channel DDR Mainboard
Manual Version 1.0

Copyright

Copyright© 2003 by Shuttle® Inc. All Rights Reserved.
This publication, including all photos, illustrations, and software, is protected under interna-

tional copyright laws, with all rights reserved. Reproducing any of the material contained
herein is prohibited without the consent of the publisher.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.

This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other product names used in this manual are ascribed to their respective
owners and acknowledged.

M821

Statement of Shuttle Mainboard via the EMI Test

Shuttle mainboards have been via the EMI test in terms of series of regulations: EN55022/
CISPR22/AS/NZS3548 Class B, EN55024 (1998/AS/NZS), EN4252.1 (1994), EN61000, ANSI
C63.4 (1992), CFR47 Part 15 Subpart B, and CNS13438 (1997). The items tested are illus­trated as follows:

(A) Voltage: AC 110V/60HZ & AC 230V/50HZ
(B) Tested Product Information:

Product Name: PC Mainboard
Status: Sample
Model Name: FB75
S/N: N/A
CPU:

External Frequency: 100 MHz

Intel Pentium4: 1.6/ 1.8/ 2.0/2.2/2.4 GHz

External Frequency: 133 MHz

Intel Pentium4: 2.26/ 2.40/ 2.53/ 2.66/ 2.80/ 3.06 GHz

External Frequency: 200 MHz

Intel Pentium4: 2.8/ 3.0/ 3.2 GHz
Serial Port: two ports with 9 pins
Keyboard Port: one port with 6 pins
Mouse Port: one port with 6 pins
USB 2.0 Port: six ports with 4 pins respectively
1394 Port: one port with 6 pins respectively
LAN Port: one port with 8 pins (10Mbps/100Mbps)
Center/Bass-Out & Line-Out & Line-In Ports: one port for each
Mic-In Ports: two ports
DIMM Memory (optional): DDR 400 256 MB *2
Power Cable: Detachable and Shielded (with a GND pin)
Maximum Resolution: 1280 X 1024 V:60Hz

All CPUs have completely been tested, and values offered by the worst EMI combination of
CPU external frequency are listed as follows:

Test Mode External Frequency CPU CPU Open/Close

1 100MHz P4 2.40 GHz Close
2 100MHz P4 2.40 GHz Open
3 133MHz P4 3.06 GHz Close
4 133MHz P4 3.06 GHz Open
5 200MHz P4 3.20 GHz Close
6 200MHz P4 3.20 GHz Open

(C) Remedy for the Tested Product & Its EMI Interference:

Remedy: N/A
EMI Interference:

Crystal: 14.318MHz(X2)/ 24.576MHz(X3)/ 25.00MHz(X4)/ 32.768KHz(X1)

Clock Generator: U5

(D) Supported Host Peripherals:

Host Peripheral Product Name Model Name S/N FCC ID

#1 Case SB75 N/A
#2 Power Supply (300W) AM630BS20S 0005596 D33047
#3 Maxtor HDD (40 GB) D740X-6L N/A 3902B975
#4 Panasonic FDD JU-257A606P
#5 Pioneer DVD Player DVD-116 AAMS027197WL 3892D029
#6 AGP Card Winfast Geforce 2 MX 3892C520
#7 Power Cable Detachable and Shielded

(E) Notices for Assembling Computers:

1. Cases should be made of iron or other metal that has good electric conductivity.

2. Cylinders in a case should be made of metal, and as having a mainboard mounted

in a case, make sure screws are all utilized and fastened on a mainboard.

3. An I/O shielding should be contacted with I/O metallic parts of a mainboard.

4. Cables should appropriately be arranged and fixed in a case. Follow instructions:

Ø Leave IDE cables not crossed upon CPU and SDRAM;
Ø Leave power cables minimum in length, and not crossed upon a mainboard;
Ø Leave CPU fan cables minimum in length, and not near CPU;
Ø Leave cables on panels and other spare cables tied in a computer case.

5. Make sure an EMI shielding attached to a case has properly been installed.

6. Make sure a 5.25" or 3.5" FDD and screws are fastened to an EMI shielding.

7. Make sure a case is closely in contact with EMI connected points.

8. Make sure there is no cleft in a case which is not deformed.

9. Make sure a PCI or AGP door is bound to a case.

10. Make sure cables of other devices (fans or some others) are fixed in a case.

TABLE OF CONTENTS

WHAT'S IN THE MANUAL.................................................................... 4

Quick Reference............................................................................................... 4

About This Manual ........................................................................................... 4

1 INTRODUCTION ................................................................................ 5

1.1 TO DIFFERENT USERS ............................................................................. 5

FIRST-TIME DIY SYSTEM BUILDER............................................................ 5

EXPERIENCED DIY USER ......................................................................... 5

SYSTEM INTEGRATOR............................................................................... 5

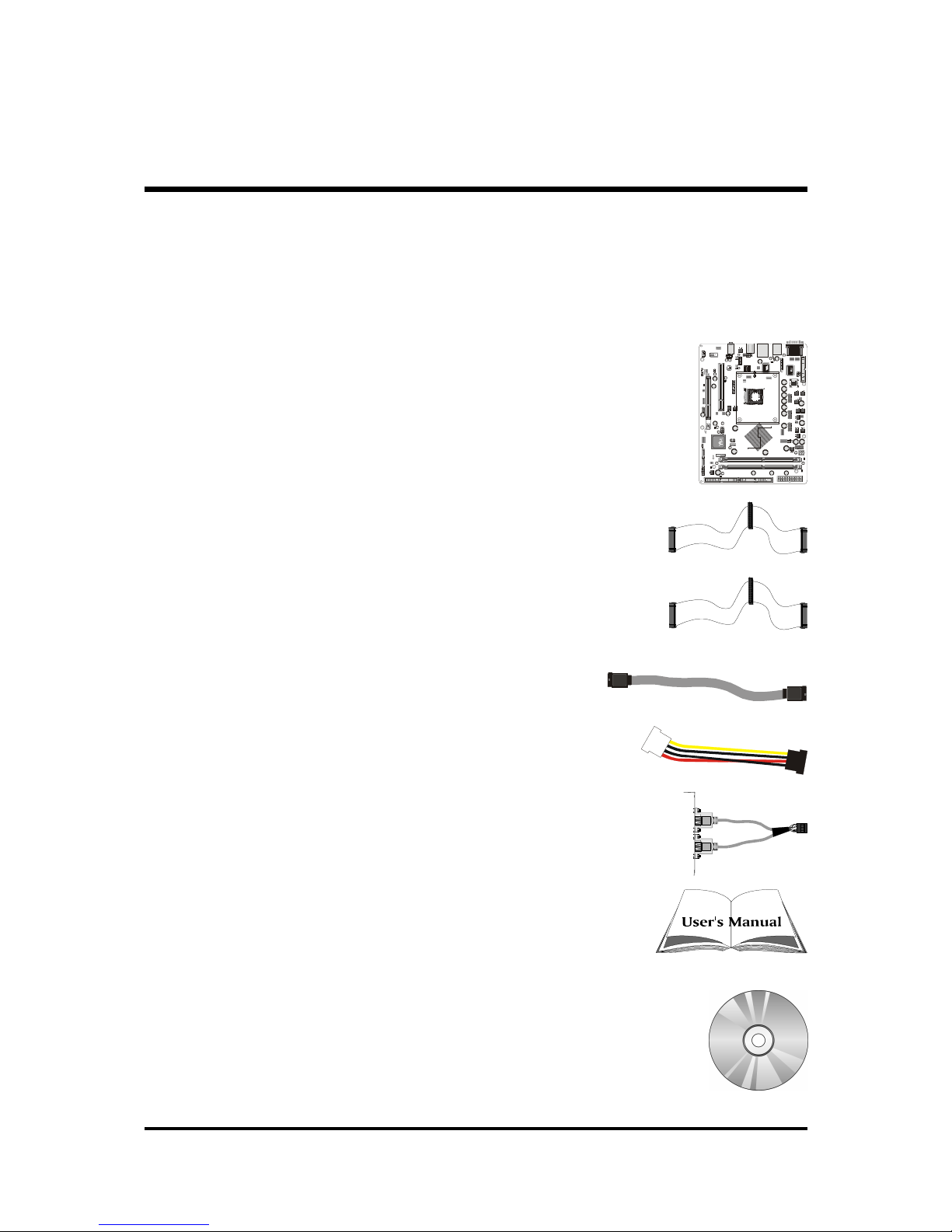

1.2 ITEM CHECKLIST....................................................................................... 6

2 FEATURES ........................................................................................ 7

2.1 SPECIFICATIONS ....................................................................................... 7

3 HARDWARE INSTALLATION.......................................................... 10

3.1 STEP-BY-STEP INSTALLATION (Accessories of FB75) ........................ 10

STEP 1 CPU Installation .............................................................................11

STEP 2 Set Jumpers ................................................................................. 12

STEP 3 Install DDR SDRAM System Memory............................................ 12

STEP 4 Install Internal Peripherals in System Case .................................... 13

STEP 5 Mount the Mainboard on the Computer Chassis............................ 14

STEP 6 Connect Front Panel LEDs/Switches/USBs .................................. 15

STEP 7 Connect IDE, Serial ATA, and Floppy Disk Drives ......................... 16

STEP 8 Connect Other Internal Peripherals................................................ 17

STEP 9 Connect the Power Supplies......................................................... 19

STEP 10 Install Add-on Cards in Expansion Slots ...................................... 19

STEP 11 Connect External Peripherals to Back Panel ............................... 20

STEP 12 System Boot Up For the First-Time ............................................. 21

STEP 13 Install Drivers & Software Components ....................................... 22

3.2 JUMPER SETTINGS ................................................................................. 23

JUMPERS & CONNECTORS GUIDE........................................................ 24

Jumpers

Clear CMOS Setting (JP1)........................................................................ 26

- 1 -

Back Panel Connectors

COM1/COM2 Port Connectors .................................................................. 27

IEEE1394a Port Connector ....................................................................... 27

USB Port Connectors ................................................................................ 27

Giga LAN Port Connector .......................................................................... 27

PS/2 Mouse & PS/2 Keyboard Port Connectors ........................................ 28

Center/Bass-Out Port Connector................................................................ 28

Rear-Out Port Connector ........................................................................... 28

Line-Out Port Connector ............................................................................ 28

Front Panel Connectors

HDD LED Connector (HLED) .................................................................... 29

Green LED/Power LED Connector (GLED/PWR_LED) ............................. 29

Hardware Reset Connector (RST).............................................................. 30

ATX Power On/Off Switch Connector (PWON) ........................................... 30

SPDIF In/Out Header (JP3)........................................................................ 31

Front Panel Audio Header (JP16) .............................................................. 31

Front Panel 1394a Header (JP16) ............................................................. 32

Extended USB Headers (JP16/USB4)....................................................... 33

Internal Peripheral Connectors

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FDD1) ..................... 34

Serial ATA Connectors (SATA1 - Serial ATA1/Serial ATA2)......................... 34

Other Connectors

ATX Power Supply Connectors (ATX1/ATX2)............................................. 35

CPU, System, and Chipset Fan Connectors (FAN1/2/3)............................. 36

Audio CD_IN Connector (JP11) ................................................................. 36

Audio AUX_IN Connector (JP17) ............................................................... 37

Wireless KB/MS Header (JP6) .................................................................. 37

Extended Parallel Port Header (JP8) ......................................................... 38

IR Header (JP7)......................................................................................... 38

3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 39

INSTALL MEMORY .................................................................................... 39

UPGRADE MEMORY................................................................................ 39

- 2 -

4 SOFTWARE UTILITY ......................................................................40

4.1 Mainboard CD Overview ......................................................................... 40

4.2.A Install Intel Chipset Driver.................................................................... 41

4.2.B Install Intel USB 2.0 Driver ................................................................... 41

4.2.C Install Realtek Audio Driver ................................................................. 42

4.2.D Install Broadcom Giga LAN Driver...................................................... 42

4.3 Install WinFlash Utility ............................................................................. 43

4.4 View the User's Manual........................................................................... 43

5 BIOS SETUP ...................................................................................44

5.1 ENTER BIOS ............................................................................................. 44

5.2 THE MAIN MENU ...................................................................................... 45

STANDARD CMOS FEATURES ............................................................... 47

ADVANCED BIOS FEATURES................................................................. 49

ADVANCED CHIPSET FEATURES .......................................................... 52

INTEGRATED PERIPHERALS .................................................................. 54

POWER MANAGEMENT SETUP.............................................................. 57

PNP/PCI CONFIGURATIONS .................................................................... 61

PC HEALTH STATUS................................................................................ 62

FREQUENCY/VOLTAGE CONTROL......................................................... 64

LOAD FAIL-SAFE DEFAULTS .................................................................. 66

LOAD OPTIMIZED DEFAULTS ................................................................. 66

SET SUPERVISOR/USER PASSWORD................................................... 67

SAVE & EXIT SETUP................................................................................ 68

EXIT WITHOUT SAVING............................................................................ 68

- 3 -

WHAT'S IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................Page 10

Jumper Settings >> A Closer Look.......................................................Page 23

Software Utility >> How to Install..........................................................Page 40

BIOS Setup >> How to Configure.........................................................Page 44

About This Manual

For First-Time DIY System Builder .........................................................Page 5

For Experienced DIY User ......................................................................Page 5

For System Integrator .............................................................................Page 5

- 4 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as diffi­cult as you may think. To make your first computer DIY experience successful,
right from the start, we have designed Chapter 3 Hardware Installation in a
step-by-step fashion for all the first-time DIY system builders. Prior to installa­tion, we suggest you read the whole manual to gain a complete understanding
of your new FB75 mainboard.

Experienced DIY User

Congratulate on your purchase of the FB75 mainboard. You will find installing
your new FB75 mainboard is quite easy. Bundled with an array of onboard
functions, the highly-integrated FB75 mainboard provides you with a total so­lution to build the stablest and most reliable system. Referring to section 3.2
Jumper Settings and Chapter 4 Software Utility, you will find how to work
out your new mainboard. Chapter 5 BIOS Setup also contains the relevant
information on how to tune up your system to achieve higher performance.

System Integrator

You have wisely chosen FB75 to construct your system. FB75 incorporates all
the state-of-the-art technology of the 875P chipset from Intel. It integrates the
most advanced functions you've ever found in a compact Shuttle small form
factor ATX board.

- 5 -

1.2 Item Checklist:

V

S

O

AUDIO1

1

V

Attansic

DIMM1

DIMM2

SPDIF

Check all items with your FB75 mainboard to make sure nothing is missing.
A complete package should include:

- One Shuttle FB75 Mainboard

- One ATA 100/66/33 Ribbon Cable

- One Floppy Ribbon Cable

- One Serial ATA Cable

- One Serial ATA Power Cord

SERIAL

KB1

JP17

JP6

1

JP11

FAN1

1

1

1

LAN1 USB2

1

PCI1

FAN3

BROADCOM

JP3

JP5

1

JP2

ALC650

1

1

AGP1

JP16

1

USB4

1

FW82801ER

JP1

1
Serial ATA1 Serial ATA2

BAT1

SATA1

1

JP13
1
IDE1

IDE2

1

1

FDD1

J3 USB1

COM1
JP8
1

VT6307

IT8712F-A

JP7

1

1

SST

FAN2

1

ATXP6

ATX2

ATX1

1

ATA

- One Twin-Port USB Cable (optional)

- FB75 User's Manual

- One Bundled CD-ROM, including:
Ø FB75 user's manual in PDF format

Ø Intel Chipset Driver
Ø Intel USB 2.0 Driver
Ø Realtek Audio Driver
Ø Broadcom Giga LAN Driver
Ø Award Flashing Utility

- 6 -

2 FEATURES

FB75 mainboard is dedicatedly designed for demanding PC users who desire high perfor­mance and maximum intelligent features in a compact package.

2.1 Specifications

- CPU Support

Support Socket 478 package CPU.
Intel Pentium 4 Processor with 533/800 MHz FSB.

- Chipset

Features Intel 875P N.B. and Intel ICH5R S.B..
ICH5R support RAID Function.
Onboard LAN (Gigabit Ethernet Controller)

BCM5788, support 10/100/1000 Mbps operation.
Onboard 1394a

VIA VT6307, support 400Mb/s, 200Mb/s, 100Mb/s data transfer rate.
Onboard Audio

Realtek ALC650, 5.1 channel output with 18-bit ADC and DAC resolution.

- Hyper-Threading Technology

The latest Intel application defines a high-speed calculating ability to opti­mize your system by two CPUs supported (one virtual, one physical) in a
multi-task environment.

- CPU FSB Configuration

Soft-configuration FSB. (The FSB speed is software configurable from
100MHz to 255MHz.)

- Versatile Memory Support

Two 184-pin DIMM slots support up to 2GB of DDR333/DDR400 compli­ant DDR SDRAM unbuffer with/without ECC module, with single/dual
channel mode supported.

- Expansion Slots

Provides one 3.0 compliant AGP slot and one 32-bit PCI slot.

- 8 USB Interface Onboard

Ø 4 USB connectors on back panel and two sets of dual USB ports headers

on mid-board.

- 7 -

- I/O Interface

Provides a variety of I/O interfaces:
Ø 1 Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB

format or for 5.25-inch FDD with 360K or 1.2MB format.

Ø 2 x Serial ports
Ø 1 x 1394a port
Ø 4 x USB ports
Ø 1 x Giga LAN port
Ø 1 x PS/2 Mouse
Ø 1 x PS/2 Keyboard
Ø 1 x Center/Bass-Out port
Ø 1 x Rear-Out port
Ø 1 x Line-Out port

- PCI Bus Master IDE Controller Onboard

Two ultra DMA 100/66/33 bus master dual-channel IDE ports support up to
four IDE devices (one Master and one Slave per channel).

The IDE bus implements data transfer speeds to 100/66/33MB/sec and sup­ports enhanced PIO modes.

80-pin cable backward compatible legacy ATAPI devices, ATAPI IDE CD-ROM,
CD-R, CD-RW, and LS-120 supports.

- ATX Power Supply Connector

ATX power supply unit can be connected to the onboard 20-pin ATX power
connector, and 4-pin ATX power connector. The unit supports Suspend and
Soft-On/Off modes by the dual-function power button.

- Advanced Configuration and Power Interface

Features four power-saving modes: S1 (Snoop), S3 (Suspend to RAM), S4
(Suspend to DISK), and S5 (Soft-Off). ACPI provides more efficient energy­saving features controlled by your operating system that supports OS Direct
Power Management (OSPM) functionality.

- System BIOS

Provides licensed Award BIOS V6.0 PG on the 4Mb Flash EEPROM, and
supports Green PC, Desktop Management Interface (DMI).

- 8 -

- Form Factor

System board conforms to the Shuttle small form factor ATX specification.
Board dimension: 254mm x 185mm.

- Advanced Features

Ø Low EMI - Built in spread spectrum. Unused PCI/SDRAM slots are shut off

by the automatic clock for reducing EMI.

Ø Dual Function Power Button - The system can be in any of the two

states: one is Suspend mode and the other is Soft-Off mode. Pushing the
power button for less than 4 seconds places the system into Suspend
mode. When the power button is pressed for longer than 4 seconds, the
system will enter Soft-Off mode.

Ø Modem Ring Power-On - The system can be powered on automatically

by the activation of modem ringing.

Ø CPU Multiplier Setting - This item allows users to adjust CPU Multiplier

in BIOS.

Ø CPU Host/AGP/PCI/Serial ATA Clock Setting - These items allow

users to adjust CPU Host/AGP/PCI/Serial ATA Clock in BIOS.

Ø CPU/DDR/AGP Voltage Setting - These items allow users to adjust

CPU/DDR/AGP Voltage in BIOS.

- Intelligent Features

Ø Voltage Monitoring - Monitors various voltages of key elements, such as

the CPU, and other critical system voltage levels to ensure a stable current
passing through mainboard components.

Ø Fan Status Monitoring - To prevent the CPU from overheating, the CPU

fan is monitored by RPM, with which the cooling fan is required.

Ø Temperature Monitoring - This item allows users to make sure whether

the CPU or system runs under a suitable temperature.

Ø CPU Fan Speed Control - This SMART BIOS enables variable fan

speed and CPU temperature control features.

- 9 -

3 HARDWARE INSTALLATION

AUDIO111

I

T
8
7
1
2
F

-

A

V

S
S
T

Attansic

1
E
R

SATA1

DIMM1

DIMM2

SPDIF

PS/2 Mouse & PS/2 Keyboard Port Connectors

Giga LAN & USB Port Connectors

Before removing/installing any of these devices: CPU, DIMMs, Add-On
Cards, and Cables, please unplug the onboard power connector.

This section outlines how to install and configure your mainboard. Referring to the follow­ing mainboard layout helps you identify various jumpers, connectors, slots, and ports.

3.1 Step-by-Step Installation (Accessories Of FB75)

Wireless KB/MS Header - JP6
Center/Bass-Out & Rear-Out & Line-Out Port Connectors

IEEE1394a & USB Port Connectors

Serial Port Connectors

Audio AUX_IN
Connector - JP17

Audio CD_IN
Connector - JP11

FAN1
SPDIF In/Out

Header - JP3
JP5 (Reserved)
JP2 (Reserved)
FAN3
Front Panel Audio/

1

1

JP17

JP5

AGP1

JP11

1

PCI1

JP2

1

ALC650

JP16

FAN1

FAN3

1

KB1

JP6

1

1

1

BROADCOM

JP3

LAN1 USB2

J3 USB1

JP8

1

VT6307

COM1

FDD1

JP7

1

1

Extended 1394a/
Extended USB
Headers - JP16

One PCI Slot
One AGP Slot

1

Socket 478
Extended Parallel

Port Header - JP8
IR Header - JP7

Floppy Connector
FAN2

Intel 875P Chipset
Extended USB

USB4

1

Header - USB4
Intel ICH5R Chipset

ATX12V Power
Connector - ATX2

Clear CMOS
Jumper - JP1

Serial ATA1

JP1

1

Serial ATA1 Serial ATA2

FW8280

BAT1

FAN2

1

ATXP6

ATX2

Two DIMM Slots
Serial ATA2
Front Panel

Header - JP13
ATX Power

Connector - ATX1
Two IDE Connectors

1

JP13

IDE1

1

IDE2

1

ATX1

1

- 10 -

Step 1

CPU Installation:

This mainboard supports Intel Pentium 4 Socket 478 series CPU. Please
follow the steps as follows to finish CPU installation.

Note the CPU orientation when you plug it into CPU socket.

1. Pull up the CPU socket lever to 90-degree angle.

CPU socket lever up to
90-degree angle

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU
upper interface. Match Pin 1 and cut edge, and insert the CPU into the
socket.

CPU Pin 1 and cut edge

3. Press down the CPU socket lever and finish CPU installation.

Note: The CPU might be
damaged if you do not match
the CPU socket Pin 1 and cut
edge well.

4. Intel Pentium 4 processors require a set of heatsink and fan to cool down the
processor. You need to purchase a heatsink and fan if they are not bundled
with your CPU. Required is that install the set and plug its cable in the CPU
fan power connector. Note that there are kinds of CPU fan connectors. Nor­mally, if your mainboard supports a hardware monitoring function, a 3-pin
fan power connector can have your system detect the CPU fan's speed. A
CPU fan with a 2-pin or 4-pin fan power connector does not support the
detection of the CPU fan's speed, and must directly be connected to the
system's power supply unit.

- 11 -

Step 2.

Set Jumpers

The default jumper settings have been set for the common usage standard of
this mainboard. Therefore, you need not to reset the jumpers unless you re­quire special adjustments as the following case:

Clear CMOS Setting

For first-time DIY system builders, we recommend that you not change the
default jumper settings if you are not quite familiar with the mainboard con­figuration procedures. The factory-set default settings are tuned for optimum
system performance. For advanced users who prefer to customize their sys­tem, section 3.2 Jumper Settings provides the detailed information on how
to configure your mainboard manually.

Step 3

Install DDR SDRAM System Memory

To install memory, insert DDR SDRAM memory module(s) in the DIMM
banks. Note that DDR SDRAM modules are directional and will not go in the
DIMM banks if they are not properly oriented. After the module is fully in­serted into the DIMM bank, lift the clips of both sides of the DIMM bank to
lock the module in place.

DDR SDRAM

- 12 -

Step 4

Install Internal Peripherals in System Case

Before you place the mainboard into your system case, we recommend that
you first assemble all the internal peripheral devices into the computer hous­ing, including, but not limited to, the hard disk drive (IDE/HDD), floppy disk
drive (FDD), CD-ROM drive, and ATX power supply unit.

To install IDE & FDD drives, follow these procedures:

1. Set the required jumpers on each device according to the instructions pro­vided by the manufacturer. (IDE, HDD, and CD-ROM have to set jumpers
to Master or Slave mode depending on whether you install more than one
device of each kind.)

2. Connect the IDE cable and FDD cable on the back panel of the internal
peripheral devices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually red or magenta)
connected to pin#1 of the IDE or FDD connector on the mainboard and
on the device as well.

3. Connect an available power cable from your system power supply unit to
the back panel of each peripheral device. Note that the power cable is di­rectional and cannot fit in if not properly positioned.

- 13 -

Step 5

Mount the Mainboard on the Computer Chassis

1. You may find there are a lot of mounting holes on your computer chassis
and mainboard. To match the holes on both properly, the key point is to
make the back panel of the mainboard in a close fit with your system case,
as shown below.

2. Position the studs between the chassis and the mainboard. The studs are
used to fix the mainboard and to keep a certain distance between them,
for avoiding any electrical shorts in-between.

(If your computer case is already equipped with mounting studs, you need
to tighten the screws to attach the mainboard.)

Note: In most computer housings, you can find 4 or more holes to place

studs for fixing the mainboard. If there aren't enough matching holes,
screw at least 4 studs to ensure the proper attachment of the main­board.

- 14 -

Step 6

JP13

-

+

HLED

GLED /

3

1

-+JP13

1

HLED

GLED /

+

-

1

JP16

Connect Front Panel LEDs/Switches/USBs

You can find there are several cables existing in the system case and originat­ing from the front panel devices (HDD LED, Green LED, Reset switch, and
USB devices etc.). These cables serve to connect the front panel LEDs,
switches, and USB connectors to JP13 and JP16/USB4, as shown below.

15

9

JP16

1

1

USB4

1. HDD LED (HLED)

2. Green LED/Power LED
(GLED/PWR_LED)

3. Hardware Reset Switch (RST)

4. ATX Soft Power On/Off (PWON)

5. Extended USB Headers (JP16/USB4)

5

1

VCC
Data0­Data0+
Ground

Key

1
3
5
7

9

2
4
6
8

10

VCC
Data1­Data1+
Ground

N/C

USB4

PWON

PWR_LED

4

PWON

2

PWR_LED

5

GND
USB1+
USB1­VCC

+

RST

+

-

-

+

1

RST

-

8
6
4
2

7

GND

5

USB0+

3

USB0-

1

VCC

- 15 -

Step 7

FDD1

Connect IDE, Serial ATA, and Floppy Disk Drives

1. IDE cable connectors

IDE2

1

IDE1

1

2. Serial ATA cable connectors

Serial ATA1 Serial ATA2

3. Floppy cable connector

SATA1

1

1

- 16 -

Step 8

JP11

JP17

Connect Other Internal Peripherals

1. SPDIF in/out header (JP3)

2. Front panel audio header (JP16);
Audio CD_IN connector (JP11);
Audio AUX_IN connector (JP17)

SPDIF

1

JP3

1

15

9

JP16

3. Front panel 1394a header (JP16)

1

JP16

1

15

9

1

- 17 -

4. Wireless KB/MS header (JP6)

5. Extended parallel port header (JP8)

JP6

1

JP8

1

6. IR header (JP7)

JP7

1

- 18 -

Step 9

Connect the Power Supplies

1. System power connectors (ATX1/ATX2)

ATX2

1

ATX1

1

Step 10

Install Add-On Cards in Expansion Slots

1. Accelerated Grapics Port (AGP) Card

2. PCI Card

- 19 -

Step 11

5

7

36839

Connect External Peripherals to Back Panel

You are now ready to connect the external peripherals to your system's back
panel.

1. Serial Ports 1/2

2. IEEE1394a Port

3. USB Ports 0/1/2/3

4. Giga LAN Port

5. PS/2 Mouse Port

6. PS/2 Keyboard Port

7. Audio Center/Bass-Out Port

8. Audio Rear-Out Port

9. Audio Line-Out Port

1

2

3

4

- 20 -

Step 12

System Boot Up For the First-Time

To ensure your system completedly and correctly installed, please refer to the
above installation steps once again before first booting up your system.

1. Insert a system-bootable floppy disk (DOS 6.2X, Windows 9X/NT, or
others), which contains the FDISK and FORMAT utilities.

2. Turn on the system power.

3. First, you need to use the FDISK utility to create a primary partition of the
hard disk. You can also add an extended partition if your primary partition
does not use all of the available hard disk space. If you choose to add an
extended partition, you will have to create one or more logical partitions
to occupy all the space available to the extended partition. The FDISK

utility will assign a drive letter (i.e. C:, D:, E:,......) to each partition shown in

the FDISK program. After the FDISK procedure, reboot your system by
using the same disk.

Note: DOS 6.2X and Windows 95A can only support up to 2.1GB of HDD

partition. If you use the FDISK utility with one of the operating sys­tems mentioned above, you can only install your HDD into any par­titions no larger than 2.1GB.

4. Now, use the FORMAT utility to format all the partitions you've created.
When formatting the primary partition (C:), key in the command, "FOR­MAT C:/S."

Note: FORMAT C:/S can transfer all the necessary system files into the pri-

mary partition of your hard disk. Afterwards, your HDD will become
a bootable drive.

5. Install all the necessary drivers for CD-ROM, Mouse, etc.

6. Setup the complete operating system according to your OS installation
guide.

- 21 -

Step 13

Install Drivers & Software Components

Please note that all the system utilities and drivers are designed for Win 9x/
2000/ME/NT/XP operating systems. Make sure your operating system is
already installed before running the installation programs on CD-ROM.

1. Insert the FB75 bundled CD-ROM into your CD-ROM drive. The auto-

run program will display the main installation window on screen.

2. Choose "Install Mainboard Software."

3. Choose "Install Intel Chipset Driver" and complete it.

4. Choose "Install Intel USB 2.0 Driver" and complete it.

5. Choose "Install Realtek Audio Driver" and complete it.

6. Choose "Install Broadcom Giga LAN Driver" and complete it.

7. Choose "Install Utility."

8. Choose "Install WinFlash Utility" and complete it.

9. Quit (from the auto-run installation program).

- 22 -

3.2 Jumper Settings

Several hardware settings are made through the use of mini jumpers to con­nect jumper pins on the mainboard. Pin #1could be located at any corner of
jumpers, and the corner with a white right angle stands for Pin #1. There are
several types of Pin #1 as shown below:

3-pin and multi-pin (>3) jumpers shown as follows:
Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins capped are shown as for Close [On] or
for Open [Off]. To do this, please place a plastic mini cap on the desired pair
of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging
until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its compo­nents. When putting the mainboard down, place it on top of its original
packaging film, with the component side up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent
electrostatic discharge (ESD) as handling this equipment.

- 23 -

Jumpers & Connectors Guide

B2~B3

D1

E1D2B3~B4

B5~B6

Refer to the mainboard layout on page 10 and this section to help you iden­tify jumpers, slots, and connectors along with their assigned functions.

E2

C5

E5

C6~C8

E6
E7

D1
E2

C8

B7~B9

E3E4

B1

E1
A1

C1~C4

CPU/Memory/Expansion Slots

Socket 478 : CPU socket for Intel Pentium 4, 478-pin processors
DIMM1/2 : Two DIMM slots for 64, 128, 256, 512 MB, and 1GB of

2.5V DDR SDRAM
AGP : One AGP slot supports up to 8X AGP device.
PCI : One 32-bit PCI expansion slot

- 24 -

Jumpers

A1

JP1 : Clear CMOS setting

Back Panel Connectors

B1
B2

B3
B4
B5

B6
B7
B8
B9

COM1/COM2 : Serial ports 1/2
1394a : IEEE1394a port
USB : USB ports 0/1/2/3
GIGA LAN : Giga LAN port
MS : PS/2 mouse port
KB : PS/2 keyboard port
CENTER/BASS : Center/Bass-Out port
REAR-OUT : Rear-Out port
LINE-OUT : Line-Out port

Front Panel Connectors

C1

C2

C3

C4
C5
C6
C7
C8

HLED : HDD LED
GLED/PWR_LED : Green LED/Power LED
RST : Hardware reset switch
PWON : ATX power on/off switch
JP3 : Front panel SPDIF in/out header
JP16 : Front panel audio header
JP16 : Front panel 1394a header
JP16/USB4 : Extended USB headers

Internal Peripheral Connectors

D1
D1
D1
D2

IDE1 : IDE primary interface (dual-channel)
IDE2 : IDE secondary interface (dual-channel)
FDD1 : Floppy disk drive interface
SATA1 : Serial ATA connectors (Serial ATA1/Serial ATA2)

Other Connectors

E1
E2
E2
E2
E3
E4
E5
E6
E7

ATX1/ATX2 : ATX power supply connectors
FAN1 : CPU fan connector
FAN2 : System fan connector
FAN3 : Chipset fan connector
JP11 : Audio CD_IN connector
JP17 : Audio AUX_IN connector
JP6 : Wireless keyboard/mouse header
JP8 : Extended parallel port header
JP7 : IR header

- 25 -

F Jumpers

1

1

A1

Clear CMOS Setting (JP1)

JP1 is used to clear CMOS data. Clearing CMOS will result in permanently
erasing previous system configuration settings and the original factory-set
system settings.

Pin 1-2 (Normal)(Default)

JP1

Pin 2-3 (Clear CMOS)

1

Step 1. Turn off the system power (PC-->Off).
Step 2. Remove the ATX power cable from the ATX power connector.
Step 3. Remove the jumper cap from pins 1-2.
Step 4. Place the jumper cap on pins 2-3 for a few seconds.
Step 5. Restore the jumper cap to pins 1-2.
Step 6. Plug the ATX power cable into the ATX power connector.
Step 7. Turn on the system power (PC-->On).

- 26 -

F Back Panel Connectors

B1

COM1/COM2 Port Connectors

This mainboard can accommodate
two serial devices on COM1/COM2.
Attach serial device cables to the DB9
serial ports COM1/COM2 at the back
panel of your computer.

B2

IEEE1394a Port Connector

This mainboard offers one 1394a port
on back panel. Plug a device jack into
the 1394a connector.

COM2 Port

COM1 Port

1394a Port

B3

USB Port Connectors

This mainboard offers 4 USB ports on
back panel. Plug each USB device jack
into an available USB connector.

B4

Giga LAN Port Connector

This mainboard can accommodate one
device on Giga LAN. Attach a RJ-45
cable to this Giga LAN port connector
on back panel.

USB Port 1

USB Port 0

Giga LAN Port

USB Port 3

USB Port 2

- 27 -

B5

PS/2 Mouse & PS/2 Keyboard
Port Connectors

Two 6-pin female PS/2 Mouse & Key­board connectors are located on the
rear panel of the mainboard. In a desk­top computer, the PS/2 Mouse connec­tor is situated on the top of the PS/2 Key­board connector. In a tower computer,
the PS/2 Mouse connector is located on
the rightside of the PS/2 Keyboard con­nector.

B6

Center/Bass-Out Port Connector

PS/2 Mouse Port

PS/2 Keyboard Port

Center/Bass-Out is a stereo output port
through which the combined signal of
all internal and external audio sources
on the board is output. It can be con­nected to 1/8-inch TRS stereo head­phones or to center/bass amplified
speakers.

B7

Rear-Out Port Connector

Stereo out of rear (surround) channel.

B8

Line-Out Port Connector

Line-Out is a stereo output port through
which the combined signal of all inter­nal and external audio sources on the
board is output. It can be connected to
1/8-inch TRS stereo headphones or to
amplified speakers.

Center/Bass-Out Port

Rear-Out Port

Line-Out Port

- 28 -

F Front Panel Connectors

C1

HDD LED Connector (HLED)

Attach a connector cable from the IDE device LED to the 2-pin (HLED) header.
The HDD LED lights up whenever an IDE device is active.

JP13

+

1

RST

­HLED

PWON

GLED /
PWR_LED

Note : Please notice all the LED connectors are directional. If your chassis's

LED does not light up during running, please change it to the oppo­site direction.

C2

Green LED/Power LED Connector (GLED/PWR_LED)

This header is dual color LED function. Dual color LED function is defined by
either Green LED or Power LED, the header can be in these states. The Green
LED indicates that the system is currently in one of the power saving mode
(Doze/Standby/Suspend). When the system resumes to normal operation mode,
the Green LED will go off, the Power LED on. The Power LED will go off during
power saving mode. Attach a 2-pin Green LED/Power LED cable to (GLED/
PWR_LED) header.

+

-

-

+

PWON

GLED /

+

-

PWR_LED

- 29 -

-

+

JP13

1

RST

­HLED

+

C3

Hardware Reset Connector (RST)

Attach a cable to the 2-pin (RST) header. Pressing the reset switch causes the
system to restart.

JP13

+

1

RST

­HLED

PWON

GLED /
PWR_LED

C4

ATX Power On/Off Switch Connector (PWON)

The Power On/Off Switch is a momentary type switch used for turning on or off
the ATX power supply. Attach a connector cable to the 2-pin (PWON) header
on the mainboard.

+

-

-

+

JP13

+

1

RST

­HLED

PWON

GLED /

+

-

PWR_LED

-

+

- 30 -

C5

1

12345

6

JP3

15

19

21

1

JP16

17

23

SPDIF In/Out Header (JP3)

Port JP3 can be used to connect to a device with digital audio inputs/outputs.

SPDIF

1

Pin Assignments:
1=SPDIF-IN 2=GND
3=VCC 4=GND
5=VCC 6=SPDIF-OUT

C6

Front Panel Audio Header (JP16)

This header allows users to install an auxiliary Front-Oriented Audio port for
easier access. Either the Line-Out port connector on back panel or the Audio
header is available at the same time. If you would like to use the Audio header
on front panel, please remove all jumpers from it and install your special extra
audio cable instead. Two mini jumpers must be setted on pins 21-22 and pins
23-24 when this header is not used.

24
22
20
18
16

JP3

15

Pin Assignments:
15=GND 16=GND
17=MIC_SIGN 18=MIC_PWR
19=LINE_IN_L 20=LINE_IN_R
21=FRONTRAMP 22=FOUTR
23=FRONTLAMP 24=FOUTL

- 31 -

JP16

9

1

C7

11

13

1

JP16

Front Panel 1394a Header (JP16)

The header is used to connect the cable attached to the 1394a connector
which is mounted on front panel or back panel. But the 1394a cable is
optional at the time of purchase.

14
12
10

9

Pin Assignments:
9=TPA+ 10=TPA­11=GND 12=KEY
13=TPB+ 14=TPB-

JP16

15

9

1

- 32 -

C8

USB4

642

11357

JP16

10

Extended USB Headers (JP16/USB4)

Headers JP16/USB4 are used to connect cables to USB connectors mounted
on front panel or back panel. The USB cable is optional at the time of pur­chase.

15

9

JP16

1

1

USB4

Pin Assignments:
1=VCC 2=VCC
3=USB0- 4=USB1­5=USB0+ 6=USB1+

8
6
4
2

7=GND 8=GND

Pin Assignments:
1=VCC 2=VCC

1
3
5
7
9

8

3=Data0- 4=Data1­5=Data0+ 6=Data1+
7=Ground 8=Ground
9=Key 10=N/C

- 33 -

F Internal Peripheral Connectors

D1

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FDD1)

FB75 mainboard features two 40-pin dual-channel IDE device connectors
(IDE1/IDE2), providing support up to four IDE devices, such as CD-ROM and
Hard Disk Drive (HDD). This mainboard also includes one 34-pin floppy disk
controller (FDC) to accommodate the Floppy Disk Drive (FDD). Moreover,
this mainboard comes with one 80-pin ATA 100/66/33 ribbon cable to
connect IDE HDD, and one 34-pin ribbon cable for FDD connection.
Note: Ribbon cables are directional; therefore, connect the red
cable stripe to the same side.

IDE2

1

IDE1

FDD1

1

D2

Serial ATA Connectors (SATA1 - Serial ATA1/Serial ATA2)

The Serial ATA is an evolutionary replacement for the Parallel ATA physical
storage interface. Serial ATA is scalable and will allow future enhancements
to the computing platform. The Serial ATA supports all ATA and ATAPI
device, including CDs, DVDs, tape devices, high capacity removable de­vices, zip drivers, and CDRWs. The Serial ATA interface supports data trans­fer rates up to 150MB/s.

Serial ATA1 Serial ATA2

SATA1

1

1

- 34 -

F Other Connectors

E1

ATX Power Supply Connectors (ATX1/ATX2)

This motherboard uses 20-pin ATX power header (ATXPWR, ATX1), and
comes with the other one header (ATX12V, ATX2). Please make sure you
plug each in the right direction. It is essential to have these two power supply
connectors plugged or your system won't boot up.

ATXPWR

ATX1

ATX2

1

ATX12V

ATX1

1

ATX2

A traditional ATX system remains in the power-off stage when AC power re­sumes from power failure. However, it is inconvenient for a network server or
workstation if there is not an UPS to execute power-on. Thus, this motherboard
supports an AC Power Auto Recovery function to solve this problem. You may
enable the function, "PWRON After PWR-Fail," in the sub-menu of "Power
Management Setup" within the BIOS setup program.

Note 1: The ATX power connector is directional and will not go in

unless the guides match perfectly, making sure that pin#1 is
properly positioned.

Note 2: Make sure the latch of the ATX power connector clicks into

place to ensure a solid attachment.

Note 3: Your ATX power supply must be supplied to ACPI+5V stand-

by power and at least 720mA compatible.

Note 4: Make sure your power supply have enough power for higher

speed processor installed.

- 35 -

E2

1

FAN3

1

FAN2

1

FAN1

JP11

JP11

123

4

CPU, System, and Chipset Fan Connectors (FAN1/2/3)

The mainboard provides three onboard 12V cooling fan power connectors
to support the CPU (FAN1), system (FAN2), and chipset (FAN3).

Note: Both cable wiring and type
of plug may vary, which depend
on the fan maker. Keep in mind
that the red wire should always be
connected to the +12V header
and the black wire to the ground
(GND) header.

GND +12V

1

E3

Audio CD_IN Connector (JP11)

Port JP11 (Black) can be used to connect the stereo audio input from CD-ROM,
TV-tuner or MPEG card.

SENSE

1

Pin Assignments:
1=CD-IN (Left)
2=Ground

1

3=Ground
4=CD-IN (Right)

- 36 -

E4

JP17

JP17

11234

753111

9

JP6

864212

10

Audio AUX_IN Connector (JP17)

Port JP17 (White) can be used to connect stereo audio inputs from CD-ROM,
TV-tuner or MPEG card.

Pin Assignments:
1=AUXL
2=Ground
3=Cround
4=AUXR

1

E5

Wireless KB/MS Header (JP6)

Port JP6 can be used to connect wireless keyboard and mouse devices.

1

Pin Assignments:
1=VCC 2=VCC
3=GND 4=KEY
5=MS_CLK 6=MS_CLK_IC
7=MS_DAT 8=MS_DAT_IC
9=KB_CLK 10=KB_CLK_IC
11=KB_DAT 12=KB_DAT_IC

JP6

1

- 37 -

E6

JP7

1

3

5

Extended Parallel Port Header (JP8)

One parallel port header is located at the rear panel of the mainboard. The
header is used to connect the cable attached to a parallel connector. But the
parallel cable and connector are optional at the time of purchase.

JP8

1

E7

IR Header (JP7)

If you have an Infrared device, this mainboard can implement IR transfer
function. This mainboard supports Normal, IrDA, ASKIR, or SCR transfer
mode. To enable this function, attach a 6-pin infrared device cable to the IR
(JP7) header. Please note that every pin is properly allocated. If not, your IR
device may be damaged.

6
4

2

Pin Assignments:
1=N/C 2=KEY
3=VCC 4=GND
5=IRTX 6=IRRX

1

JP7

1

- 38 -

3.3 System Memory Configuration

Channel 0

Channel 1

Channel 0

Channel 1

Channel 0

Channel 1

Different type

The FB75 mainboard has two 184-pin DIMM slots that allow you to install
from 64MB up to 2GB of system memory. Each 184-pin DIMM (Dual In-line
Memory Module) slot can accommodate 64MB, 128MB, 256MB, 512MB,
and 1GB of PC2700 or PC3200 compliant 2.5V single (1 Bank) or double (2
Bank) side 64-bit wide data path DDR SDRAM modules. You need not to set
any jumper to configure memory since the BIOS utility can detect the system
memory automatically. You can check the total system memory value in the
BIOS Standard CMOS Setup menu.

Install Memory:

Install memory in any or all of the slots. The combination is shown as follows.

Density 128Mbit 256Mbit 512Mbit

Device

Width

Single/
Double

184pin

DDR

DIMMs

x8 x16 x8 x16 x8 x16

SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS

128/256MB 64MB/NA 256/512MB 128MB/NA 512/1024MB 256MB/NA

Note: Maximum installed memory is 2GB.

Don't support double-sided X16 DDR DIMMs.

DIMMs population:

1. 128 Bit Mode: Exactly the same size and type DIMMs on Channels 0/1.

2. 2*64 Bit Mode: DIMMs installed on different Channels.

Same size
different type

Upgrade Memory:

You can easily upgrade the system memory by inserting additional DDR
SDRAM modules in available DIMM slots. The total system memory is calcu­lated by simply adding up the memory in all DIMM slots. After upgrade, the
new system memory value will automatically be computed and displayed in
the field "Standard CMOS Setup" of BIOS setup program.

- 39 -

4 SOFTWARE UTILITY

4.1 Mainboard CD Overview

Note: The CD contents attached in FB75 mainboard are subject to change

without notice.

To start your mainboard CD disc, just insert it into your CD-ROM drive and
the CD AutoRun screen should appear. If the AutoRun screen does not
appear, double click or run D:\Autorun.exe (assuming that your CD-ROM
drive is drive D:).

Navigation Bar Description:

F Install Mainboard Software - Installing Intel Chipset, Intel USB 2.0,

Realtek Audio, and Broadcom Giga LAN drivers.

F Install Utility - Installing the WinFlash utility driver.
F Manual - FB75 user's manual in PDF format.
F Link to Shuttle Homepage - Link to shuttle website homepage.
F Browse this CD - Allows you to see contents of this CD.
F Quit - Close this CD.

- 40 -

4.2.A Install Intel Chipset Driver

Click on the "Install Mainboard Software"; then click on the "Install
Intel Chipset Driver" bar to install the chipset driver. Once you made your
selection, a Setup window will run the installation automatically. Reboot the
system after the installation.

4.2.B Install Intel USB 2.0 Driver

Click on the "Install Mainboard Software"; then click on the "Install
Intel USB 2.0 Driver" bar to install the USB 2.0 driver. Once you made
your selection, a Setup window will run the installation automatically.
Reboot the system after the installation.

- 41 -

4.2.C Install Realtek Audio Driver

Click on the "Install Mainboard Software"; then click on the "Install
Realtek Audio Driver" bar to install the audio driver. Once you made your
selection, a Setup window will run the installation automatically. Reboot the
system after the installation.

4.2.D Install Broadcom Giga LAN Driver

Click on the "Install Mainboard Software"; then click on the "Install
Broadcom Giga LAN Driver" bar to install the giga LAN driver. Once you
made your selection, a Setup window will run the installation automatically.
Reboot the system after the installation.

- 42 -

4.3 Install WinFlash Utility

Click on the "Install Utility" bar; then click on the "Install WinFlash
Utility" bar to install the BIOS flashing utility. Once you made your selec­tion, a Setup window will run the installation automatically. Reboot the
system after the installation.

4.4 View the User's Manual

Click on the "Manual" bar, and on the sub-menu click on the "Install
Acrobat Reader" bar if you need to install it, or click on the "Manual" bar
to view the FB75 user's manual.

- 43 -

5 BIOS SETUP

FB75 BIOS ROM has a built-in Setup program that allows users to modify the
basic system configuration. This information is stored in battery-backed RAM
so that it retains the Setup information even if the system power is turned off.

The system BIOS is managing and executing a variety of hardware related
functions in the system, including:

System date and time
Hardware execution sequence
Power management functions
Allocation of system resources

5.1 Enter BIOS

To enter the BIOS (Basic Input /Output System) utility, follow these steps:

Step 1. Power on the computer, and the system will perform its

POST (Power-On Self Test) routine checks.

Step 2. Press <Del> key immediately, or at the following message:

Press DEL to enter SETUP, or simultaneously press <Ctrl>,

<Alt>, <Esc> keys.

Note1. If you miss trains of words mentioned in step2 (the message

disappears before you can respond) and you still wish to en­ter BIOS Setup, restart the system and try again by turning the
computer OFF and ON again or by pressing the <RESET>
switch located at the computer front panel. You may also
reboot by simultaneously pressing the <Ctrl>, <Alt>,
<Del> keys.

Note2. If you do not press the keys in time and system does not

boot, the screen will prompt an error message, and you will
be given the following options:

"Press F1 to Continue, DEL to Enter Setup"

Step 3. As you enter the BIOS program, CMOS Setup Utility will

prompt you the Main Menu, as shown in the next section.

- 44 -

5.2 The Main Menu

Once you enter the Award BIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall
that some systems may not include all entries.

Standard CMOS Features

This menu displays the basic information about your system.

Advanced BIOS Features

Use this menu to set the advanced features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and opti­mize your system's performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

- 45 -

PnP/PCI Configurations

This option configures how PnP (Plug and Play ) and PCI expansion
cards operate in your system.

PC Health Status

This entry shows the current system temperature, voltage, and fan
speed.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to install fail-safe defaults for all appropriate items in the
setup utility.

Load Optimized Defaults

Use this menu to install optimized defaults for all appropriate items in
the setup utility.

Set Supervisor/User Password

Use this menu to change, set, or disable supervisor/user password. It
allows you to limit access to the system and Setup, or only to Setup.

Save & Exit Setup

Save the changes that you have made in the Setup Utility and exit the
Setup Utility.

Exit Without Saving

Abandon all changes that you have made in the Setup Utility and exit
the Setup Utility.

- 46 -

@ Standard CMOS Features

Use the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.

Date (mm : dd : yy)

Set the system date. Note that if you are running a Windows OS, this
items are automatically updated whenever you make changes to the
Windows Date.

Time (hh : mm : ss)

Set the system time. The time is converted based on the 24-hour mili­tary-time clock. For example, 5:00:00 p.m. is 17:00:00.

IDE Channel 0/Channel 1 Master/Slave

Press <Enter> to enter the sub-menu of detailed options.

Drive A/DriveB

Select the type of floppy disk drive installed in your system.
Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,

1.44M, 3.5 in, or 2.88M, 3.5 in.

Video

This item defines the video mode of the system. Leave this item at the
default value.
Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO.

Halt On

This item defines the operation of the system POST (Power-On Self Test)
routine. You can use this item to select which situation you want the
BIOS to stop the POST process and notify you.
Ø The choice: All Errors, No Errors, All, But Keyboard, All, But Diskette,

or All, But Disk/Key.

- 47 -

Base Memory/Extended Memory/Total Memory

These items are automatically detected by the system at start up time.
These are display-only fields. You can't make change to these fields.

******************************************************

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu
to configure each hard disk drive.

IDE HDD Auto-Detection
Press <Enter> to auto-detect HDD on this channel. If detection is

successful, it fills the remaining fields on this menu.
IDE Channel 0/Channel 1 Master/Slave

The item defines the type of fixed disk.

Ø The choice: None, Auto, or Manual.

Access Mode
Choose the access mode for this hard disk.

Ø The choice: CHS, LBA, Large, or Auto.

Capacity
Note that the disk drive capacity (approx.) is usually slightly greater than

the size of a formatted disk given by a disk checking program.

The following options are selectable only if the 'IDE Channel 0/
Channel 1 Master/Slave' item is set to 'Manual', and the 'Access
Mode' item is set to 'CHS'.

Cylinder
Set the number of cylinders for this hard disk.

Ø Min = 0, Max = 65535

Head
Set the number of read/write heads.

Ø Min = 0, Max = 255

Precomp
Warning: Setting a value of 65535 means no hard disk.

Ø Min = 0, Max = 65535

Landing Zone
Set the Landing Zone size.

Ø Min = 0, Max = 65535

Sector
Number of sector per track.

Ø Min = 0, Max = 255

******************************************************

- 48 -

@ Advanced BIOS Features

This section allows you to configure your system for basic operation.

Hard Disk Boot Priority

This item lets you select hard disk boot device priority.

BIOS Write Protect

This item let you enable or disable the BIOS Write Protect.
Ø The choice: Enabled or Disabled.

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. Enable this item to prevent someone from writing data
into this area.

Enabled Activates automatically when the system boots up, caus-

ing a warning message to appear when anything attempts
to access the boot sector or hard disk partition table.

Disabled No warning message will appear when anything attempts

to access the boot sector or hard disk partition table.

Ø The choice: Enabled or Disabled.

CPU L1 & L2 Cache

This item enables CPU L1 internal cache and CPU L2 cache to speed
up memory access.
Ø The choice: Enabled or Disabled.

- 49 -

Hyper-Threading Technology

The latest Intel application defines a high-speed calculating ability to
optimize your system by two CPUs supported (one virtual, one physi­cal) in a multi-task environment.
Ø The choice: Enabled or Disabled.

Quick Power On Self Test

Enable this item to shorten the power on testing (POST) and have your
system start up faster. You might like to this item after you are confident
that your system hardware is operating smoothly.
Ø The choice: Enabled or Disabled.

First/Second/Third Boot Device

Use these three items to select the priority and order of the devices that
your system searches for an operating system at start-up time.
Ø The Choice: Floppy, LS120, Hard Disk, CDROM, ZIP100, USB-

FDD, USB-ZIP,USB-CDROM, USB-HDD, LAN, or Disabled.

Boot Other Device

If you enable this item, the system searches all other possible locations
for and operating system if it fails to find one in the devices specified
under the First, Second, and Third boot devices.
Ø The choice: Enabled or Disabled.

Swap Floppy Drive

If you have two floppy diskette drives in your system, this item allows
you to swap the assigned drive letters so that drive A becomes drive B,
and drive B becomes drive A.
Ø The choice: Enabled or Disabled.

Boot Up Floppy Seek

If this item is enabled, it checks the size of the floppy disk drives at start­up time. You don't need to enable this item unless you have a legacy
diskette drive with 360k capacity.
Ø The choice: Enabled or Disabled.

Boot Up NumLock Status

This item defines if the keyboard Num Lock key is active when your
system is started.
Ø The choice: Off or On.

Gate A20 Option

This item defines how the system handles legacy software that was
written for an earlier generation of processors. Leave this item at the
deafult value.
Ø The choice: Normal or Fast.

- 50 -

Typematic Rate Setting

If this item is enabled, you can use the following two items to see the
typematic rate and the typematic delay settings for your keyboard.
Ø The choice: Enabled or Disabled.

Typematic Rate (Chars/Sec)

This item sets how many times the keystroke will be repeated in a
second when you hold a key down.
Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.

Typematic Delay (Msec)

Sets the delay time after a key is held down.
Ø The choice: 250, 500, 750, or 1000.

Security Option

If you have installed password protection, this item defines if the pass­word is required at system start up, or if it is only required with a user
tries to enter the Setup Utility.
Ø The choice: Setup or System.

APIC Mode

This option shows APIC (Advanced Programmable Interrupt Controller)
functionality only. The APIC is an Intel chip that provides symmetric
multiprocessing (SMP) for its Pentium system.

MPS Version Control For OS

Selects the operating system multiprocessor support version.
Ø The choice: 1.1 or 1.4

OS Select For DRAM > 64MB

This item is only required if you have installed more than 64 MB of
memory and you are running the OS/2 operating system. Otherwise,
leave this item at the default.
Ø The choice: Non-OS2 or OS2.

Report No FDD For WIN 95

Whether report no FDD runs for Win 95 or not.
Ø The choice: Yes or No.

Small Logo(EPA) Show

This item allows you to enable or disable the EPA Logo.
Ø The choice: Enabled or Disabled.

- 51 -

@ Advanced Chipset Features

These items define critical timing parameters of the mainboard. You should
leave the items at their default values unless you are very familiar with the
technical, specifications of your system hardware. Changing values in­correctly may lead to fatal errors or recurring instability into your system.

DRAM Timing Selectable

The value in this field depends on performance parameters of the
installed memory chips (DRAM).
Ø The Choice: Manual or By SPD.

CAS Latency Time

This item defines the timing delay in clock cycles before SDRAM starts a
read command after receiving it.
Ø The Choice: 2, 2.5, or 3.

Active to Precharge Delay

This item defines the numbers of cycles for RAS to be allowed to precharge.
Ø The Choice: 8, 7, 6, or 5.

DRAM RAS# to CAS# Delay

This item defines the timing of the transition from RAS (row address strobe)
to CAS (column address strobe) as both rows and columns are separately
addressed shortly after DRAM is refreshed.
Ø The Choice: 4, 3, or 2.

DRAM RAS# Precharge

This item defines the timing delay for DRAM precharge.
Ø The Choice: 4, 3, or 2.

Memory Frequency For

This item is select SDRAM Frequency.
Ø The Choice: DDR266, DDR333, DDR320, DDR400, or Auto.

- 52 -

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at
F0000h~FFFFFh, resulting in better system performance. However, if any
program is written to this memory area, a system error may result.
Ø The Choice: Enabled or Disabled.

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS, resulting in better
system performance. However, if any program is written to this memory
area, a system error may result.
Ø The Choice: Enabled or Disabled.

Memory Hole At 15M-16M

You can reserve this area of system memory for ISA adapter ROM. When
this area is reserved, it can't be cached. The user information of peripher­als that need to use this area of system memory usually discusses their
memory requirements.
Ø The Choice: Enabled or Disabled.

Delay Prior to Thermal

This item defines the delay time before the CPU enters auto thermal mode.
Ø The Choice: 4 Min, 8 Min, 16 Min, or 32 Min.

AGP Aperture Size (MB)

This item defines the size of the aperture if you use an AGP graphics
adapter. The AGP aperture refers to section of the PCI memory address
range used for graphics memory.
Ø The Choice: 4, 8, 16, 32, 64, 128, or 256.

Init Display First

This item determines the initial device when the system powers on.
Ø The choice: PCI Slot or AGP.

DRAM Data Integrity Mode

This item defines the DRAM data integrity mode.
Ø The Choice: Non-ECC or ECC.

Fast Chip Select

This item defines the fast chip selection mode.
Ø The Choice: Auto or Enabled.

CPC Addr/Control

This item defines the CPC address control mode.
Ø The Choice: Auto or Enabled.

Selective CPC

This item defines the selective CPC mode.
Ø The Choice: Auto or Enabled.

- 53 -

@ Integrated Peripherals

OnChip IDE Device

Press <Enter> to enter the sub-menu of detailed options.
IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or mul­tiple sector read/write. If your IDE hard drive supports block mode (most
new drivers do), select Enabled for automatic detection of the optimal
number of block read/write per sector the drive can support.
Ø The Choice: Enabled or Disabled.

On-Chip Primary/Secondary PCI IDE
Select Enabled to activate the primary/secondary IDE interface. Select

Disabled to deactivate the primary/secondary interface.
Ø The Choice: Enabled or Disabled.

IDE Primary/Secondary Master/Slave PIO
Each IDE interface supports two channels, one Master and one Slave.

These four items let you set a PIO (Programmed Input/Output) mode (0-

4) for the four IDE devices the onboard two IDE interfaces support.
Modes 0 through 4 provide successively increased performance, and
the Auto mode enables the system to automatically determine the best
status for each device.
Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.

IDE Primary/Secondary Master/Slave UDMA
Ultra DMA implementation is possible only if your IDE hard drive

supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If both of
your hard drive and your system software support Ultra DMA, select
Auto to enable BIOS support.
Ø The choice: Auto or Disabled.

- 54 -

*** On-Chip Serial ATA Setting ***

SATA Mode
This item defines the serial ATA mode.

Ø The Choice: IDE or RAID.
On-Chip Serial ATA

This item defines the onboard serial ATA.
Ø The Choice: Disabled, Auto, Combined Mode, Enhanced Mode, or

SATA Only.

Serial ATA Port0 Mode
This item defines the serial ATA1 mode.

Ø The Choice: Primary Master, Primary Slave, Secondary Master,

Secondary Slave, SATA0 master, or SATA1 master.

Serial ATA Port1 Mode
This item defines the serial ATA2 mode.

Ø The Choice: Primary Master, Primary Slave, Secondary Master,

Secondary Slave, SATA0 master, or SATA1 master.

Onboard Device

Press <Enter> to enter the sub-menu of detailed options.
USB Controller

Do not disable this item if your system has a USB port installed on the
system board and you want to use it.
Ø The Choice: Enabled or Disabled.

USB 2.0 Controller
Do not disable this item if your system has a USB 2.0 controller installed

on the system board and you have USB peripherals.
Ø The Choice: Enabled or Disabled.

USB Keyboard Support
Select Enabled if your system contains a USB controller and you have a

USB keyboard.
Ø The Choice: Enabled or Disabled.

AC97 Audio
This item allows you to control the OnChip Audio.

Ø The Choice: Auto or Disabled.
Onboard Lan Boot ROM

Decide whether to invoke the boot ROM of the onboard LAN chip.
Ø The choice: Enabled or Disabled.

- 55 -

SuperIO Device

Press <Enter> to enter the sub-menu of detailed options.
Onboard FDC Controller

This item specifices onboard floppy disk drive controller. This setting
allows you to connect your floppy disk drives to the onboard floppy
connector.
Ø The choice: Enabled or Disabled.

Onboard Serial Port 1
This option is used to assign the I/O address and interrupt request (IRQ)

for the onboard serial port 1 (COM1).
Ø The Choice: Disabled, 3F8-IRQ4, 2F8-IRQ3, 3E8-IRQ4, 2E8-IRQ3,
or Auto.

Onboard Serial Port 2
This option is used to assign the I/O address and interrupt request (IRQ)

for the onboard serial port 2 (COM2).
Ø The Choice: Disabled, 3F8-IRQ4, 2F8-IRQ3, 3E8-IRQ4, 2E8-IRQ3,
or Auto.

UART Mode Select
This item allows you to select an operating mode for the IrDA infrared.

Ø The choice: Normal, IrDA, ASKIR, or SCR.
UR2 Duplex Mode

This item allows you to select the IR half or full duplex function.
Ø The choice: Full or Half.

Onboard Parallel Port
Allows you to determine an I/O address and interrupt request (IRQ) for

the onboard parallel port.
Ø The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.

Parallel Port Mode
Select an operating mode for the onboard parallel port. Select SPP

unless you are certain your system supports other modes.
Ø The choice: SPP, EPP, ECP, or ECP+EPP.

ECP Mode Use DMA
When the parallel port mode is set to ECP, this item becomes seletable.

Ø The choice: 1 or 3.

- 56 -

@ Power Management Setup

The Power Management Setup allows you to configure your system to
most effectively saving energy while operating in a manner consistent
with your own style of computer use.

ACPI Function

This item defines the ACPI (Advanced Configuration and Power Man­agement) feature that makes hardware status information available to
the operating system, enables a PC to turn its peripherals on or off for
improving the power management, and allows a PC turned on or off by
external devices, so that a mouse or keyboard can wake up it.

ACPI Suspend Type

This item allows you to select sleep state when suspend. In the default,
S1(POS), the suspend mode is equivalent to a software power down;
S3(STR), to the system that shuts down with the exception of a refresh
current to the system memory.
Ø The choice: S1(POS), S3(STR), or S1&S3.

Run VGABIOS if S3 Resume

This item becomes available when the previous item is set to S3(STR) or
S1&S3. The item allows the system to initialize a VGA BIOS from S3
(Suspend to RAM) sleep state.
Ø The choice: Auto, Yes, or No.

- 57 -

Power Management

This item acts like a master switch for the power-saving modes and hard
disk timeouts. If this item is set to Max Saving, power-saving modes
occur after a short timeout. If it is set to Min Saving, power-saving
modes occur after a longer timeout. If it is set to User Define, you can
insert your own timeouts for the power-saving modes.
Ø The choice: Min Saving, Max Saving, or User Define.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank This selection will cause the system to turn off

the vertical and horizontal synchronization

ports and write blanks to the video buffer.
Blank Screen The item only writes blanks to the video buffer.
DPMS Initial display power management signaling.

Ø The choice: V/H SYNC+Blank, Blank Screen, or DPMS.

Video Off In Suspend

This item determines the manner in which the monitor is blanked.
Ø The choice: Yes or No.

Suspend Type

This item allows you to select the Suspend Type.
Ø The choice: Stop Grant or PwrOn Suspend.

MODEM Use IRQ

This determines the IRQ which the MODEM can use.
Ø The choice: 3, 4, 5, 7, 9, 10, 11, or NA.

Suspend Mode

When this item is not disabled and after the setup time of system inactiv­ity, all devices except the CPU will be shut off.
Ø The choice: Disabled, 1 Min, 2 Min, 4 Min, 8 Min, 12 Min, 20 Min,

30 Min, 40 Min, or 1 Hour.

HDD Power Down

The IDE hard drive will spin down if it is not accessed within a specified
length of time. Options are from 1 Min to 15 Min and Disabled.
Ø The choice: Disabled or 1 Min~15 Min.

Soft-Off by PWR-BTTN

Under ACPI you can create a software power down. In a software
power down, the system can be resumed by Wake UP Alarms. This
item lets you install a software power down that is controlled by the
power button on your system. If the item is set to Instant-Off, then the
power button causes a software power down. If the item is set to Delay

- 58 -

4 Sec., then you have to hold the power button down for 4 seconds to
cause a software power down.
Ø The choice: Delay 4 Sec. or Instant-Off.

Wake-Up by PCI card

This item leaves PCI cards wake up the system from the suspend mode.
Ø The choice: Enabled or Disabled.

Power On by Ring

This item defines the system will resume by activating of modem ring.
Ø The choice: Enabled or Disabled.

USB Wake-Up From S3

If you are using USB devices, and the ACPI Suspend Type is set to S3 or
S1&S3, enable this item to have USB devices wake up the system from
power saving mode.
Ø The choice: Enabled or Disabled.

Resume by Alarm

When set to Enabled, the following two items become available and
you can set the date, hour, minute and second to turn on your system.
Ø The choice: Enabled or Disabled.

Date(of Month) Alarm
This item selects the alarm Date (day of the month).

Ø Key in a DEC number: Min=0, Max=31.

Time(hh : mm : ss) Alarm
This item selects the alarm Time.

[hh] Ø Key in a DEC number: Min=0, Max=23.
[mm/ss] Ø Key in a DEC number: Min=0, Max=59.

** Reload Global Timer Events **

Global Timer (power management) Events are I/O events whose occur­rence can prevent the system from entering a power saving mode or
can awaken the system from such as a mode. In effect, the system
remains alert for anything that occurs to a device that is configured as
Enabled, even when the system is in a power-down mode.

Primary/Secondary IDE 0/IDE 1

When these four items are enabled, the system will restart the power­saving timeout counters when any activity is detected on any of the
drives or devices on the primary or secondary IDE channels.
Ø The choice: Disabled or Enabled.

- 59 -

FDD,COM,LPT Port

When this item is enabled, the system will restart the power-saving
timeout counters when any activity is detected on the floppy disk drive,
the serial ports, or the parallel port.
Ø The choice: Disabled or Enabled.

PCI PIRQ[A-D]#

When this item is disabled, any PCI device set as the Master will not
power on the system.
Ø The choice: Disabled or Enabled.

PS2 Keyboard Power ON

Set a password or a key to awaken the system from a keyboard.
Ø The choice: Disabled, Password, or Hot KEY.

KB Power ON Password

Press <Enter> to set a password to awaken the system from a key­board.

Hot Key Power ON

Set a key to awaken the system from a keyboard.
Ø The choice: Any Key or Ctrl-F1~Ctrl-F12.

PS2 Mouse Power ON

Enable or disable the function of awakening the system from a mouse.
Ø The choice: Enabled or Disabled.

PWRON After PWR-Fail

This item defines your computer to shut off, automatically restart, or
return to its last operating status after power fails.
Ø The choice: Off, On, or Former-Sts.

- 60 -

@ PnP/PCI Configurations

This category configures how PnP and PCI operate in your system.
Correctly setting up the IRQ and DMA (both PnP and PCI use) assign­ments will make your system work stably. It is strongly recommended
that only technical users make changes to the default settings.

Reset Configuration Data

When enabled, any PnP configuration data stored in the BIOS will be
cleared from memory, with new data created.
Ø The choice: Enabled or Disabled.

Resources Controlled By

As stays Auto(ESCD), the system will dynamically allocate resources to
PnP devices as they are required. As set to Manual, the following item
becomes available.
Ø The choice: Auto(ESCD) or Manual.

IRQ Resources

This item allows you respectively assign an interruptive type for IRQ-3,
4, 5, 7, 9, 10, 11, 12, 14, and 15.
Ø The choice: PCI Device or Reserved.

PCI/VGA Palette Snoop

It determines whether MPEG ISA/VESA VGA cards can work with PCI/
VGA or not. If you have MPEG ISA/VESA VGA cards and PCI/VGA
works, select Enabled. Otherwise, disable it.
Ø The choice: Enabled or Disabled.

INT Pin 1/2/3/4/5/6/7/8 Assignment

This item names the IRQ line assigned to a device connected to the PCI
interface on your system.
Ø The choice: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, or 15.

- 61 -

@ PC Health Status

1

FAN3

1

FAN2

1

FAN1

System

Chipset

CPU Fan Speed Control

The item defines the fan speed control features.
Ø The choice: Smart Fan, Ultra-Low, Low, Mid, or Full.

This feature is controlled via BIOS, in which the CPU fan rotational
speed sensing/control is governed by CPU temperature setting pre­selected in BIOS. Before manually modifying the CPU fan setting,
please make sure both fan connectors are plug into the correct fan
connector designations on the mainboard.

CPU

User Set CPU Fan

Enables you to choose one specific fan for further setting.
Ø The choice: Fan 1 or Fan 2.

- 62 -

Fan Speed Up When CPU Temp

Enables 3 phase smart controls to the Selected fan. This feature ranges
from 40 0C to 80 0C, in an increment of 4 0C.
Ø The choice: 40 0C, 44 0C, 48 0C, 52 0C, 56 0C, 60 0C, 64 0C, 68 0C,

72 0C, 76 0C, or 80 0C.

If actual CPU temp (reported by BIOS) stays below 68 0C then CPU fan
speed will run at a quiet mode (1st phase) of approximately 2000
RPM.

But when the actual CPU temp goes above the preselected 68 0C
temperature threshold, then CPU fan speed will automatically engage
into normal mode (2nd phase) of about 3000 RPM and cool down
the CPU temperature. When the CPU temperature drops back below
the 68 0C temperature threshold, CPU fan speed will again automati­cally shift back to the quiet mode (1st phase) to reduce fan noise level.

Fail-safe mode (3rd phase) Variable Fan Speed and CPU temperature
Control is as predefined at 80 0C. Where in the event of system and
CPU operating under extreme working conditions, and if CPU tempera­ture is raised above 80 0C then the SMART BIOS will engage the CPU
fan in Fail-safe mode to rotate at about 3500 RPM. Please note that the
higher fan speed, the fan cooler will be become slightly noiseier to
compensate for the increase in CPU temperature.

The following items provide you with information about the system's cur­rent operating status. You cannot make changes to one of them.

CPU Voltage PWM Temperature

AGP Voltage Fan 1 Speed

+3.3V Fan 2 Speed

+5V Fan 3 Speed

+12V

-12V

DDR Voltage

+5VSB

Voltage Battery

System Temperature

CPU Temperature

- 63 -

@ Frequency/Voltage Control

CPU Clock Ratio

This item allows you to adjust CPU ratio if your CPU clock ratio is
unlocked.

Auto Detect PCI Clk

When this item is enabled, BIOS will disable the clock signal of free PCI
slots.
Ø The choice: Enabled or Disabled.

Spread Spectrum

This item defines the spread spectrum modulation.
Ø The choice: Enabled or Disabled.

****** Clock ******

CPU & AGP/PCI Clock Set

This item allows you to adjust CPU host/AGP/PCI clock. To select
Manual makes the two items below available.
Ø The choice: Auto Detect or Manual.

CPU Clock

This item allows you to adjust CPU host clock from 100~255MHz by
1MHz step.

Async AGP/PCI/S-ATA CLK

This item allows you to adjust AGP/PCI/serial ATA clock.
Ø The choice: Sync by CPU clock, fixed 66/33/100 MHz, fixed 73/36/

100 MHz, or fixed 80/40/100 MHz.

- 64 -

****** Voltage ******

CPU Voltage set

This item allows you to adjust CPU voltage.
Ø The choice: Auto, 0.8250 V~1.5875 V.

DDR Voltage set

This item allows you to adjust DDR voltage.
Ø The choice: Auto, 2.65 V, 2.70 V, or 2.75 V.

AGP Voltage set

This item allows you to adjust AGP voltage.
Ø The choice: Auto, 1.55 V, 1.60 V, or 1.65 V.

- 65 -

@ Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing 'Y' loads the BIOS default values for the most stable, minimal
performance system operations.

@ Load Optimized Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing 'Y' loads the default values that are factory-set for optimal
performance system operation.

- 66 -

@ Set Supervisor/User Password

Steps to set supervisor/user password are described as follows:

New Password Setting:

1. While pressing <Enter> to set a password, a dialog box appears to
ask you enter a password.

2. Key in a new password. The password can not exceed eight charac­ters.

3. System will request you to confirm the new password again.

4. When completed, new code takes effect.

No Password Setting:

If you want to disable the password, just press <Enter> as a password
input is requested.

If You Forget Password:

If you forget the password, the only way to access the system is to clear
the CMOS memory. Please refer to page 26 on clear CMOS setting.

- 67 -

@ Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

SAVE to CMOS and EXIT (Y/N) ? Y

Pressing "Y" stores the selections made in the menus of CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.

@ Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit Without Saving (Y/N) ? N

This allows you to exit from Setup without storing in CMOS any
change. The previous selections remain in effect. This exits from the
Setup utility and restarts your computer.

- 68 -
