Shuttle EN01J3 User Manual

Download
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 1 1 8 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Robust Industry PC with VESA/DIN-Rail mount and various options
The Shuttle EN01J3 is a fanless IPC in a robus t 450 ml meta l chassis
and intended for DIN-Rail or VESA mounting. It is f lexible in use and designed fo r maintenance-free 24/7 operation at ambie nt temperatures of up to 50°C. Inside there is a CPU bo ard with an Intel "Apollo Lake" processor and a carrierboard with several I/O po rts a nd a card reader. Optional featu res comprise a second LAN port with PoE function, LTE/WLAN func tion and video capturing via HDMI. This product is targe ted at profes siona l applications suc h as edge computing ( IoT gateway), automatio n, digital signage, control, data logging and video surveillance.
Feature Highlights
Industry
Design
Robust aluminium chassis, black, IP20 Fanless cooling design, virtually noiseless Size: 92.4 x 54.4 x 90 mm (LWH) = 450 ml Operating temp erature: 0~50 °C VESA mount and DIN Ra il Su pport Alwa ys-on function (no Power-on button)
Operating
System
An operating system is not included . Supports Windows 10 (64-b it) and Linux
CPU Board
Intel "Apollo Lake" Processor, TDP: 10W
Celeron J3355, 2.0~2.5 GHz, Dual Core
4 GB LPDDR4-2400 RAM memory (soldered) 64 GB eMMC flash memory
Connectors
Power-on LED indicator HDMI 1.4b video output 2x USB 3.2 Gen 1 Type A (max. 5 Mbps) Micro USB 2.0 RJ45 Gigabit LAN (RTL8119I-CG) Micro SD card reader Hole for Kensington Lock
Other
M.2 B-key slot supports M.2-2242 SSD card,
video capture card or M.2-3042 L TE module
Slot for nano SIM card Hardware monit or, watch dog, fTPM 2.0 Onboard connector for power/reset button,
2x RS232 (RS422/485), 4 x GPIO and I2C bus
Optional Featur es
Second Gigabit LAN port with Power over
Ethernet function (PoE with PD or PSE support)
LTE/4G or WLAN function with 2 ant ennas HDMI input with video capture function External Power Adapter
DC input
12~19V DC-input by 2-pin Euroblock
Including adapter for 5 .5 / 2.5 mm DC plug
Power adapter is not included Optional Power over Ethernet (PoE)
Certification
Safety: CB, BSMI, ETL, IP20 EMI: FCC, CE, BSMI, VCCI, RCM
Shuttle Edge
EN01J3
Intel Celeron J3355, 4 GB RAM, 64 GB eMMC
Images for illustration only.
External LTE antennas, second LAN port and
HDMI input are optional features.
Fanless
24/7
Support
Max.
50 °C
VESA &
DINRAIL
WLAN / LTE
Optional
Models of the EN01 series:
Name
Processor
RAM/eMMC
Temp.
EN01J3
Celeron J3355
4 / 64 GB
0~50 °C
EN01J4
Pentium J4205
8 / 64 GB
0~50 °C
EN01E
Atom x5-E3940
8 / 64 GB
-20~65 °C
EN01B
(1)
(1)
0~50 °C
(1) The EN01B is intended as a basis for the NVID IA Jetson TX2 8G module which also contains the heatsink.
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 2 1 8 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle Edge EN01J3 – Outside View
1
No function (reserved)
8 Micro USB 2.0
2
Power LED
9 4x 6.5 mm hole for external antennas
3
2x USB 3.2 Gen 1 (max. 5 Gbps)
10
Micro SD card reader
4
HDMI input (optional)
11
Hole for Kensington Lock
5
RJ45 LAN port
12
DC input Euroblock connector
6
HDMI 1.4b output
13
Pilot hole for wire
7
RJ45 LAN port with PoE (optional)
DC-Input Connector
The EN01J3 supports 12~19V DC input voltage. The 2-pin Euroblock with Phoenix connector enables a DC cable to be connected via terminal strip.
In addition, the included adapter cable allows a power adapter with 5.5 / 2.5 mm DC plug to be connected.
Adapter Cable
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 3 1 8 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle Edge EN01J3 – Inside View
The EN01J3 consists of a robust aluminium chassis with a large heatsink. The standard version is a complete IPC that includes a CPU Board and a Carrier Board. A power adapter is not included.
CPU Board with Intel Celeron J3355 processor (Apollo Lake),
4 GB LPDDR4-2400 RAM and 64 GB eMMC flash memory.
Carrier Board with several I/O ports and M.2 / Nano-SIM slots.
1
Heatsink (aluminium)
4 Intel processor (Celeron J3355)
2
Chassis (aluminium)
5 Expansion I/O header J1 (34-pin)
3
Bottom element (steel)
6 Connector for CMOS battery
7 Connector for optional PoE extension
8 M.2-3042 B-key slot
It supports one of the below components:
1) M.2 SSD card
2) HDMI capture card
3) LTE/4G module
9 Slot for nano SIM card
10
No function (reserved)
11
Debug connector (reserved)
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 4 1 8 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.

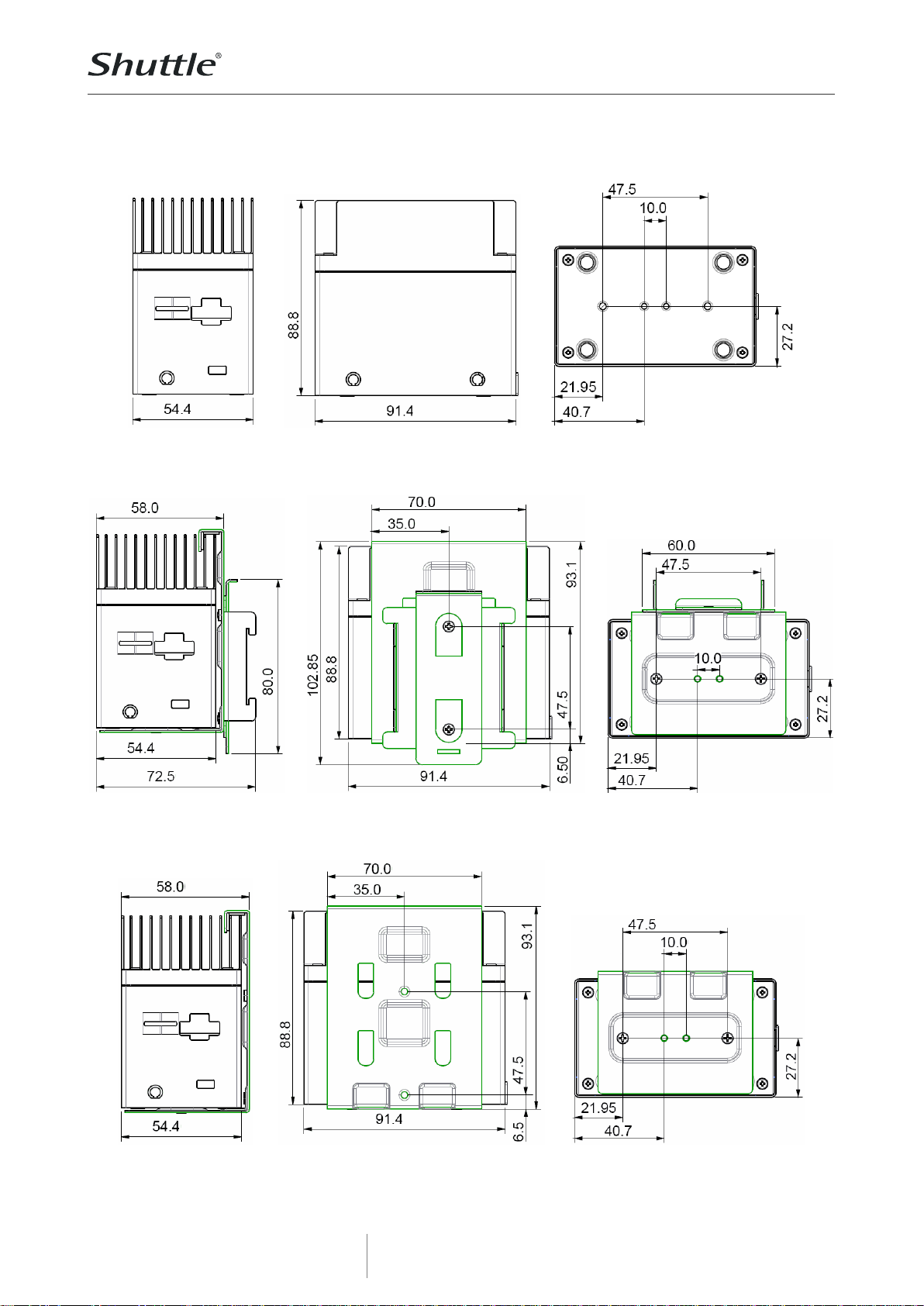

Shuttle Edge EN01J3 – Mounting Options
1) DIN-rail mounting
The EN01J3 comes with a bracket and a DIN-rail clip to be easily installed on a standard DIN-rail.
2) VESA mounting
The EN01J3 comes with a bracket and a VESA mount to install it to any monitor, arm or wall mount which complies with the 75x75 or 100x100 mm VESA standard.
3) On a desk
The EN01J3 comes with rubber feet on the bottom side and can also be placed on a desk.
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 5 1 8 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Three ways to supply power to the EN01J3
1) DIN Rail PSU
The EN01J3 supports 12~19V DC input voltage. The 2-pin Euroblock with Phoenix connector enables a DC cable to be connected to a DIN rail power supply.
The recommended minimum output wattage of the power adapter is:
- 40 W, if the accessory PSE01 is not used.
- 65 W, if the accessory PSE01 is installed.
2) Power Adapter
In addition, the included adapter cable allows a power adapter with a 5.5 / 2.5 mm DC plug to be connected, such as the Shuttle accessory PE90.
3) Power-over-Ethernet (PoE)
The optional Shuttle accessory PD01 is a daughterboard which provides a second Gigabit network port with PoE function. This enables the EN01J3 to receive power over the same network cable that transports data, and so does away with the need for a nearby power outlet. The power comes from a PoE-enabled Ethernet switch or from a power injector (48V, 0.65A) at the other end of the network cable.
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 6 1 8 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle Edge EN01J3 – Optional Accessories
Second LAN port with PoE function
The optional Shuttle accessory PD01 and
PSE01 are daughter-
boards which provide a second Gigabit network port with PoE function. PoE (Power-over­Ethernet) enables network devices to receive power over the same network cable that transports data.
Shuttle accessory PD01
Shuttle accessory PSE01
Adding PD01 allows the EN01J3 to be powered over the LAN cable and thus it becomes a Powered Device (PD).
The PSE01 makes the EN01J3 act as Power Sourcing Equipment (PSE) that carries both data and operating voltage to a connected network device, such as an IP camera.
Note: the Shuttle accessories listed below cannot be combined:
Two LTE/4G antennas:
Shuttle accessory WWN01
The EN01J3 can be enhanced to support mobile internet with the following hardware components:
1) an LTE/4G module in M.2-3042 format
2) an activated Nano SIM card
3) the Shuttle accessory WWN01 with two LTE/4G antennas and cables
WLAN expansion kit:
Shuttle accessory LN007 and WLN-M
WLAN-ac and BT 4.0 function is supported by the M.2 adapter card LN007 and the WLAN kit
WLN-M.
HDMI capture card:
Shuttle accessory MCAP01
The MCAP01 consists of a HDMI Capture Card in M.2 format and includes an adapter cable for an additional HDMI­in port. Using this accessory, HDMI video signals can be recorded and processed from an external source.
Power Adapter (90 W / 19V):
Shuttle accessory PE90
The EN01J3 comes with an adapter cable with a 5.5 / 2.5 mm DC plug which is compatible with power adapters such as the PE90.
Images for illustration
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 7 1 8 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle Edge EN01J3 - Specifications
Fanless and
silent
Completely fanless, virtually noiseless Large aluminium heatsink Passive cooling through convective heat tra nsfer Ideal for noise-sensitive environments Fanless means less dust inside the case and thus virtually no ma intenance required.
24/7
Nonstop
Operation
This device is approved for 24/7 permanent operation. Requirement: Free air c irculation around the PC must be guaranteed. This device comes without a power -on button. The boot process starts as soon as power is applied. [1]
Chassis
Black chassis made of alumin ium and st eel Dimensions: 92.4 x 54.4 x 90 mm (LWH) = 450 ml (Height including rubber feet) Weight: 0.48 kg net and 1.03 kg gross With hole for Kensington Lock IP protection rating: IP20
Operating
Positions
1) Mounted on a DIN- Rail (e.g. inside equipment racks)
2) Vertical (e.g. VESA-mounted b ehind an appropriate monitor)
3) Standing on its rubber feet as a desktop PC
Operating
System
This system comes without operating system. It is compatible with:
- Windows 10 (64-bit)
- Linux (64-bit)
Processor
Intel® Celeron® Prozessor J3355, Dual Core CPU clock frequency: 2.0 GHz , max. Turbo frequency: 2.5 GHz Code name: "Apollo Lake" 14 nm structure, FCBGA1296 package (soldered) CPU cores / Threads: 2 / 2 L2 Cache: 2 MB Thermal Design Pow er (TDP): 10 W Supports x86-64, AES-NI, VT-x (EPT), VT-d System-on-Ch ip process or (SoC) with integrated graphics processor, no additional chipset required Fanless cooling system
Integrated
Graphics
The Graphics Processing Unit (GPU) is integrated in the processor. Intel® HD Graphics 500 (Intel Gen 9), graphics frequency: 250~700 MHz Supports DirectX 12, Intel Quick Sync Video, Intel Clear Vid eo (HD), Shared Memory Execution Units (EU): 12
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 8 1 8 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
UEFI
Firmware
16 MB Flash ROM with AMI UEFI BIOS Firmware Based on the Unified Extensible Firmware Interface (UEFI) Supports Wake-on-LAN (WOL) from S3, S4, S5 A CPI states Supports boot up from external flash m emory cards (USB or SD card) Embedded Firmware TPM v2.0 (fTPM), can b e activated in BIOS setup Supports Hardware Monitoring and Wat ch Dog functionality (fixed timer)
RAM
Memory
4 GB LPDDR4 RAM memor y (2400 MHz), soldered
Flash
Memory
64 GB eMMC flash memory Expandable via Micro SD card
M.2
expansion
slot
The M.2-3042 B-key expansion slot provid es the following int erfac es:
1) PCI-Express Gen. 2.0 X1
2) SATA v3.0 (max. 6 Gbps)
3) USB 3.2 GEN 1 The following components can be used in this slot:
1) optional HDMI capture card MCAP01 [3] or
2) optional L TE/4G module [4] or
3) optional WLAN module [ 5] or
4) M.2-2242 SSDs w ith SATA interface (B+M k ey) or wit h NVMe interface (M key) Note: Please go to the "Advanced" tab in the BIOS setup and set "M.2 Device Select" to "PCIe" or "SATA" according to the typ e of M.2 car d used.
SIM
expan sion
slot
A nano SIM card can be installed in an appr opriate slot directly on the mainboard. The SIM card can be used in combination with an optional LTE/4G module that i s to be installed in the M.2-3042 slot [4].
Micro SD
Card
Reader
Integrated card read er Supports Micro SD, Micro SDHC and Micro SDX C memory flash cards Supports booting from SD card
Wired
Network
RJ45 connector supports Gigabit LAN at 10/100/1000 Mb it/s. Realtek RTL8119I-CG Ethernet Controller Supports Wake-on-LAN
Connectors
and LED
- Power LED [1]
- HDMI 1.4b digital video and audio output
- 2 x USB 3.2 GEN 1 Type A
- Micro USB 2.0
- Micro SD card reader
- Gigabit network port (LAN, RJ45)
- DC input (2 -pin Euroblock)
- 4 x perforated 6.5 mm holes for optional L TE/4G antennas
- Optional: second Gigabit network port [2]
- Optional: HDMI input [3]
- Hole for Kensington Lock
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 9 1 8 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Onboar d
I/O
connector
34-pin header "J1" with I/O ports as follows:
- Power Button (pin 11)
- Reset Button (pin 13)
- Always-on function (pin 29-30 shortened by jumper)
- RS232 3.3V (pin 2, 4, 6, 8)
- RS232/422/485 3.3V (p in 31 , 32 , 33, 34)
- 4 x GPIO 1.8 V (pin 21, 23, 25, 27)
- I2C bus (pin 22, 24) Reserved pins:
- UART 3.3V (Pin 1 , 3, 5, 7): Debug Port
- Recovery (Pin 15): no function Note: The onboard connector "CN5" ( CanBus) cannot be used.
DC Input
connector
The 2-pin Eur oblock connector supports 12~19V of DC input voltage. The included Phoenix connect or enables a DC cable to be connected via terminal strip. In addition, the included adapter cable allows a power adap ter with a 5.5 / 2.5 mm DC plug to be connected. The recommended minimum outp ut wattage of t he power adapter is:
- 40 W, if the accessory PSE01 is not us ed.
- 65 W, if the accessory PSE01 is installed.
Power
Supply via
PoE (opt .)
The PC is powered either via the DC input connector or via PoE (Pow er over Et hernet). The PoE function can be add ed with the optional Shuttl e accessory PD01 [2]. The Power Soucing Equipment (PSE, e.g. PoE switch or injector) should be capable to deliver at least 48V DC / 0.65A.
Supplied
Accessories
- Multi- language user guide (EN, DE, FR, ES, JP, K R, SC, TC)
- Driver DVD (Windows 10, 64-bit)
- Bracket for VESA and DIN-Rail mounting
- Two screws M3 x 4 mm (attaches mount ing bracket to PC)
- DIN-Rail clip
- Two screws M3 x 4 mm (a ttaches mounting bracket to DIN-Rail clip)
- VESA mount for 75 / 100 mm standard
- Four screws M4 x 10 mm (to affix VESA mount on PC)
- Two screws M3 x 5 mm (to mount an M.2 card)
- 2-pin Phoenix connector
- DC adapter cable (connects the Phoen ix connect or to a 2.5 / 5.5 mm coaxial DC plug of a power adapter) Note: A power adapter is not included.
Optional
Accessories
PD01: PD daug hterb oard to power EN01Jx by PoE (48V, 0.65A) [2 ] PSE01: PSE daughterboard - EN01Jx acts as a PoE power source (48 V, 0.5A) [2] MCAP01: HDMI capture card in M.2-2242 format with HDMI cable [3] WWN01: Set with two LTE/4G antennas and anten na cables [ 4] LN007 and WLN-M: WLAN kit with WLAN card, M.2 adapter and two antennas [5] PE90: Power Adapter (19 V / 90W)
Environ-
mental Specifi­cations
Operating temperature range: 0 ~ 50 °C Relative humidity range: 10 ~ 90 % (non-condensing) Warning: Never touch the heatsink during or just after operation, as it can get very hot during normal operation. Be sure to wa it for the heatsink to cool off before touching it.
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 10 18 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Certification
& Com­pliance
EMI: FCC, CE, BSMI, VCCI, RCM Safety: ETL, CB, BSMI, IP20 Other: RoHS, Energy Star, ErP This device is classed as a techn ical information equipment (ITE) in class B and is intended for use in living room a nd office. The CE-mark approves the conform ity b y the EU dir ectives: (1) 2014/30/EU relating to electr omagnetic compatibility (EMC), (2) 2014/35/EU relating to Electr ical Equipment designed for use withi n certain volta ge limits (LVD), (3) 2009/125/EC relating to eco des ign requirements for energy-related pr oducts (ErP), (4) 2014/53/EU Radio Equipment Directive (RED)
Footnotes:
[1] Non-stop operation The EN01Jx is intended for 24/7 non -stop o perat ion. This device com es without a power-on button, and the boot process starts as soon as power is applied. It is still possible to switch off the syst em by shutting down the operat ing system into Soft-Off mode (S5). There are three ways to switch the system on again:
- Interruption of power supp ly
- Via Wake-on-LAN (WoL) by sending a Wake-Up signal to the LAN port
- By connecting an external power button (n ormally open) to the internal 34 -pin header "J4" (please r efer to the PDF version of the Quick Guide). The button has to be connected to pin 11 and 12 , and the Always-On function has to be disabled by removing the jumper from pin 29/30.
[2] Second LAN port with PoE f unction (optional) The optional Shuttle accessories PD01 and PSE01 are daughterboards which provide a second Gigabit network port with PoE function. P oE (Power-over-Ethernet) enables network devices to receive power over the same network cable that transports data. Adding the Shuttle accessory PD01 allows the EN01Jx to be powered over the LAN cable and thus it becomes a Powered Device (PD). The Shuttle accessory PSE01 makes the EN01Jx act as Power Sourcing Equipment (PSE) that carries both data and operating voltage to a connected network device, such as an IP camera.
[3] HDMI Capture Card (MCAP01) The optional Shuttle accessory MCAP01 consists of an HDMI Capture Card in M.2 format and includes an adapter cable for an additional HDMI-in port. Using this accessory, HDMI video signals can be recorded and processed from an external source.
[4] Opti onal LTE/4G function The EN01Jx can optionally be enhanced to support mobile internet wit h the following hardware components:
1) an LTE/4G module in M.2-3042 format
2) an activated Nano SIM card
3) the Shuttle accessory WWN01 with two LTE/4G anten nas and cables
[5] Opti onal WLAN function Two accessory products ar e required to upgrad e the PC with a WLAN function:
1) WLN-M is a WLAN kit consisting of a WLAN card in M.2-2230 format (supports WLAN-ac 2.4 / 5 GHz and BT 4.0), two external antennas and antenna cables
2) LN007 is a M.2 adapter board (the M.2 slot of EN01 is B/M key, the WLAN card is A/E key)
Product Specifications
w w w . s h u t t l e . e u
Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0 Fa x + 4 9 ( 0) 41 21- 47 69 00 sa les @sh ut tle .eu
Page 11 18 June 2020
© 2020 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle Edge EN01 Series – Technical Drawings
DIN Rail Clip
VESA Mount
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
