BR06S Software Quick Start Guide
English
Shuttle
®
XPC Installation Guide
Copyright
©2017 by Shuttle® Inc. All Rights Reserved.
Other brands and product names used herein are for identication purposes
only and may be trademarks of their respective owners.
Disclaimer
Shuttle® Inc. shall not be liable for any incidental or consequential damages
resulting from the performance or use of this product.
®
Shuttle
of this manual. Information in this manual had been carefully checked for
accuracy;however, no guarantee is given as to the correctness of the contents.
For continuing product improvement, Shuttle® Inc. reserves the right to revise
the manual or make changes to the specications of this product at any time
without notice and obligation to any person or entity regarding such change.
The information contained in this manual is provided for general use by
customers.
Inc. makes no representation or warranty regarding the contents
Trademarks
Shuttle is a registered trademark of Shuttle® Inc.
General Notice
Other brand and product names used herein are for identication purposes
only and may be trademarks of their respective owners.
1
English
BR06S Software Quick Start Guide
TABLE OF CONTENTS
Setup Wizard ...........................................................................................................4
1.1 Language Settings .....................................................................................4
1.2 Licence .......................................................................................................4
1.3 Host Name .................................................................................................5
1.4 Network ......................................................................................................5
1.4.1 DHCP ...............................................................................................5
1.4.2 Fixed IP ............................................................................................6
1.4.3 No Network ......................................................................................6
1.5 Time Zone ..................................................................................................7
1.6 Choose the Mode You Require ..................................................................7
1.7 Create a Power User ..................................................................................8
1.7.1 Register Face ...................................................................................9
1.7.2 Register Fingerprint .......................................................................10
1.7.3 Register NFC .................................................................................11
Enter BR06S..........................................................................................................12
Admin Menu ..........................................................................................................14
3.1 Settings ....................................................................................................14
3.1.1 System Settings .............................................................................14
3.1.1.1 Language .............................................................................14
3.1.1.2 Host Name ...........................................................................15
2
English
3.1.1.3 Network ...............................................................................15
3.1.1.4 Time Zone ............................................................................16
3.1.2 Advanced Settings .........................................................................17
3.1.2.1 Event Trigger .......................................................................17
3.1.2.2 Green Power .......................................................................18
3.1.2.3 Audio ....................................................................................18
3.1.2.4 Factory Default ....................................................................19
3.1.3 Password .......................................................................................20
3.1.4 User List .........................................................................................21
3.1.4.1 Search .................................................................................22
3.1.4.2 Add User ..............................................................................22
3.1.4.3 Modify User .........................................................................23
3.1.4.4 Delete User ..........................................................................23
3.1.4.5 Backup .................................................................................24
3.1.5 Log .................................................................................................25
3.1.5.1 Login ....................................................................................25
3.1.5.2 Event ...................................................................................26
3.1.6 Backup ...........................................................................................26
3.2 System Info ..............................................................................................27
3
English
BR06S Software Quick Start Guide
Setup Wizard
1.1 Language Settings
1. Choose your language.
2. Press “Next” button to continue to the next step.
1
2
1.2 Licence
1. Press “I Agree” button to the terms and conditions.
2. Press “Next” button to continue to the next step.
2
1
4
1.3 Host Name
1. Create a host name.
2. Press “Next” button to continue to the next step.
1
English
2
1.4 Network
To select the network connection connection type.
1.4.1 DHCP
1. When connect to a network, BR06S will automatically search for Address info.
2. Press “Next” button to continue to the next step.
1
2
5
English
BR06S Software Quick Start Guide
1.4.2 Fixed IP
1. Need to ll in Fixed IP’s Address info.
2. Press “Next” button to continue to the next step.
1
2
1.4.3 No Network
1. Press “Next” button to continue to the next step.
1
6
1.5 Time Zone
1. Select the Time Zone.
2. Press “Next” button to continue to the next step.
1
English

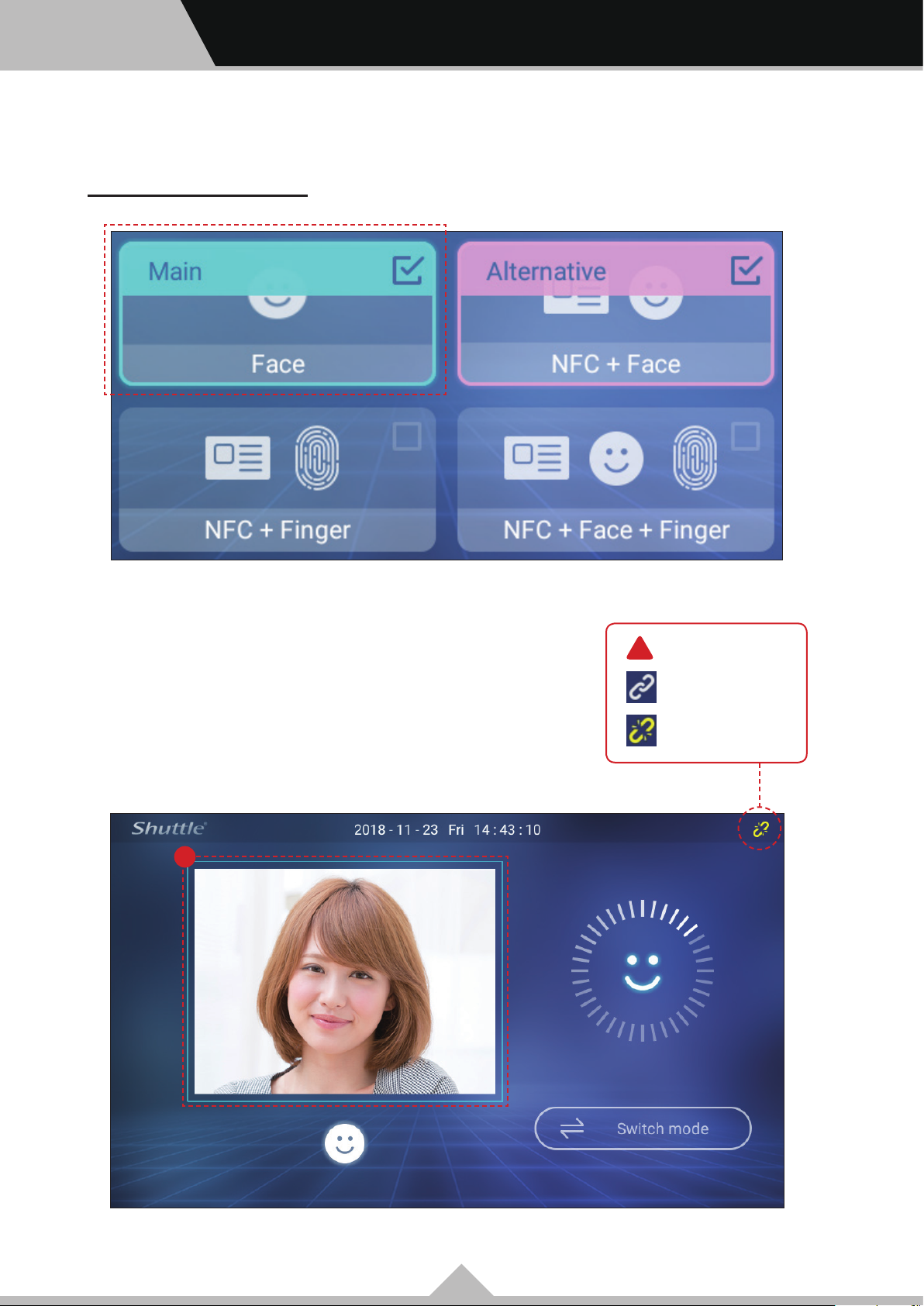

1.6 Choose the Mode You Require
1. Choose a “Main mode” or a “Alternative mode” (optional) you require.
2. Press “Next” button to continue to the next step.
1
2
2
7
English
BR06S Software Quick Start Guide
1.7 Create a Power User
Power User can perform any administrative task on BR06S.
1. Complete the biological characteristics you require.
2. Enter device password and conrm password elds.
3. Press “Next” button to continue to the next step.
1
1.7.1 1.7.2 1.7.3
3
2
8

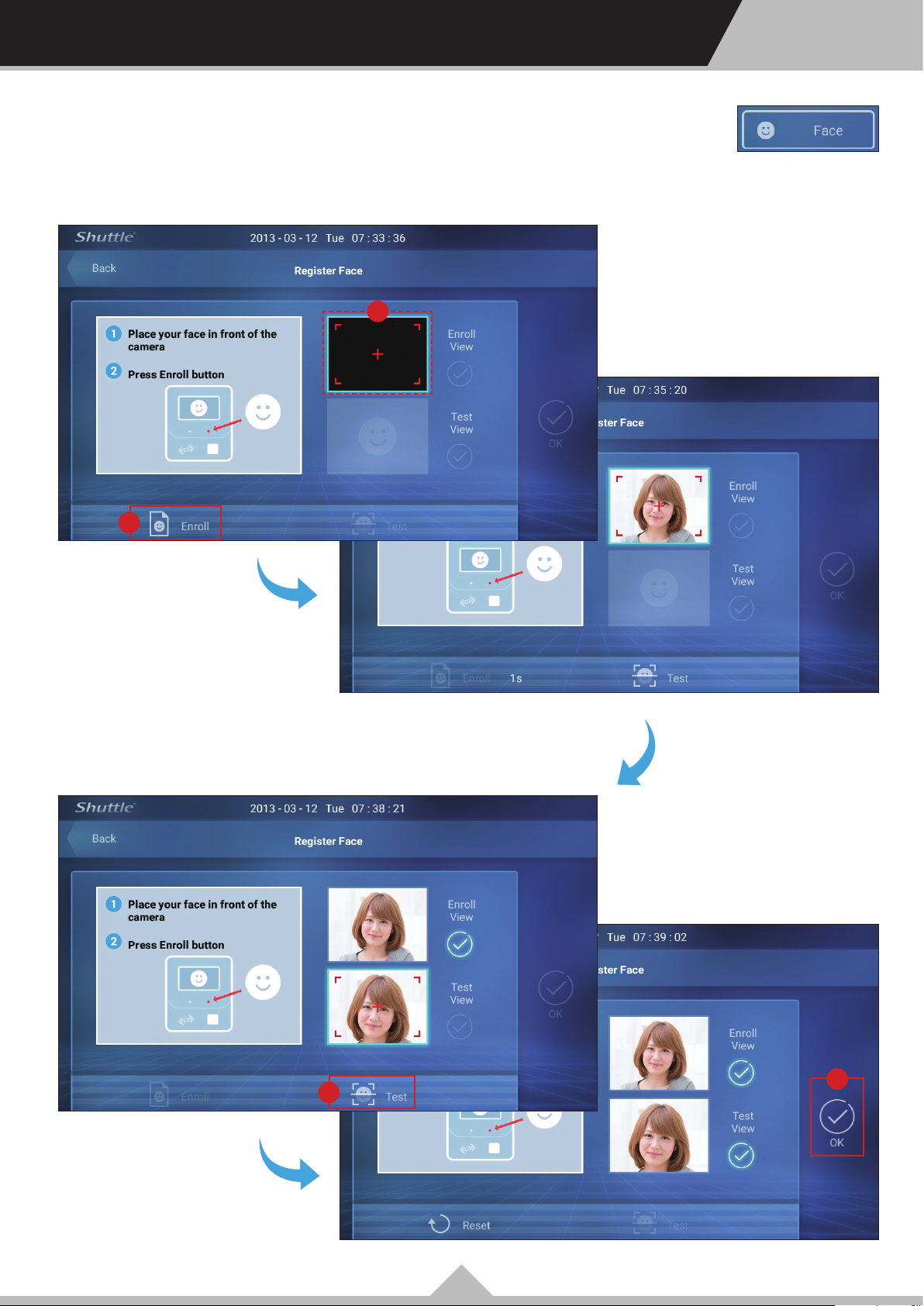

1.7.1 Register Face
1. Place your face in front of the camera.
2. Press “Enroll” button.
English
1
2
3. Press “Test” button.
4. Press “OK” button to continue to the next step.
3
9
4
English
BR06S Software Quick Start Guide

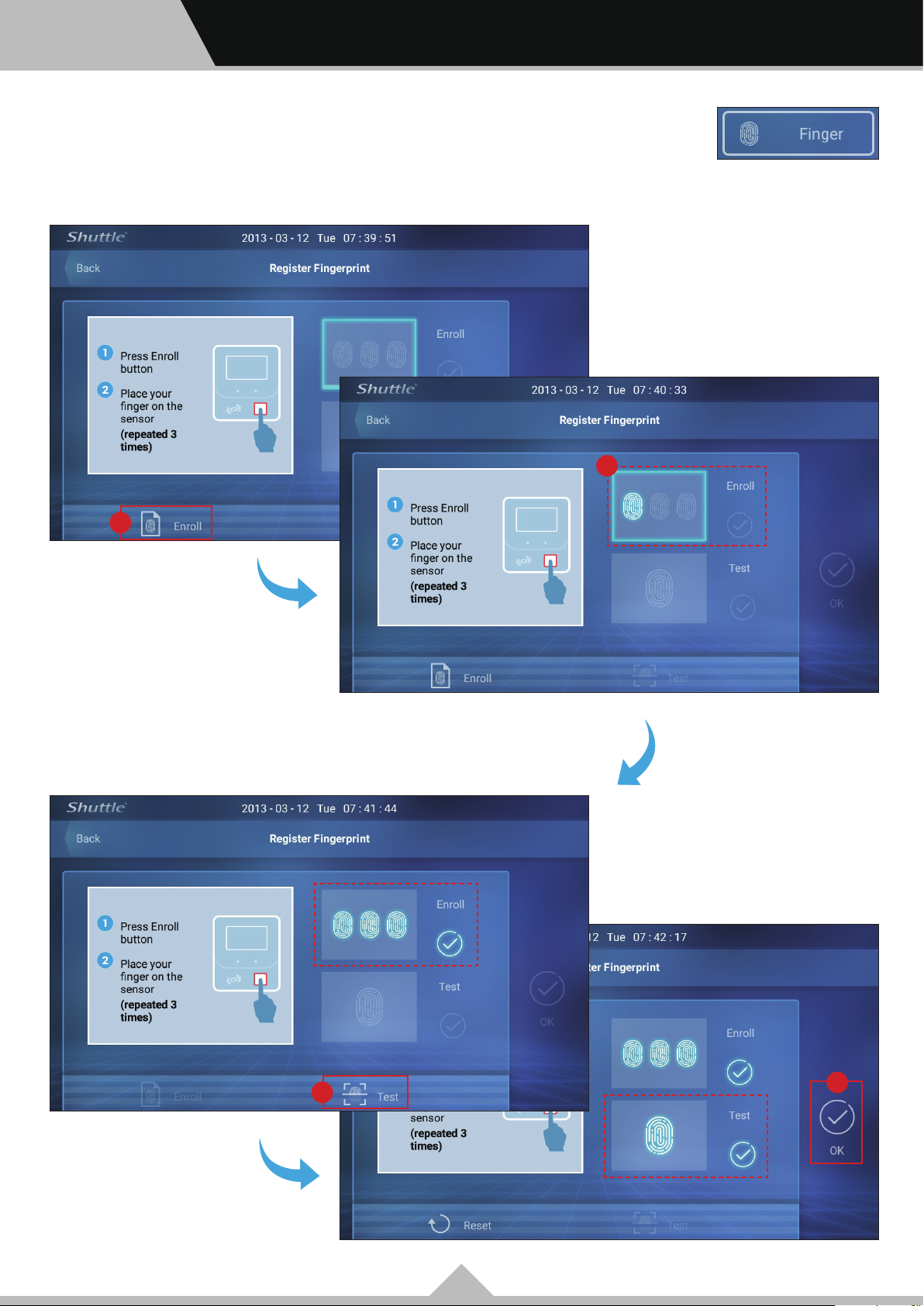

1.7.2 Register Fingerprint
1. Press “Enroll” button.
2. Place your nger on the sensor and repeated 3 times.
2
1
3. Press “Test” button.
4. Press “OK” button to continue to the next step.
3
10
4

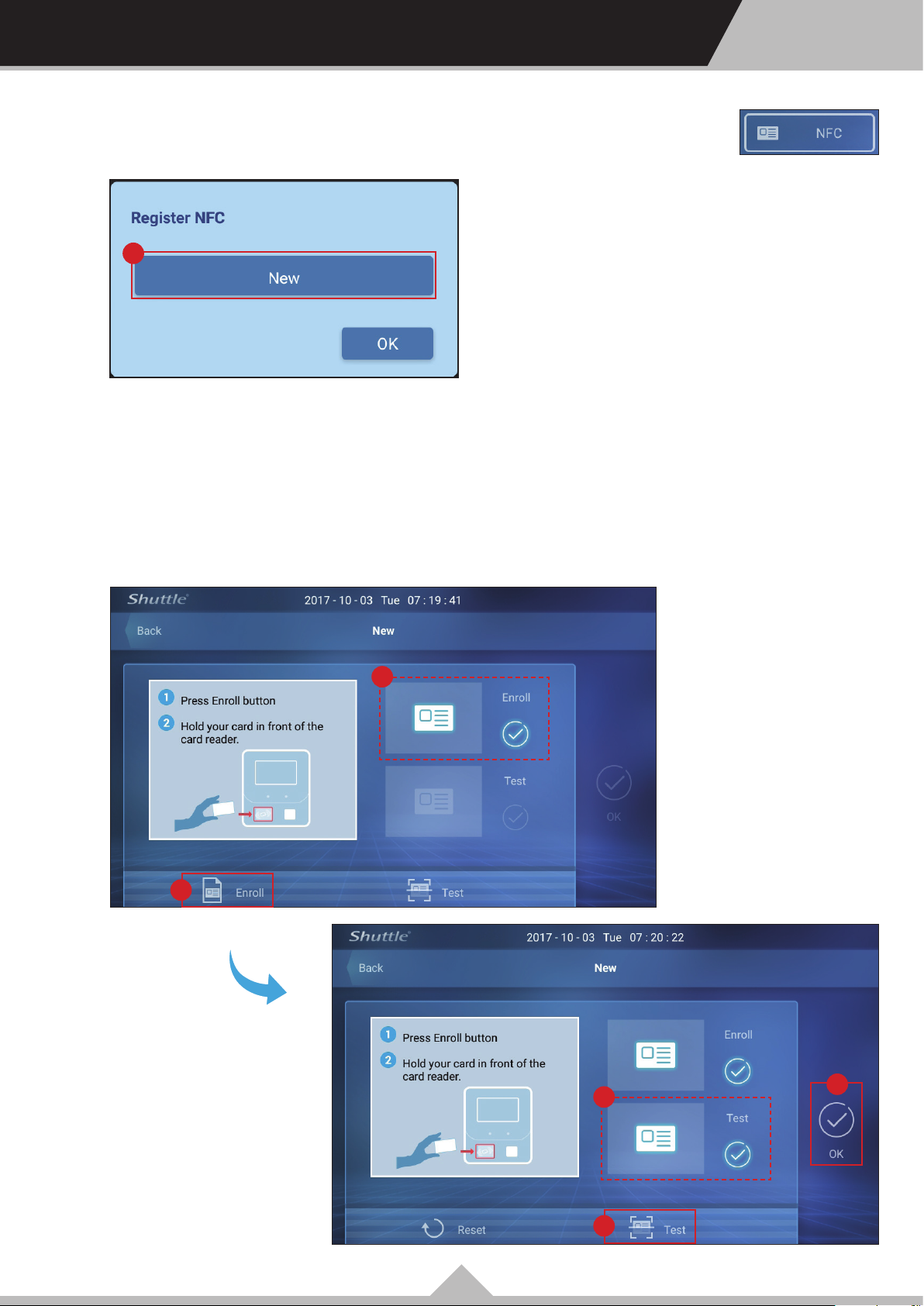

1.7.3 Register NFC
1. Press “New” button.
1
2. Press “Enroll” button.
3. Hold your card in front of the card reader.
4. Press “Test” button.
English
5. Hold your card in front of the card reader again.
6. Press “OK” button to continue to the next step.
3
2
11
5
6
4
English
BR06S Software Quick Start Guide
Enter BR06S
Following the register mode (identication mode) you choose.
For Example: Face mode
1. Place your face in front of the camera.
1
Network status:
!
connecting
disconnecting
12

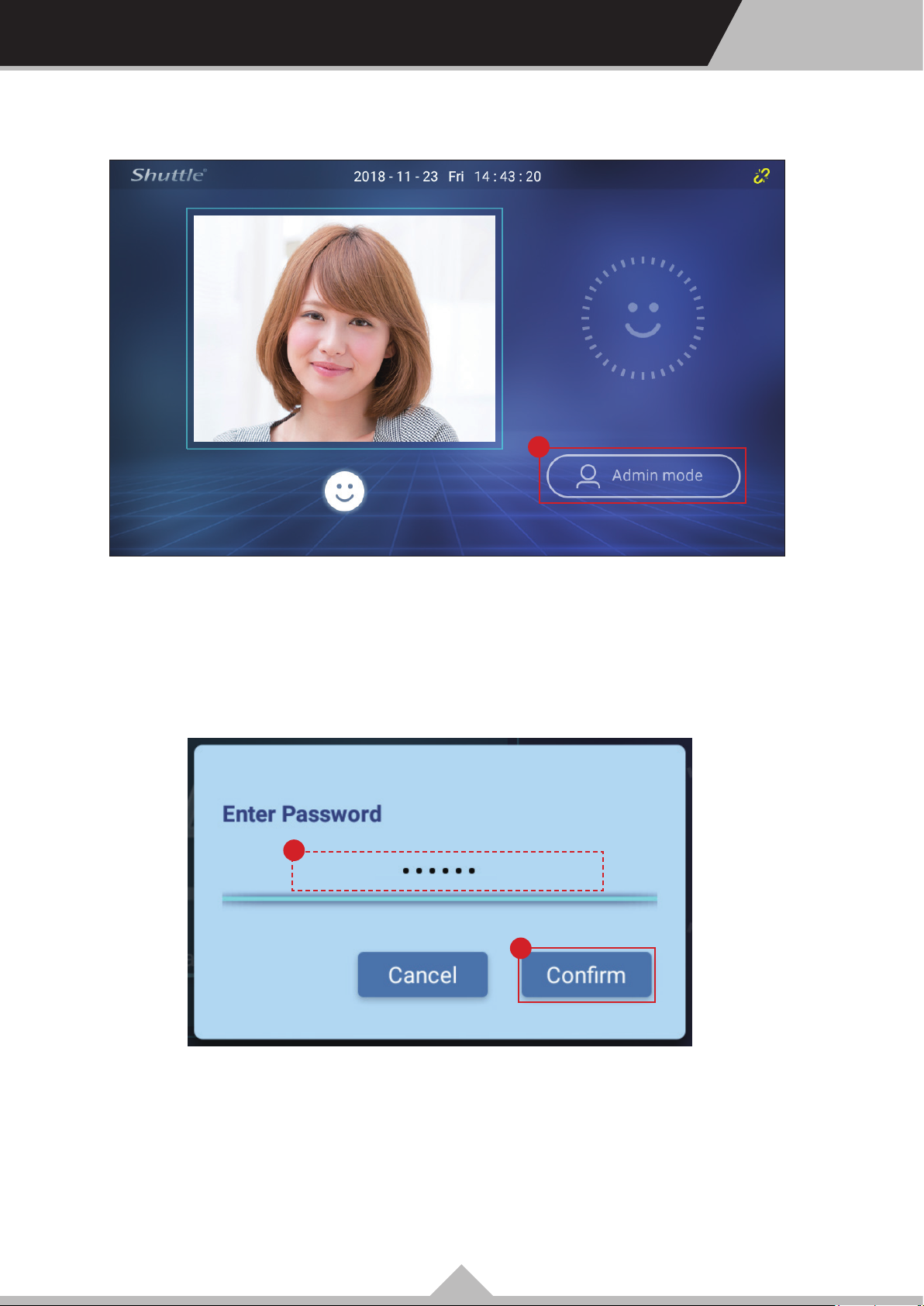

2. Press “Admin mode” button. (Power User Only)
English
2
3. Enter Password. (Power User Only)
4. Press “Conrm” button to continue to the next step. (Power User Only)
3
4
13
English
Admin Menu
3.1 Settings
3.1.1 System Settings
BR06S Software Quick Start Guide

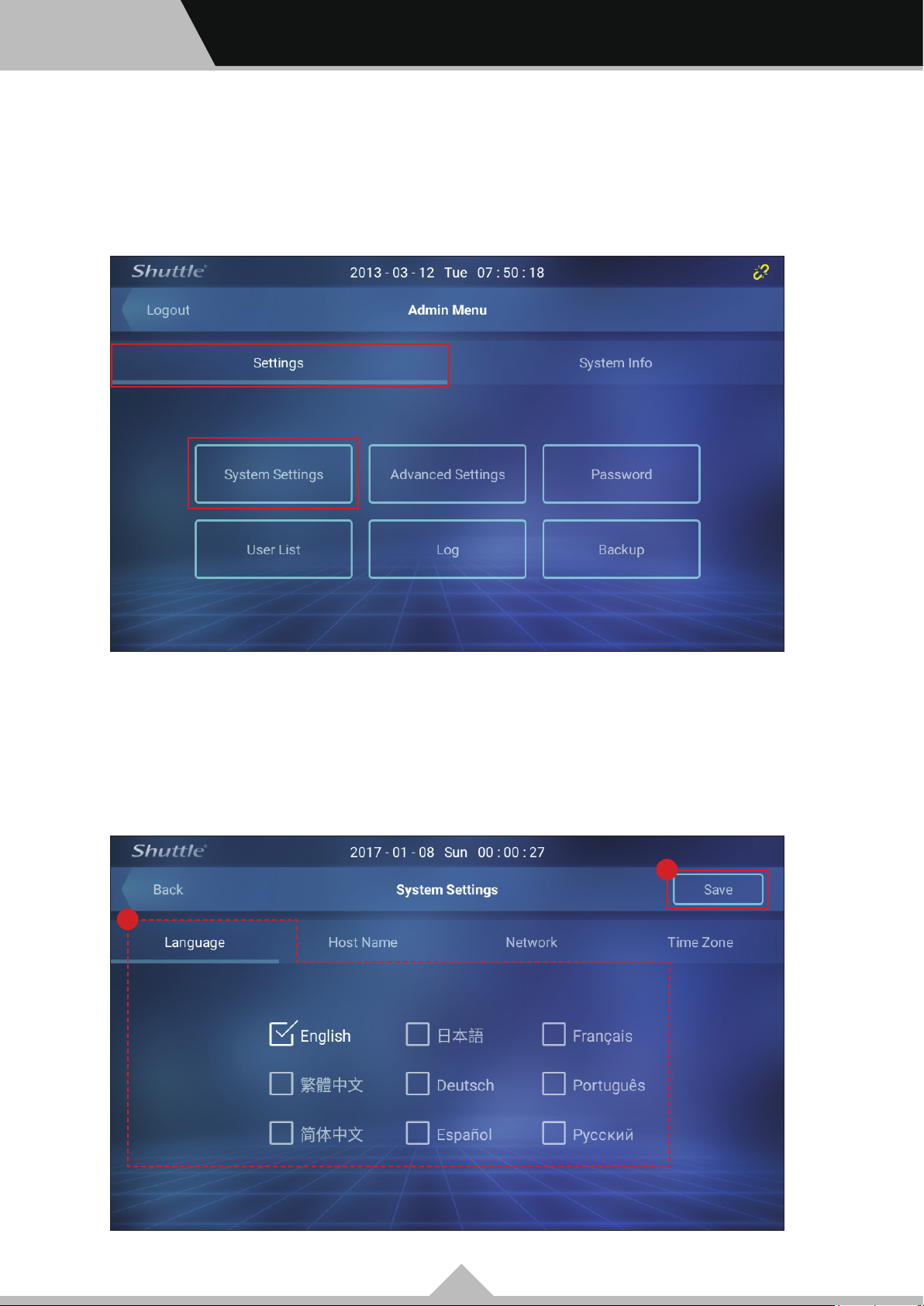

3.1.1.1 Language
1. Choose your language.
2. Press “Save” button to continue to the next step.
1
2
14

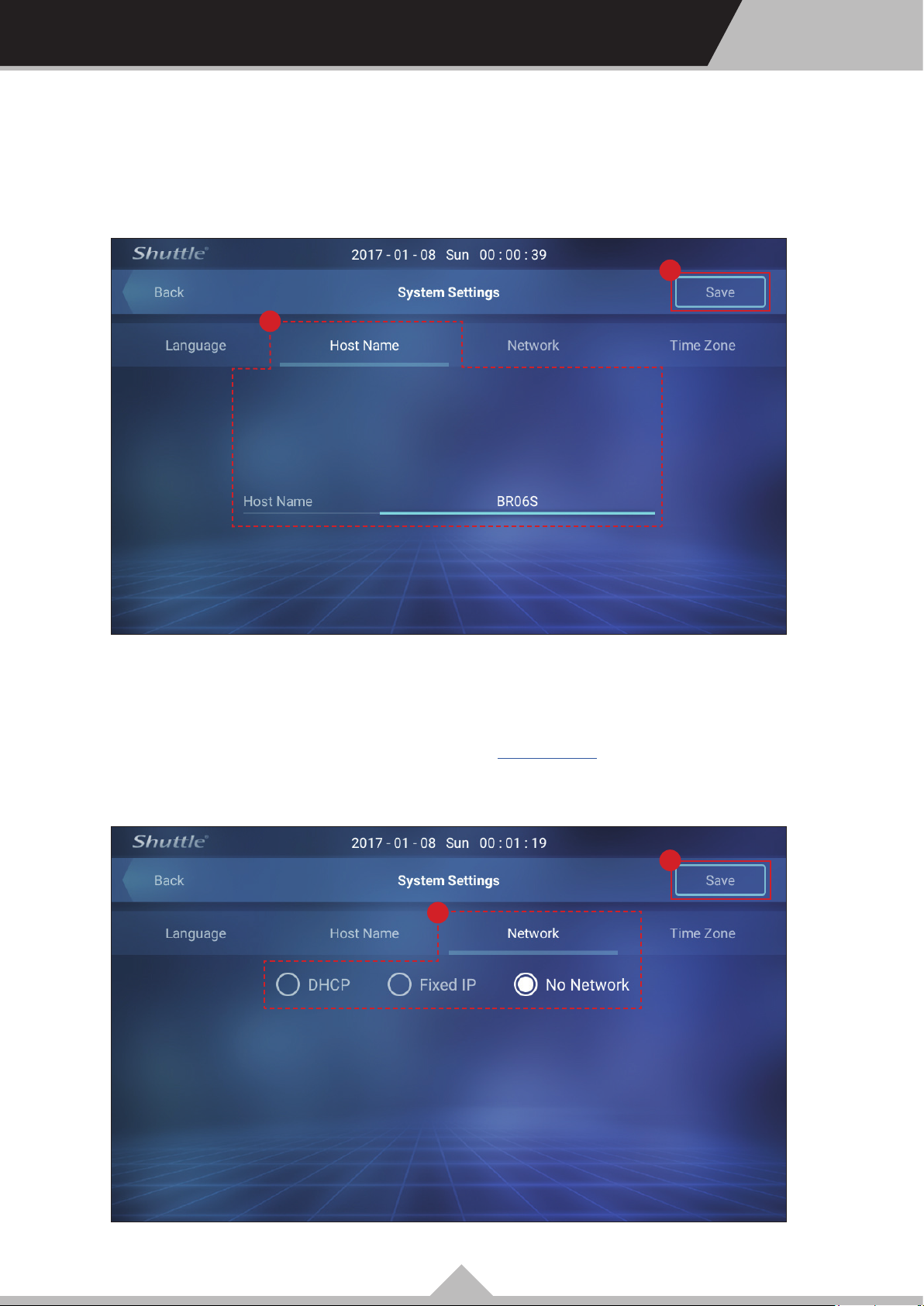

3.1.1.2 Host Name
1. Enter Host Name.
2. Press “Save” button to continue to the next step.
1
English
2
3.1.1.3 Network
1. Choose a Network type. (follow same steps as 1.4 Network)
2. Press “Save” button to continue to the next step.
1
2
15
English
BR06S Software Quick Start Guide

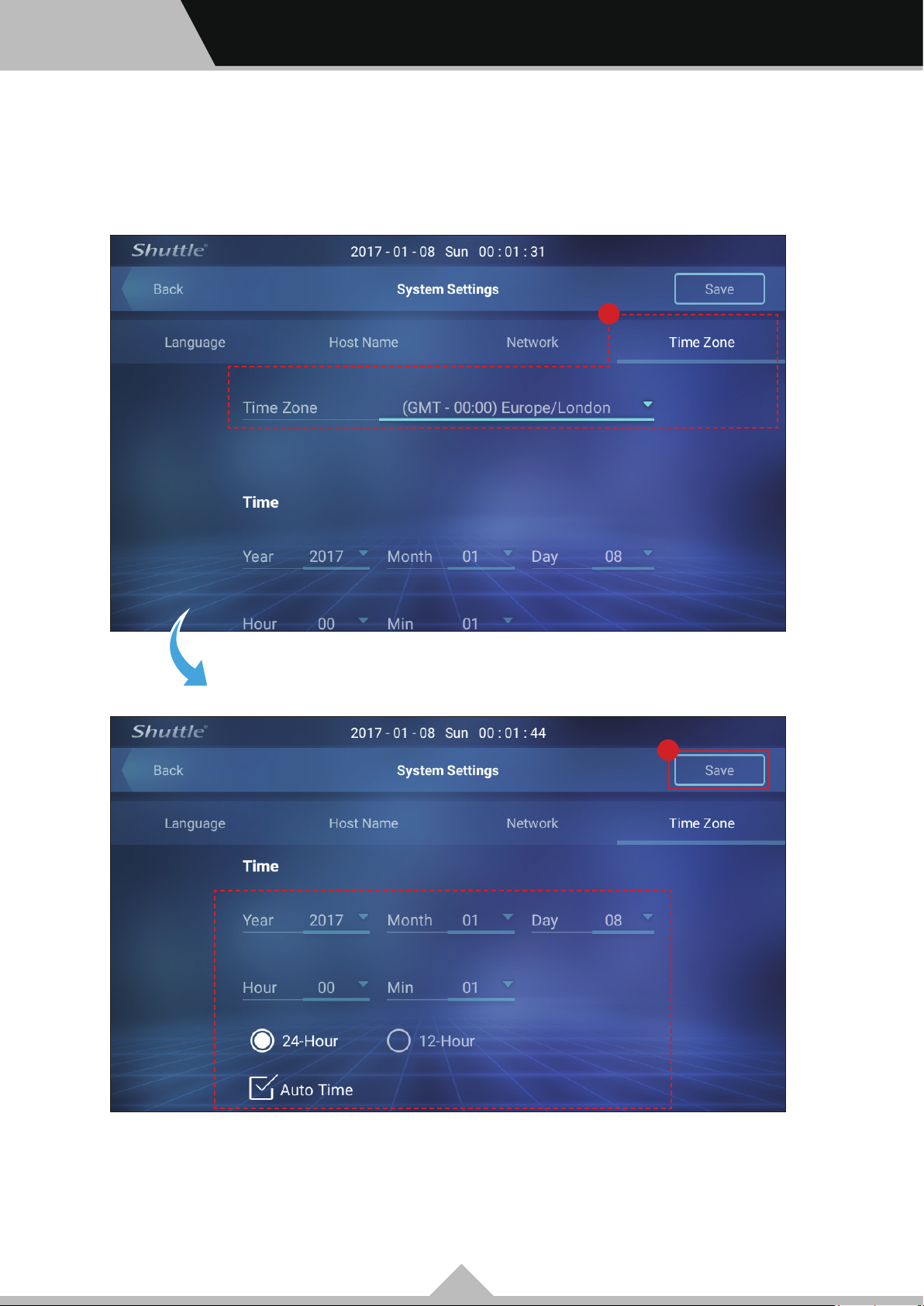

3.1.1.4 Time Zone
1. Select the Time Zone.
2. Press “Save” button to continue to the next step.
1
2
16
3.1.2 Advanced Settings
English

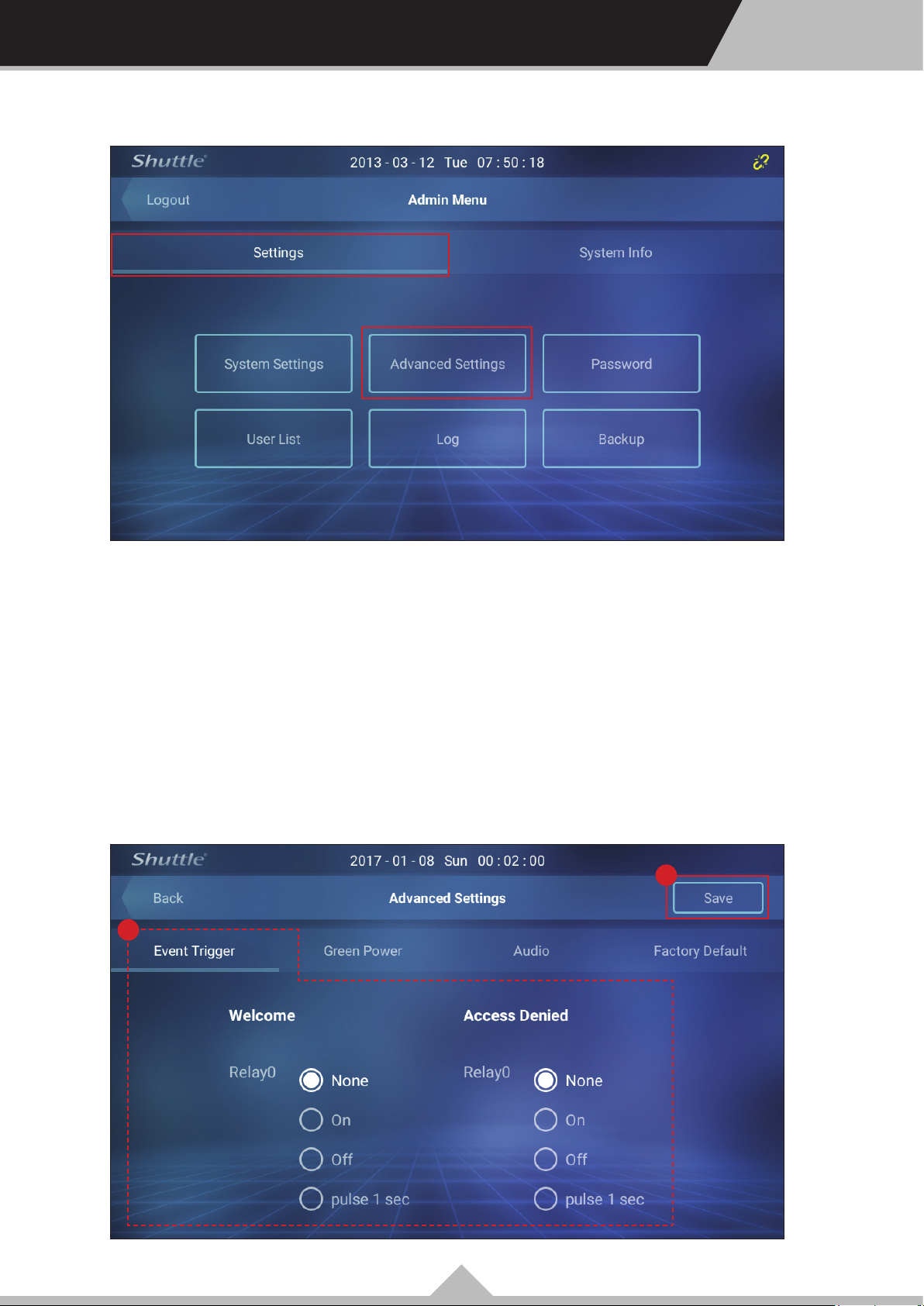

3.1.2.1 Event Trigger
“Login successful” or “Login failed” actions appear.
e.g.: “Login successful”: Welcome -> Trigger the relay0 and relay1’s setting.
“Login failed”: Access Denied -> Trigger the relay0 and relay1’s setting.
1. Choose the Relay(s) you require.
2. Press “Save” button to continue to the next step.
1
2
17
English
BR06S Software Quick Start Guide

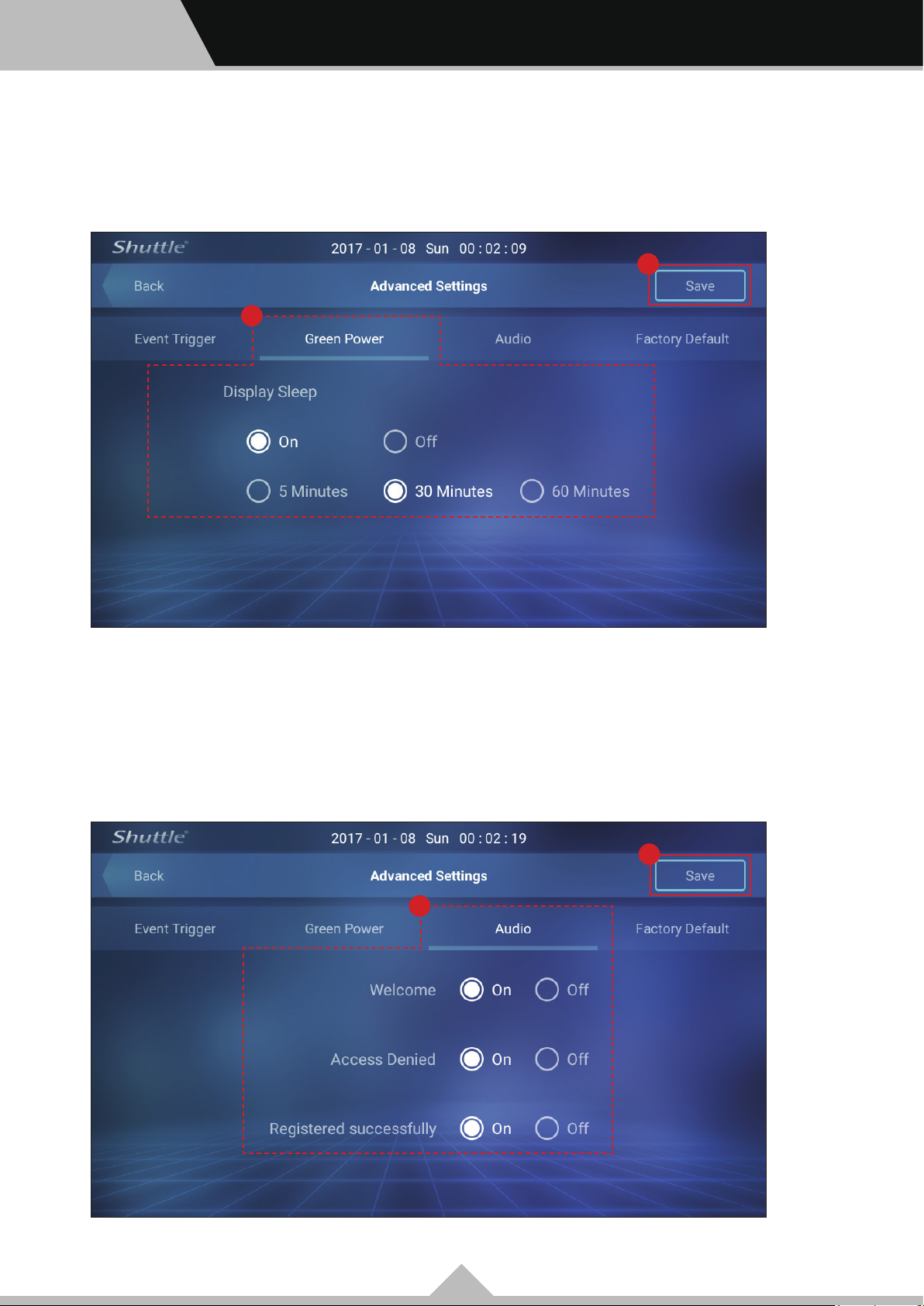

3.1.2.2 Green Power
1. Choose the settings you require.
2. Press “Save” button to continue to the next step.
1
2
3.1.2.3 Audio
1. Choose the settings you require.
2. Press “Save” button to continue to the next step.
1
2
18

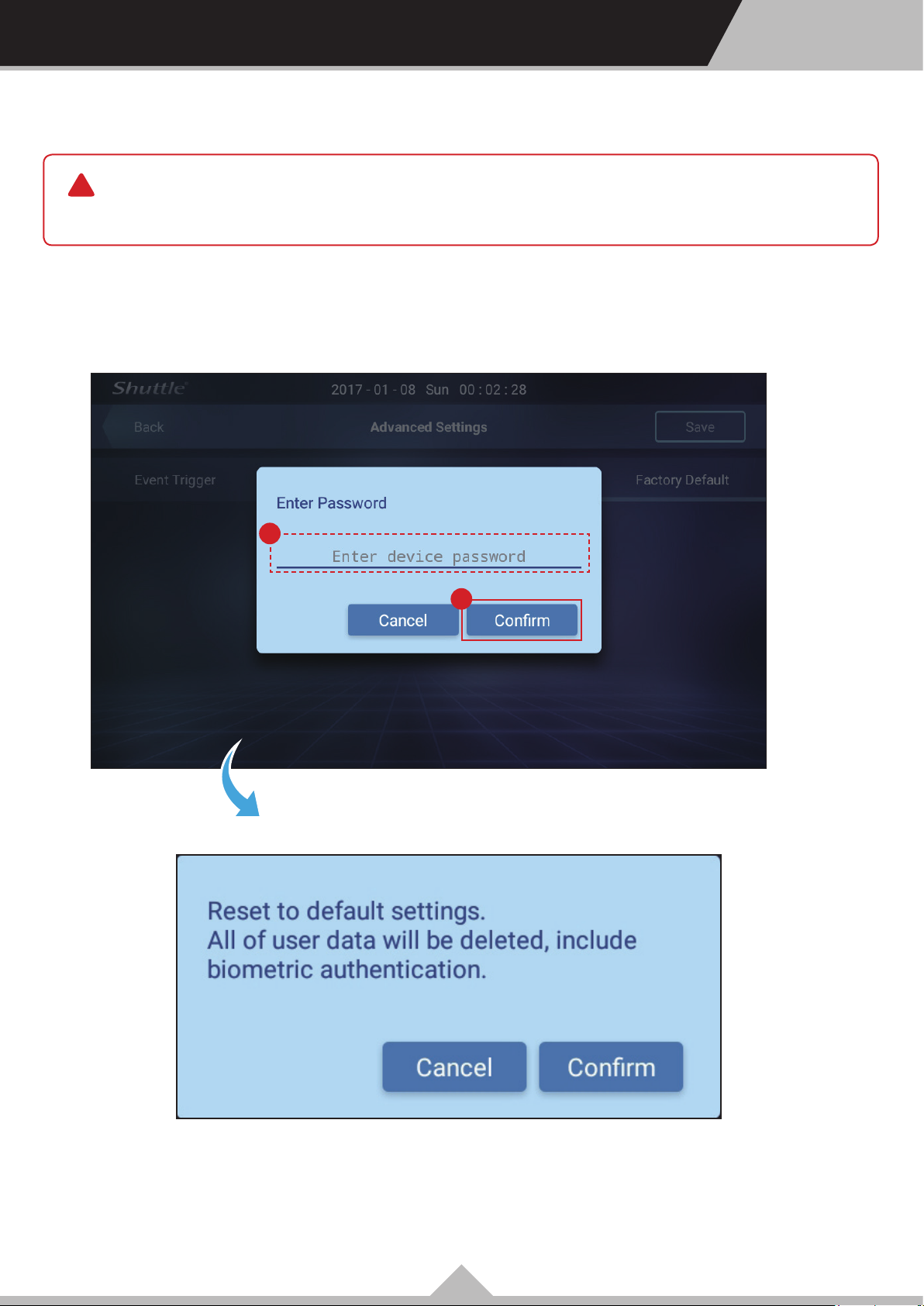

3.1.2.4 Factory Default
Important!
!
Reset to default settings. All of user data will be deleted, include biometric authentication.
1. Enter Password.
2. Press “Conrm” button to continue to the next step.
English
1
2
19
English

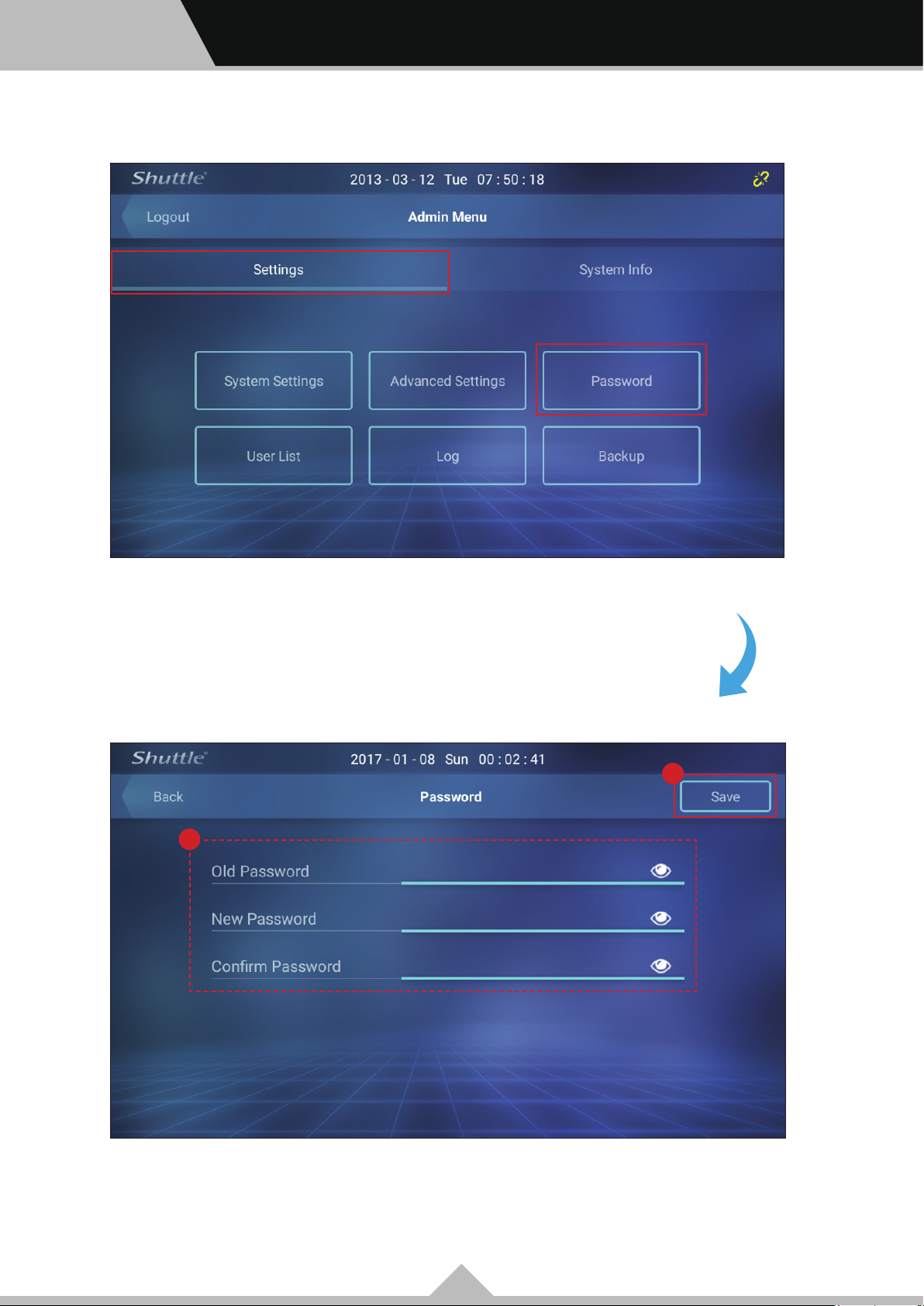

3.1.3 Password
BR06S Software Quick Start Guide
1. Enter Password.
2. Press “Save” button to continue to the next step.
1
2
20

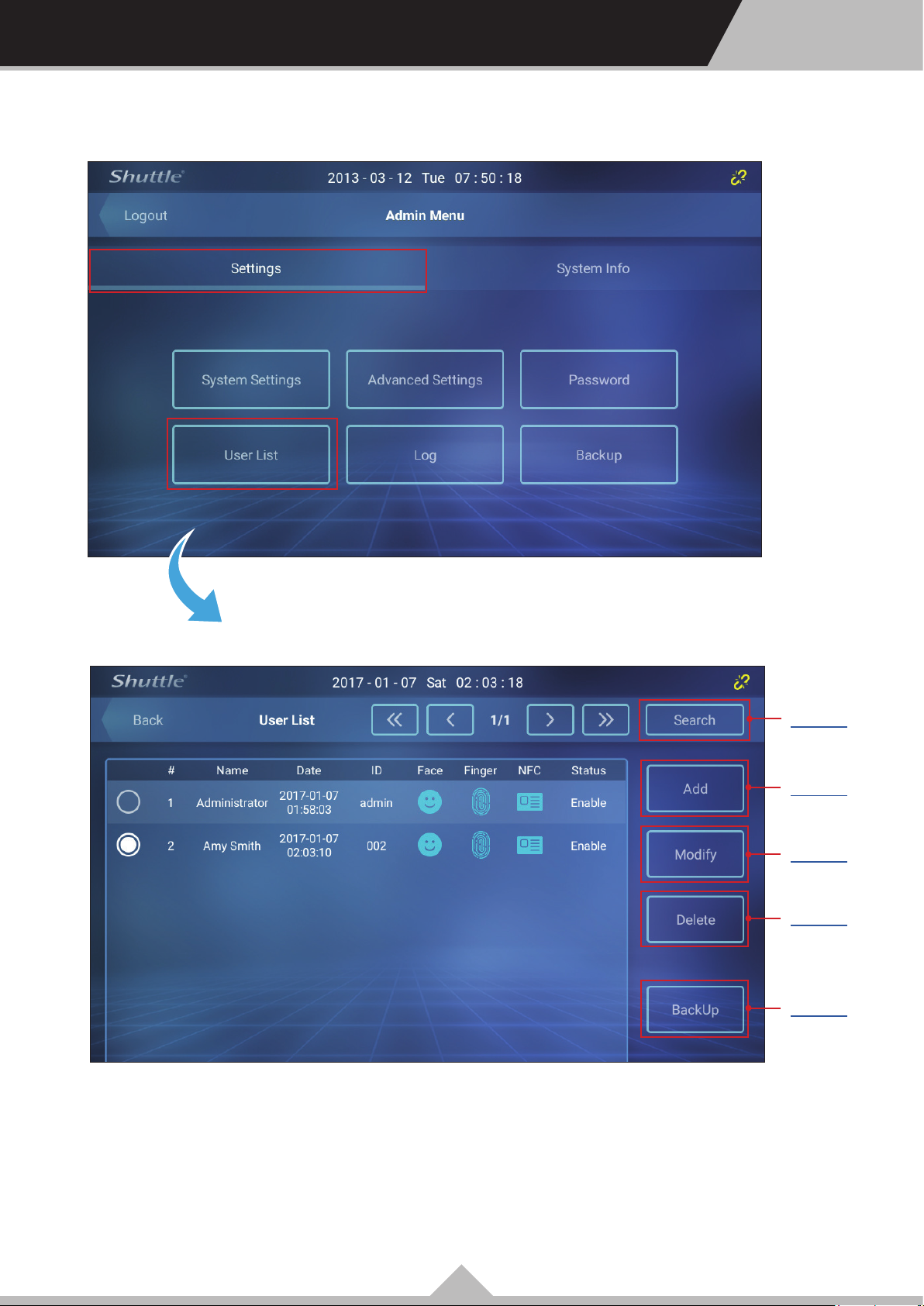

3.1.4 User List
English
3.1.4.1
3.1.4.2
3.1.4.3
3.1.4.4
3.1.4.5
21
English

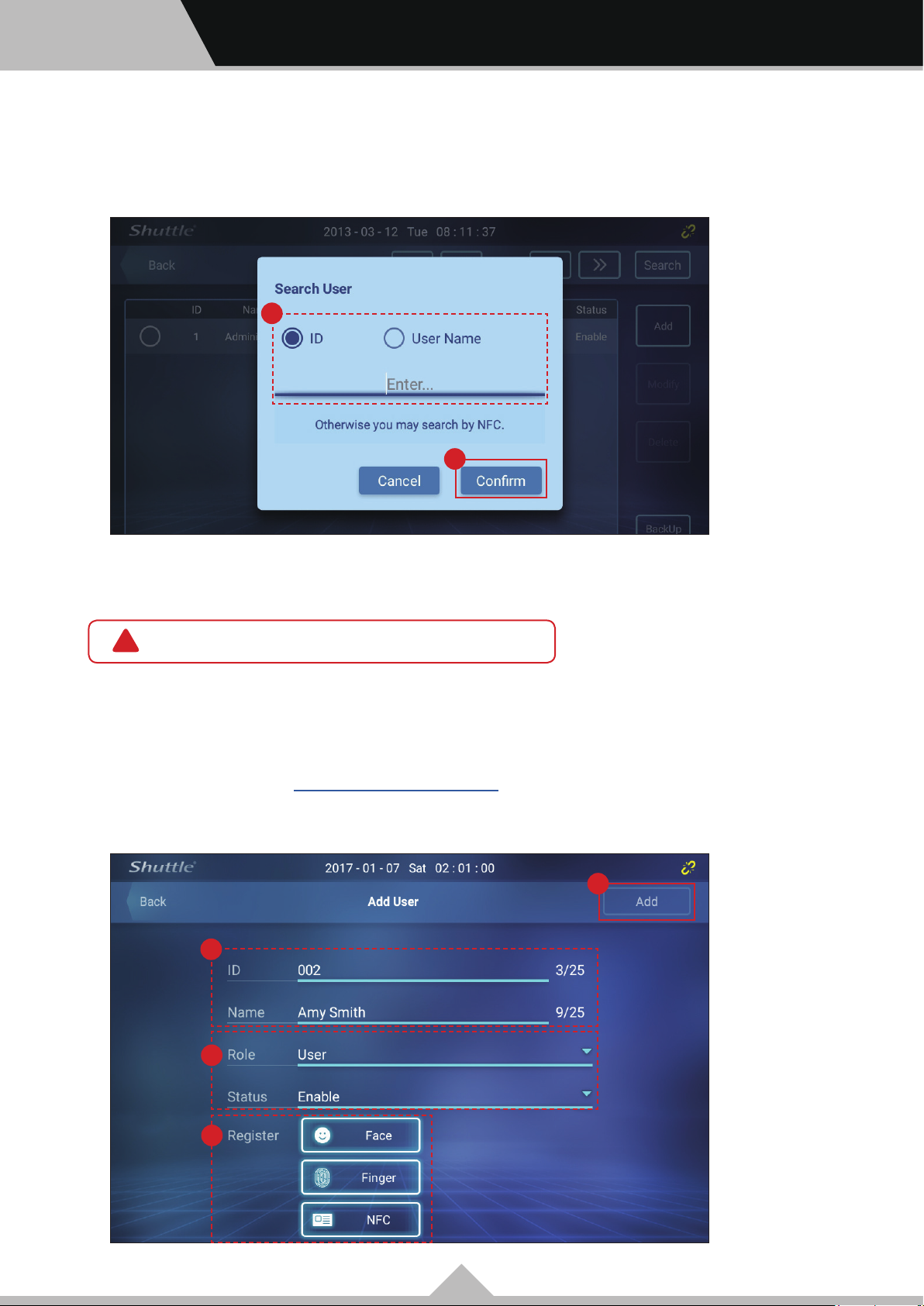

3.1.4.1 Search
1. Enter ID or User Name.
2. Press “Conrm” button.
BR06S Software Quick Start Guide
1
2
3.1.4.2 Add User
Note: Supports 3000 accounts per BR06S.
!
1. Enter ID and Name.
2. Choose Role type and Status.
3. Complete the biological characteristics you require.
(follow same steps as 1.7 Create a Power User)
4. Press “Add” button to continue to the next step.
1
4
2
3
22

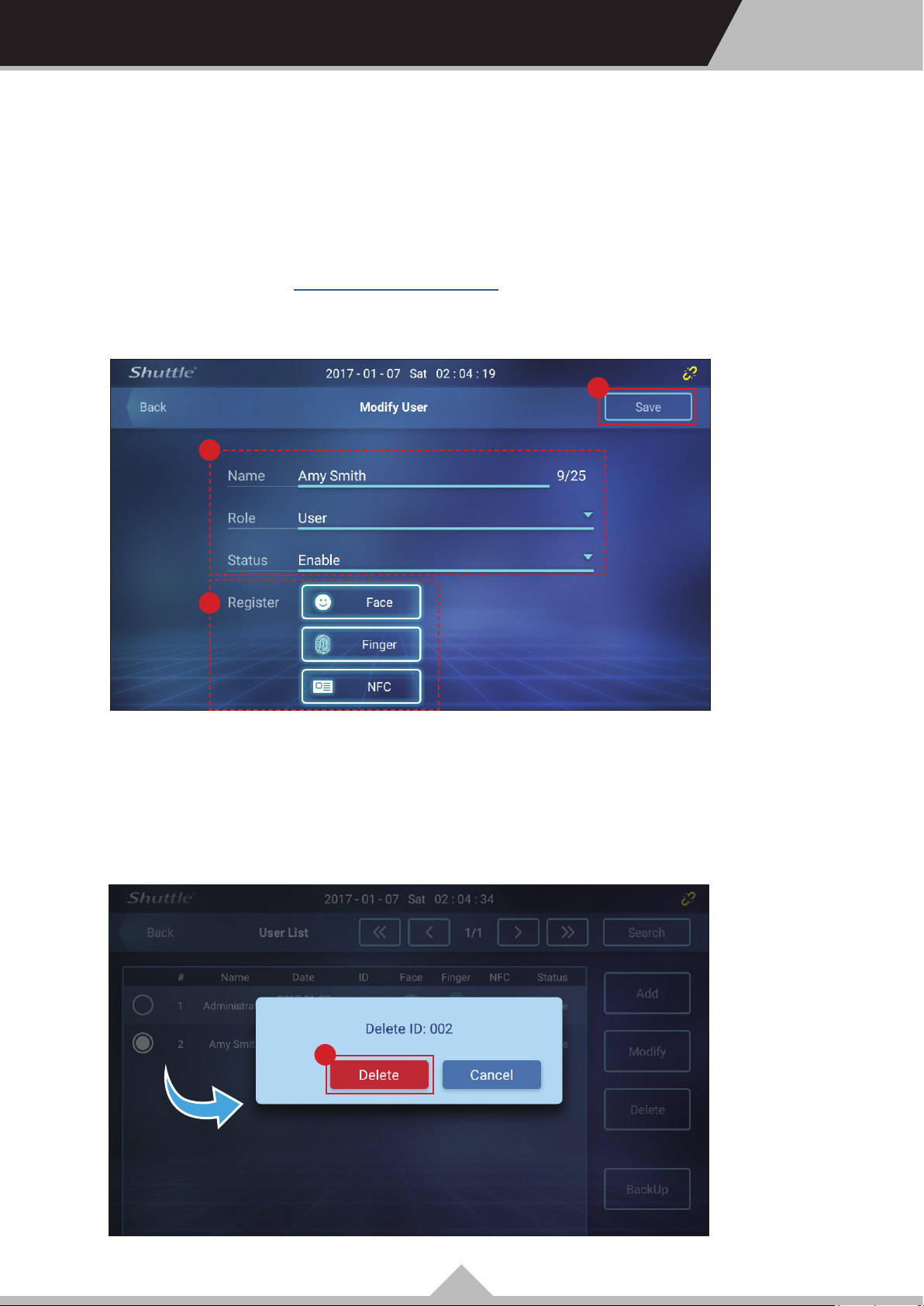

3.1.4.3 Modify User
Power User can modify exist User Name, Role and Status and biological characteristics.
1. To modify exist User Name, Role and Status.
2. Press the biological characteristics you require.
Complete the biological characteristics you require.
(follow same steps as 1.7 Create a Power User)
3. Press “Save” button to continue to the next step.
3
1
English
2
3.1.4.4 Delete User
1. Choose a Name you require.
2. Press “Delete” button.
2
23
English

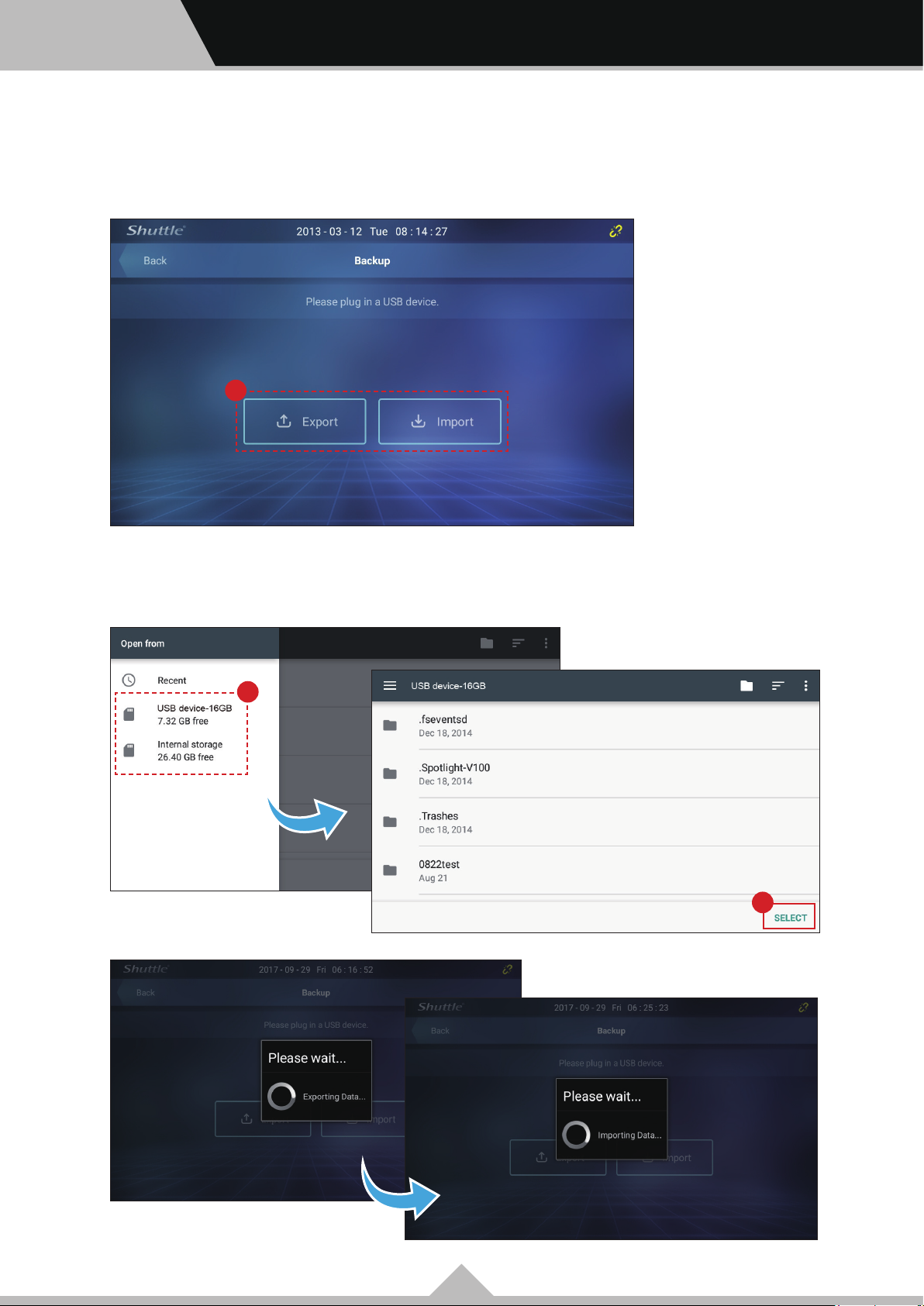

3.1.4.5 Backup
1. Plug in a USB device.
2. Choose “Export” or “Import” button.
2
BR06S Software Quick Start Guide
3. Choose your USB device.
4. Press “SELECT” button.
3
4
24
3.1.5 Log
English

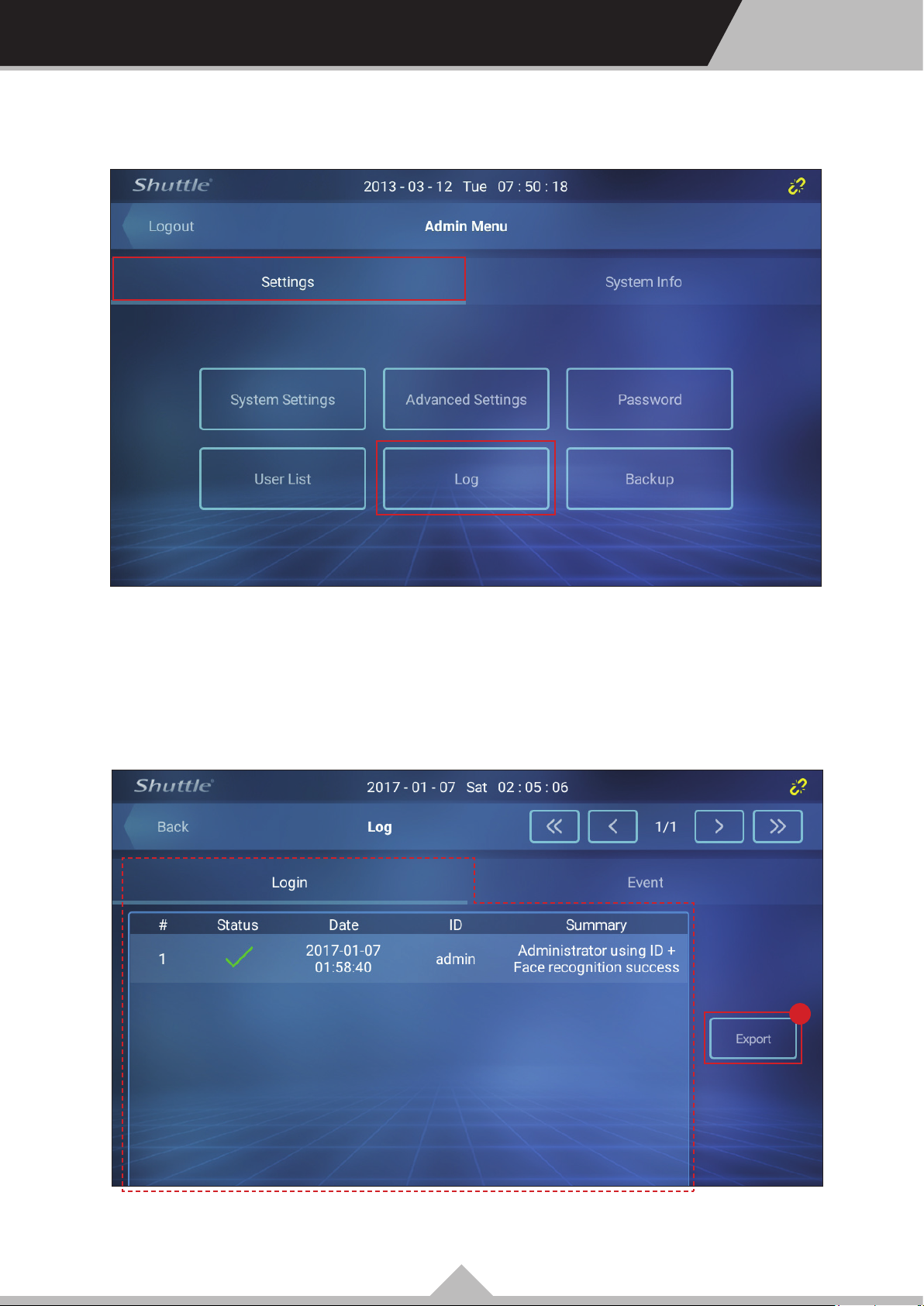

3.1.5.1 Login
1. Press “Export” button to export login datas.
1
25
English
BR06S Software Quick Start Guide

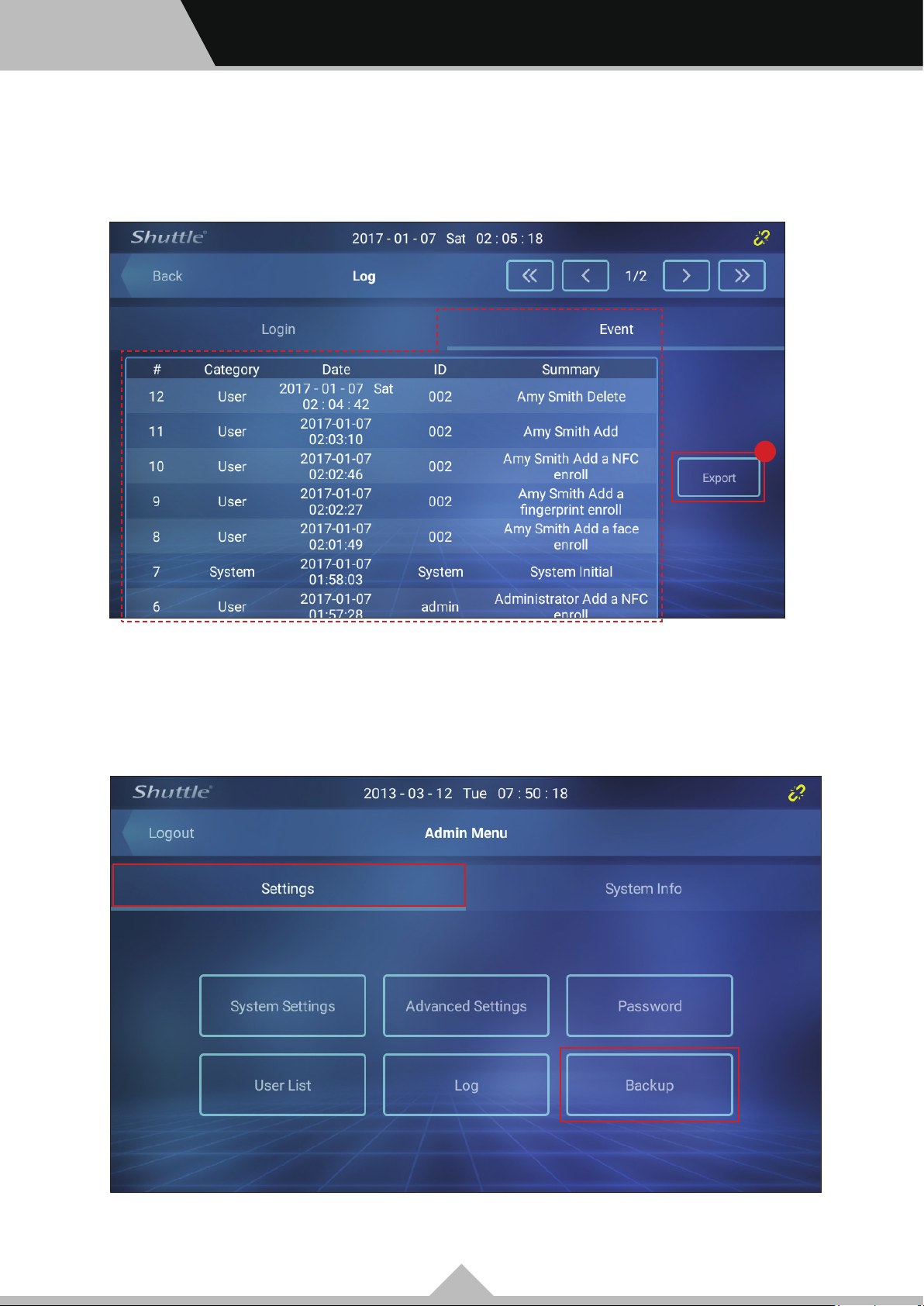

3.1.5.2 Event
1. Press “Export” button to export event datas.
1
3.1.6 Backup
26
1. Plug in a USB device.
2. Choose “Export” or “Import” button. (follow same steps as 3.1.4.5 Backup)
2
English

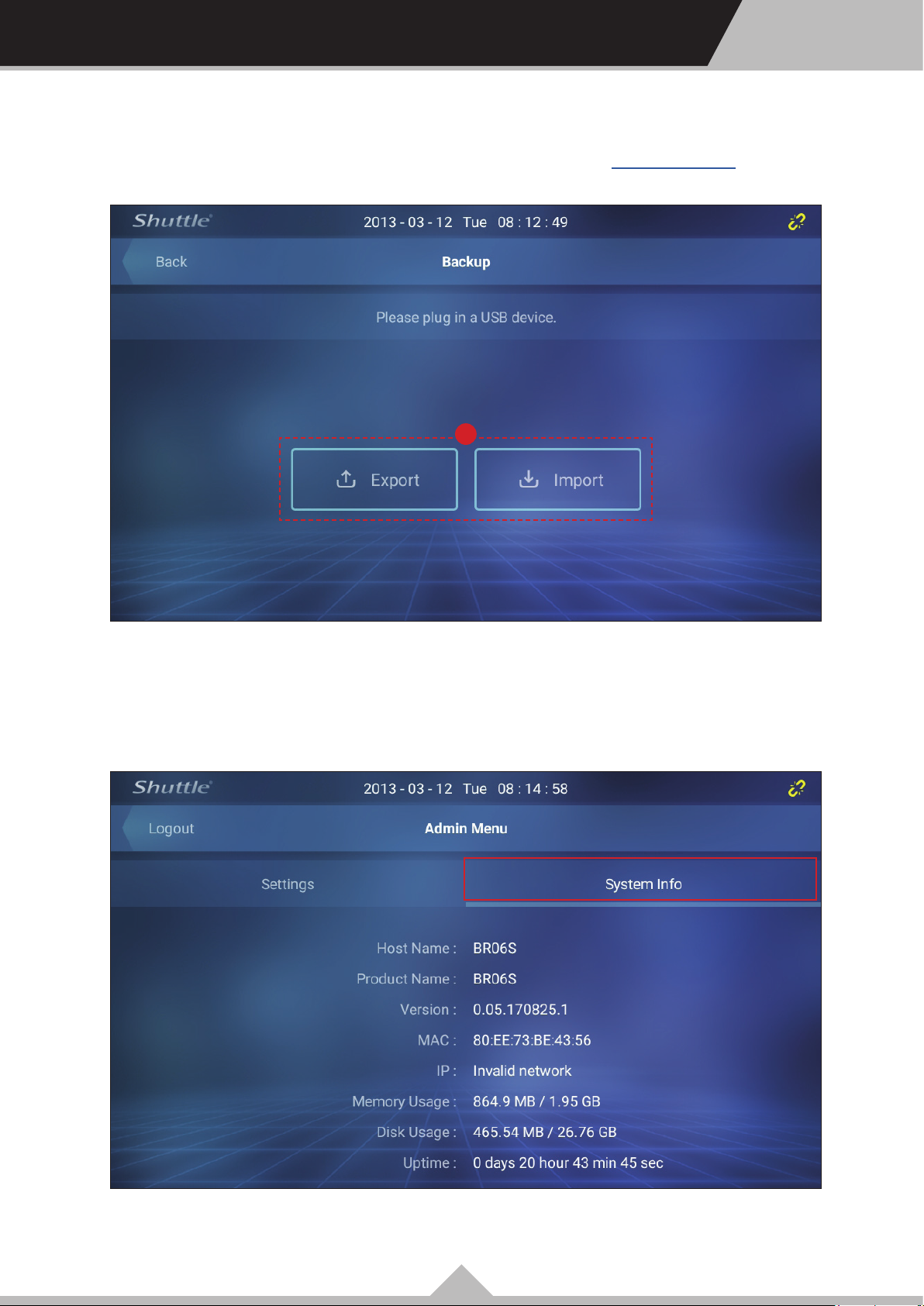

3.2 System Info
27
