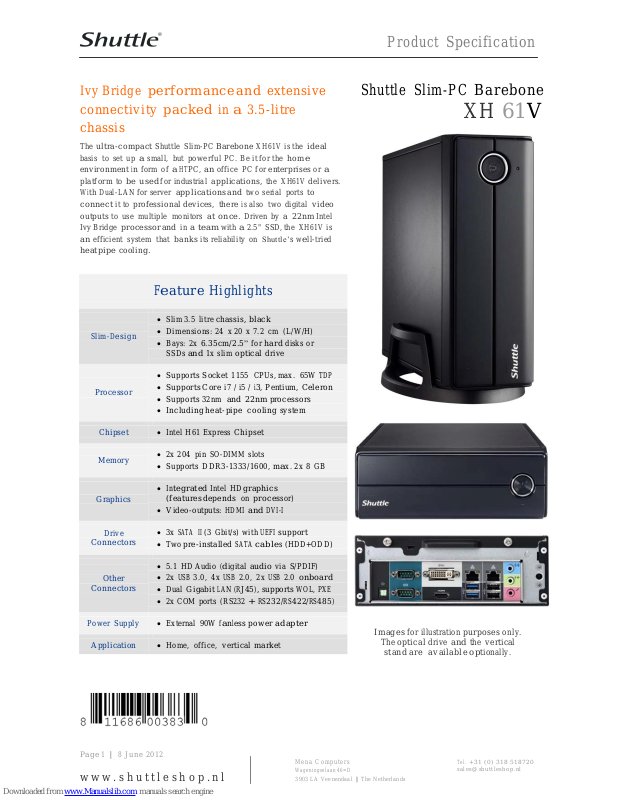

Shuttle Barebone XH 61V, XH 61V Product Specification

Product
Specification
Page 1 | 8 June
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Feature
Highlights
S
lim-Design
 Slim 3.5 litre
chassis,
black

Dimensions:
24 x 20 x 7.2 cm (L/W/H)
 Bays: 2x
6.35cm/2.5
for
hard
disks or
SSDs
and
1x slim
optical
drive
Processor

Supports Socket
1155 CPUs, max. 65W
TDP

Supports Core
i7 / i5 / i3, Pentium,
Celeron

Supports
32nm
and 22nm
processors

Including heat-pipe cooling
system
Chipset
 Intel H61 Express
Chipset
Memory
 2x 204 pin
SO-DIMM
slots

Supports DDR3-1333/1600, ma
x.
2x 8 GB
Graphics
 Integrated
Intel HD
graphics
(features depends
on
proces
sor)

Video-outputs:
HDMI
and
DVI-I
Drive
Connectors
 3x
SATA II
(3 Gbit/s) with
UEFI
support
 Two
pre-installed
SATA
cable
s (HDD+ODD)
Other
Connectors
 5.1 HD Audio (d
igital audio
via S/PDIF)
 2x
USB
3.0, 4x
USB
2.0, 2x
USB
2.0
onboard
 Dual
Gigabit LAN (RJ45), supports
WOL, PXE
 2x COM ports
(RS232 + RS
232/RS422/RS485
)
Power
Supply
 External 90W fanl
ess power
adapter
Application
 Home, office,
vertical
marke
t
Ivy Bridge
performance and
extensive
connectivity
packed
in a 3.5-litre
chassis
The
ultra-compact
Shuttle Slim-PC
Barebone
XH61V
is the
ideal
basis to set up a small, but
powerful
PC. Be it for the
home
environment in
form of a HT
PC, an
office PC for
enterprises
or
a
platform
to
be used
for industrial
applications,
the
XH61V
delivers.
With Dual-LAN
for server
applications and
two serial ports to
connect
it to
professional devices, there
is
also two digital
video
outputs
to use multiple monitors
at once.
Driven by
a 22nm
Intel
Ivy Bridge
processor and
in
a team
with a 2.5" SSD, the
XH61V
is
an
efficient system that
banks
its reliability on Shuttle’s we
ll-tried
heatpipe
cooling.
Shuttle Slim-PC
Barebone
XH
61V
Images
for
illustration
purposes
only.
The
optical
drive
and
the
vertical
stand are available op
tion
ally.
Product
Specification
Page 2 | 8 June
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Shuttle Slim-PC
Barebone
XH61V – Product
Features
The 3.5-litre chassis - a clean and modern look
Shuttle has
always placed great emphasis
on the in
terior
and
exterior
aesthetics
of their Mini
-PCs with the belief that
a good blend
of
style
7.3
and
form
factor
allow the
Mini-PC to
be attractive, versatile and
work
well in
almost any environment. And
the
XH61V
was
designed just like
that
and
shines in
a clean and modern
appearance.
The
optical
drive
and
front
panel connectors are
elegan
tly concealed behind
drive
doors
to
provide maximum protection.
This
tiny tot
barely stands
7.3 cm
in
height with
a volume
of 3. 5 litres.
What does Barebone mean?
The Shuttle Slim-PC
Barebone
XH61V
consists
of a stylish
case
with
pre-
installed mainboard, cooling
system
and external power
adapter.
Despite
its small form
factor
it offers
outstanding
connectivity,
functionality
and performance.
For
a complete Mini
-PC system, a few
components
still
need
to
be added.
The Mini-PC is
customisable
and
takes socket
1155
processors,
DDR3
SO-DIMM
memories,
slim-line SATA
optical
drive, 2.5
hard
disk (or SSD).
Once
the
desired
operation
system is
installed,
the
XH61V
is
ready
to
use. Moreover,
the
system
features pre-routed cables
that
are
tied
down
from
factory
to
reduce
clutter, in
crease
airflow
and ease component in
stallation.
Supports LGA1155 processors and up to 16 GB DDR3
A
wide
range
of
socket
1155 Intel
processors
is
available
starting
from
Celeron
up to
Core processors
with a maximum
TDP
of 65W. Plus,
the
system
memory ca n be in
sta
lled according
to in
dividual needs
up to
a
maximum capacity
of 16 GB DDR3
memory.
Traditional Pl anar
Transistor
22nm Tri-Gate
Transistor
Supports Intel 22nm Ivy Bridge Processors
Ivy Bridge
(IVB)
is the
codename
for Intel's new 22nm
processor
microarchitectur e introduced
in April 2012
along with
the
7-series
chipsets.
Ivy Bridge
is the first
chip
to use Intel's 22nm tri-gate
transistors, which will
help scale frequency and reduce po
wer
consumption.
At a high level Ivy
Bri
dge
looks a lot like
Sandy
Bridge -
one monolithic
die incorpor
ates
up to four CPU
cores, the shared
L3
cache,
the
memory controller,
PCIe links
and
the
graphics processor.
Compared
to its
predecessor Sandy
Bridge, the
new design
brings
some improvements
in
overall
performance, overclocking, power
management and
also
features
PCIe v3.0
and
DDR3-1600
capability,
an updated
DirectX 11
graphics, new
security
features and
CPU
instructions.
Ivy Bridge
still
uses the known LG
A1155 socket.
Great Connectivity
On the front, el
egan
tly
hidden
from view
behind
drive
doors,
the panel
reveals
two
USB
2.0 ports for
external
drives, MP3
players etc.
There
are
also two
3.5mm
jacks for
headphone and microphone. In addition,
the
back pa nel
offers a wide
range
of I/ O
connectivity
as well.
Product
Specification
Page 3 | 8 June
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
2x USB 3.0
The Shuttle Slim-PC
Barebone
XH61V
sports two
USB
3.0
ports
besides
four
USB
2.0 ports.
USB
3.0
achieves a
maximum
data rate
of up to
5.0Gbps (640MBytes/sec)
which is ten times faster
than
USB
2.0.
USB
3.0
is fully
compatible
to
USB
2.0. At
a glance,
USB
3.0
connectors seem no
different
to
USB
2.0
connectors, however
USB
3.0
connectors have 5
more
pins
placed
inside the
connector
itself. USB
2.0
can provide
a
maximum
of 500mA to the
USB
device
while
USB
3.0
can provide a
maximum output
of 900mA, which is
important
for
portable hard
drives.
USB
3.0 also
comes
with
better power saving features
to let your
devices
run
more
efficiently when in
idle mo
de.
Dual Gigabit LAN Network
Today’s
media-rich communications across
the internet and
within
enterprises create
new
demands
for clie
nts
in Local Area Networks. For
that
reason,
Shuttle
applies Gigabit
LAN
performance
to their Mini
-PCs
and
XH61V
even supports
two of
them.
Dual
networking
allows
the
computer
to
connect
to a single networ k using two
cables at once
with
an appropriate
switch
(teaming mode
with
load balancing
or
failover
function) or to two
different
networks
depending
on the
needs
of
the
user.
Dual View Technology with HDMI and DVI (or VGA)
Dual View
technology
offers multiple
display support
on up to
two
separate
monitors.
This
helps to
improve
on
productivity by allowing
for
spreading
multiple windows
across
two monitors
while
working with
them simultaneously.
XH61V
features
two
video outputs:
HDMI
and
DVI-
I.
DVI-I
HDMI
D-Sub (VGA)
DVI-D
Video outputs
With optional adapters
DVI-D
devices can be connected
to the
HDMI
port or
VGA
devices
to the
DVI-I
port,
resp
ectively.
DVI-D
means the connector
only
outputs
digital
video
signals.
DVI-I
means
digital
and analog video
signals
are
put
out.
HDMI
supports
digital
video
plus
multi-channel digital
audio
output.
Digital
Audio 1
Digital
Audio 2
Analog
Audio 1
Digital Audio
Beside the
analog audio,
XH61V
can provide
digital
multichanne
l
audio
in two wa
ys: via the
optical
S/PDIF
output
(Toslink)
or
through
HDMI.
Therefore,
two
audio devices are
shown in
the Windows
device
manager. Connect
the
HDMI
to your
TV
set
and
you
will
have
both
digital
audio and video.
For
better audio expierience
you may us e an
audio receiver
(amplifier) with
a bunch
of
speakers around
which is
probably connected
via
S/PDIF. XH61V
is flexible
enough
to
support
options.
Two serial ports
Many
PCs do not
have these legacy
ports
any longer, since
they
have
been superseded and replaced
by
USB
for most
consumer
appli-
cations,
but they
are
still
commonly
used
for
applications
such
as
industrial
automation
systems, scientific
analysis,
POS systems
and
other industrial
applications.
XH61V
features
two serial RS-232
ports
Product
Specification
Page 4 | 8 June
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
which also
support both
5 or 12V. The lower COM port also
supports
the
RS422
and
RS485
standard.
2x expansion slots for Mini-PCI-Express cards
XH61V
features
two
expansion
slots for Mini-PCIe
cards. One
is a half
size slot
dedicated
for
an optional Wi
reless LAN
adapter.
The
secon
d
has full size format
and
not only
features a
PCIe
interface,
but
also
mSATA (Mini Serial
ATA),
supporting
the
new generation
of Solid
State
Drives
(SSD)
in
a compact
Mini PCIe
card form factor.
Photos: half
size
WLAN
card
(left)
and
mSATA SSD
card
(right).
Kensington Lock
This
is a small,
metal-reinforced
hole as part of
an anti-theft
sy
stem.
(The
lock-and-cable are
not in
cluded)
Heat pipe cooling
XH61V
features a
highly
efficient heat pipe cooling. A heatpipe
is
a
hollow
tube containing a heat
transfer
liquid.
As the liquid
evaporates,
it
carries heat
to the
cool end, where
it
condenses and
then returns
to
the hot
end. Heatpipes
thus
have a much higher effective
thermal
conductivity than
solid
materials. Please keep
the ve nt holes
clear
of
obstructions.
Optional Stand for vertical operation (PS01)
XH61V
can be used
for
horizontal operation
by
default. With
the
optional stand accessory
(PS01), it
can
also
be placed
in
vertical
position.
Optional VESA mount (PV02)
Its
optional VESA75/100
wallmount
allows
it
to
be in
stalled on to walls or
just
affixed on the rear side of a monitor
which is
particularly interestin
g
for the industry
segment, company buildings and public
institutio
ns.
Product
Specification
Page 5 | 8 June
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Connectivity / Applications
The
XH61V's gr
eat connectivity makes
it
well-suited
for a wide
of
applications and external devices
.
Point-of-Sales (POS)
Office Display
Dual Network
DV
I-I
2x RJ45
PC Speakers
Audio
RS232
RS422/485
S/PDIF
HDMI
USB 2.0
USB 3.0
Peripherals
Automation
Digital Audio
Home Cinema &
Digital Signage
USB Hard Disk
The
XH61 V
is your powerful 3.5-litre Slim-PC
solution
for high
performance
driven
applications,
e.g.:
 Digital
Signage
 In-store
Audio/Video
entertainment

Gambling

Home-Media

Office
 Call
Center

Education
 Kiosk  Point of Sales (POS) 
Medical

Automation
 Small
server
Product
Specification
Page 6 | 8 June
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Shuttle 3.5-litre Slim-PC
Barebones
Comparison
with
predecessor models
Barebone model
XG41
XH61
XH61V
Availability
June 2011
Dec. 2011
June 2012
UPC bar code
811686003472
811686003588
811686003830
Chassis
Steel, black
3.5L (24.2 x 20 x 7.3 cm)
Steel, black
3.5L (24.2 x 20 x 7.3 cm)
Steel, black
3.5L (24.2 x 20 x 7.3 cm)
Intel processor support
LGA775, max. 65W
FSB: 800, 1066, 1333MHz Core 2 Duo, Pentium, Celeron
LGA1155, max. 65W
32nm Sandy Bridge Core i7, i5, i3, Pentium, Celeron
LGA1155, max. 65W
32nm Sandy Bridge
22nm Ivy Bridge
Core i7, i5, i3, Pentium, Celeron
Processor cooling
Heatpipe cooling system
with two 6 cm fans
Provided cooling fan: 80 x 80 x 15 mm
Heatpipe cooling system
with two 6 cm fans
Chipset
Intel G41 + ICH7
Intel H61
Intel H61
Mainboard
Mini ITX All solid capacitors
Mini ITX All solid capacitors
Mini ITX All solid capacitors
Integrated graphics
GMA X4500, DX10
HD graphics (CPU)
HD graphics (CPU)
Memory support
Max. 2x 4GB DDR3-800/1066
240 pin DIMM
Max. 2x 8GB DDR3-1333
240 pin DIMM
Max. 2x 8GB DDR3-1333/1600
204 pin SO-DIMM
Audio codec
Realtek ALC662
Realtek ALC887
Realtek ALC662
Ethernet (LAN)
Dual Gigabit, Teaming
2x Realtek 8111E
Single Gigabit 1x Realtek 8111E
Dual Gigabit, Teaming
2x Realtek 8111E
Storage bays
1x Slim optical drive
2x 2.5 hard disk / SSD
1x Slim optical drive 1x 2.5 hard disk / SSD
1x Slim optical drive
2x 2.5 hard disk / SSD
Preinstalled SATA cables
2x (for Slim ODD & HDD)
2x (for Slim ODD & HDD)
2x (for Slim ODD & HDD)
Mini-PCIe slot
1x full/half size
None
1x half size 1x full size (mSATA)
Front panel
Power button Power & HD D LED 2x USB 2.0 2x Audio (Line-out/Mic)
Power button Power & HD D LED 2x USB 2.0 2x Audio (Line-out/Mic)
Power button Power & HD D LED 2x USB 2.0 2x Audio (Line-out/Mic)
Back Panel
HDMI DVI-I
4x USB 2.0
2x Gigabit LAN (RJ45)
3x Audio (Mic, Line in/out)
Optical S/PDIF out RS232 + RS232/422/485
Hole for Kensington lock
HDMI D-Sub (VGA)
4x USB 2.0 1x Gigabit LAN (RJ45) 2x PS/2 (keyb.+mouse) 3x Audio (Mic, Line in/out) Hole for Kensington lock
HDMI DVI-I 2x USB 3.0
2x USB 2.0
2x Gigabit LAN (RJ45)
3x Audio (Mic, Line in/out)
Optical S/PDIF out RS232 + RS232/422/485
Hole for Kensington lock
Onboard connectors
3x SATA 2.0 (300MB/s) 2x USB 2.0 Clear CMOS jumper
4x SATA 2.0 (300MB/s) 2x USB 2.0 S/PDIF out Clear CMOS jumper
TPM header (7x2 pin)
3x SATA 2.0 (300MB/s) 2x USB 2.0 Clear CMOS jumper
TPM header (10x2 pin)
External Power adapter
Output: 90W, 19V DC Input: 100~240VAC
Output: 90W, 19V DC Input: 100~240VAC
Output: 90W, 19V DC Input: 100~240VAC
Optional accessories
Vertical stand (PS01) VESA mount kit (PV02)
Vertical stand (PS01) VESA mount kit (PV02)
Vertical stand (PS01) VESA mount kit (PV02)
Product
Specification
Page 7 | 8 June
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Shuttle Slim-PC
Barebone
XH61V
Specifications
Chassis
Nettop
PC, slim
X-type
chassis,
black
Dimensions:
24 x 200 x 72 mm
(LWH) = 3.5 litres, Weight: 2.2 kg net, 3.5 kg
gross
Front
doors
for
optical
drive
and
front
panel
connectors
Hole for Kens
ington
Lock
at
the
back
panel
Operation
position horizontal
or
vertical
with the
optional stand
PS01
Storage
Bays
1x for
optical
drive (ODD) in
slimline format with 12.7 mm
height
2x
6.35c
m/2.5" for
hard
disk or
SSD
(max.
height:
9.5 mm,
upper bay:
12.7
mm)
Two
pre-installed
SATA
cable
s (ODD,
HDD)
and mounting
screws in
clude
d
Mainboard
Chipset
BIOS
Mini-ITX
Mainboard
“FH 61V”:
17 x 17 cm
Chipset:
Intel® H61 Express
Chipset
AMI BIOS
in 8Mbit
EEPROM
with
SPI in
terface
All
capacitors are
high quality solid
capacitors
Supports hardware
monitoring
and watch dog
functionality
Supports
Unified Extensible Firmware
Interface
(UEFI)
**)
Supports resume
after
power
failure
Power
Adapter
External 90W
power
adapter
(fan
less)
Input:
100~240V AC, 50/60 Hz
Output:
19V DC, 4.74A, max. 90W
Internal DC -DC
daughter
board
Processor
Su
pport
Socket
1155
(LGA
1155)
supports
the
second and
third
generation of
Intel
Core
i3 / i5
/ i7 / Pentium /
Celeron processors
with
a power consumption
of up to 65W TDP
-
Codename
"Sandy Bridge", 32nm
process technology and
-
Codename "Ivy Bridge",
22nm process technology
Not
compatible
with
older Socket-1156
processors.
The
Processor in
tegrates
PCI-Express,
memory control
ler
and
the
graphics engine
on the
same
die
(depends
on
processor ty
pe)
Please
refer to the
support
list for
detailed processor support
informatio
n.
Heat-pipe
C
oolin
g
Processor cooling
with
heat pipe technology and
two fans
(6cm)
Memory Su
pport
2x
SO-DIMM
slot s with 204
pins
Supports DDR3-1066/1333/1600
SDRAM
memory
(PC3
-8500/10600/1280
0)
The
maximum memory clock
rate depends
on the
processor
type.
Supports
Dual
Channel mode
Supports
max. 8 GB per DIMM,
maximum
total size of 16 GB
Supports
two
unbuffered
DIMM
modules
of 1.5V
Product
Specification
Page 8 | 8 June
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Mini-P
CIe
slots
XH61V
features
two Mini
PCI Express
expansion
slots:
1) half size,
supports
PCIe 2.0
and
USB
2.0,
e.g.
for
WLAN
cards
[5]
2) full size,
supports
PCIe 2.0,
SATA
3G
and
USB
2.0
e.g.
for Mini SATA (mSATA) fl
ash memory cards
[6]
Integrated
Graphics
The
features
of the
integrated graphics
function
[3]
depends
on
the used processor
type.
"Sandy Br
idge" processor:
Intel® HD
Graphics 2000/3000,
DirectX
10.1
"Ivy
Bridge"
processor:
Intel® HD
Graphics 2500/4000,
DirectX 11
Maximum
shared memory
size:
1692MB
Supports
HDMI, max.
resolution
up to
1920x1200
@ 60Hz
Supports
DVI,
max.
resolution
up to
1920x1200
@ 60Hz
Supports
D-Sub, max.
resolution
up to
2048x1536
@ 75Hz
(optional VGA-to-DVI -adapter
required)
Supports
Blu-ray
Stereoscopic
3D with
HDMI
1.4a
[1]
Supports
HDCP
function
with
DVI
and
HDMI
ports
Supports
Full HD
1080p
Blu-ray
(BD) / HD-DVD
playback
with
DVI
and
HDMI
ports
Supports Dual-Independent-Display
via
HDMI
and
DVI-I port
HDMI
supports
HD
video
plus
multi-channel digital
audio
via
a single
cable
Audio
Audio
Realtek®
ALC
662
6-channel
High-Definition
Audio
Three
analog audio connectors
(3.5mm) at
the
Back-Panel:
1) Front
Line out
(head phone)
2) Rear Surround line-out
(shared
with
microphone in
put)
3)
Center
line-out
(shared
with
Line in)
Digital
audio output:
S/PDIF
(optical) and
via
HDMI
Mini-P
CIe
slots
XH61V
features
two Mini
PCI Express
expansion
slots:
1) half size,
supports
PCIe 2.0
and
USB
2.0,
e.g.
for
WLAN
cards
[5]
2) full size,
supports
PCIe 2.0,
SATA
3G
and
USB
2.0
e.g.
for Mini SATA (mSATA) fl
ash memory cards
[6]
Dual
Gigabit
LAN
Controller
Dual
Realtek
8111E Ethernet ne
twork controller (Gigabit)
Supports
10 / 100 /
1.000
MBit/s
operation
With
two RJ45 ports (dual ne
twork) supports Teaming
[4]
Supports
WAKE
ON
LAN
(WOL)
Supports
network
boot
by Preboot eXecution En
viro
nment
(PXE)
Drive
Connectors
3x
Serial-ATA II,
3 Gb/s (300
MB/s)
bandwidth
Supports
Unified Extensible Firmware
Interface
(UEFI)
[2]
Note:
This
barebone
system
comes
with two
pre-installed
SATA
cables:
for
one
2.5"
hard
disk
and for one optical
slim
drive.
Front Panel
Connectors
Microphone
input, Audio Line-out
(headphone)
2x
USB
2.0
Power
button
Power
LED
(blue), HDD
LED
(yellow)
Product
Specification
Page 9 | 8 June
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Back Panel
Connectors
DVI-I
connector (supports
VGA
with
optional
adapter)
HDMI 1.4
connector
[1]
(supports
DVI-D
with
optional
adapter)
2x
USB
3.0, 2x
USB
2.0
2x GigaBit
LAN
(RJ45)
2x RS232
serial ports (5V/12V, 1x
switchable
to RS422 / RS485)
Audio
Line-in, Audio
Line-out,
Audio Mi
c-in
S/PDIF
output (o
ptical)
Perforation
for Wireless
LAN
antennas
(2
holes)
Hole for
Kensington
Lock
Other
Onboard
Connectors
6x
USB
2.0 (two 2x5 pin
header)
-
two of
them are occupied by
the fr ont
panel
USB
ports
2x5 pins + 3 pins
power
connectors
2x fan
connectors
(4 pin) -
one
is
occupied
for the system
fans
Clear
CMOS ju
mper
(2
pins)
Connector
for CMOS
battery
TPM
module header
(2x10 pins LPC in
terface)
2x front
panel connectors
(2x5 pins
each, for audio and power
button/LED)
Accessories
Multi-language
user
guide
Driver
DVD (Win
dows
7 32/64 bit, Windows Vista 32/64 bit
and
Windows XP 32 bit)
2x
cable
for
SATA
(preinstalled
for 2.5
HDD/SSD
drive
and optical
slim
drive)
1x 4 pin to
SATA
power
cable
External
power adapter
with
power
cord
CPU
heat-pipe cooling
system
Screws
Optional
Accessories
Vertical
stand
(PS01)
VESA
mount
(PV02)
Conformity
Certifications
EMI:
FCC, CE,
BSMI,
C-Tick
Safety: CB,
BSMI, ETL
Others: RoHS, Energy Star V
5.0,
EuP Lot 6
This
device
is
classed
as a technical information equipment
(ITE)
in class B and
is
intended
for
use
in
living room
and
office. The CE-mark
approves
the
conformity
by
the
EU-guidelines:
- EMV-guideline 89/336/EWG
electromagnetic
tolerance
- LVD-guideline 73/23/EWG
use
of
electric
devices
within
certain
voltage-limits
[1] HDMI
version
supported
HDMI
1.4 is only
supported
by al l LG
A1155 processors.
Some
models support
HDMI
1.3
only.
[2]
Unified Extensible Firmware
Interface
(UEFI) - required
when
booting
from
hard
disks
larger than
2.2
TB un
der
Windows 64 bit
operating
systems such as Windows 7, Windows Vista SP1
and
Windows Server
2008/2003
SP1.
[3] Integrated video outputs
(HDMI
and
DVI-I)
Not all LG
A1155
Intel
processors support integrated graphics. Please check
the
specification
of the
used
processor.
If
you want to use the
video outputs,
then
please make
sure, that the
used processor provides integrated graphics.
[4]
Teaming
Modu
s
The
teaming
function
allows you to
group both available network
adapters together
to
function
as
a single
adapter
-
a method
of
creating a
virtual
LAN.
The
benefit
of this
approach
is that it
enables load balancing and
failover.
[5]
Optional
Wireless
LAN
module:
this Slim PC
supports an optional
WLAN
module,
which
consists of a
half-size Mini-
PCIe
card
with
IEEE
802.11n func
tionality and an external antenna
with
appropriate antenna
cable.
[6] mini-SATA
(mSATA) not to
be confused
with the "micro
SATA"
connector,
is
a newer
industry
standard
which
converts
the
electrical
SATA
interface
(1.5 or 3.0 Gbit/s) to the
pysical
"Mini PCI
Express" mini
card form factor.
Product
Specification
Page
10 | 8
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Shuttle Slim-PC
Barebone
XH61V
– Front
and
Back
Panel
Front Panel
4
1 Power Button
1
2 Power LED
5
3 Bay for optical Slim DVD drive
2
(the optical drive is not included) 4 Front door for DVD drive 5 Front door for I/O connec tors
3
6 Two bays for 2.5 hard disk drives or
SSDs
7 2x USB 2.0 ports
4
8 Microphone input 9 Headphone output
5
10 11
12
7 8 9 7
15 17 10
Back Panel
10 Two thumbscrews 11 Hole for Kensington Lock 12 Digital audio: S/PDIF (optical) 13 RS232 serial interface (COM port) 14 RS232 / RS422 / RS485 ser. (COM)
23
15 DVI-I – digital video output
(supports VGA with optional adapter)
16 HDMI – digital video/audio output 17 Dual Gigabit network (RJ45)
13 14 16
36
18 19 20 21 22
6
18 2x USB 3.0 19 2x USB 2.0 20 Microphone input 21 Headphone / line-out 22 Audio line-in 23 Connector for the power adapter
Note: the storage drives (hard disk and optical slimline drive) are not included in the delivery of XH61V. Fo r a second 2. 5” drive you will need another SATA cable.
COM port Pin 9 Configuration
Pin 9 is a multi-functional signal. Based on Jumper 3 configuration on the mainboard, it can be configured as Ring Indicator (RI) or external power supply with either 5V or 12V voltage level (each COM port separately).
Product
Specification
Page
11 | 8
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Shuttle Slim-PC
Barebone
XH61V – Mainboard
Backpanel
connectors
Clear CMOS
jumper
CMOS
battery
COM port voltage
jumper
19VDC power
connector
Audio header
(front)
USB 2.0 header
(front)
TPM/LPC
header
Intel H61
chipset
Mini PCIe slot (half
size)
Mini PCIe slot (full
size)
System fan
connector
3x Ser. ATA
connectors
Solid
capacitors
2x 204pin
SO-DIMMs
support DDR3
memory
LGA1155 CPU
socket
Two USB 2.0
header
Front panel
connector
power button &
LED
CPU fan
connector
Voltage
regulator
PCI-Express X4
slot
(cannot be
used)
Supports three dr
ives
XH61V
supports one optical
drive in 5.25
slim-line format
and
two 2.5 drives
(e.g. hard
disk
and
SSD).
For
the
second
2.5 dr
ive
you
will
need an additional
SATA
cable and
mounting screws.
Product
Specification
Page
12 | 8
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
Shuttle Slim-PC
Barebone
XH61V – Required
Components
The following
components need
to
be added
to
make
it a fully-configured
Mini-PC:
2.5” SATA-hard disk
and/or Solid State Disk (SSD)
(two drives supported,
max. height: 9.5mm and 12.7mm)
One or two DDR3-1333/1600 (SO-DIMM) Memory modules max. 8G B each
Windows / Linux Operating System
Slim SATA DVD drive
12.7mm height
LGA1155 processor
TDP max. 65W
Core i7 / i5 / i3, Pentium
or Celeron
Product
Specification
Page
13 | 8
2012
Me na C ompu ters
Wag eni n gse l aan 46= D 3903 LA Veenendaal | The Nether land s
Tel . +31 (0) 318 518720 sa le s@shutt lesho p. nl
w w w . s h u t t l e s h o p . n l
2
rd
Generation
Intel
Core Processor
Family (max.
65W)
LGA1155
socket
“32nm
Sandy
Bridge
processor overview (D
ate:
May
2012
)
Name
Model
Cores
HT
Clock
Turbo
Cache
TDP
Graphics
Graphics clock
Celeron G440
1 - 1.6 GHz
-
1 MB
35W
HD
650~1000 MHz
G460
1
Yes
1.8 GHz
-
1.5 MB
35W
HD
650~1000 MHz
G530
2 - 2.4 GHz
-
2 MB
65W
HD
850~1000 MHz
G530T
2 - 2.0 GHz
-
2 MB
35W
HD
650~1100 MHz
G540
2 - 2.5 GHz
-
2 MB
65W
HD
850~1000 MHz
Pentium
G620T
2 - 2.2 GHz
-
3 MB
35W
HD
650~1100 MHz
G620
2 - 2.6 GHz
-
3 MB
65W
HD
850~1100 MHz
G630
2 - 2.7 GHz
-
3 MB
65W
HD
850~1100 MHz
G630T
2 - 2.3 GHz
-
3 MB
35W
HD
650~1100 MHz
G840
2 - 2.8 GHz
-
3 MB
65W
HD
850~1100 MHz
G850
2 - 2.9 GHz
-
3 MB
65W
HD
850~1100 MHz
G860
2 - 3.0 GHz
-
3 MB
65W
HD
850~1100 MHz
Core i3
2100T
2
Yes
2.5 GHz
-
3 MB
35W
HD 2000
650~1100 MHz
2100
2
Yes
3.1 GHz
-
3 MB
45W
HD 2000
850~1100 MHz
2105
2
Yes
3.1 GHz
-
3 MB
45W
HD 3000
850~1100 MHz
2120
2
Yes
3.3 GHz
-
3 MB
45W
HD 2000
850~1100 MHz
2120T
2
Yes
2.6 GHz
-
3 MB
35W
HD 2000
650~1100 MHz
2125
2
Yes
3.3 GHz
-
3 MB
65W
HD 3000
850~1100 MHz
2130
2
Yes
3.4 GHz
-
3 MB
65W
HD 2000
850~1100 MHz
Core i5 2390T
2
Yes
2.7 GHz
3.5 GHz
3 MB
35W
HD 2000
650~1100 MHz
2400S
4 - 2.5 GHz
3.3 GHz
6 MB
65W
HD 2000
850~1100 MHz
2405S
4 - 2.5 GHz
3.3 GHz
6 MB
65W
HD 3000
850~1100 MHz
2500T
4 - 2.3 GHz
3.3 GHz
6 MB
45W
HD 2000
650~1250 MHz
2500S
4 - 2.7 GHz
3.7 GHz
6 MB
65W
HD 2000
850~1100 MHz
Core i7
2600S
4
Yes
2.8 GHz
3.8 GHz
8 MB
65W
HD 2000
850~1100 MHz
Please
refer to the
support
list for
detailed processor support information at
global
.shuttle.com.
K = unlocked, S = Performance optimized lifestyle, T = Power optimized lifestyle, HT = Hyper Threading (SMT). Intel HD graphics HD 3000/2000 supports 12/6 Execution Units (Shader-Quads) and DirectX 10.1.
HDMI
1.4a
is only
supported
with 2nd Intel®
Generation
Core(TM) i3/i5/i7
Processors. Pe
ntium and Celeron
Processors support
HDMI
1.3. Certain processor models do not include the integrated graphics.
Please
refer to the
support
list for
detailed processor support information at
global
.shuttle.com.
3
rd
Generation
Intel
Core Processor
Family (max.
65W)
LGA1155
socket
“22nm Ivy
Brid
ge”
processor
overview (Date: May 201
2)
Name
Model
Cores
HT
Clock
Turbo
Cache
TDP
Graphics
GPU-Turbo
Core i5
3450S
4 - 2.8 GHz
3.5 GHz
6 MB
65 W
HD 2500
1100 MHz
3470S
4 - 2.9 GHz
3.6 GHz
6 MB
65 W
HD 2500
1100 MHz
3550S
4 - 3.0 GHz
3.7 GHz
6 MB
65 W
HD 2500
1150 MHz
3570T
4 - 2.3 GHz
3.3 GHz
6 MB
45 W
HD 2500
1150 MHz
Core i7
3770T
4
Yes
2.5 GHz
3.7 GHz
8 MB
45 W
HD 4000
1150 MHz
3770S
4
Yes
3.1 GHz
3.9 GHz
8 MB
65 W
HD 4000
1150 MHz
K = unlocked, S = Performance optimized lifestyle, T = Power optimized lifestyle, HT = Hyper Threading (SMT). Intel HD graphics HD 4000/2500 features 16/6 Execution Units (Shader-Quads) and supports DirectX 11/OpenGL 3.1. All listed processors support the following memory standards: DDR3-1066, DDR3-1333, DDR3-1600.
Please
refer to the
support
list for
detailed processor support information at
global
.shuttle.com.
Loading...
