SHUTTLE B1XIV Schematics

5

4

3

2

1

Project Name : B1XIVXX Rev B　

D D

Platform :Montevina - SFF Penryn(CULV) + Cantiga (GS40) + ICH9M - SFF

PAGE

CONTENT

M/B Schematic Version Change List

1.

INDEX

2.

SYSTEM BLOCK DIAGRAM

3.

POWER DIAGRAM & SEQUENCE

4.

GPIO & Power Consumption

5.

CPU Penryn - SFF 1/2

6.

C C

B B

CPU Penryn - SFF 2/2

7.

NB HOST / VSS 1/5

8.

NB DDR BUS / LVDS / PCIE 2/5

9.

NB DDR INTERFACE 3/5

10.

NB I/O POWER 4/5

11.

NB GFX/VCC/NCTF POWER 5/5

12.

ICH9M RTC/SATA/IHDA/LPC 1/3

13.

ICH9M SYS/GPIO/PCIE/USB 2/3

14.

ICH9M Power 3/3

15.

CLOCK GEN (ICS9LPRS365BG)

16.

DDR3 SODIMM

17.

CRT /LVDS

18.

USB/CCD/HDD/3G+MODEM/IO

19.

Mini Card/TP+LED

20.

CODEC(IDT92HD81) / SPK

21.

DC IN / FAN

22.

GXT / ODD /USB4th

23.

EC IT8500 / BIOS

24.

CPU CORE (OZ8291)

25.

+3.3VA/+5VS/+1.05V (OZ815)

26.

+1.8VS/0.9VS /1.5VS(OZ8116)

27.

VCC SW/ VIN_SW

28.

BATT IN / CHARGER (OZ8602)

29.

Appendix Ver.A History

30.

Appendix Ver.B History

Release Date PCB P/N NotePCBA P/NVersion

A2009-10-09

2009-10-30 A1

Daughter Board Schematic Version Change List

PCB Description

B10IV01 M/B REV:A

71R-B10IV0-9HA1 B10IV01 M/B REV:A1 64R-B10IV1-0001

?71R-B10IV0-9HA0

PCB P/N PCB DescriptionRelease Date Version PCBA P/N

Initial

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

B1XIVXX

B1XIVXX

B1XIVXX

INDEX

INDEX

INDEX

1

B

B

B

of

of

of

130Monday, December 21, 2009

130Monday, December 21, 2009

130Monday, December 21, 2009

5

4

3

2

1

SYSTEM BLOCK DIAGRAM

CPU

UVL723

www.schematic-x.blogspot.com

D D

SU2700

Micro-FCBGA

956-ball

40nm

22*22*2

5,6

FSB
800/1066MHZ

DDR2 RAM BUS

SO-DIMM0

200 Pin

13

667/800 MHZ

SMBUS

HP Jack x 1
Mic Jack x 1

INT A_Mic In x 2

Internal SPK

C C

DB DB

B B

4 1.5W x 2　

DB

Codec

20

92HD81

48 Pin LQFP

AZALIZA

20

ModemRJ11

USB0

18

USB1
USB2

18

USB3

USB4

DB

USB5
USB6

DB

USB7

CCD

Wireless Lan

USB (option)

IO USB

MB USB

18

MB USB

19

3G

DB

GXT USB

DB

North Bridge

GS40_SFF

1363-ball FCBGA

DMI
X2

27*25*2

8,9,10,11,12

Controll Link

South Bridge

ICH9M SFF

569 Pin mBGA

16*16*1.4

15,16,17

THERMAL SENSOR

LVDS

RGB

PCIE2

PCIE3

PCIE4

SATA0

SATA1

SATA4

EMC1402

LCD

CRT

Mini Card x 1

5

14

DB

LAN/Cardreader

JMC261

64 Pin QFN

GXT BD

HDD

ODD(option)

GXT BD

RTC

32.768KHZ

CRYSTAL

25MHZ

DB

DB

21

18

22

DB

RJ45

LPC

Flash Rom

8 Pin M-SOP

Charger

A A

5

FAN

3 Pin

4

SPI

23

GPIO

29

Embedded Controller (EC)

ITE8512E-KX

PS/2

K/B Matrix

22

SMBUS 1

CPU Thermal Sensor75Clock Gen

EMC1402

3

23

CRYSTAL

14.318MHZ

SMBUS 0

CRYSTAL

32.768KHZ

T/P

6 Pin

23

23

Internal K/B

Battery

7 Pin

2

23

Title

Title

29

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet of

Date: Sheet of

Date: Sheet of

SYSTEM BLOCK DIAGRAM

SYSTEM BLOCK DIAGRAM

SYSTEM BLOCK DIAGRAM

B1XIVXX

B1XIVXX

CULV

CULV

CULV

B1XIVXX

1

B

B

230Monday, December 21, 2009

230Monday, December 21, 2009

230Monday, December 21, 2009

B

5

4

3

2

1

POWER BLOCK DIAGRAM

VID0
VID1

D D

VID2

OZ8291

VID3
VID4

IMVP-6

VID5
VID6

C C

0Z815

B B

VIN

P1203BV
P1203BV

VIN

P1203BV
P1203BV

VIN

P1203BV
P1203BV

+5VA

8A

+CPU_CORE

+1.05V

8A

APL1084UC

P1203BV

P1203BV

OZ8033

P1203BV

P1203BV

10A

+3.3VA

1.734A

+3.3V

??A

+3.3VS

??A

+1.8VS

1.606A

+5V

??A

+5VS

??A

System Power On Sequence

Adaptor or Battery

+5VA_LDO

PWRSW

+3.3VS_ON

*

+3.3VS

+1.5VS_ON

*

+1.5VS

+0.75V_DDR

RSMRST#

*

PWRBTN#

*

PM_SLP_S4#

PM_SLP_S3#

+5V_ON

*

+5V / +5VREF

*

*

+3.3V

*

*

+1.5V_ON / +1.05V_ON

*

+1.5V

+1.05V

VCORE_ON

*

+CPU_CORE

PWROK

*

H_PWRGD

PCIRST# / PLTRST#

CPURST#

+3VA

VIN

+5VS

EC Control Pin (O/P)

*

EC Control Pin(I/P)

*

*

104ms

960us

1ms

1.6ms

4.72ms

36ms

220ms

104ms

100ms

560ms

8ms

6ms

102ms

676ms

+1.5VS

VIN

0Z8116

A A

P1203BV
P1203BV

5

7A

FP6137C

P1203BV

+0.75V_DDR

2A

+1.5V

??A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

4

3

2

Date: Sheet

POWER DIAGRAM & SEQUENCE

POWER DIAGRAM & SEQUENCE

POWER DIAGRAM & SEQUENCE

B1XIVXX

B1XIVXX

CULV

CULV

CULV

B1XIVXX

1

B

B

B

of

of

of

330Monday, December 21, 2009

330Monday, December 21, 2009

330Monday, December 21, 2009

5

4

3

2

1

ICH9M

GPIO0
GPIO1
GPIO2

D D

C C

B B

GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10

GPIO11

GPIO12
GPIO13
GPIO14
GPIO15
GPIO16

GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24

GPIO25
GPIO26
GPIO27
GPIO28
GPIO29
GPIO30
GPIO31

GPIO33 GPE1
GPIO34
GPIO35
GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO43 USB_OC#4
GPIO44
GPIO45

GPIO46
GPIO47

GPIO48

GPIO49
GPIO50

GPIO51

GPIO52

GPIO53

GPIO54

GPIO55
GPIO56

GPIO57
GPIO58
GPIO59
GPIO60

GPIO

PMSYNC#
EC_EXTSMI#
INT_PIRQE#
INT_PIRQF#

INT_PIRQH#
BIOS_REC
NC

NC

WOL_EN

ICH_GPIO10
SMB_ALERT#

NC
NC
ICH_GPIO14

PM_STPPCI_ICH#

ICH_DPRSLPVR

NC

NC
SATA1GP
NC
SATA0GP
NC
LDRQ1#
NC
PM_STPCPU_ICH#

N35761884

NC
NC
USB_OC#5
USB_OC#6
USB_OC#7
PM_CLKRUN#
NC
NC
CLK_SATA_QE#
SATA2GP
SATA3GP
NC
NC
USB_OC#1
USB_OC#2
USB_OC#3

USB_OC#8
USB_OC#9
USB_OC#10
USB_OC#11

NC
NC
PCI_REQ#1
NC
PCI_REQ#2

NC
PCI_REQ#3

FP_PWR_ON#

N31172530
N46312881
NC

USB_OC#0

LINK_ALERT#

ITE8512E-CX

CHG_G_LED#

GPA0

CHG_R_LED#

GPA1

BTL_BEEP

GPA2
GPA3

WIRELAN_ON
KBLED_EN

GPA4

BT_ON#

GPA5

PM_RSMRST#

GPA6

EC_BL_PWM

GPA7
GPB0

PM_SLP_S4#

GPB1

PM_SLP_S3#

GPB2

+1.05VS_ON
DDR BAT_SMBCLK

GPB3

DDR BAT_SMBDAT

GPB4
GPB5

H_A20GATE
H_RCIN#

GPB6
GPB7

LAN_DETECT#

GPC0

+1.5V_on
SMBCLK_EC

GPC1
GPC2

SMBDAT_EC

GPC3

NC

SBAT_DCH#

GPC4
GPC5

MBAT_DCHG#

LCDSW0

GPC6

LCDSW1

GPC7

ADAP_IN

GPD0
GPD1

PWRBTN#

GPD2

PLT_RST#
EC_EXTSMI#

GPD3
GPD4

NP

GPD5

EC_PROCHOT#

GPD6

EC_LAN_ON#
EC_BL_EN

GPD7

LID#

GPE0GPIO32

SET_V

GPE2

PWROK

GPE3

Vcore_ON
PWRSW

GPE4
GPE5

P_ID0

P_ID1

GPE6

MUTE#

GPE7
GPF0

EC_BSEL1
MBAT_CHG

GPF1
GPF2

+5V_ON#
CHG_ON#

GPF3
GPF4

TP_CLK
TP_DATA

GPF5
GPF6

ALS_SMBCLK
ALS_SMBDAT

GPF7
GPG0

SBAT_CHG#

GPG1

+5VS_ON

GPG2

FLFRAME#
WEBCAM_ON

GPG6
GPH0

SAFTY_PROTECT

GPH1

+1.8VS_ON
SENBAT_V

GPH2
GPH3

3G_ON#
3G_LED_ON#

GPH4
GPH5

BATTOFF

GPH6

RF_LED_ON#

Default

GPIO

Pull/Mode
UP / GPI /GPI/ADC
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
Dn / GPI
/ GPI
/ GPI
/ GPO
UP / Func1
Dn / GPI
Dn / GPI
/ GPI
/ GPI
Dn / GPI
Dn / GPI
Dn / GPI
Dn / GPI
UP / GPI
UP / GPI
UP / GPI
UP / Func1
UP / GPI
UP / GPI
UP / GPI
Dn / GPI
Dn / GPI
Dn / GPI
Dn / GPI
Dn / GPI
Dn / GPI
UP / GPI
Dn / GPI
Dn / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
UP / GPI
Dn/GPO/TM
Dn/GPO/ID7

Dn/GPI/ID0
Dn/GPI/ID1
Dn/GPI/ID2
Dn/GPI/ID3
Dn/GPI/ID4
Dn/GPI/ID5
Dn/GPI/ID6

ITE8512E-CX

BATT_TEMP

GPI0
GPI1

ADAPTOR_I

GPI2

BAT_V
BATT_TEMP_S

GPI3
GPI4INT_PIRQG#

BAT_I

GPI5

XOUT_EC
YOUT_EC

GPI6

ZOUT_EC

GPI7
GPJ0

Fastcharge_EN

GPJ1

CHG_I
FAN_CTRL0

GPJ2
GPJ3

CHG_REF

GPJ4

PWR_LED
PM_THROTTING#

GPJ5

GPIO

/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/ADC
/GPI/DAC
/GPI/DAC
/GPI/DAC
/GPI/DAC
/GPI/DAC
/GPI/DAC

IMVP-6+

VCC ICC(mA)

+3.3V
+1.8VS
+1.5V
+1.05

VCC ICC(mA)

+5V
+5VS
+3.3V
+3.3VS
+1.5V

Penryn_SFF

CPU CORE(V)

GS 45

262

1499

7702.55

ICH9M SFF

210
308
212
2188
1682

1.0

W

0.87

5.983320

2.25

8.08

mW

102

1016.4

699.6
3282

1766.1+1.05V

ICC(A)
18

18

TEMP( )

105

TEMP( )

70

W

TEMP( )

90

+3.3V

+3.3V

VCC

+3.3V(DVDD)
+5V(AVDD)

VCC

+5V

VCC

+3.3V

VCC

+3.3VS
+1.8VS
+1.5VS

ITE8512E

ICC(mA)VCC

100

330

mW

CLOCK GENERATOR

ICC(mA)VCC

250

825

mW

ALC888_VC2

ICC(mA)

mW

36

118.8
255

51

TPA6017A2

ICC(mA)

mW

50

EMC1402

ICC

170uA

ITE8512E-CX

103
198
367

mW

0.56

mWICC(mA)

339.9

356.4

550.5

TEMP( )

70

TEMP( )

70

TEMP( )

70

TEMP( )

8510

TEMP( )

150

TEMP( )

70

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

GPIO & Power Consumption

GPIO & Power Consumption

GPIO & Power Consumption

B1XIVXX

B1XIVXX

CULV

CULV

CULV

B1XIVXX

1

B

B

B

of

of

of

430Monday, December 21, 2009

430Monday, December 21, 2009

430Monday, December 21, 2009

5

4

3

2

1

Close to CPU within 20mil

H_A#[35:3][7]

D D

H_ADSTB#0[7]

H_REQ#[4:0][7]

H_A#[35:3][7]

C C

B B

H_ADSTB#1[7]

H_A20M#[12]

H_FERR#[12]

H_IGNNE#[12]

H_STPCLK#[12]

H_INTR[12]
H_NMI[12]
H_SMI#[12]

H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16

H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4

H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35

PM_THRMTRIP#

L
L
H
HH

AA1
AB4

AC5
AD2
AD4
AA5
AE5
AB2
AC1

AN1
AK4
AG1
AT4
AK2
AT2
AH2
AF4

AH4
AM4
AP4
AR5

AL1
AM2
AU5
AP2
AR1
AN5

AG5
AL5

Input

H_THERM#

L
H

L

U16A

U16A

P2
V4

W1

T4

T2

Y4

R1
R5
U1
P4

W5

AJ5

AJ1

C7
D4

F10

F8
C9
C5
E5

V2

Y2

J9

F4
H8

Penryn SFF_743

Penryn SFF_743

A[3]#
A[4]#
A[5]#
A[6]#
A[7]#
A[8]#
A[9]#
A[10]#
A[11]#
A[12]#
A[13]#
A[14]#
A[15]#
A[16]#
ADSTB[0]#

REQ[0]#
REQ[1]#
REQ[2]#
REQ[3]#
REQ[4]#

A[17]#
A[18]#
A[19]#
A[20]#
A[21]#
A[22]#
A[23]#
A[24]#
A[25]#
A[26]#
A[27]#
A[28]#
A[29]#
A[30]#
A[31]#
A[32]#
A[33]#
A[34]#
A[35]#
ADSTB[1]#

A20M#
FERR#
IGNNE#

STPCLK#
LINT0
LINT1
SMI#

RSVD01
RSVD02
RSVD03
RSVD04
RSVD05
RSVD06
RSVD07

ADDR GROUP 0

ADDR GROUP 0

ADDR GROUP 1

ADDR GROUP 1

THERMAL

THERMAL

PROCHOT#

ICH

ICH

THERMTRIP#

H CLK

H CLK

Output

AUX_OFF

H
L
L
L

ADS#
BNR#
BPRI#

DEFER#

DRDY#
DBSY#

BR0#

IERR#

INIT#

CONTROL

CONTROL

LOCK#

RESET#

RS[0]#
RS[1]#
RS[2]#
TRDY#

HITM#

BPM[0]#
BPM[1]#
BPM[2]#
BPM[3]#

PRDY#
PREQ#

TRST#

DBR#

XDP/ITP SIGNALS

XDP/ITP SIGNALS

THERMDA
THERMDC

BCLK[0]
BCLK[1]

M4
J5
L5

N5
F38
J1

M2
B40

H_IERR#

D8
N1
G5

K2

H_RS#0

H4

H_RS#1

K4

H_RS#2

L1
H2

HIT#

F2
AY8

BA7
BA5
AY2
AV10
AV2

H_PREQ#

AV4

H_TCK

TCK

AW7

H_TDI

TDI

AU1

TDO

AW5

H_TMS

TMS

AV8

H_TRST#

J7

D38

H_PROCHOT#_IN

BB34

H_THERMDA

BD34

H_THERMDC

B10

PM_THRMTRIP#

A35
C35

RESERVED

RESERVED

H_ADS# [7]
H_BNR# [7]
H_BPRI# [7]

H_DEFER# [7]
H_DRDY# [7]
H_DBSY# [7]

H_BREQ#0 [7]

H_INIT# [12]
H_LOCK# [7]
H_CPURST# [7]

H_TRDY# [7]
H_HIT# [7]

H_HITM# [7]

+1.05V

R302

R302
750-1-04

750-1-04

1 2

D8

D8

A C

SCH-BAT54-PH

SCH-BAT54-PH

PM_THRMTRIP# [12]

CLK_CPU_BCLK [15]
CLK_CPU_BCLK# [15]

1 2

R148 1K-04R148 1K-04

RA02 RB09

EC_PROCHOT# [23,24]

B

Z0515PM_THRMTRIP#

C296

C296
.1U-16-04Y-Z

.1U-16-04Y-Z

H_RS#[2:0] [7]

+CPU_CORE

12

R140

R140
100K-04

100K-04

Q30

Q30
2N3904

2N3904

E C

AUX_OFF

C496

C496

.1U-16-04Y-Z

.1U-16-04Y-Z

C301

C301
1U-10-06Y-Z

1U-10-06Y-Z

+1.05V

12

R306

R306
1K-1-04

1K-1-04

H_GTLREF

0.5'' max for H_GTLREF
Zo=55 ohm

12

R307

R307
2K-1-04

2K-1-04

AUX_OFF [25]

H_D#[63:0][7]

H_DSTBN#0[7]
H_DSTBP#0[7]

H_DINV#0[7]

H_D#[63:0][7]

Check!!

U16B

U16B

H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15

H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30

H_DSTBN#1[7]
H_DSTBP#1[7]

H_D#31

H_DINV#1[7]

FSB

FSB667
FSB800
FSB1067

CPU_BSEL0
CPU_BSEL1
CPU_BSEL2

BSEL

CPU_BSEL0[8,15,23]

F40
G43
E43
J43
H40
H44

G39

E41
L41
K44
N41
T40
M40
G41
M44
L43
K40
J41
P40

P44
V40
V44

AB44

R41

W41

N43

U41
AA41
AB40
AD40
AC41
AA43

Y40

Y44

T44

U43

W43

R43

AW43

E37

D40

C43
AE41
AY10
AC43

A37

C37

B38

BSEL1

D[0]#
D[1]#
D[2]#
D[3]#
D[4]#
D[5]#
D[6]#
D[7]#
D[8]#
D[9]#
D[10]#
D[11]#
D[12]#
D[13]#
D[14]#
D[15]#
DSTBN[0]#
DSTBP[0]#
DINV[0]#

D[16]#
D[17]#
D[18]#
D[19]#
D[20]#
D[21]#
D[22]#
D[23]#
D[24]#
D[25]#
D[26]#
D[27]#
D[28]#
D[29]#
D[30]#
D[31]#
DSTBN[1]#
DSTBP[1]#
DINV[1]#

GTLREF
TEST1
TEST2
TEST3
TEST4
TEST5
TEST6

BSEL[0]
BSEL[1]
BSEL[2]

Penryn SFF_743

Penryn SFF_743

BSEL0BSEL2

110
001
000

DATA GROUP 0

DATA GROUP 0

DATA GROUP 1

DATA GROUP 1

MISC

MISC

D[32]#
D[33]#
D[34]#
D[35]#
D[36]#
D[37]#
D[38]#
D[39]#
D[40]#
D[41]#
D[42]#
D[43]#
D[44]#

DATA GROUP 2DATA GROUP 3

DATA GROUP 2DATA GROUP 3

D[45]#
D[46]#

D[47]#
DSTBN[2]#
DSTBP[2]#

DINV[2]#

D[48]#

D[49]#

D[50]#

D[51]#

D[52]#

D[53]#

D[54]#

D[55]#

D[56]#

D[57]#

D[58]#

D[59]#

D[60]#

D[61]#

D[62]#

D[63]#
DSTBN[3]#
DSTBP[3]#

DINV[3]#
COMP[0]

COMP[1]
COMP[2]
COMP[3]

DPRSTP#

DPSLP#

DPWR#

PWRGOOD

MHZ

166
200
266

SLP#

AP44

H_D#32

AR43

H_D#33

AH40

H_D#34

AF40

H_D#35

AJ43

H_D#36

AG41

H_D#37

AF44

H_D#38

AH44

H_D#39

AM44

H_D#40

AN43

H_D#41

AM40

H_D#42

AK40

H_D#43

AG43

H_D#44

AP40

H_D#45

AN41

H_D#46

AL41

H_D#47

AK44
AL43
AJ41

AV38

H_D#48

AT44

H_D#49

AV40

H_D#50

AU41

H_D#51

AW41

H_D#52

AR41

H_D#53

BA37

H_D#54

BB38

H_D#55

AY36

H_D#56

AT40

H_D#57

BC35

H_D#58

BC39

H_D#59

BA41

H_D#60

BB40

H_D#61

BA35

H_D#62

AU43

H_D#63

AY40
AY38
BC37

AE43

COMP0

AD44
AE1
AF2

G7
B8
C41
E7
D10
BD10

PSI#

R305 27.4-1-04R305 27.4-1-04

COMP1

R304 54.9-1-04R304 54.9-1-04

COMP2

R346 27.4-1-04R346 27.4-1-04

COMP3

R347 54.9-1-04R347 54.9-1-04

H_D#[63:0] [7]

H_DSTBN#2 [7]
H_DSTBP#2 [7]
H_DINV#2 [7]
H_D#[63:0] [7]

COMP0/2 TRACE 27.4 OHM +-15%
COMP1/3 TRACE 55 OHM +-15%
within 0.5''

H_DSTBN#3 [7]
H_DSTBP#3 [7]
H_DINV#3 [7]

1 2
1 2
1 2
1 2

H_DPRSTP# [8,12]
H_DPSLP# [12]
H_DPWR# [7]
H_PWRGD [12]
H_CPUSLP# [7]

CPU_BSEL2

CPU_BSEL1

CPU_BSEL0

Close to CPU

12

+1.05V

12

12

R300

R300

@1K-04

@1K-04

R301

R301

@1K-04

@1K-04

R299

R299

@1K-04

@1K-04

H_IERR#
H_TDI
H_TMS
H_PREQ#
H_STPCLK#
H_CPURST#
H_PWRGD

H_TRST#
H_TCK

1 2

R303 56-04R303 56-04

1 2

R337 54.9-1-04R337 54.9-1-04

1 2

R333 54.9-1-04R333 54.9-1-04

1 2

R334 54.9-1-04R334 54.9-1-04

1 2

R147 @150-04R147 @150-04

1 2

R332 @56.2-04R332 @56.2-04

1 2

R345 @1K-04R345 @1K-04

1 2

R336 54.9-1-04R336 54.9-1-04

1 2

R335 54.9-1-04R335 54.9-1-04

MCH_BSEL2 [8,15]

CLK_BSEL2 [8,15]

MCH_BSEL1 [8,15]
CLK_BSEL1 [8,15]

MCH_BSEL0 [8,15,23]

CLK_BSEL0 [8,15,23]

+1.05V

CPU Thermal Sensor

1 2

R296 68-06R296 68-06

+3.3V

Close to IC

1 2

R298 0-04R298 0-04

A A

H_THERMDC

1 2

R297 0-04R297 0-04

5

C494

C494

2200P-50-04X-K

2200P-50-04X-K

THERMDAH_THERMDA

THERMDC

VDD_7421

C492

C492

2.2U-6.3-06R-K

2.2U-6.3-06R-K

U14

U14

2
4
3

D+
THERM#
D-

1

5

VDD

ADATA

ALERT

GND

ADM1032

ADM1032

SCLK

check?

7
8
6

ALERT#

SMBDAT_EC [15,23]
SMBCLK_EC [15,23]

R295

R295

1 2

100K-04

100K-04

4

VDD_7421

3

Used for Balance +1.05V & GND

+1.05V

C264

C263

C263
.1U-16-04Y-Z

.1U-16-04Y-Z

C264
.1U-16-04Y-Z

.1U-16-04Y-Z

C142

C142
.1U-16-04Y-Z

.1U-16-04Y-Z

2

C268

C268
.1U-16-04Y-Z

.1U-16-04Y-Z

C265

C265
.1U-16-04Y-Z

.1U-16-04Y-Z

C262

C262
.1U-16-04Y-Z

.1U-16-04Y-Z

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

Date: Sheet

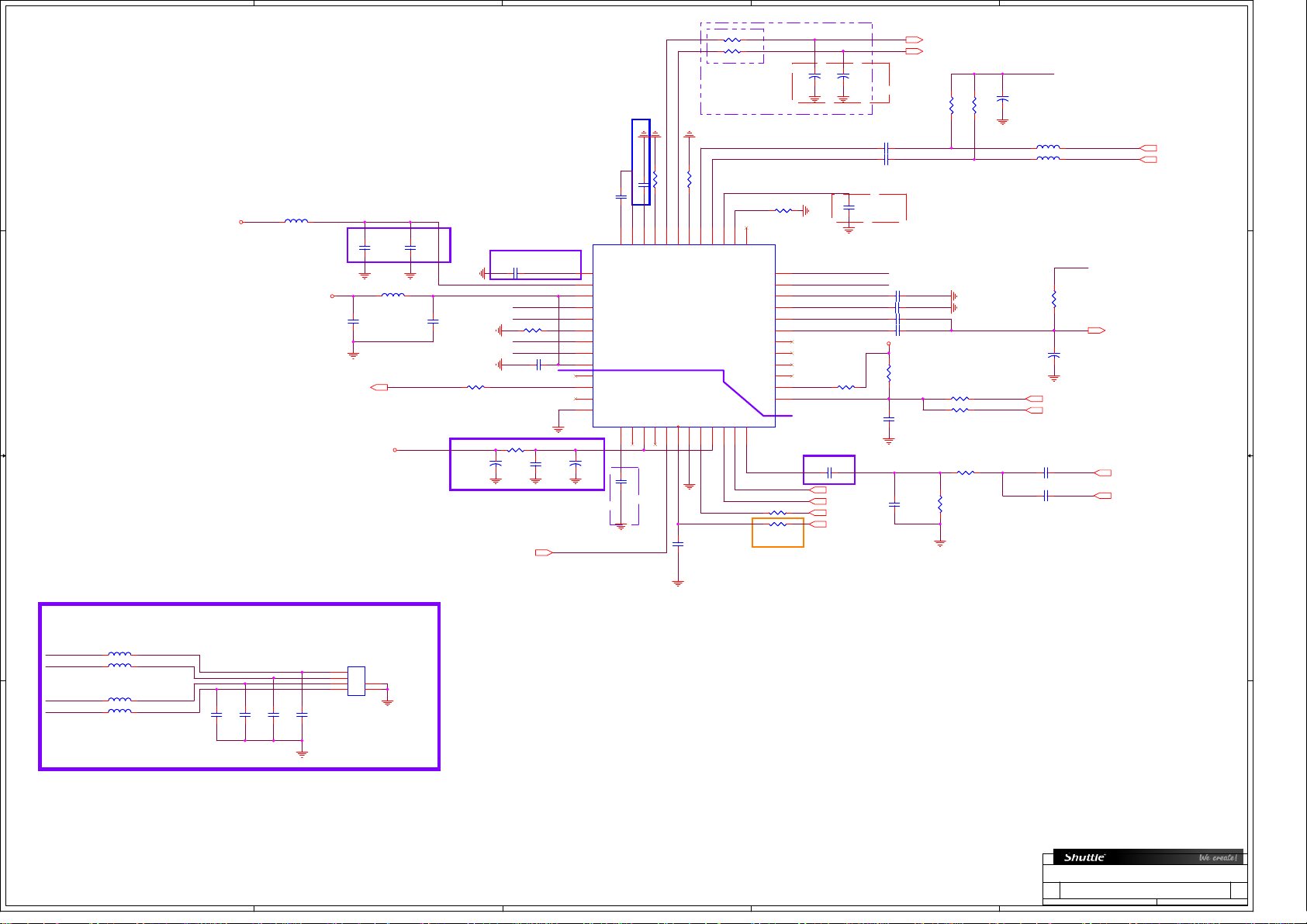

CPU Penryn-SFF 1/2

CPU Penryn-SFF 1/2

CPU Penryn-SFF 1/2

B1XIVXX

B1XIVXX

B1XIVXX

1

530Monday, December 21, 2009

530Monday, December 21, 2009

530Monday, December 21, 2009

of

of

of

B

B

B

5

4

3

2

1

+CPU_CORE

27000mA

C235

C235

C182

C182

C226

C226

C189

C189

2.2U-10-06X-Z

2.2U-10-06X-Z

2.2U-10-06X-Z

2.2U-10-06X-Z

2.2U-10-06X-Z

2.2U-10-06X-Z

2.2U-10-06X-Z

2.2U-10-06X-Z

D D

C178

C187

C187

4.7U-10-08R-K

4.7U-10-08R-K

C243

C243

10U-6.3-08R-K

10U-6.3-08R-K

C166

C166

.1U-16-04Y-Z

.1U-16-04Y-Z

C181

C181

.1U-16-04Y-Z

.1U-16-04Y-Z

C180

C180

4.7U-10-08R-K

4.7U-10-08R-K

C228

C228

10U-6.3-08R-K

10U-6.3-08R-K

C198

C198

.1U-16-04Y-Z

.1U-16-04Y-Z

C168

C168

.1U-16-04Y-Z

.1U-16-04Y-Z

H_VID3

H_VID4

H_VID5

C178

4.7U-10-08R-K

4.7U-10-08R-K

C218

C218

.1U-16-04Y-Z

.1U-16-04Y-Z

C164

C164

.1U-16-04Y-Z

.1U-16-04Y-Z

RB10

313.5uA

313.5uA

313.5uA

C227

C227

4.7U-10-08R-K

4.7U-10-08R-K

C247

C247

.1U-16-04Y-Z

.1U-16-04Y-Z

C241

C241

.1U-16-04Y-Z

.1U-16-04Y-Z

Q54 @2N3904Q54 @2N3904

E C

Q55 @2N3904Q55 @2N3904

E C

Q26 @2N3904Q26 @2N3904

E C

C172

C172

.1U-16-04Y-Z

.1U-16-04Y-Z

C167

C167

.1U-10-04R-K

.1U-10-04R-K

3.5uA

B

3.5uA

B

3.5uA

B

C192

C192

C191

C191

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

C245

C245

C186

C186

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

R284 @100K-1-04R284 @100K-1-04
R292 @10K-1-04R292 @10K-1-04

310uA

R285 @100K-1-04R285 @100K-1-04
R293 @10K-1-04R293 @10K-1-04

310uA

R92 @100K-1-04R92 @100K-1-04
R90 @10K-1-04R90 @10K-1-04

310uA

C242

C242

.1U-16-04Y-Z

.1U-16-04Y-Z

+1.05V
+3.3V

CPU_H_VID3 [23]

+1.05V
+3.3V

CPU_H_VID4 [23]

+1.05V
+3.3V

CPU_H_VID5 [23]

C206

C206

4.7U-10-08R-K

+CPU_CORE

U16C

U16C

F32

VCC[001]
VCC[002]
VCC[003]
VCC[004]
VCC[005]
VCC[006]
VCC[007]
VCC[008]
VCC[009]
VCC[010]
VCC[011]
VCC[012]
VCC[013]
VCC[014]
VCC[015]
VCC[016]
VCC[017]
VCC[018]
VCC[019]
VCC[020]
VCC[021]
VCC[022]
VCC[023]
VCC[024]
VCC[025]
VCC[026]
VCC[027]
VCC[028]
VCC[029]
VCC[030]
VCC[031]
VCC[032]
VCC[033]
VCC[034]
VCC[035]
VCC[036]
VCC[037]
VCC[038]
VCC[039]
VCC[040]
VCC[041]
VCC[042]
VCC[043]
VCC[044]
VCC[045]
VCC[046]
VCC[047]
VCC[048]
VCC[049]
VCC[050]
VCC[051]
VCC[052]
VCC[053]
VCC[054]
VCC[055]
VCC[056]
VCC[057]
VCC[058]
VCC[059]
VCC[060]
VCC[061]
VCC[062]
VCC[063]
VCC[064]
VCC[065]
VCC[066]
VCC[067]

Penryn SFF_743

Penryn SFF_743

VCC[068]
VCC[069]
VCC[070]
VCC[071]
VCC[072]
VCC[073]
VCC[074]
VCC[075]
VCC[076]
VCC[077]
VCC[078]
VCC[079]
VCC[080]
VCC[081]
VCC[082]
VCC[083]
VCC[084]
VCC[085]
VCC[086]
VCC[087]
VCC[088]
VCC[089]
VCC[090]
VCC[091]
VCC[092]
VCC[093]
VCC[094]
VCC[095]
VCC[096]
VCC[097]
VCC[098]
VCC[099]
VCC[100]

VCCP_001
VCCP_002
VCCP_003
VCCP_004
VCCP_005
VCCP_006
VCCP_007
VCCP_008
VCCP_009
VCCP_010
VCCP_011
VCCP_012
VCCP_013
VCCP_014
VCCP_015
VCCP_016

VCCA[01]
VCCA[02]

VCCSENSE

VSSSENSE

+1.05V

G33
H32

J33

K32

L33
M32
N33
P32
R33
T32
U33
V32
W33
Y32

AA33
AB32
AC33
AD32
AE33
AF32

AG33

AH32

AJ33
AK32
AL33

AM32

C C

B B

AN33
AP32
AR33
AT34
AT32
AU33
AV32
AY32
BB32
BD32

AB30

B28
B30
B26
D28
D30
F30
F28
H30
H28
D26
F26
H26
K30
K28
M30
M28
K26
M26
P30
P28
T30
T28
V30
V28
P26
T26
V26
Y30
Y28

VID[0]
VID[1]
VID[2]
VID[3]
VID[4]
VID[5]
VID[6]

AB28
AD30
AD28
Y26
AB26
AD26
AF30
AF28
AH30
AH28
AF26
AH26
AK30
AK28
AM30
AM28
AP30
AP28
AK26
AM26
AP26
AT30
AT28
AV30
AV28
AY30
AY28
AT26
AV26
AY26
BB30
BB28
BD30

J11
E11
G11
J37
K38
L37
N37
P38
R37
U37
V38
W37
AA37
AB38
AC37
AE37

B34
D34

BD8
BC7
BB10
BB8
BC5
BB4
AY4

BD12

BC13

+CPU_CORE

CPU_VCCA

H_VID0 [24]
H_VID1 [24]
H_VID2 [24]
H_VID3 [24]
H_VID4 [24]
H_VID5 [24]
H_VID6 [24]

VCORE_VCCSENSE

VCORE_VSSSENSE

C103

C103

4.7U-10-08R-K

4.7U-10-08R-K

130mA

+CPU_CORE

+1.05V

Close to Pin B34

12

12

R328

R328
100-1-04

100-1-04

R327

R327
100-1-04

100-1-04

C150

C150
.1U-16-04Y-Z

.1U-16-04Y-Z

4.7U-10-08R-K

C222

C222

10U-6.3-08R-K

10U-6.3-08R-K

C236

C236

.1U-16-04Y-Z

.1U-16-04Y-Z

C240

C240

.1U-16-04Y-Z

.1U-16-04Y-Z

+1.5V

B18

B18
0-06

0-06

C136

C136

4.7U-10-08R-K

4.7U-10-08R-K

VCORE_VCCSENSE [24]

VCORE_VSSSENSE [24]

4500mA

C233

C233

C259

C108

C108

C105

C105

10U-6.3-08R-K

10U-6.3-08R-K

4.7U-10-08R-K

4.7U-10-08R-K

A A

C143

C143

C260

C260

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

22U-6.3-08R-K

22U-6.3-08R-K

C140

C140

.1U-16-04Y-Z

.1U-16-04Y-Z

C259

4.7U-10-08R-K

4.7U-10-08R-K

C141

C141

.1U-16-04Y-Z

.1U-16-04Y-Z

C250

C250

1U-10-06R-K

1U-10-06R-K

C256

C256

.1U-16-04Y-Z

.1U-16-04Y-Z

C158

C158

1U-10-06R-K

1U-10-06R-K

C144

C144

.1U-16-04Y-Z

.1U-16-04Y-Z

C139

C139

1U-10-06R-K

1U-10-06R-K

C145

C145

.1U-16-04Y-Z

.1U-16-04Y-Z

C261

C261

.1U-10-04R-K

.1U-10-04R-K

C146

C146

.1U-10-04R-K

.1U-10-04R-K

+1.05V

+CPU_CORE

BD28
BB26
BD26

AB24
AB22
AD24
AD22
AF24
AF22
AH24
AH22
AK24
AK22
AM24
AM22
AP24
AP22
AT24
AT22
AV24
AV22
AY24
AY22
BB24
BB22
BD24
BD22

AB18
AB16
AD18
AD16

AB20
AD20
AF18
AF16
AH18
AH16
AF20
AH20
AK18
AK16
AM18
AM16
AP18
AP16
AK20
AM20
AP20
AT18
AT16
AV18
AV16
AY18
AY16
AT20
AV20
AY20
BB18
BB16
BD18
BD16
BB20
BD20
AM14
AP14
AT14
AV14
AY14
BB14
BD14

AF38
AG37

AK38

AJ37

B22
B24
D22
D24
F24
F22
H24
H22
K24
K22
M24
M22
P24
P22
T24
T22
V24
V22
Y24
Y22

B16
B18
B20
D16
D18
F18
F16
H18
H16
D20
F20
H20
K18
K16
M18
M16
K20
M20
P18
P16
T18
T16
V18
V16
P20
T20
V20
Y18
Y16

Y20

U16F

U16F

VCC_101
VCC_102
VCC_103
VCC_104
VCC_105
VCC_106
VCC_107
VCC_108
VCC_109
VCC_110
VCC_111
VCC_112
VCC_113
VCC_114
VCC_115
VCC_116
VCC_117
VCC_118
VCC_119
VCC_120
VCC_121
VCC_122
VCC_123
VCC_124
VCC_125
VCC_126
VCC_127
VCC_128
VCC_129
VCC_130
VCC_131
VCC_132
VCC_133
VCC_134
VCC_135
VCC_136
VCC_137
VCC_138
VCC_139
VCC_140
VCC_141
VCC_142
VCC_143
VCC_144
VCC_145
VCC_146
VCC_147
VCC_148
VCC_149
VCC_150
VCC_151
VCC_152
VCC_153
VCC_154
VCC_155
VCC_156
VCC_157
VCC_158
VCC_159
VCC_160
VCC_161
VCC_162
VCC_163
VCC_164
VCC_165
VCC_166
VCC_167
VCC_168
VCC_169
VCC_170
VCC_171
VCC_172
VCC_173
VCC_174
VCC_175
VCC_176
VCC_177
VCC_178
VCC_179
VCC_180
VCC_181
VCC_182
VCC_183
VCC_184
VCC_185
VCC_186
VCC_187
VCC_188
VCC_189
VCC_190
VCC_191
VCC_192
VCC_193
VCC_194
VCC_195
VCC_196
VCC_197
VCC_198
VCC_199
VCC_200
VCC_201
VCC_202
VCC_203
VCC_204
VCC_205
VCC_206
VCC_207
VCC_208
VCC_209
VCC_210
VCC_211
VCC_212
VCC_213
VCC_214
VCC_215
VCC_216
VCC_217
VCC_218
VCC_219
VCC_220

VCCP_017
VCCP_018
VCCP_019
VCCP_020

Penryn SFF_743

Penryn SFF_743

VCCP_021
VCCP_022
VCCP_023
VCCP_024
VCCP_025
VCCP_026
VCCP_027
VCCP_028
VCCP_029
VCCP_030
VCCP_031
VCCP_032
VCCP_033
VCCP_034
VCCP_035
VCCP_036
VCCP_037
VCCP_038
VCCP_039
VCCP_040
VCCP_041
VCCP_042
VCCP_043
VCCP_044
VCCP_045
VCCP_046
VCCP_047
VCCP_048
VCCP_049
VCCP_050
VCCP_051
VCCP_052
VCCP_053
VCCP_054
VCCP_055
VCCP_056
VCCP_057
VCCP_058
VCCP_059
VCCP_060
VCCP_061
VCCP_062
VCCP_063
VCCP_064
VCCP_065
VCCP_066
VCCP_067
VCCP_068
VCCP_069
VCCP_070
VCCP_071
VCCP_072
VCCP_073
VCCP_074
VCCP_075
VCCP_076
VCCP_077
VCCP_078
VCCP_079
VCCP_080
VCCP_081
VCCP_082
VCCP_083
VCCP_084
VCCP_085
VCCP_086
VCCP_087
VCCP_088
VCCP_089
VCCP_090
VCCP_091
VCCP_092
VCCP_093
VCCP_094
VCCP_095
VCCP_096
VCCP_097
VCCP_098
VCCP_099
VCCP_100
VCCP_101
VCCP_102
VCCP_103
VCCP_104
VCCP_105
VCCP_106
VCCP_107
VCCP_108
VCCP_109
VCCP_110
VCCP_111
VCCP_112
VCCP_113
VCCP_114
VCCP_115
VCCP_116
VCCP_117
VCCP_118
VCCP_119
VCCP_120
VCCP_121
VCCP_122
VCCP_123
VCCP_124
VCCP_125
VCCP_126
VCCP_127
VCCP_128
VCCP_129
VCCP_130
VCCP_131
VCCP_132
VCCP_133
VCCP_134
VCCP_135
VCCP_136
VCCP_137
VCCP_138
VCCP_139
VCCP_140
VCCP_141
VCCP_142
VCCP_143
VCCP_144
VCCP_145

AL37
AN37
AP38
B32
C33
D32
E35
E33
F34
G35
F36
H36
J35
L35
N35
K36
R35
U35
P36
V36
W35
AA35
AC35
AB36
AE35
AG35
AJ35
AF36
AL35
AN35
AK36
AP36
B12
B14
C13
D12
D14
E13
F14
F12
G13
H14
H12
J13
K14
K12
L13
L11
M14
N13
N11
K10
P14
P12
R13
R11
T14
U13
U11
V14
V12
W13
W11
P10
V10
Y14
AA13
AA11
AB14
AB12
AC13
AC11
AD14
AB10
AE13
AE11
AF14
AF12
AG13
AG11
AH14
AJ13
AJ11
AF10
AK14
AK12
AL13
AL11
AN13
AN11
AP12
AR13
AR11
AK10
AP10
AU13
AU11
L9
L7
N9
N7
R9
R7
U9
U7
W9
W7
AA9
AA7
AC9
AC7
AE9
AE7
AG9
AG7
AJ9
AJ7
AL9
AL7
AN9
AN7
AR9
AR7
A33
A13

+1.05V

AW25
AW23
AW21

AG19
AG17

AW19
AW17

AA25
AA23
AA21
AC25
AC23
AC21
AE25
AE23
AE21
AG25
AG23
AG21
AJ25
AJ23
AJ21
AL25
AL23
AL21
AN25
AN23
AN21
AR25
AR23
AR21
AU25
AU23
AU21

BA25
BA23
BA21
BC25
BC23
BC21

AA19
AA17
AC19
AC17
AE19
AE17

AJ19
AJ17
AL19
AL17
AN19
AN17
AR19
AR17
AU19
AU17

BA19
BA17
BC19
BC17

AD12

G25
G23
G21

J25
J23
J21
L25
L23

L21
N25
N23
N21
R25
R23
R21
U25
U23
U21
W25
W23
W21

C17
C19
E19
E17
G19
G17

J19

J17

L19

L17
N19
N17
R19
R17
U19
U17
W19
W17

C11
C15
E15
G15
H10
M12

J15

L15
N15
M10

T12
R15
U15
W15

T10

Y12

U16E

U16E

VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
VSS_199
VSS_200
VSS_201
VSS_202
VSS_203
VSS_204
VSS_205
VSS_206
VSS_207
VSS_208
VSS_209
VSS_210
VSS_211
VSS_212
VSS_213
VSS_214
VSS_215
VSS_216
VSS_217
VSS_218
VSS_219
VSS_220
VSS_221
VSS_222
VSS_223
VSS_224
VSS_225
VSS_226
VSS_227
VSS_228
VSS_229
VSS_230
VSS_231
VSS_232
VSS_233
VSS_234
VSS_235
VSS_236
VSS_237
VSS_238
VSS_239
VSS_240
VSS_241
VSS_242
VSS_243
VSS_244
VSS_245
VSS_246
VSS_247
VSS_248
VSS_249
VSS_250
VSS_251
VSS_252
VSS_253
VSS_254
VSS_255
VSS_256
VSS_257
VSS_258
VSS_259
VSS_260
VSS_261
VSS_262
VSS_263
VSS_264
VSS_265
VSS_266
VSS_267
VSS_268
VSS_269
VSS_270
VSS_271
VSS_272
VSS_273
VSS_274
VSS_275
VSS_276
VSS_277
VSS_278
VSS_279

Penryn SFF_743

Penryn SFF_743

VSS_280
VSS_281
VSS_282
VSS_283
VSS_284
VSS_285
VSS_286
VSS_287
VSS_288
VSS_289
VSS_290
VSS_291
VSS_292
VSS_293
VSS_294
VSS_295
VSS_296
VSS_297
VSS_298
VSS_299
VSS_300
VSS_301
VSS_302
VSS_303
VSS_304
VSS_305
VSS_306
VSS_307
VSS_308
VSS_309
VSS_310
VSS_311
VSS_312
VSS_313
VSS_314
VSS_315
VSS_316
VSS_317
VSS_318
VSS_319
VSS_320
VSS_321
VSS_322
VSS_323
VSS_324
VSS_325
VSS_326
VSS_327
VSS_328
VSS_329
VSS_330
VSS_331
VSS_332
VSS_333
VSS_334
VSS_335
VSS_336
VSS_337
VSS_338
VSS_339
VSS_340
VSS_341
VSS_342
VSS_343
VSS_344
VSS_345
VSS_346
VSS_347
VSS_348
VSS_349
VSS_350
VSS_351
VSS_352
VSS_353
VSS_354
VSS_355
VSS_356
VSS_357
VSS_358
VSS_359
VSS_360
VSS_361
VSS_362
VSS_363
VSS_364
VSS_365
VSS_366
VSS_367
VSS_368
VSS_369
VSS_370
VSS_371
VSS_372
VSS_373
VSS_374
VSS_375
VSS_376
VSS_377
VSS_378
VSS_379
VSS_380
VSS_381
VSS_382
VSS_383
VSS_384
VSS_385
VSS_386
VSS_387
VSS_388
VSS_389
VSS_390
VSS_391
VSS_392
VSS_393
VSS_394
VSS_395

AA15
AC15
Y10
AD10
AH12
AE15
AG15
AJ15
AH10
AM12
AL15
AN15
AR15
AM10
AT12
AV12
AW13
AW11
AY12
AU15
AW15
AT10
BA13
BA11
BB12
BC11
BA15
BC15
B6
D6
E9
F6
G9
H6
K8
K6
M8
M6
P8
P6
T8
T6
V8
V6
U5
Y8
Y6
AB8
AB6
AD8
AD6
AF8
AF6
AH8
AH6
AK8
AK6
AM8
AM6
AP8
AP6
AT8
AT6
AU9
AV6
AU7
AW9
AY6
BA9
BB6
BC9
BD6
B4
C3
E3
G3
J3
L3
N3
R3
U3
W3
AA3
AC3
AE3
AG3
AJ3
AL3
AN3
AR3
AU3
AW3
BA3
BC3
D2
E1
G1
AW1
BA1
BB2
A41
A39
A29
A27
A31
A25
A23
A21
A19
A17
A11
A15
A7
A5
A9
BD4

AB42
AD42
AF42
AH42
AK42
AM42
AP42
AY44
AV44
AT42
AV42
AY42
BA43
BB42

AA39
AC39
AD38
AE39
AG39
AH38

AL39
AM38
AN39
AR39
AR37
AT38
AU39

AU37
AW39
AW37

BA39

BC41

BD40

BD38

AB34

AD34

AD36

AF34

AH34

AH36

AK34
AM34

AP34

B42
F44
D44
D42
F42
H42
K42
M42
P42
T42
V42
Y42

C39
E39
G37
H38
J39
L39
M38
N39
R39
T38
U39

W39

Y38

AJ39

B36
H34
D36

K34
M34
M36

P34

T34

V34

T36

Y34

Y36

U16D

U16D

VSS[001]
VSS[002]
VSS[003]
VSS[004]
VSS[005]
VSS[006]
VSS[007]
VSS[008]
VSS[009]
VSS[010]
VSS[011]
VSS[012]
VSS[013]
VSS[014]
VSS[015]
VSS[016]
VSS[017]
VSS[018]
VSS[019]
VSS[020]
VSS[021]
VSS[022]
VSS[023]
VSS[024]
VSS[025]
VSS[026]
VSS[027]
VSS[028]
VSS[029]
VSS[030]
VSS[031]
VSS[032]
VSS[033]
VSS[034]
VSS[035]
VSS[036]
VSS[037]
VSS[038]
VSS[039]
VSS[040]
VSS[041]
VSS[042]
VSS[043]
VSS[044]
VSS[045]
VSS[046]
VSS[047]
VSS[048]
VSS[049]
VSS[050]
VSS[051]
VSS[052]
VSS[053]
VSS[054]
VSS[055]
VSS[056]
VSS[057]
VSS[058]
VSS[059]
VSS[060]
VSS[061]
VSS[062]
VSS[063]
VSS[064]
VSS[065]
VSS[066]
VSS[067]
VSS[068]
VSS[069]
VSS[070]
VSS[071]
VSS[072]
VSS[073]
VSS[074]
VSS[075]
VSS[076]
VSS[077]
VSS[078]
VSS[079]
VSS[080]
VSS[081]

Penryn SFF_743

Penryn SFF_743

VSS[082]
VSS[083]
VSS[084]
VSS[085]
VSS[086]
VSS[087]
VSS[088]
VSS[089]
VSS[090]
VSS[091]
VSS[092]
VSS[093]
VSS[094]
VSS[095]
VSS[096]
VSS[097]
VSS[098]
VSS[099]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[162]
VSS[163]

AM36
AR35
AU35
AV34
AW35
AW33
AY34
AT36
AV36
BA33
BC33
BB36
BD36
C27
C29
C31
E29
E27
G29
G27
E31
G31
J29
J27
L29
L27
N29
N27
J31
L31
N31
R29
R27
U29
U27
R31
U31
W29
W27
W31
AA29
AA27
AC29
AC27
AA31
AC31
AE29
AE27
AG29
AG27
AJ29
AJ27
AE31
AG31
AJ31
AL29
AL27
AN29
AN27
AL31
AN31
AR29
AR27
AR31
AU29
AU27
AW29
AW27
AU31
AW31
BA29
BA27
BC29
BC27
BA31
BC31
C21
C23
C25
E25
E23
E21

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

CULV

CULV

CULV

CPU Penryn-SFF 2/2

CPU Penryn-SFF 2/2

CPU Penryn-SFF 2/2

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

of

of

of

630Thursday, January 07, 2010

630Thursday, January 07, 2010

630Thursday, January 07, 2010

5

U15I

U15I

BA55

VSS_1

AU55

VSS_2

AN55

VSS_3

AJ55

VSS_4

AE55

VSS_5

D D

C C

B B

AA55

BD54
BG53

AE53
AA53

BG51
BA51

AW51

AU51
AR51
AN51
AL51

AG51

AE51
AC51
AA51

BK50

AM50
BG49

BD48
BB48
AY48
AV48
AT48
AP48

AM48

AK48
AH48
AF48
AD48
AB48

BL47

BG47

BD46
AY46

AM46

AK46
AH46

BG45

AE45
AC45
AA45

BD44
BB44
AV44
AK44
AH44
AF44
AD44

BL43

BG43

AY43
AR43

U55
N55

AJ53

U53
N53

J53

G53

E53
K52

AJ51

W51

U51
R51
N51
L51

J51

G51

C51

K50
E49

C49

Y48
V48
T48
P48

M48

K48
H48

E47
C47
A47

W45

R45
N45
E45

K44
H44

W43

R43

M43

E43

VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66
VSS_67
VSS_68
VSS_69
VSS_70
VSS_71
VSS_72
VSS_73
VSS_74
VSS_75
VSS_76
VSS_77
VSS_78
VSS_79
VSS_80
VSS_81
VSS_82
VSS_83
VSS_84
VSS_85
VSS_86
VSS_87
VSS_88
VSS_89
VSS_90
VSS_91
VSS_92
VSS_93
VSS_94
VSS_95
VSS_96
VSS_97
VSS_98
VSS_99

CANTIGASFF

CANTIGASFF

VSS

VSS

VSS_100
VSS_101
VSS_102
VSS_103
VSS_104
VSS_105
VSS_106
VSS_107
VSS_108
VSS_109
VSS_110
VSS_111
VSS_112
VSS_113
VSS_114
VSS_115
VSS_116
VSS_117
VSS_118
VSS_119
VSS_120
VSS_121
VSS_122
VSS_123
VSS_124
VSS_125
VSS_126
VSS_127
VSS_128
VSS_129
VSS_130
VSS_131
VSS_132
VSS_133
VSS_134
VSS_135
VSS_136
VSS_137
VSS_138
VSS_139
VSS_140
VSS_141
VSS_142
VSS_143
VSS_144
VSS_145
VSS_146
VSS_147
VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198

C43
A43
BD42
H42
BG41
AY41
AU41
AM41
AL41
AG41
AE41
AA41
R41
M41
E41
BD40
AU40
AR40
AN40
W40
U40
T40
R40
K40
H40
BL39
BG39
BA39
E39
C39
A39
BD38
AU38
H38
BG37
AU37
M37
E37
BD36
AW36
H36
BL35
BG35
AY35
AU35
AL35
AG35
AE35
AA35
Y35
M35
E35
A35
BD34
AU34
AN34
H34
BL33
BG33
AY33
E33
BD32
AU32
AN32
AG32
AC32
Y32
H32
B32
BJ31
BG31
AY31
AN31
M31
E31
N30
H30
AN29
AJ29
M29
A29
AW28
AN28
AD28
AC28
Y28
W28
H28
F28
AN27
AJ27
M27
BF26
BD26
N26
H26
BJ25
AY25
AU25

AN25
AG25
AE25
AA25

BD24
AN24
AL24

BG23
AY23

BD22
BB22
AN22

BL21
BG21
AY21
AN21
AG21
AE21

BD20
BG19

AY19

BD18

BL17
BG17
AY17

BD16
AN16
AG16
AE16

BG15
AY15
AN15
AD15
AC15

BD14
BL13

BG13
AY13
AU13
AR13

AC13
AA13

BD12
AV12
AP12
AM12
AK12
AB12

BG11
AG11

BD10
AY10
AP10

E25
A25

H24

E23

W22
H22

M21
E21
A21

H20

M19
E19

N18
H18

M17
E17
A17

W16
N16
H16

R15
M15
E15

H14

AJ13

W13

U13
M13
E13
A13

V12
P12
H12

E11

H10
BL9
BG9

BD8
BB8
AY8
AV8
AT8
AP8

Y25

Y22

Y16

E9
A9

4

U15J

U15J

VSS_199
VSS_200
VSS_201
VSS_202
VSS_203
VSS_204
VSS_205
VSS_206
VSS_207
VSS_208
VSS_209
VSS_210
VSS_211
VSS_212
VSS_213
VSS_214
VSS_215
VSS_216
VSS_217
VSS_218
VSS_219
VSS_220
VSS_221
VSS_222
VSS_223
VSS_224
VSS_225
VSS_226
VSS_227
VSS_228
VSS_229
VSS_230
VSS_231
VSS_232
VSS_233
VSS_234
VSS_235
VSS_236
VSS_237
VSS_238
VSS_239
VSS_240
VSS_241
VSS_242
VSS_243
VSS_244
VSS_245
VSS_246
VSS_247
VSS_248
VSS_249
VSS_250
VSS_251
VSS_252
VSS_253
VSS_254
VSS_255
VSS_256
VSS_257
VSS_258
VSS_259
VSS_260
VSS_261
VSS_262
VSS_263
VSS_264
VSS_265
VSS_266
VSS_267
VSS_268
VSS_269
VSS_270
VSS_271
VSS_272
VSS_273
VSS_274
VSS_275
VSS_276
VSS_277
VSS_278
VSS_279
VSS_280
VSS_281
VSS_282
VSS_283
VSS_284
VSS_285
VSS_286
VSS_287
VSS_288
VSS_289
VSS_290
VSS_291
VSS_292
VSS_293
VSS_294
VSS_295
VSS_296
VSS_297
VSS_298
VSS_299

CANTIGASFF

CANTIGASFF

VSS

VSS

VSS_NCTF_1
VSS_NCTF_2
VSS_NCTF_3
VSS_NCTF_4
VSS_NCTF_5
VSS_NCTF_6
VSS_NCTF_7
VSS_NCTF_8

VSS_NCTF_9
VSS_NCTF_10
VSS_NCTF_11
VSS_NCTF_12

VSS NCTF

VSS NCTF

VSS_NCTF_13
VSS_NCTF_14
VSS_NCTF_15
VSS_NCTF_16
VSS_NCTF_17
VSS_NCTF_18
VSS_NCTF_19
VSS_NCTF_20
VSS_NCTF_21
VSS_NCTF_22
VSS_NCTF_23

VSS_SCB_1
VSS_SCB_2
VSS_SCB_3
VSS_SCB_4
VSS_SCB_5
VSS_SCB_6
VSS_SCB_7

VSS SCB

VSS SCB

VSS_300
VSS_301
VSS_302
VSS_303
VSS_304
VSS_305
VSS_306
VSS_307
VSS_308
VSS_309
VSS_310
VSS_311
VSS_312
VSS_313
VSS_314
VSS_315
VSS_316
VSS_317
VSS_318
VSS_319
VSS_320
VSS_321
VSS_322
VSS_323
VSS_324
VSS_325
VSS_326
VSS_327
VSS_328
VSS_329
VSS_330
VSS_331
VSS_332
VSS_333
VSS_334
VSS_335
VSS_336
VSS_337
VSS_338
VSS_339
VSS_340
VSS_341
VSS_342
VSS_343
VSS_344
VSS_345
VSS_346
VSS_347
VSS_348
VSS_349
VSS_350
VSS_351
VSS_352
VSS_353
VSS_354
VSS_355
VSS_356
VSS_357
VSS_358

VSS_359
VSS_360
VSS_361
VSS_362

AM8
AK8
AH8
AF8
AD8
AB8
Y8
V8
P8
M8
K8
H8
BJ7
E7
BF6
BC5
BA5
AW5
AU5
AR5
AN5
AL5
AJ5
AG5
AE5
AC5
AA5
W5
U5
N5
L5
J5
G5
C5
BH4
BE3
U3
E3
BC1
AW1
AR1
AL1
AG1
AC1
W1
N1
J1
AU43
BB42
AW38
BA35
L29
N28
N22
N20
N14
AL13
B10
AN13

N42
N40
N38
M39

AJ38
AH38
AD38
AC38
T35
R35
AT32
AR32
U32
R32
T28
R28
AT25
AR25
T24
R24
AN19
AJ19
AA19
Y19
T19
R19
AN18

BL55
BL1
A55
D1
B55
B2
A4

3

Reference Voltage for RCOMP

10mil/20mil W/S

H_RCOMP

12

R311

R311

24.9-1-04

24.9-1-04

+1.05V

12

R309

R309
221-1-04

221-1-04

10mil/20mil W/S

H_SWING

12

R308

R308

C498

C498

100-1-04

100-1-04

.1U-16-04Y-Z

.1U-16-04Y-Z

+1.05V

12

12

R109

R109
1K-1-04

1K-1-04

R101

R101
2K-1-04

2K-1-04

H_D#[63:0][5]

H_CPURST#[5]
H_CPUSLP#[5]

R106

R106

1 2

0-04

0-04

C132

C132
.1U-16-04Y-Z

.1U-16-04Y-Z

2

U15A

U15A

J7

H_D#0

H_D#_0

H6

H_D#1

H_D#_1

L11

H_D#2

H_D#_2

J3

H_D#3

H_D#_3

H4

H_D#4

H_D#_4

G3

H_D#5

H_D#_5

K10

H_D#6

H_D#_6

K12

H_D#7

H_D#_7

L1

H_D#8

H_D#_8

M10

H_D#9

H_D#_9

M6

H_D#_10

N11

H_D#11

H_D#_11

L7

H_D#12

H_D#_12

K6

H_D#13

H_D#_13

M4

H_D#14

H_D#_14

K4

H_D#15

H_D#_15

P6

H_D#16

H_D#_16

W9

H_D#17

H_D#_17

V6

H_D#18

H_D#_18

V2

H_D#19

H_D#_19

P10

H_D#20

H_D#_20

W7

H_D#21

H_D#_21

N9

H_D#22

H_D#_22

P4

H_D#23

H_D#_23

U9

H_D#24

H_D#_24

V4

H_D#25

H_D#_25

U1

H_D#26

H_D#_26

W3

H_D#27

H_D#_27

V10

H_D#28

H_D#_28

U7

H_D#29

H_D#_29

W11

H_D#30

H_D#_30

U11

H_D#31

H_D#_31

AC11

H_D#32

H_D#_32

AC9

H_D#33

H_D#_33

Y4

H_D#34

H_D#_34

Y10

H_D#35

H_D#_35

AB6

H_D#36

H_D#_36

AA9

H_D#37

H_D#_37

AB10

H_D#38

H_D#_38

AA1

H_D#39

H_D#_39

AC3

H_D#40

H_D#_40

AC7

H_D#41

H_D#_41

AD12

H_D#42

H_D#_42

AB4

H_D#43

H_D#_43

Y6

H_D#44

H_D#_44

AD10

H_D#45

H_D#_45

AA11

H_D#46

H_D#_46

AB2

H_D#47

H_D#_47

AD4

H_D#48

H_D#_48

AE7

H_D#49

H_D#_49

AD2

H_D#50

H_D#_50

AD6

H_D#51

H_D#_51

AE3

H_D#52

H_D#_52

AG9

H_D#53

H_D#_53

AG7

H_D#54

H_D#_54

AE11

H_D#55

H_D#_55

AK6

H_D#56 H_DINV#3

H_D#_56

AF6

H_D#57

H_D#_57

AJ9

H_D#58

H_D#_58

AH6

H_D#59

H_D#_59

AF12

H_D#60

H_D#_60

AH4

H_D#61

H_D#_61

AJ7

H_D#62

H_D#_62

AE9

H_D#63

H_D#_63

B6
D4

J11

G9

L17
K18

H_SWING
H_RCOMP

H_CPURST#
H_CPUSLP#

H_AVREF
H_DVREF

CANTIGASFF

CANTIGASFF

H_AVREF

H_DVREF

H_SWING
H_RCOMP

HOST

HOST

H_A#_10
H_A#_11
H_A#_12
H_A#_13
H_A#_14
H_A#_15
H_A#_16
H_A#_17
H_A#_18
H_A#_19
H_A#_20
H_A#_21
H_A#_22
H_A#_23
H_A#_24
H_A#_25
H_A#_26
H_A#_27
H_A#_28
H_A#_29
H_A#_30
H_A#_31
H_A#_32
H_A#_33
H_A#_34
H_A#_35

H_ADS#
H_ADSTB#_0
H_ADSTB#_1

H_BNR#

H_BPRI#

H_BREQ#

H_DEFER#

H_DBSY#

HPLL_CLK

HPLL_CLK#

H_DPWR#

H_DRDY#

H_HITM#
H_LOCK#
H_TRDY#

H_DINV#_0
H_DINV#_1
H_DINV#_2
H_DINV#_3

H_DSTBN#_0
H_DSTBN#_1
H_DSTBN#_2
H_DSTBN#_3

H_DSTBP#_0
H_DSTBP#_1
H_DSTBP#_2
H_DSTBP#_3

H_REQ#_0
H_REQ#_1

H_REQ#_2
H_REQ#_3

H_REQ#_4

H_RS#_0

H_RS#_1

H_RS#_2

H_A#_3
H_A#_4
H_A#_5
H_A#_6
H_A#_7
H_A#_8
H_A#_9

H_HIT#

L15
B14
C15
D12
F14
G17
B12
J15
D16
C17
D14
K16
F16
B16
C21
D18
J19
J21
B18
D22
G19
J17
L21
L19
G21
D20
K22
F18
K20
F20
F22
B20
A19

F10
A15
C19
C9
B8
C11
E5
D6
AH10
AJ11
G11
H2
C7
F8
A11
D8

L9
N7
AA7
AG3

K2
N3
AA3
AF4

L3
M2
Y2
AF2

J13
L13
C13
G13
G15

F4
F2
G7

H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14H_D#10
H_A#15
H_A#16
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35

H_DINV#0
H_DINV#1
H_DINV#2

H_DSTBN#0
H_DSTBN#1
H_DSTBN#2
H_DSTBN#3

H_DSTBP#0
H_DSTBP#1
H_DSTBP#2
H_DSTBP#3

H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4

H_RS#0
H_RS#1
H_RS#2

1

H_A#[35:3] [5]

H_ADS# [5]
H_ADSTB#0 [5]
H_ADSTB#1 [5]
H_BNR# [5]
H_BPRI# [5]
H_BREQ#0 [5]
H_DEFER# [5]
H_DBSY# [5]
CLK_MCH_BCLK [15]
CLK_MCH_BCLK# [15]
H_DPWR# [5]
H_DRDY# [5]
H_HIT# [5]
H_HITM# [5]
H_LOCK# [5]
H_TRDY# [5]

H_DINV#[3:0] [5]

H_DSTBN#[3:0] [5]

H_DSTBP#[3:0] [5]

H_REQ#[4:0] [5]

H_RS#[2:0] [5]

Closed to NB within 100mil

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

NB HOST/VSS

NB HOST/VSS

NB HOST/VSS

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

of

of

of

730Monday, December 21, 2009

730Monday, December 21, 2009

730Monday, December 21, 2009

5

U15B

FSB

1067
800
667

J43
L43
J41

L41
AN11
AM10
AK10
AL11

F12
AN45
AP44
AT44
AN47

C27

D30

J9

AW42

BB20
BE19
BF20
BF18

K26

G23

G25

J25
L25
L27

F24
D24
D26

J23

B26
A23
C23
B24
B22
K24
C25

L23
L33

K32
K34

J35

F6
J39
L39

AY39
BB18

K28
K36

A7

A49
A52
A54
B54
D55

G55
BE55
BH55
BK55
BK54
BL54
BL52
BL49

BL7

BL4

BL2

BK2

BK1

BH1

BE1

G1

CANTIGASFF

CANTIGASFF

Enable iTPM

U15B

RSVD1
RSVD2
RSVD3
RSVD4
RSVD5
RSVD6
RSVD7
RSVD8
RSVD9
RSVD10
RSVD11
RSVD12
RSVD13
RSVD14
RSVD15

RSVD17

RSVD20

RSVD22
RSVD23
RSVD24
RSVD25

CFG_0
CFG_1
CFG_2
CFG_3
CFG_4
CFG_5
CFG_6
CFG_7
CFG_8
CFG_9
CFG_10
CFG_11
CFG_12
CFG_13
CFG_14
CFG_15
CFG_16
CFG_17
CFG_18
CFG_19
CFG_20

PM_SYNC#
PM_DPRSTP#
PM_EXT_TS#_0
PM_EXT_TS#_1
PWROK
RSTIN#
THERMTRIP#
DPRSLPVR

NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21
NC_22

DMI MODE H/DEF:X4 L:X2

MCH_CFG5

MCH_CFG6

CFGRSVD

CFGRSVD

PM

PM

NC

NC

12

12

+3.3V

R136 2.2K-1-04R136 2.2K-1-04
R134 2.2K-1-04R134 2.2K-1-04
R326 10K-04R326 10K-04
R130 10K-04R130 10K-04

R133 10K-04R133 10K-04

D D

C C

B B

R320 10K-04R320 10K-04

PMSYNC#[13]

H_DPRSTP#[5,12]

PM_EXTTS#1[16]

DELAY_VR_PWRGOOD[24]

PLT_RST#[13,18,19,22,23]

PM_DPRSLPVR[13,24]

ICH_THRMTRIP#

C190

C190
.01U-16-04X-K

.01U-16-04X-K

12

12
1 2
1 2

1 2
1 2

R325 100K-04R325 100K-04

1 2

R324 100K-04R324 100K-04

1 2

Colse to NB

LVDS_EDID_CLK
LVDS_EDID_DAT

LCTLB_DATA

PM_EXTTS#1
MCH_CLK_REQ#

NB_LCD_BL_EN

NB_LCD_PWR_EN

CFG CONTROL

CFG2 CFG1 CFG0

00100

110

MCH_BSEL0[5,15,23]
MCH_BSEL1[5,15]
MCH_BSEL2[5,15]

DELAY_VR_PWRGOOD

1 2

R102 100-04R102 100-04

DELAY_VR_PWRGOOD

C253

C253
.1U-16-04Y-Z

.1U-16-04Y-Z

0

MCH_CFG5
MCH_CFG6
MCH_CFG7

MCH_CFG9
MCH_CFG10

MCH_CFG12
MCH_CFG13

MCH_CFG16

MCH_CFG19
MCH_CFG20

PM_EXTTS#1

RSTIN#

ICH_THRMTRIP#

For EMI

000

FSB 1066

010

MCH_BSEL[0..2]

DMI MODE

CFG5
CFG6

A A

ITPM

CFG7

ME Crypto Strap

CFG9

PCIE Graphics LaneNormal Reverse

CFG10

PCIE Loopback ENABLE

CFG12

ALLZ

CFG13

XOR

CFG16HFSB ODT

DMI Lane Reversal

CFG20

Digital Display
Port with PCIE

FSB 800

011

FSB 667

H

L
DMI X2
ENABLE
DISABLEENABLE

ALLZ
XOR
DISABLE HENABLE
Normal
Single

Default

H
H
H
H
H

H

LCFG19
L

DMI X4
DISABLE

DISABLE
DISABLE
DISABLE

Reverse
Dual

5

4

BB32

SA_CK_0

BA25

SA_CK_1

BA33

SB_CK_0

BA23

SB_CK_1

BA31

SA_CK#_0

BC25

SA_CK#_1

BC33

SB_CK#_0

BB24

SB_CK#_1

BC35

SA_CKE_0

BE33

SA_CKE_1

BE37

SB_CKE_0

BC37

SB_CKE_1

BK18

SA_CS#_0

BK16

SA_CS#_1

BE23

SB_CS#_0

BC19

SB_CS#_1

BJ17

SA_ODT_0

BJ19

SA_ODT_1

BC17

SB_ODT_0

BE17

SB_ODT_1

BL25

SM_RCOMP

SM_RCOMP#

SM_RCOMP_VOH
SM_RCOMP_VOL

SM_VREF

SM_PWROK

SM_REXT

SM_DRAMRST#
DPLL_REF_CLK

DPLL_REF_CLK#

DDR CLK/ CONTROL/COMPENSATION

DDR CLK/ CONTROL/COMPENSATION

DPLL_REF_SSCLK

DPLL_REF_SSCLK#

PEG_CLK

PEG_CLK#

CLK

CLK

DMI_RXN_0
DMI_RXN_1
DMI_RXN_2
DMI_RXN_3

DMI_RXP_0
DMI_RXP_1
DMI_RXP_2
DMI_RXP_3

DMI_TXN_0
DMI_TXN_1
DMI_TXN_2
DMI_TXN_3

DMI_TXP_0
DMI_TXP_1

DMI

DMI

DMI_TXP_2
DMI_TXP_3

GFX_VID_0
GFX_VID_1
GFX_VID_2
GFX_VID_3
GFX_VID_4

GFX_VR_EN

GRAPHICS VID

GRAPHICS VID

CL_CLK

CL_DATA

CL_PWROK

CL_RST#
CL_VREF

ME

ME

DDPC_CTRLCLK

DDPC_CTRLDATA

SDVO_CTRLCLK

SDVO_CTRLDATA

CLKREQ#

ICH_SYNC#

MISC

MISC

TSATN#

HDA_BCLK
HDA_RST#

HDA_SDI

HDA_SDO

HDA_SYNC

HDA

HDA

R115

R115
@2.2K-1-04

@2.2K-1-04

R317

R317
@2.2K-1-04

@2.2K-1-04

M_RCOMPP

BK26

M_RCOMPN

BK32

SM_RCOMP_VOH

BL31

SM_RCOMP_VOL

BC51

M_VREF_MCH

AY37
BH20
BA37

B42

CLK_NB_DPLL

D42

CLK_NB_DPLL#

B50
D50

R49
P50

AG55

DMI_RXN0

AL49

DMI_RXN1

AH54

DMI_RXN2

AL47

DMI_RXN3

AG53

DMI_RXP0

AK50

DMI_RXP1

AH52

DMI_RXP2

AL45

DMI_RXP3

AG49

DMI_TXN0

AJ49

DMI_TXN1

AJ47

DMI_TXN2

AG47

DMI_TXN3

AF50

DMI_TXP0

AH50

DMI_TXP1

AJ45

DMI_TXP2

AG45

DMI_TXP3

G33
G37
F38
F36
G35

G39

AK52
AK54
AW40
AL53
AL55

CL_VREF

F34
F32
B38
A37
C31

CLK_REQ#_R

K42

D10

ME_TSATN

C29
B30
D28
A27
B28

MCH_CFG7 MCH_CFG9 MCH_CFG10 MCH_CFG12 MCH_CFG13 MCH_CFG16

4

MB_CK0 [16]
MB_CK1 [16]

MB_CK#0 [16]
MB_CK#1 [16]

MB_CKE0 [16]
MB_CKE1 [16]

MB_CS#0 [16]
MB_CS#1 [16]

MB_ODT0 [16]
MB_ODT1 [16]

DDR3_PWROK

1 2

R103 499-1-04R103 499-1-04

DDR3_DRAMRST# [16]

CLK_NB_DPLL [15]
CLK_NB_DPLL# [15]
SSCLK_NB_LCD [15]
SSCLK_NB_LCD# [15]

CLK_NB_PEG [15]
CLK_NB_PEG# [15]

DMI_RXN[3:0] [13]

DMI_RXP[3:0] [13]

DMI_TXN[3:0] [13]

DMI_TXP[3:0] [13]

CL_CLK0 [13]
CL_DATA0 [13]
CL_PWROK [13]
CL_RST0# [13]

CLK_REQ:Asserted
to control the raw
PCI-E clock

1 2

R319 0-04R319 0-04

1 2

R310 @56-04R310 @56-04

Check

12

R314

R314
@2.2K-1-04

@2.2K-1-04

+1.5VS_PGD[26]
PM_SLP_S4#[13,23]

RA03

NB_CRT_B[17]
NB_CRT_G[17]
NB_CRT_R[17]

MCH_CLK_REQ# [15]
MCH_SYNC# [13]

+1.05V

RA03

1
2

74AHC1G08

74AHC1G08

1 2

3

U20

U20

R114

R114

150-1-04

150-1-04

+3.3VS

C602

C602

53

4

MCH_CFG5

R113

R113

150-1-04

150-1-04

1 2

1 2

.1U-16-04Y-Z

.1U-16-04Y-Z

R437

R437

12.1K-R2-1%

12.1K-R2-1%

1 2

DDR3_PWROK

R438

R438

10K-1-04

10K-1-04

1 2

PCI Express Graphics Lane

0 = DMIX2

*

1=DMI X4 945GMS no support

R112

R112

NB_CRT_CLK[17]

150-1-04

150-1-04

NB_CRT_DAT[17]

NB_CRT_HSYNC[17]
NB_CRT_VSYNC[17]

NB_LCD_BL_EN[17]

LVDS_EDID_CLK[17]
LVDS_EDID_DAT[17]

NB_LCD_PWR_EN[17]

R329 2.4K-1-04R329 2.4K-1-04

NB_LVDSA_CLKN[17]
NB_LVDSA_CLKP[17]

NB_LVDSA_N0[17]
NB_LVDSA_N1[17]
NB_LVDSA_N2[17]

NB_LVDSA_P0[17]
NB_LVDSA_P1[17]
NB_LVDSA_P2[17]

R119 75-1-04R119 75-1-04
R318 75-1-04R318 75-1-04
R118 75-1-04R118 75-1-04

NB_CRT_B
NB_CRT_G
NB_CRT_R

1 2

R122 23.7-1-04R122 23.7-1-04

1 2

R123 1.02K-1-04R123 1.02K-1-04

1 2

R121 23.7-1-04R121 23.7-1-04

Modify Value for CRT signal

1 2

1 2
1 2
1 2

LCTLA_CLK
LCTLB_DATALCTLA_CLK

2

HSYNC

VSYNC

D38
C37
K38

L37
J37
L35

B36

F50
H46
P44
K46
D46
B46
D44
B44

G45

F46
G41
C45

F44
G47

F40
A45

B40
A41

F42
D48

D40
C41
G43
B48

J27
E27
G27

F26

B34
D34

J29
G29

F30
E29
D36

C35

J33
D32
G31

U15C

U15C

L_BKLT_CTRL
L_BKLT_EN
L_CTRL_CLK

L_CTRL_DATA
L_DDC_CLK
L_DDC_DATA

L_VDD_EN
LVDS_IBG
LVDS_VBG
LVDS_VREFH
LVDS_VREFL
LVDSA_CLK#
LVDSA_CLK
LVDSB_CLK#
LVDSB_CLK

LVDSA_DATA#_0
LVDSA_DATA#_1
LVDSA_DATA#_2
LVDSA_DATA#_3

LVDSA_DATA_0
LVDSA_DATA_1
LVDSA_DATA_2
LVDSA_DATA_3

LVDSB_DATA#_0
LVDSB_DATA#_1
LVDSB_DATA#_2
LVDSB_DATA#_3

LVDSB_DATA_0
LVDSB_DATA_1
LVDSB_DATA_2
LVDSB_DATA_3

TVA_DAC
TVB_DAC
TVC_DAC

TVA_RTN

TV_DCONSEL_0
TV_DCONSEL_1

CRT_BLUE
CRT_GREEN
CRT_RED
CRT_IRTN
CRT_DDC_CLK

CRT_DDC_DATA
CRT_HSYNC
CRT_TVO_IREF
CRT_VSYNC

CANTIGASFF

CANTIGASFF

RA03 RA03 RA03

C298

C298

.1U-16-04Y-Z

.1U-16-04Y-Z

2

+1.05V

12

12

R153

R153
1K-1-04

1K-1-04

R151

R151
511-1-04

511-1-04

12

R313

R313
@2.2K-1-04

@2.2K-1-04

12

R129

R129
@4.02K-1-04

@4.02K-1-04

+1.5VS+1.5VS

12

R105

R105

80.6-1-04

80.6-1-04

12

R104

R104
@20-1-04

@20-1-04

12

R116

R116
@2.2K-1-04

@2.2K-1-04

3

12

R108

R108
@20-1-04

M_RCOMPNM_RCOMPP

@20-1-04

12

R107

R107

80.6-1-04

80.6-1-04

+3.3V +3.3V

12

MCH_CFG19 MCH_CFG20

R125

R125
@4.02K-1-04

@4.02K-1-04

12

R316

R316
@2.2K-1-04

@2.2K-1-04

CL_VREF

M_VREF_MCH

C280

C280

1

U45

PEG_COMP

PEG_COMPI

T44

PEG_COMPO

D52

PEG_RX#_0

G49

PEG_RX#_1

K54

PEG_RX#_2

H50

PEG_RX#_3

M52

PEG_RX#_4

N49

PEG_RX#_5

P54

PEG_RX#_6

V46

PEG_RX#_7

Y50

PEG_RX#_8

V52

PEG_RX#_9
PEG_RX#_10
PEG_RX#_11
PEG_RX#_12
PEG_RX#_13
PEG_RX#_14
PEG_RX#_15

PEG_RX_0
PEG_RX_1
PEG_RX_2
PEG_RX_3
PEG_RX_4
PEG_RX_5
PEG_RX_6
PEG_RX_7
PEG_RX_8

PEG_RX_9
PEG_RX_10
PEG_RX_11
PEG_RX_12
PEG_RX_13
PEG_RX_14
PEG_RX_15

PEG_TX#_0
PEG_TX#_1
PEG_TX#_2
PEG_TX#_3
PEG_TX#_4
PEG_TX#_5
PEG_TX#_6
PEG_TX#_7
PEG_TX#_8
PEG_TX#_9

PEG_TX#_10
PEG_TX#_11
PEG_TX#_12
PEG_TX#_13
PEG_TX#_14
PEG_TX#_15

PEG_TX_0
PEG_TX_1
PEG_TX_2
PEG_TX_3
PEG_TX_4
PEG_TX_5
PEG_TX_6
PEG_TX_7
PEG_TX_8

PEG_TX_9
PEG_TX_10
PEG_TX_11
PEG_TX_12
PEG_TX_13
PEG_TX_14
PEG_TX_15

W49
AB54
AD46
AC55
AE49
AF54

E51
F48
J55
J49
M54
M50
P52
U47
AA49
V54
V50
AB52
AC47
AC53
AD50
AF52

L47
F52
P46
H54
L55
T46
R53
U49
T54
Y46
AB46
W53
Y54
AC49
AF46
AD54

J47
F54
N47
H52
L53
R47
R55
T50
T52
W47
AA47
W55
Y52
AB50
AE47
AD52

SM_RCOMP_VOH

SM_RCOMP_VOL

LVDS

LVDS

TV

TV

PCI-EXPRESS GRAPHICS

PCI-EXPRESS GRAPHICS

VGA

VGA

+1.5VS

12

R142

R142
1K-1-04

1K-1-04

12

R137

R137
1K-1-04

1K-1-04

.1U-16-04Y-Z

.1U-16-04Y-Z

R131 49.9-1-04R131 49.9-1-04

C202

C202

2.2U-6.3-06R-K

2.2U-6.3-06R-K

C176

C176

2.2U-6.3-06R-K

2.2U-6.3-06R-K

FSB ODT L:DISABLE

12

R312

R312
@2.2K-1-04

@2.2K-1-04

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

NB DDR BUS/LVDS/PCIE

NB DDR BUS/LVDS/PCIE

NB DDR BUS/LVDS/PCIE

CULV

CULV

CULV

1

1 2

C199

C199
10n-50-04X-K

10n-50-04X-K

C200

C200
10n-50-04X-K

10n-50-04X-K

12

R315

R315
@2.2K-1-04

@2.2K-1-04

B1XIVXX

B1XIVXX

B1XIVXX

RA03

+1.5VS

830Monday, December 21, 2009

830Monday, December 21, 2009

830Monday, December 21, 2009

12

12

12

+1.05V

R111

R111
1K-0.1-04

1K-0.1-04

R110

R110

3.01K-0.1-04

3.01K-0.1-04

R120

R120
1K-0.1-04

1K-0.1-04

of

of

of

B

B

B

5

U15D

U15D

AP46

SA_DQ_0

AU47

D D

C C

B B

AT46
AU49
AR45
AN49
AV50
AP50

AW47

BD50

AW49

BA49
BC49
AV46
BA47
AY50

BF46
BC47

BF50

BF48
BC43
BE49
BA43
BE47

BF42
BC39

BF44

BF40
BB40
BE43

BF38
BE41
BA15
BE11
BE15

BF14
BB14
BC15
BE13

BF16

BF10
BC11

BF8
BG7
BC7
BC9
BD6

BF12

AV6
BB6

AW7

AY6

AT10

AW11

AU11

AW9

AR11

AT6
AP6

AL7
AR7

AT12

AM6
AU7

SA_DQ_1
SA_DQ_2
SA_DQ_3
SA_DQ_4
SA_DQ_5
SA_DQ_6
SA_DQ_7
SA_DQ_8
SA_DQ_9
SA_DQ_10
SA_DQ_11
SA_DQ_12
SA_DQ_13
SA_DQ_14
SA_DQ_15
SA_DQ_16
SA_DQ_17
SA_DQ_18
SA_DQ_19
SA_DQ_20
SA_DQ_21
SA_DQ_22
SA_DQ_23
SA_DQ_24
SA_DQ_25
SA_DQ_26
SA_DQ_27
SA_DQ_28
SA_DQ_29
SA_DQ_30
SA_DQ_31
SA_DQ_32
SA_DQ_33
SA_DQ_34
SA_DQ_35
SA_DQ_36
SA_DQ_37
SA_DQ_38
SA_DQ_39
SA_DQ_40
SA_DQ_41
SA_DQ_42
SA_DQ_43
SA_DQ_44
SA_DQ_45
SA_DQ_46
SA_DQ_47
SA_DQ_48
SA_DQ_49
SA_DQ_50
SA_DQ_51
SA_DQ_52
SA_DQ_53
SA_DQ_54
SA_DQ_55
SA_DQ_56
SA_DQ_57
SA_DQ_58
SA_DQ_59
SA_DQ_60
SA_DQ_61
SA_DQ_62
SA_DQ_63

CANTIGASFF

CANTIGASFF

4

BC21

SA_BS_0

BJ21

SA_BS_1

BJ41

SA_BS_2

BH22

SA_RAS#

BK20

SA_CAS#

BL15

SA_WE#

AT50

SA_DM_0

BB50

SA_DM_1

BB46

SA_DM_2

BE39

SA_DM_3

BB12

SA_DM_4

BE7

SA_DM_5

AV10

SA_DM_6

AR9

SA_DM_7

SA_MA_0
SA_MA_1
SA_MA_2
SA_MA_3
SA_MA_4
SA_MA_5
SA_MA_6
SA_MA_7
SA_MA_8
SA_MA_9

AR47
BA45
BE45
BC41
BC13
BB10
BA7
AN7
AR49
AW45
BC45
BA41
BA13
BA11
BA9
AN9

BC23
BF22
BE31
BC31
BH26
BJ35
BB34
BH32
BB26
BF32
BA21
BG25
BH34
BH18
BE25

SA_DQS_0
SA_DQS_1
SA_DQS_2
SA_DQS_3
SA_DQS_4
SA_DQS_5
SA_DQS_6

SA_DQS_7
SA_DQS#_0
SA_DQS#_1
SA_DQS#_2
SA_DQS#_3
SA_DQS#_4
SA_DQS#_5
SA_DQS#_6
SA_DQS#_7

SA_MA_10
SA_MA_11
SA_MA_12

DDR SYSTEM MEMORY A

DDR SYSTEM MEMORY A

SA_MA_13
SA_MA_14

3

MB_DQ[63:0][16]

MB_DQ0
MB_DQ1
MB_DQ2
MB_DQ3
MB_DQ4
MB_DQ5
MB_DQ6
MB_DQ7
MB_DQ8
MB_DQ9
MB_DQ10
MB_DQ11
MB_DQ12
MB_DQ13 MB_DM1
MB_DQ14
MB_DQ15
MB_DQ16
MB_DQ17
MB_DQ18
MB_DQ19
MB_DQ20
MB_DQ21
MB_DQ22
MB_DQ23
MB_DQ24
MB_DQ25
MB_DQ26
MB_DQ27
MB_DQ28
MB_DQ29
MB_DQ30
MB_DQ31
MB_DQ32
MB_DQ33
MB_DQ34
MB_DQ35
MB_DQ36
MB_DQ37
MB_DQ38
MB_DQ39
MB_DQ40
MB_DQ41
MB_DQ42
MB_DQ43
MB_DQ44
MB_DQ45
MB_DQ46
MB_DQ47
MB_DQ48
MB_DQ49
MB_DQ50
MB_DQ51
MB_DQ52
MB_DQ53
MB_DQ54
MB_DQ55
MB_DQ56
MB_DQ57
MB_DQ58
MB_DQ59
MB_DQ60
MB_DQ61
MB_DQ62
MB_DQ63

AP54
AM52
AR55
AV54
AM54
AN53
AT52
AU53

AW53

AY52
BB52
BC53
AV52

AW55

BD52
BC55
BF54
BE51
BH48
BK48
BE53
BH52
BK46

BJ47
BL45
BJ45

BL41
BH44
BH46
BK44
BK40

BJ39
BK10
BH10

BK6

BH6

BJ9

BL11

BG5

BJ5

BG3

BF4

BD4

BA3
BE5
BF2
BB4
AY4
BA1
AP2

AU1

AT2
AT4

AV4
AU3
AR3
AN1

AP4

AL3

AJ1

AK4
AM4
AH2

AK2

2

U15E

U15E

SB_DQ_0
SB_DQ_1
SB_DQ_2
SB_DQ_3
SB_DQ_4
SB_DQ_5
SB_DQ_6
SB_DQ_7
SB_DQ_8
SB_DQ_9
SB_DQ_10
SB_DQ_11
SB_DQ_12
SB_DQ_13
SB_DQ_14
SB_DQ_15
SB_DQ_16
SB_DQ_17
SB_DQ_18
SB_DQ_19
SB_DQ_20
SB_DQ_21
SB_DQ_22
SB_DQ_23
SB_DQ_24
SB_DQ_25
SB_DQ_26
SB_DQ_27
SB_DQ_28
SB_DQ_29
SB_DQ_30
SB_DQ_31
SB_DQ_32
SB_DQ_33
SB_DQ_34
SB_DQ_35
SB_DQ_36
SB_DQ_37
SB_DQ_38
SB_DQ_39
SB_DQ_40
SB_DQ_41
SB_DQ_42
SB_DQ_43
SB_DQ_44
SB_DQ_45
SB_DQ_46
SB_DQ_47
SB_DQ_48
SB_DQ_49
SB_DQ_50
SB_DQ_51
SB_DQ_52
SB_DQ_53
SB_DQ_54
SB_DQ_55
SB_DQ_56
SB_DQ_57
SB_DQ_58
SB_DQ_59
SB_DQ_60
SB_DQ_61
SB_DQ_62
SB_DQ_63

CANTIGASFF

CANTIGASFF

1

BJ13
BK12
BK38

BE21
BH14
BK14

AP52
AY54
BJ49
BJ43
BH12
BD2
AY2
AJ3

AR53
BA53
BH50
BK42
BH8
BB2
AV2
AM2
AT54
BB54
BJ51
BH42
BK8
BC3
AW3
AN3

BJ15
BJ33
BH24
BA17
BF36
BH36
BF34
BK34
BJ37
BH40
BH16
BK36
BH38
BJ11
BL37

MB_BA0
MB_BA1
MB_BA2

MB_DM0
MB_DM2

MB_DM3
MB_DM4
MB_DM5
MB_DM6
MB_DM7

MB_DQS0
MB_DQS1
MB_DQS2
MB_DQS3
MB_DQS4
MB_DQS5
MB_DQS6
MB_DQS7
MB_DQS#0
MB_DQS#1
MB_DQS#2
MB_DQS#3
MB_DQS#4
MB_DQS#5
MB_DQS#6
MB_DQS#7

MBA_A0
MBA_A1
MBA_A2
MBA_A3
MBA_A4
MBA_A5
MBA_A6
MBA_A7
MBA_A8
MBA_A9
MBA_A10
MBA_A11
MBA_A12
MBA_A13
MBA_A14

SB_BS_0
SB_BS_1
SB_BS_2

SB_RAS#
SB_CAS#

SB_WE#

SB_DM_0
SB_DM_1
SB_DM_2
SB_DM_3
SB_DM_4
SB_DM_5
SB_DM_6
SB_DM_7

SB_DQS_0
SB_DQS_1
SB_DQS_2
SB_DQS_3
SB_DQS_4
SB_DQS_5
SB_DQS_6

SB_DQS_7
SB_DQS#_0
SB_DQS#_1
SB_DQS#_2
SB_DQS#_3
SB_DQS#_4
SB_DQS#_5
SB_DQS#_6
SB_DQS#_7

SB_MA_0
SB_MA_1
SB_MA_2
SB_MA_3
SB_MA_4
SB_MA_5
SB_MA_6
SB_MA_7
SB_MA_8

SB_MA_9
SB_MA_10
SB_MA_11
SB_MA_12
SB_MA_13
SB_MA_14

DDR SYSTEM MEMORY B

DDR SYSTEM MEMORY B

MB_BA[2:0] [16]

MB_RAS# [16]
MB_CAS# [16]
MB_WE# [16]

MB_DM[7:0] [16]

MB_DQS[7:0] [16]

MB_DQS#[7:0] [16]

MBA_A[14:0] [16]

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
B

B

B

CULV

CULV

CULV

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

NB DDR INTERFACE

NB DDR INTERFACE

NB DDR INTERFACE

B1XIVXX

B1XIVXX

B1XIVXX

930Monday, December 21, 2009

930Monday, December 21, 2009

930Monday, December 21, 2009

1

B

B

B

of

of

of

5

B27

B27

BD-QT1608RL-30

B28

B28

B20

B20

B14

B14

BD-QT1608RL-30

BD-QT1608RL-30

BD-QT1608RL-30

BD-QT1608RL-30

BD-QT1608RL-30

BD-QT1608RL-30

BD-QT1608RL-30

+1.05V

+1.05V

C278

C278
1U-10-06R-K

1U-10-06R-K

C288

C288

2.2U-10-06X-Z

2.2U-10-06X-Z

C133

C133
.1U-16-04Y-Z

.1U-16-04Y-Z

C102

C102

2.2U-10-06X-Z

2.2U-10-06X-Z

B32

B32

C273

C273
.1U-10-04R-K

.1U-10-04R-K

C279

C279
.1U-10-04R-K

.1U-10-04R-K

C149

C149
1U-6.3-04Y-Z

1U-6.3-04Y-Z

C97

C97
.1U-10-04R-K

.1U-10-04R-K

R138 @0-04R138 @0-04

+3.3V

R139 0-04R139 0-04

+1.5V

BD-QT1608RL-30

BD-QT1608RL-30

B19

B19

0-06

0-06 C137

C155

C155

.1U-10-04R-K

.1U-10-04R-K

2.2U-10-06X-Z

2.2U-10-06X-Z

B21 0-06B21 0-06

+1.05V

B17

B17

+1.05V

B31

B31

+1.05V

B29

B29

+1.8VS

+1.05V

D D

C C

B B

+1.05V

+1.05V

+1.05V

MCH_VCCA_DPLLA
MCH_VCCA_DPLLB
MCH_VCCA_HPLL
MCH_VCCA_MPLL

1 2

1 2

Check Power

C163

C163

BD-QT1608RL-30

BD-QT1608RL-30

BD-QT1608RL-30

BD-QT1608RL-30

C281

C281
1U-10-06R-K

1U-10-06R-K

BD-QT1608RL-60

BD-QT1608RL-60

+3.3V

+3.3V

4

BD-QT1608RL-60

BD-QT1608RL-60

R126

R126

C282

C282
1U-10-06R-K

1U-10-06R-K

MCH_VCCA_SM

C115

C115

2.2U-10-06X-Z

2.2U-10-06X-Z

MCH_VCCD_LVDS

B25

B25

C219

C219

.01U-16-04X-K

.01U-16-04X-K

1 2

0-04

0-04

C234

C234

.01U-16-04X-K

.01U-16-04X-K

C271 1000P-50-04X-KC271 1000P-50-04X-K

C255 .1U-10-04R-KC255 .1U-10-04R-K

C269

C269
.1U-10-04R-K

.1U-10-04R-K

C134

C134

2.2U-10-06X-Z

2.2U-10-06X-Z

MCH_VCCA_SM_CK

C204

C204

2.2U-10-06X-Z

2.2U-10-06X-Z

MCH_VCCD_HPLL

C117

C117
.1U-10-04R-K

.1U-10-04R-K

MCH_PEG_HPLL

C267

C267
.1U-10-04R-K

.1U-10-04R-K

C252

C252

C289

C289

2.2U-10-06X-Z

2.2U-10-06X-Z

.1U-10-04R-K

.1U-10-04R-K

MCH_CRT_DAC

MCH_CRT_DAC_BG

C216

C216
.1U-10-04R-K

.1U-10-04R-K

MCH_VCCD_LVDS

MCH_VCCA_PEG_BG

MCH_VCCA_PEG_PLL

720mA

C123

C123
.1U-10-04R-K

.1U-10-04R-K

C211

C211
.1U-10-04R-K

.1U-10-04R-K

73mA

C232

C232
.1U-10-04R-K

.1U-10-04R-K

5mA

64.8mA

64.8mA
24mA

139.2mA

13.2mA

414uA

50mA

26mA

157.2mA
50mA

60.3mA

U15H

U15H

J31

VCCA_CRT_DAC

L31

VCCA_DAC_BG

M33

VSSA_DAC_BG

J45

VCCA_DPLLA

L49

VCCA_DPLLB

AF10

VCCA_HPLL

AE1

VCCA_MPLL

U43

VCCA_LVDS1

U41

VCCA_LVDS2

V44

VSSA_LVDS

AJ43

VCCA_PEG_BG

AG43

VCCA_PEG_PLL

AW24

VCCA_SM_1

AU24

VCCA_SM_2

AW22

VCCA_SM_3

AU22

VCCA_SM_4

AU21

VCCA_SM_5

AW20

VCCA_SM_6

AU19

VCCA_SM_7

AW18

VCCA_SM_8

AU18

VCCA_SM_9

AW16

VCCA_SM_10

AU16

VCCA_SM_11

AT16

VCCA_SM_12

AR16

VCCA_SM_13

AU15

VCCA_SM_14

AT15

VCCA_SM_15

AR15

VCCA_SM_16

AW14

VCCA_SM_17

AT24

VCCA_SM_NCTF_1

AR24

VCCA_SM_NCTF_2

AT22

VCCA_SM_NCTF_3

AR22

VCCA_SM_NCTF_4

AT21

VCCA_SM_NCTF_5

AR21

VCCA_SM_NCTF_6

AT19

VCCA_SM_NCTF_7

AR19

VCCA_SM_NCTF_8

AT18

VCCA_SM_NCTF_9

AR18

VCCA_SM_NCTF_10

AU27

VCCA_SM_CK_4

AU28

VCCA_SM_CK_3

AU29

VCCA_SM_CK_2

AU31

VCCA_SM_CK_1

AT31

VCCA_SM_CK_NCTF_1

AR31

VCCA_SM_CK_NCTF_2

AT29

VCCA_SM_CK_NCTF_3

AR29

VCCA_SM_CK_NCTF_4

AT28

VCCA_SM_CK_NCTF_5

AR28

VCCA_SM_CK_NCTF_6

AT27

VCCA_SM_CK_NCTF_7

AR27

VCCA_SM_CK_NCTF_8

AH12

VCCD_HPLL

AE43

VCCD_PEG_PLL

M46

VCCD_LVDS_1

L45

VCCD_LVDS_2

CANTIGASFF

CANTIGASFF

3

CRTPLLA PEGA SM

CRTPLLA PEGA SM

A LVDS

A LVDS

POWER

POWER

LVDS

LVDS

VTT_10
VTT_11
VTT_12
VTT_13

VTT

VTT

VCCA_TV_DAC

TVD TV/CRT

TVD TV/CRT

VCC_HDA

HDA

HDA

VCCD_QDAC

VCCD_TVDAC

VCC_AXF_1
VCC_AXF_2
VCC_AXF_3

AXF

AXF

VCC_SM_CK_1
VCC_SM_CK_2
VCC_SM_CK_3
VCC_SM_CK_4

SM CK

SM CK

VCC_TX_LVDS

VCC_HV_1
VCC_HV_2

HV

HV

VCC_PEG_1
VCC_PEG_2
VCC_PEG_3
VCC_PEG_4

PEG

PEG

VCC_DMI_1
VCC_DMI_2
VCC_DMI_3

DMI

DMI

VTTLF1
VTTLF2
VTTLF3

VTTLF

VTTLF

VTT_1
VTT_2
VTT_3
VTT_4
VTT_5
VTT_6
VTT_7
VTT_8
VTT_9

R13
T12
R11
T10
R9
T8
R7
T6
R5
T4
R3
T2
R1

K30

A31

N34
N32

M25
N24
M23

BK24
BL23
BJ23
BK22

T41
C33

A33

AB44
Y44
AC43
AA43

AM44
AN43
AL43

K14
Y12
P2

852mA

79mA

50mA

0.5mA
35mA

321.35mA

124mA

118.8mA

105.3mA

1782mA

456mA

MCH_VTTLF1
MCH_VTTLF2
MCH_VTTLF3

C93

C93
.1U-10-04R-K

.1U-10-04R-K

C197 .1U-10-04R-KC197 .1U-10-04R-K

R117

R117

1 2

C203 .1U-10-04R-KC203 .1U-10-04R-K

C165

C165
.1U-10-04R-K

.1U-10-04R-K

C130

C130
.1U-10-04R-K

.1U-10-04R-K

C246

C246
.1U-10-04R-K

.1U-10-04R-K

C503

C503
.1U-10-04R-K

.1U-10-04R-K

C249

C249
.1U-10-04R-K

.1U-10-04R-K

C258

C258
.1U-10-04R-K

.1U-10-04R-K

C96

C96
.1U-10-04R-K

.1U-10-04R-K

C92

C92
.1U-10-04R-K

.1U-10-04R-K

0-04

0-04

B22 0-06B22 0-06

MCH_VCC_AFX

C147

C147

1U-10-06R-K

1U-10-06R-K

MCH_VCC_SM_CK

C138

C138
1U-6.3-04Y-Z

1U-6.3-04Y-Z

MCH_VCC_TX_LVDS

C254

C254

2.2U-10-06X-Z

2.2U-10-06X-Z

MCH_VCC_HV

C502

C502

1U-10-06R-K

1U-10-06R-K

MCH_VCC_PEG

C266

C266

1U-10-06R-K

1U-10-06R-K

MCH_VCC_DMI

C274

C274

2.2U-10-06X-Z

2.2U-10-06X-Z

C126

C126
.1U-10-04R-K

.1U-10-04R-K

+3.3V

2

MCH_VTT

C89

C89

2.2U-10-06X-Z

2.2U-10-06X-Z

C170

C170

4.7U-10-08R-K

4.7U-10-08R-K

C137
1U-6.3-04Y-Z

1U-6.3-04Y-Z

C272

C272

4.7U-10-08R-K

4.7U-10-08R-K

Check Power

C285

C285

4.7U-10-08R-K

4.7U-10-08R-K

C286

C286
10U-6.3-08R-K

10U-6.3-08R-K

C120

C120
.1U-10-04R-K

.1U-10-04R-K

+1.5V

B49

B49
0-06

0-06

B26

B26
0-06

0-06

0-06

0-06

C83

C83

2.2U-10-06X-Z

2.2U-10-06X-Z

RA05

C171

C171

4.7U-10-08R-K

4.7U-10-08R-K

C124

C124

2.2U-6.3-06R-K

2.2U-6.3-06R-K

C290

C290
10U-6.3-08R-K

10U-6.3-08R-K

B30

B30

C81

C81
10U-6.3-08R-K

10U-6.3-08R-K

forHDMIonly(+1.5V)

B24 0-06B24 0-06

C238

C238

2.2U-10-06X-Z

2.2U-10-06X-Z

B16

B16
0-06

0-06

B15

B15
0-06

0-06

1.8VS for DDR2

C220

C220
.1U-10-04R-K

.1U-10-04R-K

+1.05V

+1.5VS

RA03

+1.8VS

+3.3V

B33

B33
0-06

0-06

C300

C300
10U-6.3-08R-K

10U-6.3-08R-K

+1.05V

B12 0-06B12 0-06

C82

C82
10U-6.3-08R-K

10U-6.3-08R-K

+1.5V

C215

C215
@4.7U-10-08R-K

@4.7U-10-08R-K

fortestonly(+1.05V)

RA05

+1.05V

1

+1.05V

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

NB I/O POWER

NB I/O POWER

NB I/O POWER

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

of

of

of

10 30Monday, December 21, 2009

10 30Monday, December 21, 2009

10 30Monday, December 21, 2009

5

4

3

2

1

RA03

+1.5VS

3A

U15G

U15G

POWER

POWER

VCC SMVCC GFX

VCC SMVCC GFX

VCC GFX NCTF

VCC GFX NCTF

VCC GFX

VCC GFX

VCC_AXG_NCTF_1
VCC_AXG_NCTF_2
VCC_AXG_NCTF_3
VCC_AXG_NCTF_4
VCC_AXG_NCTF_5
VCC_AXG_NCTF_6
VCC_AXG_NCTF_7
VCC_AXG_NCTF_8

VCC_AXG_NCTF_9
VCC_AXG_NCTF_10
VCC_AXG_NCTF_11
VCC_AXG_NCTF_12
VCC_AXG_NCTF_13
VCC_AXG_NCTF_14
VCC_AXG_NCTF_15
VCC_AXG_NCTF_16
VCC_AXG_NCTF_17
VCC_AXG_NCTF_18
VCC_AXG_NCTF_19
VCC_AXG_NCTF_20
VCC_AXG_NCTF_21
VCC_AXG_NCTF_22
VCC_AXG_NCTF_23
VCC_AXG_NCTF_24
VCC_AXG_NCTF_25
VCC_AXG_NCTF_26
VCC_AXG_NCTF_27
VCC_AXG_NCTF_28
VCC_AXG_NCTF_29
VCC_AXG_NCTF_30
VCC_AXG_NCTF_31
VCC_AXG_NCTF_32
VCC_AXG_NCTF_33
VCC_AXG_NCTF_34
VCC_AXG_NCTF_35
VCC_AXG_NCTF_36
VCC_AXG_NCTF_37
VCC_AXG_NCTF_38
VCC_AXG_NCTF_39
VCC_AXG_NCTF_40
VCC_AXG_NCTF_41
VCC_AXG_NCTF_42
VCC_AXG_NCTF_43
VCC_AXG_NCTF_44

VCC_AXG_62
VCC_AXG_63
VCC_AXG_64
VCC_AXG_65
VCC_AXG_66
VCC_AXG_67
VCC_AXG_68
VCC_AXG_69
VCC_AXG_70
VCC_AXG_71
VCC_AXG_72
VCC_AXG_73
VCC_AXG_74
VCC_AXG_75
VCC_AXG_76
VCC_AXG_77
VCC_AXG_78
VCC_AXG_79
VCC_AXG_80

VCC_SM_LF1
VCC_SM_LF2
VCC_SM_LF3
VCC_SM_LF4
VCC_SM_LF5
VCC_SM_LF6
VCC_SM_LF7

VCC SM LF

VCC SM LF

+VCC_SM_BB36

D D

C223

C223

.1U-10-04R-K

.1U-10-04R-K

+VCC_SM_BB35

C229

C229

.1U-10-04R-K

.1U-10-04R-K

+VCC_SM_BC29

C212

C212

.1U-10-04R-K

.1U-10-04R-K

NC for DDR2

C160 @.1U-10V-04R-KC160 @.1U-10V-04R-K
C135 @.1U-10V-04R-KC135 @.1U-10V-04R-K
C122 @.1U-10V-04R-KC122 @.1U-10V-04R-K

+1.05V

C C

B B

+1.05V

MCH_VCC_AXG_SENSE
MCH_VSS_AXG_SENSE

BB36

BE35
AW34
AW32

BK30

BH30

BF30

BD30

BB30
AW30

BL29
BG29

BE29

BC29

BA29

AY29

BK28

BH28

BF28

BD28

BB28

BL27
BG27

BE27

BC27

BA27

AY27
AW26

BF24

BL19

BB16

AG31

AE31

AD31

AC31

AA31

AH29
AG29

AE29

AD29

AC29

AA29

AH28
AG28

AE28

AA28

AH27
AG27

AE27

AD27

AC27

AA27

AH25

AD25

AC25

AH24
AG24

AE24

AD24

AC24

AA24

AM22

AL22

AH22
AG22

AE22

AD22

AC22

AA22
AM21

AL21

AH21

AD21

AC21

AA21

AM16

AL16

AG13

AE13

BJ29

BJ27

W32

Y31

W31

Y29

W29

Y27

W27

W25

AJ24

Y24

W24

AJ22

AJ21

Y21

W21

VCC_SM_1
VCC_SM_2
VCC_SM_3
VCC_SM_4
VCC_SM_5
VCC_SM_6
VCC_SM_7
VCC_SM_8
VCC_SM_9
VCC_SM_10
VCC_SM_11
VCC_SM_12
VCC_SM_13
VCC_SM_14
VCC_SM_15
VCC_SM_16
VCC_SM_17
VCC_SM_18
VCC_SM_19
VCC_SM_20
VCC_SM_21
VCC_SM_22
VCC_SM_23
VCC_SM_24
VCC_SM_25
VCC_SM_26
VCC_SM_27
VCC_SM_28
VCC_SM_29
VCC_SM_30
VCC_SM_31
VCC_SM_32
VCC_SM_33

VCC_AXG_1
VCC_AXG_2
VCC_AXG_3
VCC_AXG_4
VCC_AXG_5
VCC_AXG_6
VCC_AXG_7
VCC_AXG_8
VCC_AXG_9
VCC_AXG_10
VCC_AXG_11
VCC_AXG_12
VCC_AXG_13
VCC_AXG_14
VCC_AXG_15
VCC_AXG_16
VCC_AXG_17
VCC_AXG_18
VCC_AXG_19
VCC_AXG_20
VCC_AXG_21
VCC_AXG_22
VCC_AXG_23
VCC_AXG_24
VCC_AXG_25
VCC_AXG_26
VCC_AXG_27
VCC_AXG_28
VCC_AXG_29
VCC_AXG_30
VCC_AXG_31
VCC_AXG_32
VCC_AXG_33
VCC_AXG_34
VCC_AXG_35
VCC_AXG_36
VCC_AXG_37
VCC_AXG_38
VCC_AXG_39
VCC_AXG_40
VCC_AXG_41
VCC_AXG_42
VCC_AXG_43
VCC_AXG_44
VCC_AXG_45
VCC_AXG_46
VCC_AXG_47
VCC_AXG_48
VCC_AXG_49
VCC_AXG_50
VCC_AXG_51
VCC_AXG_52
VCC_AXG_53
VCC_AXG_54
VCC_AXG_55
VCC_AXG_56
VCC_AXG_57
VCC_AXG_58
VCC_AXG_59
VCC_AXG_60
VCC_AXG_61

VCC_AXG_SENSE
VSS_AXG_SENSE

T32
U31
T31
R31
U29
T29
R29
U28
U27
T27
R27
U25
T25
R25
U24
U22
T22
R22
U21
T21
R21
AM19
AL19
AH19
AG19
AE19
AD19
AC19
W19
U19
AM18
AL18
AJ18
AH18
AG18
AE18
AD18
AC18
AA18
Y18
W18
U18
T18
R18

AJ16
AH16
AD16
AC16
AA16
U16
T16
R16
AM15
AL15
AJ15
AH15
AG15
AE15
AA15
Y15
W15
U15
T15

AU45
BF52
BB38
BA19
BE9
AU9
AL9

+1.05V

8.7A

+1.05V

C104

C104

.1U-10-04R-K

.1U-10-04R-K

C114

C114

.1U-10-04R-K

.1U-10-04R-K

+1.05V

C112

C112

.22U-10-04R-K

.22U-10-04R-K

C157

C157

.22U-10-04R-K

.22U-10-04R-K

C244

C244

.47U-10-04Y-Z

.47U-10-04Y-Z

C193

C193
10U-6.3-08R-K

10U-6.3-08R-K

C287

C287

1U-10-04R-K

1U-10-04R-K

C221

C221
1U-10-06R-K

1U-10-06R-K

C239

C239
.1U-10-04R-K

.1U-10-04R-K

C257

C257

1U-10-04R-K

1U-10-04R-K

+1.05V

C224

C224
1U-10-06R-K

1U-10-06R-K

C185

C185
.1U-10-04R-K

.1U-10-04R-K

12

JP4 CLOSEJP4 CLOSE

12

JP3 CLOSEJP3 CLOSE

Closed to IC

RA03

+1.5VS

C213

C213
1U-10-06R-K

1U-10-06R-K

C162

C162
.1U-10-04R-K

.1U-10-04R-K

1800mA

C230

C230
.1U-10-04R-K

.1U-10-04R-K

MCH_VCC_AXG_SENSE

MCH_VSS_AXG_SENSE

C169

C169

4.7U-10-08R-K

4.7U-10-08R-K

C210

C210
1U-10-06R-K

1U-10-06R-K

C148

C148
.1U-10-04R-K

.1U-10-04R-K

C291

C291
10U-10-08Y-Z

10U-10-08Y-Z

C209

C209
1U-10-06R-K

1U-10-06R-K

C173

C173

1U-10-06R-K

1U-10-06R-K

C205

C205
10U-6.3-08R-K

10U-6.3-08R-K

C174

C174
1U-10-06R-K

1U-10-06R-K

Integrated GFX = 2.9A
External GFX = 2.2A

C231

C231

C251

C251

1U-10-06R-K

1U-10-06R-K

1U-10-06R-K

1U-10-06R-K

C175

C175
.1U-10-04R-K

.1U-10-04R-K

C208

C208
1U-10-06R-K

1U-10-06R-K

C225

C225

.1U-10-04R-K

.1U-10-04R-K

C196

C196
.1U-10-04R-K

.1U-10-04R-K

C248

C248

.1U-10-04R-K

.1U-10-04R-K

C177

C177
1U-10-06R-K

1U-10-06R-K

1 2

R127 0-04R127 0-04

C214

C214
1U-10-06R-K

1U-10-06R-K

AT41
AR41
AN41

AH41
AD41
AC41

AT40
AM40
AL40

AH40
AG40
AE40
AD40
AC40
AA40

AN35
AM35

AH35
AD35
AC35

AM34
AL34

AH34
AG34
AE34
AD34

AC34
AA34

AM32
AL32

AH32
AE32
AD32
AA32
AM31
AL31

AH31
AM29
AL29
AM28
AL28

AM27
AL27
AM25
AL25

AM24

AJ41

W41

AJ40

AJ35

W35

AJ34

W34

AJ32

AJ31

AJ28

AJ25

Y41

Y40

Y34

N36

U15F

U15F

VCC_1
VCC_2
VCC_3
VCC_4
VCC_5
VCC_6
VCC_7
VCC_8
VCC_9
VCC_10
VCC_11
VCC_12

VCC_13
VCC_14
VCC_15
VCC_16
VCC_17
VCC_18
VCC_19
VCC_20
VCC_21
VCC_22
VCC_23
VCC_24
VCC_25
VCC_26
VCC_27
VCC_28
VCC_29
VCC_30
VCC_31
VCC_32
VCC_33
VCC_34

VCC_35
VCC_36

VCC_37
VCC_38
VCC_39
VCC_40
VCC_41
VCC_42
VCC_43
VCC_44
VCC_45
VCC_46
VCC_47
VCC_48
VCC_49
VCC_50
VCC_51
VCC_52
VCC_53
VCC_54
VCC_55
VCC_56
VCC_57
VCC_58
VCC_59
VCC_60
VCC_61

CANTIGASFF

CANTIGASFF

VCC CORE

VCC CORE

POWER

POWER

VCC_NCTF_1
VCC_NCTF_2
VCC_NCTF_3
VCC_NCTF_4
VCC_NCTF_5
VCC_NCTF_6
VCC_NCTF_7
VCC_NCTF_8

VCC_NCTF_9
VCC_NCTF_10
VCC_NCTF_11
VCC_NCTF_12
VCC_NCTF_13
VCC_NCTF_14
VCC_NCTF_15
VCC_NCTF_16
VCC_NCTF_17
VCC_NCTF_18
VCC_NCTF_19
VCC_NCTF_20
VCC_NCTF_21
VCC_NCTF_22
VCC_NCTF_23
VCC_NCTF_24
VCC_NCTF_25
VCC_NCTF_26
VCC_NCTF_27
VCC_NCTF_28
VCC_NCTF_29
VCC_NCTF_30
VCC_NCTF_31

VCC NCTF

VCC NCTF

VCC_NCTF_32
VCC_NCTF_33
VCC_NCTF_34
VCC_NCTF_35
VCC_NCTF_36
VCC_NCTF_37
VCC_NCTF_38

AT38
AR38
AN38
AM38
AL38
AG38
AE38
AA38
Y38
W38
U38
T38
R38
AT37
AR37
AN37
AM37
AL37
AJ37
AH37
AG37
AE37
AD37
AC37
AA37
Y37
W37
U37
T37
R37
AT35
AR35
U35
AT34
AR34
U34
T34
R34

+1.05V

CANTIGASFF

CANTIGASFF

A A

5

4

3

C207

C207
.1U-10-04R-K

.1U-10-04R-K

C179

C179
.1U-10-04R-K

.1U-10-04R-K

C184

C184
.1U-10-04R-K

.1U-10-04R-K

C188

C188
.1U-10-04R-K

.1U-10-04R-K

C201

C201
.1U-10-04R-K

.1U-10-04R-K

C183

C183
.1U-10-04R-K

.1U-10-04R-K

2

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

NB GFX/VCC/NCTF POWER

NB GFX/VCC/NCTF POWER

NB GFX/VCC/NCTF POWER

B1XIVXX

B1XIVXX

CULV

CULV

CULV

B1XIVXX

1

of

of

of

11 30Monday, December 21, 2009

11 30Monday, December 21, 2009

11 30Monday, December 21, 2009

B

B

B

5

4

3

2

1

D D

C C

+3.3VA

RA02

D11

D11

A C

CD4148WSP

CD4148WSP

D12

D12

A C

BAT_D

12

SUB_BAT+

CON_WB_2H125_WH1-00080-023N_FCN

CON_WB_2H125_WH1-00080-023N_FCN

R207

R207
1K-04

1K-04

1

CD4148WSP

CD4148WSP

CN22

CN22

1

S2

S2

S1

22S1

1M-04

1M-04

12

R184

R184

+3.3VA_RTC_R

1 2

R175 20K-1-04R175 20K-1-04

1 2

R180 20K-1-04R180 20K-1-04

1 2

R194 0-04R194 0-04

RB17

ACZ_BITCLK[18,20]

B B

R409 BD-FCM1005MF-120R409 BD-FCM1005MF-120

C390

C390
@470P-25-04X-K

@470P-25-04X-K

C338

C338

@1U-16-04Y-Z

@1U-16-04Y-Z

C530

C530

@1U-16-04Y-Z

@1U-16-04Y-Z

+3.3VA_RTC

C349

C349
1U-10-06Y-Z

1U-10-06Y-Z

12

J1

C335

C335

.22U-16-06Y-Z

.22U-16-06Y-Z

OPEN_SJ1OPEN_S

C532

C532

.22U-16-06Y-Z

.22U-16-06Y-Z

Enable VccSus1.05 VRM Mode
EE_CS has internal pull-down.
EE_DOUT has internal pull-up.

R193 330K-04R193 330K-04

+3.3VA_RTC

HDA_BIT_CLK

ACZ_SYNC[18,20]
ACZ_RST#[18,20]

ACZ_SDATAIN0[20]
ACZ_SDATAIN1[18]

ACZ_SDATAOUT[18,20]

SATA_LED#[19,22]

SATA_RXN0_HDD[18]
SATA_RXP0_HDD[18]
SATA_TXN0_HDD[18]
SATA_TXP0_HDD[18]

SATA_RXN1_ODD[22]
SATA_RXP1_ODD[22]
SATA_TXN1_ODD[22]
SATA_TXP1_ODD[22]

TP4TP4

1 2

RA07

C526 12P-50-04N-JC526 12P-50-04N-J

C528 12P-50-04N-JC528 12P-50-04N-J

INTVRMEN

+3.3V

+1.5V

Check A phase

1 2

R420 33-04R420 33-04

1 2

R428 33-04R428 33-04

1 2

R429 0-04R429 0-04

1 2

R411 0-04R411 0-04

1 2

R408 33-04R408 33-04

C534 10n-50-04X-KC534 10n-50-04X-K
C535 10n-50-04X-KC535 10n-50-04X-K

C537 .1U-10-04R-KC537 .1U-10-04R-K
C538 .1U-10-04R-KC538 .1U-10-04R-K

Checkchange
footprint&vendor

RA02

12

12

32.768-12.5-20-D

32.768-12.5-20-D

R358

R358

10M-1-04

10M-1-04

Y2

Y2

INTVRMEN

1 2

R191 10K-04R191 10K-04

1 2

R173 24.9-1-04R173 24.9-1-04

HDA_SYNC
HDA_RST#
HDA_SDATAIN0

HDA_SDATAIN1

HDA_SDOUT_IN

SB_SATA0TXN
SB_SATA0TXP

SB_SATA1TXN
SB_SATA1TXP

SATA LANE Location

CN5 (HDD)SATA 0
CN49 (ODD)

SATA 1

CN40 (GXT)

SATA 4
SATA 5

RTC_X1
RTC_X2

RTC_RST#
SRTC_RST#
SM_INTRUDER#

U18A

U18A

F25

RTCX1

G25

RTCX2

G24

RTCRST#

C24

SRTCRST#

C23

INTRUDER#

E25

INTVRMEN

D25

LAN100_SLP

G22

GLAN_CLK

D14

LAN_RSTSYNC

A14

LAN_RXD0

D12

LAN_RXD1

B14

LAN_RXD2

D13

LAN_TXD0

C13

LAN_TXD1

A13

LAN_TXD2

D15

GPIO56

H22

GLAN_COMPI

H21

GLAN_COMPO

AE7

HDA_BIT_CLK

AB7

HDA_SYNC

AA7

HDA_RST#

AB6

HDA_SDIN0

AE6

HDA_SDIN1

AC6

HDA_SDIN2

AA5

HDA_SDIN3

AC7

HDA_SDOUT

AD8

HDA_DOCK_EN#/GPIO33

AB8

HDA_DOCK_RST#/GPIO34

AC9

SATALED#

AE14

SATA0RXN

AD14

SATA0RXP

AC15

SATA0TXN

AD15

SATA0TXP

AD13

SATA1RXN

AC13

SATA1RXP

AA14

SATA1TXN

AB14

SATA1TXP

ICH9MSFF

ICH9MSFF

FWH0/LAD0
FWH1/LAD1
FWH2/LAD2
FWH3/LAD3

FWH4/LFRAME#

RTCLAN / GLAN

LPCCPU

RTCLAN / GLAN

LPCCPU

LDRQ0#

LDRQ1#/GPIO23

A20GATE

DPRSTP#

DPSLP#

FERR#

CPUPWRGD

IGNNE#

STPCLK#

THRMTRIP#

SATA4RXN
SATA4RXP

IHDA

IHDA

SATA4TXN
SATA4TXP

SATA5RXN
SATA5RXP
SATA5TXN
SATA5TXP

SATA_CLKN
SATA_CLKP

SATA

SATA

SATARBIAS#

SATARBIAS

A20M#

INIT#
INTR

RCIN#

SMI#

TP11

H3

LPC_AD0

J3

LPC_AD1

K5

LPC_AD2

L3

LPC_AD3

J2
H1

J1
N3

AB23
AE23

SB_DPRSTP#

AE24

SB_DPSLP#

AD25

SB_FERR

AE22
AD23
AE21

AD24
L1

AD21

NMI

AC21
AC25
AC23

H_THERMTRIP_R

AC22

TP3TP3

AD12

SB_SATA4RXN

AE12

SB_SATA4RXP

AB12

SB_SATA4TXN

AA12

SB_SATA4TXP

AC11
AD11
AB10
AA10

AC16
AB16

AD10

R403 22-1-04R403 22-1-04

AE10

LPC_AD[3:0] [23]

LPC_FRAME# [19,23]

LDRQ1# [19]
H_A20GATE [23]

H_A20M# [5]

1 2

R170 0-04R170 0-04

1 2

R373 0-04R373 0-04

1 2

R367 56-1-04R367 56-1-04

H_PWRGD [5]

TP2TP2

H_IGNNE# [5]
H_INIT# [5]

H_INTR [5]
H_RCIN# [23]

H_NMI [5]
H_SMI# [5]

H_STPCLK# [5]

1 2

R370 54.9-1-04R370 54.9-1-04

Close to SB in 2".

C609 .1U-10-04R-KC609 .1U-10-04R-K
C608 .1U-10-04R-KC608 .1U-10-04R-K
C542 .1U-10-04R-KC542 .1U-10-04R-K
C544 .1U-10-04R-KC544 .1U-10-04R-K

CLK_ICH_SATA# [15]
CLK_ICH_SATA [15]

1 2

RA06

H_DPRSTP# [5,8]
H_DPSLP# [5]

H_FERR# [5]

SATA_RXN4_GXT [22]
SATA_RXP4_GXT [22]
SATA_TXN4_GXT [22]
SATA_TXP4_GXT [22]

+1.05V

12

C346

C346
.01U-16-04X-K

.01U-16-04X-K

R364

R364
56-1-04

56-1-04

H_FERR#
H_DPRSTP#
H_DPSLP#

H_A20GATE

H_RCIN#

PM_THRMTRIP# [5]

1 2

R362 56-04R362 56-04

1 2

R167 @56-04R167 @56-04

1 2

R371 @56-04R371 @56-04

1 2

R425 8.2K-04R425 8.2K-04

1 2

R419 10K-04R419 10K-04

+1.05V

+3.3V

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

ICH9M RTC/SATA/HDA/LPC

ICH9M RTC/SATA/HDA/LPC

ICH9M RTC/SATA/HDA/LPC

B1XIVXX

B1XIVXX

CULV

CULV

CULV

B1XIVXX

1

B

B

B

of

of

of

12 30Monday, December 21, 2009

12 30Monday, December 21, 2009

12 30Monday, December 21, 2009

5

BootBIOSStrap

GNT#0andSPI_CS#1haveaweak
internalpullup

PCI_GNT#0 SPI_CS#1

01

1

1

U18B

U18B

A11

AD0

B12

AD1

A10

AD2

C12

AD3

A8

AD4

A12

AD5

E10

AD6

C11

AD7

B9

AD8

D8

AD9

A4

AD10

E8

AD11

A3

AD12

D9

AD13

C8

AD14

C2

AD15

D7

AD16

B3

AD17

D11

AD18

B6

AD19

D5

AD20

D3

AD21

F4

AD22

E3

AD23

E4

AD24

B2

AD25

C4

AD26

C1

AD27

D1

AD28

E2

AD29

J4

AD30

H2

AD31

Interrupt I/F

Interrupt I/F

F1

INT_PIRQA#
INT_PIRQB#
INT_PIRQC#
INT_PIRQD#

PIRQA#

F5

PIRQB#

F2

PIRQC#
PIRQD#C7PIRQH#/GPIO5

ICH9MSFF

ICH9MSFF

PCI

PCI

0

1

REQ0#

GNT0#
REQ1#/GPIO50
GNT1#/GPIO51
REQ2#/GPIO52
GNT2#/GPIO53
REQ3#/GPIO54
GNT3#/GPIO55

C/BE0#

C/BE1#

C/BE2#

C/BE3#

IRDY#

PCIRST#

DEVSEL#

PERR#

PLOCK#

SERR#

STOP#

TRDY#

FRAME#

PLTRST#

PCICLK

PME#

PIRQE#/GPIO2

PIRQF#/GPIO3

PIRQG#/GPIO4

RA11

D D

C C

PCI_DEVSEL#

CLK_SATA_QE#

PCI_TRDY#
PCI_IRDY#
PCI_PERR#
PCI_LOCK#

PCI_RST#

PCI_SERR#
PCI_STOP#

PCI_FRAME#
INT_SERIRQ

INT_PIRQE#
INT_PIRQF#
INT_PIRQG#
INT_PIRQA#

INT_PIRQC#
INT_PIRQD#
PCI_REQ#1
PCI_REQ#2

INT_PIRQH#
PCI_REQ#0
INT_PIRQB#
PCI_REQ#3

PM_CLKRUN#
BIOS_REC

PM_THROTTING#
ACZ_SPKR
MCH_SYNC#
PM_DPRSLPVR
PMSYNC#

PM_RI#
SMB_ALERT#
PM_SYS_RST#
SMLINK0
SMLINK1
PCIE_WAKE#
EC_EXTSMI#
ICH_SMBCLK
ICH_SMBDATA
LINK_ALERT#
PM_BATLOW#

PLT_RST#
ICH_SLP_S3#
ICH_SLP_S4#

ICH_GPIO10
ICH_GPIO14

PM_RSMRST#
PWROK
ICH_TP3

RN16

RN16

8
7 2
6
5

1 2

R423 @8.2K-04R423 @8.2K-04

1 2

R410 8.2K-04R410 8.2K-04

1 2

R232 8.2K-04R232 8.2K-04

1 2

R221 8.2K-04R221 8.2K-04

1 2

R208 8.2K-04R208 8.2K-04

1 2

R223 8.2K-04R223 8.2K-04

1 2

R222 10K-04R222 10K-04

RN14

RN14

1
3

RN11

RN11

1
3

RN15

RN15

1
3

1 2

R426 8.2K-04R426 8.2K-04

1 2

R388 10K-04R388 10K-04

1 2

R382 8.2K-04R382 8.2K-04

1 2

R231 @4.7K-04R231 @4.7K-04

1 2

R377 @10K-04R377 @10K-04

1 2

R424 100K-04R424 100K-04

1 2

R427 @10K-04R427 @10K-04

1 2

R372 10K-04R372 10K-04

1 2

R369 10K-04R369 10K-04

1 2

R361 10K-04R361 10K-04

1 2

R187 10K-04R187 10K-04

1 2

R365 10K-04R365 10K-04

1 2

R166 10K-04R166 10K-04

1 2

R392 @10K-04R392 @10K-04

1 2

R190 2.2K-04R190 2.2K-04

1 2

R213 2.2K-04R213 2.2K-04

1 2

R383 10K-04R383 10K-04

1 2

R395 8.2K-04R395 8.2K-04

1 2

R380 @8.2K-04R380 @8.2K-04

1 2

R172 4.7K-04R172 4.7K-04

1 2

R390 4.7K-04R390 4.7K-04

1 2

R396 8.2K-04R396 8.2K-04

1 2

R400 8.2K-04R400 8.2K-04

1 2

R176 10K-04R176 10K-04

1 2

R234 10K-04R234 10K-04

1 2

R394 @10K-04R394 @10K-04

1

8.2K-8P4R-04

8.2K-8P4R-04

3
4

8

8.2K-8P4R-04

8.2K-8P4R-04

6
5724

8

8.2K-8P4R-04

8.2K-8P4R-04

6
5724

8

8.2K-8P4R-04

8.2K-8P4R-04

6
5724

+3.3V

+3.3VS

G4
E1
A9
E12
B11
C10
D6
C6

D10
A5
E6
C9

C3
B1

PAR

T3
A7
D4
C5
H5
A6
A2
B8

A21
B5
T1

G3
G1
F3
H4

4

Boot BIOS Location

SPI(Default)

PCI

LPC

PCI_REQ#0
PCI_REQ#1
PCI_REQ#2
PCI_REQ#3

PCI_IRDY#

PCI_DEVSEL#
PCI_PERR#
PCI_LOCK#
PCI_SERR#
PCI_STOP#
PCI_TRDY#
PCI_FRAME#

PLT_RST#

INT_PIRQE#
INT_PIRQF#
INT_PIRQG#
INT_PIRQH#

USB

Location

CN46 (3G)

USB 0

CN33 (MB USB)

USB 1

CN40 (GXT USB)

USB 2

CN32 (MB USB)

USB 3

CN34 (CCD)

USB 4

CN51 (AIO USB)

USB 5

CN38 (WLAN)

USB 6

CN31 (IO USB)

USB 7
USB 8
USB 9
USB10
USB11

R413

R413
@0-04

@0-04

1 2

PCI_RST# [19]

PLT_RST# [8,18,19,22,23]
CLK_SB_PCI [15]

SBSPI_EN# ,SB_GPIO48 , defaul
internal PU ,SBSPI_EN# is the MSB

MSB1LSB

Bios C/S

1

LPC

10

SPI

SATA LANE Location

CN5 (HDD)SATA 0

SATA 1

CN49 (ODD)

SATA 4

CN40 (GXT)

SATA 5

PCIE_RXN1_VGA[22]
PCIE_RXP1_VGA[22]
PCIE_TXN1_VGA[22]
PCIE_TXP1_VGA[22]

PCIE_RXN2_WLAN[19]
PCIE_RXP2_WLAN[19]
PCIE_TXN2_WLAN[19]
PCIE_TXP2_WLAN[19]

PCIE_RXN3_GXT[22]
PCIE_RXP3_GXT[22]
PCIE_TXN3_GXT[22]
PCIE_TXP3_GXT[22]

PCIE_RXN4_LAN[18]
PCIE_RXP4_LAN[18]
PCIE_TXN4_LAN[18]
PCIE_TXP4_LAN[18]

RN9

RN9

10K-8P4R-04

10K-8P4R-04

RN12

RN12

10K-8P4R-04

10K-8P4R-04

RN13

RN13

10K-8P4R-04

10K-8P4R-04

+3.3VS

3

PCIE LANE Location

CN40 (ext. VGA)

PCIE 1
PCIE 2

CN38 (Mini Card)

PCIE 3

CN40 (GXT)

PCIE 4

CN31 (LAN+CARDREADER)

PCIE 5

C523 .1U-10-04R-KC523 .1U-10-04R-K

C516 .1U-10-04R-KC516 .1U-10-04R-K

C515 .1U-10-04R-KC515 .1U-10-04R-K

C513 .1U-10-04R-KC513 .1U-10-04R-K

C512 .1U-10-04R-KC512 .1U-10-04R-K

C514 .1U-10-04R-KC514 .1U-10-04R-K

C524 .1U-10-04R-KC524 .1U-10-04R-K

C525 .1U-10-04R-KC525 .1U-10-04R-K

PCIE_AC couping cap within 250miles

1

8

USB_OC#0
USB_OC#1

3

6

USB_OC#2

5724

USB_OC#3

1

8

USB_OC#7
USB_OC#6

3

6

USB_OC#4

5724

USB_OC#5

1

8

USB_OC#8
USB_OC#9

3

6

USB_OC#10

5724

USB_OC#11

CLOSE TO ICH9M

PCIE_TXN1_IN
PCIE_TXP1_IN

PCIE_TXN2_IN
PCIE_TXP2_IN

PCIE_TXN3_IN
PCIE_TXP3_IN

PCIE_TXN4_IN
PCIE_TXP4_IN

USB_OC#0
USB_OC#1
USB_OC#2
USB_OC#3
USB_OC#4
USB_OC#5
USB_OC#6
USB_OC#7
USB_OC#8
USB_OC#9
USB_OC#10
USB_OC#11

2

U18D

U18D

T25

PERN1

T24

PERP1

R24

PETN1

R23

PETP1

P25

PERN2

P24

PERP2

P21

PETN2

P22

PETP2

N23

PERN3

N24

PERP3

M21

PETN3

M22

PETP3

M25

PERN4

M24

PERP4

L24

PETN4

L23

PETP4

K24

PERN5

K25

PERP5

K21

PETN5

K22

PETP5

H24

PERN6/GLAN_RXN

H25

PERP6/GLAN_RXP

J24

PETN6/GLAN_TXN

J23

PETP6/GLAN_TXP

E24

SPI_CLK

E23

SPI_CS0#

F23

SPI_CS1#/GPIO58/CLGPIO6

F22

SPI_MOSI

G23

SPI_MISO

P4

OC0#/GPIO59

N4

OC1#/GPIO40

N1

OC2#/GPIO41

P5

OC3#/GPIO42

P1

OC4#/GPIO43

P2

OC5#/GPIO29

M3

OC6#/GPIO30

M2

OC7#/GPIO31

P3

OC8#/GPIO44

R1

OC9#/GPIO45

R4

OC10#/GPIO46

R2

OC11#/GPIO47

AE5

USBRBIAS

AD5

USBRBIAS#

ICH9MSFF

ICH9MSFF

R412

R412

22.6-1-04

22.6-1-04

1 2

V25

DMI0RXN

V24

DMI0RXP

U24

DMI0TXN

U23

DMI0TXP

W23

DMI1RXN

W24

DMI1RXP

V21

DMI1TXN

V22

DMI1TXP

Y24

DMI2RXN

Y25

DMI2RXP

Y21

DMI2TXN

Y22

DMI2TXP

AB24

DMI3RXN

AB25

DMI3RXP

AA23

DMI3TXN

AA24

DMI3TXP

T21

DMI_CLKN

T22

PCI-Express

PCI-Express

DMI_CLKP

Direct Media Interface

Direct Media Interface

AB21

DMI_ZCOMP

AB22

DMI_IRCOMP

AE2

USBP0N

AD1

USBP0P

AD3

USBP1N

AD4

USBP1P

AC2

USBP2N

AC3

USBP2P

AC5

USBP3N

AB4

USBP3P

AB2

USBP4N

AB1

USBP4P

AA3

USBP5N

AA2

SPI

SPI

USBP5P

Y1

USBP6N
USBP6P
USBP7N
USBP7P
USBP8N
USBP8P
USBP9N

USBP9P
USBP10N
USBP10P
USBP11N
USBP11P

Y2
W2
W3
V1
V2
Y5
Y4
U3
U2
V4
V5

USB

USB

DMI_ZCOMP

DMI_TXN0 [8]
DMI_TXP0 [8]
DMI_RXN0 [8]
DMI_RXP0 [8]

DMI_TXN1 [8]
DMI_TXP1 [8]
DMI_RXN1 [8]
DMI_RXP1 [8]

DMI_TXN2 [8]
DMI_TXP2 [8]
DMI_RXN2 [8]
DMI_RXP2 [8]

DMI_TXN3 [8]
DMI_TXP3 [8]
DMI_RXN3 [8]
DMI_RXP3 [8]

CLK_DMI_ICH# [15]
CLK_DMI_ICH [15]

USB_PN0_3G [18]
USB_PP0_3G [18]
USB_PN1_USB1 [18]
USB_PP1_USB1 [18]
USB_PN2_GXT [22]
USB_PP2_GXT [22]
USB_PN3_USB3 [18]
USB_PP3_USB3 [18]
USB_PN4_CCD [18]
USB_PP4_CCD [18]

USB_PN5_AIOUSB [22]
USB_PP5_AIOUSB [22]

USB_PN6_MINI [19]
USB_PP6_MINI [19]
USB_PN7_IO [18]

USB_PP7_IO [18]
USB_PN8
USB_PP8

+1.5V

12

1

R188

R188

24.9-1-04

24.9-1-04

USB

USB 0
USB 1
USB 2
USB 3
USB 4
USB 5
USB 6
USB 7
USB 8
USB 9
USB10
USB11

Location

CN46 (3G)
CN33 (MB USB)
CN40 (GXT USB)
CN32 (MB USB)
CN34 (CCD)

CN51 (AIO USB)

CN38 (WLAN)
CN31 (IO USB)

+3.3V

RB12

12

R375

R375
10K-04

10K-04

B B

VCORE_CLK_EN#[24]

+3.3V

12

R197

R197

4.7K-04

4.7K-04

ICH_SMBCLK_G

Q34

Q34
2N7002K

2N7002K

DGS

ICH_SMBCLK

DGS

ICH_SMBDATA

A A

Q35

Q35
2N7002K

2N7002K

Z1502

5

SB_VRMPWGD

DS

12

Q33

Q33

R171

2N7002K

2N7002K

R171
100K-04

100K-04

12

R214

R214

4.7K-04

4.7K-04

G

CL_PWROK[8] PWROK [23]

+3.3V

12

R186

R186
10K-04

10K-04

12

R206

R206
10K-04

10K-04

+3.3V

CL_PWROK

SB_SMB_CLK [16]

SB_SMB_DATA [16]

1 2

R422 0-04R422 0-04

C549

C549
.1U-16-04Y-Z

.1U-16-04Y-Z

4

U18C

U18C

ICH_SMBCLK
ICH_SMBDATA

3

LINK_ALERT#
SMLINK0
SMLINK1

PM_RI#

PM_SYS_RST#

SMB_ALERT#
PM_STPPCI_ICH#

PM_STPCPU_ICH#
PM_CLKRUN#
PCIE_WAKE#

INT_SERIRQ
PM_THROTTING#

SB_VRMPWGD

BIOS_REC

ACZ_SPKR
MCH_SYNC#
ICH_TP3

+3.3V

12

12

R386

R386

R401

R401

@10K-04

@10K-04

@10K-04

@10K-04

PMSYNC#[8]

1 2

PM_STPPCI#[15]
PM_STPCPU#[15]

+3.3VS

12

R397

R397
10K-04

10K-04

12

R399

R399
100K-04

100K-04

R402 0-04R402 0-04

1 2

R387 0-04R387 0-04

PCIE_WAKE#[18,19]

INT_SERIRQ[19,23]

EC_EXTSMI#[23]

CLK_SATA_QE#[15]

ACZ_SPKR[20]

MCH_SYNC#[8]

C18

SMBCLK

C15

SMBDATA

B21

LINKALERT#/GPIO60/CLGPIO4

E18

SMLINK0

A24

SMLINK1

C20

RI#

T5

SUS_STAT#/LPCPD#

C25

SYS_RESET#

L2

PMSYNC#/GPIO0

A23

SMBALERT#/GPIO11

B15

STP_PCI#/GPIO15

A20

STP_CPU#/GPIO25

M5

CLKRUN#/GPIO32

C21

WAKE#

L4

SERIRQ

AD20

THRM#

B24

VRMPWRGD

A19

TP12

AE16

GPIO1

AE18

GPIO6

AD18

GPIO7

B25

GPIO8

C14

GPIO12

D20

GPIO13

AE17

GPIO17

K3

GPIO18

AC8

GPIO20

AC19

SCLOCK/GPIO22

D17

GPIO27

E20

GPIO28

M4

SATACLKREQ#/GPIO35

AB18

SLOAD/GPIO38

AC18

SDATAOUT0/GPIO39

AB19

SDATAOUT1/GPIO48

AC20

GPIO49

A16

GPIO57/CLGPIO5

K4

SPKR

AB20

MCH_SYNC#

C19

TP3

AB17

TP8

AC17

TP9

AD17

TP10

ICH9MSFF

ICH9MSFF

SATA0GP/GPIO21
SATA1GP/GPIO19
SATA4GP/GPIO36
SATA5GP/GPIO37

SATA

GPIO

SATA

GPIO

SMB

SMB

Clocks

Clocks

S4_STATE#/GPIO26

DPRSLPVR/GPIO16

SYS GPIO

SYS GPIO

Power MGTController Link

Power MGTController Link

GPIO

GPIO

MEM_LED/GPIO24

GPIO10/SUS_PWR_ACK

GPIO14/AC_PRESENT

MISC

MISC

CLK14
CLK48

SUSCLK

SLP_S3#
SLP_S4#
SLP_S5#

PWROK

BATLOW#
PWRBTN#
LAN_RST#

RSMRST#

CK_PWRGD

CLPWROK

SLP_M#

CL_CLK0
CL_CLK1

CL_DATA0
CL_DATA1

CL_VREF0
CL_VREF1

CL_RST0#
CL_RST1#

WOL_EN/GPIO9

AE19

SATA0GP

AA18

SATA1GP

AE20

SATA2GP

AA20

SATA3GP

K1
AB5

R3
D18

ICH_SLP_S3# PM_SLP_S3#

B20

ICH_SLP_S4#

D16

ICH_SLP_S5#

E14

PM_SLP_S4_STATE#

D23
M1

ICH_DPRSLPVR PM_DPRSLPVR

C16

PM_BATLOW#

U4
D22
D19
U1

CLK_PWRGD_SB

T4

CL_PWROK

B23
C22

A18
E22

B18
F21

CL_VREF0_ICH

A17
C17

B17
A22

E16

ICH_GPIO10

A15

ICH_GPIO14

D21

WOL_EN

2

CLK_ICH14 [15]
CLK_USB48 [15]

1 2

R185 0-04R185 0-04

1 2

R391 0-04R391 0-04

TP1TP1
TP7TP7

PWROK [23]

1 2

R421 499-1-04R421 499-1-04

PWRBTN# [23]

R384 @0-04R384 @0-04
R379 0-04R379 0-04

1 2

R174 100-1-04R174 100-1-04

CL_CLK0 [8]

CL_DATA0 [8]

CL_RST0# [8]

1 2

R376 10K-04R376 10K-04

1 2
1 2

PM_RSMRST#RSMRST#_ICH

1 2

R418 0-04R418 0-04

RN10 10K-8P4R-04RN10 10K-8P4R-04

1

SATA2GP
SATA3GP

3

SATA0GP
SATA1GP

PM_SLP_S4#

PLT_RST#ICH_LAN_RST#

+3.3V

12

12

C344

C344
.1U-16-04Y-Z

.1U-16-04Y-Z

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

Date: Sheet

+3.3V

8
6

5724

PM_SLP_S3# [23]
PM_SLP_S4# [8,23]

PM_DPRSLPVR [8,24]

PM_RSMRST# [23]

CLK_PWRGD [15]

R177

R177

3.24K-1-04

3.24K-1-04

R183

R183
453-1-04

453-1-04

ICH9M SYS/GPIO/PCIE/USB

ICH9M SYS/GPIO/PCIE/USB

ICH9M SYS/GPIO/PCIE/USB

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

of

of

of

13 30Monday, December 21, 2009

13 30Monday, December 21, 2009

13 30Monday, December 21, 2009

5

+5V

12

+5VS +3.3VS

+1.5V

12

12

R164

R164

0-06

0-06

D D

C C

B B

R235

R235
10-04

10-04

RA02

AC

D14

D14

CD4148WSP

CD4148WSP

C391

C391
.1U-10-04R-K

.1U-10-04R-K

+1.5V

+1.5V

R192 0-06R192 0-06

R198 @0-04R198 @0-04

+1.05V

+1.5V

VCCA3GP

B37 0-04B37 0-04

+1.5V

1 2

+3.3V

R211

R211
10-04

10-04

C384

C384
1U-10-06R-K

1U-10-06R-K

V5REF_SUS

C332

C332

10U-6.3-08R-K

10U-6.3-08R-K

12

VCC1_5_A

C363

C363

10U-6.3-08R-K

10U-6.3-08R-K

R218 0-06R218 0-06

VCCLAN1.05

C372

C372
@.1U-10V-04R-K

@.1U-10V-04R-K

B36 0-04B36 0-04

RA02

AC

D13

D13

CD4148WSP

CD4148WSP

C382

C382
.1U-10-04R-K

.1U-10-04R-K

C334

C334

1U-10-06R-K

1U-10-06R-K

C374

C374

2.2U-10-06X-Z

2.2U-10-06X-Z

12

VCC5REF

C339

C339

.01U-16-04X-K

.01U-16-04X-K

+3.3VA_RTC

C354

C354
1U-10-06R-K

1U-10-06R-K

C350

C350

.1U-10-04R-K

.1U-10-04R-K

C398

C398

1U-10-06R-K

1U-10-06R-K

C342

C342
1U-10-06R-K

1U-10-06R-K

C355

C355
.1U-10-04R-K

.1U-10-04R-K

C358

C358

.1U-10-04R-K

.1U-10-04R-K

C377

C377

.1U-10-04R-K

.1U-10-04R-K

VCCUSBPLL

+3.3VS

C371

C371
.1U-10-04R-K

.1U-10-04R-K

VCCA3GP

VCCA3GP

C357

C357

.1U-10-04R-K

.1U-10-04R-K

C356

C356
.01U-16-04X-K

.01U-16-04X-K

C375

C375

.1U-10-04R-K

.1U-10-04R-K

C395

C395

.1U-10-04R-K

.1U-10-04R-K

VCCGLANPLL

C348

C348
.1U-10-04R-K

.1U-10-04R-K

C351

C351
.1U-10-04R-K

.1U-10-04R-K

SB_STATPLL

C376

C376

.1U-10-04R-K

.1U-10-04R-K

4

+3.3VA_RTC

646mA

19mA

23mA
80mA

1mA

G17

G7
U7

J19
K18
K19
L18

L19
M18
M19
N18
N19
P18
R18

T18

T19
U18
U19

W17

U13
V13

W13

U12
V12

W12

W10

U15
V15

W18

G9
H9

V11
U11

U8
T9

U9

G11
H11

G12
H13

J17
H19

J18

K16

U18F

U18F

VCCRTC
V5REF
V5REF_SUS
VCC1_5_B[01]

VCC1_5_B[02]
VCC1_5_B[03]
VCC1_5_B[04]
VCC1_5_B[05]
VCC1_5_B[06]
VCC1_5_B[07]
VCC1_5_B[08]
VCC1_5_B[09]
VCC1_5_B[10]
VCC1_5_B[11]
VCC1_5_B[12]
VCC1_5_B[13]
VCC1_5_B[14]
VCC1_5_B[15]

VCCSATAPLL
VCC1_5_A[01]

VCC1_5_A[02]
VCC1_5_A[03]

VCC1_5_A[04]
VCC1_5_A[05]
VCC1_5_A[06]

VCC1_5_A[07]
VCC1_5_A[08]

VCC1_5_A[09]
VCC1_5_A[10]
VCC1_5_A[11]

VCC1_5_A[12]
VCC1_5_A[13]

VCC1_5_A[14]

VCCUSBPLL
VCC1_5_A[15]

VCC1_5_A[16]

VCCLAN1_05[1]
VCCLAN1_05[2]

VCCLAN3_3[1]
VCCLAN3_3[2]

VCCGLANPLL
VCCGLAN1_5[1]

VCCGLAN1_5[2]

VCCGLAN3_3

ICH9MSFF

ICH9MSFF

CORE

CORE

VCCA3GP ATXARX USB CORE

VCCA3GP ATXARX USB CORE

VCCP_CORE

VCCP_CORE

PCI

PCI

VCCSUS1_05[1]
VCCSUS1_05[2]

VCCSUS1_5[1]
VCCSUS1_5[2]

VCCSUS3_3[01]
VCCSUS3_3[02]
VCCSUS3_3[03]

VCCPSUSVCCPUSB

VCCPSUSVCCPUSB

VCCSUS3_3[04]
VCCSUS3_3[05]

VCCSUS3_3[06]
VCCSUS3_3[07]
VCCSUS3_3[08]
VCCSUS3_3[09]
VCCSUS3_3[10]
VCCSUS3_3[11]
VCCSUS3_3[12]
VCCSUS3_3[13]
VCCSUS3_3[14]
VCCSUS3_3[15]
VCCSUS3_3[16]

GLAN POWER

GLAN POWER

VCC1_05[01]
VCC1_05[02]
VCC1_05[03]
VCC1_05[04]
VCC1_05[05]
VCC1_05[06]
VCC1_05[07]
VCC1_05[08]
VCC1_05[09]
VCC1_05[10]
VCC1_05[11]
VCC1_05[12]
VCC1_05[13]
VCC1_05[14]
VCC1_05[15]
VCC1_05[16]

VCCDMIPLL
VCC_DMI[1]

VCC_DMI[2]

V_CPU_IO[1]
V_CPU_IO[2]

VCC3_3[01]
VCC3_3[02]

VCC3_3[03]
VCC3_3[04]
VCC3_3[05]

VCC3_3[06]
VCC3_3[07]
VCC3_3[08]

VCCHDA

VCCSUSHDA

VCCCL1_05

VCCCL1_5

VCCCL3_3[1]
VCCCL3_3[2]

3

R226

R179

R179

1 2

0-06

0-06

+1.05V

R209

R209

0-06

0-06

+3.3VS

+3.3V

12

R226

1 2

0-06

0-06

+3.3V

R216

R216
0-04

0-04

C389

C389
.1U-10-04R-K

.1U-10-04R-K

+1.5V

1634mA

ICH Core Power

C368

C368

C378

C378

.1U-10-04R-K

.1U-10-04R-K

23mA

L11
L12
L13
L14
L15
M11
M15
N11
N15
P11
P15
R11

48mA

R12
R13
R14
R15

2mA

SB_V_CPU_IO

C361

VCCSUS1_05

VCCSUS1_5

VCCPSUS

VCCPUSB

VCCCL1_05
VCCCL1_5

C366

C366
.1U-10-04R-K

.1U-10-04R-K

C383

C383

.1U-10-04R-K

.1U-10-04R-K

C364

C364

.1U-10-04R-K

.1U-10-04R-K

212mA

C379

C379

.1U-10-04R-K

.1U-10-04R-K

+3.3VS

C361

.1U-10-04R-K

.1U-10-04R-K

C386

C386

P19
T17

U17
V16

U16
V18
AE9

AA9
V14
W14

G8
H7
H8

AD7
V10
T7

H15
H16
V7

G14
G15
H14

W8
J7

J8
K7
K8
L7
L8
M7
M8
N7
N8
P7
P8

G18
H17

73mA

J14
K14

.1U-10-04R-K

.1U-10-04R-K

SB_VCC_DM

.1U-10-04R-K

.1U-10-04R-K

C365

C365

1U-10-06R-K

1U-10-06R-K

C387

C387

.1U-10-04R-K

.1U-10-04R-K

C353

C353
.1U-10-04R-K

.1U-10-04R-K

C370

C370

C359

C359

.1U-10-04R-K

.1U-10-04R-K

.1U-10-04R-K

.1U-10-04R-K

1 2

C381

C381

.1U-10-04R-K

.1U-10-04R-K

SB_VCCHDA

SB_VCCSUSHDA

R195 0-06R195 0-06

R215 0-06R215 0-06
C394

C394

2.2U-10-06X-Z

2.2U-10-06X-Z

SB_VCC1

C362

C362

C396

C396

C402

C402

.1U-10-04R-K

.1U-10-04R-K

2.2U-10-06X-Z

2.2U-10-06X-Z

2.2U-10-06X-Z

2.2U-10-06X-Z

SB_VCC_COMIPLL

C345

C345

C341

C341

.1U-10-04R-K

.1U-10-04R-K

1U-10-06R-K

1U-10-06R-K

R182

R182

1 2

C343

C343

0-06

0-06

2.2U-10-06X-Z

2.2U-10-06X-Z

R181

R181

+1.05V

0-06

0-06

SB_VCC3_3

C369

C369

C385

C385

.1U-10-04R-K

.1U-10-04R-K

2.2U-10-06X-Z

2.2U-10-06X-Z

1 2

1 2

Integrated VRM enable(LAN100SLP)
Integrated VRM enable(INTVMEN)

C352

C352
.1U-10-04R-K

.1U-10-04R-K

1 2

+1.05V

+3.3VS

12

2

R212

R212
0-04

0-04

C380

C380
.1U-10-04R-K

.1U-10-04R-K

B10
B13
B16
B19
B22

D24

E11
E13
E15
E17
E19
E21
F24

G10
G13
G16
G19
G21
H10
H12
H18
H23

J10
J11
J12
J13
J15
J21
J22
J25

K10
K11
K12
K13
K15
K17
K23

L10
L16
L17
L21
L22
L25

M10
M12
M13
M14
M16
M17
M23

N10
N12
N13
N14
N16
N17
N21
N22
N25

P10
P12
P13
P14
P16
P17
P23

R10
R16
R17
R19
R21
R22
R25

T10
T11
T12
T13
T14
T15
T16
T23

B4
B7

D2

E5
E7
E9

G2
G5

J5
J9

K2
K9

L5
L9

M9

N2
N5
N9

P9

R5
R7
R8
R9

T2
T8

U18E

U18E

VSS[001]
VSS[002]
VSS[003]
VSS[004]
VSS[005]
VSS[006]
VSS[007]
VSS[008]
VSS[009]
VSS[010]
VSS[011]
VSS[012]
VSS[013]
VSS[014]
VSS[015]
VSS[016]
VSS[017]
VSS[018]
VSS[019]
VSS[020]
VSS[021]
VSS[022]
VSS[023]
VSS[024]
VSS[025]
VSS[026]
VSS[027]
VSS[028]
VSS[029]
VSS[030]
VSS[031]
VSS[032]
VSS[033]
VSS[034]
VSS[035]
VSS[036]
VSS[037]
VSS[038]
VSS[039]
VSS[040]
VSS[041]
VSS[042]
VSS[043]
VSS[044]
VSS[045]
VSS[046]
VSS[047]
VSS[048]
VSS[049]
VSS[050]
VSS[051]
VSS[052]
VSS[053]
VSS[054]
VSS[055]
VSS[056]
VSS[057]
VSS[058]
VSS[059]
VSS[060]
VSS[061]
VSS[062]
VSS[063]
VSS[064]
VSS[065]
VSS[066]
VSS[067]
VSS[068]
VSS[069]
VSS[070]
VSS[071]
VSS[072]
VSS[073]
VSS[074]
VSS[075]
VSS[076]
VSS[077]
VSS[078]
VSS[079]
VSS[080]
VSS[081]
VSS[082]
VSS[083]
VSS[084]
VSS[085]
VSS[086]
VSS[087]
VSS[088]
VSS[089]
VSS[090]
VSS[091]
VSS[092]
VSS[093]
VSS[094]
VSS[095]
VSS[096]
VSS[097]
VSS[098]
VSS[099]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]

ICH9MSFF

ICH9MSFF

VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[162]
VSS[163]
VSS[164]
VSS[165]
VSS[166]
VSS[167]
VSS[168]
VSS[169]

VSS_NCTF[01]
VSS_NCTF[02]
VSS_NCTF[03]
VSS_NCTF[04]

U5
U10
W11
U14
W16
U21
U22
U25
V3
V8
V19
V23
W1
W4
W5
W7
W9
W15
W19
W21
W22
W25
Y3
Y23
AA1
AA4
AA6
AA8
AA11
AA13
AA15
AA16
AA17
AA19
AA21
AA22
AA25
AB3
AB9
AB11
AB13
AB15
AC24
AC1
AC4
AC10
AC12
AC14
AD2
AD6
AD9
AD16
AD19
AD22
AE3
AE4
AE11
AE13
AE15
V17
AE8
V9
J16

A1
A25
AE1
AE25

1

A A

1 2

R178 0-04R178 0-04

+3.3V

5

VCCGLAN3_3

C340

C340
.1U-10-04R-K

.1U-10-04R-K

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

4

3

2

Date: Sheet

ICH9M Power

ICH9M Power

ICH9M Power

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

of

of

of

14 30Monday, December 21, 2009

14 30Monday, December 21, 2009

14 30Monday, December 21, 2009

5

4

3

2

1

B35

B35

BD-QT1608RL-120

BD-QT1608RL-120

CLK_PWRGD [13]

RA08

+3.3V

C310

C310

.1U-16-04Y-Z

.1U-16-04Y-Z

CLK REQ O/PFrom

B SRC4MCH_GCLK

Max:850mA

CLK_VDD_IO

C316

C309

PM_STPCPU#
PM_STPPCI#

C309

.1U-16-04Y-Z

.1U-16-04Y-Z

D D

+3.3V

R344

R344

1 2

R343

R343

1 2

10K-04

10K-04
10K-04

10K-04

CLKREQA#
CLKREQB#

Reserved FOR EMI

C321 @10P-25-04NC321 @10P-25-04N
C323 @10P-25-04NC323 @10P-25-04N

C C

C506 @10P-25-04NC506 @10P-25-04N
C295 @10P-25-04NC295 @10P-25-04N
C303 @10P-25-04NC303 @10P-25-04N
C319 @10P-25-04NC319 @10P-25-04N
C329 @10P-25-04NC329 @10P-25-04N
C507 @10P-25-04NC507 @10P-25-04N
C505 @10P-25-04NC505 @10P-25-04N
C320 @10P-25-04NC320 @10P-25-04N
C441 @10P-25-04NC441 @10P-25-04N

CLKBSEL2
CLKBSEL1
CLKBSEL0
PCI2
PCI3
PCIF5/ITP_EN
CLK_DEBUG_BD
CLK_EC_LPC
CLK_SB_PCI
CLK_USB48
CLK_ICH14

RA08

+3.3V

C292

C292

.1U-16-04Y-Z

.1U-16-04Y-Z

B34

B34

BD-QT1608RL-120

BD-QT1608RL-120

CR#_A‐>SRC0(0)
/SRC2(1)

CR#_B‐>SRC1(0)
/SRC4(1)

C305

C305

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C306

C306

C315

C315

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

CLK_SATA_QE#[13]
MCH_CLK_REQ#[8]
CLK_DEBUG_BD[19]

CLK_EC_LPC[23]

CLK_SB_PCI[13]

CLK_USB48[13]

CLK_ICH14[13]

CLK_NB_DPLL[8]

CLK_NB_DPLL#[8]

SMBCLK_EC[5,23]
SMBDAT_EC[5,23]

C314

C314

C307

C307

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

1 2

R144 475-1-04R144 475-1-04

1 2

R145 470-04R145 470-04

1 2

R352 33-04R352 33-04

1 2

R351 33-04R351 33-04

1 2

R349 33-04R349 33-04

1 2

R348 33-04R348 33-04

1 2

R355 33-04R355 33-04

1 2

R339 0-04R339 0-04

1 2

R338 0-04R338 0-04

1A

CLK_VDDA

XTAL_OUT
XTAL_IN

CLKREQA#
CLKREQB#
PCI2

RA08

PCI3

PIC4/LCDCK_SEL

PCIF5/ITP_EN
CLKBSEL0

CLKBSEL1

CLKBSEL2

DOT_96
DOT_96#

U17

U17

2

VDD_PCI

9

VDD_48

16

VDD_PLL3

39

VDD_SRC

55

VDD_CPU

61

VDD_REF

59

XTAL_OUT

60

XTAL_IN

1

PCI_0/CLKREQ_A#

3

PCI_1/CLKREQ_B#

4

PCI_2

5

PCI_3

6

PCI_4/LCDCLK_SEL

7

PCIF_5/ITP_EN

10

USB_48MHz/FS_A

57

FS_B/TEST_MODE

62

REF/FS_C/TEST_SEL

13

SRC_0/DOT_96

14

SRC_0#/DOT_96#

64

SCL

63

SDA

8

VSS_PCI

11

VSS_48

15

VSS_I/O

19

VSS_PLL3

23

VSS_SRC_1

29

VSS_SRC_2

42

VSS_SRC_3

52

VSS_CPU

58

VSS_REF

ICS9LPR3165B

ICS9LPR3165B

VDD_I/O

VDD_PLL3_I/O
VDD_SRC_I/O_1
VDD_SRC_I/O_2
VDD_SRC_I/O_3

VDD_CPU_I/O

CPU_STOP#

PCI_STOP#

CKPWRGD/PD#

CPU_0

CPU_0#

CPU_1_MCH

CPU_1_MCH#

SRC_8/CPU_ITP

SRC_8#/CPU_ITP#

LCDCLK/27M

LCDCLK#/27M_SS

SRC_2

SRC_2#

SRC_3/CLKREQ_C#

SRC_3#/CLKREQ_D#

SRC_4

SRC_4#

SRC_6

SRC_6#

SRC_7/CLKREQ_F#

SRC_7#/CLKREQ_E#

SRC_9
SRC_9#
SRC_10

SRC_10#

SRC_11/CLKREQ_H#

SRC_11#/CLKREQ_G#

12
20
26
36
45
49

37
38
56

54
53
51
50
47
46

48

NC

17
18

21
22
24
25
27
28
41
40
44
43
30
31
34
35
33
32

The power-up default is SRC11#, but
this pin may also be used as a Clock
Request control of SRC9
via SMBus.

C316

C308

C308

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

PM_STPCPU# [13]
PM_STPPCI# [13]

CLK_CPU_BCLK [5]
CLK_CPU_BCLK# [5]
CLK_MCH_BCLK [7]
CLK_MCH_BCLK# [7]

SSCLK_NB_LCD [8]
SSCLK_NB_LCD# [8]

CLK_ICH_SATA [12]
CLK_ICH_SATA# [12]
CLK_PCIE_LAN [18]
CLK_PCIE_LAN# [18]
CLK_NB_PEG [8]
CLK_NB_PEG# [8]
CLK_PCIE_GXT [22]
CLK_PCIE_GXT# [22]

CLK_PCIE_VGA [22]
CLK_PCIE_VGA# [22]

CLK_PCIE_Minicard [19]
CLK_PCIE_Minicard# [19]
CLK_DMI_ICH [13]
CLK_DMI_ICH# [13]

CLK_PCIE_WIRE_REQ# [19]

C317

C317

.1U-16-04Y-Z

.1U-16-04Y-Z

RA08

C312

C312

4.7U-10-08Y-Z

4.7U-10-08Y-Z

RA08

1=CR#_CcontrolsSRC2
1=CR#_DcontrolsSRC4

pair
pair

1=CR#_Hcontrols
1=CR#_Gcontrols

SRC8
SRC6

1=CR#_Hcontrols
1=CR#_Gcontrols

SRC10
SRC9

RB17

0= Pin46/47 SRC output.
1= Pin46/47 ITP output.

B B

1 2

CLK_BSEL2[5,8]
CLK_BSEL1[5,8]
CLK_BSEL0[5,8,23]

R159 2.2K-04R159 2.2K-04

1 2

R163 0-04R163 0-04

1 2

R340 2.2K-04R340 2.2K-04

Bsel [0..2] VIH = 0.7V VIL = 0.3V

BSEL

BSEL2

A A

FSB

FSB800
FSB1066

5

FSLC

0
0

BSEL0

BSEL1

FSLA

FSLB

1

10

1

0

00

CPU
MHZ

166FSB667
200
266

CLKBSEL2
CLKBSEL1
CLKBSEL0

PCI
MHZ

33 100

PCI-E
MHZ

XTAL_OUT

Y1

Y1

14.31818M-20-20-D

14.31818M-20-20-D

R353

R353

@1M-1-04

@1M-1-04

C510

C510
27P-50-04N-J

27P-50-04N-J

XTAL_IN

Modified R:B

C511

C511
27P-50-04N-J

27P-50-04N-J

0 = Pin17/18 LCDCLK & DOT_96 for internal graphic controller support
1 = Pin17/18 27M & 27M_SS & SRC_0 for external graphic controller
support

PIC4/LCDCK_SEL

12

R341

R341
10K-04

10K-04

RA07

Ce = 2*CL - ( Cs + Ci )
CL = Crystal Load Cap = 20P
Ci = IC internal Cap = 5P
Cs = 2P
Ce = Crystal external Cap = 33P

4

3

2

RA08

PCIF5/ITP_EN

12

R350

R350
@10K-04

@10K-04

0 = Overclocking of CPU and SRC Allowed
1 = Overclocking of CPU and SRC NOT
allowed

PCI2

12

R141

R141
10K-04

10K-04

Title

Title

Title

CLOCK GEN(ICS9LPRS365BG)

CLOCK GEN(ICS9LPRS365BG)

CLOCK GEN(ICS9LPRS365BG)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

Date: Sheet

B1XIVXX

B1XIVXX

B1XIVXX

1

of

of

of

15 30Monday, December 21, 2009

15 30Monday, December 21, 2009

15 30Monday, December 21, 2009

B

B

B

5

4

3

2

1

D D

DDR3 don't need Terminatation

RA03

+1.5VS

C C

C283

C283

C118

C118

22U-6.3-08R-K

22U-6.3-08R-K

10U-6.3-08R-K

10U-6.3-08R-K

C90

C90

C276

C276

1U-10-06Y-Z

1U-10-06Y-Z

1U-10-06Y-Z

1U-10-06Y-Z

C129

C129

C128

C128

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

C100

C100

C159

C159

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

B B

C151

C151

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C111

C111
1U-10-06Y-Z

1U-10-06Y-Z

C91

C91
.1U-16-04Y-Z

.1U-16-04Y-Z

C95

C95
.1U-16-04Y-Z

.1U-16-04Y-Z

C101

C101

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C99

C99
1U-10-06Y-Z

1U-10-06Y-Z

C107

C107
.1U-16-04Y-Z

.1U-16-04Y-Z

C116

C116
.1U-16-04Y-Z

.1U-16-04Y-Z

C85

C85
@4.7U-10-08Y-Z

@4.7U-10-08Y-Z

C156

C156
.1U-16-04Y-Z

.1U-16-04Y-Z

C131

C131
.1U-16-04Y-Z

.1U-16-04Y-Z

RA04

C125

C125
.1U-16-04Y-Z

.1U-16-04Y-Z

C94

C94
.1U-16-04Y-Z

.1U-16-04Y-Z

C610

C610
@4.7U-10-08Y-Z

@4.7U-10-08Y-Z

C611

C611
@4.7U-10-08Y-Z

@4.7U-10-08Y-Z

C152

C152
@.1U-16-04Y-Z

@.1U-16-04Y-Z

C119

C119
@.1U-16-04Y-Z

@.1U-16-04Y-Z

C87

C87
@.1U-16-04Y-Z

@.1U-16-04Y-Z

C284

C284
@.1U-16-04Y-Z

@.1U-16-04Y-Z

C109

C109
@.1U-16-04Y-Z

@.1U-16-04Y-Z

C106

C106
@.1U-16-04Y-Z

@.1U-16-04Y-Z

RB08

DDR_VREF

C603

C603
1U-10-06Y-Z

1U-10-06Y-Z

DDR3_DRAMRST#[8]
PM_EXTTS#1[8]

+3.3V

C604

C604
.1U-16-04Y-Z

.1U-16-04Y-Z

1 2

R132 @0-04R132 @0-04

1 2

R44 10K-04R44 10K-04

1 2

R43 10K-04R43 10K-04

SB_SMB_DATA[13]
SB_SMB_CLK[13]

MB_BA[2:0][9]

MB_CS#0[8]
MB_CS#1[8]

MB_DM[7:0][9]

MB_WE#[9]
MB_CAS#[9]
MB_RAS#[9]

MB_CKE0[8]
MB_CKE1[8]

MB_CK0[8]
MB_CK1[8]
MB_CK#0[8]
MB_CK#1[8]

MB_DQS[7:0][9]

MB_DQS#[7:0][9]

MB_ODT0[8]
MB_ODT1[8]

DDR_VREF

C311

C311

.1U-16-04Y-Z

.1U-16-04Y-Z

MBA_A[14:0][9]

DDR_TEMP2

+0.75V_DDR

con_s-ddr3-r40_2-2013287-1_tyco

con_s-ddr3-r40_2-2013287-1_tyco

125

30
126
198

77
122

197
201

200
202

109

MB_BA0

108

MB_BA1

79

MB_BA2

114

MB_CS#0

121

MB_CS#1

11

MB_DM0

28

MB_DM1

46

MB_DM2

63

MB_DM3

136

MB_DM4

153

MB_DM5

170

MB_DM6

187

MB_DM7

113

MB_WE#

115

MB_CAS#

110

MB_RAS#

73

MB_CKE0

74

MB_CKE1

101

MB_CK0

102

MB_CK1

103

MB_CK#0

104

MB_CK#1

12

MB_DQS0

29

MB_DQS1

47

MB_DQS2

64

MB_DQS3

137

MB_DQS4

154

MB_DQS5

171

MB_DQS6

188

MB_DQS7

10

MB_DQS#0

27

MB_DQS#1

45

MB_DQS#2

62

MB_DQS#3

135

MB_DQS#4

152

MB_DQS#5

169

MB_DQS#6

186

MB_DQS#7

116

MB_ODT0

120

MB_ODT1

1

203
204

185
189
190
195
196

con_ddr3_r40_rk-20401-tp4b

con_ddr3_r40_rk-20401-tp4b

MBA_A2

MBA_A3

MBA_A1

MBA_A0

MBA_A5

MBA_A6

MBA_A7

MBA_A4

95

92

86

A3

A098A197A296A4

A591A690A7

NC/TEST
RESET#
VREF_CA
TS#
NC1
NC2

SA0
SA1

SDA
SCL

BA0
BA1
BA2

S0#
S1#

DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7

WE#
CAS#
RAS#

CKE0
CKE1

CK0
CK1
CK#0
CK#1

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS#0
DQS#1
DQS#2
DQS#3
DQS#4
DQS#5
DQS#6
DQS#7

ODT0
ODT1

VREF_DQ

VTT
VTT

VSS
VSS
VSS
VSS
VSS

VSS3VSS8VSS9VSS13VSS14VSS19VSS20VSS25VSS26VSS31VSS32VSS37VSS38VSS43VSS

VSS

2

+3.3V

C37

C37
.1U-16-04Y-Z

.1U-16-04Y-Z

MBA_A14

MBA_A12

MBA_A11

MBA_A10

MBA_A9

MBA_A8

MBA_A13

107

199

80

119

85

78

76

A1184A1283A14

75

A13

NC/A15

44

VDDSPD

VSS

48

VDD

VSS

VSS

49

54

VSS

VSS60VSS61VSS65VSS66VSS71VSS72VSS

55

VDD93VDD94VDD99VDD

VDD88VDD87VDD82VDD81VDD

127

A889A9

A10/AP

+1.5VS

CN12

100

105

VSS

133

128

CN12

106

111

112

117

118

123

124

5

VDD

VDD

VDD

VDD

VDD

VSS

VSS

VSS

VSS

VSS

145

134

138

139

144

MB_DQ1

VDD

VDD

VDD

DQ0

7

MB_DQ2

DQ1

15

MB_DQ7

DQ2

17

MB_DQ3

DQ3

4

MB_DQ5

DQ4

6

MB_DQ0

DQ5

16

MB_DQ6

DQ6

18

MB_DQ4

DQ7

21

MB_DQ8

DQ8

23

MB_DQ9

DQ9

33

MB_DQ10

DQ10

35

MB_DQ15

DQ11

22

MB_DQ12

DQ12

24

MB_DQ13

DQ13

34

MB_DQ11

DQ14

36

MB_DQ14

DQ15

39

MB_DQ16

DQ16

41

MB_DQ17

DQ17

51

MB_DQ20

DQ18

53

MB_DQ22

DQ19

40

MB_DQ18MB_DQ18

DQ20

42

MB_DQ21

DQ21

50

MB_DQ19

DQ22

52

MB_DQ23

DQ23

57

MB_DQ24

DQ24

59

MB_DQ29

DQ25

67

MB_DQ30

DQ26

69

MB_DQ27

DQ27

56

MB_DQ28

DQ28

58

MB_DQ25

DQ29

68

MB_DQ26

DQ30

70

MB_DQ31

DQ31

129

MB_DQ32

DQ32

131

MB_DQ37

DQ33

141

MB_DQ34

DQ34

143

MB_DQ35

DQ35

130

MB_DQ33

DQ36

132

MB_DQ36

DQ37

140

MB_DQ38

DQ38

142

MB_DQ39

DQ39

147

MB_DQ45

DQ40

149

MB_DQ44

DQ41

157

MB_DQ46

DQ42

159

MB_DQ43

DQ43

146

MB_DQ40

DQ44

148

MB_DQ41

DQ45

158

MB_DQ42

DQ46

160

MB_DQ47

DQ47

163

MB_DQ55

DQ48

165

MB_DQ49

DQ49

175

MB_DQ54

DQ50

177

MB_DQ48

DQ51

164

MB_DQ50

DQ52

166

MB_DQ51

DQ53

174

MB_DQ53

DQ54

176

MB_DQ52

DQ55

181

MB_DQ61

DQ56

183

MB_DQ58

DQ57

191

MB_DQ63

DQ58

193

MB_DQ60

DQ59

180

MB_DQ57

DQ60

182

MB_DQ56

DQ61

192

MB_DQ59

DQ62

194

MB_DQ62

DQ63

S2

S2

S1

S1

161

VSS

162

VSS

167

VSS

168

VSS

172

VSS

173

VSS

178

VSS

179

VSS

184

VSS

VSS

VSS

VSS

VSS

VSS

155

150

156

151

MB_DQ[63:0] [9]

1 2

R445 @0-04R445 @0-04

R446

R446

1 2

@0-04

@0-04

RA04

+0.75V_DDR

12

R150

C127

C127

C86

C195

C195
10U-6.3-08R-K

10U-6.3-08R-K

A A

5

C88

C88
1U-10-06Y-Z

1U-10-06Y-Z

C110

C110
1U-10-06Y-Z

1U-10-06Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

C86
.1U-16-04Y-Z

.1U-16-04Y-Z

R150
150-1-04

150-1-04

12

R154

R154
150-1-04

150-1-04

4

C302

C302
.1U-16-04Y-Z

.1U-16-04Y-Z

C313

C313
.1U-16-04Y-Z

.1U-16-04Y-Z

+1.5VS

DDR_VREF

C304

C304
1000P-50-04X-K

1000P-50-04X-K

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

3

2

Date: Sheet

DDR3 SODIMM

DDR3 SODIMM

DDR3 SODIMM

B1XIVXX

B1XIVXX

CULV

CULV

CULV

B1XIVXX

1

B

B

B

16 30Monday, December 21, 2009

16 30Monday, December 21, 2009

16 30Monday, December 21, 2009

of

of

of

5

4

3

2

1

Q53 2N7002KQ53 2N7002K

NB_CRT_HSYNC[8]

DGS

NB_H

+5V

R14

R14

2.2K-04

2.2K-04

R94

R94

2.2K-04

2.2K-04

Q50 2N7002KQ50 2N7002K

2N7002K

2N7002K

Q11

Q11

Q25

Q25

2N7002K

2N7002K

DGS

DGS

DGS

R39

R39

2.2K-04

2.2K-04

R63

R63

2.2K-04

2.2K-04

NB_V

CRT_CLK

5V_HI

CRT_DATA

D D

NB_CRT_VSYNC[8]

NB_CRT_CLK[8]

+3.3V

NB_CRT_DAT[8]

C C

NB_CRT_R[8]
NB_CRT_G[8]
NB_CRT_B[8]

NB_H
NB_V
CRT_DATA CRT_DDC_DATA
CRT_CLK

R294

R294
150-1-04

150-1-04

R291

R291
150-1-04

150-1-04

B46 BD-FCM1608CF-120B46 BD-FCM1608CF-120
B45 BD-FCM1608CF-120B45 BD-FCM1608CF-120
B44 BD-FCM1608CF-120B44 BD-FCM1608CF-120
B42 0-06B42 0-06
B41 0-06B41 0-06

B9
B7

R286

R286
150-1-04

150-1-04

0-06B90-06
0-06B70-06

C487

C487

C489

C489

C484

C484

10P-50-04N-J

10P-50-04N-J

10P-50-04N-J

10P-50-04N-J

10P-50-04N-J

10P-50-04N-J

C481

C481

10P-50-04N-J

10P-50-04N-J

CRT_RED
CRT_GREEN
CRT_BLUE
CRT_HSYNC_CON
CRT_VSYNC_CON

CRT_DDC_CLK

C471

C471

10P-50-04N-J

10P-50-04N-J

LVDS

+5V

B40

B40
BD-QT1608RL-30

BD-QT1608RL-30

AC

RA02

D18

D18

CD4148WSP

CD4148WSP

5V_HI

C54

C54

@.1U-16-04Y-Z

@.1U-16-04Y-Z

LVDS Conn.

RB11

1 2

R227

R227

0-06

R157

R157
@47K-04

@47K-04

Q32

Q32
2N7002K

2N7002K

Q28

Q28
FET-SI2301CDS

FET-SI2301CDS

G

0-06

Q59

Q59
@FET-SI2301CDS

@FET-SI2301CDS

DS

G

DS

LCDVCC_IN

LED_VIN

B10

1 2

47K-04

47K-04

+3.3V

C98

C98

1U-10-04R-K

1U-10-04R-K

B10

0-06

0-06

C217

C217

1U-10-04R-K

1U-10-04R-K

G

12

DS

G

12

R98

R98
47K-04

47K-04

DS

Q29

Q29
2N7002K

2N7002K

LED Panel

BL_ON_CON

C67 .1U-25-06Y-ZC67 .1U-25-06Y-Z

C68

C68

C70

C70

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

C74

C74
.1U-25-06Y-Z

.1U-25-06Y-Z

R96 0-04R96 0-04

C71

C71
.1U-16-04Y-Z

.1U-16-04Y-Z

LCDVCC

1 2

+3.3V

BL_ON

+3.3V

LCDVCC

12

R97

R97

D9

10K-04

10K-04

1

3

2

BAT54APTD9BAT54APT

1

NB_LVDSA_N2[8]
NB_LVDSA_P2[8]

NB_LVDSA_N1[8]
NB_LVDSA_P1[8]

NB_LVDSA_P0[8]
NB_LVDSA_N0[8]

NB_LVDSA_CLKP[8]
NB_LVDSA_CLKN[8]

LVDS_EDID_DAT[8]
LVDS_EDID_CLK[8]

B B

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20
21 22
23 24
25 26
27 28
29 30

CN10

CN10

CON_WB_30H100_88107-30001-06_ACES

CON_WB_30H100_88107-30001-06_ACES

steal BRIGHT_ADJ , LCDVIN

VIN

R160

R160

EC_BL_EN [23]

NB_LCD_BL_EN [8]

RA02

EC_BL_PWM_CON

A A

1 2

R91 0-04R91 0-04

C73

C73
.1U-16-04Y-Z

.1U-16-04Y-Z

EC_BL_PWM [23]

NB_LCD_PWR_EN[8]

1 2

R323 10K-1-04R323 10K-1-04

CRT Conn.

CRT_RED
CRT_GREEN
CRT_BLUE

CRT_DDC_DATA
CRT_HSYNC_CON
CRT_VSYNC_CON
CRT_DDC_CLK

SAME U10

Close to LCD_CONN CN30

LCDVCC

B11

B11

0-06

0-06

CN9

CN9

H1

1
9
2

10

3

11

4

12

5

13

6

14

7

15

8

H2

CRT_CON

CON_CRT-R_C10535-11507L_ATP

CON_CRT-R_C10535-11507L_ATP

RB01

C78

C78

C79

C79

.1U-25-04X-K

.1U-25-04X-K

.1U-25-04X-K

.1U-25-04X-K

1A

LED_VIN

C77

C77

.1U-25-04X-K

.1U-25-04X-K

RB04

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

CRT /LVDS

CRT /LVDS

CRT /LVDS

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

of

of

of

17 30Thursday, January 07, 2010

17 30Thursday, January 07, 2010

17 30Thursday, January 07, 2010

5

4

3

2

1

500mA

C277

C277
.1U-16-04Y-Z

.1U-16-04Y-Z

500mA

C121

C121
.1U-16-04Y-Z

.1U-16-04Y-Z

PCIE LANE Location

PCIE 1

CN38 (Mini Card)

PCIE 2

CN40 (DIS-VGA)

PCIE 3

CN31 (LAN+CARDREADER)

PCIE 4
PCIE 5

1

5VS_USB1

2

USB1-

3

USB1+

4

1

5VS_USB3

2

USB3-

3

USB3+

4

H1S2S1

H2

CON_SUSB-2S_BXNV04C_JJP

CON_SUSB-2S_BXNV04C_JJP

H1S2S1

H2

CON_SUSB-2S_BXNV04C_JJP

CON_SUSB-2S_BXNV04C_JJP

SATA LANE Location

CN5 (HDD)SATA 0

SATA 1

USB x 2

PS2

@CK-2012F2SF-900T04

@CK-2012F2SF-900T04

4

R1O3R1I

R2I1R2O

L7

L7

1 2

R330

R330

1 2

R331

R331

1.1A-6V-1206

1.1A-6V-1206

@CK-2012F2SF-900T04

@CK-2012F2SF-900T04

4

R1O3R1I

R2I1R2O

L6

L6

1 2
1 2

PS2

1.1A-6V-1206

1.1A-6V-1206

2

PS1

PS1

2

0-04

0-04
0-04

0-04

0-04

0-04
0-04

0-04

B23 BD-QT1608RL-30B23 BD-QT1608RL-30

+5VS

D D

USB_PN1_USB1[13]

USB_PP1_USB1[13]

B13

+5VS

C C

B13

BD-QT1608RL-30

BD-QT1608RL-30

USB_PN3_USB3[13]
USB_PP3_USB3[13]

USB1_5VS

USB3_5VS

R321

R321
R322

R322

SATA 4
SATA 5

CN49 (ODD)
CN40 (GXT)

C270

C270

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C113

C113

4.7U-10-08Y-Z

4.7U-10-08Y-Z

WEBCAM

L8

L8

USB_PN4_CCD[13]

USB_PP4_CCD[13]

B B

WEBCAM_ON

1ON

4

@CK-2012F2SF-900T04

@CK-2012F2SF-900T04

1 2

R354 0-04R354 0-04

1 2

R357 0-04R357 0-04

WEBCAM_ON[23]

OFF0

R2I1R2O

R1O3R1I

2

12

R356 1K-04R356 1K-04

ESD

C522

C522

.1U-16-04Y-Z

.1U-16-04Y-Z

B51 0-04B51 0-04

+5V

C519

C519

CCD_USB4+
CCD_ON

WEBCAM_PWR

C520

C520

2.2U-6.3-04R

2.2U-6.3-04R

200mA

.1U-16-04Y-Z

.1U-16-04Y-Z

1
2
3
4
5
6

HDD

CN11

CN11

22

22

21

21

20

P11: Staggered Spin-up Disable Control

20

19

19

18

18

17

17

16

16

15

15

14

14

13

13

12

12

11

11

10

10

9

9

8

8

A A

H2

H2

H1

H1

MAIN_SHDD_CON

CON_HDD-430R_C166H2-12204-L_ALLTOP

CON_HDD-430R_C166H2-12204-L_ALLTOP

7

7

6

6

5

5

4

4

3

3

2

2

1

1

5

1 2

ACT#

R288 @0-04R288 @0-04

HDD_TX+

C499 .01U-16-04X-KC499 .01U-16-04X-K

HDD_TX-

C500 .01U-16-04X-KC500 .01U-16-04X-K

1ST_SATA_5V

1ST_SATA_3V

SATA_RXP0_HDD [12]
SATA_RXN0_HDD [12]

SATA_TXN0_HDD [12]
SATA_TXP0_HDD [12]

1ST_SATA_5V

1ST_SATA_3V +3.3V

4

C490

C490

.1U-16-04Y-Z

.1U-16-04Y-Z

C493

C493

@100P-50-04N-J

@100P-50-04N-J

C488

C488

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C495

C495
@1U-10-06Y-Z

@1U-10-06Y-Z

BD-QT1608RL-120

BD-QT1608RL-120

USB

Location

CN46 (3G)

USB 0

CN33 (MB USB)

USB 1

CN40 (GXT USB)

USB 2

CN32 (MB USB)

USB 3

CN34 (CCD)

USB 4

CN51 (AIO USB)

USB 5

CN38 (WLAN)

USB 6

CN31 (IO USB)

USB 7
USB 8
USB 9
USB10
USB11

CN14

CN14

CN13

CN13

CN15

CN15

1
2
3

S1

4

S1

S2

5

S2

6

CON_WB-6H125_WH1-00080-063N_FCN

CON_WB-6H125_WH1-00080-063N_FCN

B43

B43

+5V

600mA

B47

B47
0-06

0-06

IO CON.

C393@.1U-16-04Y-Z C393@.1U-16-04Y-Z

B1XIVXX

B1XIVXX

B1XIVXX

1

+3.3VS_261

C392@1U-10-06Y-Z C392@1U-10-06Y-Z

PLT_RST# [8,13,19,22,23]

of

of

of

18 30Monday, December 21, 2009

18 30Monday, December 21, 2009

18 30Monday, December 21, 2009

B

B

B

S1

S2S2S1

34

34

33

33

32

32

31

31

30

30

29

29

28

28

27

27

26

26

25

25

24

24

23

23

22

22

21

21

20

20

19

19

18

18

17

17

16

16

15

15

14

14

13

13

12

12

11

11

10

10

9

9

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

CN5

CN5

con_ffc34h50_ff1-01210-343n_fcn

con_ffc34h50_ff1-01210-343n_fcn

3G+MODEM

RB02

3G_PWR_ON#[23]

3

1A

0.8A

LAN_RST#

CON_WB-13H100_JH9-710_FCN

CON_WB-13H100_JH9-710_FCN

VIN

R3

100K-04R3100K-04

1 2

10mil

3G_PWR

D

Q2

G

2N7002KQ22N7002K

S

+5VS

+3.3VS

+3.3VS_261

PID_2 / PWR_LED [19,22,23]
PWRON# [21]
+1.2VS_ON [23]

USB_PN7_IO [13]
USB_PP7_IO [13]

CLK_PCIE_LAN# [15]
CLK_PCIE_LAN [15]

PCIE_TXP4_LAN [13]
PCIE_TXN4_LAN [13]
PCIE_RXN4_LAN [13]
PCIE_RXP4_LAN [13]

PCIE_WAKE# [13,19]
HP JACK IN# [20]

HPOUT_L [20]
HPOUT_R [20]

MIC IN# [20]
JACK_MIC_L [20]
JACK_MIC_R [20]

INT_MIC [20]

CN20

CN20

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

S1S1S2

S2

2

LAN_RST#

MD_BCLK
MD_SDATAOUT
MD_RST#
MD_SDATAIN1
MD_SYNC

3G_PWRCCD_USB4-

C388

C388

@1U-6.3-04R-K

@1U-6.3-04R-K

C408

C408

R210 0-06R210 0-06

C400

C400

RB17

R242 33-04R242 33-04

1 2

C428

C428

.1U-16-04Y-Z

.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

1 2

DS

Q36 @FET-SI2301BDSQ36 @FET-SI2301BDS

G
12

R217

R217
@100K-04

@100K-04

@.1U-16-04Y-Z

@.1U-16-04Y-Z

LAN_POW_SAVE# [23]

+3.3VS_261

R406

R406
@1K-04

@1K-04

1 2

R404

R404
@.01U-16-04X-K

@.01U-16-04X-K

FOR EMI

C419

C419

4.7U-10-08R-K

4.7U-10-08R-K

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

R228

R228

1 2

0-04

0-04

D20

D20

A C

@CD4148WSP

@CD4148WSP

ACZ_BITCLK [12,20]
ACZ_SDATAOUT [12,20]
ACZ_RST# [12,20]
ACZ_SDATAIN1 [12]
ACZ_SYNC [12,20]

USB_PN0_3G [13]
USB_PP0_3G [13]

MD

+3.3VS

3G

+5V

2.75A

USB/CCD/HDD/3G+MODEM/IO

USB/CCD/HDD/3G+MODEM/IO

USB/CCD/HDD/3G+MODEM/IO

CULV

CULV

CULV

5

4

3

2

1

RB02 RB02

+1.5V

+3.3VS

12

R241

R241
@100K-04

@100K-04

G

Q37

Q37

R219 0-04R219 0-04

C406 @.1U-16-04Y-ZC406 @.1U-16-04Y-Z

DS

@FET-SI2301BDS

@FET-SI2301BDS

12

WL_+1.5V

WL_+3.3VS

C547

C547

4.7U-6.3-06R-K

4.7U-6.3-06R-K

C545

C545

C548

C548

4.7U-6.3-06R-K

4.7U-6.3-06R-K

C546

C546

C529

C529

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

4.7U-6.3-06R-K

4.7U-6.3-06R-K

WLAN_PWR#[23]

+3.3VS

WLAN_PWR#

G

Q38

Q38

R236 0-04R236 0-04

DS

@FET-SI2301BDS

@FET-SI2301BDS

12

WL_+3.3VS

1.32A

WLAN CONN

D D

WLAN_PWR#[23]

RA12

12
12

WL_+3.3VS

DEBUG_CLK
DEBUG_FRAME#

CN18

CN18

1

WAKE#

3

BT_SM_DATA

5

BT_SM_CLK

7

CLKREQ#

9

GND

11

REFCLK-

13

REFCLK+

15

GND

17

Reserved/UIM_C8

19

Reserved/UIM_C4

21

GND

23

PERn0

25

PERp0

27

GND

29

GND

31

PETn0

33

PETp0

35

GND

37

Reserved

39

Reserved

41

Reserved

43

Reserved

45

Reserved

47

Reserved

49

Reserved

51

Reserved

H1

H1

H2

GND

UIM_PWR
UIM_DATA

UIM_CLK

UIM_RESET

UIM_VPP

GND

W_DISABLE#

PERST#

+3.3VAUX

GND

+1.5V

SMB_CLK

SMB_DATA

GND
USB_D­USB_D+

GND

LED_WWAN#

LED_WLAN#
LED_WPAN#

+1.5V

GND

+3.3V

H2

CON_PCIE-R40_1775861_TYC

CON_PCIE-R40_1775861_TYC

2

3.3V

4
6

1.5V

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

WL_+3.3VS

R225

R225

PCIE_WAKE#[13,18]

47K-1-04

47K-1-04

CLK_PCIE_WIRE_REQ#[15]

C C

1 2

12

R224 0-04R224 0-04

CLK_PCIE_Minicard#[15]
CLK_PCIE_Minicard[15]

LPC_AD0_Debug[23]
LPC_AD1_Debug[23]

PCIE_RXN2_WLAN[13]
PCIE_RXP2_WLAN[13]

PCIE_TXN2_WLAN[13]
PCIE_TXP2_WLAN[13]

LPC_AD2_Debug[23]
LPC_AD3_Debug[23]

CLK_Debug_BD[15]

LPC_FRAME#[12,23]

CLOSE TO SB&EC&CLK GEN

12

R233 @0-04R233 @0-04

WIRE_LANREQ#

PCIE_RXN2
PCIE_RXP2

PCIE_TXN2
PCIE_TXP2

R368 0-04R368 0-04
R366 0-04R366 0-04

WL_+3.3VS

LDRQ1#_8
INT_SERIRQ_10
PCI_RST#_12

USB_D-_MINI
USB_D+_MINI

RB02

WL_+1.5V

R417 0-04R417 0-04
R378 0-04R378 0-04
R416 0-04R416 0-04
R414 @0-04R414 @0-04

WL_+3.3VS
WL_+1.5V

WL_+1.5V
WL_+3.3VS

C399

C399

@1U-10-06Y-Z

@1U-10-06Y-Z

12
12
12
12

L10

L10

4

R1O3R1I

R2I1R2O

@CK-2012F2SF-900T04

@CK-2012F2SF-900T04
R385 0-04R385 0-04

1 2

R381 0-04R381 0-04

1 2

LDRQ1# [12]
INT_SERIRQ [13,23]
PCI_RST# [13]

2

WL_+3.3VS

R407

R407
@47K-1-04

@47K-1-04

WLAN_ON [23]

USB_PN6_MINI [13]
USB_PP6_MINI [13]

RB02

WL_+3.3VS

R415

R415

@1K-04

@1K-04

D21

D21

A C

@SCH-BAT54-PH

@SCH-BAT54-PH

R448 0-04R448 0-04

RA02

12

PCIE LANE Location

PCIE 1
PCIE 2
PCIE 3
PCIE 4
PCIE 5

PLT_RST# [8,13,18,22,23]

CN38 (Mini Card)

CN40 (DIS-VGA)
CN31 (LAN+CARDREADER)

USB

USB 0
USB 1
USB 2
USB 3
USB 4
USB 5
USB 6
USB 7
USB 8
USB 9
USB10
USB11

Location

CN46 (3G)
CN33 (MB USB)
CN40 (GXT USB)
CN32 (MB USB)
CN34 (CCD)

CN51 (AIO USB)

CN38 (WLAN)
CN31 (IO USB)

TP+LED CONN

B B

CN19

CN19

C373

C373

SATA_LED# [12,22]
RF_LED_ON# [22,23]
PID_1 / CHG_R_LED [22,23]
PID_0 / CHG_B_LED [22,23]
PID_2 / PWR_LED [18,22,23]

LID# [23]

TP_CLK [23]
TP_DATA [23]

+5V

+3.3VA
+3.3V

TP

CHG

1
2
3
4
5
6
7
8

9
10
11
12

con_ffc12t05_ff1-01200-123n_fcn

con_ffc12t05_ff1-01200-123n_fcn

C401

C401

C397

C397

C550

C550

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet of

Date: Sheet of

5

4

3

2

Date: Sheet of

CULV

CULV

CULV

Mini Card/TP+LED

Mini Card/TP+LED

Mini Card/TP+LED

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

19 30Monday, December 21, 2009

19 30Monday, December 21, 2009

19 30Monday, December 21, 2009

5

4

3

2

1

R434 47-04R434 47-04
R433 47-04R433 47-04

C561

volume

MIC2_VREFO
MIC1_VREF+5V_CODECAVDD
CAP2
VREF_CODEVDDSPKL1+
MIC2_R
MIC2_L

R248 @100K_04R248 @100K_04

C412 1U-6.3-04Y-ZC412 1U-6.3-04Y-Z

ACZ_RST# [12,18]
ACZ_SYNC [12,18]
ACZ_SDATAIN0 [12]
ACZ_BITCLK [12,18]

C561
10n-50-04X-K

10n-50-04X-K

C559 4.7U-10-08Y-ZC559 4.7U-10-08Y-Z
C557 4.7U-10-08Y-ZC557 4.7U-10-08Y-Z

C425

C425
.1U-16-04R-K

.1U-16-04R-K

C554 1U-6.3-04Y-ZC554 1U-6.3-04Y-Z
C411 2.2U-10-06X-ZC411 2.2U-10-06X-Z
C555 1U-6.3-04Y-ZC555 1U-6.3-04Y-Z
C556 1U-6.3-04Y-ZC556 1U-6.3-04Y-Z

C562

C562

10n-50-04X-K

10n-50-04X-K

D D

38mA

1.2A

4.7uF

AMP_MUTE#[23]

close to pin 38

C424

C424

4.7U-6.3-06R-K

4.7U-6.3-06R-K

B39 BD-QT1608RL-120B39 BD-QT1608RL-120

C429

C429

2.2U-6.3-06R-K

2.2U-6.3-06R-K

C413

C413
.1U-16-04R-K

.1U-16-04R-K

.1U-16-04R-K

.1U-16-04R-K

C426

C426

R255 10K-04R255 10K-04

pop noise

C563 4.7U-10-08Y-ZC563 4.7U-10-08Y-Z

AMP_PVDD

SPKL1-

R254 0-04R254 0-04

SPKR1­SPKR1+

C427

C427
.1U-16-04R-K

.1U-16-04R-K

AMP_MUTE#_EAPD

VREG

PVSS_42

+5V

B38 BD-QT1608RL-30B38 BD-QT1608RL-30

+5V

C C

Close IC pin

+3.3V

DVDD-PVDD-AVDD

C417

C417

.1U-16-04Y-Z

.1U-16-04Y-Z

R432 10-04R432 10-04

CODEC_+3.3V

C415

C415
1U-6.3-04Y-Z

1U-6.3-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

close to pin 1

ACZ_SDATAOUT[12,18]

B B

RA01

LINE2_R

C418

C418

4.7uF

2.2U-10-06X-Z

2.2U-10-06X-Z

U19

U19

37

Vreg(+2.5V)

38

AVDD2

39

PVDD

40

PORTD_+L

41

PORTD_L-

42

PVSS

43

PORTD_-R

44

PORTD_+R

45

PVDD

46

DMIC/GPIO 0/SPDIFOUT1

47

EAPD

48

SPDIF OUT0

49

DGND

C560

C560

R2530-04 R2530-04

C601 1U-10-06R-KC601 1U-10-06R-K

CAP-

CAP+

AVSS2_33

V-

33

36

35

34

V-

Cap-

Cap+

HP1_R32AVSS2

92HD81-UA

92HD81-UA

Analog
Digital

DVDD_CORE1DMIC_CLK/GPIO2DVDD_IO3DMIC_0/GPIO24SDATA_OUT5BIT_CLK6DVSS**7SDATA_IN8DVDD*9SYNC10RESET#11PCBEEP

DVDD_CORE

C416

C416

2.2U-10-06X-Z

2.2U-10-06X-Z

10uF

LINE2_L

AVSS2_30

30

31

HP1_L

C558

C558
22P-50-04N-J

22P-50-04N-J

R2510-04 R2510-04

28

HP0_R29AVSS2

CODEC_DATAIN
CODEC_BIT_CLK

MIC1_R
MIC1_L

+5V_CODECAVDD

AVSS1_26

26

27

25

HP0_L

AVSS1

AVDD1

Mono_Out
VrefOut_C

VrefOut_A or F

PORTC_R

PORTC_L
PORTF_R
PORTF_L
PORTE_R
PORTE_L
SENSE_B
SENSE_A

12

R243 0-04R243 0-04

24
23
22

CAP2

21

VrefFilt

20
19
18
17
16
15
14
13

R247 33-04R247 33-04
R431 33-04R431 33-04

RB17

SENSEB#
HP_JD_SENSEA#

FOR EMI

HPOUT_R [18]
HPOUT_L [18]

R249

R249

4.7K-04

4.7K-04

+5V_CODECAVDD

R250

R250

2.49K-1-04

2.49K-1-04

R240

R240

1 2

R239

R239

C414

C414

@100P-50-04N-J1

@100P-50-04N-J1

1 2

10K-04

10K-04

C552

C552
.1U-16-04Y-Z

.1U-16-04Y-Z

PCBEEPCODEC_PCBEEP

R245

R245

R246

R246

4.7K-04

4.7K-04

10uF

R244

R244

100K-04

100K-04

C553

C553
1U-6.3-04Y-Z

1U-6.3-04Y-Z

MIC_R_EXT
MIC_L_EXT

20K-04

20K-04

39.2K-04

39.2K-04

ACZ_SPKR_BEEP

MIC1_VREF

B53 0-06B53 0-06

B52 0-06B52 0-06

MIC2_VREFO

R430

R430

4.7K-04

4.7K-04

C551

C551
.1U-10-04R-K

.1U-10-04R-K

1uF

HP JACK IN# [18]
MIC IN# [18]

C407 1U-6.3-04Y-ZC407 1U-6.3-04Y-Z

C409 1U-6.3-04Y-ZC409 1U-6.3-04Y-Z

JACK_MIC_R
JACK_MIC_L

INT_MIC [18]

ACZ_SPKR [13]

BTL_BEEP [23]

JACK_MIC_R [18]
JACK_MIC_L [18]

INT_SPEAKER

SPKR1+

B54 0-04B54 0-04

SPKR1-

B55 0-04B55 0-04

SPKL1-

B56 0-04B56 0-04

SPKL1+

B57 0-04B57 0-04

A A

5

C420

C420

@680P-50-04X-K

@680P-50-04X-K

C421

C421

@680P-50-04X-K

@680P-50-04X-K

C422

C422

@680P-50-04X-K

@680P-50-04X-K

CN21

CN21

1

SPK_R+

1

2

SPK_R-

2

3

SPK_L-

3

S1

4

SPK_L+

4

S2

C423

C423

CON_WB_4H125_WH1-00080-043N_FCN

CON_WB_4H125_WH1-00080-043N_FCN

@680P-50-04X-K

@680P-50-04X-K

S1
S2

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

4

3

2

Date: Sheet

CODEC(IDT92HD81) / SPK

CODEC(IDT92HD81) / SPK

CODEC(IDT92HD81) / SPK

CULV

CULV

CULV

1

B1XIVXX

B1XIVXX

B1XIVXX

B

B

B

of

of

of

20 30Monday, December 21, 2009

20 30Monday, December 21, 2009

20 30Monday, December 21, 2009

5

4

3

2

1

DC-IN

CN7

D D

C C

CN7

2

MS1

MS2

CON_DCIN-WO_C-1775540-1_TYC

CON_DCIN-WO_C-1775540-1_TYC

SAFTY_PROTECT[23]

4

C431

C431

@.1U-50-04X-K

@.1U-50-04X-K

1

C432

C432

C1

C1

@220P-50-04X-K

@220P-50-04X-K

@1U-25-06R-K

@1U-25-06R-K

R19

R19

0-04

0-04

DC_IN+

C430

C430

22P-50-04N-J

22P-50-04N-J

AUX_PWR_EN[25]

R13

R13

DC_IN+

12

R1

12.1K-1-06R112.1K-1-06

SAFTY_G

@10K-04

@10K-04

2N7002KQ12N7002K

BD-HCB2012KF-80

BD-HCB2012KF-80

C2

.1U-25-06Y-ZC2.1U-25-06Y-Z

G

C19

C19

.1U-16-04Y-Z

.1U-16-04Y-Z

B1

B1

AUX_PWR_EN

DS

Q1

12

R263

R263

100K-04

100K-04

12

R264

R264
100K-04

100K-04

co-lay

DC_IN_A

1
2
3

C11

C11

560P-50-04X-K

560P-50-04X-K

R10

R10

330K-04

330K-04

G

C436

C436

.1U-16-04Y-Z

.1U-16-04Y-Z

U1

U1

S

S

G

G

JP1

JP1

12

@OPEN_10A

@OPEN_10A

D

D

4

DC_IN_A_G

R9
150K-04R9150K-04

DS

Q47

Q47

2N7002K

2N7002K

8
7
6
5

Si4835DDY

Si4835DDY

C433

C433
220P-50V-06N-J

220P-50V-06N-J

PROJECT

Adaptor

Rsense
Stop Charger

RCH1

RCH1

1 2

50m-1W-1-2512

50m-1W-1-2512

B10

40W

50m Ohm

35W

DC_INDC_IN_B

C434

C434
220P-50V-06N-J

220P-50V-06N-J

D15

D15

A C

SK34A

SK34A

VIN

RA02

CPU FAN CONTROL

+5V

CN16

CN16

3

FAN_VOUT

3

2

S2S22

S1

11S1

CON_WB-3H125_WH1-00080-033N_FCN

CON_WB-3H125_WH1-00080-033N_FCN

B B

C325

C325

4.7U-10-08Y-Z

4.7U-10-08Y-Z

C324

C324

2.2U-6.3-06R-K

2.2U-6.3-06R-K

FAN_CTRL0[23]

RA10

R447 @0-04R447 @0-04

1
2
3
4

U10

U10

VEN
VIN
V0
VSET

G990P11U

G990P11U

M-SO8

M-SO8

8

GND

7

GND

6

GND

5

GND

+1.5VS +1.5VS +1.5VS +1.5VS +1.05V +3.3VS +1.05V+3.3V +5V +3.3VS

C564

C564

C565

C565

+3.3VA +1.05V

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+3.3VS

+5V

+1.05V_VOUT +CPU_CORE +5VA +3.3V

C583

C583

C582

C582

+5V

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+1.05V

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+1.05V

C570

C570

C571

+3.3V

+3.3VS

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+3.3V

C588

C588

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C571

C572

C572

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+5V +3.3VS +1.05V

C594

C594

C589

C589

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C567

C567

C566

C566

+3.3V +3.3V +3.3V +3.3VS +3.3VA +5VS +5VS

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C584

C584

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+1.5V

C568

C568

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C585

C585

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C569

C569

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C586

C586

+1.5VS

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C587

C587

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C573

C573

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C595

C595

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+5V +5V

C574

C574

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C596

C596

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C575

C575

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+5V

+5VS

C599

C599

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+3.3VS

C576

C576

+5VS +1.05V

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+1.5VS +1.05V

C577

C577

@.1U-16-04Y-Z

@.1U-16-04Y-Z

VIN

C578

C578

+3.3V

@.1U-16-04Y-Z

@.1U-16-04Y-Z

VIN

C600

C600

@.1U-25-04Y-Z

@.1U-25-04Y-Z

CheckVin_Cap
(20V)

+1.05V +1.5VS

C579

C579

@.1U-16-04Y-Z

@.1U-16-04Y-Z

VIN_VGA2

C590

C590

+3.3V

@.1U-25-04Y-Z

@.1U-25-04Y-Z

C580

C580

@.1U-16-04Y-Z

@.1U-16-04Y-Z

+5VS

C591

C591

VIN_VGA3

@.1U-25-04Y-Z

@.1U-25-04Y-Z

C581

C581

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C592

C592

@.1U-25-04Y-Z

@.1U-25-04Y-Z

G

2N7002K

2N7002K

+3.3VA

G

R204

R204
47K-04

47K-04

DS

+5VA_LDO

DS

4

Q39

Q39
2N7002K

2N7002K

R260

R260
100K-04

100K-04

H12

H12

C276D106

C276D106

C236D87H5C236D87

PWRSW [23]

VL_ON# [25]

DS

Q40

Q40

R265

R265

100K-04

100K-04

G

C439

C439

.1U-25-06Y-Z

.1U-25-06Y-Z

2N7002K

2N7002K

3

VIN_G

Q48

Q48

PWR Botton

+5VA_LDO

R259

R259
100K-04

100K-04

PWRON#

PWRON#[18]

A A

5

C452

C452
.1U-25-06Y-Z

.1U-25-06Y-Z

RA09RA09

H11

H5

H1

C236D87H1C236D87

H9

C256D106H9C256D106

H10

H10

C276D106

C276D106

C158D67H7C158D67

H7

H8

C315D106H8C315D106

H11

R236X236D0

R236X236D0

H4

C256D157H4C256D157

EMIrequent
(CheckAphase)

2

CPU

C256D157H2C256D157

R143

R143
0-06

0-06

NB

H6

H2

C256D157H6C256D157

H3

R236X236D0H3R236X236D0

R161

R161
0-06

0-06

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet

Date: Sheet

Date: Sheet

DC IN / FAN /ByPass_Cap

DC IN / FAN /ByPass_Cap

DC IN / FAN /ByPass_Cap

CULV

CULV

CULV

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

of

of

of

21 30Monday, December 21, 2009

21 30Monday, December 21, 2009

21 30Monday, December 21, 2009

5

4

3

2

1

PCIE LANE Location

PCIE 1

CN38 (Mini Card)

PCIE 2

CN40 (DIS-VGA)

PCIE 3

CN31 (LAN+CARDREADER)

PCIE 4
PCIE 5

USB

Location

CN46 (3G)

D D

USB 0

CN33 (MB USB)

USB 1

CN40 (GXT USB)

USB 2

CN32 (MB USB)

USB 3

CN34 (CCD)

USB 4

CN51 (AIO USB)

USB 5

CN38 (WLAN)

USB 6

CN31 (IO USB)

USB 7
USB 8
USB 9
USB10
USB11

SATA LANE Location

CN5 (HDD)SATA 0

SATA 1

CN49 (ODD)

SATA 4

CN40 (GXT)

SATA 5

GXT_DET#[23]

GXT_ON[23]

SATA_RXN4_GXT[12]
SATA_RXP4_GXT[12]

SATA_TXN4_GXT[12]

SATA_TXP4_GXT[12]

PLT_RST#[8,13,18,19,23]

CLK_PCIE_GXT#[15]

CLK_PCIE_GXT[15]

ESD

1 2

R168 0-04R168 0-04

GXT_PLT_RST#

C337

C337

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C336

C336

C347

C347

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

@.1U-16-04Y-Z

R189

R189

1 2

90.9K-1-04

90.9K-1-04

GXT CONN.

CN17

CN17

1

GXT_Det#

3

GXT_EN

5

SATA_RXN

7

SATA_RXP

9

SATA_TXN

11

SATA_TXP

13

RST#

15

GND

17

PCIE_CLK#

19

PCIE_CLK

SATA_DET#

GXT CON

H1

R436

R436

1 2

90.9K-1-04

90.9K-1-04

CON_HDMI-A-R_C12812-11905-L_ATP

CON_HDMI-A-R_C12812-11905-L_ATP

GXT CONN.

GXT CONN.

GNDH4GNDH3GNDH2GND

USB+

USB-

PCIE_RXP
PCIE_RXN

PCIE_TXP
PCIE_TXN

Co-lay

2
4
6

GND

8
10
12

GND

14
16
18

GND

USB_GXF_PP2
USB_GXF_PN2

USB_GXF_PN2

USB_GXF_PP2

PCIE_TXN3_GXT [13]
PCIE_TXP3_GXT [13]

PCIE_RXP3_GXT [13]
PCIE_RXN3_GXT [13]

R359

R359

R360

R360

1 2

1 2

L9

R1O2R1I

3

@lecm2012L9@lecm2012

0-04

0-04

0-04

0-04

1

R2I4R2O

USB_PN2_GXT [13]
USB_PP2_GXT [13]

RA02

C C

AIO OPTION

forEMItest

ODD CONN.

VGA CONN.

CN3

CN3

S2

S1S1S2

14

VIN_VGA1

14

13

13

12

12

11

11

10

10

9

9

8

8

B B

@con_wb-14h125_mh1-d2-143g_fcn

@con_wb-14h125_mh1-d2-143g_fcn

7

7

6

6

5

5

4

4

3

3

2

+5V_VGA

2

1

PLT_RST_VGA#

1

C322

C322

4.7U-6.3-06R-K

4.7U-6.3-06R-K

R162

R162

R165 0-04R165 0-04

C328

C328

C327

C327

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

JP7

JP7
OPEN-1MM-0805-1

OPEN-1MM-0805-1

12

CLK_PCIE_VGA# [15]
CLK_PCIE_VGA [15]

PCIE_TXN1_VGA [13]
PCIE_TXP1_VGA [13]

PCIE_RXN1_VGA [13]

PCIE_RXP1_VGA [13]

1 2
1 2

PCIE LANE Location

PCIE 1
PCIE 2
PCIE 3
PCIE 4 CN? (Mini Card)

2A

1A

0-04

0-04

+5V

CN? (OPTION VGA)

CN?(LAN+CARDREADER)
CN? (DIS-VGA)

C597

C597

.1U-25-04X-K

.1U-25-04X-K

PLT_RST# [8,13,18,19,23]

VIN_VGA3VIN_VGA2

JP11

JP11
OPEN-1MM-0805-1

OPEN-1MM-0805-1

12

C598

C598

.1U-25-04X-K

.1U-25-04X-K

JP12

JP12
OPEN-1MM-0805-1

OPEN-1MM-0805-1

12

0-06

0-06

B58

+5V_ODD

C326

C326

4.7U-6.3-06R-K

VIN

con_wb-8h125_mh1-d2-083g_fcn

con_wb-8h125_mh1-d2-083g_fcn

S1S1S2

CN2

CN2

S2

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

4.7U-6.3-06R-K

ODD_SATA1RXN
ODD_SATA1RXP

B58

C331

C331

@.1U-16-04Y-Z

@.1U-16-04Y-Z

C540 .01U-16-04X-KC540 .01U-16-04X-K
C543 .01U-16-04X-KC543 .01U-16-04X-K

+5V

SATA_TXP1_ODD [12]
SATA_TXN1_ODD [12]

SATA_RXN1_ODD [12]
SATA_RXP1_ODD [12]

SATA LANE Location

CN5 (HDD)SATA 0

SATA 1

CN49 (ODD)

SATA 4

CN40 (GXT)

SATA 5

new footprint

BLUETOOTH CONN.

CN23

USB CONN.

+5VS_AIO_USB

A A

con_wb-4h125_mh1-d2-043g_fcn

con_wb-4h125_mh1-d2-043g_fcn

S2

S1S1S2

4

4

3

USB5-

3

2

USB5+

2

1

1

CN6

CN6

C410

C410

4.7U-10-08Y-Z

4.7U-10-08Y-Z

500mA

0-06

0-06

B59

B59

USB_PN5_AIOUSB [13]
USB_PP5_AIOUSB [13]

new footprint

5

4

LED CONN.

CN4

CN4

+5VS

1
2
3
4
5
6
7
8

9
10
11
12

@con_ffc12t05_ff1-01200-123n_fcn

@con_ffc12t05_ff1-01200-123n_fcn

SATA_LED# [12,19]
RF_LED_ON# [19,23]
PID_1 / CHG_R_LED [19,23]
PID_0 / CHG_B_LED [19,23]
PID_2 / PWR_LED [18,19,23]

+3.3VA
+3.3V

3

@CON_WB_10H80_A0800WR-S-2P_HR

@CON_WB_10H80_A0800WR-S-2P_HR

CN23

1

1

S2

S2

S1

22S1

C508

C508

@4.7U-6.3-06R-K

@4.7U-6.3-06R-K

C509

C509

+3.3V

@.1U-16-04Y-Z

@.1U-16-04Y-Z

1 2

R252 @0-04R252 @0-04

C517

C517

@.1U-16-04Y-Z

@.1U-16-04Y-Z

BT_ON [23]

RB19

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
C

C

C
Date: Sheet

Date: Sheet

2

Date: Sheet

GXT/VGA/ODD/USB4th/BT

GXT/VGA/ODD/USB4th/BT

GXT/VGA/ODD/USB4th/BT

CULV

CULV

CULV

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

22 30Monday, December 21, 2009

22 30Monday, December 21, 2009

22 30Monday, December 21, 2009

B

of

of

of

5

LRST1#

D D

Check

TP6TP6

C C

EXTSCI#

C367

C367
0-04

0-04

8502

B B

1 2

R363 100K-04R363 100K-04
C531

C531
.1U-16-04Y-Z

.1U-16-04Y-Z

DelbyMP

LPC_AD0_Debug[19]

phase

LPC_AD1_Debug[19]
LPC_AD2_Debug[19]
LPC_AD3_Debug[19]

LPC:4Eh-4Fh

C367

0-048500
10P

RN8

RN8

1
3

0-8P4R-04

0-8P4R-04

RC_IN = KBC RESET

LPC_AD0[12]
LPC_AD1[12]
LPC_AD2[12]
LPC_AD3[12]

INT_SERIRQ[13,19]

LPC_FRAME#[12,19]
CLK_EC_LPC[15]

H_RCIN#[12]
H_A20GATE[12]
EC_EXTSMI#[13]

R199 100K-04R199 100K-04

EC_VID4[24]
EC_VID5[24]
EC_VID3[24]

CHG_ON#[28]

TP_CLK[19]

TP_DATA[19]

LAN_POW_SAVE#[18]

GXT_DET#[22]

+3.3VA

C518

C518

4.7U-6.3-06R-K

4.7U-6.3-06R-K

8

LPC_AD0
LPC_AD1

6

LPC_AD2

5724

LPC_AD3

TP5TP5

C527

C527

.1U-16-04Y-Z

.1U-16-04Y-Z

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3

LPC_SERIRQ
LPC_FRAME#

H_RCIN#

LRST1#
EC_XI

EC_XO

KEYIN7
KEYIN6
KEYIN5
KEYIN4
KEYIN3
KEYIN2
KEYIN1
KEYIN0

KEY_OUT15
KEY_OUT14
KEY_OUT13
KEY_OUT12
KEY_OUT11
KEY_OUT10
KEY_OUT9
KEY_OUT8
KEY_OUT7
KEY_OUT6
KEY_OUT5
KEY_OUT4
KEY_OUT3
KEY_OUT2
KEY_OUT1
KEY_OUT0

SPI_CLK
SPI_CE#
SPI_SI
SPI_SO
FLFRAME#

SMBCLK0
SMBDAT0
SMBCLK1
SMBDAT1

B50

EC_+3.3VA

C521

C521

.1U-16-04Y-Z

.1U-16-04Y-Z

+3.3V

C536

C536

.1U-16-04Y-Z

.1U-16-04Y-Z

U11

U11

10

LAD0

9

LAD1

8

LAD2

7

LAD3

5

SERIRQ

6

LFRAME#

13

LPCCLK

4

KBRST#/GPB6

126

GA20/GPB5

15

ECSMI#/GPD4

23

ECSCI#GPD3

14

WRST#

128

CLK32K

2

CK32KE

65

KSI7

64

KSI6

63

KSI5

62

KSI4

61

KSI3/SLIN#

60

KSI2/INIT#

59

KSI1/AFD#

58

KSI0/STB#

57

KSO17/GPC5

56

KSO16/GPC3

55

KSO15

54

KSO14

53

KSO13

52

KSO12/SLCT

51

KSO11/ERR#

46

KSO10/PE

45

KSO9/BUSY

44

KSO8/ACK#

43

KSO7/PD7

42

KSO6/PD6

41

KSO5/PD5

40

KSO4/PD4

39

KSO3/PD3

38

KSO2/PD2

37

KSO1/PD1

36

KSO0/PD0

105

FLCLK/SCK

101

FLAD0/SCE#

102

FLAD1/SI

103

FLAD2/SO

100

FLFRAME#/GPG2/LF

85

PS2CLK0/GPF0

86

PS2DAT0/GPF1

87

PS2CLK1/GPF2

88

PS2DAT1/GPF3

89

PS2CLK2/GPF4

90

PS2DAT2/GPF5

110

SMCLK0/GPB3

111

SMDAT0/GPB4

115

SMCLK1/GPC1

116

SMDAT1/GPC2

117

SMCLK2/GPF6

118

SMDAT2/GPF7

ITE8500 QFPS128-04M-60

ITE8500 QFPS128-04M-60

C533

C533

.1U-16-04Y-Z

.1U-16-04Y-Z

B50

BD-QT1608RL-60

BD-QT1608RL-60

C539

C539

.1U-16-04Y-Z

.1U-16-04Y-Z

114

121

127

11

VCC

VSTBY26VSTBY50VSTBY92VSTBY

VSTBY

VSTBY

INT-H

INT-H

INT-H

INT-H

System BUS

System BUS

IT8500

IT8500

INT-L

INT-L

KB Matrix InterfaceSPI Flash

KB Matrix InterfaceSPI Flash

INT-H

INT-H

1

SM BUS

SM BUS

VSS

PS/2

PS/2

GPF6

GPF6
GPF7

GPF7

RING#/PWRFAIL#/LPCRST#/GPB7

INT-L

INT-L

VSS91VSS

VSS

113

122

INT-L

INT-L

INT-H

INT-H

VSS12VSS27VSS49AVSS

VSS_12

GPE1

GPE1
GPE2

GPE2
GPE3

GPE3

R389

R389
@0-04

@0-04

C360 @.1U-16-04Y-ZC360 @.1U-16-04Y-Z

1 2

R393 0-04R393 0-04

1 2

VBAT_3

3

74

AVCC

VBAT/NC

GPI0

GPI0
GPI1

GPI1
GPI2

GPI2
GPI3

GPI3

GPJ0

GPJ0
GPJ1

GPJ1

GPA0

GPA0
GPA1

GPA1

INT-H

INT-H

INT-H

INT-H

TMRI0/WUI2/GPC4

INT-L

INT-L

TMRI1/WUI3/GPC6

PWUREQ#/GPC7

INT-H

INT-H

LPCRST#/WUI4/GPD2

INT-L

INT-L

INT-L

INT-L

INT-H

INT-H

INT-L

INT-L

LPCPD#/WUI6/GPE6

INT-H

INT-H

FLRST#/WUI7/GPG0/TM

INT-L

INT-L

INT-L

INT-L

75

4

+3.3VA

ADC0/GPI0
ADC1/GPI1
ADC2/GPI2
ADC3.GPI3
ADC4/GPI4
ADC5/GPI5
ADC6/GPI6
ADC7/GPI7

ADC/GPI

ADC/GPI

DAC0/GPJ0
DAC1/GPJ1
DAC2/GPJ2
DAC3/GPJ3
DAC4/GPJ4

DAC

DAC

DAC5/GPJ5

PWM0/GPA0
PWM1/GPA1
PWM2/GPA2
PWM3/GPA3
PWM4/GPA4
PWM5/GPA5
PWM6/GPA6
PWM7/GPA7

RXD/GPB0
TXD/GPB1

RI1#/WUI0/GPD0
RI2#/WUI1/GPD1

GINT/GPD5
TACH0/GPD6
TACH1/GPD7

L80HLAT/GPE0

EGAD/GPE1
EGCS#/GPE2
EGCLK/GPE3

PWRSW/GPE4

WUI5/GPE5

L80LLAT/GPE7

GPG1/ID7

FLAD3/GPG6

GPH0/ID0/SHBM

GPH1/ID1
GPH2/ID2
GPH3/ID3
GPH4/ID4
GPH5/ID5
GPH6/ID6

CTX/GPB2
CRX/GPC0

+3.3VA

66
67
68
69
70
71
72
73

76
77
78
79
80
81

24
25
28
29
30
31
32
34

108
109
112

120
124
16

18
21
22
33
47
48

19
82
83
84
125
35
17
20

106
107
104

93
94
95
96
97
98
99

123
119

C333

C333
.1U-16-04Y-Z

.1U-16-04Y-Z

EC_BSEL0

BATT_TEMP_EC

SAVE_PWR

LID#

CLK_REQ_106 for EC int crystal

CLK_REQ_106

R247

10K8500
OP

8502

R435

R435
0-04

0-04

RA13

R205 10K-04R205 10K-04

Check!!!

CPU_H_VID3 [6]
CPU_H_VID5 [6]

CPU_H_VID4 [6]

BAT_I [28]

BATT_TEMP [28]
ADAPTOR_I [28]
BAT_V [28]

EC_BL_EN [17]
EC_PROCHOT# [5,24]
FAN_CTRL0 [21]
CHG_REF [28]
CHG_I [28]

RB19

BT_ON [22]
RF_LED_ON# [19,22]

BATT_VA_ON [25]
BTL_BEEP [20]
WLAN_PWR# [19]
3G_PWR_ON# [18]
SENBAT_V [28]
PM_RSMRST# [13]
EC_BL_PWM [17]

PM_SLP_S4# [8,13]
PM_SLP_S3# [13]
SAFTY_PROTECT [21]

+1.8VS_ON [26]
SW_VID3-6 [24]

ADAP_IN [28]
PWRBTN# [13]
PLT_RST# [8,13,18,19,22]
Fastcharge_EN [28]

+5V_ON [27]

SET_V [28]

LID# [19]

GXT_ON [22]

RA06

PWROK [13]
VCORE_ON [24]
PWRSW [21]

+1.2VS_ON [18]

WLAN_ON [19]
AMP_MUTE# [20]

+3.3VA
+3.3VS_ON [27]
WEBCAM_ON [18]

PID_0 / CHG_B_LED [19,22]
PID_1 / CHG_R_LED [19,22]
PID_2 / PWR_LED [18,19,22]

+1.5VS_ON [26]

RA03

+1.05V_ON [25]
+1.5V_ON [27]

RB02

3

KEYBOARD CON

CN1

CN1

RB06

EC_EXTSMI#

TP_CLK
TP_DATA

R374 4.7K-04R374 4.7K-04

R238 4.7K-04R238 4.7K-04
R237 4.7K-04R237 4.7K-04

CPU type

R152

R152

CPU_BSEL0[5,8,15]

1 2

100K-04

100K-04

1

KEY_OUT0

1

2

KEY_OUT1

2

3

KEY_OUT2

3

4

KEY_OUT3

4

5

KEY_OUT4

5

6

KEY_OUT5

6

7

KEY_OUT6

7

8

KEY_OUT7

8

9

KEY_OUT8

9

10

KEY_OUT9

10

11

KEY_OUT10

11

12

KEY_OUT11

12

13

KEY_OUT12

13

14

KEY_OUT13

14

15

KEY_OUT14

15

16

KEY_OUT15

16

17

KEYIN0

17

18

KEYIN1

18

19

KEYIN2

19

20

KEYIN3

20

21

KEYIN4

21

22

KEYIN5

22

23

KEYIN6

23

24

KEYIN7

24

CON_FFC_24T10_88746-2401_ACES

CON_FFC_24T10_88746-2401_ACES

+3.3V

1 2

+5V

+3.3V

12

R156

R156
100K-04

100K-04

EC_BSEL0

B

Q31

Q31

2N3904

2N3904

E C

TP_DATA
TP_CLK

2

C404 @10P-25-04NC404 @10P-25-04N
C405 @10P-25-04NC405 @10P-25-04N

FSB

FSB667
FSB800

BSEL

FLASH ROM(SPI)

+3.3VA

1 2

SPI_CE#
SPI_SO

SPI_WP#

SMBUS

SMBCLK1

SMBDAT1

SMBCLK0

SMBDAT0

EC_BSEL0

CPU
MHZ

0

166

1

200

R196

R196

10K-04

10K-04

U12

U12

1

CS#

2

SO

3

WP#
GND4SI

W25Q16BVSSIG

W25Q16BVSSIG

+3.3V

+3.3VA

HOLD#

1 2

1 2

8

VCC

7

SPI_HOLD#

6

SPI_CLK_R

SCK

5

SPI_SI

RB17

R203

R203

R202

R202

4.7K-04

4.7K-04

4.7K-04

4.7K-04

1 2

CLK GEN / THERMAL / GXT

R200

R200

R201

R201

4.7K-04

4.7K-04

4.7K-04

4.7K-04

1 2

1

+3.3VA

C403

C403

4.7U-6.3-06R-K

4.7U-6.3-06R-K

1 2

R220 10K-04R220 10K-04

1 2

R230 0-04R230 0-04

SMBCLK_EC [5,15]

SMBDAT_EC [5,15]

BAT_SMBCLK [28]

BAT_SMBDAT [28]

BATT

+3.3VA

C593

C593
@.1U-16-04Y-Z

@.1U-16-04Y-Z

SPI_CLK

RA06

R398

R398

A A

SAVE_PWR_ON[25,26]

5

10K-04

10K-04

C541

C541
.1U-16-04Y-Z

.1U-16-04Y-Z

SAVE_PWR

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

4

3

2

Date: Sheet

EC IT8500 / BIOS

EC IT8500 / BIOS

EC IT8500 / BIOS

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

of

of

of

23 30Monday, December 21, 2009

23 30Monday, December 21, 2009

23 30Monday, December 21, 2009

5

CPU_VIN

D D

EC_PROCHOT#[5,23]

VCORE_CLK_EN#[13]

C C

B B

DELAY_VR_PWRGOOD[8]

R290

R290
0-04

0-04

1 2

R74

R74
10K-1-04

10K-1-04

R289

R289
20K-1-04

20K-1-04

1 2

1 2

R282

R282

90.9K-1-04

90.9K-1-04

1 2

+5V +3.3VS

12

12

R87

R87

R281

R281

22-04

22-04

33K-04

33K-04

H_VID0[6]
H_VID1[6]
H_VID2[6]
H_VID3[6]
H_VID4[6]
H_VID5[6]
H_VID6[6]

4

+3.3V +3.3V

12

12

12

R89

R89

R88

R88

1.9K-04

1.9K-04

1.9K-04

1.9K-04

C4782200P-50-04X-K C4782200P-50-04X-K

RA15

C485

C485

.1U-16-04R-K

.1U-16-04R-K

PM_DPRSLPVR[8,13]

R65 0-04R65 0-04
R59 0-04R59 0-04
R57 0-04R57 0-04
R100 0-04R100 0-04
R146 0-04R146 0-04
R124 0-04R124 0-04
R42 0-04R42 0-04

RB14

R283

R283

1.9K-04

1.9K-04

C4796800P-50-04X-K C4796800P-50-04X-K

C486

C486

C48222P-50-04N-J C48222P-50-04N-J

1U-10-04R-K

1U-10-04R-K

C53

C53

C65

C65

@2.2N-50-04X-K

@2.2N-50-04X-K

8291_RSN
8291_IMON
8291_VDDA
8291_VR_TTb
8291_CLK_ENB
8291_VREF
8291_VBT

8291_VOVP
8291_TEST

C483

C483

1000P-50-04X-K

1000P-50-04X-K

10n-50-04X-K

10n-50-04X-K

C480

C480

PM_DPRSLPVR

VCORE_VID0

VCORE_VID1
VCORE_VID2
VCORE_VID3
VCORE_VID4
VCORE_VID5
VCORE_VID6

DELAY_VR_PWRGOOD

8291_COMP
8291_SLEW
8291_CSP
8291_CSN
8291_RSP

12

R78

R78

1.3K-1-04

1.3K-1-04

U6

25

RSP_LL

26

RSN

27

IMON

28

VDDA

29

VR_TTb

30

CLK_ENB

31

VREF

32

VBT

C475

C475

10n-50-04X-K

10n-50-04X-K

1000p-50-04X-K

1000p-50-04X-K

R69 499-1-04R69 499-1-04

1 2

8291_VIN

12

R724.99K-1-04 R724.99K-1-04

23

24

22

RSP

CSP

CSN

OZ8291U6OZ8291

VIN3DSLP4VID05VID27VID3

OVP

TSET2VID1

1

3

2

1

CPU_VIN

2A

C465

C466

RB15

8291_LDR

C466

4

C473

C473

RA15

R54

R54

1 2

8291_HDR_R

Check0
ohm

19

18

21

20

PG6

SLEW

COMP

6

8291_LX

17

LX

HDR

BST

GNDP

LDR

VDDP

VR_ON

VID6
VID5
VID4

GNDA

8

S1

+5V

16

8291_BST

15
14

8291_LDR

13
12
11
10
9

C38

C38

8291_HDR

0-06

0-06

+5V

AC

C474

C474

.22u-10-04R-K

.22u-10-04R-K

1U-10-04R-K

1U-10-04R-K

RA02

RA02

D19

D19
CD4148WSP

CD4148WSP

567

8

Q17

Q17

D

D

P1203BV

P1203BV

4

G

G

S

S

123

Q22

Q22

567

8

P1203BV

P1203BV

D

D

4

G

G

S

S

123

C50

C50

@2200P-50-04X-K

@2200P-50-04X-K

C465

C44

C44

1000P-50-04X-K

1000P-50-04X-K

1000P-50-04X-K

1000P-50-04X-K

Q52

Q52

567

8

P1203BV

P1203BV

D

D

G

G

S

S

123

@2200P-50-04X-K

@2200P-50-04X-K

C41

C41

C42

@1000P-25-04X-K

@1000P-25-04X-K

C42

4.7U-25-08R-K

4.7U-25-08R-K

4.7U-25-08R-K

4.7U-25-08R-K

12

D7

R95

R95

SK34AD7SK34A

1-06

1-06

A C

C76

C76

820P-50-04X-K

820P-50-04X-K

8291_CSP

8291_CSN

240 mil min

RA15

12

7*7_DCR 15mohm

L5

L5

AMPI0603EL1R5MT-1.5uH-15A

AMPI0603EL1R5MT-1.5uH-15A

I30 L5 7*7

R58

R58
12K-1-04

12K-1-04

R287

R287

RT1 0-06RT1 0-06

1 2

1 2

499K-1-04

499K-1-04

R76 51-1-04R76 51-1-04

C57

C57

1 2

22N-25-04X-K

22N-25-04X-K

B6

B6

BD-HCB2012KF-80

BD-HCB2012KF-80

+CPU_CORE

VIN

10A
OCP:13A~15A
(0.775V~1.1V)

C504 @NP-330U-2.5

C504 @NP-330U-2.5

+

+

+

+

C497 @APXE2R5ARA561MF61G-560uF-2.5V

C497 @APXE2R5ARA561MF61G-560uF-2.5V

+

+

C501 APXE2R5ARA561MF61G-560uF-2.5V

C501 APXE2R5ARA561MF61G-560uF-2.5V

C161 1U-25-06R-KC161 1U-25-06R-K

C154 1000P-50-04X-KC154 1000P-50-04X-K

CLOSE TO U26

R77

R77

8291_RSP

8291_RSN

R86

R86

1 2

1.3K-1-04

1.3K-1-04

RA15

VCORE_VCCSENSE[6]

VCORE_VSSSENSE[6]

1 2

10-1-04

10-1-04

R85

R85

1 2

10-1-04

10-1-04

distribute evenly between N side and S side,
preferably on secondary side.

RB10

0-04

0-04
@0-04

@0-04

.1U-16-04Y-Z

.1U-16-04Y-Z

VCORE_ON

+3.3V
+3.3VS

Location

Mode

Stuff U7

No stuff U7

R100 R124

No Stuff

No Stuff

Stuff Stuff

R146

No Stuff

Stuff

3

PJP4

PJP4

1 2

CLOSE

CLOSE

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

2

Date: Sheet

CPU CORE (OZ8291)

CPU CORE (OZ8291)

CPU CORE (OZ8291)

B1XIVXX

B1XIVXX

B1XIVXX

1

24 30Thursday, January 07, 2010

24 30Thursday, January 07, 2010

24 30Thursday, January 07, 2010

B

B

B

of

of

of

VCORE_ON[23]

R169

16

4
7
9
12

15

R169
R229

R229

C75

C75

VCORE_VID3
VCORE_VID4
VCORE_VID5

R93 0-04R93 0-04

RB13

RB10

U7

U7

TS3A5018RGYR-QFN

TS3A5018RGYR-QFN

EN#

IN

L

L

L

H

H

X

11
14

10
13

1
2

5

3
6

8

IN(SW)
NC1

NC2
NC3
NC4

NO1
NO2
NO3
NO4

GND

NOto
COM

OFF

ON

OFF

S1

S1

H1H1H2H2H3H3H4

H4

COM1
COM2
COM3
COM4

4

V+

EN#

NCto
COM

ON

OFF

OFF

SW_VID3-6[23]
EC_VID3[23]

EC_VID4[23]
EC_VID5[23]

H_VID3[6]
H_VID4[6]
H_VID5[6]

A A

5

5

+1.8V/+5V_ON Voltage

D D

+1.05V_ON[23]

AUX_OFF[5]

Mode

<0.4V

OFF
PWM

>0.6V
>2.1V

SKIP

Iref=20.985uA < 30uA(SPEC) (R442//R443)
Vd=0.956029V

SAVE_PWR_ON[23,26]

R30 51K-1-04R30 51K-1-04

1 2

1 2

R38 180K-1-04R38 180K-1-04

VL

B

Q49

Q49

2N3904

2N3904

E C

12

R275

R275

200K-1-04

200K-1-04

1 2

R276

R276

150K-1-04

150K-1-04

G

C458

C458

1000P-50-04X-K

1000P-50-04X-K

C461
.1U-16-04R-K

.1U-16-04R-K

12

DS

R32

R32

487K-1-04

487K-1-04

2N7002K

2N7002K

Q51

Q51

+1.05V_ON_R

815_VREF

+5VA_ON

12

RA15

12

RA15

R258

R258

499K-1-04

C C

SAVE_PWR_ON[23,26]

499K-1-04

DS

Q46

Q46

G

2N7002K

2N7002K

12

C446

C446

1000P-50-04X-K

1000P-50-04X-K

Iref =12.5uA < 30uA(SPEC)
Vset =5V
Iref =17.323uA < 30uA(SPEC)
Vset =4.8V

R31

R31

1 2

210K-1-04

210K-1-04

R26

R26
22K-1-04

22K-1-04

R270

R270
220K-04

220K-04

R1

2.75V

R2

+5VA_VIN

C460

C460

.1U-16-04Y-Z

.1U-16-04Y-Z

R1

R2

4

C31

C31

Iref=20.102uA < 30uA(SPEC)
Vset=1.051352 V

+1.05V_VSET

12

C456

C456

R273

R273

1000P-50-06X-K

1000P-50-06X-K

49.9K-1-04

49.9K-1-04

S1

GNDA

6

ON/SKIP1

2

VIN

3

VREF

4

TSET

5

VDDA

1

ON/SKIP2

C459

C459

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

.1U-16-04Y-Z

+5VA_VSET

7

8

9

CS1N

VSET1

OZ815

OZ815

VSET2

24

11

12

10

LX1

CS1P

HDR1

PGD1

CS2P22CS2N23PGD221LX220HDR2

19

CS1N
CS1P

815_LX1
815_HDR1

U2

U2

BST1
LDR1
VDDP
GNDP
LDR2
BST2

OZ815LN

OZ815LN

815_HDR2

815_LX2

CS2P
CS2N

3

2

1

Output Voltage =[ Vref x R2/(R1+R2) ] x 2

+1.05V_VIN

1A

B3

B3

BD-HCB1608KF-30

BD-HCB1608KF-30

Q3

R11

1 2

815_HDR1

0-06

0-06

C13

C13

.22U-16-06Y-Z

.22U-16-06Y-Z

D16

D16

1

3

2

BAT54APT

BAT54APT

815_HDR2

RA02

+5VA_LDO

R12

R12

1 2

0-06

0-06

13

815_BST1

14

815_LDR1

16

+5VA_LDO

15
17

815_LDR2

18

815_BST2

+5VA_LDO

C17

C17
.22U-16-06Y-Z

.22U-16-06Y-Z

PJP3

PJP3

1 2

CLOSE

CLOSE

C5

1U-10-06Y-ZC51U-10-06Y-Z

815_HD1

815_LDR1

40mil

C28

C28

@1500P-50-04X-K

@1500P-50-04X-K

815_HD2

815_LDR2

40mil

40mil

Q14

Q14

P1203BV

P1203BV

P1203BV

P1203BV

P1203BV

P1203BV

40mil

C3

4

G

G

S

S

567

D

D

4

G

G

S

S

Q9

Q9

567

D

D

4

G

G

S

S

Q5

Q5

567

D

D

4

G

G

S

S

@2200P-50-04X-KC3@2200P-50-04X-K

Q3

567

D

D

P1203BV

P1203BV

R11

C27

C27

C12

RA15

2A

RA15

1U-25-06R-K

1U-25-06R-K

12

R62

R62

1-06

1-06

C55

C55

680P-50-06X-K

680P-50-06X-K

+5VA_VIN

C8

4.7U-25-08R-KC84.7U-25-08R-K

12

R15

R15
1-06

1-06

C14

C14
820P-50-04X-K

820P-50-04X-K

RB01

C16

C16

C12

4.7U-25-08R-K

4.7U-25-08R-K

4.7U-25-08R-K

4.7U-25-08R-K

D5

D5

BD-HCB1608KF-30

BD-HCB1608KF-30

D2

SK34AD2SK34A

A C

B4

B4

8

123

8

123

8

123

8

123

VIN

C21

C21

4.7U-25-08R-K

D5

D5

SK34A

SK34A

A C

VIN

CS1P

100K-1-04

100K-1-04

CS2P

7*7_16.5mohm

12

R268

R268

100K-1-04

100K-1-04

1 2

6800P-50-04X-K

6800P-50-04X-K

C445

C445

22P-50-04N-J

22P-50-04N-J

AMPI0603EL4R7MT-4.7uH-9A

AMPI0603EL4R7MT-4.7uH-9A

12

R20

R20

RA15

1 2

C440

C440
22P-50-04N-J

22P-50-04N-J

L2 AMPI0603EL2R2MT-2R2-8AL2 AMPI0603EL2R2MT-2R2-8A

RA15

R21

R21

36K-1-04

36K-1-04

C444

C444

7*7_40mohm

L1

L1

7*7

R22

R22

11.8K-1-04

11.8K-1-04

C453

C453

10n-50-04X-K

10n-50-04X-K

12

R24

R24

51-1-04

51-1-04

CS1N

C454

C454

1000P-50-04X-K

1000P-50-04X-KC461

12

R25

R25
51-1-04

51-1-04

CS2N

C442

C442
3300P-50-04X-K

3300P-50-04X-K

RA15

+5VA_Out

+1.05V_VOUT

C477

C477

1000P-50-04X-K

1000P-50-04X-K

+1.05V_VOUT

+5VA_Out

RA15

C476

C476

1000P-50-04X-K

1000P-50-04X-K

C467.1U-25-08Y-K C467.1U-25-08Y- K

600mil 600mil

C464

C464

1U-25-06R-K

1U-25-06R-K

4.7U-25-08R-K

RB05

OCP 12A

1.05V 8A

JP9

JP9

OPEN

OPEN

1 2

C472

C472

+

+

APXE2R5ARA561MF61G-560uF-2.5V

APXE2R5ARA561MF61G-560uF-2.5V

+1.05V

OCP = 11.2A

5VA/ 8A

JP8

JP8

400mil 400mil

1 2

+5VA

OPEN

OPEN

+

+

C443

C443

APXE6R3ADA331MF61G-330uF-6.3V

APXE6R3ADA331MF61G-330uF-6.3V

Q42

Q42
FET-SI2301CDS

FET-SI2301CDS

+5VA_LDO

VL_ON#[21]

B B

BATT_VA_ON[23]

R261

R261

10K-04

10K-04

AUX_PWR_EN[21]

DS

Q41

Q41
2N7002K

2N7002K

VL

U13

U13

3

+5VA

DS

Q43

Q43

G

2N7002K

2N7002K

Vout2Vin

6A

ADJ

C438

C438

APL1084UC

APL1084UC

1

4.7U-6.3-06R-K

4.7U-6.3-06R-K

ADJREF

R279

R279

R2

165-1-04

165-1-04

R1

+3.3VA_OUT

R280

R280
100-1-04

100-1-04

C470

C470
1000P-50-04X-K

1000P-50-04X-K

180mil

C469

C469

C468

C468

4.7U-10-08Y-Z

4.7U-10-08Y-Z

@4.7U-6.3-06R-K

@4.7U-6.3-06R-K

180mil

+3.3VA

1.734A

check consumption

12

G

R257

R257
47K-1-04

47K-1-04

DS

G

+5V +5VS +3.3VS +3.3V

R267

R267
@300-1-06

@300-1-06

1 2

VL

R256

R256
@560K-06

@560K-06

1 2

1 2

R64

R64
@300-1-06

@300-1-06

1 2

R61

R61
@300-1-06

@300-1-06

1 2

R45

R45
@300-1-06

@300-1-06

Vout = 1.25V*(R1+R2)/R1 = 3.3V

RB03

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom
Date: Sheet of

Date: Sheet of

5

4

3

2

Date: Sheet of

+3.3VA/+5VS/+1.05V (OZ815)

+3.3VA/+5VS/+1.05V (OZ815)

+3.3VA/+5VS/+1.05V (OZ815)

B1XIVXX

B1XIVXX

CULV

CULV

CULV

B1XIVXX

1

B

B

B

25 30Thursday, January 14, 2010

25 30Thursday, January 14, 2010

25 30Thursday, January 14, 2010

5

+1.5VS_REF

12

R60

R60

56.2K-1-04

3.3V

56.2K-1-04

12

R67

R67

68.1K-1-04

68.1K-1-04

+1.5VS_SET

+1.5VS_REF

C43

C43

1000P-50-04X-K

1000P-50-04X-K

Iref =23.43uA < 30uA(SPEC)
Vd =1.43309V

D D

SAVE_PWR_ON[23,25]

C C

B B

RA03

12

R68

R68

600K-1-04

600K-1-04

DS

Q18

Q18

G

2N7002K

2N7002K

+1.5VS_ON[23]

DDR3 Termination Power

+1.5VS

U8

1

C153

C153

R135

R135
10K-1-04

10K-1-04

EN_0.75VS

1U-10-06Y-Z

1U-10-06Y-Z

C237

C237

R128

A A

5

R128
10K-1-04

10K-1-04

.01U-16-04X-K

.01U-16-04X-K

3

2

VIN

REFEN

GND

FP6137CU8FP6137C

4

RA03

Iref =22.12uA < 30uA(SPEC)
Vset=1.506637V

C56

C56

1000P-50-04X-K

1000P-50-04X-K

2.75V

C51

C51

.1U-16-04R-K

.1U-16-04R-K

+1.5VS_VIN

12

12

R48

R48

51K-1-04

51K-1-04

R49

R49

200K-1-04

200K-1-04

5
6
7
8

4

R41 15K-04R41 15K-04

1.5_ON

+5VS

4

RA15

VCNTL
VCNTL
VCNTL
VCNTL

OUTPUT

+5VS

12

R46

R46

22-06

22-06

C48

C48

1U-10-06Y-Z

1U-10-06Y-Z

1 2

C275

C275
.1U-16-04Y-Z

.1U-16-04Y-Z

13
14
15
16

17

??A

U5

U5

VSET
VREF
TSET
VDDA

GNDA

C194

C194

4.7U-10-08Y-Z

4.7U-10-08Y-Z

+1.5VS_HDR

9

10

12

11

LX

CSP

CSN

HDR

OZ8116SLN

OZ8116SLN

GNDA1VIN2ON/SKIP3PGD

4

1.5_VIN

C40

C40

10n-50-04X-K

10n-50-04X-K

+1.5VS_PGD

BST

LDR
GNDP
VDDP

OZ8116LN

8
7
6
5

RA03

90mil

0.9Vs = 2A

+0.75V_DDR

+3.3VS

12

3

+1.5VS_CSN
+1.5VS_CSP
+1.5VS_LX

RA02

+5VS

AC

+5VS

+1.5VS_BST

C63

C63

.22U-16-06Y-Z

1U-10-06Y-Z

1U-10-06Y-Z

.22U-16-06Y-Z

+1.5VS_LDR

+1.5VS_PGD [8]

C47

C47

R444

R444
10K-04

10K-04

3.3VA or 3.3VS check

D4

D4
CD4148WSP

CD4148WSP

@1500P-50-04X-K

@1500P-50-04X-K

+1.8VS_ON[23]

C80

C80

RA03

+1.5VS_HDR

R56

R56

0-06

0-06

1 2

+1.5VS_HD

P1203BV

P1203BV

P1203BV

P1203BV

Q21

Q21

567

D

D

4

G

G

S

S

Q27

Q27

567

D

D

4

G

G

S

S

PJP2

PJP2

1 2

CLOSE

CLOSE

+3.3VS

90mil

C294

C294

RA03

1U-10-06Y-Z

1U-10-06Y-Z

1 2

R149 0-04R149 0-04

+1.5VS_VIN

2A

C58

C58

C60

C60

C59

4.7U-25-08R-K

4.7U-25-08R-K

D6

D6

SK34A

SK34A

A C

C299

C299

.1U-16-04Y-Z

.1U-16-04Y-Z

6
5

8

U9

VCNTL
VIN

EN

OZ8033U9OZ8033

C59

4.7U-25-08R-K

4.7U-25-08R-K

RA15

12

5A

HSNK

9

8

1U-25-06R-K

1U-25-06R-K

123

8

D6

D6

123

+5VS

C297

C297
.1U-16-04Y-Z

.1U-16-04Y-Z

EN_1.8VS

B8

B8

BD-HCB1608KF-30

BD-HCB1608KF-30

R99

R99

1-1-06

1-1-06

C84

C84

820P-50-06X-K

820P-50-06X-K

VOUT
VOUT

POK

FB

GND

0.3V

1

2

VIN

7*7_20mohm

12

R75

R75

100K-1-04

100K-1-04

+1.5VS_CSP

1 2

24.9K-1-04

24.9K-1-04

4700P-50-06X-K

4700P-50-06X-K

C66

C66

22P-50-04N-J

22P-50-04N-J

Vout = 0.795V*[1+(R1/R2)]

3
4

7
2

C318

C318
22P-50-04N-J

22P-50-04N-J

5912_FB

L4 AMPI0603EL2R2MT-2R2-8AL4 AMPI0603EL2R2MT-2R2-8A

12

R81

R81

RA15

C62

C62

R1

12

R158

R158

21K-1-04

21K-1-04

R82

R82

51-1-04

51-1-04

+1.5VS_CSN

C61

C61

1000P-50-04X-K

1000P-50-04X-K

RB16

12

R155

R155

R2

16.5K-1-04

16.5K-1-04

12

R79

R79

9.1K-1-04

9.1K-1-04

680mil

+1.5VS_VOUT

C491

C491

+

+

APXE2R5ARA561MF61G-560uF-2.5V

APXE2R5ARA561MF61G-560uF-2.5V

C330

C330

4.7U-6.3-06R-K

4.7U-6.3-06R-K

RA03

1

JP10

JP10

1 2

C69

C69

C72

C72

1U-25-06R-K

1U-25-06R-K

1000P-50-04X-K

1000P-50-04X-K

EMI check

1.606A

OCP 9.8A

1.5VS 7A

+1.5VS

600mil600mil

OPEN

OPEN

+1.8VS

RA03

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

3

2

Date: Sheet

1.5VS/0.75V /1.8VS(OZ8116)

1.5VS/0.75V /1.8VS(OZ8116)

1.5VS/0.75V /1.8VS(OZ8116)

B1XIVXX

B1XIVXX

B1XIVXX

1

of

of

of

26 30Monday, December 21, 2009

26 30Monday, December 21, 2009

26 30Monday, December 21, 2009

B

B

B

5

4

3

2

1

VIN

+3.3VS+3.3VA

1

180 mils180 mils

2
3

S

S

C45

G

G

4

C45
@.1U-25V-04Y-Z

@.1U-25V-04Y-Z

+3.3VS_EN 3.3VS_ON_HV3.3VS_ON_HV

C46

C46
.1U-25-06Y-Z

.1U-25-06Y-Z

8
7
6
5

R55

R55

+5VA +5VS

Q15

Q15
P1203BV

P1203BV

8
7
6
5

D

D

Q56

Q56
P1203BV

P1203BV

1
2
3

S

S

D

D

G

G

4

C607

C607
.1U-50-06X-K

.1U-50-06X-K

56.2K-1-04

56.2K-1-04

1 2

1
2
3

S

S

G

G

4

C49

C49
.1U-25-06Y-Z

.1U-25-06Y-Z

C606

C606
@.1U-25-04Y-Z

@.1U-25-04Y-Z
R441 0-04R441 0-04

S

S

G

G

4

C29

C29
.1U-25-06Y-Z

.1U-25-06Y-Z

+5V

1
2
3

C64

C64
@.1U-25V-04Y-Z

@.1U-25V-04Y-Z
R23 0-04R23 0-04

5V_ON_HV

Q19

12

R37

R37

R70

R70

100K-04

100K-04

1M-04

1M-04

DS

Q16

Q16

G

2N7002K

2N7002K

1M-04

1M-04

R53

R53

DS

Q20

12

Q20

2N7002K

2N7002K

G

R71 100K-04R71 100K-04

+5V_ON [23]

8
7
6
5

Q19
P1203BV

P1203BV

D

D

D D

C C

+5VA

Q4

Q4
P1203BV

P1203BV

240 mil 240 mil

8
7
6
5

D

D

180 mils

S

S

G

G

4

C34

C34
.1U-25-06Y-Z

.1U-25-06Y-Z

+3.3V

1
2

180 mils180 mils

3

C33

C33
@.1U-25V-04Y-Z

@.1U-25V-04Y-Z

R36 100K-04R36 100K-04

5V_ON_HV+3.3V_EN

+1.5VS +1.5V

+3.3VA

Q13

Q13
P1203BV

P1203BV

8
7
6
5

D

D

B B

Q23 2N7002KQ23 2N7002K

180 mils

C52

C52
@.1U-25V-04Y-Z

@.1U-25V-04Y-Z

R66

R66

RB07

10K-04

10K-04

VIN

12

12

R84

R84

R80

R80
100K-04

100K-04

1M-04

1M-04

DS

G

Q24

Q24

DS

12

R73

R73

2N7002K

2N7002K

G

1 2

3.3VS_ON_HV+5VS_EN

2N7002K

2N7002K

1M-04

1M-04

R83 100K-04R83 100K-04

VIN

C605

C605

@.1U-25-04Y-Z

@.1U-25-04Y-Z

12

R440

R440

R439

R439

100K-04

100K-04

1M-04

1M-04

DS

Q57

Q57

G

Q58

Q58

12

DS

2N7002K

2N7002K

R442

R442
1M-04

1M-04

G

R443 100K-04R443 100K-04

+3.3VS_ON [23]

RA03

+1.5V_ON [23]

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

CULV

CULV

CULV

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

VCC SW/ VIN_SW

VCC SW/ VIN_SW

VCC SW/ VIN_SW

B1XIVXX

B1XIVXX

B1XIVXX

1

B

B

B

of

of

of

27 30Monday, December 21, 2009

27 30Monday, December 21, 2009

27 30Monday, December 21, 2009

5

4

3

2

1

10*10_18mohm

D3

SK34AD3SK34A

COMP

CELLS

REF

GND

VSET

IOUT

ISET

BAT1D

C24

C24

220P-50-04X-K1

220P-50-04X-K1

LV

BAT+
BAT1C

12

L3 AFPI10054R7NT-4.7uH-8AL3 AFPI10054R7NT-4.7uH-8A

R266

R266
@2.2-06

@2.2-06

C437

C437
@2200P-50-06X

@2200P-50-06X

3.3 V

8

REF

7

LV

6
5

COMP_4

R4 150-1-04R4 150-1-04

4

8602_VSET

3
2
1

ISET

C10

C10
.1U-16-04Y-Z

.1U-16-04Y-Z

AC_STATUS

12

C26

C26

S3

@SCON2SS3@SCON2S

RA14

C4484.7U-10-08Y-Z C4484.7U-10-08Y-Z

C9 .22u-10-04R-KC9 .22u-10-04R-K

C7
.1U-16-04Y-ZC7.1U-16-04Y-Z

BATT_DUMP(ROM_PWR)
BATT_TEMP

.1U-16-04Y-Z

.1U-16-04Y-Z

C4504.7U-10-08Y-Z C4504.7U-10-08Y-Z

C451.1U-25-06Y-Z C451.1U-25-06Y-Z

C6

C6

2.2U-6.3-06R-K

2.2U-6.3-06R-K

R5
107K-1-04R5107K-1-04

R6
56K-1-04R656K-1-04

CHECK

CN8

CN8

H1
1
2
3
4
5
6
7
H2

CON_BAT-M7_C144P7-107A8-L_ALLTOP

CON_BAT-M7_C144P7-107A8-L_ALLTOP

4

10-1-06

10-1-06

ICHP

R52

R52

ICHM

4.7U-10-08Y-Z

4.7U-10-08Y-Z

DS

Q44

Q44

@2N7002K

@2N7002K

Charge / Discharge Detect

3

Q10

CHARGER

VIN

RB01

C20 4.7U-25-08R-KC20 4.7U-25-08R-K

Close to Mos

Close to PIN 9

D D

10-1-06

10-1-06

R50

R50

DC_IN

10-1-06

10-1-06

R51

R51

DC_IN_B

Close to IC

Fastcharge_EN[23]

D1 SK34AD1 SK34A

Q6 P2003EVG

Q6 P2003EVG

1
2
3

S

S

G

G

VCHG

6A

B2

B2
BD-HCB2012KF-80

BD-HCB2012KF-80

BAT_V_ON#

4

DCIN_VCHG

D

D

R33

R33
20K-1-04

20K-1-04

AC

8
7
6
5

VIN

C C

DC_IN

R34 330-1-04R34 330-1-04

C32 22N-25-04X-KC32 22N-25-04X-K

BATTERY CON

+3.3VA

R18

R18
20K-1-04

20K-1-04

BAT_SMBCLK[23]

BATT_TEMP[23]

B B

BATT_TEMP

BAT_SMBDAT[23]

+3.3VA

Vgs_OFF= -0.4~-1.4

Q12

Q12
3LP01C-TB-E

3LP01C-TB-E

G

VBAT_REF

DS

R28

R28

100K-04

100K-04

VCHG

C36

C36

1U-25-06R-K

1U-25-06R-K

BD-1608KF-150

BD-1608KF-150

R16 100-04R16 100-04
R17 100-04R17 100-04

C25

C25
.1U-16-04R-K

.1U-16-04R-K

RB17

B5

B5

C15 1U-25-06R-KC15 1U-25-06R-K

.22U-16-06Y-Z

.22U-16-06Y-Z

ICHP

Close to IC

ICHM
IACM

IACP

>8v

Q45

Q45

B

2N3904

2N3904

C435

C435
1000P-50-04X-K

1000P-50-04X-K

12

Q10

1

8
2
3

S

S

G

G

C455

C455

AC_STATUS

C39

C39
1U-25-06R-K

1U-25-06R-K

RB18

E C
12

R262

R262

270-1-06

270-1-06

ADAP_IN[23]

S1

C22

C22

@SCON2SS1@SCON2S

.1U-16-04Y-Z

.1U-16-04Y-Z

CHG_LX VCHG_OUT

7

6

5

D

D

P2003EVG

P2003EVG

4

A C

R278

R278
0-06

0-06

U3

8602_HDR

9

VAC

10

HDR

11

CHIGH

12

ACAV

13

ICHP

14

ICHM

15

IACM

16

IACP

OZ8602U3OZ8602

PJP1

PJP1

1 2

CLOSE

CLOSE

12

S2

C23

C23

@SCON2SS2@SCON2S

220P-50-04X-K1

220P-50-04X-K1

For EOS

VBAT_REF

R40

R40
931K-0.1-04

931K-0.1-04

R27

R27

C30

C30

133K-0.1-04

133K-0.1-04

.22u-10-04R-K

A A

.22u-10-04R-K

5

DS

Q7
2N7002KQ72N7002K

BAT_V [23]

G

BAT_V_ON#

Q8

2N7002KQ82N7002K

VBAT_REF

Battery Voltage Detect

17.6V->BAT_V=2.2V

16.8V->BAT_V=2.1V

13.2V->BAT_V=1.65V

R29

R29

12.6V->BAT_V=1.575V

100K-04

100K-04

9V->BAT_V=1.125V

DS

G

SENBAT_V_G

C18

C18
@1U-25-06R-K

@1U-25-06R-K

R2
200K-1-04R2200K-1-04

R35

R35

1K-04

1K-04

SENBAT_V [23]

4

RCH2

RCH2

1 2

100m-1w-1-2512

100m-1w-1-2512

C4

C4

R7
10K-04R710K-04

R8 1K-04R8 1K-04

Charge I limit =2A

C35

C35
.1U-25-06Y-Z

.1U-25-06Y-Z

25m-2w-1-1206

25m-2w-1-1206

ADAPTOR_I [23]
SET_V [23]

CHG_I [23]

0R->1K

G

CHG_REF[23]

C463

C463
.22u-10-04R-K

.22u-10-04R-K

RA02

R277

R277

20K-1-04

20K-1-04

CHG_ON# [23]

VCHG

RCH3

RCH3

4

+5VA

R272

R272

1.5K-1-04

1.5K-1-04

2
3

R271 16.5K-1-04R271 16.5K-1-04

CHG_REF_3

R274

R274

1.5K-1-04

1.5K-1-04
C462

C462
.22u-10-04R-K

.22u-10-04R-K

R269

R269
0-06

0-06

4

BAT_I:
0 V -> discharger 5.58A

1.674 V -> discharger 0 A

1.980 V -> charger 1.1 A

2.232V -> charger 2 A
3 V -> charger 6 A

2

ADAPTOR_I

Voltage

W

500mV 20W
1000mV

40W

1500mV

60W

2V

80W

2.5V

100W

X

Vichg =RAD1*Irsense*10

X

SET_V

H(1.5V) 12.75V ( 3CELL )

Vch =Nx(4.1 +Vset/10)
N=Cell (pin2 =hing -->4, low -->3)

CHG_I

H
H
H
L
L
L
L

1.5V
1V 1.84A
0V 1.5A
3V
2V1V667mA

0.375V

IchFastcharge_EN

2A

1A

334mA
125mA

CHARGER CURRENT = ((Vfastcharge_EN-Vbe)/180*10+CHG_I/30))/0.1

CHG_ON

L CHARGER ON

CHARGER OFFH

C447

C447

1000P-50-04X-K

1000P-50-04X-K

C457

C457

.1U-25-06Y-Z

8 4

U4A

U4A

GS358SF

GS358SF

.1U-25-06Y-Z

1

RA02

A C

D17

D17

UDZSNPTE-173.3B

UDZSNPTE-173.3B

C449

C449

.1U-16-04Y-Z

.1U-16-04Y-Z

BAT_I [23]

CLOSE EC PIN

Charge Current BAT_I

4.42A

3.00A

0.00A

-3.00A

-5.58A

3.000V

2.574V

1.674V

0.774V

0.000V

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

Date: Sheet

BATT IN / CHARGER (OZ8602)

BATT IN / CHARGER (OZ8602)

BATT IN / CHARGER (OZ8602)

CULV

CULV

CULV
Monday, December 21, 2009

Monday, December 21, 2009

Monday, December 21, 2009

1

B1XIVXX

ofB28 30

ofB28 30

ofB28 30

5

RA to RA1 Modify list:

4

3

2

1

Symbol

Modify ItemModify Reason Page Note

N/A20Modify R252 to C601 from 0 ohm to 1uF 0402RA01 Schematic error.

RA02 Common part modify Modify C38 from 1U-10-04Y-Z to 1U-10-04R-K

D D

RA03 Modify project spec from DDR2 to DDR3. Modify U15.BC51, U20, C602, R437, R438 of Circuit.

Modify R189, R436 to 90.9K-1-04
Modify C436 from .22u-25-04X-K to .1U-16-04Y-Z 21
Modify C9, C30, C462, C463, C474 from .22u-25-04X-K to .22U-10-04R-K 24, 28
Modify Y2 from 32.768K-12.5-20-S to 32.768-12.5-20-D 12
Modify D4, D8, D11, D12, D13, D14, D18, D19, D21 from BAT54 to CD4148. D9 to BAT54A.
Modify D17 from UMD2 SC-76 to UDZSNPTE-173.3B

Modify R105, R108, R142, R111 from 1.8VS to 1.5VS.
Modify B15 from 1.8VS to 1.5VS. 10

Del DDR terminatation Resistant.
Modify DDR power from 1.8VS to 1.5VS.

Modify LDO ( U8 ) from 0.9VS to 0.75VS.
Modfiy OZ8116 from 1.8VS to 1.5VS.
Modify LDO ( U9 ) from 1.5V to 1.8VS.

Add Q56 of circuit for 1.5VS trainsformer 1.5V. 27
Add U11.97(GPH4) : +1.5VS_ON

24

5, 12, 14, 17, 26

28

8

11Modify VCC_SM power from 1.8VS to 1.5VS.
16

26

23

RA04 EMI requirement. Add R445, R446, C610, C611 to OP. 16

C C

RA05 Del reserve of circuit. Del D10, B48, 10
RA06 Add protect for GXT docking and change EC pin Add C609, C608, C542, C544 Cap 0.1uF and change 117pin to 82pin 12
RA07 Modify Crystal timing. Modify 32.768kHz Cap to 12pF.

RA08 Modify Clock Gen. channel (SRC4 to SRC7) Modify U17.27, 28 to U17.43, 44

Modify 14.318MHz Cap to 27pF.

Del C505, C509, C507, C517, C508, C320, R160
Remove R350
Modify Clock Gen power from 1.5V to 3.3V.

10
15

15

RA09 Modify Standoff hole for ME request. Modify H9 from C236D87 to C256D106, H10, H12 from C236D87 to C276D106. 21
RA10 Add co-lay circuit for fan control 2nd source. Add R447 21
RA11 Modify pull high resistor Add RN16 13
RA12 Modify w-lan function Add R224 19
RA13 Modify charger function Del C593
RA14 Modify EOS for EMI request Add S1, S2, S3

B B

RA15 Modify PWM circuit for signal measure Modify R58 to 12K, R76 to 51ohm, R74 to 4.99K, R78, R86 to 1.3K, C57 to 22nF,

R95 to 1ohm, C76 to 820pF, C470 to 6.8nF
Modify R99 to 1ohm, C84 to 820pF, R81 to 24.9K, C62 to 4.7nF, R48 to 51K,

R49 to 200K
Modify R62 to 1ohm, C55 to 680pF, R21 to 35.7K, C444 to 6.8nF, C477 to 1000pF

Modify R15 to 1ohm , C14 to 820pF, R22 to 11.8K, C467 to 1000p, C8 to 4.7uF

23
28
24

26

25

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

CULV

CULV

CULV

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

Appendix Ver.A History

Appendix Ver.A History

Appendix Ver.A History

B1XIVXX

B1XIVXX

B1XIVXX

29 30Monday, December 21, 2009

29 30Monday, December 21, 2009

1

29 30Monday, December 21, 2009

BCustom

BCustom

BCustom

of

of

of

5

RA1 to RB Modify list:

4

3

2

1

Symbol

Modify C20 from 4.7U-10-08Y-Z to 4.7U-25-08R-K 28
Modify C77, C78, C79 from .1U-16-04Y-Z to .1U-25-04X-K 17

RB02 Modify net define Modify U11.30 (GPA4) from 3G_PWM# to 3G_PWM_ON# 18, 23

D D

RB03

Modify +3.3VA Power solution from FP6137C to APL1084,
because FP6137C will be overheated,the system will be shutdown.

Add R448 to 0-04, Remove C399, R415, Q37, C406, D21, R241, Q38
D21 from CD4148WSP to SCH-BAT54-PH

Modify U13 from FP6137C to APL1084,Modify C438 from 1U to 4.7U,
Modify R280 friom 10K ohm to 100 ohm,Modify R279 from 20K ohm to 165 ohm,
Modify C470 from 0.01U to 1000P, Del C441

Modify ItemModify Reason Page Note

N/A25Modify C8 from 4.7U-10-06R-K to 4.7U-25-08R-KRB01 Modify Voltage range

19

25

RB04 Modify LCD VCC timing Modify C98 from 0.1U to 1U,Modify R323 from 0 ohm to 10K ohm 8, 17

RB05 Modify L2 from 4R7 to 2R2,because operate current over the choke spec Modify L2 from AMPI0603EL4R7MT-4.7uH to AMPI0603EL2R2MT-2.2uH 25

RB06 follow KB matrix common part CN1 pin define update

RB07 The current consume on battery only R80 from 10K ohm to 100K ohm

RB08 DDR reference voltage net name mistake Net name from DDR_VREF1 to DDR_VREF

23

27

16

RB09 EC Low level is under 0.7V,the low level of CD4148WSP is 0.7V Modify D8 from CD4148WSP to SCH-BAT54-PH 5

RB10

C C

RB11
RB12
RB13
RB14

RB15

RB16

RB17

RB18 Let OZ8602 conform CHG_I table

B B

RB19 Add Bluetooth function

The resistors used on U7 no stuff.

LVDS VIN Power on R-C delay timing
The net name VCORE_CLK_EN# pull up resistor over.
The resistor reserve
+3.3V change to +3.3VS,solves to leakage +3.3V power on S3.

Solve Thermal issue

The OZ8033 Spec recommended to choose R155<20K ohm

For EMI Solution

Add R100 R124 R146 to 0 ohm .　　
U7 Q54 Q55 Q26 R284 R285 R92 R292 R293 R90 no stuff.

Add R157 R160 R227 C217 Q32 Q59 ,R227 no stuff　　　　　
Del R169
Add R169 to +3.3V, Add R229 to +3.3VS no stuff
R89 modify pull +3.3V to +3.3VS
Q52 stuff

Modify D7 from SK14A to SK34A stuff
Modify R158 from 140K to 21K,R155 from 110K to 16.5K
Modify R242 from 0 ohm to 33 ohm

Modify R431 from 0 ohm to 33 ohm
Modify C25 stuff
Modify R409 from 33 ohm to BD-FCM1005MF-120 Bead
Add R230 0 ohm resistor, Add C593 0.1uF no stuff
Add C320 C329 C441 C507 C505 no stuff

Modify R262 from 180 ohm to 270 ohm
Add CN23 R252 C517 C508 C509 no stuff

Add U11 81 Pin BT_ON signal

24
6

17
13
24
24

24

26
18

20
28
12
23
15

28
22

23

A A

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

CULV

CULV

CULV

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

Appendix Ver.B History

Appendix Ver.B History

Appendix Ver.B History

B1XIVXX

B1XIVXX

B1XIVXX

30 30Thursday, January 07, 2010

30 30Thursday, January 07, 2010

1

30 30Thursday, January 07, 2010

BCustom

BCustom

BCustom

of

of

of
