AV61
Pentium
TM
II/III processor
Based AGP MAIN BOARD
User's Manual
Shuttle AV61
Pentium II/III processor based AGPset Mainboard
Manual Version 1.2
Copyright
Copyright© 2000 by Shuttle Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle Inc.
Disclaimer
Shuttle Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee
is given as to the correctness of the contents. In the interest of continued product improvement, this company reserves the right to revise the manual or include changes in the specifications of the product described within it at any time without notice and without obligation to
notify any persion of such revision or changes. The information contained in this manual is
provided for general use by the customers.
Trademarks
Spacewalker is a registered trademark of Shuttle Inc.
Intel, Pentium is a registered trademarks of Intel Corporation.
VIA is a registered trademarks of VIA Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.
M332
TABLE OF CONTENTS
WHAT’S IN THE MANUAL ................................................................4
Quick Reference.................................................................................................4
About This Manual ..............................................................................................4
Technical Support..............................................................................................4
1 INTRODUCTION ............................................................................5
1.1 TO DIFFERENT USERS................................................................................5
FIRST-TIME DIY SYSTEM BUILDER.......................................................5
EXPERIENCED DIY USER.......................................................................5
SYSTEM INTEGRATOR ...........................................................................5
1.2 ITEM CHECKLIST.........................................................................................6
2 FEATURES....................................................................................7
2.1 SPECIFICATIONS.........................................................................................7
3 HARDWARE INSTALLATION.......................................................10
3.1 STEP BY STEP INSTALLATION ................................................................10
Accessories Of AV61...............................................................................10
STEP 1 Install the CPU ...........................................................................11
STEP 2 Set Jumpers ...............................................................................13
STEP 3 Install SDRAM System Memory.................................................13
STEP 4 Install Internal Peripherals in System Case ...............................14
STEP 5 Mount the Mainboard on the Computer Chassis .......................15
STEP 6 Connect Front Panel Switches/LEDs/Speaker ..........................16
STEP 7 Connect IDE & Floppy Disk Drives ............................................18
STEP 8 Connect Other Internal Peripherals ...........................................18
STEP 9 Connect the Power Supply .........................................................19
STEP 10 Install Add-on Cards in Expansion Slots..................................19
- 1 -
STEP 11 Connect External Peripherals to Back Panel...........................20
STEP 12 First Time System Boot Up ......................................................21
STEP 13 Install Drivers & Software Components...................................22
3.2 JUMPER SETTINGS...................................................................................23
Jumpers & Connectors Guide .................................................................24
Set Keyboard & PS/2 Mouse Power-On (JP38)......................................26
CPU Host Frequency Setting (JP39)......................................................27
CPU Clock Ratio Setting (JP37)..............................................................28
CPU Vcore Fine Tune (JP48)..................................................................29
Over-Clocking the CPU (J55 & JP45) .....................................................29
Clear CMOS (JP19).................................................................................29
PS/2 Keyboard & PS/2 Mouse Connectors.............................................30
USB1 / USB2 Port Connectors................................................................30
COM1 / COM2 Connector .......................................................................30
Parallel Port Connector ............................................................................30
ATX Power On/Off Switch Connector (PWON-S1).................................31
Green LED Connector (GLED-J48).........................................................31
EPMI Connector (EPMI-J42) ...................................................................31
HDD LED Connector (IDE LED-S3) ........................................................32
Hardware Reset Connector (RST-J32) ...................................................32
Speaker Connector (SPK-JP24) ..............................................................32
PWR LED Connector (PWR-J27)............................................................32
Keylock Connector (KEYLOCK-J27).......................................................33
Enhanced IDE Ports and Floppy Connectors .........................................33
ATX Power Supply Connector (J31) .......................................................34
- 2 -
Cooling Fan Connectors for CPU (JP29),
Chassis (JP28), (J43) & (J47) .................................................................34
IR Connector (JP4)..................................................................................35
Wake-on LAN Connector (J45) ...............................................................35
SB-Link Connector (JP46).......................................................................35
3.3 SYSTEM MEMORY CONFIGURATION......................................................36
Install Memory..........................................................................................36
Upgrade Memory .....................................................................................36
4 SOFTWARE UTILITY ...................................................................37
4.1 AV61 MAINBOARD CD OVERVIEW .........................................................37
4.2 INSTALL MAINBOARD DRIVER ...............................................................38
4.3 TO VIEW THE USER'S MANUAL ..............................................................39
5 BIOS SETUP ...............................................................................40
5.1 ENTERING BIOS.........................................................................................40
5.2 THE MAIN MENU .........................................................................................41
Standard CMOS Setup............................................................................43
BIOS Features Setup ...............................................................................45
Chipset Features Setup...........................................................................48
Power Management Setup......................................................................50
PnP / PCI Configuration ..........................................................................53
CPU Features Setup ................................................................................56
Integrated Peripherals .............................................................................58
User Password Setting ............................................................................62
Save & Exit Setup....................................................................................63
Exit Without Saving ..................................................................................63
- 3 -
WHAT’S IN THE MANUAL
Quick Reference
Hardware Installation >> Step-by-Step.................................................Page 10
Jumper Settings >> A Closer Look....................................................... Page 23
Software Utility >> How to Install..........................................................Page 37
BIOS Setup >> How to Configure.........................................................Page 40
About This Manual
For First-Time DIY System Builder .........................................................Page 5
For Experienced DIY User.......................................................................Page 5
For System Integrator..............................................................................Page 5
- 4 -
1 INTRODUCTION
1.1 To Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience a
success, right from the start, we have designed the 3 Hardware Installation
section in a step-by-step fashion for all the first-time DIY system builders.
Prior to installation, we also suggest you to read the whole manual carefully
to gain a complete understanding of your new AV61 mainboard.
Experienced DIY User
Congratulations on your purchase of the Shuttle AV61 mainboard. You will
find that installing your new Shuttle AV61 mainboard is just that easy. Bundled
with an array of onboard functions, the highly-integrated AV61 mainboard
provides you with a total solution to build the most stable and reliable system.
Refer to section 3.2 Jumper Settings and Chapter 4 Software Utility to find
out how to get the best out of your new mainboard. Chapter 5 BIOS Setup
also contains relevant information on how to tune up your system to achieve
higher performance.
System Integrator
You have wisely chosen Shuttle AV61 to construct your system. Shuttle
AV61 incorporates all the state-of-the-art technology of the VT82C693A
chipset from VIA. It integrates the most advanced functions you can find to
date in a compact ATX board. Refer to section 3.2 Jumper Settings and
Chapter 4 Software Utility for an in-depth view of system construction.
- 5 -
1.2 Item Checklist
Check all items you received with your AV61 mainboard to make sure
nothing is missing. The complete package should include:
One Shuttle AV61 Mainboard
(with onboard Slot1, built-in VIA693A
chipset, ATX form factor, including 2xUSB,
2xSerial, and 1xParallel ports, plus 1xPS/2
Keyboard, and 1xPS/2 Mouse connectors.)
One ATA/66 Ribbon Cable
One Floppy Ribbon Cable
One set of Universal Retention Mechanism
This AV61 User’s Manual
One CD-ROM containing:
The AV61 user’s manual on PDF format
The VIA 4 IN 1 Drivers
The Award Flashing Utility
- 6 -
2 FEATURES
The AV61 mainboard is carefully designed for the demanding PC user who wants
high performance and maximum intelligent features in a compact package.
2.1 Specifications
CPU Support
Supports Slot-1 (Celeron, Pentium II/III and Coppermine) processor.
66/100/133MHz CPU Front Side Bus (FSB).
Chipset
Features VIA VT82C693A AGPset with I/O subsystems.
Jumperless CPU Configuration
Auto-detect CPU voltage
Soft-configure CPU Speed (The CPU operating speed is software
configurable in the CMOS Setup menu of the BIOS Setup utility.)
Versatile Memory Support
Equipped with three DIMM banks of PC/100 and PC/133 compliant
SDRAM to provide up to 768MB of system memory.
Configurable support for EC (Error Checking) and ECC (Error Checking
and Correcting)
AGP Slots
Supports Accelerated Graphics Port cards for high-performance, component level interconnect directed at 3D graphical display applications.
PCI and ISA Expansion Slots
Provides five 32-bit PCI slots and two 16-bit ISA slots.
LPC Super I/O Onboard
Provides a variety of I/O interfaces:
1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, 2.88MB
format or for 5.25-inch FDD with 360KB or 1.2MB format.
1 × PS/2 mouse connector
- 7 -
1 × PS/2 Keyboard connector
2 × USB connectors
3 × USB Hub connectors (optional)
2 × DB9 Serial connectors 16550 UART compatible
1 × Infrared communications port ASKIR and HPSIR compatible.
(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)
1 × DB25 Parallel port supporting Standard Parallel Port (SPP),
Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
PCI Bus Master IDE Controller Onboard
Two UltraDMA 33/66 Bus Master Dual-channel IDE ports provide support to
a maximum of four IDE devices (one Master and one Slave per channel). The
IDE Bus implements data transfer speeds of up to 33/66 MB/sec and also
supports Enhanced PIO Modes 3 & 4.
ATX Power Supply Connector
ATX power supply unit can connect to the onboard 20-pin ATX power
connector, supporting Suspend and Soft-On/Off by dual-function power
button.
Advanced Configuration and Power Interface
Features four power savings modes: Snoop, Suspend to RAM, Suspend to
Disk, and Soft-Off. ACPI provides more efficient Energy Savings Features
controlled by your operating system that supports OS Direct Power Management (OSPM) functionality.
System BIOS
Provides licensed Award V4.51PG BIOS on 2MB Flash EEPROM.
Supports Green PC and Desktop Management Interface (DMI).
- 8 -
ATX Form Factor
System board conforms to the ATX specification.
Board dimensions: 305mm × 170mm
Advanced Features
Dual Function Power Button - The system can be in one of two states,
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters the Soft-Off mode.
Keyboard/Mouse Power-On - This mainboard implements a special
jumper to enable a system power-on function by keyboard or PS/2 mouse.
Wake-on-LAN (WOL) - The onboard WOL connector can be attached to
a network card that supports this function to wake up the system via the
LAN.
Modem Ring Power-On - The system can be powered on automatically
by activation of the modem ring.
Optional Features
Voltage Monitoring - Monitors various voltages of key elements, such as
the CPU, and other critical system voltage levels to ensure stable current
reach to mainboard components. System voltages include Vcore/ VTT on
CPU, and +5V, +12V, -5V, -12V on system.
Fan Status Monitoring - To prevent overheating of CPU, the CPU fan is
monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is
required.)
On board three ports USB HUB.
- 9 -
3 HARDWARE INSTALLATION

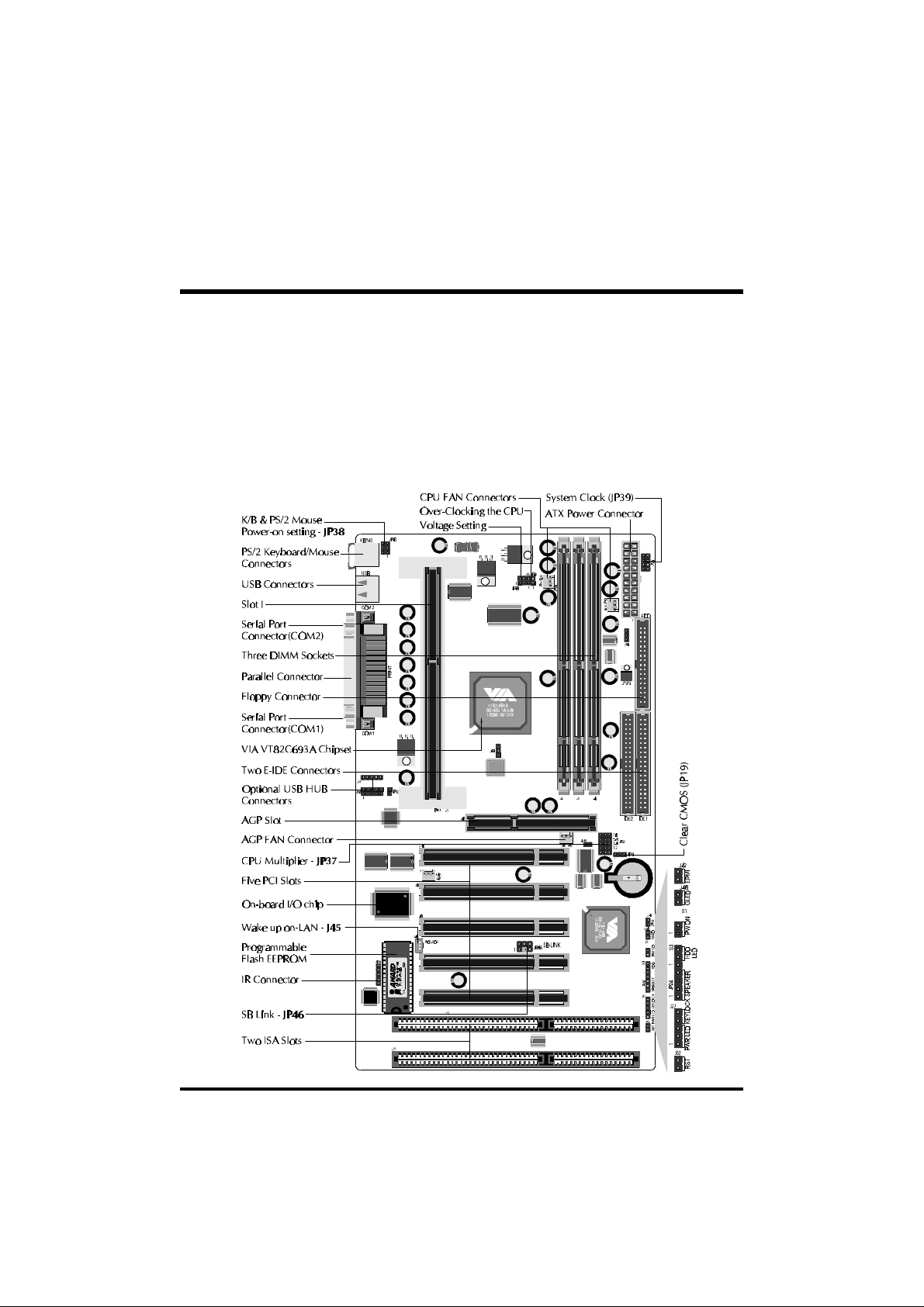

This section outlines how to install and configure your AV61 mainboard. Refer to the
following mainboard layout to help you identify various jumpers, connectors, slots, and
ports. Then follow these steps designed to guide you through a quick and correct installation of your system.
3.1 Step-by-Step Installation
Accessories Of AV61
- 10 -
Step 1
Install the CPU
1. Mark your CPU Frequency
Checking the working frequency of your cpu that should be clearly
marked on the CPU cover or write your own combination in the space
provided.
2. Pentium II/III Processor Installation

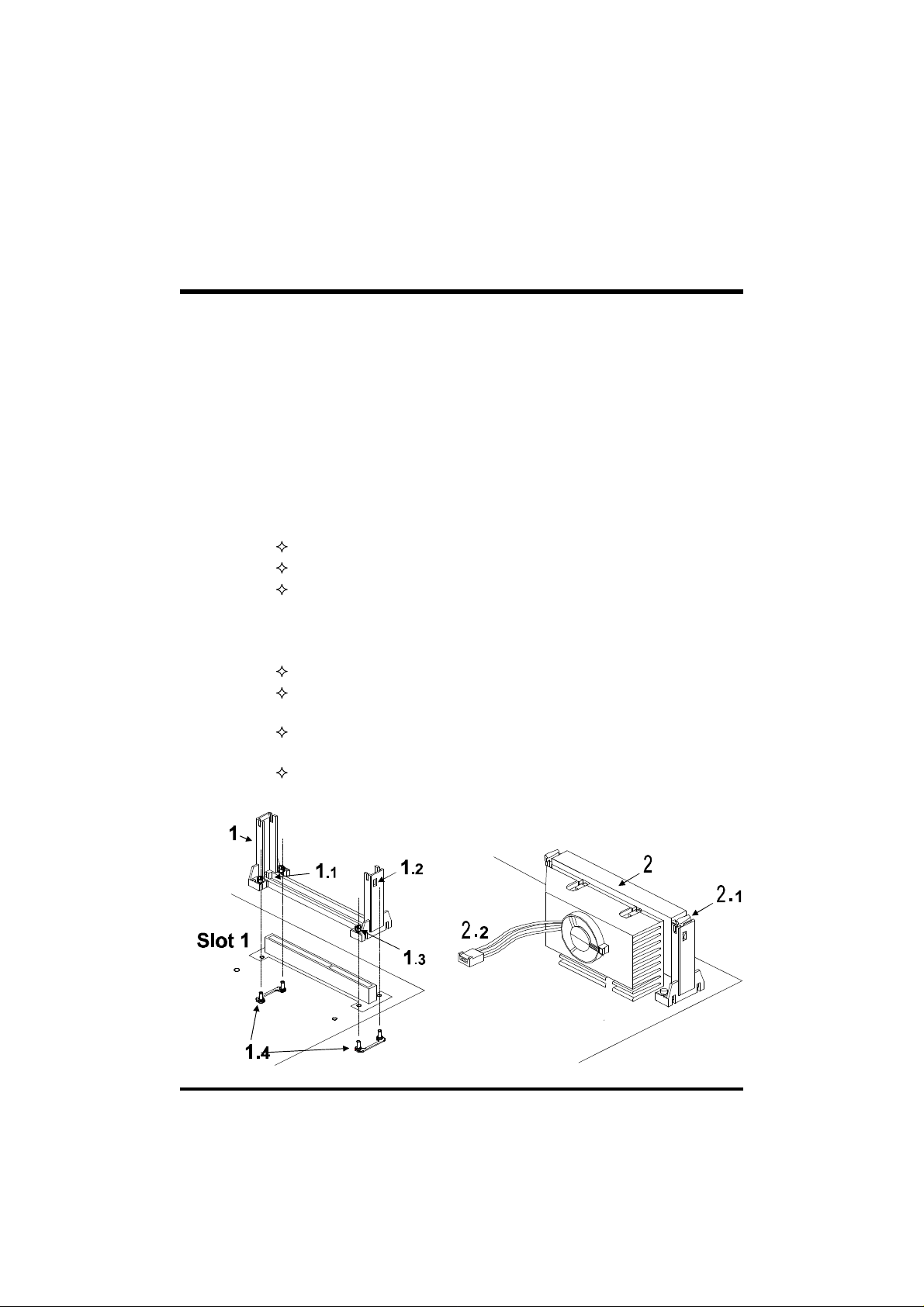

<Locate the Retention Mechanism>
To install a CPU, first turn off your system and remove its cover.
Locate the Retention Mechanism (1) around the Slot 1.
Take care of the Square Cut Mark (1.1).
Fix (1) by inserting Attach Mounts (1.4) up through holes (A1...A4)
in the bottom of the mainboard, and screw the four captive nuts
(1.3).
<Install the CPU>
Insert CPU (2) into the Retention Mechanism (1).
Ensure that the alignment notch in the processor fits over the plug
(1.2), then push processor down firmly until it is seated.
Push the latches (2.1) on the processor outward until they click into
place.
Connect power cable (2.2) of Fan/Heat Sink.
- 11 -
3. Celeron Processor Installation
<Locate the Retention Mechanism>
To install a CPU, first turn off your system and remove its cover.
Insert two Retention Mechanism (3) on opposite side of Slot 1.
Fix (3) by inserting Attach Mounts (4) up through holes (A1...A4) in
the bottom of the mainboard, and screw the four captive nuts (3.1).
<Install the CPU>
Hold the processor (5) so that the Heatsink is facing toward the DIMM
sockets on the mainboard.
Slide the processor into the RM. Push the provessor down firmly,
with even pressure on both sides of the top, until it is seated.
- 12 -
Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as in any of the
following cases:
1. Over-clock your CPU
2. Clear CMOS
3. Set the wake up function by keyboard/PS2 mouse
For first-time DIY system builders, we recommend that you do not change
the default jumper settings if you are not totally familiar with mainboard
configuration procedures. The factory-set default settings are tuned for
optimum system performance. For the advanced users who wish to customize their system, section 3.2 Jumper Settings will provide detailed information on how to configure your mainboard manually.
Step 3
Install SDRAM System Memory
To install memory, insert SDRAM memory module(s) in any one, two or
three DIMM banks. Note that SDRAM modules are directional and will not
go in the DIMM slots unless properly oriented. After the module is fully
inserted into the DIMM socket, lift the clips of both sides of the DIMM bank
to lock the module in place.
- 13 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into
the computer housing, including but not limited to the hard disk drive (IDE/
HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply
unit. This will greatly facilitate in making the connections to the mainboard
described below.
To install IDE & FDD drives, follow this procedure:
1. Set the required jumpers on each device according to the instructions
provided by the manufacturer. (IDE devices, HDD and CD-ROM, have to
set jumpers to Master or Slave mode depending on whether you install
more than one device of each kind.)
2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral devices. Note that the cable should be oriented with its
colored stripe (usually red or magenta) connected to pin#1 both on the
mainboard IDE or FDD connector and on the device as well.
3. Connect an available power cable from your system power supply unit
to the back-panel of each peripheral device. Note that the power cable is
directional and cannot fit in if not properly positioned.
- 14 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose a
correct mounting hole, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs between
the frame of the chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to avoid any electrical shorts be tween the
board and the metal frame of the chassis. (If your computer case is
already equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and fix the mainboard.
If there aren’t enough matching holes, then make sure to install at
least 3 mounting studs to ensure proper attachment of the
mainboard.
- 15 -
Step 6
Connect Front Panel Switches/LEDs/Speaker
You can find there are several different
cables already existing in the system
case and originating from the computer’s
front-panel devices (HDD LED, Power
LED, Reset Switch, PC Speaker, etc.)
These cables serve to connect the
front-panel switches and LEDs to the
mainboard’s front-panel connectors
group, as shown below.
1. ATX Soft Power On/Off
2. Power-LED
3. HDD-LED
- 16 -
4. EPMI
(Hardware System Management Interface)
5. Green-LED
6. PC Speaker
7. Hardware Reset Switch
8. Keylock
- 17 -
Step 7
Connect IDE & Floppy Disk Drives
1. IDE cable connector
2. FDD cable connector
Step 8
Connect Other Internal Peripherals
1. IR connector
Step 9
Connect the Power Supply
1. System power connector
- 18 -
Step 10
Install Add-on Cards in Expansion Slots
1. Accelerated Graphics Port (AGP) Card
2. PCI Card
3. ISA Card
- 19 -
Step 11
Connect External Peripherals to Back Panel
You are now ready to put the computer case back together and get on to the
external peripherals connections to your system’s back-panel.
1. PS/2 Mouse and Keyboard
2. USB Devices
3. Parallel Port
4. COM Ports
- 20 -
Step 12
First Time System Boot Up
To assure the completeness and correctness of your system installation, you
may check the above installation steps once again before you boot up your
system for the first time.
1. Insert a bootable system floppy disk (DOS 6.2x, Windows 95/98/NT, or
others) which contains FDISK and FORMAT utilities into the FDD.
2. Turn on the system power.
3. First, you must use the FDISK utility to create a primary partition of the
hard disk. You can also add an extended partition if your primary partition does not use all of the available hard disk space. If you choose to
add an extended partition, you will have to create one or more logical
partitions to occupy all the space available to the extended partition. The
FDISK utility will assign a drive letter (i.e., C:, D:, E:,...) to each partition
which will be shown in the FDISK program. After FDISK procedure,
reboot your system by using the same system floppy disk.
Note: DOS 6.2x and Windows 95A can only support up to 2.1GB of
HDD partition. If you use the FDISK utility with one of the
operating systems mentioned above, you can only device your
HDD into partitions no larger than 2.1GB each.
4. Now, use the FORMAT utility to format all the partitions you’ve created.
When formatting the primary partition (C:), make sure to use the
FORMAT C: /S command.
Note: FORMAT C: /S can transfer all the necessary system files into the
primary partition of your hard disk. Then, your HDD will become
a bootable drive.
5. Install all the necessary drivers for CD-ROM, Mouse, etc.
6. Setup the complete operating system according to your OS installation
guide.
- 21 -
Step 13
Install Drivers & Software Components
Please note that all the system utilities and drivers are designed for Win 9x
operating systems only. Make sure your Windows 9x operating system is
already installed before running the drivers installation CD-ROM programs.
1. Insert the AV61 bundled CD-ROM into your CD-ROM drive. The
auto-run program will display the drivers main installation window on
screen.
2. Select the Mainboard related program.
3. Install AV61 Driver for Win9x/Win NT.
- 22 -

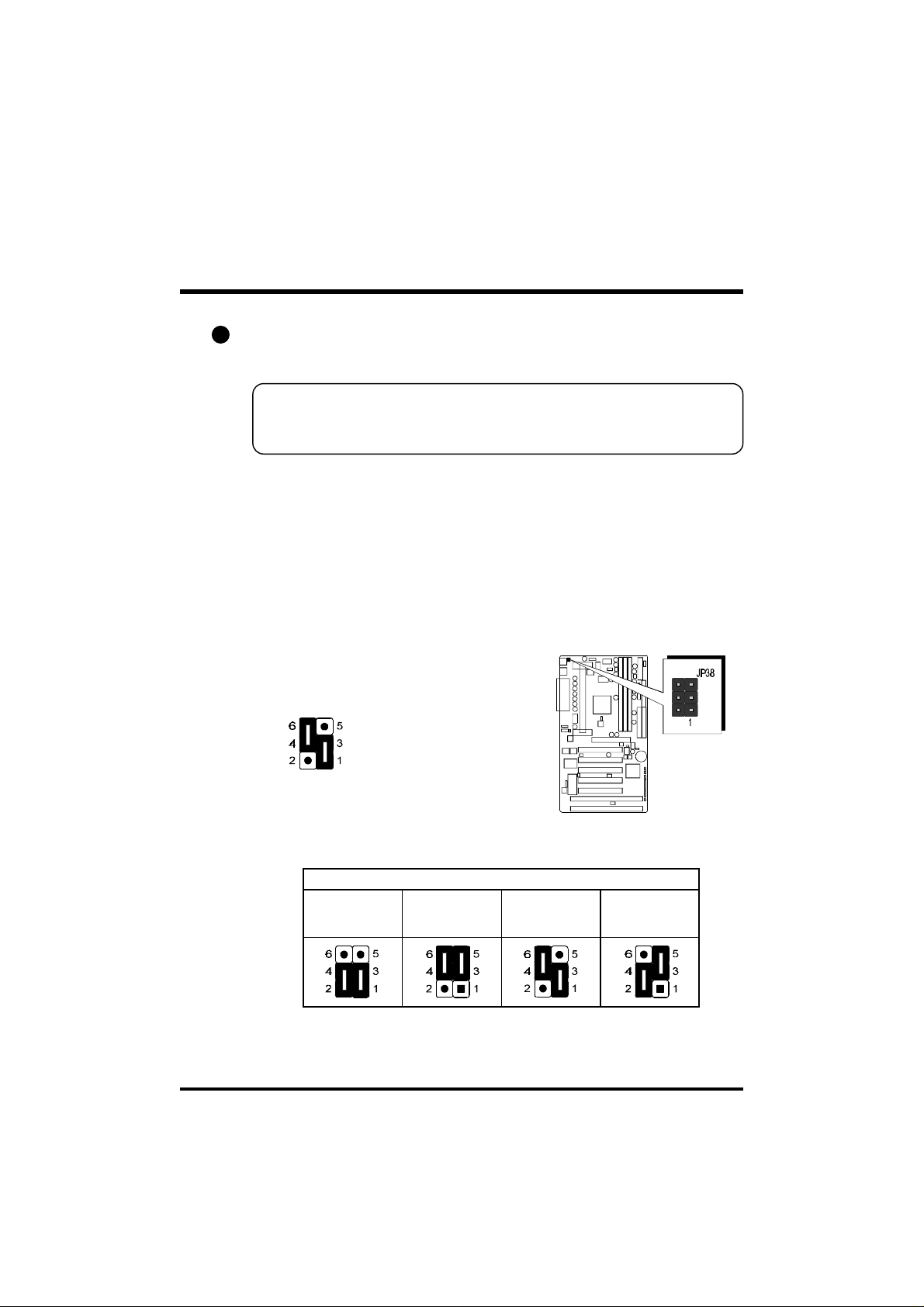

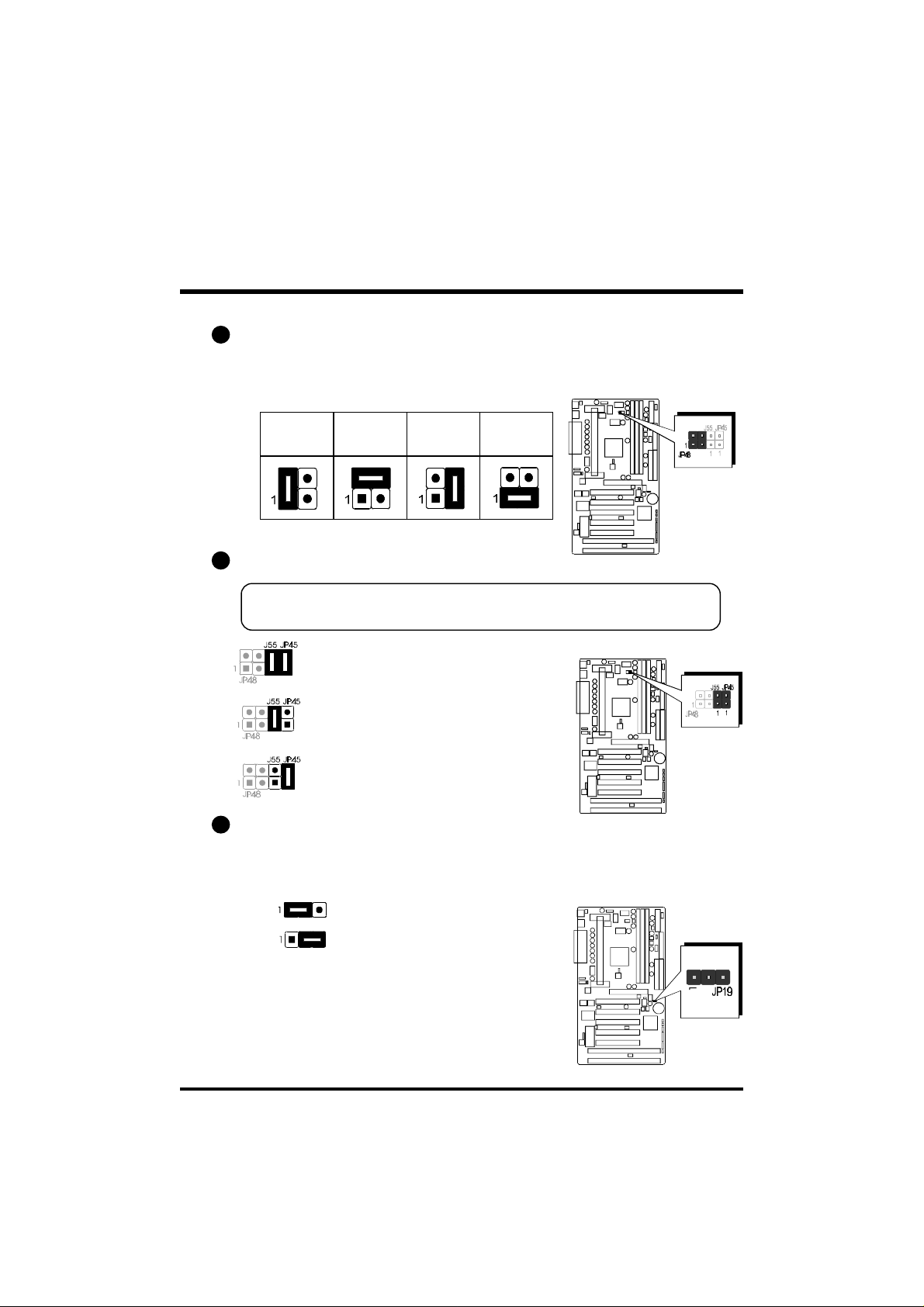

3.2 Jumper Settings
Several hardware settings are made through the use of jumper caps to
connect jumper pins on the mainboard. Pin #1 is located on the bottom
or on the left when holding the mainboard with the keyboard connector
or other back-panel connectors opposite from you, as shown below.
3-pin and multi (>3) pin jumpers show as follows:
Pin #1 on the left:
Pin #1 on the bottom:
Jumpers with two pins are shown as for Close [On] or for
Open [Off]. To Short jumper pins, simply place a plastic jumper cap over
the desired pair of pins.
Caution!
1. Do not remove the mainboard from its antistatic protective packaging
until you are ready to install it.
2. Carefully hold the mainboard by its edges and avoid touching its
components. When putting the mainboard down, place it on top of its
original packaging film, on an even surface, and components side up.
3. Wear an antistatic wrist strap or take other suitable measures to prevent
electrostatic discharge (ESD) whenever handling this equipment.
- 23 -

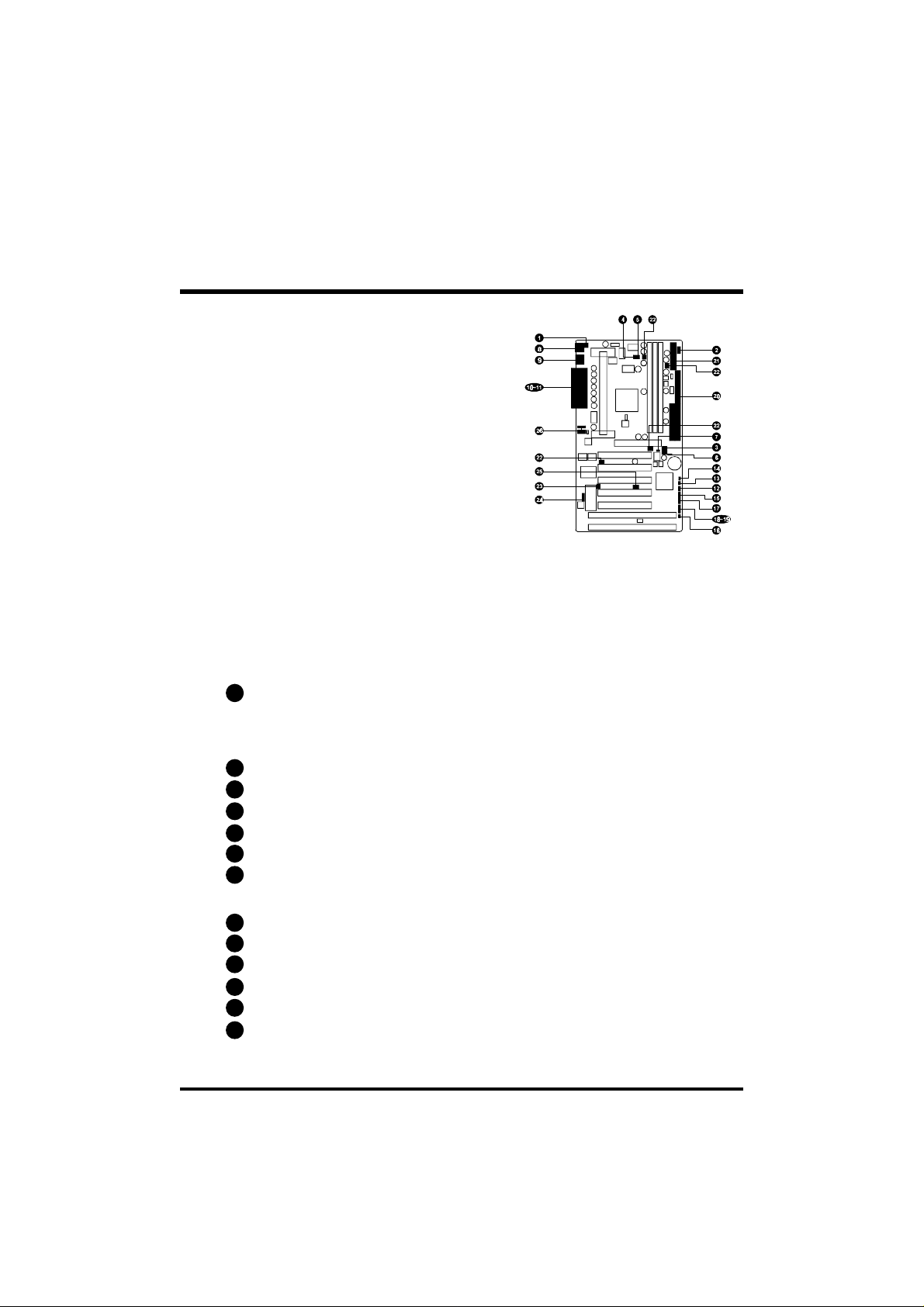

Jumpers & Connectors Guide
Use the mainboard layout on page 10
to locate CPU socket, memory banks,
expansion slots, jumpers and connectors
on the mainboard during the installation.
The following list will help you identify
jumpers, slots, and connectors along with
their assigned functions:
CPU/Memory/Expansion Slots
Slot 1 : CPU Slot for Pentium II/III, Celeron processors
J5, J3, J4 : Three DIMM Sockets for 8,16,32,64,128,256MB 3.3V SDRAM
AGP : One AGP (Accelerated Graphics Port) Slot
PCI : Five 32-bit PCI Expansion Slots
ISA : Two 16-bit ISA Expansion Slots
Jumpers
JP38 : Keyboard & PS/2 Mouse Power-On
1
(requires to always set JP38 jumper in order to enable either
or both KB & PS/2 mouse power-on functions. In addition,
you need to set Power On Function in BIOS setup.)
JP39 : CPU Host frequency setting
2
JP37 : CPU Clock Ratio setting
3
JP48 : Voltage setting
4
J55 & JP45 : Over-Clocking the CPU
5
JP19 : Clear CMOS
6
JP51 : Factor Reserved
7
Back Panel Connectors
8
KB : PS/2 Keyboard
8
MS : PS/2 Mouse
9
USB : 2 × USB (Universal Serial Bus)
COM1 : Serial Port 1 (DB9 male)
10
10
COM2 : Serial Port 2 (DB9 male)
PRINTER : Parallel Port (DB25 female)
11
- 24 -
Front Panel Connectors
PWON (S1) : ATX Power On/Off Momentary Type Switch
12
GLED (J48) : Green LED (ON when system in power savings mode)
13
EPMI (J42) : Hardware System Management Interface Momentary
14
Type switch.
IDE LED (S3) : IDE Drive Active LED
15
16
RST (J32) : Hardware Reset Switch
17
SPK (JP24) : Housing Internal Speaker
18
PWR (J27) : System Power LED
KEYLOCK (J27) : Keylock
19
Internal Peripherals Connectors
20
FDD : Floppy Disk Drive Interface
20
IDE1 : IDE Primary Interface (Dual-channel)
IDE2 : IDE Secondary Interface (Dual-channel)
20
Other Connectors:
J31 : ATX Power (20-pin header)
21
CPU FAN : CPU Cooling Fan Power
22
FAN (JP28) : Housing Cooling Fan Power
22
22
FAN (J43) : Housing Cooling Fan Power
22
FAN (J47) : Housing Cooling Fan Power
23
JP4 : IR Connector
J45 : Wake-On-LAN Connector
24
JP46 : SB-LINK Connector
25
J56 & J57 : Optional onboard USB Hub Connector
26
- 25 -
1
Set Keyboard & PS/2 Mouse Power-On (JP38)
AV61 mainboard provides an easy power-on by keyboard and PS/2 mouse.
Note: When you enable Keyboard Power-On, you also need to configure
the proper hot-key combination <Ctrl> + < function key F1 ~
F12 > in BIOS setup program.
To Power on the system by keyboard, simply strike the proper hot-key.
(A hot-key is the combination of <Ctrl> + <configured function key
F1 ~ F12>)
To power on the system by PS/2 mouse, you only need to double-click with
the mouse. (Note that power-on by serial mouse is not supported)
To enable/disable either or both keyboard and PS/2 mouse power-on functions, follow the steps outlined below:
JP38 1-3, 4-6 (default)
Step 1. Adjust the jumper group JP38 as shown in the following table.
K/B & PS/2 Mouse Power-On - JP38
Keyboard &
PS/2 Mouse
Power-On Disabled
Keyboard &
PS/2 Mouse
Power-On Enabled
Keyboard
Power-On Enabled
PS/2 Mouse
Power-On Enabled
Step 2. Set the Power On field to the proper value (Hot-key or PS/2
Mouse) in Integrated Peripherals menu of BIOS setup.
- 26 -
2
CPU Host Frequency Setting (JP39)
Normally, CPU FSB auto-detecting by BIOS, System will assign proper
frequency to CPU, when JP39 set to default position.
We strongly advise novice users not to modify the original setting of the
CPU host frequency, for setting an incorrect value may damage your CPU.
For experienced users, the AV61 mainboard provides an alternative HardConfigure function to adjust your CPU host frequency manually.
Insert mini-jumper caps properly on JP39 to reach desired CPU
Host Frequency, as shown in the following table.
Note: 75, 83 MHz are over-clock
usage for 66MHz base processor,
112~103MHz are over-clock
usage for 100MHz base processor,
and 140MHz~150MHz are overclock usage for 133 MHz base
processor. However, over-clocking
is not a recommended practice.
CP U
Host Clock
66MHz
75MHz
83MHz
100MHz N/A
112MHz N/A
133MHz
(Defa ul t)
140MHz N/A
150MHz N/A
66MHz based
processor
JP39
N/A
JP39
100MHz based
processor
- 27 -
3
CPU Clock Ratio Setting (JP37)
AV61 mainboard provides a jumper group JP37 to set CPU speed
configure by BIOS or by hardware jumper.
By inserting jumper pack on Auto group, the user can Soft-Configure the
CPU Host Frequency and CPU Clock Ratio from BIOS.
By removing jumper pack from Auto group and inserting mini jumpers
on Manual group properly, the user can configure the CPU Clock Ration
manually.
CPU
Clock Ratio
BIOS Setup
2x ~ 5x
(Default)
2 x
( 133 / 66 )
( 200 / 100 )
2.5 x
( 166 / 66 )
( 250 / 100 )
3 x
( 200 / 66 )
( 300 / 100 )
3.5 x
( 233 / 66 )
( 350 / 100 )
JP37
CPU
Clock Ratio
4 x
( 266 / 66 )
( 400 / 100 )
( 533 / 133 )
4.5 x
( 300 / 66 )
( 450 / 100 )
( 600 / 133 )
5 x
( 333 / 66 )
( 500 / 100 )
5.5 x
( 366 / 66 )
( 550 / 100 )
6 x
( 399 / 66 )
( 600 / 100 )
- 28 -
JP37
CPU
Clock Ratio
6.5 x
( 432 / 66 )
( 650 / 100 )
7 x
( 465 / 66 )
( 700 / 100 )
7.5 x
( 498 / 66 )
( 750 / 100 )
8 x
( 531 / 66 )
( 800 / 100 )
JP37
4
CPU Vcore Fine tune (JP48)
AV61 mainboard supports a 4-pin jumper JP48 to increase CPU Vcore
which provide from mainboard.
Increase
0.15% CPU
Core Voltage
5
Over-Clocking the CPU (J55 & JP45)
Increase
0.5% CPU
Core Voltage
Increase
1.5% CPU
Core Voltage
Increase
7.8% CPU
Core Voltage
Warning : Over-clocking is not a recommended practice for it may
damage both the mainboard and the processor.
J55, JP45 Close (Default)
J55 Close (66MHz Based Processor
over-clock to 100MHz Processor)
JP45 Close (100MHz Based Processor
over-clock to 133MHz Processor)
6
Clear CMOS (JP19)
JP19 is used to clear CMOS data. Clearing CMOS will result in permanently erasing the previous system configuration settings and restoring the
original (factory-set) system settings.
Pin 1-2 (Default)
Pin 2-3 (Clear CMOS)
Step 1. Turn off the system power (PC-> Off)
Step 2. Remove jumper cap from JP19 pins 1-2
Step 3. Place the jumper cap on JP19 pin 2-3
for a few seconds
Step 4. Return the jumper cap to pin 1-2
Step 5. Turn on the system power (PC-> On)
- 29 -
8
PS/2 Keyboard & PS/2 Mouse Connectors
Two 6-pin female PS/2 keyboard & Mouse
connectors are located at the rear panel
of the mainboard. Depending on the computer housing you use (desktop or
minitower), the PS/2 Mouse connector is
situated at the top of the PS/2 Keyboard
connector when the mainboard is laid into
a desktop, as opposed to a minitower
where the PS/2 Mouse connector is located at the right of the PS/2 Keyboard's.
Plug the PS/2 keyboard and mouse jacks
into their corresponding connectors.
9
USB1/USB2 Port Connectors
Two female connectors USB1/USB2 share
the same USB (Universal Serial Bus)
bracket at the rear panel of your
mainboard. Plug each USB device jack
into an available USB1/USB2 connector.
10
COM1 / COM2 Connector
This mainboard can accommodate two
serial device on COM1/COM2 .
Attach a serial device cable to the DB9
serial port COM1/COM2 at the back
panel of your computer.
11
Parallel Port Connector
One DB25 female parallel connector is
located at the rear panel of the mainboard.
Plug the connection cable from your parallel device (printer, scanner, etc.) into this
connector.
- 30 -
12
ATX Power On/Off Switch Connector (PWON - S1)
The Power On/Off Switch is a momentary type switch used for turning on or off
the system’s ATX power supply. Attach
the connector cable from the Power
Switch to the 2-pin PWON header on the
mainboard.
Note : Please notice the Speaker and all the LED connector is directional.
If your chassis’s LED does not light during running, please simply
change to the opposite direction.
13
Green LED Connector (GLED - J48)
The Green LED (GLED) indicates that the
system is currently in one of the power
savings mode (Doze/Standby/Suspend).
When the system resumes to normal
operation, mode, the Green LED will go
off. Attach a 2-pin Green LED cable to
GLED header.
14
EPMI Connector (EPMI - J42)
Hardware System Management Interface
(EPMI) header may attach to a 2-pin momentary switch. Press the EPMI switch to
force the system into power savings mode;
press again to resume normal operation.
- 31 -
HDD LED Connector (IDE LED - S3)
15
Attach the connector cable from the IDE
device LED to the 2-pin HDD LED header.
The HDD LED lights up whenever an IDE
device is active.
16
Hardware Reset Connector (RST - J32)
Attach the 2-pin hardware reset switch
cable to the RST header. Pressing the
reset switch causes the system to restart.
17
Speaker Connector (SPK - JP24)
Attach the PC speaker cable from the case
to the 4-pin speaker connector (SPK).
18
PWR LED Connector (PWR - J27)
Attach the 2-pin Power-LED connector
cable from the housing front panel to the
PWR header on the mainboard. The
power LED stays lit while the system is
running.
- 32 -
19
Keylock Connector (KEYLOCK - J27)
Attach the 3-pin Power-LED connector
cable from the housing front panel to the
PWR header on the mainboard. The
power LED stays lit while the system is
running.
20
Enhanced IDE Ports and Floppy Connectors
The AV61 mainboard features two 40-pin dual-channel IDE device connectors (IDE1/IDE2) providing support for up to four IDE devices, such as CDROM and Hard Disk Drives (H.D.D.). This mainboard also includes one
34-pin floppy disk controller (FDC) to accommodate the Floppy Disk Drive
(F.D.D.). Moreover, this mainboard comes with one 40pin ribbon cable to
connect to IDE H.D.D. and one 34-pin ribbon cable for F.D.D. connection.
Note : Please connect your
system H.D.D. on IDE 1.
Important: Ribbon cables are directional, therefore, make sure to always
connect with the red cable stripe on the same side as pin #1 of
the IDE1/IDE2 or FDC connector on the mainboard.
- 33 -
21
ATX Power Supply Connector (J31)
Locate the 20-pin male header ATX power connector (J31) on your
mainboard. Plug the power cable from the ATX power supply unit directly
into J31 ATX power supply connector.
Note 1: The ATX power connector is directional and will not go in unless
the guides match perfectly making sure that pin#1 is properly
positioned.
Note 2: Make sure the latch of the ATX power connector clicks into place
to ensure a solid attachment.
Note 3: This mainboard requires an ATX power supply of at least 200 watts
with power good signal.
22
Cooling Fan Connectors for CPU (JP29), Chassis (JP28),
(J43) & (J47)
The mainboard provides four onboard 12V cooling fan power connectors to
support CPU (JP29), Chassis (JP28), (J43) and (J47) cooling fans.
Note: Both cable wiring and
type of plug may vary
depending on the fan
maker. Keep in mind
that the red wire should
always be connected to
the +12V header and
the black wire to the
ground (GND) header.
- 34 -
23
IR Connector (JP4)
If you have an Infrared device, this mainboard can implement IR transfer
function. To enable the IR transfer function, follow these steps:
IR Pin Assignments:
1=VCC
2=VCC
3=IRRX
4=Ground
5=IRTX
Step 1. Attach the 5-pin infrared device cable to JP4 connector.
(Refer to the above diagram for IR pin assignment.)
Step 2. Configure the Infrared transfer mode in the UR2 Mode field of
integrated Peripherals menu in BIOS Setup. This mainboard
supports IrDA, ASKIR, Normal and SCR transfer modes.
24
Wake-on LAN Connector (J45)
Attach a 3-pin connector from the LAN
card which supports the Wake-On-LAN
(WOL) function. This function lets users
wake up the connected system through
the LAN card.
25
SB-Link Connector (JP46)
The main board provides a 2x3 pin SBLink header accepts the Creative CT4600
series PCI sound cards with PCI solution
to connect the legacy Sound Blaster compatible audio to the PCI bus.
- 35 -
3.3 System Memory Configuration
The AV61 mainboard has three 168-pin DIMM sockets that allow you to
install from 16MB up to 768MB of system memory with SDRAM (Synchronous DRAM). Each DIMM (Dual In-line Memory Module) socket can
accommodate 16MB, 32MB, 64MB, 128MB, and 256MB 3.3V single or
double side SDRAM modules. DIMM sockets are arranged in two banks,
each memory bank made of one socket and providing a 64 bit wide data
path.
The AV61 mainboard supports data integrity algorithms including EC (Error
Checking) and ECC (Error Checking and Correction) in the memory array.
In EC mode, single and multiple bit error detection is provided. In ECC
mode, when the memory is being read from DRAM, the AV61 provides
both error checking and correction of the data.
Install Memory:
Install memory in any or all of the banks and in any combination, as follows.
DIMM
Socket
DIMM 1
DIMM 2
DIMM 3
Memory Modules
16MB, 32MB, 64MB, 128MB, 256MB 168-pin
3.3V SDRAM DIMM
16MB, 32MB, 64MB, 128MB, 256MB 168-pin
3.3V SDRAM DIMM
16MB, 32MB, 64MB, 128MB, 256MB 168-pin
3.3V SDRAM DIMM
Module
Quantity
x 1
x 1
x 1
Note: You do not need to set any jumper to configure memory since the
BIOS utility can detect the system memory automatically. You can
check the total system memory value in the BIOS Standard CMOS
Setup menu.
Upgrade Memory:
You can easily upgrade the system memory by inserting additional SDRAM
modules in available DIMM banks. The total system memory is calculated
by simply adding up the memory in all DIMM banks. After upgrade, the
new system memory value will automatically be computed and displayed
by the BIOS Standard CMOS Setup menu.
- 36 -
4 SOFTWARE UTILITY
4.1 AV61 Mainboard CD Overview
Note: The AV61 mainboard attachment CD contents are subject to change
without notice.
To start your mainboard CD disc, just insert it into your CD-ROM drive and
the CD AutoRun screen should appear. If the AutoRun screen does not
appear, double click or run D:\Autorun.exe (assuming that your CD-ROM
drive is drive D:)
Navigation Bar Description:
Install Mainboard Software - Installing AV61 Mainboard
Drivers for Windows
Manual - AV61 series mainboard user's manual in PDF format.
Link to Shuttle Homepage - Link to shuttle website homepage.
Browse this CD - Allows you to see the contents of this CD.
Quit - Close this CD.
- 37 -
4.2 Install Mainboard Driver
Insert the attachment CD into your CD-ROM drive and the CD AutoRun
screen should appear. If the AutoRun screen does not appear, double click
on Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.
Select using your pointing device (e.g. mouse) on the “Install Mainboard
Software” bar.
Once you made your selection, a Setup window which automatically
runs the installation.
When the files are done copying make sure you reboot the system to
insure that the files are installed correctly.
- 38 -
4.3 To View the User's Manual
Insert the attachment CD into your CD-ROM drive and the CD AutoRun
screen should appear. If the AutoRun screen does not appear, double click
on Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.
Select using your pointing device (e.g. mouse) on the “Manual” bar.
Then Online Information windows will appear on your screen. Click on
the “Install Acrobe Reader 3.0” bar if you need to install acrobe reader.
Then click on "AV61 Manual" bar to view AV61 user's manual.
- 39 -
5 BIOS SETUP
AV61 BIOS ROM has a built-in Setup program that allows users to modify
the basic system configuration. This information is stored in
battery-backed RAM so that it retains the Setup information even if the
system power is turned off.
The system BIOS is managing and executing a variety of hardware related
functions in the system, including:
System date and time
Hardware execution sequence
Power management functions
Allocation of system resources
5.1 Entering BIOS
To enter the BIOS (Basic Input / Output System) utility, follow these steps:
Step 1. Power on the computer and the system will perform its
POST (Power-On Self Test) routine checks.
Step 2. Press <Del> key immediately or at the following message:
“Press DEL to enter SETUP”
or simultaneously press <Ctrl>, <Alt>, <Esc> keys
Note 1. If you miss the train (the message disappears before you can
respond) and you still wish to enter BIOS Setup, restart the system
and try again by turning the computer OFF and ON again or by
pressing the <RESET> switch located at the computer’s front
panel. You may also reboot by simultaneously pressing the
<Ctrl>, <Alt>, <Del> keys.
Note 2. If you do not press the keys in time and system does not boot, the
screen will prompt an error message and you will be given the
following options:
“Press F1 to Continue, DEL to Enter Setup”
Step 3. As you enter the BIOS program, the CMOS Setup Utility will
prompt you the Main Menu, as shown in the next section.
- 40 -
5.2 The Main Menu
Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.
Note that a brief description of each highlighted selection appears at
the bottom of the screen.
Standard CMOS Setup
This setup page includes all items in a standard compatible BIOS.
BIOS Features Setup
This setup page includes all items of Award special enhanced features.
Chipset Features Setup
This setup page includes all items of chipset features.
Power Management Setup
This setup page includes all items of Power Management features.
PnP/PCI Configuration setup
This item specifies the value (in units of PCI bus blocks) of the latency
timer for the PCI bus master and the IRQ level for PCI device. Poweron with BIOS defaults
- 41 -
Load BIOS Defaults
BIOS defaults loads the values required by the System for the maximum performance. However, you can change the parameter through
each Setup Menu.
Load Setup Defaults
Setup defaults loads the values required by the system for the O.K.
performance. However, you can change the parameter through each
Setup Menu.
CPU Speed Setting
This setup page includes all items of CPU speed features.
Integrated Peripherals
This setup page includes all items of peripheral features.
Supervisor Password
Change, set, or disable supervisor password. It allows you to limit
access to the system and Setup, or just to Setup.
User Password
Change, set, or disable user password. It allows you to limit access to
the system and Setup, or just to Setup.
IDE HDD Auto Detection
Automatically configure IDE hard disk drive parameters.
Save & Exit Setup
Save CMOS value change to CMOS and exit setup
Exit Without Saving
Abandon all CMOS value changes and exit setup.
- 42 -

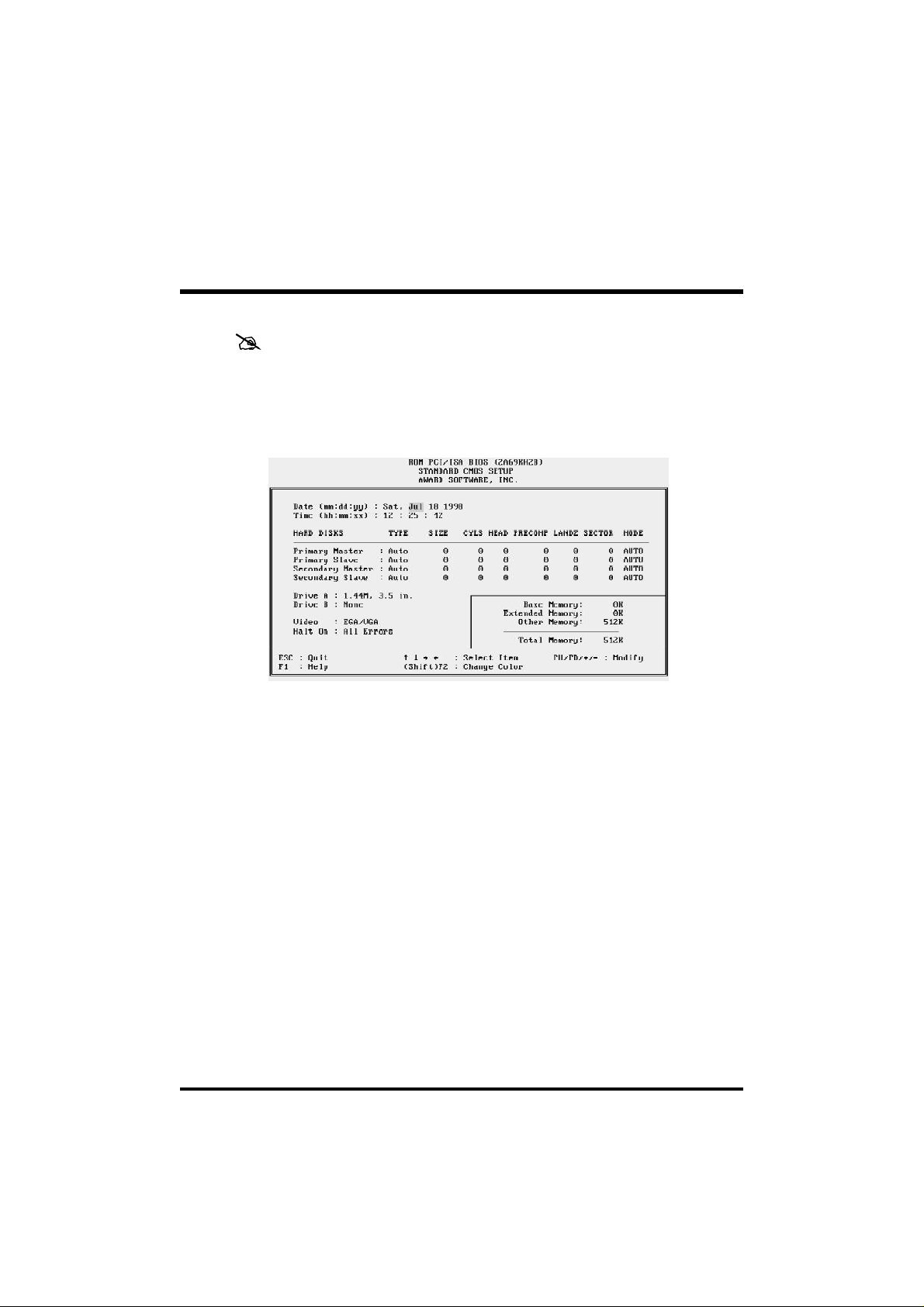

Standard CMOS Setup
The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items.
Use the arrow keys to highlight the item and then use the <PgUp>
or <PgDn> keys to select the value you want in each item.
Date
The date format is <day>, <month> <date> <year>.
Press <F3> to show the calendar.
Time
The time format is <hour> <minute> <second>. The time is
calculated base on the 24-hour military-time clock. For example. 5
p.m. is 17:00:00.
Hard Disks Type
This item identify the types of hard disk drives that has been installed
in the computer. There are 46 predefined types and a user definable
type.
Press PgUp or PgDn to select a numbered hard disk type or type the
number and press <Enter>. Note that the specifications of your
drive must match with the drive table. The hard disk will not work
properly if you enter improper information for this item. If your hard
disk drive type is not matched or listed, you can use Type User to
define your own drive type manually.
- 43 -
If you select Type User, related information is asked to be entered to
the following items. Enter the information directly from the keyboard
and press <Enter>. Those information should be provided in the
documentation from your hard disk vendor or the system manufacturer.
The user may also set those items to AUTO to auto configure hard disk
drives parameter when system power-on.
If a hard disk drive has not been installed select NONE and press
<Enter>.
Drive A type/Drive B type
This item specifies the types of floppy disk drive A or drive B that has
been installed in the system.
Video
This item selects the type of adapter used for the primary system
monitor that must matches your video display card and monitor.
Although secondary monitors are supported, you do not have to select
the type in Setup.
Halt On
This item determines if the system will stop, when an error is detected
during power up.
Memory
This item is display-only. It is automatically detected by POST (Power
On Self Test) of the BIOS.
Base Memory
The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system. The value of the base memory
is typically 512K for systems with 512K memory installed on the
mainboard, or 640K for systems with 640K or more memory installed
on the mainboard.
Extended Memory
The BIOS determines how much extended memory is present during
the POST. This is the amount of memory located above 1MB in the
CPU's memory address map.
- 44 -

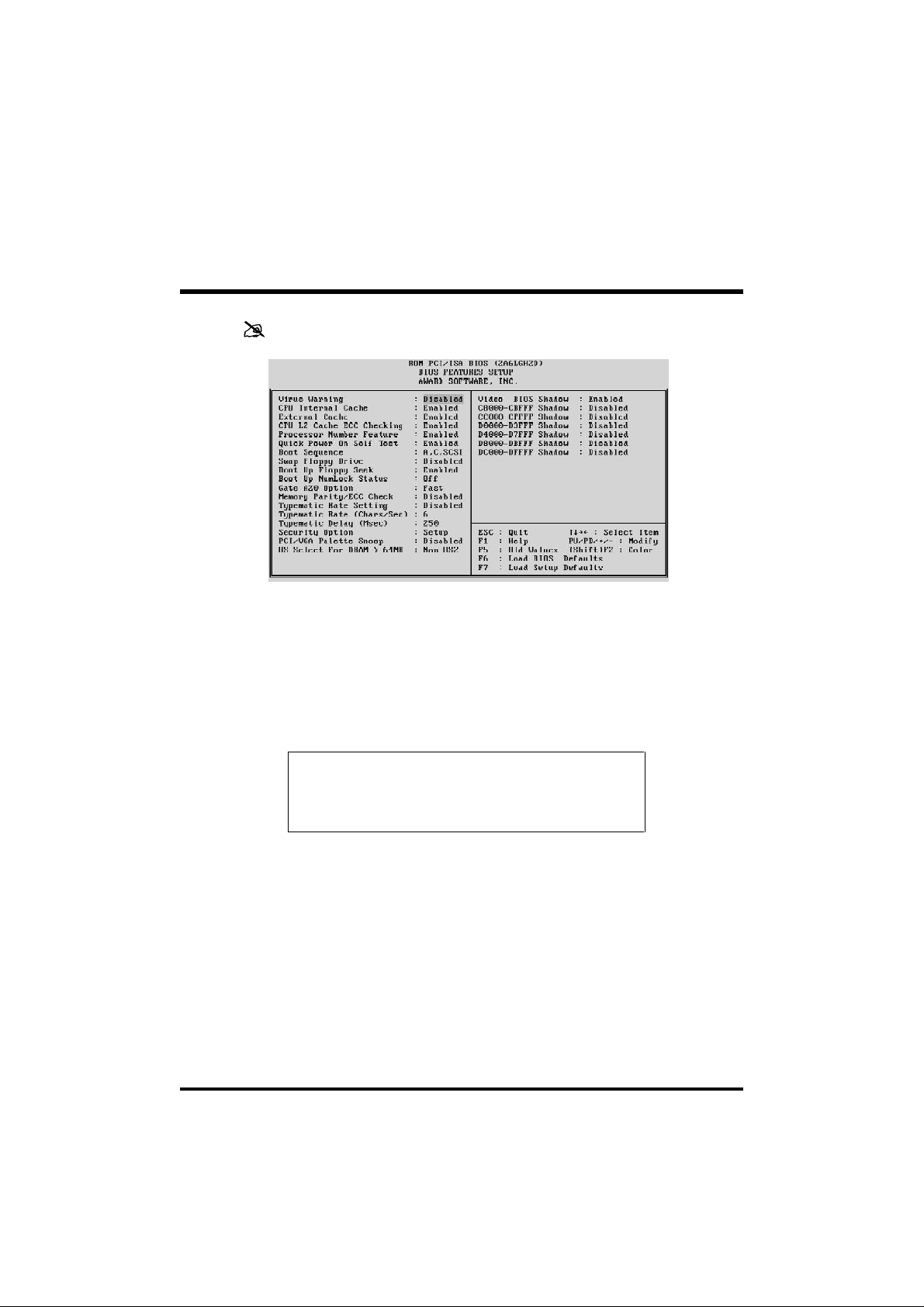

BIOS Features Setup
Virus Warning
When this item is enabled, the Award BIOS will monitor the boot
sector and partition table of the hard disk drive for any attempt at
modification. If an attempt it made, the BIOS will halt the system and
the following error message will appear. Afterwards, if necessary, you
will be able to run an anti-virus program to locate and remove the
problem before any damage is done.
Disk b oot sector is to be modified
Type "Y" to accept write or "N" to abort write
!WARNING!
Award Software, Inc.
CPU Internal Cache
This item enables CPU internal cache to speed up memory access.
External Cache
This item enables CPU secondary cache to speed up memory access.
CPU L2 Cache ECC Checking
When you select Enabled, memory checking is enable when the
external cache contains ECC SRAMs.
Processor Number Feature
Allows you to Enabled/Disabled, the Pentium III processor serial
number.
- 45 -
Quick Power On Self Test
This item speeds up Power On Self Test (POST) after you power on the
computer. If it is set to Enabled, BIOS will shorten or skip some check
items during POST.
Boot Sequence
This item determines which drive computer searches first for the disk
operating system. Default setting is A, C, SCSI.
BIOS also support system boot from CD-ROM drive or SCSI hard disk
drive.
Swap Floppy Drive
When this item enables, the BIOS will swap floppy drive assignments
so that Drive A: will function as Drive B: and Drive B: as Drive A:.
Boot Up Floppy Seek
During POST, BIOS will determine if the floppy disk drive installed is
40 or 80 tracks.
Boot Up NumLock Status
When this option enables, BIOS turns on Num Lock when system is
powered on.
Gate A20 Option
This entry allows you to select how the gate A20 is handled. The gate
A20 is a device used to address memory above 1 MByte. Initially, the
gate A20 was handled via a pin on the keyboard. Today, while keyboards still provide this support, it is more common, and much faster,
set to Fast for the system chipset to provide support for gate A20.
Memory Parity/ECC Check
This item allows you to Enabled/Disabled memory error checking and
correction (ECC). In order for ECC to function, 9-chip (8 memory
chips + 1 ECC chip) SDRAM modules must be installed on the
mainboard.
Typematic Rate Setting
This determines if the typematic rate is to be used. When disabled,
continually holding down a key on your keyboard will generate only
one instance. In other words, the BIOS will only report that the key is
down. When the typematic rate is enabled, the BIOS will report as
before, but it will then wait a moment, and, if the key is still down, it
will begin the report that the key has been depressed repeatedly.
- 46 -
For example, you would use such a feature to accelerate cursor movements with the arrow keys.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, this selection allows you select
the rate at which the keys are accelerated.
Typematic Delay (Msec)
When the typematic rate is enabled, this selection allows you to select
the delay between when the key was first depressed and when the
acceleration begins
Security Option
This item allows you to limit access to the System and Setup, or just to
Setup. When System is selected, the System will not boot and access
to Setup will be denied if the correct password is not entered at the
prompt.
When Setup is selected, the System will boot, but access to Setup will
be denied if the correct password is not entered at the prompt.
PCI / VGA Palette Snoop
This item must be set to enabled if there is a MPEG ISA card installed
in the system, and disabled if there is no MPEG ISA card installed in
the system.
OS Select For DRAM > 64MB
This item allows you to access the memory that over 64 MB in OS/2.
Video BIOS Shadow
Determines whether video BIOS will be copied to RAM. However, it
is optional depending on chipset design. Video Shadow will increase
the video speed.
C8000-CBFFF Shadow/DC000-DFFFF Shadow
These categories determine whether option ROMs will be Chipset
Features Setup Auto Configuration copied to RAM. An example of
such option ROM would be support of on-board SCSI.
- 47 -
Chipset Features Setup
Bank x/x DRAM Timing
This value in this field is set by the system board manufacturer, depending on whether the board has paged DRAMS or EDO DRAMS.
SDRAM Cycle Length
This field allows you to set the SDRAM latency timer.
DRAM Clock
This item set the DRAM Read/Write timings that the system uses.
Memory Hole
In order to improve performance, some space in memory can be
reserved for ISA cards.
Read Around Write
This is a new cache technology for the video memory of the processor.
It can greatly improve the display speed by caching the display data.
You must leave this on the default setting of Disabled if your display
card cannot support this feature or else your system may not boot.
Concurrent PCI/Host
This item disable CPU bus will be occupied during the entire PCI
operation period.
System BIOS Cacheable
This item allows the user to set whether the system BIOS F000~FFFF
areas are cacheable or non-cacheable.
- 48 -
Video RAM Cacheable
This is a new cache technology for the video memory of the processor.
It can greatly improve the display speed by caching the display data.
You must leave this on the default setting of Disabled if your display
card cannot support this feature or else your system may not boot.
AGP Aperture Size (MB)
This item allows the user to set memory-mapped, graphics data structures can reside in Graphics Aperture.
AGP-2X Mode
This item allows you to enable/disable AGP-2X function. See
www.apgforum.org for AGP information.
On Chip USB
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB peripheral.
- 49 -
Power Management Setup
The Power Management Setup allows you to configure you system to
most effectively save energy while operating in a manner consistent
with your own style of computer use.
Power Management
This item determines the options of the power management function.
Max Saving puts the system into power saving mode after a brief
period of system inactivity; Min Saving is the same as Max Saving
except the time of the system inactivity period is longer; Disabled
disables the power saving feature; User Defined allows you to set
power saving options according to your preference.
PM Control by APM
If this item set to No, system BIOS will be ignored and APM calls the
power to manage the system.
If this item setup to Yes, system BIOS will wait for APM's prompt
before it enter any PM mode e.g. DOZE, STANDBY or SUSPEND.
Video Off After
This item define when to activate the video off feature for monitor
power management. The settings are N/A, Doze, Standby and Suspend.
Video Off Method
This item define the video off features - V/H SYNC+Blank, DPMS, and
Blank Only. The first option, which is the default setting, blanks the
screen and turns off vertical and horizontal scanning; DPMS allows
the BIOS to control the video display card if it supports the DPMS.
- 50 -
MODEM Use IRQ
This item determines the IRQ in which the MODEM can use.
The choice: 1, 3, 4, 5, 7, 9, 10, 11, N/A.
Suspend Option
Select the suspend type.
Soft-Off by PWRBTN
The setting of Instant-Off allows the ATX switch to function as a
normal system power off button when pressed for less than 4 seconds.
The setting of Delay 4 Sec. Allows the button to have a dual function
where to press the button for less than 4 seconds will place the system
in suspend mode, and pressing the button for more than 4 seconds
will shut place the system off.
HDD Power Down
This item defines the continuous HDD idle time before the HDD
enters power saving mode (motor off). The options are from 1 min to
15 min and Disabled.
Doze Mode
When enabled and after the set time of system inactivity, the CPU
clock will run at slower speed while all other devices still operate at
full speed.
Suspend Mode
When enabled and after the set time of system inactivity, all devices
except the CPU will be shut off.
** PM Events **
PM events are I/O events whose occurrence can prevent the system
from entering a power saving mode or can awaken the system from
such a mode. In effect, the system remains alert for anything occurs to
a device which is configured as On, even when the system is a power
down mode.
VGA
When set to On, any event occurring at a VGA port will awaken a
system which has been powered down.
LPT & COM
When set to LPT/COM (default), any event occurring at a COM (Serial)
/ LPT port will awaken a system which has been powered down.
- 51 -
HDD & FDD
When set to On (default), any event occurring at a hard or floppy drive
port will awaken a system which has been powered down.
Modem Ring Resume
When set to Enabled, any event occurring Modem Ring/activity of
LAN will awaken a system which has been powered down.
Wake Up On LAN
This item determine the system will resume by activity of LAN. If
enabled this feature system will power-on itself from power off when
the activity of LAN.
RTC Alarm Resume
When set to Enabled RTC Alarm Resume, you could set the date (of
month) and timer (hh:mm:ss), any event occurring at RTC will awaken
system which has been powered down.
Primary INTR
When set to On (default), any event occurring at will awaken a system
which has been powered down.
This following is a list of IRQ, Interrupt ReQuests, which can be
exampled much as the COM ports and LPT port above can. When an
I/O device wants to gain the attention of the operating system, it
signals this by causing an IRQ to occur. When the operation system is
ready to respond to the request, it interrupts itself and performs the
service.
As above, the choices are On and Off.
When set On, activity will neither prevent the system from going into
a power management mode nor awaken it.
- IRQ3 (COM2) - IRQ4 (COM1)
- IRQ5 (LPT2) - IRQ6 (Floppy Disk)
- IRQ7 (LPT1) - IRQ8 (RTC Alarm)
- IRQ9 (IRQ2 Redir) - IRQ10 (Reserved)
- IRQ11 (Reserved) - IRQ12 (PS/2 Mouse)
- IRQ 13 (Coprocessor) - IRQ14 (Hard Disk)
- IRQ15 (Reserved)
- 52 -
PnP/PCI Configuration
This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to
operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some
very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.
PNP OS Installed
When this item is set to Yes, it will allow the PnP OS (Windows 95)
control the system resources except PCI devices and PnP boot devices.
Default setting is No.
Resources Controlled By
The Award Plug and Play BIOS has the capability to automatically
configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a
Plug and Play operating system as Windows 95.
Reset Configuration Data
This item allows you to determine whether to reset the configuration
data or not.
IRQ 3/4/5/7/9/10/11/12/14/15, assigned to
These items allow you to determine the IRQ assigned to the ISA bus
and is not available for PCI slot.
Choices are Legacy ISA and PCI/ISA PnP.
- 53 -
DMA 0/1/3/5/6/7 assigned to
These items allow you to determine the DMA assigned to the ISA bus
and is not available for PCI slot.
Choices are Legacy ISA and PCI/ISA PnP.
CPU to PCI Write Buffer
When enabled, up to four Dwords of data can be written to the PCI
bus without interrupting the CPU. When disabled, a write buffer is
not used and the CPU read cycle will not be completed until the PCI
bus signals that it is ready to receive the data.
PCI Dynamic Bursting
When Enabled, data transfers on the PCI bus, where possible, make
use of the high performance PCI burst protocol, in which greater
amounts of data are transferred at a single command.
PCI Master 0 WS Write
When Enabled, writes to the PCI bus are command with zero wait
states.
PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support
delay transactions cycles. Select Enabled to support compliance with
PCI specification version 2.1.
PCI #2 Access #1 Retry
This item allows you enable/disable the PCI #2 Access #1 Retry.
AGP Master 1 WS Write
This implements a single delay when writing to the AGP Bus. By
default, two-wait states are used by the system, allowing for greater
stability.
AGP Master 1 WS Read
This implements a single delay when reading to the AGP Bus. By
default, two-wait states are used by the system, allowing for greater
stability.
- 54 -
PCI Latency Timer (CLK)
The number of clocks programed in the PCI Latency Timer represents
the guaranteed time slice allocated to the AV61, after which it must
complete the current data transfer phase and surrender the bus as soon
as its bus grant is removed.
The PCI Latency Timer is used to guarantee to the PCI agents a minimum amount of the system resource.
MS IRQ Routing Table
This item allows the user to set BIOS IRQ Routing Table Enabled or
Disabled.
Assign IRQ For VGA
This item allows the user to set VGA IRQ Routing table Enabled or
Disabled.
- 55 -
CPU Features Setup
Auto Detect DIMM/PCI Clock
Enabling this item allows system auto detect and close clock signal to
empty DIMM/PCI slot to reduce EMI.
Spread Spectrum
This item allows the user to enable Spread Spectrum Modulated to
reduce the EMI.
CPU Host Clock (CPU/PCI)
This item allows the user to adjust CPU Host Bus Clock from BIOS
when JP39 is set to Auto.
The user may adjust CPU Host Clock from 75 MHz to 83 MHz when
66 MHz based Pentium II or Celeron processor is used, from 103 MHz
to 112 MHz when 100 MHz based Pentium II/III processor is used,
and from 140 MHz to 150 MHz when 133 MHz based Pentium III
processor is used.
This item will not show up when JP39 is set to Manual.
CPU/PCI Clock Ratio
This item allows the user to adjust CPU Host Clock/Internal Clock
ration when JP37 is set to Auto.
The user may adjust CPU Clock Ratio from x2 to x8.
This item will not show up when JP37 is set to Manual.
- 56 -
CPU Speed
This item is show only. when CPU Host Clock and CPU Clock Ratio
is set, the result will be display on this item.
CPU Warning Temperature
Since the mainboard support CPU temperature monitoring and overhear alert. This item allows the user to set the threshold of CPU
warning temperature. When CPU temperature over the threshold,
system will slow down clock to prevent CPU damage.
Current System Temperature (optional)
Since the mainboard support System and CPU temperature monitoring
and overheat alert. This item indicate the current main board temperature.
Current CPU1/2 Temperature (optional)
Since the mainboard support System and CPU temperature monitoring
and overheat alert. This item indicate the current Processor temperature.
Current CPUFAN1/2/3 Speed (optional)
The mainboard can detect three fans rotation speed for CPU cooler
and system.
IN0(V) ~ IN2(V), +5V ~ -5V (optional)
The mainboard support CPU and mainboard voltages monitoring. The
onboard hardware monitor is able to detect the voltages output of the
voltage regulators and power supply.
Shutdown Temperature
Select the combination of lower and upper limits for the system shutdown temperature, if your computer contains an environmental monitoring system. If the temperature extends beyond either limit, the
system shuts down.
- 57 -

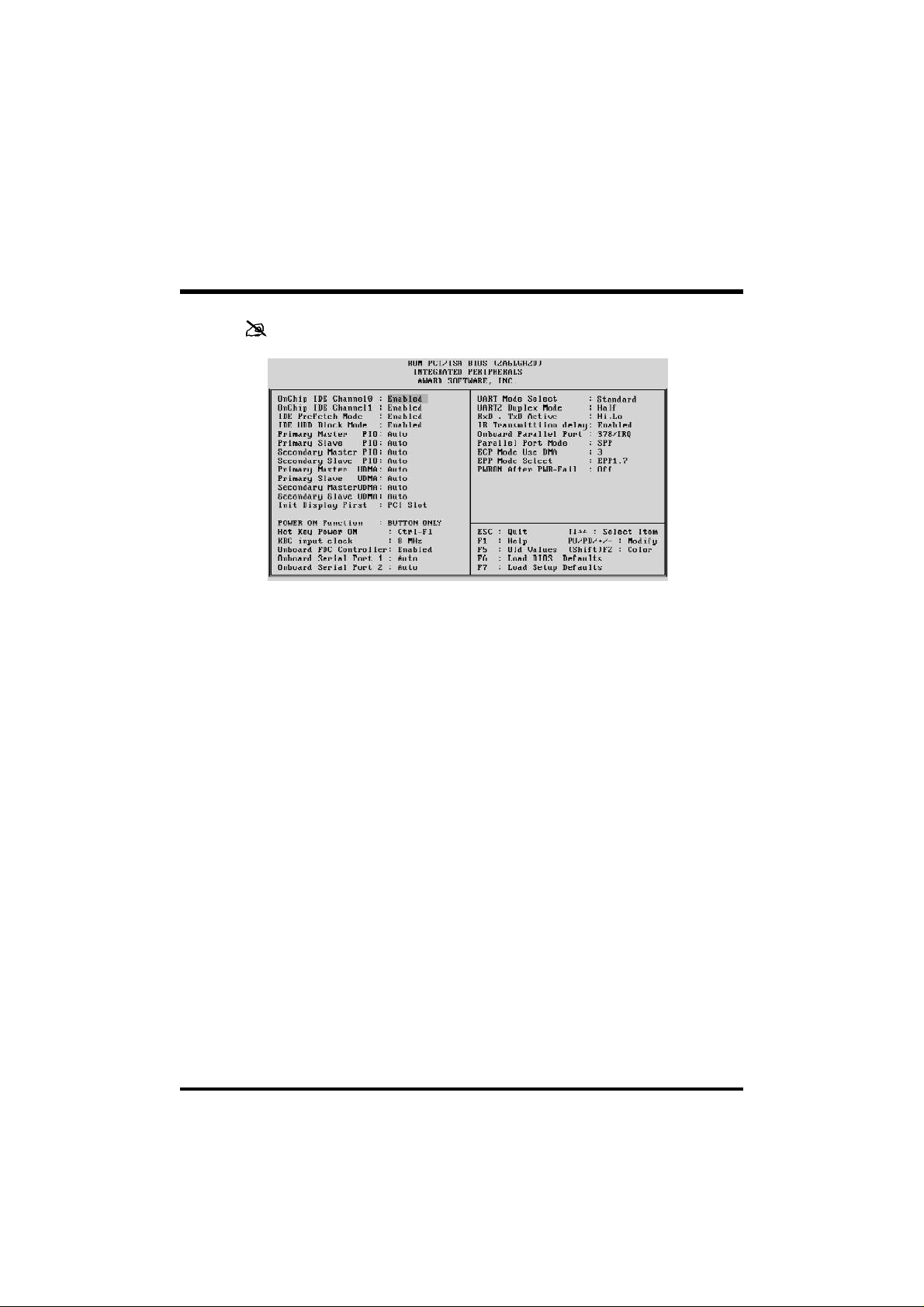

Integrated Peripherals
OnChip IDE Channel0
This item is used to defined on chip Primary PCI IDE controller is
Enable or Disable setting.
OnChip IDE Channel1
This item is used to defined on chip Secondary PCI IDE controller is
Enable or Disable setting.
IDE Prefetch Mode
Enable prefetching for IDE drive interfaces that support its faster drive
accesses. If you are getting disk drive errors, change the setting to
omit the drive interface where the errors occur. Depending on the
configuration of your IDE subsystem, this field may not appear, and it
does not appear when the Internal PCI/IDE field, above is Disabled.
HDD Block Mode
This item is used to set IDE HDD Block Mode. If your IDE Hard Disk
supports block mode, then you can enable this function to speed up
the HDD access time. If not, please disable this function to avoid
HDD access error.
Primary Master / Slave PIO
In this items, there are five modes defined in manual mode and one
automatic mode. There are 0, 1, 2, 3, 4, and AUTO is the default
settings for on board Primary Master / Slave PIO timing.
- 58 -
Secondary Master / Slave PIO
In this items, there are five modes defined in manual mode and one
automatic mode. There are 0, 1, 2, 3, 4, and AUTO is the default
settings for on board Secondary Master / Slave PIO timing.
Primary Master / Slave UDMA
On this mainboard, AV61 PCIset improves IDE transfer rate using Bus
Master UltraDMA 33/66 IDE which can handle data transfer up to
33MB/sec. The options are Disabled, Enabled and Auto, Auto is the
default settings for on board Primary Master / Slave UltraDMA 33/66.
Note : Your hard drive must also support UDMA for this feature to
work.
Secondary Master / Slave UDMA
On this mainboard, AV61 PCIset improves IDE transfer rate using Bus
Master UltraDMA 33/66 IDE which can handle data transfer up to
33MB/sec. The options are Disabled, Enabled and Auto, Auto is the
default settings for on board Secondary Master / Slave UltraDMA 33/66.
Note : Your hard drive must also support UDMA for this feature to
work.
Init Display First
This item is used to determine initial device when system power on. The
options are PCI and AGP.
POWER ON Function
This item is used to defined Keyboard & PS/2 mouse power-on function
enabled or disabled. The options are Button Only, HOT-Key and PS/2
Mouse.
Button Only - Only soft-on/off button on the front panel is available.
Hot-Key- Power-on by soft-on/off button and keyboard are available.
The user may set power-on hot-key from <Ctrl><F1> to
<Ctrl><F12>.
PS/2 Mouse- Power-on by soft-on/off button and PS/2 Mouse are available.
Note:1. When item of PS/2 Mouse or HOT-Key is selected, please
also adjust jumper JP38 to the proper position.
2. USB keyboard, USB Mouse and Serial Mouse are not
supported to this function.
- 59 -
Hot Key Power ON
Power-on by soft-on/off button and keyboard are available. The user
may set power-on hot-key from <Ctrl><F1> to <Ctrl><F12>.
KBC Input Clock
This item to set the input clock to onboard keyboard controller. The
options are 8MHz and 12MHz.
Onboard FDC Controller
This item specifies onboard floppy disk drive controller. This setting
allows you to connect your floppy disk drives to the onboard floppy
connector. Choose the "Disabled" settings if you have a separate
control card.
Onboard Serial Port 1
This item is used to define onboard serial port 1 to 3F8/IRQ4, 2F8/
IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto or Disabled.
Onboard Serial Port 2
This item is used to define onboard serial port 2 to 3F8/IRQ4, 2F8/
IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto or Disabled.
UART Mode Select
The main board support IrDA(HPSIR) and Amplitudes Shift Keyed
IR(ASKIR) infrared through COM 2 port. This item specifies onboard
Infra Red mode to IrDA 1.0, ASKIR, MIR 0.57M, MIR 1.15M, FIR or
Standard (Disabled).
Note : FIR is not available currently.
UART2 Duplex Mode
This item specifies onboard infrared transfer mode to full-duplex. This
item will not show up when IrDA, ASKIR, or MIR UR2 modes are
selected.
RxD, TxD Active
This item specifies the Active level for RxD & TxD signal.
IR Transmittion delay
This item enable/disable the delay of the IR state change from Rx to Tx
mode or Tx to Rx mode.
- 60 -
Onboard Parallel Port
This item specifies onboard parallel port address to 378H, 278H,
3BCH or Disabled.
Parallel Port Mode
This item specifies onboard parallel port mode. The options are SPP
(Standard Parallel Port), EPP(Enhanced Parallel Port), ECP (Extended
Capabilities Port), and EPP+ECP.
ECP Mode Use DMA
This item specifies DMA (Direct Memory Access) channel when ECP
device is in use. The options are DMA 1 and DMA 3. This item will
not show up when SPP and EPP printer mode is selected.
EPP Mode Select
This item select the EPP Mode, EPP 1.9 or EPP 1.7.
PWRON After PWR-Fail
This item to set the ATX power supply status when power resume after
unexpected power fail. When off is selected, power supply will
maintain on soft-off status, when power is resume. When on is selected, power supply will turn on, and when former-sts is selected,
power supply will maintain on the status before unexpected power
fail.
- 61 -
User Password Setting
You can set either supervisor or user password, or both of then. The
differences between are:
Supervisor Password and User Password
The options on the Password screen menu make it possible to restrict
access to the Setup program by enabling you to set passwords for two
different access modes: Supervisor mode and User mode.
In general, Supervisor mode has full access to the Setup options,
whereas User mode has restricted access to the options. By setting
separate Supervisor and User password, a system supervisor can limit
who can change critical Setup values.
Enter Password
Type the password, up to eight characters, and press <Enter>. The
password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type
the password again and press <Enter>. You may also press <Esc>
to abort the selection and not enter a password.
To disable password, just press <Enter> when you are prompted to
enter password. A message will confirm the password being disabled.
Once the password is disabled, the system will boot and you can enter
Setup freely.
- 62 -
Password Disable
If you select System at Security Option of BIOS Features Setup Menu,
you will be prompted for the password every time the system is
rebooted or any time you try to enter Setup. If you select Setup at
Security Option of BIOS Features Setup Menu, you will be prompted
only when you try to enter Setup.
Warning : Retain a record of your password in a safe place. If you
forget the password, the only way to access the system is
to clear CMOS memory, please refer to page 29
"Clear CMOS".
Save & Exit Setup
Pressing <Enter> on this item asks for confirmation:
Save to CMOS and EXIT (Y/N)? Y
Pressing "Y" stores the selections made in the menus in CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.
Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any change.
The previous selections remain in effect. This exits the Setup utility
and restarts your computer.
- 63 -
Loading...
