AV41
Pentium 4 Processor
Based MAIN BOARD
User's Manual
Shuttle® SpacewalkerTM AV41
Pentium 4 , 478-pin processor based AGPset Mainboard
Manual Version 1.0
Copyright
Copyright© 2001 by Shuttle® Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle® Inc.
Disclaimer
Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.
Trademarks
Spacewalker is a registered trademark of Shuttle Inc.
Intel, Pentium is a registered trademarks of Intel Corporation.
VIA is a registered trademark of VIA Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.
M492
T ABLE OF CONTENTS
WHAT’S IN THE MANUAL.....................................................................5
Quick Reference ................................................................................................5
About This Manual ............................................................................................5
1 INTRODUCTION ..................................................................................6
1.1 TO DIFFERENT USERS ...............................................................................6
FIRST-TIME DIY SYSTEM BUILDER..........................................................6
EXPERIENCED DIY USER .........................................................................6
SYSTEM INTEGRA T OR ..............................................................................6
1.2 ITEM CHECKLIST: .......................................................................................7
2 FEA TURES........................................................................................... 8
2.1 SPECIFICA TIONS .........................................................................................8
3 HARDW ARE INST ALLA TION ............................................................11
3.1 STEP BY STEP INSTALLATION ................................................................ 11
Accessories of AV41.............................................................................11
STEP 1 Install the CPU ..........................................................................12
STEP 2 Set Jumpers .............................................................................14
STEP 3 Install DDR SDRAM System Memory.......................................14
STEP 4 Install Peripherals in System Case............................................15
STEP 5 Mount the Mainboard on the Computer Chassis .......................16
STEP 6 Connect Front Panel Switches/LEDs/Speaker/USB ..................17
STEP 7 Connect IDE, IDE RAID, and Floppy Disk Drives......................19
STEP 8 Connect Other Internal Peripherals...........................................20
STEP 9 Connect the Power Supply........................................................20
STEP 10 Install Add-on Cards in Expansion Slots..................................21
STEP 11 Connect External Peripherals to Back-Panel...........................22
STEP 12 First Time System Boot Up .....................................................24
STEP 13 Install Drivers & Software Components ..................................25
- 1 -
3.2 JUMPER SETTINGS ..................................................................................26
JUMPERS & CONNECTORS GUIDE.....................................................27
Jumpers
Clear CMOS Setting (JP1)....................................................................30
BIOS flash protection Setting (JP3) .......................................................30
Back-Panel Connectors
PS/2 Keyboard & PS/2 Mouse Connectors............................................31
USB1/USB2 Port Connectors.................................................................31
COM1/2 Port Connectors ......................................................................31
Parallel Port Connector..........................................................................31
Line-Out Port Connector ........................................................................32
Line-In Port Connector ...........................................................................32
Mic-In Port Connector............................................................................32
GAME Port Connector ...........................................................................32
Front-Panel Connectors
Green LED Connector (Green LED) ......................................................33
HDD LED Connector (HDD LED) ...........................................................33
ATX Power On/Off Switch Connector (Power ON) ................................34
Hardware Reset Connector (RST).........................................................34
Internal Peripherals Connectors
Enhanced IDE, and Floppy Connector ...................................................35
Other Connectors
A TX Power Supply Connector (ATX1)....................................................36
CPU, Chipset and Chassis Fan connectors(FAN1/2)..............................37
Wake-On-Modem Connector (WOM1)................................................... 37
Wake-On-LAN Connector (WOL1).........................................................38
CD-IN Connector (CD1/2) ......................................................................38
- 2 -
Extended USB Headers (USB2/USB3)...................................................38
MIC/speaker-out header(AUDIO) ..........................................................39
Single color MSG LED(SJ1)...................................................................40
3.3 SYSTEM MEMORY CONFIGURATION...................................................... 41
1. INSTALL MEMORY ...........................................................................41
2. UPGRADE MEMORY........................................................................41
4 SOFTW ARE UTILITY .........................................................................42
4.1 AV41 Mainboard CD Overview.................................................................42
4.2 Install Mainboard Software...................................................................... 43
4.3 Install Audio Driver................................................................................... 44
4.4 View the User's Manual ...........................................................................45
5 BIOS SETUP ......................................................................................46
5.1 ENTER BIOS ..............................................................................................46
5.2 THE MAIN MENU .......................................................................................47
ST ANDARD CMOS FEA TURES.................................................................49
ADV ANCED BIOS FEA TURES...................................................................52
ADV ANCED CHIPSET FEATURES ............................................................56
INTEGRA TED PERIPHERALS ...................................................................60
POWER MANAGEMENT SETUP............................................................... 64
PNP/PCI CONFIGURA TION.......................................................................68
PC HEAL TH ST A TUS .................................................................................70
FREQUENCY/VOL T AGE CONTROL .........................................................71
LOAD FAIL-SAFE DEF AULTS....................................................................72
LOAD OPTIMIZED DEF AUL TS..................................................................72
SET SUPERVISOR P ASSWORD...............................................................73
- 3 -
SET USER P ASSWORD............................................................................73
SAVE & EXIT SETUP.................................................................................75
EXIT WITHOUT SAVING ...........................................................................75
- 4 -
WHA T’S IN THE MANUAL
Quick Reference
Hardware Installation >> Step-by-Step................................................ Page 11
Jumper Settings >> A Closer Look ...................................................... Page 26
Drivers/Software Utilities >> How to Install......................................... Page 42
BIOS Setup >> How to Configure ........................................................ Page 46
About This Manual
For First-Time DIY System Builder......................................................... Page 6
For Experienced DIY User ...................................................................... Page 6
For System Integrator ............................................................................. Page 6
- 5 -
1 INTRODUCTION
1.1 To Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience
successful, right from the start, we have designed the 3.1 Hardware Installation
section in a step-by-step fashion for all the first-time DIY system builders. Prior
to installation, we also suggest you to read the whole manual carefully to gain a
complete understanding of your new Shuttle AV41 mainboard.
Experienced DIY User
Congratulate on your purchase of the Shuttle AV41 mainboard. You will find
that installing your new Shuttle AV41 mainboard is just easy. Bundled with
an array of onboard functions, the highly-integrated AV41 mainboard provides you with a total solution to build the most stable and reliable system.
Refer to sections 3.2 Jumper Settings and Chapter 4 Drivers/Software Utili-
ties to find out how to get the best out of your new mainboard. Chapter 5
BIOS Setup also contains the relevant information on how to tune up your
system to achieve higher performance.
System Integrator
You have wisely chosen Shuttle AV41 to construct your system. Shuttle
AV41 incorporates all the state-of-the-art technology of the P4X266
chipset from Intel. It integrates the most advanced functions you can find
to date in a compact ATX board.
- 6 -
1.2 Item Checklist:
IT8705F
0115-BXA
M3Q040
CPU
IDE1 IDE2
PCI1
PCI2
PCI3
PCI4
PCI5
0134
1
1
CASFAN1
CD 1
CD 2
2JA000142
BT1
JP1
1
JP3
1
1
1
SIR
1
AUDIO
1
1
AV41
ALC201A
19281S1 138
SJ1
Check all items with you AV41 mainboard to make sure nothing is missing. The complete package should include:
One piece of Shuttle AV41 Mainboard
One piece of ATA 100/66/33 Ribbon Cable
One piece of Floppy Ribbon Cable
One piece of twin ports USB Cable (optional)
FAN1
1
CNR1
FDD1
1
USB3
USB2
PANEL
AGP1
P4X26
0125CD TAI
WOM1WOL1
DIMM1
DIMM2DIMM3
ROM2
11
E137A
KA7500
CM14007
9279AF-21
ATX1
AV41 User's Manual
One piece of Bundled CD-ROM with containing:
Ø AV41 user's manual saved in PDF format
Ø VIA 4-IN-1 driver
Ø VIA Audio driver
Ø Award Flashing Utility
- 7 -
2 FEA TURES
AV41 mainboard is carefully designed for the demanding PC user who wants high
performance and maximum intelligent features in a compact package.
2.1 Specifications
CPU Support
Intel Pentium 4, 478-pin processors with 100 MHz FSB.
Chipset
Features VIA P4X266 N.B. and VIA VT8233 S.B..
Jumperless CPU Configuration
Soft-configuration FSB (The FSB speed is software configurable at 100MHz
and 133MHz.)
AC'97 Link for Audio and Telephony CODEC
AC'97 2.1 compliant
Spread independent PCI functions for Audio and Modem
V ersatile Memory Support
Three 168-pin DIMM slots to support up to 1.5GB (unbuffered) or 3GB
(registered) compliant SDRAM module.
PCI Expansion Slots
Provides five 32-bit PCI slots.
AGP Expansion Slots
Provides one 32-bit AGP slot which supports up to 4X AGP devices.
CNR Expansion Slots
Ø Provides one CNR (Communication Network Riser) slot.
I/O Interface
Provides a variety of I/O interfaces:
Ø 1*Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB
format or for 5.25-inch FDD with 360K or 1.2MB format.
- 8 -
Ø 1*PS/2 mouse connector.
Ø 1*PS/2 Keyboard connector.
Ø 2*DB9 Serial connectors 16550 UART compatible.
Ø 1*Infrared communication port.
(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)
Ø 1*DB25 Parallel port supports Standard Parallel Port and Bi-directional
(SPP), Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.
Ø 1*Line-Out port.
Ø 1*Line-In port.
Ø 1*Mic-In port.
Ø 1*MIDI/GAME port.
PCI Bus Master IDE Controller Onboard
Two Ultra DMA 100/66/33 Bus Master Dual-channel IDE ports provide support to a maximum of four IDE devices (one Master and one Slave per channel).
The IDE Bus implements data transfer speeds of up to 100/66/33 MB/sec and
also supports Enhanced PIO Modes.
80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CDROM, CD-R, CD-RW, and LS-120 Supports.
ATX Power Supply Connector
ATX power supply unit can connected to the onboard 20-pin Pentium 4
standard ATX power connectors, supporting Suspend and Soft-On/Off by
dual-function power button.
The Pentium 4 ATX power include three connectors.
Note: S3(Suspend to RAM, and S5(Soft-off). in ACPI mode are not supported at current AV41 Version.
- 9 -
System BIOS
Provides licensed Award BIOS V6.0 PG on 2Mb Flash core and supports
Green PC, Desktop Management Interface (DMI).
A TX Form Factor
System board conforms to ATX specification.
Board dimension: 305mm*190mm.
Advanced Features
Ø Low EMI - Built in spread spectrum and automatic clock shut-off of
unused PCI/SDRAMS slots to reduce EMI.
Ø Dual Function Power Button - The system can be in one of two states,
one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters Soft-Off mode.
Ø CPU Clock Setting - This item allows users to adjust CPU Host Clock in
BIOS.
Ø CPU Multiplier Setting - This item allows users to adjust CPU Multiplier in
BIOS.
Intelligent Features
Ø Voltage Monitoring - Monitors various voltages of key elements, such
as the CPU, and other critical system voltage levels to ensure stable
current passing through mainboard components.
Ø Fan Status Monitoring - To prevent CPU from overheating, the CPU fan
is monitored for RPM and failure. (CPU Cooling FAN with RPM sensor
is required.)
Ø Temperature Monitoring - This item allows users to make sure whether
the CPU or system runs in a suitable temperature.
- 10 -
3 HARDWARE INSTALLA TION
DIMM1
DIMM2
DIMM3
IT870 5
0115-B
M3Q 040
1
CPUFAN1
IDE 1 IDE 2
1
AGP 1
PCI1
PCI2
PCI3
PCI4
PCI5
CNR1
CM14 00
0134
9279AF- 2
WOM1
WOL1
FDD
1
1
CASFAN1
CD 1
CD 2
P4 X 26
012 5CD TA IWA
2JA0 00142
11ROM2
BT1
JP1
1
JP3
1
ATX1
1
USB3
PAN EL1SIR
1
AUDIO
1
USB2
1
E137
KA750
)8"
ALC2 0 1
1928 1
SJ1
Extended U SB 1.1 Hea ders USB 2/3
Front-PANEL C on necto
Wake On LAN - WOL1
Wake On Modem - WOM1
Fl op py C on ne ctor
One CNR Slot
Three DIMM S lot
Two IDE Conn ectors
BIOS PROTECT-JP3
One AGP Slot
Clear CMOS-JP1
Single color LED
ATX Power Connector
SOCKE T 478
FAN1
Five PCI Slot
FAN2
Secondary CD-in Connecto
Primar y CD -in Connect o
Two USB Conn ectors
Parallel Con necto
Serial Port
Connector (COM1
Serial Port
Connector (COM2
Line- Out/Lin e-In/Mi c-In /
Game/MIDI Connector
Mic/speaker-out header
PS/2 Keyboard a nd
PS/2 Mouse Connector
I/O Controlle
On Board Audio CODEC
Before removing or installing any of these devices including CPU, DIMMs, Add-On
Cards, Cables, please make sure to unplug the onboard power connector.
This section outlines how to install and configure your mainboard. Refer to the following
mainboard layout to help you to identify various jumpers, connectors, slots, and ports.
Then follow these steps designed to guide you through a quick and correct installation of
your system.
3.1 Step-by-Step Installation
Accessories Of AV41
- 11 -
Step 1
CPU Installation:
This mainboard supports Intel Pentium 4 Socket 478 series CPU. Please
follow the step as below to finish CPU installation.
Be careful of CPU orientation when you plug it into CPU socket.
1. Pull up the CPU socket level and up to 90-degree angle.
CPU socket level up to
90 degree
2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU
upper interface. Match Pin 1 and cut edge, then insert the CPU into the
socket.
CPU pin 1 and cut edge
- 12 -
3. Press down the CPU socket level and finish CPU installation.
Note: If you do not match the CPU socket Pin 1 and CPU cut
edge well, it may damage the CPU.
- 13 -
Step 2.
Set Jumpers
This mainboard is jumperless! The default jumper settings have been set
for the common usage standard of this mainboard. Therefore, you do not
need to reset the jumpers unless you require special adjustments as any of
the following cases:
1. Clear CMOS
2. BIOS Protect
For first-time DIY system builders, we recommend that you do not change
the default jumper settings if you are not totally familiar with the
mainboard configuration procedures. The factory-set default settings are
tuned for optimum system performance. For the advanced users who
wish to customize their system, section 3.2 Jumper Settings will provide
detailed information on how to configure your mainboard manually.
Step 3
Install DDR SDRAM System Memory
To install memory, insert SDRAM memory module(s) in any one or two or
three DIMM banks. Note that SDRAM modules are directional and will not
go in the DIMM banks if they are not properly oriented. After the module is
fully inserted into the DIMM bank, lift the clips of both sides of the DIMM
bank to lock the module in place.
- 14 -
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into the
computer housing, including but not limited to the hard disk drive (IDE/
HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard described below.
To install IDE & FDD drives, follow this procedure:
1. Set the required jumpers on each device according to the instructions
provided by the manufacturer. (IDE devices, HDD, and CD-ROM, have to
set jumpers to Master or Slave mode depending on whether you install
more than one device of each kind.)
2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral devices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually red or magenta)
connected to pin#1 both on the mainboard IDE or FDD connector and on
the device as well.
3. Connect an available power cable from your system power supply unit
to the back-panel of each peripheral device. Note that the power cable is
directional and cannot fit in if not properly positioned.
- 15 -
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose
correct mounting holes, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding on the proper mounting holes, position the studs be
tween the frame of the chassis and the mainboard. The studs are used
to fix the mainboard and to keep a certain distance between the system
chassis and the mainboard, in order to avoid any electrical shorts
between the board and the metal frame of the chassis. (If your com
puter case is already equipped with mounting studs, you will need to
tighten screws to attach the mainboard.)
Note: In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and then fix the
mainboard. If there arent enough matching holes, then make sure
to install at least 4 mounting studs to ensure proper attachment of
the mainboard.
- 16 -
Step 6
LE D
HDD
+
RST
On
LE D
HDD
+
-
RST
On
Gree
LED
HDD
LED
+
RST
Power
On
USB2
1
USB3
1
Connect Front Panel Switches/LEDs/USB
You can find there are several different cables already existing in the
system case and originating from the computer's front-panel devices
(HDD LED, Power LED, Reset Switch, or USB devices etc.) These cables
serve to connect the front-panel switches, LEDs, and USB connectors to
the mainboard's front-panel connectors group (Panel and USB2/3), as
shown below.
1. Green LED(Green LED)
Green
Power
LE D
2. HDD-LED (HDD LED)
Green
LE D
Power
- 17 -
3. Power On(Power On)
Green
LE D
HDD
LE D
+
RST
Power
On
Green
LE D
HDD
LE D
+
RST
Power
On
USBP 2-N(port2-)
USBP 2-P(port2+)
GND
VCC( +5V)
USBP 3-N(port3+ )
USBP 3-P(port3-)
GND
OC#
VCC( +5V)
USB2/ 3
AGN D
5V
XSPKO U TR
XSPKO U TL
SPKO U TL
KEY
SPKO U TR
MICBIAS
MICIN
AUDI O
4. Hardware Reset Switch
(RST)
4. MIC/Speaker-out (AUDIO)
5. Extended USB Header
- 18 -
Step 7
1,-
1,-
.,,
Connect IDE, IDE RAID, and Floppy Disk Drives
1. IDE cable connector
2. Floppy cable connector
- 19 -
Step 8
+,
+,
)6 :
Connect Other Internal Peripherals
1. CD1/CD2 connectors
Step 9
Connect the Power Supply
1. System power connector
- 20 -
Step 10
Install Add-on Cards in Expansion Slots
1. Accelerated Graphics Port (AGP) Card
2. PCI Card
3. CNR Slot
- 21 -
Step 11
USB1
J6
Connect External Peripherals to Back-Panel
You are now ready to put the computer case back together and get on to
the external peripherals connections to your system's back-panel.
1. PS/2 Mouse and PS/2 Keyboard
PS/2 Mouse
KB1
AJ1
2. USB Ports
3. COM Ports
- 22 -
PS/2 keyboard
USB Port 2
USB Port 1
COM1 Port
COM2 Port
foxco nn
4. Parallel Port
5. GAME Port
6. Audio Line-Out /Line-In / Mic-In Ports
Parallel Port
GAME Port
Line-Out Port Mic-In PortLine-In Port
- 23 -
Step 12
First Time System Boot Up
To assure the completeness and correctness of your system installation, you
may check the above installation steps once again before you boot up your
system for the first time.
1. Insert a bootable system floppy disk (DOS 6.2x, Windows 95/98/NT, or
others) which contains FDISK and FORMAT utilities into the FDD.
2. Turn on the system power.
3. First, you must use the FDISK utility to create a primary partition of the
hard disk. You can also add an extended partition if your primary parti-
tion does not use all of the available hard disk space. If you choose to
add an extended partition, you will have to create one or more logical
partitions to occupy all the space available to the extended partition. The
FDISK utility will assign a drive letter (i.e., C:, D:, E:,...) to each partition
which will be shown in the FDISK program. After FDISK procedure,
reboot your system by using the same system floppy disk.
Note: DOS 6.2x and Windows 95A can only support up to 2.1GB of
HDD partition. If you use the FDISK utility with one of the operating systems mentioned above, you can only install your HDD into
partitions no larger than 2.1GB each.
4. Now, use the FORMAT utility to format all the partitions youve created.
When formatting the primary partition (C:), make sure to use the FORM-
AT C: /S command.
Note: FORMAT C: /S can transfer all the necessary system files into the
primary partition of your hard disk. Then, your HDD will become
a bootable drive.
5. Install all the necessary drivers for CD-ROM, Mouse, etc.
6. Setup the complete operating system according to your OS installation
guide.
- 24 -
Step 13
Install Drivers & Software Components
Please note that all the system utilities and drivers are designed for Win
9x operating systems only. Make sure your operating system is already
installed before running the drivers installation CD-ROM programs.
1. Insert the AV41 bundled CD-ROM into your CD-ROM drive. The
auto-run program will display the drivers main installation window on
screen.
2. Select the "Install Mainboard Software" bar to run into sub-menu.
3. Choose "Install VIA Driver" and complete it.
4. Choose "Install AC97 Sound Driver" and complete it.
6. Return to the main installation window and exit from the auto-run
drivers installation program.
- 25 -
3.2 Jumper Settings
Several hardware settings are made through the use of mini jumpers to connect jumper pins on the mainboard. Pin #1 could be located at any corner
of each jumper, you just find the location with a white right angle which
stands for pin 1#. There are several types of pin 1# shown as below:
3-pin and multi (>3) pin jumpers shown as following:
Pin #1 to the left:
Pin #1 on the top:
Pin #1 to the right:
Pin #1 on the bottom:
Jumpers with two pins are shown as for Close [On] or for
Open [Off]. To Short jumper pins, simply place a plastic mini jumpers over
the desired pair of pins.
Caution!
1. Do not remove the mainboard from its antistatic protective packaging
until you are ready to install it.
2. Carefully hold the mainboard by its edges and avoid touching its
components. When putting the mainboard down, place it on top of its
original packaging film, on an even surface, and components side up.
3. Wear an antistatic wrist strap or take other suitable measures to prevent
electrostatic discharge (ESD) whenever handling this equipment.
- 26 -
Jumpers & Connectors Guide
B3~B4
C1~C4
B5~B8
B1
B2
D1
D1A1A2
E2
E2
E1
E5
E6E8E4
E3
E7
Use the mainboard layout on page 11 to locate CPU socket, memory
banks, expansion slots, jumpers and connectors on the mainboard during
the installation. The following list will help you to identify jumpers, slots,
and connectors along with their assigned functions:
CPU/Memory/Expansion Slots
Socket478 : CPU Socket for Pentium 4 processors
DIMM1/2/3 : Three DIMM Slots for PC100/133 SDRAM DIMM.
AGP : One AGP (Accelerated Graphics Port) Slot
PCI : Five 32-bit PCI Expansion Slots
CNR : Communication Network Riser Card
- 27 -
Jumpers
A1
JP1 : Clear CMOS setting
A2
JP3 : BIOS protect
Back Panel Connectors
B1
B2
B3
B4
B5
B6
B7
B8
B1
KB : PS/2 keyboard port
MS : PS/2 mouse port
USB : 2 USB (Universal Serial Bus) ports
COM1/2 : Serial ports 1/2 (DB9 male)
PRINTER : Parallel port (DB25 female)
LINE_OUT : Line-Out port
LINE_IN : Line-In port
MIC_IN : Mic-In port
GAME : GAME port
Front Panel Connectors
C1
C2
C3
C4
Green LED : Green LED
HDD LED : IDE drive active LED
Power ON : ATX power on/off momentary type switch
RST : Hardware reset switch
Internal Peripherals Connectors
D1
D1
D1
FDD1 : Floppy disk drive interface
IDE1 : IDE primary interface (Dual-channel)
IDE2 : IDE secondary interface (Dual-channel)
Other Connectors
E1
E2
E2
E3
E4
E5
E6
ATX1 : ATX power connector
FAN1 : CPU fan connector
FAN2 : System fan connector
WOM1 : Wake-On-Modem connector
WOL1 : Wake-On-LAN connector
CD1/2 : CD_IN connectors
USB2/3 : Extended USB headers
- 28 -
E7
E8
AUDIO : Audio headers
SJ1 : Single color LED header
(Reserved for future use)
- 29 -
FF
F Jumpers
FF
A1
Clear CMOS Setting (JP1)
JP1 is used to clear CMOS data. Clearing CMOS will result in the permanently erasing previous system configuration settings and the restoring original (factory-set) system settings.
Pin 1-2 (Default)
1
Pin 2-3 (Clear CMOS)
1
Step 1. Turn off the system power (PC-> Off).
Step 2. Remove ATX Power cable from ATX Power connector.
Step 3. Remove jumper cap from JP1 pins 1-2.
Step 4. Place the jumper cap on JP1 pin 2-3 for a few seconds.
Step 5. Return the jumper cap to pin 1-2.
Step 6. Plug ATX Power cable into ATX Power connector.
Step 7. Turn on the system power (PC-> On).
A2
BIOS flash protection Setting (JP3)
JP3 is used to protect the BIOS from being unintentionally flashed. Enable
this jumper for protection and disable this jumper when you want to flash
the BIOS.
1
Pin 1-2 (Unprotected)
JP1
1
Pin 2-3 (Protected)
JP3
- 30 -
FF
foxc on
F Back-Panel Connectors
FF
B1
PS/2 Keyboard & PS/2 Mouse Connectors
Two 6-pin female PS/2 keyboard & Mouse
connectors are located at the rear panel of
the mainboard. Depending on the computer housing you use (desktop or tower),
the PS/2 Mouse connector is situated at the
top of the PS/2 Keyboard connector when
the mainboard is laid into a desktop, as opposed to a tower where the PS/2 Mouse
connector is located at the right of the PS/2
Keyboard's. Plug the PS/2 keyboard and
mouse jacks into their corresponding connectors.
B2
USB1/USB2 Port Connectors
This mainboard offers 2 USB ports on front
panel. Plug each USB device jack into an
available USB1/USB2 connector.
PS/2 Mouse
PS/2 keyboard
USB Port 2
B3
COM1/2 Port Connectors
This mainboard can accommodate two
serial device on COM1/2. Attach a serial
device cable to the DB9 serial port COM1/
2 at the back panel of your computer.
B4
Parallel Port Connector
One DB25 female parallel connector is located at the rear panel of the mainboard.
Plug the connection cable from your parallel device (printer, scanner, etc.) into this
connector.
USB Port 1
COM1 Port COM2 Port
Parallel Port
- 31 -
B5
Line-Out Port Connector
Line-Out is a stereo output port through
which the combined signal of all internal
and external audio sources on the board is
output. It can be connected to 1/8-inch TRS
stereo headphones or to amplified speakers
B6
Line-In Port Connector
Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can be
used as a source for digital sound recording,
a source to be mixed with the output, or both.
B7
Mic-In Port Connector
Mic-In is a 1/8-inch jack that provides a mono
input. It can use a dynamic mono or stereo
microphone with a resistance of not more than
600 Ohms.
Line-Out Port
Line-In Port
B8
GAME Port Connector
The GAME port is a 15-pin female connector. This port can be connected to any IBM
PC compatible game with a 15-pin D-sub
connector.
Mic-in Port
GAME Port
- 32 -
FF
Gree
LED
HDD
LED
+
RST
Power
On
Gree
LED
HDD
LED
+
RST
Power
On
F Front-Panel Connectors
FF
C1
Green LED Connector (Green LED )
The Green LED (Green LED) indicates that the system is currently in one of
the power saving mode (Doze/Standby/Suspend). When the system resumes
to normal operation mode, the Green LED will go off. Attach a 2-pin Green
LED cable to Green LED header.
Note : Please notice all the LED connectors are directional. If your chassiss
LED does not light up during running, please simply change to
the opposite direction.
C2
HDD LED Connector (HDD LED)
Attach the connector cable from the IDE device LED to the 2-pin HDD LED
header. The HDD LED lights up whenever an IDE device is active.
- 33 -
ATX Power On/Off Switch Connector (Power ON)
Gree
LED
HDD
LED
+
RST
Power
On
Gree
LED
HDD
LED
+
RST
Power
On
C3
The Power On/Off Switch is a momentary type switch used for turning on or
off the system ATX power supply. Attach the connector cable from the
Power Switch to the 2-pin Power ON header on the mainboard.
Hardware Reset Connector (RST)
C4
Attach the 2-pin hardware reset switch cable to the RST header. Pressing the
reset switch causes the system to restart.
- 34 -
FF
1,-
1,-
FDD1
1
F Internal Peripherals Connectors
FF
D1
Enhanced IDE, and Floppy Connectors
The mainboard features two 40-pin dual-channel IDE device connectors
(IDE1/IDE2) providing support for up to four IDE devices, such as CD-ROM
and Hard Disk Drives (H.D.D.)
This mainboard also includes one 34-pin floppy disk controller (FDD1) to
accommodate the Floppy Disk Drive (FDD).
Important: Ribbon cables are directional, therefore, make sure to always
connect with the red cable.
- 35 -
F F
ATX1
F Other Connectors
F F
ATX Power Supply Connector (ATX1)
E1
This motherboard uses 20-pin Pentium 4 standard ATX power header,
ATX1 and comes with another two headers.
Please make sure you plug in the right direction.
ATX1
A traditional ATX system should remain at power off stage when AC power
resumes from power failure. In such case, if there is no an UPS to keep
power-on, the kind of design is inconvenient for a network server or workstation.
However, this motherboard implements an AC Power Auto Recovery
function to solve this problem. You may enable the function PWRON After
PWR-Fail that is under sub-menu of Power Mangement Setup through BIOS
setup program.
Note 1: The ATX power connector is directional and will not go in unless the guides
match perfectly making sure that pin#1 is properly positioned.
Note 2: Make sure the latch of the ATX power connector clicks into place to ensure a
solid attachment.
Note 3: Your ATX power supply must be supplied to ACPI +5V standby power and
at least 720mA compatible.
Note 4: Make sure your power supply have enough power for higher speed processor
installed.
- 36 -
E2
CPU, Chipset and Chassis Fan connectors - FAN1/2
The mainboard provides three onboard 12V cooling fan power connectors
to support CPU (FAN1), System (FAN2) cooling fans.
Note:
Both cable wiring and type of plug may vary
, which depends on the fan maker. Keep in
mind that the red wire should always be
connected to the +12V header and the black
wire to the ground (GND) header.
FA N 1
GND
+12V
SENSE
1
E3
Wake-On-Modem Connector (WOM1)
If you have installed a modem, use the cable provided with the modem to
plug into the mainboard WOM1 connector. This enables the Wake On
Modem(WOM) feature. When your system is in a power-saving mode, any
modem signal automatically resumes the system. You must enable this item
using the Power Management page of the Setup Utility. See Chapter 3 for
more information.
FA N2
- 37 -
WOM1
E4
CD 1
CD 2
3
5
7
9
Wake-On-LAN Connector (WOL1)
Attach a 3-pin connector through the LAN card which supports the WakeOn-LAN (WOL1) function. This function lets users wake up the connected
system through the LAN card.
3
2
1
Pins Assignment:
1=5VSB 2=Ground
3=SENSE
E5
CD_IN Connector (CD1/2)
Port CD1/2 is used to attach an audio connector cable from the CD-ROM
drive.
WOL1
E6
Extended USB Headers (USB2/USB3)
The headers are used to connect the cable attached to USB connectors
which are mounted on front-panel or back-panel. But the USB cable is
optional at the time of purchase.
USB2/3
12
4
6
8
10
- 38 -
USB3
USB2
Pins Assignment:
1
AUDIO
1
3
2
4
6
8
10
5
7
9
1=+5V
3=USBP2-N
5=USBP2-P
7=GND
9=Empty
2=+5V
4=USBP3-N
6=USBP3-P
8=GND
10=OC#
E7
MIC/speaker-out header(AUDIO)
The headers allows the user to install auxiliary front-oriented microphone
and line-out ports for easier access.
Pins Assignment:
1=MICIN
3=MICBIAS
5=SPKOUTR
7=Key
9=SPKOUTL
2=AGND
4=5V
6=XSPKOUTR
8=Empty
10=XSPKOUTL
AUD IO
- 39 -
E8
Single color MSG LED (SJ1)
The headers is reserved for future use.
2
3
Pins Assignment:
1=SUSLED-Y
2=SUSLED-Y
3=PWLED+
1
SJ1
- 40 -
3.3 System Memory Configuration
DIMM Slot Memory Mod ules
Module
Quantity
DIMM * 1
64MB,128MB,256MB, and 512MB ,1GB
168-pin 3.3V SDR SDRAM DIMM
DIMM * 2
64MB,128MB,256MB, and 512MB ,1GB
168-pin 3.3V SDR SDRAM DIMM
DIMM * 3
64MB,128MB,256MB, and 512MB ,1GB
168-pin 3.3V SDR SDRAM DIMM
The AV41 mainboard has three 168-pin DIMM banks that allow you to
install from 64MB up to 1.5GB of unbuffered memory or up to 3GB registered memory.
Each 168-pin DIMM (Dual In-line Memory Module) bank can accommodate 64MB, 128MB, 256MB, 512MB, and 1GB (registered) PC100/PC133
compliant 3.3V single or double side 64-bit wide data path SDR SDRAM
modules. DIMM slots are arranged in three banks, each memory bank
made of one bank and providing a 64-bit wide data path.
1. Install Memory:
Install memory in any or all of the banks. The combination shown as follows.
Note: You do not need to set any jumper to configure memory since the
BIOS utility can detect the system memory automatically. You can
check the total system memory value in the BIOS Standard CMOS
Setup menu.
2. Upgrade Memory:
You can easily upgrade the system memory by inserting additional SDRAM
modules in available DIMM banks. The total system memory is calculated by
simply adding up the memory in all DIMM banks After upgrade, the new
system memory value will automatically be computed and displayed in the
field "
Standard CMOS Setup" of BIOS setup program.
- 41 -
4 SOFTWARE UTILITY
4.1 Mainboard CD Overview
Note: The CD contents attached in AV41 mainboard are subject to
change without notice.
To start your mainboard CD disc, just insert it into your CD-ROM drive and
the CD AutoRun screen should appear. If the AutoRun screen does not
appear, double click or run D:\Autorun.exe (assuming that your CD-ROM
drive is drive D:)
Navigation Bar Description:
F Install VIA Driver - Install mainboard drivers which contains VIA 4-in-1
drivers for windows.
F Install Audio Driver - Install audio driver.
F Manual - AV41 mainboard user's manual by PDF format.
F Link to Shuttle Homepage - Link to shuttle website homepage.
F Browse this CD - Allows you to see contents of this CD.
F Quit - Close this CD.
- 42 -
4.2 Install Mainboard Software
Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.
Use your pointing device (e.g. mouse) to select "Install VIA Driver" bar.
Once you made the selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you reboot system to take the
installation effect.
- 43 -
4.3 Install Audio Driver
Use your pointing device (e.g. mouse) to “Install Audio Driver" bar to install
audio driver.
Once you made the selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you reboot system to take the
installation effect.
- 44 -
4.4 View the User's Manual
Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
AutoRun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.
Select using your pointing device (e.g. mouse) on the “Manual" bar.
Then Online Information windows will appear on your screen. Click on the
“Install Acrobe Reader" bar if it is necessary.
Then click on "AV41 Manual" bar to view user's manual.
- 45 -
5 BIOS SETUP
AV41 BIOS ROM has a built-in Setup program that allows users to modify the
basic system configuration. This information is stored
in battery-backed RAM so that it retains the Setup information even if the
system power is turned off.
The system BIOS is managing and executing a variety of hardware related
functions in the system, including:
System date and time
Hardware execution sequence
Power management functions
Allocation of system resources
5.1 Enter the BIOS
To enter the BIOS (Basic Input / Output System) utility, follow these steps:
Step 1. Power on the computer, and the system will perform its
POST (Power-On Self Test) routine checks.
Step 2. Press <Del> key immediately, or at the following message:
"Press DEL to enter SETUP”
,or simultaneously press <Ctrl>, <Alt>, <Esc> keys
Note 1. If you miss trains of words meationed in step2 (the message
disappears before you can respond) and you still wish to enter BIOS
Setup, restart the system and try again by turning the computer OFF
and ON again or by pressing the <RESET> switch located at the
computers front-panel. You may also reboot by simultaneously
pressing the <Ctrl>, <Alt>, <Del> keys.
Note 2. If you do not press the keys in time and system does not boot, the
screen will prompt an error message, and you will be given the
following options:
P
"Press F1 to Continue, DEL to Enter Setup”
Step 3. As you enter the BIOS program, the CMOS Setup Utility will
prompt you the Main Menu, as shown in the next section.
- 46 -
5.2 The Main Menu

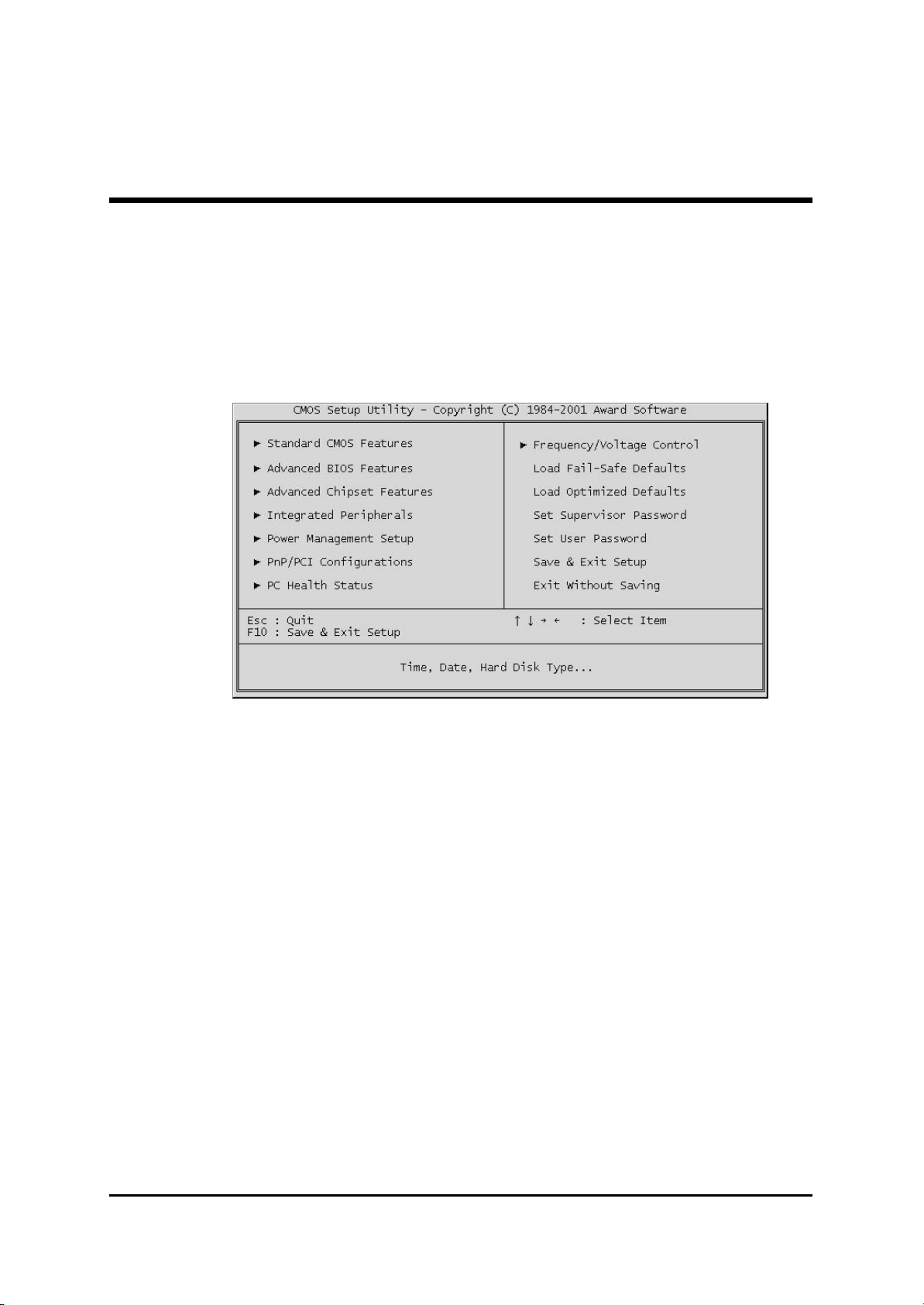

Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.
Note that a brief description of each highlighted selection appears at the
bottom of the screen.
Setup Items
The main menu includes the following main setup categories. Recall
that some systems may not include all entries.
Standard CMOS Features
Use this menu for basic system configuration.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system's performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
- 47 -
PnP / PCI Configurations
This entry appears if your system supports PnP / PCI.
PC Health Status
This entry shows the current system temperature, Voltage, and FAN
speed.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the minimal/stable
performance of your system to operate.
Load Optimized Defaults
Use this menu to load the BIOS default values that are factory-set for
optimal performance system operation. While Award has designed the
custom BIOS to maximize performance, the factory has the right to
change these defaults to meet users' needs.
Supervisor / User Password
Use this menu to change, set, or disable supervisor/user password. It
allows you to limit access to the system and Setup, or only to Setup.
Save & Exit Setup
Save CMOS values changed in CMOS and exit from setup.
Exit Without Saving
Abandon all CMOS values changed and exit from setup.
- 48 -
@
Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items.
Use the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.
Date
<Month> <DD> <YYYY>
Set the system date. Note that the 'Day' automatically changes when
you set the date.
Time
<HH : MM : SS>
The time is converted based on the 24-hour military-time clock. For
example, 5 p.m. is 17:00:00.
IDE Primary Master
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
IDE Primary Slave
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
- 49 -
IDE Secondary Master/Slave
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
Drive A/Drive B
Select the type of floppy disk drive installed in your system.
Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,
1.44M, 3.5 in, or 2.88M, 3.5 in.
Floppy 3 Mode Support
Floppy 3 mode refers to a 3.5-inch diskette with a capacity of 1.2MB.
Floppy 3 mode is sometimes used in Japan.
Ø The choice: Disabled or Enabled.
Video
Select the default video device.
Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO.
Halt On
Select the situation in which you want the BIOS to stop the POST
process and notify you.
Ø The choice: All Errors, No Errors, All, But Keyboard, All, But
Diskette, or All, But Disk/Key.
Base Memory
Displays the amount of conventional memory detected during boot up.
Ø The choice: N/A.
Extended Memory
Displays the amount of extended memory detected during boot up.
Ø The choice: N/A.
Total Memory
Displays the total memory available in the system.
Ø The choice: N/A.
******************************************************
IDE Adapters
The IDE adapters control the hard disk drive. Use a separate sub-menu
to configure each hard disk drive.
- 50 -
IDE HDD Auto-Detection
Press <Enter> to auto-detect HDD on this channel. If detection is
successful, it fills the remaining fields on this menu. ØPress Enter
IDE Primary Master
Selecting 'manual' lets you set the remaining fields on this screen and
select the type of fixed disk. "User Type" will let you select the number
of cylinders, heads, etc., Note: PRECOMP=65535 means NONE !
Ø The choice: None, Auto, or Manual.
Access Mode
Choose the access mode for this hard disk.
Ø The choice: CHS, LBA, Large, or Auto.
Capacity
Disk drive capacity (Approximated). Note that this size is usually
slightly greater than the size of a formatted disk given by a disk checking program.
Ø Auto-Display your disk drive size.
The following options are selectable only if the 'IDE Primary Master'
item is set to 'Manual'
Cylinder
Set the number of cylinders for this hard disk.
Ø Min = 0, Max = 65535
Head
Set the number of read/write heads.
Ø Min = 0, Max = 255
Precomp
Warning: Setting a value of 65535 means no hard disk.
Ø Min = 0, Max = 65535
Landing zone
Set the Landing zone size. ØMin = 0, Max = 65535
Sector
Number of sector per track. ØMin = 0, Max = 255
******************************************************
- 51 -
@
Advanced BIOS Features
This section allows you to configure your system for basic operation.
You have the opportunity to select the system's default speed, boot-up
sequence, keyboard operation, shadowing, and security.
Anti-Virus Protection
Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enabled and someone attempts to
write data into this area, BIOS will show a warning message on screen,
and an alarm beep.
Enabled Activates automatically when the system boots up,
causing a warning message to appear when anything
attempts to access the boot sector or hard disk partition table.
Disabled No warning message will appear when anything
attempts to access the boot sector or hard disk partition table.
Ø The choice: Enabled or Disabled.
CPU L1 & L2 Cache
This item enables CPU L1 and L2 cache to speed up memory access.
Ø The choice: Enabled or Disabled.
- 52 -
CPU L2 Cache ECC Checking
When you select Enabled, memory checking is enabled when the
CPU internal L2 cache contains ECC SRAMs.
Ø The choice: Enabled or Disabled.
Quick Power On Self Test
This item speeds up Power-On Self Test (POST) after you power on the
computer. If it is set to enabled, BIOS will shorten or skip some check
items during POST.
Ø The choice: Enabled, or Disabled.
First/Second/Third Boot Device
The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.
Ø The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, , HDD-1,
HDD-2, HDD-3, ZIP100, LAN, USB-FDD, USB-ZIP, USB-CDROM,
USB-HDD, or Disabled.
Boot Other Device
Select your boot device priority.
Ø The choice: Enabled or Disabled.
Swap Floppy Drive
If the system has two floppy drives, you can swap the logical drive
name assignment.
Ø The choice: Enabled or Disabled.
Boot Up Floppy Seek
If this item is enabled, it checks the size of floppy disk drives during
boot-up. Disabled it if your floppy is with 360k capacity.
Ø The choice: Enabled or Disabled.
Boot Up NumLock Status
This item defines if the NumLock is active when your system is started.
Ø The choice: Off or On.
Typematic Rate Setting
Keystrokes repeat at a rate determined by the keyboard controller.
When this controller enabled, the typematic rate and typematic delay
can be selected.
Ø The choice: Enabled or Disabled.
- 53 -
Typematic Rate (Chars/Sec)
This item sets how many times the keystroke will be repeated in a
second when you hold the key down.
Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.
Typematic Delay (Msec)
Sets the delay time after the key is held down before it begins to repeat
the keystroke.
Ø The choice: 250, 500, 750, or 1000.
Security Option
If you have installed password protection, this item defines if the password is required at start up, or if it is only required when a user tries to
enter the setup utility.
Ø The choice: System or Setup.
Note: To disabled security, select PASSWORD SETTING at Main
Menu, and then you will be asked to enter password. Do not
type anything and just press <Enter>; it will disable security.
Once the security is disabled, the system will boot, and you
can enter Setup freely.
OS Select For DRAM > 64MB
This item is required if you have installed more than 64MB of memory
and you running the OS/2 operation system. Otherwise, leave the item
at "Non-OS2" default.
Ø The choice: Non-OS2 or OS2.
HDD S.M.A.R.T. Capability
The S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology)
system is a diagnostics technology that monitors and predicts device
performance. S.M.A.R.T. software resides on both the disk drive and the
host computer. The disk drive software monitors the internal performance of the motors, media, heads, and electronics of the drive. The
host software monitors the overall reliability status of the drive. If a
device failure is predicted, the host software, through the Client
WORKS S.M.A.R.T applet, warns the user of the im-pending condition
and advises appropriate action to protect the data.
Ø The choice: Enabled or Disabled.
- 54 -
Report No FDD for WIN95
If you are running a system without floppy drive installed and using the
Windows 95 OS, select Yes to ensure compatibility with Windows 95
logo certification.
Ø The choice: Yes, No.
Video BIOS Shadow
Determines whether video BIOS will be copied to RAM. However, it is
optional depending on chipset design. Video Shadow will increase the
video speed.
Ø The choice: Enabled or Disabled.
Small Logo (EPA) Show
This item allows you to enable/disable the EPA Logo.
Ø The choice: Enabled or Disabled.
- 55 -
@
Advanced Chipset Features
This section allows you to configure the system based on the specific features
of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache. It also coordinates communications between the conventional ISA bus and the PCI bus.
It states that these items should never need to be altered.
The default settings have been chosen because they provide the best operating conditions for your system. If you discovered that data was being lost
while using your system, you might consider making any changes.
DRAM Clock/Drive Control
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
Current FSB Frequency
This item show current CPU Front Side Bus frequency. This is displayed
only item.
Current DRAM Frequency
This item show current DRAM frequency. This is displayed only item.
DRAM Clock
This item allows you to set the DRAM clock. We recommand that leave
the item at default value.
Ø The Choice: 100MHz, 133MHz, or By SPD.
- 56 -
DRAM Timing
This item lets you set Dram timing automatically if you select "By SPD".
SPD (Serial Presence Detect) is an EEPROM chip on DIMM module that
stores information about memory chips which contains size, speed ,
voltage, row and column addressed, and manufacturer. If you choose
"Manual" following three items are available.
Ø The Choice: Manual or By SPD.
SDRAM CAS Latency
This item enables you to select CAS latency time in HCLKs of 2/2 or 3/
3. It's set at factory and depends on the DRAM installed. Don't change
the value unless you change specifications of the CPU or DRAM installed.
Ø The Choice: 3 or 2
Bank Interleave
The interleave number of internal banks, can be set to 2 way, 4 way
interleave or disabled. For VCM and 16Mb type dram chips, the bank
interleave is fixed at 2 way interleave.
When the dram timing is selected by SPD, it will be set by the value on
SPD of the RAM module(SDR).
Ø The Choice: Disabled, 2 Bank, or 4 Bank.
Precharge to Active (Trp)
This item allows you to Precharge Command to Active Command
Period.
Ø The Choice: 2T or 3T.
Active to Precharge (Tras)
This item allows you to Active Command to Precharge Command
Period.
Ø The Choice: 5T or 6T.
Active to CMD (Trcd)
This item allows you to Active to CMD.
Ø The Choice: 2T or 3T.
DRAM Burst Len
This item allows you to select Dram Burst Length.
Ø The Choice: 4 or 8.
- 57 -
DRAM Command Rate
This item allows you to select the DRAM executed rate.
Ø The Choice: 2T Command or 1T Command.
AGP & P2P Bridge Control
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
AGP Aperture Size
Select the size of Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated to graphics
memory address space. Host cycles that hit the aperture range are
forwarded to the AGP without any translation.
Ø The Choice: 4M, 8M, 16M, 32M, 64M, 128M, or 256M.
AGP Mode
This item allows you to select the AGP Mode.
Ø The Choice: 1x, 2x, or 4x.
AGP Driving Control
This item enables the system to automatically select its output buffer
drive strength or make it manually selectable by an end user.
Ø The Choice: Auto or Manual.
AGP Driving Value
This item enables an end user to manually select the AGP output buffer
drive strength.
Ø Key in a HEX number: Min=0000, Max=00FF.
AGP Fast Write
This item enables an end user to manually select the AGP output buffer
drive strength.
Ø The Choice: Enabled or Disabled.
AGP Master 1 WS Write
When this item enabled, writing to the AGP(Accelerated Graphics Port)
is executed with one wait state.
Ø The Choice: Enabled or Disabled.
AGP Master 1 WS Read
When this item enabled, reading from the AGP (Accelerated Graphics
Port) is executed with one wait state.
Ø The Choice: Enabled or Disabled.
- 58 -
CPU & PCI Bus Control
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
CPU to PCI Write Buffer
When this field is Enabled, the writing from CPU to PCI bus is buffered,
to compensate for the speed differences between the CPU and the PCI
bus. When Disabled, the writing is are not buffered and the CPU must
wait until the write is complete before starting another write cycle.
Ø The Choice: Enabled or Disabled.
PCI Master 0 WS Write
When this item enabled, writing to the AGP bus is executed with zero
wait state.
Ø The Choice: Enabled or Disabled.
PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support
delay transactions cycles. Select Enabled to support compliance with
PCI specification version 2.1.
Ø The Choice: Enabled or Disabled.
Memory Hole
In order to improve performance, some space in memory can be
reserved for ISA cards.
Ø The Choice: Disabled or 15M-16M.
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any program is written to this memory area, a system error may result.
Ø The choice: Enabled or Disabled.
Video RAM Cacheable
Selecting Enabled allows caching of the video RAM , resulting in better
system performance. However, if any program is written to this memory
area, a system error may result.
Ø The Choice: Enabled or Disabled.
Memory Parity/ECC Check
Enable this item to allow BIOS to perform a parity check to the POST
memory tests. Select Enabled only if the system DRAM supports parity
checking. ØThe Choice: Enabled or Disabled.
- 59 -
@
Integrated Peripherals
VIA OnChip IDE Device
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
OnChip IDE Channel 0/1
Use these items to enable or disable the PCI IDE channels that are
integrated on the mainboard.
Ø The choice: Enabled or Disabled.
IDE Prefetch Mode
The onboard IDE drive interfaces support IDE prefetching for faster
drive access. If you install a primary and/or secondary add-on IDE
interface, set this field to Disabled if the interface does not support
prefetching.
Ø The choice: Enabled or Disabled.
Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the
best mode for each device.
Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.
- 60 -
Primary/Secondary Master/Slave UDMA
Ultra DMA/100 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If both of
your hard drive and your system software support Ultra DMA/100,
select Auto to enable BIOS support.
Ø The choice: Auto or Disabled.
VIA OnChip PCI Device
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
VIA-3058 AC97 Audio
Enables and disables the onboard audio chip. Disable this item if you
are going to install a PCI audio add-on card.
Ø The choice: Auto, or Disabled.
VIA-3068 MC97 Modem
Enables and disables the onboard modem. Disable this item if you are
going to install an external modem
Ø The choice: Auto, or Disabled.
Super IO Device
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC) installed on the system board and you want to use it. If you install add-on
FDC or the system has no floppy drive, select Disabled in this field.
Ø The choice: Enabled or Disabled.
Onboard Serial Port1/Port2
Select an address and corresponding interrupt for the first and second
serial ports.
Ø The choice: 3E8/IRQ4, 2E8/IRQ3, 3F8/IRQ4, 2F8/IRQ3,Auto, or
Disabled.
UART Mode Select
This item allows you to select which mode for onboard serial port 2.
Ø The choice: IrDA, Normal, SCR, ASKIR.
- 61 -
UR2 Duplex Mode
This item allows you to select the IR half/full duplex function.
Ø The choice: Full or Half.
Onboard Parallel Port
This item allows you to determine onboard parallel port controller I/O
address setting.
Ø The choice:: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.
Parallel Port Mode
Select an operating mode for the onboard parallel (printer) port. Select
Normal, Compatible, or SPP unless you are certain your hardware and
software both support one of the other available modes.
Ø The choice: SPP, EPP, ECP, or ECP+EPP.
ECP Mode Use DMA
Select a DMA channel for the parallel port for use during ECP mode.
Ø The choice: 1 or 3.
Game Port Address
This item sets the I/O address for the game port.
Ø The choice: 201, 209, Disabled.
Midi Port Address
This item sets the I/O address for the Midi function.
Ø The choice: 300, 330, Disabled.
Midi Port IRQ
This item sets the interrupt request for the Midi function
Ø The choice: 5, 10.
Init Display First
This item allows you to decide to activate PCI Slot or on-chip VGA first.
Ø The choice: PCI Slot or AGP.
OnChip USB Controller
This should be enabled if your system has a USB installed on the system
board and you want to use it. Even when on chip USB so equipped, if
you add a higher performance controller, you will need to disable this
feature.
Ø The Choice: All Disabled, All Enabled, 1&2 USB Port, 2&3 USB
Port, 1&3 USB Port, 1 USB Port, 2 USB Port, or 3 USB Port.
- 62 -
USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard.
Ø The Choice: Enabled or Disabled.
USB Mouse Support
Enable this item if you plan to use a keyboard connected through the
USB port in a legacy operating system (such as DOS) that does not
support Plug and Play.
Ø The Choice: Enabled or Disabled.
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode
(most new drives do), select Enabled for automatic detection of the
optimal number of block read/write per sector the drive can support.
Ø The choice: Enabled or Disabled
- 63 -
@
Power Management Setup
The Power Management Setup allows you to configure your system to
most effectively saving energy while operating in a manner consistent
with your own style of computer use.
ACPI Function
This mainboard supports ACPI (Advanced Configuration and Power
management Interface). Use this item to enable or disable the ACPI
feature.
Ø The choice: Disable, Enable.
Power Management Option
This category allows you to select the type (or degree) of power saving
mode.
Min Saving Minimum power management.
HDD Power Down=Allows you to set each mode
individually.
Suspend Mode=1 hr.
Max Saving Maximum power management.
HDD Power Down=Allows you to set each mode
individually.
Suspend Mode=1 min.
User Define Allows you to set each mode individually.
HDD Power Down=Disabled or 1min.~15min.
Suspend Mode= Disabled or 1 min ~1 hr.
Ø The choice: User Define, Min Saving, or Max Saving.
- 64 -
HDD Power Down
When this item is enabled and after the set up time of system inactivity,
the hard disk drive will be powered down while all other devices
remain active.
Ø The choice: Disabled or 1 Min~15 Min.
Suspend Mode
When this item is enabled and after the set up time of system inactivity,
all devices except the CPU will be shut off.
Ø The choice: Disabled or 1 Min, 2Min, 4Min, 6Min, 8Min, 10Min,
20Min, 30Min, 40Min, or 1Hour.
Video Off Option
When enabled, this feature allows the VGA adapter to operate in a
power saving mode.
Always On Monitor will remain on during power saving
mode.
Suspend --> Off Monitor is blank when the system enters the
Suspend mode.
Ø The choice: Always On or Suspend ->off.
Video Off Method
This determines the manner in which the monitor is blank.
V/H SYNC+Blank This selection will cause the system to turn off
the vertical and horizontal synchronization
ports and write blanks to the video buffer.
Blank Screen This option only writes blanks to the video
buffer.
DPMS Support Initial display power management signaling.
Ø The choice: V/H SYNC+Blank, Blank Screen, or DPMS Support.
MODEM Use IRQ
This determines the IRQ which the MODEM can use.
Ø The choice: 3, 4, 5, 7, 9, 10, 11, or N/A.
Soft-Off by PWRBTN
Pressing the power button for more than 4 seconds forces the system to
enter the Soft-Off state when the system has "hung.".
Ø The choice: Instant-Off or Delay 4 Sec.
- 65 -
PWRON After PWR- Fail
This allows you to set whether you want your system to reboot after
power has been interrupted.
Ø The choice: Off, On, or Former-Sts.
IRQ/Event Activity Detect
Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.
VGA
When this item is enabled, you can set VGA to awaken the system.
Ø The choice: OFF or ON
LPT & COM
When LPT & COM stays On, any activity from one of the listed system
peripheral devices or IRQs wakes up the system.
Ø The choice: NONE, LPT, COM, or LPT/COM
HDD & FDD
When HDD & FDD stays On, any activity from one of the listed system
peripheral devices wakes up the system.
Ø The choice: OFF or ON
PCI Master
When PCI Master stays On, any activity from one of the listed system
peripheral devices wakes up the system.
Ø The choice: OFF, or ON
PowerOn by PCI Card
This item enables/disables the power on function of PCI Card.
Ø The choice: Disabled or Enabled.
WOL/WOM/Ring Resume
When this item to enable LAN or modem activity to wake up the system
from a power saving mode.
Ø The choice: Disabled or Enabled.
RTC Alarm Resume
When this item enabled, your can set the date and time at which the
RTC (real-time clock) alarm awakens the system from Suspend mode.
Ø The choice: Disabled or Enabled.
- 66 -
Date (of Month)
This item selects the alarm date.
Ø Key in a DEC number:Min=0, Max=31.
Resume Time (hh:mm:ss)
This item selects the alarm Time.
[hh]
Ø Key in a DEC number:Min=0, Max=23.
[mm/ss]
Ø Key in a DEC number:Min=0, Max=59.
IRQs Activity Monitoring
Primary INTR
Press Enter to on/off the wake up ability of a specified IRQ.
Ø The choice: OFF, or ON.
In the following is a list of IRQ's, Interrupt ReQuests, which can be
exempted much as the COM ports and LPT ports above can. When
an I/O device wants to gain the attention of the operating system, it
signals this by causing an IRQ to occur. When the operating system
is ready to respond to the request, it interrupts itself and performs the
service.
When On mode exist, activity will neither prevent the system from
going into a power management mode nor awaken it.
IRQ3 (COM 2 )
IRQ4 (COM 1)
IRQ5 (LPT 2)
IRQ6 (Floppy Disk)
IRQ7 (LPT 1)
IRQ8 (RTC Alarm)
IRQ9 (IRQ2 Redir)
IRQ10 (Reserved)
IRQ11 (Reserved)
IRQ12 ( PS / 2 Mouse )
IRQ13 (Coprocessor)
IRQ14 (Hard Disk)
IRQ15 (Reserved)
Ø The choice: Disabled or Enabled.
- 67 -
@

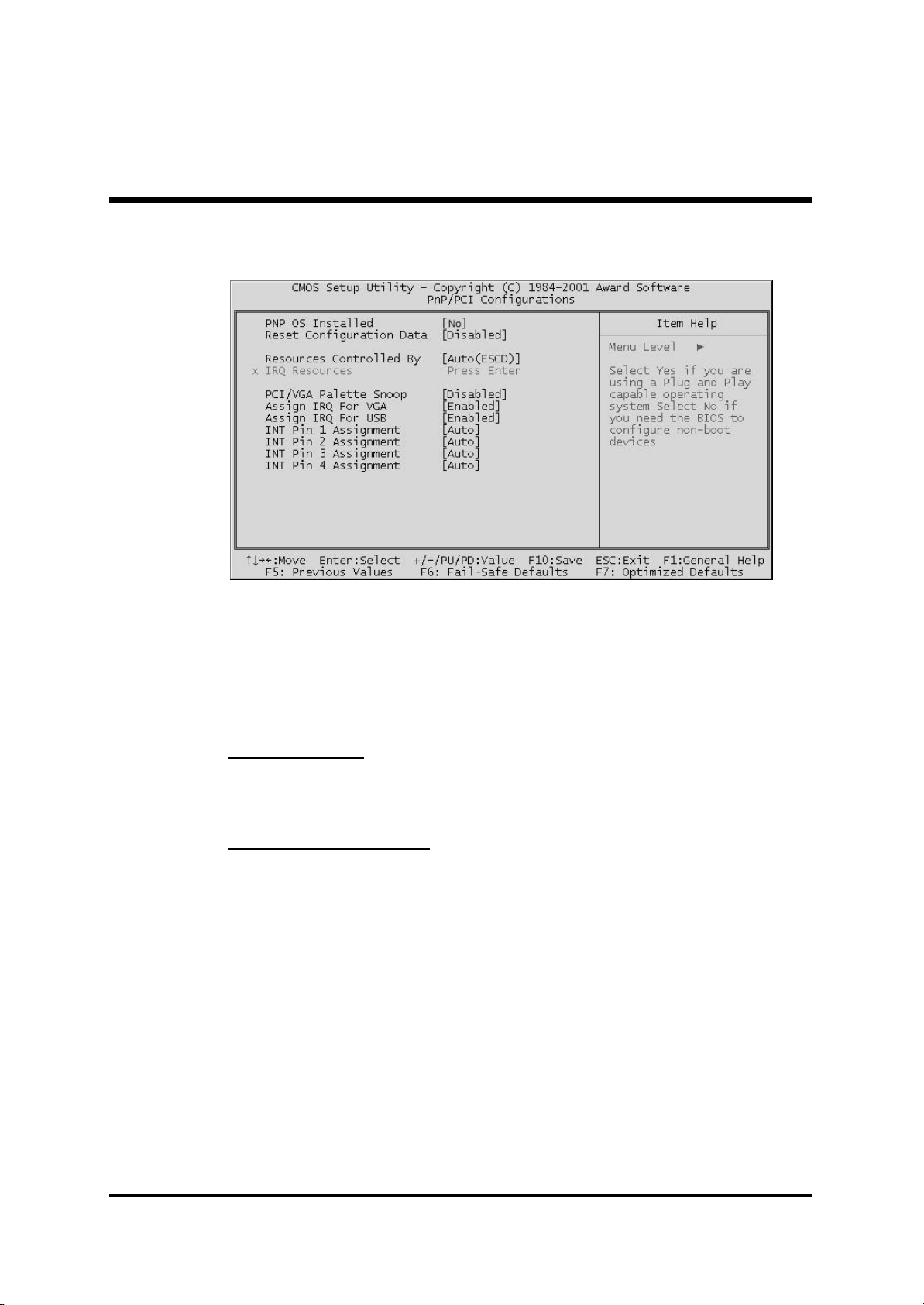

PnP/PCI Configurations
This section describes the configuration of PCI bus system. PCI or
Personal Computer Interconnection is a system which allows I/O
devices to operate at the speed CPU itself keeps when CPU
communicating with its own special components. This section covers
some very technical items, and it is strongly recommended that only
experienced users should make any changes to the default settings.
PNP OS Installed
This item allows you to determine PnP OS is installed or not.
Ø The choice: Yes or No.
Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit from Setup
if you have installed a new device or software and the system
reconfiguration has caused such a serious conflict that the operating
system can not boot.
Ø The choice: Enabled or Disabled .
Resource controlled By
The Award Plug-and-Play BIOS has the capacity to automatically
configure all of the boot and Plug-and-Play compatible devices.
However, this capability means absolutely nothing unless you are using
a Plug-and-Play operating system such as Windows 95. If you set this
field to "manual" , choose specific resources by going into each of the
sub-menu that follows this field (a sub-menu is proceeded by a ">").
Ø The choice: Auto(ESCD) or Manual.
- 68 -
IRQ Resources
When resources are controlled manually, assign each system interrupt a
type, depending on the type of device using the interrupt.
IRQ3/4/5/7/9/10/11/12/14/15 assigned
This item allows you to determine the IRQ assigned to the ISA bus and
is not available to any PCI slot. Legacy ISA for devices is compliant with
the original PC AT bus specification; PCI/ISA PnP for devices is compliant with the Plug-and-Play standard whether designed for PCI or ISA
bus architecture.
Ø The choice: PCI Device or Reserved.
PCI/VGA Palette Snoop
It determines whether the MPEG ISA/VESA VGA Cards can work with
PCI/VGA or not. If you have MPEG ISA/VESA VGA Cards and PCI/
VGA Card worked, Enable this field. Otherwise, please Disable it.
Ø The choice: Enabled or Disabled.
Assign IRQ For VGA
This item allows the user to set VGA IRQ Routing table Enabled or
Disabled.
Ø The choice: Enabled or Disabled.
Assign IRQ For USB
This item allows the user the option to assign an IRQ to on-board USB
controller.
Since the on-board controller is always enabled, if no IRQ is assigned to
it, there will be a question mark report on the sytem device under
Windows95/98.
Ø The choice: Enabled or Disabled.
INT Pin1/2/3/4 Assignment
Names the interrupt request (IRQ) line assigned to PCI 1 throught PCI 4
on system. Activity of selected PCI slot awakens system.
Ø The Choice: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.
- 69 -
@
PC Health Status
Shutdown Temperature
Enables you to set the maximum temperature the system can reach
before powering down.
Ø The choice: Disabled, 60oC/140oF, 65oC/149oF, 70oC/158oF.
System Component Characteristics
These fields provide you with information about system current operating status. These items are displayed only.
The field includes:
CPU VCORE includes 2.50v, 3.30v, 5.00v, 12.00v.
Voltage Battery
Current System Temperature
Current CPU Temperature
CPU FAN Speed
Case FAN Speed
- 70 -
@
Frequency/Voltage Control
CPU Clock Ratio
Use this item to select a multiplier for the system frontside bus (FSB)
frequency. The value of the multiplier must be set so that:
Multiplier x Frontside Bus Frequency = CPU Clock Speed
For example, if you have a processor that is rated to run at 450 MHz
and the system is running a frontside bus frequency of 100 MHz, you
should select a multiplier of 4.5 so that:
4.5 (Multiplier) x 100 MHz (frontside bus) = 450 MHz (CPU clock)
Auto Detect PCI/DIMM Clk
When this item is enabled, BIOS disables the clock signal of free DIMM
and PCI slots.
Ø The choice: Enabled, or Disabled.
Spread Spectrum
This item allows you to enable/disable the spread spectrum modulation.
Ø The choice: Disabled, Spectrum +/- 0.5%, Spectrum +/- 0.3%.
CPU Host/AGP/PCI clock
Use the CPU host clock to set the front side bus frequency for the
installed CPU (usually 133MHz, 100MHz or 66MHz).
- 71 -
@
Load Fail-Safe Defaults
When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:
Load Fail-Safe Defaults (Y/N) ? N
Pressing 'Y' loads the BIOS default values for the most stable,
minimal performance of system operations.
@
Load Optimized Defaults
When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:
Load Optimized Defaults (Y/N) ? N
Pressing 'Y' loads the default values that are factory-set for
optimal performance of system operation.
- 72 -
@
Supervisor/User Password Setting
You can set either supervisor or user password, or both of them. The
differences between them are:
Supervisor Password and User Password
The options on the Password screen menu make it possible to restrict
access to the Setup program by enabling you to set passwords for two
different access modes: Supervisor mode and User mode.
In general, Supervisor mode has full access to the Setup options,
whereas User mode has restricted access to the options. By setting
separate Supervisor and User password, a system supervisor can limit
who can change critical Setup values.
Enter Password
Type the password up to eight characters, and press <Enter>. The
password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press <Enter>. You may also press <Esc> to
abort the selection and not enter a password.
To disable password, just press <Enter> when you are prompted to
enter password. A message will confirm the password being disabled.
Once the password is disabled, the system will boot and you can enter
Setup freely.
- 73 -
Password Disable
If you select System at Security Option of BIOS Features Setup Menu,
you will be prompted in entering the password whenever the system is
rebooted or you try to enter Setup. If you select Setup at Security Option of BIOS Features Setup Menu, you will be prompted only when
you try to enter Setup.
Warning : Retain a record of your password in a safe place. If you
forget the password, the only way to access the system is
to clear CMOS, please refer to "Clear CMOS" on page 30.
- 74 -
@
Save & Exit Setup
@
Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Save to CMOS and EXIT (Y/N)? Y
Pressing "Y" stores the selections made in the menus of CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit from Setup without storing in CMOS any
change. The previous selections remain in effect. This exits from the
Setup utility and restarts your computer.
- 75 -
Loading...
