AT31
Pentium 4 Processor
Based MAI N BOARD
User's Manual
74
Shuttl e AT31
Intel Pentium 4 based Mainboard
Manual Version 1.0
Copyright
Copyright© 2001 by Shuttle Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into
any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, photocopying, manual, or otherwise, without prior written permission from Shuttle Inc.
Disclaimer
Shuttle Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.
This company makes no representations or warranties regarding the contents of this manual. Information in this manual has been carefully checked for r eliability; however, no guarantee is given as to the
correctness o f the contents. In the interest of continued product improvement, this company reserves
the right to revise the manual or include changes in the specifications of the product described within it
at any time without notice and without obligation to notify any person of such revision or changes. The
information contained in this manual is provided for general use by the customers.
T rademarks
Space walker is a registered trademark of Shuttle Inc.
Pentium is a registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD i s a registered trademark of Award Software Inc.
Microsof t and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other brand and product names used herein are for identification purposes only
and may be trademarks of their respective owners.
M 446
1
TABLE OF CONTE NTS
WHAT’S IN THE MANUAL ....................................................................... 5
Quick Reference........................................................................................................... 5
About This Manual....................................................................................................... 5
1 INTRODUCTION .................................................................................... 6
1.1 TO DIFFERENT USERS....................................................................................... 6
FI RST-TIME DI Y SYSTEM BUI LDER............................................................... 6
EXPERIENCED DI Y USER............................................................................... 6
SYSTEM INTEGRATOR..................................................................................... 6
1.2 ITEM CHECKLIST.................................................................................................. 7
2 FEATURES............................................................................................. 8
2.1 SPECIFICATIONS .................................................................................................. 8
3 HARDWARE INSTALLATION............................................................. 11
3.1 STEP BY STEP INSTALLATION....................................................................... 11
Accessories Of AT31 ....................................................................................... 11
STEP 1 CPU Installation..................................................................................12
STEP 2 Install RI MM system memory.............................................................15
STEP 3 Set Jumpers........................................................................................ 17
STEP 4 Install Internal Peripherals in System Case .....................................17
STEP 5 Mount the Mainboard on the Computer Chassis ............................ 18
STEP 6 Connect Front Panel Switches/LEDs/Speaker ..............................19
STEP 7 Connect I DE & Floppy Disk Drives..................................................20
STEP 8 Connect Other Internal Peripherals ..................................................21
STEP 9 Connect the Power Supply................................................................21
STEP 10 Connect External Peripherals to Back Panel ................................ 22
STEP 11 First Time System Boot Up .............................................................24
STEP 12 Install Drivers & Software Components.........................................25
2
3.2 JUMPER SETTINGS ........................................................................................... 26
Jumpers & Connectors Guide .............................................................................27
Keyboard Power On Setting (JP1) .....................................................................30
USB Power On Setting (JP2) ..............................................................................30
Onboard Audio CODEC Setting (JP12)............................................................ 31
BI OS Flash Protect Setting (JP9) ....................................................................... 31
Clear CMOS Setting (JBAT1) .............................................................................32
PS/2 Keyboard & PS/2 Mouse Connectors ......................................................33
USB1 / USB2 Port Connectors ...........................................................................33
COM1 and COM2 Connectors............................................................................33
Parallel Port Connector........................................................................................33
Line_out Port.........................................................................................................34
Line_in Port ...........................................................................................................34
Microphone Port ...................................................................................................34
MI DI/GAME Port ................................................................................................... 34
Speaker Connector (JSPK1) ..............................................................................35
I DE LED Connector (HD LED) ...........................................................................35
Hardware Reset Connector (Reset) ................................................................... 36
Green LED (PWR LED)....................................................................................... 36
ATX Power On/Off Switch Connector (PWR SW).............................................36
Enhanced I DE and Floppy Connectors .............................................................. 37
Aux Chassis Fan, CPU Fan, Power Fan Headers (SFAN1, CFAN1, PSFAN1)
..................................................................................................................................38
ATX Power Connectors (JATX1~JATX3) .......................................................... 39
Audio CD_in Headers (CDI N1 and CDIN2) ...................................................... 39
Wake_on Modem Connector (WOM1)................................................................40
Wake_on Lan Connector (WOL1) ......................................................................40
Dual USB Ports Header (USB2)......................................................................... 41
3
I R Connector (JIR1) ..............................................................................................41
4 SOFTWARE UTILITY.......................................................................... 42

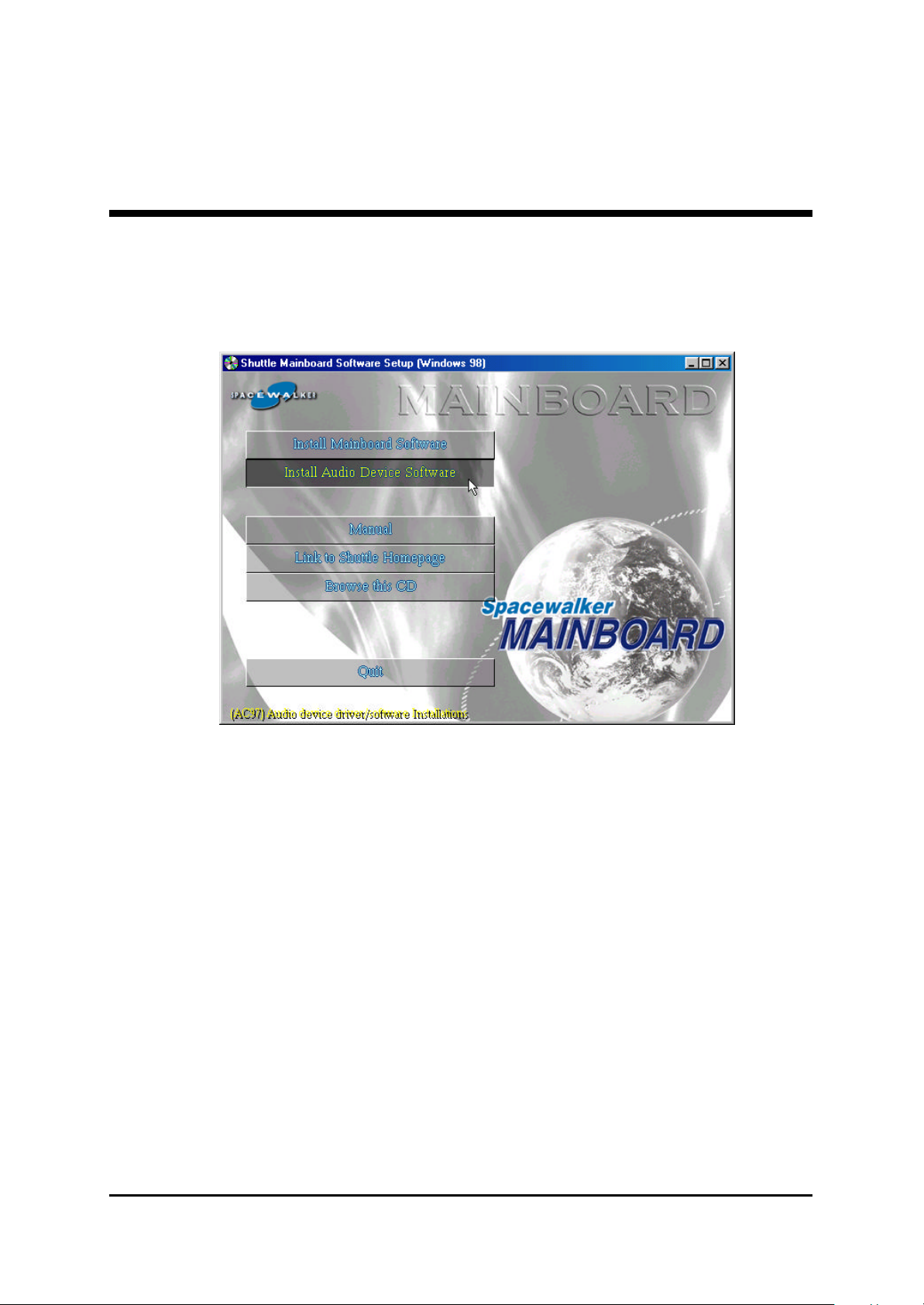

4.1 AT31 MAINBOARD CD OVERVI EW .........................................................42
4.2 I nstall Chipset System Driver ....................................................................... 43
4.3 I nstall AC97 Audio Driver .............................................................................44
4.4 View User’s Manual.....................................................................................45
5 BIOS SETUP........................................................................................ 46
5.1 ENTER THE BIOS................................................................................................46
5.2 THE MAIN MENU .................................................................................................47
Standard CMOS Setup ....................................................................................49
Advanced BIOS Features ................................................................................51
Advanced Chipset Features ............................................................................55
I ntegrated Peripherals ...................................................................................... 57
Power Management Setup ..............................................................................62
PnP / PCI Configurations .................................................................................67
PC Health Status...............................................................................................69
Frequency / Voltage Control ............................................................................ 70
Load Setup/Turbo Defaults .............................................................................. 71
Set Password ....................................................................................................72
Save & Exit Setup/Exit without Saving ........................................................... 73
4
W HAT’S IN THE MANUAL
Qui ck Reference
Hardware Installation >> Step-by-Step.......................................................Page 11
Jumper Settings >> A Closer Look ............................................................ Page 26
Software Utility >> How to Install ................................................................ Page 42
BIOS Setup >> H ow to Configure ............................................................... Page 46
About This Manual
For First-Time DIY System Builder ................................................................Page 5
For Experienced DIY User ...............................................................................Page 5
For System Integrator.......................................................................................Page 5
5
1 INTRODUCTION
1.1 To Different Users
First-Time DIY System Builder
Welcome to the DIY world! Building your own computer system is not as
diffic ult as you may think. To make yo ur first computer DIY experience
successful, right from the sta rt, we have designed the 3 Hardware Instal-
lation section in a step-by-step fashion for all the first-time DIY system
builders. Prior to installation, we also suggest you to read the whole
manual carefully to gain a complete understanding of your new AT31
mainboa rd.
Experienced DIY User
Congratulate on your purchase of the Shuttle AT31 mainboard. You will find
that installing your new Shuttle AT31 mainboard is just easy. Bundled with an
array of onboa rd functions, the highly-integrated AT31 mainboard provides
you with a total solution to build the most stable and reliable system. Refer to
sections 3.2 Jumper Settings and Chapter 4 Software U tility to find out how to
get the best out of your new mainboard. Chapter 5 BIOS Setup also c ontains
the relevant information on how to tune up your system to achieve higher performance.
System In tegrator
You have wisely chosen Shuttle AT31 to construct your system. Shuttle
AT31 incorporates all the state-of-the-art technology of the Intel 82850
chipset. It integrates the most advanced functions you can find to date in a
ATX board. Refer to sections 3.2 Jumper Settings and Chapter 4 Software
Utility for an in-depth view of system construction.
6
1.2 Item Checklist
KTS24.5J1c
20PMT04B
Check all items with your AT31 mainboard to make sure nothing is missing.
The complete package should include:
- One Shuttle AT31 Mainboard
- One ATA 100/66 Ribbon Cable
- One Floppy Ribbon Cable
- 2 pieces of Dummy RIMM
153
9BAZ
X200 TEST
153
9BAZ
X200
TEST
R
YCL
0114
MC
KTS24.5J1c
KTS14.3E2L
+
- Retention Mechanism for Pentium 4 Cooler
- AT31 User’s Manual
- One CD-ROM containing:
Ø Intel 850 Chipset Driver
Ø AC97 Audio Driver
Ø AT31 users’ manual on PDF format
Ø Award Flashing Utility
7
2 FE ATURES
AT31 mainboard is carefully designed for the demanding PC user who wants high performance and maximum intelligent features in a compact package.
2.1 Specifications
-
CPU Support
Supports Intel Socket 423 Pentium 4 1.0~1.50GHz+ with 400MHz system
bus designed for Socket 423 technology.
-
Chipset
The Intel®- 850 chipset consists of three main components: Memory Control
Hub (MCH), I/O Control Hub 2 (ICH2) and Firmware Hub (FWH). All these
components are interconnected via an Intel® proprietary interface called hub
interface. The hub interface designed into the Intel® 850 chipset to provide
efficient communication between components. Additional hardware platform
features include AGP 4x mode, Direct RDRAM, Ultra ATA/100, Low Pin
Count (LPC) interface,Universal Serial Bus (USB). The platform is also ACPI
compliant and supports Full-on, Stop Grant, Suspend to RAM, Suspend to
Disk and Soft-off power management states. Through the use of an appropriate LAN connect, the platform supports Wake-on-LAN for remote administration and troubleshooting.
-
Expansi on Slots
Including five 32-bit/33MHz PCI, one CNR and one AGP 4X slots. The PCI
local bus throughput can be up to 132MB/s. The Communication & Networking Riser (CNR) slot provided from AT31 can support CNR interface for
a LAN/Modem/Audio card. The Accelerated Graphics Port (AGP) specification provides a new level of video display sophistication and speed. The AGP
video cards support data transfer rate up to 1066MB/s. As AT31 motherboard
includes one AGP Pro expansion slot for a bus mastering AGP graphic card,
For AD and SBA signaling, AT31 can support 133MHz 2X/4X mode.
8
-
Memory Sup port
Provides four 184-pin DRDRAM DIMM socket that support up to 2GB of PC600/700/800 compliant DRDRAM (Direct Rambus DRAM). You may install
64, 128, 256 or 512MB with ECC (Error Checking and Correction) RDRAM
RIMM modules into each socket.
-
Ultra DMA 100/66/33 Bus Master IDE
Comes with an on-board PCI Bus Master IDE controller with two connectors
that supports four IDE devices in two channels, supports Ultra DMA 100/66/
33, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 4, and supports
Enhanced IDE devices.
-
On-board AC97 Sound
AT31 uses the SIGMATEL AC97 sound chip. This on-board audio includes a
complete audio recording and playback system.
-
Four USB Connectors
Provides two ports, four USB connectors for USB interface devices, such as
mouse, keyboard, modem, scanner, etc.
-
Power Management/Plug and Play
The AT31 supports the power management function that confirms to the
power-saving standards of the U.S. Environmental Protection Agency (EPA)
Energy Star program. It also offers Plug-and-Play, which helps save users from
configuration problems, thus making to system user-friendlier.
-
Hardware Monitoring Mangement
Supports CPU or system fans status, temperature and voltage monitoring and
alert, through the on-board hardware monitor module.
-
Enhanced ACPI
Fully implement the ACPI standard for Windows® 95/98/ME/NT/2000 series
compatibility, and supports Soft-Off, STR (Suspend to RAM, S3), STD (Suspend to Disk, S4), WOM (Wake On Modem), WOL (Wake On LAN) features.
9
-
Super I/O Interface:
The AT31 provides two high-speed UART compatible serial ports and one
parallel port with EPP and ECP capabilities. UART2 can also be directed from
COM2 to the Infrared Module for the wireless connections.
-
System BIOS
Provides licensed Award BIOS on 4Mb Firmware Hub.
Supports Green PC and Desktop Management Interface (DMI).
-
ATX Form Factor
System board conforms to the ATX specification.
Board dimension: 305 mm x 244 mm.
10
3 HARDWARE INSTALLATION
Before removing or installing any of these devices including CPU, RIMMs, Add-On
Cards, Cables, please make sure to unplug the onboard power connector.
This section outlines how to install and configure your AT31 mainboard. Please refer to
following mainboard layout to help you identifying various jumpers, connectors, slots,
and ports. Then follow these steps designed to guide you through a quick and correct
installation of your system.
3.1 Step-by-Step Installation
Accessori es Of AT31
PS2 Keyboard /
PS/2 Mouse Connectors
Keyboard Power on
Setting-JP1
USB Power on -JP2Setting
USB1/USB2 Connectors
Serial Port Connector
(COM1)
Socket 423
Parallel Connector
Intel 82850 Chipset
Serial Port Connector
(COM2)
Line Out/Line_In/
Microphone/ MIDI/GAME
Port Connectors
ATX Power Fan
Connector-PSFAN1
CD-IN Connector- CD1
CD-IN Connector- CD2
ATX Power Connectors
AGP 4X Slot
Wake on Modem
Connector-WOM1
Wake on Lan
Connector-WOL1
AC97 Audio CODEC
Five PCI Slots
Intel 82801BA
CNR Slot
KB MOUSE
CFAN1
1
JP1
JP2
1
0114
YCL
USB
COM1
JS1
AT 31 V1.0
LPT1
KTS24.5J1c
PSFAN1
JATX2
CDIN2
CDIN1
20PMT04B
X200
TEST
83627HF
Winbond
JATX1
JATX3
AGP1
WOM1
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
CNR1
Onboard Audio CODEC
setting-JP12
Four 184-Pin RIMM SocketsCPU Fan-CFAN 1
Floppy Connector
SOCKET423
JH2
JH1
WOL1
153
9BAZ
153
JP12
1
9BAZ
4mbit Flash Rom
BIOS Flash Protect-JP9
RIMM1
RIMM2
RIMM3
KTS14.3E2L
1
JBAT1
JP9
KTS24.5J1c
1
Dual USB Ports Header-USB2
Clear CMOS Setting-JBAT1
FDD
IDE2
IDE1
RIMM4
SFAN1
JFP1
1
1
USB2
1
X200
TEST
Case Cooling Fan Connector-SFAN1
IR Header-JIR1
Front Panel Connector-JFP1 Two IDE Connectors
1
JIR1JSPK1
Front Panel
Speaker-JSPK1
11
Step 1
CPU Installation:
This motherboard supports Intel® Pentium® 4 1.30~1.50GHz+ Socket
423 series CPU. Please follow the step as below to finish CPU installation.
Be careful of CPU orientation when you plug it into CPU socket.
1. Pull up the CPU socket level and up to 90-degree angle.
2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU
upper interface. Match Pin 1 and cut edge, then insert the CPU into the
socket.
CPU pin 1 and
cut edge
12
3. Press down the CPU socket level and finish CPU installation.
Note: If you do not match the CPU socket Pin 1 and CPU cut edge well, it
may damage the CPU.
13
1. Put the CPU heatsink onto the top of CPU insert the retention moudule
clips over the edge of the CPU fan/heatsink. Please just snap retention
module clamp holes over the tabs of the retention module.
2. Please plug the fan power cable on the 3-pin CPU fan
connector of motherboard.
14
3-pi n CPU Fan Connector
Step 2
Install RIMM System Memory
This motherboard has four 184-pin RIMM sockets that allow you to install
PC600, PC700 and PC800 RDRAM up to 2GB. AT31 will detect the
RDRAM speed automatically while system POST, but it still allows you select
the RDRAM type manually by BIOS setup program.
Note: You must install at least two RIMM moudles and RIMM modules
installed must be in pairs. All blank RIMM sockets must be inserted with
dummy RIMM modules.
RIMM1
RIMM2
RIMM3
RIMM4
Below pictures are Direct RDRAM memory module and dummy RIMM (also
called C-RIMM). Pl ease don’t forget insert the dummy RIMM into the blank
RIMM sockets, otherwise it will cause the failure to boot up system.
DRDRAM RIMM Module
Dummy RIMM
Please follow below procedure to finish memory installation.
1. Make sure the RIMM module’s pin face down and match the socket’s size
as depicted below.
60 Pins 88 Pins
15
2. Insert the module straight down to the RIMM socket with both hands and
press down firmly until the RIMM module is securely in place.
The dummy Rambus DRAM modules (C-RIMM) must be inserted in unpopulated slots.
Only the following memory configurations are possible:
RIMM Socket 1 RIMM Socket 2 RIMM Socket 3 RIMM Socket 4
Direct RDRAM
Modules
RDRAM
C-RIMM
RDRAM RDRAM RDRAM RDRAM
C-RIMM RDRAM C-RIMM
RDRAM
C-RIMM RDRAM
Direct RDRAM
Modules
16
Step 3.
Set Jumpers
The default jumper settings have been set for the common usage standard of
this mainboard. Therefore, you do not need to reset jumpers unless you
require special adjustments as any of following cases:
1. Clear CMOS
2. Make BIOS write protected
3. Power on system through keyboard or USB devices
4. Enable onboard audio CODEC
For first-time DIY system builders, we recommend that you should not
change the default jumper settings if you are not totally familiar with
mainboa rd configuration procedures. The factory-set default settings are
tuned for optimum system performa nce. For the advanced users who
wish to c ustomize their system, section 3.2 Jumper Settings will provide
the detailed informa tion on how to configure your mainboard ma nually.
Step 4
Install Internal Peripherals in System Case
Before you install and connect the mainboard into your system case, we
recommend tha t you first assemble all the internal peripheral devices into
the computer housing, including but not limited to the hard disk drive
(IDE/HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power
supply unit. This will greatly facilitate in making the connection to the
mainboard described below.
To install IDE & FDD drives, follow this procedure:
1. Set the required jumpers on each device according to the instructions
provided by the manufacturer. (IDE devices, HDD and CD-ROM, must
have jumpers on Master or Slave mode depending on your willing to
install more than one device for each kind.
2. Connect IDE cable and FDD cable to the back panel of the internal
peripheral devices. Note that the cable should be oriented with its
colored stripe (usually in red or magenta) connected to pin#1 both on
the mainboard IDE or FDD connector and on the device as well.
17
3. Connect an available power cable through your system power supply
unit to the back panel of each peripheral device. Note that the power
cable is directional and cannot fit in if not properly positioned.
Step 5
Mount the Mainboard on the Computer Chassis
1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose a
correct mounting hole, the key point is to keep the back panel of the
mainboard in a close fit with your system case, as shown below.
2. After deciding the proper mounting holes, position the studs between
the fra me of chassis and the mainboard. The studs are used to fix the
mainboa rd and to keep a certain distance between the system chassis
and the mainboa rd, in order to a void any electrical short between the
board and the metal frame of chassis. (If your computer case is already
equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)
Note: In most computer housings, you will be a ble to find 4 or more
attachment points to install mounting studs and fix the
mainboard. If there a ren’t enough matching holes, then make sure
to install at lea st 4 mounting studs to ensure proper attachment of
the mainboa rd.
18
Step 6
Connect Front Panel S witches/LEDs/Speaker
You can find there are several different cables already existing in the system
case and originati ng from the computer’s front panel devices (HDD LED,
Power LED, Reset Switch, PC Speaker, etc.) These cables serve to connect the
front panel switches and LEDs to the mainboard’s front panel connectors
group, as shown below :
N/C
PWR
SW
RESET
1. PC SPEAKER ( JSPK1)
2. HDD LED (HD LED)
PWR
LED
JFP1
1
PWR
SW
PWR
LED
HD LED
JFP1
N/C
RESET
HD LED
1
3. Hardware Reset Switch (RESET)
19
PWR
SW
PWR
LED
JFP1
N/C
RESET
HD LED
1
4. Green LED (PWR LED)
PWR
SW
N/C
RESET
5. ATX Soft Power On/Off
(PWR SW)
Step 7
Connect IDE & Floppy Disk Drives
1. Floppy cable connector
PWR
LED
PWR
SW
PWR
LED
JFP1
JFP1
HD LED
1
N/C
RESET
HD LED
1
2. IDE cable connectors
FDD
IDE2 IDE1
20
Step 8
Connect Other Internal Peripherals
1. IR Header
Step 9
Connect the Power Supply
1. System power connector
1
JATX1JATX2 JATX3
JIR1
21
Step 10
Connect External Peripherals to Back Panel
You are now ready to put the computer case back together and get on to the
external peripherals connections to your system’s back panel.
KB MOUSE
USB
COM1
LPT1
JS1
1. PS/2 Mouse and PS/2 Keyboard ports
2. USB Ports
3. COM1 and COM2 Ports
PS/2 Mouse
PS/2 keyboard
USB1 & USB2
COM1
COM2
22
4. Parallel Port
5. Line_out / Line_In
/ Microphone Ports
6. MIDI/Game Port
Parallel Port
Line_out Line_In Microphone
MI DI/G AME Port
23
Step 11
First Time System Boot-Up
To assure the completeness and correctness of your system installation, you
may check the above installation steps once again before you boot up your
system for the first time.
1. Insert a bootable system floppy disk (DOS 6.2x, Windows 95/98/NT, or
others) which conta ins FDISK and FORMAT utilities into the FDD.
2. Turn on the system power.
3. First, you must use the FDISK utility to create a primary partition of the
hard disk. You c an also add an extended partition if your primary
pa rtition does not use all of the available ha rd disk space. If you
choose to add an extended partition, you will have to create one or
more logic al partitions to occupy all the spac e available in the extended partition. The FDISK utility will assign a drive letter (i.e., C:,
D:, E:,...) to ea ch partition which will be shown in the FDISK progra m.
After FDISK procedure, reboot your system by using the same system
floppy disk.
Note: DOS 6.2x and Windows 95A can only support up to 2.1GB of
HDD partition. If you use the FDISK utility with one of the
operating systems mentioned above, you can only install your
HDD into partitions no larger than 2.1GB each.
4. Now, use the FORMAT utility to format all the parti tions you’ve created. When formatting the primary partition (C:), make sure to use the
FORMAT C: /S command.
Note: FORMAT C: /S can transfer all the necessary system files into the
primary partition of your hard disk. Then, your HDD will become a bootable drive.
5. Install all the necessary drivers for CD-ROM, Mouse, etc.
6. Set up the complete operating system according to your OS installation
guide.
24
Step 12
Install Drivers & S oftware Components
Please note that all the system utilities and drivers are designed for Win 9x/
2000/ME/NT operating systems only. Make sure your operating system is
already installed before running the driver installation CD-ROM programs.
1. Insert the AT31 bundled CD-ROM into your CD-ROM drive. The
auto-run program will display the driver main installation window
on screen .
2. Choose " Install Mainboard Software" and complete the installation.
3. Return to the SHUTTLE MAINBOARD SOFTWARE SETUP screen.
4. Choose "Install Audio Device Software" and complete the
installation.
5. Return to the main installation window and exit from the auto-run
drivers installation program.
25
3.2 Jumper Settings
1
1
Several hardwa re settings are made through the use of jumper caps to
connect jumper pins to the mainboa rd. Pin #1 is loc ated at any corner of
each jumper; you just find a location with pin#1 marked. There are several
types of pin1# shown a s below:
3-pin and multi-pin (>3) jumpers are shown as follows:
Pin #1 to the left:
Pin #1 on the top:
Pin #1 to the right:
1
1
Pin #1 on the bottom:
1
Jumpers with two pins are shown as for Close [On] or for
Open [Off]. To Short jumper pins, simply place a plastic jumper cap over
the desired pair of pins.
Caution!
1. Do not remove the mainboard from its antistatic protective packaging
until you are ready to install it.
2. Carefully hold the mainboard by its edges and avoid touching its
components. When putting the mainboard down, place it on the top
of its original packaging film, and on an even surface, and components
side up.
3. Wear an antistatic wrist stra p or take other suitable measures to prevent electrostatic discharge (ESD) whenever handling this equipment.
26
Jumpers & Con nectors Guide
Use the mainboard layout on page 11 to locate CPU socket, memory banks,
expansion slots, jumpers and connectors on the mainboard during the installation. The following list will help you to identify jumpers, slots, and connectors along with their assigned functions:
B 1~B 2
D 1
B 3
B 4~B 6
D 1
B 7~B 10
E 7
E 8
E 9
E 10
A 3
E 11
A 2
CPU/Memory/Expansion Slots
Socket 423 : CPU Socket for socket 423 Intel Pentium 4 processors.
RIMM 1/2/3/4 : Four RIMM sockets for PC600, PC700 and PC800
RDRAM up to 2GB.
AGP : One AGP (Accelerated Graphics Port) slot
E 4
A 4
E 3
C 2~C 5
E 12
C 1
PCI : Five 32-bit PCI expansion slots
CNR : One CNR (Communications and Networking Riser) slot
27
Jum pers
JP1 : Keyboard power on setting.
A1
JP2 : USB power on setting.
A1
JP12 : Onboard audio CODEC setting.
A2
JP9 : BIOS flash protect setting.
A3
JBAT1 : Clear CMOS setting.
A4
Back Panel Connectors
B1
KB : PS/2 Keyboard.
B2
MOUSE : PS/2 Mouse.
B3
USB : 2 × USB ports (Universal serial Bus).
B4
COM1 : Serial port 1(DB9 male).
B5
LPT1 : Parallel port (DB25 female).
B6
COM2 : Serial port 2 (DB9 male).
B7
JS1 : Line_out port.
B8
JS1 : Line_in port.
B9
JS1 : Microphone port.
JS1 : Game/MIDI port.
B10
Front Panel Connectors
JSPK1 : Speaker in housing.
C1
HD LED : IDE drive active LED.
C2
RESET : Hardware reset switch.
C3
C3
C4
PWR LED : System Power LED.
PW SW : ATX Power On/Off Momentary Type Switch.
C5
Internal Peripherals Connectors
FDD : Floppy Disk Drive Interface
D1
IDE1 : IDE Primary Interface (Dual-channel)
D1
D1
IDE2 : IDE Secondary Interface (Dual-channel)
28
Other Connectors:
CFAN1 : CPU cooling fan connector.
E1
E2
PSFAN1 : System cooling fan connector.
E3
SFAN1 : Aux case cooling fan connector.
E4
JATX2 : ATX power header.
E5
JATX1 : ATX power header.
E6
JATX3 : ATX power header.
E7
CDIN1 : Audio CD-in header.
E8
CDIN2 : Audio CD-in header.
E9
WOM1 : Wake on modem header.
E10
WOL1 : Wake on lan header.
USB2 : Dual USB ports header.
E11
JIR1 : IR header.
E12
29
1
A1
1
1
1
Keyboard Power On Setting (JP1)
AT31 provides one jumper to set keyboard which connects to back-panel
to power-on system from ACPI S3 to S5 stage. Place mini jumper on pin1-2
to enable Keyboard power-on function.
Pin 1-2
(Enable power on function)
Pin 2-3
(Disable power on funtion)
1
JP1
A1
USB Power On Setting (JP2)
Enable this jumper if you want device activity on front panel USB ports 2/3
activity to turn on the computer.
Pin 1-2
(Enable power on function)
Pin 2-3
(Disable power on function)
JP2
1
30
Onboar d Audio CODEC Setting (JP12)
1
1
A2
This jumper is to enable or disable onboard audio CODEC.
Pin 1-2
(Enable onboard audio CODEC)
Pin 2-3
(Disable onboard audio CODEC)
A3
BIOS Flash Protect Setting (JP9)
This mainboard offers JP9 jumper to make BIOS read-only.
Short jumper on Pin 1-2
(Disable the function)
JP12
1
JP9
Remove jumper from Pin 1-2
(Enable the function)
31
A4
Clear CMOS Setting (JBAT1)
You ca n clear CMOS to restore system default setting. Please follow
below procedure to clear CMOS.
1
Pin 1-2 (Normal)
1
Pin 2-3 (Clear CMOS)
Step 1. Turn off the system and unplug the AC power.
Step 2. Remove ATX power cable from onboard power connector.
JBAT1
1
Step 3. Locate JBAT1 and short pins 2-3 for a few seconds.
Step 4. Return JBAT1 to its normal setting by shorting pins 1-2.
Step 5. Connect ATX power cable back to onboard power connector.
32
B2
B1
PS/2 Keyboard & PS/2 Mouse Connectors
Two 6-pin fema le PS/2 keyboard & Mouse
connectors a re located at the rear panel of
the mainboard. Depending on the com puter
housing you use (desktop or tower), the PS/2
Mouse connector is situated at the top of the
PS/2 Keyboard connector when the
mainboard i s laid into a desktop, as opposite
to a tower case where the PS/2 Mouse connec tor is loc ated at the right of the PS/2
Keyboa rd's. Plug the PS/2 keyboa rd and
mouse jacks into their corresponding connectors.
B3
USB1 / USB2 Connectors
Two female connect ors USB1/USB2 share
the sa me USB (Universal Seria l Bus)
bracket at the rear panel of your
mainboard. Plug each USB device jack
into an available USB1/USB2 connector.
USB1 & USB2
PS/2 Mouse
PS/2 keyboard
B4 B6
COM1 and COM2 Connectors
This mainboard ca n accommodate two
serial device on COM1 and COM2. Attach a serial device cable to the DB9 seria l ports COM1 and COM2 at the back
panel of your computer.
B5
Parallel Port Connector
One DB 25 female parallel connector is
located a t the rear panel of mainboard.
Plug the connection cable from your parallel device (printer, scanner, etc.) into this
connector.
33
COM1 COM2
Parallel Port
Line_out Port
B7
Line_Out is a stereo output port
through which the combined signal of
all internal and external audio sources
on the board is output. It can be connec ted to 1/8-inch TRS stereo headphones or to amplified speakers.
B8
Line_in Port
Line_in is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can be
used as a source for digital sound recording,
a source t o be mi xed with the output, or both.
B9
Microp hone Port
Microphone is a 1/8-inch jack that provides
a mono input. It can use a dynamic mono or
stereo microphone with a resistance of not
more than 600 Ohms.
Line_out
Line_In
Microphone
MIDI/GAME Port
B10
The MID I/GAME port is a 15-pin female connec tor. This port can be connected to a ny
IBM PC compatible ga me with a 15-pin Dsub connector.
MIDI Instrument Connection
You will need a MIDI adapter to connect
a MIDI compa tible instrument to the
sound card. The MIDI adapter can be connected to the Joystick/MIDI por t. You will
also need the MIDI sequencing software
to run MIDI instruments with your computer.
MIDI/GAME Port
34
Speaker Connector (JSPK1)
C1
Attach PC speaker cable from case to the 4-pi n PC speaker connect or (JSPK1).
C2
HDD LED Connector (HD LED)
Attach the connector cable from the IDE device LED to the 2-pin
HD LED header. The HDD LED lights up whenever an IDE device is
active.
N/C
PWR
SW
PWR
LED
JFP1
RESET
HD LED
1
Note : Please notice all LED connectors are directional. If any LED of
JFP1 does not light up during running, please simply change to
the opposite direction.
35
Hardware Reset Connector (Reset)
C3
Attach 2-pin hardware reset switch cable to the RESETheader. Pressing
reset switch causes system to restart.
PWR
SW
N/C
RESET
Green LED (PWR LED)
C4
The green LED (PWR LED) indicates that the system is currently i n one of
the power saving mode (Doze/Standby/Suspend). When the system
resumes to normal operation mode, the green LED will go off. Attach a
2-pin green LED cable to PWR LED header.
PWR
LED
PWR
SW
PWR
LED
JFP1
JFP1
HD LED
1
N/C
RESET
HD LED
1
C5
ATX Power On/Off Switch Connector (PWR SW)
The Power On/Off Switch is a momentary type switch used for turning on or
off system’s ATX power supply. Attach connector cable from Power Switch
to the 2-pin PWR SW header on the mainboard.
N/C
PWR
SW
PWR
LED
JFP1
RESET
HD LED
1
36
D1
Enhanced IDE and Floppy Connectors
The AT31 mainboard features two 40-pin dual-channel IDE device connectors (IDE1/IDE2) providing the support to up to four IDE devices, such as CDROM and Hard Disk Drives (H.D.D.). This mainboard also includes one 34pin floppy disk controller (FDD) to accommodate the Floppy Disk Drive
(FDD). Moreover, this mainboard comes with one 40pin ribbon cable to
connect to IDE H.D.D. and one 34-pin ribbon cable for F.D.D. connection.
Note : Please connect your system H.D.D. to IDE 1.
Important: Ribbon cables are directional. The red stripe means pin #1.
Please make sure to a lways have correct connection with
cable and pin #1 of IDE1/IDE2 or FDD1 on the ma inboard.
37
FDD
IDE2 IDE1
E1 ~E3
Aux Chassis Fan, CPU Fan, Power Fan Headers
(SFAN1, CFAN1, PSFAN1)
Plug in the Aux Chassis Fan, CPU Fan, Power Fan cable to 3-pin Fan
headers.
Note: Both cable wiring and type of plug may vary and they depend
on fan maker. Keep in mind that the red wire should always be
connected to the 12V header and the black wire to the ground
(GND) header.
SENSE
+12V GND
CFAN1
PSFAN1
SFAN1
38
E1 ATX Power Connectors (JATX1~JATX3)
E4 ~E6
This motherboard uses 20-pin Pentium 4 standard ATX power header,
JATX1 and comes with another two headers.
One is JATX2 with 6-pin Aux VccNcc3 ATX power supply header.
Another is JATX3 with 2X2-pin +12 VPC ATX power supply header.
Please make sure you plug in the right direction.
JATX3
JATX1JATX2
A traditional ATX system should remain at power off stage when AC power
resumes from power failure. In such case, if there is no an UPS to keep
power-on, the kind of design is inconvenient for a network server or workstation. However, this motherboard implements an AC Power Auto Recovery
function to solve this problem. You may enable the function ”PWRON After
PWR-Fail” that is under sub-menu of “Integrated Peripherals” through BIOS
setup program.
E8E7
Audio CD_in Headers (CDIN1 and CDIN 2)
Use the audio cable provided with CD-ROM/DVD ROM drive to join
audio connector on rear edge of CD-ROM/DVD ROM drive with one of
the two audio-in connectors CDIN1 and CDIN2 on the mainboard.
CDIN1
CDIN2
39
Wake_on Modem Connector (WOM 1)
SENSE
GND
5VSB
WOM1
SENSE
GND
5VSB
WOL1
E9
If a PCI modem card installed supports WOM function, please connect the
cable into WOM1 header on mainboard. When your system is in powersaving mode, a ny modem signal resumes system automatically. And you
also need to ena ble the function through " Power Management" of B IOS
setup program.
Pin definition
WOM1
Wake_on Lan Connector (WOL 1)
E10
If a la n card is installed, please connect the cable into WOL1 header on
mainboard. While your system is in power-saving mode, any lan signal resumes system a utomatically. And you a lso need to enable the function
through "Power Management" of BIOS setup program.
P.S.: Lan card supports wake-on-lan feature is necessary.
Pin definition
WOL1
40
E11
1
1
Dual USB Ports Header (USB2)
This motherboard provides 4 USB headers to connect USB devices, such as
mouse, keyboard, modem, printer, etc. There are two connectors on the
PC99 back panel. You can use proper cable to connect others USB connectors to the back plane or front panel of chassis.
Over current sensor
USB+
USB-
Power
IR Connector (JIR 1)
E12
If you have an Infrared device, this mainboard can implement IR transfer function. Please follow below procedure to enable IR transfer function.
IR receiver
KEY
Protection key
GroundGround
USB+
USBPower
IR transmit
+5VGround
CIR receive
1
JIR1
1
USB2
1
1
Step 1. Attach the 5-pin infrared device cable to JIR1 connector.
(Refer to above diagram for IR pin assignment.)
Step 2. Configure the Infrared transfer mode through the option "UART
Mode Select" in field "Integrated peripherals" through BIOS setup
program. This mainboard supports Standard, IRDA, ASKIR transfer
modes.
41
4 SOFTWARE UTILITY
4.1 AT31 Mainboard CD Overview
Note: The CD contents attached in the AT31 mainboard are subject to
change without notice.
To start your mainboard CD, just insert it into your CD-ROM drive, and the
CD AutoRun screen should appear. If the AutoRun screen does not appear,
double click or run D:\Autorun.exe (assuming that your CD-ROM drive is
drive D:)
Navigation Bar Description:
F
Install Mainboard Software - Mainboard Driver/Software Installation
F
Install Audio Device Software - Audio Driver Installation
F
Manual - AT31 Mainboard user’s manual on PDF format.
F
Link to Shuttle Homepage - Link to shuttle website homepage.
F
Browse this CD - Allows you to see contents of this CD.
F
Quit - Close this CD.
42
4.2. Install Chipset System Driver
Select using your pointing device (e.g. mouse) on the “Install Mainboard
software” bar to install chipset system driver.
Once you made your selection, a Setup window runs the installation automatically.
When the copying files is done, make sure you reboot the system to take the
installation effect.
Note: When the Windows 98/95 first reboot after Intel Chipset System drivers
installed, some new hardware devices will be found and added. For those
new hardware devices, related software driver will be searched for installing.
The user may find the software drivers retain on directory C:\windows\system
if some of software drivers could not be found during searching.
43
4.3 Install AC97 Audio Driver
Select using your pointing device (e.g. mouse) on the “Install Audio Device
Software” bar to install AC97 audio driver.
Once you made your selection, a Setup window runs the installation automatically.
When the copying files is done, make sure you reboot the system to take the
installation effect.
44
4.4 View User’s Manual
Insert the attached CD into your CD-ROM drive, and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.
Use your pointing device (e.g. mouse) to select “Manual” bar.
Then On-line Information window will appear on your screen. Click on the
“Install Acrobe Reader” bar if you need to install acrobe reader.
Then click on "AT31 Manual" bar to view user's manual.
45
5 BIOS SETUP
AT31 BIOS ROM has a built-in Setup program that allows users to modify the
basic system configuration. This information is stored
in battery-backed RAM so that it retains the Setup information even if the
system power is turned off.
The system BIOS is managing and executing a variety of hardware related
functions in the system, including:
System date and time
Hardware execution sequence
Power management functions
Allocation of system resources
5.1 Enter the BIOS
To enter the BIOS (Basic Input / Output System) utility, follow these steps:
Step 1.Power on the computer, and the system will perform its
POST (Power-On Self Test) routine checks.
Step 2.Press <Del> key immediately, or at the following message:
“Press DEL to enter SETUP”
,or simultaneously press <Ctrl>, <Alt>, <Esc> keys
Note 1. If you miss trains of words mentioned in step2 (the message
disappears before you can respond) and you still wish to enter
BIOSSetup, restart the system and try again by turning the com
puter OFF and ON again or by pressing the <RESET> switch
located at the computer’s front-panel. You may also reboot by
simultaneously pressing the <Ctrl>, <Alt>, <Del> keys.
Note 2. If you do not press the keys in time and system does not boot, the
screen will prompt an error message, and you will be given the
following options:
“Press F1 to Continue, DEL to Enter Setup”
Step 3.As you enter the BIOS program, the CMOS Setup Utility will
prompt you the Main Menu, as shown in the next section.
46
5.2 The M ain Menu
Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.
Note that a brief description of each highlighted selection appears at the
bottom of the screen.
Setup Items
The main menu includes the following main setup categories. Recall
that some systems may not include all entries.
Standard CMOS Features
Use this menu for basic system configuration.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system's performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
47
Power Management Setup
Use this menu to specify your settings for power management.
PnP / PCI Configuration
This entry appears if your system supports PnP / PCI.
PC Health Status
This entry shows the current system temperature, Voltage, and FAN
speed.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Load Fail-Safe Defaults
Fail-safe defaults load no great demands on system and are generally
stable settings. However, you can change the parameter through each
Setup Menu.
Load Optimized Defaults
To load the Turbo defaults is required by the power users who want to
push the limitation of system performance by overclocking. Before you
use this function, make sure you fully understand the items in Chipset
Setup menu and the components (CPU, DRAM, HDD, etc.) of your
system are good enough for optimized setting.
Set Supervisor Password
Change, set, or disable supervisor password. It allows you to limit
access to the system and Setup, or only to Setup.
Set User Password
Change, set, or disable user password. It allows you to limit access to
the system and Setup, or only to Setup.
Save & Exit Setup
Save CMOS values changed to CMOS and exit from BIOS setup.
Exit Without Saving
Abandon all CMOS values changed and exit from BIOS setup.
48
@
Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items.
Use the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.
Date
<mm> <dd> <yy>
Set system date. Please be noted that once you set “Date” , it just takes
effect auto matically.
Time
<hh : mm : ss>
The time is converted based on the 24-hour military-time clock. For
example, 5 p.m. is 17:00:00.
IDE Primary Master
Options are in its sub-menu.
Press <Enter> to enter sub-menu for detailed options.
IDE Primary Slave
Options are in its sub-menu.
Press <Enter> to enter sub-menu for detailed options.
49
IDE Secondary Master
Options are in its sub-menu.
Press <Enter> to enter sub-menu for detailed options.
IDE Secondary Slave
Options are in its sub menu.
Press <Enter> to enter sub-menu for detailed options.
Drive A/Drive B
Select type of floppy disk drive installed in your system.
Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,
1.44M, 3.5 in, or 2.88M, 3.5 in.
Floppy 3 Mode Support
Floppy 3 mode refers to a 3.5-inch diskette with a capacity of 1.2 MB.
Floppy 3 mode is sometimes used in Japan.
Video
Select the default video device.
Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO.
Halt On
Select the situation in which you want the BIOS to stop the POST
process and notify you.
Ø The choice: All Errors, No Errors, All, But Keyboard, All, But
Diskette, or All, But Disk/Key.
Base Memory
Displays the amount of conventional memory detected during boot up.
Ø The choice: N/A.
Extended Memory
The BIOS determines how much extended memory is present during
the POST. This is the amount of memory located above 1MB in the
CPU's memory address map.
50
@
Ad vanced BIOS Features
This section allows you to configure your system for basic operation.
You have the opportunity to select the system's default speed, boot-up
sequence, keyboard operation, shadowing, and security.
Virus Warning
When enabled, this item provides protection against viruses that try to
write to the boot sector and partition table of your hard disk drive. You
need to disable this item when installing an operating system. We
recommend that you enable anti-virus protection as soon as you have
installed an operating system.
Ø The choice: Enabled or Disabled.
CPU L1 & L2 Cache
All processors that can be installed in this mainboard use internal level
1 (L1) and external level 2 (L2) cache memory to improve performance.
Leave this item at the default value for better performance.
Ø The choice: Enabled or Disabled.
Quick Power On Self Test
Enable this item to shorten the power on testing (POST) and have your
system start up faster. You might like to enable this item after you are
confident that your system hardware is operating smoothly.
Ø The choice: Enabled, or Disabled.
51
First/Second/Third Boot Device
Use these three items to select the priority and order of the devices that
your system searches for an operating system at start-up time.
Ø The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1,
HDD-2, HDD-3, ZIP100, USB-FDD, USB-ZIP, USB-CDROM,
USB-HDD, LAN, or Disabled.
Boot Other Device
When enabled, the system searches all other possible locations for an
operating system if it fails to find one in the devices specified under the
first, second, and third boot devices.
Ø The choice: Enabled or Disabled.
Swap Floppy Drive
If you have two floppy diskette drives in your system, this item allows
you to swap the assigned drive letters so that drive A becomes drive B,
and drive B becomes drive A.
Ø The choice: Enabled or Disabled.
Boot Up Floppy Seek
If this item is enabled, it checks the size of the floppy disk drives at startup time. You don’t need to enable this item unless you have a legacy
diskette drive with 360K capacity.
Ø The choice: Enabled or Disabled.
Boot Up NumLock Status
This item defines if the keyboard Num Lock key is active when your
system is started.
Ø The choice: Off or On.
Gate A20 Option
This item defines how the system handles legacy software that was
written for an earlier generation of processors. Leave this item at the
default value.
Ø The choice: Normal, or Fast.
Typematic Rate Setting
If this item is enabled, you can use the following two items to set the
typematic rate and the typematic delay settings for your keyboard.
Ø The choice: Enabled or Disabled.
52
Typematic Rate (Chars/Sec)
Use this item to define how many characters per second are generated
by a held-down key.
Ø The choi ce: 6, 8, 10, 12, 15, 20, 24, or 30.
Typematic Delay (Msec)
Use this item to define how many milliseconds must elapse before a
held-down key begins generating repeat characters.
Ø The choice: 250, 500, 750, or 1000.
Security Option
If you have installed password protection, this item defines if the password is required at system start up, or if it is only required when a user
tries to enter the Setup Utility.
System The system will not boot and access to Setup will be
denied if the correct password is not entered promptly.
Setup The system will boot, but access to Setup will be
denied if the correct password is not entered promptly.
Ø The choice: System or Setup.
Note: To disabled security, select PASSWORD SETTING at Main
Menu, and then you will be asked to enter password. Do not
type anything and just press <Enter>; it will disable security.
Once the security is disabled, the system will boot, and you
can enter Setup freely.
OS Select For DRAM > 64MB
This item is only required if you have installed more than 64 MB of
memory and you are running the OS/2 operating system. Otherwise,
leave this item at the default.
Ø The choice: Non-OS2 or OS2.
HDD S.M.A.R.T Capability
The S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology)
system is a diagnostics technology that monitors and predicts device
performance. S.M.A.R.T. software resides on both the disk drive and the
host computer.
Ø The choice: Enabled or Disabled.
53
Report No FDD For Win 95
Set this item to the default if you are running a system with no floppy
drive and using Windows 95; this ensures compatibility with the Windows 95 logo certification.
Ø The choice: Yes or No.
Small Logo (EPA) Show
Enables or disables the display of the EPA logo during bootup.
Ø The choice: Enabled or Disabled.
54
@
Ad vanced Chipset Features
This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
ac cess to system memory resources, such as DRAM and the external
cache. It also c oordinates communications between the conventional
ISA bus and the PCI bus. It states that these items should never need to be
altered.
The default settings have been chosen because they provide the best
operating conditions for your system. If you discovered that data was
being lost while using your system, you might consider making any
changes.
RDRAM Bus Frequency
Sets the frontside bus bandwidth of the installed RDRAM. Leave this at
the default value.
Ø The choice: Auto or 400MHZ, 300MHZ.
DRAM Data Integrity Mode
Set this to ECC (error-correcting code) or non-ECC according to the type
of installed DRAM.
Ø The choice: Non-ECC or ECC.
55
System BIOS Cacheable
This item allows the system to be cached in memory for faster execution. Enable this item for better performance.
Ø The choice: Enabled or Disabled.
Video BIOS/RAM Cacheable
These items allow the video BIOS and RAM to be cached in memory
for faster execution. Enable these items for better performance.
Ø The Choice: Enabled or Disabled.
Del ayed Transaction
The chipset has an embedded 32-bit posted write buffer to support
delayed transactions cycles. Enable this item to support compliance
with PCI specification version 2.1.
Ø The Choice: Enabled or Disabled.
AGP Graphics Aperture Size (MB)
This item defines the size of the aperture if you use an AGP graphics
adapter. The AGP aperture refers to a section of the PCI memory address range used for graphics memory. We recommend that you leave
this item at the default value.
Ø The Choice: 4MB, 8MB, 16MB, 32MB, 64MB, 128MB, 256MB.
Delay Prior to Thermal
Enables you to set the delay time before the CPU enters auto thermal
mode.
Ø The Choice: 4 Min, 8 Min, 16 Min or 32 Min.
56
@
Integrated Perip herals
On-Chip Primary/Secondary PCI IDE
Use these items to enable or disable the PCI IDE channels that are
integrated on the mainboard.
Ø The choice: Enabled or Disabled.
IDE Primary/Secondary Master/Slave PIO
Each IDE channel supports a master device and a slave device. These
four items let you assign which kind of PIO (Programmed Input/Output)
is used by IDE devices. Choose Auto to let the system auto detect which
PIO mode is best, or select a PIO mode from 0-4.
Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.
57
IDE Primary/Secondary Master/Slave UDMA
Each IDE channel supports a master device and a slave device. This
mainboard supports UltraDMA technology, which provides faster
access to IDE devices.
If you install a device that supports UltraDMA, change the appropriate
item on this list to Auto. You may have to install the UltraDMA driver
supplied with this mainboard in order to use an UltraDMA device.
Ø The Choice: Auto or Disabled.
USB Controller
Enable this item if you plan to use the Universal Serial Bus ports on this
mainboard.
Ø The choice: Enabled or Disabled.
USB Keyboard Support
Enable this item if you plan to use a keyboard connected through the
USB port in a legacy operating system (such as DOS) that does not
support Plug and Play.
Ø The choice: Enabled or Disabled.
Init Display First
Use this item to specify whether your graphics adapter is installed in
one of the PCI slots or is integrated on the mainboard.
Ø The choice: PCI Slot or AGP .
AC97 Audio
Enables and disables the onboard audio chip. Disable this item if you
are going to install a PCI audio add-on card.
Ø The choice: Auto or Disabled.
AC97 Modem
Enables and disables the onboard modem. Disable this item if you are
going to install an external modem.
Ø The choice: Auto or Disabled.
IDE HDD Block Mode
Enable this field if your IDE hard drive supports block mode. Block
mode enables BIOS to automatically detect the optimal number of
block read and writes per sector that the drive can support and improves the speed of access to IDE devices.
Ø The choice: Enabled, or Disabled.
58
POWER ON Function
Enables you to set power on parameters. The default setting enables
you to use a hot key to turn on the system.
Ø The choice: Password, Hot KEY, Mouse Left, Mouse Right, Any KEY,
BUTTON ONLY, Keyboard 98.
KB Power ON Password
When the POWER ON Function is set to Password, use this item to set
the password.
Ø The choice: Enter password.
Hot Key Power ON
When the POWER ON Function is set to Hot KEY, use this item to set
the hot key combination that turns on the system.
Ø The choice: Ctrl-F1~Ctrl-F12.
Onboard Serial Port 1/Port 2
UART Mode Select
Onboard FDC Controller
This option enables the onboard floppy disk drive controller.
Ø The choice: Enabled, or Disabled.
This option is used to assign the I/O address and address and interrupt
request (IRQ) for onboard serial port 1(COM1)/port 2 (COM2).
Ø The choice: 3F8/IRQ4, 2F8/IRQ3, 3E8/IQ4, 2E8/IQ3, Auto or
Disabled.
This field is available if the Onboard Serial Port 2 field is set to any
option but Disabled. UART Mode Select enables you to select the
infrared communication protocol-Normal (default), IrDA, or ASKIR.
IrDA is an infrared communication protocol with a maximum baud rate
up to 115.2K bps. ASKIR is Sharp’s infrared communication protocol
with a maximum baud rate up to 57.6K bps.
Ø The choice: IrDA, ASKIR or Normal.
TxD, RxD Active
This item defines the voltage level for Infrared module RxD (receive)
mode and TxD (transmit) mode. This setting must match the requirements of the infrared module used in the system.
Ø The choice: Hi,Lo, Lo,Hi, Lo,Lo, or Hi, Hi.
59
IR Transmission Delay
When enabled, utilizes mainboard features to allow faster infrared
transmission rates.
Ø The choice: Enabled, or Disabled.
UR2 Duplex Mode
This field is available when UART 2 Mode is set to either ASKIR or
IrDA. This item enables you to determine the infrared (IR) function of
the onboard infrared chip. The options are Full and Half (default).
Full-duplex means that you can transmit and send information simultaneously. Half-duplex is the transmission of data in both directions, but
only one direction at a time.
Ø The choice: Half or Full.
Use IR Pins
This item selects Infrared module pin out.
Ø The choice:IR-Rx2Tx2, RxD2 or TxD2.
Onboard Parallel Port
This item allows you to determine onboard parallel port controller I/O
address setting.
Ø The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.
Parallel Port Mode
Enables you to set the data transfer protocol for your parallel port. There
are four options: SPP (Standard Parallel Port), EPP (Enhanced Parallel
Port), ECP (Extended Capabilities Port) and ECP+EPP.
SPP allows data output only. Extended Capabilities Port (ECP) and
Enhanced Parallel Port (EPP) are bi-directional modes, allowing both
data input and output. ECP and EPP modes are only supported with
EPP and ECP aware peripherals.
Ø The choice: SPP, EPP, ECP, or ECP+EPP.
ECP Mode Use DMA
Select a DMA channel for the parallel port for use during ECP mode.
Ø The choice: 1 or 3.
60
PWRON After PWR-Fail
Set this item to On to enable your computer to automatically restart after
a power failure. Set the item to Former-Sts to enable the computer to go
to it’s state before the power failure occurred.
Ø The choice: On, Off or Former-Sts.
Game Port Address
This item sets the I/O address for the game port.
Ø The choice: Disabled, 201or 209.
Midi Port Address
This item sets the I/O address for the Midi function.
Ø The choice: Disabled, 330, 300, or 290.
Midi Port IRQ
This item sets the interrupt request for the Midi function.
Ø The choice: 5 or 10.
61
@
Power Management Setup
The Power Management Setup allows you to configure your system to
most effectively saving energy while operating in a manner consistent
with your own style of computer use.
ACPI Function
This mainboard supports ACPI (Advanced Configuration and Power
management Interface). Use this item to enable or disable the ACPI
feature.
Note: ACPI is a power management specification that makes hardware status information available to the operating system. ACPI enables
a PC to turn its peripherals on and off for improved power management. It also allows the PC to be turned on and off by external devices,
so that mouse or keyboard activity wakes up the computer.
Ø The choice: Enabled or Disabled.
ACPI Suspend Type
Use this item to define how your system suspends. In the default,
S1(POS), the suspend mode is equivalent to a software power down. If
you select S3 (STR), the suspend mode is a suspend to RAM - the system shuts down with the exception of a refresh current to the system
memory.
Ø The choice: S1(POS) or S3(STR).
62
Power Management
This item acts like a master switch for the power-saving modes and hard
disk timeouts. If this item is set to Max Saving, power-saving modes
occur after a short timeout. If this item is set to Min Saving, power-saving
modes occur after a longer timeout. If the item is set to User Define, you
can insert your own timeouts for the power-saving modes.
Min Saving Minimum power management.
Suspend Mode= Allows you to set each mode individually.
HDD Power Down=15min.
Max Saving Maximum power management.
Suspend Mode=Allows you to set each mode individually.
HDD Power Down=1min.
User Defined Allows you to set each mode individually. When this
item not disabled, each of the ranges are from 1 min. to 1 hr. except for
HDD Power Down which ranges from 1 min. to 15 min. and disable.
Ø The choice: User Define, Min Saving, or Max Saving.
Video Off Method
This item defines how the video is powered down to save power. This
item is set to DPMS (Display Power Management Software) by default.
V/H SYNC+Blank This selection will cause the system to turn
off the vertical and horizontal synchronization ports and write blanks
to the video buffer.
Blank Screen This option only writes blanks to the video buffer.
DPMS Initial display power management signaling.
Ø The choice:Blank Screen, V/H SYNC+Blank, or DPMS.
Video Off In Suspend
This option defines if the video is powered down when the system is
put into suspend mode.
Ø The choice: Yes or No.
Suspend Type
If this item is set to the default Stop Grant, the CPU will go into Idle
Mode during power saving mode.
Ø The choice: PwrOn Suspend, Stop Grant.
63
MODEM Use IRQ
If you want an incoming call on a modem to automatically resume the
system from a power-saving mode, use this item to specify the interrupt
request line (IRQ) that is used by the modem. You might have to connect the fax/modem to the mainboard Wake On Modem connector for
this feature to work.
Ø The choice: 3, 4, 5, 7, 9, 10, 11, or NA.
Suspend Mode
The CPU clock will be stopped and the video signal will be suspended
if no Power Management events occur for a specified length of time.
Full power function will return when a Power Management event is
detected.
Ø The choice: 1Min to 1Hour, or Disabled.
HDD Power Down
The IDE hard drive will spin down if it is not accessed within a specified
length of time.
Ø The choice: 1Min to 15Min, or Disabled.
Soft-Off by PWR-BTTN
Under ACPI (Advanced Configuration and Power management Interface) you can create a software power down. In a software power
down, the system can be resumed by Wake Up Alarms. This item lets
you install a software power down that is controlled by the normal
power button on your system. If the item is set to Instant-Off, then the
power button causes a software power down. If the item is set to Delay
4 Sec. then you have to hold the power button down for four seconds
to cause a software power down.
Ø The choice: Instant-Off or Delay 4 Sec.
Wake-Up by PCI Card
When this item is enabled, the system power will be turned on if there is
any PCI card activity.
Ø The choice: Enabled or Disabled.
64
Power On by Ring
If this item is enabled, it allows the system to resume from a software
power down or a power-saving mode whenever there is an incoming
call to an installed fax/modem. You have to connect the fax/modem to
a mainboard Wake On Modem connector for this feature to work.
Ø The choice: Enabled or Disabled.
Wake Up On LAN
When set to Enabled, the system power will be turned on if the LAN
port receives an incoming signal. You have to connect the fax/modem
to a mainboard Wake On LAN connector for this feature to work.
Ø The choice: Enabled or Disabled.
USB KB Wake-Up S3
If you are using a USB keyboard, and the ACPI suspend type is set to
S3, you can enable this item to allow a keystroke to wake up the system
from power saving mode.
Ø The choice: Enabled or Disabled.
Resume by Alarm
When set to Enabled, the following two fields become available and
you can set the date (day of the month), hour, minute and second to
turn on your system. When set to 0 (zero) for the day of the month, the
alarm will power on your system every day at the specified time.
Ø The choice: Enabled or Disabled.
** Reload Global Timer Events **
Global Timer (power management) events are I/O events whose occurrence can prevent the system from entering a power saving mode or
can awaken the system from such a mode. In effect, the system remains
alert for anything that occurs to a device that is configured as Enabled,
even when the system is in a power-down mode.
Primary/Secondary IDE 0/1
When these items are enabled, the system will restart the power-saving
timeout counters when any activity is detected on any of the drives or
devices on the primary or secondary IDE channels.
Ø The choice: Enabled or Disabled.
65
FDD, COM, LPT Port
When this item is enabled, the system will restart the power-saving
timeout counters when any activity is detected on the floppy disk drive,
serial ports, or the parallel port.
Ø The choice: Enabled or Disabled.
PCI PIRQ[A-D]#
When disabled, any PCI device set as the Master will not power on the
system.
Ø The choice: Enabled or Disabled.
66
@
PnP/PCI Con figurations
This section describes the configuration of PCI bus system. PCI or
Personal Computer Interconnection is a system which allows I/O
devices to operate at the speed CPU itself keeps when CPU
communicating with its own special components.
This section covers some very technical items, and it is strongly
recommended that only experienced users should make any
changes to the default settings.
Reset Configuration Data
If you enable this item and restart the system, any Plug and Play configuration data stored in the BIOS setup is cleared from memory.
New updated data is created.
Ø The choice: Enabled or Disabled .
Resource controlled By
You should leave this item at the default Auto(ESCD). Under this setting,
the system dynamically allocates resources to plug and play devices as
they are required.
If you cannot get a legacy ISA (Industry Standard Architecture) expansion card to work properly, you might be able to solve the problem by
changing this item to Manual, and then opening up the IRQ Resources
and Memory Resources sub-menus.
67
In the IRQ Resources sub-menu, if you change any of the IRQ assignations to Legacy ISA, then that Interrupt Request Line is reserved for a
legacy ISA expansion card. Press <Esc> to close the IRQ Resources
sub-menu.
In the Memory Resources sub menu, use the first item Reserved
Memory Base to set the start address of the memory you want to reserve
for the ISA expansion card. Use the second item Reserved Memory
Length to set the amount of reserved memory. Press <Esc> to close
the Memory Resources sub-menu.
Ø The choice: Auto(ESCD) or Manual.
PCI/VGA Palette Snoop
This item is designed to overcome some problems that can be caused
by some non-standard VGA cards. This board includes a built-in VGA
system that does not require palette snooping so you must leave this
item disabled.
Ø The choice: Enabled or Disabled.
INT Pin1~8 Assignment
Names the interrupt request (IRQ) line assigned to a device connected
to the PCI interface on your system.
Ø The choice: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15
68
@
PC Health Status
CPU Warning Temperature
Enables you to set the maximum temperature the system can reach
before warning you of an over-temperature condition.
Ø The choice: 30~120
System Component Characteristics
These fields provide you with information about the systems current
operating status. You cannot make changes to these fields.
Characteristics contains as below:
CPU temperature, system temperature,
FAN speed of CPU, system and power.
system voltages:INO/1/2(V), +5V, -5V, +12V, -12V, VBAT(V), 5VSB(V)
Shutdown Temperature
Enables you to set the maximum temperature the system can reach
before powering down.
Ø The choice: Disabled, 60°C/140°F, 65°C/149°F, 70°C/158°F, or
75°C/167°F.
69
@
Freq uency/Vo ltag e Control
CPU Clock Ratio
Enables you to set the CPU clock. The CPU clock ratio times the CPU
Host/PCI Clock should equal the core speed of the installed processor.
Example:
CPU Clock Ratio 9
CPU Host/PCI Clock x 100
Installed CPU clock speed 900 MHz
Ø The choice: Default or x9~x23.
Auto Detect PCI Clk
When this item is enabled, BIOS will disable the clock signal of free
DIMM and PCI slots.
Ø The choice: Enabled or Disabled.
Spread Spectrum
If you enable spread spectrum, it can significantly reduce the EMI
(Electro-Magnetic Interference) generated by the system.
Ø The choice: Enabled or Disabled.
70
CPU Host/PCI Clock
Use the CPU Host Clock to set the frontside bus frequency for the
installed processor.
Ø The choice: Default, 100/33MHZ, 105/35MHZ, 110/37MHZ,
115/38MHZ, 120/40MHZ,125/42MHZ, 130/43MHZ, 133/33MHZ,
136/34MHZ, 140/35MHZ, 145/36MHZ, 150/38MHZ, 154/39MHZ.
@
@
Load Fail-Safe Defaults
When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:
Load Fail-Safe Defaults (Y/N) ? N
Pressing 'Y' loads the BIOS default values for the most stable,
minimal performance system operations.
Load Optimized Defaults
When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:
Load Optimized Defaults (Y/N) ? N
Pressing 'Y' loads the default values that are factory-set for optimal
performance system operation.
71
@
Set Password Setting
Set Supervisor/User Password
The options on the Password screen menu make it possible to restrict
access to the Setup program by enabling you to set password.
Enter Password
Type the password up to eight characters, and press <Enter>. The
password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press <Enter>. You may also press <Esc> to
abort the selection and not enter a password.
To disable password, just press <Enter> when you are prompted to
enter password. A message will confirm the password being disabled.
Once the password is disabled, the system will boot and you can enter
Setup freely.
Password Disable
If you select System at Security Option of BIOS Features Setup Menu,
you will be prompted in entering the password whenever the system is
rebooted or you try to enter Setup. If you select Setup at Security Option of BIOS Features Setup Menu, you will be prompted only when
you try to enter Setup.
72
@
Save & Exit Setup
@
Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Save to CMOS and EXIT (Y/N)? Y
Pressing "Y" stores the selections made in the menus of CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit from Setup without storing in CMOS any
change. The previous selections remain in effect. This exits from the
Setup utility and restarts your computer.
73
Loading...
