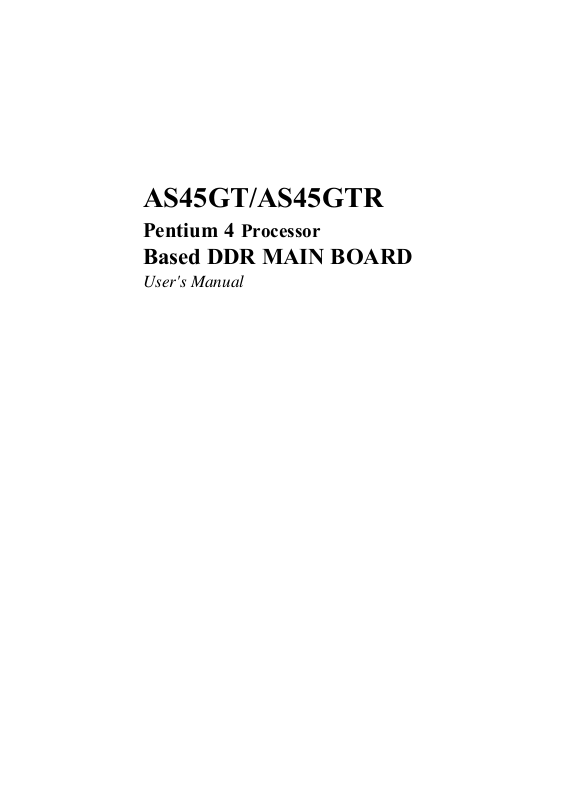

Shuttle AS45 User Manual

AS45GT/AS45GTR

User's Manual

Pentium 4 Processor

Based DDR MAIN BOARD

Shuttle® AS45GT/AS45GTR

Pentium 4 , 478-pin processor based DDR/SDR Mainboard
Manual Version 1.0

Copyright

Copyright© 2002 by Shuttle® Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle® Inc.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.

This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.
SIS is a registered trademark of SIS Corporation.
AMD, Athlon, and Duron are registered trademarks of AMD Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.

M600

TABLE OF CONTENTS

WHAT's IN THE MANUAL .................................................................... 5

Quick Reference ............................................................................................... 5

About This Manual ........................................................................................... 5

1 INTRODUCTION ................................................................................ 6

1.1 TO DIFFERENT USERS ............................................................................. 6

First-Time DIY System Builder ................................................................. 6

Experienced DIY User ............................................................................. 6

System Integrator..................................................................................... 6

1.2 ITEM CHECKLIST ....................................................................................... 7

2 FEATURES ........................................................................................ 9

2.1 SPECIFICATIONS ....................................................................................... 9

3 HARDWARE INSTALLATION .......................................................... 12

3.1 STEP-BY-STEP INSTALLATION .............................................................. 12

STEP 1 Install the CPU.......................................................................... 13

STEP 2 Set Jumpers............................................................................. 15

STEP 3 Install DDR SDRAM System Memory........................................ 15

STEP 4 Install Internal Peripherals in System Case ................................ 16

STEP 5 Mount the Mainboard on the Computer Chassis........................ 17

STEP 6 Connect Front-panel Switches/LEDs/Speaker/USB.................. 18

STEP 7 Connect IDE, IDE RAID / Serial ATA (AS45GTR only) and Floppy

Disk Drives............................................................................................ 19

STEP 8 Connect Other Internal Peripherals............................................ 20

STEP 9 Connect Power Supply ............................................................. 20

STEP 10 Install Add-on Cards in Expansion Slots.................................. 21

STEP 11 Connect External Peripherals to Back-panel ........................... 21

STEP 12 First Time System Boot Up..................................................... 22

STEP 13 Install Driver & Software Components..................................... 23

- 1 -

3.2 JUMPER SETTINGS ................................................................................. 25

JUMPER & CONNECTOR GUIDE......................................................... 26

Jumpers

Clear CMOS (JP1) ................................................................................ 29

BIOS Write protection (JP3)................................................................... 30

Back-Panel Connectors

PS/2 Keyboard & PS/2 Mouse Connectors............................................ 31

USB1/USB2 Port Connectors................................................................ 31

COM1/2 Connector................................................................................ 31

Parallel Port Connector.......................................................................... 31

Line-Out (Front-Out) Port Connector....................................................... 32

Line-In (Rear-Out) Port Connector.......................................................... 32

Mic-In Port Connector ............................................................................ 32

MIDI/GAME Port Connector ................................................................... 32

Front-Panel Connectors

ATX Power On/Off Switch Connector (Power ON) .................................. 33

EPMI Connector (EPMI)......................................................................... 33

HDD LED Connector (HDD LED).......................................................... 34

Green LED / Power LED Connector (GLED/PLED)............................... 34

Power LED Connector (Power LED) ..................................................... 35

Hardware Reset Connector (Reset) ....................................................... 35

Speaker Connector (SPEAKER) ........................................................... 35

Reset Botton and Power Botton ............................................................. 36

ATX_LED, DRAM_LED, IDE_LED, Green_LED and Power_LED ........ 36

Internal Peripherals Connectors

Enhanced IDE, IDE RAID (AS45GTR only) and Floppy Connector ......... 37

- 2 -

Other Connectors

ATX Power Supply Connector (ATXPWR, AUXPWR AND ATX12V)...... 38

CPU, Chipset and Chassis Fan Connector(FAN1,2,3) ........................... 39

IR Connector (JP7) ................................................................................ 39

Wake-On-LAN (JP6).............................................................................. 40

Audio Connector CD_In (CN9/CN10) .................................................... 40

Audio Connector AUX_In (CN11)........................................................... 41

Audio Bass/Center_Out Header (CN7) ................................................. 41

SPDIF Ext. Headers (JP28)................................................................... 41

Front-Panel Microphone and Line_out Header (JP29) ........................... 42

Front-Panel 1394 Headers (JP21/JP22/JP23)....................................... 42

Extended two USB Headers (JP4/JP5).................................................. 43

3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 44

Install Memory........................................................................................ 44

Upgrade Memory................................................................................... 44

4 SOFTWARE UTILITY ...................................................................... 45

4.1 Mainboard CD Overview ......................................................................... 45

4.2 Install Mainboard Software ..................................................................... 46

4.2.A Install Mainboard Software............................................................ 47

4.2.B Install Audio Device Driver............................................................ 48

4.2.C Install Highpoint RAID Driver and Utility (AS45GTR only)............... 49

4.3 View the User's Manual ........................................................................... 50

5 BIOS SETUP ................................................................................... 51

5.1 ENTER THE BIOS ..................................................................................... 51

5.2 THE MAIN MENU ...................................................................................... 52

- 3 -

STANDARD CMOS FEATURES ............................................................... 54

ADVANCED BIOS FEATURES ................................................................. 57

ADVANCED CHIPSET FEATURES .......................................................... 61

INTEGRATED PERIPHERALS .................................................................. 63

POWER MANAGEMENT SETUP.............................................................. 67

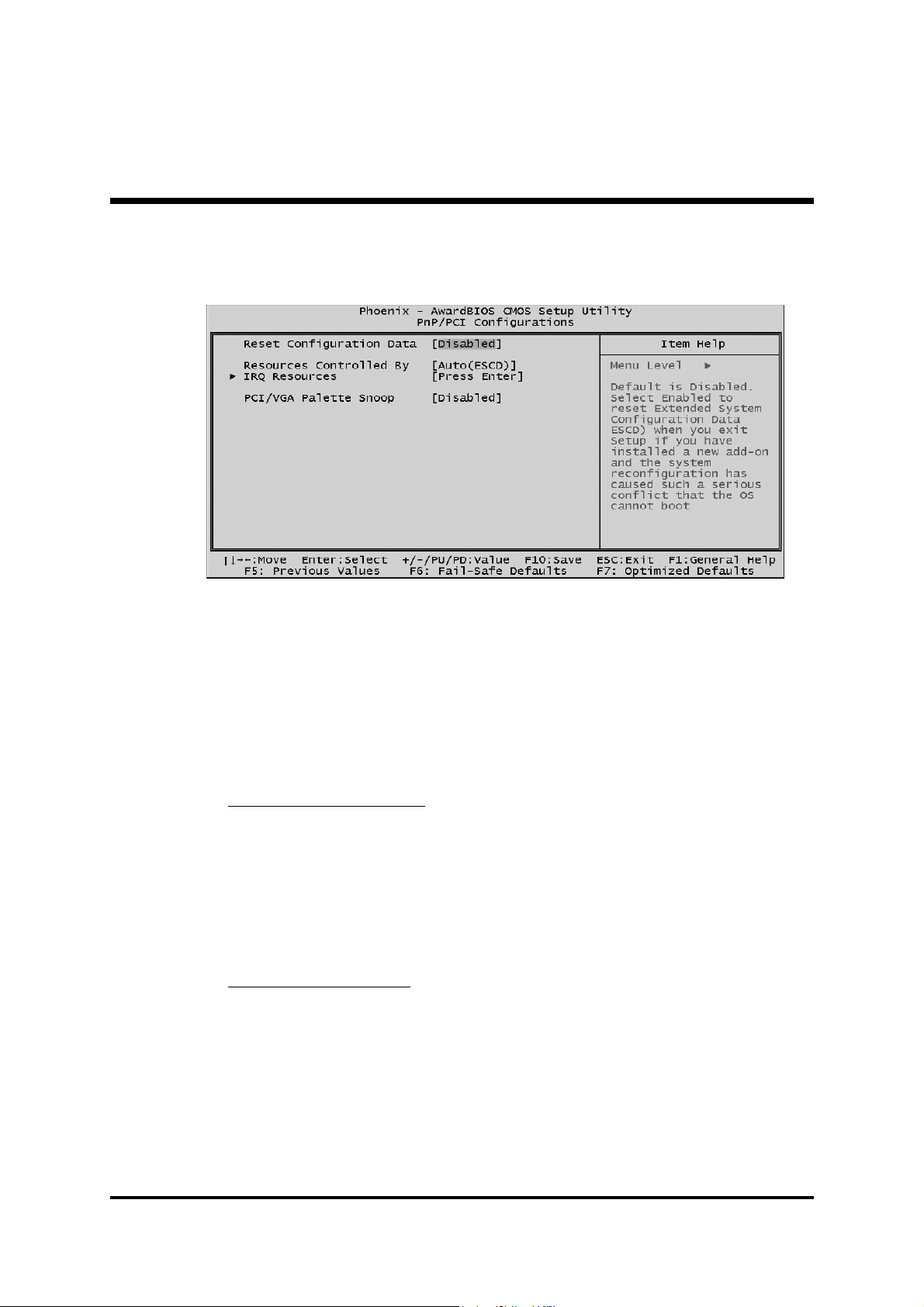

PNP/PCI CONFIGURATION....................................................................... 72

PC HEALTH STATUS................................................................................ 74

FREQUENCY/VOLTAGE CONTROL ......................................................... 75

LOAD FAIL-SAFE DEFAULTS .................................................................. 77

LOAD OPTIMIZED DEFAULTS ................................................................. 77

SET PASSWORD ..................................................................................... 78

SAVE & EXIT SETUP................................................................................ 79

EXIT WITHOUT SAVING ............................................................................ 79

- 4 -

WHAT's IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................ Page 12

Jumper Settings >> A Closer Look ...................................................... Page 25

Software Utility >> How to Install.......................................................... Page 45

BIOS Setup >> How to Configure ......................................................... Page 51

About This Manual

For First-Time DIY System Builder .........................................................Page 6

For Experienced DIY User's ................................................................... Page 6

For System Integrator ............................................................................. Page 6

- 5 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience
successful, right from the start, we have designed the
Installation
builders. Prior to installation, we also suggest you to read the whole manual
carefully to gain a complete understanding of your new Shuttle AS45GT/
AS45GTR mainboard.

Experienced DIY User

Congratulate on your purchase of the Shuttle AS45GT/AS45GTR mainboard.
You will find that installing your new Shuttle AS45GT/AS45GTR mainboard is
just easy. Bundled with an array of onboard functions, the highly-integrated
AS45GT/AS45GTR mainboard provides you with a total solution to build the
most stable and reliable system. Refer to sections
Chapter 4 Software Utility
mainboard.
on how to tune up your system to achieve higher performance.

section in a step-by-step fashion for all the first-time DIY system

Chapter 5 BIOS Setup

Chapter 3 Hardware

3.2 Jumper Settings

to find out how to get the best out of your new

also contains the relevant information

and

System Integrator

You have wisely chosen Shuttle AS45GT/AS45GTR to construct your system.
Shuttle AS45GT/AS45GTR incorporates all the state-of-the-art technology of the
SiS 648 chipset from SiS. It integrates the most advanced functions you can
find to date in a compact ATX board. Refer to sections
and

Chapter 4 Software Utility

This manual adopted in AS45GT and AS45GTR mainboards at the same
time. The difference between AS45GT and AS45GTR is that AS45GTR
equips with onboard IDE RAID Controller. In the manual, if there are some
standards, characters, equipment or software only appeared or adopted by
AS45GTR; it will be mentioned.

for an in-depth view of system construction.

(AS45GTR only)

3.2 Jumper Settings

- 6 -

1.2 Item Checklist

3

Gree

Check all items with you AS45GT/AS45GTR mainboard to make sure noth­ing is missing. The complete package should include:

 One piece of Shuttle AS45GT/AS45GTR Mainboard

 One piece of Audio Cable (Center/Bass Channel)

 One piece of twin ports 1394 Cable

 One piece of ATA

133/100/66133/100/66

133/100/66 Ribbon Cable

133/100/66133/100/66

U

G

S

K

A

R

1

C

F

N

ro

C
CN

7

n

D
1

t

-I

J

0

A

N

1

P

ud

1

29

i
o

CD-IN

CN 9

J

SP

CN 11

P

D

2

IF

1

8

E
x

AUX_IN

t.

P

PC

1

C

P

P

I1

J

I4

C

C

P

P 4

I3

I2

CI

U

5

S
B 3
&4

J

1
P 5
U
SB
5&
6

J
P 2
3

Po
rt3

1
J
P 2
2
P
or

139

t2

4

1

JP
21

P
ort1

1

1
J

W

P

O

R

6

L

A

R

ID

AI

B

2

D

IOS

1

0136

KDN-

25.00
JP2

4350H

0MHz
C

1

1

++++----

A

1
G
P_
FA
N

3
V

C

SO

R

01

38

A

01

5

JA

N

20

HT

P3

72

PA

Y

3

Hig

hP

oin

t

N

2

1

1
J

CM

P 1

O
S

0

E

C

S

22

M

0

A

S

96

i

EA

16

IS

3

S

A

42

'0

1

2

1

JP 3

M

0

I

2B

21

T87

9S

1-F

05

0

XS

F

1

JP
7
IR

1

1

HDDLED

EPMIRSTSPEAKER

+++

---

J
P

1

18

nLED

PowerONPowerLEDKEY-LOCK

BM

M

J1

C

S

E

OM

1

1

C

P

1

O

R

M

IN

2

T
1

C
PU
_
FA

E

C

N

1

S

02

M
2

D

6
0

1

S

4

i

B

6

IS

8
A

0

'0

S

2

2

J

A

P

1

16
A
TX
12
V

DIMM1

AT

DIMM2

XP
W

DIMM

R

ID
E
2

AUX PW

ID
E1

FD
C

1

 One piece of Floppy Ribbon Cable

 One piece of twin ports USB Cable

(optional)(optional)

(optional)

(optional)(optional)

 One piece of Serial ATA Cable(AS45GTR Only)

SERIAL

ATA

O
S
V

- 7 -

- AS45GT/AS45GTR User's Manual

- One piece of Bundled CD-ROM with containing:
Ø AS45GT/AS45GTR user's manual saved in PDF format
Ø IDE RAID user's manual saved in PDF format

Ø SiS AGP driver
Ø SiS IDE driver
Ø AC97 CODEC Audio driver
Ø IDE RAID driver and Utility
Ø Award Flashing Utility

(AS45GTR only)

(AS45GTR only)

- 8 -

2 FEATURES

AS45GT/AS45GTR mainboard is carefully designed for the demanding PC user who
wants high performance and maximum intelligent features in a compact package.

2.1 Specifications

-

CPU Support

Intel Pentium 4/Celeron, 478-pin processors with 400/533 MHz FSB.

-

Chipset

Features SiS 648 Chipset.
SiS 648, Integrated high performance DDR DRAM controller.

-

CPU FSB Configuration

Soft-configuration FSB (The FSB speed is software configurable in the CPU/
PnP Setup of BIOS setup program.)

-

AC'97 Link for Audio and Telephony CODEC

AC'97 2.2 compliant.
Spread independent PCI functions for Audio .
6 Channel Support.

-

On Board RAID Controller (AS45GTR only)

ATA133 RAID Support Raid 0, Support Raid 1, Support 0+1.
Serial ATA RAID Support Raid 0, Support Raid1.

-

Versatile Memory Support

Three
PC2700 compliant

-

PCI Expansion Slots

Provides five 32-bit PCI slots.

-

AGP Expansion Slot

Provides one 32-bit AGP slot which support 4X/8X AGP device.

-

6 USB 2.0 Supported Onboard

184-pin DIMM

DDR

slots to support up to 3GB of PC1600, PC2100, or

SDRAM module.

Ø 2 x USB connectors on back-panel and one 10-pin headers for optional

USB cable to extend another 4 USB ports .

- 9 -

-

I/O Interface

Provides a variety of I/O interfaces:
Ø 1 x Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB

format or for 5.25-inch FDD with 360K or 1.2MB format.

Ø 1 x PS/2 mouse connector.
Ø 1 x PS/2 Keyboard connector.
Ø 2 x DB9 Serial connectors 16550 UART compatible.
Ø 1 x Infrared communication port.

(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)

Ø 1 x DB25 Parallel port supporting Standard Parallel Port (SPP),

Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.

Ø 1 x Line-Out port.
Ø 1 x Line-In port / share with rear speaker out.
Ø 1 x Mic-In port.
Ø 1 x MIDI/GAME port.

-

PCI Bus Master IDE Controller Onboard

Two UltraDMA
port to a maximum of four IDE devices (one Master and one Slave per channel).
The IDE Bus implements the data transfer speed up to
and also supports Enhanced PIO Modes.

80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CD­ROM, CD-R, CD-RW, and LS-120 Supports.

-

ATX Power Supply Connector

ATX power supply unit can connected to the onboard 20-pin Pentium 4
standard ATX power connectors, supporting Suspend and Soft-On/Off by
dual-function power button.

-

Advanced Configuration and Power Interface

Features four power saving modes: Snoop, Suspend to RAM, Suspend to
Disk, and Soft-Off. ACPI provides more efficient Energy Savings Features
controlled by your operating system that supports OS Direct Power Manage­ment (OSPM) functionality.

133/100/66

Bus Master Dual-channel IDE ports provide sup-

133/100/66

MB/sec

- 10 -

-

System BIOS

Provides licensed Award BIOS V6.0 PG on 2Mb Flash EEPROM and
supports Green PC, Desktop Management Interface (DMI).

-

ATX Form Factor

System board conforms to the ATX specification.
Board dimension: 305mm x 244mm.

-

Advanced Features

Ø

Dual Function Power Button ­one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters the Soft-Off mode.

Ø

Wake-on-LAN (WOL) ­to a network card that supports this function to wake up the system via
LAN.

Ø

Modem Ring Power-On
by the activation of modem ring.

Ø

CPU/DRAM Speed­in BIOS.

The onboard WOL connector can be attached

- The system can be powered on automatically

This item allows users to adjust CPU/DRAM Speed

The system can be in one of two states;

Ø

CPU Ratio-

Ø

Voltage Overclocking­Voltage settings.

Ø

AGP Protect-

-

Intelligent Features

Ø

Voltage Monitoring ­the CPU, and other critical system voltage levels to ensure stable current
passing through mainboard components.

Ø

Fan Status Monitoring
monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is
required.)

Ø

Temperature Monitoring
the CPU or system runs in a suitable temperature.

This item allows users to adjust CPU ratio in BIOS.

This items allows users to adjust CPU /DDR/ AGP

This item allows users to adjust AGP Card burn-out protect.

Monitors various voltages of key elements, such as

- To prevent CPU from overheating, the CPU fan is

- This item allows users to make sure whether

- 11 -

3 HARDWARE INST ALLATION

C

KDN-4350HC

Before removing or installing any of these devices including CPU, DIMMs,Before removing or installing any of these devices including CPU, DIMMs,

Before removing or installing any of these devices including CPU, DIMMs,

Before removing or installing any of these devices including CPU, DIMMs,Before removing or installing any of these devices including CPU, DIMMs,
Add-On Cards, Cables, please make sure to unplug the onboard power con-Add-On Cards, Cables, please make sure to unplug the onboard power con-

Add-On Cards, Cables, please make sure to unplug the onboard power con-

Add-On Cards, Cables, please make sure to unplug the onboard power con-Add-On Cards, Cables, please make sure to unplug the onboard power con­nector.nector.

nector.

nector.nector.

This section outlines how to install and configure your AS45GT/AS45GTR mainboard.
Refer to the following mainboard layout to help you identify various jumpers, connectors,
slots, and ports. Then follow these steps to guide you through a quick and correct instal­lation of your system.

3.1 Step-by-Step Installation

Accessories Of AS45GT/AS45GTR

1

JP 5USB 5&6

JP 23 Port3

AGP FAN

1
AGP_ FA N

1

1

CPU_FAN

SiS

648

C

SIS' 02

EMD1602

0220B A

1394

1

Port2JP 22 Port11JP 21

SOCKET 478

PS/ 2 Keyboar d an d
PS/ 2 Mouse Conn ectors

USB Connector

Ser ial Por t
Con nector (COM 1)

Para llel Conne ctor

Ser ial Por t
Con nector (COM 2)

Lin e-Out/L ine-In/M ic-In/
Game/MID I Connec tors

Onboard Audio
Con nector s - CN9/ CN10/
CN11/CN7

One AGP 4X/8X Pro Sl ot

Five PCI Slot s

SPDI F Ext. Headers-JP 28

Front-Panel Audio
Con nectors-JP29

KBMS1

USRJ1

COM1

PRINT1
COM2

GAME1

1

N
I
_
X

U
A

1

1

1

9

1

N

I

N

N

-

C

C

D

CD-IN

C

CN 10

PCI1

PCI2

PCI3

JP 28

SPDIF Ext.

PCI4

1

JP 4USB 3&4

PCI5

CN 7

Front Audio

1

JP 29

Extended USB 2.0 Header JP4/J P5 1394 Head er-JP21 /JP22/ JP23

ATX AUX Power Connector

CPUFAN
SiS 648 Chipset
ATX 12V Power Connector
ATX Power Connector
DRAM_LED

ATX12V

JP 16

DRAM_LED

A1

CR20 32

CMOS

SONY

1

JP 1

3V

JAPAN1

H

0

H

T

1

i

g

3

h

P

8

P

3

o

7

i

2

A

n

0

t

1
5

Tw o RAID Con nector s
Wake-On-LAN Connector - JP 6

Clear CMOS - JP 1

ATXPWR

1

1
M
M

I
D

2
M
M

I
D

SiS

SI

EMA1642

0220 EA A1

JP 6

WOL

3
M
M

I
D

963

RAID2

RAID1

ATX_ L ED

R
W
P
X
U
A

11

JP 7

IT8705F
0211-FXS

IDE_LED

M2B9S0

3
P
J

1

BIOS

25.000MHz

0136JP2

r
o

t
c
e
n
n
o

C

D
E

y

L

p

_

p

X

o

T

l
F

A

1

FDC

IDE1IDE2

IR

1

1

Green_LED

D
E
L
D
D
H

T
S
R

I
M
P
E

R
E
K
A
E
P
S

1

1

s

t
o

l
S

M
M

I

s

r

D

o

t

R

c
e

D

n

D

n

n

o

i

C

p

-

E

4
8

D

I

-

1

E

e
e

o

r

w

h

T

T

n
o

t

t

D

o

E

B

L

r

_

r

e

e

w

w

o

o

P

7

P

t
e

&

P

s

&

J

N

n

p

-

i

A

o

D

t

r

F

h

t

E

e

C

o

L

d

M

_

B

a

3

E

n

t

e

6

T

e

e

9

S

H

n

s

to
t
o
b
r_
e
w
o
P

n
o
tt
o
b
_
t
e
s
e
R

Power_LED

JP 18

D
E
L

-

n

+

e
e

+

r

-

G
N

-

O

+

r
e

+

w

-

o
P

D
E
L

+

r

+

e

-

w
o

-

P
K
C

+

O
L

-

­Y
E
K

e

S

r

Y

e

i

R

S

I

S

R

G

r

3

8

D

o

P

1

t

E

J

c

-

L

P

e

n

J

_

n

o

-

E

i

n

t

r

D

c

o

I

o

t

e

C

t

c

o

e

A

r

n

T

p

n

A

k

o

l

c

C

a

o

i

l

l

r

e

b

e

n

t

S

a

o

P

o

-

t

B

n

S

o

r

O

F

I
B

- 12 -

Step 1

CPU Installation:

This mainboard supports Intel Pentium 4 , Socket 478 series CPU. Please
follow the step as below to finish CPU installation.

Be careful of CPU orientation when you plug it into CPU socket.

1. Pull up the CPU socket lever and up to 90-degree angle.

CPU socket lever up to
90 degree

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU
upper interface. Match Pin 1 and cut edge, then insert the CPU into the
socket.

CPU pin 1 and cut edge

- 13 -

3. Press down the CPU socket lever and finish CPU installation.

Note:

4. The Intel Pentium 4 /Celeron processor requires a set of heatsink/fan to en
sure proper cooling of the processor. If heatsink/fan have not been already
bundled with your CPU, you must purchase the heatsink/fan separately and
have it installed. Plug the cable through the heatsink/fan in the CPU fan
power connector located nearby. Note that there are several types of CPU
fan connectors. Normally, if your mainboard supports the hard ware moni
toring function, a 3-pin fan power connector should allow your system to
detect the CPU fan's speed . The CPU fan can also run with a 2-pin fan
power connector, however, detection of CPU fan's speed is not supported.
Another type of CPU fan may feature a large 4-pin fan power connector,
which does not support CPU fan's speed detection and must be directly
connected to the system's power supply unit.

If you do not match the CPU socket Pin 1 and CPU cut
edge well, it may damage the CPU.

- 14 -

Step 2.

Set Jumpers

This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as in any of the
following cases:

1.Clear CMOS

2.BIOS Boot block protection

For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with mainboard configu­ration procedures. The factory-set default settings are tuned for optimum
system performance. For the advanced users who wish to customize their
system, section
to configure your mainboard manually.

3.2 Jumper Settings

will provide detailed information on how

Step 3.

Install DDR SDRAM System Memory

To install memory, insert DDR SDRAM memory module(s) in DIMM slot(s).
Note that DDR SDRAM modules are directional and will not go in the DIMM
slots unless properly oriented. After the module is fully inserted into the
DIMM slots, lift the clips of both sides of the DIMM slot to lock the module in
place.

DDR SDRAM

- 15 -

Step 4

Install Internal Peripherals in System Case

Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into the
computer housing, including but not limited to the hard disk drive (IDE
/HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de­scribed below.

To install IDE & FDD drives, follow this procedure:

1. Set the required jumpers on board each device according to the
instructions provided by the manufacturer. (IDE devices, HDD, and
CD-ROM have to set jumpers on Master or Slave mode depending
on your willing to install more than one device for each kind.)

2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral devices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually in red or magenta)
connected to pin#1 both on the mainboard IDE or FDD connector and on
the device as well.

3. Connect an available power cable through your system power supply unit
to the back-panel of each peripheral device. Note that the power cable
is directional and cannot fit in if not properly positioned.

- 16 -

Step 5

Mount the Mainboard on the Computer Chassis

1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose a
correct mounting hole, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.

2. After deciding on the proper mounting holes, position the studs between
the frame of chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to avoid any electrical short between the
board and the metal frame of chassis. (If your computer case is
already equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)

Note:

In most computer housings, you will be able to find 4 or more
attachment points to install mounting studs and fix the mainboard.
If there aren't enough matching holes, then make sure to install at
least 4 mounting studs to ensure proper attachment of the
mainboard.

- 17 -

Step 6

USB port 4/6

1

Connect Front-Panel Switches/LEDs/Speaker/USB connectors

You can find there are several different cables already existing in the system
case and originating from the computer's front-panel devices (HDD LED,
Power LED, Reset Switch, PC Speaker, or USB devices etc.) These cables
serve to connect the front-panel switches, LEDs, and USB connectors to the
mainboard's front-panel connectors group (FP1, SPK1, and USB1), as shown
below.

JP 18

1

1

JP 5

JP 4

USB 5&6

USB 3&4

D
E
L

+

D
D

-

H

­T
S

+

R

I

+

M
P

-

E
R

E
K
A
E
P
S

D
E
L

-

n
e
e

+

r
G

N

+

O

r
e
w

-

o
P

D
E
L

+

r
e
w
o
P

-

1. HDD_LED (HDD_LED) 2. Green LED/ PLED

3. Hardware Reset Switch 4. ATX Soft Power On(Power ON)

5. EPMI 6. Power LED

7. PC Speaker (Speaker) 8. Extended USB Header

-

HDD_LED

Reset

EPMI

Spesker

1

3

5

7

-

++

2

Green LED/PLED

-

+

4

Power ON

+

6

Power LED

-

8

­0
a

t

V

a

5
+

D

1

-

V

1

5

a

t

+

a
D

USB port 3/5

+
0
a

D

t

N

a
D

G

+

D

1

N

a

t

G

a
D

Y
E
K

A

/
N

- 18 -

Step 7

Connect IDE and Floppy Disk Drives

1. IDE cable connector

2. IDE RAID cable( Serial ATA) connector
(AS45GTR Only)

IDE2

IDE1

11

3. FDD cable connector

- 19 -

RAID2

RAID1

1

Serial ATA

1

Serial ATA

1

FDC

Step 8

Connect Other Internal Peripherals

1. CD_IN, AUX_IN, and Cent_Bass connectors

2. IR connector

1

1

CD-IN

CN 10

CN 7

N

I

­D
C

9
N

C

1

1
1

N
C

N

I
_
X

U
A

1

JP 7

IR

1

1

Step 9

Connect the Power Supply

1. System power connector

- 20 -

ATX12V

ATXPWR

R
W
P
X
U
A

Step 10

Install Add-on Cards in Expansion Slots

1. Accelerated Graphics Port (AGP) Card

2. PCI Card

Step 11

Connect External Peripherals to Back-Panel

You are now ready to put the computer
case back together and get on to the

external peripherals connections to
your system's back-panel.

- 21 -

KBMS1

USRJ1

COM1

PRINT1
COM2

GAME1

1. PS/2 Mouse and Keyboard

2. USB Port

3. COM1/2 Port

4. Parallel Port

5. Audio Line-Out /Line-In / Mic-In Ports

6. MIDI/Game Port

1

2 6

4

foxconn

3

5

Step 12

First Time System Boot Up

To assure the completeness and correctness of your system installation, you
may check the above installation steps once again before you boot up your
system for the first time.

1. Insert a bootable system floppy disk (DOS 6.2x, Windows 95/98/NT, or
others) which contains FDISK and FORMAT utilities into the FDD.

2. Turn on the system power.

3. First, you must use the FDISK utility to create a primary partition of the
hard disk. You can also add an extended partition if your primary parti­tion does not use all of the available hard disk space. If you choose to
add an extended partition, you will have to create one or more logical

- 22 -

partition(s) to occupy all the space available in the extended partition.
The FDISK utility will assign a drive letter (i.e., C:, D:, E:,...) to each
partition which will be shown in the FDISK program. After FDISK
procedure, reboot your system by using the same system floppy disk.

Note:

4. Now, use the FORMAT utility to format all the partitions you're created.

Note:

5. Install all the necessary drivers for CD-ROM, Mouse, etc.

6. Setup the complete operating system according to your OS installation

DOS 6.2x and Windows 95A can only support up to 2.1GB of
HDD partition. If you use the FDISK utility with one of the
operating systems mentioned above, you can only decide your
HDD into partitions no larger than 2.1GB each.

When formatting the primary partition (C:), make sure to use the
FORMAT C: /S command.

FORMAT C: /S can transfer all the necessary system files into the
primary partition of your hard disk. Then, your HDD will become
a bootable drive.

guide.

Step 13

Install Driver & Software Components

Please note that all the system utilities and drivers are designed for Win 9x /
2000/ME/NT/XP operating systems only. Make sure your operating system is
already installed before running the drivers installation CD-ROM programs.

1. Insert the AS45GT/AS45GTR bundled CD-ROM into your CD-ROM

drive. The auto-run program will display the drivers main installation
window on screen.

2. Choose "Install SiS Chipset Driver" and complete it.

3. Choose "Install Audio Device Driver" and complete it.

4. Return to the main installation window and exit from the auto-run drivers

installation program.

5. Choose "Install Highpoint RAID Driver" bar to run readme windows if

you need install drivers.

(AS45GTR only)

installation program.

- 23 -

6. Choose "Install RAID Utility" bar to install RAID utility drivers.

(AS45GTRonly)

7. Return to the main installation window and exit from the auto-run drivers

Note:

Please refer to IDE Raid Manual to install IDE RAID

Controller driver when you purchase

AS45GTR

mainboard.

- 24 -

3.2 Jumper Settings

Several hardware settings are made through the use of jumper caps to con­nect jumper pins to the mainboard. Pin #1 could be located at any corner of
each jumper; you just find a location marked with a while right angle, which
stands for pin1#. There are several types of pin 1# shown as below:

3-pin and multi-pin (>3) jumpers show as follows:
Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins are shown as for Close [On] or for
Open [Off]. To Short jumper pins, simply place a plastic jumper cap over the
desired pair of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging
until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its
components. When putting the mainboard down, place it on the top of
its original packaging film and on an even surface, and components side
up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent
electrostatic discharge (ESD) whenever handling this equipment.

- 25 -

Jumper & Connector Guide

Use the mainboard layout on page 11 to locate CPU socket, memory slots,
expansion slots, jumpers and connectors on the mainboard during
installation. The following list will help you identify jumpers, slots, and
connectors along with their assigned functions:

B3~B4

B5~B8

B1

B2

E5

E6

E8

E7

E9

E2E2

E1

C9

E1 E1

C9

D1

D1

A1

A2

E3

C8
C9

C1~C7

E2

E11

E10

E4

D1

CPU/Memory/Expansion Slots

Socket478 : CPU Socket for Pentium 4 processors
DIMM1/2 : Three DIMM Slots for 64, 128, 256, 512 MB, and 1GB

of 2.5V DDR SDRAM
AGP : One 4X,8X AGP (Accelerated Graphics Port) Slot
PCI : Five 32-bit PCI Expansion Slots

- 26 -

Jumpers

A1

JP1 : Clear CMOS

A2

JP3 : BIOS Write protection

Back-Panel Connectors

KB : PS/2 Keyboard

B1

MS : PS/2 Mouse

B1

USB : 2 x USB (Universal Serial Bus)

B2

COM1 : Serial Port 1 (DB9 male)

B3

COM2 : Serial Port 2 (DB9 male)

B3

PRINTER : Parallel Port (DB25 female)

B4

LINE-OUT : Line-Out Port

B5

LINE-IN : Line-In Port

B6

MIC-IN : Mic-In Port

B7

GAME/MIDI : MIDI/Game Port

B8

Front-Panel Connectors (FP1, SPK1 and USB1)

Power ON : ATX power on/off momentary type switch

C1

EPMI : System Management Interface

C2

HDD LED : IDE drive active LED

C3

Green LED : Green LED

C4

Power LED : System power LED

C5

Reset : Hardware reset switch

C6

Speaker : Housing Internal Speaker

C7

Botton : Reset Botton & Power Botton

C8

LED : ATX_LED,DRAM_LED,IDE_LED,Green_LED and

C9

Power_LED

Internal Peripherals Connectors

D1

FDC : Floppy Disk Drive Interface

D1

IDE1 : IDE Primary Interface (Dual-channel)

D1

IDE2 : IDE Secondary Interface (Dual-channel)

- 27 -

RAID1 : RAID primary interface (Dual-channel)

D1

D1

RAID2 : RAID Secondary interface (Dual-channel)
Serial ATA1/2: Serial ATA 1/2 interface

D1

Other Connectors:

ATXPWR : ATX power connector

E1

FAN1 : CPU fan connector

E2

FAN2 : System fan connector

E2

FAN3 : AGP fan connector

E2

JP7 : IR connector

E3

WOL1 : Wake-on-LAN connector

E4

CN9/CN10 : CD_IN connector

E5

CN11 : Auxiliary_IN connector

E6

CN7 : Cent_Bass

E7

E8

JP28 : SPDIF Ext. header
JP29 : Front-Panel Audio connector

E9

JP21/JP22/JP23 : IEEE 1394

E10

JP4/JP5 : Extended USB Header (USB port 3 ~ USB port 4)

E11

- 28 -

F

1

1

Jumpers

A1

Clear CMOS (JP1)

JP1 is used to clear CMOS data. Clearing CMOS will result in the permanent
erasing of previous system configuration settings and the restoration of original
(factory-default) system settings.

Pin 1-2 (Default)

Pin 2-3 (Clear CMOS)

CMOS

1

JP

1

Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
Step 6.
Step 7.

Turn off the system power (PC-> Off).
Remove ATX Power cable from ATX Power connector.
Remove jumper cap from JP1 pins 1-2.
Place the jumper cap on JP1 pin 2-3 for a few seconds.
Return the jumper cap to pin 1-2.
Plug ATX Power cable into ATX Power connector.
Turn on the system power (PC-> On).

- 29 -

A2

1

1

BIOS Write protection (JP3)

JP3 is used to protect BIOS from abnormal writing.
You may choose to place jumper cap on pins 1-2 for BIOS write protection;

however,please place jumper cap on pins 2-3 if you need to reflash BIOS.

Pin 2-3 (Default)
To enable reflashing the BIOS

Pin 1-2
BIOS write protection

1

BIOS

3
P

J

- 30 -

F

Back-Panel Connectors

B1

PS/2 Keyboard & PS/2 Mouse Connectors

Two 6-pin female PS/2 keyboard & Mouse
connectors are located at the rear panel of
the mainboard. Depending on the com­puter housing you use (desktop or tower),
the PS/2 Mouse connector is situated at the
top of the PS/2 Keyboard connector when
the mainboard is laid into a desktop, as op­posed to a tower where the PS/2 Mouse
connector is located at the right of the PS/2
Keyboard's. Plug the PS/2 keyboard and
mouse jacks into their corresponding con­nectors.

B2

USB1/USB2 Port Connectors

This mainboard offers 2 USB ports on back
panel. Plug each USB device jack into an
available USB1/USB2 connector.

PS/2 Mouse

PS/2 keyboard

USB Port 2

B3

COM1/2 Port Connectors

This mainboard can accommodate two
serial device on COM1/2. Attach a serial
device cable to the DB9 serial port COM1/
2 at the back panel of your computer.

B4

Parallel Port Connector

One DB25 female parallel connector is lo­cated at the rear panel of the mainboard.

Plug the connection cable from your paral­lel device (printer, scanner, etc.) into this
connector.

USB Port 1

COM1 Port

Parallel Port

COM2 Port

foxconn

- 31 -

B5

Line-Out (Front-Out) Port Connector

Line-Out is a stereo output port through which
the combined signal of all internal and exter­nal audio sources on the board is output. It
can be connected to 1/8-inch TRS stereo
headphones or to amplified speakers

B6

Line-In (Rear-Out) Port Connector

Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can be
used as a source for digital sound recording,
a source to be mixed with the output, or both.

B7

Mic-In Port Connector

Mic-In is a 1/8-inch jack that provides a mono
input. It can use a dynamic mono or stereo
microphone with a resistance of not more than
600 Ohms.

Line-Out Port

Line-In Port

B8

MIDI/GAME Port Connector

The MIDI/GAME port is a 15-pin female con­nector. This port can be connected to any
IBM PC compatible game with a 15-pin D­sub connector.

MIDI Instrument Connection

You will need a MIDI adapter to connect a MIDI compatible instrument
to the sound card. The MIDI adapter can in turn be connected to the
Joystick/MIDI port. You will also need the MIDI sequencing software to
run MIDI instruments with your computer etc. into this connector.

Mic-In Port

MIDI/GAME Port

- 32 -

F

Front-Panel Connectors

C1

ATX Power On/Off Switch Connector (Power ON)

The Power On/Off Switch is a momentary type switch used for turning on or off
the system ATX power supply. Attach the connector cable from the Power
Switch to the 2-pin (Power ON) header on the mainboard.

JP 18

D
E
L

+

D
D

-

H

­T
S

+

R

I
M
P

-

E
R

E
K
A
E
P
S

D
E
L

-

n
e
e

+

r
G

N
O

+

r
e
w

-

o
P

D
E
L

+

r
e

w
o

-

P

Note :

Please notice all the LED connectors are directional. If your chassis
LED does not light up during running, please simply change to the
opposite direction.

C2

EPMI Connector (EPMI)

Hardware System Management Interface (EPMI) header may attach to 2-pin
momentary switch. Press the switch to force system into power saving mode;
press it again to resume back the normal operation situation.

JP 18

D
E
L

+

D
D

-

H

­T
S

+

R

I

+

M
P

-

E
R

E
K
A
E
P
S

s

D
E
L

-

n
e
e

+

r
G

N

+

O

r
e
w

-

o
P

D
E
L

+

r
e
w
o

-

P

- 33 -

HDD LED Connector (HDD LED)

C3

Attach the connector cable from the IDE device LED to the 2-pin (HDD LED)
header. The HDD LED lights up whenever an IDE device is active.

een LED/Power LED) header.

C4

Green LED/Power LED Connector (Green LED/Power LED)

This header is dual color LED function.

D

JP 18

E
L

+

D
D

-

H

­T
S

+

R

I
M
P

-

E
R

E
K
A
E
P
S

D
E
L

-

n
e
e

+

r
G

N

+

O

r
e
w

-

o
P

D
E
L

+

r
e

w
o
P

-

Dual color LED function is defined by either Power LED or Green LED, the
header can be in these states.

The Green LED indicates that the system is currently in one of the power saving
mode (Doze/Standby/Suspend). When the system resumes to normal opera­tion mode, the Green LED will go off, Power LED on.

This Power LED will go off during Power saving mode.
Attach a 2-pin Green LED/Power LED cable to (Gr

D

JP 18

E
L

+

D
D

-

H

­T
S

+

R

I
M

P

-

E

R
E
K
A
E
P
S

D
E
L

-

n
e
e

+

r
G

+

-

+

-

N
O

r
e
w
o
P

D
E
L

r
e

w
o
P

- 34 -

C5

Power LED Connector (Power LED)

Attach the 3-pin Power LED connector cable from the housing front panel to
the (Power LED) header on the mainboard. The power LED stays light while the
system is on.

C6

Hardware Reset Connector (Reset)

Attach the 2-pin hardware reset switch cable to the (Reset) header. Pressing the
reset switch causes the system to restart.

D

JP 18

E
L

+

D
D

-

H

­T
S

+

R

I
M
P

-

E
R

E
K
A
E
P
S

D

JP 18

E
L

+

D
D

-

H

­T
S

+

R

I
M
P

-

E
R

E
K
A
E
P
S

D
E
L

-

n
e
e

+

r
G

N

+

O

r
e
w

-

o
P

D
E
L

+

r
e

w
o

-

P

D
E
L

-

n
e
e

+

r
G

N

+

O

r
e
w

-

o
P

D
E
L

+

r
e
w
o
P

-

C7

Speaker Connector (SPEAKER)

Attach the PC speaker cable from the case to the 4-pin speaker connector
(SPEAKER).

- 35 -

JP 18

D
E
L

+

D
D

-

H

­T
S

+

R

I
M
P

-

E
R

E
K
A
E
P
S

D
E
L

-

n
e
e

+

r
G

N
O

+

r
e

w

-

o
P

D
E
L

+

r
e

w
o

-

P

C8

Reset Botton and Power Botton

C9

ATX_LED, DRAM_LED, IDE_LED,Green_LED and
Power_LED

DRAM_LED

n
o

t
t
o
b
_
r
e

w
o
P

n
o
t

t
o
b
_

t
e
s
e
R

ATX_LED

- 36 -

Green_LED

Power_LED

IDE_LED

F

Internal Peripherals Connectors

D1

Enhanced IDE, IDE RAID (AS45GTR only), and Floppy
Connectors

The mainboard features two 40-pin dual-channel IDE device connectors
(IDE1/IDE2) providing support for up to four IDE devices, such as CD-ROM
and Hard Disk Drives (H.D.D.) and features two 40-pin dual-channel IDE
RAID device connectors (RAID1/RAID2) providing support for up to four IDE
devices, such as Hard Disk Drives (H.D.D.).

This mainboard also includes one 34-pin floppy disk controller (FDD1) to
accommodate the Floppy Disk Drive (FDD). Moreover, this mainboard
comes with one 80-pin ATA
(RAID) H.D.D. and one 34-pin ribbon cable for F.D.D. connection.

133/100/66

ribbon cable to connect to IDE

IDE1

IDE2

Note :

If you used RAID1 connector, please refer to
to setup RAID BIOS program.

Important:

connect with the red cable.

1

FDC

RAID2

RAID1

1

Serial ATA

1

Serial ATA

IDE RAID Manual

Ribbon cables are directional, therefore, make sure to always

11

- 37 -

F

Other Connectors

E1

ATX Power Supply Connector (ATXPWR, AUXPWR, and
ATX12V)

This motherboard uses 20-pin Pentium 4 standard ATX power header,
ATXPWR and comes with another two headers.
One is AUXPWR with 6-pin Aux VccNcc3 ATX power supply header.
Another is ATX12V with 2X2-pin +12 VPC ATX power supply header.
Please make sure you plug in the right direction.

ATX12V

ATXPWR

R
W
P
X
U
A

A traditional ATX system should remain at power off stage when AC power
resumes from power failure. In such case, if there is no an UPS to keep
power-on, the kind of design is inconvenient for a network server or workstation.
However, this motherboard implements an AC Power Auto Recovery
function to solve this problem. You may enable the function PWRON After
PWR-Fail that is under sub-menu of Power Mangement Setup through BIOS
setup program.

Note 1:

Note 2:

Note 3:

Note 4:

The ATX power connector is directional and will not go in unless the guides
match perfectly making sure that pin#1 is properly positioned.

Make sure the latch of the ATX power connector clicks into place to ensure a
solid attachment.

Your ATX power supply must be supplied to ACPI +5V standby power and
at least 720mA compatible.

Make sure your power supply have enough power for higher speed processor
installed.

- 38 -

E2

CPU, Chipset and Chassis Fan connectors - FAN1/2/3

The mainboard provides three onboard 12V cooling fan power connectors
to support CPU (FAN1), System (FAN2) or AGP (FAN3) cooling fans.

Note:

Both cable wiring and type of plug may vary
, which depends on the fan maker. Keep in
mind that the red wire should always be
connected to the +12V header and the black
wire to the ground (GND) header.

1

CPU_FAN

AGP_FAN

1

GND

E3

IR Header (JP7)

+12V

If you have an Infrared device, this mainboard can implement IR transfer
function. To enable the IR transfer function, follow these steps:

Pins Assignment:

1=N/A 2=KEY
3=VCC 4=GND
5=IRTX 6=IRRX

Note:

Before connect your IR device, please be sure each IR on board pin

SENSE

FAN1/FAN2/FAN3 with rotate sense.

6
4
2

5
3
1

FAN2

JP 7

allocation is matchable with the pin of the IR device. Otherwise,
incorrect IR connection may do damage to your IR device.

IR

1

1

1

Step 1.

Step 2.

Attach the 6-pin infrared device cable to J12.

(Refer to the above diagram for IR pin assignment.)

Configure the Infrared transfer mode in field "UART Mode Select"

of "Super I/O Device" of "Integrated Peripherals" sub-menu in
BIOS setup program. This mainboard supports IrDA and Normal
transfer modes.

- 39 -

E4

3 2 1

1 2 3 4

Wake-On-LAN Connector (JP6)

Attach a 3-pin connector through the LAN card which supports the Wake-On­LAN (JP6) function. This function lets users wake up the connected system
through the LAN card.

Pins Assignment:

1=5VSB
2=GND
3=SENSE

E5

Audio CD_IN Connectors (CN9) / (CN10)

Use the audio cable provided with the CD-ROM/DVD drive to connect to the
mainboard CD-in connector CD_IN1 or CD_IN2.

1

JP 6

WOL

CN9 Pin Assignments:
1=CD-GND
2=CD-R
3=CD-GND
4=CD-C

CN10 Pin Assignments:

1

1=CD-L

2

2=CD-GND

3

3=CD-GND

4

4=CD-R

- 40 -

1

1

CD-IN

CN 10

9

N

I

N

-

C

D
C

E6

123

4

4 3 2 1

9

7

5

3 12

4

6

8

10

Audio AUXILIARY_IN Header (CN11)

Port CN11 can be used to connect a stereo audio input from CD-ROM, TV­tuner or MPEG card.

Pins Assignment:

1=AUX_L
2=AGND
3=AGND
4=AUX_R

E7

Audio Bass/Center_Out Header (CN7)

CN7 header can be used to connect the cable which attached to bass/center
amplified speakers.

Pin Assignments:
1=CENTER
2=CD-GND
3=CD-GND
4=BASS

CN 7

N

I
_
X
U
A

1

1
1

N
C

1

E8

SPDIF Ext. Header (JP28)

Port JP28 can be used to connect special device.

Pin Assignments:
JP28
1=+12V 2=VCC
3=N/A 4=SPDIF-OUT
5=SPDIF-IN 1 6=GND
7=N/A 8=N/A
9=KEY 10=GND

- 41 -

JP

28

SPDIF Ext.

Front-Panel Microphone and Line_out Header (JP29)

9

7

5

3

1

10

8

6

4

2

9

7

5

3 12

4

6

8

10

E9

This header allows users to install auxiliary front-oriented microphone and line­out ports for easier access. Either the Mic and Line_out connector on back­panel or JP29 header are available at the same time. If you would like to use this
JP29 header on front-panel, please remove all jumpers from JP29 and install
your special Extra Mic/Line_out cable instead.

1

Front Audio

Pin Assignments:
1=AUD_MIC 2=AUD_GND
3=AUD_MIC_BIAS 4=AUD_VCC
5=AUD_FRONT_R 6=AUD_RET_R
7=HP_ON 8=KEY
9=AUD_FRONT_L 10=AUD_RET_L

JP 29

E10

Front-Panel 1394 Header - JP21/JP22/JP23

The header are used to connect the cable attached to 1394 connector which
are mounted on front panel or back panel. But the 1394 cable is optional at
the time of purchase.

Pins Assignment:
1=TPA+ 2=TPA­3=GND 4=GND
5=TPB+ 6=TPB­7=+12V 8=+12V
9=KEY 10=GND

- 42 -

Extended USB Headers (JP4/JP5)

E11

The headers are used to connect the cable attached to USB connectors
which are mounted on front-panel or back-panel. But the USB cable is op­tional at the time of purchase.

Pins Assignment:
1=+5V
3=USBD0­5=USBD0+
7=GND
9=KEY

2=+5V
4=USBD1­6=USBD1+
8=GND
10=N/A

1

USB 3&4

JP 4

1

USB 5&6

JP 5

Important:

Ribbon cables are directional, therefore, make sure to always
connect with the red cable stripe on the same side as pin #1 of
the IDE1/IDE2 or FDC1 connector on the mainboard.

- 43 -

3.3 System Memory Configuration

The AS45GT/AS45GTR mainboard has two 184-pin DIMM slots that allow
you to install from 64MB up to 2GB of system memory and two 168-pin
DIMM slots that allow you to install from 16MB up to 2GB of system
memory.

Each 184-pin DIMM (Dual In-line Memory Module) Slot can accommodate
64MB, 128MB, 256MB, 512MB, and 1GB of PC1600/PC2100/PC2700
compliant 2.5V single (1 Bank) or double (2 Bank) side 64-bit wide data path
DDR SDRAM modules.

Each 168-pin DIMM (Dual In-line Memory Module) Slot can accommodate
16MB, 32MB, 64MB, 128MB, 256MB, 512MB, and 1GB of PC100/PC133
compliant 3.3V single or double side 64-bit wide data path SDRAM modules.

Install Memory:

Install memory in any or all of the slots and in any combination shown as
follows.

DIMM Slot Memory Modules

DIMM 1

64MB, 128MB, 256MB, 512MB, and 1GB
184-pin 2.5V DDR SDRAM DIMM

Module

Quantity

x 1

DIMM 2

DIMM 3

64MB, 128MB, 256MB, 512MB, and 1GB
184-pin 2.5V DDR SDRAM DIMM

64MB, 128MB, 256MB, 512MB, and 1GB
184-pin 2.5V DDR SDRAM DIMM

x 1

x 1

Note: Maximum installed memory is 3GB.

The PC2700 module only support 4 Bank shown as follows:

Note:

Memory

PC2700
Module

You do not need to set any jumper to configure memory since the

DIMM

Single side Single side Single side 3 BANK
Double side Single side Single side 4 BANK
Double side Double side

DIMM

1

DIMM

2

Empty 4 BANK

TOTAL

3

BIOS utility can detect the system memory automatically. You can
check the total system memory value in the BIOS Standard CMOS
Setup menu.

Upgrade Memory:

You can easily upgrade the system memory by inserting additional DDR
SDRAM modules in available DIMM slots. The total system memory is
calculated by simply adding up the memory in all DIMM slots. After up­grade, the new system memory value will automatically be computed and
displayed in the field " Standard CMOS Setup" of BIOS setup program.

- 44 -

4 SOFTWARE UTILITY

4.1 Mainboard CD Overview

Note:

To start your mainboard CD disc, just insert it into your CD-ROM drive and
the CD AutoRun screen should appear. If the AutoRun screen does not
appear, double click or run D:\Autorun.exe (assuming that your CD-ROM
drive is drive D:)

The CD contents attached in AS45GT/AS45GTR mainboard are
subject to change without notice.

Navigation Bar Description:

F

Install Mainboard AS45GT Software
ware Audio drivers.

F

Install Mainboard AS45GTR Software
ware Audio drivers , IDE RAID driver installation Guide, and RAID Utility.

F

Manual

(AS45GTR only)

F

Link to Shuttle Homepage

F

Browse this CD

F

Quit

- AS45GT/AS45GTR Series mainboard and IDE RAID
user's manual in PDF format.

- Link to shuttle website homepage.

- Allows you to see contents of this CD.

- Close this CD.

- Installing SiS AGP and Hard

- Installing SiS AGP, Hard

- 45 -

4.2 Install Mainboard Software

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
Autorun icon in
Setup

screen.

My Computer

to bring up

Shuttle Mainboard Software

Select using your pointing device (e.g. mouse) on the
AS45GT Software"
run into sub-menu.

The

Mainboard AS45GT Software

[
[

The

4.2.A

4.2.B

] Install Mainboard Software

] Install Audio Device Driver

Mainboard AS45GTR Software

or

"Install Mainboard AS45GTR Software"

include:

include:

"Install Mainboard

bar to

[

4.2.A

[

4.2.B

[

4.2.C

] Install Mainboard Software
] Install Audio Device Driver
] Install Highpoint RAID Driver / Install RAID Utility

- 46 -

4.2.A Install SiS AGP Driver

Select using your pointing device (e.g. mouse) on the “
Software

" bar to install SiS AGP driver.

AS45GT

Install Mainboard

AS45GTR

Once you made your selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you

installation effect.

reboot

the system to take the

- 47 -

4.2.B Install Audio Driver

Select using your pointing device (e.g. mouse) on the “
Driver

" bar to install audio driver.

AS45GT

Install Audio Device

AS45GTR

Once you made your selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you

installation effect.

reboot

the system to take the

- 48 -

4.2.C Install IDE RAID Driver and Utility (AS45GTR only)

Select using your pointing device (e.g. mouse) on the “
RAID Driver

Cause the IDE RAID driver can't be setup automatically, please follow below
instructions to complete the installation.

Then click on

" bar.

"Install RAID Utility"

bar to install IDE RAID Utility.

Install Highpoint

AS45GTR

AS45GTR

Once you made your selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you

installation effect.

reboot

the system to take the

- 49 -

4.3 View the User's Manual

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
AutoRun icon in
Setup

screen.

My Computer

to bring up

Shuttle Mainboard Software

Select using your pointing device (e.g. mouse) on the “

Then

Online Information

“

Install Acrobat Reader"

windows will appear on your screen. Click on the

bar if you need to install acrobat reader.

Manual

" bar.

Then click on
and click on
(AS45GTR only)

"AS45GT/AS45GTR Manual"

"IDE Raid Manual"

bar to view user's manual,

bar to view IDE RAID user's manual.

- 50 -

5 BIOS SETUP

AS45GT/AS45GTR BIOS ROM has a built-in Setup program that allows users
to modify the basic system configuration. This information is stored in bat­tery-backed RAM so that it retains the Setup information even if the system
power is turned off.

The system BIOS is managing and executing a variety of hardware related
functions in the system, including:

System date and time
Hardware execution sequence
Power management functions
Allocation of system resources

5.1 Enter the BIOS

To enter the BIOS (Basic Input / Output System) utility, follow these steps:

Step 1.

Step 2.

Note 1.

Note 2.

Step 3.

Power on the computer, and the system will perform its
POST (Power-On Self Test) routine checks.

As you see the message "Hit
press <DEL> key immediately.

If you miss the train (the message disappears before you can

(respond) and you still wish to enter BIOS Setup, restart the system
and try again by turning the computer OFF and ON again or by
pressing the <RESET> switch located at the computer's front
panel. You may also reboot by simultaneously pressing the
<Ctrl>, <Alt>, <Del> keys.

If you do not press the keys in time and system does not boot, the
screen will prompt an error message, and you will be given the
following options:

"Press F1 to Continue, DEL to Enter Setup”

As you enter the BIOS program, the CMOS Setup Utility will
prompt you the Main Menu, as shown in the next section.

DEL

if you want to run setup.",

- 51 -

5.2 The Main Menu

Once you enter the AMIBIOS CMOS Setup Utility, the Main Menu will
appear on the screen. The Main Menu allows you to select from sev­eral setup functions and two exit choices. Use the arrow keys to select
among the items and press <Enter> to accept and enter the sub-menu.

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall
that some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and opti­mize your system's performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

- 52 -

PnP / PCI Configurations

This entry appears if your system supports PnP / PCI.

PC Health Status

This entry shows the current system temperature, Voltage, and FAN
speed.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable
performance of your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory-set for
optimal performance system operation. While Award has designed the
custom BIOS to maximize performance, the factory has the right to
change these defaults to meet users' needs.

Set Password

Use this menu to change, set, or disable password. It allows you to limit
access to the system and Setup, or only to Setup.

Save & Exit Setup

Save CMOS value changes in CMOS and exit from setup.

Exit Without Saving

Abandon all CMOS value changes and exit from setup.

- 53 -

@

Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 catego­ries. Each category includes no, one or more than one setup items.
Use the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.

Date

<Month> <DD> <YYYY>
Set the system date. Note that the 'Day' automatically changes when

you set the date.

Time

<HH : MM : SS>
The time is converted based on the 24-hour military-time clock. For

example, 5 p.m. is 17:00:00.

IDE Primary Master

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IDE Primary Slave

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

- 54 -

IDE Secondary Master

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IDE Secondary Slave

Options are in its sub menu.
Press <Enter> to enter the sub-menu of detailed options.

Drive A/Drive B

Select the type of floppy disk drive installed in your system.
Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,

1.44M, 3.5 in, or 2.88M, 3.5 in.

Floppy 3 Mode Support

This Item enable/disable the Floppy mode 3 options. This mode is used
mostly in Japen PC.
Ø The choice: Disabled, Drive A, Drive B, or Both.

Video

Select the default video device.
Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO.

Halt On

Select the situation in which you want the BIOS to stop the POST
process and notify you.
Ø The choice: All Errors, No Errors, All, But Keyboard, All, But

Diskette, or All, But Disk/Key.

Base Memory

Displays the amount of conventional memory detected during boot up.
Ø The choice: N/A.

Extended Memory

Displays the amount of extended memory detected during boot up.
Ø The choice: N/A.

Total Memory

Displays the total memory available in the system.
Ø The choice: N/A.

******************************************************

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu
to configure each hard disk drive.

- 55 -

IDE HDD Auto-Detection
Press <Enter> to auto-detect HDD on this channel. If detection is
successful, it fills the remaining fields on this menu.

Ø Press Enter

IDE Primary Master
Selecting 'manual' lets you set the remaining fields on this screen and
select the type of fixed disk. "User Type" will let you select the number
of cylinders, heads, etc., Note: PRECOMP=65535 means
NONE !

Ø The choice: None, Auto, or Manual.

Access Mode
Choose the access mode for this hard disk.

Ø The choice: CHS, LBA, Large, or Auto.

Capacity
Disk drive capacity (Approximated). Note that this size is usually
slightly greater than the size of a formatted disk given by a disk check­ing program.

Ø Auto-Display your disk drive size.

The following options are selectable only if the 'IDE Primary Master'
item is set to 'Manual'

Cylinder
Set the number of cylinders for this hard disk.

Ø Min = 0, Max = 65535

Head
Set the number of read/write heads.

Ø Min = 0, Max = 255

Precomp
Warning: Setting a value of 65535 means no hard disk.

Ø Min = 0, Max = 65535

Landing zone
Set the Landing zone size.

Ø Min = 0, Max = 65535

Sector
Number of sector per track.

Ø Min = 0, Max = 255

******************************************************

- 56 -

@

Advanced BIOS Features

This section allows you to configure your system for basic operation.
You have the opportunity to select the system's default speed, boot-up
sequence, keyboard operation, shadowing, and security.

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enables and someone attempts to
write data into this area, BIOS will show a warning message on screen,
and an alarm beep.

Enabled

Disabled

Ø The choice: Enabled or Disabled.

CPU L1 & L2 Cache

This item enables CPU L1 internal and L2 secondary cache to speed up
memory access.

Ø The choice: Enabled or Disabled.

Activates automatically when the system boots up,
causing a warning message to appear when anything
attempts to access the boot sector or hard disk parti­tion table.

No warning message will appear when anything
attempts to access the boot sector or hard disk parti­tion table.

- 57 -

CPU L2 Cache ECC Checking

When you select Enabled, memory checking is enabled when the
CPU internal L2 cache contains ECC SRAMs.

Ø The choice: Enabled or Disabled.

Quick Power On Self Test

This item speeds up Power-On Self Test (POST) after you power on the
computer. If it is set to enabled, BIOS will shorten or skip some check
items during POST.

Ø The choice: Enabled, or Disabled.

RAID & SCSI Boot Order

The item select RAID and SCSI boot order.
Ø The Choice: RAID, SCSI or SCSI, RAID.

First/Second/Third Boot Device

The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.

Ø The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, , HDD-1,

HDD-2, HDD-3, ZIP100, USB FDD, USB ZIP, USB-CD-ROM, USB­HDD,LAN, or Disabled.

Boot Other Device

Select Your Boot Device Priority.
Ø The choice: Enabled or Disabled.

Swap Floppy Drive

If the system has two floppy drives, you can swap the logical drive
name assignment.

Ø The choice: Enabled or Disabled.

Boot Up Floppy Seek

Seeks disk drives during boot-up. Disabling speed boots up.
Ø The choice: Enabled or Disabled.

Boot Up NumLock Status

Selects power-on state for NumLock.
Ø The choice: Off or On.

- 58 -

Gate A20 Option

This entry allows you to select how the gate A20 is handled. The gate
A20 is a device used for above 1MByte of address memory. Initially,
the gate A20 was handled via a pin on the keyboard. Today, while a
keyboard still provides this support, it is more common and much faster
in setting to Fast for the system chipset to provide support for gate A20.

Ø The choice: Normal, or Fast.

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller.
When this controller enabled, the typematic rate and typematic delay
can be selected.

Ø The choice: Enabled or Disabled.

Typematic Rate (Chars/Sec)

This item sets how many times the keystroke will be repented in a
second when you hold the key down.

Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat
the keystroke.

Ø The choice: 250, 500, 750, or 1000.

Security Option

Select whether the password is required every time the system boots or
only when you enter setup.

System

Setup

Ø The choice: System or Setup.

Note: To disabled security, select PASSWORD SETTING at Main

The system will not boot and access to Setup will be
denied if the correct password is not entered promptly.

The system will boot, but access to Setup will be
denied if the correct password is not entered promptly.

Menu, and then you will be asked to enter password. Do not
type anything and just press <Enter>; it will disable security.

Once the security is disabled, the system will boot, and you
can enter Setup freely.

- 59 -

APIC Mode

Selects enable/disable IO APIC function
Ø The choice: Enabled or Disabled.

MPS Version Control For OS

Selects the operating system multiprocessor support version.
Ø The choice: 1.1 or 1.4

OS Select For DRAM > 64MB

Selects the operating system that is running with greater than 64MB of
RAM in the system.

Ø The choice: Non-OS2 or OS2.

HDD S.M.A.R.T. Capabiliry

This item enable/disable the HDD system management function.
Ø The choice: Enabled or Disabled.

Report No FDD For Win 95

Whether report no FDD runs for Win 95 or not.
Ø The choice: Yes or No.

Video BIOS Shadow

Determines whether video BIOS will be copied to RAM. However, it is
optional depending on chipset design. Video Shadow will increase the
video speed.

Ø The choice: Enabled or Disabled.

Small Logo(EPA) Show

This item allows you to enable/disable the EPA Logo.
Ø The choice: Enabled or Disabled.

- 60 -

@

Advanced Chipset Features

This section allows you to configure the system based on the specific features
of the installed chipset. This chipset manages bus speeds and access to sys­tem memory resources, such as DRAM and the external cache. It also coor­dinates communications between the conventional ISA bus and the PCI bus.
It states that these items should never need to be altered.

The default settings have been chosen because they provide the best operat­ing conditions for your system. If you discovered that data was being lost
while using your system, you might consider making any changes.

DRAM Clock/Timing Control

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

DRAM CAS Latency Setting
This item select the CAS latency(2/2.5) for DDR SDRAM

Ø The Choice: 2T, 2.5T, or 3T.

System Performance
This item select the system timing(Safe/Normal/Fast/Turbo/Ultra) for

DDR SDRAM,
Ø The Choice: Safe Mode, Normal Mode, Fast Mode, Turbo Mode, or

Ultra Mode.

- 61 -

DRAM Addr/Cmd Rate
This item select the Cmd Rate of DDR SDRAM(1T/2T).

Ø The Choice: Auto Mode, 1T, or 2T.

AGP & P2P Bridge Control

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

AGP Aperture Size (MB)
Select the size of Accelerated Graphics Port (AGP) aperture. The aper­ture is a portion of the PCI memory address range dedicated to graphics
memory address space. Host cycles that hit the aperture range are
forwarded to the AGP without any translation.

Ø The Choice: 4M, 8M, 16M, 32M, 64M, 128M, or 256M.

Graphic Window WR Combin
This item enable/disable the write combine function for Graphic ad­dress space.

Ø The Choice: Enabled or Disabled.

Prefetch Caching

This item enabled/disable the Prefetch cache function of DRAM con­troller.

Ø The Choice: Enabled or Disabled.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h­FFFFFh, resulting in better system performance. However, if any pro­gram is written to this memory area, a system error may result.

Ø The choice: Enabled or Disabled.

Video RAM Cacheable

Selecting Enabled allows caching of the video RAM , resulting in better
system performance. However, if any program is written to this memory
area, a system error may result.

Ø The Choice: Enabled or Disabled.

Memory Hole At 15M-16M

You can reserve this area of system memory for ISA adapter ROM.
When this area is reserved, it cannot be cached. The user information
of peripherals that need to use this area of system memory usually
discusses their memory requirements.

Ø The Choice: Enabled or Disabled.

- 62 -

F

Integrated Peripherals

SIS OnChip IDE Device

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

Internal PCI/IDE
This chipset contains and internal PCI IDE interface with support for two

IDE channels.
Ø The choice: Disabled, Primary, Secondary, or Both.

IDE Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO

mode (0-4) for each of the four IDE devices that the onboard IDE inter­face supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the
best mode for each device.

Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.

Primary/Secondary Master/Slave UltraDMA
Ultra DMA/100 implementation is possible only if your IDE hard drive

supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If both of
your hard drive and your system software support Ultra DMA/100,
select Auto to enable BIOS support.

Ø The choice: Auto or Disabled.

- 63 -

IDE Burst Mode
Selecting Enabled reduces latency between each drive read/write cycle,

but may cause instability in IDE subsystems that cannot support such
fast performance. If you are getting disk drive errors, try setting this
value to Disabled. This field does not appear when the lnternal PCI/IDE
field, above, is Disabled.

Ø The choice: Enabled or Disabled.

SIS OnChip PCI Device

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

SIS USB Controller
Ø The choice: Enabled or Disabled.

USB Ports Number
Ø The choice: 6 Ports, 5 Ports, 4 Ports or 3 Ports.

USB 2.0 Supports
Ø The choice: Enabled or Disabled.

USB Keyboard Supports
Ø The choice: Enabled or Disabled.

Onboard RAID
Ø The choice: Enabled or Disabled.

Onboard RAID Boot ROM
Ø The choice: Enabled or Disabled.

Serial ATA1/RAID1 Channel
Ø The choice: RAID1 or Serial ATA1.

Serial ATA2/RAID2 Channel
Ø The choice: RAID2 or Serial ATA2.

SIS AC97 AUDIO
This item allows you to select AC97 CODEC audio chp to support

Audio.
Ø The choice: Enabled or Disabled.

SIS 1394 Controller
This item allows you to select 1394 chp to support 1394.

Ø The choice: Enabled or Disabled.

- 64 -

Onboard Super IO Device

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC) in-

stalled on the system board and you want to use it. If you install add-on
FDC or the system has no floppy drive, select Disabled in this field.

Ø The choice: Enabled or Disabled.
Onboard Serial Port1/Port2

Select an address and corresponding interrupt for the first and second
serial ports.

Ø The choice: 3E8/IRQ4, 2E8/IRQ3, 3F8/IRQ4, 2F8/IRQ3,Auto, or

Disabled.

UART Mode Select
This item allows you to select which mode for the Onboard Serial Port

2.
Ø The choice: IrDA, Normal, ASKIR or SCR.

UR2 Duplex Mode
This item allows you to selects the IR half/full duplex function.

Ø The choice: Full or Half.
Onboard Parallel Port

This item allows you to determine onboard parallel port controller I/O
address setting.

Ø The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.
Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select
Normal, Compatible, or SPP unless you are certain your hardware and
software both support one of the other available modes.

Ø The choice: SPP, EPP, ECP, or ECP+EPP.
ECP Mode Use DMA

Select a DMA channel for the parallel port for use during ECP mode.
Ø The choice: 1 or 3.

Game Port Address
This item selects Game Port Address.

Ø The choice: Disabled, 201 or 209.

- 65 -

Midi Port Address
This item selects Midi Port Address.

Ø The choice: Disabled, 330 or 300.

Midi Port IRQ
This item selects Midi Port IRQ.

Ø The choice: 5 or 10.

IDE HDD Block Mode

The chipset contains a PCI IDE interface with support for two IED
channels. Select Enabled to activate the primary and/or secondary IDE
interface. Select Disabled to deactivate this interface, if you install a
primary and/or secondary add-in IDE interface IDE interface.

Ø The choice: Enabled or Disabled.

Init Display First

This item is used to determine initial device when system power on.
Ø The choice: AGP or PCI Slot.

USB0 Access Interface

This item select the USB0 data transfer use PCI bus or Embedded(MuTIOL)
bus. The MuTIOL bus is faster.

Ø The choice: EDB Bus or PCI Bus.

USB1 Access Interface

This item select the USB1 data transfer use PCI bus or Embedded(MuTIOL)
bus. The MuTIOL bus is faster.

Ø The choice: EDB Bus or PCI Bus.

USB2 Access Interface

This item select the USB2 data transfer use PCI bus or Embedded(MuTIOL)
bus. The MuTIOL bus is faster.

Ø The choice: EDB Bus or PCI Bus.

USB2.0 Access Interface

This item select the USB2.0 data transfer use PCI bus or
Embedded(MuTIOL) bus. The MuTIOL bus is faster.

Ø The choice: EDB Bus or PCI Bus.

- 66 -

F

Power Management Setup

The Power Management Setup allows you to configure your system to
most effectively saving energy while operating in a manner consistent
with your own style of computer use.

ACPI Function

This item allows you to enable/disable the Advanced Configuration and
Power Management (ACPI)

Ø The choice: Enabled or Disabled.

ACPI Suspend Type

This item allows you to select sleep state when suspend.
Ø The choice: S1(POS), S3(STR), or S1 & S3.

Power Management

This category allows you to select the type (or degree) of power saving
mode settings.

Min Saving

Max Saving

Minimum power management.
HDD Power Down=Allows you to set each mode

individually.

Suspend Mode=1 hr.
Maximum power management.
HDD Power Down=Allows you to set each mode

individually.

Suspend Mode=1 min.

- 67 -

User Define

Ø The choice: User Define, Min Saving, or Max Saving.

Suspend Mode (Disabled)

When this item enabled and after the set up time of system inactivity,all
devices except the CPU will be shut off.

Ø The choice: Disabled, 1 Min, 2 Min, 4 Min , 8 Min , 12 Min, 20 Min,

30 Min, 40 Min or 1Hour.

Video Off Option

When enabled, this feature allows the VGA adapter to operate in a
power saving mode.

Allows you to set each mode individually.

HDD Power Down=Disabled or 1min.~15min.

Suspend Mode= Disabled or 1 min ~1 hr.

Always On

Suspend --> Off

Susp,Stby --> Off

All Modes --> Off

Ø The choice: Always On, Suspend ->Off, Susp,stby -> Off, or All

Modes -> Off.

Video Off Method

This determines the manner in which the monitor is blanked.

Blank Screened

V/H SYNC+Blank

DPMS Supported

Ø The choice: V/H SYNC+Blank, Blank Screen, or DPMS Supported.

Monitor will remain on during power saving
mode.

Monitor is blanked when the system enters the
Suspend mode.

Monitor is blanked when the system enters
either Suspend or Standby modes.

Monitor is blanked when the system enters
any power saving mode.

This option only writes blanks to the video
buffer.

This selection will cause the system to turn off
the vertical and horizontal synchronization
ports and write blanks to the video buffer.

Initial display power management signaling.

Switch Function

Enables you to set the System Management Interrupt (SMI) button
function in DOS.
Ø The choice: Disabled or Break / Wake.

- 68 -

MODEM Use IRQ

This determines the IRQ which the MODEM can use.
Ø The choice: 3, 4, 5, 7, 9, 10, 11, or Auto.

HDD Off After

The IDE hard drive will spin down if it is not accessed within a specified
length of time. Options are from 1 Min to 15 Min and Disable.
Ø The choice: Disabled, 1 Min ~ 15 Min.

Power Button Override

Pressing the power button for more than 4 seconds forces the system to
enter the Soft-Off state when the system has "hung.".

Ø The choice: Instant-Off or Delay 4 Sec.

Power State Resume Control

This item enables your computer to automatically restart or return to its
last operating status after power returns from a power failure.
Ø The choice: Always Off, Always On, Keep Pre-state.

PM Wake Up Events

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IRQ [3-7, 9-15], NMI
When enabled, any event occurring at IRQs 3 through 15 (excluding

IRQ 8) will awaken a system, which has been powered down.
Ø The choice: Enabled, Disabled.

IRQ 8 Break Suspend
This field allows you to enable or disable monitoring of IRQ8 so that it

does not awaken the system from a suspend mode.
Ø The choice: Enabled, Disabled.

RING Power Up Control
When set to Enabled, the system power will be turned on if there is any

modem activity.
Ø The choice: Enabled, Disabled.

- 69 -

PCIPME Power Up Control
When set to Enabled, system power will be turned on if there is any

PCI card activity from PCI cards that trigger a PME event, such as
LAN or Modem cards.
Ø The choice: Enabled, Disabled.

WOL Power Up Control
This item Enabled/Disabled LAN wakeup.

Ø The choice: Enabled, Disabled.

USB Port Wake Up Control
Set the item Enabled user can wake up system by USB device.

Ø The choice: Enabled, Disabled.

Power Up by Alarm
When set to Enabled, the following three fields become available and

you can set the month, date (day of the month), hour, minute and
second to turn on your system.
Ø The choice: Enabled, Disabled.

Month Alarm
This is for specifying the alarm month which system will awaken

the system from suspend mode.
Ø Key in a DEC number: Min=1, Max=12, or NA.

Data of Month Alarm
This item selects the alarm date.

Ø Key in a DEC number:Min=1, Max=31.

Time (hh : mm : ss) Alarm
This item selects the alarm Time.

[hh]
Ø Key in a DEC number:Min=0, Max=23.
[mm/ss]
Ø Key in a DEC number:Min=0, Max=59.

- 70 -

*** Reload Global Timer Events ***

Global Timer (power management) events are I/O events whose occur­rence can prevent the system from entering a power saving mode or
can awaken the system from such as a mode. In effect, the system
remains alert for anything that occurs to a device that is configured as
Enabled, even when the system is in a power-down mode.

Primary/Secondary IDE (Disabled)

When these items are enabled, the system will restart the power-saving
thimout counters when any activity is detected on any of the drives or
devices on the primary or secondary IDE channels.
Ø The choice: Disabled or Enabled.

FDD, COM, LPT Port (Disabled)

When this item is enabled, the system will restart the power-saving
timeout counters when any activity is detected on the floppy disk drive,
serial ports, or the parallel port.

Ø The choice: Disabled or Enabled.

PCI PIRQ <A-D> #

Ø The choice: Disabled or Enabled.

- 71 -

F

PnP/PCI Configuration

This section describes the configuration of PCI bus system. PCI or
Personal Computer Interconnection is a system which allows I/O
devices to operate at the speed CPU itself keeps when CPU
communicating with its own special components.
This section covers some very technical items, and it is strongly
recommended that only experienced users should make any
changes to the default settings.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit from Setup
if you have installed a new device or software and the system
reconfiguration has caused such a serious conflict that the operating
system can not boot.

Ø The choice: Enabled or Disabled .

Resource controlled By

The Award Plug-and-Play BIOS has the capacity to automatically
configure all of the boot and Plug-and-Play compatible devices.
However, this capability means absolutely nothing unless you are using
a Plug-and-Play operating system such as Windows 95.

If you set this field to "manual" , choose specific resources by going into
each of the sub-menu that follows this field (a sub-menu is proceeded
by a ">").

Ø The choice: Auto(ESCD) or Manual.

- 72 -

IRQ Resources

When resources are controlled manually, assign each system interrupt
a type, depending on the type of device using the interrupt.

IRQ3/4/5/7/9/10/11/12/14/15 assigned to
This item allows you to determine the IRQ assigned to the ISA bus and

is not available to any PCI slot. Legacy ISA for devices is compliant with
the original PC AT bus specification; PCI/ISA PnP for devices is compli­ant with the Plug-and-Play standard whether designed for PCI or ISA
bus architecture.

Ø The choice: PCI Device or Reserved.

PCI/VGA Palette Snoop

It determines whether the MPEG ISA/VESA VGA Cards can work with
PCI/VGA or not. If you have MPEG ISA/VESA VGA Cards and PCI/
VGA Card worked, Enable this field. Otherwise, please Disable it.

Ø The choice: Enabled or Disabled.

- 73 -

F

PC Health Status

Shutdown Temperature

Select the combination of lower and upper limits for the system shut­down temperature, if your computer contains an environmental moni­toring system. If the temperature extends beyond either limit, the system
shuts down.

Ø The choice: Disabled, 60。C/140。F, 65。C /149。F, 70。C /158。F.

System Component Characteristics

These fields provide you with information about the systems current
operating status. You cannot make changes to these fields.

The fields include

CPU Vcore PWM Temperature
VDDQ Fan 1 Speed
+3.3V Fan 2 Speed
+5V Fan 3 Speed
+12V

-12V

1.8V
+5VSB
Voltage Battery
System Temperature
CPU Temperature

- 74 -

@

Frequency/Voltage Control

CPU Vcore Select

This item allows you to select CPU Vcore.
Ø The choice: Default, +1.100V~+1.850V.

CPU Vcore Above 1.85V

This item will be enabled when you set "CPU Vcore Select" as

1.85V.After you enable this item, you may set the CPU Vcore value
from +1.850V~+2.400V.

Ø The choice: Default, +1.850V~+2.400V.

VDDQ Vcore Select

This item allows you to select AGP Card Voltage control.
Ø The choice: Default, +1.525V~+1.675V.

VDIMM Vcore Select

This item allows you to select DRAM Voltage control.
Ø The choice: Default, +2.55V~+2.75V.

CPU Clcok Ratio

This item allows the user to adjust CPU Ratio .
Min: 8
Max: 24
Ø Key in a DEC number: (Between Min and Max.)

- 75 -

CPU:DRAM Clock Ratio1 1

This item allows the user to set the clock Ratio between CPU and
DRAM.

Ø The choice: When CPU 100：1:1, 3:4, 3:5, 1:2

When CPU 133：4:3, 1:1, 4:5, 2:3.

CPU Clock

This item allows the user to adjust CPU Host Clock from 100MHz to
165 MHz by 1MHz step .

Min: 100MHz
Max: 165MHz
Ø Key in a DEC number: (Between Min and Max.)

DRAM Frequency

This item show Dram frequency which change with cpu frequency and
CPU: DRAM Ratio.

Ø 100*2, 133*2, 166*2, 200*2.

ZClock / Agp / Pci Clock

This item show ZClock / Agp/ Pci Clock which change with CPU
Clock.

Ø 133/66/33MHz.

Auto Detect DIMM/PCI Clk

This item allows you to enable/disable auto detection DIMM/PCI Clock.
Ø The choice: Enabled, or Disabled.

Spread Spectrum

This item allows you to enable/disable the spread spectrum modulation.
Ø The choice: Enabled, or Disabled.

- 76 -

@

Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing 'Y' loads the BIOS default values for the most stable,
minimal performance system operations.

@

Load Optimized Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing 'Y' loads the default values that are factory-set for
optimal performance system operation.

- 77 -

F

Set Password

This item is to set supervisor password. Please follow below steps.

New Password Setting :

1. While pressing <Enter> key to start setting password function, a
dialog box appears to ask you Enter password:

.

2. Key in a new password now. However, the password can not be
over eight characters or numbers.

3. Then system will request you to confirm new password by asking
you to key in new password again.

4. Once the confirmation is completed, new code takes effect.

No Password Setting :

5. If you want to delete password, just press <Enter> key instead of
new password while password input is requested. And the other
procedures are the same as above password setting.

If You Forget Password :

6. While being asked of password, you just forget it and you must
access the system. The only way is to turn off system and clear
CMOS memory. Please take reference in page 28 for clear CMOS
setting.

- 78 -

F

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing "Y" stores the selections made in the menus of CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.

F

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit from Setup without storing in CMOS any
change. The previous selections remain in effect. This exits from the
Setup utility and restarts your computer.

- 79 -
