Shuttle AN35N-400, AN35N Ultra User Manual

AN35 Ultra/AN35N Ultra

AMD Athlon XP/Athlon/Duron
462-pin Processor
with 200/266/333/400 MHz FSB
Based DDR MAINBOARD

AN35-400/AN35N-400

AMD Athlon XP/Athlon
462-pin Processor
with 266/333/400 MHz FSB
Based DDR MAINBOARD

User's Manual

NOTICE

If you’ve changed your CPU or overclocked your system, the system may fail to boot up,
even with a Clear CMOS jumper physically resetted. The reason is that NVIDIA’s new
nForce2 chipset introduces a way to reset a Clear CMOS jumper without removing a
chassis. Please follow the steps listed below:

1. Turn off your computer and unplug the power cable. Reconnect it after 30 seconds;

2. Press <Insert > and then press your computer’s start button. Continue holding <Insert>
until the system begins the POST (Power-On Self Test);

3. Immediately press <Del> to enter the BIOS;

4. Select ‘Load Optimized Defaults’ to return your system to a bootable condition; then
select ‘SAVE to CMOS and EXIT’;

5. Reboot your system.

Moreover, if your system fails to boot up after you reset the CPU FSB, select “SAVE to
CMOS and EXIT” in the BIOS. After the system restarts, there is on screen a message
warning you not to reset or turn off your computer:

Warning! New setting is updating now
Do not Reset or Shutdown the system

Your system works after the BIOS is updated.

WARNING

Thermal issue is highly essential for processors with a speed of 600MHz and above.
Hence, we recommend you to use the CPU fan qualified by AMD or motherboard
manufacturer. Meanwhile, please make sure CPU and fan are securely fastened well.
Otherwise, improper fan installation not only gets system unstable but also could
damage both CPU and motherboard because insufficient thermal dissipation.

If you would like to know more about thermal topic please see AMD website for
detailed thermal requirement through the address:

http://www.amd.com

Shuttle® AN35 Ultra/AN35N Ultra

AN35-400/AN35N-400

AMD Athlon XP/Athlon/Duron (AN35 Ultra/AN35N Ultra only)
462-pin Processor
with 200 (AN35 Ultra/AN35N Ultra only)/266/333/400 MHz FSB
Based DDR Mainboard
Manual Version 1.0

Copyright

Copyright© 2003 by Shuttle® Inc. All Rights Reserved.
This publication, including all photos, illustrations, and software, is protected under interna-

tional copyright laws, with all rights reserved. Reproducing any of the material contained
herein is prohibited without the consent of the publisher.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.

This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.
NVIDIA is a registered trademark of NVIDIA Corporation.
AMD, Athlon, and Duron are registered trademarks of AMD Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other product names used in this manual are ascribed to their respective
owners and acknowledged.

M801

Statement of Shuttle Mainboard via the EMI Test

Shuttle mainboards have been via the EMI test in terms of series of regulations: EN55022/
CISPR22/AS/NZS3548 Class B, EN55024 (1998/AS/NZS), EN4252.1 (1994), EN61000, ANSI
C63.4 (1992), CFR47 Part 15 Subpart B, and CNS13438 (1997). The items tested are illus­trated as follows:

(A) Voltage: AC 110V/60HZ & AC 230V/50HZ
(B) Tested Product Information:

Product Name: PC Mainboard
Status: Sample
Model Name: AN35N Ultra/AN35 Ultra/AN35N-400/AN35-400
S/N: N/A
CPU:

External Frequency: 200 MHz

AMD Athlon XP 3000+

External Frequency: 166 MHz

AMD Athlon XP 2700+/2800+

External Frequency: 133 MHz

AMD Athlon XP 1500+/1600+/1700+/1800+/1900+/2000+/2100+/2400+/2600+
AMD Athlon 1.00/1.13/1.20/1.33/1.40 GHz

External Frequency: 100 MHz

AMD Athlon 750/800/850/900/950 MHz, 1.00/1.10/1.20/1.30/1.40 GHz

AMD Duron 750/800/850/900/950 MHz, 1.00/1.10/1.20/1.30 GHz
Mouse Port: one port with 6 pins
Keyboard Port: one port with 6 pins
Parallel Port: one port with 25 pins
Serial Port: two ports with 9 pins respectively
MIDI/Game Port: one port with 15 pins
Line-Out & Line-In & Mic-In Ports: one port for each
LAN Port: one port with 8 pins (10Mbps/100Mbps)(AN35N Ultra & AN35N-400 Only)
USB 2.0 Port: two ports with 4 pins respectively
DIMM Memory (optional): 512 MB *2

All CPUs have completely been tested, and values offered by the worst EMI combination of
CPU external frequency are listed as follows:

Test Mode

1
2
3
4
5
6
7
8

9
10
11
12

External Frequency

200 MHz
200 MHz
166 MHz
166 MHz
133 MHz
133 MHz
133 MHz
133 MHz
100 MHz
100 MHz
100 MHz
100 MHz

CPU
Athlon XP 3000+
Athlon XP 3000+
Athlon XP 2800+
Athlon XP 2800+
Athlon XP 2600+
Athlon XP 2600+

Athlon 1.4 GHz
Athlon 1.4 GHz
Athlon 1.4 GHz
Athlon 1.4 GHz
Duron 1.2 GHz
Duron 1.2 GHz

Case Open/Closed

Closed

Open

Closed

Open

Closed

Open

Closed

Open

Closed

Open

Closed

Open

(C) Remedy for the Tested Product & Its EMI Interference:

Remedy: N/A
EMI Interference:

Crystal: 14.300 MHz(Y1)/32.768 KHz(Y2)/12.000 MHz(Y3)/24.576 MHz(Y4)/

25.000 MHz(X5)

Clock Generator: N/A

(D) Difference among AN35N Ultra/AN35 Ultra/AN35N-400/AN35-400:
To discriminate AN35N Ultra from AN35 Ultra lies in the extent that chips in AN35N Ultra
support LAN, and the combination for testing is based on AN35N Ultra.

To discriminate AN35N-400 from AN35-400 lies in the extent that chips in AN35N-400 support
LAN, and the combination for testing is based on AN35N-400.

(E) Supported Host Peripherals:

Host Peripheral Product Name Model Name S/N FCC ID

#1 Case KF45A N/A
#2 Power Supply (300W) ENP-0730 (ATX12V) 1000002885
#3 IBM HDD (30.7GB) 91024UB YKFY7981 3892I168
#4 MITSUMI FDD D353M
#5 SONY VCD Player CDU4811 3892A291
#6 AGP Card Winfast Geforce 2 MX 3892C520
#7 Power Cable Detachable and Shielded

(F) Notices for Assembling Computers:

1. Cases should be made of iron or other metal that has good electric conductivity.

2. Cylinders in a case should be made of metal, and as having a mainboard mounted
in a case, make sure screws are all utilized and fastened on a mainboard.

3. An I/O shielding should be contacted with I/O metallic parts of a mainboard.

4. Cables should appropriately be arranged and fixed in a case. Follow instructions:

Ø Leave IDE cables not crossed upon CPU and SDRAM;
Ø Leave power cables minimum in length, and not crossed upon a mainboard;
Ø Leave CPU fan cables minimum in length, and not near CPU;
Ø Leave cables on panels and other spare cables tied in a computer case.

5. Make sure an EMI shielding attached to a case has properly been installed.

6. Make sure a 5.25" or 3.5" FDD and screws are fastened to an EMI shielding.

7. Make sure a case is closely in contact with EMI connected points.

8. Make sure there is no cleft in a case which is not deformed.

9. Make sure a PCI or AGP door is bound to a case.

10. Make sure cables of other devices (fans or some others) are fixed in a case.

TABLE OF CONTENTS

WHAT'S IN THE MANUAL.................................................................... 4

Quick Reference............................................................................................... 4

About This Manual ........................................................................................... 4

1 INTRODUCTION ................................................................................ 5

1.1 TO DIFFERENT USERS ............................................................................. 5

FIRST-TIME DIY SYSTEM BUILDER............................................................ 5

EXPERIENCED DIY USER ......................................................................... 5

SYSTEM INTEGRATOR............................................................................... 5

1.2 ITEM CHECKLIST: ...................................................................................... 6

2 FEATURES ........................................................................................ 7

2.1 SPECIFICATIONS ....................................................................................... 7

3 HARDWARE INSTALLATION.......................................................... 10

3.1 STEP-BY-STEP INSTALLATION............................................................... 10

STEP 1 Install the CPU ...............................................................................11

STEP 2 Set Jumpers ................................................................................. 12

STEP 3 Install DDR SDRAM System Memory............................................ 12

STEP 4 Install Internal Peripherals in System Case .................................... 13

STEP 5 Mount the Mainboard on the Computer Chassis............................ 14

STEP 6 Connect Front Panel LEDs/Switches/USBs .................................. 15

STEP 7 Connect IDE and Floppy Disk Drives ............................................ 16

STEP 8 Connect Other Internal Peripherals................................................ 17

STEP 9 Connect the Power Supplies......................................................... 18

STEP 10 Install Add-on Cards in Expansion Slots ...................................... 19

STEP 11 Connect External Peripherals to Back Panel ............................... 20

STEP 12 System Boot Up For the First-Time ............................................. 21

STEP 13 Install Drivers & Software Components ....................................... 22

3.2 JUMPER SETTINGS ................................................................................. 23

JUMPERS & CONNECTORS GUIDE........................................................ 24

Jumpers

Clear CMOS Setting (JP1)........................................................................ 27

- 1 -

Back Panel Connectors

PS/2 Mouse & PS/2 Keyboard Port Connectors ........................................ 28

Parallel Port Connector.............................................................................. 28

COM1/COM2 Port Connectors .................................................................. 28

MIDI/Game Port Connector ........................................................................ 28

Line-Out Port Connector ............................................................................ 29

Line-In (Rear-Out) Port Connector .............................................................. 29

Mic-In (Center/Bass-Out) Port Connector ................................................... 29

LAN Port Connector (AN35N Ultra/AN35N-400 Only) ................................. 29

USB1/USB2 Port Connectors .................................................................... 29

Front Panel Connectors

HDD LED Connector (HLED) .................................................................... 30

Green LED Connector (GLED) .................................................................. 30

Hardware Reset Connector (Reset) ........................................................... 31

ATX Power On/Off Switch Connector (PWON) ........................................... 31

EPMI Connector (EPMI)............................................................................. 32

Power LED Connector (PLED) .................................................................. 32

Speaker Connector (Speaker) ................................................................... 32

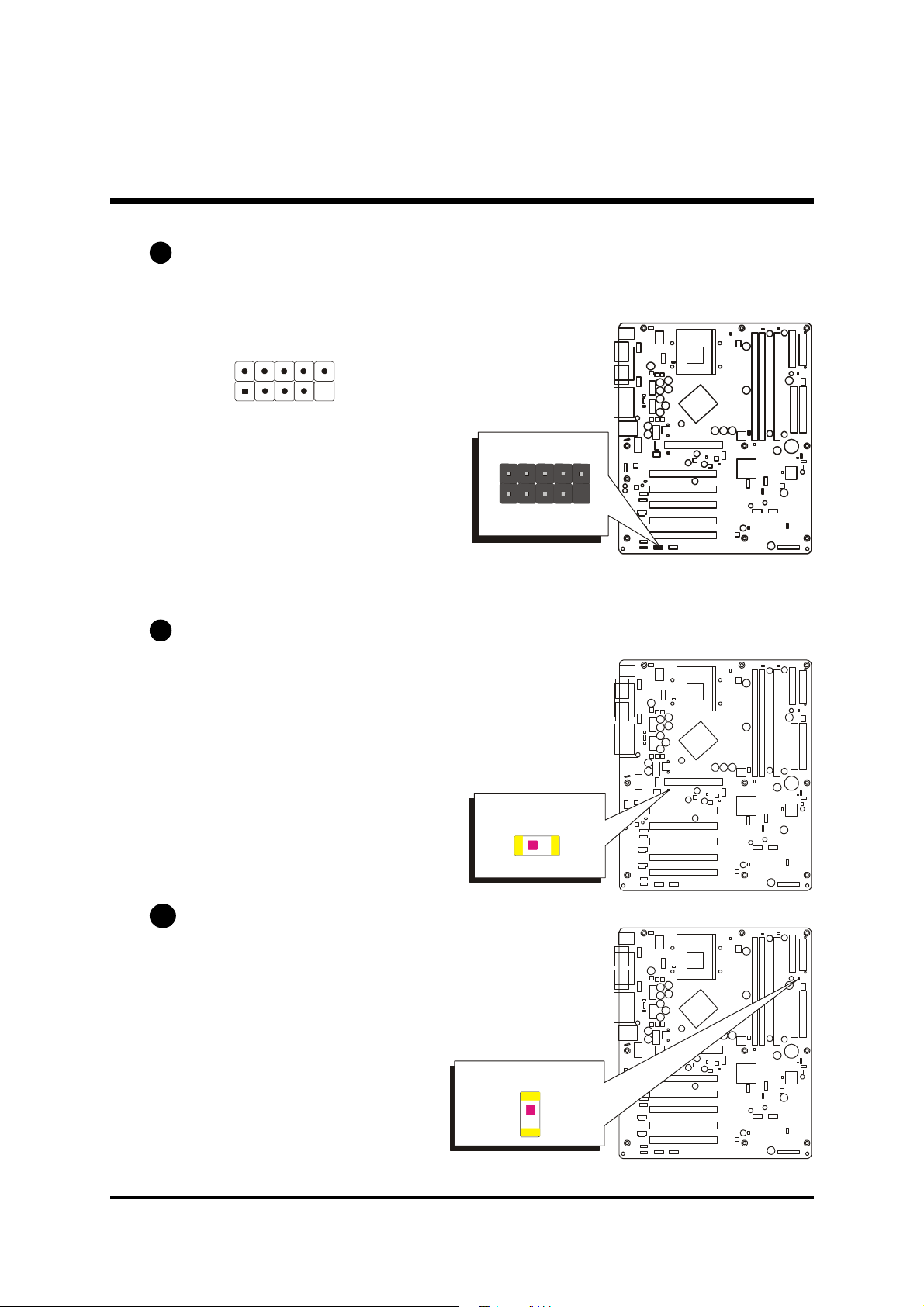

Front Panel Audio Header (JP9) ................................................................ 33

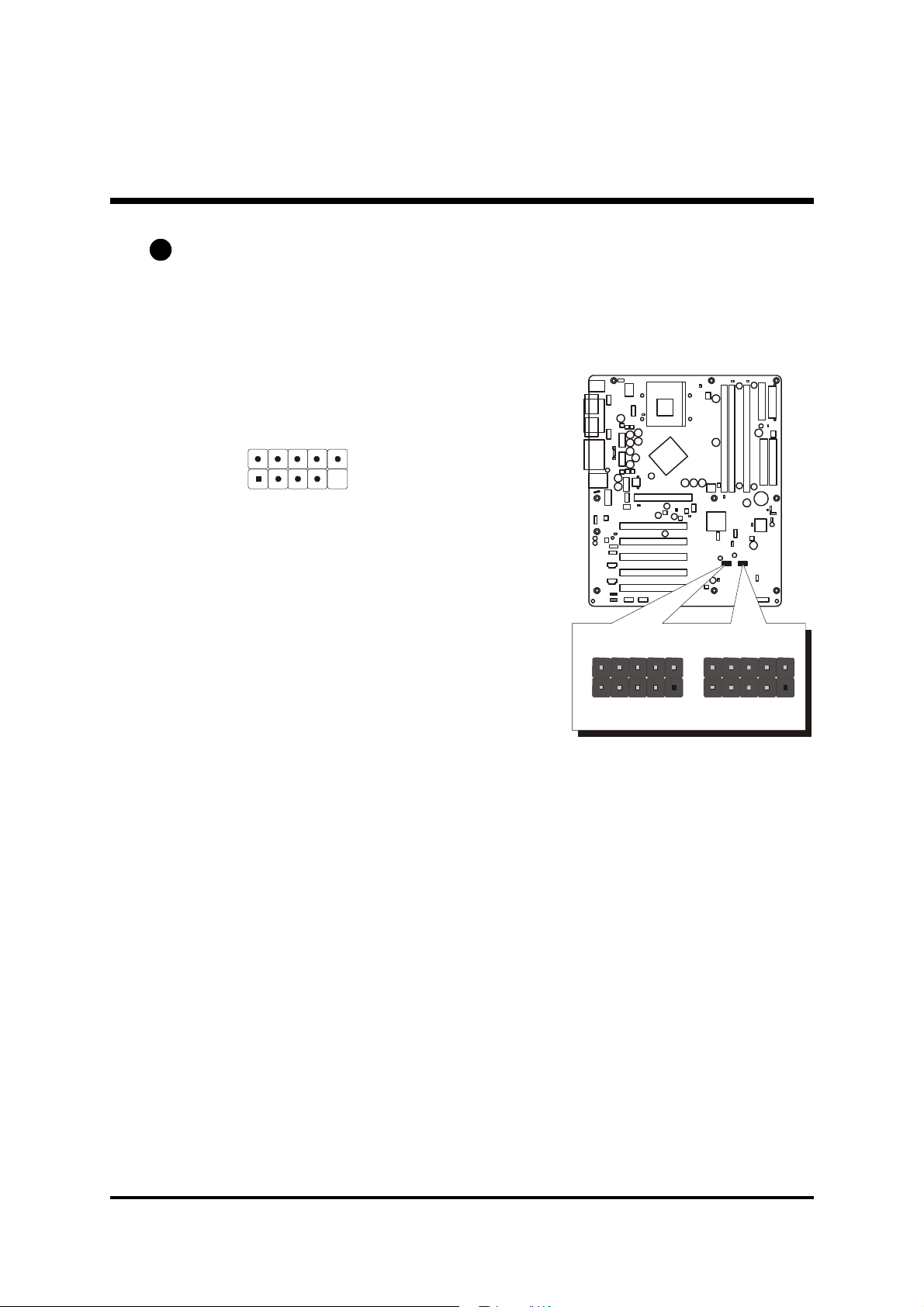

Extended USB Headers (JP2/JP3) ............................................................ 34

Internal Peripheral Connectors

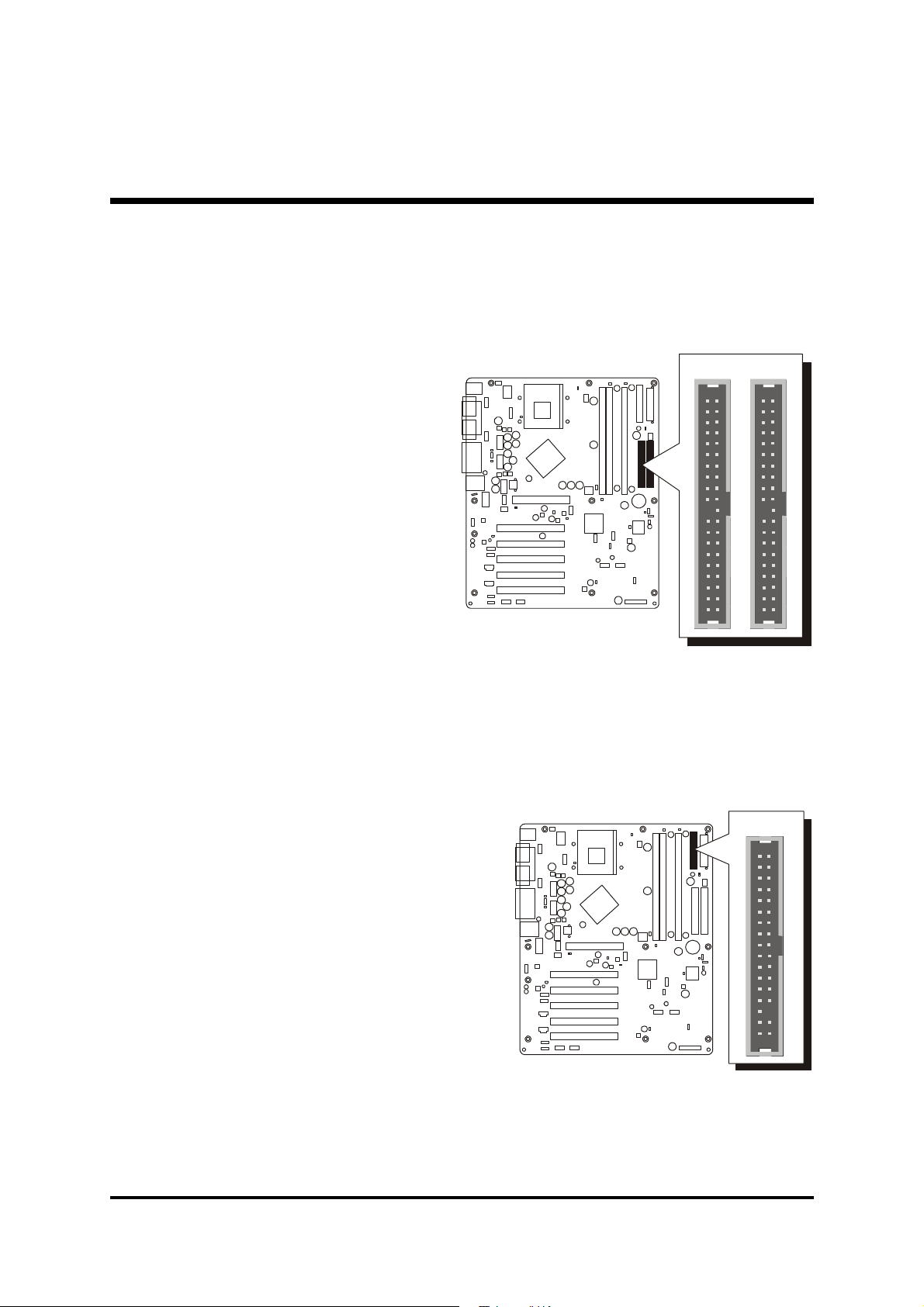

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FLP1) ...................... 35

Other Connectors

ATX Power Supply Connectors (CN2/CN3)................................................ 36

CPU and System Fan Connectors (FAN1/2/3)............................................ 37

IR Header (JP4)......................................................................................... 37

Audio CD_IN Connectors (JP6/JP8) .......................................................... 38

Audio AUX_IN Connector (JP10) ............................................................... 38

Audio Rear_Out Header (JP20)................................................................. 39

Audio Center/Bass Header (JP5)............................................................... 39

SPDIF Ext. Header (JP7)........................................................................... 40

AGP Proof LED (D1) ................................................................................. 40

CPU Overheat LED (D30) ......................................................................... 40

- 2 -

3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 41

INSTALL MEMORY .................................................................................... 41

UPGRADE MEMORY................................................................................ 41

4 SOFTWARE UTILITY ......................................................................42

4.1 Mainboard CD Overview ......................................................................... 42

4.2 Install NVIDIA Chipset Driver .................................................................. 43

4.3 Install USB 2.0 Driver (for Win9x/ME only) ............................................ 43

4.4 View the User's Manual .......................................................................... 44

5 BIOS SETUP ...................................................................................45

5.1 ENTER BIOS ............................................................................................. 45

5.2 THE MAIN MENU ...................................................................................... 46

STANDARD CMOS FEATURES ............................................................... 48

ADVANCED BIOS FEATURES................................................................. 50

ADVANCED CHIPSET FEATURES .......................................................... 53

INTEGRATED PERIPHERALS .................................................................. 56

POWER MANAGEMENT SETUP.............................................................. 59

PNP/PCI CONFIGURATIONS .................................................................... 62

PC HEALTH STATUS................................................................................ 63

CPU Ratio/Voltage Control ........................................................................ 64

LOAD FAIL-SAFE DEFAULTS .................................................................. 65

LOAD OPTIMIZED DEFAULTS ................................................................. 65

SET SUPERVISOR/USER PASSWORD................................................... 66

Save & Exit Setup...................................................................................... 67

Exit Without Saving.................................................................................... 67

- 3 -

WHAT'S IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................Page 10

Jumper Settings >> A Closer Look.......................................................Page 23

Software Utility >> How to Install..........................................................Page 42

BIOS Setup >> How to Configure.........................................................Page 45

About This Manual

For First-Time DIY System Builder .........................................................Page 5

For Experienced DIY User ......................................................................Page 5

For System Integrator .............................................................................Page 5

- 4 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as diffi­cult as you may think. To make your first computer DIY experience successful,
right from the start, we have designed Chapter 3 Hardware Installation in a
step-by-step fashion for all the first-time DIY system builders. Prior to installa­tion, we suggest you read the whole manual to gain a complete understanding
of your new AN35 Ultra/AN35N Ultra/AN35-400/AN35N-400 mainboard.

Experienced DIY User

Congratulate on your purchase of the AN35 Ultra/AN35N Ultra/AN35-400/
AN35N-400 mainboard. You will find installing your new AN35 Ultra/AN35N
Ultra/AN35-400/AN35N-400 mainboard is quite easy. Bundled with an array
of onboard functions, the highly-integrated AN35 Ultra/AN35N Ultra/AN35­400/AN35N-400 mainboard provides you with a total solution to build the
stablest and most reliable system. Referring to section 3.2 Jumper Settings
and Chapter 4 Software Utility, you will find how to work out your new
mainboard. Chapter 5 BIOS Setup also contains the relevant information
on how to tune up your system to achieve higher performance.

System Integrator

You have wisely chosen AN35 Ultra/AN35N Ultra/AN35-400/AN35N-400 to
construct your system. AN35 Ultra/AN35N Ultra incorporates all the state-of­the-art technology of the nForce2 Ultra 400 chipset from NVIDIA. AN35-400/
AN35N-400 incorporates all the state-of-the-art technology of the nForce2 400
chipset from NVIDIA. Each integrates the most advanced functions you've ever
found in a compact ATX board.

This manual is all-purpose for four kinds of mainboards: AN35 Ultra/
AN35N Ultra/AN35-400/AN35N-400. The main difference among
them is that AN35N Ultra or AN35N-400 is equipped with an onboard
LAN. In the manual, if there are some standards, characteristics, equip­ment, or software adopted only by AN35N Ultra or AN35N-400, it will
be highlighted in brackets.

- 5 -

1.2 Item Checklist:

inbon

d

+++

--Reset

Speaker

DIMM1

DIMM2

DIMM3

FLP1

FAN21IDE2

IDE1

1

JP131JP1

CMOS1JP2

USB 3&4

JP3

USB 5&6

T
A
I
W
A
N

n

V
I

D
I

A

n
F
O
R
C
E

2

M
C
P

JP3

CN3

PCI2

PCI3

PCI4

PCI5

SPDIF Ext.

JP201REAR_OUT

JP101AUX_IN

-

+

-

D30

CPU overheat

+

-

D26

Check all items with your AN35 Ultra/AN35N Ultra/AN35-400/AN35N-400
mainboard to make sure nothing is missing. A complete package should
include:

- One Shuttle AN35 Ultra/AN35N Ultra/
AN35-400/AN35N-400 Mainboard

- One ATA 133/100/66/33 Ribbon Cable

- One Floppy Ribbon Cable

- One Twin-Port USB Cable (optional)

IR

CN1

1

JP4

COM1

Attansic

ATXP1

PRN1

COM2

AUDIO1

LAN1

ATX12V

USB1

CN2

1

AGP1

+

AGP proof

FAN3

1

D1

REALTEK

RTL8201BL

TAIWAN

PCI1

ALC650

CD_IN

1

JP6

CD_IN

1

JP8

Front Audio
CENTER/BASS
1

1

1

JP5

JP9

JP7

DIMM power

ATXPWR

FAN1
1

1

1

1 1

207GFSA
223503101
W49V002AP

W

1

HLED

EPMI

-

PLED

GLED

PWON

- AN35 Ultra/AN35N Ultra/AN35-400/
AN35N-400 User's Manual

- I/O Shielding (AN35N Ultra/AN35N-400 Only)

- One Bundled CD-ROM, including:
Ø AN35 Ultra/AN35N Ultra/AN35-400/

AN35N-400 user's manual in PDF format

Ø NVIDIA Chipset Driver
Ø USB 2.0 Driver (for Win9x/ME only)
Ø Award Flashing Utility

- 6 -

2 FEATURES

AN35 Ultra/AN35N Ultra/AN35-400/AN35N-400 mainboard is dedicatedly designed for
demanding PC users who desire high performance and maximum intelligent features in a
compact package.

2.1 Specifications

- CPU Support

AMD Athlon XP/Athlon/Duron, 462-pin processors with 200/266/333/400
MHz FSB for AN35 Ultra/AN35N Ultra.

AMD Athlon XP/Athlon, 462-pin processors with 266/333/400 MHz FSB for
AN35-400/AN35N-400.

- Chipset

Features NVIDIA nForce2 Ultra 400 N.B. and NVIDIA MCP S.B. for AN35
Ultra/AN35N Ultra.

Features NVIDIA nForce2 400 N.B. and NVIDIA MCP S.B. for AN35-400/
AN35N-400.

- Onboard 10/100Mb/s LAN (AN35N Ultra/AN35N-400 Only)

The Realtek 8201BL incorporated in the chipset provides the mainboard with
integrated Fast Ethernet capabilities.

- AC'97 Audio

Realtek ALC650 Supports 18-bit ADC and DAC resolutions, and 6 channel
selectable DAC output for multi-channel applications.

Compliant with AC'97 2.2 specifications.

- Versatile Memory Support

Features the dual-channel mode of 128-bit data transfer rate. (AN35 Ultra/
AN35N Ultra only)

Three 184-pin DDR SDRAM DIMM slots maximumly accommodate 3GB
of PC1600/2100/2700/3200 for AN35 Ultra/AN35N Ultra.

Three 184-pin DDR SDRAM DIMM slots maximumly accommodate 3GB
of PC2100/2700/3200 for AN35-400/AN35N-400.

- PCI Expansion Slots

Provide five 32-bit PCI slots.

- 7 -

- AGP Expansion Slot

Provides one AGP3.0 compliant slot that supports up to 8X AGP device.

- 6 USB 2.0 Interface Onboard

Ø 2 x USB ports on back panel and two extended USB headers (4 ports) on

front panel.

- I/O Interface

Provides a variety of I/O interfaces:

Ø 1 x PS/2 Mouse
Ø 1 x PS/2 Keyboard
Ø 1 x Parallel port
Ø 2 x Serial ports
Ø 1 x MIDI/Game port
Ø 1 x Line-Out port
Ø 1 x Line-In (shared with Rear-Out) port
Ø 1 x Mic-In (shared with Center/Bass-Out) port
Ø 1 x LAN port (AN35N Ultra/AN35N-400 only)
Ø 2 x USB ports

- PCI Bus Master IDE Controller Onboard

Two ultra DMA 133 bus master dual-channel IDE ports support up to four IDE
devices (one Master and one Slave per channel).

The IDE bus implements data transfer speeds to 133/100/66/33MB/sec and sup­ports enhanced PIO modes.

80-pin cable backward compatible legacy ATAPI devices, ATAPI IDE CD-ROM,
CD-R, CD-RW, and LS-120 supports.

- ATX Power Supply Connector

ATX power supply unit can be connected to the onboard 20-pin ATX power
connector, and 4-pin ATX power connector. The unit supports Suspend and
Soft-On/Off modes by the dual-function power button.

- 8 -

- Advanced Configuration and Power Interface

Features four power-saving modes: S1 (Snoop), S3 (Suspend to RAM), S4
(Suspend to DISK), and S5 (Soft-Off). ACPI provides more efficient energy­saving features controlled by your operating system that supports OS Direct
Power Management (OSPM) functionality.

- System BIOS

Provides licensed Award BIOS V6.0 PG on the 2Mb Flash ROM, and sup­ports Green PC, Desktop Management Interface (DMI).

- Form Factor

System board conforms to the ATX specification.
Board dimension: 305mm x 244mm.

- Advanced Features

Ø Low EMI - Built in spread spectrum. Unused PCI/SDRAM slots are shut off

by the automatic clock for reducing EMI.

Ø Dual Function Power Button - The system can be in any of the two

states: one is Suspend mode and the other is Soft-Off mode. Pushing the
power button for less than 4 seconds places the system into Suspend
mode. When the power button is pressed for longer than 4 seconds, the
system will enter Soft-Off mode.

Ø Modem Ring Power-On - The system can be powered on automatically

by the activation of modem ringing.

Ø CPU Multiplier Setting - This item allows users to adjust CPU Multiplier

in BIOS.

Ø CPU/RAM/AGP Voltage Setting - These items allow users to adjust

CPU/RAM/AGP Voltage in BIOS.

- Intelligent Features

Ø Voltage Monitoring - Monitors various voltages of key elements, such as

the CPU, and other critical system voltage levels to ensure a stable current
passing through mainboard components.

Ø Fan Status Monitoring - To prevent the CPU from overheating, the CPU

fan is monitored by RPM, with which the cooling fan is required.

Ø Temperature Monitoring - This item allows users to make sure whether

the CPU or system runs under a suitable temperature.

- 9 -

3 HARDWARE INSTALLATION

inbon

d

+++

-

--Reset

Speaker

DIMM1

DIMM2

DIMM3

FLP1

FAN21IDE2

IDE1

1

JP131JP1

CMOS1JP2

USB 3&4

JP3

USB 5&6

T

A
I

W
A
N

n

V
I

D
I

A

n
F
O
R
C
E

2

M
C
P

JP3

CN3

PCI2

PCI3

PCI4

PCI5

SPDIF Ext.

JP201REAR_OUT

JP101AUX_IN

-

+

-

D30

CPU overheat

+

-

D26

SPDIF Ext. Header - JP7

Front Panel Audio Header - JP9

Front Panel Header - JP13

Clear CMOS Jumper - JP1nForce2 MCP ChipsetTwo IDE ConnectorsFAN2ATX P

ower Connector - CN

3

CPU Overheat LED - D3

0

nForce2 Ultra 400 Chipset (for AN35/N Ultra)/

Three DIMM Slots

V-DIMM Power LED - D26

Before removing/installing any of these devices: CPU, DIMMs, Add-On
Cards, and Cables, please unplug the onboard power connector.

This section outlines how to install and configure your mainboard. Referring to the follow­ing mainboard layout helps you identify various jumpers, connectors, slots, and ports.

3.1 Step-by-Step Installation
Accessories Of AN35 Ultra/AN35N Ultra/AN35-400/

AN35N-400

nForce2 400 Chipset (for AN35/N-400)

IR Header - JP4
PS/2 Mouse &

PS/2 Keyboard
Port Connectors

CN1

COM1

IR

1

JP4

FAN1

DIMM power

FAN1

1

Floppy Connector

ATXPWR

Serial Port
Connector

Parallel Port
Connector

PRN1

Attan sic

ATXP1

1

1

Socket 462
Serial Port

Connector

COM2

MIDI/Game &
Line-Out/
Line-In/Mic-In
Port Connectors

ATX12V Power
Connector - CN2

LAN Port (AN35N
Ultra/AN35N-400
Only) & USB Port
Connectors

FAN3
AGP Proof

LED - D1
One AGP Slot

AUDIO1

LAN1

USB1

FAN3

REALTEK

RTL8201BL

TAIWAN

PCI1

1

1

AGP1

+

AGP proof

D1

ATX12V
CN2

207GFSA
223503101

W49V002AP

W

1 1

Five PCI Slots

ALC650

Audio CD_IN
Connector - JP6

Audio CD_IN
Connector - JP8

Audio AUX_IN
Connector - JP10

Audio Rear_Out
Header - JP20

Audio Center/
Bass Header - JP5

CD_IN

JP6

CD_IN

1

JP8

CENTER/BASS

1

JP5

1

1

Front Audio

1

1

JP9

JP7

HLED

EPMI

PWON

PLED

GLED

Extended USB Headers -

JP2 (USB 3&4/JP3 (USB 5&6)

- 10 -

Step 1

Notch

AMD CPU

SOCKET462

A

SSEMBLED IN MAL

A

Y

S

I

A

Lever

Blank

OCKET46

2

Install the CPU:

1. Locate the CPU ZIF (Zero Insertion Force) socket on the upper-right sector
of your mainboard (between the back panel connectors and the DIMM
memory slots).

2. Pull the CPU ZIF socket lever slightly sideways away from the socket to
unlock the lever, and then bring it to an upwardly vertical position.

3. Place your AMD AthlonXP/Athlon/Duron processor in the socket A. Note
that the CPU's edges have been purposely designed non-symmetrically to
prevent from inserting the processor in the wrong direction. The following
diagram demonstrates the correct placement of the CPU in the ZIF socket.
You can see that the two blunt-edged corners should face towards the socket

lever.

Blank

S

4. Slightly push the AMD AthlonXP/Athlon/Duron processor into the socket
without applying excessive force while making sure there is no gap between

CPU and socket. Then lower the socket-lever all the way down to its hori­zontal position and lock it to secure the CPU in place.

5. The AMD AthlonXP/Athlon/Duron processor requires a set of heatsink/fan
to ensure proper cooling of the processor. If heatsink/fan have not been al­ready mounted on your CPU, you must purchase the heatsink/fan separately
and have it installed. Plug the cable throught the heatsink/fan in the CPU fan
power connector located nearby. Note that there are several types of CPU
fan connectors. Normally, if your mainboard supports the hardware moni­toring function, a 3-pin fan power connector should allow your system to
detect the CPU fan's speed. The CPU fan can also run with a 2-pin fan power
connector, however, detection of CPU fan's speed is not supported. An­other type of CPU fan may feature a large 4-pin fan power connector, which
does not support CPU fan's speed detection and must be directly connected
to the system's power supply unit. Please refer to the following diagram.

- 11 -

Step 2.

Set Jumpers

The default jumper settings have been set for the common usage standard of
this mainboard. Therefore, you need not to reset the jumpers unless you re­quire special adjustments as the following case:

Clear CMOS Setting

For first-time DIY system builders, we recommend that you not change the
default jumper settings if you are not quite familiar with the mainboard con­figuration procedures. The factory-set default settings are tuned for optimum
system performance. For advanced users who prefer to customize their sys­tem, section 3.2 Jumper Settings provides the detailed information on how
to configure your mainboard manually.

Step 3

Install DDR SDRAM System Memory

To install memory, insert DDR SDRAM memory module(s) in the DIMM
banks. Note that DDR SDRAM modules are directional and will not go in the
DIMM banks if they are not properly oriented. After the module is fully in­serted into the DIMM bank, lift the clips of both sides of the DIMM bank to
lock the module in place.

DDR SDRAM

- 12 -

Step 4

Install Internal Peripherals in System Case

Before you place the mainboard into your system case, we recommend that
you first assemble all the internal peripheral devices into the computer hous­ing, including, but not limited to, the hard disk drive (IDE/HDD), floppy disk
drive (FDD), CD-ROM drive, and ATX power supply unit.

To install IDE & FDD drives, follow these procedures:

1. Set the required jumpers on each device according to the instructions pro­vided by the manufacturer. (IDE, HDD, and CD-ROM have to set jumpers
to Master or Slave mode depending on whether you install more than one
device of each kind.)

2. Connect the IDE cable and FDD cable on the back panel of the internal
peripheral devices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually red or magenta)
connected to pin#1 of the IDE or FDD connector on the mainboard and
on the device as well.

3. Connect an available power cable from your system power supply unit to
the back panel of each peripheral device. Note that the power cable is di­rectional and cannot fit in if not properly positioned.

- 13 -

Step 5

Mount the Mainboard on the Computer Chassis

1. You may find there are a lot of mounting holes on your computer chassis
and mainboard. To match the holes on both properly, the key point is to
make the back panel of the mainboard in a close fit with your system case,
as shown below.

2. Position the studs between the chassis and the mainboard. The studs are
used to fix the mainboard and to keep a certain distance between them,
for avoiding any electrical shorts in-between.

(If your computer case is already equipped with mounting studs, you need
to tighten the screws to attach the mainboard.)

Note: In most computer housings, you can find 4 or more holes to place

studs for fixing the mainboard. If there aren't enough matching holes,
screw at least 4 studs to ensure the proper attachment of the main­board.

- 14 -

Step 6

1

JP13

12345

7

JP2/JP3

8

7

9

9=KEY

2=POWER (5V)

10=NC

+++---Reset

Speaker

1

JP13

Connect Front Panel LEDs/Switches/Speaker/USBs

You can find there are several cables existing in the system case and originat­ing from the front panel devices (HDD LED, Green LED, Reset switch, PC
Speaker, and USB devices etc.). These cables serve to connect the front panel
LEDs, switches, speaker, and USB connectors to JP13 and JP2/JP3, as shown
below.

JP3

1

USB 5&6

JP2

1

USB 3&4

1. HDD LED (HLED)

2. Green LED (GLED)

3. Hardware Reset Switch (Reset)

4. ATX Soft Power On/Off (PWON)

5. Hardware System Management
Interface (EPMI)

6. Power LED (PLED)

7. PC Speaker (Speaker)

8. Extended USB Headers
(JP2-USB 3&4/JP3-USB 5&6)

EPMI

PLED

Speaker

PWON

EPMI

+

PLED PWON GLED

6

2 4 6810

1

1 3 5

1=POWER (5V)
3=DATA3­5=DATA3+
7=GND

HLED

GLED

Reset HLED

-

+

4=

DATA4-

6=

DATA4+

8=GND

+

--

- 15 -

Step 7

1

IDE1

Connect IDE and Floppy Disk Drives

1. IDE cable connectors

IDE2

1 1

2. Floppy cable connector

FLP1

1

- 16 -

Step 8

Front Audio

JP20

REAR_OUT

Connect Other Internal Peripherals

1. IR header (JP4)

2. Audio CD_IN connectors (JP6/JP8);
Audio AUX_IN connector (JP10);
Audio Rear_Out header (JP20);
Audio Center/Bass header (JP5); and
Front panel audio header (JP9)

JP4

1

IR

JP6

CD_IN

1

CD_IN

JP10

1

AUX_IN

1

JP8

JP9

1

1

JP5

1

CENTER/BASS

- 17 -

3. SPDIF Ext. header (JP7)

CN2

ATX12V

ATXPWR

Step 9

Connect the Power Supplies

1. System power connectors (CN2/CN3)

JP7

1

SPDIF Ext.

CN3

1

1

- 18 -

Step 10

Install Add-On Cards in Expansion Slots

1. Accelerated Grapics Port (AGP) Card

2. PCI Card

- 19 -

Step 11

579

1026

8

Connect External Peripherals to Back Panel

You are now ready to connect the external peripherals to your system's back
panel.

1. PS/2 Mouse Port

2. PS/2 Keyboard Port

3. Parallel Port

4. Serial Ports1/2

5. MIDI/Game Port

6. Audio Line-Out Port

7. Audio Line-In (shared with Rear-Out) Port

8. Audio Mic-In (shared with Center/Bass-Out) Port

9. LAN Port (AN35N Ultra/AN35N-400 Only)

10. USB Ports1/2

1

3

foxconn

4

- 20 -

Step 12

System Boot Up For the First-Time

To ensure your system completedly and correctly installed, please refer to the
above installation steps once again before first booting up your system.

1. Insert a system-bootable floppy disk (DOS 6.2X, Windows 9X/NT, or
others), which contains the FDISK and FORMAT utilities.

2. Turn on the system power.

3. First, you need to use the FDISK utility to create a primary partition of the
hard disk. You can also add an extended partition if your primary partition
does not use all of the available hard disk space. If you choose to add an
extended partition, you will have to create one or more logical partitions
to occupy all the space available to the extended partition. The FDISK

utility will assign a drive letter (i.e. C:, D:, E:,......) to each partition shown in

the FDISK program. After the FDISK procedure, reboot your system by
using the same disk.

Note: DOS 6.2X and Windows 95A can only support up to 2.1GB of HDD

partition. If you use the FDISK utility with one of the operating sys­tems mentioned above, you can only install your HDD into any par­titions no larger than 2.1GB.

4. Now, use the FORMAT utility to format all the partitions you've created.
When formatting the primary partition (C:), key in the command, "FOR­MAT C:/S."

Note: FORMAT C:/S can transfer all the necessary system files into the pri-

mary partition of your hard disk. Afterwards, your HDD will become
a bootable drive.

5. Install all the necessary drivers for CD-ROM, Mouse, etc.

6. Setup the complete operating system according to your OS installation
guide.

- 21 -

Step 13

Install Drivers & Software Components

Please note that all the system utilities and drivers are designed for Win 9x/
2000/ME/NT/XP operating systems. Make sure your operating system is
already installed before running the installation programs on CD-ROM.

1. Insert the AN35 Ultra/AN35N Ultra/AN35-400/AN35N-400 bundled CD-

ROM into your CD-ROM drive. The auto-run program will display the
main installation window on screen.

2. Choose "Install Mainboard AN35 Series Driver."

3. Choose "Install NVIDIA Chipset driver" and complete it.

4. Choose "Install USB 2.0 Driver" and complete it. (for Win9x/ME only)

5. Quit (from the auto-run installation program).

- 22 -

3.2 Jumper Settings

Several hardware settings are made through the use of mini jumpers to con­nect jumper pins on the mainboard. Pin #1could be located at any corner of
jumpers, and the corner with a white right angle stands for Pin #1. There are
several types of Pin #1 as shown below:

3-pin and multi-pin (>3) jumpers shown as follows:
Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins capped are shown as for Close [On] or
for Open [Off]. To do this, please place a plastic mini cap on the desired pair
of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging
until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its compo­nents. When putting the mainboard down, place it on top of its original
packaging film, with the component side up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent
electrostatic discharge (ESD) as handling this equipment.

- 23 -

Jumpers & Connectors Guide

E7E8C8C9C1~C7

A1D1E2

E1D1E10

E2

Refer to the mainboard layout on page 10 and this section to help you iden­tify jumpers, slots, and connectors along with their assigned functions.

B1
B3

B2

B3

B4~B7

E3

B8~B9

E1
E2

E9

E4
E4

E5
E6

CPU/Memory/Expansion Slots

Socket A : CPU socket for AMD Athlon XP/Athlon/Duron, 462-pin

processors

DIMM1/2/3 : Three DIMM slots for 128, 256, 512 MB, and 1GB of 2.5V

DDR SDRAM

(The total installed memory does not exceed 3GB.)
AGP : One AGP slot supports up to 8X AGP device.
PCI : Five 32-bit PCI expansion slots

- 24 -

Jumpers

A1

JP1 : Clear CMOS setting

Back Panel Connectors

B1
B1

B2
B3

B4
B5

B6
B7

B8
B9

MS : PS/2 mouse port
KB : PS/2 keyboard port
PRN1 : Parallel port
COM1/COM2 : Serial ports1/2
MIDI/GAME : MIDI/Game port
LINE-OUT : Line-Out port
LINE-IN : Line-In (shared with Rear-Out) port
MIC-IN : Mic-In (shared with Center/Bass-Out) port
LAN1 : LAN port (AN35N Ultra/AN35N-400 only)
USB1 : USB ports1/2

Front Panel Connectors

C1

C2

C3

C4

HLED : HDD LED
GLED : Green LED
Reset : Hardware reset switch
PWON : ATX power on/off switch

C5

C6
C7
C8

C9

EPMI : EPMI connector
PLED : Power LED
Speaker : Speaker connector
JP9 : Front panel audio header
JP2/JP3 : Extended USB headers

Internal-Peripheral Connectors

D1
D1

D1

IDE1 : IDE primary interface (dual-channel)
IDE2 : IDE secondary interface (dual-channel)
FLP1 : Floppy disk drive interface

Other Connectors

E1
E2

CN2/CN3 : ATX power supply connectors
FAN1 : CPU fan connector

- 25 -

E2
E2
E3
E4

E5
E6
E7
E8
E9

E10

FAN2 : System fan connector
FAN3 : System fan connector
JP4 : IR header
JP6/JP8 : Audio CD_IN connectors
JP10 : Audio AUX_IN connector
JP20 : Audio Rear_Out header
JP5 : Audio Center/Bass header
JP7 : SPDIF Ext. header
D1 : AGP proof LED
D30 : CPU overheat LED

- 26 -

F Jumpers

1

1

JP1

CMOS

A1

Clear CMOS Setting (JP1)

JP1 is used to clear CMOS data. Clearing CMOS will result in permanently
erasing previous system configuration settings and the original factory-set
system settings.

Pin 1-2 (Normal)(Default)

1

Pin 2-3 (Clear CMOS)

Step 1. Turn off the system power (PC-->Off).
Step 2. Remove the ATX power cable from the ATX power connector.
Step 3. Remove the jumper cap from pins 1-2.
Step 4. Place the jumper cap on pins 2-3 for a few seconds.
Step 5. Restore the jumper cap to pins 1-2.
Step 6. Plug the ATX power cable into the ATX power connector.
Step 7. Turn on the system power (PC-->On).

- 27 -

F Back Panel Connectors

B1

PS/2 Mouse & PS/2 Keyboard Port
Connectors

Two 6-pin female PS/2 Mouse & Keyboard
connectors are located on the rear panel of
the mainboard. In a desktop computer, the
PS/2 Mouse connector is situated on the top
of the PS/2 Keyboard connector. In a tower
computer, the PS/2 Mouse connector is lo­cated on the rightside of the PS/2 Keyboard
connector.

B2

Parallel Port Connector

One DB25 female parallel connector is lo­cated on the rear panel of the mainboard.
Plug the cable from your parallel device
(printer, scanner, etc.) into this connector.

PS/2 Mouse

PS/2 Keyboard

Parallel Port

foxconn

B3

COM1/COM2 Port Connectors

Attach serial device cables to the DB9 se­rial ports COM1/COM2 at the back panel
of your computer.

B4

MIDI/Game Port Connector

The MIDI/Game port is a 15-pin female con­nector. This port can be connected to any
IBM PC compatible game with a 15-pin D­sub connector.

MIDI Instrument Connection

You will need a MIDI adapter to connect a MIDI
compatible instrument to the sound card. The MIDI
adapter can in turn be connected to the Joystick/
MIDI port. You will also need the MIDI sequencing
software to run MIDI instruments with your com­puter into this connector.

COM1

COM2

MIDI/Game Port

- 28 -

B5

Line-Out Port Connector

Line-Out is a stereo output port through
which the combined signal of all internal
and external audio sources on the board
is output. It can be connected to 1/8-inch
TRS stereo headphones or to amplified
speakers.

B6

Line-In (Rear-Out) Port Connector

Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can
be used as a source for digital sound re­cording, and a source to be mixed with
the output, or both.

B7

Mic-In (Center/Bass-Out) Port
Connector

Mic-In is a 1/8-inch jack that provides a
mono input. It can use a dynamic mono
or stereo microphone with a resistance of
not more than 600 Ohms.

Line-Out Port

Line-In (Rear-Out) Port

Mic-In (Center/Bass-Out) Port

B8

LAN Port Connector (AN35N
Ultra/AN35N-400 Only)

This mainboard can accommodate one
device on LAN. Attach a RJ-45 cable to

this LAN port connector on back panel.

B9

USB1/USB2 Port Connectors

This mainboard offers 2 USB ports on back
panel. Plug each USB device jack into an
available USB1/USB2 connector.

LAN Port

USB Port2

USB Port1

- 29 -

F Front Panel Connectors

1

C1

HDD LED Connector (HLED)

Attach a connector cable from the IDE device LED to the 2-pin (HLED) header.
The HDD LED lights up whenever an IDE device is active.

-

C2

Green LED Connector (GLED)

+

HLEDResetEPMISpeaker

+-

1

JP13

+

-

PWONPLED

GLED

The Green LED (GLED) indicates that the system is currently in one of the power
saving modes (Doze/Standby/Suspend). When the system resumes to the nor­mal operation mode, the Green LED will go off. Attach a 2-pin Green LED cable
to the (GLED) header.

HLEDResetEPMISpeaker

+

-

JP13

+

-

PWONPLED

+

GLED

-

- 30 -

C3

1

1

Hardware Reset Connector (Reset)

Attach a cable to the 2-pin (Reset) header. Pressing the reset switch causes the
system to restart.

HLEDResetEPMISpeaker

+-

JP13

+

-

C4

ATX Power On/Off Switch Connector (PWON)

PWONPLED

The Power On/Off Switch is a momentary type switch used for turning on or off
the ATX power supply. Attach a connector cable to the 2-pin (PWON) header
on the mainboard.

+

GLED

-

HLEDResetEPMISpeaker

+

-

JP13

+

-

PWONPLED

Note : Please notice all the LED connectors are directional. If your

chassis's LED does not light up during running, please change it
to the opposite direction.

+

GLED

-

- 31 -

EPMI Connector (EPMI)

1

1

1

C5

A Hardware System Management Interface (EPMI) header may be attached to a
2-pin momentary switch. Press the switch to force the system into a power sav­ing mode; press it again to resume it to a normal operation situation.

-

C6

Power LED Connector (PLED)

Attach a 3-pin Power LED connector cable to the (PLED) header. The power
LED stays light while the system is on.

+

HLEDResetEPMISpeaker

+-

JP13

+

-

PWONPLED

GLED

-

Speaker Connector (Speaker)

C7

Attach a PC speaker cable to the 4-pin speaker connector (Speaker).

-

+

PWONPLED

+

PWONPLED

- 32 -

HLEDResetEPMISpeaker

+

GLED

HLEDResetEPMISpeaker

-

+

GLED

+-

JP13

-

+

JP13

-

C8

JP9

13579

246810

Front Panel Audio Header (JP9)

This header allows users to install an auxiliary Front-Oriented Audio port for
easier access. Either the Line-Out port connector on back panel or the front
panel Audio header is available at the same time. If you would like to use this
header on front panel, please remove all jumpers from it and install your spe­cial extra audio cable instead. Two mini jumpers must be setted on pins 5-6
and pins 9-10 when this header is not used.

JP9

1

Front Audio

Pin Assignments:
1=MIC_IN 2=AGND
3=MIC_POWER 4=AVDD (5V)

1

5=FRONT OUT (RIGHT) 6=BACK OUT (RIGHT)
7=NC 8=NC
9=FRONT OUT (LEFT) 10=BACK OUT (LEFT)

- 33 -

C9

JP2/JP3

13579

246810

1

Extended USB Headers (JP2/JP3)

Headers JP2 (USB 3&4) and JP3 (USB 5&6) are used to connect cables to
USB connectors mounted on front panel or back panel. The USB cable is
optional at the time of purchase.

1

Pin Assignments:
1=POWER (5V) 2=POWER (5V)
3=DATA3- 4=DATA4­5=DATA3+ 6=DATA4+
7=GND 8=GND

JP3

JP2

9=KEY 10=NC

1

USB 5&6

USB 3&4

- 34 -

F Internal Peripheral Connectors

1

IDE1

IDE2

D1

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FLP1)

AN35 Ultra/AN35N Ultra/AN35-400/AN35N-400 mainboard features two
40-pin dual-channel IDE device connectors (IDE1/IDE2), providing support
for up to four IDE devices, such as CD-ROM and Hard Disk Drive (HDD).
This mainboard also includes one 34-pin floppy disk controller (FDC) to
accommodate the Floppy Disk Drive (FDD). Moreover, this mainboard
comes with one 80-pin ATA 133/100/66/33 ribbon cable to connect IDE
HDD, and one 34-pin ribbon cable for FDD connection.

FLP1

1

1 1

Important: Ribbon cables are directional; therefore, connect the red

cable stripe to the same side.

- 35 -

F Other Connectors

CN2

ATX12V

ATXPWR

E1

ATX Power Supply Connectors (CN2/CN3)

This motherboard uses 20-pin ATX power header (ATXPWR, CN3), and
comes with the other one header (ATX12V, CN2). Please make sure you plug
each in the right direction. It is essential to have these two power supply
connectors plugged or your system won't boot up.

ATXPWR ATX12V

CN3

1

CN3

CN2

1

A traditional ATX system remains in the power-off stage when AC power re­sumes from power failure. However, it is inconvenient for a network server or
workstation if there is not an UPS to execute power-on. Thus, this motherboard
supports an AC Power Auto Recovery function to solve this problem. You may
enable the function, "PWRON After PWR-Fail," in the sub-menu of "Power
Management Setup" within the BIOS setup program.

Note 1: The ATX power connector is directional and will not go in

unless the guides match perfectly, making sure that pin#1 is
properly positioned.

Note 2: Make sure the latch of the ATX power connector clicks into

place to ensure a solid attachment.

Note 3: Your ATX power supply must be supplied to ACPI+5V stand-

by power and at least 720mA compatible.

Note 4: Make sure your power supply have enough power for higher

speed processor installed.

- 36 -

E2

JP4

135

4

6

1

FAN2

1

FAN3

1

FAN1

CPU and System Fan Connectors (FAN1/2/3)

The mainboard provides three onboard 12V cooling fan power connectors
to support the CPU (FAN1) and the system (FAN2/FAN3).

Note: Both cable wiring and
type of plug may vary, which
depend on the fan maker. Keep
in mind that the red wire should
always be connected to the
+12V header and the black wire
to the ground (GND) header.

GND +12V

E3

IR Header (JP4)

If you have an Infrared device, this mainboard can implement IR transfer
function. This mainboard supports Normal, IrDA, ASKIR, or SCR transfer
mode. To enable this function, attach a 6-pin infrared device cable to the IR
(JP4) header. Please note that every pin is properly allocated. If not, your IR
device may be damaged.

2

1

SENSE

1

JP4

1

IR

Pin Assignments:
1=NC 2=KEY
3=POWER (5V) 4=GND
5=IRTX 6=IRRX

- 37 -

E4

JP10

123

4

JP8

123

4

1

JP6

432

1

Audio CD_IN Connectors (JP6/JP8)

Ports JP6 (White)/JP8 (Black) can be used to connect stereo audio inputs from
CD-ROM, TV-tuner or MPEG card.

Pin Assignments:
1=CD In-LEFT
2=CD-GND

JP6

1

CD_IN

3=CD-GND
4=CD In-RIGHT

1

Pin Assignments:
1=CD In-LEFT
2=CD-GND
3=CD-GND
4=CD In-RIGHT

E5

Audio AUX_IN Connector (JP10)

Port JP10 (White) can be used to connect a stereo audio input from CD-ROM,
TV-tuner or MPEG card.

JP8

1

CD_IN

1

Pin Assignments:
1=AUX-LEFT
2=AGND
3=AGND
4=AUX-RIGHT

JP10

1

AUX_IN

- 38 -

E6

JP5

123

4

JP20

123

4

Audio Rear_Out Header (JP20)

Port JP20 can be used to connect a cable attached to Rear-Out amplified speak­ers.

1

Pin Assignments:
1=Rear_L
2=GND
3=GND
4=Rear_R

E7

Audio Center/Bass Header (JP5)

Port JP5 can be used to connect a cable attached to center/bass amplified speak­ers.

1

Pin Assignments:
1=Center
2=GND
3=GND
4=Lfeout

JP20

1

REAR_OUT

JP5

1

CENTER/BASS

- 39 -

E8

JP7

13579

246810

SPDIF Ext. Header (JP7)

Port JP7 can be used to connect to a device with digital audio inputs/outputs.

1

Pin Assignments:
1=+12V 2=AVDD (+5V)
3=N/C 4=SPDIF_OUT
5=SPDIF_IN 6=GND
7=N/C 8=N/C
9=Key 10=GND

E9

AGP Proof LED (D1)

The mainboard provides one 1.5V AGP
card which supports up to 8X. If you plug
the 3.3V AGP card on the mainboard, the
AGP Protection LED will flash and you
can't turn on the computer. You must re­move AC Power and check the AGP card.

JP7

1

SPDIF Ext.

AGP proof

D1

+ -

E10

CPU Overheat LED (D30)

When CPU temperature over 850C, the
system will cut off the power supply di­rectly, and the CPU Overheat LED will
flash. You must remove AC Power and
check the CPU and heatsink are securely
fastened well.

CPU overheat

D30

- 40 -

­+

3.3 System Memory Configuration

The AN35 Ultra/AN35N Ultra/AN35-400/AN35N-400 mainboard has three
184-pin DIMM slots that allow you to install from 128MB up to 3GB of
system memory. Each 184-pin DIMM (Dual In-line Memory Module) slot can
accommdate 128MB, 256MB, 512MB, and 1GB compliant 2.5V single or
double side 64-bit wide data path DDR SDRAM modules. You do not need
to set any jumper to configure memory since the BIOS utility can detect the
system memory automatically. You can check the total system memory value
in the BIOS Standard CMOS Setup menu. Note: The total installed
memory does not exceed 3GB.

1. Install Memory:

Install memory in any or all of the banks. The combination shown as follows.

DIMM

Socket

DIMM 1

DIMM 2

DIMM 3

Memory Modules

128MB, 256MB, 512MB and 1GB184-pin 2.5V
DDR SDRAM DIMM

128MB, 256MB, 512MB and 1GB184-pin 2.5V
DDR SDRAM DIMM

128MB, 256MB, 512MB and 1GB184-pin 2.5V
DDR SDRAM DIMM

Module

Quantity

x 1

x 1

x 1

Note: For AN35 Ultra/AN35N Ultra, installing a DIMM in any

single slot leads to a 64-bit data transfer rate. To activize
the dual-channel feature of a 128-bit data transfer rate, in­stall DIMMs in any of the following sequences:

ØDIMMs 1 & 3,
ØDIMMs 2 & 3, or
ØDIMMs 1 & 2 & 3.

(AN35-400/AN35N-400 does not support the dual-channel mode.)

2. Upgrade Memory:

You can easily upgrade the system memory by inserting additional DDR
SDRAM modules in available DIMM banks. The total system memory is
calculated by simply adding up the memory in all DIMM banks. After up­grade, the new system memory value will automatically be computed and
displayed in the field "Standard CMOS Setup" of BIOS setup program.

- 41 -

4 SOFTWARE UTILITY

4.1 Mainboard CD Overview

Note: The CD contents attached in AN35 Ultra/AN35N Ultra/AN35-400/

AN35N-400 mainboard are subject to change without notice.

To start your mainboard CD disc, just insert it into your CD-ROM drive and
the CD AutoRun screen should appear. If the AutoRun screen does not
appear, double click or run D:\Autorun.exe (assuming that your CD-ROM
drive is drive D:).

Navigation Bar Description:

F Install Mainboard FN41 Driver - Installing NVIDIA Chipset driver,

VGA Device driver, and USB 2.0 driver (for Win9x/ME only).

F Install Mainboard FN45 Driver - Installing NVIDIA Chipset driver and

USB 2.0 driver (for Win9x/ME only).

F Install Mainboard MN31(N) Driver - Installing NVIDIA Chipset

driver, VGA Device driver, and USB 2.0 driver (for Win9x/ME only).

F Install Mainboard AN35 Series Driver - Installing NVIDIA Chipset

driver and USB 2.0 driver (for Win9x/ME only).

F Manual - FN41, MN31(N), FN45, and AN35 series user's manuals in

PDF format.

F Link to Shuttle Homepage - Link to shuttle website homepage.
F Browse this CD - Allows you to see contents of this CD.
F Quit - Close this CD.

- 42 -

4.2 Install NVIDIA Chipset Driver

Click on the"Install Mainboard AN35 Series Driver" bar to start the
window of the mainboard software installation. On that window, click on the
"Install NVIDIA Chipset driver" bar to install the chipset driver. Once
you made your selection, a Setup window run the installation automatically.
Reboot the system after installation.

4.3 Install USB 2.0 Driver (for Win9x/ME only)

Click on the"Install Mainboard AN35 Series Driver" bar to start the
window of the mainboard software installation. On that window, click on the
"Install USB 2.0 Driver" bar to install the USB 2.0 driver. Once you made
your selection, a Setup window run the installation automatically. Reboot
the system after installation.

- 43 -

4.4 View the User's Manual

Click on the "Manual" bar, and on the submenu click on the "Install
Acrobat Reader" bar if you need to install it. Click on the "AN35 Series
Manual" bar to view AN35 Ultra/AN35N Ultra/AN35-400/AN35N-400
user's manual.

- 44 -

5 BIOS SETUP

AN35 Ultra/AN35N Ultra/AN35-400/AN35N-400 BIOS ROM has a built-in
Setup program that allows users to modify the basic system configuration.
This information is stored in battery-backed RAM so that it retains the Setup
information even if the system power is turned off.

The system BIOS is managing and executing a variety of hardware related
functions in the system, including:

System date and time
Hardware execution sequence
Power management functions
Allocation of system resources

5.1 Enter BIOS

To enter the BIOS (Basic Input /Output System) utility, follow these steps:

Step 1. Power on the computer, and the system will perform its

POST (Power-On Self Test) routine checks.

Step 2. Press <Del> key immediately, or at the following message:

Press DEL to enter SETUP, or simultaneously press <Ctrl>,

<Alt>, <Esc> keys.

Note1. If you miss trains of words mentioned in step2 (the message

disappears before you can respond) and you still wish to en­ter BIOS Setup, restart the system and try again by turning the
computer OFF and ON again or by pressing the <RESET>
switch located at the computer front panel. You may also
reboot by simultaneously pressing the <Ctrl>, <Alt>,
<Del> keys.

Note2. If you do not press the keys in time and system does not

boot, the screen will prompt an error message, and you will
be given the following options:

"Press F1 to Continue, DEL to Enter Setup"

Step 3. As you enter the BIOS program, CMOS Setup Utility will

prompt you the Main Menu, as shown in the next section.

- 45 -

5.2 The Main Menu

Once you enter the Award BIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall
that some systems may not include all entries.

Standard CMOS Features

This menu displays the basic information about your system.

Advanced BIOS Features

Use this menu to set the advanced features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and opti­mize your system's performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

- 46 -

PnP/PCI Configurations

This option configures how PnP (Plug and Play ) and PCI expansion
cards operate in your system.

PC Health Status

This entry shows the current system temperature, voltage, and fan
speed.

CPU Ratio/Voltage Control

Use this menu to specify your settings for the ratio/voltage control.

Load Fail-Safe Defaults

Use this menu to install fail-safe defaults for all appropriate items in the
setup utility.

Load Optimized Defaults

Use this menu to install optimized defaults for all appropriate items in
the setup utility.

Set Supervisor/User Password

Use this menu to change, set, or disable supervisor/user password. It
allows you to limit access to the system and Setup, or only to Setup.

Save & Exit Setup

Save the changes that you have made in the Setup Utility and exit the
Setup Utility.

Exit Without Saving

Abandon all changes that you have made in the Setup Utility and exit
the Setup Utility.

- 47 -

@ Standard CMOS Features

Use the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.

Date (mm : dd : yy)

Set the system date. Note that if you are running a Windows OS, this
items are automatically updated whenever you make changes to the
Windows Date.

Time (hh : mm : ss)

Set the system time. The time is converted based on the 24-hour mili­tary-time clock. For example, 5:00:00 p.m. is 17:00:00.

IDE Primary/Secondary Master/Slave

Press <Enter> to enter the sub-menu of detailed options.

Drive A/DriveB

Select the type of floppy disk drive installed in your system.
Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,

1.44M, 3.5 in, or 2.88M, 3.5 in.

Video

This item defines the video mode of the system. Leave this item at the
default value.
Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO.

Halt On

This item defines the operation of the system POST (Power-On Self Test)
routine. You can use this item to select which situation you want the
BIOS to stop the POST process and notify you.
Ø The choice: All Errors, No Errors, All, But Keyboard, All, But Diskette,

or All, But Disk/Key.

- 48 -

Base Memory/Extended Memory/Total Memory

These items are automatically detected by the system at start up time.
These are display-only fields. You can't make change to these fields.

******************************************************

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu
to configure each hard disk drive.

IDE HDD Auto-Detection
Press <Enter> to auto-detect HDD on this channel. If detection is

successful, it fills the remaining fields on this menu.
IDE Primary Master

Selecting 'Manual' lets you set the remaining fields on this screen and
select the type of fixed disk.

Ø The choice: None, Auto, or Manual.

Access Mode
Choose the access mode for this hard disk.

Ø The choice: CHS, LBA, Large, or Auto.

Capacity
Note that the disk drive capacity (approx.) is usually slightly greater than

the size of a formatted disk given by a disk checking program.

The following options are selectable only if the 'IDE Primary Master'
item is set to 'Manual', and the 'Access Mode' item is set to 'CHS'.

Cylinder
Set the number of cylinders for this hard disk.

Ø Min = 0, Max = 65535

Head
Set the number of read/write heads.

Ø Min = 0, Max = 255

Precomp
Warning: Setting a value of 65535 means no hard disk.

Ø Min = 0, Max = 65535

Landing Zone
Set the Landing Zone size.

Ø Min = 0, Max = 65535

Sector
Number of sector per track.

Ø Min = 0, Max = 255

******************************************************

- 49 -

@ Advanced BIOS Features

This section allows you to configure your system for basic operation.

BIOS Write Protect

This item let you enable or disable the BIOS Write Protect.
Ø The choice: Enabled or Disabled.

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. Enable this item to prevent someone from writing data
into this area.

Enabled Activates automatically when the system boots up, caus-

ing a warning message to appear when anything attempts
to access the boot sector or hard disk partition table.

Disabled No warning message will appear when anything attempts

to access the boot sector or hard disk partition table.

Ø The choice: Enabled or Disabled.

CPU Internal Cache

All processors that can be installed in this mainboard use internal level
1 (L1) cache memory to improve performance. Leave this item at the
default value for better performance.
Ø The choice: Enabled or Disabled.

External Cache

Most processors that can be installed in this system use external level 2
(L2) cache memory to improve performance. Leave this item at the
default value for better performance.
Ø The choice: Enabled or Disabled.

- 50 -

Quick Power On Self Test

Enable this item to shorten the power on testing (POST) and have your
system start up faster. You might like to this item after you are confident
that your system hardware is operating smoothly.
Ø The choice: Enabled or Disabled.

First/Second/Third Boot Device

Use these three items to select the priority and order of the devices that
your system searches for an operating system at start-up time.
Ø The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-

2, HDD-3, ZIP100, USB-FDD, USB-ZIP,USB-CDROM, USB-HDD,
LAN, or Disabled.

Boot Other Device

If you enable this item, the system searches all other possible locations
for and operating system if it fails to find one in the devices specified
under the First, Second, and Third boot devices.
Ø The choice: Enabled or Disabled.

Swap Floppy Drive

If you have two floppy diskette drives in your system, this item allows
you to swap the assigned drive letters so that drive A becomes drive B,
and drive B becomes drive A.
Ø The choice: Enabled or Disabled.

Boot Up Floppy Seek

If this item is enabled, it checks the size of the floppy disk drives at start­up time. You don't need to enable this item unless you have a legacy
diskette drive with 360k capacity.
Ø The choice: Enabled or Disabled.

Boot Up NumLock Status

This item defines if the keyboard Num Lock key is active when your
system is started.
Ø The choice: Off or On.

Gate A20 Option

This item defines how the system handles legacy software that was
written for an earlier generation of processors. Leave this item at the
deafult value.
Ø The choice: Normal or Fast.

Typematic Rate Setting

If this item is enabled, you can use the following two items to see the
typematic rate and the typematic delay settings for your keyboard.
Ø The choice: Enabled or Disabled.

- 51 -

Typematic Rate (Chars/Sec)

This item sets how many times the keystroke will be repeated in a
second when you hold a key down.
Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.

Typematic Delay (Msec)

Sets the delay time after a key is held down.
Ø The choice: 250, 500, 750, or 1000.

Security Option

If you have installed password protection, this item defines if the pass­word is required at system start up, or if it is only required with a user
tries to enter the Setup Utility.
Ø The choice: Setup or System.

APIC Mode

This option is used to enable or disable APIC (Advanced Programmable
Interrupt Controller) functionality.
Ø The choice: Enabled or Disabled.

MPS Version Control For OS

Selects the operating system multiprocessor support version.
Ø The choice: 1.1 or 1.4

OS Select For DRAM > 64MB

This item is only required if you have installed more than 64 MB of
memory and you are running the OS/2 operating system. Otherwise,
leave this item at the default.
Ø The choice: Non-OS2 or OS2.

Small Logo(EPA) Show

This item allows you to enable or disable the EPA Logo.
Ø The choice: Enabled or Disabled.

- 52 -

@ Advanced Chipset Features

These items define critical timing parameters of the mainboard. You should
leave the items at their default values unless you are very familiar with the
technical, specifications of your system hardware. If you change the val­ues incorrectly, you may introduce fatal errors or recurring instability into
your system.

System Performance

[ Optimal ] - Use the most stable settings.
[ Aggressive/Turbo ] - Use overclocked settings for higher performance

but with higher risk of instability.

[ Expert ] - Allows fall custemization of performance options. Advanced

users only.

Ø The choice: Optimal, Aggressive, Turbo, or Expert.

FSB Frequency

This item select FSB frequency.
Ø The Choice: 100MHz, 102~123MHz, 125MHz, 127~148MHz,

150MHz, 152~175MHz, 177~200MHz, 202~211MHz, 213~
223MHz, 225MHz, 227~250MHz.

CPU Interface

[ Optimal ] - Use most stable CPU/FSB parameters.
[ Aggressive ] - Use overclocked CPU/FSB parameters.
Ø The choice: Optimal or Aggressive.

Memory Frequecny

This item select DDR SDRAM frequency.
Ø The choice: By SPD, 50%, 60%, 66%, 75%, 80%, 83%, 100%,

120%, 125%, 133%, 150%, 166%, 200%, or Auto.

- 53 -

Resulting Frequecny

This item presents the DDR SDRAM frequency you've selected in the
previous item.

Memory Timings

This item allows you to set the Memory Timings. The following four items
become available as this item is set to Expert.
Ø The choice: Optimal, Aggressive, Turbo, or Expert.

T(RAS)

This item defines the timing delay for DRAM precharge.
Ø The choice: 1~15.

T(RCD)

This item defines the timing of the transition from RAS (row address strobe)
to CAS (column address strobe) as both rows and columns are separately
addressed shortly after DRAM is refreshed.
Ø The choice: 1~7.

T(RP)

This item defines the numbers of cycles for RAS to be allowed to precharge.
Ø The choice: 1~7.

CAS Latency

This item defines the timing delay in clock cycles before SDRAM starts a
read command after receiving it.
Ø The choice: 2.0, 2.5, or 3.0.

FSB Spread Spectrum

This item allows you to set the spread spectrum modulation.
Ø The choice: Disabled, 0.50%, or 1.00%.

AGP Spread Spectrum

This item allows you to set the spread spectrum modulation.
Ø The choice: Disabled or 0.50%.

AGP Aperture Size (MB)

Select the size of Accelerated Graphics Port (AGP) aperture. The aper­ture is a portion of the PCI memory address range dedicated to graphics
memory address space. Host cycles that hit the aperture range are for­warded to tha AGP without any translaton.
Ø The choice: 32M, 64M, 128M, 256M, or 512M.

AGP 8X Support

This item allows you to enable or disable AGP 8X Support.
Ø The choice: Enabled or Disabled.

- 54 -

AGP Fast Write Capability

This item enables an end sure to manually select the AGP output buffer
driver strength.
Ø The Choice: Enabled or Disabled.

System BIOS Cacheable

Select Enabled allows caching of the system BIOS ROM at F000h-FFFFFh,
resulting in better system performance. However, if any program is writ­ten to this memory area, a system error may result.
Ø The Choice: Enabled or Disabled.

Video RAM Cacheable

Select Enabled allows caching of the video BIOS, resulting in better sys­tem performance. However, if any program is written to this memory area,
a sysem error may result.
Ø The Choice: Enabled or Disabled.

- 55 -

@ Integrated Peripherals

Onboard IDE Device

Press <Enter> to enter the sub-menu of detailed options.

OnChip IDE Channel0/Channel1
The chipset contains a PCI IDE interface with support to two IDE chan-

nels. Select Enabled to activate the primary/secondary IDE interface.
select Disabled to deactivate the primary/secondary interface.
Ø The Choice: Enabled or Disabled.

Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO

mode (0-4) for each of the four IDE devices that the onboard IDE inter­face supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the
best mode for each device.
Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.

Primary/Secondary Master/Slave UDMA
Ultra DMA implementation is possible only if your IDE hard drive

supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If both of
your hard drive and your system software support Ultra DMA, select
Auto to enable BIOS support.
Ø The choice: Auto or Disabled.

- 56 -

IDE Prefetch Mode
The onboard IDE drive interface support IDE prefetching for faster drive

access. If you install a primary and/or secondary add-on IDE interface,
set this field to Disabled if the interface does not support prefetching.
Ø The Choice: Enabled or Disabled.

IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or mul-

tiple sector read/write. If your IDE hard drive supports block mode (most
new drivers do), select Enabled for automatic detection of the optimal
number of block read/write per sector the drive can support.
Ø The Choice: Enabled or Disabled.

Onboard PCI Device

Press <Enter> to enter the sub-menu of detailed options.

Init Display First
This item is used to determine initial device when system power on.

Ø The choice: PCI Slot or AGP Slot.

OnChip USB
Do not disable this item if your system has a USB installed on the sys-

tem board and you want to use it.
Ø The choice: Disabled, V1.1+V2.0, or V1.1.

USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB)

controller and you have a USB keyboard.
Ø The Choice: Enabled or Disabled.

OnChip Audio
This item allows you to control the OnChip Audio.

Ø The Choice: Auto or Disabled.

OnChip Lan
This item allows you to set the OnChip Lan.

Ø The Choice: Auto or Disabled.

Onboard SuperIO Device

Press <Enter> to enter the sub-menu of detailed options.

Onboard FDC Controller
This item specifices onboard floppy disk drive controller. This setting

allows you to connect your floppy disk drives to the onboard floppy
connector.
Ø The choice: Enabled or Disabled.

- 57 -

Onboard Serial Port 1
The option is used to assign the I/O address and interrupt request (IRQ)

for the onboard serial port 1 (COM1).
Ø The Choice: Disabled, 3F8-IRQ4, 2F8-IRQ3, 3E8-IRQ4, 2E8-IRQ3,
or Auto.

Onboard Serial Port 2
The option is used to assign the I/O address and interrupt request (IRQ)

for the onboard serial port 2 (COM2).
Ø The Choice: Disabled, 3F8-IRQ4, 2F8-IRQ3, 3E8-IRQ4, 2E8-IRQ3,
or Auto.

UART Mode Select
This item allows you to select an operating mode for the IrDA infrared.

Ø The choice: Normal, IrDA, ASKIR, or SCR.

UR2 Duplex Mode
This item allows you to select the IR half or full duplex function.

Ø The choice: Full or Half.

Onboard Parallel Port
Allows you to determine an I/O address and interrupt request (IRQ) for

the onboard parallel port.
Ø The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.

Parallel Port Mode
Select an operating mode for the onboard parallel port. Select SPP

unless you are certain your system supports other modes.
Ø The choice: SPP, EPP, ECP, or ECP+EPP.

ECP Mode Use DMA
When the parallel port mode is set to ECP, this item becomes seletable.

Ø The choice: 1 or 3.

Game Port Address
This item defines an I/O address for the game port.

Ø The choice: Disabled, 201, or 209.

Midi Port Address
This item defines an I/O address for the MIDI port.

Ø The choice: Disabled, 330, or 300.

Midi Port IRQ
This item defines an interrupt request for the MIDI port.

Ø The choice: 5 or 10.

- 58 -

@ Power Management Setup

The Power Management Setup allows you to configure your system to
most effectively saving energy while operating in a manner consistent
with your own style of computer use.

ACPI Function

This item defines the ACPI (Advanced Configuration and Power Man­agement) feature that makes hardware status information available to
the operating system, enables a PC to turn its peripherals on or off for
improving the power management, and allows a PC turned on or off by
external devices, so that a mouse or keyboard can wake up it.

ACPI Suspend Type

This item allows you to select sleep state when suspend. In the default,
S1(POS), the suspend mode is equivalent to a software power down;
S3(STR), to the system that shuts down with the exception of a refresh
current to the system memory.
Ø The choice: S1(POS), S3(STR), or S1&S3.

Power Management

This item acts like a master switch for the power-saving modes and hard
disk timeouts. If this item is set to Max Saving, power-saving modes
occur after a short timeout. If it is set to Min Saving, power-saving
modes occur after a longer timeout. If it is set to User Define, you can
insert your own timeouts for the power-saving modes.
Ø The choice: Min Saving, Max Saving, or User Define.

- 59 -

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank This selection will cause the system to turn off

the vertical and horizontal synchronization

ports and write blanks to the video buffer.
Blank Screen The item only writes blanks to the video buffer.
DPMS Support Initial display power management signaling.

Ø The choice: V/H SYNC+Blank, Blank Screen, or DPMS Support.

HDD Power Down

The IDE hard drive will spin down if it is not accessed within a specified
length of time. Options are from 1 Min to 15 Min and Disabled.
Ø The choice: Disabled or 1 Min~15 Min.

HDD Down In Suspend

The item allows you to enable or disable the HDD Down In Suspend.
Ø The choice: Enabled or Disabled.

Soft-Off By PBTN

Under ACPI you can create a software power down. In a software
power down, the system can be resumed by Wake UP Alarms. This
item lets you install a software power down that is controlled by the
power button on your system. If the item is set to Instant-Off, then the
power button causes a software power down. If the item is set to Delay
4 Sec., then you have to hold the power button down for 4 seconds to
cause a software power down.
Ø The choice: Delay 4 Sec. or Instant-Off.

WOL(PME#) From Soft-Off

If this item sets to Enabled, the system power will be turned on when the
LAN port receives an incoming signal.
Ø The choice: Enabled or Disabled.

WOR(RI#) From Soft-Off

If this item is enabled, it allows the system to resume from a software
power down or power-saving mode whenever there is an incoming call
to an installed fax/modem. You have to connector the fax/modem to
the mainboard.
Ø The choice: Enabled or Disabled.

USB Resume from S3

If you are using USB devices, and the ACPI Suspend Type is set to S3 or
S1&S3, enable this item to have USB devices wake up the system from
power saving mode.
Ø The choice: Enabled or Disabled.

- 60 -

Power-On by Alarm

When set to Enabled, the following three fields become available and
you can set the date, hour, and minute to turn on your system.
Ø The choice: Enabled or Disabled.

Time(dd : hh : mm) of Alarm
This item selects the alarm Time.
[dd] Ø Key in a DEC number: Min=0, Max=31.
[hh] Ø Key in a DEC number: Min=0, Max=23.
[mm] Ø Key in a DEC number: Min=0, Max=59.

PS2 Keyboard Power ON

Set a password or a key to awaken the system from a keyboard.
Ø The choice: Disabled, Password, or Hot KEY.

KB Power ON Password

Press <Enter> to set a password to awaken the system from a key­board.

Hot Key Power ON

Set a key to awaken the system from a keyboard.
Ø The choice: Any Key or Ctrl-F1~F12.

PS2 Mouse Power ON

Enable or disable the function of awakening the system from a mouse.
Ø The choice: Enabled or Disabled.

PWRON After PWR-Fail

This item defines your computer to shut off, automatically restart, or
return to its last operating status after power fails.
Ø The choice: Off, On, or Former-Sts.

- 61 -

@ PnP/PCI Configurations

This category configures how PnP and PCI operate in your system.
Correctly setting up the IRQ and DMA (both PnP and PCI use) assign­ments will make your system work stably. It is strongly recommended
that only technical users make changes to the default settings.

Reset Configuration Data

When enabled, any PnP configuration data stored in the BIOS will be
cleared from memory, with new data created.
Ø The choice: Enabled or Disabled.

Resources Controlled By

As stays auto(ESCD), the system will dynamically allocate resources to
PnP devices as they are required. As set to manual, the following item
become available.
Ø The choice: Auto(ESCD) or Manual.

IRQ Resources

When the previous item is set to manual, this item allows you respec­tively assign an interruptive type for IRQ-3, 4, 5, 7, 9, 10, 11, 12, 14,
and 15.
Ø The choice: PCI Device or Reserved.

PCI/VGA Palette Snoop

The item is designed to solve problems caused by some non-standard
VGA cards.
Ø The choice: Enabled or Disabled.

INT Pin 1~4 Assignment

Names the interrupt request (IRQ) line assigned to a device connected
to the PCI interface on your system.
Ø The Choice: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, or 15.

- 62 -

@ PC Health Status

Shutdown Temperature

Enables you to set the maximum temperature that system can reach
before powering down.

Ø The choice: 60°C/140°F, 65°C/149°F, 70°C/158°F, or Disabled.

The following items provide you with information about the system's
current operating status. You cannot make changes to one of them.

CPU Voltage FAN1 Speed

AGP Voltage FAN2 Speed

3.3V VIN FAN3 Speed

+5V VIN

+12V VIN

-12V VIN

Chipset Voltage

5V SBVIN

Voltage Battery

System Temperature

CPU Temperature

PWM Temperature

- 63 -

@ CPU Ratio/Voltage Control

CPU Ratio Select

This item allows you to adjust CPU Ratio. The item becomes unavail­able if your CPU clock ratio is locked.
Ø The choice: Auto, X 8.0, X 8.5, X 9.0, X 9.5, X 10.0, X 10.5,

X 11.0, X 13.0, X 13.5, X 14.0, X 15.0, X 16.0, X 16.5, X 17.0,
X 18.0, X 19.0, X 20.0, X 21.0, X 22.0, or X 23.0.

CPU Voltage Select

This item allows you to adjust CPU Voltage. The following item be­comes available when the CPU voltage is set to "Above 1.85V."
Ø The choice: Auto, Above 1.85V, 1.825 V, 1.800 V, 1.775 V,

1.750 V, 1.725 V, 1.700 V, 1.675 V, 1.650 V, 1.625 V, 1.600 V,

1.575 V, 1.550 V, 1.525 V, 1.500 V, 1.475 V, 1.450 V, 1.425 V,

1.400 V, 1.375 V, 1.350 V, 1.325 V, 1.300 V, 1.275 V, 1.250 V,

1.225 V, 1.200 V, 1.175 V, 1.150 V, 1.125 V, or 1.100 V.

CPU Vcore Above 1.85V

This item allows you to adjust CPU Voltage from 1.850 V to 2.000V.
Ø The choice: 1.850 V, 1.875 V, 1.900 V, 1.925 V, 1.950 V, 1.975 V,

or 2.000 V.

RAM Voltage Select

This item allows you to adjust RAM Voltage.
Ø The choice: Auto, 2.60 V, or 2.70 V.

AGP Voltage Select

This item allows you to adjust AGP Voltage.
Ø The choice: Auto, 1.55 V, or 1.60 V.

- 64 -

@ Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing 'Y' loads the BIOS default values for the most stable, minimal
performance system operations.

@ Load Optimized Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing 'Y' loads the default values that are factory-set for optimal
performance system operation.

- 65 -

@ Set Supervisor/User Password

Steps to set supervisor/user password are described as follows:

New Password Setting:

1. While pressing <Enter> to set a password, a dialog box appears to
ask you enter a password.

2. Key in a new password. The password can not exceed eight charac­ters.

3. System will request you to confirm the new password again.

4. When completed, new code takes effect.

No Password Setting:

If you want to disable the password, just press <Enter> as a password
input is requested.

If You Forget Password:

If you forget the password, the only way to access the system is to clear
the CMOS memory. Please refer to page 27 on clear CMOS setting.

- 66 -

@ Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

SAVE to CMOS and EXIT (Y/N)? Y

Pressing "Y" stores the selections made in the menus of CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.

@ Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit Without Saving (Y/N)? N

This allows you to exit from Setup without storing in CMOS any
change. The previous selections remain in effect. This exits from the
Setup utility and restarts your computer.

- 67 -
