Shuttle AK37 User Manual

Download

AK37GT/AK37GTR

User's Manual

SocketA AMD Athlon/Duron Processor Based DDR Main Board

AK37GT/AK37GTR

SocketA AMD Athlon/Duron Processor based DDR Mainboard Manual Version 1.0

translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without prior written permission from Shuttle® Inc.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.

This company makes no representations or warranties regarding the contents of this manual. Information in this manual has been carefully checked for reliability; however, no guarantee is given as to the correctness of the contents. In the interest of continued product improvement, this company reserves the right to revise the manual or include changes in the specifications of the product described within it at any time without notice and without obligation to notify any person of such revision or changes. The information contained in this manual is provided for general use by the customers.

Trademarks

Shuttle is a registered trademark of Shuttle Inc. VIA is a registered trademark of VIA Corporation. AMD, Athlon, and Duron are registered trademarks of AMD Corporation. PS/2 is a registered trademark of IBM Corporation. AWARD is a registered trademark of Award Software Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other brand and product names used herein are for identification purposes only and may be trademarks of their respective owners.

M582

WARNING

Thermal issue is highly essential for processors with a speed of 600MHz and above. Hence, we recommend you to use the CPU fan qualified by AMD or motherboard manufacturer. Meanwhile, please make sure CPU and fan are securely fastened well. Otherwise, improper fan installation not only gets system unstable but also could damage both CPU and motherboard because insufficient thermal dissipation.

If you would like to know more about thermal topic please see AMD website for detailed thermal requirement through the address:

http://www.amd.com

TABLE OF CONTENTS

WHAT's IN THE MANUAL .................................................................... 5

Quick Reference ............................................................................................... 5

About This Manual ........................................................................................... 5

1 INTRODUCTION ................................................................................ 6

1.1 TO DIFFERENT USERS ............................................................................. 6

First-Time DIY System Builder ................................................................. 6

Experienced DIY User ............................................................................. 6

System Integrator..................................................................................... 6

1.2 ITEM CHECKLIST ....................................................................................... 7

2 FEATURES ........................................................................................ 9

2.1 SPECIFICATIONS ....................................................................................... 9

3 HARDWARE INSTALLATION .......................................................... 12

3.1 STEP-BY-STEP INSTALLATION .............................................................. 12

STEP 1 Install the CPU.......................................................................... 13

STEP 2 Set Jumpers............................................................................. 14

STEP 3 Install DDR SDRAM System Memory........................................ 14

STEP 4 Install Internal Peripherals in System Case ................................ 15

STEP 5 Mount the Mainboard on the Computer Chassis........................ 16

STEP 6 Connect Front-panel Switches/LEDs/Speaker/USB.................. 17

STEP 7 Connect IDE, IDE RAID (AK37GTR only), and Floppy Disk Drives

.............................................................................................................. 18

STEP 8 Connect Other Internal Peripherals............................................ 19

STEP 9 Connect Power Supply ............................................................. 20

STEP 10 Install Add-on Cards in Expansion Slots.................................. 20

STEP 11 Connect External Peripherals to Back-panel ........................... 21

STEP 12 First Time System Boot Up..................................................... 22

STEP 13 Install Driver & Software Components..................................... 23

- 1 -

3.2 JUMPER SETTINGS ................................................................................. 24

JUMPER & CONNECTOR GUIDE......................................................... 25

Jumpers

Clear CMOS (JP1) ................................................................................ 28

BIOS Write Protection (JP2) .................................................................. 29

Back-Panel Connectors

PS/2 Keyboard & PS/2 Mouse Connectors............................................ 30

LAN Port Connectors............................................................................. 30

USB1/USB2 Port Connectors................................................................ 30

Parallel Port Connector.......................................................................... 30

COM1/2 Connector................................................................................ 31

Line-Out Port Connector ........................................................................ 31

Line-In Port Connector ........................................................................... 31

Mic-In Port Connector ............................................................................ 31

MIDI/GAME Port Connector ................................................................... 32

Front-Panel Connectors

ATX Power On/Off Switch Connector (Power ON) .................................. 33

EPMI Connector (EPMI)......................................................................... 33

Green LED/Power LED Connector (GLED/PLED)................................. 34

HDD LED Connector (HLED) ................................................................ 34

Power LED Connector (PLED).............................................................. 35

Hardware Reset Connector (RESET)..................................................... 35

Speaker Connector (SPEAKER) ........................................................... 35

Internal Peripherals Connectors

Enhanced IDE, IDE RAID (AK37GTR only), and Floppy Connector......... 36

- 2 -

Other Connectors

ATX Power Supply Connector (ATX1).................................................... 37

Cooling FAN Connectors for CPU FAN (FAN1), AGP FAN (FAN2),

SYSTEM FAN (FAN3) & North Bridge (FAN4) FAN................................ 38

IR Connector (JP3) ................................................................................ 38

Wake-On-LAN Connector (WOL1)......................................................... 39

Audio Connector CD_IN (J2/J3)............................................................. 39

Audio Connector AUX_IN (J4) ............................................................... 40

Audio Connector TAD_IO (J5) ............................................................... 40

Audio Center/ Bass Connector (J6)...................................................... 41

Front-Panel Microphone and Line_out Header (J7)................................ 41

SPDIF Ext. Header(J8).......................................................................... 42

Extended one USB Connector Header (USB2/USB3)............................ 42

3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 43

Install Memory........................................................................................ 43

Upgrade Memory................................................................................... 43

4 SOFTWARE UTILITY ...................................................................... 44

4.1 Mainboard CD Overview ......................................................................... 44

4.2 Install Mainboard Software ..................................................................... 45

4.3 Install VIA 4-in-1 Driver ............................................................................ 46

4.4 Install Audio Driver .................................................................................. 47

4.5 Install LAN Driver ..................................................................................... 48

4.6 Install IDE RAID Driver and Utility(AK37GTR Only) ............................... 49

4.7 Install USB 2.0 Driver............................................................................... 50

4.8 View the User's Manual ........................................................................... 51

- 3 -

5 BIOS SETUP ................................................................................... 52

5.1 ENTER THE BIOS ..................................................................................... 52

5.2 THE MAIN MENU ...................................................................................... 53

STANDARD CMOS FEATURES ............................................................... 55

ADVANCED BIOS FEATURES ................................................................. 59

ADVANCED CHIPSET FEATURES .......................................................... 63

INTEGRATED PERIPHERALS .................................................................. 68

POWER MANAGEMENT SETUP.............................................................. 72

PNP/PCI CONFIGURATION....................................................................... 77

PC HEALTH STATUS................................................................................ 79

FREQUENCY/VOLTAGE CONTROL ......................................................... 80

LOAD FAIL-SAFE DEFAULTS .................................................................. 82

LOAD OPTIMIZED DEFAULTS ................................................................. 82

SET SUPERVISOR PASSWORD ............................................................. 83

SET USER PASSWORD........................................................................... 83

SAVE & EXIT SETUP................................................................................ 84

EXIT WITHOUT SAVING ............................................................................ 84

- 4 -

WHAT's IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................ Page 11

Jumper Settings >> A Closer Look ...................................................... Page 24

Software Utility >> How to Install.......................................................... Page 44

BIOS Setup >> How to Configure ......................................................... Page 52

About This Manual

For First-Time DIY System Builder .........................................................Page 6

For Experienced DIY User's ................................................................... Page 6

For System Integrator ............................................................................. Page 6

- 5 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as difficult as you may think. To make your first computer DIY experience successful, right from the start, we have designed the Installation builders. Prior to installation, we also suggest you to read the whole manual carefully to gain a complete understanding of your new AK37GT/AK37GTR mainboard.

Experienced DIY User

Congratulate on your purchase of the AK37GT/AK37GTR mainboard. You will find that installing your new AK37GT/AK37GTR mainboard is just easy. Bundled with an array of onboard functions, the highly-integrated AK37GT/ AK37GTR mainboard provides you with a total solution to build the most stable and reliable system. Refer to sections Software Utility Chapter 5 BIOS Setup up your system to achieve higher performance.

section in a step-by-step fashion for all the first-time DIY system

to find out how to get the best out of your new mainboard.

also contains the relevant information on how to tune

Chapter 3 Hardware

3.2 Jumper Settings

and

Chapter 4

System Integrator

You have wisely chosen AK37GT/AK37GTR to construct your system. AK37GT/AK37GTR incorporates all the state-of-the-art technology of the KT400 chipset from VIA. It integrates the most advanced functions you can find to date in a compact ATX board. Refer to sections Chapter 4 Software Utility

This manual adopted in AK37GT and AK37GTR mainboards at the same time. The difference between AK37GT and AK37GTR is that AK37GTR equips with onboard IDE RAID Controller. In the manual, if there are some standards, characters, equipment or software only appeared or adopted by AK37GTR; it will be mentioned

for an in-depth view of system construction.

(AK37GTR only)

3.2 Jumper Settings

and

- 6 -

1.2 Item Checklist

Check all items with you AK37GT/AK37GTR mainboard to make sure nothing is missing. The complete package should include:

- One piece of AK37GT/AK37GTR V1.3 Mainboard

- One piece of Audio Cable (Central/Bass Channel)

- One piece of ATA

133/100/66

Ribbon Cable

- One piece of Floppy Ribbon Cable

- One piece of twin ports USB Cable

(optional)

- One piece of Serial ATA Cable(AK37GTR Only)

SERIAL

ATA

O S V

- AK37GT/AK37GTR User's Manual

- 7 -

- One piece of Bundled CD-ROM with containing:

Ø AK37GT/AK37GTR user's manual saved in PDF format Ø IDE RAID user's manual saved in PDF format

Ø VIA 4-IN-1 driver Ø AC97 driver Ø IDE RAID driver and Utility Ø Award Flashing Utility

(AK37GTR only)

- 8 -

2 FEATURES

AK37GT/AK37GTR mainboard is carefully designed for the demanding PC user who wants high performance and maximum intelligent features in a compact package.

2.1 Specifications

CPU Support

Support Socket462 package CPU. AMD Athlon Processor with 200/266 MHz FSB AMD Duron Processor with 200/266 MHz FSB AMD Athlon XP Processor with 266 MHz FSB

Chipset

Features VIA KT400, VT8367 N.B. and VT8233A S.B.. KT400, Integrated high performance DDR DRAM controller.

Jumperless CPU Configuration

Soft-configuration FSB (The FSB speed is software configurable from 100MHz to 200MHz program.)

On Board Multi-Channel Hardware Audio Controller

Support 5.1 speakers, C3DX positional audio in 6 CH speaker mode. HRTF-3D positional audio, supporting Direct Sound 3D and A3D interface.

Legacy SBPRO compatible.

On Board IDE RAID Controller (AK37GTR only)

Support RAID 0, RAID 1 function.

Versatile Memory Support

Four

184-pin DIMM

or PC3200, compliant

PCI Expansion Slots

Provides six 32-bit PCI slots.

by 1MHz step

slots to support up to 4GB of PC1600, PC2100, PC2700

DDR

in the Frequency/Voltage Control of BIOS setup

SDRAM module.

AGP Expansion Slot

Provides one 32-bit AGP slot which supports up to 4X/8X AGP device.

- 9 -

I/O Interface

Provides a variety of I/O interfaces: Ø 1 x Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB

format or for 5.25-inch FDD with 360K or 1.2MB format.

Ø 1 x PS/2 mouse connector. Ø 1 x PS/2 Keyboard connector. Ø 2 x DB9 Serial connectors 16550 UART compatible. Ø 1 x Infrared communication port.

(Serial port COM2 can also be redirected to an external IrDA Adapter for wireless connection.)

Ø 1 x DB25 Parallel port supporting Standard Parallel Port (SPP),

Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP) data transmission schemes.

Ø 1 x Line-Out (Front-Out) port. Ø 1 x Line-In port, shared with rear speaker output when multi-channel

audio is enabled.

Ø 1 x Mic-In port. Ø 1 x MIDI/GAME port.

6 USB Ports Onboard

Ø 4 x USB connectors on back-panel and one sets of dual USB ports

header on mid-board.

PCI Bus Master IDE Controller Onboard

Two UltraDMA port to a maximum of four IDE devices (one Master and one Slave per channel). The IDE Bus implements the data transfer speed up to sec and also supports Enhanced PIO Modes.

80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CDROM, CD-R, CD-RW, and LS-120 Supports.

ATX Power Supply Connector

ATX power supply unit can be connect to the onboard 20-pin ATX power connector, supporting Suspend and Soft-On/Off by dual-function power button.

133/100/66

Bus Master Dual-channel IDE ports provide sup-

133/100/66

MB/

- 10 -

Advanced Configuration and Power Interface

Features four power saving modes: Snoop, Suspend to RAM, Suspend to Disk, and Soft-Off. ACPI provides more efficient Energy Savings Features controlled by your operating system that supports OS Direct Power Management (OSPM) functionality.

System BIOS

Provides licensed Award BIOS V6.0 PG on 2Mb Flash EEPROM and supports Green PC, Desktop Management Interface (DMI).

ATX Form Factor

System board conforms to the ATX specification. Board dimension: 305mm x 245mm.

Advanced Features

Dual Function Power Button one is Suspend mode and the other is Soft-Off mode. Pushing the power button for less than 4 seconds places the system into Suspend mode. When the power button is pressed for longer than 4 seconds, the system enters the Soft-Off mode.

The system can be in one of two states;

Wake-on-LAN (WOL) to a network card that supports this function to wake up the system via LAN.

Modem Ring Power-On by the activation of modem ring.

CPU Vcore Setting-

CPU Clock Setting-

CPU Ratio Setting-

DDR Voltage Setting-

Intelligent Features

Voltage Monitoring the CPU, and other critical system voltage levels to ensure stable current passing through mainboard components.

Fan Status Monitoring is monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is required.)

Temperature Monitoring the CPU or system runs in a suitable temperature.

This item allows users to adjust CPU Host Clock in BIOS. This item allows users to adjust CPU Ratio in BIOS.

The onboard WOL connector can be attached

- The system can be powered on automatically

This item allows users to adjust CPU Vcore in BIOS.

This item allows users to adjust DDR Voltage in BIOS.

Monitors various voltages of key elements, such as

- To prevent CPU from overheating, the CPU fan

- This item allows users to make sure whether

- 11 -

3 HARDWARE INST ALLATION

88i8030

Before removing or installing any of these devices including CPU, DIMMs,Before removing or installing any of these devices including CPU, DIMMs,

Before removing or installing any of these devices including CPU, DIMMs,

Before removing or installing any of these devices including CPU, DIMMs,Before removing or installing any of these devices including CPU, DIMMs, Add-On Cards, Cables, please make sure to unplug the onboard power con-Add-On Cards, Cables, please make sure to unplug the onboard power con-

Add-On Cards, Cables, please make sure to unplug the onboard power con-

Add-On Cards, Cables, please make sure to unplug the onboard power con-Add-On Cards, Cables, please make sure to unplug the onboard power connector.nector.

nector.

nector.nector.

This section outlines how to install and configure your AK37GT/AK37GTR mainboard. Refer to the following mainboard layout to help you identify various jumpers, connectors, slots, and ports. Then follow these steps to guide you through a quick and correct installation of your system.

3.1 Step-by-Step Installation

Accessories Of AK37GT/AK37GTR

Socket 462

FFFFAAAANNNN1111

PS2 Keyboar d/ PS/2 Mouse Connectors

LAN & USB Connectors

Serial Port Connector (COM1)

Parallel Connector

Serial Port Connector (COM2)

BIOS Boot block protection-JP 2

Line-In/Line-Out/Mic-In Game/MIDI Connectors

On Board Audio Header-

JJJJ2222,

, J3, J

J3, J4444,J5

,J5,,,,JJJJ6666

, ,

J3, JJ3, J

,J5,J5

Front Audio Connector -J7

IR Header - JJJJP

AGP 4x/8x Slot

P 3333

P P

FFFFAAAANNNN2222

SPDIF Ext. Headers-J8

Five PCI Slots

On Board HighPoint 372 IDE RAID Controller ((((AAAAKKKK37

KB1

USB1

1 N

2 X M

E H

IT8705F 0115-BXA M3Q040

AJ1

SPDIF Ext.

Front Audio

PCI1

PCI2

PCI3

PCI4

PCI5

CD_IN

AUX_IN

TAD _ I O

BASS

FA N2

2 P J

AGP 1

Extend ed one USB Connector - UUUUSSSSBBBB2222////UUUUSSSSBBBB3333

Wake -On-LAN Connector-JP4

VIA KT 400 Chipse t

3 P

Panasonic

CR2032

JAPAN1

JP 1

1 4 E S

USB2

USB 3&4

USB3

USB 5&6

37GGGGTTTTR

3737

R oooonnnnllllyyyy))))

R R

JP 4 WOL

JP 4

ATX Power Connector

ATX 1

ATXPWR

1 1

1 E D

1 1

+ D E

H T E S E R

I M P

VT 8235 0021CG TAIWAN 13CON3400

KDN- 435 0HC

25.0 00M H z 0136JP 2

IDE4 RAID 2

IDE3 RAID 1

R E K A E P S

3 N A F

-TB T63077.52 217 B1P E

-TB

T63077.52 217 B1P E

Two RAID Connectors ((((AAAAKKKK37

Cle ar CMO S - JJJJP

P 1111

P P

C D F

2 E D

D E L

G N O W

D E L P

C I2

7 P

37GGGGTTTTR

3737

t o

l s

M M

I D n

i p

4 8 1 r u o F

77 P

a e

a P

r F

R oooonnnnllllyyyy))))

R R

r o

t c e n n o

C y

p p o

l F

r o

t c e n n o

C E D

I o w

r o

t c e n n o

C A

T A l

- 12 -

Step 1

Install the CPU:

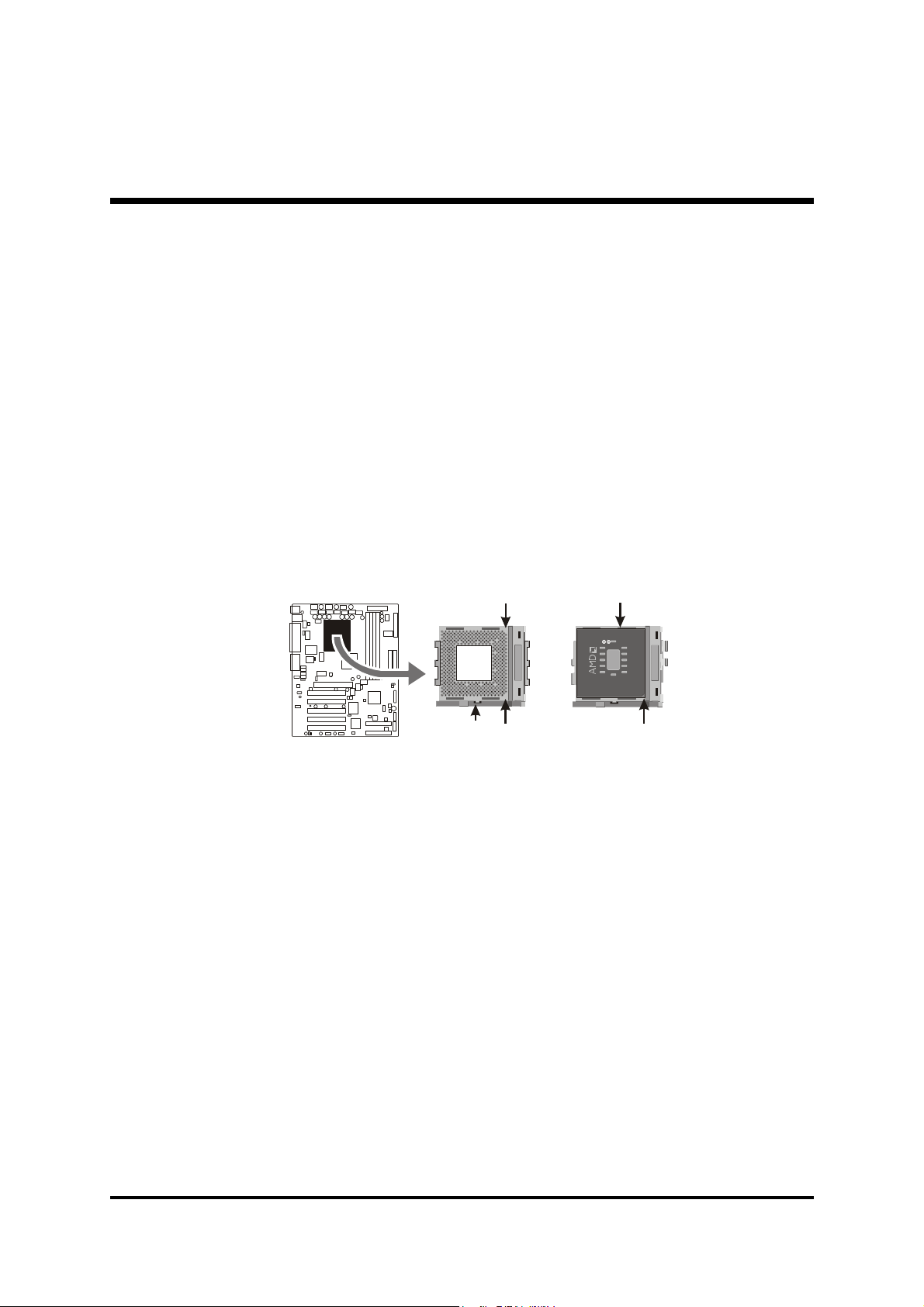

1. Locate the CPU ZIF (Zero Insertion Force) socket on the upper-right sector of your mainboard (between the back-panel connectors and the

DIMM memory slots).

2. Pull the CPU ZIF socket lever slightly sideways away from the socket to unlock the lever, and then bring it to an upwardly vertical position.

3. Place your AMD 462 Athlon/Duron processor in the socket A. Note that the CPU's edges have been purposely designed non-symmetrically to prevent from inserting the processor in the wrong direction. The following diagram demonstrates the correct placement of the CPU in the ZIF socket. You can see that the two blunt-edged corners should face towards the socket-lever.

Blank

Lever Blank

2 6

4 T E K C O S

AMD CPU

ASSEMBLED IN MALAYSIA

Notch

2 6 4

T E K C O S

4. Slightly push the AMD 462 Athlon/Duron processor into the socket without applying excessive force while making sure there is no gap between CPU and socket. Then lower the socket-lever all the way down to its horizontal position and lock it to secure the CPU in place.

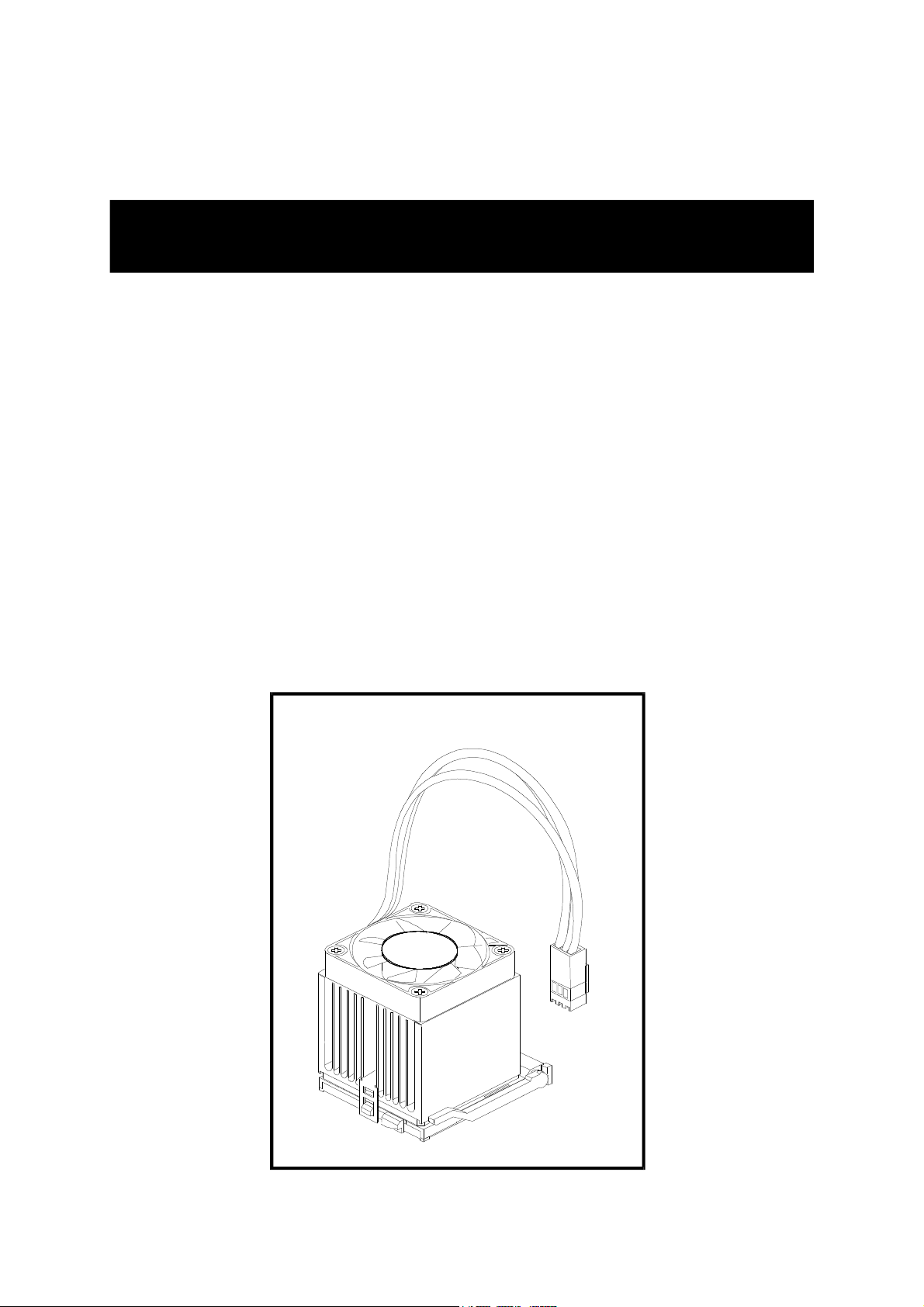

5. The AMD 462 Athlon/Duron processor requires a set of heatsink/fan to ensure proper cooling of the processor. If heatsink/fan have not been already mounted on your CPU, you must purchase the heatsink/fan separately and have it installed. Plug the cable throught the heatsink/fan in the CPU fan power connector located nearby. Note that there are several types of CPU fan connectors. Normally, if your mainboard supports the hard ware monitoring function, a 3-pin fan power connector should allow your system to detect the CPU fan's speed . The CPU fan can also run with a 2pin fan power connector, however, detection of CPU fan's speed is not sup ported. Another type of CPU fan may feature a large 4-pin fan power connector, which does not support CPU fan's speed detection and must be directly connected to the system's power supply unit. Please refer to the following diagram.

- 13 -

Step 2.

Set Jumpers

This mainboard is jumperless! The default jumper settings have been set for the common usage standard of this mainboard. Therefore, you do not need to reset the jumpers unless you require special adjustments as in any of the following cases:

1. Clear CMOS

2. BIOS Boot block Protection

For first-time DIY system builders, we recommend that you do not change the default jumper settings if you are not totally familiar with mainboard configuration procedures. The factory-set default settings are tuned for optimum system performance. For the advanced users who wish to customize their system, section to configure your mainboard manually.

3.2 Jumper Settings

will provide detailed information on how

Step 3.

Install DDR SDRAM System Memory

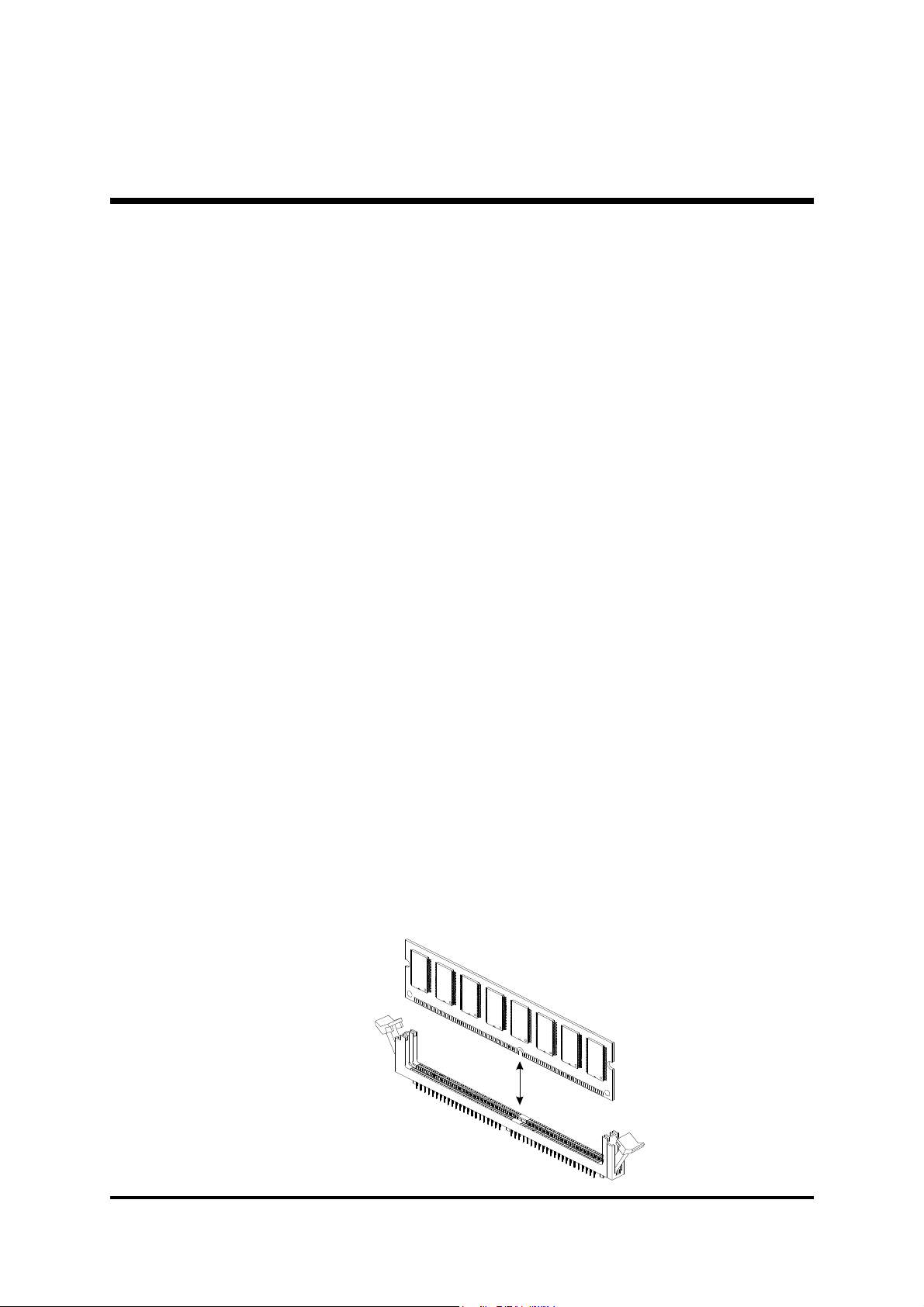

To install memory, insert DDR SDRAM memory module(s) in DIMM slot(s). Note that DDR SDRAM modules are directional and will not go in the DIMM slots unless properly oriented. After the module is fully inserted into the DIMM slots, lift the clips of both sides of the DIMM slot to lock the module in place.

DDR SDRAM

- 14 -

Step 4

Install Internal Peripherals in System Case

Before you install and connect the mainboard into your system case, we recommend that you first assemble all the internal peripheral devices into the computer housing, including but not limited to the hard disk drive (IDE /HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit. This will greatly facilitate in making the connections to the mainboard described below.

To install IDE & FDD drives, follow this procedure:

1. Set the required jumpers on board each device according to the instructions provided by the manufacturer. (IDE devices, HDD, and CD-ROM have to set jumpers on Master or Slave mode depending on your willing to install more than one device for each kind.)

2. Connect IDE cable and FDD cable on the back-panel of the internal peripheral devices to the corresponding headers on board. Note that the cable should be oriented with its colored stripe (usually in red or magenta) connected to pin#1 both on the mainboard IDE or FDD connector and on the device as well.

3. Connect an available power cable through your system power supply unit to the back-panel of each peripheral device. Note that the power cable is directional and cannot fit in if not properly positioned.

- 15 -

Step 5

Mount the Mainboard on the Computer Chassis

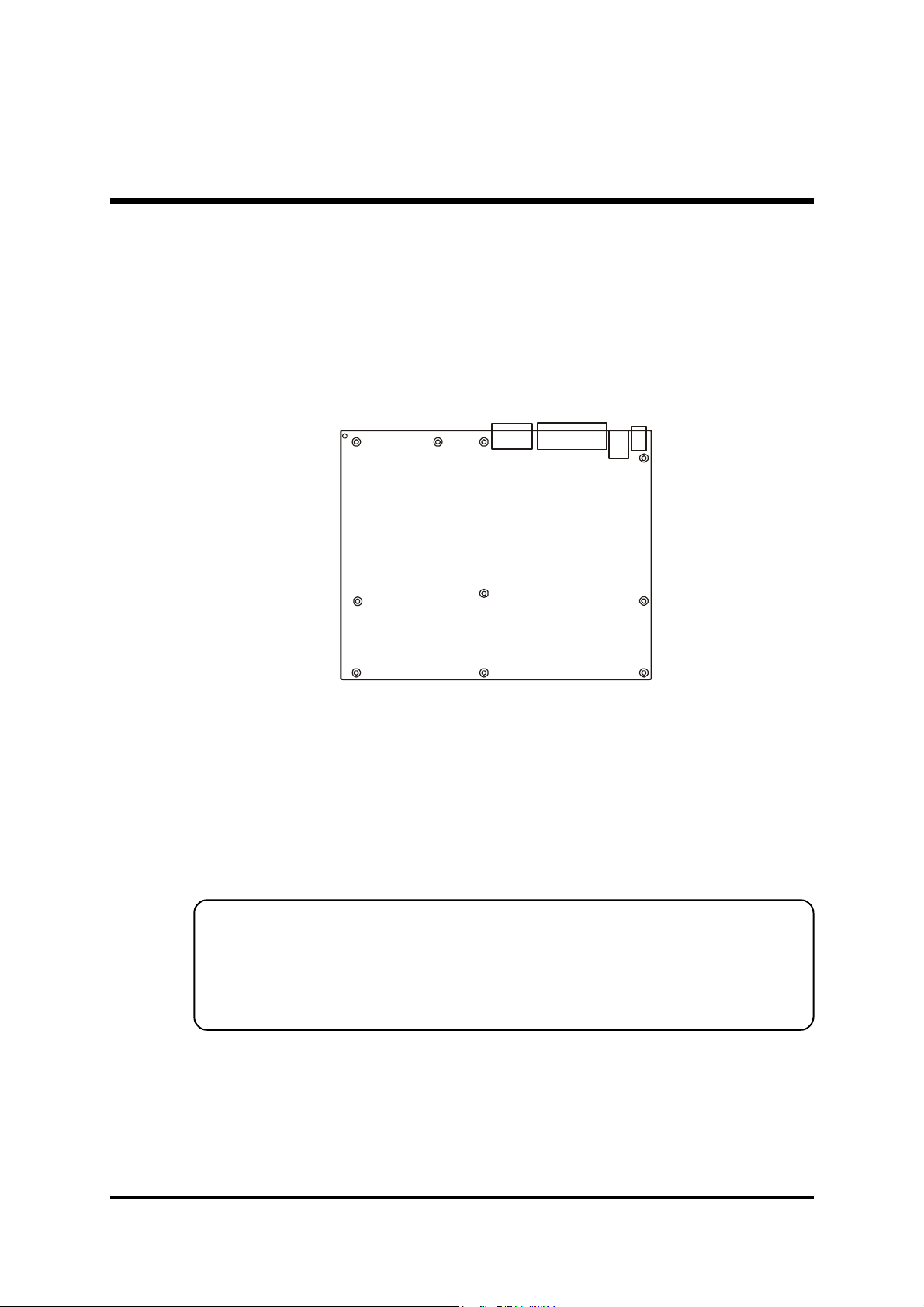

1. You may find that there are a lot of different mounting hole positions both on your computer chassis and on the mainboard. To choose a correct mounting hole, the key point is to keep the back-panel of the mainboard in a close fit with your system case, as shown below.

2. After deciding on the proper mounting holes, position the studs between the frame of chassis and the mainboard. The studs are used to fix the mainboard and to keep a certain distance between the system chassis and the mainboard, in order to avoid any electrical short between the board and the metal frame of chassis. (If your computer case is already equipped with mounting studs, you will need to tighten screws to attach the mainboard.)

Note:

In most computer housings, you will be able to find 4 or more attachment points to install mounting studs and fix the mainboard. If there aren't enough matching holes, then make sure to install at least 4 mounting studs to ensure proper attachment of the mainboard.

- 16 -

Step 6

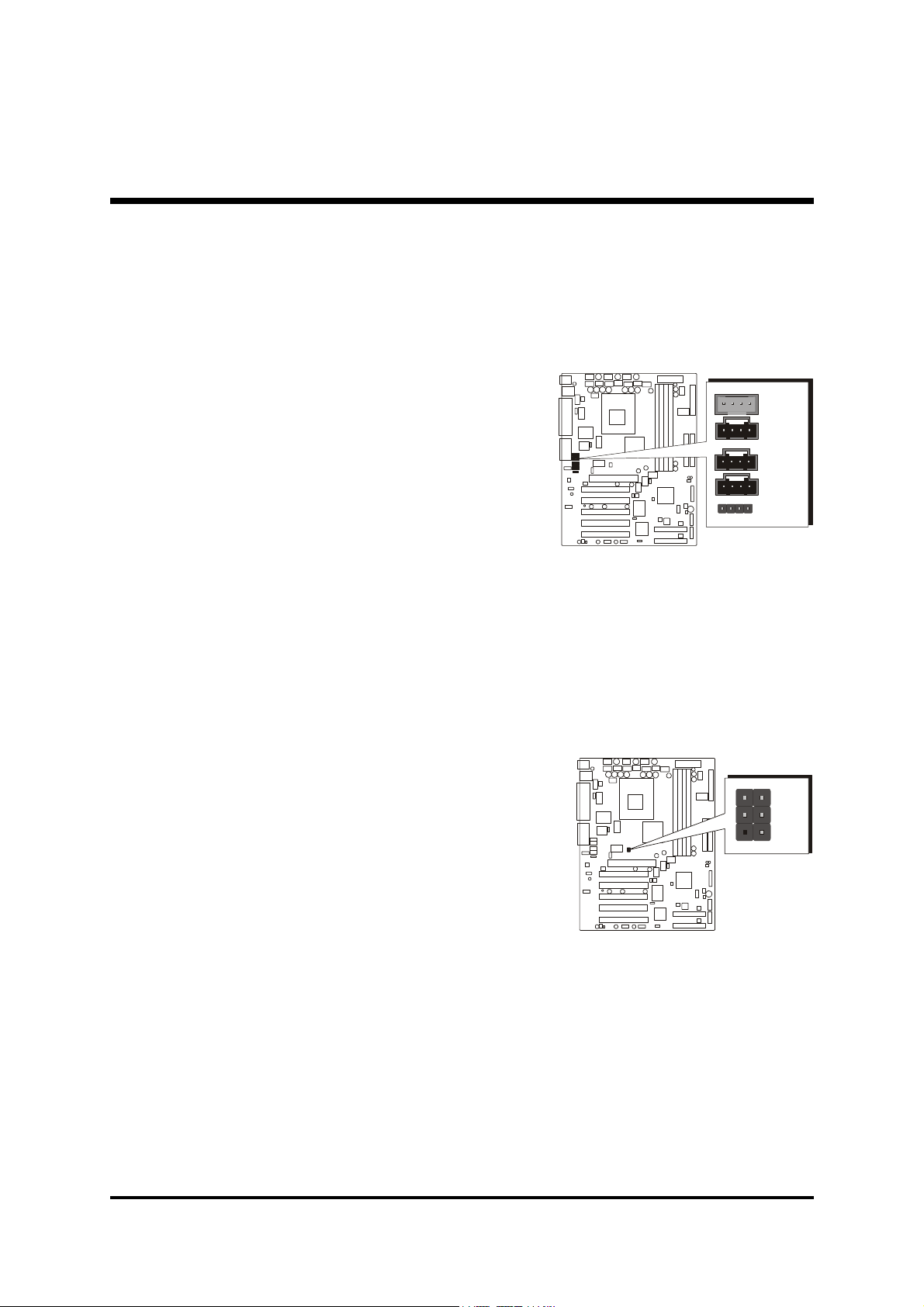

USB port 4 / 6

Connect Front-Panel Switches/LEDs/Speaker/USB connectors

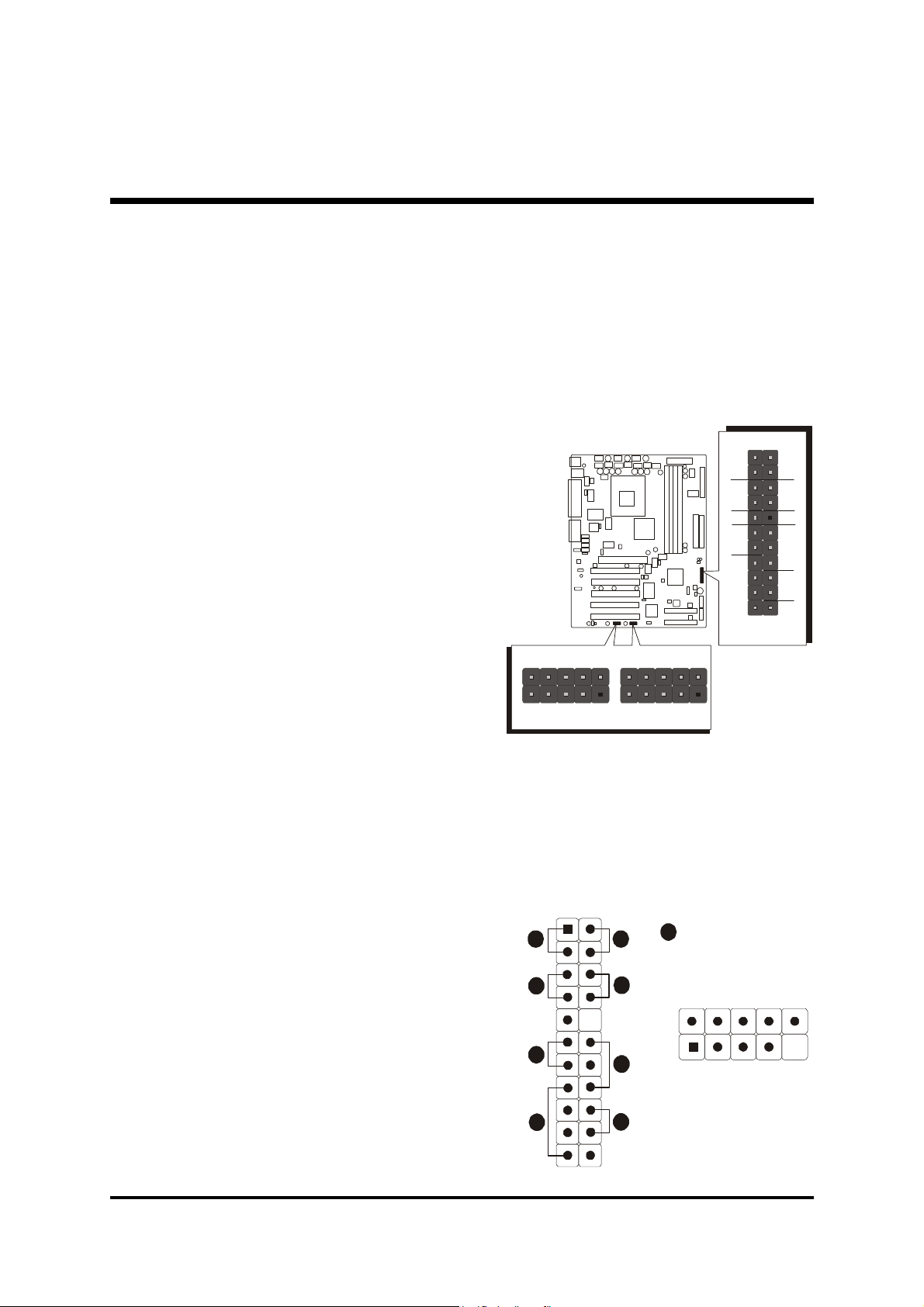

You can find there are several different cables already existing in the system case and originating from the computer's front-panel devices (HDD LED, Power LED, Reset Switch, PC Speaker, or USB devices etc.) These cables serve to connect the front-panel switches, LEDs, and USB connectors to the mainboard's front-panel connectors group (JP7 and USB2), as shown below.

+ D E

H T

E S E R

I M P

R E K A E P S

USB2 USB3

1 1

USB 3&4

USB 5&6

D E L G

N O W P

D E L P

C 2

7 P

1. HDD_LED (HLED)

2. Green_LED (GLED)

3. Hardware Reset Switch (RESET)

4. ATX Soft Power On/Off (PWON)

5. EPMI (Hardware System Management Interface)

6. Power_LED (PLED)

7. PC Speaker (SPEAKER)

8. I2C

9. Extended two USB Connector Header

7 8

V 5 +

B S U

D N G

/ N

V 5 +

D N G

Y E K

USB port 3 / 5

- 17 -

Step 7

Connect IDE, IDE RAID (AK37GTR only), and Floppy Disk Drives

1. IDE cable connector

2. FDD cable connector

1 E D

2 E D

C D F

3. IDE RAID cable( Serial ATA) connector (AK37GTR only)

RAID2

IDE4

RAID1

IDE3

- 18 -

A T

A l a

r e S

Step 8

Connect Other Internal Peripherals

1. CD_IN, AUX_IN, TAD_IO and Bass/Center_Out connectors

2. IR connector

CD_IN

AUX_IN

TAD_IO

BASS

- 19 -

3 P

Step 9

Connect Power Supply

1. System power connector

Step 10

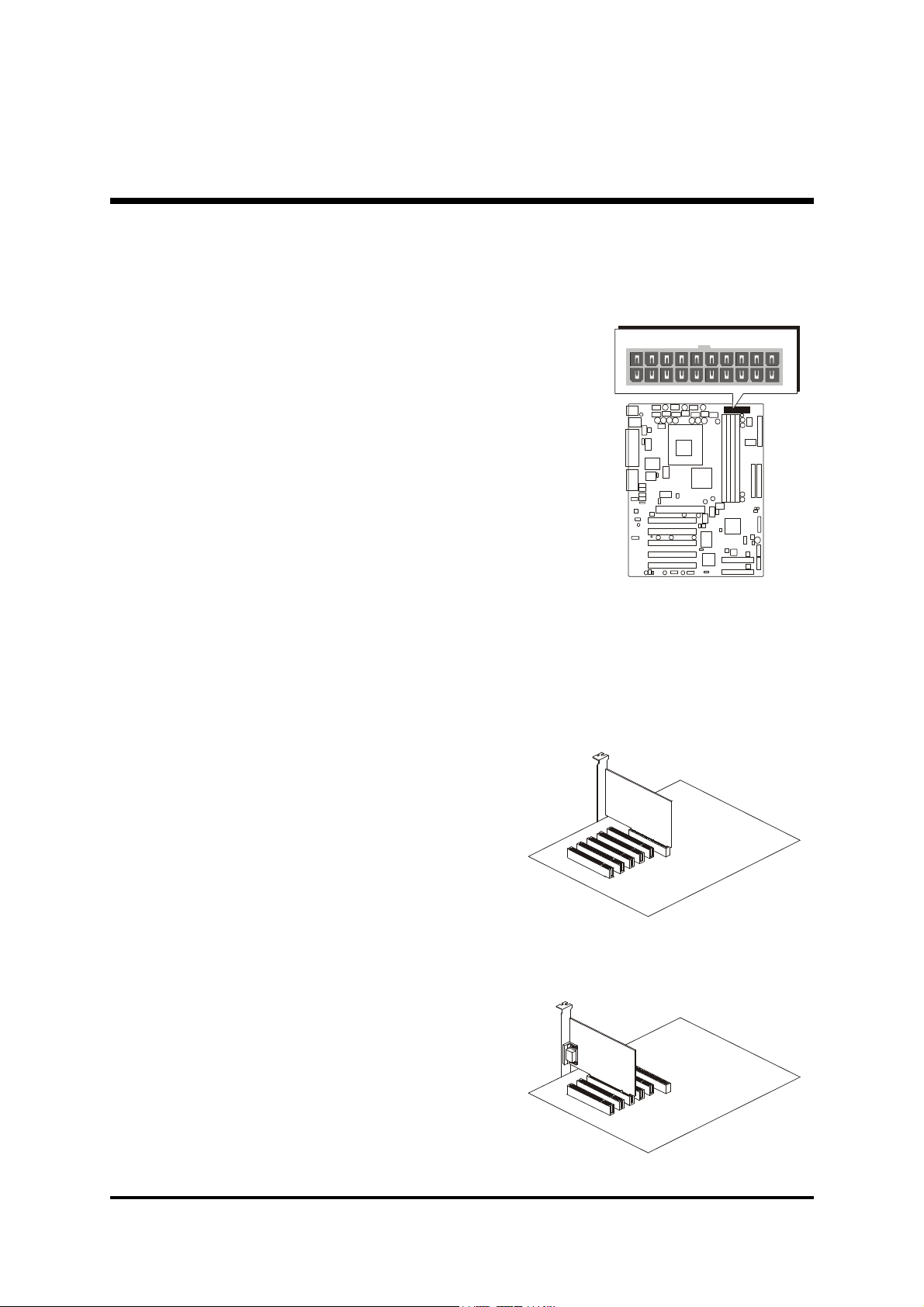

Install Add-on Cards in Expansion Slots

ATX1

ATXPWR

1. Accelerated Graphics Port (AGP) Card

2. PCI Card

- 20 -

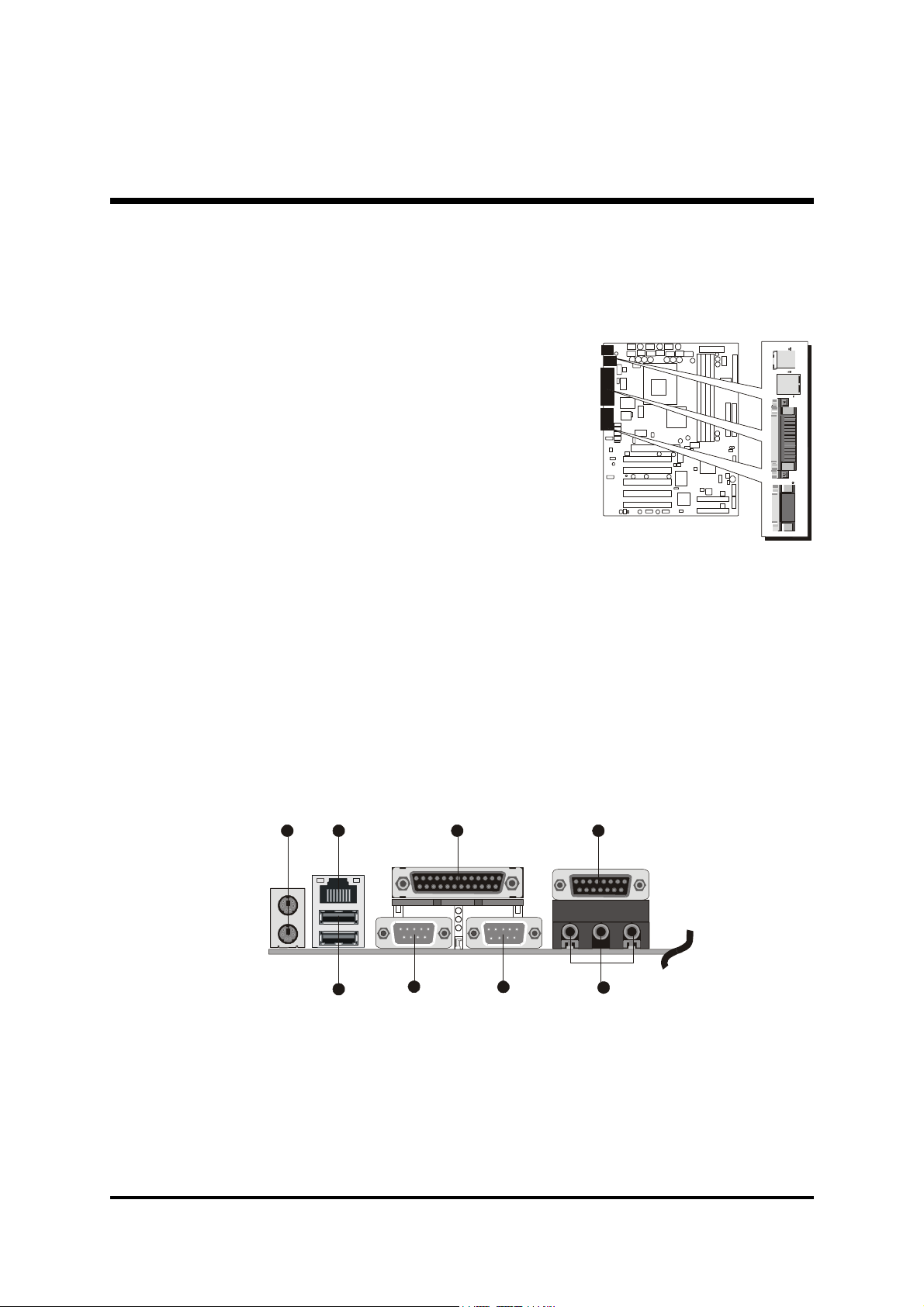

Step 11

Connect External Peripherals to Back-Panel

You are now ready to put the computer case back together and get on to the

external peripherals connections to your system's back-panel.

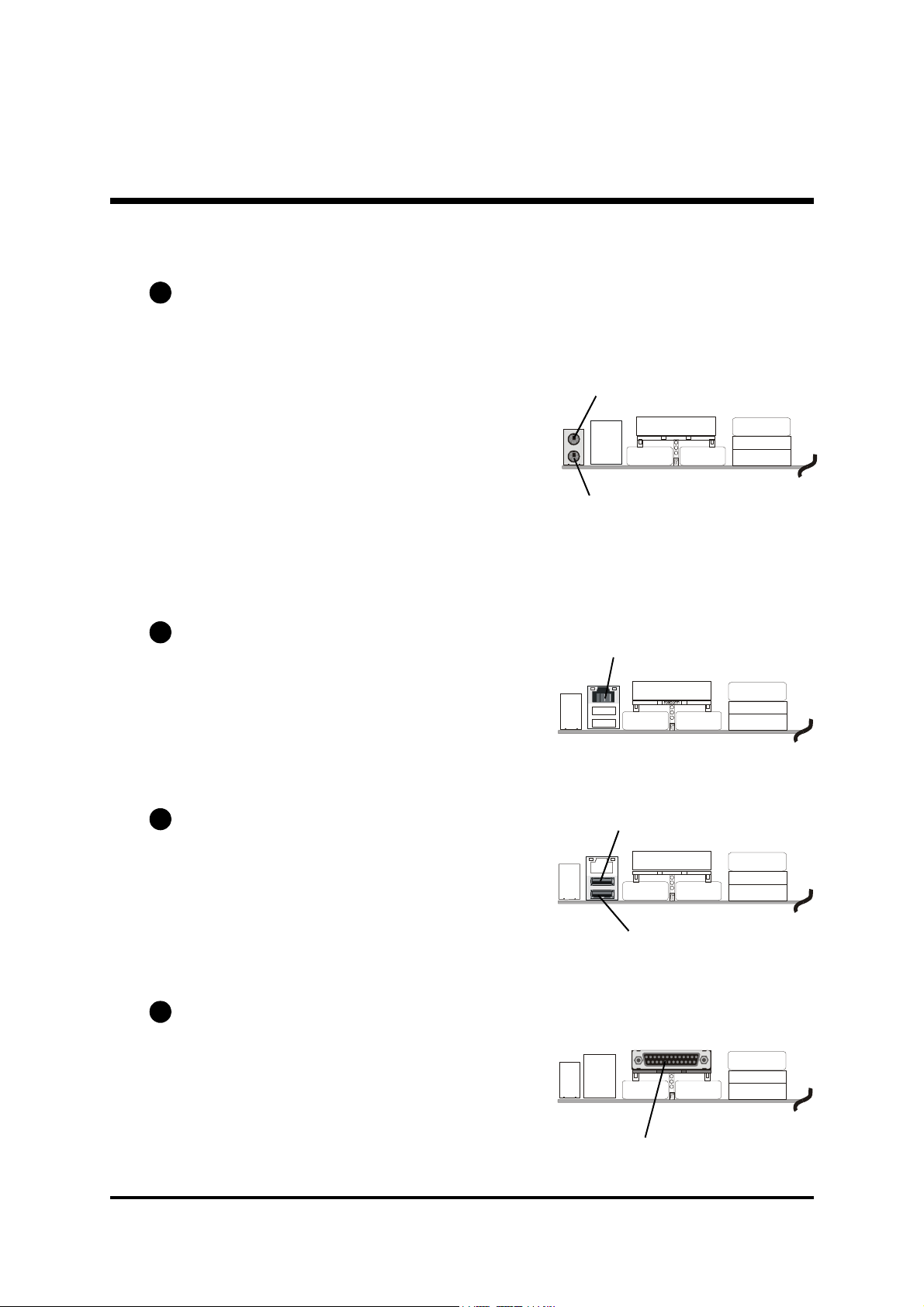

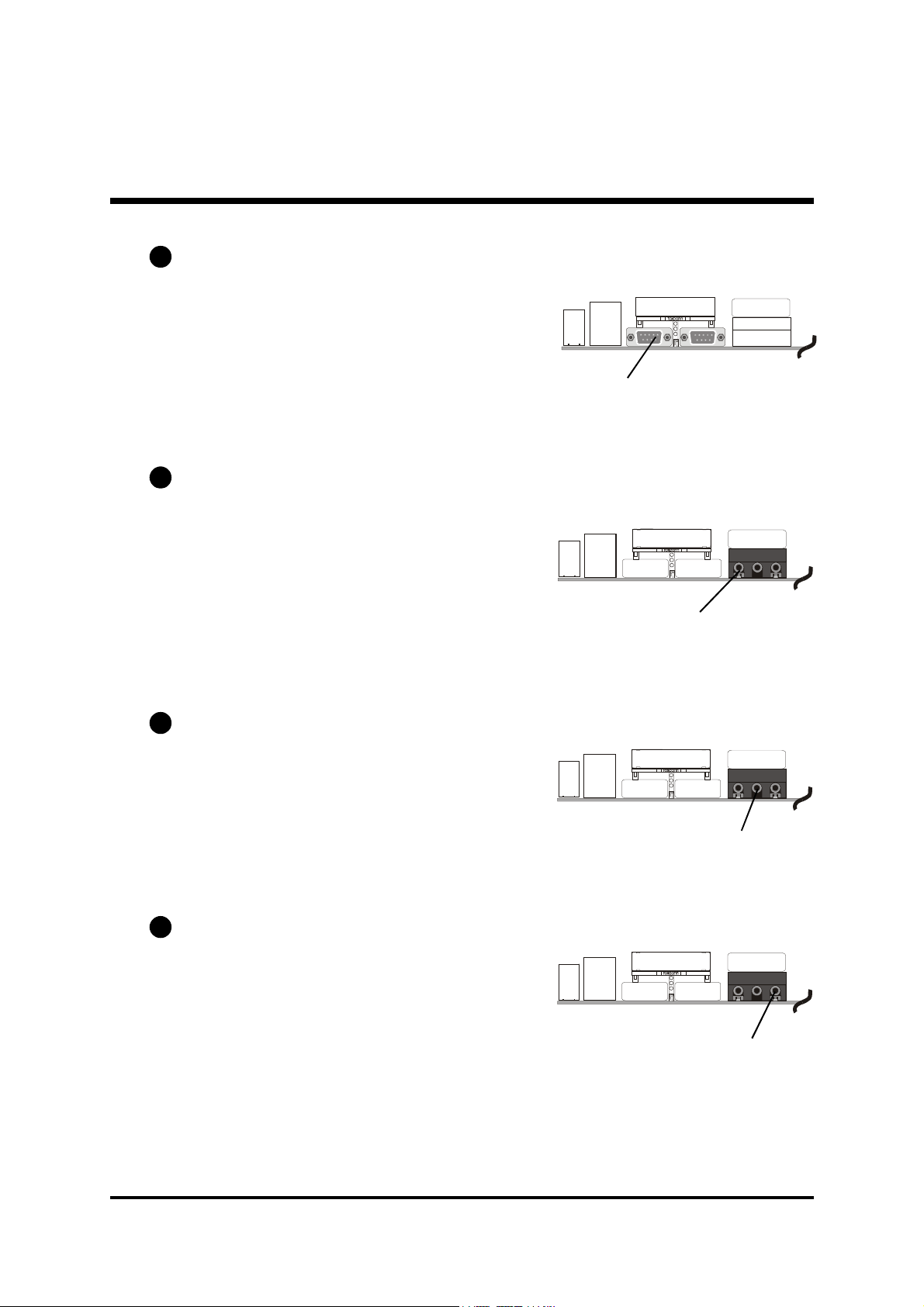

1. PS/2 Mouse and PS/2 Keyboard

2. LAN Port

3. USB1/2 Ports

4. Parallel Port

5. COM1 Port

6. COM2 Port

7. Audio Line-Out /Line-In / Mic-In Ports

8. MIDI/GAME Port

4 8

foxconn

- 21 -

Step 12

First Time System Boot Up

To assure the completeness and correctness of your system installation, you may check the above installation steps once again before you boot up your system for the first time.

1. Insert a bootable system floppy disk (DOS 6.2x, Windows 95/98/NT, or others) which contains FDISK and FORMAT utilities into the FDD.

2. Turn on the system power.

3. First, you must use the FDISK utility to create a primary partition of the hard disk. You can also add an extended partition if your primary partition does not use all of the available hard disk space. If you choose to add an extended partition, you will have to create one or more logical partition(s) to occupy all the space available in the extended partition. The FDISK utility will assign a drive letter (i.e., C:, D:, E:,...) to each partition which will be shown in the FDISK program. After FDISK procedure, reboot your system by using the same system floppy disk.

Note:

4. Now, use the FORMAT utility to format all the partitions you're created.

Note:

5. Install all the necessary drivers for CD-ROM, Mouse, etc.

6. Setup the complete operating system according to your OS installation

DOS 6.2x and Windows 95A can only support up to 2.1GB of HDD partition. If you use the FDISK utility with one of the operating systems mentioned above, you can only decide your HDD into partitions no larger than 2.1GB each.

When formatting the primary partition (C:), make sure to use the FORMAT C: /S command.

FORMAT C: /S can transfer all the necessary system files into the primary partition of your hard disk. Then, your HDD will become a bootable drive.

guide.

- 22 -

Step 13

Install Driver & Software Components

Please note that all the system utilities and drivers are designed for Win 9x / 2000/ME/NT operating systems only. Make sure your operating system is already installed before running the drivers installation CD-ROM programs.

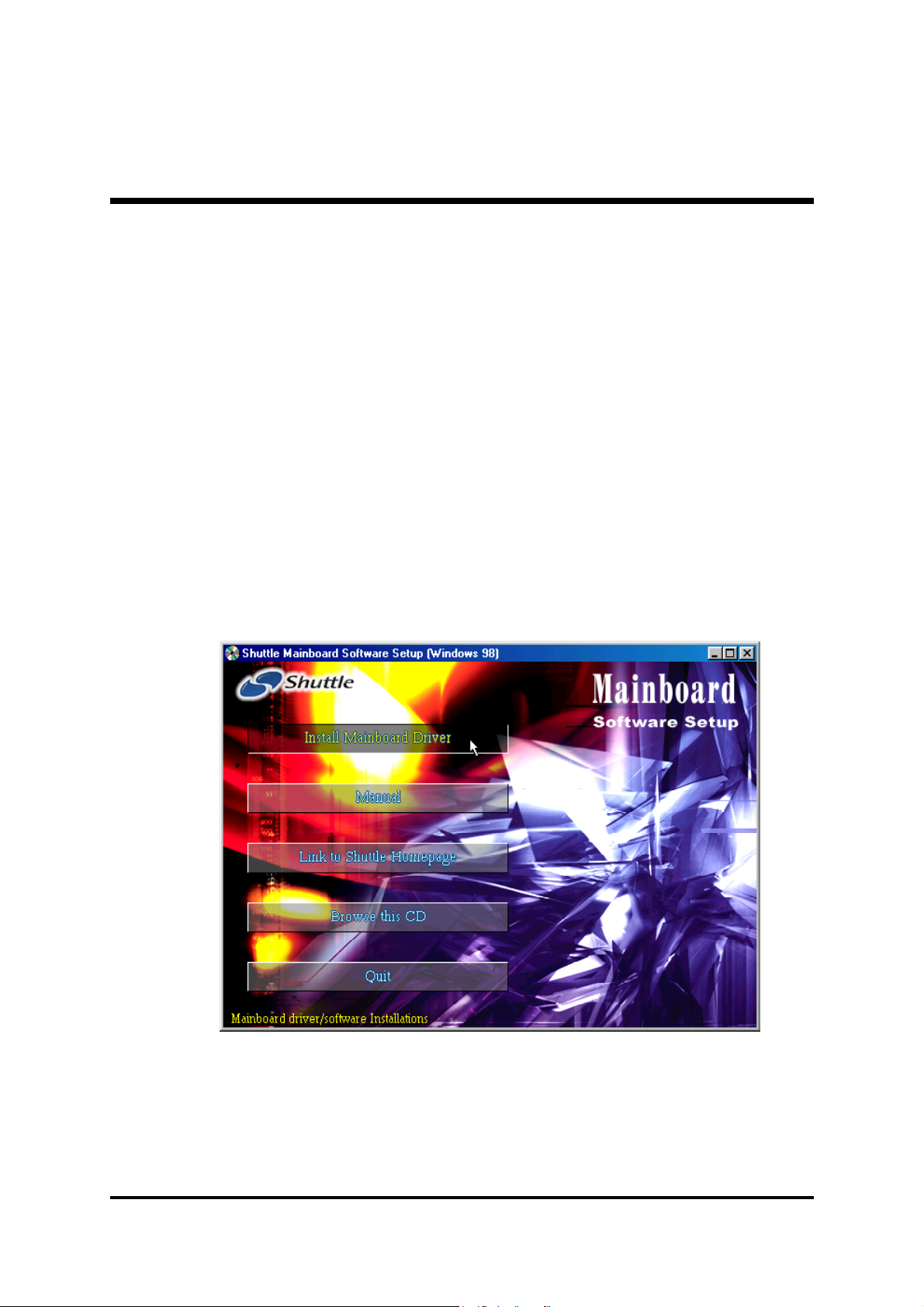

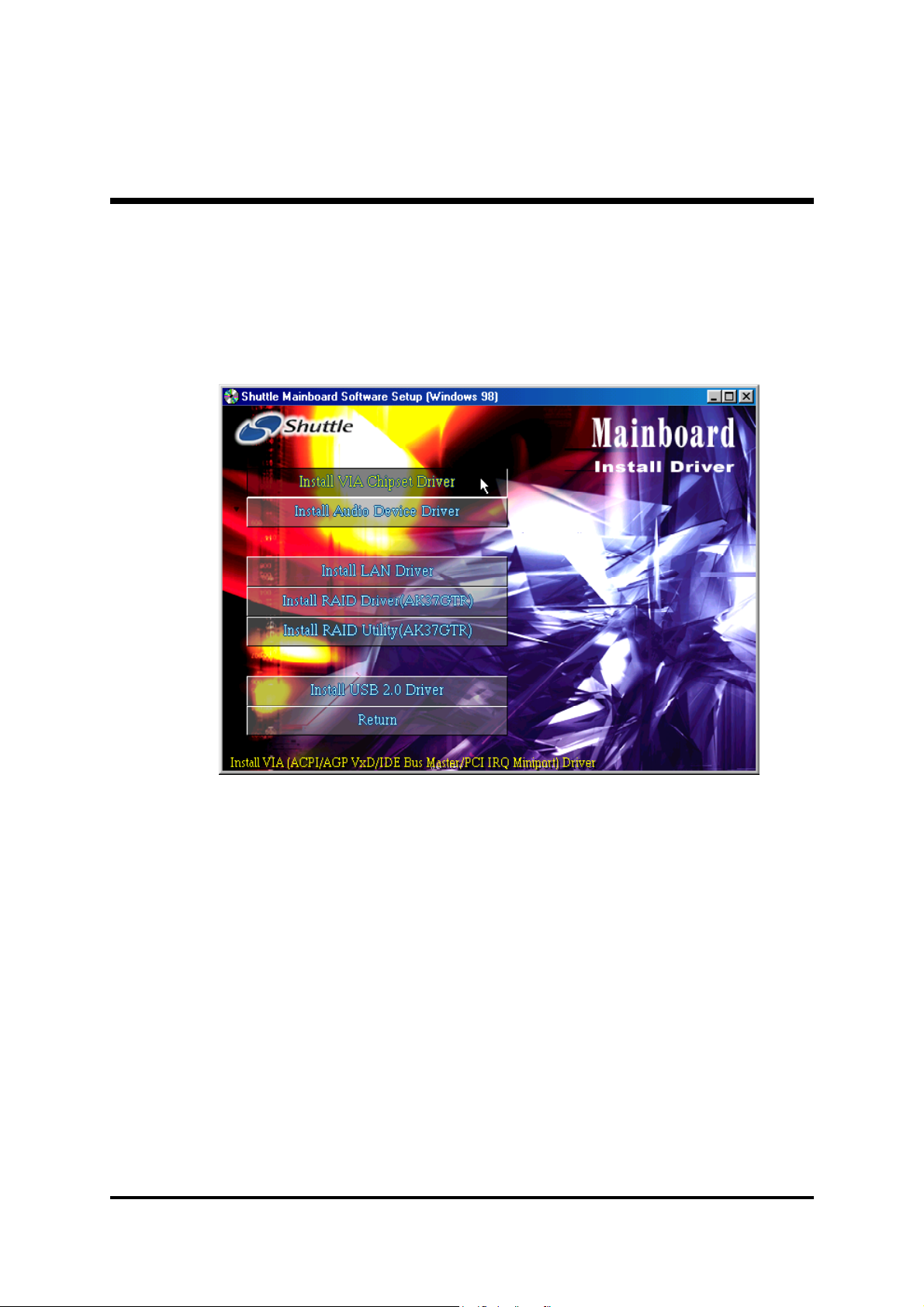

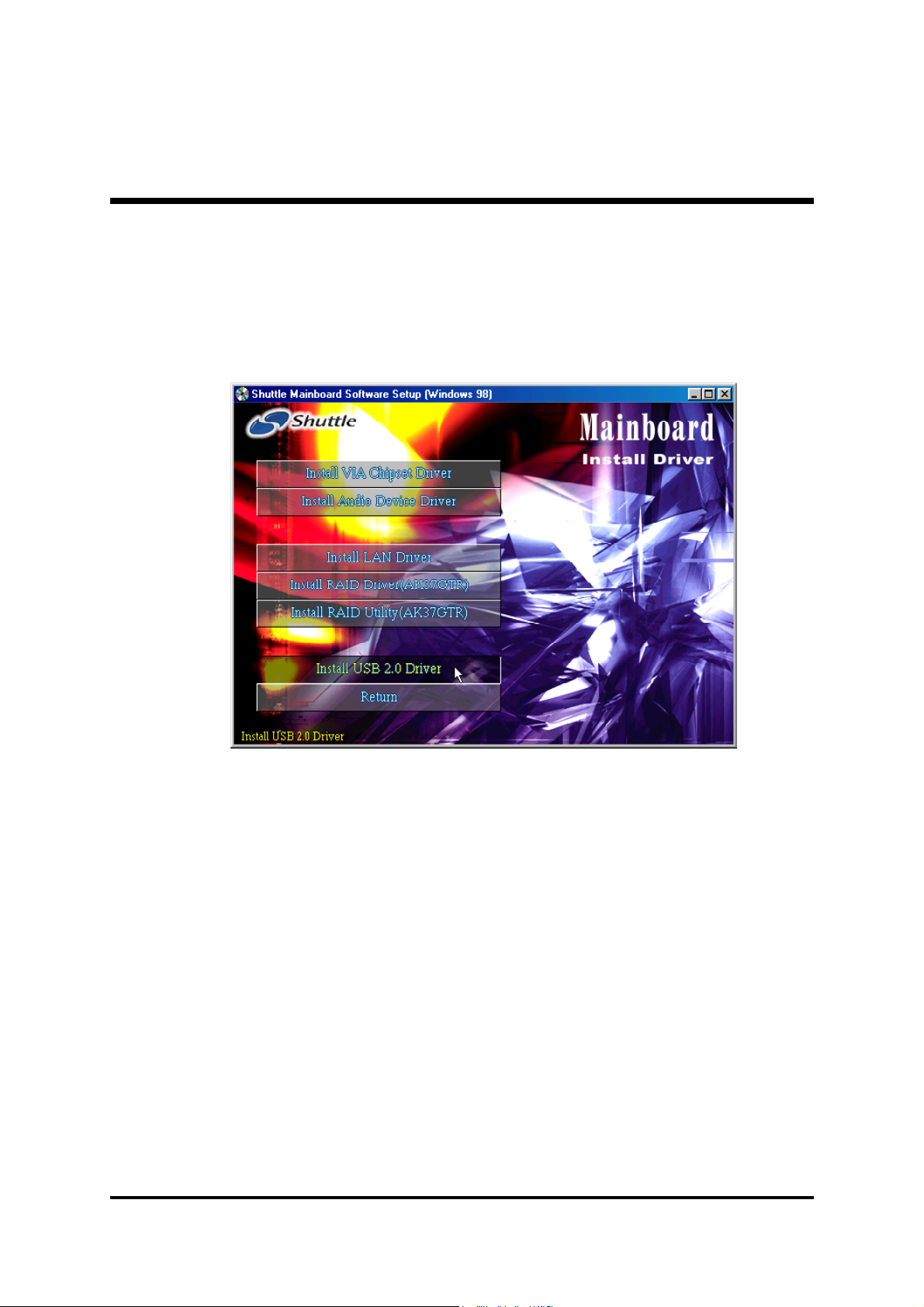

1. Insert the AK37GT/AK37GTR bundled CD-ROM into your CD-ROM

drive. The auto-run program will display the drivers main installation window on screen.

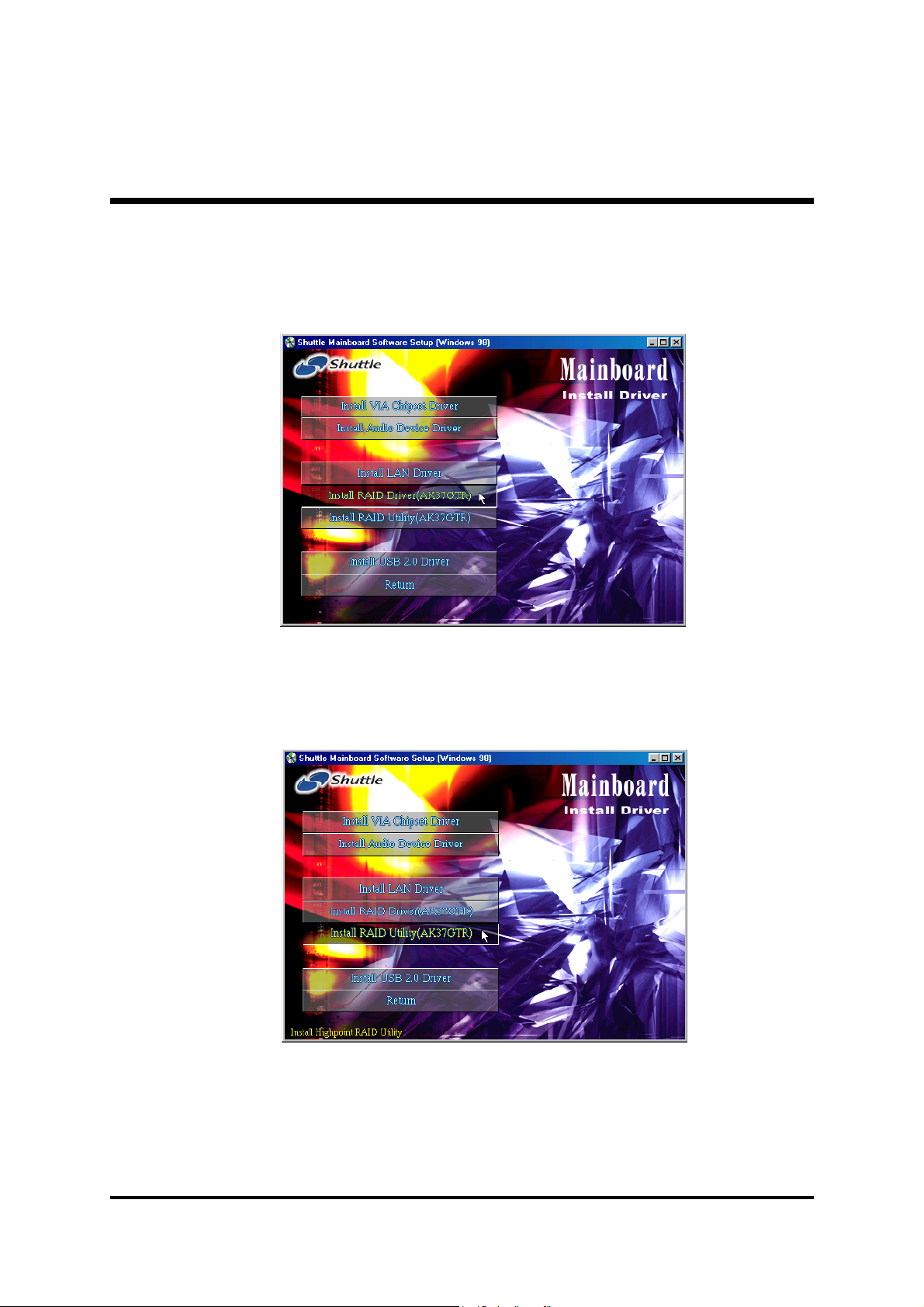

2. Select the "Install Mainboard Software" bar to run into sub-menu.

3. Choose "Install VIA Chipset Driver" and complete it.

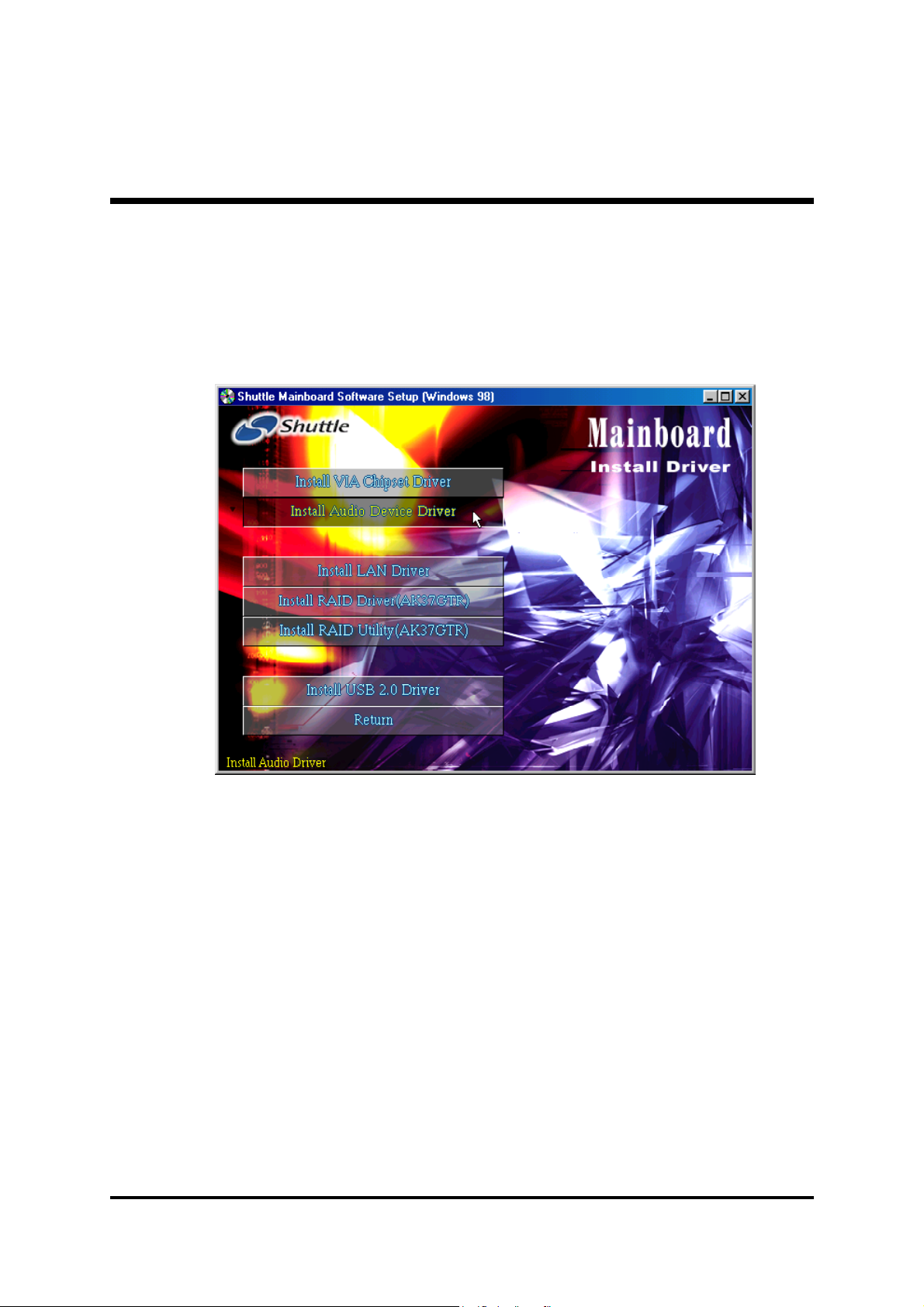

4. Choose "Install Audio Driver" and complete it.

5. Choose "Install LAN Driver" and complete it.

6. Choose "Install RAID Driver" bar to run readme windows if you need

install drivers.

7. Choose "Install RAID Utility" bar to install RAID utility drivers.

(AK37GTR only)

8. Choose "Install USB 2.0 Driver" and complete it.

(AK37GTR only)

9. Return to the main installation window and exit from the auto-run drivers

installation program.

Note:

Please refer to IDE Raid Manual to install IDE RAID

Controller driver when you purchase

AK37GTR

mainboard.

- 23 -

3.2 Jumper Settings

Several hardware settings are made through the use of jumper caps to connect jumper pins to the mainboard. Pin #1 could be located at any corner of each jumper; you just find a location marked with a while right angle, which stands for pin1#. There are several types of pin 1# shown as below:

3-pin and multi-pin (>3) jumpers show as follows: Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins are shown as for Close [On] or for Open [Off]. To Short jumper pins, simply place a plastic jumper cap over the desired pair of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its components. When putting the mainboard down, place it on the top of its original packaging film and on an even surface, and components side up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent electrostatic discharge (ESD) whenever handling this equipment.

- 24 -

Jumper & Connector Guide

Use the mainboard layout on page 11 to locate CPU socket, memory slots, expansion slots, jumpers and connectors on the mainboard during installation. The following list will help you identify jumpers, slots, and connectors along with their assigned functions:

B2~B3

B4~B6

B7~B9

E10

E2 E3

C1~C7

E11

CPU/Memory/Expansion Slots

Socket 462 : CPU Socket for AMD Athlon and Duron processors. DIMM1/2/3/4 : Four DIMM Slots for 64, 128, 256, 512 MB, and 1GB of

2.5V DDR SDRAM AGP : One AGP (Accelerated Graphics Port) Slot PCI : Five 32-bit PCI Expansion Slots

- 25 -

Jumpers

JP1 : Clear CMOS

JP2 : BIOS Boot block protection

Back-Panel Connectors

KB : PS/2 Keyboard

MS : PS/2 Mouse

LAN : RJ45 LAN Port

USB : 2 x USB (Universal Serial Bus) ports

COM1/2 : Serial Port 1/2 (DB9 male) PRINTER : Parallel Port (DB25 female)

LINE-OUT : Line-Out Port LINE-IN : Line-In Port

MIC-IN : Mic-In Port

GAME/MIDI : MIDI/Game Port

Front-Panel Connectors (JP7)

PWON : ATX Power On/Off Momentary Type Switch

EPMI : Hardware System Management Interface Momentary

Type switch

GLED/PLED : Green LED (ON when system stays in power

saving mode) / System Power LED

HLED : IDE Drive Active LED

PLED : System Power LED

RESET : Hardware Reset Switch

SPEAKER : Housing Internal Speaker

Internal Peripherals Connectors

FDD1 : Floppy Disk Drive Interface

IDE1 : IDE Primary Interface (Dual-channel)

IDE2 : IDE Secondary Interface (Dual-channel)

RAID1 : RAID primary interface (Dual-channel) (AK37GTR only)

RAID2 : RAID secondary interface (Dual-channel) (AK37GTR only)

Serial ATA1/2: Serial ATA 1/2 interface

- 26 -

Other Connectors:

ATX1 : ATX Power (20-pin header)

E1 E2

FAN1 : CPU Fan Power FAN2 : AGP Fan Power

FAN3 : System Fan Power

JP3 : IR Connector

E3 E4

JP4 : Wake-On-LAN Connector

J2/J3 : CD_IN connector

J4 : Auxiliary_IN Connector

J5 : TAD_IN Connector

J6 : Bass/Center_Out Connector

J7 : Front-Panel Audio Connector

E10

J8 : SPDIF Ext. Header

E11

USB2/3 : Extended USB Header

- 27 -

Jumpers

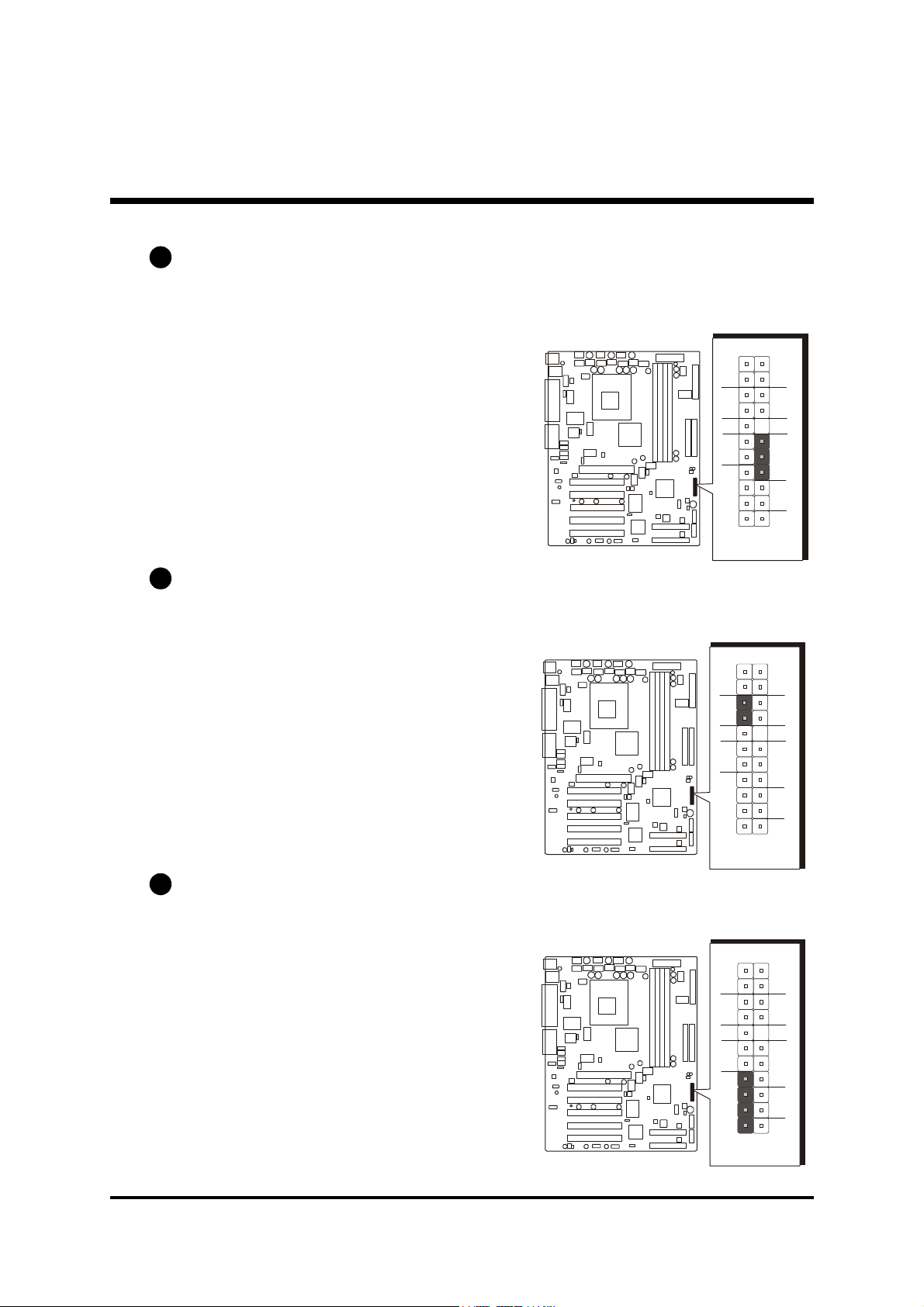

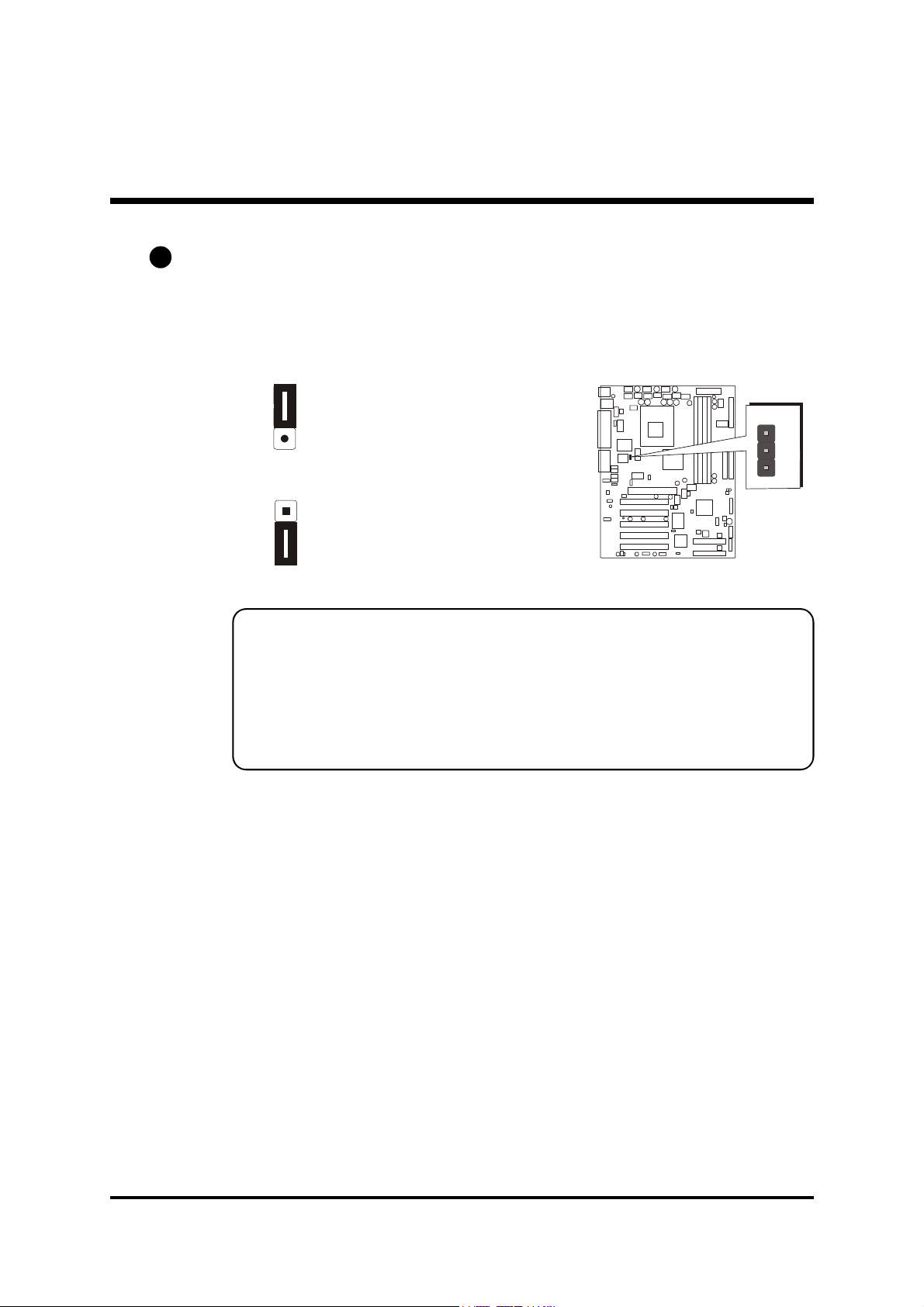

Clear CMOS (JP1)

JP1is used to clear CMOS data. Clearing CMOS will result in the permanent erasing of previous system configuration settings and the restoration of original (factory-default) system settings.

Step 1. Step 2. Step 3. Step 4. Step 5. Step 6. Step 7.

Pin 1-2 (Default)

Pin 2-3 (Clear CMOS)

Turn off the system power (PC-> Off). Remove ATX Power cable from ATX Power connector. Remove jumper cap from JP2 pins 1-2. Place the jumper cap on JP2 pin 2-3 for a few seconds. Return the jumper cap to pin 1-2. Plug ATX Power cable into ATX Power connector. Turn on the system power (PC-> On).

- 28 -

BIOS Boot block Protection (JP2)

JP2 is used to protect BIOS from abnormal writing. You may choose to place jumper cap on pins 1-2 for BIOS write protection;

however, please place jumper cap on pins 2-3 if you need to reflash BIOS.

To enable reflashing the BIOS Pin 1-2 (Default)

BIOS write protection Pin 2-3

Reflash the BIOS, follow these steps:

2 P

Step 1. Step 2. Step 3.

Turn off the system power (PC-> Off). Make sure of place jumper cap on JP5 pin 2-3. Insert a bootable system floppy disk with AK37GT/AK37GTR

BIOS and flashutility and then turn on your system to execute flash utility.

- 29 -

Back-Panel Connectors

PS/2 Keyboard & PS/2 Mouse Connectors

Two 6-pin female PS/2 keyboard & Mouse connectors are located at the rear panel of the mainboard. Depending on the computer housing you use (desktop or tower), the PS/2 Mouse connector is situated at the top of the PS/2 Keyboard connector when the mainboard is laid into a desktop, as opposed to a tower where the PS/2 Mouse connector is located at the right of the PS/2 Keyboard's. Plug the PS/2 keyboard and mouse jacks into their corresponding connectors.

LAN Port Connectors

This mainboard can accommodate one device on LAN.

PS/2 Mouse

PS/2 keyboard

LAN Port

Attach a 10/100 baseT cable to the RJ45 at the back-panel of your computer.

USB1/USB2 Port Connectors

This mainboard offers 2 USB ports on back panel. Plug each USB device jack into an available USB1/USB2 connector.

Parallel Port Connector

One DB25 female parallel connector is located at the rear panel of the mainboard. Plug the connection cable from your parallel device(printer, scanner, etc.) into this connector.

USB Port 1

USB Port 2

foxconn

Parallel Port

- 30 -

COM1/2 Port Connector

This mainboard can accommodate one serial device on COM. Attach a serial device cable to the DB9 serial port COM at the back-panel of your computer.

Line-Out Port Connector

Line-Out is a stereo output port through which the combined signal of all internal and external audio sources on the board is output. It can be connected to 1/8-inch TRS stereo headphones or to amplified speakers.

Line-Out Port

Line-In Port Connector

Line-In is a stereo line-level input port that accepts a 1/8-inch TRS stereo plug. It can be used as a source for digital sound recording, a source to be mixed with the output, or both.

Mic-In Port Connector

Mic-In is a 1/8-inch jack that provides a mono input. It can use a dynamic mono or stereo microphone with a resistance of not more than 600 Ohms.

Line-In Port

Mic-In Port

- 31 -

MIDI/GAME Port Connector

The GAME port is a 15-pin female connector. This port can be connected to any IBM PC compatible game with a 15-pin D-sub connector.

MIDI Instrument Connection

You will need a MIDI adapter to connect a MIDI compatible instrument to the sound card. The MIDI adapter can in turn be connected to the Joystick/MIDI port. You will also need the MIDI sequencing software to run MIDI instruments with your computer etc. into this connector.

MIDI/GAME Port

- 32 -

Front-Panel Connectors

ATX Power On/Off Switch Connector (Power ON)

The Power On/Off Switch is a momentary type switch used for turning on or off the system ATX power supply. Attach the connector cable from the Power Switch to the 2-pin (Power ON) header on the mainboard.

+ D E

T E S E R

I M P E

R E K A E P S

D E L G

N O W P

D E L P

C 2

7 P

Note :

Please notice all the LED connectors are directional. If your chassis LED does not light up during running, please simply change to the opposite direction.

EPMI Connector (EPMI)

Hardware System Management Interface (EPMI) header may attach to 2-pin momentary switch. Press the switch to force system into power saving mode; press it again to resume back the normal operation situation.

+ D E

I M P E

R E K A E P S

s

D E L G

N O W P

D E L P

C 2

7 P

- 33 -

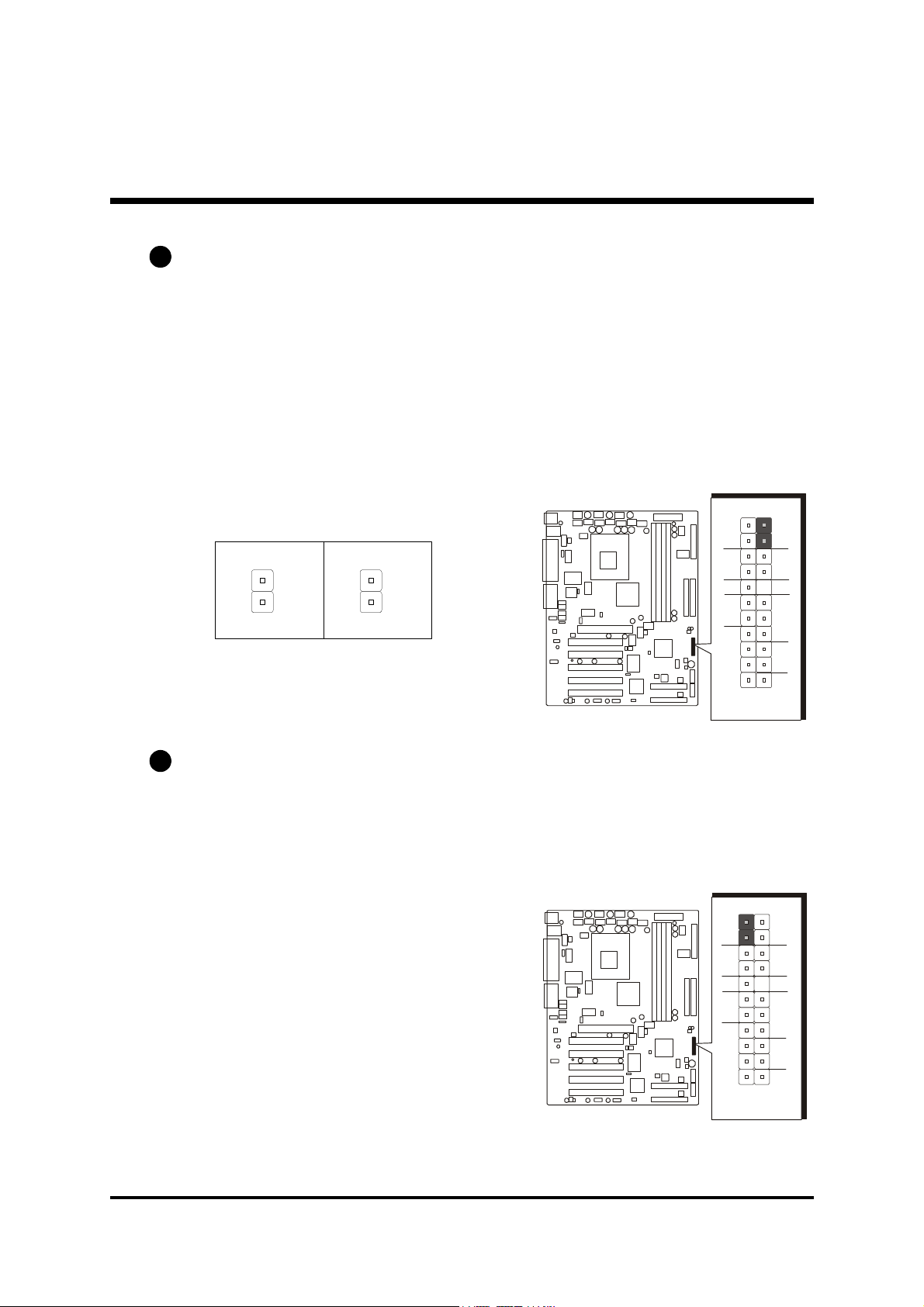

Green LED/Power LED Connector (GLED/PLED)

This header is dual color LED function. Dual color LED function is defined by either Power LED or Green LED, the

header can be in these states. The Green LED indicates that the system is currently in one of the power saving

mode (Doze/Standby/Suspend). When the system resumes to normal operation mode, the Green LED will go off, Power LED on.

This Power LED will go off during Power saving mode. Attach a 2-pin Green LED/Power LED cable to (GLED/PLED) header.

GLED

2 4

PLED

2 4

+ D E

H T

E S E R

I M P E

R E K A E P S

D E L G

N O W P

D E L P

C 2

7 P

HDD LED Connector (HLED)

Attach the connector cable from the IDE device LED to the 2-pin (HLED) header. The HDD LED lights up whenever an IDE device is active.

+ D E

I M

P E

R E K A E P S

D E L G

N O W P

D E L P

C 2

7 P

- 34 -

Power LED Connector (PLED)

Attach the 3-pin Power-LED connector cable from the housing front-panel to the (PLED) header on the mainboard. The power LED stays light while the system is running.

Hardware Reset Connector (RESET)

Attach the 2-pin hardware reset switch cable to the (RESET) header. Pressing the reset switch causes the system to restart.

I M

P E

R E K A E P S

D E L

T E S E R

D E L G

N O

W P

D E L P

C 2

7 P

D E L G

N O W P

D E L P

C 2

7 P

Speaker Connector (SPEAKER)

Attach the PC speaker cable from the case to the 4-pin speaker connector (SPEAKER).

- 35 -

+ D E

H T

E S E R

D E L G

N O W P

D E L P

C 2

7 P

Internal Peripherals Connectors

Enhanced IDE, IDE RAID (AK37GTR Only), and Floppy Connectors

The mainboard features two 40-pin dual-channel IDE device connectors (IDE1/IDE2) providing support for up to four IDE devices, such as CD-ROM and Hard Disk Drives (H.D.D.) and features two 40-pin dual-channel IDE RAID device connectors (RAID1/RAID2) providing support for up to four IDE devices, such as Hard Disk Drives (H.D.D.).

This mainboard also includes one 34-pin floppy disk controller (FDD1) to accommodate the Floppy Disk Drive (FDD). Moreover, this mainboard comes with one 80-pin ATA (RAID) H.D.D. and one 34-pin ribbon cable for F.D.D. connection.

133/100/66

ribbon cable to connect to IDE

C D F

RAID2

IDE4

RAID1

IDE3

Note :

If you used RAID connector, please refer to

to setup RAID BIOS program.

Important:

Ribbon cables are directional, therefore, make sure to always

connect with the red cable.

1 E D

2 E D

IDE RAID Manual

- 36 -

Other Connectors

ATX Power Supply Connector

This motherboard uses 20-pin Pentium 4 standard ATX power header, and comes with another two headers. Another is ATX12V with 2X2-pin +12 VPC ATX power supply header. Please make sure you plug in the right direction.

ATX1

ATXPWR

A1:Plug this connector when you use on AGP pro card.

A traditional ATX system should remain at power off stage when AC power resumes from power failure. In such case, if there is no an UPS to keep power-on, the kind of design is inconvenient for a network server or workstation. However, this motherboard implements an AC Power Auto Recovery function to solve this problem. You may enable the function "PWRON After PWR-Fail" that is under sub-menu of "Power Mangement Setup " through BIOS setup program.

Note 1:

Note 2:

Note 3:

Note 4:

The ATX power connector is directional and will not go in unless the guides match perfectly making sure that pin#1 is properly positioned.

Make sure the latch of the ATX power connector clicks into place to ensure a solid attachment.

Your ATX power supply must be supplied to ACPI +5V standby power and at least 720mA compatible.

Make sure your power supply have enough power for higher speed processor installed.

- 37 -

CPU, System, and Other Fan connectors - FAN1/2/3/4

135

The mainboard provides three onboard 12V cooling fan power connectors to support CPU (FAN1)/(FAN2), System (FAN3) or Other (FAN4) cooling fans.

GND

+12V

Note:

Both cable wiring and type of plug may vary Which depends on the fan maker. Keep in mind that the red wire should always be connected to the +12V header and the black wire to the ground (GND) header.

IR Header (JP3)

If you have an Infrared device, this mainboard can implement IR transfer function. To enable the IR transfer function, follow these steps:

SENCE

FAN1/FAN2 /FAN3with rotate sense.

FAN1

FAN2

3 N A F

FAN3

Pins Assignment: 1=NC 2=KEY 3=+5V

3 P

4=GND 5=IRTX 6=IRRX

- 38 -

3 2 1

4 3 2 1

Note:

Before connect your IR device, please be sure each IR on board pin allocation is matchable with the pin of the IR device. Other wise, incorrect IR connection may do damage to your IR device.

Step 1.

Attach the 6-pin infrared device cable to J10. (Refer to the above diagram for IR pin assignment.)

Step 2.

Configure the Infrared transfer mode in field "UART Mode Select" of "Super I/O Device" of "Integrated Peripherals" sub-menu in BIOS setup program. This mainboard supports IrDA and Normal transfer modes.

Wake-On-LAN Connector (WOL1)

Attach a 3-pin connector through the LAN card which supports the Wake-OnLAN (WOL1) function. This function lets users wake up the connected system through the LAN card.

Pins Assignment:

1=5VSB 2=GND 3=RING#

JP 4

WOL

Audio CD_IN Connector (J2) (Write) / CD_IN (J3)(Black)

Port J2 & J3 is used to attach an audio connector cable from the CD-ROM drive.

J2 Pin Assignments: 1=CD-GND 2=CD-R 3=CD-GND 4=CD-L

- 39 -

CD_IN

J3 Pin Assignments:

4 3 2 1

1=CD-L 2=CD-GND 3=CD-GND 4=CD-R

Audio AUXILIARY_IN Connector (J4) (White)

Port J4 can be used to connect a stereo audio input from CD-ROM, TV-tuner or MPEG card.

Pin Assignments: 1=AUXL 2=AGND 3=AGND 4=AUXR

AUX_IN

Audio TAD_IO Connector (J5)

Port J5 can be used to connect a modem audio line to AK37GT/AK37GTR mainboard.

Typically, you would use this connector when running the voice mail software on your system for audio input and output.

Pin Assignments: 1=PHONE_IN 2=AGND 3=AGND 4=MONO_OUT

- 40 -

TAD_IO

4 3 2 1

Audio Center/Bass Header (J6)

J6 header can be used to connect the cable which attached to center/bass amplified speakers.

Pin Assignments: 1=Center 2=AGND 3=AGND 4=Bass

Front-Panel Microphone and Line_out Header (J7)

This header allows users to install auxiliary front-oriented microphone and lineout ports for easier access. Either the Mic and Line_out connector on backpanel or J7 header are available at the same time. If you would like to use this J7 header on front-panel, please remove all jumpers from JP6 and install your special Extra Mic / Line_out cable instead.

BASS

Front Audio

Pins Assignment:

1=AUD_MIC 2=AUD_GND 3=AUD_MIC_BIAS 4=AUD_VCC 5=AUD_FRONT_R 6=AUD_RET_R

7=HP_ON 8=KEY 9=AUD_FRONT_L 10=AUD_RET_L

- 41 -

E10

USB port 4/6

SPDIF Ext Header (J8)

Port J8 can be used to connect special device.

Pin Assignments: J8 1=+12V 2=+5V

IT8705F 0115-BXA M3Q040

3=N/A 4=SPDIF-OUT 5=SPDIF-IN 1 6=GND 7=NA 8=NA 9=KEY 10=GND

E11

Extended one USB Connector Header (USB2/USB3)

The headers are used to connect the cable attached to USB connectors which are mounted on front-panel or back-panel. But the USB cable is optional at the time of purchase.

SPDIF Ext.

D B S U

D N G

/ N

5 +

D B S U

+ 0

D B S U

D N G

Y E K

V 5 +

USB port 3 /5

Pins Assignment:

1=+5V 2=+5V 3=USBD0- 4=USBD15=USBD0+ 6=USBD1+ 7=GND 8=GND 9=KEY 10=N/A

- 42 -

USB2

1 1

USB 3&4

USB3

USB 5&6

3.3 System Memory Configuration

The AK37GT/AK37GTR mainboard has four 184-pin DIMM slots that allow you to install from 64MB up to 4GB of system memory.

Each 184-pin DIMM (Dual In-line Memory Module) Slot can accommodate 64MB, 128MB, 256MB, 512MB, and 1GB of PC1600/PC2100/PC2700/ PC3200 compliant 3V single (1 Bank) or double (2 Bank) side 64-bit wide data path DDR SDRAM modules.

Install Memory:

Install memory in any or all of the slots and in any combination shown as follows.

Note:

DDR SDRAM

DIMM Slot Memory Modules

DIMM 1

DIMM 2

DIMM 3

DIMM

The PC2700 module only support 6 Bank shown as follows:

Memory

PC2700 Module

DIMM

Single side Single side Single side Single side 4 BANK Double side Single side Single side Single side 5 BANK Double side Double side Single side Single side 6 BANK Double side Double side Double side

You do not need to set any jumper to configure memory since the BIOS utility can detect the system memory automatically. You can check the total system memory value in the BIOS Standard CMOS Setup menu.

64MB, 128MB, 256MB, 512MB (x8x16), and 1GB 184-pin 2.5V DDR SDRAM DIMM

64MB, 128MB, 256MB, 512MB (x8x16), and

1GB 184-pin 2.5V DDR SDRAM DIMM

DIMM

Empty

TOTAL

6 BANK

Module

Quantity

x 1

Upgrade Memory:

You can easily upgrade the system memory by inserting additional DDR SDRAM modules in available DIMM slots. The total system memory is calculated by simply adding up the memory in all DIMM slots. After upgrade, the new system memory value will automatically be computed and displayed in the field " Standard CMOS Setup" of BIOS setup program.

- 43 -

4 SOFTWARE UTILITY

4.1 Mainboard CD Overview

Note:

To start your mainboard CD disc, just insert it into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click or run D:\Autorun.exe (assuming that your CDROM drive is drive D:)

The CD contents attached in mainboard are subject to change without notice.

Navigation Bar Description:

Install Mainboard Driver

Manual

Link to Shuttle Homepage

Browse this CD

Quit

- mainboard and IDE RAID .

- Allows you to see contents of this CD.

- Close this CD.

- Installing .

- Link to shuttle website homepage.

- 44 -

4.2 Install Mainboard Software

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in screen.

My Computer

to bring up

Mainboard Software Setup

Select using your pointing device (e.g. mouse) on the Software"

The

[

4.3

[

4.4

[

4.5

[

4.6

[

4.7

[

4.8

bar to run into sub-menu.

Mainboard Software

] Install VIA Driver ] Install Audio Device Driver ] Install LAN Driver ] Install RAID Driver (AK37GTR) ] Install RAID Utility Driver (AK37GTR) ] Install USB 2.0 Driver

include:

Install Mainboard

- 45 -

4.3 Install VIA 4-in-1 Driver

Select using your pointing device (e.g. mouse) on the “ bar to install 4-in-1driver.

Install VIA Driver

”

Once you made your selection, a Setup window run the installation automatically. When the copying files is done, make sure you

installation effect.

reboot

the system to take the

- 46 -

4.4 Install Audio Driver

Select using your pointing device (e.g. mouse) on the “ bar to install audio driver.

Install Realtek Driver

”

Once you made your selection, a Setup window run the installation automatically. When the copying files is done, make sure you

installation effect.

reboot

the system to take the

- 47 -

4.5 Install LAN Driver

Select using your pointing device (e.g. mouse) on the “ bar to install LAN driver.

Install LAN Driver

”

Once you made your selection, a Setup window run the installation automatically. When the copying files is done, make sure you

installation effect.

reboot

the system to take the

- 48 -

4.6 Install IDE RAID Driver and Utility (AK37GTR only)

Select using your pointing device (e.g. mouse) on the “ bar.

Cause the IDE RAID driver can't be setup automatically, please follow below instructions to complete the installation.

Then click on

"Install RAID Utility"

bar to install IDE RAID Utility.

Install RAID Driver

”

Once you made your selection, a Setup window run the installation automatically. When the copying files is done, make sure you

installation effect.

reboot

the system to take the

- 49 -

4.7 Install USB 2.0 Driver

Select using your pointing device (e.g. mouse) on the “ Driver

" bar to install USB 2.0 driver.

Install USB 2.0

Once you made your selection, a Setup window run the installation automatically. When the copying files is done, make sure you

installation effect.

reboot

the system to take the

- 50 -

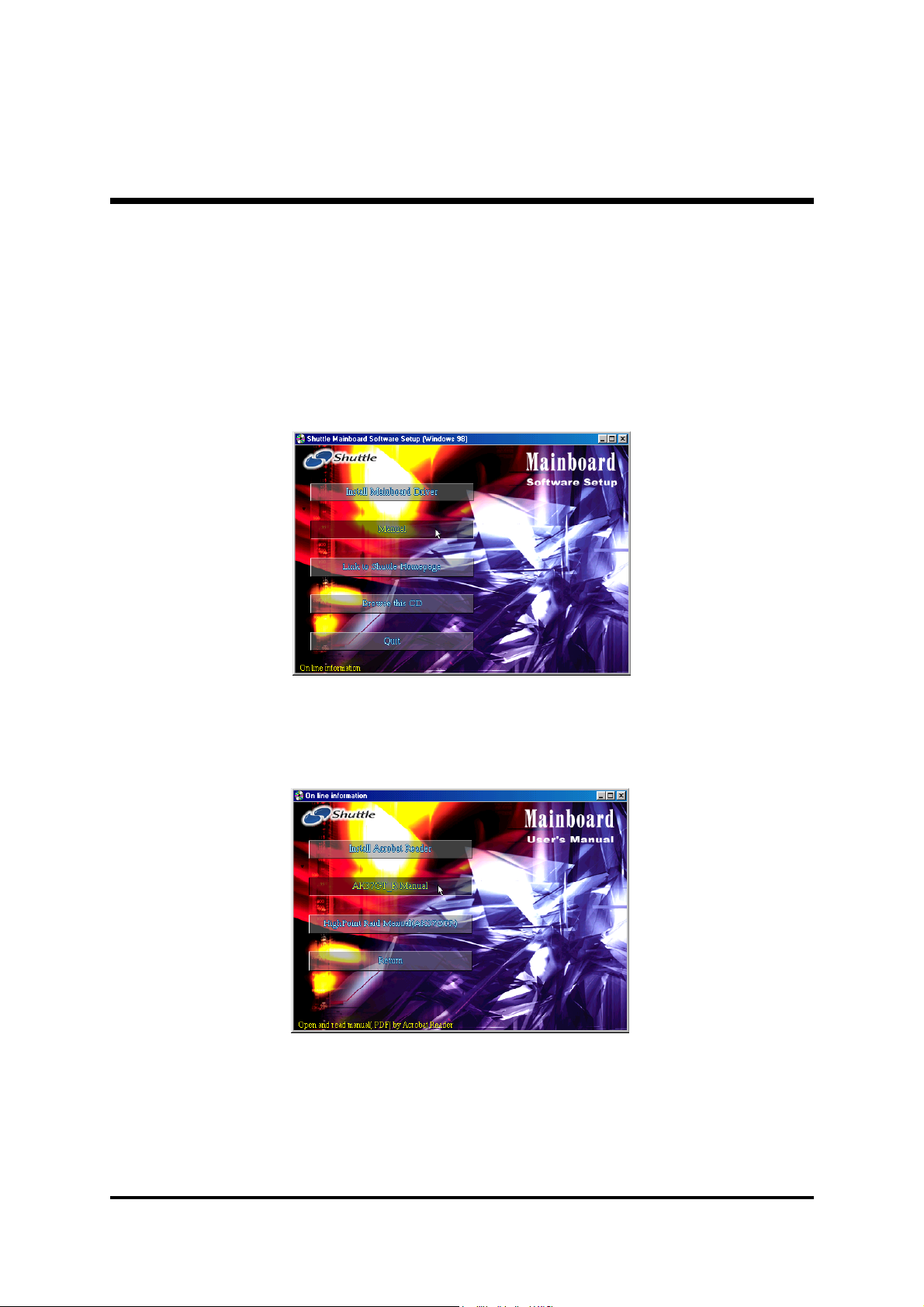

4.8 View the User's Manual

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on AutoRun icon in screen.

My Computer

to bring up

Mainboard Software Setup

Select using your pointing device (e.g. mouse) on the “

Then

Online Information

“

Install Acrobat Reader

windows will appear on your screen. Click on the

" bar if you need to install acrobat reader.

Manual"

bar.

Then click on on

"Raid Manual"

"AK37GT_R Manual"

bar to view IDE RAID user's manual.

bar to view user's manual, and click

- 51 -

(AK37GTR only)

5 BIOS SETUP

AK37GT/AK37GTR BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This information is stored in battery-backed RAM so that it retains the Setup information even if the system power is turned off.

The system BIOS is managing and executing a variety of hardware related functions in the system, including:

System date and time Hardware execution sequence Power management functions Allocation of system resources

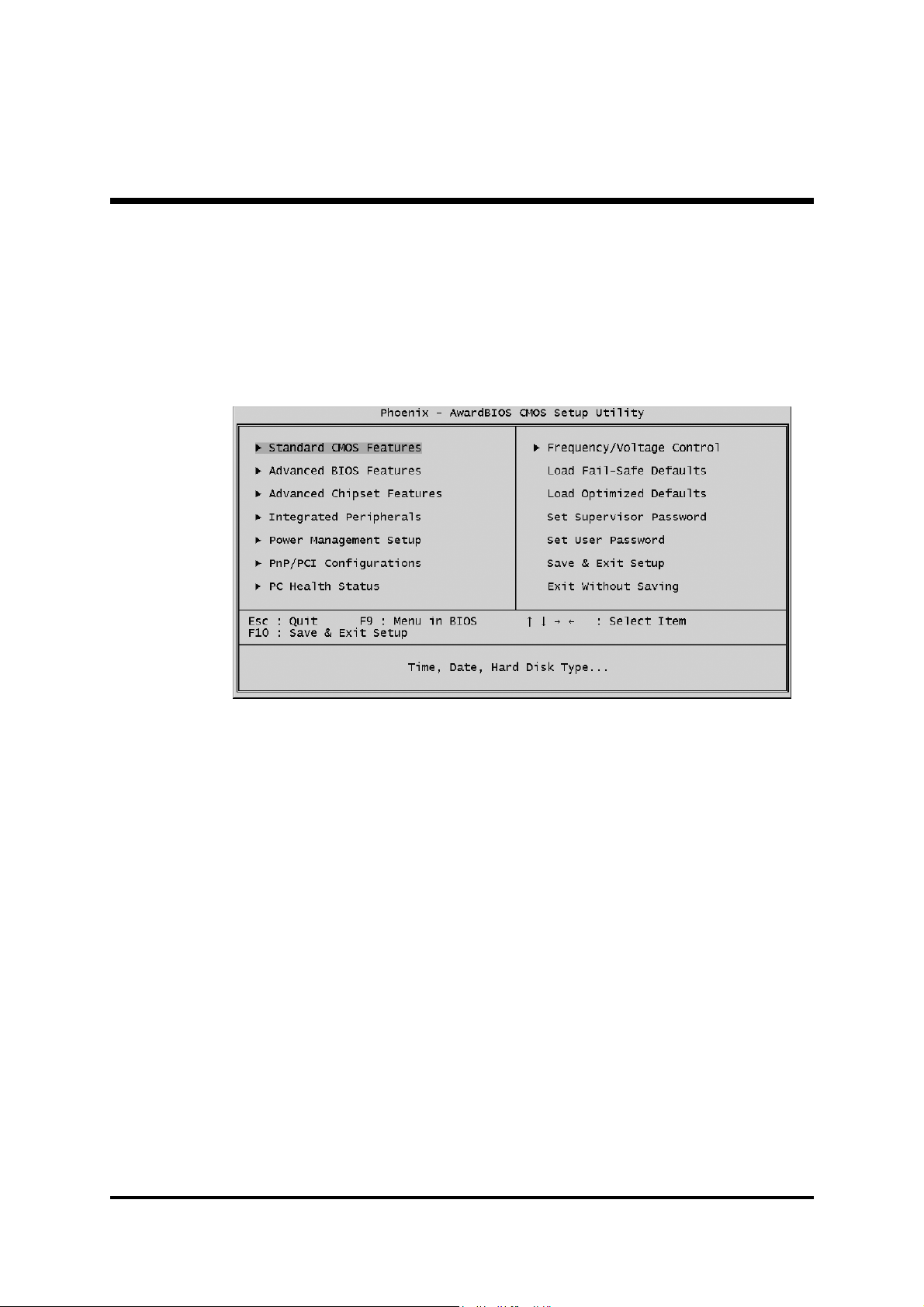

5.1 Enter the BIOS

To enter the BIOS (Basic Input / Output System) utility, follow these steps:

Step 1.

Step 2.

Note 1.

Note 2.

Power on the computer, and the system will perform its POST (Power-On Self Test) routine checks.

Press <Del> key immediately, or at the following message: " Press DEL to enter SETUP" ,or simultaneously press

<Ctrl>, <Alt>, <Esc> keys

If you miss trains of words mentioned in step2 (the message disappears before you can respond) and you still wish to enter BIOS Setup, restart the system and try again by turning the computer OFF and ON again or by pressing the <RESET> switch located at the computers front-panel. You may also reboot by simultaneously pressing the <Ctrl>, <Alt>, <Del> keys.

If you do not press the keys in time and system does not boot, the

screen will prompt an error message, and you will be given the

following options:

" Press F1 to Continue, DEL to Enter Setup"

Step 3.

As you enter the BIOS program, the CMOS Setup Utility will prompt you the Main Menu, as shown in the next section.

- 52 -

5.2 The Main Menu

Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.

Note that a brief description of each highlighted selection appears at the bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall that some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your system's performance.

- 53 -

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

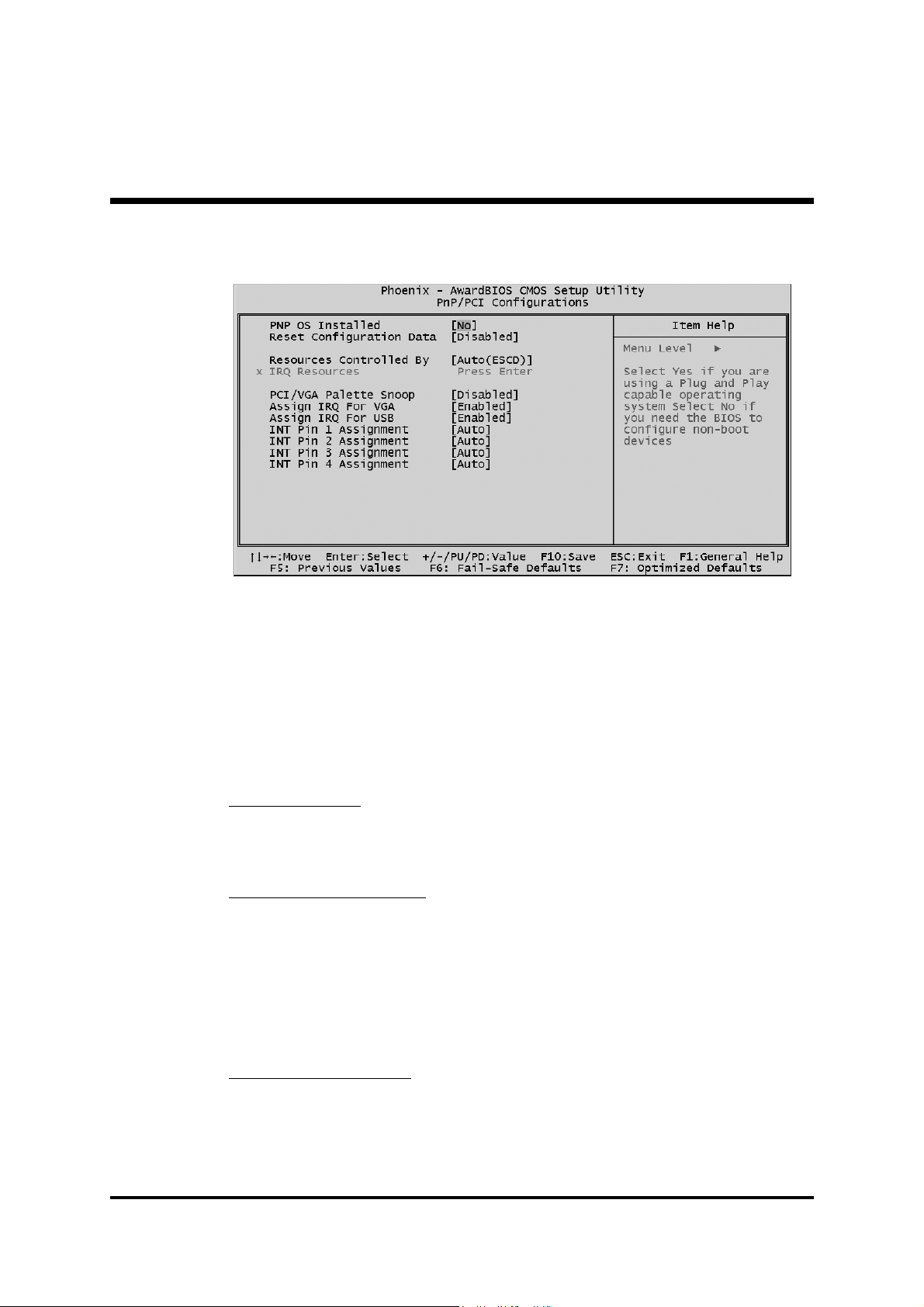

PnP / PCI Configuration

This entry appears if your system supports PnP / PCI.

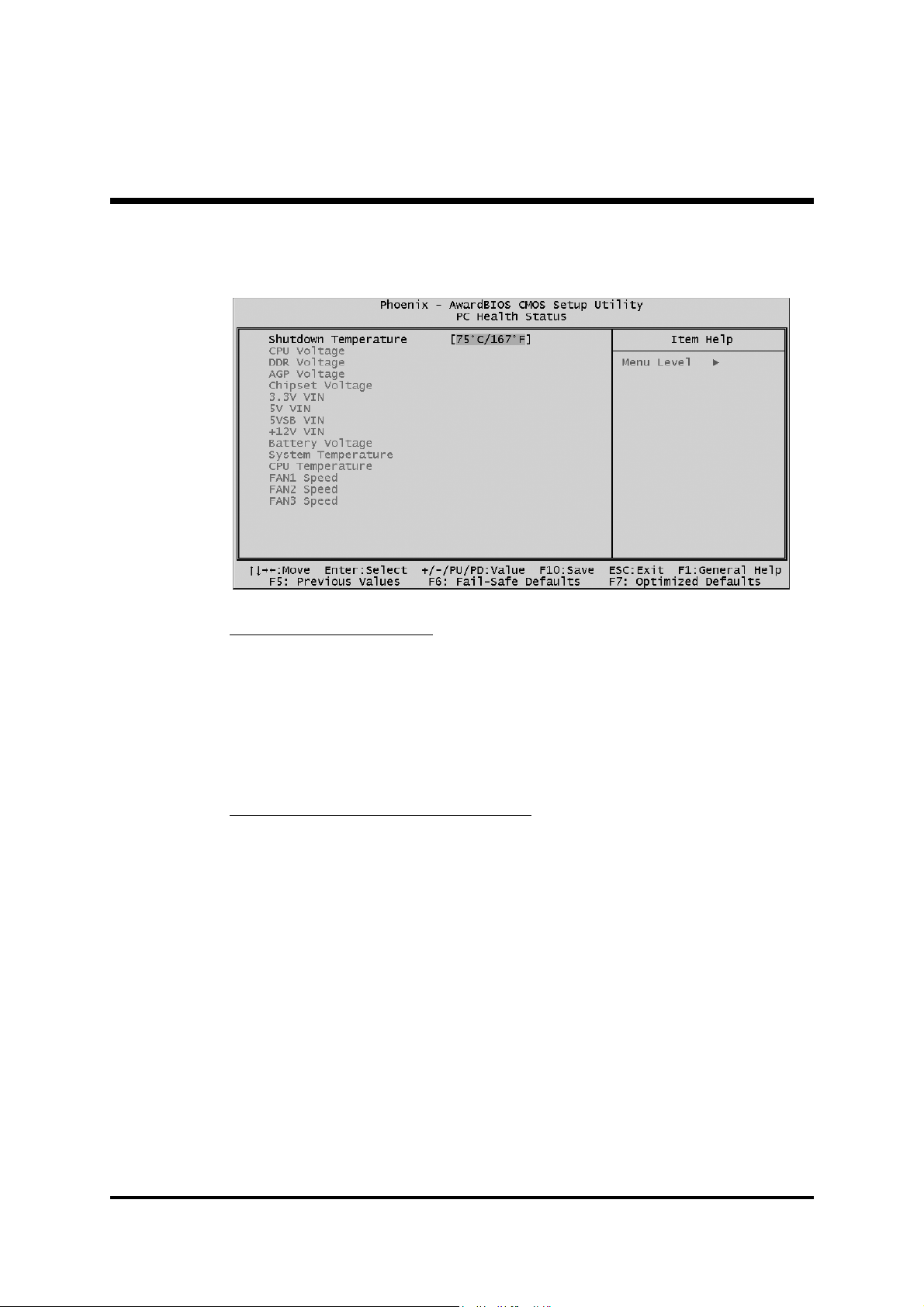

PC Health Status

This entry shows the current system temperature, Voltage, and FAN speed.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable performance of your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory-set for optimal performance system operation. While Award has designed the custom BIOS to maximize performance, the factory has the right to change these defaults to meet users' needs.

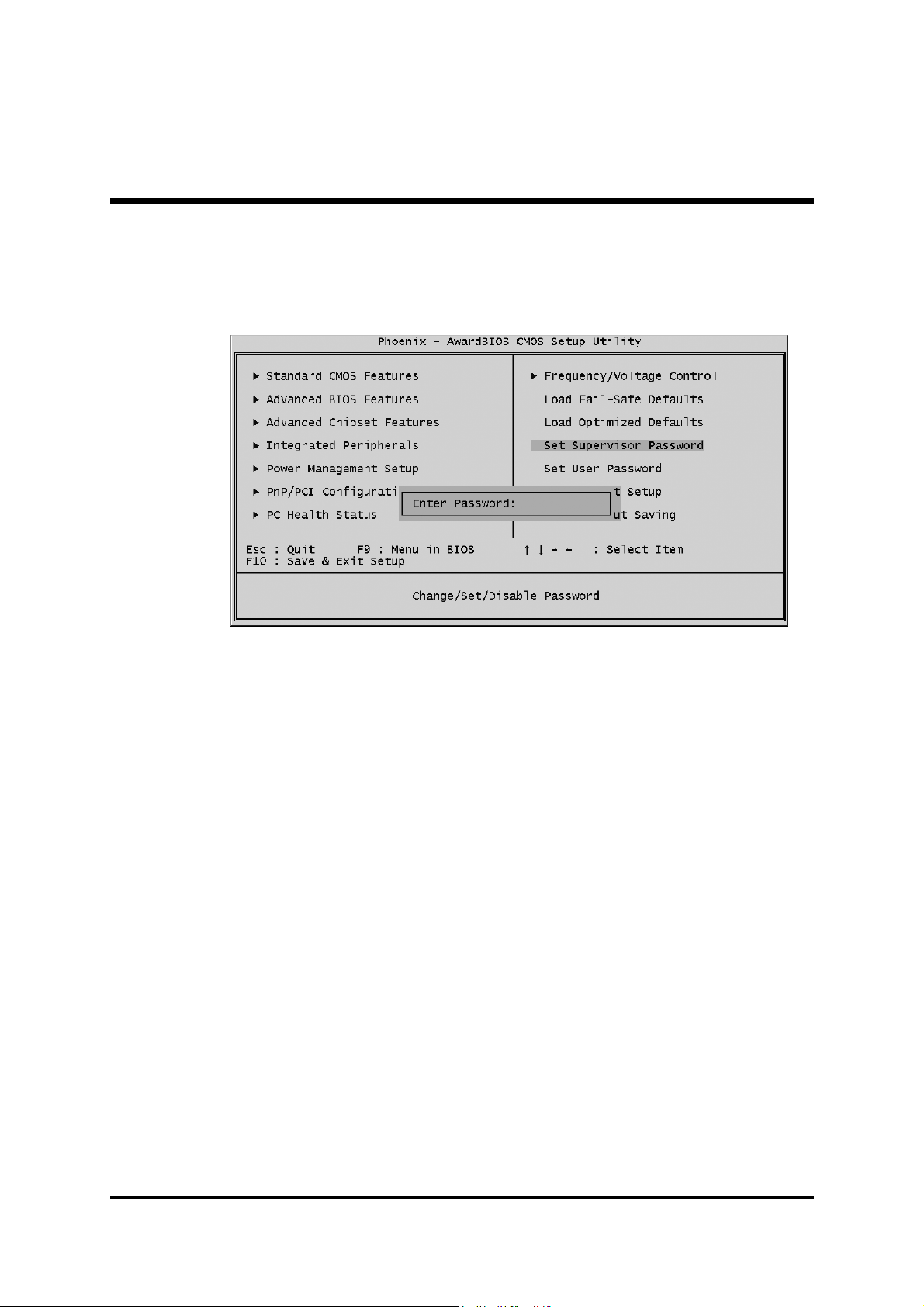

Supervisor / User Password

Use this menu to change, set, or disable supervisor/user password. It allows you to limit access to the system and Setup, or only to Setup.

Save & Exit Setup

Save CMOS value changes in CMOS and exit from setup.

Exit Without Saving

Abandon all CMOS value changes and exit from setup.

- 54 -

Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

Date

<Month> <DD> <YYYY> Set the system date. Note that the 'Day' automatically changes when

you set the date.

Time

<HH : MM : SS> The time is converted based on the 24-hour military-time clock. For

example, 5 p.m. is 17:00:00.

IDE Primary Master

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

IDE Primary Slave

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

- 55 -

IDE Secondary Master

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

IDE Secondary Slave

Options are in its sub menu. Press <Enter> to enter the sub-menu of detailed options.

Drive A/Drive B

Select the type of floppy disk drive installed in your system. Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,

1.44M, 3.5 in, or 2.88M, 3.5 in

Video

Select the default video device. Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO

Halt On

Select the situation in which you want the BIOS to stop the POST process and notify you.

Ø The choice: All Errors, No Errors, All, But Keyboard, All, But

Diskette, or All, But Disk/Key

Base Memory

Displays the amount of conventional memory detected during boot up. Ø The choice: N/A

Extended Memory

Displays the amount of extended memory detected during boot up. Ø The choice: N/A

Total Memory

Displays the total memory available in the system. Ø The choice: N/A

- 56 -

******************************************************

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu to configure each hard disk drive.

IDE HDD Auto-Detection Press <Enter> to auto-detect HDD on this channel. If detection is

successful, it fills the remaining fields on this menu.

Ø Press Enter

IDE Primary Master Selecting 'manual' lets you set the remaining fields on this screen and

select the type of fixed disk. "User Type" will let you select the number of cylinders, heads, etc., Note: PRECOMP=65535 means

NONE !

Ø The choice: None, Auto, or Manual.

Access Mode Choose the access mode for this hard disk.

Ø The choice: Normal, LBA, Large, or Auto.

Capacity Disk drive capacity (Approximated). Note that this size is usually

slightly greater than the size of a formatted disk given by a disk checking program.

Ø Auto-Display your disk drive size.

The following options are selectable only if the 'IDE Primary Master' item is set to 'Manual'

Cylinder Set the number of cylinders for this hard disk.

Ø Min = 0, Max = 65535

Head Set the number of read/write heads.

Ø Min = 0, Max = 255

- 57 -

Precomp Warning: Setting a value of 65535 means no hard disk.

Ø Min = 0, Max = 65535

Landing zone Set the Landing zone size.

Ø Min = 0, Max = 65535

Sector Number of sector per track.

Ø Min = 0, Max = 255

******************************************************

- 58 -

Advanced BIOS Features

This section allows you to configure your system for basic operation. You have the opportunity to select the system's default speed, boot-up sequence, keyboard operation, shadowing, and security.

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enables and someone attempts to write data into this area, BIOS will show a warning message on screen, and an alarm beep.

Enabled

Disabled

Ø The choice: Enabled or Disabled.

CPU Internal Cache

All processors that can be installed in this mainboard use internal level 1 (L1) cache memory to improve performance. Leave this item at the default value for better performance.

Ø The choice: Enabled or Disabled.

Activates automatically when the system boots up, causing a warning message to appear when anything attempts to access the boot sector or hard disk partition table.

No warning message will appear when anything attempts to access the boot sector or hard disk partition table.

- 59 -

External Cache

Most processors that can be installed in this system use external level 2 (L2) cache memory to improve performance. Leave this item at the default value for better performance.

Ø The choice: Enabled or Disabled.

CPU L2 Cache ECC Checking

This item enables or disables ECC (Error Correction Code) error checking on the CPU cache memory. We recommend that you leave this item at the default value.

Ø The choice: Enabled or Disabled.

Quick Power On Self Test

This item speeds up Power-On Self Test (POST) after you power on the computer. If it is set to enabled, BIOS will shorten or skip some check items during POST.

Ø The choice: Enabled, or Disabled.

RAID & SCSI Boot Order

Select RAID & SCSI Boot Device Priority. Ø The choice: RAID, SCSI or SCSI, RAID.

First/Second/Third Boot Device

The BIOS attempts to load the operating system from the devices in the sequence selected in these items.

Ø The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1,

HDD-2, HDD-3, ZIP100, LAN, or Disabled.

Boot Other Device

Select Your Boot Device Priority. Ø The choice: Enabled or Disabled.

Swap Floppy Drive

If the system has two floppy drives, you can swap the logical drive name assignment.

Ø The choice: Enabled or Disabled.

Boot Up Floppy Seek

Seeks disk drives during boot-up. Disabling speed boots up. Ø The choice: Enabled or Disabled.

- 60 -

Boot Up NumLock Status

Selects power-on state for NumLock. Ø The choice: Off or On.

Gate A20 Option

This entry allows you to select how the gate A20 is handled. The gate A20 is a device used for above 1MByte of address memory. Initially, the gate A20 was handled via a pin on the keyboard. Today, while a keyboard still provides this support, it is more common and much faster in setting to Fast for the system chipset to provide support for gate A20.

Ø The choice: Normal, or Fast.

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller. When this controller enabled, the typematic rate and typematic delay can be selected.

Ø The choice: Enabled or Disabled.

Typematic Rate (Chars/Sec)

This item sets how many times the keystroke will be repented in a second when you hold the key down.

Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat the keystroke.

Ø The choice: 250, 500, 750, or 1000.

Security Option

Select whether the password is required every time the system boots or only when you enter setup.

System

Setup

Ø The choice: System or Setup.

The system will not boot and access to Setup will be denied if the correct password is not entered promptly.

The system will boot, but access to Setup will be denied if the correct password is not entered promptly.

- 61 -

Note: To disabled security, select PASSWORD SETTING at Main

Menu, and then you will be asked to enter password. Do not type anything and just press <Enter>; it will disable security.

Once the security is disabled, the system will boot, and you can enter Setup freely.

APIC Mode

Selects enable/disable IO APIC function Ø The choice: Enabled or Disabled.

MPS Version Control For OS

Selects the operating system multiprocessor support version. Ø The choice: 1.1 or 1.4.

OS Select For DRAM > 64MB

Selects the operating system that is running with greater than 64MB of RAM in the system.

Ø The choice: Non-OS2 or OS2.

Video BIOS Shadow

Determines whether video BIOS will be copied to RAM. However, it is optional depending on chipset design. Video Shadow will increase the video speed.

Ø The choice: Enabled or Disabled.

Small Logo (EPA) Show

This item allows you to enable/disable the EPA Logo. Ø The choice: Enabled or Disabled.

- 62 -

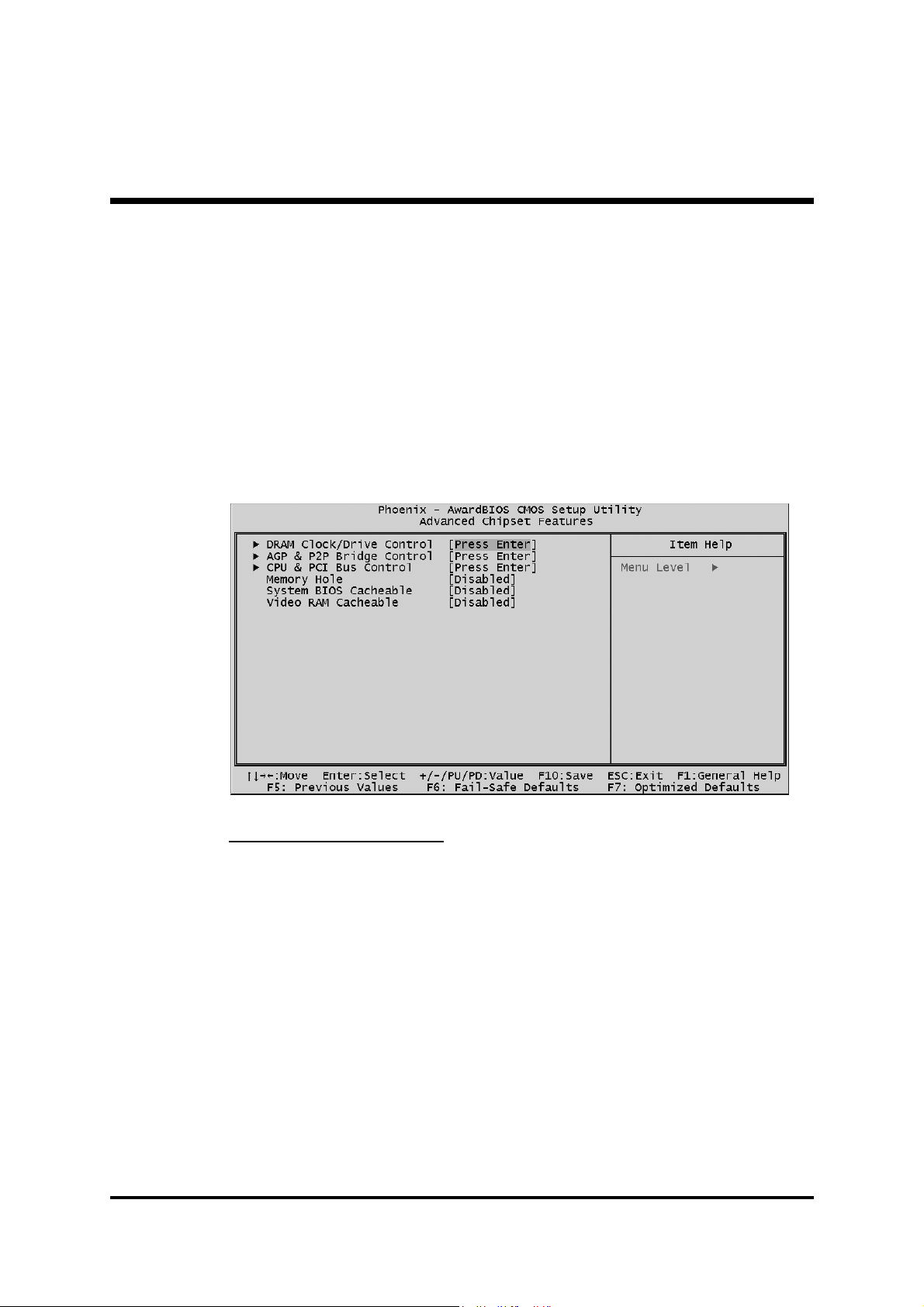

Advanced Chipset Features

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache. It also coordinates communications between the conventional ISA bus and the PCI bus. It states that these items should never need to be altered.

The default settings have been chosen because they provide the best operating conditions for your system. If you discovered that data was being lost while using your system, you might consider making any changes.

DRAM Clock/Drive Control

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

Current FSB Frequence This item show Current CPU Front Side Bus speed.

Current DRAM Frequence This item show Current DRAM speed.

DRAM Clock This item allows you to control the DRAM speed.

Ø The Choice: 100MHz, 133MHz, 166MHz, 200MHz or By SPD.

- 63 -

DRAM Timing This item allows you to select the value in this field, depending on

whether the board using which kind of DDR DRAM. Ø The Choice: Manual, Auto By SPD, Turbo or Ultra.

DRAM CAS Latency When synchronous DRAM is installed, the number of clock cycles of

CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system designer.

Ø The Choice: 1.5, 2, 2.5 or 3. Bank Interleave

The interleave number of internal banks, can be set to 2 way, 4 way interleave or disabled. For VCM and 16Mb type dram chips, the bank interleave is fixed at 2 way interleave. When the dram timing is selected by SPD, it will be set by the value on SPD of the RAM module(SDR).

Ø The Choice: Disabled, 2 Bank, or 4 Bank.

Precharge to Active (Trp) This item allows you to Precharge Command to Active Command

Period. Ø The Choice: 2T or 3T.

Active to Precharge (Tras) This item allows you to Active Command to Precharge Command Period.

Ø The Choice: 5T or 6T. Active to CMD (Trcd)

This item allows you to Active to CMD. Ø The Choice: 2T or 3T.

DRAM Burst Length This item allows you to select DRAM Burst Length.

Ø The Choice: 4 or 8. DRAM Queue Depth

This item allows you to select DRAM queue depth. Ø The Choice: 2 level, 4 level, or 3 level.

DRAM Command Rate This item allows you to select the DRAM executed rate.

Ø The Choice: 2T Command or 1T Command.

- 64 -

Write Recovery Time This item allows you to select Write Recovery Time.

Ø The Choice: 2T or 3T. DRAM twTR

This item allows you to select the DRAM twTR. Ø The Choice: 1T or 3T.

AGP & P2P Bridge Control

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

AGP Aperture Size (MB) Select the size of Accelerated Graphics Port (AGP) aperture. The aper-

ture is a portion of the PCI memory address range dedicated to graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation.

Ø The Choice: 4M, 8M, 16M, 32M, 64M, 128M, or 256M.

AGP Mode This item allows you to select the AGP Mode.

Ø The Choice: 1x, 2x, or 4x. AGP Driving Control

This item enables the system to automatically select its output buffer drive strength or make it manually selectable by an end user.

Ø The Choice: Auto or Manual. AGP Driving Value

This item enables an end user to manually select the AGP output buffer drive strength.

Ø Key in a HEX number: Min=0000, Max=00FF. AGP Fast Write

This item enables an end user to manually select the AGP output buffer drive strength.

Ø The Choice: Enabled or Disabled. AGP Master 1 WS Write

When this item enabled, writing to the AGP(Accelerated Graphics Port) is executed with one wait state.

Ø The Choice: Enabled or Disabled.

- 65 -

AGP Master 1 WS Read When this item enabled, reading from the AGP (Accelerated Graphics

Port) is executed with one wait state. Ø The Choice: Enabled or Disabled.

DBI Output for AGP Trans AGP 8X transfer mode only. Select Dynamic Bus Inversion function

Enable / Disable. Ø The Choice: Enabled or Disabled.

CPU & PCI Bus Control

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

PCI1 Master 0 WS Write When this item enabled, writing to the PCI bus is executed with zero

wait state. Ø The Choice: Enabled or Disabled.

PCI2 Master 0 WS Write When this item enabled, writing to the AGP bus is executed with zero

wait state. Ø The Choice: Enabled or Disabled.

PCI1 Post Write This Item enable/disable AGP post write function, which means when

cpu accessing the AGP data, the chipset can queue the instruction when the AGP bus is busy,then write the data when AGP bus is available .

Ø The Choice: Enabled or Disabled.

PCI2 Post Write This Item enable/disable PCI post write function, which means when

cpu accessing the PCI data, the chipset can queue the instruction when the PCI bus is busy, then write the data when AGP bus is available.

Ø The Choice: Enabled or Disabled.

VLink 8X Support Enable this item will set VLink 8X transfer mode. Disable it will set

VLink 4X transfer mode. Ø The Choice: Enabled or Disabled.

- 66 -

PCI Delay Transaction The chipset has an embedded 32-bit posted write buffer to support

delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.

Ø The Choice: Enabled or Disabled.

Memory Hole

In order to improve performance, some space in memory can be reserved for ISA cards.

Ø The Choice: Disabled or 15M-16M.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any program is written to this memory area, a system error may result.

Ø The choice: Enabled or Disabled.

Video RAM Cacheable

Selecting Enabled allows caching of the video RAM , resulting in better system performance. However, if any program is written to this memory area, a system error may result.

Ø The Choice: Enabled or Disabled.

- 67 -

Integrated Peripherals

VIA OnChip IDE Device

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

OnChip IDE Channel0 The chipset contains a PCI IDE interface with support to two IDE chan-

nels. Select Enabled to activate the primary IDE interface; select Disabled to deactivate this interface

Ø The choice: Enabled or Disabled.

OnChip IDE Channel1 The chipset contains a PCI IDE interface with support to two IDE chan-

nels. Select Enabled to activate the secondary IDE interface; select Disabled to deactivate this interface

Ø The choice: Enabled or Disabled.

IDE Prefetch Mode The onboard IDE drive interfaces support IDE prefetching for faster

drive access. If you install a primary and/or secondary add-on IDE interface, set this field to Disabled if the interface does not support prefetching.

Ø The choice: Enabled or Disabled.

- 68 -

Primary/Secondary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO

mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.

Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.

Primary/Secondary Master/Slave UDMA Ultra DMA/100 implementation is possible only if your IDE hard drive

supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If both of your hard drive and your system software support Ultra DMA/100, select Auto to enable BIOS support.

Ø The choice: Auto or Disabled.

VIA OnChip PCI Device

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

VIA-3058 AC97 Audio Enables and disables the onboard audio chip. Disable this item if you

are going to install a PCI audio add-on card. Ø The choice: Auto or Disabled.

HighPoint Raid This item allows you to control the onboard Raid.

Ø The choice: Enabled or Disabled. Serial ATA1/RAID1 Channel

Ø The choice: RAID1 or Serial ATA1. Serial ATA2/RAID2 Channel

Ø The choice: RAID2 or Serial ATA2. VIA-3043 Onchip LAN

Enables and disables the onboard LAN. Ø The choice: Enabled or Disabled.

Onboard Lan Boot ROM This item allows you to enable or disable the onboard LAN Boot ROM

function. Ø The choice: Enabled or Disabled.

- 69 -

SuperIO Device

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

Onboard FDC Controller Select Enabled if your system has a floppy disk controller (FDC) in-

stalled on the system board and you want to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field.

Ø The choice: Enabled or Disabled.

Onboard Serial Port1/Port2 Select an address and corresponding interrupt for the first and second

serial ports. Ø The choice: 3E8/IRQ4, 2E8/IRQ3, 3F8/IRQ4, 2F8/IRQ3,Auto, or

Disabled.

UART Mode Select This item allows you to select which mode for the Onboard Serial Port

2. Ø The choice: Normal, IrDA, ASKIR or SCR.

UR2 Duplex Mode This item allows you to selects the IR half/full duplex function.

Ø The choice: Full or Half.

Onboard Parallel Port This item allows you to determine onboard parallel port controller I/O

address setting. Ø The choice:: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.

Parallel Port Mode Select an operating mode for the onboard parallel (printer) port. Select

Normal, Compatible, or SPP unless you are certain your hardware and software both support one of the other available modes.

Ø The choice: SPP, EPP, ECP, or ECP+EPP.

ECP Mode Use DMA Select a DMA channel for the parallel port for use during ECP mode.

Ø The choice: 1 or 3.

- 70 -

Game Port Address This item selects Game Port Address.

Ø The choice: Disabled, 201, or 209.

Midi Port Address This item selects Midi Port Address.

Ø The choice: Disabled, 330 or 300.

Midi Port IRQ This item selects Midi Port IRQ.

Ø The choice: 5 or 10.

Init Display First

This item allows you to decide to activate PCI Slot or on-chip VGA first. Ø The choice: PCI Slot or AGP.

OnChip USB Controller

This should be enabled if your system has a USB installed on the system board and you want to use it. Even when on chip USB so equipped, if you add a higher performance controller, you will need to disable this feature.

Ø The Choice: All Disabled, All Enabled, 1&2 USB Port, 2&3 USB

Port, 1&3 USB Port, 1 USB Port, 2 USB Port, or 3 USB Port.

USB Keyboard/Mouse Support

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard/mouse.

Ø The Choice: Enabled or Disabled.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/write per sector the drive can support.

Ø The choice: Enabled or Disabled

- 71 -

Power Management Setup

The Power Management Setup allows you to configure your system to most effectively saving energy while operating in a manner consistent with your own style of computer use.

ACPI Function

This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI)

Ø The choice: Enabled or Disabled.

ACPI Suspend Type

This item allows you to select sleep state when suspend. Ø The choice: S1(POS), S3(STR) or S1& S3.

Power Management Option

This category allows you to select the type (or degree) of power saving mode settings.

Min Saving

Max Saving

Minimum power management. HDD Power Down=Allows you to set each mode

individually.

Suspend Mode=1 hr. Maximum power management. HDD Power Down=Allows you to set each mode

individually.

Suspend Mode=1 min.

- 72 -

User Define

Ø The choice: User Define, Min Saving, or Max Saving.

HDD Power Down

When this item enabled and after the set up time of system inactivity, the hard disk drive will be powered down while all other devices remain active. Ø The choice: Disabled or 1 Min~15 Min.

Suspend Mode

When this item enabled and after the set up time of system inactivity, all devices except the CPU will be shut off. Ø The choice: Disabled, 1 Min, 2 Min, 4 Min, 6 Min, 8 Min, 10 Min,

20 Min, 30 Min, 40 Min, or 1 Hour.

Video Off Option

When enabled, this feature allows the VGA adapter to operate in a power saving mode.

Allows you to set each mode individually. HDD Power Down=Disabled or 1min.~15min. Suspend Mode= Disabled or 1 min ~1 hr.

Always On

Suspend --> Off

Ø The choice: Always On or Suspend ->off.

Video Off Method

This determines the manner in which the monitor is blanked.

Blank Screen

V/H SYNC+Blank

DPMS Support

Ø The choice: Blank Screen, V/H SYNC+Blank or DPMS Support.

MODEM Use IRQ

This determines the IRQ which the MODEM can use. Ø The choice: 3, 4, 5, 7, 9, 10, 11, or N/A.

Monitor will remain on during power saving mode.

Monitor is blanked when the system enters the Suspend mode.

This option only writes blanks to the video buffer.

This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer.

Initial display power management signaling.

- 73 -

Soft-Off by PWRBTN

Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state when the system has "hung.".

Ø The choice: Instant-off or Delay 4 Sec.

Run VGABIOS if S3 Resume

This item allows the system to initialize the VGABIOS from S3 ( Suspend to RAM ) sleep state.

Ø The choice: Auto , Yes or No.

IRQ/Event Activity Detect

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options.

PS2KB Wakeup Select This item let you set PS2KB Wakeup type.

Ø The choice: Hot Key or Password.

PS2KB Wakeup from S3/S4/S5 This item let you set the Hot Key to awaken the system from S3/S4/S5.

Ø The choice: Disabled, Ctrl+F1, Ctrl+F2, Ctrl+F3, Ctrl+F4,

Ctrl+F5, Ctrl+F6, Ctrl+F7, Ctrl+F8, Ctrl+F9, Ctrl+F10, Ctrl+F11, Ctrl+F12, Power, Wake or Any Key.

PS2MS Wakeup from S3/S4/S5 Enable this item let you to awaken the system from S3/S4/S5 by PS2MS.

Ø The choice: Enabled or Disabled.

USB Resume from S3 This item let you enable USB Resume from S3.

Ø The choice: Enabled or Disabled.

VGA When this item enabled, you can set VGA to awaken the system.

Ø The choice: OFF or ON.

LPT & COM When LPT & COM stays On, any activity from one of the listed system

peripheral devices or IRQs wakes up the system. Ø The choice: NONE, LPT, COM, or LPT/COM.

- 74 -

HDD & FDD When HDD & FDD stays On, any activity from one of the listed system

peripheral devices wakes up the system. Ø The choice: OFF or ON.

PCI Master When PCI Master stays On, any activity from one of the listed system

peripheral devices wakes up the system. Ø The choice: OFF, or ON.

PowerOn by PCI Card This item enables/disables the power on function of PCI Card.

Ø The choice: Disabled or Enabled.

Modem Ring Resume When this item enabled, any event occurring Modem Ring/activity of

LAN will awaken a system which has been powered down. Ø The choice: Disabled or Enabled.

RTC Alarm Resume When this item enabled, your can set the date and time at which the

RTC (real-time clock) alarm awakens the system from Suspend mode. Ø The choice: Disabled or Enabled.

Data (of Month) This item selects the alarm date.

Ø Key in a DEC number:Min=0, Max=31.

Resume Time (hh:mm:ss) This item selects the alarm Time.

[hh] Ø Key in a DEC number:Min=0, Max=23. [mm/ss] Ø Key in a DEC number:Min=0, Max=59. IRQs Activity Monitoring

Primary INTR Press Enter to on/off the wake up ability of a specified IRQ. Ø The choice: OFF, or ON.

In the following is a list of IRQ's, Interrupt ReQuests, which can be exempted much as the COM ports and LPT ports above can. When an I/O device wants to gain the attention of the operating system, it

- 75 -

signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.

When On mode exist, activity will neither prevent the system from going into a power management mode nor awaken it. IRQ3 (COM 2 ) IRQ4 (COM 1) IRQ5 (LPT 2) IRQ6 (Floppy Disk) IRQ7 (LPT 1) IRQ8 (RTC Alarm) IRQ9 (IRQ2 Redir) IRQ10 (Reserved) IRQ11 (Reserved) IRQ12 ( PS / 2 Mouse ) IRQ13 (Coprocessor) IRQ14 (Hard Disk) IRQ15 (Reserved) Ø The choice: Disabled or Enabled.

- 76 -

PnP/PCI Configuration

This section describes the configuration of PCI bus system. PCI or Personal Computer Interconnection is a system which allows I/O devices to operate at the speed CPU itself keeps when CPU communicating with its own special components. This section covers some very technical items, and it is strongly recommended that only experienced users should make any changes to the default settings.

PNP OS Installed

This item allows you to determine PnP OS is installed or not. Ø The choice: Yes or No.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit from Setup if you have installed a new device or software and the system reconfiguration has caused such a serious conflict that the operating system can not boot.

Ø The choice: Enabled or Disabled .

Resource controlled By

The Award Plug-and-Play BIOS has the capacity to automatically configure all of the boot and Plug-and-Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug-and-Play operating system such as Windows 95.

- 77 -

If you set this field to "manual" , choose specific resources by going into each of the sub-menu that follows this field (a sub-menu is proceeded by a ">").

Ø The choice: Auto(ESCD) or Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.

IRQ3/4/5/7/9/10/11/12/14/15 assigned This item allows you to determine the IRQ assigned to the ISA bus and

is not available to any PCI slot. Legacy ISA for devices is compliant with the original PC AT bus specification; PCI/ISA PnP for devices is compliant with the Plug-and-Play standard whether designed for PCI or ISA bus architecture.

Ø The choice: PCI Device or Reserved.

PCI/VGA Palette Snoop

It determines whether the MPEG ISA/VESA VGA Cards can work with PCI/VGA or not. If you have MPEG ISA/VESA VGA Cards and PCI/ VGA Card worked, Enable this field. Otherwise, please Disable it.

Ø The choice: Enabled or Disabled.

Assign IRQ For VGA

This item allows the user to set VGA IRQ Routing table Enabled or Disabled.

Ø The choice: Enabled or Disabled.

Assign IRQ For USB

This item allows the user the option to assign an IRQ to on-board USB controller.

Since the on-board controller is always enabled, if no IRQ is assigned to it, there will be a question mark report on the sytem device under Windows95/98.

Ø The choice: Enabled or Disabled.

INT Pin 1/2/3/4 Assignment

This item defines each PCI slot IRQ assignment by manually, which can avoid the IRQ share problem for some PCI card cannot share IRQ.

Ø The choice: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, or 15.

- 78 -

PC Health Status

Shutdown Temperature

Select the combination of lower and upper limits for the system shutdown temperature, if your computer contains an environmental monitoring system. If the temperature extends beyond either limit, the system shuts down.

Ø The choice: Disabled, 60。C/140。F, 65。C /149。F, 70。C /158。F,

75。C /167。F.

System Component Characteristics

These fields provide you with information about the systems current operating status. You cannot make changes to these fields.

The fields include

CPU Voltage CPU Temperature DDR Voltage FAN1 Speed AGP Voltage FAN2 Speed Chipset Voltage FAN3 Speed

3.3V VIN 5V VIN 5VSB VIN +12V VIN Battery Voltage System Temperature

- 79 -

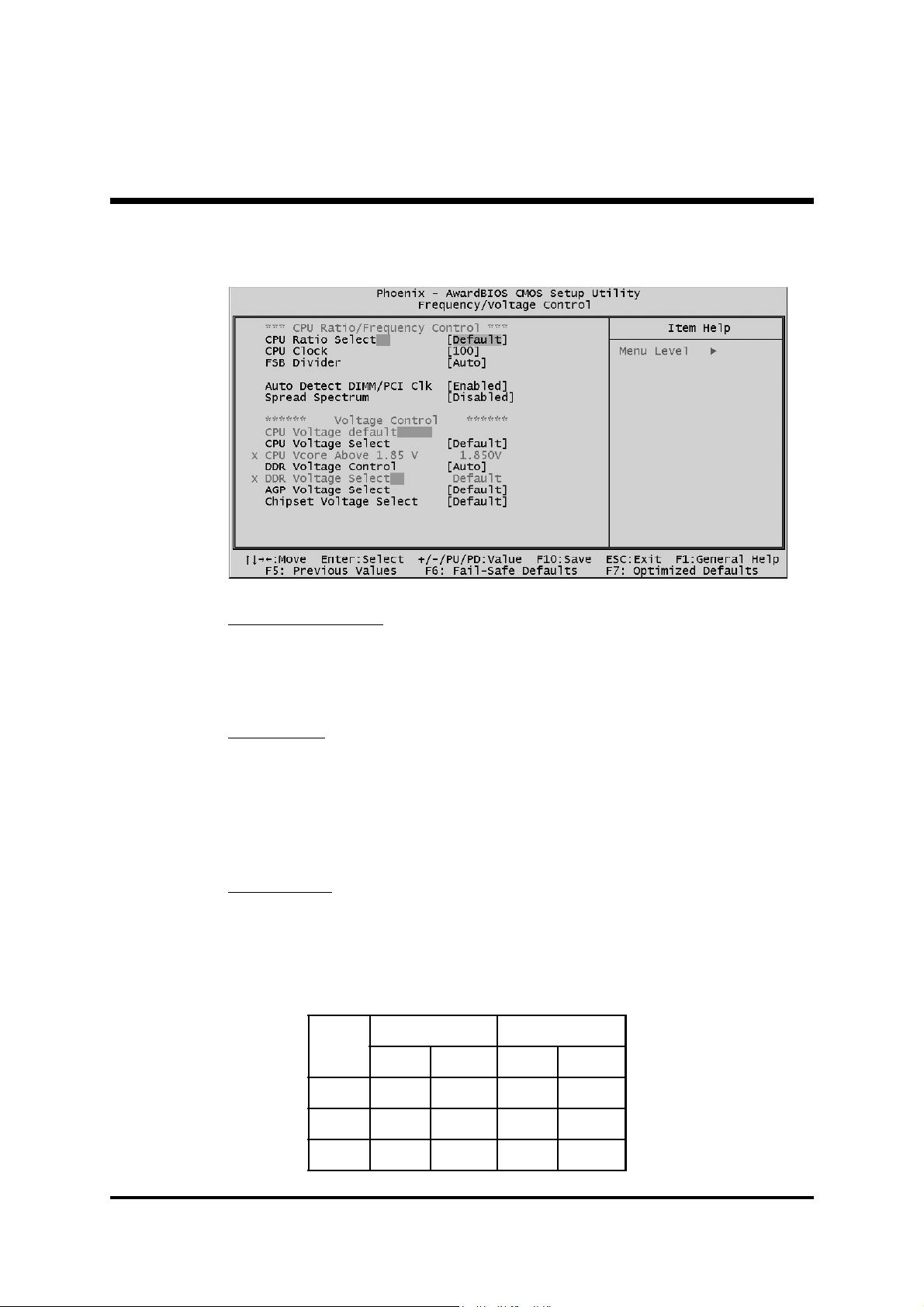

Frequency/Voltage Control

CPU Ratio Select

This item allows the user to adjust CPU Ratio . Ø The choice: Default, x5.5, x6, x6.5, x7, x7.5, x8, x8.5, x9, x9.5,

x10, x10.5, x11, x11.5, x12, x13 or x14.

CPU Clock

This item allows the user to adjust CPU Host Clock from 100MHz to 200MHz by 1MHz step.

Min=BIOS auto detection CPU Host Clock. Max=BIOS auto detection CPU Host Clock. Ø Key in a DEC number: (Between Min and Max.)

FSB Divider

The screen shot is shown below. Ø The choice: Auto, Divider/4 or Divider/5.

CPU/PCI/AGP clock divider ratio can be configured

FSB 100 ~ 132 FSB 133 ~ 165

CPU:PCI CPU:AGP CPU:PCI CPU:AGP

AUTO 3:1 3:2 4:1 4:2 Divider/4 4:1 4:2 4:1 4:2 Divider/5 NA NA 5:1 5:2

- 80 -

Auto Detect DIMM/PCI Clk

This item allows you to enable/disable auto detection DIMM/PCI Clock. Ø The choice: Enabled or Disabled.

Spread Spectrum

This item allows you to enable/disable the spread spectrum modulation. Ø The choice: Enabled or Disabled.

CPU Voltage default

This item show CPU voltage is set by manufacturer prior to delivery.

CPU Vcore Select

This item allows you to select CPU Vcore. Ø The choice: Default, 1.100 ~ V1.825V, or Above 1.85V.

Note:

CPU Vcore Above 1.85V

This item allows you to select CPU Vcore above 1.85V. Ø The choice: 1.850V ~ 2.400V

DDR Voltage Control

This item allows you to control DDR Voltage. Ø The choice: Auto or Manual.

DDR Voltage Select

This item allows you to select DDR Voltage. Ø The choice: Default, 2.55V, 2.60V, 2.70V, 2.75V, 2.80V or 2.85V.

AGP Voltage Select

This item allows you to select AGP Voltage. Ø The choice: Default, 1.60V, 1.70V or 1.80V.

Chipset Voltage Select

This item allows you to select Chipset Voltage.

CPU VCore above 1.85V item need to be selected, save and quit BIOS, before you adjust CPU Vcore over 1.85V.

Ø The choice: Default, 2.60V, 2.70V or 2.80V.

- 81 -

Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing 'Y' loads the BIOS default values for the most stable, minimal performance system operations.

Load Optimized Defaults

When you press <Enter> on this item, you will get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing 'Y' loads the default values that are factory-set for optimal performance system operation.

- 82 -

Supervisor/User Password Setting

You can set either supervisor or user password, or both of them. The differences between them are:

Supervisor Password and User Password

The options on the Password screen menu make it possible to restrict access to the Setup program by enabling you to set passwords for two different access modes: Supervisor mode and User mode.

In general, Supervisor mode has full access to the Setup options, whereas User mode has restricted access to the options. By setting separate Supervisor and User password, a system supervisor can limit who can change critical Setup values.

Enter Password

Type the password up to eight characters, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable password, just press <Enter> when you are prompted to enter password. A message will confirm the password being disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

- 83 -

Password Disable

If you select System at Security Option of BIOS Features Setup Menu, you will be prompted in entering the password whenever the system is rebooted or you try to enter Setup. If you select Setup at Security Option of BIOS Features Setup Menu, you will be prompted only when you try to enter Setup.

Warning :

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing "Y" stores the selections made in the menus of CMOS - a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Retain a record of your password in a safe place. If you forget the password, the only way to access the system is to clear CMOS, please refer to "Clear CMOS" on page 28.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit from Setup without storing in CMOS any change. The previous selections remain in effect. This exits from the Setup utility and restarts your computer.

- 84 -

Shuttle AK37 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
