Shuttle AE23 AE23 User Manual

AE23

FC-PGA/PPGA Celeron
and FC-PGA Pentium III

Based MAIN BOARD

User's Manual

Processor

Shuttle® SpacewalkerTM AE23

PPGA/FC-PGA Celeron and FC-PGA Pentium III processor
based AGPset Mainboard
Manual Version 1.0

Copyright

Copyright© 2001 by Shuttle® Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without

prior written permission from Shuttle

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.

®

Inc.

Disclaimer

This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.

Trademarks

Spacewalker is a registered trademark of Shuttle Inc.
Intel, Pentium is a registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AW ARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.

M406

T ABLE OF CONTENTS

WHAT’S IN THE MANUAL.....................................................................5

Quick Reference................................................................................................5

About This Manual ............................................................................................5

1 INTRODUCTION ................................................................................. 6

1.1 TO DIFFERENT USERS ..............................................................................6

FIRST-TIME DIY SYSTEM BUILDER ............................................................ 6

EXPERIENCED DIY USER .........................................................................6

SYSTEM INTEGRA TOR ...............................................................................6

1.2 ITEM CHECKLIST:.......................................................................................7

2 FEATURES .......................................................................................... 8

2.1 SPECIFICATIONS ........................................................................................8

3 HARDWARE INSTALLATION ...........................................................11

3.1 STEP BY STEP INSTALLATION................................................................11

Accessories of AE23............................................................................. 11

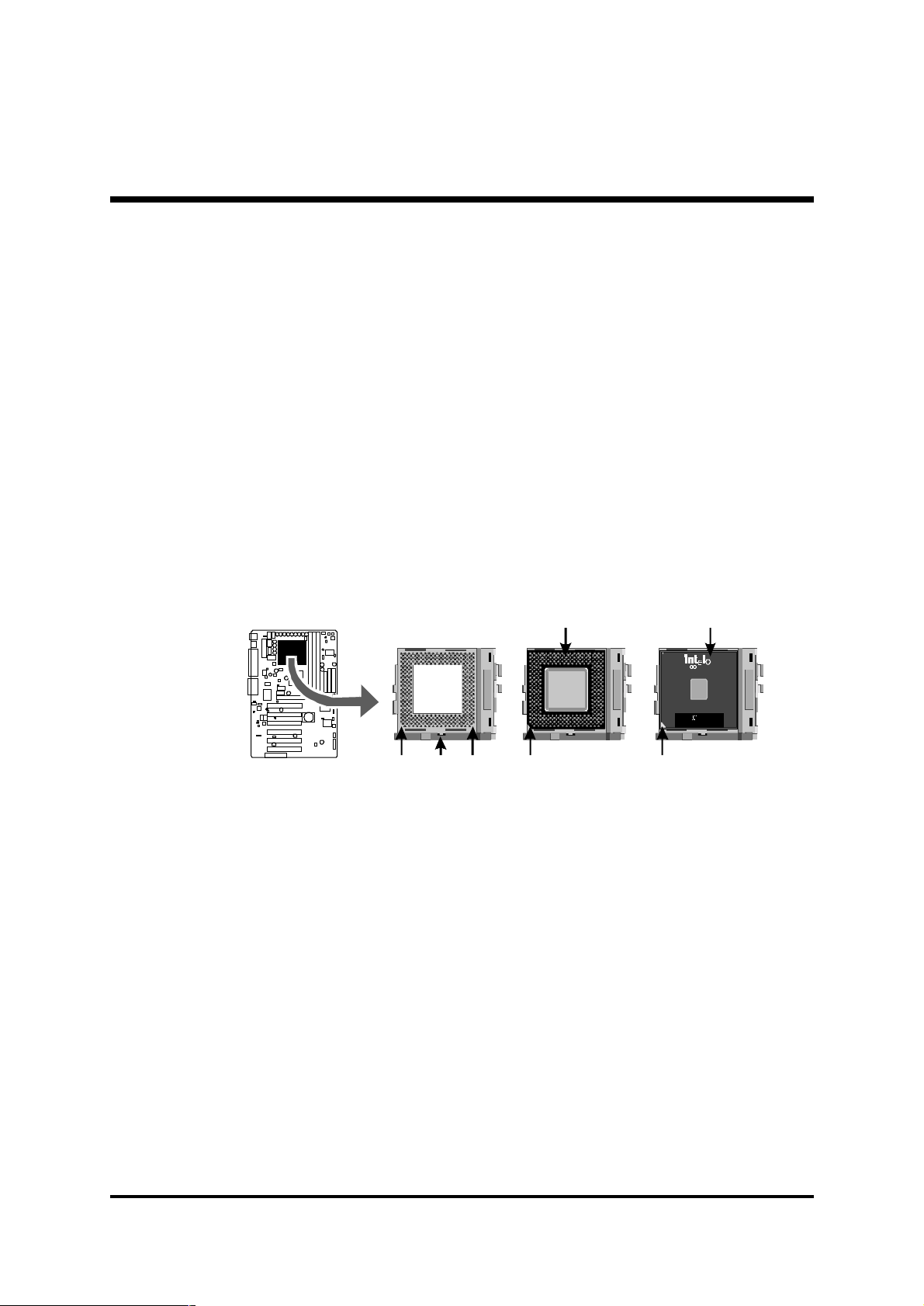

STEP 1 Install the CPU...........................................................................12

STEP 2 Set Jumpers..............................................................................13

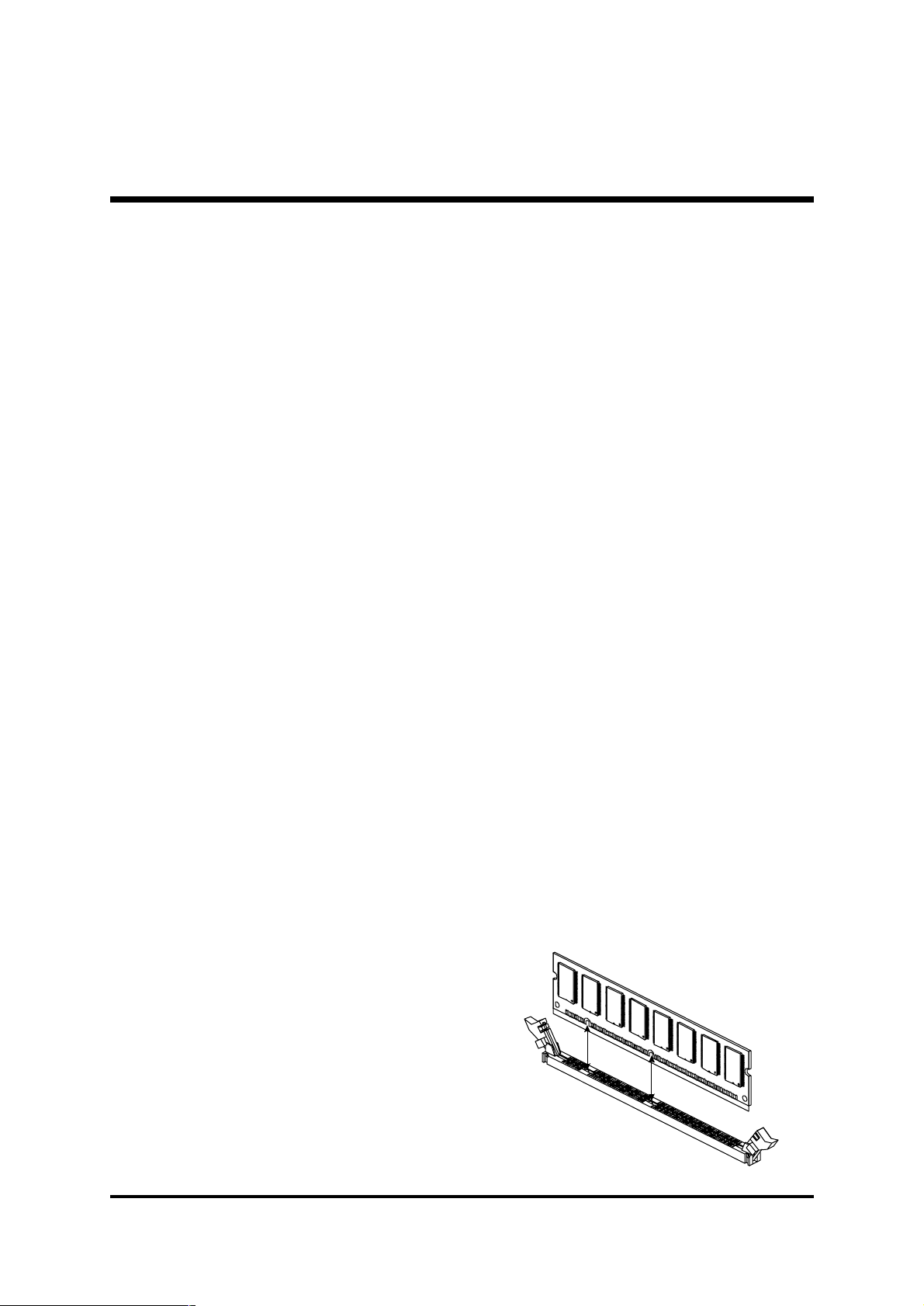

STEP 3 Install SDRAM System Memory.................................................13

STEP 4 Install Peripherals in System Case.............................................14

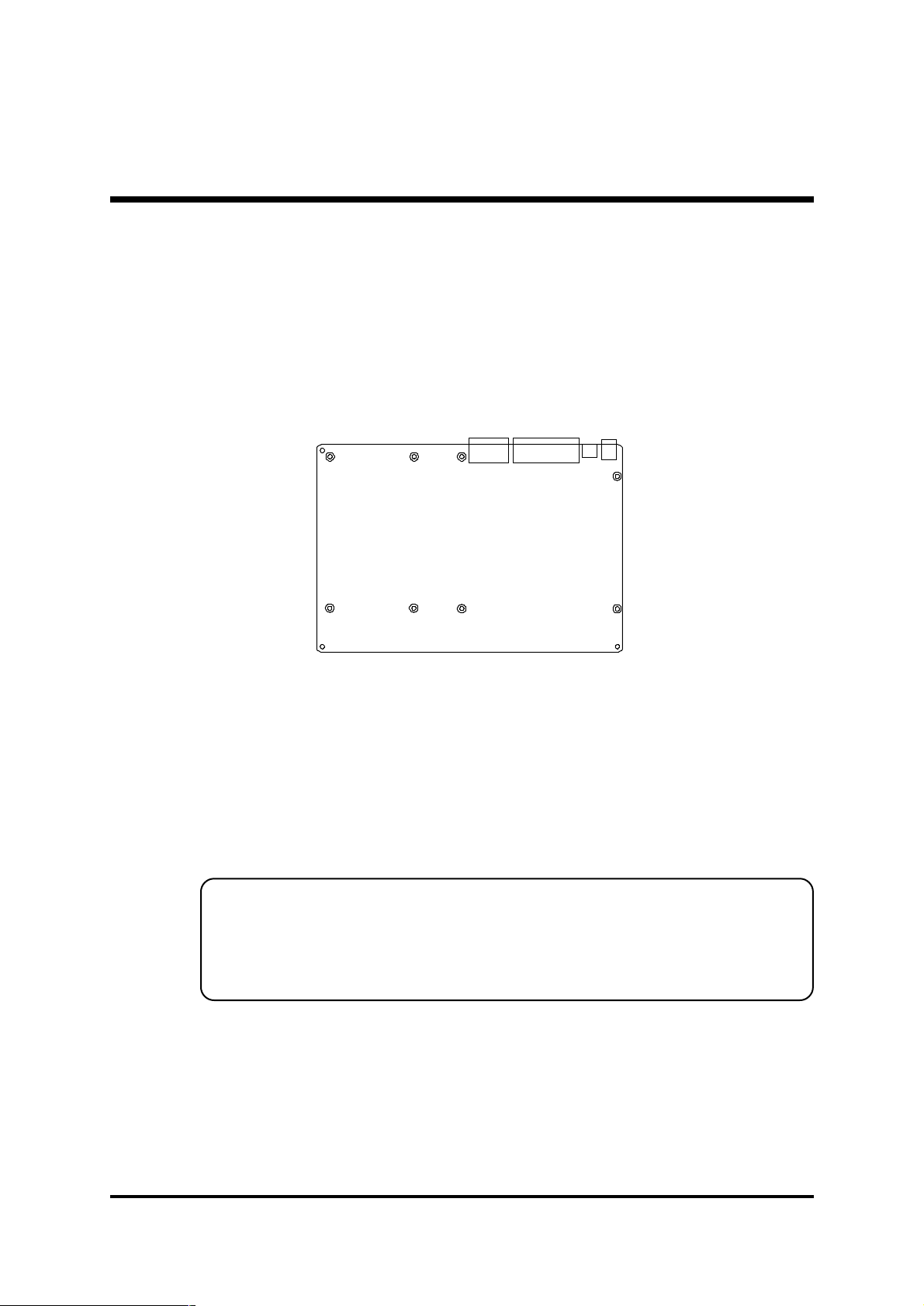

STEP 5 Mount the Mainboard on the Computer Chassis ........................15

STEP 6 Connect Front Panel Switches/LEDs/Speaker/USB ..................16

STEP 7 Connect IDE & Floppy Disk Drives............................................19

STEP 8 Connect Other Internal Peripherals ............................................20

STEP 9 Connect the Power Supply ........................................................20

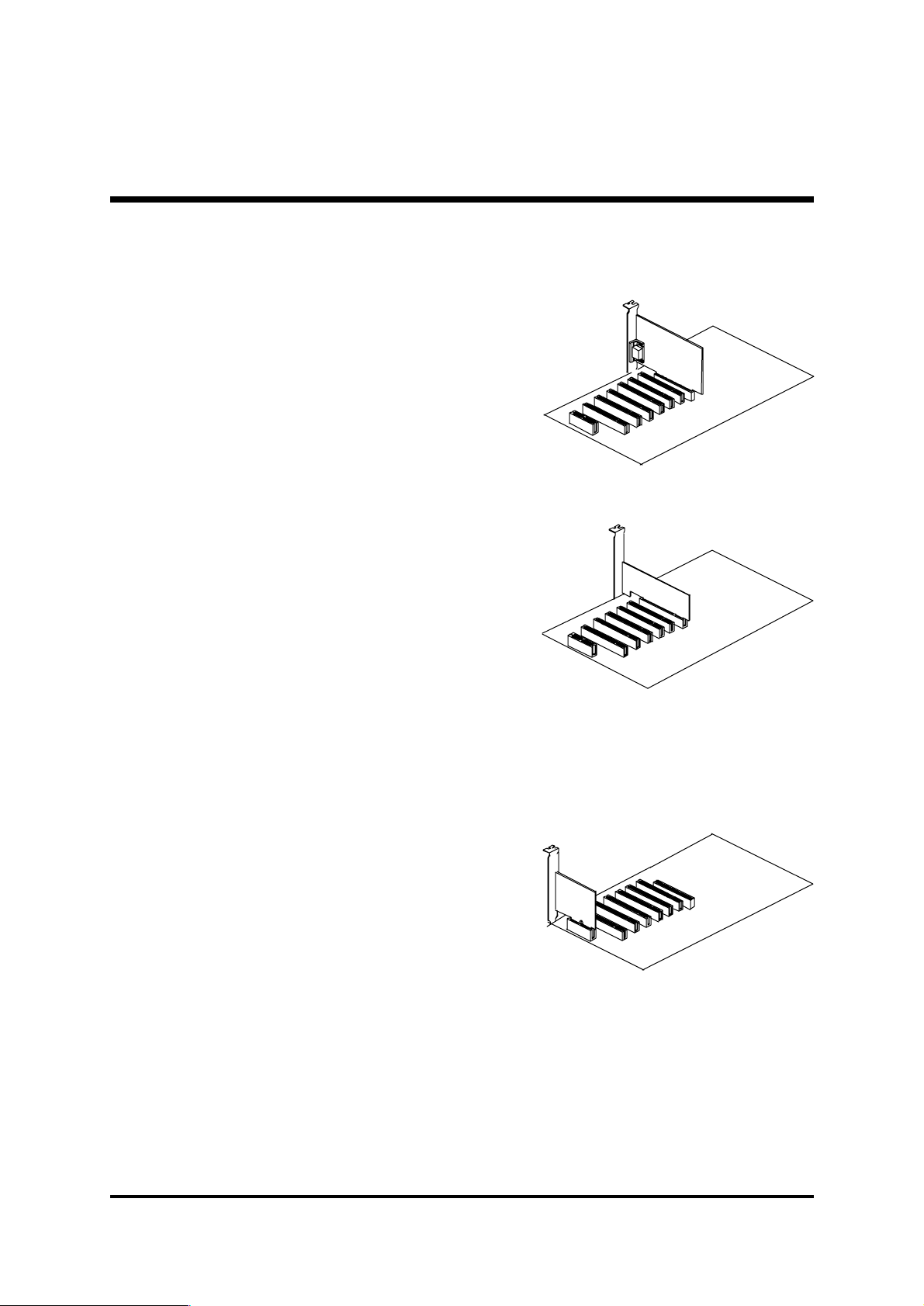

STEP 10 Install Add-on Cards in Expansion Slots ..................................21

STEP 11 Connect External Peripherals to Back Panel...........................22

STEP 12 First Time System Boot Up......................................................24

- 1 -

STEP 13 Install Drivers & Software Components....................................25

3.2 JUMPER SETTINGS ..................................................................................26

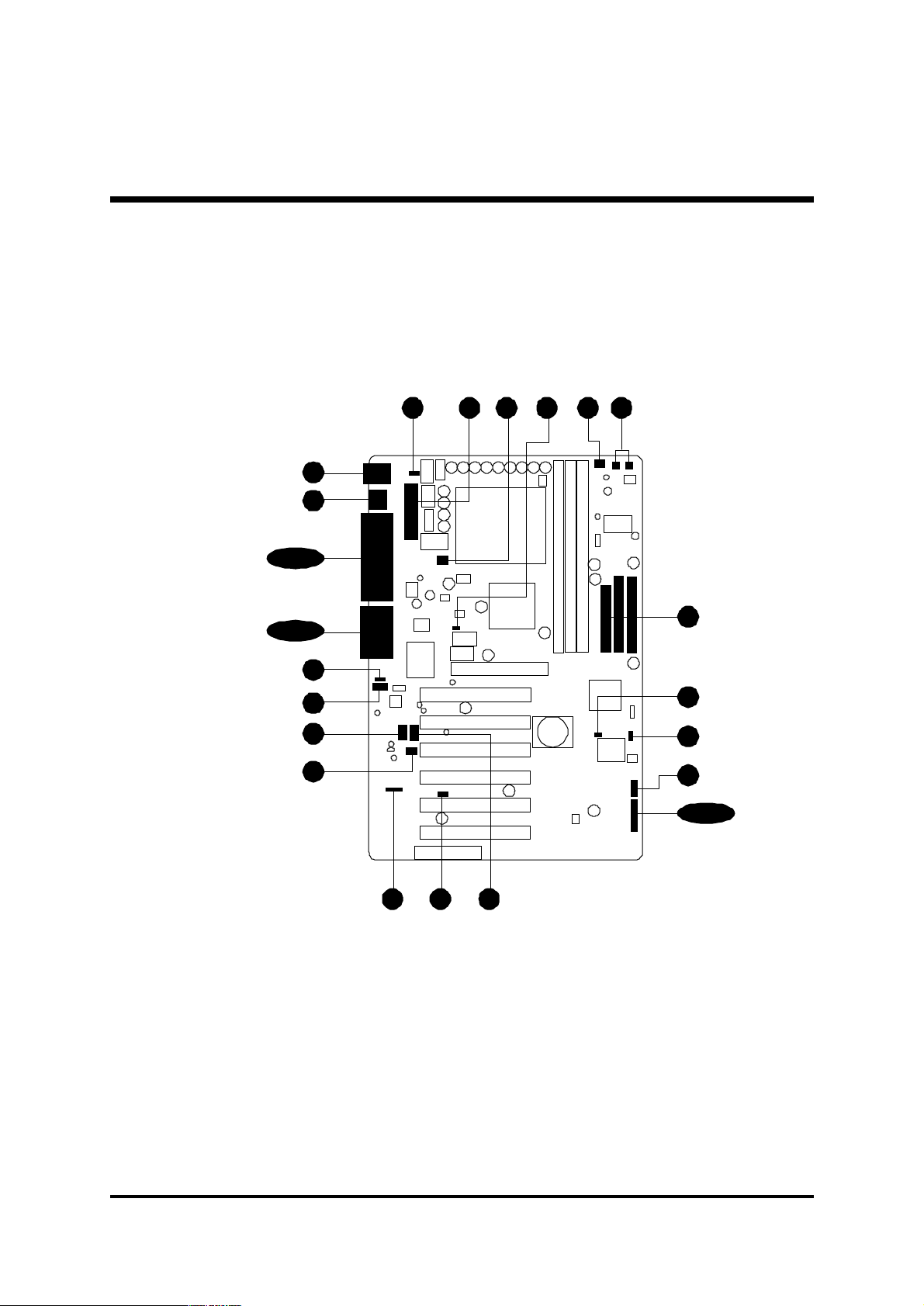

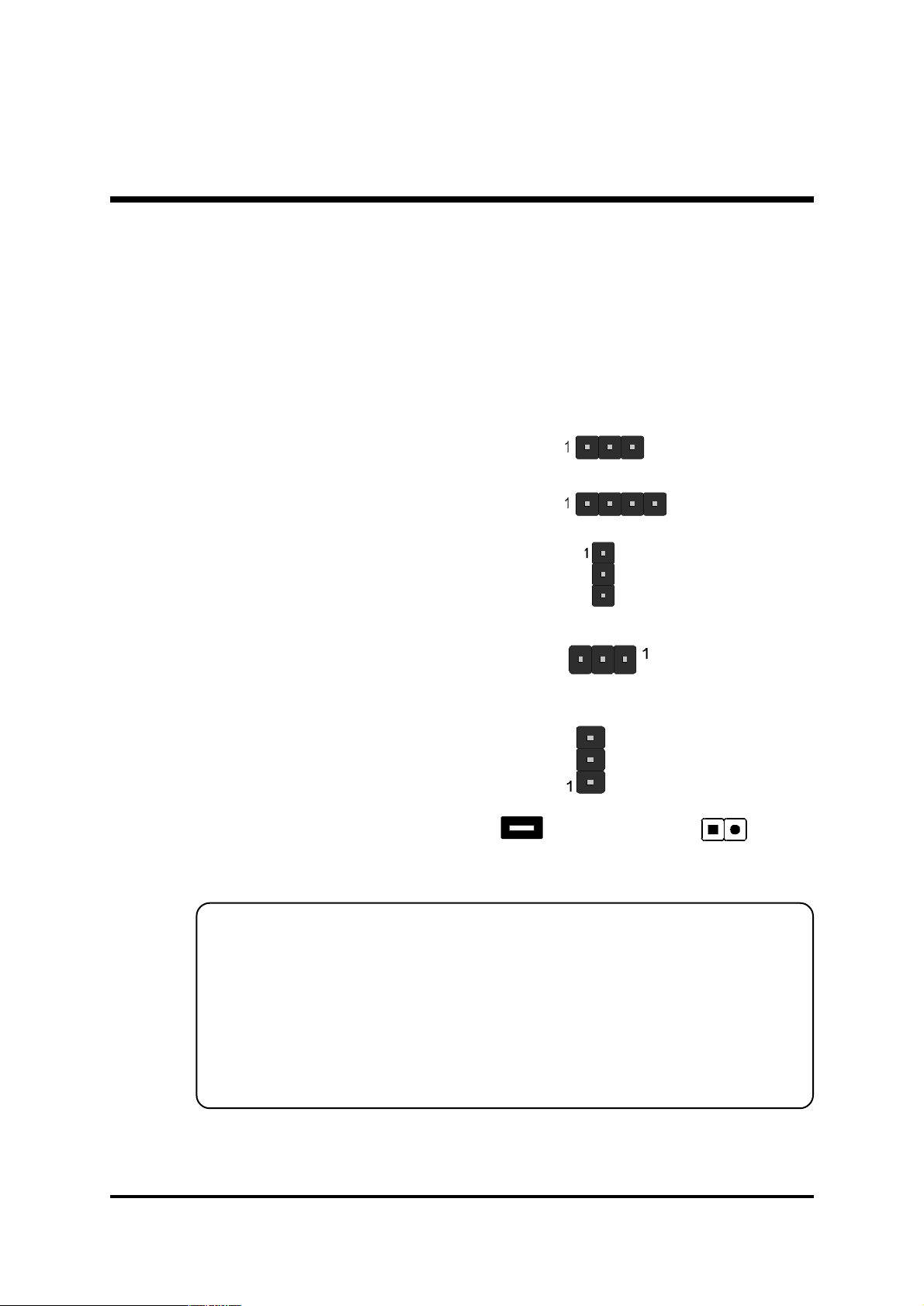

JUMPERS & CONNECTORS GUIDE ....................................................27

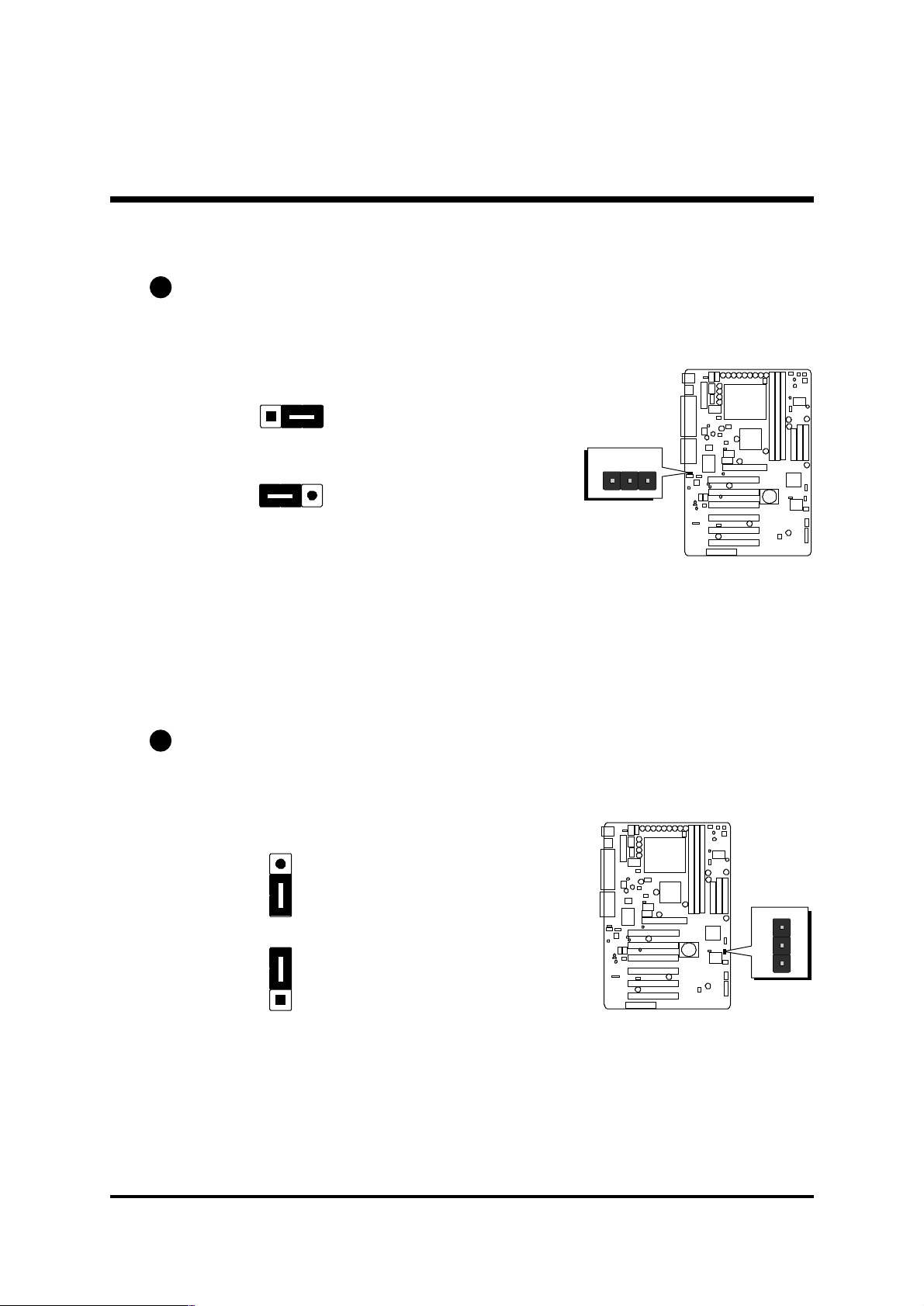

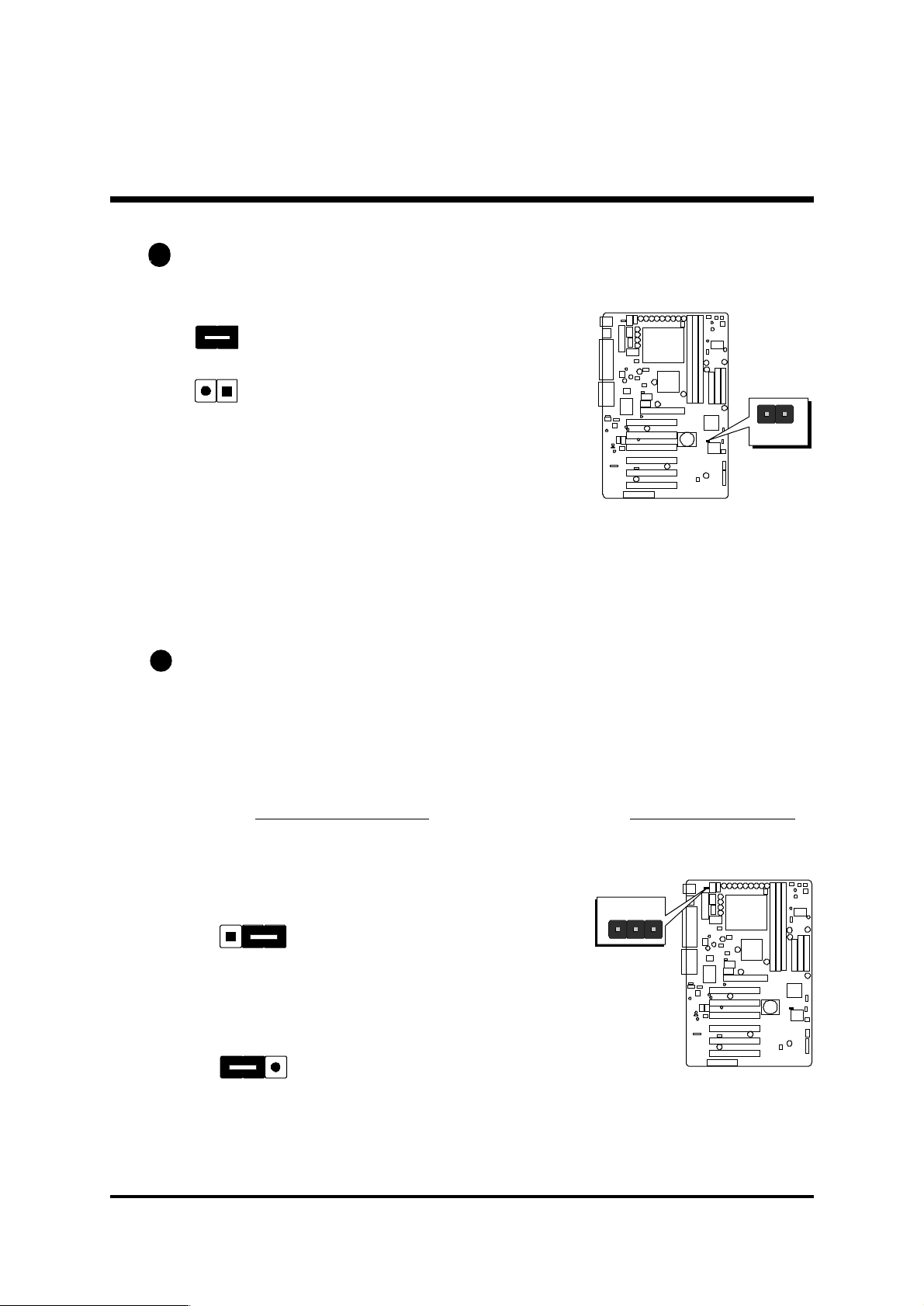

Jumpers

Clear PS/2 Keyboard Power on Password (J7) .....................................30

Clear CMOS Setting (J2).......................................................................30

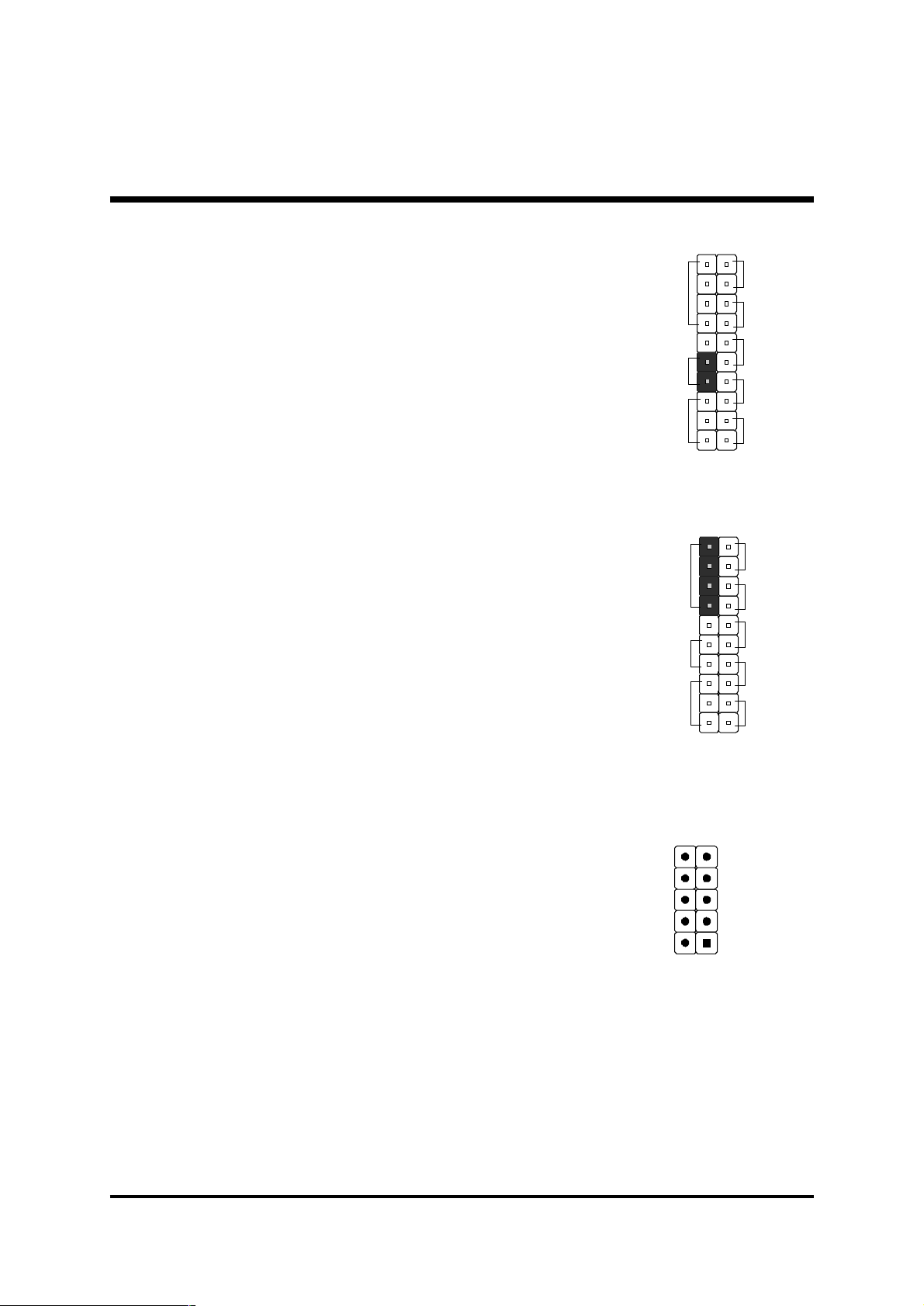

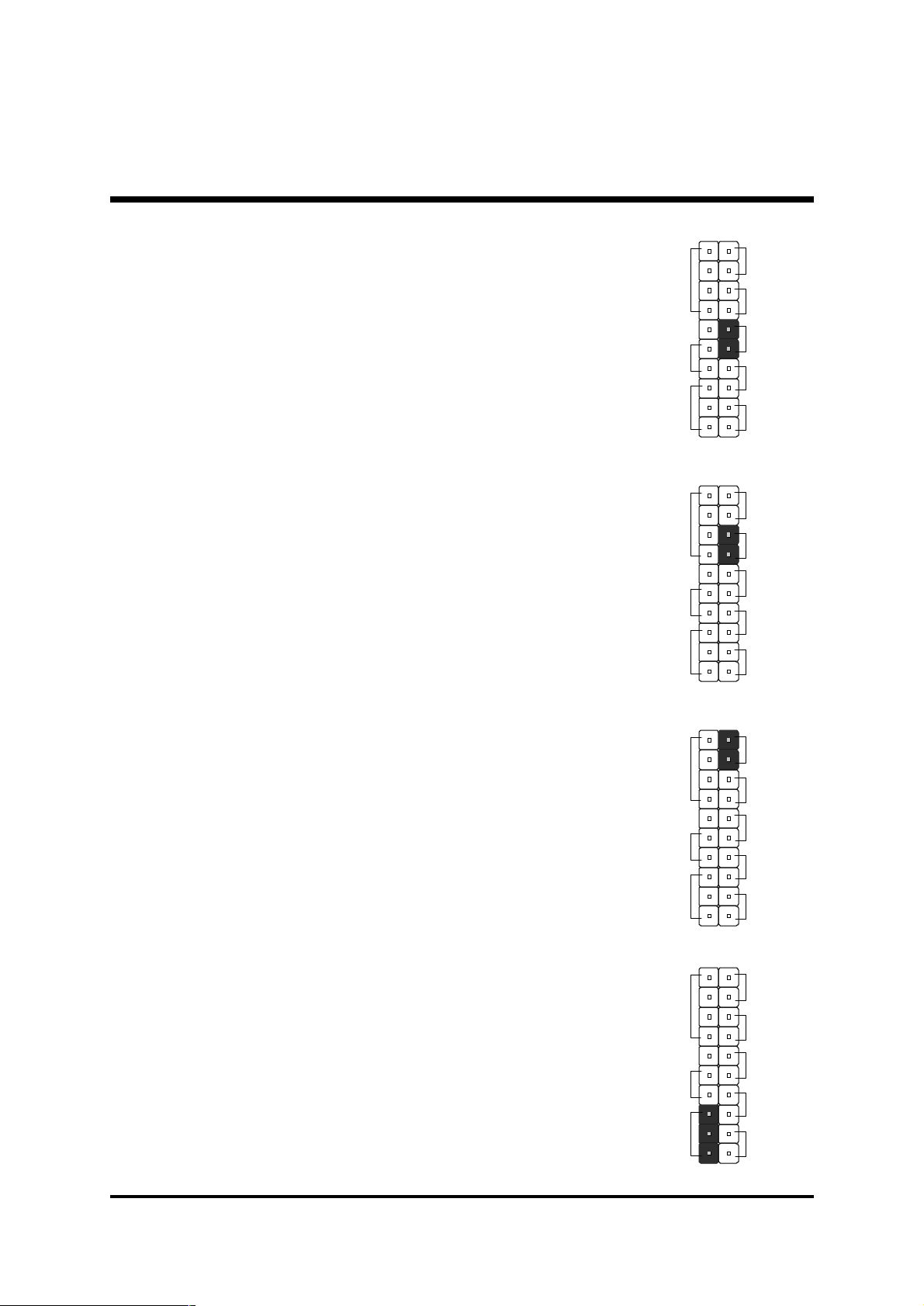

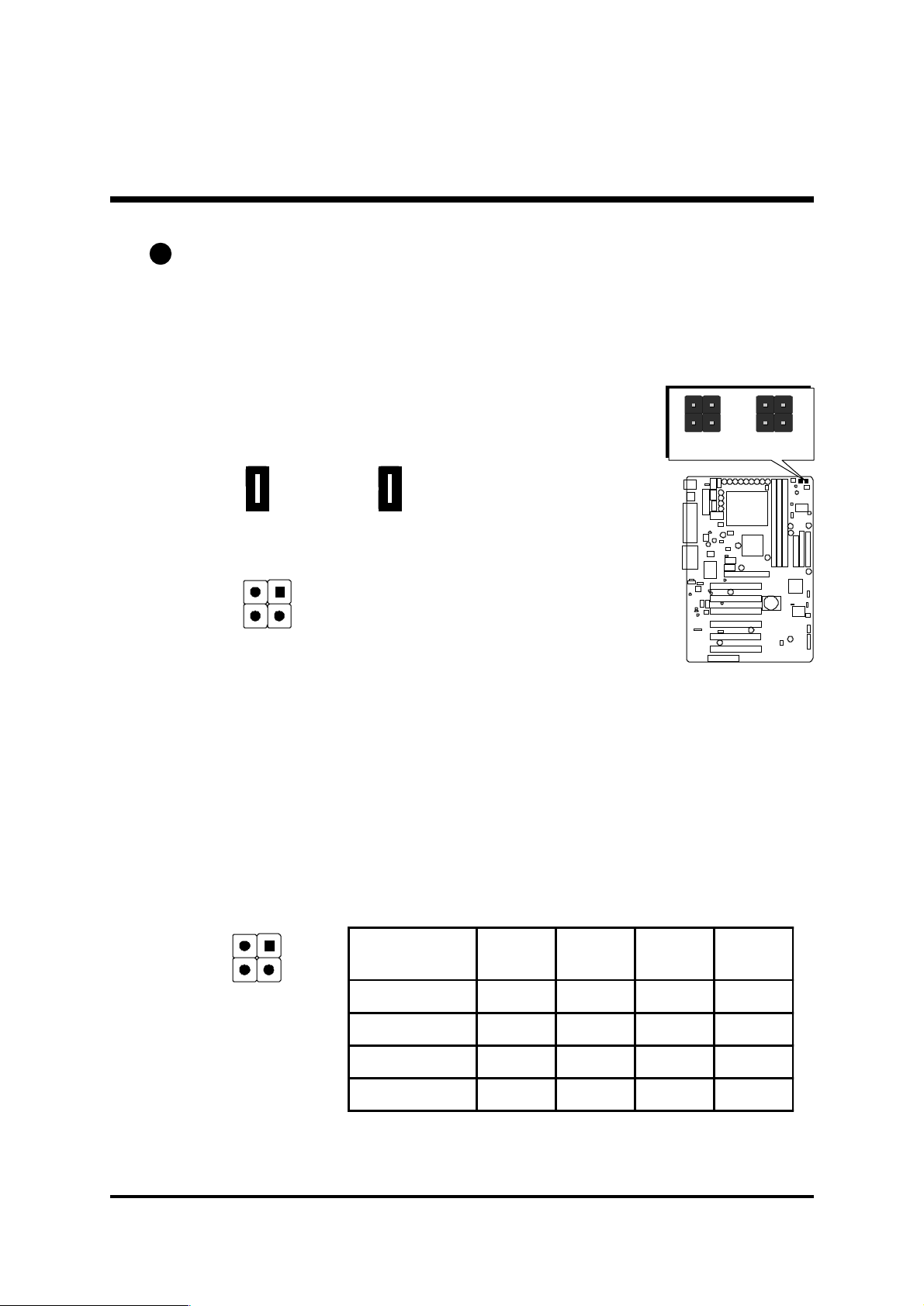

FSB Speed Auto Configure Setting (J1,JP3,JP5)...................................31

Firmware Hub Block Lock (J5)................................................................32

PS/2 KB & MS Power-on Setting (J18)...................................................32

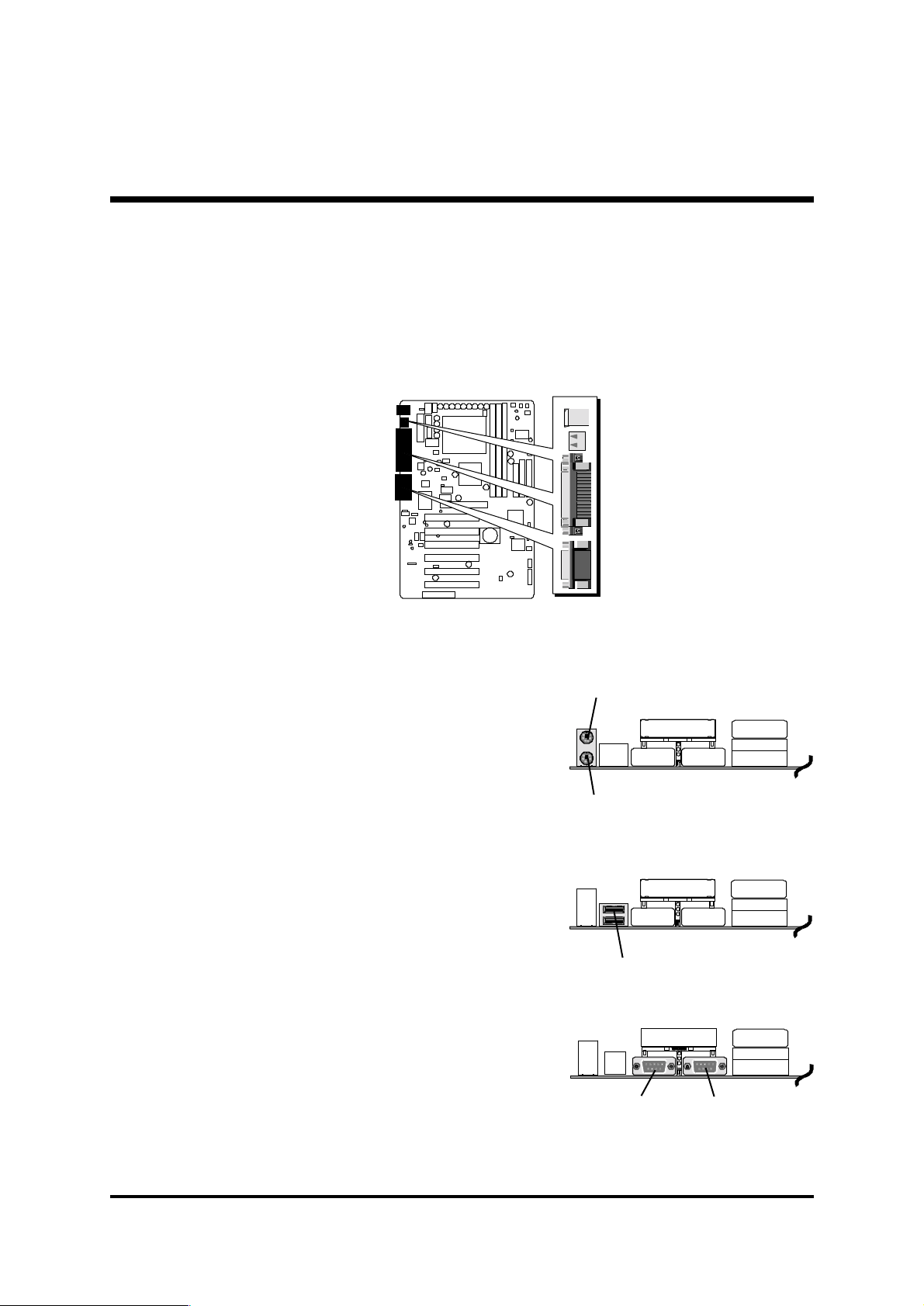

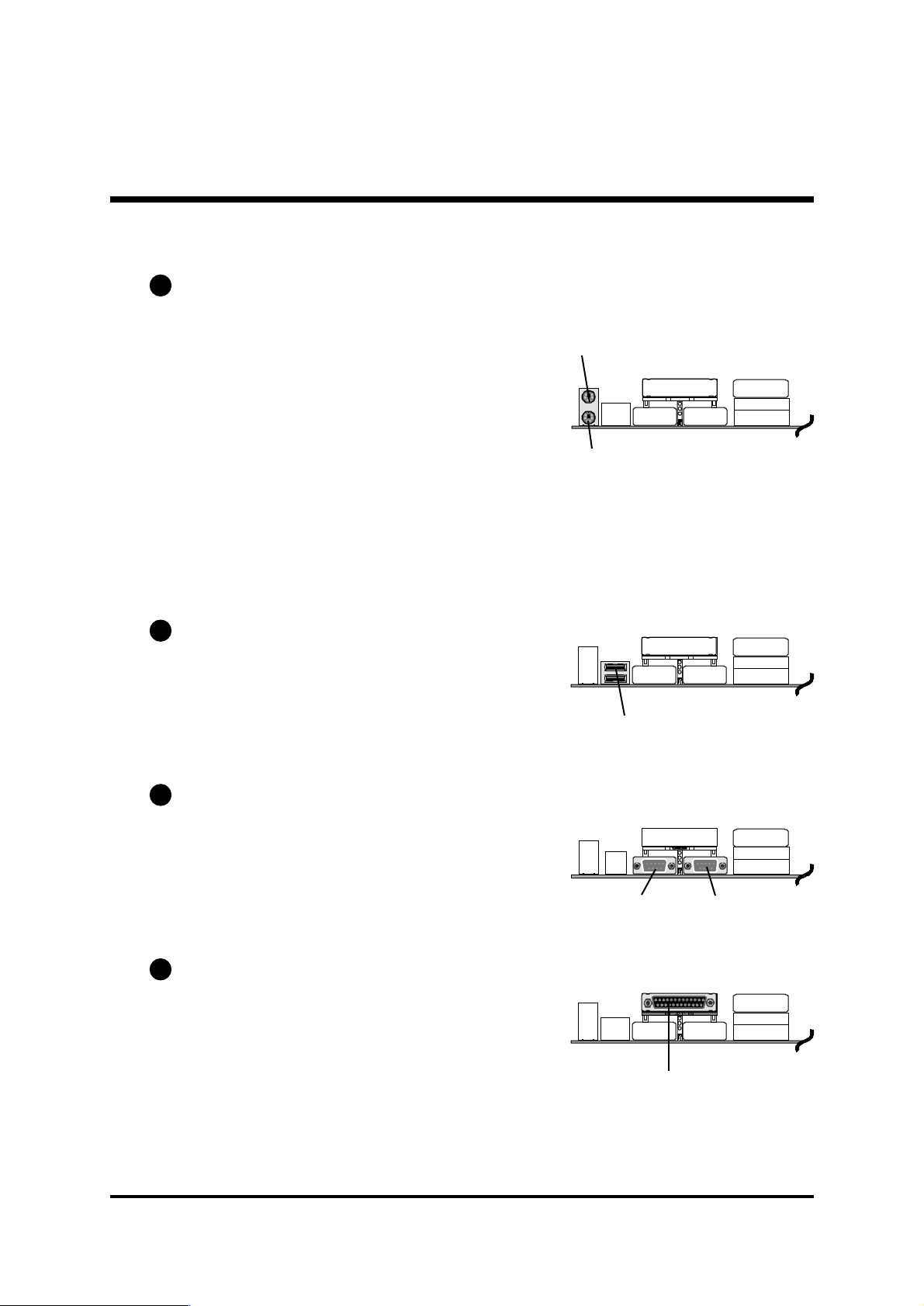

Back-Panel Connectors

PS/2 Keyboard & PS/2 Mouse Connectors ............................................33

USB1/USB2 Port Connectors.................................................................33

COM1/2 Connector ................................................................................33

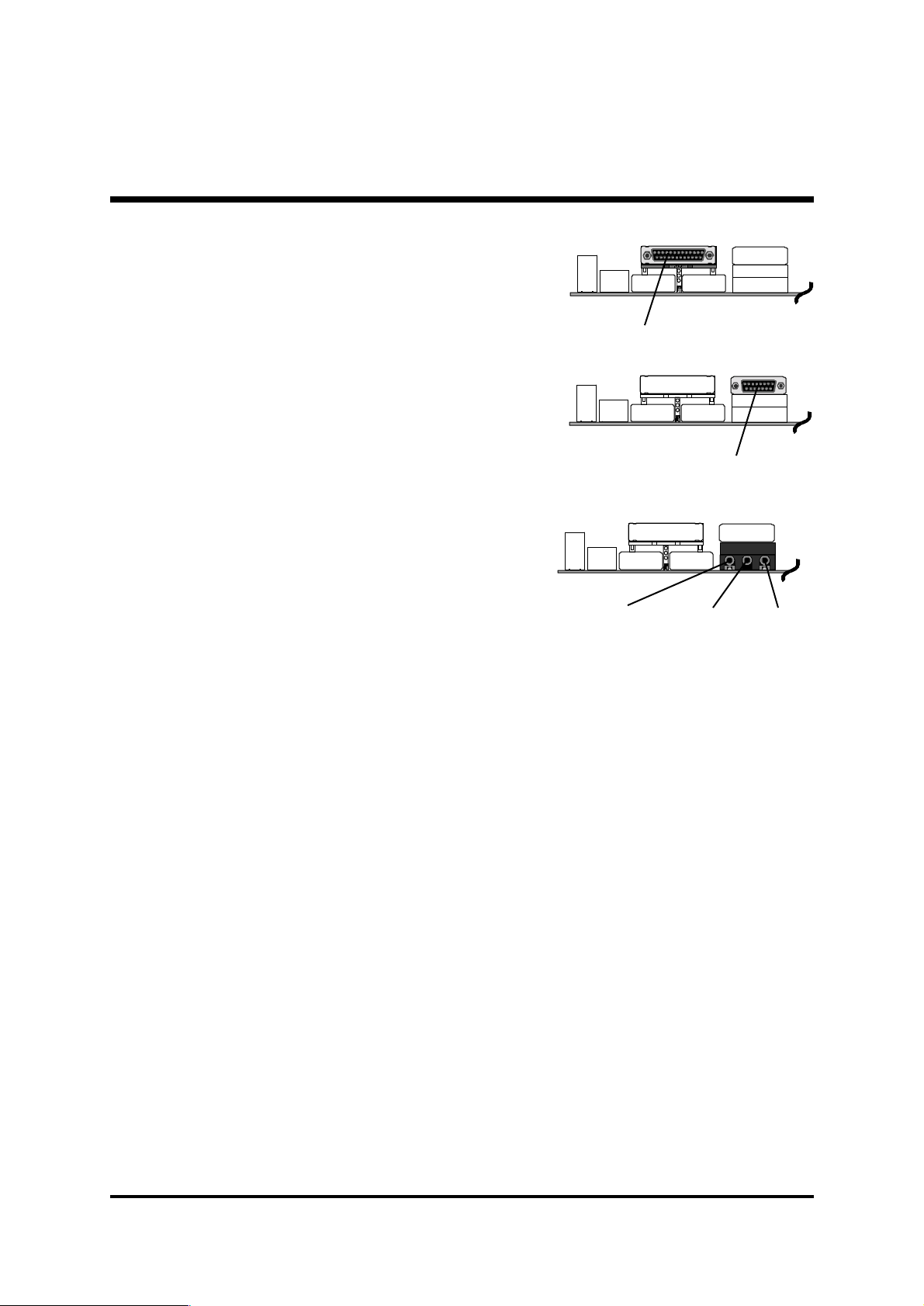

Parallel Port Connector...........................................................................33

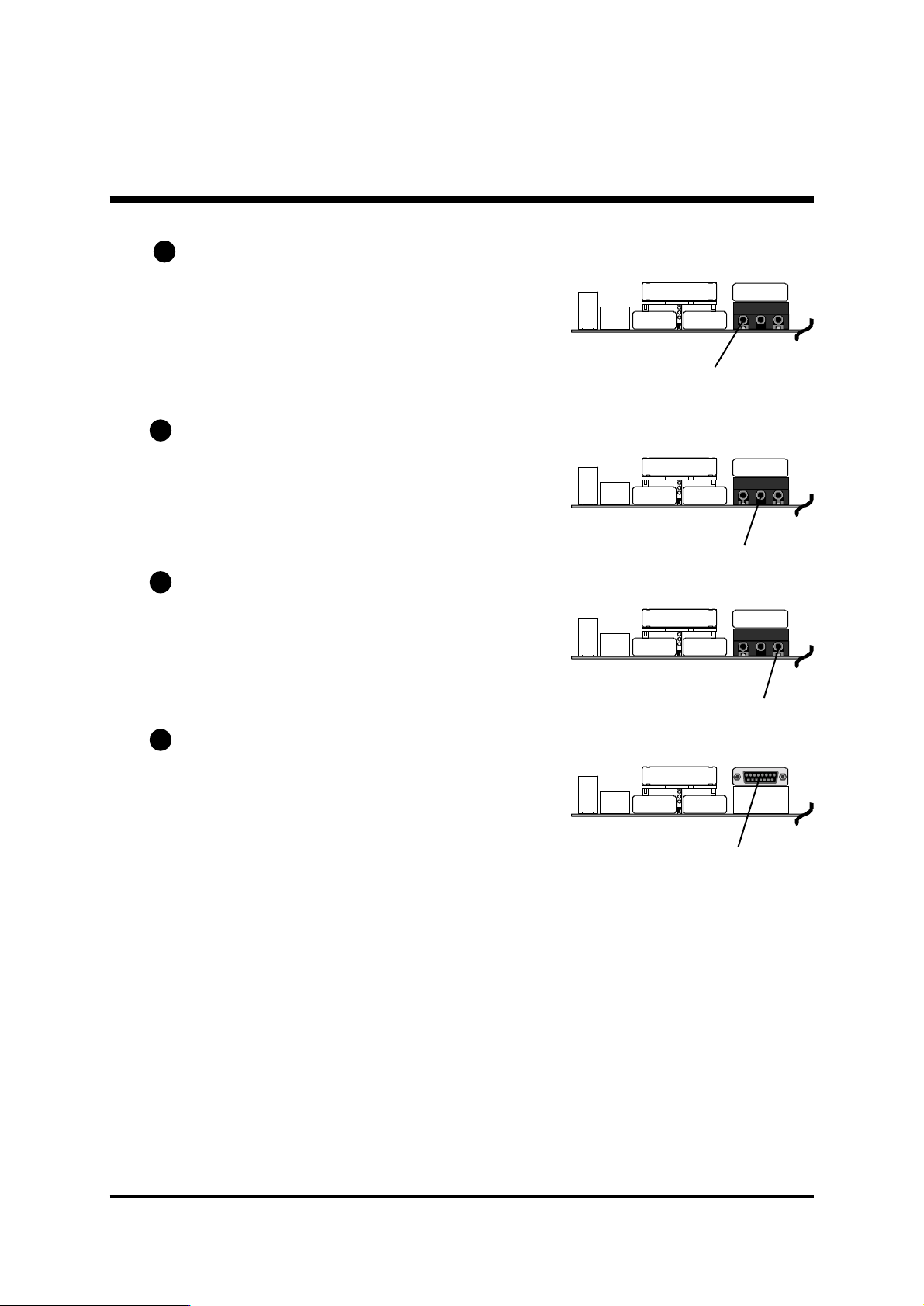

Line-Out .................................................................................................34

Line-In ....................................................................................................34

Mic-In .....................................................................................................34

MIDI/GAME Port.....................................................................................34

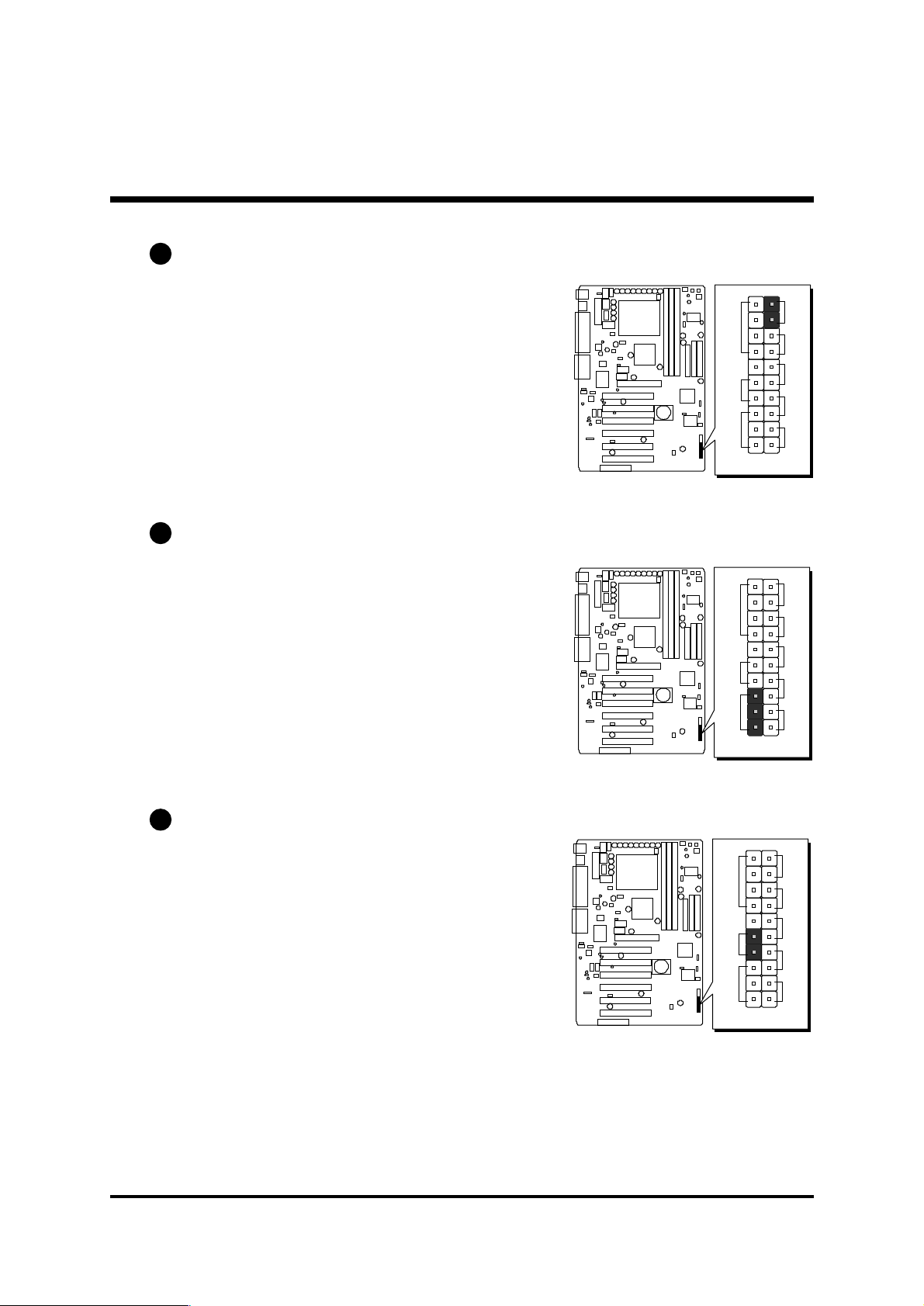

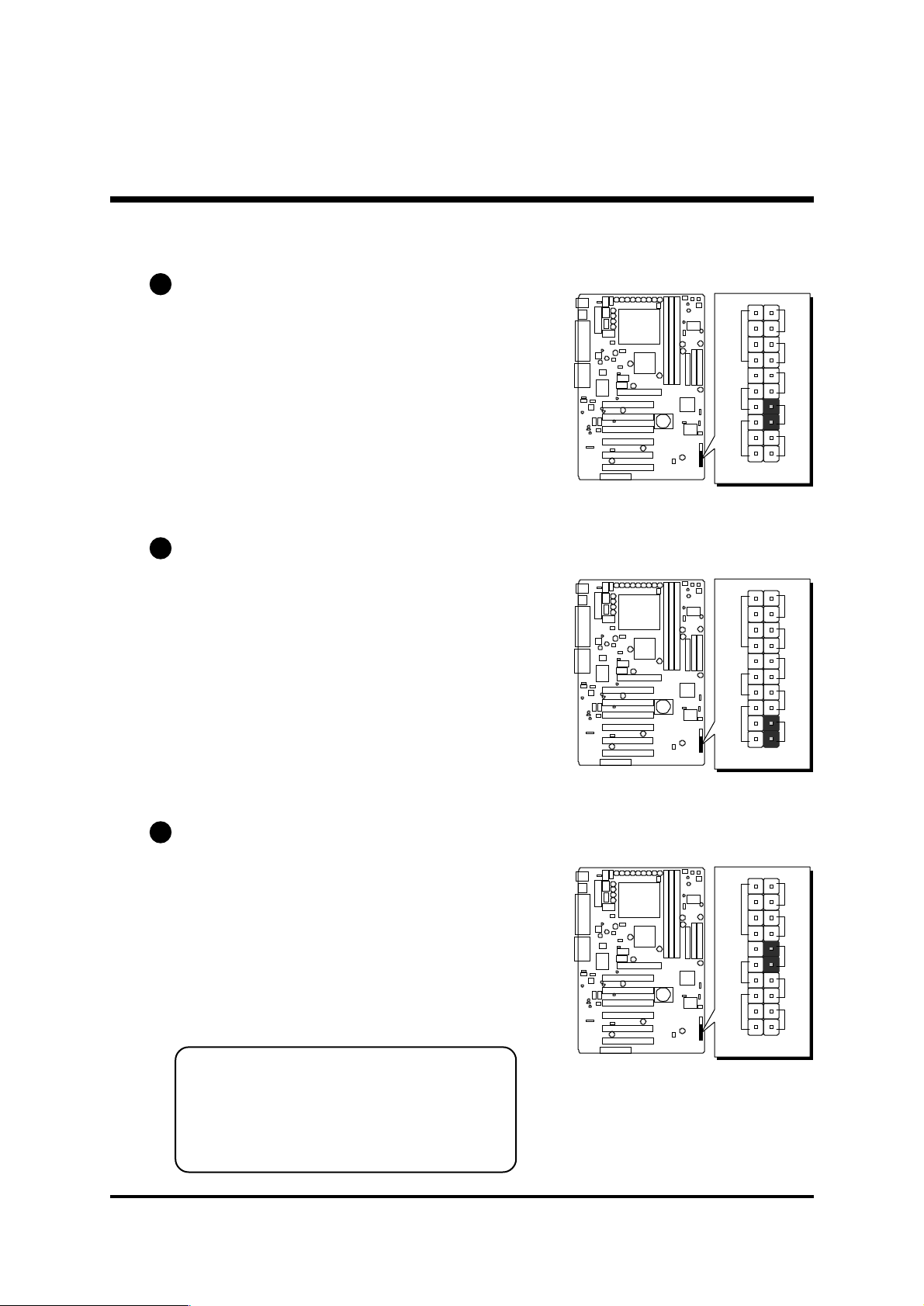

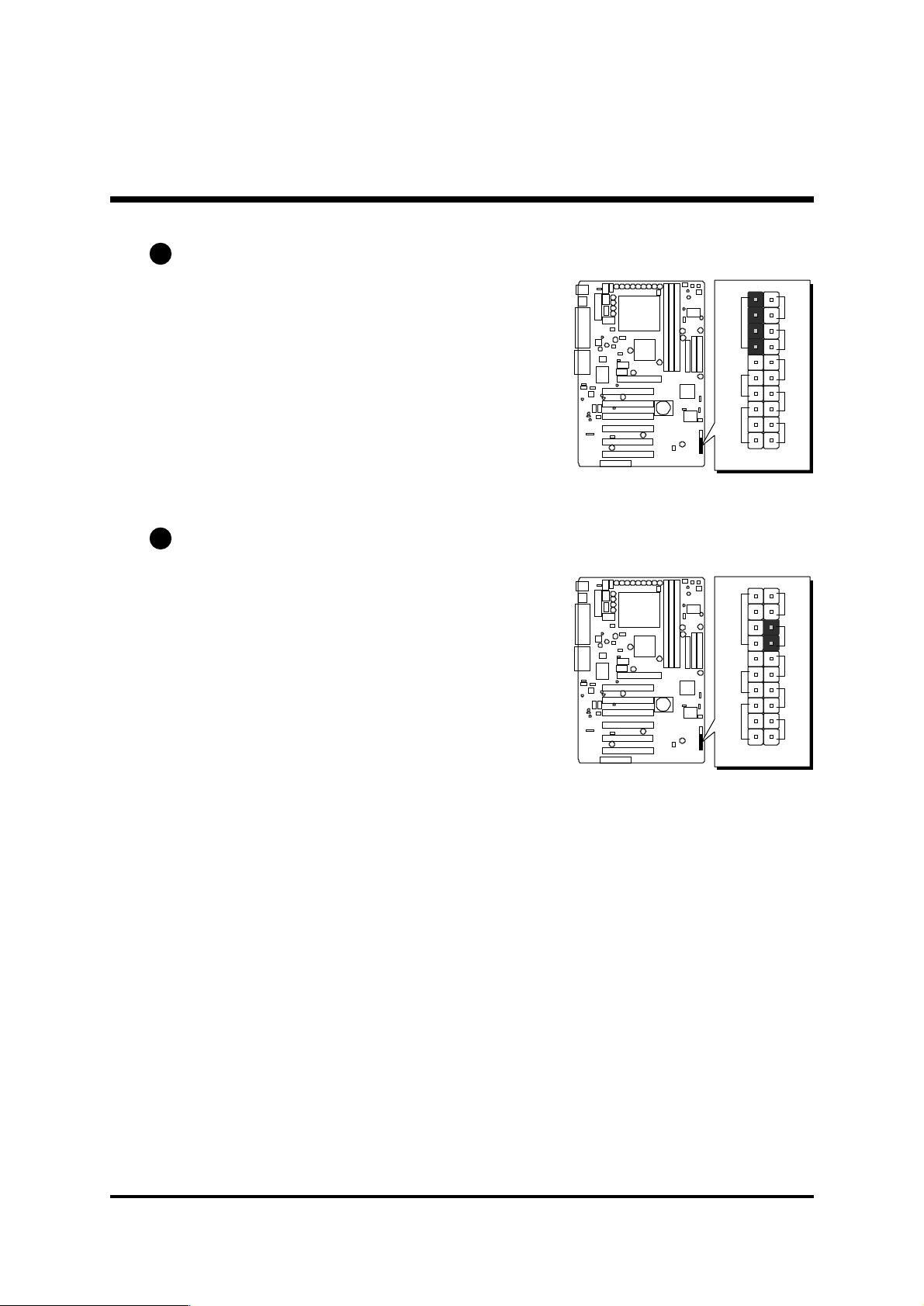

Front-Panel Connectors

HDD LED Connector (HDD LED)...........................................................35

Hardware Reset Connector (RST BTN) ..................................................35

Green LED Connector (GEN LED).........................................................35

A TX Power On/Off Switch Connector (PWN BTN)...................................36

Power LED Connector (POWER LED)...................................................36

Keylock Connector (KEYLOCK) .............................................................36

Speaker Connector (SPKER).................................................................37

System Management Interface Connector (SMI BTN)..............................37

- 2 -

Internal Peripherals Connectors

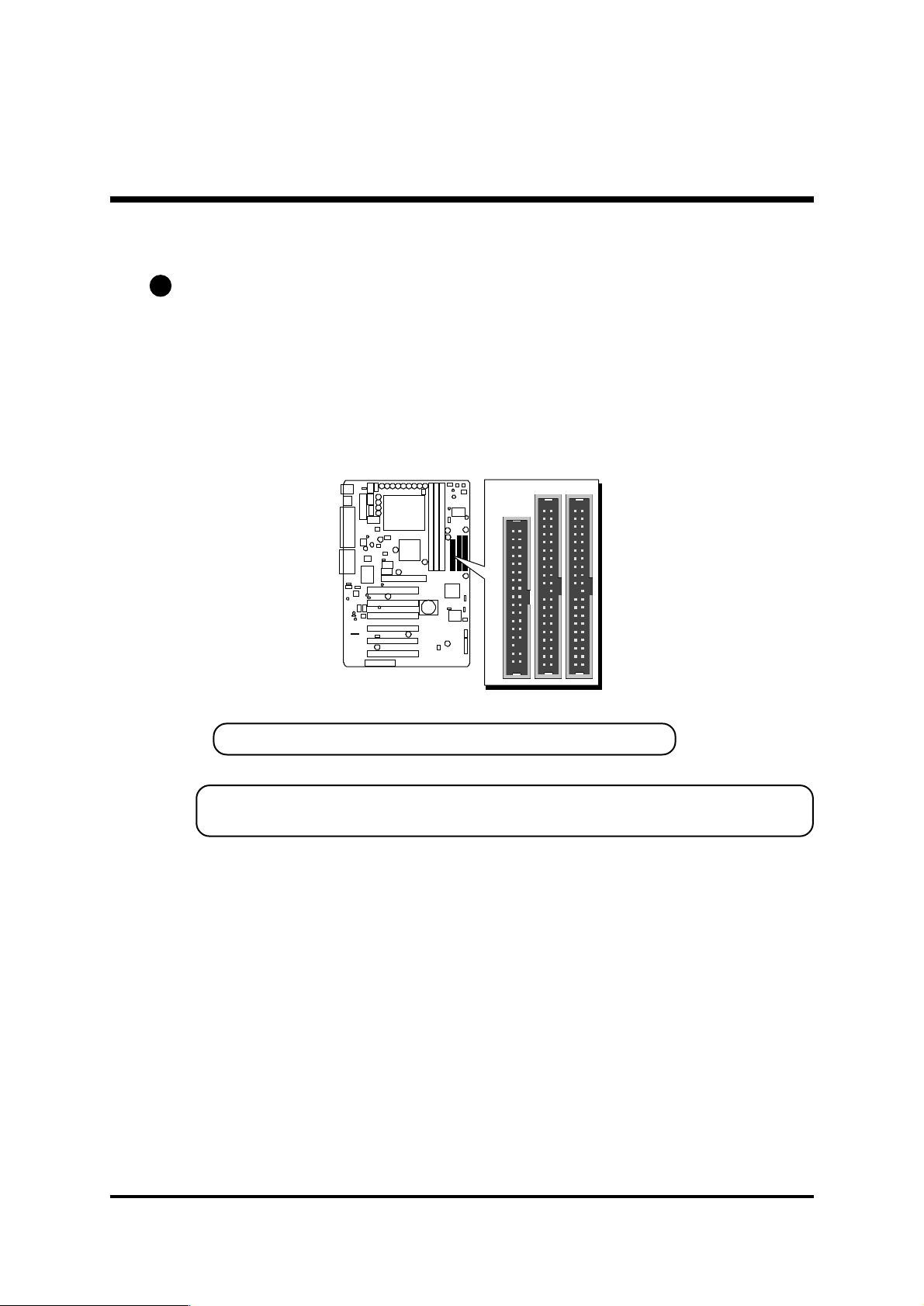

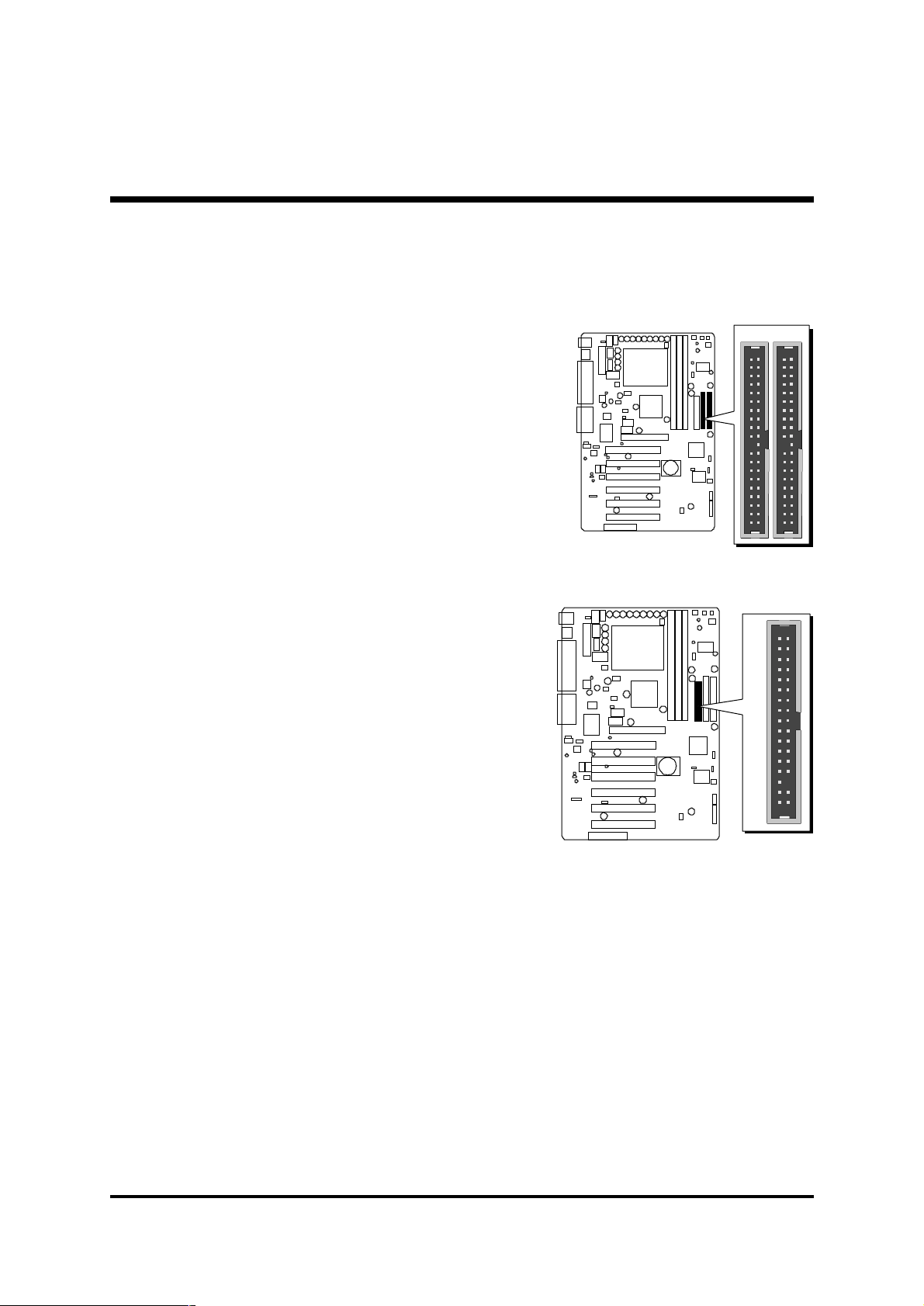

Enhanced IDE Connector and Floppy Connector ....................................38

Other Connectors

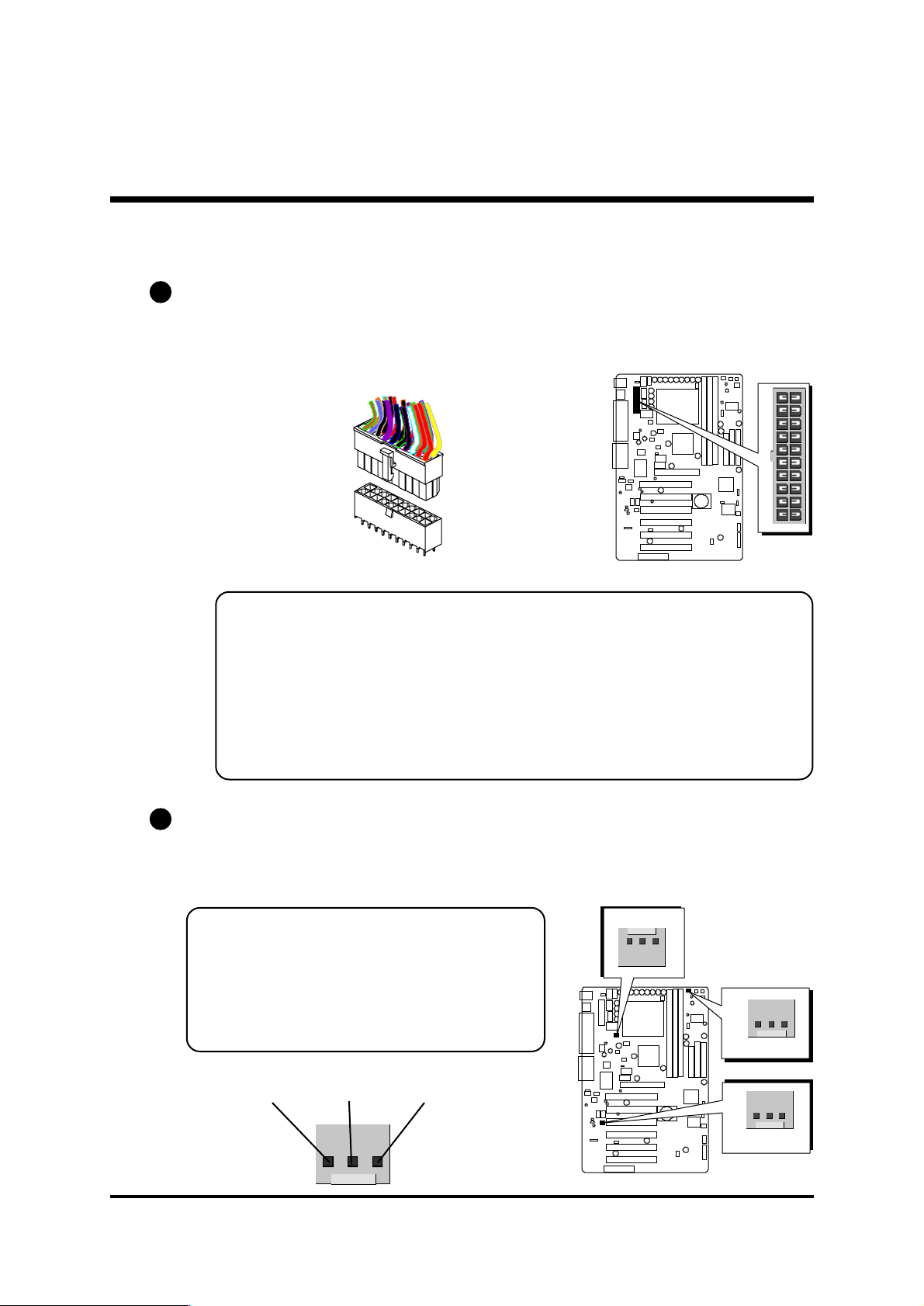

ATX Power Supply Connector (JWR1)....................................................39

Cooling Fan Connectors for CPU (FAN1) and

System or Chassis (FAN2) (F AN3) .........................................................39

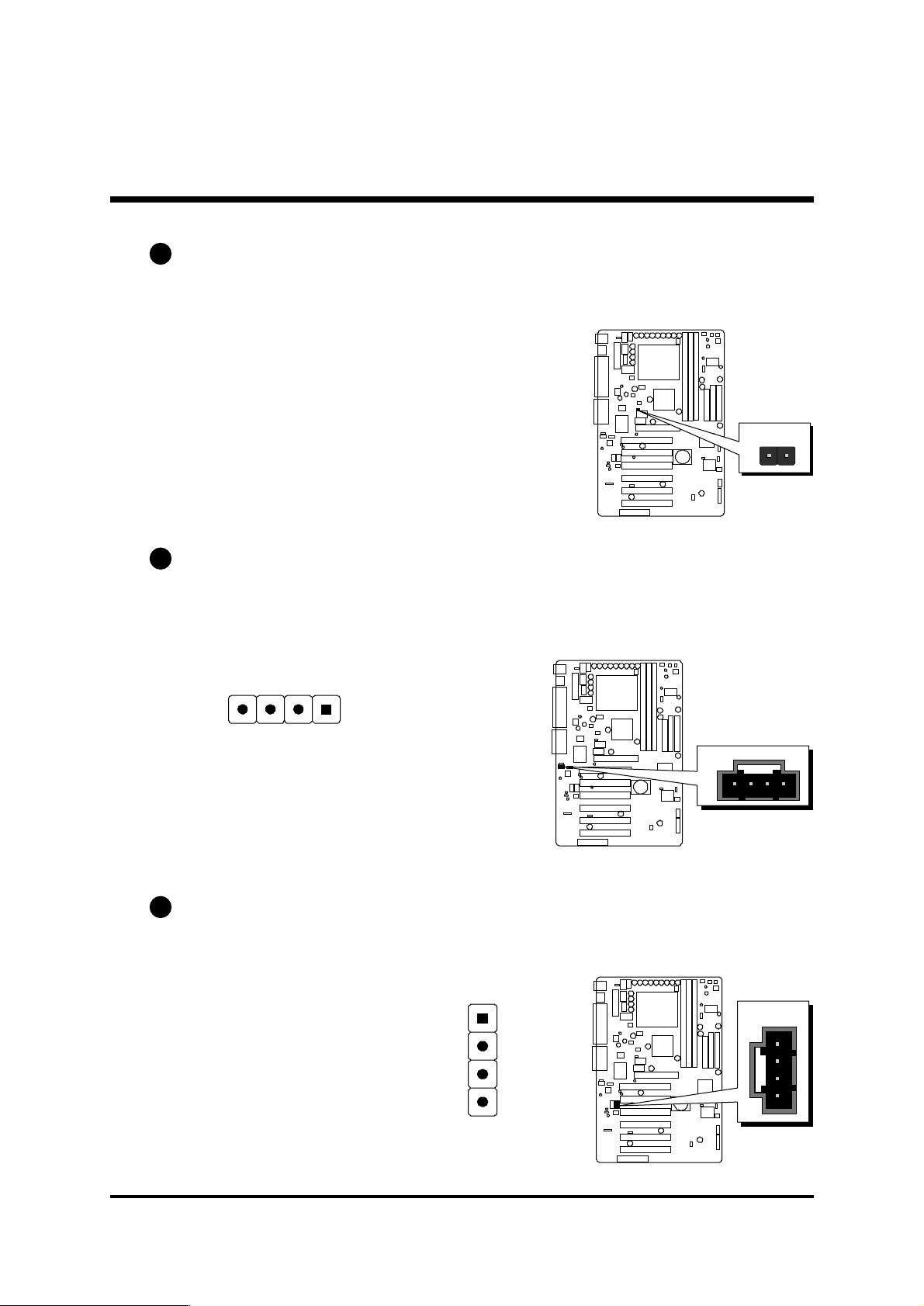

Wake-on Modem Connector (JP10)........................................................40

Audio T elephone_IN Header (JP1 1)........................................................40

Audio Auxiliary_IN Header (JP12) ..........................................................40

Audio CD_IN Header (JP13) ..................................................................41

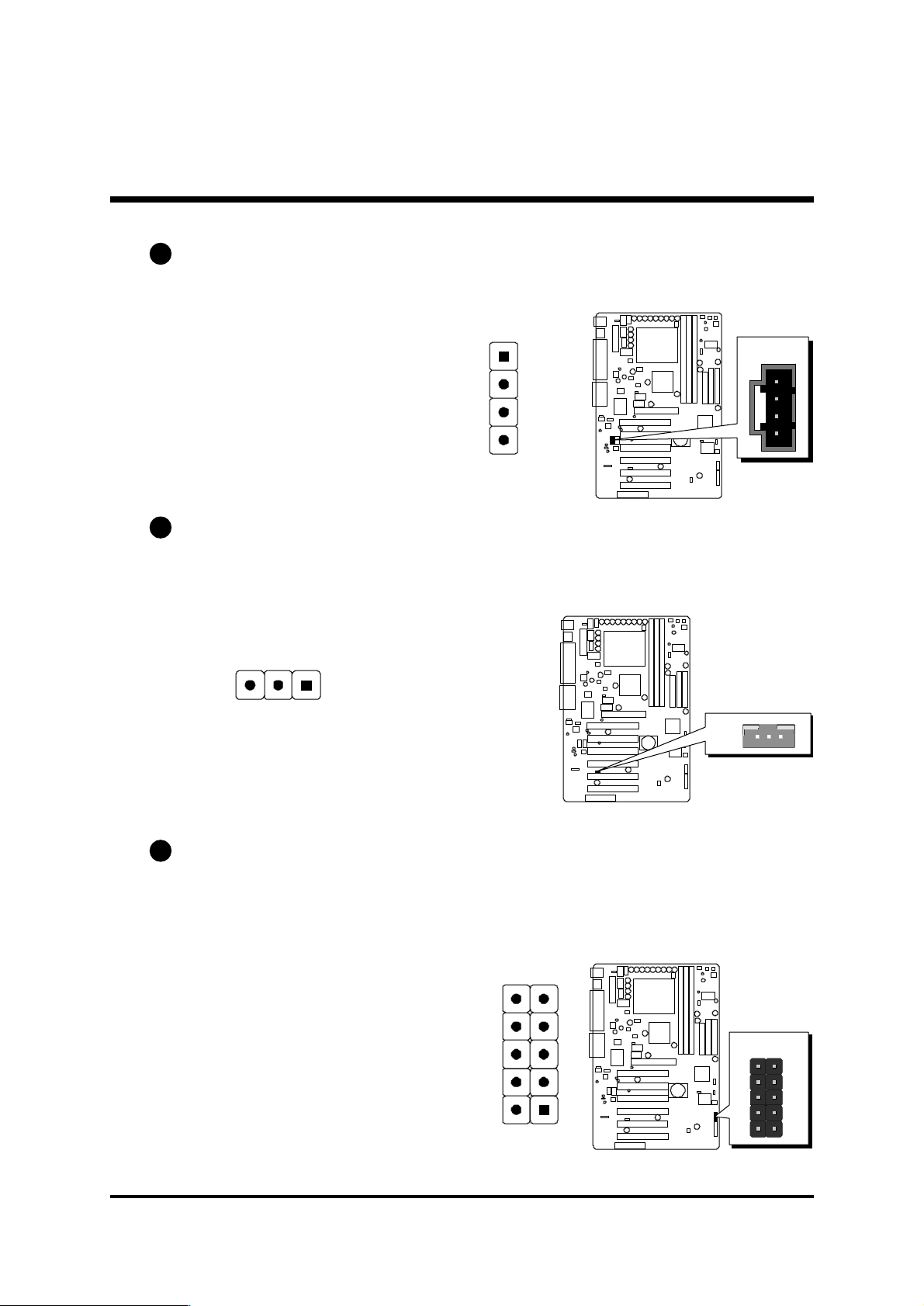

Wake on Lan Header (J13).....................................................................41

Dual USB Connectors Header (J6).........................................................41

IR Header (J17) ......................................................................................42

3.3 SYSTEM MEMORY CONFIGURATION ......................................................43

1. INST ALL MEMORY.............................................................................43

2. UPGRADE MEMORY.........................................................................43

4 SOFTWARE UTILITY .......................................................................44

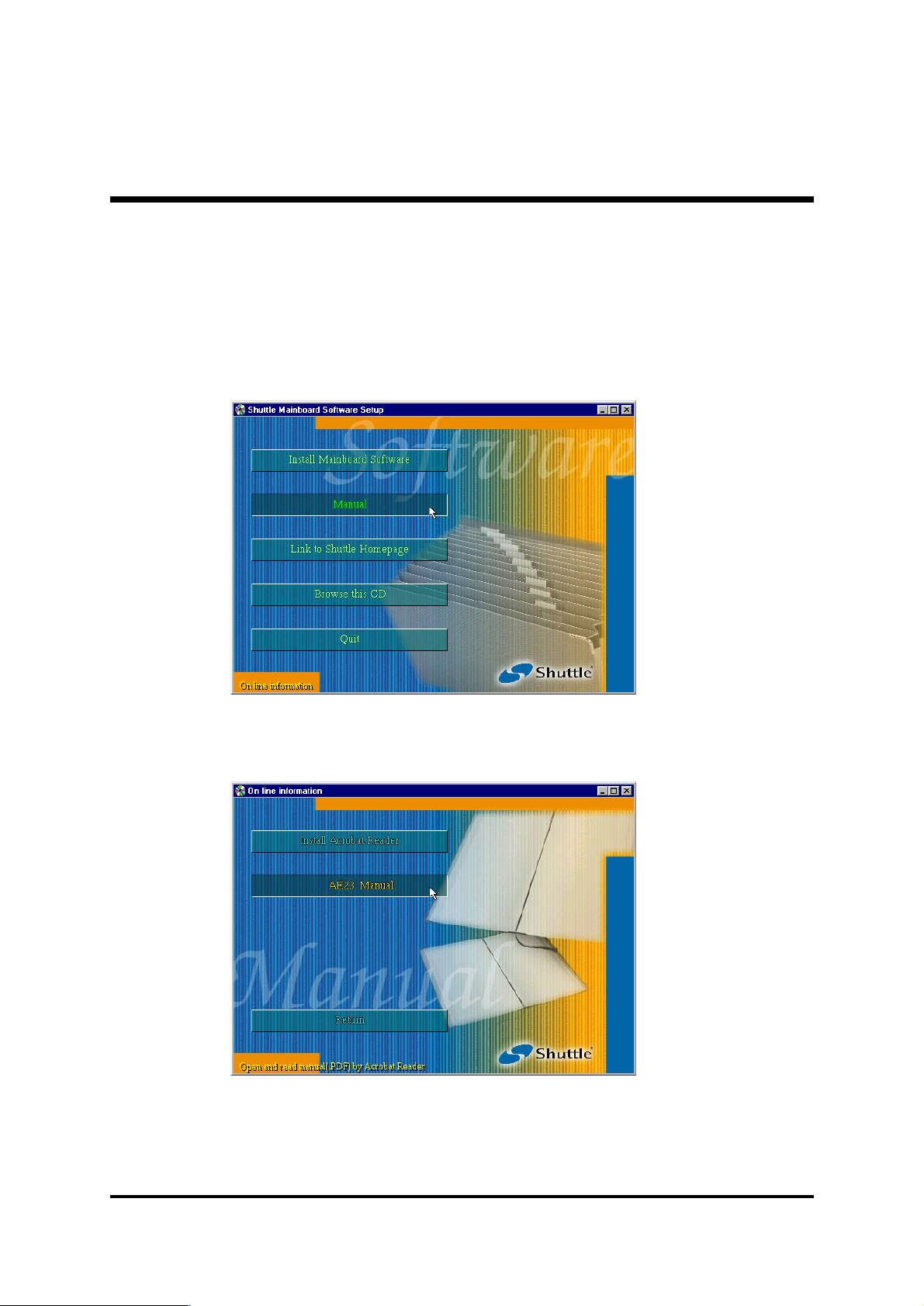

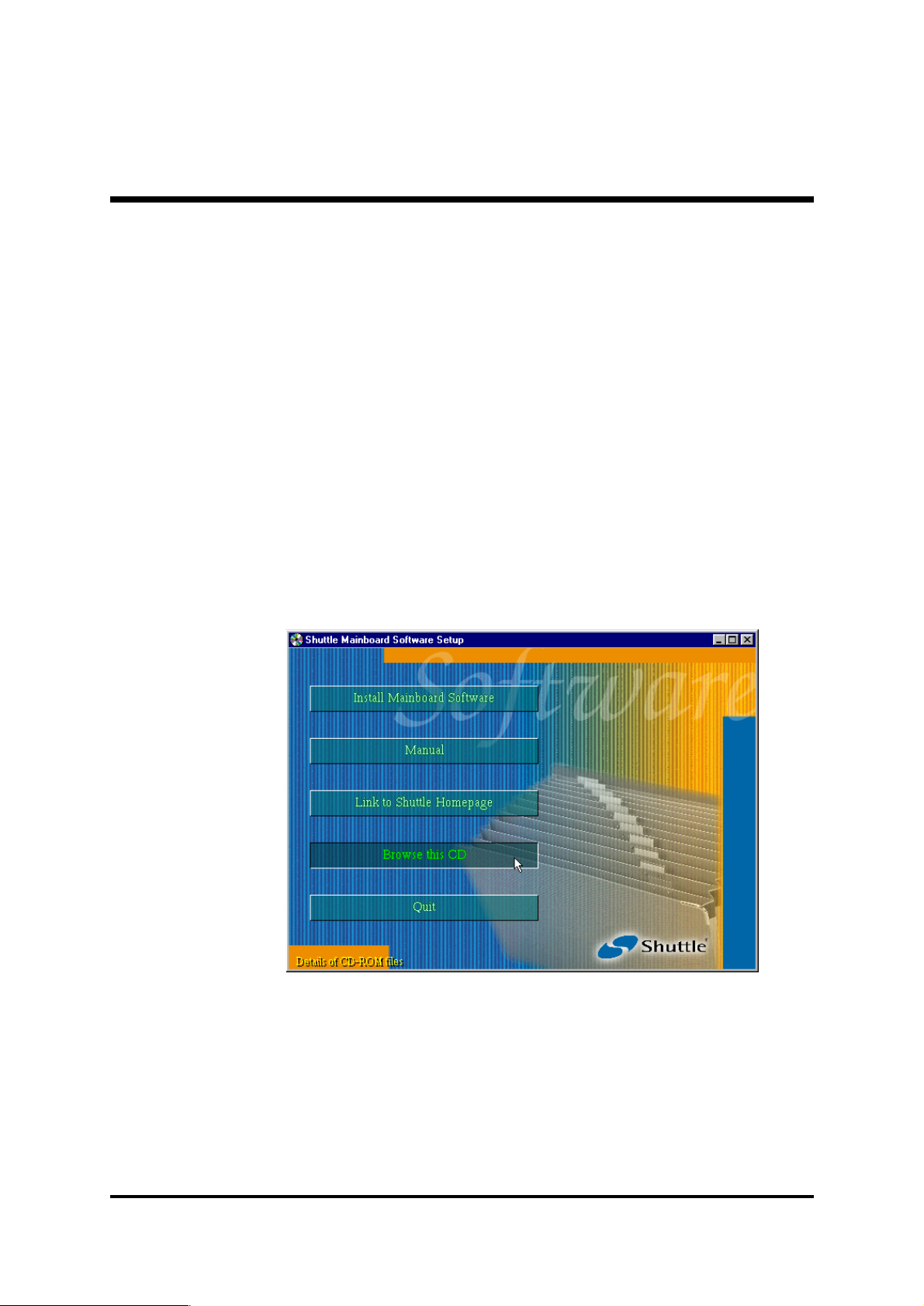

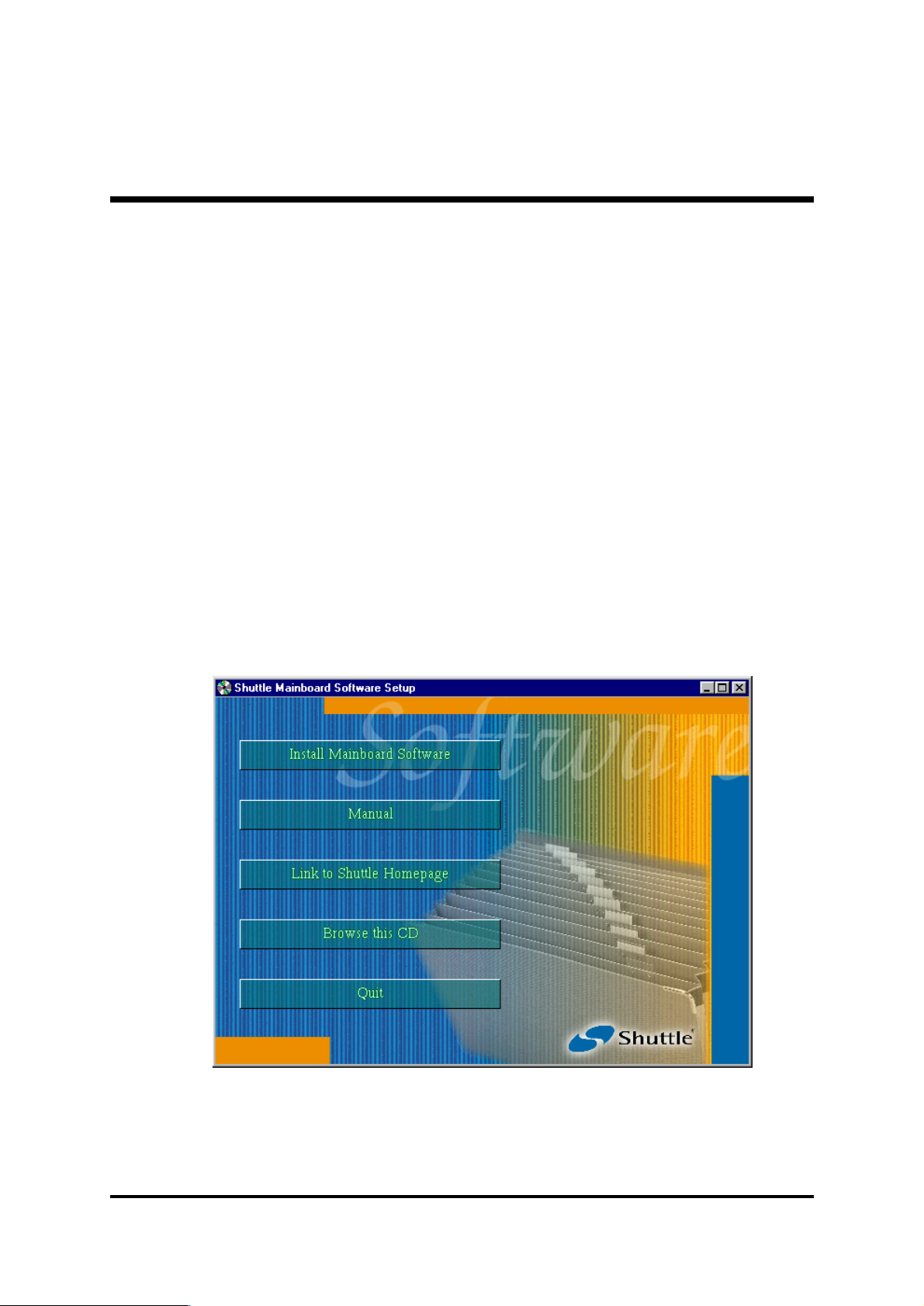

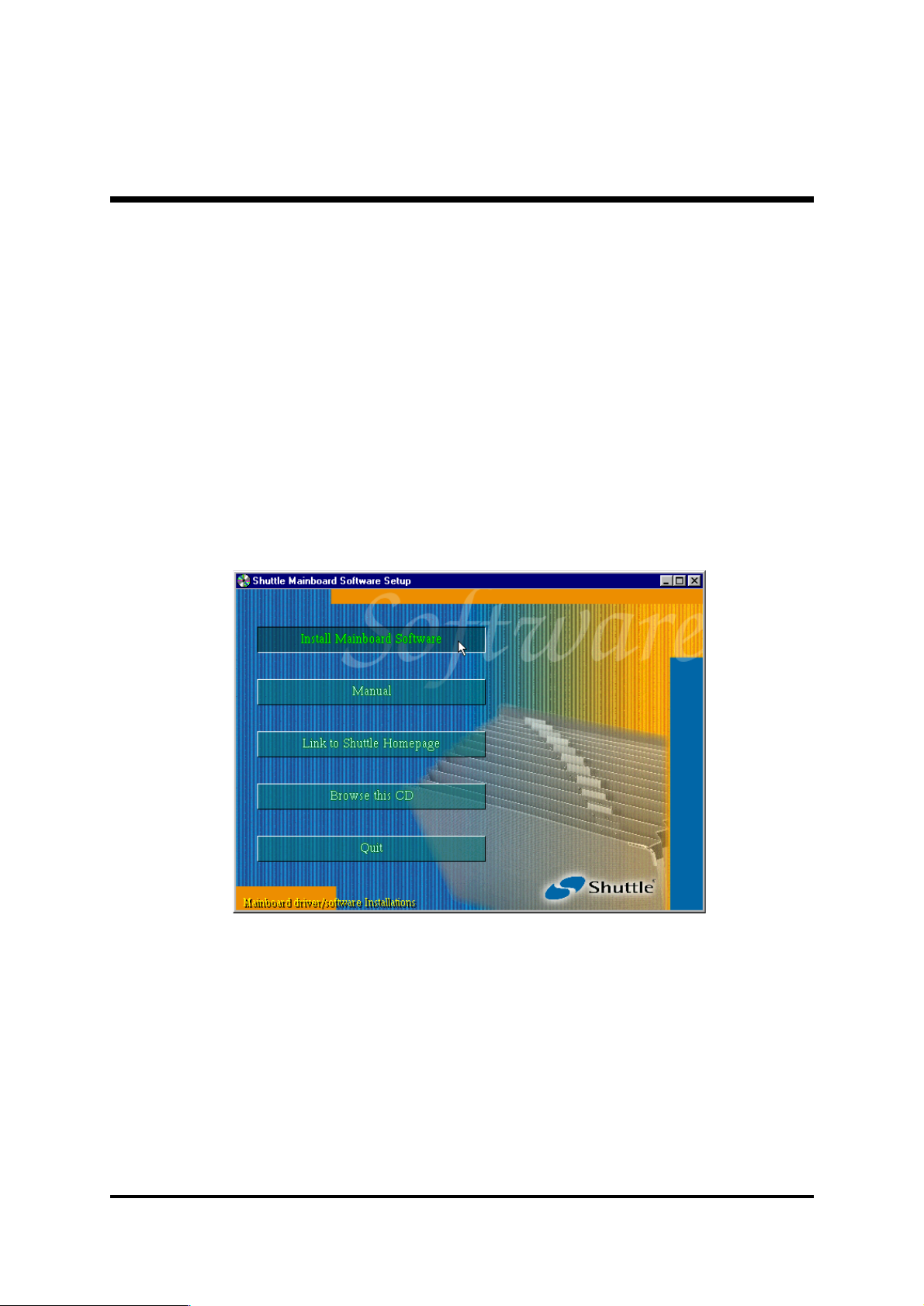

4.1 Mainboard CD Overview ..........................................................................44

4.2 Install Mainboard Software ......................................................................45

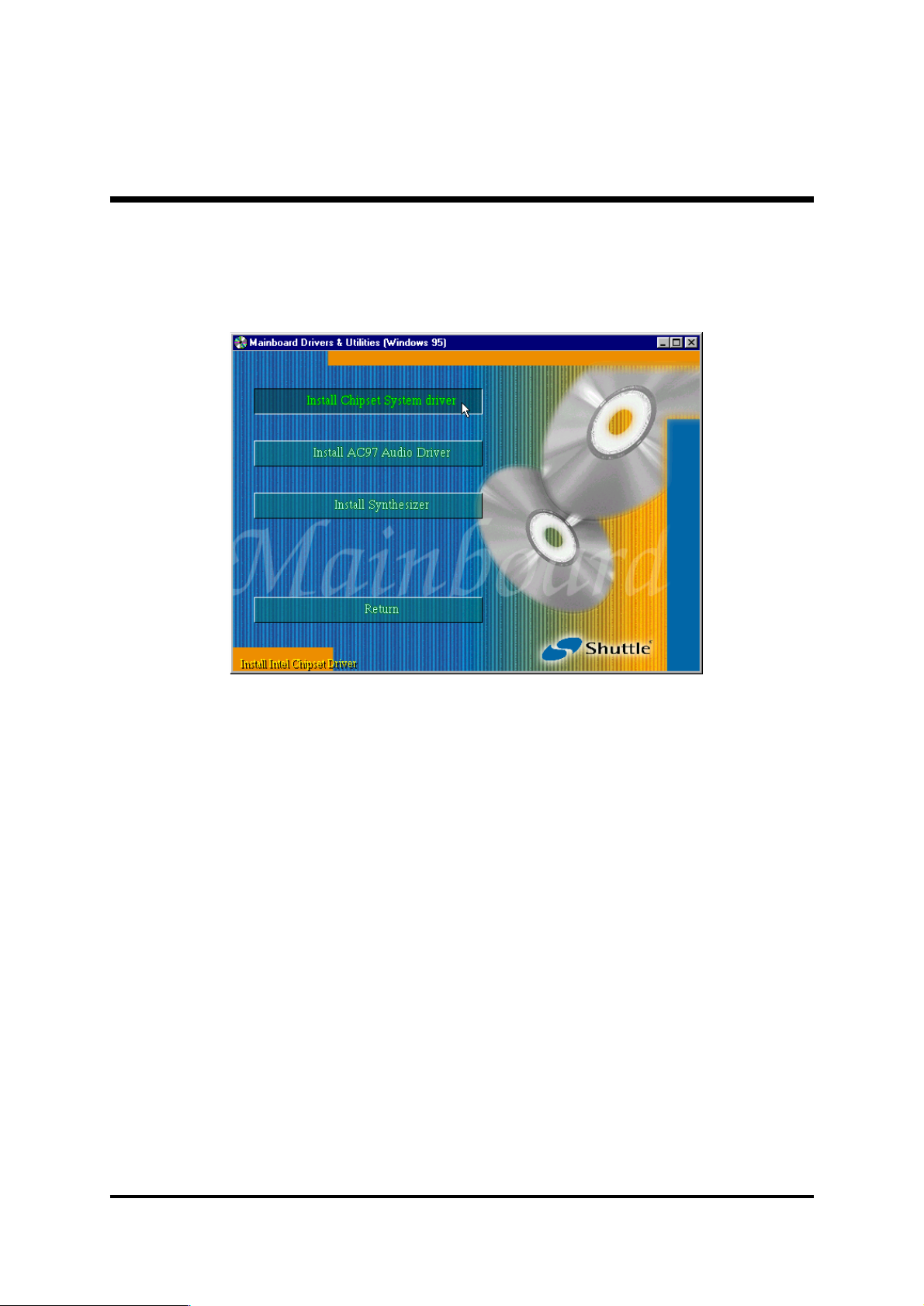

4.2.A Install Chipset System Driver ............................................................46

4.2.B Install AC97 Audio Driver..................................................................47

4.2.C Install Synthesizer .............................................................................48

4.3 Install IDE Driver .......................................................................................49

4.4 View the User's Manual............................................................................50

5 BIOS SETUP.....................................................................................5 1

5.1 ENTER BIOS ..............................................................................................51

- 3 -

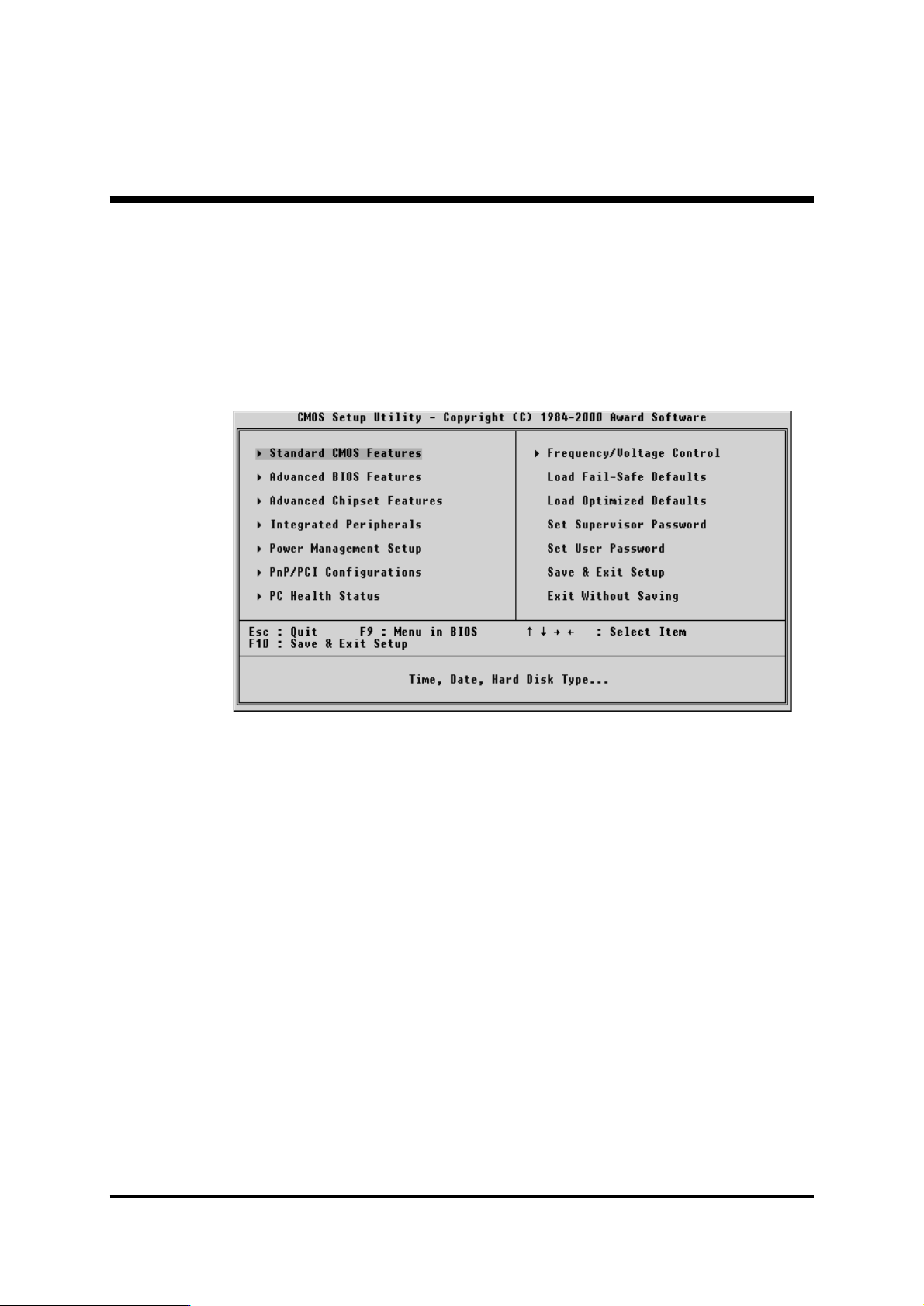

5.2 THE MAIN MENU .......................................................................................52

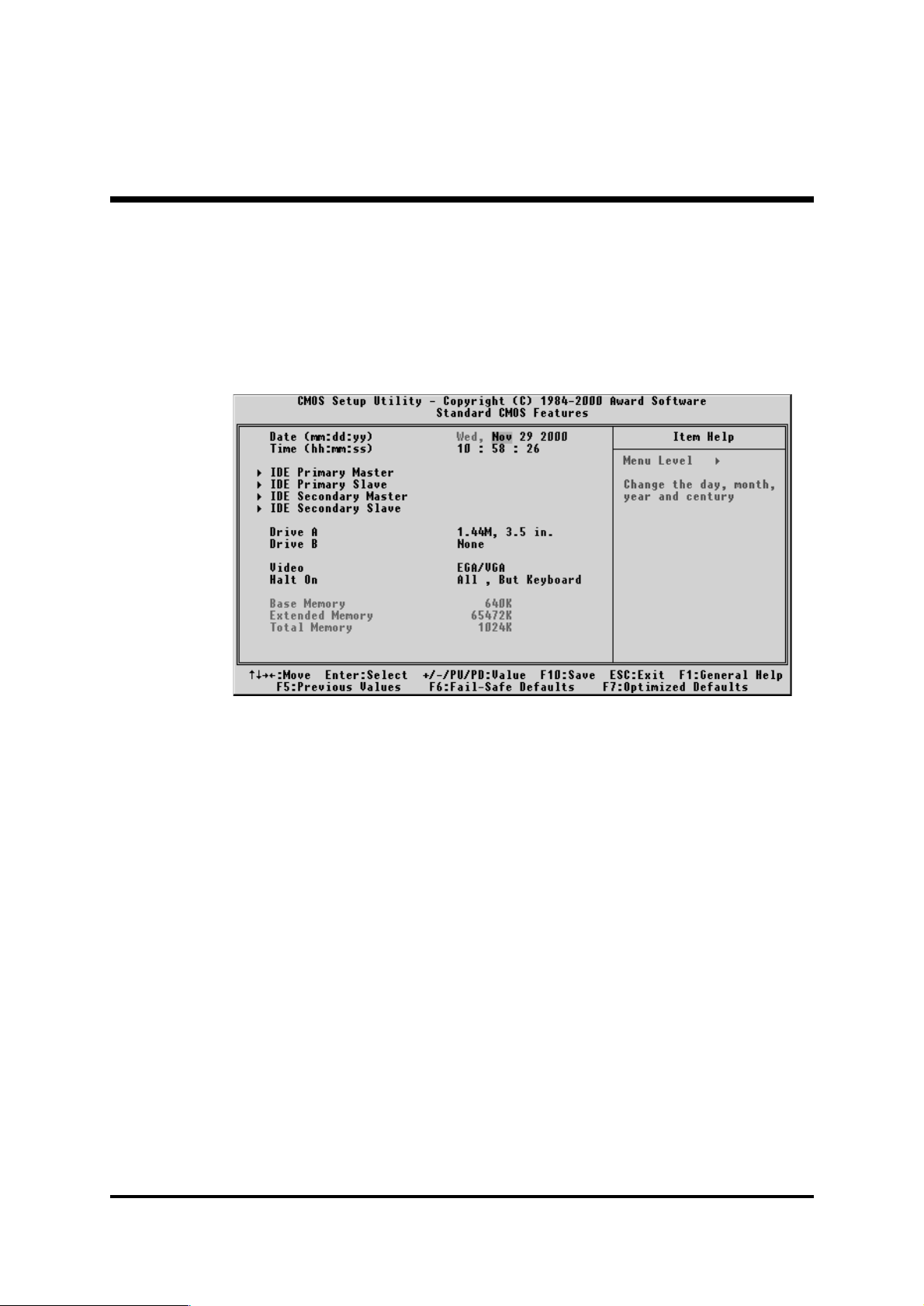

ST ANDARD CMOS FEATURES ................................................................54

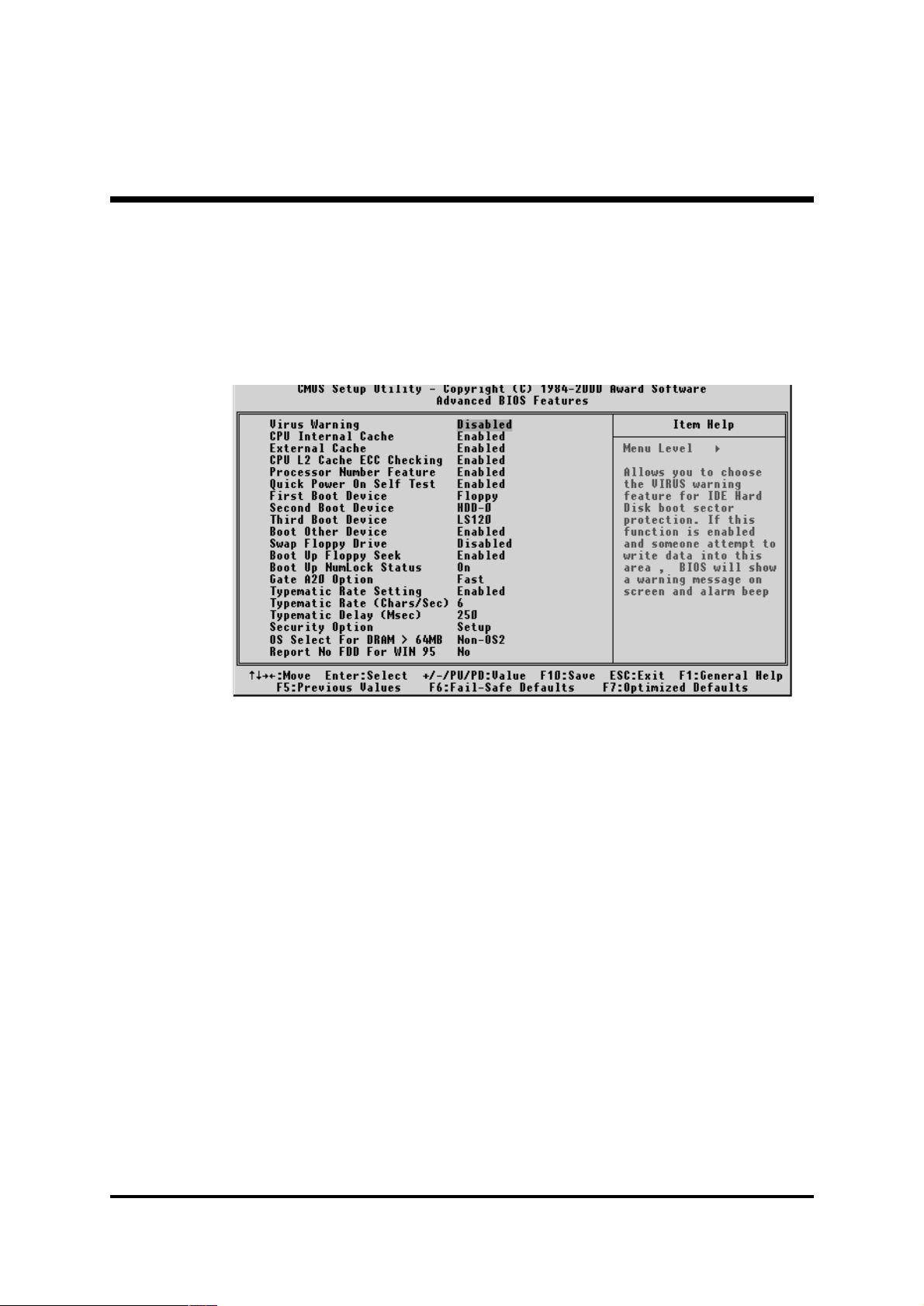

ADVANCED BIOS FEATURES..................................................................58

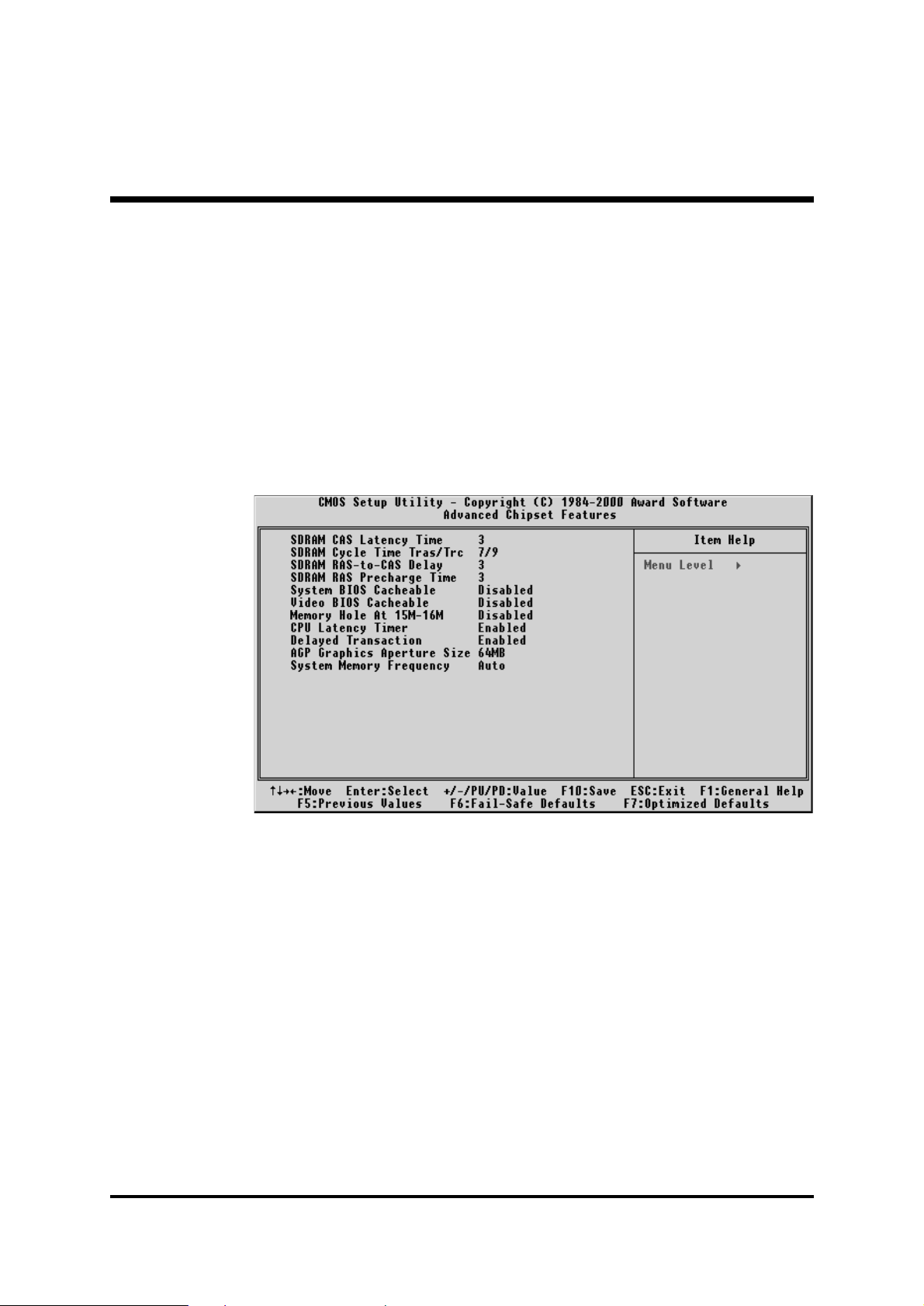

ADVANCED CHIPSET FEATURES ...........................................................62

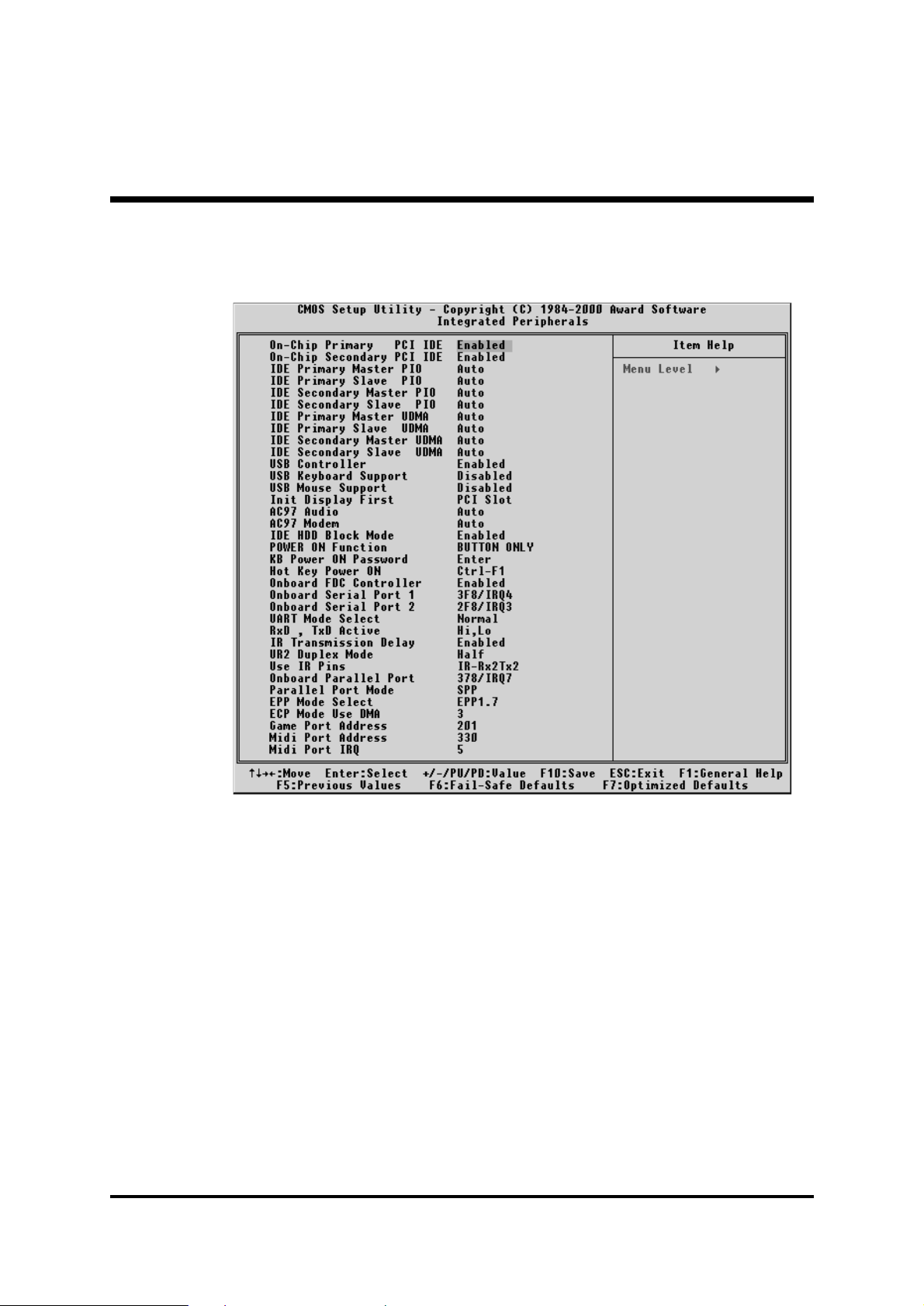

INTEGRATED PERIPHERALS...................................................................65

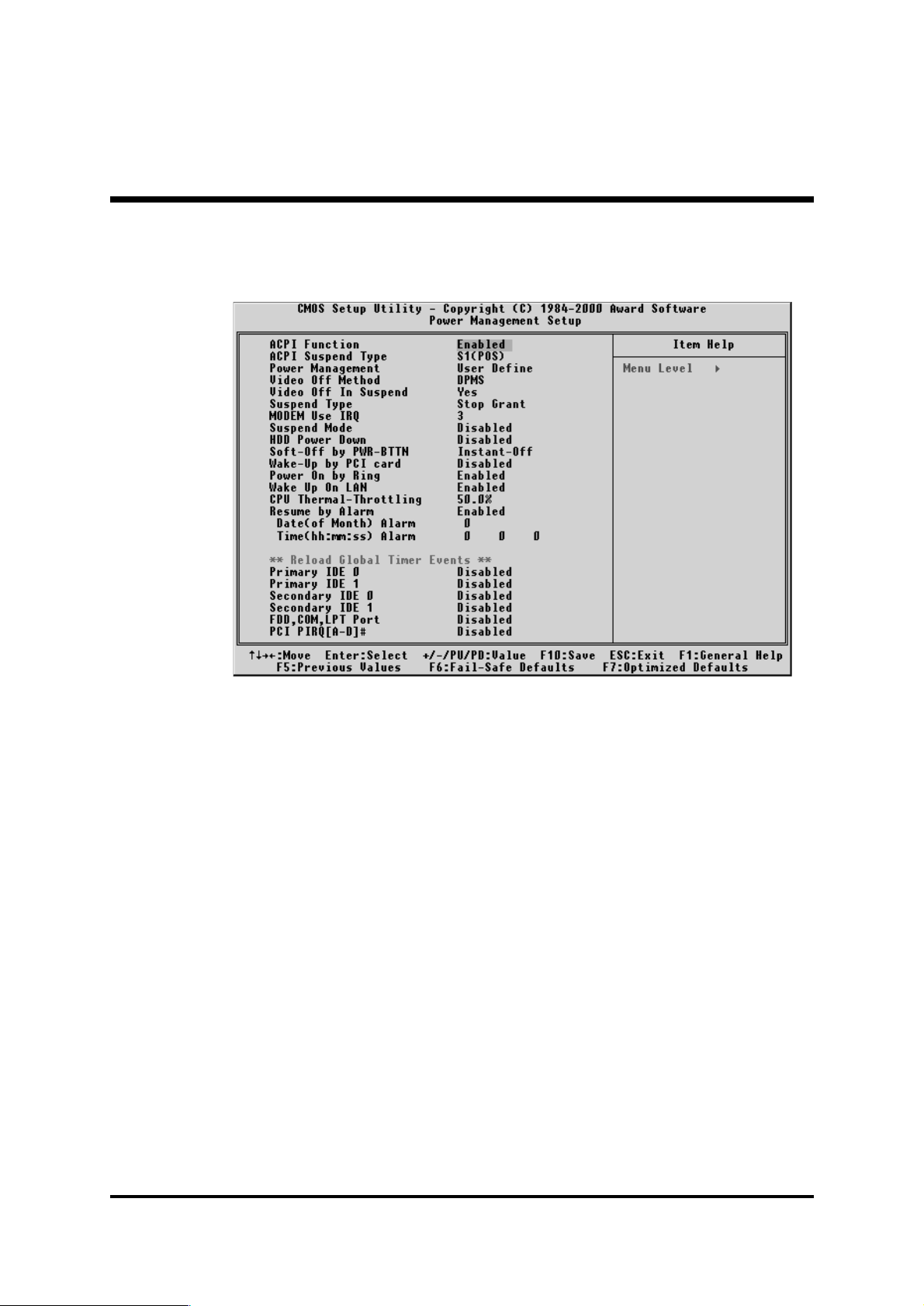

POWER MANAGEMENT SETUP ..............................................................70

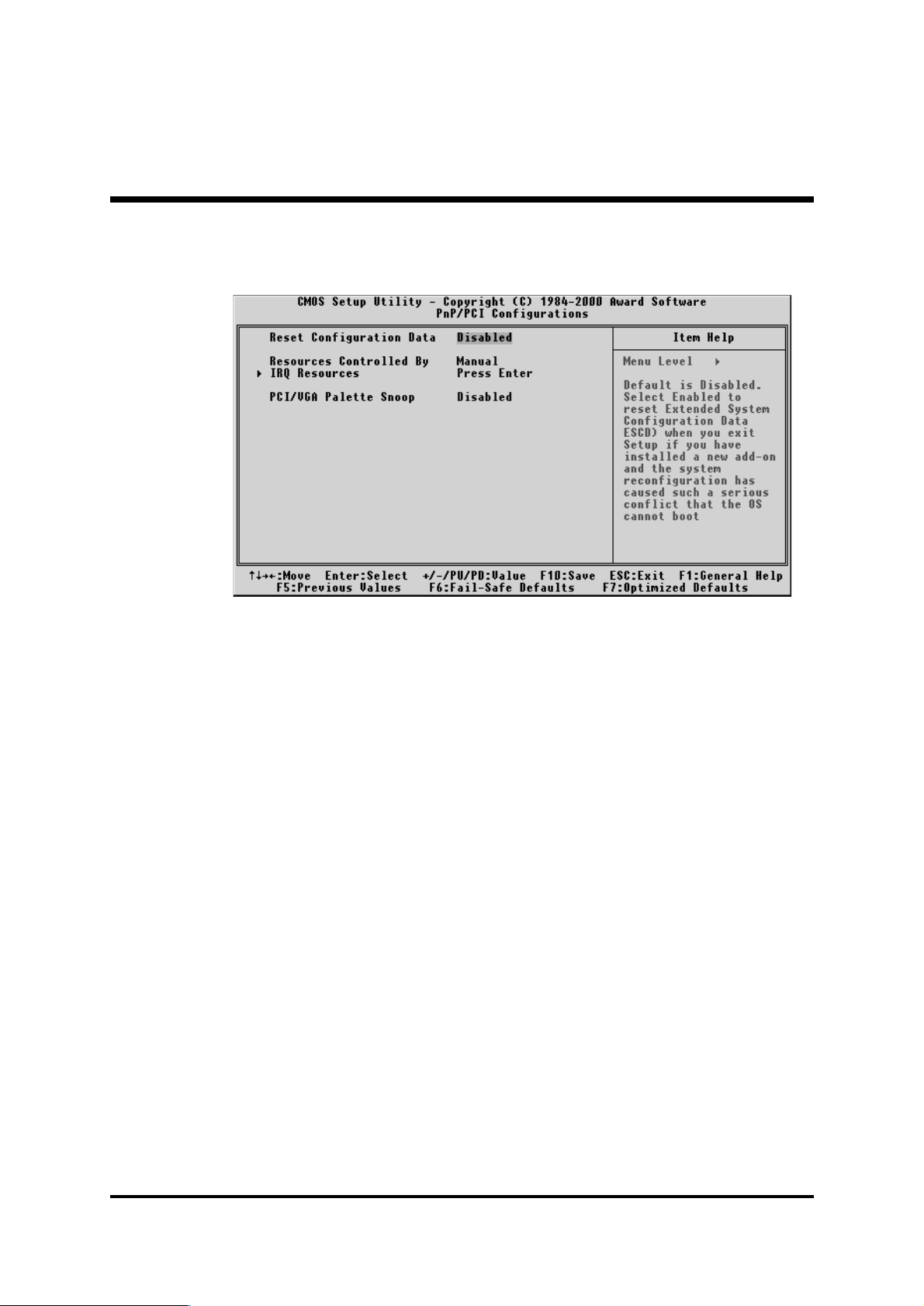

PNP/PCI CONFIGURA TION .......................................................................74

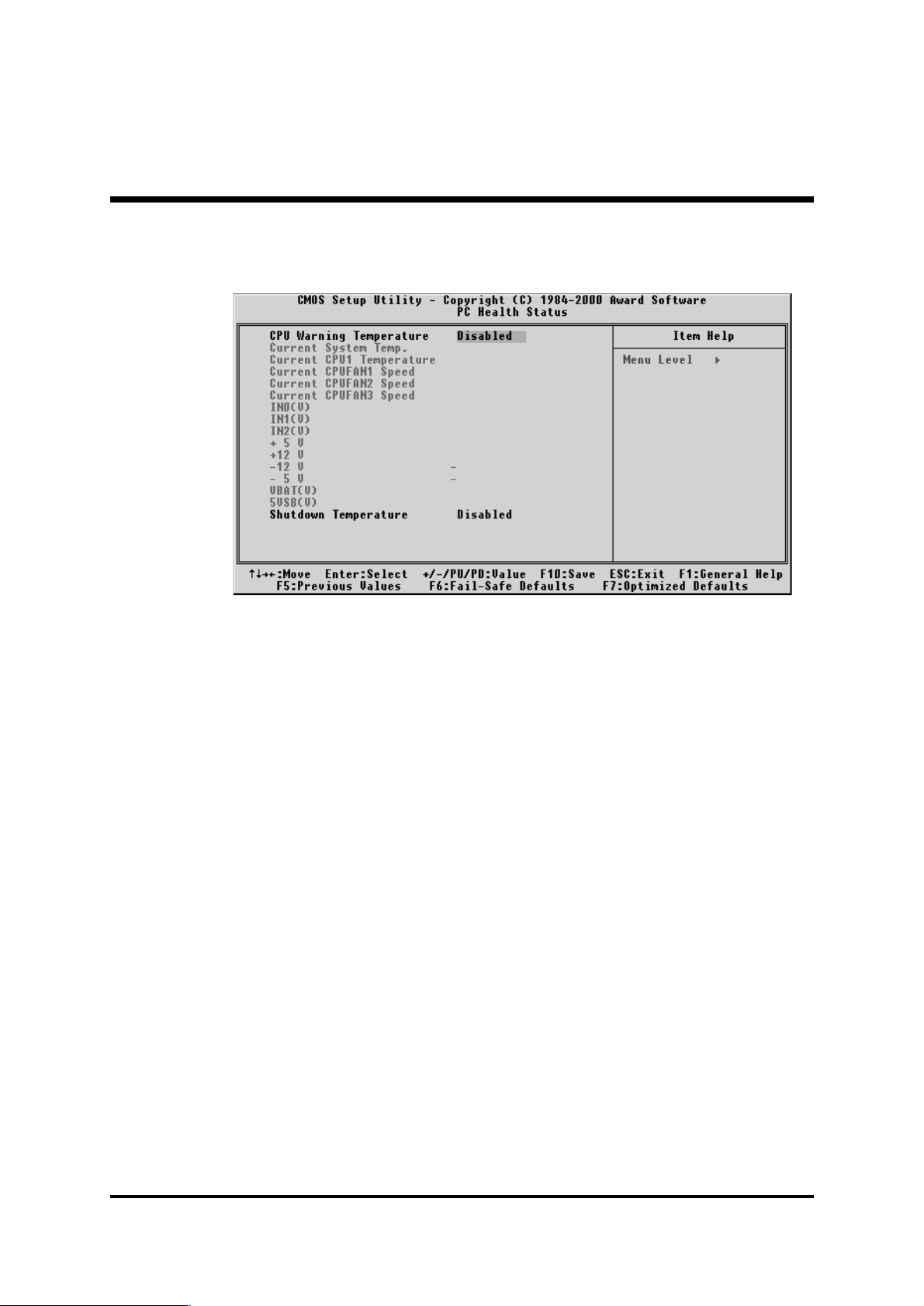

PC HEALTH STA TUS.................................................................................76

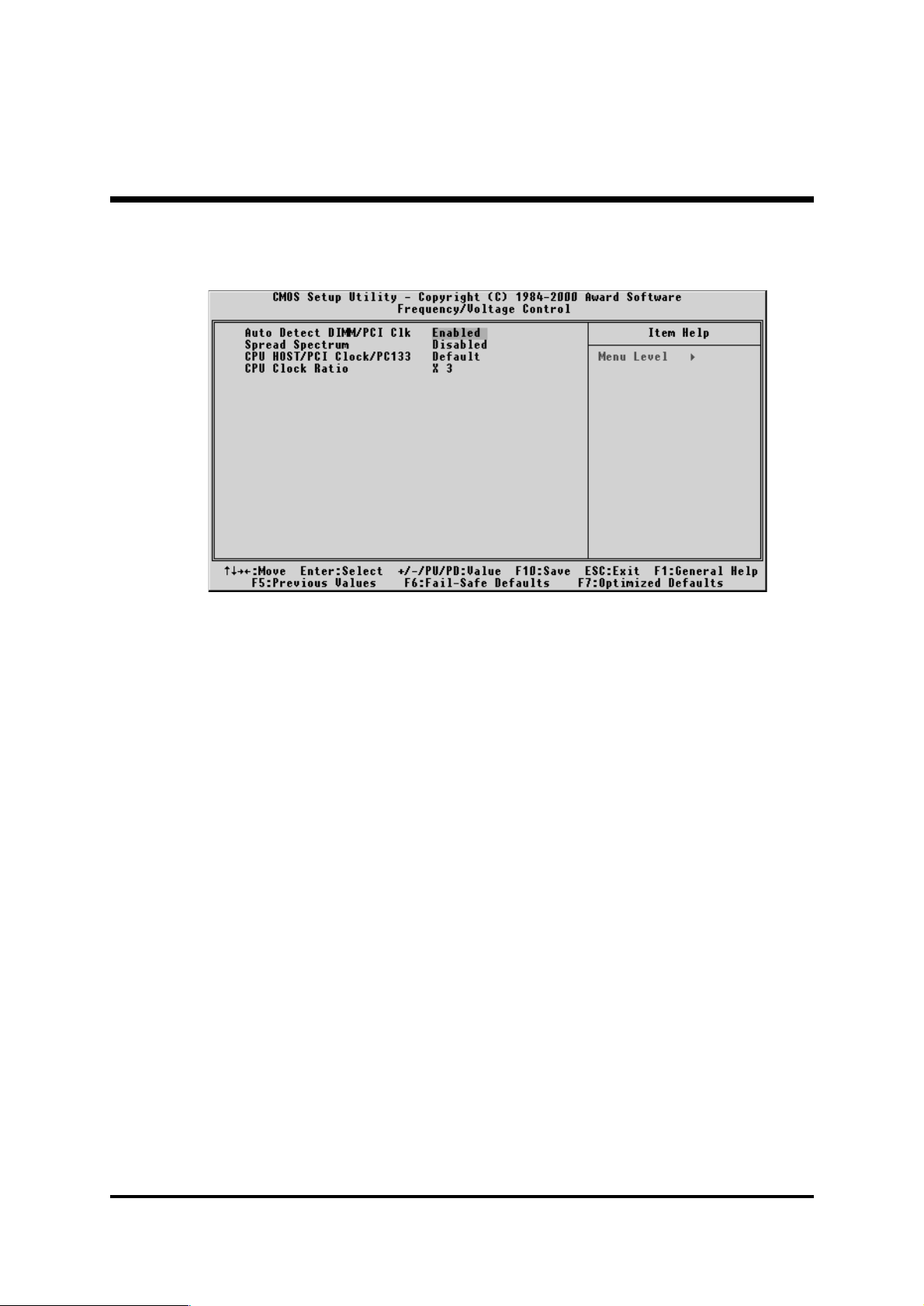

FREQUENCY/VOL TAGE CONTROL..........................................................78

LOAD FAIL-SAFE DEFAULTS...................................................................79

LOAD OPTIMIZED DEFAU L TS ..................................................................79

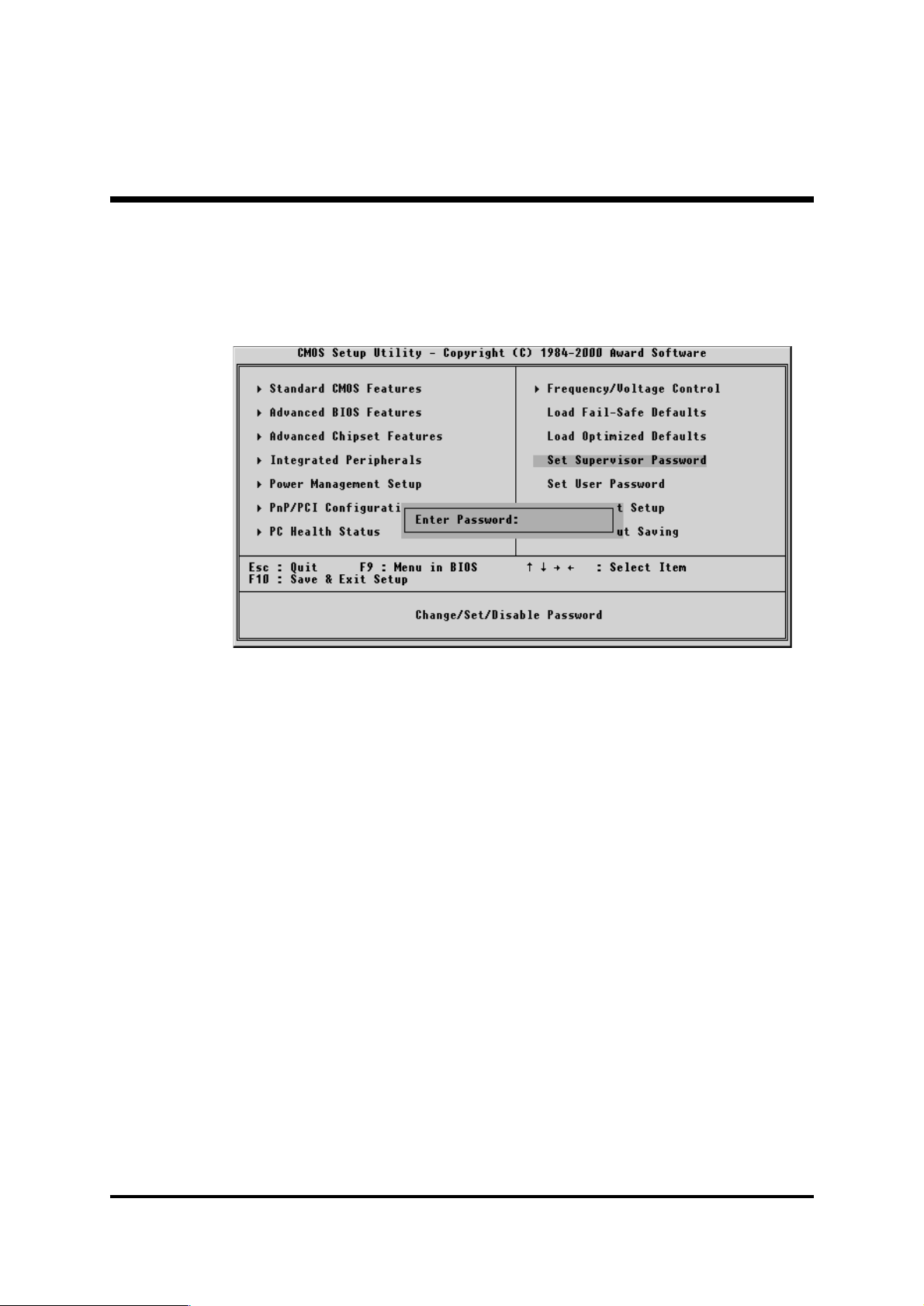

SET SUPERVISOR P ASSWORD ..............................................................80

SET USER PASSWORD ...........................................................................80

SAVE & EXIT SETUP.................................................................................82

EXIT WITHOUT SA VING .............................................................................82

- 4 -

WHAT’S IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................ Page 12

Jumper Settings >> A Closer Look ...................................................... Page 26

Drivers/Software Utilities >> How to Install ......................................... Page 44

BIOS Setup >> How to Configure ........................................................ Page 51

About This Manual

For First-Time DIY System Builder......................................................... Page 6

For Experienced DIY User ...................................................................... Page 6

For System Integrator ............................................................................. Page 6

- 5 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience
successful, right from the start, we have designed the 3.1 Hardware Installation
section in a step-by-step fashion for all the first-time DIY system builders. Prior
to installation, we also suggest you to read the whole manual carefully to gain a
complete understanding of your new Shuttle AE23 mainboard.

Experienced DIY User

Congratulate on your purchase of the Shuttle AE23 mainboard. You will find
that installing your new Shuttle AE23 mainboard is just easy. Bundled with an
array of onboard functions, the highly-integrated AE23 mainboard provides
you with a total solution to build the most stable and reliable system. Refer to
sections 3.2 Jumper Settings and Chapter 4 Drivers/Software Utilities to find
out how to get the best out of your new mainboard. Chapter 5 BIOS Setup also
contains the relevant information on how to tune up your system to achieve
higher performance.

System Integrator

You have wisely chosen Shuttle AE23 to construct your system. Shuttle AE23
incorporates all the state-of-the-art technology of the AE23 chipset from Intel.
It integrates the most advanced functions you can find to date in a compact
ATX board. Refer to sections 3.2 Jumper Settings and Chapter 4 Drivers/
Software Utilities for an in-depth view of system construction.

- 6 -

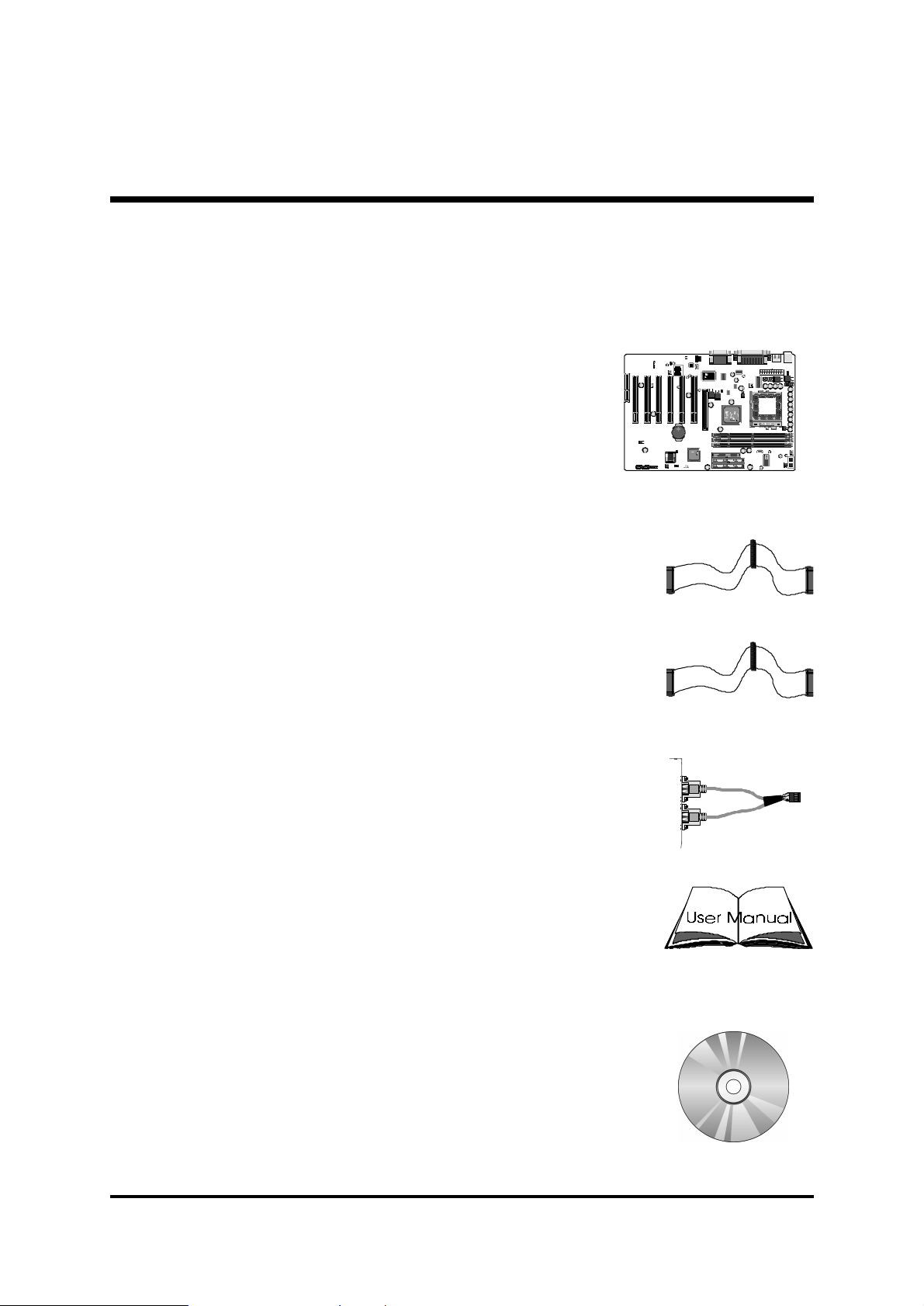

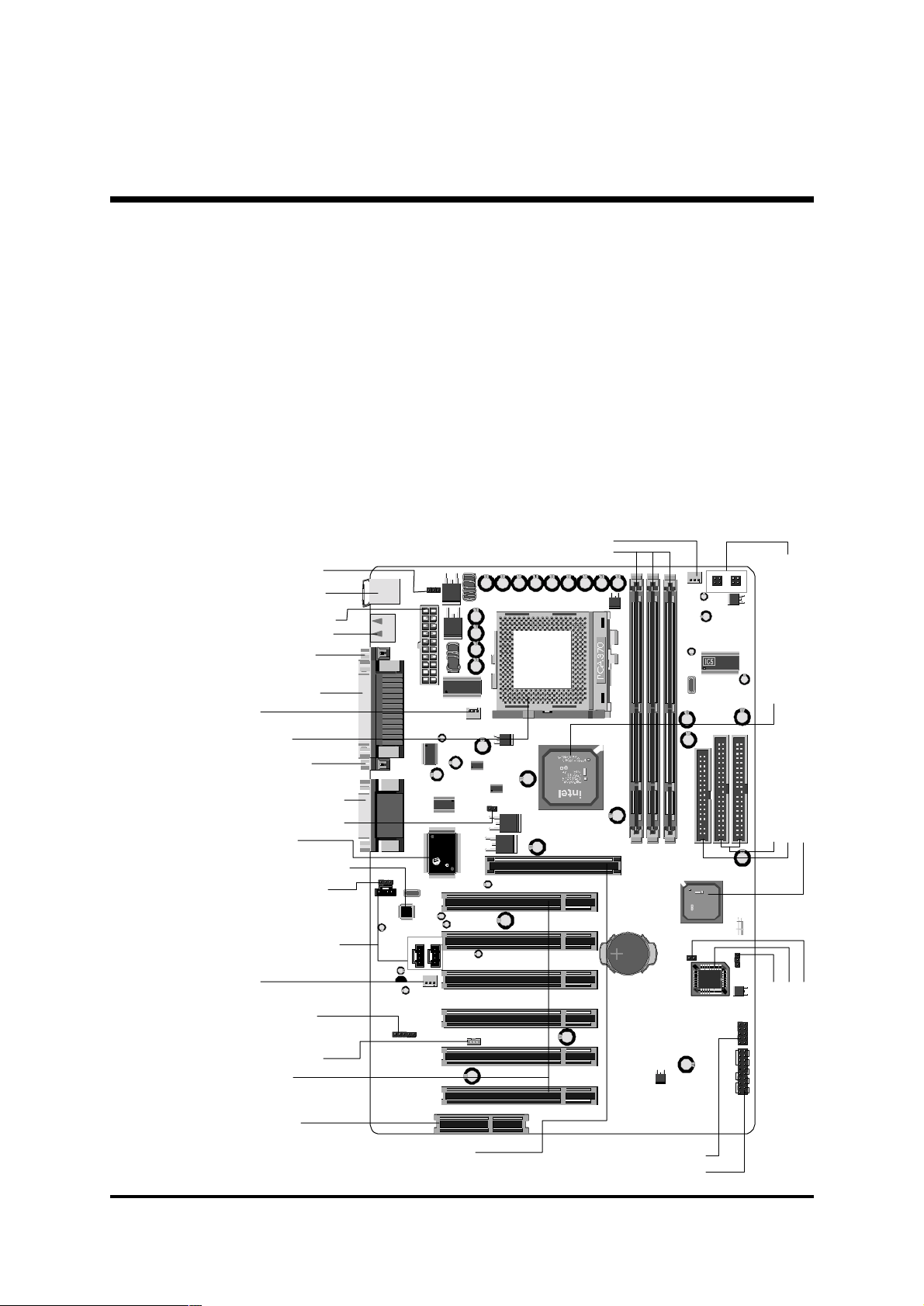

1.2 Item Checklist:

C
565

S

J6

J11US
3&

3

J5

J

J
3

J
5

J

J
3

FAN1

Check all items with you AE23 mainboard to make sure nothing is missing.
The complete package should include:

! One Shuttle AE23 Mainboard

! One ATA 100/66/33 Ribbon Cable

! One Floppy Ribbon Cable

! One two ports USB Cable (optional)

JP11 1

AJ 1

1

J7

J17IR

1

P1

1

FAN

11

P12

inbond

W83627HF-AW

c

AM. MEGA. 87-96

GD 75232D

J13

1

CNR 1

Panasonic
CR2032

3V

JAPAN1

1

POWER

KEY

LED

LOCK SPKER

B

1

4

1

1

PWN

SMI

RST

GEN

HDD

BTN

BTN

BTN

LED

LED

HS48

1

JP10

SL1

DIMM1DIM M2DIMM3

MALAY
G94S9024NE

cM

INTEL ‘99
Q938ES
L949004Q
FW82801BA

intel

2

111

USB1

JP 8

KB MS1

JWR1

1

GD 75232D
HS48

FLP1

J18

RichTek

RT9231

CS1M91

1

14.3C93

FAN2

11

9952

9250AF-30

P

A

IDE2 IDE1

P

1

7A E

3-4
1-2

J1

1

! One AE23 User’s Manual

! One Shuttle Spacewalker Bundled CD-ROM containing:

" AE23 user’s manual saved in PDF format
" Intel Chipset System Driver
" AC97 audio CODEC driver
" Synthesizer
" IDE driver
" Award Flashing Utility

- 7 -

2 FEA TURES

AE23 mainboard is carefully designed for the demanding PC user who wants high perfor­mance and maximum intelligent features in a compact package.

2.1 Specifications

 CPU Support

Intel FC-PGA/PPGA Celeron processors with 66MHZ FSB.
Intel FC-PGA Pentium III processors with 100/133MHZ FSB.

 Chipset

Features Intel 815EP N.B. and Intel 82801BA S.B..

 Jumperless CPU Configuration

Soft-configuration FSB (The FSB speed is software configurable from 66MHz
to 166MHz in the Frequency/Voltage Control of BIOS setup program.)

 AC'97 Link for Audio and Telephony CODEC

AC'97 2.1 compliant
Independent bus master logic for 5 channels
Separate independent PCI functions for Audio and Modem

 Versatile Memory Support

Is equipped with three DIMM slots for (16, 32, 64, 128, 256, or 512 MB)
168-pin 100MHz or 133MHZ PC SDRAM. The total memory is up to 512
MB.

 PCI Expansion Slots

Provides six 32-bit PCI slots.

 AGP Expansion Slots

Provides one 32-bit AGP slot which supports up to 4X AGP devices.

CNR Expansion Slots

Provides one CNR (Communication/Network Riser) slot.

- 8 -

 4 USB Ports Onboard

Ø 2 × USB connectors on back-panel and dual USB connectors header on

front panel.

Onboard I/O Ports and Interfaces

Provides a variety of I/O interfaces:
Ø 1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, 2.88MB

format or for 5.25-inch FDD with 360KB or 1.2MB format.

Ø 1 × PS/2 mouse header
Ø 1 × PS/2 Keyboard header
Ø 2 × DB9 Serial connectors 16V550 UART compatible
Ø 1 × DB25 Parallel port supports Standard Parallel Port and Bi-direc

tional (SPP), Enhanced Parallel Port (EPP), and Extended Capabilities Port
(ECP) data transmission schemes.

 PCI Bus Master IDE Controller Onboard

Two Ultra DMA 100/66/33 Bus Master Dual-channel IDE ports provide sup­port to a maximum of four IDE devices (one Master and one Slave per channel).
The IDE Bus implements data transfer speeds of up to 100/66/33 MB/sec and
also supports Enhanced PIO Modes 0~4.

80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CD­ROM, CD-R, CD-RW, and LS-120 Supports.

 ATX Power Supply Connector

ATX power supply unit can connect to the onboard 20-pin ATX power
connector, supporting Suspend and Soft-On/Off by dual-function power
button.

 Advanced Configuration and Power Interface

Features four power saving modes: S1 (Snoop), S3 (Suspend to RAM), and S5
(Soft-Off). ACPI provides more efficient Energy Saving Features controlled by
your operating system that supports OS Direct Power Management (OSPM)
functionality.

 System BIOS

Provides licensed Award BIOS V6.0 PG on Intel Firmware Hub 4Mb Flash
core and supports Green PC, Desktop Management Interface (DMI).

- 9 -

 ATX Form Factor

System board conforms to ATX specification.
Board dimension: 304mm × 215mm.

 Advanced Features

Ø Low EMI - Built in spread spectrum and automatic clock shut-off of

unused PCI/SDRAMS slots to reduce EMI.

Ø PS/2 Keyboard / PS/2 Mouse Power-On - This mainboard implements a

special jumper to enable a system power-on function by PS/2 keyboard or
PS/2 mouse.

Ø Dual Function Power Button - The system can be in one of two states,

one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters Soft-Off mode.

Ø Wake-on-LAN (WOL) - The onboard WOL connector can be attached to

a network card that supports this function to wake up system via LAN.

Ø Modem Ring Power-On - The system can be powered on automatically by

the activation of modem ringing.

 Intelligent Features

Ø CPU Host Clock Setting - This item allows users to adjust CPU Host Clock

in BIOS.

Ø Voltage Monitoring - Monitors various voltages of key elements, such as

the CPU, and other critical system voltage levels to ensure stable current
passing through mainboard components. System voltages include Vcore/
VTT on CPU, and +5V, +12V, -5V, -12V on system etc.

Ø Fan Status Monitoring - To prevent CPU from overheating, the CPU fan is

monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is
required.)

Ø Temperature Monitoring - This item allows users to make sure whether the

CPU or system runs in a suitable temperature.

- 10 -

3 HARDWARE INSTALLA TION

AJ 1

Before removing or installing any of these devices including CPU, DIMMs, Add-On
Cards, Cables, please make sure to unplug the onboard power connector.

This section outlines how to install and configure your mainboard. Refer to the following
mainboard layout to help you to identify various jumpers, connectors, slots, and ports.
Then follow these steps designed to guide you through a quick and correct installation of
your system.

3.1 Step-by-Step Installation

Accessories Of AE23

PS/2 KB & MS Power­On Setting - J18

PS/2 Keyboard and
PS/2 Mouse Connectors

ATX Power Connector
Two USB Connectors

Serial Port
Connector (COM1)

Parallel Connector

FAN1

SOCKET 370

Serial Port
Connector (COM2)

Line-In/Line-Out/Mic-In
Game/MIDI Co nnectors

Wake-on Modem - JP10
I/O Controller

On Board Audio CODEC

Clear PS/2 Keyboard
Power On Password - J7

Onboard Audio
Connectors- JP11/JP12

/JP13

FAN3

KB MS 1

USB1

JP 8

1

JP11 1

Three D IMM Sl ots

FAN2

J18

1

JWR1

RichT ek

RT9231
CS1M91

FAN1

1

GD 75 232D

HS48

GD 75 232D

JP10

HS48

1

inbond

AM. MEGA. 87 -96
c

J7

W83627HF-AW

JP12JP13

1



1

FAN3

DIMM1 DIMM2 DIM M3

SL1

CR2032

Panasonic

1

FAN2

14.3C 93

FLP1

G94S9024NE

MALAY

cM

3V

JAPA N1

J5

1

1

1

1-2

3-4

J1

JP3JP5

CA5657A ES
9952
9250AF-30

FSB Auto Config - J1, JP3, JP5

IDE2 IDE1

INTEL 82801BA Chipset

Floppy Connector

Two E-IDE Connectors INTEL 82815EP Chipset

111

intel

FW 82801BA

L949004Q

Q938ES

INTEL 99

J2

1

1

IR Connector - J17

Wake-on LAN - J13

Six PCI Slots

One CNR Slot

J17IR



J13

One AGP 2x/4x Slot

1

CNR 1

Two Ports USB - J6 Header

Front Panel Connector - J11

KEY

POWER

J11

USB_3&4

LOC K SPKER

LED

J6
1

PWN

BTN

SMI

BTN

Clear CMOS - J2

GEN

LED

HDD

LED

RST

BTN

1

FWH Block L ock - J5

Programmable Flash EEPROM (FW H)

- 11 -

Step 1

®

Install the CPU:

1. Locate the CPU ZIF (Zero Insertion Force) socket on the upper-right
sector of your mainboard (between the back-panel connectors and the

DIMM memory slots).

2. Pull the CPU ZIF socket lever slightly sideways away from the socket
to unlock the lever, and then bring it to an upward vertical position.

3. Place your PPGA / FC-PGA 370 processor in the ZIF socket. Note that
the CPUs edges have been purposely designed non-symmetrical to

prevent from inserting the processor in wrong direction. The following
diagram demonstrates the correct placement of CPU in the ZIF socket.
You can see that the two blunt-edged corners should face towards the
socket-lever.

PPGA CPU

FC- PGA CPU

R

mc

I ‘ 99

2/)!%

Notch

Pent ium

MALAY

RB80526PY550 256
Q944A036 -0393 S L3R3

2/)!%

Lever

2/)!%

BlankBlank

Notch

4. Slightly push CPU into socket without applying excessive force while
making sure there is no gap between CPU and socket. Then lower
the socket lever all the way down to the horizontal position and lock it to
secure the CPU in place.

5. The PPGA / FC-PGA 370 CPU requires a set of heatsink/fan to ensure
proper cooling of processor. If heatsink/fan are not already mounted on
your CPU, you must purchase them separately and have it installed. Plug
the cable from heatsink/fan to CPU fan power connector located nearby.
Note that there are several types of CPU fan connectors. Normally, if your
mainboard supports hardware monitoring function, a 3-pin fan power
connector should allow your system to detect the CPU fans speed . The
CPU fan can also run with a 2-pin fan power connector, however, detec­tion of CPU fans speed is not supported. Another type of CPU fan may
feature a large 4-pin fan power connector, which does not support CPU
fan's speed detection and must connect directly to the system power
supply unit.

- 12 -

Step 2.

Set Jumpers

This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as any of the
following cases:

1. Overclock your CPU

2. Clear CMOS

3. Clear system password

4. Clear the password to power on system by PS/2 keyboard

For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with the mainboard
configuration procedures. The factory-set default settings are tuned for opti­mum system performance. For the advanced users who wish to customize
their system, section 3.2 Jumper Settings will provide detailed information on
how to configure your mainboard manually.

Step 3

Install SDRAM System Memory

To install memory, insert SDRAM memory module(s) in any one or two or
three DIMM banks. Note that SDRAM modules are directional and will not
go in the DIMM slots if they are not properly oriented. After the module is
fully inserted into the DIMM slot, lift the clips of both sides of the DIMM bank
to lock the module in place.

- 13 -

Step 4

Install Internal Peripherals in System Case

Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into the
computer housing, including but not limited to the hard disk drive (IDE/
HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de­scribed below.

To install IDE & FDD drives, follow this procedure:

1. Set the required jumpers on each device according to the instructions
provided by the manufacturer. (IDE devices, HDD, and CD-ROM, have to
set jumpers to Master or Slave mode depending on whether you install
more than one device of each kind.)

2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral devices to the corresponding headers on board. Note that the

cable should be oriented with its colored stripe (usually red or magenta)
connected to pin#1 both on the mainboard IDE or FDD connector and on
the device as well.

3. Connect an available power cable from your system power supply unit
to the back-panel of each peripheral device. Note that the power cable is

directional and cannot fit in if not properly positioned.

- 14 -

Step 5

Mount the Mainboard on the Computer Chassis

1. You may find that there are a lot of different mounting hole positions
both on your computer chassis and on the mainboard. To choose
correct mounting holes, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.

2. After deciding on the proper mounting holes, position the studs between
the frame of the chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to avoid any electrical shorts between the
board and the metal frame of the chassis. (If your computer case is
already equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)

Note: In most computer housings, you will be able to find 4 or more

attachment points to install mounting studs and then fix the
mainboard. If there arent enough matching holes, then make sure to
install at least 4 mounting studs to ensure proper attachment of the
mainboard.

- 15 -

Step 6

Connect Front Panel Switches/LEDs/Speaker/USB

You can find there are several different cables already existing in the system
case and originating from the computers front-panel devices (HDD LED,
Power LED, Reset Switch, PC Speaker, or USB devices etc.) These cables
serve to connect the front-panel switches, LEDs, and USB connectors to the
mainboards front-panel connectors group, as shown below.

PWN

BTN

SMI

US B_3&4

KEY

J6

1

POWER

1. Hardware Reset Switch Button (RST BTN)

LOCK SPKER

LE D

J11

BTN

GEN

LE D

HDD

LE D

RST

BTN

1

2. HDD-LED (HDD LED)

KEY

POWER

J11

KEY

POWER

J11

LOCK SPKER

LED

LOCK SPKER

LED

PWN

BTN

SMI

BTN

GEN

LED

+ -+ -

HDD

LED

+ -

RST

BTN

1

PWN

BTN

SMI

BTN

GEN

LED

+ -+ -

HDD

LED

+ -

RST

BTN

1

- 16 -

3. Green-LED (GEN LED)

4. System Management Interface Button
(SMI BTN)

5. ATX Soft Power On/Off (PWN BTN)

KEY

POWER

J11

KEY

POWER

J11

LOCK SPKER

LED

SPKER

LOC K

LED

PWN

BTN

SMI

BTN

GEN

LED

+ -+ -

HDD

LED

+ -

RST

BTN

1

PWN

BTN

SMI

BTN

GEN

LED

+ -+ -

HDD

LED

+ -

RST

BTN

1

6. Power LED (POWER LED)

KEY

POWER

J11

KEY

POWER

J11

LOCK SPKER

LED

LOCK SPKER

LED

PWN

BTN

SMI

BTN

GEN

LED

+ -+ -

HDD

LED

+ -

RST

BTN

1

PWN

BTN

SMI

BTN

GEN

LED

+ -+ -

HDD

LED

+ -

RST

BTN

1

- 17 -

7. Keylock (KEY LOCK)

8. PC Speaker (SPKER)

KEY

POWER

J11

KEY

SPKER

LOC K

LED

LOCK SPKER

PWN

BTN

SMI

BTN

GEN

LED

+ -+ -

HDD

LED

+ -

RST

BTN

1

PWN

BTN

SMI

BTN

GEN

LED

+ -+ -

HDD

LED

9. Front-panel USB connectors header

+5V

USBD2-

USBD2+
GROUND
GROUND

LED

POWER

+ -

J11

USB_3&4

1

1

GROUND
GROUND
USBD3+
USBD3­+5V

RST

BTN

- 18 -

Step 7

Connect IDE & Floppy Disk Drives

1. IDE cable connector

2. Floppy cable connector

IDE 2

FLP1

IDE 1

11

- 19 -

1

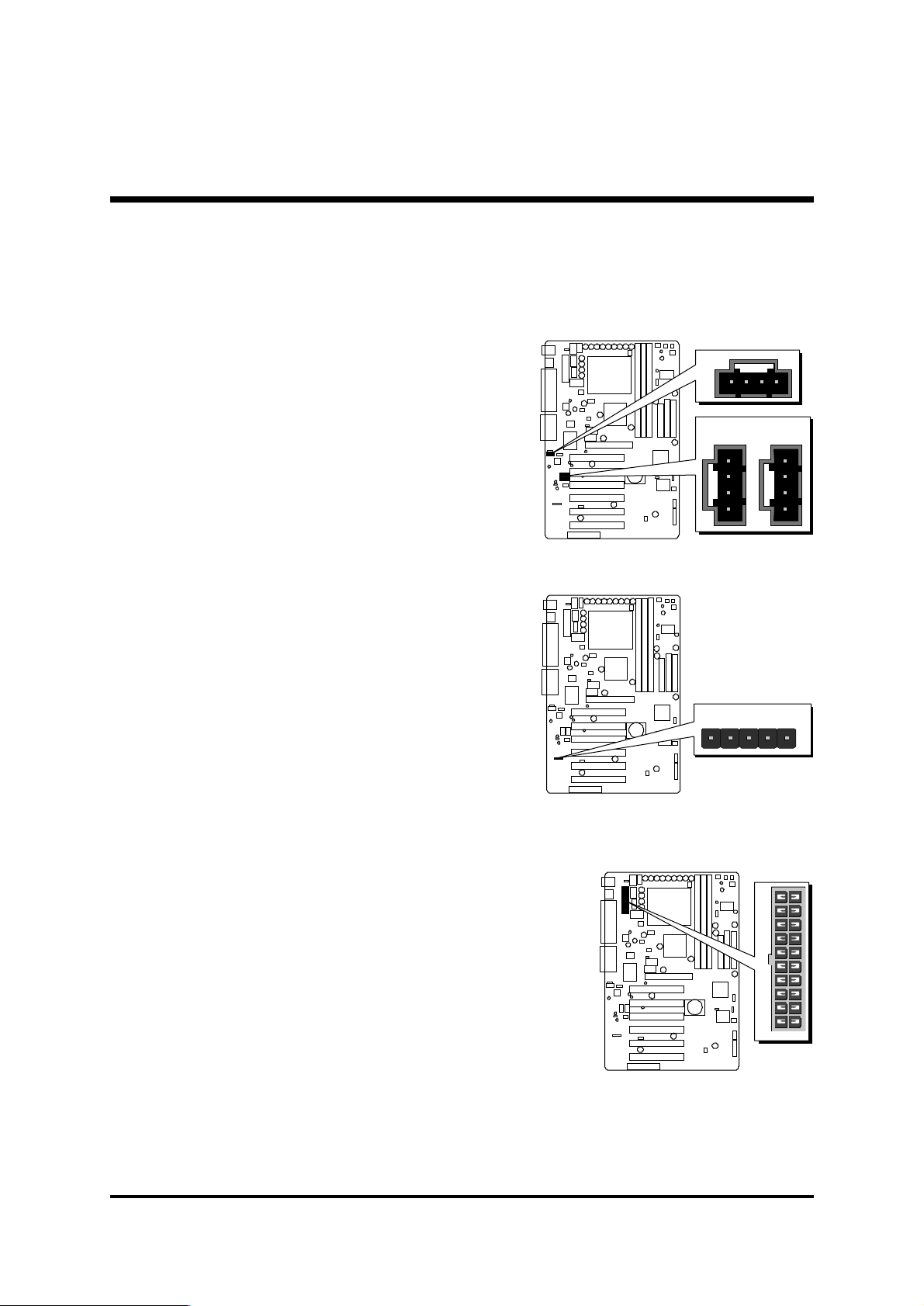

Step 8

Connect Other Internal Peripherals

1. Telephone_IN, Auxiliary_IN, CD_IN connectors

2. IR connector

JP11

IR

1

JP12JP13

11

J17



Step 9

Connect the Power Supply

1. System power connector

JWR1

- 20 -

Step 10

Install Add-on Cards in Expansion Slots

1. Accelerated Graphics Port (AGP) Card

2. PCI Card

3. CNR (Communication/Network Riser) Card
The CNR Slot supports the audio, modem, lan, Home PNA of Intel

82801BA chipset.

Note: The CNR Card is optional at

the time of purchase.

- 21 -

Step 11

Connect External Peripherals to Back-Panel

You are now ready to put the computer case back together and get on to the
external peripherals connections to your systems back-panel.

KB MS1

USB1

JP 8

AJ 1

1. PS/2 Mouse and PS/2 Keyboard

PS/2 Mouse

2. USB Devices

3. COM Port

- 22 -

PS/2 keyboard

USB1 & USB2

COM1

COM2

4. Parallel Port

5. MIDI/GAME Port

6. Audio Line_Out / Line_In / Mic_In

Parallel Port

MIDI/GAME Port

Line-Out Mic-InLine-In

- 23 -

Step 12

First Time System Boot Up

To assure the completeness and correctness of your system installation, you
may check the above installation steps once again before you boot up your
system for the first time.

1. Insert a bootable system floppy disk (DOS 6.2x, Windows 95/98/NT, or
others) which contains FDISK and FORMAT utilities into the FDD.

2. Turn on the system power.

3. First, you must use the FDISK utility to create a primary partition of the
hard disk. You can also add an extended partition if your primary parti-

tion does not use all of the available hard disk space. If you choose to
add an extended partition, you will have to create one or more logical
partitions to occupy all the space available to the extended partition. The
FDISK utility will assign a drive letter (i.e., C:, D:, E:,...) to each partition
which will be shown in the FDISK program. After FDISK procedure,
reboot your system by using the same system floppy disk.

Note: DOS 6.2x and Windows 95A can only support up to 2.1GB of

HDD partition. If you use the FDISK utility with one of the opera­ting systems mentioned above, you can only install your HDD into

partitions no larger than 2.1GB each.

4. Now, use the FORMAT utility to format all the partitions youve created.
When formatting the primary partition (C:), make sure to use the FORM-

AT C: /S command.

Note: FORMAT C: /S can transfer all the necessary system files into the

primary partition of your hard disk. Then, your HDD will become
a bootable drive.

5. Install all the necessary drivers for CD-ROM, Mouse, etc.

6. Setup the complete operating system according to your OS installation
guide.

- 24 -

Step 13

Install Drivers & Software Components

Please note that all the system utilities and drivers are designed for Win 9x
operating systems only. Make sure your Windows 9x operating system is
already installed before running the drivers installation CD-ROM programs.

1. Insert the AE23 bundled CD-ROM into your CD-ROM drive. The

auto-run program will display the drivers main installation window on
screen.

2. Select the "Install Mainboard Software" bar to run into sub-menu.

3. Choose "Install Chipset System Driver" and complete it.

4. Choose "Install AC97 Audio Driver" and complete it.

5. Choose "Install Synthesizer" and complete it.

6. Return to the main installation window and exit from the auto-run drivers

installation program.

- 25 -

3.2 Jumper Settings

Several hardware settings are made through the use of mini jumpers to con­nect jumper pins on the mainboard. Pin #1 could be located at any corner
of each jumper, you just find the location with a white right angle which
stands for pin 1#. There are several types of pin 1# shown as below:

3-pin and multi (>3) pin jumpers shown as following:
Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins are shown as for Close [On] or for
Open [Off]. To Short jumper pins, simply place a plastic mini jumpers over
the desired pair of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging
until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its
components. When putting the mainboard down, place it on top of its
original packaging film, on an even surface, and components side up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent
electrostatic discharge (ESD) whenever handling this equipment.

- 26 -

Jumpers & Connectors Guide

Use the mainboard layout on page 11 to locate CPU socket, memory banks,
expansion slots, jumpers and connectors on the mainboard during the instal­lation. The following list will help you to identify jumpers, slots, and connec­tors along with their assigned functions:

B1
B2

B3~B4

B5~B8

A1

E4
E6

E2

E1

A3A5 E2E2 E3

D1

A4

A2

E8

C1~C8

E9 E7 E5

CPU/Memory/Expansion Slots

Socket370 : CPU Socket for PPGA/FC-PGA 370 processors
DIMM1/2/3 : Three DIMM Slots for 16,32,64,128,256,512MB

,3.3V SDRAM (The total installed memory does not

exceed 512MB).
AGP : One AGP (Accelerated Graphics Port) Slot
PCI : Six 32-bit PCI Expansion Slots
CNR : Communication/Network Riser slot

- 27 -

Jumpers

A1

J7 : Clear PS/2 keyboard power on password

A2
A3

A4
A5

J2 : Clear CMOS setting
J1/JP3/JP5 : FSB speed auto configure setting
J5 : FWH block lock setting
J18 : PS/2 KB & MS power-on setting

Back Panel Connectors

B1

B1
B2
B3
B4

B5
B6

B7
B8

KB : PS/2 keyboard
MS : PS/2 mouse
USB : 2 USB (Universal Serial Bus) ports
COM1/2 : Serial port 1 (DB9 male)
PRINTER : Parallel port (DB25 female)
LINE_OUT : LINE_OUT port
LINE_IN : LINE_IN port
MIC_IN : MIC_IN port
GAME/MIDI : GAME/MIDI Port

Front Panel Connectors

C1
C2
C3
C4
C5
C6
C7
C8

HDD LED : IDE drive active LED (HDD LED)
RESET : Hardware reset switch (RST BTN)
Green LED : Green LED (GEN LED)
Power Switch : ATX power on/off momentary type switch (PWN BTN)
Power LED : System power LED (POWER LED)
KEYLOCK : KEYLOCK (KEYLOCK)
SPEAKER : Internal speaker (SPKER) in housing
SMI : System Management Interface (SMI BTN)

Internal Peripherals Connectors

D1
D1
D1

FLP1 : Floppy disk drive interface
IDE1 : IDE primary interface (Dual-channel)
IDE2 : IDE secondary interface (Dual-channel)

- 28 -

Other Connectors

E1

E2

E2

E2

E3

E4

E5

E6

E7

E8

E9

JWR1 : ATX power (20-pin header) connector
FAN1 : CPU fan connector
FAN2 : System & chassis fan connector
FAN3 : System & chassis fan connector
JP10 : Wake on modem connector
JP11 : Telephone_IN connector
JP12 : Auxiliary_IN connector
JP13 : CD_IN connector
J13 : Wake on Lan connector
J6 : Dual USB connectors header
J17 : IR connector

- 29 -

F Jumpers

A1

Clear PS/2 Keyboard Power on Password (J7)

J7 is used to clear PS/2 keyboard power on password. Clearing the J7 will
result in erasing the password you set and then any user may power on your
system without any secret code.

1

1

Pin 2-3 (Clear Password)

Pin 1-2 (Default)

Step 1. Turn off the system power (PC-> Off)
Step 2. Remove mini jumper from pin 1-2 on J7
Step 3. Place the mini jumper on pin 2-3 of J7 for a few seconds
Step 4. Return the mini jumper to pin 1-2 of J7
Step 5. Turn on the system power (PC-> On)

A2

Clear CMOS Setting (J2)

J2 is used to clear CMOS data. Clearing CMOS will result in the permanently
erasing previous system configuration settings and the restoring original
(factory-set) system settings.

1

J7

Pin 1-2 (Default)

1

Pin 2-3 (Clear CMOS)

1

Step 1. Turn off the system power (PC-> Off)
Step 2. Remove mini jumpers from pins 1-2 of J2
Step 3. Place the mini jumpers on pin 2-3 of J2

for a few seconds

Step 4. Return the mini jumpers to pin 1-2
Step 5. Turn on the system power (PC-> On)

- 30 -

J2

1

A3

FSB Speed Auto Configure Setting (J1, JP3, JP5)

AE23 provides jumper JP3 and JP5 to set automatically configured. front side
bus at 66MHz, 100MHz, 133MHz. Inserting mini jumper on JP3 and JP5 and
leave J1 all open as below enable users to identify automatically the FSB
speed.

Default

JP3 JP5



J1

1

1-2

3- 4

1

1

1

JP3JP5

1-2

3-4

J1

For experienced users, AE23 mainboard provides an alternative hardware
configured function to adjust front side bus manually. Before you adjust FSB
frequency by jumper, you need to remove all mini jumpers from JP3 and JP5
and insert mini jumper properly on J1.

Manually

J1

1

1-2

3-4

System Clock JP3 JP5 J1 (1-2) J1 (3-4)

Auto ON ON OFF OFF

66 MHz OFF OFF ON ON

100 MHz OFF OFF ON OFF

133 MHz OFF OFF OFF OFF

- 31 -

A4

A3

Firmware Hub Block Lock Setting (J5)

You may flash BIOS (FWH) by placing mini jumper on Pin1-2.

1

(Default, you may flash BIOS)

1

(Lock the function to flash BIOS)

Reflash the BIOS, follow these steps:
Step 1. Turn off the system power (PC-> Off).
Step 2. Make sure of place jumper cap on J5 pin 1-2.
Step 3. Insert a bootable system floppy disk and then turn your system

to execute flash utility.

A5

PS/2 Keyboard & PS/2 Mouse Power-On Setting (J18)

AE23 mainboard provides an easy-to-use function to power on system by
PS/2 keyboard and PS/2 mouse.

1

J5

Firstly, you must set J18 jumper to enable power-on function. Then you also
need to specify the proper key through BIOS setup program. Please go to
field "

POWER ON Function" under the sub-menu of "Integrated Peripheral"

in BIOS setup program.

J18



1

J18 2-3 (default, Enable

power-on function)



J18 1-2 (Disable power-on function)

- 32 -

F Back-Panel Connectors

B1

PS/2 Keyboard & PS/2 Mouse Connectors

Two 6-pin female PS/2 keyboard & Mouse
connectors are located at the rear panel of
the mainboard. Depending on the com­puter housing you use (desktop or
minitower), the PS/2 Mouse connector is
situated at the top of the PS/2 Keyboard
connector when the mainboard is laid into
a desktop, as opposed to a minitower where
the PS/2 Mouse connector is located at the
right of the PS/2 Keyboard's. Plug the PS/2
keyboard and mouse jacks into their corre­sponding connectors.

B2

USB1/USB2 Port Connectors

This mainboard offers 2 USB ports on front
panel. Plug each USB device jack into an
available USB1/USB2 connector.

PS/2 Mouse

PS/2 keyboard

USB1 & USB2

B3

COM1/2 Connector

This mainboard can accommodate two
serial device on COM1/2. Attach a serial
device cable to the DB9 serial port COM1/
2 at the back panel of your computer.

B4

Parallel Port Connector

One DB25 female parallel connector is lo­cated at the rear panel of the mainboard.

Plug the connection cable from your paral­lel device (printer, scanner, etc.) into this
connector.

COM1 COM2

Parallel Port

- 33 -

B5

Line-Out

B6

Line-In

B7

Mic-In

Line-Out is a stereo output port through which
the combined signal of all internal and exter­nal audio sources on the board is output. It
can be connected to 1/8-inch TRS stereo
headphones or to amplified speakers

Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can be
used as a source for digital sound recording,
a source to be mixed with the output, or both.

Mic-In is a 1/8-inch jack that provides a mono
input. It can use a dynamic mono or stereo
microphone with a resistance of not more than
600 Ohms.

Line-Out

Line-In

B8

MIDI/GAME Port

The MIDI/GAME port is a 15-pin female con­nector. This port can be connected to any
IBM PC compatible game with a 15-pin D­sub connector.

MIDI Instrument Connection

You will need a MIDI adapter to connect a MIDI compatible instrument
to the sound card. The MIDI adapter can in turn be connected to the
Joystick/MIDI port. You will also need the MIDI sequencing software to
run MIDI instruments with your computer etc. into this connector.

Mic-in

MIDI/GAME Port

- 34 -

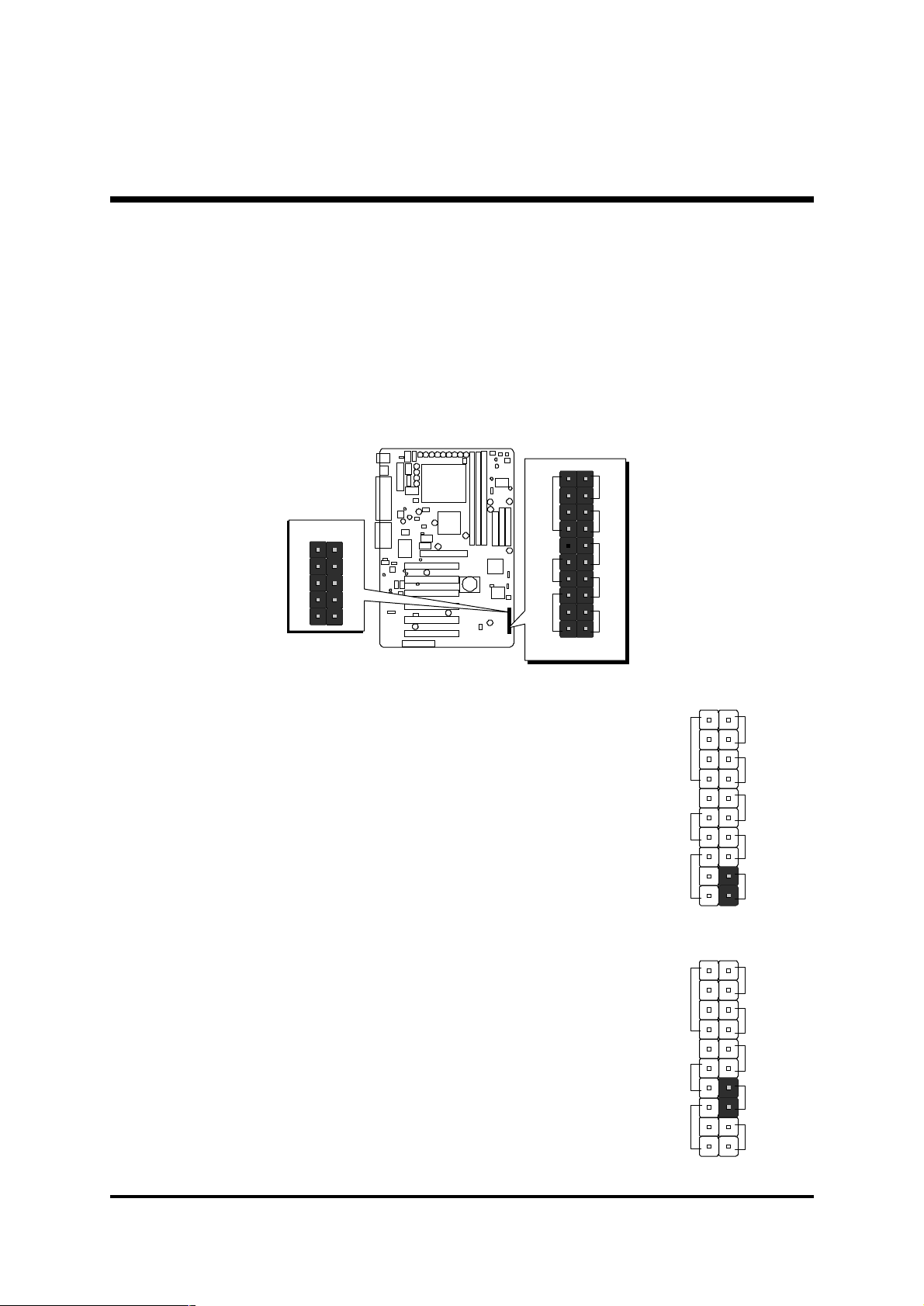

F Front-Panel Connectors

C1

HDD LED Connector (HDD LED)

Attach the connector cable from the IDE
device LED to the 2-pin HDD LED
header. The HDD LED lights up when­ever an IDE device is active.

C2

Hardware Reset Connector (RST BTN)

Attach the 2-pin hardware reset switch
cable to the RST header. Pressing the
reset switch causes the system to restart.

KEY

POW ER

J11

KEY

POW ER

J11

PWN

BTN

SMI

BTN

GEN

LED

LOCK SPKE R

LED

HDD

LED

RST

BTN

1

PWN

BTN

SMI

BTN

GEN

LED

LOCK SPKE R

LED

HDD

LED

RST

BTN

1

C3

Green LED Connector (GEN LED )

The Green LED (GEN LED) indicates that
the system is currently in one of the
power saving mode (Doze/Standby/
Suspend). When the system resumes
to normal operation mode, the Green
LED will go off. Attach a 2-pin Green
LED cable to GEN LED header.

Note : Please notice all the LED con­nectors are directional. If your chassiss
LED does not light up during running,
please simply change to the opposite
direction.

- 35 -

KEY

POW ER

J11

PWN

BTN

SMI

BTN

GEN

LED

LOCK SPKE R

LED

HDD

LED

RST

BTN

1

ATX Power On/Off Switch Connector (PWN BTN)

C4

The Power On/Off Switch is a momen­tary type switch used for turning on or
off the system ATX power supply. At­tach the connector cable from the
Power Switch to the 2-pin POW BTN
header on the mainboard.

C5

Power LED Connector (POWER LED)

Attach the 3-pin Power LED connector
cable from the housing front panel to
the POWER LED header on the
mainboard. The power LED stays light
while the system is running.

KEY

POW ER

J11

KEY

POW ER

J11

PWN

BTN

SMI

BTN

GEN

LED

LOCK SPKE R

LED

HDD

LED

RST

BTN

1

PWN

BTN

SMI

BTN

GEN

LED

LOCK SPKE R

LED

HDD

LED

RST

BTN

1

C6

Keylock Connector (KEYLOCK)

Attach the 2-pin KEYLOCK connector
cable from the housing front panel to
the KEYLOCK header on the
mainboard.

- 36 -

KEY

POW ER

J11

PWN

BTN

SMI

BTN

GEN

LED

LOCK SPKE R

LED

HDD

LED

RST

BTN

1

Speaker Connector (SPKER)

C7

Attach the PC speaker cable from the
case to the 4-pin speaker connector
(SPKER).

C8

System Management Interface Connector (SMI BTN)

Hardware System Management Inter­face (SMI) header may attach to 2-pin
momentary switch. Press the switch to
force system into power saving mode;
press it again to resume back the nor­mal operation situation.

KEY

POW ER

J11

KEY

POW ER

J11

PWN

BTN

SMI

BTN

GEN

LED

LOCK SPKE R

LED

HDD

LED

RST

BTN

1

PWN

BTN

SMI

BTN

GEN

LED

LOCK SPKE R

LED

HDD

LED

RST

BTN

1

- 37 -

F Internal Peripherals Connectors

D1

Enhanced IDE and Floppy Connectors

The mainboard features two 40-pin dual-channel IDE device connectors
(IDE1/IDE2) providing support for up to four IDE devices, such as CD-ROM
and Hard Disk Drives (H.D.D.). This mainboard also includes one 34-pin
floppy disk controller (FLP1) to accommodate the Floppy Disk Drive (FLP1).
Moreover, this mainboard comes with one 80-pin ATA 100/66/33 ribbon
cable to connect to IDE H.D.D. and one 34-pin ribbon cable for F.D.D.
connection.

IDE1

IDE2

FLP1

111

Note : Please connect your system H.D.D. to IDE 1.

Important: Ribbon cables are directional, therefore, make sure to always

connect with the red cable.

- 38 -

F Other Connectors

E1

ATX Power Supply Connector (JWR1)

Locate the 20-pin male header ATX power connector (JWR1) on your
mainboard. Plug the power cable from the ATX power supply unit directly
into JWR1 ATX power supply connector.

Note 1: The ATX power connector is directional and will not go in unless the

guides match perfectly making sure that pin#1 is properly positioned.

Note 2: Make sure the latch of the ATX power connector clicks into place to

ensure a solid attachment.

Note 3: Your ATX power supply must be supplied to ACPI +5V standby

power and at least 720mA compatible.

Note 4: Make sure your power supply have enough power for higher speed

processor installed.

JWR1

E2

CPU and System or Chassis Fan connectors - FAN1/2/3

The mainboard provides three onboard 12V cooling fan power connectors
to support CPU (FAN1), System or Chassis (FAN2,FAN3) cooling fans.

Note:

Both cable wiring and type of plug may vary
, which depends on the fan maker. Keep in
mind that the red wire should always be
connected to the +12V header and the black
wire to the ground (GND) header.

GND

+12V

SENSE

FAN1

1

1

- 39 -

1

FAN2

1

FAN3

E3

Wake-on Modem Connector (JP10)

Attach a 2-pin connector from the Modem which supports Wake-On Modem
function. This function lets users ring in the connected system through Modem.

E4

Audio Telephone_IN Header (JP11) (Green)

Port JP11 can be used to connector a modem audio line to AE23 mainboard.
Typically, you would use this connector when running the voice mail software
on your system for audio input and output.

4 3 2 1

JP1 0

1

Pin Assignments:
1=MONO_PHONE 2=AGND
3=AGND 4=MONO_OUT

E5

Audio AUXILIARY_IN Header (JP12) (White)

Port JP12 can be used to connect a stereo audio input from CD-ROM, TV-tuner
or MPEG card.

1

Pin Assignments:
1=AUXL 2=AGND
3=AGND 4=AUXR

2
3
4

JP11

1

JP12

1

- 40 -

E6

Audio CD_IN Header (JP13) (Black)

Port JP13 is used to attach an audio connector cable from the CD-ROM drive.

Pin Assignments:
1=CD-L 2=CD-GND
3=CD-GND 4=CD-R

E7

Wake-On-Lan Connector (J13)

Attach a 3-pin connector from the LAN card which supports Wake-On-LAN
(WOL) function. This function lets users wake up the connected system
through LAN card.

3 2 1

Pin Assignments:
1=5V-SB 2=GND
3=Wake_Lan/GP2012

1

JP13



2
3
4

J13

1

E8

Dual USB Connectors Header (J6)

The headers are used to connect the cable attached to USB connectors
which are mounted on front panel or back panel. But the USB cable is op­tional at the time of purchase.

Pins Assignment:
1=+5V 3=USBD3­5=USBD3+ 7=GROUND
9=GROUND

2=GROUND 4=GROUND
6=USBD2+ 8=USBD2­10=+5V

- 41 -

10
8

6
4
2

9
7
5

USB_3&4

3
1

J6

1

E9

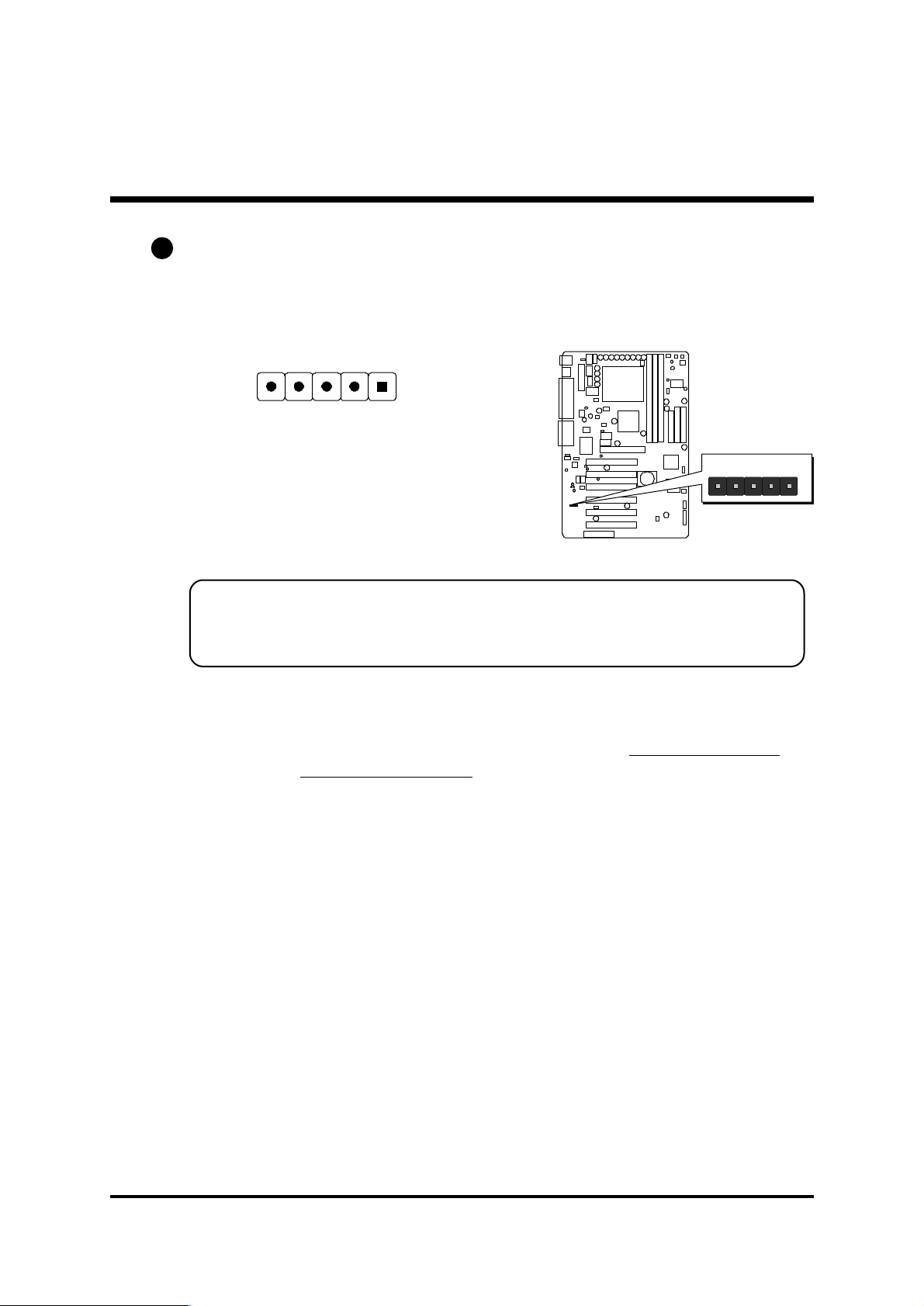

IR Connector (J17)

If you have an Infrared device, this mainboard can implement IR transfer
function. To enable the IR transfer function, follow these steps:

5 4 3 2 1

Pins Assignment:

1=+5V 2=CIRRX 3=IRRX
4=GND 5=IRTX

Note: Before connect your IR device, please be sure each IR on board pin

allocation is matchable with the pin of the IR device. Otherwise,
incorrect IR connection may do damage to your IR device.

Step 1. Attach the 5-pin infrared device cable to J17.

(Refer to the above diagram for IR pin assignment.)

J17

IR



Step 2. Configure the Infrared transfer mode in field "

Integrated Peripherals" sub-menu in BIOS setup program. This

of "
mainboard supports IrDA and Normal transfer modes.

UART Mode Select"

- 42 -

3.3 System Memory Configuration

The AE23 mainboard has three 168-pin DIMM slots that allow you to install
from 16MB up to 512MB of system memory with SDRAM (Synchronous
DRAM). Each DIMM (Dual In-line Memory Module) slot can accommodate
16MB, 32MB, 64MB, 128MB, 256MB and 512MB 3.3V single or double
side SDRAM modules. DIMM slots are arranged in three banks, each
memory bank made of one slot and providing a 64-bit wide data path. (The
total installed memory does not exceed 512MB.)

1. Install Memory:

Install memory in any or all of the banks and in any combination, as follows.

DIMM

Slot

DIMM 1

DIMM 2

DIMM 3

Memory Modules

16MB, 32MB, 64MB, 128MB, 256MB, and 512MB
168-pin 3.3V SDRAM DIMM

16MB, 32MB, 64MB, 128MB, 256MB, and 512MB
168-pin 3.3V SDRAM DIMM

16MB, 32MB, 64MB, 128MB, 256MB, and 512MB
168-pin 3.3V SDRAM DIMM

Mod ule

Quantity

x 1

x 1

x 1

Note: You do not need to set any jumper to configure memory since the

BIOS utility can detect the system memory automatically. You can
check the total system memory value in the BIOS Standard CMOS
Setup menu.

2. Upgrade Memory:

You can easily upgrade the system memory by inserting additional SDRAM
modules in available DIMM banks. The total system memory is calculated by
simply adding up the memory in all DIMM banks After upgrade, the new
system memory value will automatically be computed and displayed in the
field "

Standard CMOS Setup" of BIOS setup program.

- 43 -

4 SOFTW ARE UTILITY

4.1 Mainboard CD Overview

Note: The CD contents attached in AE23 mainboard are subject to

change without notice.

To start your mainboard CD disc, just insert it into your CD-ROM drive and
the CD AutoRun screen should appear. If the AutoRun screen does not
appear, double click or run D:\Autorun.exe (assuming that your CD-ROM
drive is drive D:)

Navigation Bar Description:

F Install Mainboard Software - Mainboard driver/software Installations.
F Manual - AE23 Series mainboard user's manual in PDF format.
F Link to Shuttle Homepage - Link to shuttle website homepage.
F Browse this CD - Allows you to see contents of this CD.
F Quit - Close this CD.

- 44 -

4.2 Install Mainboard Software

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.

Select using your pointing device (e.g. mouse) on the Install Mainboard
Software bar to run into sub-menu.

The Mainboard Software include:

[4.2.A] Install Chipset System Driver
[4.2.B] Install AC97 Audio Driver
[4.2.C] Install Synthesizer

- 45 -

4.2.A Install Chipset System Driver

Select using your pointing device (e.g. mouse) on the “Install Chipset System
driver” bar to install chipset system driver.

Once you made your selection, a Setup window runs the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

P.S.: After the first reboot, the system will continue the setup procedure and

then reboot automatically. Please must be sure the complete installation.

Note: When the Windows 95/98 first reboot after Intel Chipset System
drivers installed, some new hardware devices will be found and added. For
those new hardware devices, related software driver will be searched for
installing. The user may find the software drivers retain on directory
C:\windows\system if some of software drivers could not be found during
searching.

- 46 -

4.2.B Install AC97 Audio Driver

Select using your pointing device (e.g. mouse) on the “Install AC97 Audio
Driver” bar to install AC97 audio driver.

Once you made your selection, a Setup window runs the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

- 47 -

4.2.C Install Synthesizer

Select using your pointing device (e.g. mouse) on the “Install Synthesizer”
bar to install synthesizer.

Once you made your selection, a Setup window runs the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

- 48 -

4.3 Install IDE Driver

This driver may do bad effect on some model or brand of IDE HDD devices.
Hereby, we won't suggest users to install it cause it might crash your HDD
data. However, if you are very sure that the driver matches your IDE HDD,
please follow below indication to complete setup.

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.

Select using your pointing device (e.g. mouse) on the Browse this CD bar.
And then find out the location: Mainboard/ata/ata100 to install the driver.

P.S.: Before doing this IDE Driver installation, setup Chipset System Driver is

necessary.

Once you made your selection, a Setup window runs the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

- 49 -

4.4 View the User's Manual

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
AutoRun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.

Select using your pointing device (e.g. mouse) on the Manual bar.

Then Online Information windows will appear on your screen. Click on the
Install Acrobe Reader  bar if you need to install acrobe reader.

Then click on "AE23 Manual" bar to view user's manual.

- 50 -

5 BIOS SETUP

AE23 BIOS ROM has a built-in Setup program that allows users to modify the
basic system configuration. This information is stored
in battery-backed RAM so that it retains the Setup information even if the
system power is turned off.

The system BIOS is managing and executing a variety of hardware related
functions in the system, including:

System date and time
Hardware execution sequence
Power management functions
Allocation of system resources

5.1 Enter the BIOS

To enter the BIOS (Basic Input / Output System) utility, follow these steps:

Step 1. Power on the computer, and the system will perform its

POST (Power-On Self Test) routine checks.

Step 2. Press <Del> key immediately, or at the following message:

Press DEL to enter SETUP
,or simultaneously press <Ctrl>, <Alt>, <Esc> keys

Note 1. If you miss trains of words meationed in step2 (the message

disappears before you can respond) and you still wish to enter BIOS
Setup, restart the system and try again by turning the computer OFF
and ON again or by pressing the <RESET> switch located at the
computers front-panel. You may also reboot by simultaneously
pressing the <Ctrl>, <Alt>, <Del> keys.

Note 2. If you do not press the keys in time and system does not boot, the

screen will prompt an error message, and you will be given the
following options:

Press F1 to Continue, DEL to Enter Setup

Step 3. As you enter the BIOS program, the CMOS Setup Utility will

prompt you the Main Menu, as shown in the next section.

- 51 -

5.2 The Main Menu

Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall
that some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and opti­mize your system's performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

- 52 -

Power Management Setup

Use this menu to specify your settings for power management.

PnP / PCI Configuration

This entry appears if your system supports PnP / PCI.

PC Health Status

This entry shows the current system temperature, Voltage, and FAN
speed.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable
performance of your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory-set for
optimal performance system operation. While Award has designed the
custom BIOS to maximize performance, the factory has the right to
change these defaults to meet users' needs.

Supervisor / User Password

Use this menu to change, set, or disable supervisor/user password. It
allows you to limit access to the system and Setup, or only to Setup.

Save & Exit Setup

Save CMOS value changes in CMOS and exit from setup.

Exit Without Saving

Abandon all CMOS value changes and exit from setup.

- 53 -

( Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 catego­ries. Each category includes no, one or more than one setup items.
Use the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.

Date

<Month> <DD> <YYYY>
Set the system date. Note that the 'Day' automatically changes when

you set the date.

Time

<HH : MM : SS>
The time is converted based on the 24-hour military-time clock. For

example, 5 p.m. is 17:00:00.

IDE Primary Master

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IDE Primary Slave

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

- 54 -

IDE Secondary Master

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IDE Secondary Slave

Options are in its sub menu.
Press <Enter> to enter the sub-menu of detailed options.

Drive A/Drive B

Select the type of floppy disk drive installed in your system.
Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,

1.44M, 3.5 in, or 2.88M, 3.5 in.

Video

Select the default video device.
Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO.

Halt On

Select the situation in which you want the BIOS to stop the POST
process and notify you.

Ø The choice: All Errors, No Errors, All, But Keyboard, All, But

Diskette, or All, But Disk/Key.

Base Memory

Displays the amount of conventional memory detected during boot up.
Ø The choice: N/A.

Extended Memory

Displays the amount of extended memory detected during boot up.
Ø The choice: N/A.

Total Memory

Displays the total memory available in the system.
Ø The choice: N/A.

- 55 -

******************************************************

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu
to configure each hard disk drive.

IDE HDD Auto-Detection

Press <Enter> to auto-detect HDD on this channel. If detection is
successful, it fills the remaining fields on this menu.

Ø Press Enter

IDE Primary Master

Selecting 'manual' lets you set the remaining fields on this screen and
select the type of fixed disk. "User Type" will let you select the number
of cylinders, heads, etc., Note: PRECOMP=65535 means

NONE !

Ø The choice: None, Auto, or Manual.

Access Mode

Choose the access mode for this hard disk.

Ø The choice: CHS, LBA, Large, or Auto.

Capacity

Disk drive capacity (Approximated). Note that this size is usually
slightly greater than the size of a formatted disk given by a disk check­ing program.

Ø Auto-Display your disk drive size.

The following options are selectable only if the 'IDE Primary Master'
item is set to 'Manual'

Cylinder

Set the number of cylinders for this hard disk.

Ø Min = 0, Max = 65535

Head

Set the number of read/write heads.

Ø Min = 0, Max = 255

- 56 -

Precomp

Warning: Setting a value of 65535 means no hard disk.

Ø Min = 0, Max = 65535

Landing zone

Set the Landing zone size.

Ø Min = 0, Max = 65535

Sector

Number of sector per track.

Ø Min = 0, Max = 255

******************************************************

- 57 -

( Advanced BIOS Features

This section allows you to configure your system for basic operation.
You have the opportunity to select the system's default speed, boot-up
sequence, keyboard operation, shadowing, and security.

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enables and someone attempts to
write data into this area, BIOS will show a warning message on screen,
and an alarm beep.

Enabled Activates automatically when the system boots up,

causing a warning message to appear when anything
attempts to access the boot sector or hard disk parti­tion table.

Disabled No warning message will appear when anything

attempts to access the boot sector or hard disk parti­tion table.

Ø The choice: Enabled or Disabled.

CPU Internal Cache

This item enables CPU external cache to speed up memory access.
Ø The choice: Enabled or Disabled.

- 58 -

External Cache

This item enables CPU secondary cache to speed up memory access.
Ø The choice: Enabled or Disabled.

CPU L2 Cache ECC Checking

When you select Enabled, memory checking is enabled when the
external cache contains ECC SRAMs.

Ø The choice: Enabled or Disabled.

Processor Number Feature

Allows you to make Pentium III Processor Serial Number enabled/
disabled.

Ø The choice: Enabled, or Disabled.

Quick Power On Self Test

This item speeds up Power-On Self Test (POST) after you power on the
computer. If it is set to enabled, BIOS will shorten or skip some check
items during POST.

Ø The choice: Enabled, or Disabled.

First/Second/Third Boot Device

The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.

Ø The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1,

HDD-2, HDD-3, ZIP100, USB-FDD, USB-ZIP, USB-CDROM,
USB-HDD, LAN, or Disabled.

Boot Other Device

Select Your Boot Device Priority.
Ø The choice: Enabled or Disabled.

Swap Floppy Drive

If the system has two floppy drives, you can swap the logical drive
name assignment.

Ø The choice: Enabled or Disabled.

Boot Up Floppy Seek

Seeks disk drives during boot-up. Disabling speed boots up.
Ø The choice: Enabled or Disabled.

- 59 -

Boot Up NumLock Status

Selects power-on state for NumLock.
Ø The choice: Off or On.

Gate A20 Option

This entry allows you to select how the gate A20 is handled. The gate
A20 is a device used for above 1MByte of address memory. Initially,
the gate A20 was handled via a pin on the keyboard. Today, while a
keyboard still provides this support, it is more common and much faster
in setting to Fast for the system chipset to provide support for gate A20.

Ø The choice: Normal, or Fast.

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller.
When this controller enabled, the typematic rate and typematic delay
can be selected.

Ø The choice: Enabled or Disabled.

Typematic Rate (Chars/Sec)

This item sets how many times the keystroke will be repented in a
second when you hold the key down.

Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat
the keystroke.

Ø The choice: 250, 500, 750, or 1000.

Security Option

Select whether the password is required every time the system boots or
only when you enter setup.

System The system will not boot and access to Setup will be

denied if the correct password is not entered promptly.

Setup The system will boot, but access to Setup will be

denied if the correct password is not entered promptly.

Ø The choice: System or Setup.

- 60 -

Note: To disabled security, select PASSWORD SETTING at Main

Menu, and then you will be asked to enter password. Do not
type anything and just press <Enter>; it will disable security.

Once the security is disabled, the system will boot, and you
can enter Setup freely.

OS Select For DRAM > 64MB

Selects the operating system that is running with greater than 64MB of
RAM in the system.

Ø The choice: Non-OS2 or OS2.

Report No FDD For Win 95

Whether report no FDD runs for Win 95 or not.
Ø The choice: Yes or No.

- 61 -

!!

!

!!

Advanced Chipset Features

This section allows you to configure the system based on the specific features
of the installed chipset. This chipset manages bus speeds and access to sys­tem memory resources, such as DRAM and the external cache. It also coor­dinates communications between the conventional ISA bus and the PCI bus.
It states that these items should never need to be altered.

The default settings have been chosen because they provide the best operat­ing conditions for your system. If you discovered that data was being lost
while using your system, you might consider making any changes.

SDRAM CAS Latency Time

When synchronous DRAM is installed, the number of clock cycles of
CAS latency depends on the DRAM timing.

" The Choice: 2 or 3

SDRAM Cycle Time Tras/Trc

Selects the number of SCLKs for an access cycle.
" The Choice: 5/7 or 7/9.

SDRAM RAS-to-CAS Delay

This field lets you insert a timing delay between the CAS and RAS
strobe signals, and you can use it when DRAM is written to, read from,
or refreshed. Faster performance is gained in high speed, more stable
performance, in low speed. This field is applied only when synchro­nous DRAM is installed in the system.

" The Choice: 3 or 2.

- 62 -

SDRAM RAS Precharge Time

If an insufficient number of cycles is allowed for the RAS to accumulate
its charge before DRAM refresh, the refresh may be-incompleted, and
the DRAM may fail to retain data. Fast gives faster performance; and
Slow gives more stable performance. This field is applied only

when synchronous DRAM is installed in the system.
" The Choice: 3 or 2.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h­FFFFFh, resulting in better system performance. However, if any pro­gram is written to this memory area, a system error may result.

" The choice: Enabled or Disabled.

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS , resulting in better
system performance. However, if any program is written to this memory
area, a system error may result.

" The Choice: Enabled or Disabled.

Memory Hole At 15M-16M

You can reserve this area of system memory for ISA adapter ROM.
When this area is reserved, it cannot be cached. The user information
of peripherals that need to use this area of system memory usually
discusses their memory requirements.

" The Choice: Enabled or Disabled.

CPU Latency Timer

This item Enable/Disable the deferrable CPU cycle being deferred when
other device access memory.

" The Choice: Enabled or Disabled.

Delayed Transaction

The chipset has an embedded 32-bit posted write buffer to support
delayed transactions cycles. Select Enabled to support compliance with
PCI specification version 2.1.

" The Choice: Enabled or Disabled.

- 63 -

AGP Graphics Aperture Size (MB)

Select the size of Accelerated Graphics Port (AGP) aperture. The aper­ture is a portion of the PCI memory address range dedicated to graphics
memory address space. Host cycles that hit the aperture range are
forwarded to the AGP without any translation.

" The Choice: 64MB or 32MB.

System memory Frequency

This item controls system memory frequency selection. When setting to
be 0, it is 100MHz. When setting to be 1, it is 133MHz. and AUTO
setting means to be based on the DIMM SPD data.

" The Choice: 100MHz, 133MHz, or Auto

- 64 -

( Integrated Peripherals

On-Chip Primary/Secondary PCI IDE

The integrated peripherals controller contains an IDE interface with
support to two IDE channels. Select Enabled to activate each channel
separately.

Ø The choice: Enabled or Disabled.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE inter­face supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the

best mode for each device.
Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.

- 65 -

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA33/66/100 implementation is possible only if your IDE hard
drive supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If both of
your hard drive and your system software support Ultra DMA33/66/
100, select Auto to enable BIOS support.

Ø The Choice: Auto or Disabled.

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have USB peripherals.

Ø The choice: Enabled or Disabled.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard.

Ø The choice: Enabled or Disabled.

USB Mouse Support

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB Mouse.

Ø The choice: Enabled or Disabled.

Init Display First

This item allows you to decide to activate whether PCI Slot or AGP Slot
first.

Ø The choice: PCI Slot or AGP .

AC97 Audio

This item allows you to decide to enable/disable the 810 chipset family
to support AC97 Audio.

Ø The choice: Auto or Disabled.

AC97 Modem

This item allows you to decide to enable/disable the 810 chipset family
to support AC97 Modem.

Ø The choice: Auto or Disabled.

- 66 -

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or mul­tiple sector read/write. If your IDE hard drive supports block mode
(most new drives do), select Enabled for automatic detection of the
optimal number of block read/writes per sector the drive can support.

Ø The choice: Enabled, or Disabled

POWER ON Function

This item is used to defined Keyboard & PS/2 mouse power-on function
enabled or disabled.

Ø The choice: Password, Hot-KEY, Mouse Left, Mouse Right, Any KEY,

Button Only, Keyboard 98.

Note: 1. When item of PS/2 Mouse or HOT-Key is selected, please also

adjust jumper J18 to the proper position.

2. USB Keyboard, USB Mouse and Serial Mouse are not
supported to this function.

KB Power ON Password

This item set the keyboard power-on password.

Ø When using keyboard to power on, just Enter the password.

Hot Key Power ON

Power-on by soft-on/off button and keyboard are available.
Ø The choice: <Ctrl><F1> to <Ctrl><F12>.

Onboard FDC Controller

This item specifices onboard floppy disk drive controller. This setting
allows you to connect your floppy disk drives to the onboard floppy
connector. Choose the "Disabled" settings if you have a separate
control card.

Ø The choice: Enabled Disabled.

Onboard Serial Port1/Port2

Select an address and corresponding interrupt for the first and second
serial ports.

Ø The choice: 3E8/IRQ4, 2E8/IRQ3, 3F8/IRQ4, 2F8/IRQ3,Auto, or

Disabled.

- 67 -

UART Mode Select

The main board support IrDA infrared through COM 2 port.
Note : FIR is not available currently.
Ø The choice: IrDA or Normal.

RxD, TxD Active

This item specifies the Active level for RxD & TxD signal.
Ø The choice: Hi,Lo, Lo,Hi, Lo,Lo, or Hi, Hi.

IR Transmittion delay

This item enable/disable the delay of the IR state change from Rx to Tx
mode or Tx to Rx mode.

Ø The choice: Enabled, Disabled.

UR2 Duplex Mode

This item specifies onboard infrared transfer mode to full-duplex. This
item will not show up when IrDA, ASKIR modes are selected.

Ø The choice: Full, Half.

Use IR Pins

This item select the InfraRed module pin out.
Ø The choice: IR-Rx2Rx2 or RxD2, TxD2.

Onboard Parallel Port

This item allows you to determine onboard parallel port controller I/O
address setting.

Ø The choice:: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select
Normal, Compatible, or SPP unless you are certain your hardware and
software both support one of the other available modes.

Ø The choice: SPPl, EPP, ECP, or ECP/EPP.

EPP Mode Select

Select a DMA channel for the parallel port for use during ECP mode.
Ø The choice: EPP1.7 or EPP1.9.

- 68 -

ECP Mode Use DMA

Select a DMA channel for the parallel port for use during ECP mode.
Ø The choice: 1 or 3.

Game Port Address

This item select the Game Port Address.
Ø The choice: Disabled, 201H or 209H.

Midi Port Address

This item select the Midi Port Address.
Ø The choice: Disabled, 330H, 300H, or 209H.

Midi Port IRQ

This item select the Midi Port IRQ.
Ø The choice: 5 or 10.

- 69 -

( Power Management Setup

The Power Management Setup allows you to configure your system to
most effectively saving energy while operating in a manner consistent
with your own style of computer use.

ACPI Function

This item allows you to enable/disable the Advanced Configuration and
Power Management (ACPI)

Ø The choice: Enabled or Disabled.

ACPI Suspend Type

This item allows you to select sleep state when suspend.
Ø The choice: S1(POS) or S3(STR).

Power Management

This category allows you to select the type (or degree) of power saving
and is directly related to the following modes:

1. Suspend Mode

2. HDD Power Down

Min Saving Minimum power management.

Suspend Mode=
HDD Power Down=15min.

Allows you to set each mode individually.

- 70 -

Max Saving Maximum power management.

Suspend Mode=
HDD Power Down=1min.

User Defined Allows you to set each mode individually.

When this item not disabled, each of the
ranges are from 1 min. to 1 hr. except for HDD
Power Down which ranges from 1 min. to 15
min. and disable.

Ø The choice: User Define, Min Saving, or Max Saving.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank This selection will cause the system to turn off

the vertical and horizontal synchronization
ports and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video

buffer.

DPMS Initial display power management signaling.

Ø The choice: V/H SYNC+Blank, Blank Screen, or DPMS.

Allows you to set each mode individually.

Video Off In Suspend

This item determines the manner in which the monitor is blanked.
Ø The choice: Yes or No.

Suspend Type

This item allows you to select the Suspend Type.
Ø The choice: PwrOn Suspend, Stop Grant.

MODEM Use IRQ

This item determines the IRQ in which the MODEM can use.
Ø The choice: 3, 4, 5, 7, 9, 10, 11, or NA.

Suspend Mode

When this item enabled and after the set up time of system inactivity, all
devices except the CPU will be shut off.
Ø The choice: Disabled, 1 Min, 2 Min, 4 Min, 8 Min, 12 Min,

20 Min, 30 Min, 40 Min, or 1 Hour.

- 71 -

HDD Power Down

When this item enabled and after the set up time of system inactivity,
the hard disk drive will be powered down while all other devices
remain active.
Ø The choice: Disabled or 1 Min~15 Min.

Soft-Off by PWR-BTTN

Pressing the power button for more than 4 seconds forces the system to
enter the Soft-Off state when the system has "hung.".

Ø The choice: Instant-Off or Delay 4 Sec.

Wake-Up by PCI card

This item Enabled/Disabled PCI card wakeup for PCI Spec 2.2.
Ø The choice: Enabled or Disabled.

Power On by Ring

This item determine the system will resume by activating of modem
ring.

Ø The choice: Enabled or Disabled.

Wake Up On LAN

This item determines the system will resume by activity of LAN. If
enabled this feature enabled, system will power on itself from power-off
mode when the activity of LAN.
Ø The choice: Disabled or Enabled.

CPU Thermal-Throttling

This item Select the CPU Therma-Throttling rate.
Ø The choice: 12.5%, 25.0%, 37.5%, 50.0%, 62.5%, 75.0%, 87.5%.

Resume by Alarm

When this item enabled, your can set the date and time at which the
RTC (real-time clock) alarm awakens the system from Suspend mode.
Ø The choice: Disabled or Enabled.

Data (of Month)

This item selects the alarm date.
Ø Key in a DEC number:Min=0, Max=31.

Resume Time (hh:mm:ss)

This item selects the alarm Time.

- 72 -

[hh]
Ø Key in a DEC number:Min=0, Max=23.
[mm/ss]
Ø Key in a DEC number:Min=0, Max=59.

*** Reload Global Timer Events ***

If any of these items is set to Disabled, system will not monitor the
activity event and reload global timer.
If these items is set to Enabled, system will monitor the system activity
event; if any of the events it monitored, it will cause system to reload
global timer.
These items include Primary IDE0/1, Secondary IDE 0/1, Floppy Disk,
Serial Port, Parallel Port, and PCI PIRQ[A-D]#.
Ø The choice: Disabled or Enabled.

- 73 -

( PnP/PCI Configurations

This section describes the configuration of PCI bus system. PCI or
Personal Computer Interconnection is a system which allows I/O
devices to operate at the speed CPU itself keeps when CPU
communicating with its own special components.
This section covers some very technical items, and it is strongly
recommended that only experienced users should make any
changes to the default settings.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit from Setup
if you have installed a new device or software and the system
reconfiguration has caused such a serious conflict that the operating
system can not boot.

Ø The choice: Enabled or Disabled .

Resource controlled By

The Award Plug-and-Play BIOS has the capacity to automatically
configure all of the boot and Plug-and-Play compatible devices.
However, this capability means absolutely nothing unless you are using
a Plug-and-Play operating system such as Windows 95.

If you set this field to "manual" , choose specific resources by going into
each of the sub-menu that follows this field (a sub-menu is proceeded
by a ">").

Ø The choice: Auto(ESCD) or Manual.

- 74 -

IRQ Resources

When resources are controlled manually, assign each system interrupt a
type, depending on the type of device using the interrupt.

IRQ Resources

When resources are controlled manually, assign each system interrupt a
type, depending on the type of device using the interrupt.

IRQ3/4/5/7/9/10/11/12/14/15 assigned

This item allows you to determine the IRQ assigned to the ISA bus and
is not available to any PCI slot. Legacy ISA for devices is compliant with
the original PC AT bus specification; PCI/ISA PnP for devices is compli­ant with the Plug-and-Play standard whether designed for PCI or ISA
bus architecture.

Ø The choice: PCI Device or Reserved.

PCI/VGA Palette Snoop

Leave this field Disabled.
Ø The choice: Enabled or Disabled.

- 75 -

( PC Health Status

CPU Warning Temperature

Since the mainboard support CPU temperature monitoring and over­hear alert. This item allows the user to set the threshold of CPU warning
temperature. When CPU temperature over the threshold, system will
slow down clock to prevent CPU damage.

Ø The choice: Disabled, 50°C/122°F, 53°C/127°F, 56°C/133°F,

60°C/140°F, 63°C/145°F, 66°C/151°F, or 70°C/158°F.

Current System Temp

Since the mainboard support System temperature monitoring and
overheat alert. This item indicate the current main board temperature.

Current CPU1 Temperature

Since the mainboard support CPU temperature monitoring and over­heat alert. This item indicate the current Processor temperature.

Current CPUFAN1/2/3 Speed

The mainboard can detect three fans rotation speed for CPU cooler and
system.

IN0(V) ~ IN2(V), +5V ~ -5V, +12V ~ -12V

The mainboard support CPU and mainboard voltages monitoring. The
onboard hardware monitor is able to detect the voltages output of the
voltage regulators and power supply.

- 76 -

VBAT(V)

Battery voltage.

5VSB(V)

5V standby voltage by MicroATX power.

Shutdown Temperature

Select the combination of lower and upper limits for the system shut­down temperature, if your computer contains an environmental moni­toring system. If the temperature extends beyound either limit, the
system shuts down.

Ø The choice: Disabled, 60°C/140°F, 65°C/149°F, 70°C/158°F, or

75°C/167°F.

- 77 -

( Frequency/V oltage Control

Auto Detect DIMM/PCI Clk

This item allows you to enable/disable auto detection DIMM/PCI Clock.
Ø The choice: Enabled, or Disabled.

Spread Spectrum

This item allows you to enable/disable the spread spectrum modulation.
Ø The choice: Enabled, or Disabled.

CPU Host/PCI Clock/PC133

Ø The choice: Default, 67/33MHz/No, 68/35MHz/No, 70/35MHz/No,

75/38MHz/No, 80/40MHz/No, 83/42MHz/No, 100/33MHz/No,
103/34MHz/No, 105/35MHz/No, 110/37MHz/No, 115/38MHz/No,
133/33MHz/Yes, 137/34MHz/Yes, 140/35MHz/Yes, 145/36MHz/
Yes, 150/37MHz/Yes, 160/38MHz/Yes, 166/42MHz/Yes.

CPU Clock Ratio

This item allows you to select the CPU ratio.
Ø The choice: 3X, 3.5X, 4X, 4.5X, 5X, 5.5X, 6X, 6.5X, 7X, 7.5X, or 8X.

- 78 -

( Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing 'Y' loads the BIOS default values for the most stable,
minimal performance system operations.

( Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing 'Y' loads the default values that are factory-set for
optimal performance system operation.

- 79 -

@ Supervisor/User Password Setting

You can set either supervisor or user password, or both of them. The
differences between them are:

Supervisor Password and User Password

The options on the Password screen menu make it possible to restrict
access to the Setup program by enabling you to set passwords for two
different access modes: Supervisor mode and User mode.

In general, Supervisor mode has full access to the Setup options,
whereas User mode has restricted access to the options. By setting
separate Supervisor and User password, a system supervisor can limit
who can change critical Setup values.

Enter Password

Type the password up to eight characters, and press <Enter>. The
password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press <Enter>. You may also press <Esc> to
abort the selection and not enter a password.

To disable password, just press <Enter> when you are prompted to
enter password. A message will confirm the password being disabled.
Once the password is disabled, the system will boot and you can enter
Setup freely.

- 80 -

Password Disable

If you select System at Security Option of BIOS Features Setup Menu,
you will be prompted in entering the password whenever the system is
rebooted or you try to enter Setup. If you select Setup at Security Op­tion of BIOS Features Setup Menu, you will be prompted only when
you try to enter Setup.

Warning : Retain a record of your password in a safe place. If you

forget the password, the only way to access the system is
to clear CMOS, please refer to "Clear CMOS" on page 30.

- 81 -

@ Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing "Y" stores the selections made in the menus of CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.

@ Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit from Setup without storing in CMOS any
change. The previous selections remain in effect. This exits from the
Setup utility and restarts your computer.

- 82 -
