Shuttle AB60R User Manual

AB60/R

Pentium 4/Celeron
478-pin Processor Based MAIN BOARD

User's Manual

Shuttle® AB60/R

Pentium 4/Celeron , 478-pin processor based Mainboard
Manual Version 1.2

Copyright

Copyright© 2003 by Shuttle® Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without
prior written permission from Shuttle® Inc.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.

This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.
Intel, Pentium are registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other product names used in this manual are ascribed to their respective
owners and acknowledged.

M829

Statement of Shuttle Mainboard via the EMI Test

Shuttle mainboards have been via the EMI test in terms of series of regulations: EN55022/
CISPR22/AS/NZS3548 Class B, EN55024 (1998/AS/NZS), EN4252.1 (1994), EN61000, ANSI
C63.4 (1992), CFR47 Part 15 Subpart B, and CNS13438 (1997). The items tested are illus­trated as follows:

(A) Voltage: AC 110V/60HZ & AC 230V/50HZ
(B) Tested Product Information:

Product Name: PC Mainboard
Status: Sample
Model Name: AB60/R
S/N: N/A
CPU:

External Frequency: 100 MHz

Intel Pentium4: 2.0/2.4/2.5/2.6GHz

External Frequency: 133 MHz

Intel Pentium4: 2.4/ 2.53/2.8/3.06GHz

External Frequency: 200 MHz

Intel Pentium4: 2.8/ 3.0/3.2GHz
Keyboard Port: one port with 6 pins
Mouse Port: one port with 6 pins
USB 2.0 Port: four ports with 4 pins respectively
1394 Port: three port with 6 pins
VGA Port: one port with 15 pins
RJ45 Port: one port with 8 pins
S-Port Connector: one port for each
MIDI Port: two ports for each
Earphone-Out & Line-In & Mic-In Ports: one port for each
DDR Memory: Apacer 256 MB *2

All CPUs have completely been tested, and values offered by the worst EMI combination of
CPU external frequency are listed as follows:

Test Mode External Frequency CPU Case Open/Closed
1 200MHz P4 3.2 GHz Closed
2 200MHz P4 3.2 GHz Open
3 133MHz P4 3.06 GHz Closed
4 133MHz P4 3.06 GHz Open
5 100MHz P4 2.6 GHz Closed
6 100MHz P4 2.6 GHz Open

(C) Remedy for the Tested Product & Its EMI Interference:

Remedy: N/A
EMI Interference:

Crystal: 32.768KHz(X1)/14.318MHz(X2)/24.576 (X3)/25.0MHz(X4)/

25.0MHz(X5)

Clock Generator: CLK1

(D) Supported Host Peripherals:

Host Peripheral Product Name Model Name S/N FCC ID

#1 Case KF45A N/A
#2 Power Supply (300W) ENP-0730 (ATX12V) 1000002885
#3 IBM HDD (30.7GB) 91024UB YKFY7981 3892I168
#4 MITSUMI FDD D353M
#5 SONY VCD Player CDU4811 3892A291
#6 AGP Card Winfast Geforce 2 MX 3892C520
#7 Power Cable Detachable and Shielded

(E) Notices for Assembling Computers:

1. Cases should be made of iron or other metal that has good electric conductivity.

2. Cylinders in a case should be made of metal, and as having a mainboard mounted
in a case, make sure screws are all utilized and fastened on a mainboard.

3. An I/O shielding should be contacted with I/O metallic parts of a mainboard.

4. Cables should appropriately be arranged and fixed in a case. Follow instructions:

Ø Leave IDE cables not crossed upon CPU and SDRAM;
Ø Leave power cables minimum in length, and not crossed upon a mainboard;
Ø Leave CPU fan cables minimum in length, and not near CPU;
Ø Leave cables on panels and other spare cables tied in a computer case.

5. Make sure an EMI shielding attached to a case has properly been installed.

6. Make sure a 5.25" or 3.5" FDD and screws are fastened to an EMI shielding.

7. Make sure a case is closely in contact with EMI connected points.

8. Make sure there is no cleft in a case which is not deformed.

9. Make sure a PCI or AGP door is bound to a case.

10. Make sure cables of other devices (fans or some others) are fixed in a case.

TABLE OF CONTENTS

WHAT'S IN THE MANUAL.................................................................... 5

Quick Reference............................................................................................... 5

About This Manual ........................................................................................... 5

1 INTRODUCTION ................................................................................ 6

1.1 TO DIFFERENT USERS ............................................................................. 6

FIRST-TIME DIY SYSTEM BUILDER............................................................ 6

EXPERIENCED DIY USER ........................................................................ 6

SYSTEM INTEGRATOR............................................................................... 6

1.2 ITEM CHECKLIST....................................................................................... 7

2 FEATURES ........................................................................................ 9

2.1 SPECIFICATIONS ....................................................................................... 9

3 HARDWARE INSTALLATION.......................................................... 12

3.1 STEP BY STEP INSTALLATION............................................................... 12

Accessories of AB60/R......................................................................... 12

STEP 1 Install the CPU.......................................................................... 13

STEP 2 Set Jumpers............................................................................. 14

STEP 3 Install DDR SDRAM System Memory........................................ 14

STEP 4 Install Peripherals in System Case............................................ 15

STEP 5 Mount the Mainboard on the Computer Chassis........................ 16

STEP 6 Connect Front Panel Switches/LEDs/Speaker/USB.................. 17

STEP 7 Connect IDE/ Floppy Disk/ Serial ATA Drives............................ 18

STEP 8 Connect Other Internal Peripherals............................................ 19

STEP 9 Connect the Power Supply........................................................ 20

STEP 10 Install Add-on Cards in Expansion Slots .................................. 20

STEP 11 Connect External Peripherals to Back Panel .......................... 21

STEP 12 First Time System Boot Up..................................................... 22

STEP 13 Install Drivers & Software Components ................................... 23

- 1 -

3.2 JUMPER SETTINGS ................................................................................. 24

JUMPERS & CONNECTORS GUIDE.................................................... 25

Jumpers

Clear CMOS Setting (JP2) ................................................................... 27

Disabled IEEE1394 Setting (JP8)(AB60R Only) .................................... 28

Disabled RAID Setting (JP9)(AB60R Only) ........................................... 28

Back-Panel Connectors

PS/2 Keyboard & PS/2 Mouse Connectors............................................ 29

Parallel Port Connector.......................................................................... 29

COM1/2 Port Connectors ...................................................................... 29

USB1/USB2 Port Connectors................................................................ 29

10/100/1000 base-T LAN Port Connector.............................................. 30

USB3/USB4 Port Connectors................................................................ 30

Line-Out Port Connector ....................................................................... 30

Line-In Port Connector ........................................................................... 30

Mic-In Port Connector ............................................................................ 30

Front-Panel Connectors

HDD LED Connector (HLED) ................................................................ 31

Hardware Reset Connector (RST)......................................................... 31

EPMI Connector (EPMI)......................................................................... 32

Speaker Connector (SPEAKER) ........................................................... 32

Green LED Connector (GLED) .............................................................. 33

ATX Power On/Off Switch Connector (PWR ON).................................... 33

Power LED Connector (PWRLED) ........................................................ 34

Internal Peripherals Connectors

Enhanced IDE and Floppy Connectors................................................... 34

Other Connectors

ATX Power Supply Connectors (ATX1&ATX2)....................................... 35

- 2 -

Cooling Fan Connectors for CPU (FAN1), AGP (FAN2), System(FAN3) 36

IR Header (J1) ....................................................................................... 36

CD-IN Connectors (CN4/CN5) ............................................................... 37

Audio Auxiliary_IN Connector (CN6)...................................................... 37

Center/Bass_Out Header (CN2) ........................................................... 38

Front Panel Audio Header (JP3) ............................................................ 38

SPDIF Ext Header (JP4) ....................................................................... 38

Extended USB Connector (USB3/USB4)............................................... 39

IEEE1394 Connector (JP5/JP6/JP7)(AB60R Only)................................ 39

WOL Connector (WOL1)........................................................................ 40

3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 40

1. INSTALL MEMORY ............................................................................ 40

2. UPGRADE MEMORY........................................................................ 41

4 SOFTWARE UTILITY ......................................................................42

4.1 Mainboard CD Overview ......................................................................... 42

4.2 Install Mainboard Software ..................................................................... 42

4.2.A Install Intel Chipset Driver ................................................................. 44

4.2.B Install USB 2.0 Driver....................................................................... 44

4.2.C Install Audio Driver........................................................................... 45

4.2.D Install Intel LAN Driver ...................................................................... 45

4.2.E Install RAID Driver (AB60R Only)...................................................... 46

4.2.F Install SiICfg Installation Utility (AB60R Only)..................................... 46

4.3 View the User's Manual........................................................................... 47

5 BIOS SETUP ...................................................................................48

5.1 ENTER BIOS ............................................................................................. 48

5.2 THE MAIN MENU ...................................................................................... 49

STANDARD CMOS FEATURES ............................................................... 51

- 3 -

ADVANCED BIOS FEATURES ................................................................. 54

ADVANCED CHIPSET FEATURES .......................................................... 58

INTEGRATED PERIPHERALS .................................................................. 61

POWER MANAGEMENT SETUP.............................................................. 67

PNP/PCI CONFIGURATION....................................................................... 71

PC HEALTH STATUS................................................................................ 73

FREQUENCY/VOLTAGE CONTROL ......................................................... 74

LOAD FAIL-SAFE DEFAULTS .................................................................. 75

LOAD OPTIMIZED DEFAULTS ................................................................. 75

SET SUPERVISOR/ USER PASSWORD.................................................. 76

SAVE & EXIT SETUP................................................................................ 77

EXIT WITHOUT SAVING ............................................................................ 77

- 4 -

WHAT'S IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................Page 12

Jumper Settings >> A Closer Look.......................................................Page 24

Drivers/Software Utilities >> How to Install .........................................Page 42

BIOS Setup >> How to Configure.........................................................Page 48

About This Manual

For First-Time DIY System Builder.........................................................Page 6

For Experienced DIY User ...................................................................... Page 6

For System Integrator .............................................................................Page 6

- 5 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as diffi­cult as you may think. To make your first computer DIY experience successful,
right from the start, we have designed the 3.1 Hardware Installation section
in a step-by-step fashion for all the first-time DIY system builders. Prior to instal­lation, we also suggest you to read the whole manual carefully to gain a com­plete understanding of your new Shuttle AB60/R mainboard.

Experienced DIY User

Congratulate on your purchase of the Shuttle AB60/R mainboard. You will find
that installing your new Shuttle AB60/R mainboard is just easy. Bundled with
an array of onboard functions, the highly-integrated AB60/R mainboard pro­vides you with a total solution to build the most stable and reliable system.
Refer to sections 3.2 Jumper Settings and Chapter 4 Drivers/Software
Utilities to find out how to get the best out of your new mainboard. Chapter 5
BIOS Setup also contains the relevant information on how to tune up your
system to achieve higher performance.

System Integrator

You have wisely chosen Shuttle AB60/R to construct your system. Shuttle
AB60/R incorporates all the state-of-the-art technology of the 865PE chipset
from Intel. It integrates the most advanced functions you can find to date in a
compact ATX board.

- 6 -

1.2 Item Checklist

V

S

O

ATX 2IDE1IDE211

FAN

1

RichTek

RT9173A

CM53JK4

PHB

55NO3LTA

Phm0310 B4

K

T
S

LITHIUM B

A

T
TERYJ

A

PAN

ST

D
CR2

0

3

2

1

1

9

1

2

USB

3

1

1

1

Attansic

Attansic

AT209S0150

1

N82802ABA934012

9

Check all items with your AB60/R mainboard to make sure nothing is miss­ing. The complete package should include:

- One piece of Shuttle AB60/R Mainboard

- One piece of ATA 100/66/33 Ribbon Cable

- One piece of Floppy Ribbon Cable

KB1

COM1

USB 1

COM 2

USB 2

1

CN 6

CN 4

1

1

CN 5

1

CN

1

JP 3

RG82
QC
84
22 ES
5

AGP1
FAN2

7375

JP2

SATA1

SATA2

Sil3112AC T14 4

Q22923.1

0248

1.21

Sil3112AC T14 4

Q22923.1

1.21

WOL1

SATA4

IR
J 1

1

USB4

JP 4

1

1

AT209S0150

AB60R V2.0

SATA3

JP

JP 8

1

FAN3

JP 61JP 7

JP 5

JP 10

- One piece of twin ports USB Cable

- One piece of twin ports 1394 Cable (AB60R Only)

- Two pieces of Serial ATA Cable(AB60R Only)

- Two pieces of Serial ATA Power Cord(AB60R Only)

SERIAL

ATA

- 7 -

- I/O Shielding

- AB60/R User's Manual

- One piece of Bundled CD-ROM with containing:
Ø AB60/R user's manual saved in PDF format

Ø Intel Chipset Driver
Ø Realteck Audio driver
Ø SATA RAID driver (AB60R Only)
Ø SiICfg Installation Utility(AB60R Only)

- 8 -

2 FEATURES

AB60/R mainboard is carefully designed for the demanding PC user who wants high
performance and maximum intelligent features in a compact package.

2.1 Specifications

- CPU Support

Intel Pentium 4 /Celeron, 478-pin processors with 400/533/800 MHz FSB.
and CPU Voltage between 0.8375V~1.5875V.

- Chipset

Features Intel 865PE N.B. and Intel ICH5 S.B..

- CPU FSB Configuration

Soft-configuration FSB (The FSB speed is software configurable from 400MHz
to 933MHz).

- On Board 6 Channel AC'97 Audio Controller

The AC' 97 Audio codec is compliant with the AC'97 2.3 specfications.
18-20 bits DAC(Digital Analog Converter) interface for S/PDIF I/O(ICH5)..

- Versatile Memory Support

Four 184-pin Dual Channel DDR Slots to support up to 4GB of PC16
00,PC2100, PC2700 or PC3200 compliant DDR SDRAM module.

- Expansion Slots

Provides one 32-bit AGP slot which supports 4X/8X AGP devices.
Provides five 32-bit PCI slots.

- 8 USB Interface Onboard

4 X USB connectors on back-panel and two sets of dual USB ports headers
on board.

- I/O Interface

Provides a variety of I/O interfaces:
Ø 1 X Floppy interface for 3.5-inch FDD with 360K/720K/1.2M/1.44M, or

2.88M format.

Ø 1 X PS/2 mouse connector.
Ø 1 X PS/2 Keyboard connector.
Ø 4 X USB ports.
Ø 1 X LAN port.

- 9 -

Ø 2 X Serial Ports.
Ø 1 X Parallel Port.(SPP,EPP,ECP)
Ø 1 X Line-Out port.
Ø 1 X Line-In port.
Ø 1 X Mic-In port.

- PCI Bus Master IDE Controller Onboard

Two Ultra DMA 100/66/33 Bus Master Dual-channel IDE ports provide sup­port to a maximum of four IDE devices (one Master and one Slave per channel).
The IDE Bus implements data transfer speeds of up to 100/66/33 MB/sec and
also supports Enhanced PIO Modes.

80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CD­ROM, CD-R, CD-RW, and LS-120 Supports.

- ATX Power Supply Connector

ATX power supply unit can connected to the onboard 20-pin Pentium 4
standard ATX power connectors, supporting Suspend and Soft-On/Off by
dual-function power button.

The 4 ATX power include other 4-pin +12V ATX power connector.

- System BIOS

Provides licensed Award BIOS V6.0 PG on 4Mb Flash core and supports
Green PC, Desktop Management Interface (DMI).

- ATX Form Factor

System board conforms to ATX specification.
Board dimension: 305mm X 245mm.

- Advanced Features

Ø Low EMI - Built in spread spectrum and automatic clock shut-off of

unused PCI/DDR-SDRAMS slots to reduce EMI.

Ø Dual Function Power Button - The system can be in one of two states,

one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system

enters Soft-Off mode.
Ø Modem Ring Power-On - The system can be powered on automatically
by the activation of modem ringing.

- 10 -

Ø CPU Clock Setting - This item allows users to adjust CPU Host Clock in

BIOS.
Ø CPU Vcore Setting - This item allows users to adjust CPU Vcore in
BIOS.
Ø AGP Voltage Setting - This item allows users to select AGP Voltage in
BIOS.
Ø DDR Voltage Setting - This item allows users to select DDR Voltage in
BIOS.

- Intelligent Features

Ø Voltage Monitoring - Monitors various voltages of key elements, such as

the CPU, and other critical system voltage levels to ensure stable current

passing through mainboard components. System voltages include CPU

Vcore, +3.3v, +5V, +12V, Battery on system etc.
Ø Fan Status Monitoring - To prevent CPU from overheating, the CPU fan
is monitored for RPM and failure. (CPU Cooling FAN with RPM sensor is

required.)
Ø Temperature Monitoring - This item allows users to make sure whether
the CPU or system runs in a suitable temperature.

- 11 -

3 HARDWARE INSTALLATION

ATX 2IDE1IDE211

284

5

S

FAN

1

RichTek

RT9173A

CM53JK4

PHB

55NO3LTA

Phm0310 B4

K T SLITHIUM BATTERYJAPAN STDCR2032

JP2

1

1

9

1

1

USB

3

1

1

1

1

Attansic

Attansi

c

AT209S015

0

1

N82802ABA934012

9

RAID Jumper- JP 8

Intel 865PE Chipset

ATX 12V Power Connector - ATX2

Clear CMOS - JP

2

Front Panel Connectors - JP 10

N3 AGP FAN- FAN2

Before removing or installing any of these devices including CPU, DIMMs,
Add-On Cards, Cables, please make sure to unplug the onboard power
connector.

This section outlines how to install and configure your mainboard. Refer to the following
mainboard layout to help you to identify various jumpers, connectors, slots, and ports.
Then follow these steps designed to guide you through a quick and correct installation of
your system.

3.1 Step-by-Step Installation

Accessories Of AB60/R

CPU FAN - FAN1

Four DIMM Slots

PS/2 Keyboard and
PS/2 Mouse Connectors

Serial Port
Connector (COM1)

Socket 478

KB1

COM1

Parallel Connector

Serial Port
Connector (COM2)

USB 1

COM 2

Two USB Connectors

Intel 82547EI Chipset

LAN & USB Connectors

Line-Out/Line-In/Mic-In/
Game/MIDI Connectors

CD_IN1/2 - CN4/CN5
AUX-IN - CN 6

One AGP Slot

Center/Bass out - CN 2

Silicon Image 3112A

USB 2

R
G

Q

8

C

22

E

1

CN 6

CN 4

1

1

CN 5

1

CN 2

AGP1
FAN2

7375

SATA1

SATA2

Chipset(AB60R Only)

Sil311 2AC T14 4

1.21

Sil311 2AC T14 4

1.21

0248

Q2292 3.1

Five PCI Slots

IrDA Connector- J1

Front Panel Audio - JP 3

IR
J 1

1

JP 4

1

JP 3

1

AT209S0150

AB60R V2.0

USB4

1

JP 5

Q2292 3.1

SATA4

JP

JP 8

JP 6

SATA3

FAN3

JP 7

JP 10

Intel ICH5 Chipset

WOL1

System FAN- FA

SPDIF IN/OUT- JP 4
Extended USB Headers - USB3&4
VT 6306 (AB60R Only)

IEEE 1394 Connector & Jumper

- JP5,JP6,JP7,JP9(AB60R Only)

- 12 -

(AB60R Only)

Serial ATA Connector - SATA1/SATA2
Serial ATA Connector - SATA3/SATA4(AB60R Only)

Step 1

CPU Installation:

This mainboard supports Intel Pentium 4/Celeron Socket 478 series CPU.
Please follow the steps as follows to finish CPU installation.

Note the CPU orientation when you plug it into CPU socket.

1. Pull up the CPU socket lever to 90-degree angle.

CPU socket lever up to
90-degree angle

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU

upper interface. Match Pin 1 and cut edge, and insert the CPU into the

socket.

CPU Pin 1 and cut edge

3. Press down the CPU socket lever and finish CPU installation.

Note: The CPU might be
damaged if you do not match
the CPU socket Pin 1 and cut
edge well.

4. Intel Pentium 4/Celeron processors require a set of heatsink and fan to cool

down the processor. You need to purchase a heatsink and fan if they are not

bundled with your CPU. Required is that install the set and plug its cable

in the CPU fan power connector. Note that there are kinds of CPU fan

connectors. Normally, if your mainboard supports a hardware monitoring

function, a 3-pin fan power connector can have your system detect the

CPU fan's speed. A CPU fan with a 2-pin or 4-pin fan power connector

does not support the detection of the CPU fan's speed, and must directly

be connected to the system's power supply unit.

- 13 -

Step 2.

Set Jumpers

The default jumper settings have been set for the common usage standard of
this mainboard. Therefore, you do not need to reset the jumpers unless you
require special adjustments as any of the following cases:

Clear CMOS
IEEE1394 Setting (AB60R Only)
RAID Setting (AB60R Only)

For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with the mainboard
configuration procedures. The factory-set default settings are tuned for opti­mum system performance. For the advanced users who wish to customize
their system, section 3.2 Jumper Settings will provide detailed information
on how to configure your mainboard manually.

Step 3

Install DDR SDRAM System Memory

To install memory, insert DDR-SDRAM memory module(s) in any one or two
DIMM banks. Note that SDRAM modules are directional and will not go in
the DIMM banks if they are not properly oriented. After the module is fully
inserted into the DIMM bank, lift the clips of both sides of the DIMM bank to
lock the module in place.

- 14 -

Step 4

Install Internal Peripherals in System Case

Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into the
computer housing, including but not limited to the hard disk drive (IDE/
HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de­scribed below.

To install IDE & FDD drives, follow this procedure:

1. Set the required jumpers on each device according to the instructions

provided by the manufacturer. (IDE devices, HDD, and CD-ROM, have to

set jumpers to Master or Slave mode depending on whether you install

more than one device of each kind.)

2. Connect IDE cable and FDD cable on the back-panel of the internal

peripheral devices to the corresponding headers on board. Note that the

cable should be oriented with its colored stripe (usually red or magenta)

connected to pin#1 both on the mainboard IDE or FDD connector and on

the device as well.

3. Connect an available power cable from your system power supply unit

to the back-panel of each peripheral device. Note that the power cable is

directional and cannot fit in if not properly positioned.

- 15 -

Step 5

Mount the Mainboard on the Computer Chassis

1. You may find that there are a lot of different mounting hole positions

both on your computer chassis and on the mainboard. To choose

correct mounting holes, the key point is to keep the back-panel of the

mainboard in a close fit with your system case, as shown below.

2. After deciding on the proper mounting holes, position the studs between

the frame of the chassis and the mainboard. The studs are used to fix the

mainboard and to keep a certain distance between the system chassis

and the mainboard, in order to avoid any electrical shorts between the

board and the metal frame of the chassis. (If your computer case is

already equipped with mounting studs, you will need to tighten screws to

attach the mainboard.)

Note: In most computer housings, you will be able to find 4 or more

attachment points to install mounting studs and then fix the
mainboard. If there aren't enough matching holes, then make sure to
install at least 4 mounting studs to ensure proper attachment of the
mainboard.

- 16 -

Step 6

USB 3 & USB4

5VDUALDATA3-DATA3GN

DNC

1

Front Panel

RST

HLED

- +

PWR

GLED/

3

456

7

+

-

1

Front Panel

SPEAKER

EPMI

RST

HLED

- +

PWR

LED

PWR

GLED

JP 10

++-

Connect Front Panel Switches/LEDs/USB connectors

You can find there are several different cables already existing in the system
case and originating from the computer's front-panel devices (HDD LED,
Power LED, Reset Switch, PC Speaker, or USB devices etc.) These cables
serve to connect the front-panel switches, LEDs, and USB connectors to the
mainboard's front-panel connectors group, as shown below.

ON

Front Panel

1. SPEAKER

2. EPMI

3. RST

4. HLED(HDD LED)

5. PWR LED

6. PWR ON

7. GLED(Green LED/POWER LED)

Extended USB Header

8. USB3&USB4

1 2

SPEAKER

8

EPMI

- +

PWR
LED

C
N

D
N
G

2

A
T

A
D

ON

­2

A
T

A
D

L
A

U
D

V
5

PLED

1

- 17 -

Step 7

1

Ser

ial ATA

SATA3

S

ATA

1

SAT

A

2

1FLP1

IDE1IDE

2

Connect IDE and Floppy Disk Drives

1. IDE cable connector

2. Floppy cable connector

3. Serial ATA Connectors (SATA1/SATA2)/

(SATA3/SATA4)(AB60R Only)

1

1

A

erial A

T

S

SATA4

- 18 -

Step 8

4CN 6

-

I

N

Connect Other Internal Peripherals

1. CD-IN, AUX-IN, Center/Bass audio headers

CD

CN

1

CD-IN

CENTER/BASS

1

2. IR header

CN 5

1

AUX-IN

1

CN 2

J1 IR

1

3. SPDIF In/Out header

SPDIF In/Out

1

JP 4

- 19 -

4. Front Panel Audio header

ATX PWR

ATX 2

Step 9

Connect the Power Supply

1. System power connector

Step 10

Front Audio

1

JP 3

ATX1

Install Add-on Cards in Expansion Slots

1. Accelerated Graphics Port (AGP) Card

2. PCI Card

- 20 -

Step 11

5

7

698

Connect External Peripherals to Back-Panel

You are now ready to put the computer case back together and get on to the
external peripherals connections to your system's back-panel.

1. PS/2 Mouse and PS/2 Keyboard

2. Parallel Port

3. COM1 Port

4. COM2 Port

5. USB0/1 Ports

6. LAN Port

7. USB2/3 Ports

8. Audio Line-Out/Front Out

9. Audio Line-In/Rear Out

10. Mic-In Port

1

3

2

foxconn

10

4

- 21 -

Step 12

First Time System Boot Up

To assure the completeness and correctness of your system installation, you
may check the above installation steps once again before you boot up your
system for the first time.

1. Insert a bootable system floppy disk (DOS 6.2x, Windows 95/98/NT, or

others) which contains FDISK and FORMAT utilities into the FDD.

2. Turn on the system power.

3. First, you must use the FDISK utility to create a primary partition of the

hard disk. You can also add an extended partition if your primary parti-

tion does not use all of the available hard disk space. If you choose to

add an extended partition, you will have to create one or more logical

partitions to occupy all the space available to the extended partition. The

FDISK utility will assign a drive letter (i.e., C:, D:, E:,...) to each partition

which will be shown in the FDISK program. After FDISK procedure, reboot
your system by using the same system floppy disk.

Note: DOS 6.2x and Windows 95A can only support up to 2.1GB of

HDD partition. If you use the FDISK utility with one of the opera­ting systems mentioned above, you can only install your HDD into
partitions no larger than 2.1GB each.

4. Now, use the FORMAT utility to format all the partitions you've created.

When formatting the primary partition (C:), make sure to use the FORM-

AT C: /S command.

Note: FORMAT C: /S can transfer all the necessary system files into the

primary partition of your hard disk. Then, your HDD will become
a bootable drive.

5. Install all the necessary drivers for CD-ROM, Mouse, etc.

6. Setup the complete operating system according to your OS installation

guide.

- 22 -

Step 13

Install Drivers & Software Components

Please note that all the system utilities and drivers are designed for Win 9x/
2000/ME/NT operating systems only. Make sure your operating system is
already installed before running the drivers installation CD-ROM programs.

1. Insert the AB60/R bundled CD-ROM into your CD-ROM drive. The

auto-run program will display the drivers main installation window on
screen.

2. Select the "Install Mainboard Software" bar to run into sub-menu.

3. Choose "Install Intel Chipset Driver" and complete it.

4. Choose "Install USB 2.0 Driver" and complete it.

5. Choose "Install Audio Driver" and complete it.

6. Choose "Install Intel LAN Driver" and complete it.

7. Choose "Install RAID Driver" and complete it. ( AB60R Only)

8. Choose "Install SiICfg Installation Utility" and complete it. ( AB60R

only)

9. Return to the main installation window and exit from the auto-run drivers

installation program.

- 23 -

3.2 Jumper Settings

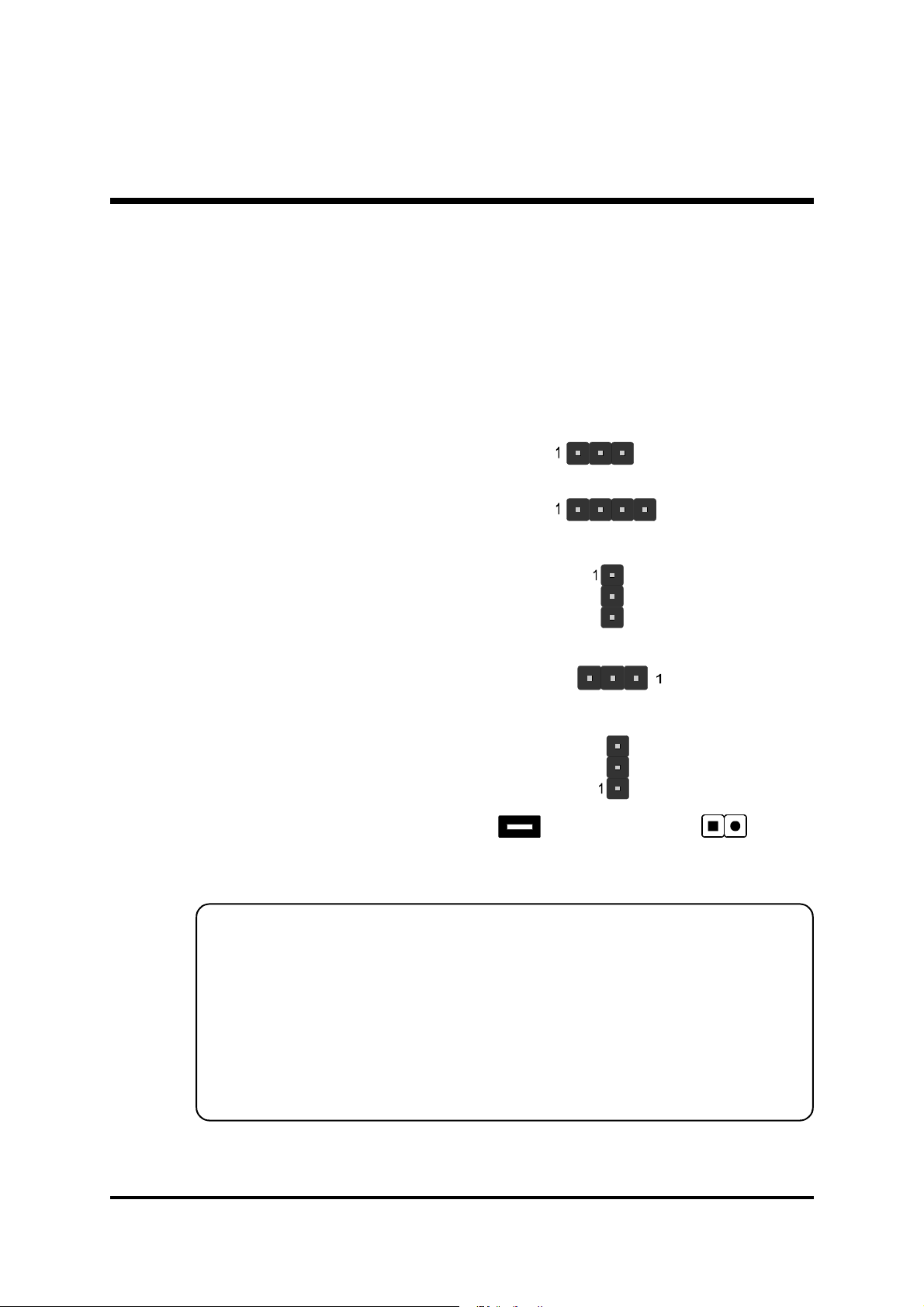

Several hardware settings are made through the use of mini jumpers to con­nect jumper pins on the mainboard. Pin #1 could be located at any corner
of each jumper, you just find the location with a white right angle which
stands for pin 1#. There are several types of pin 1# shown as below:

3-pin and multi (>3) pin jumpers shown as following:
Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins are shown as for Close [On] or for
Open [Off]. To Short jumper pins, simply place a plastic mini jumpers over
the desired pair of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging

until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its

components. When putting the mainboard down, place it on top of its

original packaging film, on an even surface, and components side up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent

electrostatic discharge (ESD) whenever handling this equipment.

- 24 -

Jumpers & Connectors Guide

C1~C7

E1

E2

E9

A1A2D3

D2

D1

D1

E7E8E10

E11

A3

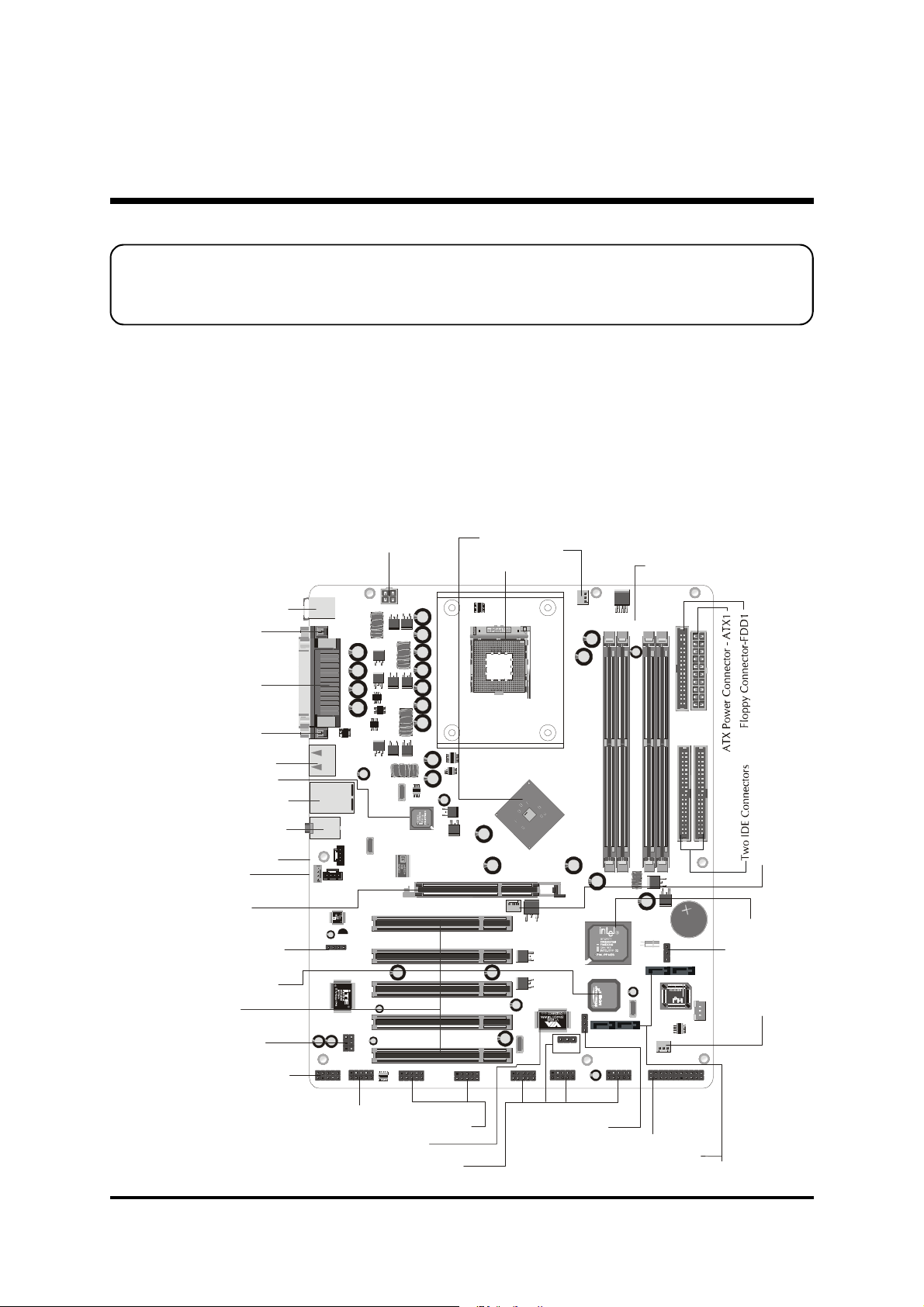

Use the mainboard layout on page 11 to locate CPU socket, memory banks,
expansion slots, jumpers and connectors on the mainboard during the instal­lation. The following list will help you to identify jumpers, slots, and connec­tors along with their assigned functions:

B1

B2~B4

B5

B6~B7

B8~B10

E5
E4

E6

E1

E2

E2

E3

CPU/Memory/Expansion Slots

Socket478 : CPU Socket for Pentium 4 Northwood/Prescotte

processors

DIMM1/2/3/4 : Four DIMM Slots for 128, 256, 512 MB, and 1GB of

2.5V DDR SDRAM
(The total installed memory does not exceed 4GB)

AGP : One 4 X/8X AGP (Accelerated Graphics Port) Slot
PCI : Five 32-bit PCI Expansion Slots

- 25 -

Jumpers

A1
A2

A3

JP2 : Clear CMOS setting
JP8 : Disable IEEE1394 setting (AB60R Only)
JP9 : Disable RAID setting(AB60R Only)

Back Panel Connectors

B1

B1

B2
B3

B4
B5
B6

B7
B8
B9

B10

KB : PS/2 keyboard port
MS : PS/2 mouse port
Parallel : Printer port
COM1 : Serial port
COM2 : Serial port
USB1/2 :2x USB ports
LAN :1x LAN port
USB3/4 : 2x USB ports
LINE-OUT : Line-out port(Front Out)
LINE-IN : Line-in port(Rear Out)
MIC-IN : Mic-in port

Front Panel Connectors

C1
C2
C3

HLED : IDE Driver Active LED
RST : Hardware Reset Switch
EPMI : Hardware System Management Interface Momentary
Type Switch

C4

C5
C6

C7

SPEAKER : Housing Internal Speaker
GLED/PLED : Green LED/Power LED
PWR ON : ATX Power On/Off Momentary Type Switch
PWR LED : System Power LED

Internal Peripherals Connectors

D1
D1
D1
D2

D3

FDD1 : Floppy disk drive interface
IDE1 : IDE primary interface (Dual-channel)
IDE2 : IDE secondary interface (Dual-channel)
Serial ATA1/2 : Serial SATA1 /2 interface
Serial ATA3/4 : Serial SATA3 /4 interface (AB60R Only)

- 26 -

Other Connectors

1

1

JP 2

E1
E2
E2
E2

E3
E4
E5
E6

E7
E8
E9
E10

E11

ATX1/ATX2 : ATX power connectors

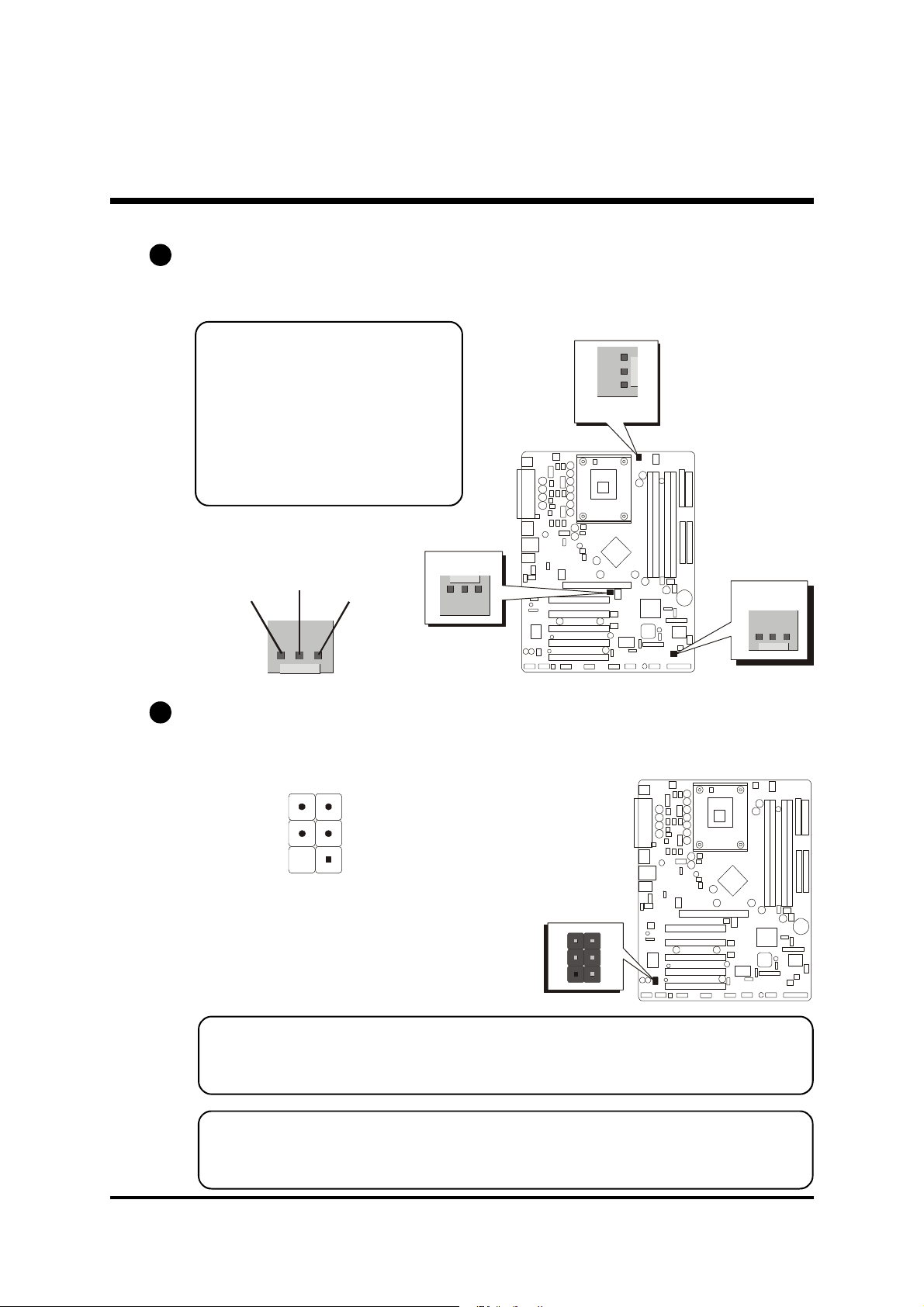

FAN1 : CPU fan connector
FAN2 : AGP fan connector
FAN3 : System fan connector
J1 : IR header

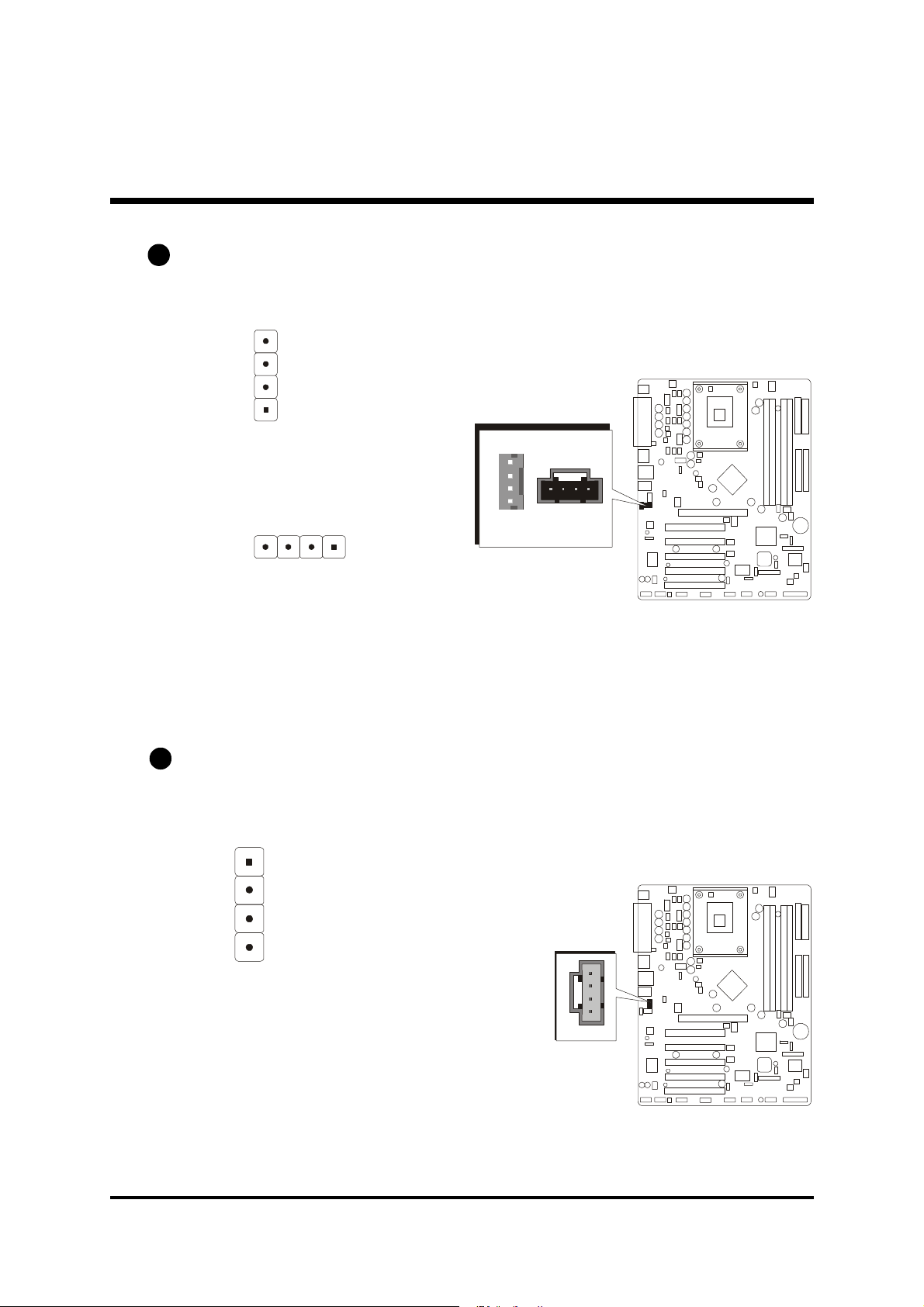

CN4/CN5 : CD-IN 1/2 headers
CN6 : AUX-IN header
CN2 : Center/Bass audio header
JP3 : Front Panel Audio header
JP4 : SPDIF In/Out header
USB3&USB4 : Extended USB Headers
JP5/6/7 : Onboard IEEE1394 Connector(AB60R Only)

WOL1 : Wake-On-LAN connector

F Jumpers

A1

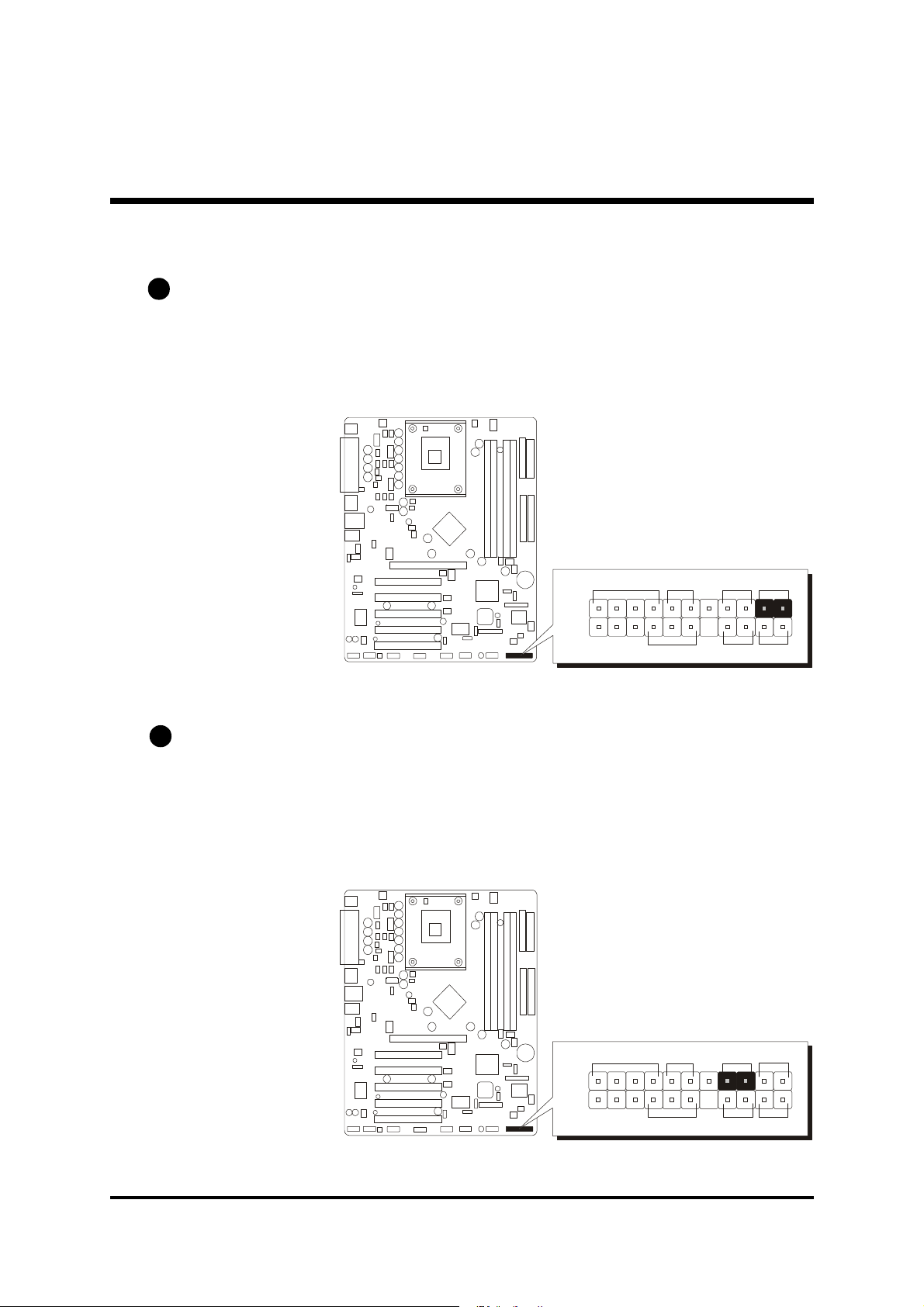

Clear CMOS Setting (JP2)

JP2 is used to clear CMOS data. Clearing CMOS will result in the perma­nently erasing previous system configuration settings and the restoring origi­nal (factory-set) system settings.

Pin 1-2 (Default)

Pin 2-3 (Clear CMOS)

Step 1. Turn off the system power (PC-> Off).
Step 2. Remove ATX Power cable from ATX Power connector.
Step 3. Remove jumper cap from JP2 pins 1-2.
Step 4. Place the jumper cap on JP2 pin 2-3 for a few seconds.
Step 5. Return the jumper cap to pin 1-2.
Step 6. Plug ATX Power cable into ATX Power connector.
Step 7. Turn on the system power (PC-> On).

1

- 27 -

1

1

A2

1

J

P 8

1

JP 9

1

1

Disable IEEE1394 Setting (JP8) (AB60R Only)

JP8 is used to enable/disable built-in IEEE1394 adapter.

Pin 1-2 (Enable)

Pin 2-3 (Disable)

Disable RAID setting (JP9)(AB60R Only)

A3

JP9 is used to enable/disable built-in RAID adapter.

Pin 1-2 (Enable)

Pin 2-3 (Disable)

- 28 -

F Back-Panel Connectors

B1

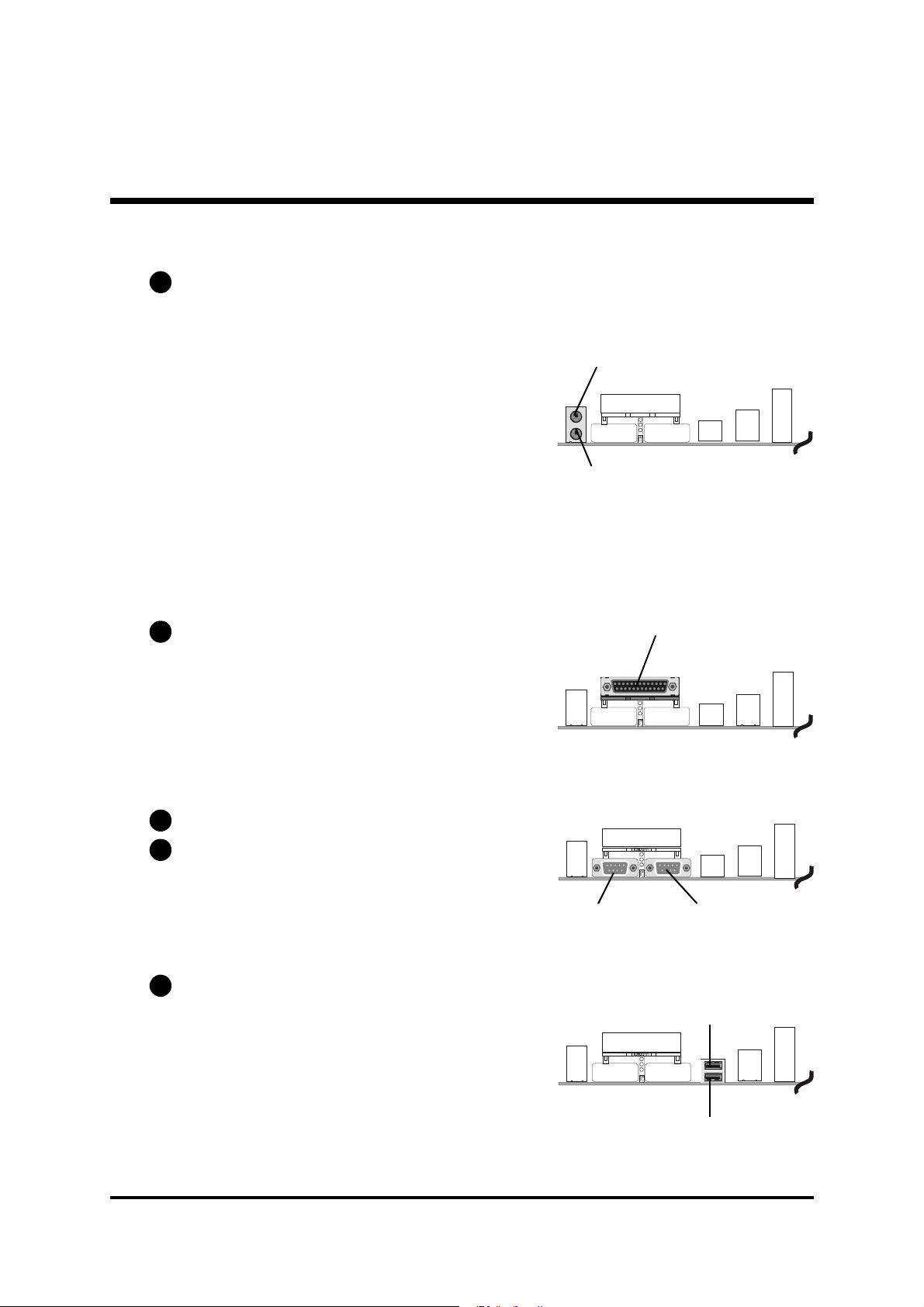

PS/2 Keyboard & PS/2 Mouse Connectors

Two 6-pin female PS/2 keyboard & Mouse
connectors are located at the rear panel of
the mainboard. Depending on the com­puter housing you use (desktop or tower),
the PS/2 Mouse connector is situated at the
top of the PS/2 Keyboard connector when
the mainboard is laid into a desktop, as op­posed to a tower where the PS/2 Mouse
connector is located at the right of the PS/2
Keyboard's. Plug the PS/2 keyboard and
mouse jacks into their corresponding con­nectors.

PS/2 Mouse

PS/2 keyboard

Parallel Port Connector

B2

One DB25 female parallel connector is lo­cated at the rear panel of the mainboard.

Plug the connection cable from your paral­lel device (printer, scanner, etc.) into this
connector.

COM1/2 Port Connectors

B3
B4

This mainboard can accommodate two
serial device on COM1/2. Attach a serial
device cable to the DB9 serial port COM1/
2 at the back panel of your computer.

USB1/USB2 Port Connectors

B5

This mainboard offers 4 USB ports on back
panel. Plug each USB device jack into an
available USB1/USB2 connector.

Parallel Port

foxconn

COM1 Port COM2 Port

USB Port 2

- 29 -

USB Port 1

10/100/1000 base-T LAN Port Connector

B6

This mainboard can accommodate one
device on LAN. Attach a Giga cable to
the LAN port at the back-panel of your
computer.

B7

USB3/USB4 Port Connectors

This mainboard offers 2 USB ports on back
panel. Plug each USB device jack into an
available USB3/USB4 connector.

LAN port

USB port4

B8

Line-Out(Front Out) Port Connector

Line-Out is a stereo output port through
which the combined signal of all internal
and external audio sources on the board
is output. It can be connected to 1/8-inch
TRS stereo headphones or to amplified
speakers

B9

Line-In(Rear Out) Port Connector

Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can
be used as a source for digital sound re­cording, a source to be mixed with the out­put, or both.

B10

Mic-In Port Connector

Mic-In is a 1/8-inch jack that provides a
mono input. It can use a dynamic mono
or stereo microphone with a resistance of
not more than 600 Ohms.

USB port3

Line-Out

Line-In

Mic-in

- 30 -

F Front-Panel Connectors

JP 10

SPEAKER

JP 10

SPEAKER

C1

HDD LED Connector (HLED)

Attach the connector cable from the IDE device LED to the 2-pin (HLED) header.
The HDD LED lights up whenever an IDE device is active.

C2

Hardware Reset Connector (RST)

Attach the 2-pin hardware reset switch cable to the (RST) header. Pressing the
reset switch causes the system to restart.

EPMI

PWRLED

HLED

RST

+

PWRON

-

+

GLED

+

1

--

- 31 -

EPMI

PWRLED

HLED

RST

+

PWRON

-

+

GLED

+

1

--

C3

JP 10

SPEAKER

JP 10

SPEAKER

EPMI Connector (EPMI)

Hardware System Management Interface (EPMI) header may attach to 2-pin
momentary switch. Press the switch to force system into power saving mode;
press it again to resume back the normal operation situation.

Speaker Connector (SPEAKER)

C4

Attach the PC speaker cable from the case to the 4-pin speaker connector
(SPEAKER).

EPMI

PWRLED

HLED

RST

+

PWRON

-

+

GLED

+

1

--

- 32 -

EPMI

PWRLED

HLED

RST

+

PWRON

-

+

GLED

+

1

--

C5

JP 10

SPEAKER

JP 10

SPEAKER

Green LED Connector (GLED)

The header is dual color LED function.
Dual color LED function is defined by either Power LED or Green LED, the

header can be in these states.
The Green LED Indicates that the system in currently in one of the power saving

mode(Doze/Standby/Suspend). When the system resumes to normal operation
mode, the Green LED will go off, Power LED on.

This Power LED will go off during Power saving mode.
Attach a 2-pin Green LED/Power LED cable tp (Green LED/Power LED)header.

C6

ATX Power On/Off Switch Connector (PWR ON)

The Power On/Off Switch is a momentary type switch used for turning on or off
the system ATX power supply. Attach the connector cable from the Power Switch
to the 2-pin (PWR ON) header on the mainboard.

EPMI

PWRLED

EPMI

PWRLED

HLED

RST

+

PWRON

RST

+

PWRON

-

+

GLED

HLED

-

+

GLED

+

1

--

+

1

--

Note : Please notice all the LED connectors are directional. If your chassis’s

LED does not light up during running, please simply change to the
opposite direction.

- 33 -

C7

11IDE1IDE21

JP 10

SPEAKER

Power LED Connector (PWRLED)

Attach the 3-pin Power-LED connector cable from the housing front-panel to
the (PWRLED) header on the mainboard. The power LED stays light while the
system is running.

F Internal Peripherals Connectors

Enhanced IDE and Floppy Connectors

D1

The mainboard features two 40-pin dual-channel IDE device connectors
(IDE1/IDE2) providing support for up to four IDE devices, such as CD-ROM
and Hard Disk Drives (H.D.D.).

This mainboard also includes one 34-pin floppy disk controller (FDD1) to
accommodate the Floppy Disk Drive (FDD). Moreover, this mainboard
comes with one 80-pin ATA 100/66/33 ribbon cable to connect to IDE
H.D.D. and one 34-pin ribbon cable for F.D.D. connection.

EPMI

PWRLED

HLED

RST

+

PWRON

-

+

GLED

+

1

--

FDD1

Important: Ribbon cables are directional, therefore, make sure to always

connect with the red cable.

- 34 -

F Other Connectors

ATX PWR

ATX 2

E1

ATX Power Supply Connectors (ATX1&ATX2)

This motherboard uses 20-pin Pentium 4 standard ATX power header,
and ATX2 with 2x2-pin PC ATX power supply headers.
Please make sure you plug in the right direction.

ATX1 ATX2

ATX1

Note 1: The ATX power connector is directional and will not go in unless the guides

match perfectly making sure that pin#1 is properly positioned.

Note 2: Make sure the latch of the ATX power connector clicks into place to ensure a

solid attachment.

Note 3: Your ATX power supply must be supplied to ACPI +5V standby power and

at least 720mA compatible.

Note 4: Make sure your power supply have enough power for higher speed processor

installed.

- 35 -

E2

13524

6

FAN01

FAN02

FAN03

FAN3

CPU, AGP and System Fan connectors (FAN1/FAN2/FAN3)

The mainboard provides four onboard 12V cooling fan power connectors to
support CPU(FAN1) , AGP(FAN2) and System(Fan3) cooling fans.

Note:

Both cable wiring and type of plug
may vary,which depends on the
fan maker. Keep in mind that the
red wire should always be con­nected to the +12V header and
the black wire to the ground
(GND) header.

GND

+12V

FAN2

1

1

FAN1

1

E3

IR Header (J1)

If you have an Infrared device, this mainboard can implement IR transfer
function. To enable the IR transfer function, follow these steps:

Pins Assignment:
1=NC 2=KEY
3=+5V 4=GND
5=IRTX 6=IRRX

Note: Before connect your IR device, please be sure each IR on board pin

Step 1. Attach the 6-pin infrared device cable to J1.

Step 2. This mainboard support IrDA, or Normal transfer modes.

J1 IR

1

allocation is matchable with the pin of the IR device. Otherwise,
incorrect IR connection may do damage to your IR device.

(Refer to the above diagram for IR pin assignment.)

- 36 -

E4

1

1

2

3

4

123

4

CD_IN Connectors (CN4/CN5)

Port CN4/CN5 is used to attach an audio connector cable from the CD-ROM
drive.

4

3

2

CN4 Pins Assignment
1=XCDGND 2=XCDINR
3=XCDGND 4=XCDINL

CN 4

1

CD-IN

CN5 Pins Assignment
1=XCDINL 2=XCDGND
3=XCDGND 4=XCDINR

E5

Audio AUXILIARY_IN Connector (CN6)

Port CN6 can be used to connect a stereo audio input from CD-ROM, TV-tuner
or MPEG card.

CD-IN

CN 5

1

Pin Assignments

1=WAVL
2=AGND
3=AGND

4=WAVR

- 37 -

CN 6

AUX-IN

1

Center/Bass_Out Header (CN2)

123

4

1352947

6

8

10

1352947

6

8

10

SPDIF In/Out

E6

CN2 header can be used to connect the cable which attached to center/bass
amplified speakers.

Pin Assignments:

1=Center out
2=AGND
3=AGND
4=Bass out

E7

Front Panel Audio Connector (JP3)

This header allows the user to install auxiliary front-oriented micorophone and
line-out ports for easier access.

Two mini jumpers
must be setted on
pin 5-6 and pin 9­10, when this
header is not used.

Pin Assignments:
1=Front Mic 2=AGND
3=MIC_VCC 4=VCC
5=FPOUTRAMP 6= FOUTR
7=HP_ON 8=KEY

CENTER/BASS

1

CN 2

Front Audio

1

JP 3

9=FRONTLAMP 10=FOUTL

E8

SPDIF Ext Header (JP4)

Port JP4 can be used to connect special device.

Pin Assignments:

1=+12V 2=+5V
3=NC 4=SPDIF OUT
5=SPDIF IN 6=GND
7=NC 8=NC
9=NC 10=GND

1

JP 4

- 38 -

USB 3 & USB4

5

VDUAL

DATA3-DATA3GNDN

C

1352947

6

8

10

E9

1

1

Extended USB Connector (USB3/USB4)

The headers are used to connect the cable attached to USB connectors which
are mounted on front-panel or back-panel. But the USB cable is optional at the
time of purchase.

1

­L

2

2

D

C
N

N
G

A
T

A
D

A
T

A
D

A
U
D

V
5

Pins Assignment:

1=5VDUAL 2=5VDUAL
3=DATA3- 4=DATA2­5=DATA3 6=DATA2
7=GND 8=GND
9=NC 10=NC

IEEE1394 Connector (JP5,JP6,JP7)(AB60R Only)

E10

The header are used to connect the cable attached to 1394 connector which
are mounted on front panel or back panel. But the 1394 cable is optional at
the time of purchase.

Pins Assignment:
1=TPA+ 2=TPA­3=GND 4=GND
5=TPB+ 6=TPB­7=+12V 8=+12V
9=KEY 10=GND

IEEE1394 Connector

1

JP 5

- 39 -

JP 6

JP 7

Wake-On-LAN Connector (WOL1)

123

OL1

1

E11

Attach a 3pin connector through the LAN card which supports the Wake-On­LAN(WOL1) function. This function lets users wake up the connected system
through the LAN card.

Pin Assignments:

1=5VSB
2=GND
3=SENSE

3.3 System Memory Configuration

The AB60/R mainboard has four 184-pin DIMM slots that allow you to install
from 64MB up to 4GB of system memory.

Each 184-pin DIMM (Dual In-line Memory Module) Slot can accommodate
64MB, 128MB, 256MB, 512MB, and 1GB of PC2100, PC2700 or PC3200
compliant 2.5V single (1 Bank) or double (2 Bank) side 64-bit wide data path
DDR SDRAM modules.

W

Install Memory:

Install memory in any or all of the slots and in any combination shown as
follows.

Density 128Mbit 256Mbit 512Mbit

Device

Width

Single/
Double

184pin

DDR

DIMMs

Note: You do not need to set any jumper to configure memory since the BIOS utility

can detect the system memory automatically. You can check the total system
memory value in the BIOS Standard CMOS Setup menu.
Don't support double-sided X16 DDR DIMMs.

x8 x16 x8 x16 x8 x16

SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS

128/256MB 64MB/NA 256/512MB 128MB/NA 512/1024MB 256MB/NA

Note: Maximum installed memory is 4GB.

- 40 -

Dual channel memory controller configuration:

DIMM1

DIMM1

DIMM2

DIMM2

DIMM3

DIMM3

DIMM4

DIMM4

No DIMMS

CH A

CH B

No DIMMS

No DIMMS

CH A

CH B

VSC Mode - CH A & B

All the other case:

1.Running in Dual Channel Mode
The DIMM must be the same memory size and the same type to let this function work.

DIMM2

DIMM1

CH A CH A

CH B CH B

Int el 8 65 PE G M CH

DIMM3

DIMM4

In te l 8 6 5P E G M CH

2.Running in singal Channel Mode

DIMM2 DIMM2 DIMM2

DIMM1 DIMM1 DIMM1

CH A CH A

CH B CH B

Intel 865PE GMCH

DIMM3 DIMM3

DIMM4 DIMM4

No DIMMS

SC Mode - CH A Only SC Mode - CH B Only

Intel 865PE GMCH

Int el 8 65 P E G M C H

Intel 865PE GMCH

DIMM3

DIMM4

Upgrade Memory:

You can easily upgrade the system memory by inserting additional DDR
SDRAM modules in available DIMM slots. The total system memory is calcu­lated by simply adding up the memory in all DIMM slots. After upgrade, the
new system memory value will automatically be computed and displayed in
the field " Standard CMOS Setup" of BIOS setup program.

- 41 -

4 SOFTWARE UTILITY

4.1 Mainboard CD Overview

Note: The CD contents attached in AB60/R mainboard are subject to

change without notice.

To start your mainboard CD disc, just insert it into your CD-ROM drive and
the CD AutoRun screen should appear. If the AutoRun screen does not
appear, double click or run D:\Autorun.exe (assuming that your CD-ROM
drive is drive D:)

Navigation Bar Description:

F Install Mainboard AB60 Software - Installing Intel chipset,

audio and USB 2.0 drivers.

F Install Mainboard AB60R Software - Installing Intel chipset,

audio , USB 2.0,LAN, RAID and Silicfg Installation Utility drivers.

F Manual - AB60/R Series mainboard user's manual in PDF format.
F Link to Shuttle Homepage - Link to shuttle website homepage.
F Browse this CD - Allows you to see contents of this CD.
F Quit - Close this CD.

- 42 -

4.2 Install Mainboard Software

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.

Select using your pointing device (e.g. mouse) on the "Install Mainboard
AB60/R Software" bar to run into sub-menu.

The Mainboard AB60/R Software include:

[4.2.A] Install Intel Chipset Driver
[4.2.B] Install USB 2.0 Driver
[4.2.C] Install Realtek Audio Driver
[4.2.D] Install Intel LAN Driver
[4.2.E ] Install Silicon RAID Driver (AB60R Only)
[4.2.F ] Install SiICfg Utility (AB60R Only)

- 43 -

4.2.A Install Chipset System Driver

Select using your pointing device (e.g. mouse) on the "Install Intel Chipset
Driver" bar to install chipset system driver.

Once you made your se­lection, a Setup window
run the installation

automatically.
When the copying files

is done, make sure you
reboot the system to
take the installation
effect.

4.2.B Install USB 2.0 Driver

Select using your pointing device (e.g. mouse) on the "Install USB 2.0
Driver" bar to install chipset system driver.

Once you made your se­lection, a Setup window
run the installation

automatically.
When the copying files

is done, make sure you
reboot the system to
take the installation
effect.

- 44 -

4.2.C Install Audio Driver

Select using your pointing device (e.g. mouse) on the “Install Audio Driver
"bar to install audio driver.

Once you made your se­lection, a Setup window
run the installation

automatically.
When the copying files

is done, make sure you
reboot the system to
take the installation
effect.

4.2.D Install Intel LAN Driver

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.

Select using your pointing device (e.g. mouse) on the “Install Intel LAN
Driver” bar to install LAN driver.

Once you made your se­lection, a Setup window
run the installation

automatically.
When the copying files

is done, make sure you
reboot the system to
take the installation
effect.

- 45 -

4.2.E Install RAID Driver (AB60R Only)

Select using your pointing device (e.g. mouse) on the “Install RAID Driver
" bar to install RAID driver.

Once you made your selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

4.2.F Install SiICfg Installation Utility (AB60R Only)

Select using your pointing device (e.g. mouse) on the “Install SiICfg Instal­lation Utility " bar to installation Silicfg Installation Utility .

Once you made your selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

- 46 -

4.3 View the User's Manual

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
AutoRun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.

Select using your pointing device (e.g. mouse) on the “Manual" bar.

Then Online Information windows will appear on your screen. Click on
the “Install Acrobe Reader" bar if you need to install acrobe reader.

Then click on "Manual" bar to view user's manual.

- 47 -

5 BIOS SETUP

AB60/R BIOS ROM has a built-in Setup program that allows users to modify
the basic system configuration. This information is stored in battery-backed
RAM so that it retains the Setup information even if the system power is
turned off.

The system BIOS is managing and executing a variety of hardware related
functions in the system, including:

System date and time
Hardware execution sequence
Power management functions
Allocation of system resources

5.1 Enter the BIOS

To enter the BIOS (Basic Input / Output System) utility, follow these steps:

Step 1. Power on the computer, and the system will perform its

POST (Power-On Self Test) routine checks.

Step 2. Press <Del> key immediately, or at the following message:

Press DEL to enter SETUP, or simultaneously press <Ctrl>,

<Alt>, <Esc> keys

Note 1. If you miss trains of words meationed in step2 (the message

disappears before you can respond) and you still wish to enter BIOS
Setup, restart the system and try again by turning the computer OFF
and ON again or by pressing the <RESET> switch located at the
computer's front-panel. You may also reboot by simultaneously
pressing the <Ctrl>, <Alt>, <Del> keys.

Note 2. If you do not press the keys in time and system does not boot, the

screen will prompt an error message, and you will be given the
following options:

“Press F1 to Continue, DEL to Enter Setup”

Step 3. As you enter the BIOS program, the CMOS Setup Utility will

prompt you the Main Menu, as shown in the next section.

- 48 -

5.2 The Main Menu

Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall
that some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and opti­mize your system's performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

- 49 -

PnP / PCI Configurations

This entry appears if your system supports PnP / PCI.

PC Health Status

This entry shows the current system temperature, Voltage, and FAN
speed.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable
performance of your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory-set for
optimal performance system operation. While Award has designed the
custom BIOS to maximize performance, the factory has the right to
change these defaults to meet users' needs.

Supervisor / User Password

Use this menu to change, set, or disable supervisor/user password. It
allows you to limit access to the system and Setup, or only to Setup.

Save & Exit Setup

Save CMOS value changes in CMOS and exit from setup.

Exit Without Saving

Abandon all CMOS value changes and exit from setup.

- 50 -

@ Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 catego­ries. Each category includes no, one or more than one setup items.
Use the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.

Date

<Month> <DD> <YYYY>
Set the system date. Note that the 'Day' automatically changes when

you set the date.

Time

<HH : MM : SS>
The time is converted based on the 24-hour military-time clock. For

example, 5 p.m. is 17:00:00.

IDE Channel 0 Master

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IDE Channel 0 Slave

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IDE Channel 1 Master

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

- 51 -

IDE Channel 1 Slave

Options are in its sub menu.
Press <Enter> to enter the sub-menu of detailed options.

Drive A/Drive B

Select the type of floppy disk drive installed in your system.
Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,

1.44M, 3.5 in, or 2.88M, 3.5 in.

Floppy 3 Mode Support

Floppy 3 mode refers to a 3.5-inch diskette with a capacity of 1.2MB.
Floppy 3 mode is sometimes used in Japen.

Ø The choice: Disable, Drive A, Drive B, or Both.

Video

Select the default video device.
Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO.

Halt On

Select the situation in which you want the BIOS to stop the POST
process and notify you.

Ø The choice: All Errors, No Errors, All, But Keyboard, All, But

Diskette, or All, But Disk/Key.

Base Memory

Displays the amount of conventional memory detected during boot up.
Ø The choice: N/A.

Extended Memory

Displays the amount of extended memory detected during boot up.
Ø The choice: N/A.

Total Memory

Displays the total memory available in the system.
Ø The choice: N/A.

******************************************************

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu
to configure each hard disk drive.

- 52 -

IDE HDD Auto-Detection

Press <Enter> to auto-detect HDD on this channel. If detection is
successful, it fills the remaining fields on this menu.

Ø Press Enter

IDE Primary Master
Selecting 'manual' lets you set the remaining fields on this screen and

select the type of fixed disk. "User Type" will let you select the number
of cylinders, heads, etc., Note: PRECOMP=65535 means NONE !

Ø The choice: None, Auto, or Manual.

Access Mode
Choose the access mode for this hard disk.

Ø The choice: CHS, LBA, Large, or Auto.

Capacity
Disk drive capacity (Approximated). Note that this size is usually slightly

greater than the size of a formatted disk given by a disk checking pro­gram.

Ø Auto-Display your disk drive size.

The following options are selectable only if the 'IDE Primary Master'
item is set to 'Manual'

Cylinder
Set the number of cylinders for this hard disk.

Ø Min = 0, Max = 65535

Head
Set the number of read/write heads.

Ø Min = 0, Max = 255

Precomp
Warning: Setting a value of 65535 means no hard disk.

Ø Min = 0, Max = 65535

Landing zone
Set the Landing zone size.

Ø Min = 0, Max = 65535

Sector
Number of sector per track.

Ø Min = 0, Max = 255

******************************************************

- 53 -

@ Advanced BIOS Features

This section allows you to configure your system for basic operation.
You have the opportunity to select the system's default speed, boot-up
sequence, keyboard operation, shadowing, and security.

Hard Disk Boot Priority

This item allows you to select Hard Disk Boot Device Priority.

BIOS Write Protect

This item allows you to enable or disable the BIOS Write Protect.
Ø The choice: Enabled or Disabled.

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enabled and someone attempts to write
data into this area, BIOS will show a warning message on screen, and an
alarm beep.

Enabled Activates automatically when the system boots up,

causing a warning message to appear when anything
attempts to access the boot sector or hard disk parti­tion table.

Disabled No warning message will appear when anything

attempts to access the boot sector or hard disk parti­tion table.

Ø The choice: Enabled or Disabled.

- 54 -

CPU L1&L2 Cache

All processors that can be installed in this mainboard use internal
level1(L1) and external 2(L2) cache memory to imporve performance.
Leave this item at the default value for better performance.

Ø The choice: Enabled or Disabled.

Hyper-Threading Technology

This item allows you to enable or disable CPU Hyper-Threading func­tion. If it is set to enabled, the CPU performance will better.

Ø The choice: Enabled or Disabled.

Quick Power On Self Test

This item speeds up Power-On Self Test (POST) after you power on the
computer. If it is set to enabled, BIOS will shorten or skip some check
items during POST.

Ø The choice: Enabled or Disabled.

First/Second/Third Boot Device

The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.

Ø The Choice: Floppy, LS120, Hard Disk, HDD-0, SCSU, CDROM,

ZIP100, USB- FDD, USB-ZIP, USB-CDROM, USB-HDD, LAN, or
Disabled.

Boot Other Device

Select Your Boot Device Priority.
Ø The choice: Enabled or Disabled.

Swap Floppy Drive

If the system has two floppy drives, you can swap the logical drive
name assignment.

Ø The choice: Enabled or Disabled.

Boot Up Floppy Seek

Seeks disk drives during boot-Up. Disabling speed boots up.
Ø The choice: Enabled or Disabled.

Boot Up NumLock Status

Selects power-on state for NumLock.
Ø The choice: Off or On.

- 55 -

Gate A20 Option

This entry allows you to select how the gate A20 is handled. The gate
A20 is a device used for above 1MBye of address memory. Initially, the
gate A20 was handled via a pin on the keyboard. Today, while a
keyboard still provides this support, it is more common and much faster
in setting to Fast for the system chipset to provide support for gate A20.

Ø The choice: Normal or Fast.

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller.
When this controller enabled, the typematic rate and typematic delay
can be selected.

Ø The choice: Enabled or Disabled.

Typematic Rate (Chars/Sec)

This item sets how many times the keystroke will be repented in a
second when you hold the key down.

Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat
the keystroke.

Ø The choice: 250, 500, 750, or 1000.

Security Option

Select whether the password is required every time the system boots or
only when you enter setup.

System The system will not boot and access to Setup will be

denied if the correct password is not entered promptly.

Setup The system will boot, but access to Setup will be

denied if the correct password is not entered promptly.

Ø The choice: System or Setup.

Note: To disabled security, select PASSWORD SETTING at Main

Menu, and then you will be asked to enter password. Do
not type anything and just press<Enter>; it will disable secu
rity. Once the security is disabled, the system will boot, and
you can enter Setup freely.

APIC Mode

Selects enable/disable IO APIC function
Ø The choice: Enabled or Disabled.

- 56 -

MPS Version Control For OS

Selects the operating system multiprocessor support version.
Ø The choice: 1.1 or 1.4

OS Select For DRAM > 64MB

Selects the operating system that is running with greater than 64MB of
RAM in the system.

Ø The choice: Non-OS2 or OS2.

Report No FDD For Win 95

Whether report no FDD runs for Win 95 or not.
Ø The choice: Yes or No.

Small Logo(EPA) Show

This item allows you to enable/disable the EPA Logo.
Ø The choice: Enabled or Disabled.

- 57 -

@ Advanced Chipset Features

This section allows you to configure the system based on the specific features
of the installed chipset. This chipset manages bus speeds and access to sys­tem memory resources, such as DRAM and the external cache. It also coor­dinates communications between the conventional ISA bus and the PCI bus.
It states that these items should never need to be altered.

The default settings have been chosen because they provide the best operat­ing conditions for your system. If you discovered that data was being lost
while using your system, you might consider making any changes.

DRAM Timing Selectable

This item select the DRAM Timing by SPD (Serial Presence Data) or by
manual selection.

Ø The Choice: Manual or By SPD.
In some DDR SDRAM module , there is no SPD on it, select by SPD will

cause system can not boot.

CAS Latency Time

When synchronous DRAM is installed, the number of clock cycles of
CAS latency depends on the DRAM timing. Don't reset this field from
the default value specified by the system designer. This item select DDR
SDRAM CAS latency. (2T, 2.5T, or 3T)

Ø The Choice: 2, 2.5 or 3.

Active to Precharge Delay

This item select the SDRAM Active to Precharge Delay. (8T, 7T, 6T, or
5T)

Ø The Choice: 8, 7, 6, or 5.

- 58 -

DRAM RAS# to CAS# Delay

This field lets you insert a timing delay between the CAS and RAS
strobe signals, and you can use it when DRAM is written to, read from,
or refreshed. Faster performance is gained in high speed, more stable
performance, in low speed. This field is applied only when synchro­nous DRAM is installed in the system.

Ø The Choice: 4, 3 or 2.

DRAM RAS# Precharge

If an insufficient number of cycles is allowed for the RAS to accumulate
its charge before DRAM refresh, the refresh may be-incompleted, and
the DRAM may fail to retain data. Fast gives faster performance; and
Slow gives more stable performance. This field is applied only

when synchronous DRAM is installed in the system.
Ø The Choice: 4, 3 or 2.

Memory Frequency For

This item sets the main memory frequency. When you use an external
graphics card, you can adjust this to enable the best performance for
your system.

Ø The Choice: DDR266, DDR333, DDR320 , DDR400 or Auto.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h­FFFFFh, resulting in better system performance. However, if any pro­gram is written to this memory area, a system error may result.

Ø The choice: Enabled or Disabled.

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS , resulting in better
system performance. However, if any program is written to this memory
area, a system error may result.

Ø The Choice: Enabled or Disabled.

Memory Hole At 15M-16M

You can reserve this area of system memory for ISA adapter ROM.
When this area is reserved, it cannot be cached. The user information
of peripherals that need to use this area of system memory usually
discusses their memory requirements.

Ø The Choice: Enabled or Disabled.

- 59 -

Delay Prior to Thermal

This item select the Delay time before thermal controller activate from
temperature too high.

Ø The Choice: 4 Min, 8 Min, 16 Min, or 32 Min.

AGP Aperture Size (MB)

Select the size of Accelerated Graphics Port (AGP) aperture. The aper­ture is a portion of the PCI memory address range dedicated to graphics
memory address space. Host cycles that hit the aperture range are
forwarded to the AGP without any translation.

Ø The Choice: 4, 8, 16, 32, 64, 128, or 256.

Init Display First

Use this item to specify whether your graphics adapter is installed in
one of the PCI slots or is integrated on the mainboard.

Ø The choice: PCI Slot or AGP.

- 60 -

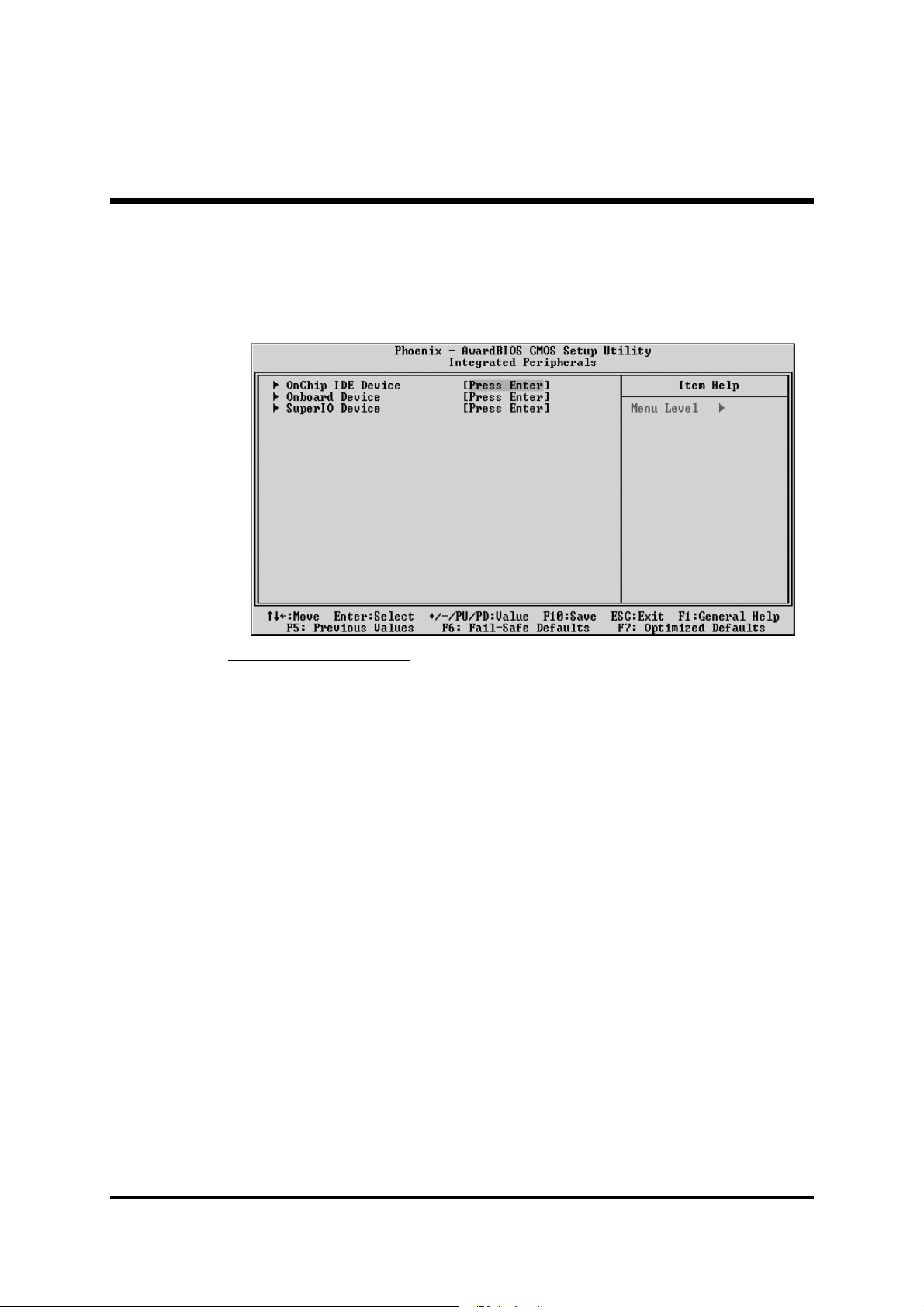

@ Integrated Peripherals

These options display items that define the operation of peripheral comopnents
on the system's input/output ports.

On-Chip IDE Device

Options are in its sub-menu.
Press<Enter> to enter the sub-menu of details options.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or mul­tiple sector read/write. If your IDE hard drive supports block mode
(most new drives do), select Enabled for automatic detection of the
optimal number of block read/writes per sector the drive can support.

Ø The choice: Enabled, or Disabled

On-Chip Primary PCI IDE

The integrated peripherals controller contains an IDE interface with
support to two IDE channels. Select Enabled to activate each channel
separately.

Ø The choice: Enabled, or Disabled

IDE Primary Master/Slave PIO

The two IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the two IDE devices that the onboard IDE inter­face supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the

best mode for each device.
Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.

- 61 -

IDE Master/Slave UDMA

Ultra DMA 100 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If both of
your hard drive and your system software support Ultra UMA100,
select Auto to enable BIOS support.

Ø The choice: Auto or Disabled.

On-Chip Secondary PCI IDE
The integrated peripherals controller contains an IDE interface with

support to two IDE channels. Select Enabled to activate each channel
separately.

Ø The choice: Enabled or Disabled.

IDE Secondary Master/Slave PIO

The two IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the two IDE devices that the onboard IDE inter­face supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the

best mode for each device.
Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.

IDE Secondary Master/Slave UDMA

Ultra DMA 100 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If both of
your hard drive and your system software support Ultra UMA100,
select Auto to enable BIOS support.

Ø The choice: Auto or Disabled.

** On-Chip Serial ATA Setting **

On-Chip Serial ATA

This item lets you to enable or disable the On-Chip Serial ATA.

Ø The choice: Disabled,Auto,Combined Mode, Enhanced Mode or

SATA Only.

- 62 -

Disabled : Disabled SATA Controller.

Master

Slave

Master

Slave

Disable

arallel

ATASerial AT

A

Primary

Primary

Secondary

Secondary

Master

Combin 1

Combin 2

Master

Slave

Serial ATA 1

Serial ATA 1

(Channel 0)

(Channel 0)

Serial ATA 1

Serial ATA 2

Serial ATA

(Channel 0)

IDE1

(Channel 1)

IDE2

Parallel ATA

Auto: Auto arrange by BIOS.
Combined Mode:PATA and SATA are combined. Max. of 4 ATA drives

are supported.
(DOS,Win2K,Win98/ME...) should set SATA and

PATA to Combined Mode.

Master

Slave

Slave

Serial ATA

Serial ATA 2

IDE1

(Channel 1)

IDE2

Parallel ATA

(Channel 0)

Disable

Master

Slave

P

Serial ATA 2

IDE1

(Channel 1)

IDE2

(Channel 0)

Disable

- 63 -

Master

Master

(Channel 0)

(Channel 2)

(Channel 2)

(Channel 3)

(Channel 3)

(Channel 1)

Serial ATA 1

Serial ATA 2

Primary

or Secondary

arallel

ATASerial AT

A

Secondary

Secondary

Master

Combin 3

Combin 4

Master

Slave

Serial ATA 1

Serial ATA 1

Serial ATA 2

(Channel 1)

(Channel 1)

Master

Slave

Slave

Serial ATA

Serial ATA 2

(Channel 1)

(Channel 1)

(Channel 0)

IDE1

Master

Primary

Slave

IDE2

Parallel ATA

Disable

P

IDE1

IDE2

(Channel 0)

Primary

Disable

Enhanced Mode: Enable both SATA and PATA. Max. of 6 ATA drives

are supported.
New OS that support switch to Enhanced mode

(WinXP,Windows.NET Server) can set SATA and
PATA to Enhanced Mode.

Master

Serial ATA

IDE1

IDE2

Parallel ATA

Master

Slave

Slave

Secondary
or Primary

- 64 -

SATA-Only:SATA is operating in legacy mode.

(Channel 0)

(Channel 0)

(Channel 1)

(Channel 1)

Serial ATA 1

or Secondary

Primary

Secondary
or Primary

Serial ATA

Master

Serial ATA 2

Master

IDE1

Disable

IDE2

Parallel ATA

Serial ATA Port0/1 Mode

This item allows you to set the Serial ATA Port mode.

Ø The choice: Primary Master, Primary Slave, Secondary Master,
Secondary Slave, SATA0 Master or SATA1 Master.

Disable

Onboard Device

Options are in its sub-menu.
Press<Enter> to enter the sub-menu of details options.

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have USB peripherals.

Ø The choice: Enabled or Disabled.

USB 2.0 Controller

Select Enabled if your system contains a Universal Serial Bus (USB) 2.0
controller and you have USB peripherals.

Ø The choice: Enabled or Disabled.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard.

Ø The choice: Enabled or Disabled.

- 65 -

AC97 Audio

Enables and disables the onboard audio chip. Disable this item if you
are going to install a PCI audio add-on card.

Ø The choice: Auto or Disabled.

Silicon Image Raid ROM
This item is used to enable/disable Silicon Image RAID ROM.
Ø The choice: Enabled or Disabled.

SuperI0 Device

Options are in its sub-menu.
Press<Enter> to enter the sub-menu of details options.

Onboard FDC Controller

This item specifices onboard floppy disk drive controller. This setting
allows you to connect your floppy disk drives to the onboard floppy
connector. Choose the "Disabled" settings if you have a separate
control card.

Ø The choice: Enabled or Disabled.

Onboard Serial Port1/Port2
Select an address and corresponding interrupt for the first and second

serial ports.
Ø The choice: 3E8/IRQ4, 2E8/IRQ3, 3F8/IRQ4, 2F8/IRQ3, or Auto.

UART Mode Select
The main board support IrDA infrared through COM 2 port.
Ø The choice: Normal, IrDA, ASKIR, orSCR.

UR2 Duplex Mode

This item specifies onboard infrared transfer mode to full-duplex.
Ø The choice: Full or Half.

Onboard Parallel Port

This item allows you to determine onboard parallel port controller I/O
address setting.

Ø The choice:: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select
Normal, Compatible, or SPP unless you are certain your hardware and

- 66 -

@ Power Management Setup

The Power Management Setup allows you to configure your system to
most effectively saving energy while operating in a manner consistent
with your own style of computer use.

ACPI Function

This item allows you to enable/disable the Advanced Configuration and
Power Management (ACPI)

Ø The choice: Enabled or Disabled.

ACPI Suspend Type

This item allows you to select sleep state when suspend.
Ø The choice: S1(POS), S3(STR), or S1&S3.

Run VGABIOS if S3 Resume (Auto)

Allows the system to initialize a VGA BIOS from S3 (Suspend to RAM)
sleep state.

Ø The choice: Auto, Yes, or No.

Power Management

This category allows you to select the type (or degree) of power saving
and is directly related to the following modes:

Min Saving Minimum power management.

Suspend Mode=
HDD Power Down=15min.

1 hr.

- 67 -

Max Saving Maximum power management.

Suspend Mode=1min.
HDD Power Down=1min.

User Define Allows you to set each mode individually. When this
item not disabled, each of the ranges are from 1 min.
to 1 hr. except for HDD Power Down which ranges
from 1 min. to 15 min. and disable.
Ø The choice: User Define, Min Saving, or Max Saving.

Video Off Method

This determines the manner in which the monitor is blanked.

Blank Screen This option only writes blanks to the video

buffer.

V/H SYNC+Blank This selection will cause the system to turn off

the vertical and horizontal synchronization
ports and write blanks to the video buffer.

DPMS Initial display power management signaling.

Ø The choice: Blank Screen,V/H SYNC+Blank, or DPMS.

Video Off In Suspend

This item determines the manner in which the monitor is blanked.
Ø The choice: Yes or No.

Suspend Type

This item allows you to select the Suspend Type.
Ø The choice: Stop Grant or PwrOn Suspend.

MODEM Use IRQ

This item determines the IRQ in which the MODEM can use.
Ø The choice: 3, 4, 5, 7, 9, 10, 11, or NA.

Suspend Mode

When this item enabled and after the set up time of system inactivity, all
devices except the CPU will be shut off.

Ø The choice: Disabled, 1 Min, 2 Min, 4 Min, 8 Min, 12 Min,

20 Min, 30 Min, 40 Min, or 1 Hour.

HDD Power Down

When this item enabled and after the set up time of system inactivity,
the hard disk drive will be powered down while all other devices
remain active.

Ø The choice: Disabled or 1 Min~15 Min.

- 68 -

Soft-Off by PWR-BTTN

Pressing the power button for more than 4 seconds forces the system to
enter the Soft-Off state when the system has "hung.".

Ø The choice: Instant-Off or Delay 4 Sec.

Wake-Up by PCI card

This item Enabled/Disabled PCI card wakeup for PCI Spec 2.2.
Ø The choice: Enabled or Disabled.

Power On by Ring

This item determine the system will resume by activating of modem
ring.

Ø The choice: Enabled or Disabled.

Wake Up On LAN

When set to Enableed, the system power will be turned on if the LAN
port receives an incoming signal. You have to connect the fax/modem
to the mainboard Wake Up On LAN connector for this feature to work.

Ø The choice: Enabled or Disabled.

USB Wake-Up From S3

Set this item Enabled, users can awaken the system by USB keyboard.
When ACPI Suspend Type item select is S1(POST), then this item can
not shown up.

Ø The choice: Enabled or Disabled.

Resume by Alarm

When this item enabled, you can set the date and time at which the
RTC (real-time clock) alarm awakens the system from Suspend mode.

Ø The choice: Disabled or Enabled.

Date (of Month) Alarm

This item selects the alarm date.
Ø Key in a DEC number:Min=0, Max=31.

Time (hh:mm:ss) Alarm

This item selects the alarm Time.
[hh]
Ø Key in a DEC number:Min=0, Max=23.

- 69 -

[mm/ss]
Ø Key in a DEC number:Min=0, Max=59.

*** Reload Global Timer Events ***

Primary/Secondary IDE0/1

When these items are enabled, the system will restart the power-saving
timeout counters when any activity is detected on any of the drivers or
devices on the primary or secondary IDE channels.

Ø The choice: Enabled or Disabled.

FDD, COM, LPT Port

When this item is enabled, the system will restart the power-saving
timeout counters when any activity is detected on the floopy disk drive,
serial ports or the parallel port.

Ø The choice: Enabled or Disabled.

PCI PIRQ[A-D]#

When this item is disabled, any PCI device set as the Master will not
power on the system.

Ø The choice: Enabled or Disabled.

PS2 Keyboard Power ON

This item allows you to set the PS2 Keyboard Power ON function.
Ø The choice: Disabled, Password or Hot Key.

KB Power ON Password

This item allows you to set the KB Power ON Password.
Ø The choice: Enter.

Hot Key Power ON

Power-on by soft-on/off button and keyboard are available.
Ø The choice: Any Key, Ctrl-F1~Ctrl-F12.

PS2 Mouse Power ON

This item allows you to set the PS2 Mouse Power ON function..
Ø The choice: Enabled or Disabled.

PWRON After PWR-Fail

This item allows you to set whether you want your system to reboot
after power hav been interrupted.

Ø The choice: Off, On or Former-Sts.

- 70 -

@ PnP/PCI Configurations

This section describes the configuration of PCI bus system. PCI or
Personal Computer Interconnection is a system which allows I/O
devices to operate at the speed CPU itself keeps when CPU
communicating with its own special components. This section covers
some very technical items, and it is strongly recommended that only
experienced users should make any changes to the default settings.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit from Setup
if you have installed a new device or software and the system
reconfiguration has caused such a serious conflict that the operating
system can not boot.

Ø The choice: Enabled or Disabled .

Resource controlled By

The Award Plug-and-Play BIOS has the capacity to automatically
configure all of the boot and Plug-and-Play compatible devices.
However, this capability means absolutely nothing unless you are using
a Plug-and-Play operating system such as Windows 95.

If you set this field to "manual" , choose specific resources by going into
each of the sub-menu that follows this field (a sub-menu is proceeded
by a ">").

Ø The choice: Auto(ESCD) or Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a
type, depending on the type of device using the interrupt.

- 71 -

IRQ3/4/5/7/9/10/11/12/14/15 assigned
This item allows you to determine the IRQ assigned to the ISA bus and

is not available to any PCI slot. Legacy ISA for devices is compliant with
the original PC AT bus specification; PCI/ISA PnP for devices is compli­ant with the Plug-and-Play standard whether designed for PCI or ISA
bus architecture.

Ø The choice: PCI Device or Reserved.

PCI/VGA Palette Snoop

This item is designed to overcome problems that can be caused by
some nonstandard VGA card.

Ø The choice: Enabled or Disabled.

INT Pin 1/2/3/4/5/6/7/8 Assignment

Names the interrupt request (IRQ) line assigned to PCI 1 throught PCI 8
on system. Activity of selected PCI slot awakens system.

Ø The choice: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, or 15.

- 72 -

@ PC Health Status

Shutdown Temperature

Enables you to set the maximum temperature the system can reach
before powering down.

Ø The choice: Disabled, 60oC/140oF, 65oC/149oF, 70oC/158oF or
75oC/167oF .

System Component Characteristics

These fields provide you with information about the systems current
operating status. You cannot make changes to these fields.

The fields include

CPU Vcore

VDDQ

+3.3V
+5V
+12V

-12V
+2.6V
+5VSB

Voltage Battery
PWM Temperature

CPU Temperature

System Temperature
Fan 1 Speed
Fan 2 Speed
Fan 3 Speed

- 73 -

@ Frequency/Voltage Control

This iteme enables you to set the clock speed and system bus for your
system. The clock speed and system bus are determine by the kind of
processor youhave installed in your system.

CPU Clock Ratio

This item allows you to adjust CPU Ratio.
Ø The choice: Min= 8 Max=50
Key in a DEC number:

Auto Detect PCI Clk

This item allows you to enable/disable auto detection PCI Clock.
Ø The choice: Enabled, or Disabled.

Spread Spectrum

This item allows you to enable/disable the spread spectrum modulation.
Ø The choice: Enabled, or Disabled.

CPU & AGP/PCI Clock Set

This item allows Auto Detect CPU& AGP/PCI Over Clock.
Ø The choice: Auto Detect or Manual.

CPU Clock

This item allows you to adjust CPU Clock.
Ø The choice: Min= 100 Max=233
Key in a DEC number:

- 74 -

Async AGP/PCI CLK

This item allows .
Ø The choice: Sync by CPU Clock , fixed 66/33/100MHz, fixed 73/

36/100MHz or fixed 80/40/100MHz.

CPU Voltage

This item allows .you to adjust the CPU Voltage.
Ø The choice: Default ,0.8250~1.5875V.

DDR Voltage

This item allows .you to adjust the DDR Voltage
Ø The choice: Auto ,2.65V, 2.70V or 2.75V.

AGP Voltage

This item allows . you to adjust AGP Voltage.

Ø The choice: Auto ,1.55V, 1.60V or 1.65V.

@ Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing 'Y' loads the BIOS default values for the most stable,
minimal performance system operations.

@ Load Optimized Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing 'Y' loads the default values that are factory-set for
optimal performance system operation.

- 75 -

@ Supervisor/User Password Setting

You can set either supervisor or user password, or both of them. The
differences between them are:

Supervisor Password and User Password

The options on the Password screen menu make it possible to restrict
access to the Setup program by enabling you to set passwords for two
different access modes: Supervisor mode and User mode. In general,
Supervisor mode has full access to the Setup options, whereas User
mode has restricted access to the options. By setting separate Supervisor
and User password, a system supervisor can limit who can change
critical Setup values.

Enter Password

Type the password up to eight characters, and press <Enter>. The
password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press <Enter>. You may also press <Esc> to
abort the selection and not enter a password. To disable password, just
press <Enter> when you are prompted to enter password. A message
will confirm the password being disabled. Once the password is dis­abled, the system will boot and you can enter Setup freely.

- 76 -

Password Disable

If you select System at Security Option of BIOS Features Setup Menu,
you will be prompted in entering the password whenever the system is
rebooted or you try to enter Setup. If you select Setup at Security Option
of BIOS Features Setup Menu, you will be prompted only when you try
to enter Setup.

Warning : Retain a record of your password in a safe place. If you

@ Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing "Y" stores the selections made in the menus of CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS.After saving
the values the system is restarted again.

forget the password, the only way to access the system is
to clear CMOS, please refer to "Clear CMOS" on page 29.

@ Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit from Setup without storing in CMOS any
change. The previous selections remain in effect. This exits from the
Setup utility and restarts your computer.

- 77 -
