Shuttle AB49N User Manual

AB49 & AB49N

Intel Pentium 4/Celeron
478-pin Processor
with 400/533 MHz FSB
Based DDR MAINBOARD

User's Manual

Shuttle® AB49 & AB49N

Intel Pentium 4/Celeron
478-pin Processor
with 400/533 MHz FSB
Based DDR Mainboard
Manual Version 1.0

Copyright

Copyright© 2003 by Shuttle® Inc. All Rights Reserved.
This publication, including all photos, illustrations, and software, is protected under interna-

tional copyright laws, with all rights reserved. Reproducing any of the material contained
herein is prohibited without the consent of the publisher.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.

This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.
Intel, Pentium, and Celeron are registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other product names used in this manual are ascribed to their respective
owners and acknowledged.

M784

Statement of Shuttle Mainboard via the EMI Test

Shuttle mainboards have been via the EMI test in terms of series of regulations: EN55022/
CISPR22/AS/NZS3548 Class B, EN55024 (1998/AS/NZS), EN4252.1 (1994), EN61000, ANSI
C63.4 (1992), CFR47 Part 15 Subpart B, and CNS13438 (1997). The items tested are illus­trated as follows:

(A) Voltage: AC 110V/60HZ & AC 230V/50HZ

(B) Tested Product Information:

Product Name: PC Mainboard
Status: Sample
Model Name: AB49N/AB49
S/N: N/A
CPU:

External Frequency: 100 MHz

Intel Pentium IV 1.6/1.8/2.0/2.2/2.4 GHz

External Frequency: 133 MHz

Intel Pentium IV 2.26/2.40/2.53/2.66/2.80/3.06 GHz
Mouse Port: one port with 6 pins
Keyboard Port: one port with 6 pins
Parallel Port: one port with 25 pins
Serial Port: one port with 9 pins
USB Port: four ports with 4 pins respectively
LAN Port: one port with 8 pins (10Mbps/100Mbps)(AB49N Only)
Line-In & Line-Out & Mic-In Ports: one port for each
DDR Memory: 256 MB*2

All CPUs have completely been tested, and values offered by the worst EMI combination of
CPU external frequency are listed as follows:

Test Mode

1
2
3
4

(C) Remedy for the Tested Product & Its EMI Interference:

(D) Difference between AB49N and AB49:
To discriminate AB49N from AB49 lies in the extent that chips in AB49N support LAN, and the
combination for testing is based on AB49N.

External Frequency

133 MHz
133 MHz
100 MHz
100 MHz

Remedy: N/A
EMI Interference:

Crystal: 25.00 MHz(X1)/24.576 MHz(X2)/32.768 KHz(X3)/14.318 MHz(X4)

Clock Generator: CLK1

CPU
P4 3.06 GHz
P4 3.06 GHz

P4 2.4 GHz
P4 2.4 GHz

Power Supply
ENP-0730(ATX12V)
ENP-0730(ATX12V)
ENP-0730(ATX12V)
ENP-0730(ATX12V)

Case Open/Closed

Closed

Open

Closed

Open

(E) Supported Host Peripherals:

Host Peripheral Product Name Model Name S/N FCC ID

#1 Case KF45A N/A
#2 Power Supply (300W) ENP-0730 (ATX12V) 1000002885
#3 IBM HDD (30.7GB) 91024UB YKFY7981 3892I168
#4 MITSUMI FDD D353M
#5 SONY VCD Player CDU4811 3892A291
#6 AGP Card Winfast Geforce 2 MX 3892C520
#7 Power Cable Detachable and Shielded

(F) Notices for Assembling Computers:

1. Cases should be made of iron or other metal that has good electric conductivity.

2. Cylinders in a case should be made of metal, and as having a mainboard mounted
in a case, make sure screws are all utilized and fastened on a mainboard.

3. An I/O shielding should be contacted with I/O metallic parts of a mainboard.

4. Cables should appropriately be arranged and fixed in a case. Follow instructions:

Ø Leave IDE cables not crossed upon CPU and SDRAM;
Ø Leave power cables minimum in length, and not crossed upon a mainboard;
Ø Leave CPU fan cables minimum in length, and not near CPU;
Ø Leave cables on panels and other spare cables tied in a computer case.

5. Make sure an EMI shielding attached to a case has properly been installed.

6. Make sure a 5.25" or 3.5" FDD and screws are fastened to an EMI shielding.

7. Make sure a case is closely in contact with EMI connected points.

8. Make sure there is no cleft in a case which is not deformed.

9. Make sure a PCI or AGP door is bound to a case.

10. Make sure cables of other devices (fans or some others) are fixed in a case.

TABLE OF CONTENTS

WHAT'S IN THE MANUAL.................................................................... 5

Quick Reference............................................................................................... 5

About This Manual ........................................................................................... 5

1 INTRODUCTION ................................................................................ 6

1.1 TO DIFFERENT USERS ............................................................................. 6

FIRST-TIME DIY SYSTEM BUILDER............................................................ 6

EXPERIENCED DIY USER ......................................................................... 6

SYSTEM INTEGRATOR............................................................................... 6

1.2 ITEM CHECKLIST....................................................................................... 7

2 FEATURES ........................................................................................ 8

2.1 SPECIFICATIONS ....................................................................................... 8

3 HARDWARE INSTALLATION.......................................................... 11

3.1 STEP BY STEP INSTALLATION................................................................11

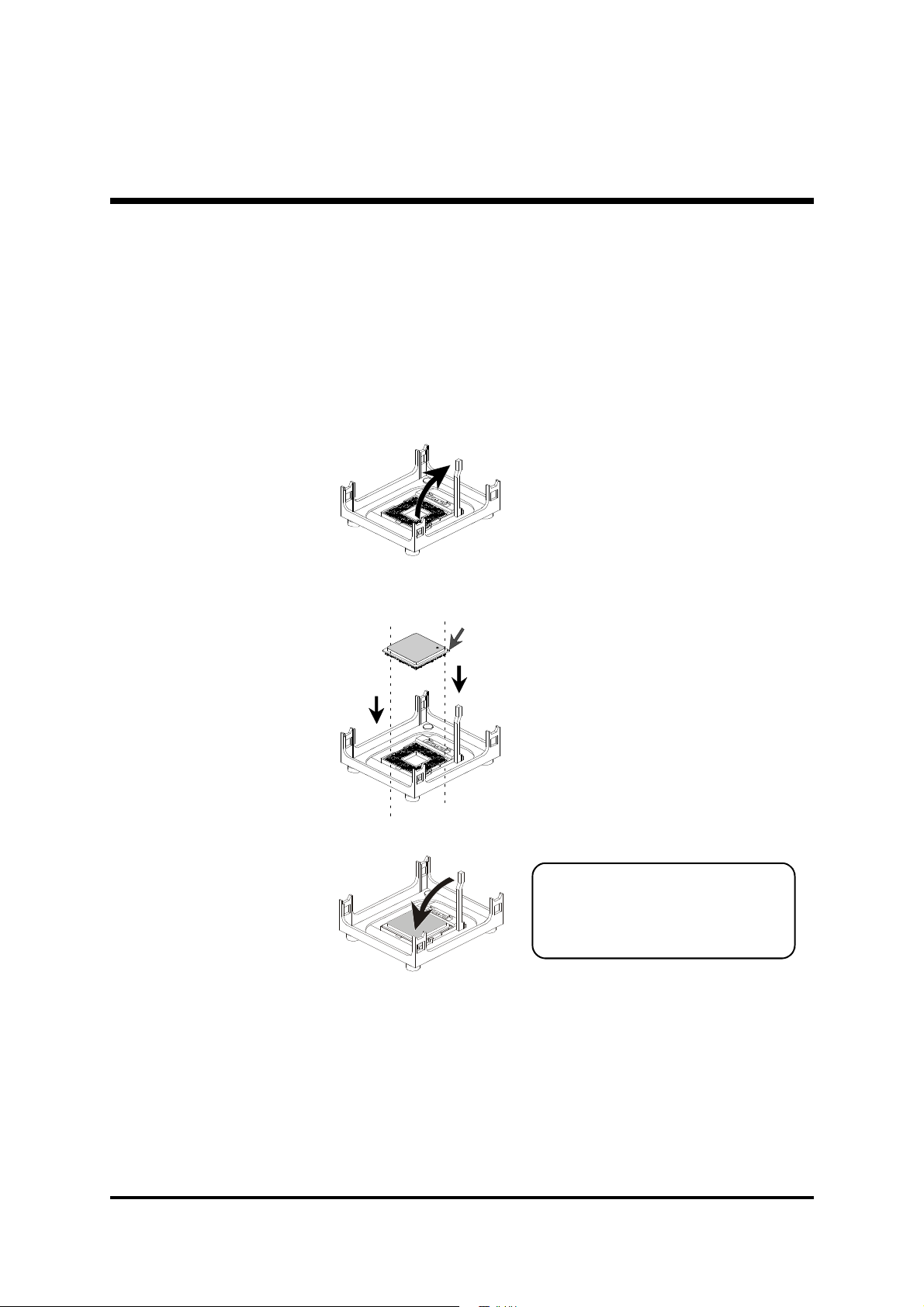

STEP 1 Install the CPU.......................................................................... 12

STEP 2 Set Jumpers............................................................................. 13

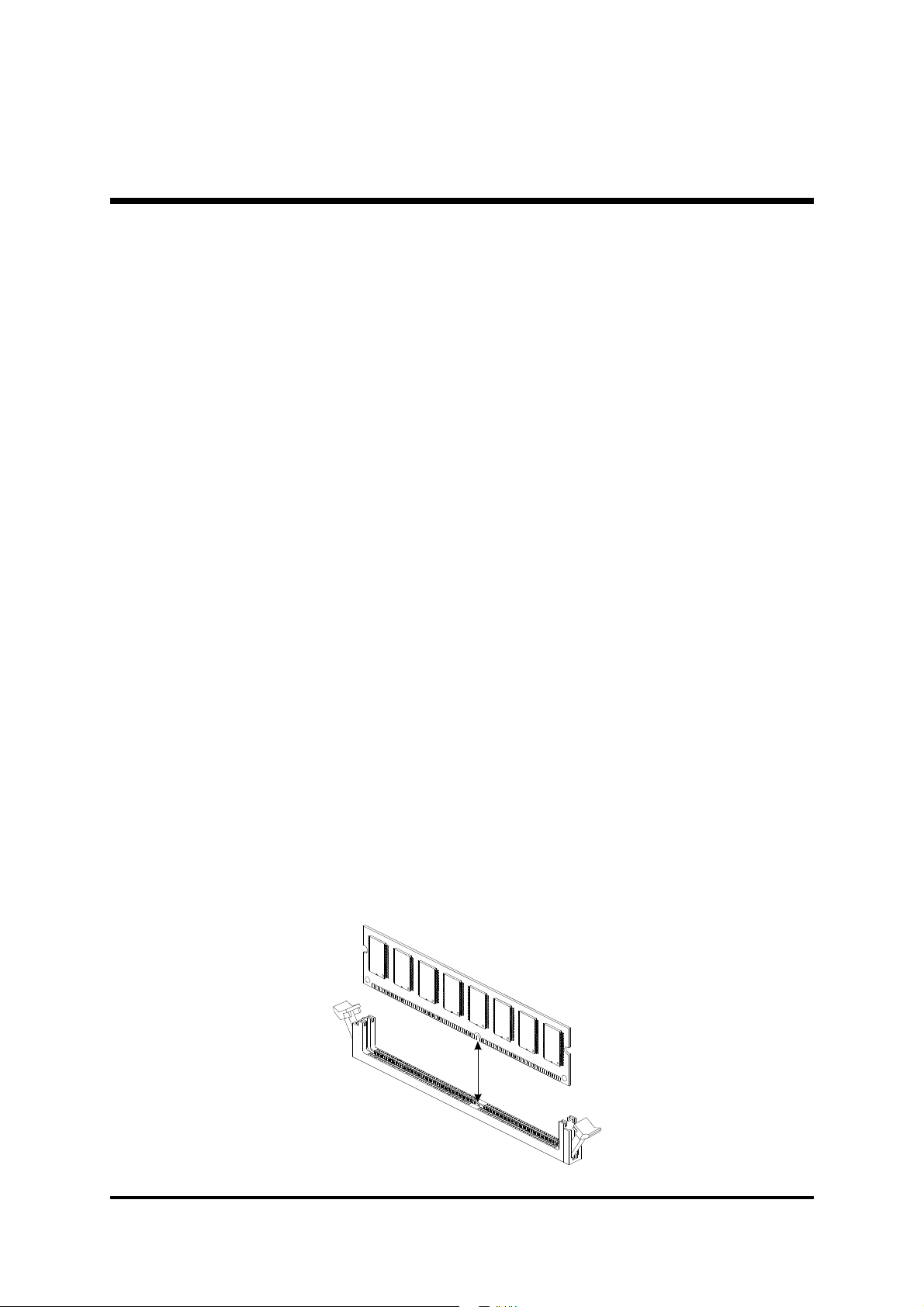

STEP 3 Install DDR SDRAM System Memory........................................ 13

STEP 4 Install Internal Peripherals in System Case ................................ 14

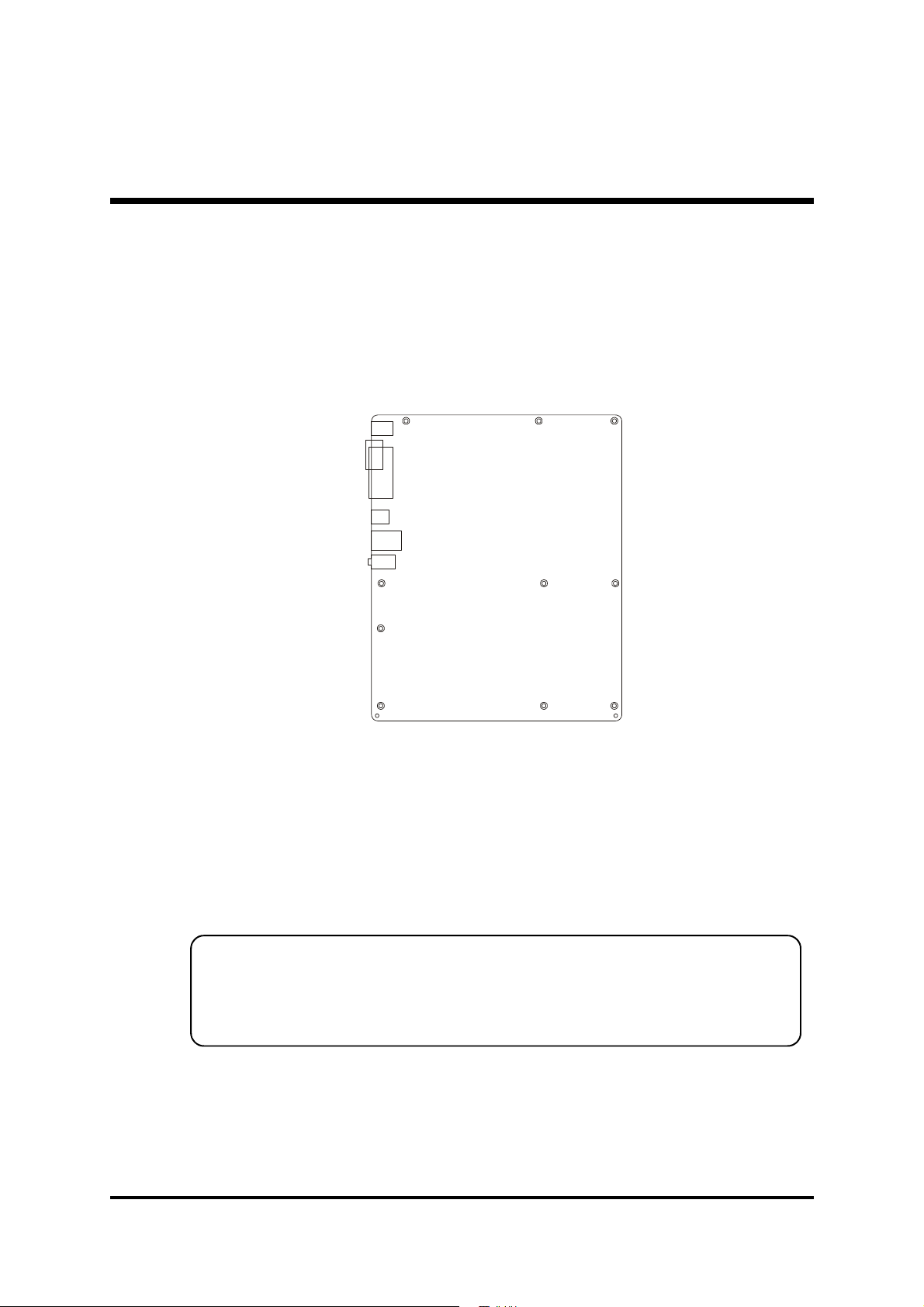

STEP 5 Mount the Mainboard on the Computer Chassis........................ 15

STEP 6 Connect Front Panel LEDs/Switches/USB................................ 16

STEP 7 Connect IDE and Floppy Disk Drives........................................ 17

STEP 8 Connect Other Internal Peripherals............................................ 18

STEP 9 Connect the Power Supplies .................................................... 19

STEP 10 Install Add-on Cards in Expansion Slots .................................. 19

STEP 11 Connect External Peripherals to Back-Panel........................... 20

STEP 12 Install Drivers & Software Components ................................... 21

- 1 -

3.2 JUMPER SETTINGS ................................................................................. 22

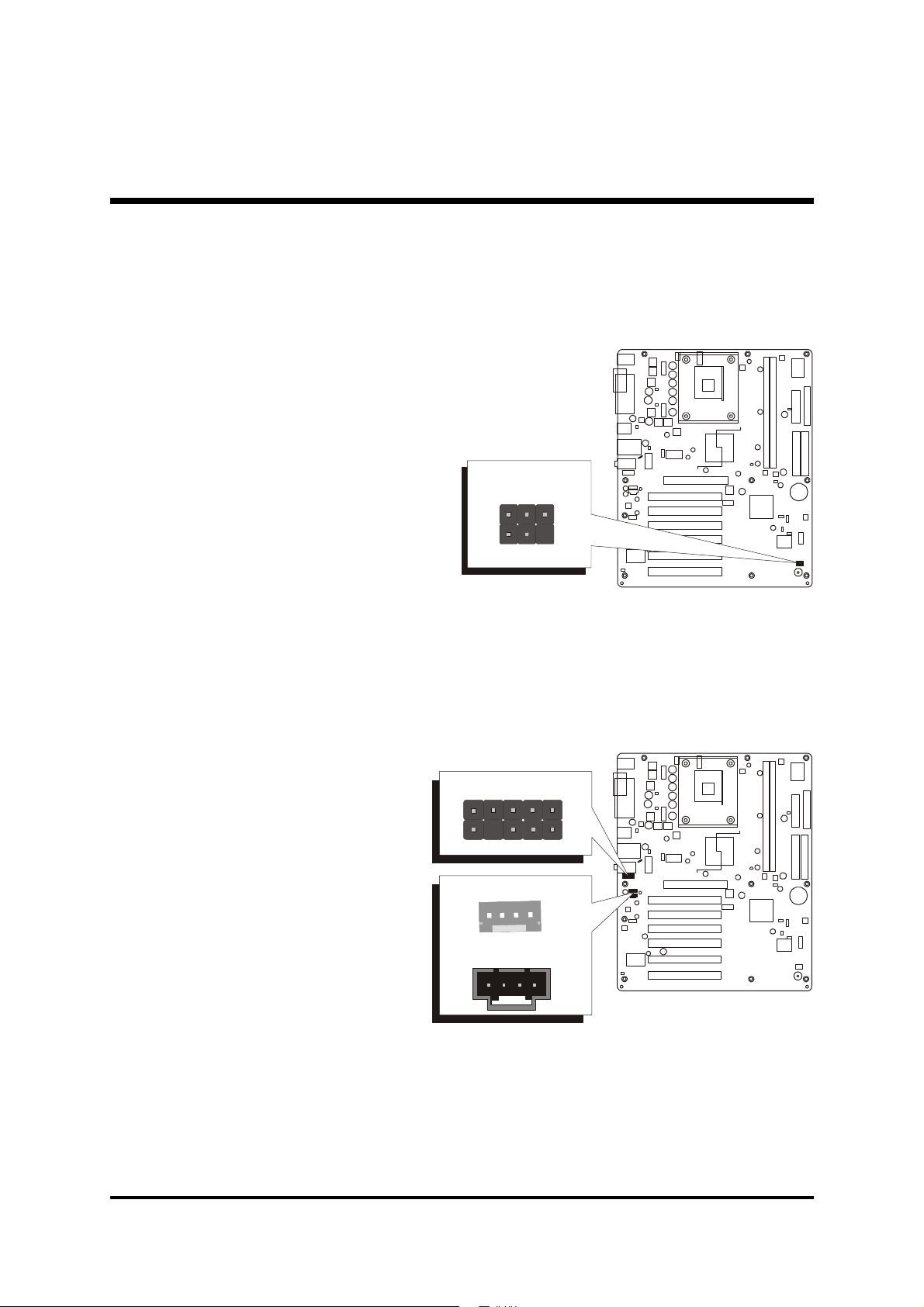

JUMPERS & CONNECTORS GUIDE.................................................... 23

Jumpers

Clear CMOS Setting (JP1) ................................................................... 25

BIOS Flash Protection Setting (JP2) ...................................................... 25

Back-Panel Connectors

PS/2 Mouse & PS/2 Keyboard Connectors............................................ 26

Parallel Port Connector.......................................................................... 26

COM1 Port Connector ........................................................................... 26

USB1/2/3/4 Port Connectors ................................................................. 26

LAN Port Connector (AB49N Only) ........................................................ 27

Line-In (6-Channel Rear-Out) Port Connector ......................................... 27

Line-Out (6-Channel Front-Out) Port Connector...................................... 27

Mic-In (6-Channel Center/Bass-Out) Port Connector .............................. 27

Front-Panel Connectors

HDD LED Connector (HDLED) ............................................................. 28

Hardware Reset Connector (HWRST).................................................... 28

Green LED Connector (GRNLED) ......................................................... 29

ATX Power On/Off Switch Connector (PWRSW).................................... 29

Extended USB Header (USB3).............................................................. 30

Front Panel Microphone and Line-Out Header (AUDIO1) ....................... 30

Internal Peripheral Connectors

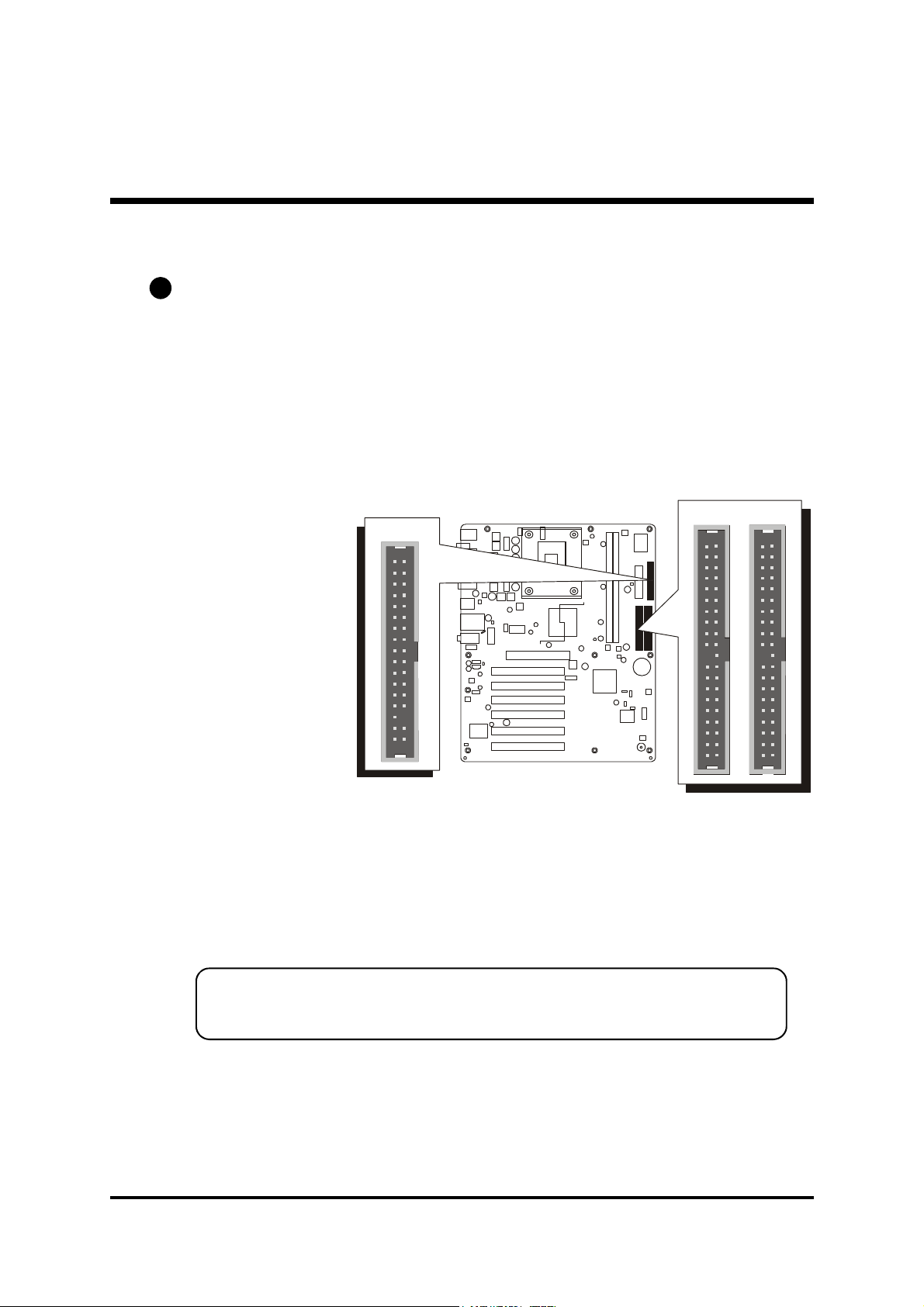

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FDD1) ................. 31

Other Connectors

ATX Power Supply Connectors (ATX1/ATX12V).................................... 32

CPU, Power, and Chassis Fan Connectors (CPUFAN1/PWRFAN1/

CASFAN1)............................................................................................ 33

- 2 -

Audio CD_IN Connectors (CDIN1/CDIN2) ............................................. 33

IR Header (IR1)...................................................................................... 34

3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 35

1. INSTALL MEMORY ............................................................................ 35

2. UPGRADE MEMORY........................................................................ 35

4 SOFTWARE UTILITY ......................................................................36

4.1 Mainboard CD Overview ......................................................................... 36

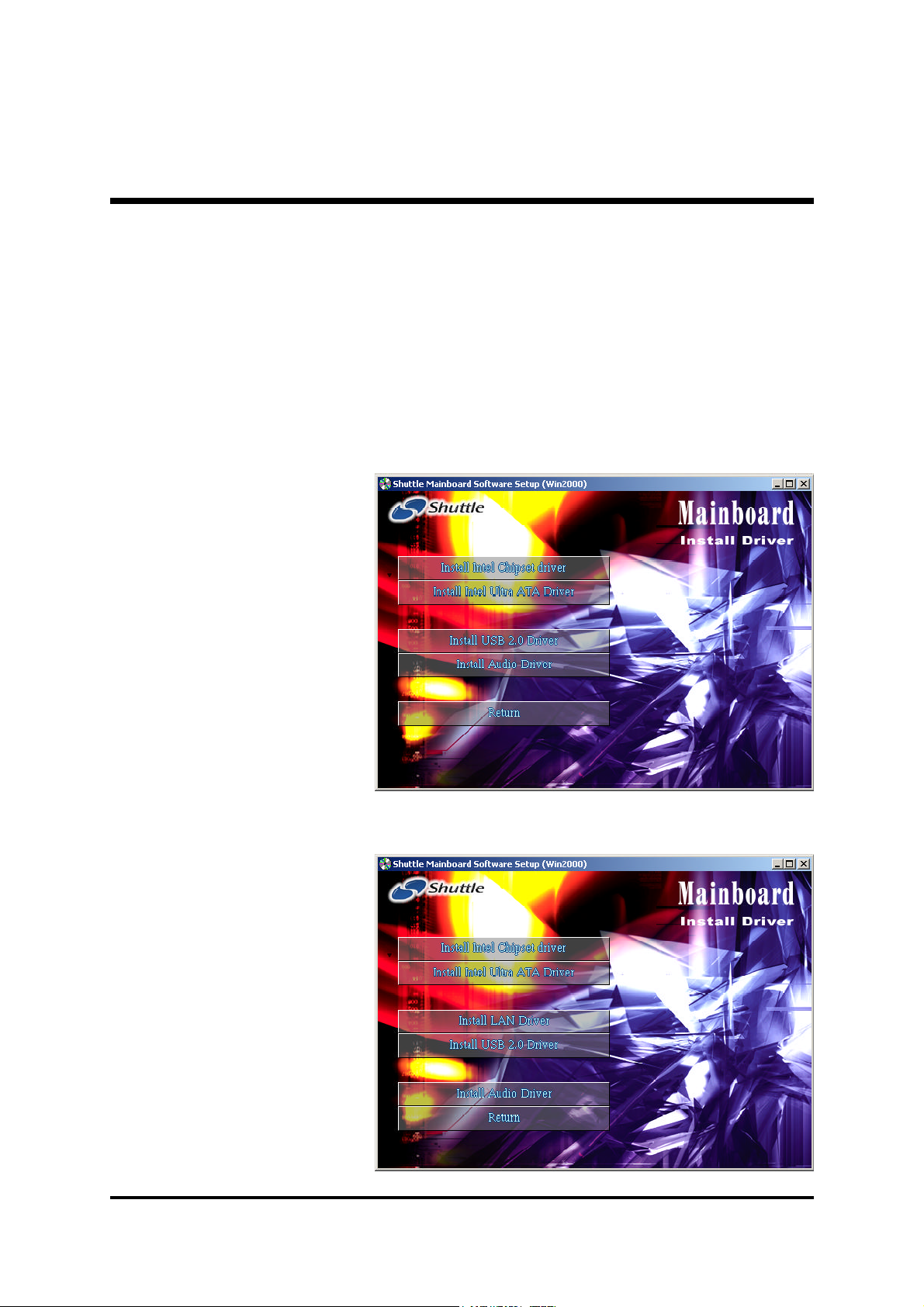

4.2 Install Mainboard Software ..................................................................... 37

4.2.A Install Intel Chipset Driver.................................................................... 38

4.2.B Install Intel Ultra ATA Driver ................................................................. 39

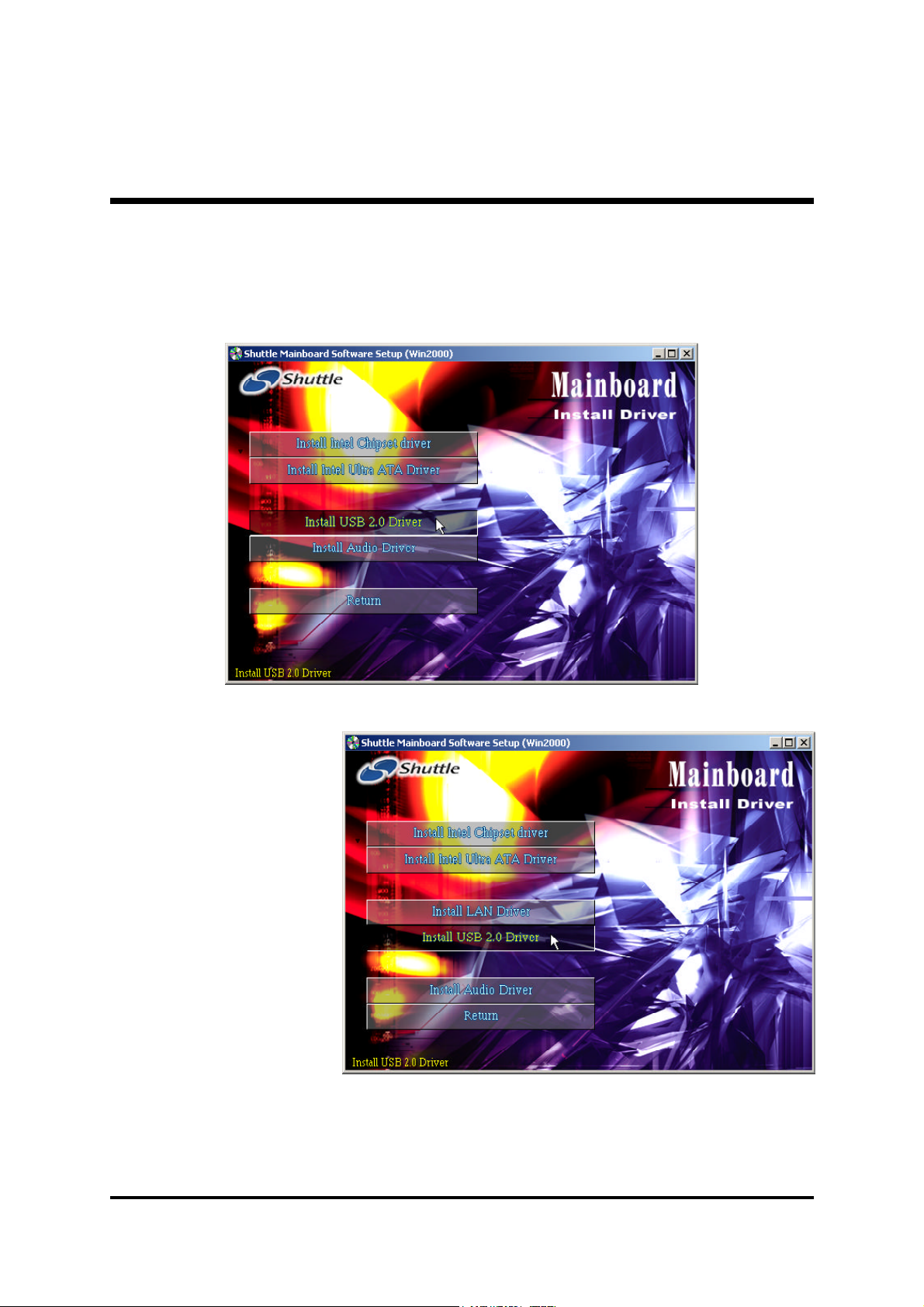

4.2.C Install USB 2.0 Driver ........................................................................... 40

4.2.D Install Audio Driver............................................................................... 41

4.2.E Install LAN Driver (AB49N Only) .......................................................... 42

4.3 View the User's Manual........................................................................... 42

5 BIOS SETUP ...................................................................................43

5.1 ENTER BIOS ............................................................................................. 43

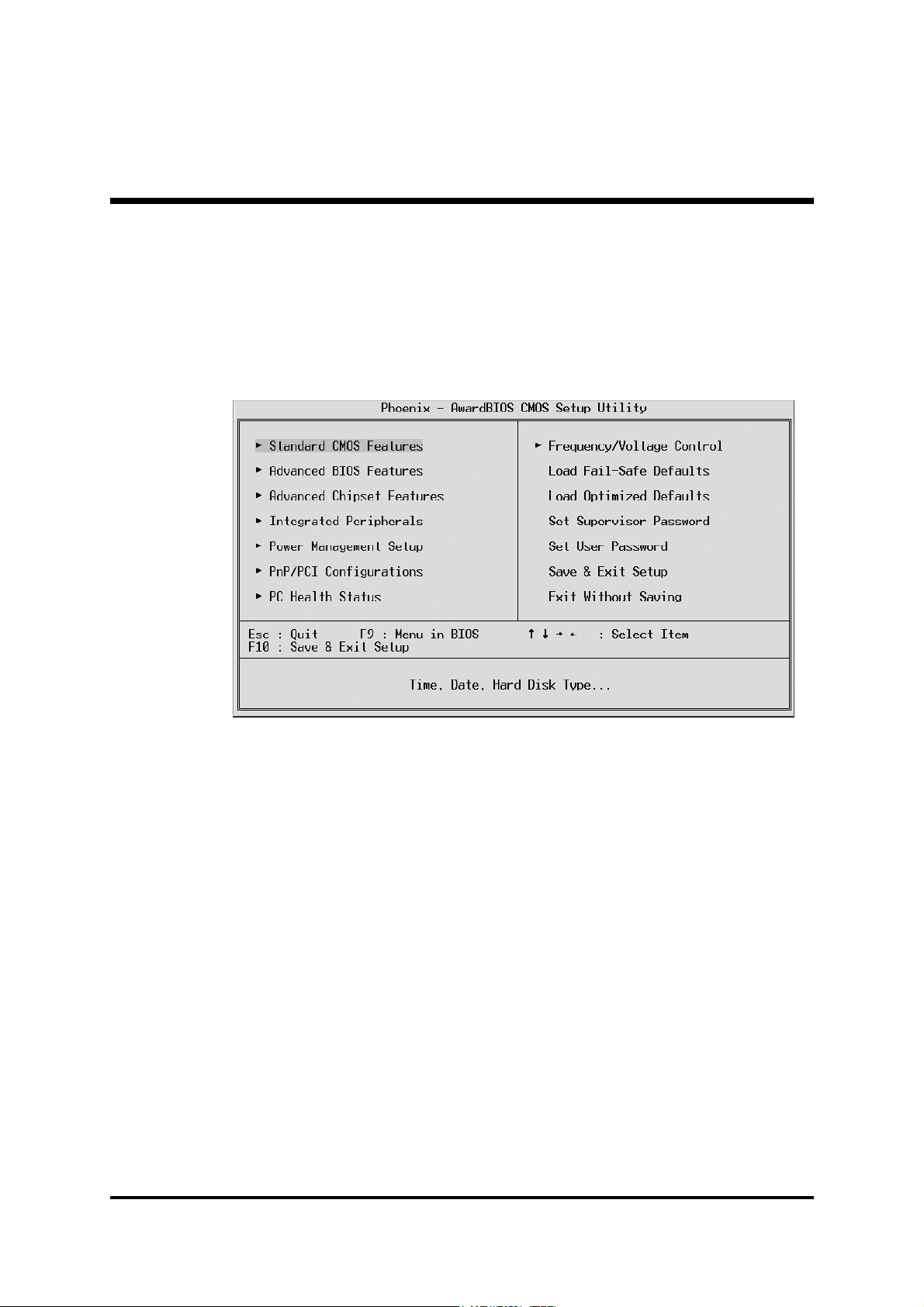

5.2 THE MAIN MENU ...................................................................................... 44

STANDARD CMOS FEATURES ............................................................... 46

ADVANCED BIOS FEATURES................................................................. 48

ADVANCED CHIPSET FEATURES .......................................................... 51

INTEGRATED PERIPHERALS .................................................................. 53

POWER MANAGEMENT SETUP.............................................................. 56

PNP/PCI CONFIGURATIONS .................................................................... 60

PC HEALTH STATUS................................................................................ 61

FREQUENCY/VOLTAGE CONTROL......................................................... 62

LOAD FAIL-SAFE DEFAULTS .................................................................. 63

- 3 -

LOAD OPTIMIZED DEFAULTS ................................................................. 63

SET SUPERVISOR/USER PASSWORD................................................... 64

SAVE & EXIT SETUP................................................................................ 65

EXIT WITHOUT SAVING ............................................................................ 65

- 4 -

WHAT'S IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................ Page 11

Jumper Settings >> A Closer Look.......................................................Page 22

Drivers/Software Utilities >> How to Install .........................................Page 36

BIOS Setup >> How to Configure.........................................................Page 43

About This Manual

For First-Time DIY System Builder.........................................................Page 6

For Experienced DIY User ...................................................................... Page 6

For System Integrator .............................................................................Page 6

- 5 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as diffi­cult as you may think. To make your first computer DIY experience successful,
right from the start, we have designed the 3.1 Hardware Installation section
in a step-by-step fashion for all the first-time DIY system builders. Prior to instal­lation, we also suggest you to read the whole manual carefully to gain a com­plete understanding of your new Shuttle AB49/AB49N mainboard.

Experienced DIY User

Congratulate on your purchase of the Shuttle AB49/AB49N mainboard. You
will find that installing your new Shuttle AB49/AB49N mainboard is just easy.
Bundled with an array of onboard functions, the highly-integrated AB49/AB49N
mainboard provides you with a total solution to build the most stable and reli­able system. Refer to sections 3.2 Jumper Settings and Chapter 4 Drivers/
Software Utilities to find out how to get the best out of your new mainboard.
Chapter 5 BIOS Setup also contains the relevant information on how to tune
up your system to achieve higher performance.

System Integrator

You have wisely chosen Shuttle AB49/AB49N to construct your system.
Shuttle AB49/AB49N incorporates all the state-of-the-art technology of the
845PE (GMCH) chipset from Intel. It integrates the most advanced functions
you can find to date in a compact ATX board.

This manual is all-purpose for two kinds of mainboards: AB49 and
AB49N. The main difference between them is that AB49N is equipped
with an onboard LAN. In the manual, if there are some standards, charac­teristics, equipment, or software adopted only by AB49N, it will be high­lighted in brackets.

- 6 -

1.2 Item Checklist:

K
T
S

J
A
P
A
N
S
T
D

C
R
2
0
3
2

L
I
T
H
I
U
M
B
A
T
T
E
R
Y

W
i
n
b
o
n
d

W
4
9
V
0
0
2
F
A
P

2
1
4
6
7
0
4
0
1

2
4
5
G
H
S
A

CPUFAN1

1

SIO

MART@

W83637HF-AW

PWRFAN1

FW82801DB

111

Check all items with your AB49/AB49N mainboard to make sure nothing is
missing. The complete package should include:

- One piece of Shuttle AB49/AB49N Mainboard

- One piece of ATA 100/66 Ribbon Cable

- One piece of Floppy Ribbon Cable

- One piece of twin ports USB Cable (optional)

- AB49/AB49N User's Manual

PSKBM1

COM1

LPT1

ATX12V

USB1394A_J1

USBLANA1

UA330158
0307
950220AF

USBLAN1

1

1

1

CMI9739A

DIMM1DIMM2

1

1

FDD1

ATX1

1

IDE2 IDE1

1 1

BT1

CASFAN1

1

- I/O Shielding

- One piece of Bundled CD-ROM with containing:
Ø AB49/AB49N user's manual saved in PDF format

Ø Intel Chipset Driver
Ø Intel Ultra ATA Driver
Ø LAN Driver (AB49N Only)
Ø USB 2.0 Driver
Ø Audio Driver
Ø Award Flashing Utility

- 7 -

2 FEATURES

AB49/AB49N mainboard is carefully designed for the demanding PC user who wants
high performance and maximum intelligent features in a compact package.

2.1 Specifications

- CPU Support

Intel Pentium 4/Celeron, 478-pin processors with 400/533 MHz FSB.

- Chipset

Features Intel 845PE (GMCH) N.B. and Intel 82801DB (ICH4) S.B..

- Hyper-Threading Technology

The latest Intel application defines a high-speed calculating ability to opti­mize your system by two CPUs supported (one virtual, one physical) in a
multi-task environment.

- CPU FSB Configuration

Soft-configuration FSB (The FSB speed is software configurable from 100MHz
to 133MHz.)

- Onboard 10/100Mb/s LAN (AB49N Only)

The Realtek RTL8100B incorporated in the chipset provides the mainboard
with integrated Fast Ethernet capabilities.

- On Board 6 Channel AC'97 Audio

Compliant with AC'97 2.2 involves SPDIF-Out function. 6 channel slot
selectable DAC Output for multi-channel applications.

- Versatile Memory Support

Two 184-pin DIMM slots to support max 2GB of PC1600/PC2100/PC2700
compliant with DDR SDRAM module.

- PCI Expansion Slots

Provides six 32-bit PCI slots.

- AGP Expansion Slot

Provides one AGP 2.0 compliant slot which supports 1X/2X/4X AGP devices.

- 8 -

- 6 USB 2.0 Interface Onboard

4 * USB connectors on back-panel and 1 set of dual USB ports header on mid­board.

- I/O Interface

Provides a variety of I/O interfaces:

Ø 1* PS/2 mouse connector.
Ø 1* PS/2 keyboard connector.
Ø 1* DB25 parallel port.
Ø 1* serial port.
Ø 1* LAN port. (AB49N Only)
Ø 1* Line-In port. (shared with Rear-Out port)
Ø 1* Line-Out port. (shared with Front-Out port)
Ø 1* Mic-In port. (shared with Center/Bass-Out port)

- PCI Bus Master IDE Controller Onboard

Two Ultra DMA 100/66/33 Bus Master Dual-channel IDE ports provide sup­port to a maximum of four IDE devices (one Master and one Slave per channel).
The IDE Bus implements data transfer speeds of up to 100/66/33 MB/sec and
also supports Enhanced PIO Modes. 80-pin Cable Backward Compatible Legacy
ATAPI Devices, ATAPI IDE CD-ROM, CD-R, CD-RW, and LS-120 Supports.

- ATX Power Supply Connector

ATX power supply unit can be connected to the onboard 20-pin ATX power
connector, and 4-pin ATX power connector. The unit supports Suspend and
Soft-On/Off modes by the dual-function power button.

- Advanced Configuration and Power Interface

Features four power saving modes: S1 (Snoop), S3 (Suspend to RAM), S4
(Suspend to DISK), and S5 (Soft-Off). ACPI provides more efficient Energy
Saving Features controlled by your operating system that supports OS Direct
Power Management (OSPM) functionality.

- System BIOS

Provides licensed Award BIOS V6.0 PG on Intel Firmware Hub 2Mb Flash
core and supports Green PC, Desktop Management Interface (DMI).

- 9 -

- ATX Form Factor

System board conforms to ATX specification.
Board dimension: 305 mm* 244 mm.

- Advanced Features

Ø Low EMI - Built in spread spectrum. Unused PCI/SDRAM slots are shut off

by the automatic clock for reducing EMI.

Ø Dual Function Power Button - The system can be in any of the two

states: one is Suspend mode and the other is Soft-Off mode. Pushing the
power button for less than 4 seconds places the system into Suspend
mode. When the power button is pressed for longer than 4 seconds, the
system will enter Soft-Off mode.

Ø Modem Ring Power-On - The system can be powered on automatically

by the activation of modem ringing.

Ø CPU Host Clock Setting - This item allows users to adjust CPU Host

Clock in BIOS.

Ø CPU Multiplier Setting - This item allows users to adjust CPU Multiplier

in BIOS.

- Intelligent Features

Ø Voltage Monitoring - Monitors various voltages of key elements, such as

the CPU, and other critical system voltage levels to ensure a stable current
passing through mainboard components.

Ø Fan Status Monitoring - To prevent the CPU from overheating, the CPU

fan is monitored by RPM, with which the cooling fan is required.

Ø Temperature Monitoring - This item allows users to make sure whether

the CPU or system runs under a suitable temperature.

- 10 -

3 HARDWARE INSTALLATION

K
T
S

J
A
P
A
N

S
T
D

C
R
2
0
3
2

L
I
T
H
I
U
M

B
A
T
T
E
R
Y

W
i

n
b
o
n
d

W
4
9
V
0
0
2
F
A
P

2
1
4
6
7
0
4
0
1

2
4
5
G
H
S
A

CPUFAN1

1

SIO

MART@

W83637HF-AW

PWRFAN1

FW82801DB

111

BIOS Flash Protection Jumper - JP2

Header - PANEL1

Header - USB3CASFAN1Celar CMOS Jumper -

JP1One Floppy ConnectorTwo IDE ConnectorsATX PowerConnector - ATX1

PWRFAN1

Two DIMM Slots

CPUFAN1

I/O Controller 83637

Before removing/installing any of these devices: CPU, DIMMs, Add-On
Cards, and Cables, please unplug the onboard power connector.

This section outlines how to install and configure your mainboard. Referring to the follow­ing mainboard layout helps you identify various jumpers, connectors, slots, and ports.
Steps described herein will lead you to a quick and correct installation of your system.

3.1 Step-by-Step Installation

Accessories Of AB49/AB49N

PS2 Keyboard & PS/2
Mouse Port Connectors

Serial Port Connector

Socket 478

Intel 82801DB
Chipset

Parallel Port
Connector
Intel 845PE Chipset

ATX12V Power
Connector - ATX12V
USB Port Connectors

USB Port Connectors &
LAN Port Connector
(AB49N Only)

Mic-In/Line-Out/Line-In
Port Connectors

Front Panel Micro­phone & Line-Out
Header - AUDIO1

One AGP 4X Slot

Audio CD_IN
Connector - CDIN1

Audio CD_IN
Connector - CDIN2

Six PCI Slots

Onboard LAN
Realtek 8100B
(AB49N Only)

PSKBM1

COM1

LPT1

USBLANA1

USBLAN1

CMI9739A

USB1394A_J1

1

1

1

ATX12V

UA330158
0307
950220AF

DIMM1DIMM2

1

1

ATX1

IDE2 IDE1

1 1

BT1

CASFAN1

FDD1

1

1

Extended USB

Front Panel

IR Header - IR1

- 11 -

Step 1

CPU Installation:

This mainboard supports Intel Pentium 4/Celeron Socket 478 series CPU.
Please follow the steps as follows to finish CPU installation.

Note the CPU orientation when you plug it into CPU socket.

1. Pull up the CPU socket lever to 90-degree angle.

CPU socket lever up to
90-degree angle

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU
upper interface. Match Pin 1 and cut edge, and insert the CPU into the

socket.

CPU Pin 1 and cut edge

3. Press down the CPU socket lever and finish CPU installation.

Note: The CPU might be
damaged if you do not match
the CPU socket Pin 1 and cut
edge well.

4. Intel Pentium 4/Celeron processors require a set of heatsink and fan to cool
down the processor. You need to purchase a heatsink and fan if they are not
bundled with your CPU. Required is that install the set and plug its cable
in the CPU fan power connector. Note that there are kinds of CPU fan
connectors. Normally, if your mainboard supports a hardware monitoring
function, a 3-pin fan power connector can have your system detect the
CPU fan's speed. A CPU fan with a 2-pin or 4-pin fan power connector
does not support the detection of the CPU fan's speed, and must directly
be connected to the system's power supply unit.

- 12 -

Step 2.

Set Jumpers

The default jumper settings have been set for the common usage standard of
this mainboard. Therefore, you do not need to reset the jumpers unless you
require special adjustments as any of the following cases:

1. Clear CMOS

2. BIOS Flash Protection

For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with the mainboard
configuration procedures. The factory-set default settings are tuned for opti­mum system performance. For the advanced users who wish to customize
their system, section 3.2 Jumper Settings will provide detailed information
on how to configure your mainboard manually.

Step 3

Install DDR SDRAM System Memory

To install memory, insert DDR SDRAM memory module(s) in any one or two
DIMM banks. Note that SDRAM modules are directional and will not go in
the DIMM banks if they are not properly oriented. After the module is fully
inserted into the DIMM bank, lift the clips of both sides of the DIMM bank to
lock the module in place.

DDR SDRAM

- 13 -

Step 4

Install Internal Peripherals in System Case

Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into the
computer housing, including but not limited to the hard disk drive (IDE/
HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de­scribed below.

To install IDE & FDD drives, follow this procedure:

1. Set the required jumpers on each device according to the instructions
provided by the manufacturer. (IDE devices, HDD, and CD-ROM, have to
set jumpers to Master or Slave mode depending on whether you install
more than one device of each kind.)

2. Connect IDE cable and FDD cable on the back-panel of the internal
peripheral devices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually red or magenta)
connected to pin#1 both on the mainboard IDE or FDD connector and on
the device as well.

3. Connect an available power cable from your system power supply unit
to the back-panel of each peripheral device. Note that the power cable is
directional and cannot fit in if not properly positioned.

- 14 -

Step 5

Mount the Mainboard on the Computer Chassis

1. You may find there are a lot of mounting holes on your computer chassis
and mainboard. To match the holes on both properly, the key point is to
make the back-panel of the mainboard in a close fit with your system case,
as shown below.

2. Position the studs between the chassis and the mainboard. The studs are
used to fix the mainboard and to keep a certain distance between the
them, for avoiding any electrical shorts in-between.

(If your computer case is already equipped with mounting studs, you need
to tighten the screws to attach the mainboard.)

Note: In most computer housings, you can find 4 or more holes to place

studs for fixing the mainboard. If there aren't enough matching holes,
screw at least 4 studs to ensure the proper attachment of the main­board.

- 15 -

Step 6

2

1

PANEL1

1

HWRST

5

9=KEY

2=VREG_FP_USBPWR0

10=NC

1

3

PANEL1

-+HDLED

HWRST

PWRSW

Connect Front Panel LEDs/Switches/USB

You can find there are several different cables already existing in the system
case and originating from the computer's front-panel devices (HDD LED,
Green LED, Reset Switch, or a USB device etc.). These cables serve to con­nect the front-panel LEDs, switches, and a USB connector to the mainboard's
front-panel connectors, PANEL1 and USB3, as shown below.

USB3

1

GRNLED

-

+

1

1. HDD LED (HDLED)

2. Hardware Reset Switch Button
(HWRST)

3. Green LED (GRNLED)

4. ATX Soft Power On/Off (PWRSW)

5. Extended USB Header (USB3)

5

79

1

USB3

8

1=VREG_FP_USBPWR0
3=USB_FP_P0­5=USB_FP_P0+
7=GND

24610

4=USB_FP_P1­6=USB_FP_P1+
8=GND

- 16 -

4

PWRSW

3

GRNLED

-

+

­HDLED

+

Step 7

1

IDE1

Connect IDE and Floppy Disk Drives

1. IDE cable connectors

IDE2

1 1

2. Floppy cable connector

FDD1

1

- 17 -

Step 8

Connect Other Internal Peripherals

1. IR header (IR1)

IR1

1

2. Front panel microphone and line-out header (AUDIO1) and CD_IN
connectors (CDIN1/CDIN2)

- 18 -

AUDIO1

1

CDIN1

1

CDIN2

1

Step 9

ATX1

Connect the Power Supplies

1. System power connectors (ATX1/ATX12V)

ATX12V

Step 10

Install Add-On Cards in Expansion Slots

1. Accelerated Grapics Port (AGP) Card

2. PCI Card

- 19 -

Step 11

52678910

Connect External Peripherals to Back-Panel

You are now ready to connect the external peripherals to your system's back­panel.

1. PS/2 Mouse Port

2. PS/2 Keyboard Port

3. Parallel Port

4. Serial Port 1

5. USB Ports 1/2

6. LAN Port (AB49N Only)

7. USB Ports 3/4

8. Audio Line-In Port (Shared with Rear-Out Port)

9. Audio Line-Out Port (Shared with Front-Out Port)

10. Audio Mic-In Port (Shared with Center/Bass-Out Port)

1

3

4

- 20 -

Step 12

Install Drivers & Software Components

Please note that all the system utilities and drivers are designed for Win 9x/
2000/ME/NT/XP operating systems only. Make sure your operating system is
already installed before running the drivers installation CD-ROM programs.

1. Insert the AB49/AB49N bundled CD-ROM into your CD-ROM drive.
The auto-run program will display the drivers main installation window
on screen.

2. Choose "Install Intel Chipset Driver" and complete it.

3. Choose "Install Intel Ultra ATA Driver" and complete it.

4. Choose "Install LAN Driver" and complete it. (AB49N Only)

5. Choose "Install USB 2.0 Driver" and complete it.

6. Choose "Install Audio Driver" and complete it.

7. Return to the main installation window and exit from the auto-run driver's
installation program.

- 21 -

3.2 Jumper Settings

Several hardware settings are made through the use of mini jumpers to con­nect jumper pins on the mainboard. Pin #1 could be located at any corner of
each jumper, you just find the location with a white right angle which stands
for pin #1. There are several types of pin #1 shown as below:

3-pin and multi (>3) pin jumpers shown as following:
Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins are shown as for Close [On] or for
Open [Off]. To short jumper pins, simply place a plastic mini jumpers over
the desired pair of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging

until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its

components. When putting the mainboard down, place it on top of its
original packaging film, on an even surface, and components side up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent

electrostatic discharge (ESD) whenever handling this equipment.

- 22 -

Jumpers & Connectors Guide

C1~C4

C5E2A1D1D1E1E4

A2

Use the mainboard layout on page 11 to locate CPU socket, memory banks,
expansion slots, jumpers and connectors on the mainboard during the instal­lation. The following list will help you to identify jumpers, slots, and connec­tors along with their assigned functions:

B1
B2

B3

E1
B4

B4~B5

B6~B8

C6
E3

E2
E2

CPU/Memory/Expansion Slots

Socket 478 : CPU Socket for Pentium 4/Celeron, 478-pin processors
DIMM1/2 : Two DIMM Slots for 128, 256, 512 MB, and 1GB of 2.5V

DDR SDRAM

(The total installed memory does not exceed 2GB.)
AGP : One 1X/2X/4X AGP (Accelerated Graphics Port) Slot
PCI : Six 32-bit PCI Expansion Slots

- 23 -

Jumpers

A1
A2

JP1 : Clear CMOS setting
JP2 : BIOS flash protection setting

Back Panel Connectors

B1

B1
B2
B3
B4
B5
B6
B7

B8

MS : PS/2 mouse port
KB : PS/2 keyboard port
LPT1 : Parallel port (DB25 female)
COM1 : Serial port 1 (DB9 male)
USB : 4 USB (Universal Serial Bus) ports 1/2/3/4
LAN : 1 LAN port (AB49N Only)
LINE_IN : Line-In (6-Channel Rear-Out) port
LINE_OUT : Line-Out (6-Channel Front-Out) port
MIC_IN : Mic-In (6-Channel Center/Bass-Out) port

Front Panel Connectors

C1
C2
C3
C4
C5

C6

HDLED : IDE drive active LED
HWRST : Hardware reset switch
GRNLED : Green LED
PWRSW : ATX power on/off momentary type switch
USB3 : Extended USB header
AUDIO1 : Front panel microphone and line-out header

Internal Peripherals Connectors

D1

D1

D1

FDD1 : Floppy disk drive interface
IDE1 : IDE primary interface (dual-channel)
IDE2 : IDE secondary interface (dual-channel)

Other Connectors

E1
E2
E2
E2
E3
E4

ATX1/ATX12V : ATX power connectors
CPUFAN1 : CPU fan connector
PWRFAN1 : Power fan connector
CASFAN1 : Chassis fan connector
CDIN1/CDIN2 : CD_IN connectors
IR1 : IR header

- 24 -

F Jumpers

1

1

JP1

JP2

A1

Clear CMOS Setting (JP1)

JP1 is used to clear CMOS data. Clearing CMOS will result in the perma­nently erasing previous system configuration settings and the restoring origi­nal (factory-set) system settings.

Pin 1-2 (Normal)(Default)

Pin 2-3 (Clear CMOS)

Step 1. Turn off the system power (PC-> Off).
Step 2. Remove ATX Power cable from ATX Power connector.
Step 3. Remove jumper cap from pins 1-2.

1

Step 4. Place the jumper cap on pins 2-3 for a few seconds.
Step 5. Return the jumper cap to pins 1-2.
Step 6. Plug ATX Power cable into ATX Power connector.
Step 7. Turn on the system power (PC-> On).

A2

BIOS Flash Protection Setting (JP2)

JP2 is used to protect the BIOS from being unintentionally flashed. Enable this
jumper for protection and disable this jumper when you want to flash the
BIOS.

Short (Enable BIOS Flash
Protection)

Open (Disable BIOS Flash
Protection; you may flash BIOS)

- 25 -

F Back-Panel Connectors

B1

PS/2 Mouse & PS/2 Keyboard Connectors

Two 6-pin female PS/2 Mouse & Keyboard
connectors are located at the rear panel of
the mainboard. Depending on the com­puter housing you use (desktop or tower),
the PS/2 Mouse connector is situated at the
top of the PS/2 Keyboard connector when
the mainboard is laid into a desktop, as op­posed to a tower where the PS/2 Mouse
connector is located at the right of the PS/2
Keyboard's. Plug the PS/2 Mouse/Keyboard
jacks into their corresponding connectors.

B2

Parallel Port Connector

One DB25 female parallel connector is lo­cated at the rear panel of the mainboard.
Plug the connection cable from your paral­lel device (printer, scanner, etc.) into this
connector.

PS/2 Mouse

PS/2 Keyboard

Parallel Port

B3

COM1 Port Connector

Attach a serial device cable to the DB9 se­rial port COM1 at the back panel of your
computer.

B4

USB1/2/3/4 Port Connectors

This mainboard offers 4 USB ports on back
panel. Plug each USB device jack into an
available USB1/2/3/4 connector.

- 26 -

COM1 Port

USB Port2

USB Port1

USB Port4

USB Port3

B5

LAN Port Connector (AB49N Only)

This mainboard can accommodate one de­vice on LAN. Attach RJ-45 cable to this port
connector to your PC to the LAN.

B6

Line-In (6-Channel Rear-Out) Port
Connector

Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can be
used as a source for digital sound recording,
a source to be mixed with the output, or both.

B7

Line-Out (6-Channel Front-Out)
Port Connector

Line-Out is a stereo output port through which
the combined signal of all internal and exter­nal audio sources on the board is output. It
can be connected to 1/8-inch TRS stereo
headphones or to amplified speakers.

LAN Port

Line-In (Rear-Out) Port

Line-Out (Front-Out) Port

B8

Mic-In (6-Channel Center/Bass­Out) Port Connector

Mic-In is a 1/8-inch jack that provides a mono
input. It can use a dynamic mono or stereo
microphone with a resistance of not more than
600 Ohms or mixed with Center/Bass output.

Mic-In (Center/Bass-Out) Port

- 27 -

F Front-Panel Connectors

PANEL1

-+HDLED

HWRST

PWRSW

PANEL1

-+HDLED

HWRST

PWRSW

C1

HDD LED Connector (HDLED)

Attach a connector cable from the IDE device LED to the 2-pin (HDLED) header.
The HDD LED lights up whenever an IDE device is active.

C2

Hardware Reset Connector (HWRST)

Attach a cable to the 2-pin (HWRST) header. Pressing the reset switch causes
the system to restart.

GRNLED

GRNLED

-

+

1

-

+

1

- 28 -

C3

PANEL1

-+HDLED

HWRST

PWRSW

PANEL1

-+HDLED

HWRST

PWRSW

Green LED Connector (GRNLED)

The Green LED (GRNLED) indicates that the system is currently in one of the
power saving modes (Doze/Standby/Suspend). When the system resumes to
the normal operation mode, the Green LED will go off. Attach a cable to the 2­pin (GRNLED) header.

GRNLED

C4

ATX Power On/Off Switch Connector (PWRSW)

The Power On/Off Switch is a momentary type switch used for turning on or off
the ATX power supply. Attach a connector cable to the 2-pin (PWRSW) header
on the mainboard.

GRNLED

-

+

1

-

+

1

Note : Please notice all the LED connectors are directional. If your chassis's

LED does not light up during running, please change it to the opposite
direction.

- 29 -

C5

1

USB3

5

246

10

137

9

8

AUDIO1

5

246

10

137

9

8

Extended USB Header (USB3)

The header is used to connect the cable attached to a USB connector which is
mounted on front panel or back panel. But the USB cable is optional at the time
of purchase.

Pin Assignments:
1=VREG_FP_USBPWR0 2=VREG_FP_USBPWR0
3=USB_FP_P0- 4=USB_FP_P1­5=USB_FP_P0+ 6=USB_FP_P1+
7=GND 8=GND
9=KEY 10=NC

USB3

1

C6

Front Panel Microphone and Line-Out Header (AUDIO1)

This header allows users to install an auxiliary Front-Oriented Microphone and
Line-Out port for easier access. Either the Line-Out port connector on back­panel or AUDIO1 header is available at the same time. If you would like to use
this header on front-panel, please remove all jumpers from this header and
install your special extra microphone and line-out cable instead. Two mini jump­ers must be setted on pins 5-6 and pins 9-10, when this header is not used.

AUDIO1

1

Pin Assignments:
1=AUD_MIC 2=AUD_GND
3=AUD_MIC_BIAS 4=AUD_VCC
5=AUD_FPOUT_R 6=AUD_RET_R
7=HP_ON/NC 8=KEY
9=AUD_FPOUT_L 10=AUD_RET_L

1

- 30 -

F Internal Peripheral Connectors

1

IDE1

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FDD1)

D1

The mainboard features two 40-pin dual-channel IDE device connectors
(IDE1/IDE2), providing support for up to four IDE devices, such as CD-ROM
and Hard Disk Drive (HDD). This mainboard also includes one 34-pin floppy
disk controller (FDC) to accommodate the Floppy Disk Drive (FDD). More­over, this mainboard comes with one 80-pin ATA 100/66 ribbon cable to
connect IDE HDD, and one 34-pin ribbon cable for FDD connection.

FDD1

IDE2

1

1 1

Important: Ribbon cables are directional; therefore, connect the red

cable stripe to the same side.

- 31 -

F Other Connectors

ATX1

E1

ATX Power Supply Connectors (ATX1/ATX12V)

This motherboard uses 20-pin ATX power header (ATX1), and comes with
the other one header (ATX12V). Please make sure you plug each in the right
direction. It is essential to have these two power supply connectors plugged
or your system won't boot up.

ATX1 ATX12V

ATX12V

A traditional ATX system remains in the power-off stage when AC power re­sumes from power failure. However, it is inconvenient for a network server or
workstation if there is not an UPS to execute power-on. Thus, this motherboard
supports an AC Power Auto Recovery function to solve this problem. You may
enable the function, "PWRON After PWR-Fail," in the sub-menu of "Power
Management Setup" within the BIOS setup program.

Note 1: The ATX power connector is directional and will not go in

unless the guides match perfectly, making sure that pin#1 is
properly positioned.

Note 2: Make sure the latch of the ATX power connector clicks into

place to ensure a solid attachment.

Note 3: Your ATX power supply must be supplied to ACPI+5V stand-

by power and at least 720mA compatible.

Note 4: Make sure your power supply have enough power for higher

speed processor installed.

- 32 -

E2

1

CDIN1

1

312

4

1

PWRFAN1

1

CPUFAN1

1

CASFAN1

CPU, Power, and Chassis Fan Connectors (CPUFAN1/
PWRFAN1/CASFAN1)

The mainboard provides three onboard 12V cooling fan power connectors
to support CPU (CPUFAN1), Power (PWRFAN1), and Chassis (CASFAN1)
cooling fans.

GND +12V

1

Note:
Both cable wiring and type of
plug may vary, which depend
on the fan maker. Keep in mind
that the red wire should always
be connected to the +12V
header and the black wire to the
ground (GND) header.

E3

Audio CD_IN Connectors (CDIN1/CDIN2)

Ports CDIN1 (White)/CDIN2 (Black) are used to attach audio connector cables
from the CD-ROM/DVD-ROM drives.

SENSE

Pin Assignments:
1=CD-GND
2=CD-R
3=CD-GND
4=CD-L

Pin Assignments:
1=CD-R
2=CD-GND
3=CD-GND
4=CD-L

3 124

CDIN2

CDIN1

1

CDIN2

1

- 33 -

E4

1

IR1

135

246

E4

IR Header (IR1)

If you have an Infrared device, this mainboard can implement IR transfer
function. This mainboard supports Normal or IrDA transfer mode. To enable
this function, attach a 6-pin infrared device cable to the IR (IR1) header, and
refer to the diagram below for the IR pin assignments.

Pin Assignments:
1=NC 2=KEY
3=+5V 4=GND
5=IRTX 6=IRRX

Note: Before connect your IR device to the IR (IR1) header, please note

IR1

1

that every pin is properly allocated. If not, your IR device may be
damaged.

- 34 -

3.3 System Memory Configuration

The AB49/AB49N mainboard has two 184-pin DIMM banks that allow you
to install from 128MB up to 2GB of system memory. Each 184-pin DIMM
(Dual In-line Memory Module) bank can accommodate 128MB, 256MB,
512MB, and 1GB of PC1600/PC2100/PC2700 compliant 2.5V single or
double side DDR SDRAM modules. DIMM slots are arranged in two banks,
each memory bank made of one bank and providing a 64-bit wide data path.

1. Install Memory:

Install memory in any or all of the banks. The combination shown as follows.

DIMM Socket Memory Modules

DIMM 1

DIMM 2

128MB, 256MB, 512MB, and 1GB 184-pin 2.5V DDR

SDRAM DIMM

128MB, 256MB, 512MB, and 1GB 184-pin 2.5V DDR

SDRAM DIMM

Quantity

Note: The total installed memory does not exceed 2GB.

Note: You do not need to set any jumper to configure memory since the

BIOS utility can detect the system memory automatically. You can
check the total system memory value in the BIOS Standard CMOS
Setup menu.

2. Upgrade Memory:

You can easily upgrade the system memory by inserting additional DDR
SDRAM modules in available DIMM banks. The total system memory is
calculated by simply adding up the memory in all DIMM banks. After up­grade, the new system memory value will automatically be computed and
displayed in the field "Standard CMOS Setup" of BIOS setup program.

Module

x 1

x 1

- 35 -

4 SOFTWARE UTILITY

4.1 Mainboard CD Overview

Note: The CD contents attached in AB49/AB49N mainboard are subject

to change without notice.

To start your mainboard CD disc, just insert it into your CD-ROM drive and
the CD AutoRun screen should appear. If the AutoRun screen does not
appear, double click or run D:\Autorun.exe (assuming that your CD-ROM
drive is drive D:).

Navigation Bar Description:

F Install Mainboard AB49 Software - Installing Intel Chipset, Intel

Ultra ATA, USB 2.0, and Audio drivers.

F Install Mainboard AB49N Software - Installing Intel Chipset, Intel

Ultra ATA, LAN, USB 2.0, and Audio drivers.

F Manual - AB49/AB49N user's manual in PDF format.
F Link to Shuttle Homepage - Link to shuttle website homepage.
F Browse this CD - Allows you to see contents of this CD.
F Quit - Close this CD.

- 36 -

4.2 Install Mainboard Software

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen. Use your pointing device (e.g. mouse) on the "Install
Mainboard AB49 Software" bar or "Install Mainboard AB49N Soft­ware" bar to run into sub-menu.

The Mainboard AB49 Software include:

[4.2.A] Install Intel
Chipset Driver

[4.2.B] Install Intel
Ultra ATA Driver

[4.2.C] Install USB

2.0 Driver
[4.2.D] Install

Audio Driver

The Mainboard AB49N Software include:

[4.2.A] Install Intel
Chipset Driver

[4.2.B] Install Intel
Ultra ATA Driver

[4.2.C] Install USB

2.0 Driver
[4.2.D] Install

Audio Driver
[4.2.E] Install LAN

Driver

- 37 -

4.2.A Install Intel Chipset Driver

Select using your pointing device (e.g. mouse) on the "Install Intel Chipset
driver" bar to install the chipset driver.

AB49

AB49N

Once you made your selection, a Setup window run the installation automati­cally. When the copying files is done, make sure you reboot the system to take
the installation effect.

- 38 -

4.2.B Install Intel Ultra ATA Driver

This driver may do bad effect on some model or brand of IDE HDD devices.
Hereby, we won't suggest users to install it cause it might crash your HDD
data. However, if you are very sure that the driver matches your IDE HDD,
please follow below indication to complete setup. Select using your pointing
device (e.g. mouse) on the "Install Intel Ultra ATA Driver" bar to install
the ultra ATA IDE driver.

P.S.: Before doing this IDE driver installation, setup chipset system driver is
necessary.

AB49

AB49N

Once you made your selection, a Setup window run the installation automati­cally. When the copying files is done, make sure you reboot the system to take
the installation effect.

- 39 -

4.2.C Install USB 2.0 Driver

Select using your pointing device (e.g. mouse) on the "Install USB 2.0
Driver" bar to install the USB 2.0 driver.

AB49

AB49N

Once you made your selection, a Setup window run the installation automati­cally. When the copying files is done, make sure you reboot the system to take
the installation effect.

- 40 -

4.2.D Install Audio Driver

Select using your pointing device (e.g. mouse) on the "Install Audio
Driver" bar to install the audio driver.

AB49

AB49N

Once you made your selection, a Setup window run the installation automati­cally. When the copying files is done, make sure you reboot the system to take
the installation effect.

- 41 -

4.2.E Install LAN Driver (AB49N Only)

Select using your pointing device (e.g. mouse) on the "Install LAN Driver"
bar to install the LAN driver.

Once you made your selection, a Setup window run the installation automati­cally. When the copying files is done, make sure you reboot the system to take
the installation effect.

4.3 View the User's Manual

Select using your pointing device (e.g. mouse) on the "Manual" bar. Click
on the "Install Acrobat Reader" bar if you need to install it, or click on
"AB49/AB49N Manual" bar to view user's manual.

- 42 -

5 BIOS SETUP

AB49/AB49N BIOS ROM has a built-in Setup program that allows users to
modify the basic system configuration. This information is stored in battery­backed RAM so that it retains the Setup information even if the system power
is turned off.

The system BIOS is managing and executing a variety of hardware related
functions in the system, including:

System date and time
Hardware execution sequence
Power management functions
Allocation of system resources

5.1 Enter BIOS

To enter the BIOS (Basic Input/Output System) utility, follow these steps:

Step 1. Power on the computer, and the system will perform its

POST (Power-On Self Test) routine checks.

Step 2. Press <Del> key immediately, or at the following message:

Press DEL to enter SETUP, or simultaneously press <Ctrl>,

<Alt>, <Esc> keys.

Note1. If you miss trains of words mentioned in step2 (the message

disappears before you can respond) and you still wish to en­ter BIOS Setup, restart the system and try again by turning the
computer OFF and ON again or by pressing the <RESET>
switch located at the computer Front-panel. You may also
reboot by simultaneously pressing the <Ctrl>, <Alt>,
<Del> keys.

Note2. If you do not press the keys in time and system does not

boot, the screen will prompt an error message, and you will
be given the following options:

"Press F1 to Continue, DEL to Enter Setup"

Step 3. As you enter the BIOS program, CMOS Setup Utility will

prompt you the Main Menu, as shown in the next section.

- 43 -

5.2 The Main Menu

Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall
that some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and opti­mize your system's performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

- 44 -

PnP/PCI Configurations

This entry appears if your system supports PnP/PCI.

PC Health Status

This entry shows the current system temperature, Voltage, and FAN
speed.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable
performance of your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory-set for
optimal performance system operation. While Award has designed the
custom BIOS to maximize performance, the factory has the right to
change these defaults to meet users' needs.

Supervisor/User Password

Use this menu to change, set, or disable supervisor/user password. It
allows you to limit access to the system and Setup, or only to Setup.

Save & Exit Setup

Save CMOS value changes in CMOS and exit from setup.

Exit Without Saving

Abandon all CMOS value changes and exit from setup.

- 45 -

@ Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 catego­ries. Each category includes no, one or more than one setup items. Use
the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.

Date (mm : dd : yy)

Set the system date. Note that if you are running a Windows OS, this
items are automatically updated whenever you make changes to the
Windows Date.

Time (hh : mm : ss)

Set the system time. The time is converted based on the 24-hour mili­tary-time clock. For example, 5:00:00 p.m. is 17:00:00.

IDE Primary/Secondary Master/Slave

Press <Enter> to enter the sub-menu of detailed options.

Drive A/DriveB

Select the type of floppy disk drive and installed in your system.
Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,

1.44M, 3.5 in, or 2.88M, 3.5 in.

Floppy 3 Mode Support

It refers to a 3.5-inch diskette with a capacity of 1.2 MB, and is some­times used in Japan.
Ø The choice: Disabled, Drive A, Drive B, or Both.

Video

This item define the video mode of the system. This mainboard has a
built-in VGA graphics system; leave this item at the default value.
Ø The choice: EGA / VGA, CGA 40, CGA 80, or MONO.

Halt On

This item defines the operation of the system POST (Power-On Self Test)

- 46 -

routine. You can use this item to select which situation you want the
BIOS to stop the POST process and notify you.
Ø The choice: All Errors, No Errors, All, But Keyboard, All, But Diskette,

or All, But Disk/Key.

Base Memory/Extended Memory/Total Memory

These items are automatically detected by the system at start up time.
These are display-only fields. You can't make change to these fields.

******************************************************

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu
to configure each hard disk drive.

IDE HDD Auto-Detection
Press <Enter> to auto-detect HDD on this channel. If detection is

successful, it fills the remaining fields on this menu.
IDE Primary Master

Selecting 'Manual' lets you set the remaining fields on this screen and
select the type of fixed disk.

Ø The choice: None, Auto, or Manual.

Access Mode
Choose the access mode for this hard disk.

Ø The choice: CHS, LBA, Large, or Auto.

Capacity
Disk drive capacity (Approximated). Note that this size is usually slightly

greater than the size of a formatted disk given by a disk checking pro­gram.

The following options are selectable only if the 'IDE Primary Master'
item is set to 'Manual', and the 'Access Mode' item is set to 'CHS'.

Cylinder
Set the number of cylinders for this hard disk. ØMin = 0, Max = 65535

Head
Set the number of read/write heads. ØMin = 0, Max = 255

Precomp
Warning: Setting a value of 65535 means no hard disk. ØMin = 0,

Max = 65535
Landing Zone

Set the Landing Zone size. ØMin = 0, Max = 65535
Sector

Number of sector per track. ØMin = 0, Max =255
******************************************************

- 47 -

@ Advanced BIOS Features

This section allows you to configure your system for basic operation.

CPU L1 & L2 Cache

This item enables CPU L1 internal and CPU L2 cache to speed up
memory access.
Ø The choice: Enabled or Disabled.

CPU Hyper-Threading

The latest Intel application defines a high-speed calculating ability to
optimize your system by two CPUs supported (one virtual, one physi­cal) in a multi-task environment.
Ø The choice: Enabled or Disabled.

Quick Power On Self Test

Enable this item to shorten the power on testing (POST) and have your
system start up faster. You might like to this item after you are confident
that your system hardware is operating smoothly.
Ø The choice: Enabled or Disabled.

First/Second/Third Boot Device

Use these three items to select the priority and order of the devices that
your system searches for an operating system at start-up time.
Ø The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-

2, HDD-3, ZIP100, USB-FDD, USB-ZIP,USB-CDROM, USB-HDD,
LAN, or Disabled.

- 48 -

Boot Other Device

If you enable this item, the system searches all other possible locations
for and operating system if it fails to find one in the devices specified
under the First, Second, and Third boot devices.
Ø The choice: Enabled or Disabled.

Swap Floppy Drive

If you have two floppy diskette drives in your system, this item allows
you to swap the assigned drive letters so that drive A becomes drive B,
and drive B becomes drive A.
Ø The choice: Enabled or Disabled.

Boot Up Floppy Seek

If this item is enabled, it checks the size of the floppy disk drives at start­up time. You don't need to enable this item unless you have a legacy
diskette drive with 360k capacity.
Ø The choice: Enabled or Disabled.

Boot Up NumLock Status

This item defines if the keyboard Num Lock key is active when your
system is started.
Ø The choice: Off or On.

Gate A20 Option

This item defines how the system handles legacy software that was
written for an earlier generation of processors. Leave this item at the
deafult value.
Ø The choice: Normal or Fast.

ATA 66/100 Cable Msg

This item enables or disables the display of the ATA 66/100 Cable
MSG.
Ø The choice: Enabled or Disabled.

Typematic Rate Setting

If this item is enabled, you can use the following two items to see the
typematic rate and the typematic delay settings for your keyboard.
Ø The choice: Enabled or Disabled.

Typematic Rate (Chars/Sec)

This item sets how many times the keystroke will be repeated in a
second when you hold a key down.
Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.

Typematic Delay (Msec)

Sets the delay time after a key is held down.
Ø The choice: 250, 500, 750, or 1000.

- 49 -

Security Option

If you have installed password protection, this item defines if the pass­word is required at system start up, or if it is only required with a user
tries to enter the Setup Utility.
Ø The choice: Setup or System.

APIC Mode

This option is used to enable or disable APIC (Advanced Programmable
Interrupt Controller) functionality. The APIC is an Intel chip that pro­vides symmetric multiprocessing (SMP) for its Pentium system.
Ø The choice: Enabled or Disabled.

OS Select For DRAM > 64MB

This item is only required if you have installed more than 64 MB of
memory and you are running the OS/2 operating system. Otherwise,
leave this item at the default.
Ø The choice: Non-OS2 or OS2.

HDD S.M.A.R.T Capability

The item enables or disables the HDD system management function.
Ø The choice: Disabled or Enabled.

Report No FDD For WIN 95

Whether report no FDD runs for Win 95 or not.
Ø The choice: Yes or No.

Small Logo(EPA) Show

This item allows you to enable or disable the EPA Logo.
Ø The choice: Enabled or Disabled.

- 50 -

@ Advanced Chipset Features

These items define critical timing parameters of the mainboard. You should
leave the items on this page at their default values unless you are very
familiar with the technical, specifications of your system hardware. If you
change the values incorrectly, you may introduce fatal errors or recurring
instability into your system.

DRAM Timing Selectable

The value in this field depends on performance parameters of the
installed memory chips(DRAM). Don't change the value from the
factory setting unless you install new memory that has a different perfor­mance rating than the original DRAMs.
Ø The Choice: Manual or By SPD.

CAS Latency Time

This item defines the timing delay in clock cycles before SDRAM starts a
read command after receiving it.
Ø The Choice: 1.5, 2, 2.5, or 3.

Active to Precharge Delay

This item defines the numbers of cycles for RAS to be allowed to precharge.
Ø The Choice: 7, 6, or 5.

DRAM RAS# to CAS# Delay

This item defines the timing of the transition from RAS (row address strobe)
to CAS (column address strobe) as both rows and columns are separately
addressed shortly after DRAM is refreshed.
Ø The Choice: 3 or 2.

- 51 -

DRAM RAS# Precharge

This item defines the timing delay for DRAM precharge.
Ø The Choice: 3 or 2.

Command Pre Clock

Leave this item at Auto to enhance the system performance.
Ø The Choice: Optimal or Auto.

DDR Voltage

This item defines the DDR voltage.
Ø The Choice: Default, 2.6 V, or 2.7 V.

Memory Frequency For

This item is select SDRAM Frequency.
Ø The Choice: DDR266 or Auto.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at
F0000h~FFFFFh, resulting in better system performance. However, if any
program is written to this memory area, a system error may result.
Ø The Choice: Enabled or Disabled.

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS, resulting in better
system performance. However, if any program is written to this memory
area, a system error may result.
Ø The Choice: Enabled or Disabled.

Delayed Transaction

The chipset has an embedded 32-bit posted write buffer to support de­layed transactions cycles. Enable this item to support compliance with
PCI specification version 2.2.
Ø The Choice: Enabled or Disabled.

Delay Prior to Thermal

This item defines the delay time before the CPU enters auto thermal mode.
Ø The Choice: 4 Min, 8 Min, 16 Min, or 32 Min.

AGP Aperture Size (MB)

This item defines the size of the aperture if you use an AGP graphics
adapter. The AGP aperture refers to section of the PCI memory address
range used for graphics memory. We recommend that you leave this item
at the default value.
Ø The Choice: 4, 8, 16, 32, 64, 128, or 256.

- 52 -

@ Integrated Peripherals

On-Chip Primary/Secondary PCI IDE

The chipset contains a PCI IDE interface with support to two IDE chan­nels. Select Enabled to activate the primary/secondary IDE interface.
select Disabled to deactivate the primary/secondary interface.
Ø The Choice: Enabled or Disabled.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE inter­face supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the
best mode for each device.
Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.

IDE Primary/Secondary Master/Slave UDMA

Each IDE channel supports a master device and a slave device. This
mainboard supports UltraDMA (UDMA) technology, which provides
faster access to IDE devices. If you install a device that supports UDMA,
change the appropriate item on this list to Auto. You may have to install
the UDMA driver supplied with this mainboard in order to use an
UDMA device.
Ø The choice: Auto or Disabled.

- 53 -

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB) port.
Ø The choice: Enabled or Disabled.

USB 2.0 Controller

Select Enabled if your system contains a USB 2.0 controller and you
have USB peripherals.
Ø The choice: Enabled or Disabled.

USB Keyboard Support

Select Enabled if you plan to use a USB keyboard in a legacy operating
system (such as DOS) that doesn't support Plug and Play.
Ø The choice: Enabled or Disabled.

AC97 Audio

This item allows you to control the onboard AC97 Audio.
Ø The Choice: Auto or Disabled.

Onboard LAN Device (AB49N Only)

Select Enabled if your system contains a built-in LAN device.
Ø The choice: Enabled or Disabled.

Onboard LAN Boot ROM (AB49N Only)

Decide whether to invoke the boot ROM of the onboard LAN chip.
Ø The choice: Enabled or Disabled.

Init Display First

This item is used to determine initial device when system power on.
Ø The choice: PCI Slot or AGP.

IDE HDD Block Mode

Select Enabled for automatic detection of the optimal number of block
read/write per sector the drive can support.
Ø The Choice: Enabled or Disabled.

POWER ON Function

Enable you to set power on parameters.
Ø The choice: Password, Hot KEY, Mouse Left, Mouse Right, Mouse

Move, Any KEY, BUTTON ONLY, or Keyboard 98.

KB Power ON Password

You can select this item and press "Enter" to input password if POWER
ON Function select Password.

Hot Key Power ON

When the POWER ON Function is set to Hot KEY, use this item to set
the hot key combination that turns on the system.
Ø The choice: Ctrl-F1~Ctrl-F12.

- 54 -

Onboard FDC Controller

This item specifices onboard floppy disk drive controller.
Ø The choice: Enabled or Disabled.

Onboard Serial Port 1

This option is used to assign the I/O address and interrupt request(IRQ)
for the onboard serial port 1 (COM1).
Ø The Choice: Disabled, 3F8-IRQ4, 2F8-IRQ3, 3E8-IRQ4, 2E8-IRQ3,
or Auto.

UART Mode Select

This item allows you to select IrDA infrared.
Ø The choice: Normal or IrDA.

RxD , TxD Active

This item defines the performance of an IR device.
Ø The choice: Hi , Hi, Hi , Lo, Lo , Hi, or Lo , Lo.

IR Transmission Delay

This item enables or disables the transmission delay of an IR device.
Ø The choice: Enabled or Disabled.

UR2 Duplex Mode

This item allows you to select the IR half or full duplex function.
Ø The choice: Full or Half.

Use IR Pins

This item defines the IR pins as an IR device is used.
Ø The choice: RxD2 , TxD2 or IR-Rx2Tx2.

Onboard Parallel Port

Allows you to determine an I/O address and interrupt request(IRQ) for
the onboard parallel port.
Ø The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel port. Select SPP
unless you are certain your system supports other modes.
Ø The choice: SPP, EPP, ECP, ECP+EPP, or Normal.

EPP Mode Select

As the Parallel Port Mode is set to EPP, you can specify 1.7 or 1.9 spec
for the EPP version.
Ø The choice: EPP1.7 or EPP1.9.

ECP Mode Use DMA

When the parallel port mode is set to ECP, this item becomes seletable.
Ø The choice: 1 or 3.

- 55 -

@ Power Management Setup

The Power Management Setup allows you to configure your system to
most effectively saving energy while operating in a manner consistent
with your own style of computer use.

ACPI Function

This item defines the ACPI (Advanced Configuration and Power Man­agement) feature that makes hardware status information available to
the operating system, enables a PC to turn its peripherals on or off for
improving the power management, and allows a PC turned on or off by
external devices, so that a mouse or keyboard can wake up it.

ACPI Suspend Type

This item allows you to select sleep state when suspend. In the default,
S1(POS), the suspend mode is equivalent to a software power down;
S3(STR), to the system that shuts down with the exception of a refresh
current to the system memory.
Ø The choice: S1(POS), S3(STR), or S1&S3.

Run VGABIOS if S3 Resume

Allows the system to initialize a VGA BIOS from S3 (Suspend to RAM)
sleep state.
Ø The choice: Auto, Yes, or No.

- 56 -

Power Management

This item acts like a master switch for the power-saving modes and hard
disk timeouts. If this item is set to Max Saving, power-saving modes
occur after a short timeout. If it is set to Min Saving, power-saving
modes occur after a longer timeout. If it is set to User Define, you can
insert your own timeouts for the power-saving modes.
Ø The choice: Min Saving, Max Saving, or User Define.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank This selection will cause the system to turn off

the vertical and horizontal synchronization

ports and write blanks to the video buffer.
Blank Screen The item only writes blanks to the video buffer.
DPMS Initial display power management signaling.

Ø The choice: V/H SYNC+Blank, Blank Screen, or DPMS.

Video Off In Suspend

This item determines the manner in which the monitor is blanked.
Ø The choice: Yes or No.

Suspend Type

This item allows you to select the Suspend Type.
Ø The choice: Stop Grant or PwrOn Suspend.

MODEM Use IRQ

This determines the IRQ which the MODEM can use.
Ø The choice: 3, 4, 5, 7, 9, 10, 11, or NA.

Suspend Mode

The CPU clock will be stopped and the video signal will be suspended
if no Power Management events occur for a specified length of time.
Full power function will return when a Power Management event is
detected.
Ø The choice: Disabled, 1 Min, 2 Min, 4 Min, 8 Min, 12 Min, 20 Min,

30 Min, 40 Min, or 1 Hour.

HDD Power Down

When this item is enabled and after the setup time of system inactivity,
the hard disk drive will be powered down while all other devices
remain active.
Ø The choice: Disabled or 1 Min~15 Min.

HDD Off When Suspend

Enable this item to leave the hard disk drive powered down in the
system suspended mode.
Ø The choice: Enabled or Disabled.

- 57 -

Soft-Off by PWR-BTTN

Under ACPI you can create a software power down. In a software
power down, the system can be resumed by Wake UP Alarms. This
item lets you install a software power down that is controlled by the
power button on your system. If the item is set to Instant-Off, then the
power button causes a software power down. If the item is set to Delay
4 Sec., then you have to hold the power button down for 4 seconds to
cause a software power down.
Ø The choice: Delay 4 Sec. or Instant-Off.

CPU THRM-Throttling

This item specifies the CPU speed (at percentage) to have it slowed
down under the predeterminedly overheated temperature.
Ø The choice: 87.5%, 75.0%, 62.5%, 50.0%, 37.5%, 25.0%, or

12.5%.

Wake-Up by PCI card

This item leaves PCI cards wake up the system from the suspend mode.
Ø The choice: Enabled or Disabled.

Power On by Ring

This item defines the system will resume by activating of modem ring.
Ø The choice: Enabled or Disabled.

USB Wake-Up From S3

If you are using USB devices, and the ACPI Suspend Type is set to S3 or
S1&S3, enable this item to have USB devices wake up the system from
power saving mode.
Ø The choice: Enabled or Disabled.

Resume by Alarm

When set to Enabled, the following two items become available and
you can set the date, hour, minute and second to turn on your system.
Ø The choice: Enabled or Disabled.

Date(of Month) Alarm
This item selects the alarm Date (day of the month).

Ø Key in a DEC number: Min=0, Max=31.

Time(hh : mm : ss) Alarm
This item selects the alarm Time.

[hh] Ø Key in a DEC number: Min=0, Max=23.
[mm/ss] Ø Key in a DEC number: Min=0, Max=59.

- 58 -

** Reload Global Timer Events **

Global Timer (power management) Events are I/O events whose occur­rence can prevent the system from entering a power saving mode or
can awaken the system from such as a mode. In effect, the system
remains alert for anything that occurs to a device that is configured as
Enabled, even when the system is in a power-down mode.

Primary/Secondary IDE 0/IDE 1

When these items are enabled, the system will restart the power-saving
timeout counters when any activity is detected on any of the drives or
devices on the primary or secondary IDE channels.
Ø The choice: Disabled or Enabled.

FDD,COM,LPT Port

When this item is enabled, the system will restart the power-saving
timeout counters when any activity is detected on the floppy disk drive,
the serial ports, or the parallel port.
Ø The choice: Disabled or Enabled.

PCI PIRQ[A-D]#

When this item is disabled, any PCI device set as the Master will not
power on the system.
Ø The choice: Disabled or Enabled.

PWRON After PWR-Fail

This item enables your computer to automatically restart or return to its
last operating status after power fails.
Ø The choice: Off, On, or Former-Sts.

- 59 -

@ PnP/PCI Configurations

This category configures how PnP and PCI operate in your system.
Correctly setting up the IRQ and DMA (both PnP and PCI use) assign­ments will make your system work stably. It is strongly recommended
that only technical users make changes to the default settings.

Reset Configuration Data

When Enabled, any PnP configuration data stored in the BIOS will be
cleared from memory, with new data created.
Ø The choice: Enabled or Disabled.

Resources Controlled By

Set to Auto(ESCD) makes the system dynamically allocate resources to
PnP devices as required; to Manual, the following item available.
Ø The choice: Auto(ESCD) or Manual.

IRQ Resources

This item allows you respectively assign an interruptive type for IRQs.
Ø The choice: PCI Device or Reserved.

PCI/VGA Palette Snoop

Select Disabled if your system has a built-in VGA.
Ø The choice: Enabled or Disabled.

Assign IRQ For USB

Enable this item to have activity of the selected interrupt request (IRQ)
line assigned to USB devices always awaken the system.
Ø The choice: Enabled or Disabled.

INT Pin 1~8 Assignment

Names the IRQ line assigned to a device connected to the PCI interface
on your system.
Ø The Choice: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, or 15.

- 60 -

@ PC Health Status

Shutdown Temperature

Enables you to set the maximum temperature that system can reach
before powering down.

Ø The choice: Disabled, 60°C/140°F, 65°C/149°F, 70°C/158°F, or

75°C/167°F.

Warning Temperature

Enables you to set the warning temperature level for the processor.

Ø The choice: Disabled, 50°C/122°F, 53°C/127°F, 56°C/133°F,

60°C/140°, 63°C/145°, 66°C/151°F, 70°C/158°F, 75°C/167°F,
80°C/176°F, 85°C/185°F, 90°C/194°F, or 95°C/205°F.

The following items provide you with information about the system's
current operating status. You cannot make changes to one of them,
including:

System Temp.
CPU Temp.
SYS FAN Speed
CPU FAN Speed
PWR FAN Speed
CPU Vcore

12.0 V

3.3 V

5.0 V
Battery Voltage

- 61 -

@ Frequency/Voltage Control

CPU Clock Ratio

This item allows you to adjust CPU Ratio. The item becomes unavail­able if your CPU clock ratio is locked.

CPU Core Voltage

This item defines the CPU core voltage.
Ø The choice: Vcore Auto, Vcore 1.5%, Vcore 3.0%, or Vcore 4.5%.

Auto Detect DIMM/PCI CLK

When this item is enabled, BIOS will disable the clock signal of free
DIMM and PCI slots.
Ø The choice: Enabled or Disabled.

Spread Spectrum

This item defines the spread spectrum modulation.
Ø The choice: Enabled or Disabled.

CPU Clock

This item allows the user to adjust CPU Host Clock (usually 133 MHz,
100 MHz, or 66 MHz).

- 62 -

@ Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing 'Y' loads the BIOS default values for the most stable, minimal
performance system operations.

@ Load Optimized Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing 'Y' loads the default values that are factory-set for optimal
performance system operation.

- 63 -

@ Set Supervisor/User Password

Steps to set supervisor/user password are described as follows:

New Password Setting:

1. While pressing <Enter> to set a password, a dialog box appears to
ask you enter a password.

2. Key in a new password. The password can not exceed eight charac­ters.

3. System will request you to confirm the new password again.

4. When completed, new code takes effect.

No Password Setting:

If you want to disable the password, just press <Enter> as a password
input is requested.

If You Forget Password:

If you forget the password, the only way to access the system is to clear
the CMOS memory. Please refer to page 25 on clear CMOS setting.

- 64 -

@ Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

SAVE to CMOS and EXIT (Y/N)? Y

Pressing "Y" stores the selections made in the menus of CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.

@ Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit Without Saving (Y/N)? N

This allows you to exit from Setup without storing in CMOS any
change. The previous selections remain in effect. This exits from the
Setup utility and restarts your computer.

- 65 -
