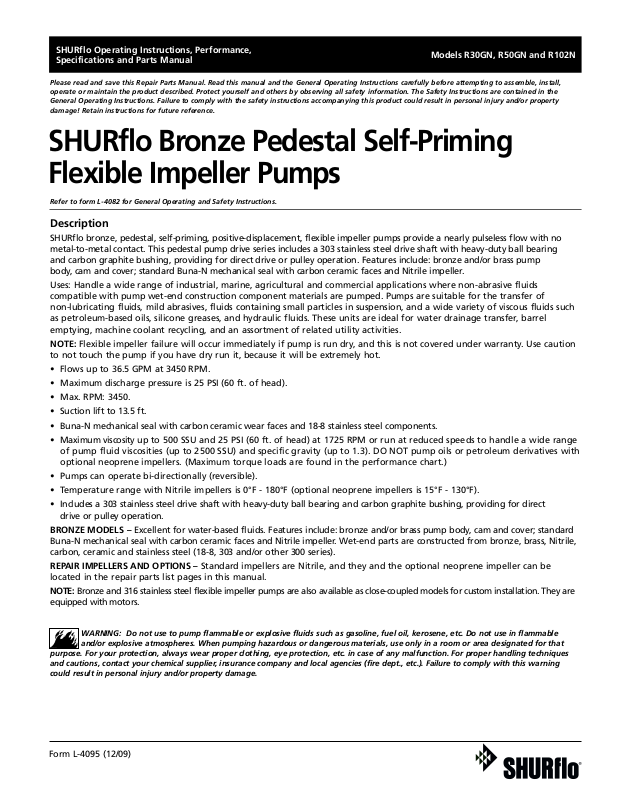

SHURflo R30GN, R50GN, R102N Operating Instructions Manual
SHURflo Operating Instructions, Performance,
Specifications and Parts Manual
lease read and save this Repair Parts Manual. Read this manual and the General Operating Instructions carefully before attempting to assemble, install,
P
perate or maintain the product described. Protect yourself and others by observing all safety information. The Safety Instructions are contained in the
o
General Operating Instructions. Failure to comply with the safety instructions accompanying this product could result in personal injury and/or property
damage! Retain instructions for future reference.
Models R30GN, R50GN and R102N
SHURflo Bronze Pedestal Self-Priming
Flexible Impeller Pumps
Refer to form L-4082 for General Operating and Safety Instructions.
Description
SHURflo bronze, pedestal, self-priming, positive-displacement, flexible impeller pumps provide a nearly pulseless flow with no
metal-to-metal contact. This pedestal pump drive series includes a 303 stainless steel drive shaft with heavy-duty ball bearing
and carbon graphite bushing, providing for direct drive or pulley operation. Features include: bronze and/or brass pump
body, cam and cover; standard Buna-N mechanical seal with carbon ceramic faces and Nitrile impeller.
Uses: Handle a wide range of industrial, marine, agricultural and commercial applications where non-abrasive fluids
compatible with pump wet-end construction component materials are pumped. Pumps are suitable for the transfer of
non-lubricating fluids, mild abrasives, fluids containing small particles in suspension, and a wide variety of viscous fluids such
as petroleum-based oils, silicone greases, and hydraulic fluids. These units are ideal for water drainage transfer, barrel
emptying, machine coolant recycling, and an assortment of related utility activities.
NOTE: Flexible impeller failure will occur immediately if pump is run dry, and this is not covered under warranty. Use caution
to not touch the pump if you have dry run it, because it will be extremely hot.
• Flows up to 36.5 GPM at 3450 RPM.
• Maximum discharge pressure is 25 PSI (60 ft. of head).
• Max. RPM: 3450.
• Suction lift to 13.5 ft.
• Buna-N mechanical seal with carbon ceramic wear faces and 18-8 stainless steel components.
• Maximum viscosity up to 500 SSU and 25 PSI (60 ft. of head) at 1725 RPM or run at reduced speeds to handle a wide range
of pump fluid viscosities (up to 2500 SSU) and specific gravity (up to 1.3). DO NOT pump oils or petroleum derivatives with
optional neoprene impellers. (Maximum torque loads are found in the performance chart.)
• Pumps can operate bi-directionally (reversible).
• Temperature range with Nitrile impellers is 0°F - 180°F (optional neoprene impellers is 15°F - 130°F).
Includes a 303 stainless steel drive shaft with heavy-duty ball bearing and carbon graphite bushing, providing for direct
•
drive or pulley operation.
BRONZE MODELS – Excellent for water-based fluids. Features include: bronze and/or brass pump body, cam and cover; standard
et-end parts are constructed from bronze, brass, Nitrile,
W
Buna-N mechanical seal with carbon ceramic faces and Nitrile impeller
carbon, ceramic and stainless steel (18-8, 303 and/or other 300 series).
REPAIR IMPELLERS AND OPTIONS – Standard impellers are Nitrile, and they and the optional neoprene impeller can be
located in the repair parts list pages in this manual.
NOTE: Bronze and 316 stainless steel flexible impeller pumps are also available as close-coupled models for custom installation. They are
equipped with motors.
.
ARNING: Do not use to pump flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc. Do not use in flammable
W
and/or explosive atmospheres. When pumping hazardous or dangerous materials, use only in a room or area designated for that
purpose. For your protection, always wear proper clothing, eye protection, etc. in case of any malfunction. For proper handling techniques
and cautions, contact your chemical supplier, insurance company and local agencies (fire dept., etc.). Failure to comply with this warning
could result in personal injury and/or property damage.
Form L-4095 (12/09)
HURflo Operating Instructions, Performance,
S
pecifications and Parts Manual
S
odels R30GN, R50GN and R102N
M
SHURflo Bronze Pedestal Self-Priming
Flexible Impeller Pumps
Model Ordering Codes and Options
Example Model: R50GN (will require 1 HP ODP motor with >1.15 Service Factor*)
(motor not supplied with pedestal pump)
(1) (2) (3)
R 50G N
Model**
R: Bronze 30G (1/2") Blank: Neoprene
Flexible 50G (3/4")
Impeller 102 (1") N: Nitrile
Pump
:
OTE
N
Not all order code combinations (configurations) are standard
models available from the manufacturer. Custom model configurations
may require ordering standard components and/or optional parts that
will need to be assembled by the customer.
Manufacturer reserves the right to change model order codes, stan
dard models, specifications, and performance without notification.
Pedestal Pumps are not supplied with a motor
Maximum motor speed is 3600 RPM.
R series pumps are all pedestal mounts for multi-speed configurations.
ODP motors have > 1.15 service factors. Due to service factor
(*)
recommended TEFC motors are oversized by one HP increment.
(**) Has a Buna-N carbon ceramic mechanical seal.
(***) Port size inlet and outlet (in inches).
Impeller Size Impeller
(Ports***) Material
-
.
, it is
Form L-4095 (12/09)
2
HURflo Operating Instructions, Performance,
S
pecifications and Parts Manual
S
Models R30GN, R50GN and R102N
Performance (with Water)
GPM Pumping Water at 70° F @ Total Feet of Head
Max. Input Suction
odel Port Size* HP** Torque in.-lbs. RPM Lift*** Free Flow 10 20 30 40 50 60
M
R30GN 1/2 1/3 11 1750 8.1 5.7 5.5 5.0 4.8 4.6 4.3 4.1
/2 3450 9.8 10.8 10.5 10.2 10.0 9.6 9.3 9.0
1
R50GN 3/4 3/4 21 1750 9.4 13.1 11.5 11.0 10.6 10.1 9.0 7.8
1 3450 12.0 23.9 23.5 22.5 21.9 20.6 19.4 17.6
R102N 1 1 29 1750 10.2 20.2 19.6 18.8 18.0 17.0 16.0 14.7
Test data taken with water at 70° F (to convert data to PSI, divide feet of head by 2.31).
Pump performance when pump is new. As pump wears, the performance will decrease.
(†) Extended operation beyond 60 feet of head will result in immediate impeller failure.
(*) Female NPT inlet and outlet (in inches).
(**) Suggested horsepower; pumps do not ship with motors.
(***) Suction lift requires wetted impellers and seal chamber.
NOTES: Consult tables on HP adders and speed recommendations for high viscosity fluids. The pump relationship between volume (GPM),
pressure (PSI), speed (RPM) and horsepower is shown on Performance Chart in Shurflo Motor Manual form L-4082. When pumping
a more viscous liquid, a slower speed, a larger pipe size pump, and possibly a larger motor should be selected.
Max. Viscosity = 500 SSU at 1725 RPM (at 1.0 specific gravity).
Max. Input Torque = see chart above.
Max. RPM = 3450.
Max. Specific Gravity = 1.0 at 25 PSI, up to 1.3 at lower PSI & viscosity.
Do not use Neoprene impellers with oil.
Manufacturer reserves the right to change performance without notification.
1
1
⁄2 3450 13.5 36.5 33.0 32.5 31.7 30.7 29.5 27.5
†
Form L-4095 (12/09)
3
HURflo Operating Instructions, Performance,
S
pecifications and Parts Manual
S
odels R30GN, R50GN and R102N
M
SHURflo Bronze Pedestal Self-Priming
Flexible Impeller Pumps
Specifications
NPT
Inlet & Pump Drive Body, Cam Wet End Ship
Max. Outlet Shaft Shaft End Impeller & Cover Keys & Shaft Wt.
Model RPM Port Size* Bearings Material** Castings Clip Shaft†Bearings Gasket Seal*** (lbs.)
R30GN 3450 1/2" 1/2" Nitrile BZ & BR 300 Series SS SS CG Ball Vellumoid Buna 4.2
R50GN 3450 3/4" 5/8" Nitrile BZ & BR 300 Series SS SS CG Ball Vellumoid Buna 5.2
R102N 3450 1" 5/8" Nitrile BZ & BR 300 Series SS SS CG Ball Vellumoid Buna 6.6
SS = Stainless Steel CG = Carbon Graphite BR = Brass BZ = Bronze
(†) 303 or 300 Stainless Steel Series
(*) The shafts have drive slots with key for drive couplers or pulleys.
(**) The impeller insert can be made of bronze, brass or 300 Series Stainless Steel.
(***) Mechanical seal with carbon ceramic faces and 18-8 Series Stainless Steel components.
NOTE: Manufacturer reserves the right to change specifications without notification.
PUMP CONSTRUCTION (Wet End)
Form L-4095 (12/09)
4
HURflo Operating Instructions, Performance,
S
pecifications and Parts Manual
S
Models R30GN, R50GN and R102N
Dimensions
View is from
Drive Shaft End
Clockwise Rotation
Out
N
Counterclockwise
Rotation
In
In
Out
N
NOTE: Location
of single drain
plug (N) for
Figure 1
pump models
R30GN and
R50GN.
Inlet & Shaft Dimensions (in inches)
Model
R30GN 1/2 1/2 1.63 3.10 2.26 3.19 5.63 1.84 3.38 2.13 .034 3.75 1.12 2.94 0.125 1/8
R50GN 3/4 1/2 2.13 3.75 2.50 4.08 5.93 1.51 3.86 2.25 0.41 3.37 1.25 3.00 0.18 1/8
R102N 1 5/8 2.13 4.26 3.00 3.68 5.69 1.12 4.69 2.75 0.39 3.24 1.44 3.62 0.18 1/8
(*) Standard NPT (female) pipe thread. Models R30GN and R50GN only have one drain plug (one dimension N).
(**) The shafts have drive slots with key for drive couplers or pulleys.
NOTE: All dimensions have a tolerance of (+ or -) 1/8
Outlet Port* Dia.** A B C D E F G H I J K L M** N*
.
"
Manufacturer reserves the right to change dimensions without notification.
