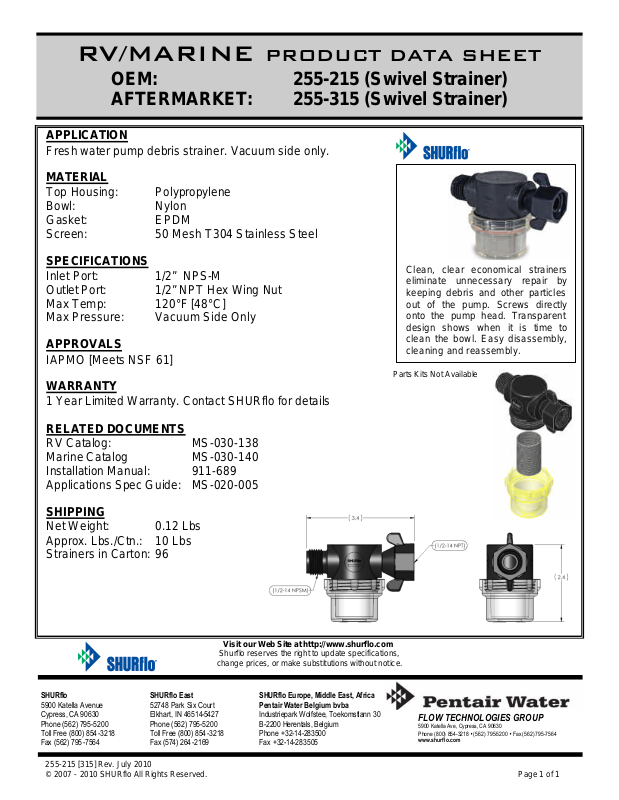

RV/MARINE PRODUCT DATA SHEET
OEM: 255-215 (Swivel Strainer) AFTERMARKET: 255-315 (Swivel Strainer)
APPLICATION
Fresh water pump debris strainer. Vacuum side only.
MATERIAL
Top Housing: Polypropylene Bowl: Nylon Gasket: EPDM Screen: 50 Mesh T304 Stainless Steel
SPECIFICATIONS
Inlet Port: 1/2” NPS-M Outlet Port: 1/2” NPT Hex Wing Nut Max Temp: 120°F [48°C] Max Pressure: Vacuum Side Only
APPROVALS
IAPMO [Meets NSF 61] WARRANTY
1 Year Limited Warranty. Contact SHURflo for details
RELATED DOCUMENTS
RV Catalog: MS-030-138 Marine Catalog MS-030-140 Installation Manual: 911-689 Applications Spec Guide: MS-020-005
SHIPPING
Net Weight: 0.12 Lbs Approx. Lbs./Ctn.: 10 Lbs Strainers in Carton: 96
Clean, clear economical strainers eliminate unnecessary repair by keeping debris and other particles out of the pump. Screws directly onto the pump head. Transparent design shows when it is time to clean the bowl. Easy disassembly, cleaning and reassembly.
Parts Kits Not Available
Visit our Web Site at http://www.shurflo.com
Shurflo reserves the right to update specifications,
change prices, or make substitutions without notice.
SHURflo SHURflo East SHURflo Europe, Middle East, Africa
5900 Katella Avenue 52748 Park Six Court Pentair Water Belgium bvba Cypress, CA 90630 Elkhart, IN 46514-5427 Industriepark Wolfstee, Toekomstlann 30 Phone (562) 795-5200 Phone (562) 795-5200 B-2200 Herentals, Belgium Toll Free (800) 854-3218 Toll Free (800) 854-3218 Phone +32-14-283500 Fax (562) 795-7564 Fax (574) 264-2169 Fax +32-14-283505
255-215 [315] Rev. July 2010 © 2007 - 2010 SHURflo All Rights Reserved. Page 1 of 1
