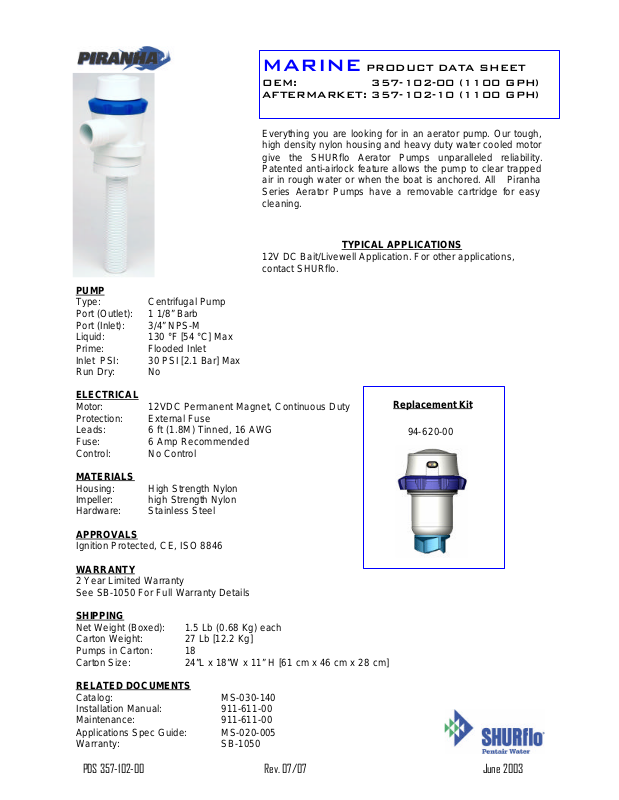

MARINE PRODUCT DATA SHEET
PUMP
Type: Centrifugal Pump Port (Outlet): 1 1/8” Barb Port (Inlet): 3/4” NPS -M Liquid: 130 °F [54 °C] Max Prime: Flooded Inlet Inlet PSI: 30 PSI [2.1 Bar] Max Run Dry: No
ELECTRICAL
Motor: 12VDC Permanent Magnet, Continuous Duty Protection: External Fuse Leads: 6 ft (1.8M) Tinned, 16 AWG Fuse: 6 Amp Recommended Control: No Control
MATERIALS
Housing: High Strength Nylon Impeller: high Strength Nylon Hardware: Stainless Steel
APPROVALS Ignition Protected, CE, ISO 8846
WARRANTY
2 Year Limited Warranty See SB-1050 For Full Warranty Details
SHIPPING Net Weight (Boxed): 1.5 Lb (0.68 Kg) each Carton Weight: 27 Lb [12.2 Kg] Pumps in Carton: 18 Carton Size: 24”L x 18”W x 11” H [61 cm x 46 cm x 28 cm]
RELATED DOCUMENTS
Catalog: MS-030-140 Installation Manual: 911-611-00 Maintenance: 911-611-00 Applications Spec Guide: MS-020-005 Warranty: SB-1050
OEM: 357-102-00 (1100 GPH) AFTERMARKET: 357-102-10 (1100 GPH)
Everything you are looking for in an aerator pump. Our tough, high density nylon housing and heavy duty water cooled motor give the SHURflo Aerator Pumps unparalleled reliability. Patented anti-airlock feature allows the pump to clear trapped air in rough water or when the boat is anchored. All Piranha Series Aerator Pumps have a removable cartridge for easy cleaning.
TYPICAL APPLICATIONS
12V DC Bait/Livewell Application. For other applications, contact SHURflo.
Replacement Kit
94-620-00
PDS 357-102-00 Rev. 07/07 June 2003
PERFORMANCE @ 13.6V DC
FLOW (GPH)
HEAD/LIFT (FT)
CURRENT (AMPS)
METERS FT OF HEAD GPH LPH AMPS
0.0 0 1242 4700 4.80
1.80 6 420 1590 3.84
3.30 11 0.0 0.0 2.57
12.0
10.0
8.0
6.0
4.0
2.0
0.0 0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300
DIMENSIONS [mm]
PRESSURE CURRENT
FLOW
FLOW AMPS
5.0
4.0
3.0
2.0
1.0
0.0
*ISO Registered Facility
SHURflo, LLC*
5900A Katella Ave.
Cypress, Ca. 90630
Phone: 800 854 3218
Fax: 562 795 7554
Shipping: 5900C Katella Ave.
Cypress, Ca. 90630
SHURflo reserves the right to update specifications, prices, or make substitutions.
SHURflo East
52748 Park Six Court
Elkhart, IN 46514-5427
Phone: 800 854 3218
Fax: 574 264 2169
Http://www.shurflo.com
© 2001
SHURflo Ltd.*
Unit 5, Sterling Park
Gatwick Road, Crawley
West Sussex, RH10 9QT
United Kingdom
Phone: 0044 (0) 1293 424 000
Fax: 0044 (0) 1293 421 880
PDS 357-102-00 Rev. 07/07 June 2003
