SHURE SW6000-ESI User Manual SW6000 External System Interface ver 6.8.pdf

Download

SW6000 Conference Management Software, Version 6.8

SW6000-ESI

External System Interface

@2019 Shure Incorp or ate d

SW6000 Conference Management Software User Manual

Table of Contents ..................................................... 2

1 System applications and abbreviations ............ 3

1.1 Introduction .......................................... 3

1.2 Licensing ............................................... 3

1.3 Abbreviations ........................................ 3

1.4 CAA - Conference Administration

Application ............................................ 3

1.5 CUA - Conference User Application ........ 3

1.6 CUI - Central Unit Interface .................... 3

1.7 WSI - Web Service Interface ................... 3

1.8 Web Service .......................................... 3

1.9 Database ............................................... 3

2 Web Service Interface (Live Data) .................... 4

2.1 Introduction .......................................... 4

2.2 CAA ....................................................... 4

2.2.1.2 Changing streaming mode ................... 5

2.3 CUA ....................................................... 6

2.4 CUI ........................................................ 7

2.7.1.12 DelegateDetails .................................. 22

2.7.1.13 DelegateLogin..................................... 23

2.7.1.14 DelegateLogout .................................. 24

2.7.1.15 AlertStart ............................................ 25

2.7.1.16 AlertStop ............................................ 25

2.7.1.17 WebServiceStatus .............................. 25

2.7.1.18 RequestDisplayLanguage ................... 26

2.7.1.19 RequestStreamingSupport ................. 26

2.7.1.20 RequestVoteHideDelay ...................... 26

2.7.1.21 VerifyPassword................................... 26

2.7.4.1 Starting up Web Service Interface (CUI)

while Web Service is running ............. 28

3 Meeting Import/Export ................................. 30

3.1 Introduction ........................................ 30

3.2 CAA ..................................................... 30

2.5 Solution overview and requirements...... 8

2.6 Initialization/restart/recovering ............. 8

2.7 Communication flow ............................. 9

2.7.1.1 PrepareMeeting ................................. 10

2.7.1.2 MeetingStart and MeetingStop ......... 12

2.7.1.3 SpeakerChange................................... 12

2.7.1.4 VotingStart ......................................... 14

2.7.1.5 VotingStop .......................................... 15

2.7.1.6 VotingHide .......................................... 17

2.7.1.7 IndividualVotingResult ....................... 17

2.7.1.8 StatusUpdateStart and

StatusUpdateDone ............................. 19

2.7.1.9 StreamingStart ................................... 19

2.7.1.10 StreamingStop .................................... 20

2.7.1.11 AgendaUpdate ................................... 20

3.2.1.1 Meeting Import/Export Mode ........... 30

3.2.1.2 Web Publish Mode ............................. 31

3.3 File Import/Export ............................... 32

3.3.1.1 Conference (Meeting) ........................ 33

3.3.1.2 Delegate (Participants) ....................... 33

3.3.1.3 Group ................................................. 34

3.3.1.4 Agenda ............................................... 34

3.3.1.5 VotingSession ..................................... 35

3.3.1.6 VotingResult ....................................... 36

3.4 Web Service ......................................... 41

3.4.1.1 GetConferenceList .............................. 41

3.4.1.2 GetConference ................................... 43

3.4.1.3 SetConference .................................... 45

@2019 Shure Incorp or ate d User Manual SW6000 External System Interface ver 6.8.docx

SW6000 Conference Management Software User Manual

1 System applications and abbreviations

The purpose of this document is to describe the requirements and information the SW6000 system offers to communicates with third part systems.

The SW6000-ESI External System Interface is an add-on to the SW6000 Software and is licensed separately.

• CAA – Conference Administrati on Application

• CUA – Conference User Application

• CUI – Central Unit Interface

• WSI - Web Service Interface –

Interface implemented on the SW6000 system

• WS - Web S er vice – Web Service implemented on t he server of the Streaming provider

• Database – SQL Server

• System environment: COM+

application and MSMQ

current agenda, participant information and for starting/stopping meetings and managing microphones and speakers.

The CUI application is the Central Unit Interface. As the name indicates it is managing the communication with the CCU (Central Unit).

The CUI is also interfacing with all client applications (CUA’s, CAA’s, CDA’s and ECA), The CDA’s and ECA are applications used for information sharing and outside the scope of this document.

The client applications will typically receive messages from the CCU through the CUI. And finally the CUI is used by client applications to broadcast messages to all other client applications.

The SW6000 has an interface through which it communicates with the web service that is implemented on the streaming provider server.

The CAA is an application designed to organize and configure meetings. It’s used by administrators prior to and during an event for creating and maintaining basis meeting data such as agendas, participant information, participant lists and voting settings.

Used by chairmen, participants, or other persons attending a meeting for viewing the

Web services that through methods called by SW6000, communicates with the streaming solution.

The SW6000 database includes:

• Central tables and columns

• Handles multiple languages

• “Enumerated types”

SW6000 Conference Management Software User Manual

2 Web Service Interface (Live Data)

The purpose of this chapter is to describe the requirements and information flow for the interface between a SW6000 system and a 3rd party web service that communicates with a Web Cast or Web Streaming system.

The web service interface delivers “dynamic’ live data during the meeting to a third party system like microp h on e events, agenda

CAA/Setup/Equipment/Web service

Using the CAA application, the following parameters shall be setup for using Web Service calls:

• Web service address

• Web service administrator address

• Passwords for connection between

WSI and WS

• Checkb ox es t o select, which additional information to be send to the web service. This is also used for making the present version of the web service compatibility with previous version of SW6000.

events or voting events and the data is delivered upon happening.

The web service interface cannot be used to import data to SW6000, or being used before or after the meeting for exchanging data with third part systems. For this purpose the ‘Meeting Import/Export’ facility in SW6000 must be used.

When checked the information selected is sent to the Web Servic e. Only information on active participants is sent.

The WSI will send a password specified in the CAA for verification in the WS. The WS will send a password for verification in the WSI. A verification password is to be specified in the CAA.

Multiple web servi c es ca n be specified. This screen is used t o s et u p the connection

parameters for the Web Service Interface:

‘

Figure 2.2-A

SW6000 Conference Management Software User Manual

Web service address

Field for entering the web service address

Web service administrator

Field for entering the web service administrator address for a

Web service password

Field for entering password for the web service interface to be

Web streaming password

Field for entering password for the web service to be verified

Send prepare meeting

Tick this option to send the prepare meeting information

Send participant details

Tick this option if Participant details (text and picture) shall be

Send participant

Tick this option if Participant login/logout information shall be

Send agenda links

Tick this option if agenda links shall be sent to the web service

Send agenda description

Tick this option if agenda description shall be sent to the web

Open

Clicking open will open a configuration page if the web service

address

third party streaming provider for configuring/controling.

verified by the web service

by the web service interface

sent to the web service

service

is used together with a third party streaming provider.

2.2.1.1.1 Third party streaming provider

The webpage should be a minor administration interface that can be managed from the CAA and a status check showing what’s going on. In this way the user doesn’t have to run around between several computers to view streaming status, except for trouble shooting.

Following information may be implemented on the webpage:

1. Start/stop broadcast (streaming)

2. Start/stop archiving (this setting can be set in the administration interface in the Streaming software so the recording will start automatically when using start Broadcast)

3. Encoder status – showing the status of the encoder

4. Broadcast check (showing the output media stream so it is shown in a player in the CAA. This shows the user that something is going out from the encoder)

5. Edit and publish on demand

Changing between Broadcast/Archiving/BroadcastArchiving and displaying current setting may be possible in the Web Service Configuration screen,

Return values for selected streaming mode:

Streaming mode: Broadcast Return value: Broadcasting Streaming mode: Archiving Return value: Archiving Streaming mode: BroadcastArchiving Return val ue: BroadcastArchiving

SW6000 Conference Management Software User Manual

Starting and Stopping streaming and archiving

If the web service is used together with a third party streaming provider, Streaming Control functionality in the CUA is possible. Availability of the control buttons is included in the Meeting Role settings in the CAA.

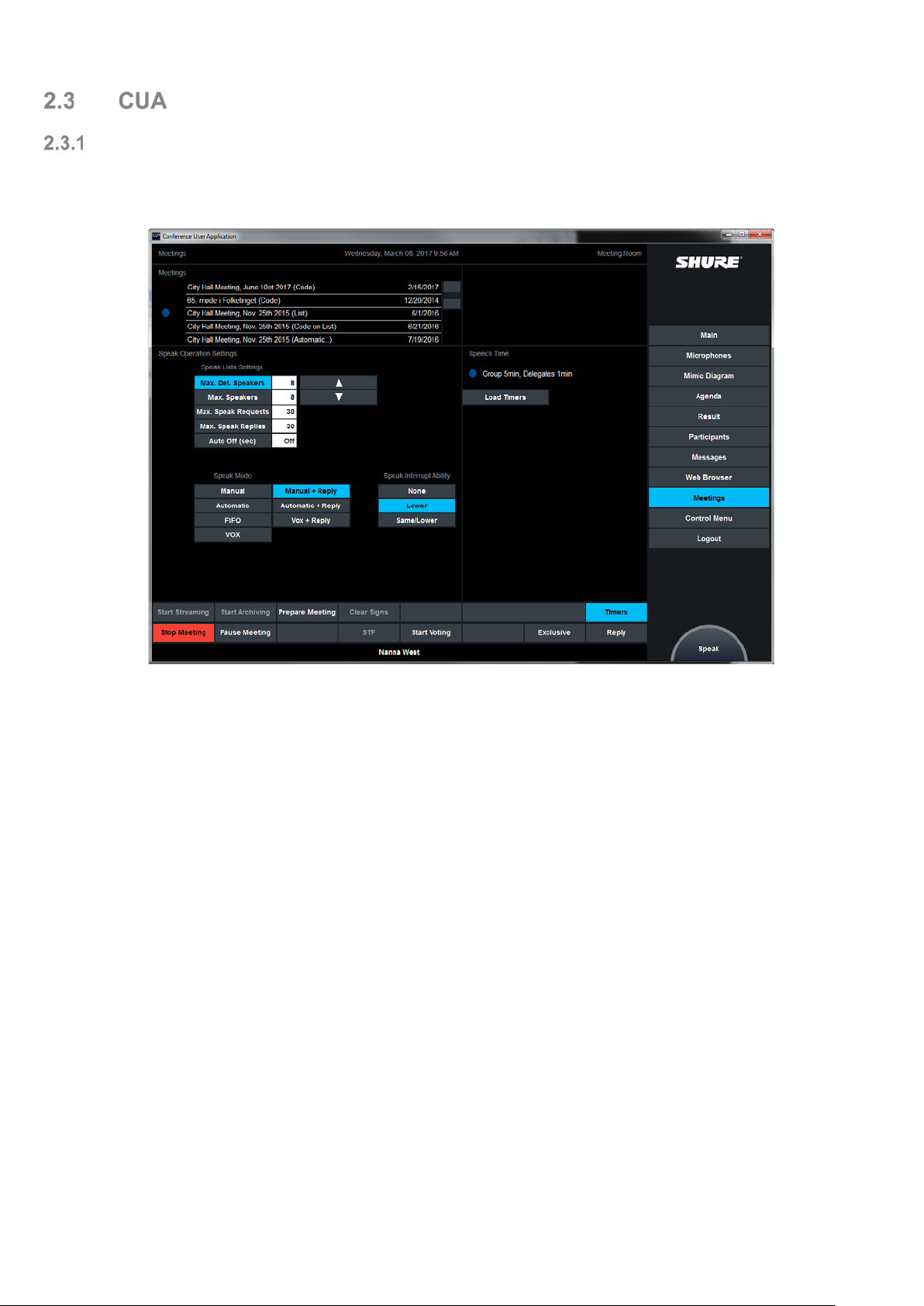

Figure 2.3-A

SW6000 Conference Management Software User Manual

2 buttons are implemented. One for Starting the Broadcasting/Streaming and one for starting the Archiving/Recording.

Only buttons where the feature is supported by the Streaming solution (answered by the RequestStreamingSupport) is visible.

Buttons will change color from default to red when streaming/archiving is running. Button only enabled if Web Service is available else locked.

The following restrictions apply: Archiving is only possible when streaming

(broadcast) is active. Archiving is only possible when a meeting is

started. Additionally if the user selects to stop a

meeting (from CAA or CUA), then a stop archiving message is sent over the web service interface.

[Start Streaming] Press this button to start/stop streaming of the active meeting. The

button will blink red while the system activates the streaming and turn to [Stop Streaming] and remain red if the streaming is activated. The button is only available if the Web Service State in the CUI is ready and an external streaming solution is present.

[Start Archiving] Press this button to start/stop archiving of the streamed meeting. The

archiving can only be activated when the streaming has been activated. The button will blink red while the system activates the archiving and turn to [Stop Archiving] and remain red if the archiving is activated. The button is only available if the Web Service State in the CUI is ‘Ready’ and an external streaming solution is present.

Communication Status display

For debugging purpose, the CUI display contains a window showing the feedback from the WSI.

When sending pictures using the DelegateDetails method the picture is included in the XML format. The picture data is not send back to the CUI window, but is replaced with a <<picture>> tag instead.

SW6000 Conference Management Software User Manual

SW6000

CUI

CUA

CAA

Video

Streaming

Admin

The SW6000 system can deliver data to a streaming solution. The interface between those two systems is implemented using a web service interface, through a web service running on the streaming solution server.

CUI broadcast system information originating at the CU/CCU, or a client CUA/CAA – with data taken from the SW6000 database.

The WSI then posts the data to the Web Service (WS) on the St reaming solution server. The WS delivers the data sent through the WS to the Streaming solution.

The Video Streami n g Solution may deliver a controllable web page, from where it’s possible to configure the video streaming application. This webpage is embedded in the CAA application for access by an SW6000 administrator.

Handshaking and communication overview is handled between the WSI and WS.

The communication status between the WSI and WS is designed in a way so that minimal impact on the performance of the CUI is achieved.

The WSI is responsible for keeping the WS updated with correct status of the SW6000 system. During normal operation changes to SW6000 status are transmitted through WS calls.

Communication from both WS and WSI is monitored by the other party in order to

Streami ng

Figure 2.5-A

detect a failure situation – if the WS stops responding for some reason this will be evident to the WSI due to missing replies on monitoring calls. If a failure occurs – e.g. due to a restart of one of the computers it is ensured that the systems are able to resynchronize full status by going through an initialization sequence.

SW6000 Conference Management Software User Manual

Web service methods

The web service must support several events from the WSI.

When an event occurs on the SW6000 system, the WSI calls the appropriate Web Service method.

Methods to be implemented in the WS are described in the following subchapters.

Most Methods has xml strings as input parameters. These xml strings are output from datasets on the WSI and it is therefore very useful to read these xml strings into datasets in the WS using a standard xml parser for further data handling

SW6000 Conference Management Software User Manual

</newdataset>

Input parameters: strMeetingXML [STRING]

XML format:

<meeting> <system_id>Mødelokale 1<system_id> <password>Password1234<password> <title>Copenhagen Climate Conference 2009</title> <starttime>2009-11-07T12:09:25.7810767+01:00</starttime> <description>Discussions about conference schedule</description> <public>1</public> </publishing> <searchtags>UN, United Nations, copenhagen climate

conference, UNFCCC, Subsidiary Body for Implementation,

SBI, SBSTA, climate, kyoto</searchtags> <categories>Ungdomstinget</categories> <category_ids>5</category_ids> <web_id>1323</web_id> </meeting> <timestamp> <eventtime>2009-10-27T12:09:25.7810767+01:00</eventtime> </timestamp>

Parameter description:

system_id A unique string for identifying the system the meeting is being held on. I.e.

this identifies the meeting room to the WebService making it possible for the WebService to id en tify multiple meeting rooms using the same WebService.

password A password string used for identification with the system_id.

This is the same password as is sent to the WebService in the VerifyPassword

WebService call. title Title of the meeting starttime Date and time of planned meeting start. Will contain a date without a time

part if no start time has been specified for the meeting. description Description of the meeting public Is meeting to be displayed publicly online (1) or is it private (0). publishing Publishing method for meeting recordings.

Currently not used. searchtags Search keywords to be tagged on meeting recordings. categories Names of categories under which to publish meeting recordings. Category

names are separated by a semicolon if multiple categories are present.

To avoid illegal category separation by user-typed semicolons in categories

the following character replacements are performed on the individual

category names:

SW6000 Conference Management Software User Manual

: (colon) => :. (colon period)

; (semicolon) => :, (colon comma)

For example the following two category names:

- Salen: Evaluering

- Belysning; En diskussion

would be encoded as:

<categories>Salen:. Evaluering;Belysning:, En diskussion</categories>

The reverse replacements must be made in the receiving end. category_ids String of unique identifier integers for the categories named in the

“categories” tag. One ID must exist for each category named in the

“categories” tag. IDs are separated by a semicolon. The ID for a category is

what defines the category – the name is just a humanly readable name

related to that ID which is to be used when presented to a user (e.g. if

presenting meetings by category in an external application).

If an ID is specified and the accompanying category name is different from

what has been previously sent for that category ID, the receiving system

should update its name for the category to the new name. web_id Unique identification of the meeting in the Web Service. When creating a new

meeting this field is not specified (not present or empty), but if updating data

on a meeting already prepared once, this is the ID returned by the

PrepareMeeting() WebService function when the meeting was initiall y

prepared. eventtime When the event occurred

Return values:

A complex value indicating the result of preparing the meeting in the external system

<result> <status>Success</status> <web_id>3214</web_id> <message>Some error message – if applicable</message> </result>

result Container tag status Status of preparing the meeting. One of the following

• Success. The meeting has been prepared in the external system.

• Failure. The meeting could not be prepared in the external system.

The <message> tag contains an error description.

• Duplicate. The meeting has already been prepared. Meeting data has been updated to reflect the new data, so this is also a success indicator.

web_id The ID of the meeting in the external system. This is what you’ll pass as

“web_id” argument to calls which require a web_id argument.

message An error message. Only valid when <status> is Failure.

SW6000 Conference Management Software User Manual

</newdataset>

Description: Called when a new meeting has been added to make the WebService aware of it before the

meeting is referenced in other webservice calls. May also used to update meeting data for a meeting which the webservice has previously been made aware of – in this case a web_id field is contained in the data.

Input parameters: strMeetingTitleXML [STRING] XML format:

<meeting> <title>Copenhagen Climate Conference 2009</title> <import_id>6066</import_id> <web_id>1323</web_id> <categories>Ungdomstinget</categories> <category_ids>5</category_ids> </meeting> <timestamp> <eventtime>2009-10-27T12:09:25.7810767+01:00</eventtime> </timestamp>

Parameter description:

title Title of the meeting import_id Unique number identifying an imported meeting web_id Unique identification of the meeting in the WebService. This is the ID

returned by the PrepareMeeting() WebService function.

categories Names of categories assigned to the meeting. See PrepareMeeting call

(section 2.7.1.1) for more inf or mation on this tag.

category_ids String of unique identifier integers for the categories named in the

“categories” tag. One ID will exist for each category named in the “categories” tag. See PrepareMeeting call (section 2.7.1.1) for more information on this tag.

eventtime When the event occurred

Return values: empty string [STRING] Description:

Called when meeting starts or stops. Note the dataset may be empty for the MeetingStop call – this is the case when MeetingStop is called as part of the startup sequence and no conference is active. Note the MeetingStart and MeetingStop are always followed by an AgendaUpdate - if the MeetingStart event is called and the meeting has an Agenda the AgendaUpdate call will contain the meeting agenda, if meeting has no agenda or MeetingStop is called the subsequent AgendaUpdate call will contain an empty agenda.

Input parameters: strSpeakerListXML [STRING] XML format:

SW6000 Conference Management Software User Manual

</newdataset>

<seat> <title>Minister</title> <name>Anne Baastrup</name> <usertype>Delegate</usertype> <usertable1 /> <usertable2 /> <usertable3 /> <usertable4 /> <group>Socialist Group</group> <groupabbreviation>SG</groupabbreviation> <votegroup /> <seatnumber>5</seatnumber> <delegate_id>73</delegate_id> <import_id>100589</import_id> </seat> . . . <seat> <title /> <name>Anita Knakkergaard</name> <usertype>Delegate</usertype> <usertable1 /> <usertable2 /> <usertable3 /> <usertable4 /> <group>Danish Peoples Group</group> <groupabbreviation>DPG</groupabbreviation> <votegroup /> <seatnumber>4</seatnumber> <delegate_id>132</delegate_id> <import_id>100576</import_id> </seat> <timestamp> <eventtime>2009-10-27T13:52:54.1023068+01:00</eventtime> </timestamp>

Parameter description:

title Title of the participant name Display name of the participant. usertype privileges (meeting role) of the participant (as setup in CAA) usertable1 as setup in CAA usertable2 as setup in CAA usertable3 as setup in CAA usertable4 as setup in CAA group as setup in CAA groupabbreviation as setup in CAA votegroup as setup in CAA seatnumber identifying microphone position

SW6000 Conference Management Software User Manual

27T14:07:44.0956233+01:00</eventtime>

</newdataset>

delegate_id unique number identifying participant [note two participants

may have identical names] import_id unique number identifying participant imported (TingDok Id) eventtime When th e event occurred

Return values: empty string [STRING] Description: Called when speaker changes

XML will contain Seat information for all current speakers. XML will only contain eventti me if there are no speakers.

Input parameters: strSubjectNameXML [STRING] XML format:

<currentsubject> <level>1</level> <name>Global Warming</name> <description /> <shortdescription /> <agenda_id>2653</agenda_id> <import_id>32332</import_id> <itemnumber>1</itemnumber> </currentsubject> <currentsubject> <level>2</level> <name>Ice Caps</name> <description /> <shortdescription /> <agenda_id>2654</agenda_id> <import_id /> <itemnumber>1.1</itemnumber> </currentsubject> <currentsubject> <level>3</level> <name>Rising Water Levels</name> <description /> <shortdescription /> <agenda_id>2655</agenda_id> <import_id /> <itemnumber /> </currentsubject> <timestamp> <eventtime>2009-10 </timestamp>

Parameter description:

level Identifies the hierarchy of subject/parent subjects. Level 1 is main, and 2..

are sub items.

name Name of the current subject as well as name of parent subjects to the

current subject

description agenda item description

SW6000 Conference Management Software User Manual

shortdescription agenda item short text description agenda_id Unique number for agenda item – SW6000 autogenerated Import_id Unique number identifying participant imported (TingDok Id) itemnumber Item Number text as input in agenda from CAA. Eventtime When the event occurred

Return values: empty string [STRING] Description:

Called when voting starts. Part of the system update procedure. In a WS restart sequence, it is called if a voting session is in progress.

If voting session is started without any subject selected, the dataset will be empty.

Input parameters: strVotingResultsXML [STRING] XML format (Complete content of Session dataset):

SW6000 Conference Management Software User Manual

</newdataset>

<session> <session_id>762</session_id> <version>1</version> <date>2009-10-28T08:46:50.6205579+01:00</date> <passedresult>1</passedresult> <passedresulttext>Passed</passedresulttext> <result1>1</result1> <result2>0</result2> <result3>0</result3> <result4>0</result4> <result5>1</result5> <result6>0</result6> <result7>0</result7> <result8>0</result8> <result9>0</result9> <result1label>Yes</result1label> <result2label>No</result2label> <result3label>Abstain</result3label> <result4label /> <result5label>Total</result5label> <result6label /> <result7label /> <result8label /> <result9label /> <conclusion>’Conclusion text ‘</conclusion> </session> <timestamp> <eventtime>2009-10-28T09:45:51.2541477+01:00</eventtime> </timestamp> <currentsubject> <level>1</level> <name>Global Warming</name> <description /> <shortdescription /> <agenda_id>2653</agenda_id> <import_id /> <itemnumber>1</itemnumber> </currentsubject> <currentsubject> <level>2</level> <name>Ice Caps</name> <description /> <shortdescription /> <agenda_id>2654</agenda_id> <import_id /> <itemnumber>1.1</itemnumber> </currentsubject> <currentsubject> <level>3</level> <name>Rising Water Levels</name> <description /> <shortdescription /> <agenda_id>2655</agenda_id> <import_id /> <itemnumber /> </currentsubject>

SW6000 Conference Management Software User Manual

Parameter description:

session_id Internal identifier for voting session version Sequence number identifying session – if revotes are held on a

subject the sequence number will be greater than 1 on revotes date Voting date passedresult 1: Vote Passed, 0: Vo t e Not Passed passedresulttext Text to display for vote result result1 to result9 Calculated results of voting session. result1label to result9label Labels associated with calculated voting results. conclusion Text overvi ew of voting result eventime When the event occurred level Identifies the hierarchy of subject/parent subjects. Level 1 is main,

and 2.. are sub items. name Name of the current subject as well as name of parent subjects to

the current subject description agenda item description shortdescription agenda item short text description agenda_id Unique number for agenda item – SW6000 autogenerated Import_id Unique number identifying participant imported (TingDok Id) itemnumber Item Number text as input in agenda from CAA.

Return values: empty string [STRING] Description:

Called when voting stops or the voting session is cancelled. VotingStop is part of the system update procedure. If WS fails, VotingStop is called when connection is re-established if no voting session is in progress and the current subject has a voting result attached with the corresponding voting result. On startup or WS connection re-established when currently no meeting is active or a meeting is active but no subject is current or a subject is current with no voting result the VotingResult dataset will contain empty tags.

When a voting session completes VotingStop is called with VotingResult dataset containing the result of the voting session. If a voting session is cancelled, VotingStop will be called with VotingResult dataset containing all empty tags.

Input parameters: No input Return values: empty string [STRING] Description:

Called at a specified delay after voting stop calls. To be used by WebService to remove the voting results Webpage from being the active display. The delay interval is retrieved from the database.

Input parameters: strIndividualVotingResultXML [STRING]

SW6000 Conference Management Software User Manual

</newdataset>

XML format (Complete content of Session dataset):

<currentsubject> <level>1</level> <name>Global Warming</name> <description /> <shortdescription /> <agenda_id>2653</agenda_id> <import_id /> <itemnumber>1</itemnumber> </currentsubject> <currentsubject> <level>2</level> <name>Ice Caps</name> <description /> <shortdescription /> <agenda_id>2654</agenda_id> <import_id /> <itemnumber>1.1</itemnumber> </currentsubject> <currentsubject> <level>3</level> <name>Rising Water Levels</name> <description /> <shortdescription /> <agenda_id>2655</agenda_id> <import_id /> <itemnumber /> </currentsubject> <result> <session_id>762</session_id> <name>Anne Grete Holmsgaard</name> <group>Socialistisk Folkeparti</group> <groupabbreviation>SF</groupabbreviation> <votegroup>SF</votegroup> <delegate_id>109</delegate_id> <import_id>100691</import_id> <voteweight>1</voteweight> <vote>1</vote> <votetext>For</votetext> </result> <timestamp> <eventtime>2009-10-28T09:45:51.2541477+01:00</eventtime> </timestamp>

Parameter description:

level Identifies the hierarchy of subject/parent subjects. Level 1 is main, and 2..

are sub items.

name Name of the current subject as well as name of parent subjects to the

current subject name Agenda item title description Agenda item description shortdescription Agenda item short text description

SW6000 Conference Management Software User Manual

import_id unique number identifying participant imported agenda_id unique number for agenda item SW6000 auto-generated itemnumber Item Number text as input in agenda from CAA session_id Unique identifier for voting session name First/Last name of the participant group as setup in CAA groupabbreviation as setup in CAA votegroup as setup in CAA delegate_id unique number identifying participant [note two participants may have

identical names] voteweight as setup in CAA vote choice 1-5 according to button pressed votetext choice according to voting configuration in use (button text). Description: Individual voting results is called on the voting session close event. Note individual voting

results are only f or voting sessions held durin g a con ference if participants are logged in or on a Prepared Participant Seat Table. Individual voting results are not sent for voti n g sessions held as secret voting.

Input parameters: No input Return values: empty string [STRING] Description: Used as wrappers for system initialization after reboot/restart. See 2.7.4

When Web Service receives a StatusUpdateStart any current status should

be updated accordingly – e.g. after a CUI restart with a running Web

Service/Streaming solution.

Input parameters: strStreamingModeXML [STRING] XML format:

<streamingmode> <mode>Broadcast</mode> </streamingmode> <timestamp> <eventtime>2009-10-27T14:07:44.0956233+01:00</eventtime> </timestamp>

</newdataset>

Parameter description:

mode Streaming mode. Values: Values: Broadcast, Archive or

BroadcastArchive

Return values: empty string [STRING] Description: Called by user from within the CUA

SW6000 Conference Management Software User Manual

Input parameters: strStreamingStopXML XML format:

</newdataset>

Return values: empty string [STRING] Description: Called by user from within the CUA

Input parameters:

strAgendaXML [STRING] XML Format (Complete content of Agenda dataset):

SW6000 Conference Management Software User Manual

</newdataset>

<agenda> <level>1</level> <sortorder>1</sortorder> <iscurrent>1</iscurrent> <name>1. Welcome</name> <description>Text description 1</description> <shortdescription>Short text description 1</shortdescription> <agenda_id>65</agenda_id> <import_id /> <itemnumber /> </agenda> <agenda> <level>2</level> <sortorder>2</sortorder> <iscurrent>2</iscurrent> <name>1.1. Introduction</name> <description /> <shortdescription /> <agenda_id>66</agenda_id> <import_id /> <itemnumber /> </agenda> <agendalink> <agenda_id>66</agenda_id> <sortorder>1</sortorder> <linknumber /> <linkname>SAMPLE.PDF</linkname> <linkurl>X:\SAMPLE.PDF</linkurl> </agendalink> <agenda_event> <type>AgendaUpdate</type> </agenda_event> <timestamp> <eventtime>2012-09-17T14:20:07.8621441+02:00</eventtime> </timestamp>

Parameter description:

level Indent level sortorder Display order of the items in the xml file. (item number) iscurrent If all items are 0, no item is current. If an item is 2, it’s the current item,

parent items to the current item will be 1 – fac ilitating ident ifica tion. name Agenda item displayed text – field is formatted according to standard. If no

text is entered for an agenda item but a speech type/speaker has been

entered these will display in the text. description Agenda item description shortdescription short text description import_id Id originating from import agenda_id Unique id for agenda item SW6000 autogenerated itemnumber Item Number text as input in agenda from CAA

SW6000 Conference Management Software User Manual

</newdataset>

linknumber The link number text for an agenda link linkname The link name for an agenda link linkurl The link target URL for an agenda link. The target can be any URI – typically

a file or a web reference (http, ftp etc.). type Identifies if the agenda update is due to either a change in subject

(AgendaSubject) or a change in agendacontent (AgendaUpdate). eventtime When the event occurred

Return values: empty string [STRING] Description: Called when Agenda content changes, at start and stop of meeting and at

startup with event type AgendaUpdate. Also called when an agenda item

is set active or no agenda item active with event type AgendaSubject.

Note that if any of the fields are not available in the requested language,

these fields will be transmitted in the default language, and if not available

in the default language an empty field is transmitted.

Input parameters: strDelegateInfoXML [STRING] XML format:

<delegate> <title>Statsministeren</title> <first_name>Anders Fogh</first_name> <last_name>Rasmussen</last_name> <show_name>Statsministeren</show_name> <usertype>Minister</usertype> <usertable1 /> <usertable2 /> <usertable3 /> <usertable4 /> <group /> <votegroup /> <background>additional information</background> <delegate_id>205</delegate_id> <import_id>100735</import_id> <photos>/9j/4AAQSkZJRgABA … … … ABQAUAFABQAUAFABQAUAFABQAUAFABQAUAFID//ZAA==</photos> </delegate> <timestamp> <eventtime>2009-1028T10:25:32.4889077+01:00</eventtime> </timestamp>

Parameter description:

title Participant title first_name First name of the Participant last_name Last name of the Participant show_name Display name according to meeting role

SW6000 Conference Management Software User Manual

</newdataset>

usertype Meeting role of user. E.g. Delegate or Chairman usertable1 to 4 Four user-defined fields, available for entering various text information. E.g.

Country or department. group As User table, normally used for Party votegroup User defined field – used to differentiate participants when using voting

formulas background User defined field – available for entering text describing details of

participant – can be up to 1000 char, and multiline delegate_id Id of Participant import_id Id originating from import photos serialized byte array of participant picture eventtime When the event occurred Note that if any of the fields are not available in the requested language, these fields will be

transmitted in the default language, and if not available in the default language an empty field is transmitted – see example.

Description: The DelegateDetails function has a parameter which includes the participant picture and this

parameter contains a large amount of data if pictures have been assigned to participants. To reduce communication of large amounts of data to the webservice the DelegateDetails may be omitted depending on the setup in the CAA.

DelegateDetails are sent within the StatusUpdate process (see 2.7.1.6) if a meeting is in progress and participants participating in the meeting are identified – (on a participant list). If a meeting with login mode ‘login using code’ is in progress only participants logged in will have details sent. On subsequent login’s from other participants the details of these participants will be transmitted as the participants perform login.

Note that the DelegateDetails call has always been made prior to DelegateLogin call – thus details are always available when the DelegateLogin call is made.

Input parameters: strLoginString [STRING] XML format:

<login> <seat>30</seat> <usertype>Minister</usertype> <show_name>Statsministeren</show_name> <delegate_id>205</delegate_id> <import_id>100735</import_id> </login> <timestamp> <eventtime>2009-1113T14:00:49.4525549+01:00</eventtime> </timestamp>

Parameter description:

seat Identification of seat where login is performed

SW6000 Conference Management Software User Manual

</newdataset>

usertype Meeting role of the user. E.g Delegate or Chairman show_name Display name according to meeting role delegate_id Id of Participant import_id Id originating from import eventtime When the event occurred Description: The DelegateLogin call is made whenever a participant is logged in to a seat. For the meeting

mode “Prepared Participant Seat Table” a “DelegateLogin” is sent for all participants on the list on conference start. For conference modes where login is required, the “DelegateLogin” call is made when an actual login is performed. Note that details for the participants are made available in the “DelegateDetails” calls. A participant will only be logged in once for the meeting mode “Prepared Participant Seat Table”, while in modes using login e.g. “Login Using Code” the participant may be logged in several times at different locations, and possibly with different meeting roles. For mode “Login using Code on Seat” and “Login using Code on List” the “DelegateDetails” call is only made once – but as the participant may be logged in several times with a new meeting role it’s important that the meeting role and “show_name” settings are updated on a new login. Pictures are not updated and a performance gain is achieved by not sending participant details for each login when using these modes. A single call may contain multiple login entries.

Input parameters: strLogoutString [STRING] XML format:

Parameter description:

seat Identification of seat where login is performed delegate_id Id of Participant import_id Id originating from import eventtime When the event occurred Description: The DelegateLogout call is made whenever a participant is logge d out from a seat. For

conference modes where login is required, the “DelegateLogout” call is made when an actual logout is performed. When a conference requiring login is stopped all participants are logged out, this is also tru e for conference mode “Prepared Participant Seat Table”. A single call may contain multiple logout entries. Stopping a meeting is equivalent of performing logout for all participants.

SW6000 Conference Management Software User Manual

</newdataset>

</newdataset>

Input parameters: strAlertString [STRING] XML format:

Parameter description:

alert Alert text as setup for the meeting eventtime When the event occurred Return values: empty string [STRING] Parameter description: text Description: This alert originates from a CUA user with appropriate meeting role who activates the alert. Note

that alerts are automatically deactivated when a voting session is stopped. The input parameter alert string is the string to display to users identifying this alert.

Input parameters: strAlertStop [STRING] XML format:

Parameter description:

eventtime When the event occurred

Return values: empty string [STRING] Description: Removes a previously issued alert.

Input parameters: No input Return values: WebServiceStatus [STRING]

See Description Description: The Web Service can return the current running state. The different states

are described below: Unavailable Streaming system not available but Web Service is running

SW6000 Conference Management Software User Manual

Needstatus Streaming system is just started (could be after a

shutdown/reboot). Indicates that the WS needs

status/information from the SW6000 WSI Ready Status is updated but no streaming has started (not running) Broadcasting Broadcasting is running (set after StreamingStart is called) Archiving Archiving BroadcastingArchiving Broadcasting and Archiving are running

If status is Ready, Broadcasting, Archiving or BroadcastingArchiving, the Streaming Start/Stop button on the CUA is enabled. In these states status changes in SW6000 are transmitted to the WS (e.g. AgendaUpdate, SpeakerChange …)

If status is Needstatus, password verification process is executed before any other action will work.

The WebServiceStatus call is issued repeatedly at a 10 second interval to monitor the WebService.

Input parameters: No input Return values: LanguageId [INTEGER]

SW6000 supports multiple languages; the streaming solution should be able to be set up for any of the supported languages in the SW6000 database (as configured by the CAA).

E.g 1033 for English (US), 1030 for Danish and 1053 for Swedish. If a language id is returned which is not supported in the Database for the current meeting then

all strings sent to the WS will be in the default language as defined in the SW6000 database.

Input parameters: No input Return values: StreamingSupport [STRING]

Values: Broadcast Archiving BroadcastArchiving The StreamingSupport value returned tells the DIS system what configuration the streaming

solution supports. Just a direct broadcast (Broadcast), just archiving (Archiving) or simultaneous direct broadcast and archiving (BroadcastArchiving).

Input parameters: No input Return value: VoteHideDelay [STRING] (is conver tible to integer)

The VoteHideDelay vaue returned tells the DIS system the delay in seconds between a VotingStop call and the subsequent VotingHide call. Default value is 3 seconds.

Input parameters: strPassword [STRING] WebServ icePassword

SW6000 Conference Management Software User Manual

AgendaUpdate

WSI

WebServiceStatus

Status: Ready

WSI

Return value: strPassword [STRING] StreamingPassword Two passwords are used to establish communication – WebServicePassword is used in the call

from Web Service Interface, and Streaming password should be returned in the reply from the WebService. These passwords are setup in the CAA application and should match in order to initiate communication.

Handling Agenda changes

When changes are made in the Agenda, this is sent to the Streaming solution A change to the Agenda may include insertion or deletion of agenda items as well as changes to

the current active subject, including the change to set no agenda item active. Changes also include sending an empty agenda e.g. on meeting stop. To differentiate between agenda updates involving agenda content and agenda updates changes to the current agenda item the agenda event type is available. An agenda is a hierarchical structure where sub items should be interpreted in relation to their parent items. To facilitate identification of this parent child relationship for the active agenda item, parent agenda items that act as parent to the active agenda item have isCurrent set to 1, and the active agenda item has isCurrent set to 2.

Handling Status request

The WSI must query WS for status every 10 seconds. If status differs from “Ready”, appropriate action is taken. See 2.7.1.15

Handling web service and SW6000 reboot/restart/breakdown

The system will handle reboot/restart/breakdown and turn into actual state by itself. If CUI is restarted on a running Web Service the Web Service will return e.g. Ready or

Broadcasting, Archiving or Broadcasting-Archiving. Still status is updated according to flow depicted.

Below is an event diagram of the flow if this happens.

SW6000 Conference Management Software User Manual

WebServiceStatus

Status: NeedStatus

StatusUpdateStart

MeetingStart

VotingStart

VotingStop

StatusUpdateDone

WebServiceStatus

Update

WSI

AgendaUpdate

SpeakerChange

(if meeting in progress)

(if voting session in

(if meeting started with Agenda – note RequestDisplayLanguage

MeetingStop

(if no meeting is i n progr ess )

VerifyPassword

WS password for verification

DelegateDetails

(if meeting in progress and delegates AlertStart

AlertStop

(if alert active)

(if alert not activ e)

(if voting session not in progress)

RequestStreamingSupport

RequestVoteHideDelay

DelegateLogin

(if meeting in progress and delegates PrepareMeeting

(if meeting in progress and

participating identified)

PrepareMeeting is enabled in CAA)

are logged in)

empty Agenda is transmitted if no meeting or meeting with no agenda)

progress)

Handling no response/unavailable status from web service

SW6000 Conference Management Software User Manual

WebServiceStatus

Status: Ready

Streaming Start

WebServiceStatus

StreamingStop

WebServiceStatus

Status: Ready

WSI

Status: Streaming

WSI will not send any events to the WS as long as no response or Unavailable status received from WS

On the CUA radio buttons for selecting Streaming mode (Broadcast/Archiving/BroadcastArchiving) is grayed out.

Handling Streaming Start/Stop

The next figure shows the communication flow at Streaming start/stop

. . . .

SW6000 Conference Management Software User Manual

File

Web Service

3 Meeting Import/Export

The purpose of this chapter is to describe how meeting data can be imported to, and exported from SW6000 using the Conference Administration Application (CAA).

Data can be exported to, or imported from an XML formatted file or by use of a web service call.

CAA/Setup/Equipment/Meeting Import/Export

The default Import/Export mode for meetings is to/from a file folder.

Please refer to section

The Meeting Import/Export facility can only be used before a meeting is started or after a meeting is stopped.

Upon export of data from the CAA, a schema file is also exported, defining the data format used. To clarify the individual constructs and fields in the file, this document describes the data format used for such import/export operations in greater detail.

File Import/Export for specifications.

Alternatively Import/Export can be done through a third party web service.

Please refer to section

3.4 Web Service for specifications.

Figure 3.2-A

Figure 3.2-B

SW6000 Conference Management Software User Manual

Web Application

When Web Application is

Refer to ‘User Manual SW6000

The Web Application selection is a ‘beta’ feature with limited functionality. The selection is only available when the files Newtonsoft.Json.dll and

WebMeetingIntegration.dll are copied into the folder ‘C:\Program Files (x86)\DIS\Conference Administrator Application\ImportExport’.

The two files are available in the folder ‘WebMeetingIntegration’ in the SW6000 installation package.

selected the available options are shown.

The settings for

URL, User Name, Password Committee and Publish Languages

are all for future use and are not supported.

The entries for ‘Reply Configuration’ and ‘Reply#’ are used for setting the Reply# used for Pre-requests to Speak in the CAA Agenda.

CAA’ for details.

Figure 3.2-C

SW6000 Conference Management Software User Manual

Data format

Generically speaking, the contents of an export file can be schematically represented as depicted below.

That is, the file contains Conference (meeting), Delegate (participants), participants grouping (Group), agenda, voting and participants voting information. The following sections describe the individual data records in detail.

The import file is similar to the export file but does not include voting results. Each import/export file contains only one meeting record. All other records in the file contain

data related to that one meeting. Each import/export file is mono-lingual. That is, all texts are exported using the language

selected in the CAA. If texts are not defined in that language, the default language version of the text will be exported instead.

The body of the import/export data file XML must be contained within an <ExportConferenceDataDataSet></ExportConferenceDataDataSet> tag pair.

SW6000 Conference Management Software User Manual

Field name

Data type

Description

Import_id

Integer

External ID for meeting. The ID the receiver of the

meeting has been previously imported with an Import_id.

StartDate

DateTime

Start date for the meeting. When import ing, both the start and stop date for the meeting w ill b e assigned this value.

StartTime

String (max. 10 chars)

A string represen tation of the start time for the meeting. No parsing of the str ing will be done.

name

String (max. 50 chars)

The name of the meeting.

conferenceLabel

String (max. 50 chars)

The label of the meeting. This is what is dubbed “Id” for the meeting in the CA A a pp lic a tion.

CustomerField1

String (max. 100 chars)

The content of “Customer field 1” for the meeting

CustomerField2

String (max. 100 chars)

The content of “Customer field 2” for the meeting

CustomerField3

String (max. 100 chars)

The content of “Customer field 3” for the meeting

CustomerField4

String (max. 100 chars)

The content of “Customer field 4” for the meeting

Field name

Data type

Description

Integer

The ID of the participant as used in this import/ export file.

import_id

Integer

External ID for participant. Th e ID the receiver of the

sts in export files from SW6000 if the

participant has been previously imported with a n Import_id.

ActivationDateStart

DateTime, optional

Start date for the participant replacement specified in ReplacementFor_id field

ActivationDateStop

DateTime, optional

Stop date for the participant replacement specified in ReplacementFor_id field

ReplacementFor_id

Integer, optional

The ID of a participant which this participant replaces.

Group_id

Integer, optional

The ID of the group this participant is a member of.

firstname

String (max. 50 chars)

First name of the participant

lastname

String (max. 50 chars)

Last name of the participant

title

String (max. 50 chars)

Title of the participant

background

String (max. 100 chars)

The background descriptio n of the participant

UserTable1Text

String (max. 30 chars)

The content of “User Ta ble 1” for the participant

The Conference record contains information about the meeting described in the import/export. Since each import/export file only describes a single meeting, only one Meeting record is allowed

in each import/export file.

export/creator of the import uses f or this meeting. This field only exists in export files from SW6000 if the

A conference record exists within a <Conference></Conference> tag pair in the import/export file.

The delegate record contains information about a participant which is related to the meeting. Since there can be many participants related to a meeting, many delegate records can exist in an import/export file.

export/creator of the import uses f or this participant. A participant import_id must be unique amongst all participants in the SW6000 system – not jus t a m ongst the participants in one particular im p or t file. This field only exi

When importing it is required that import_id is specified. import_id will, however, only be specified in an export file if a value has been assigned to the

participant. When importing, it is required that, if specified, ActivationDateStart be an earlier date than

ActivationDateStop, or that ActivationDateStop is not specified. If no ActivationDateStart is specified no ActivationDateStop may be specified.

SW6000 Conference Management Software User Manual

Field name

Data type

Description

Integer

The ID of the group used as in th is import/export file.

Import_id

Integer

External ID for g r oup. The ID the receiver of the export/creator of

been previously im p orted with an Import_id.

SortOrder

Integer

The sorting priority of the group

Text

String (max. 100 chars)

The name of the group

ShortName

String (max. 30 chars)

The abbreviated name for th e gr ou p

Description

String (max. 100 chars), optional

Description for the group.

Field name

Data type

Description

Integer

The ID of the agen da item as used in this import/ e xport file.

Import_id

Integer

External ID for agenda item . The ID the receiver of the

item has been previously im por ted with an Import_id.

SortOrder

Integer

The position in the agenda of this agenda item. This must be a number in the range 1 to num ber of a genda items.

Level

Integer

The subordination level of the agenda item. Must be in range 1 to 6, with level 1 being a top level agenda item.

ItemNumber

Integer

The item number of the agenda item.

SpeakerDelegateImport

Integer, optional

The external ID for a participant which is g oing to speak in

present, and the participant specified has an Import_id va lue.

SpeakerDelegate_id

Integer, optional

The ID for a participant which is going to speak in this agen da item.

Name

String (max. 1.000 chars)

The name of the agenda item

Description

String (max. 10.000 chars)

A description for the agenda item shortDescription

String (max. 500 chars)

A short descripti on for the agenda item

CustomerField1

String (max. 100 chars)

The content of “Customer f ield 1” for the agenda.

CustomerField2

String (max. 100 chars)

The content of “Customer field 2” for the agenda.

CustomerField3

String (max. 100 chars)

The content of “Customer f ield 3” for the agenda.

Speechtype

String (max. 100 chars)

The speaker type of the agenda item

If the participant is already present when importing (based on the import_id field) the participant is updated in the database. Any optional fields not specified will be assigned default values.

A delegate record exists within a <Delegate></Delegate> tag pair in the import/export file.

The group record describes a group to which participants can be related. Many groups may be defined in a single import/Export file.

the import uses for this group. A group Import_id must be unique amongst all groups in the SW6000 system – not just amongst th e groups in one particular import file. This field only exists in export files from SW6000 if the group has

A group record exists within a <Group></Group> tag pair in the import/export file.

The agenda record describes a single agenda item for the meeting. Many agenda items can exist in a single import/export file.

export/creator of the import uses f or this agenda item. This field only ex ists in exp ort files from SW6000 if th e agenda

_id

this agenda item. On import, this field is not us ed if the SpeakerDelegate_id is specified. It is th us possible to specify SpeakerDelegateImport_id without specifying SpeakerDelegate_id, effectively referring a participant by its Import_id rather than its id field. On export this field is only present if SpeakerDelegate_id is

Import of agenda items is disallowed for a meeting if there has been voted on one or mor e agenda items.

SW6000 Conference Management Software User Manual

Field name

Data type

Description

Integer

The ID of the votin g session as used in this im p or t/ e xport file.

Agenda_id

Integer

The ID of the agen da item this VotingSession is for

Passed

Integer

Voting result:

-1 – Not voted

Quorum

Integer

Quorum check result:

-2 – Not checked

Result1

Integer

The result of Res ult1 of the voting

Result2

Integer

The result of Res ult2 of the voting

Result3

Integer

The result of Res ult3 of the voting

Result4

Integer

The result of Res ult4 of the voting

Result5

Integer

The result of Res ult5 of the voting

Result6

Integer

The result of Res ult6 of the voting

Result7

Integer

The result of Res ult7 of the voting

Result8

Integer

The result of Res ult8 of the voting

Result9

Integer

The result of Result9 of the voting

Result1Text

String (max. 25 chars)

The name of Resu lt1, i.e. its label for presentation.

Result2Text

String (max. 25 chars)

The name of Resu lt2, i.e. its label for presentation.

Result3Text

String (max. 25 chars)

The name of Result3, i.e. its label for pres entation.

Result4Text

String (max. 25 chars)

The name of Resu lt4, i.e. its label for presentation.

Result5Text

String (max. 25 chars)

The name of Resu lt5, i.e. its label for presentation.

Result6Text

String (max. 25 chars)

The name of Result6, i.e. its label for presentation.

Result7Text

String (max. 25 chars)

The name of Resu lt7, i.e. its label for presentation.

Result8Text

String (max. 25 chars)

The name of Resu lt8, i.e. its label for presentation.

Result9Text

String (max. 25 chars)

The name of Resu lt9, i.e. its label for presentation.

Button1Text

String (max. 25 chars)

The name of voting button 1

Button2Text

String (max. 25 chars)

The name of voting button 2

Button3Text

String (max. 25 chars)

The name of voting button 3

Button4Text

String (max. 25 chars)

The name of voting button 4

Button5Text

String (max. 25 chars)

The name of voting button 5

VotingConclusion

String (max. 3500 chars)

Autogenerated c onclusion for the votin g .

VotingComment

String (max. 3500 chars)

Voting comment, as entered in the CAA after voting.

An agenda record exists within an <Agenda></Agenda> tag pair in the import/export file.

The voting session record describes the result of a voting related to an agenda item. Many voting sessions may exist in an export file. Voting sessions, however, cannot be imported, and are thus not allowed in import files.

If no voting has been performed during an agenda item, there will be no voting session record for that agenda item.

1 – Passed 0 – Not passed

The Result1-9 fields are calculated using the result formulas defined in the CAA for the relevant voting configuration.

A VotingSession record exists within a <VotingSession></VotingSession> tag pair in the export file.

SW6000 Conference Management Software User Manual

Field name

Data type

Description

VotingSession_id

Integer

The ID of the votin g session this VotingRe s ult is for

Delegate_id

Integer

The ID of the participant this VotingResult is for

Present

Integer

The presence result of the participant. 0 if the user was not presen t.

Vote

Integer

The voting button which was pressed by the participant. A value in

5. The vote name of the selected button is found in

VotingSession fields ButtonNText.

Weight

Integer

The voting weigh t of the participant at the time of voting.

The voting result record describes the voting result of a single participant in a single voting session. Many voting session may exist, so the same participant may have many voting result records, albeit only one voting result per voting session.

range 1-

A VotingResult record exists within a <VotingResult></VotingResult> tag pair in the export file.

SW6000 Conference Management Software User Manual

File format XSD

<?xml version="1.0" standalone="yes"?>

<xs:schema id="ExportConferenceDataDataSet" xmlns="" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:msdata="urn:schemas-microsoft-com:xml-msdata"> <xs:element name="ExportConferenceDataDataSet" msdata:IsDataSet="true" msdata:UseCurrentLocale="true"> <xs:complexType> <xs:choice minOccurs="0" maxOccurs="unbounded"> <xs:element name="Conference"> <xs:complexType> <xs:sequence> <xs:element name="Import_id" type="xs:int" minOccurs="0" /> <xs:element name="StartDate" type="xs:dateTime" minOccurs="0" /> <xs:element name="StartTime" type="xs:string" minOccurs="0" /> <xs:element name="name" type="xs:string" minOccurs="0" /> <xs:element name="conferenceLabel" type="xs:string" minOccurs="0" /> <xs:element name="CustomerField1" type="xs:string" minOccurs="0" /> <xs:element name="CustomerField2" type="xs:string" minOccurs="0" /> <xs:element name="CustomerField3" type="xs:string" minOccurs="0" /> <xs:element name="CustomerField4" type="xs:string" minOccurs="0" /> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Agenda"> <xs:complexType> <xs:sequence> <xs:element name="id" type="xs:int" minOccurs="0" /> <xs:element name="Import_id" type="xs:int" minOccurs="0" /> <xs:element name="SortOrder" type="xs:int" minOccurs="0" /> <xs:element name="Level" type="xs:int" minOccurs="0" /> <xs:element name="ItemNumber" type="xs:string" minOccurs="0" /> <xs:element name="SpeakerDelegateImport_id" type="xs:int" minOccurs="0" /> <xs:element name="SpeakerDelegate_id" type="xs:int" minOccurs="0" /> <xs:element name="Name" type="xs:string" minOccurs="0" /> <xs:element name="Description" type="xs:string" minOccurs="0" /> <xs:element name="shortDescription" type="xs:string" minOccurs="0" /> <xs:element name="CustomerField1" type="xs:string" minOccurs="0" /> <xs:element name="CustomerField2" type="xs:string" minOccurs="0" /> <xs:element name="CustomerField3" type="xs:string" minOccurs="0" /> <xs:element name="Speechtype" type="xs:string" minOccurs="0" /> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Group"> <xs:complexType> <xs:sequence> <xs:element name="id" type="xs:int" minOccurs="0" /> <xs:element name="Import_id" type="xs:int" minOccurs="0" /> <xs:element name="SortOrder" type="xs:int" minOccurs="0" /> <xs:element name="MemberCount" type="xs:int" minOccurs="0" /> <xs:element name="Text" type="xs:string" minOccurs="0" /> <xs:element name="ShortName" type="xs:string" minOccurs="0" /> <xs:element name="Description" type="xs:string" minOccurs="0" /> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="Delegate"> <xs:complexType> <xs:sequence> <xs:element name="id" type="xs:int" minOccurs="0" /> <xs:element name="import_id" type="xs:int" minOccurs="0" /> <xs:element name="ActivationDateStart" type="xs:dateTime" minOccurs="0" />

SW6000 Conference Management Software User Manual

<xs:element name="ActivationDateStop" type="xs:dateTime" minOccurs="0" /> <xs:element name="ReplacementFor_id" type="xs:int" minOccurs="0" /> <xs:element name="Group_id" type="xs:int" minOccurs="0" /> <xs:element name="firstname" type="xs:string" minOccurs="0" /> <xs:element name="lastname" type="xs:string" minOccurs="0" /> <xs:element name="title" type="xs:string" minOccurs="0" /> <xs:element name="background" type="xs:string" minOccurs="0" /> <xs:element name="UserTable1Text" type="xs:string" minOccurs="0" /> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="VotingSession"> <xs:complexType> <xs:sequence> <xs:element name="id" type="xs:int" minOccurs="0" /> <xs:element name="Agenda_id" type="xs:int" minOccurs="0" /> <xs:element name="Passed" type="xs:int" minOccurs="0" /> <xs:element name="Quorum" type="xs:int" minOccurs="0" /> <xs:element name="Result1" type="xs:int" minOccurs="0" /> <xs:element name="Result2" type="xs:int" minOccurs="0" /> <xs:element name="Result3" type="xs:int" minOccurs="0" /> <xs:element name="Result4" type="xs:int" minOccurs="0" /> <xs:element name="Result5" type="xs:int" minOccurs="0" /> <xs:element name="Result6" type="xs:int" minOccurs="0" /> <xs:element name="Result7" type="xs:int" minOccurs="0" /> <xs:element name="Result8" type="xs:int" minOccurs="0" /> <xs:element name="Result9" type="xs:int" minOccurs="0" /> <xs:element name="Result1Text" type="xs:string" minOccurs="0" /> <xs:element name="Result2Text" type="xs:string" minOccurs="0" /> <xs:element name="Result3Text" type="xs:string" minOccurs="0" /> <xs:element name="Result4Text" type="xs:string" minOccurs="0" /> <xs:element name="Result5Text" type="xs:string" minOccurs="0" /> <xs:element name="Result6Text" type="xs:string" minOccurs="0" /> <xs:element name="Result7Text" type="xs:string" minOccurs="0" /> <xs:element name="Result8Text" type="xs:string" minOccurs="0" /> <xs:element name="Result9Text" type="xs:string" minOccurs="0" /> <xs:element name="Button1Text" type="xs:string" minOccurs="0" /> <xs:element name="Button2Text" type="xs:string" minOccurs="0" /> <xs:element name="Button3Text" type="xs:string" minOccurs="0" /> <xs:element name="Button4Text" type="xs:string" minOccurs="0" /> <xs:element name="Button5Text" type="xs:string" minOccurs="0" /> <xs:element name="VotingConclusion" type="xs:string" minOccurs="0" /> <xs:element name="VotingComment" type="xs:string" minOccurs="0" /> </xs:sequence> </xs:complexType> </xs:element> <xs:element name="VotingResult"> <xs:complexType> <xs:sequence> <xs:element name="VotingSession_id" type="xs:int" minOccurs="0" /> <xs:element name="Delegate_id" type="xs:int" minOccurs="0" /> <xs:element name="Present" type="xs:double" minOccurs="0" /> <xs:element name="Vote" type="xs:double" minOccurs="0" /> <xs:element name="Weight" type="xs:double" minOccurs="0" /> </xs:sequence> </xs:complexType> </xs:element> </xs:choice> </xs:complexType> <xs:unique name="Constraint1"> <xs:selector xpath=".//Agenda" /> <xs:field xpath="id" /> </xs:unique> <xs:unique name="Group_Constraint1" msdata:ConstraintName="Constraint1">

SW6000 Conference Management Software User Manual

<xs:selector xpath=".//Group" /> <xs:field xpath="id" /> </xs:unique> <xs:unique name="Delegate_Constraint1" msdata:ConstraintName="Constraint1"> <xs:selector xpath=".//Delegate" /> <xs:field xpath="id" /> </xs:unique> <xs:unique name="VotingSession_Constraint1" msdata:ConstraintName="Constraint1"> <xs:selector xpath=".//VotingSession" /> <xs:field xpath="id" /> </xs:unique> <xs:keyref name="VotingResultToDelegate" refer="Delegate_Constraint1"> <xs:selector xpath=".//VotingResult" /> <xs:field xpath="Delegate_id" /> </xs:keyref> <xs:keyref name="VotingResultToVotingSession" refer="VotingSession_Constraint1"> <xs:selector xpath=".//VotingResult" /> <xs:field xpath="VotingSession_id" /> </xs:keyref> <xs:keyref name="VotingSessionToAgenda" refer="Constraint1"> <xs:selector xpath=".//VotingSession" /> <xs:field xpath="Agenda_id" /> </xs:keyref> <xs:keyref name="DelegateToGroup" refer="Group_Constraint1"> <xs:selector xpath=".//Delegate" /> <xs:field xpath="Group_id" /> </xs:keyref> <xs:keyref name="AgendaToDelegate" refer="Delegate_Constraint1"> <xs:selector xpath=".//Agenda" /> <xs:field xpath="SpeakerDelegate_id" /> </xs:keyref> </xs:element> </xs:schema>

SW6000 Conference Management Software User Manual

Example XML file

<?xml version="1.0" standalone="yes"?> <ExportConferenceDataDataSet> <Conference> <StartDate>2011-04-29T00:00:00+02:00</StartDate> <StartTime /> <name>Conference 07 (No login)</name> <conferenceLabel>7000</conferenceLabel> <CustomerField1 /> <CustomerField2 /> <CustomerField3 /> <CustomerField4 /> </Conference> <Agenda> <id>120</id> <SortOrder>1</SortOrder> <Level>1</Level> <Name>1. Agenda</Name> <Description>Text description 1</Description> <shortDescription>Short text description 1</shortDescription> </Agenda> <Agenda> <id>121</id> <SortOrder>2</SortOrder> <Level>2</Level> <Name>1.1. Agenda</Name> <Description /> <shortDescription /> </Agenda> <Group> <id>44</id> <SortOrder>1</SortOrder> <MemberCount>4</MemberCount> <Text>Denmark</Text> <ShortName>DK</ShortName> </Group> <Delegate> <id>43</id> <Group_id>44</Group_id> <firstname>Bent</firstname> <lastname>Nielsen</lastname> <title>Software Tester</title> </Delegate> <Delegate> <id>48</id> <firstname>Benny</firstname> <lastname>Pedersen</lastname> <title>Software Programmer</title> </Delegate> </ExportConferenceDataDataSet>

SW6000 Conference Management Software User Manual

Parameter Name

Data Type & Format

Description

startDate

Date/time

Specifies the opening date of the date range for which to get

endDate

Date/Time

Specifies the opening date of the date range for which to get

It is possible to have the SW6000 system call a web service to facilitate import and export of meetings. The following section describes the Web Service calls the SW6000 will make.

Note that this document is not intended to be in-depth in its description of the data passed back and forth between SW6000 and the WebService implementation. For exact data definitions an example WebService implementation can be requested.

Web Service Functions

The following are the web service functions that SW6000 will try to call. There are two functions relating to import into SW6000 and one relating to export from SW6000.

The GetConferenceList endpoint must deliver a list of conferences available for import for a given date range. This endpoint does not deliver full conference data, rather summary data of those conferences.

Parameters:

available conferen ces .

Returns:

ConferenceListData, i.e. an array of ConferenceSummaryData describing the meetings available for import.

Example request:

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/"> <s:Header> <Action s:mustUnderstand="1" xmlns="http://schemas.microsoft.com/ws/2005/05/addressing/none">http://dis.cc/IConferenceIoService/GetC onferenceList</Action> </s:Header> <s:Body> <GetConferenceList xmlns="http://dis.cc"> <startDate>2017-10-27T00:00:00+02:00</startDate> <endDate>2017-11-03T00:00:00+01:00</endDate> </GetConferenceList> </s:Body> </s:Envelope>

SW6000 Conference Management Software User Manual

Example response:

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/"> <s:Header> <ActivityId CorrelationId="3ac3e6e0-253e-497f-b9de-a0613f3ce768" xmlns="http://schemas.microsoft.com/2004/09/ServiceModel/Diagnostics">00000000-0000-0000-0000000000000000</ActivityId> </s:Header> <s:Body> <GetConferenceListResponse xmlns="http://dis.cc"> <GetConferenceListResult xmlns:i="http://www.w3.org/2001/XMLSchema-instance"> <Conferences> <ConferenceSummary> <ImportId>10000</ImportId> <Name>Test 001</Name> <ConferenceLabel>001</ConferenceLabel> <StartDate>2016-10-06T00:00:00+02:00</StartDate> <StartTime /> <CustomerField1 /> <CustomerField2 /> <CustomerField3 /> <CustomerField4 /> </ConferenceSummary> <ConferenceSummary> <ImportId>10001</ImportId> <Name>Login Using Code</Name> <ConferenceLabel /> <StartDate>2016-10-12T00:00:00+02:00</StartDate> <StartTime /> <CustomerField1 /> <CustomerField2 /> <CustomerField3 /> <CustomerField4 /> </ConferenceSummary> </Conferences> </GetConferenceListResult> </GetConferenceListResponse> </s:Body> </s:Envelope>

SW6000 Conference Management Software User Manual

Parameter Name

Data Type & Format

Description

importId

integer

The ImportId of the conference to get. The import id given will be one from a conference previously returned from

The GetConference endpoint must deliver full conference data for a single conference.

Parameters:

GetConferenceList.

Returns:

GetConferenceData, i.e. a collection of conference, group, delegate and agenda data for the conference.

Example request

Example response

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/"> <s:Header> <ActivityId CorrelationId="3f34c573-dc5e-4564-89da-98ed9a1b94d7" xmlns="http://schemas.microsoft.com/2004/09/ServiceModel/Diagnostics">00000000-0000-0000-0000000000000000</ActivityId> </s:Header> <s:Body> <GetConferenceResponse xmlns="http://dis.cc"> <GetConferenceResult xmlns:i="http://www.w3.org/2001/XMLSchema-instance"> <Conference> <ImportId>20000</ImportId> <Name>Test meeting</Name> <ConferenceLabel>001</ConferenceLabel> <StartDate>2016-10-06T00:00:00+02:00</StartDate> <StartTime /> <CustomerField1 /> <CustomerField2 /> <CustomerField3 /> <CustomerField4 /> </Conference> <Groups> <Group> <Id>53</Id> <ImportId>20001</ImportId> <Text>Group A</Text> <ShortName /> <Description />

SW6000 Conference Management Software User Manual

<SortOrder>0</SortOrder> <MemberCount>0</MemberCount> </Group> <Group> <Id>55</Id> <ImportId>20002</ImportId> <Text>Group B</Text> <ShortName /> <Description /> <SortOrder>0</SortOrder> <MemberCount>0</MemberCount> </Group> </Groups> <Delegates> <Delegate> <Id>56</Id> <ImportId>106943</ImportId> <Firstname>Delegate</Firstname> <Lastname>A</Lastname> <Title /> <Background /> <GroupId>57</GroupId> <ActivationDateStart>2008-10-01T00:00:00+02:00</ActivationDateStart> <UserTable1Text /> </Delegate> <Delegate> <Id>58</Id> <ImportId>106904</ImportId> <Firstname>Delegate</Firstname> <Lastname>B</Lastname> <Title /> <Background /> <GroupId>53</GroupId> <ActivationDateStart>2008-10-01T00:00:00+02:00</ActivationDateStart> <UserTable1Text /> </Delegate> </Delegates> <Agenda> <Agenda> <Id>251</Id> <SortOrder>1</SortOrder> <Level>1</Level> <Name>a</Name> <Description /> <ShortDescription /> <CustomerField1 /> <CustomerField2 /> <CustomerField3 /> <SpeechType /> </Agenda> <Agenda> <Id>252</Id> <SortOrder>2</SortOrder> <Level>1</Level> <Name>b</Name> <Description /> <ShortDescription /> <CustomerField1 /> <CustomerField2 /> <CustomerField3 /> <SpeechType /> </Agenda> <Agenda> <Id>253</Id>

SW6000 Conference Management Software User Manual

Parameter Name

Data Type & Format

Description

export

SetConferenceData

A collection of conference, group, delegate, agenda voting sessions and voting result data

The SetConference endpoint receives full conference data for a single conference.

Parameters:

for a single conference.

Returns:

The import id of the conference exported. That is, the external ID SW6000 will associate with the exported conference. Any future conference import using this import id will be mapped to the just exported meeting, allowing for export/import roundtrips for updating meeting data in an external system.

Example request:

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/"> <s:Header> <Action s:mustUnderstand="1" xmlns="http://schemas.microsoft.com/ws/2005/05/addressing/none">http://dis.cc/IConferenceIoService/SetC onference</Action> </s:Header> <s:Body> <SetConference xmlns="http://dis.cc"> <export xmlns:i="http://www.w3.org/2001/XMLSchema-instance"> <Conference> <Name>Test meeting 2</Name> <ConferenceLabel /> <StartDate>2017-10-27T00:00:00+02:00</StartDate> <StartTime /> <CustomerField1 /> <CustomerField2 /> <CustomerField3 /> <CustomerField4 /> </Conference> <Groups> <Group> <Id>55</Id>

SW6000 Conference Management Software User Manual

<ImportId>20002</ImportId> <Text>Group A</Text> <ShortName /> <Description /> <SortOrder>2</SortOrder> <MemberCount>0</MemberCount> </Group> </Groups> <Delegates> <Delegate> <Id>54</Id> <ImportId>106940</ImportId> <Firstname>Delegate</Firstname> <Lastname>A</Lastname> <Title /> <Background /> <GroupId>55</GroupId> <ActivationDateStart>2008-10-01T00:00:00+02:00</ActivationDateStart> <UserTable1Text /> </Delegate> </Delegates> <Agenda> <Agenda> <Id>804</Id> <SortOrder>1</SortOrder> <Level>1</Level> <ItemNumber /> <Name>Subject A</Name> <Description /> <ShortDescription /> <CustomerField1 /> <CustomerField2 /> <CustomerField3 /> <SpeechType /> </Agenda> <Agenda> <Id>805</Id> <SortOrder>2</SortOrder> <Level>1</Level> <ItemNumber /> <Name>Subject B</Name> <Description /> <ShortDescription /> <CustomerField1 /> <CustomerField2 /> <CustomerField3 /> <SpeechType /> </Agenda> </Agenda> <VotingSessions> <VotingSession> <Id>824</Id> <AgendaId>804</AgendaId> <Passed>1</Passed> <Quorum>-2</Quorum> <Result1>1</Result1> <Result2>0</Result2> <Result3>0</Result3> <Result4>0</Result4> <Result5>1</Result5> <Result6>231</Result6> <Result7>0</Result7> <Result8>0</Result8> <Result9>0</Result9>

SW6000 Conference Management Software User Manual

<Result1Text>Yes</Result1Text> <Result2Text>Abstain</Result2Text> <Result3Text>No</Result3Text> <Result4Text /> <Result5Text>Total present</Result5Text> <Result6Text>Seats</Result6Text> <Result7Text /> <Result8Text /> <Result9Text /> <Button1Text>Yes</Button1Text> <Button2Text>Abstain</Button2Text> <Button3Text>No</Button3Text> <Button4Text /> <Button5Text /> <VotingConclusion>Motion approved

1 votes for the motion (Delegate A ())

0 votes neither for nor against the motion

0 votes against the motion

</VotingConclusion> <VotingComment /> </VotingSession> <VotingSession> <Id>825</Id> <AgendaId>805</AgendaId> <Passed>0</Passed> <Quorum>-2</Quorum> <Result1>0</Result1> <Result2>0</Result2> <Result3>1</Result3> <Result4>0</Result4> <Result5>1</Result5> <Result6>231</Result6> <Result7>0</Result7> <Result8>0</Result8> <Result9>0</Result9> <Result1Text>Yes</Result1Text> <Result2Text>Abstain</Result2Text> <Result3Text>No</Result3Text> <Result4Text /> <Result5Text>Total present</Result5Text> <Result6Text>Seats</Result6Text> <Result7Text /> <Result8Text /> <Result9Text /> <Button1Text>Yes</Button1Text> <Button2Text>Abstain</Button2Text> <Button3Text>No</Button3Text> <Button4Text /> <Button5Text /> <VotingConclusion>Motion not approved

0 votes for the motion

0 votes neither for nor against the motion

1 votes against the motion (Delegate A ())

</VotingConclusion> <VotingComment /> </VotingSession>

SW6000 Conference Management Software User Manual

</VotingSessions> <VotingResults> <VotingResult> <VotingSessionId>824</VotingSessionId> <DelegateId>54</DelegateId> <Present>1</Present> <Vote>1</Vote> <Weight>1</Weight> </VotingResult> <VotingResult> <VotingSessionId>825</VotingSessionId> <DelegateId>54</DelegateId> <Present>1</Present> <Vote>3</Vote> <Weight>1</Weight> </VotingResult> </VotingResults> </export> </SetConference> </s:Body> </s:Envelope>

Example response:

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/"> <s:Header> <ActivityId CorrelationId="b00f8f80-7618-43e7-90df-27eadc592432" xmlns="http://schemas.microsoft.com/2004/09/ServiceModel/Diagnostics">00000000-0000-0000-0000000000000000</ActivityId> </s:Header> <s:Body> <SetConferenceResponse xmlns="http://dis.cc"> <SetConferenceResult>23969</SetConferenceResult> </SetConferenceResponse> </s:Body> </s:Envelope>

www.shure.com

United States, Canada, Latin

Europe, Middle East, Africa:

Asia, Pacific:

America, Caribbean:

Shure Incorporated 5800 West Touhy Avenue Niles, IL 60714-4608 USA

Phone: +1 847 600 2000 Fax: +1 847 600 1212 (USA) Fax: +1 847 600 6446 Email: info@shure.com

Shure Europe Gmbh Jakob-Dieffenbacher-Str. 12

75031 Eppingen Germany

Phone: +49 (0) 7262-9249-100 Fax: +49 (0) 7262-9249-114

Email: info@shure.de

Shure Asia Limited 22/F, 625 King's Road North Point, Island East, Hong Kong

Phone: (+852) 2893-4290 Fax: (+852) 2893-4055 Email: info@shure.com.hk

SHURE SW6000-ESI User Manual SW6000 External System Interface ver 6.8.pdf

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

1 System applications and abbreviations

• Database – SQL Server

2 Web Service Interface (Live Data)

CAA/Setup/Equipment/Web service

2.2.1.1.1 Third party streaming provider

Starting and Stopping streaming and archiving

Communication Status display

Web service methods

Input parameters: No input Return values: WebServiceStatus [STRING]

Handling Agenda changes

Handling Status request

Handling web service and SW6000 reboot/restart/breakdown

Handling Streaming Start/Stop

3 Meeting Import/Export

CAA/Setup/Equipment/Meeting Import/Export

Data format

File format XSD

Example XML file

Web Service Functions
