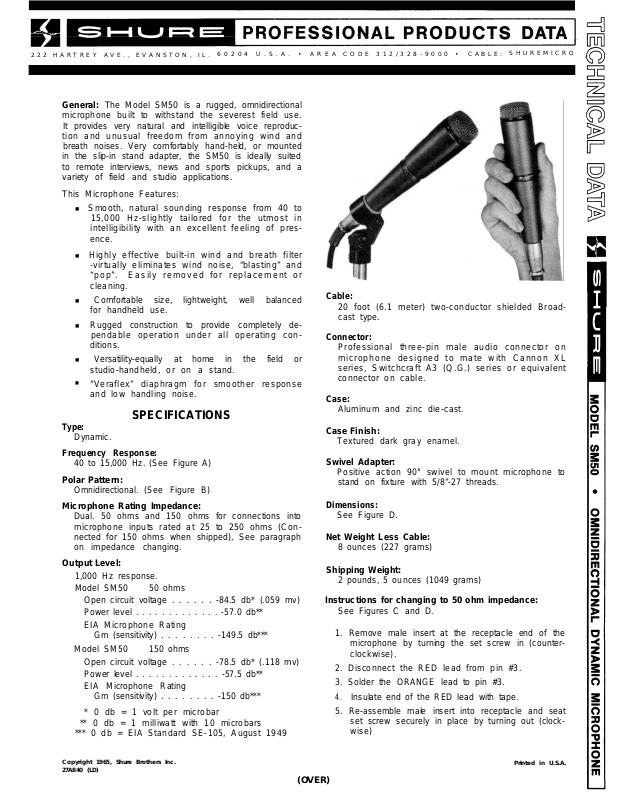

2 2 2 H A R T R E Y A V E . , E V A N S T O N , I L . 6 0 2 0 4 U . S . A . • A R E A C O D E 3 1 2 / 3 2 8 - 9 0 0 0 • C A B L E : S H U R E M I C R O
General: The Model SM50 is a rugged, omnidirectional
microphone |
built |
to withstand the severest field use. |
It provides |
very |
natural and intelligible voice reproduc- |
tion and unusual freedom from annoying wind and
breath noises. Very comfortably hand-held, |
or mounted |
in the slip-in stand adapter, the SM50 is |
ideally suited |
to remote interviews, news and sports pickups, and a variety of field and studio applications.
This Microphone Features:
nSmooth, natural sounding response from 40 to 15,000 Hz-slightly tailored for the utmost in intelligibility with an excellent feeling of pres-
ence.
nHighly effective built-in wind and breath filter -virtually eliminates wind noise, “blasting” and “pop”. Easily removed for replacement or cleaning.
n |
Comfortable |
size, lightweight, well balanced |
|
for handheld |
use. |
nRugged construction to provide completely dependable operation under all operating conditions.
nVersatility-equally at home in the field or
studio-handheld, or on a stand.
n“Veraflex” diaphragm for smoother response and low handling noise.
SPECIFICATIONS
Type:
Dynamic.
Frequency Response:
40 to 15,000 Hz. (See Figure A)
Polar Pattern:
Omnidirectional. (See Figure B)
Microphone Rating Impedance:
Dual. 50 ohms and 150 ohms for connections into microphone inputs rated at 25 to 250 ohms (Connected for 150 ohms when shipped), See paragraph on impedance changing.
Output Level:
1,000 Hz response.
Model SM50 |
50 ohms |
Open circuit voltage . . . . . . -84.5 db* (.059 mv) Power level . . . . . . . . . . . . . -57.0 db**
EIA Microphone Rating
Gm (sensitivity) . . . . . . . . -149.5 db***
Model SM50 150 ohms
Open circuit voltage . . . . . . -78.5 db* (.118 mv) Power level . . . . . . . . . . . . . -57.5 db**
EIA |
Microphone Rating |
|
|
Gm (sensitivity) . . . . . . . . -150 db*** |
|
* |
0 |
db = 1 volt per microbar |
** |
0 |
db = 1 milliwatt with 10 microbars |
*** 0 db = EIA Standard SE-105, August 1949
Copyright 1965, Shure Brothers Inc. 27A840 (LD)
Cable:
20 foot (6.1 meter) two-conductor shielded Broadcast type.
Connector:
Professional three-pin male audio connector on microphone designed to mate with Cannon XL series, Switchcraft A3 (Q.G.) series or equivalent connector on cable.
Case:
Aluminum and zinc die-cast.
Case Finish:
Textured dark gray enamel.
Swivel Adapter:
Positive action 90° swivel to mount microphone to stand on fixture with 5/8”-27 threads.
Dimensions:
See Figure D.
Net Weight Less Cable:
8 ounces (227 grams)
Shipping Weight:
2 pounds, 5 ounces (1049 grams)
Instructions for changing to 50 ohm impedance:
See Figures C and D.
1.Remove male insert at the receptacle end of the microphone by turning the set screw in (counterclockwise).
2.Disconnect the RED lead from pin #3.
3.Solder the ORANGE lead to pin #3.
4.Insulate end of the RED lead with tape.
5.Re-assemble male insert into receptacle and seat set screw securely in place by turning out (clockwise)
Printed in U.S.A.
( O V E R )
Guarantee: This Shure product is guaranteed in normal use to be free from electrical and mechanical defects for a period of one year from the date of purchase. Please retain proof of purchase date. This guarantee includes all parts and labor.
Shipping instructions: Carefully repack the unit and return it prepaid to the factory. If outside the United States, return the unit to your dealer or Authorized Shure Service Center for repair. The unit will be returned to you prepaid.
NOTE: Windscreen assembly is unitized for ease of cleaning or replacement. To remove, unscrew from microphone body.
To |
clean, |
flush |
with |
mild detergent, rinse thoroughly |
and |
allow to |
dry |
before |
replacing. |
FIGURE B
INTERNAL CONNECTIONS
FIGURE C
OVER-ALL DIMENSIONS
FIGURE D
ARCHITECT’S SPECIFICATION
The microphone shall be Shure Model SM50 or equivalent moving coil (dynamic) microphone with a frequency range of 40 to 15,000 Hz. The unit shall have an omnidirectional polar characteristic. The microphone shall have available impedances of 50 ohms and 150 ohms for connections into microphone inputs rated at 25 to 250 ohms. The microphone output shall be:
50 ohm impedance. . . . . . . -57.0 db (0 db = 1 milliwatt with 10 microbars)
150 ohm impedance. . . . . .-57.5 db (0 db = 1 milliwatt with 10 microbars)
The microphone rating Gm (sensitivity) at 1,000 Hz. shall be within 3 db of the following levels:
50 ohms. . . . . . . . . . . . . .-149.5 db 150 ohms. . . . . . . . . . . . . .-150.0 db EIA Standard SE-105 August, 1949
The microphone shall be provided with a swivel adapter adjustable through 90° from vertical to horizontal and capable of being mounted on a stand having a 5/8"-27 thread. The microphone shall have a detachable 20 foot, (6.1 m), two-conductor, shielded cable equipped with a three-pin audio connector designed to mate with Cannon XL series, Switchcraft A3 (Q.G.) series, or equivalent connector. The over-all dimensions shall be 6-37/64 (167.1 mm) in length, and 1-33/64 (38.5 mm) in diameter.
REPLACEMENT PARTS
The following replacement parts, and accessories may be ordered through your authorized Shure Professional Microphone Distributor or from Shure Brothers Incorporated.
D E S C R I P T I O N |
S H U R E P A R T N O . |
Windscreen Assembly . . . . . . . . . . RK144G
Cartridge . . . . . . . . . . . . . . . . . . . R12
Case Assembly . . . . . . . . . . . . . . . . RK145C
Cable . . . . . . . . . . . . . . . . . . . . . . . . C50
Desk Stand . . . . . . . . . . . . . . . . . . . S33P
Swivel Adapter . . . . . . . . . . . . . . . . A25B
Plug Element . . . . . . . . . . . . . . . . . . RK121P
