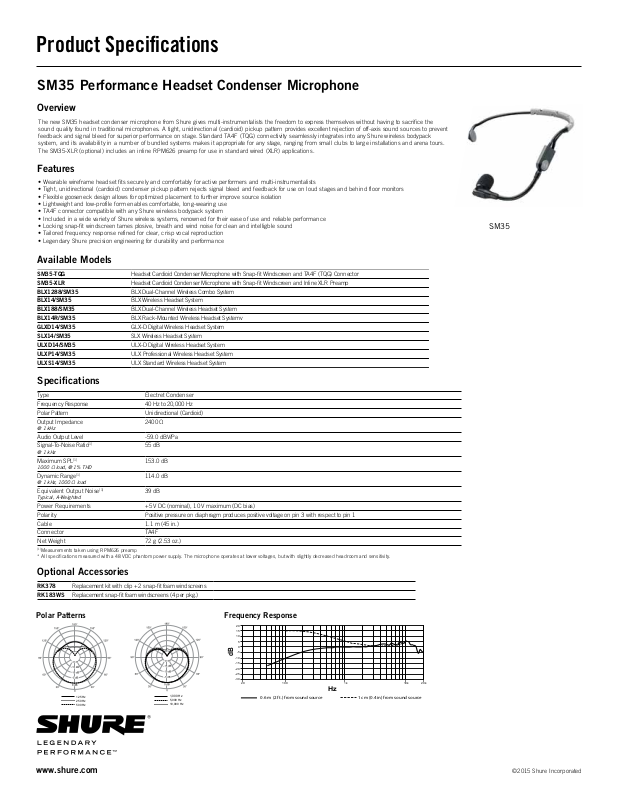

Shure SM35 Specification Sheet

Product Specifications

20

15

10

5

0

-30

-25

-20

-15

-10

-5

dB

Hz

20 100 1k 10k 20k

0.6 m (2 ft.) from sound source 1 cm (0.4 in) from sound source

SM35-TQG Headset Cardioid Condenser Microphone with Snap-fit Windscreen and TA4F (TQG) Connector
SM35-XLR
BLX1288/SM35
BLX14/SM35

BLX188/SM35

BLX14R/SM35

GLXD14/SM35

SLX14/SM35

ULXD14/SM35

ULXP14/SM35

ULXS14/SM35

SM35 Performance Headset Condenser Microphone

Overview

The new SM35 headset condenser microphone from Shure gives multi-instrumentalists the freedom to express themselves without having to sacrifice the
sound quality found in traditional microphones. A tight, unidirectional (cardioid) pickup pattern provides excellent rejection of off-axis sound sources to prevent
feedback and signal bleed for superior performance on stage. Standard TA4F (TQG) connectivity seamlessly integrates into any Shure wireless bodypack
system, and its availability in a number of bundled systems makes it appropriate for any stage, ranging from small clubs to large installations and arena tours.
The SM35-XLR (optional) includes an inline RPM626 preamp for use in standard wired (XLR) applications.

Features

• Wearable wireframe headset fits securely and comfortably for active performers and multi-instrumentalists

• Tight, unidirectional (cardioid) condenser pickup pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors

• Flexible gooseneck design allows for optimized placement to further improve source isolation

• Lightweight and low-profile form enables comfortable, long-wearing use

• TA4F connector compatible with any Shure wireless bodypack system

• Included in a wide variety of Shure wireless systems, renowned for their ease of use and reliable performance

• Locking snap-fit windscreen tames plosive, breath and wind noise for clean and intelligble sound

• Tailored frequency response refined for clear, crisp vocal reproduction

• Legendary Shure precision engineering for durability and performance

Available Models

Headset Cardioid Condenser Microphone with Snap-fit Windscreen and Inline XLR Preamp
BLX Dual-Channel Wireless Combo System
BLX Wireless Headset System

BLX Dual-Channel Wireless Headset System

BLX Rack-Mounted Wireless Headset Systemv

GLX-D Digital Wireless Headset System

SLX Wireless Headset System

ULX-D Digital Wireless Headset System

ULX Professional Wireless Headset System

ULX Standard Wireless Headset System

SM35

Specifications

Type Electret Condenser
Frequency Response 40 Hz to 20,000 Hz
Polar Pattern Unidirectional (Cardioid)
Output Impedance

@ 1 kHz

Audio Output Level -59.0 dBV/Pa
Signal-To-Noise Ratio

@ 1 kHz

Maximum SPL

1000 Ω load, @ 1% THD

Dynamic Range

@ 1 kHz, 1000 Ω load

Equivalent Output Noise

Typical, A-Weighted

[1]

[1]

[1]

[1]

2400 Ω

55 dB

153.0 dB

114.0 dB

39 dB

Power Requirements +5 V DC (nominal), 10 V maximum (DC bias)
Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable 1.1 m (45 in.)
Connector TA4F
Net Weight 72 g (2.53 oz.)

[1]

Measurements taken using RPM626 preamp

* All specifications measured with a 48 VDC phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity.

Optional Accessories

RK378 Replacement kit with clip + 2 snap-fit foam windscreens
RK183WS Replacement snap-fit foam windscreens (4 per pkg.)

Polar Patterns

Frequency Response

125 Hz
250 Hz
500 Hz

1,000 Hz

5,000 Hz
10,000 Hz

www.shure.com ©2015 Shure Incorporated
