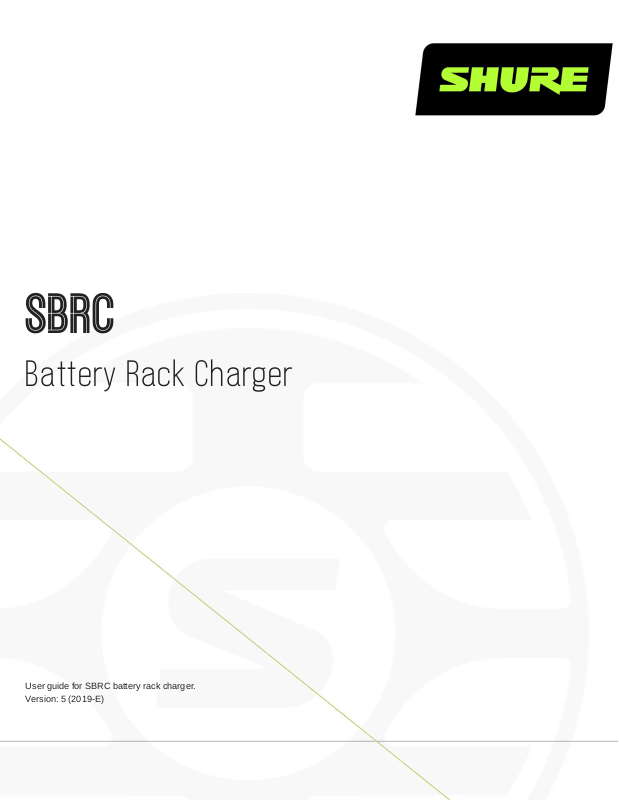

Shure SBRC User Manual

SBRC

Battery Rack Charger

User guide for SBRC battery rack charger.

Version: 5 (2019-E)

Table of Contents

SBRCBattery Rack Charger 3

WARNING 3

Note: 3

SBRC Rack Mount Charger 3

Features 3

Included Components 4

Optional Accessories 4

Optional Accessories 4

Mounting Instructions 4

Batteries 5

Charging Modules 5

Controls And Connectors 5

Charge Status LED 7

Controls 7

Inserting Batteries into the Charging Bay 8

Home Screen and Battery Status 8

Monitoring Menu 9

Time to Full 9

Charge Status 9

Battery Health 9

Cycle Count 9

Shure Incorporated

Batt. Temp. (Battery Temperature) 9

Network Status 9

Utility Menu 10

IP Address Mode: Automatic 10

IP Address Mode: Manual 10

GW Address 10

Subnet 11

MAC (MAC Address) 11

Brightness 11

Display Invert 11

Setting the Fan Speed 11

Fan (Cooling Fan Mode) 11

Storage Mode 11

Firmware 12

Serial Number 12

Device ID 12

Storage Mode 12

Recovering a Battery from Deep Discharge 12

Firmware Updates 13

Troubleshooting and Error Messages 13

Energy Efficiency Mode 14

Specifications 14

Certifications 15

Information to the user 16

2/16

Shure Incorporated

SBRC Battery Rack Charger

WARNING

•

Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat

above 140°F (60°C), or incinerate.

•

Follow instructions from manufacturer

•

Only use Shure charger to recharge Shure rechargeable batteries

•

WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.

•

Never put batteries in mouth. If swallowed, contact your physician or local poison control center

•

Do not short circuit; may cause burns or catch fire

•

Do not charge or use battery packs other than Shure rechargeable batteries

•

Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.

•

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like

WARNING: Danger of explosion if incorrect battery replaced. Operate only with AA batteries.

Note:

•

This equipment is intended to be used in professional audio applications.

•

EMC conformance is based on the use of supplied and recommended cable types. The use of other cable types may de

grade EMC performance.

•

Use this battery charger only with the Shure charging modules and battery packs for which it is designed. Use with other

than the specified modules and battery packs may increase the risk of fire or explosion.

•

Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equip

ment.

Please follow your regional recycling scheme for batteries, packaging, and electronic waste.

SBRC Rack Mount Charger

The Shure Battery Rack Charger (SBRC) supports up to eight rechargeable batteries in a compact, single rack space. SBRC

accepts interchangeable charging modules that accommodate Shure Lithium-ion batteries including AXT910, AXT920, and

SB900A. An easy-to-read front panel displays essential battery parameters including charge status, time-to-full, and battery

health indicators (such as temperature and cycle count). When connected to a network, Shure Wireless Workbench software

provides remote monitoring of the SBRC to track battery status.

®

Features

•

Interchangeable charging modules for mixing and matching eight bodypack and handheld transmitter batteries

•

Touring-ready battery charging and storage solution with comprehensive status display

•

Charges batteries to 50 percent capacity within one hour; full capacity within three hours.

•

Fully networkable for monitoring of all charging status parameters in Shure Wireless Workbench software

3/16

•

Storage mode for charging or discharging batteries to optimal storage voltage

•

Tracks battery health metrics for charging cycle count and percentage of original capacity

•

Simple three-button interface control

Included Components

Part number varies by re

IEC AC Power Cable (1)

Shielded 3-foot Ethernet Cable (1) C803

Hardware Kit (1) 90XN1371

Mounting Screws for Charger Modules (8) 30B13476

gion. Contact your local

Shure representative for

more information

Shure Incorporated

Optional Accessories

Optional Accessories

AXT901 Charging Module for AXT910 AXT901

AXT902 Charging Module for AXT920 AXT902

SBC-AX Charging Module for SB900 and SB900A SBC-AX

SBM910 Charging Module for SB910 SBM910

SBM920 Charging Module for SB920 SBM920

SBM910M Charging Module for SB910M SBM910M

Note: AXT910 and AXT920 are not available for sale in Taiwan.

Mounting Instructions

This component is designed to fit into an audio rack.

Warning: To prevent injury this apparatus must be securely attached to the rack.

4/16

Batteries

This charger supports the following models of Shure lithium-ion rechargeable batteries:

•

AXT910

•

AXT920

•

AXT920SL

•

SB900

•

SB900A

•

SB910

•

SB920

•

SB910M

Shure Incorporated

Charging Modules

Caution! Remove AC power and batteries when installing charger modules.

•

To remove a module, remove the four (4) mounting screws and pull.

•

To install, slide the module into the housing (noting the orientation of the guide rails) until it is flush with the housing.

•

Replace the screws.

5/16
