SBC203
Battery Charger
User guide for Shure SBC203 battery charger.
Version: 3 (2020-G)
Table of Contents
SBC203Battery Charger 3
WARNING 3
Note: 3
SBC203 Charger 3
Features 4
Shure Incorporated
Included Components 4
Linking Chargers 4
Charging 5
Specifications 6
Certifications 7
2/8
Shure Incorporated
SBC203 Battery Charger
WARNING
•
Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat
above 140°F (60°C), or incinerate.
•
Follow instructions from manufacturer
•
Only use Shure charger to recharge Shure rechargeable batteries
•
WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
•
Never put batteries in mouth. If swallowed, contact your physician or local poison control center
•
Do not short circuit; may cause burns or catch fire
•
Do not charge or use battery packs other than Shure rechargeable batteries
•
Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
•
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
•
Do not immerse the battery in liquid such as water, beverages, or other fluids.
•
Do not attach or insert battery with polarity reversed.
•
Keep away from small children.
•
Do not use abnormal batteries.
•
Pack the battery securely for transport.
Note:
•
This equipment is intended to be used in professional audio applications.
•
EMC conformance is based on the use of supplied and recommended cable types. The use of other cable types may de
grade EMC performance.
•
Use this battery charger only with the Shure charging modules and battery packs for which it is designed. Use with other
than the specified modules and battery packs may increase the risk of fire or explosion.
•
Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equip
ment.
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
This symbol indicates that there are important operating and maintenance instructions in the literature accom
panying this unit.
Caution: Do not transport chargers with batteries inserted.
Warning: Do not charge batteries in enclosed spaces without proper ventilation.
3/8
Shure Incorporated
SBC203 Charger
The SBC203 two-bay charger holds two SB903 batteries or compatible transmitters. It may be used in any appropriate location
with adequate space and ventilation.
Features
•
Charge up to two SB903 batteries or compatible transmitters
•
Securely connect multiple chargers
•
LED icons for battery status

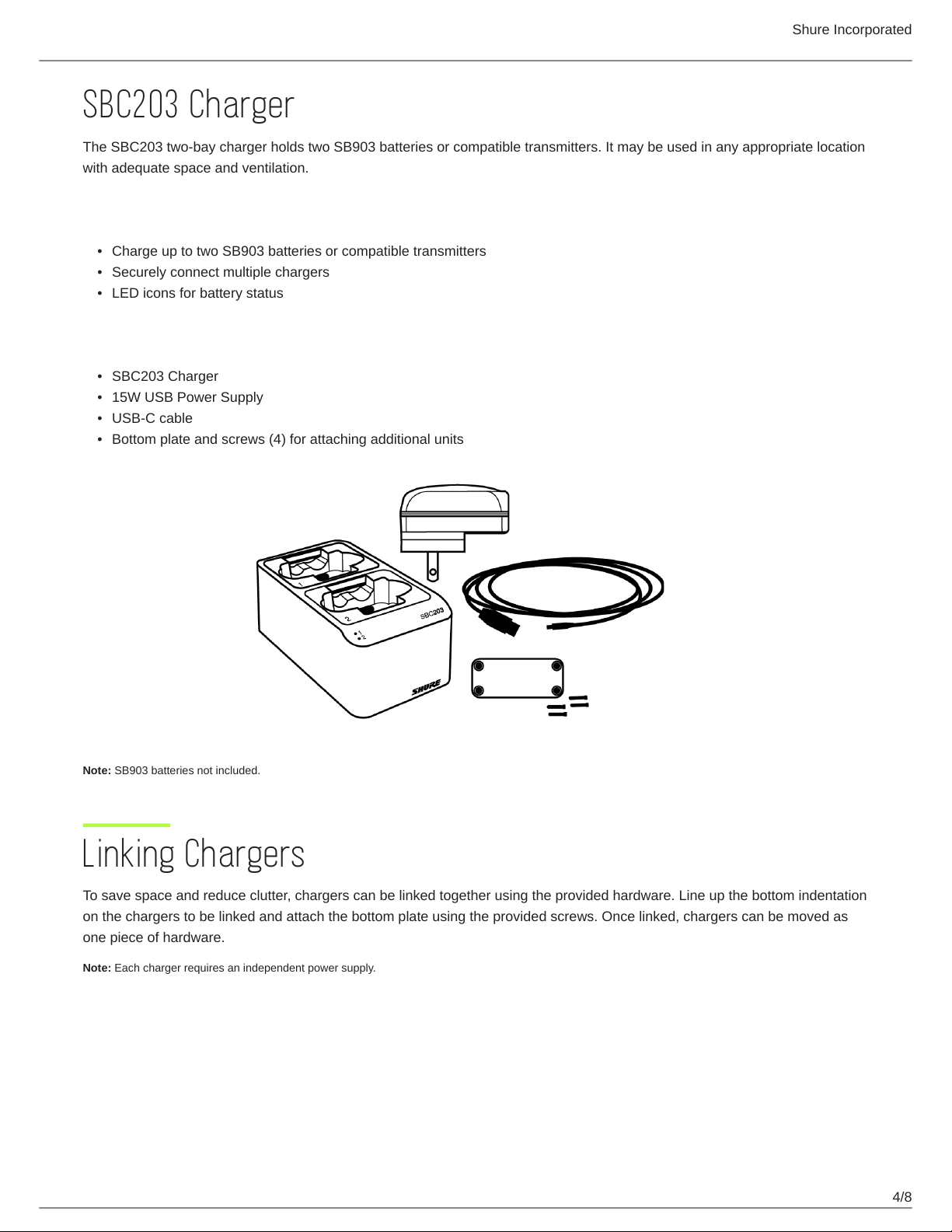

Included Components
•
SBC203 Charger
•
15W USB Power Supply
•
USB-C cable
•
Bottom plate and screws (4) for attaching additional units
Note: SB903 batteries not included.
Linking Chargers
To save space and reduce clutter, chargers can be linked together using the provided hardware. Line up the bottom indentation
on the chargers to be linked and attach the bottom plate using the provided screws. Once linked, chargers can be moved as
one piece of hardware.
Note: Each charger requires an independent power supply.
4/8
Shure Incorporated

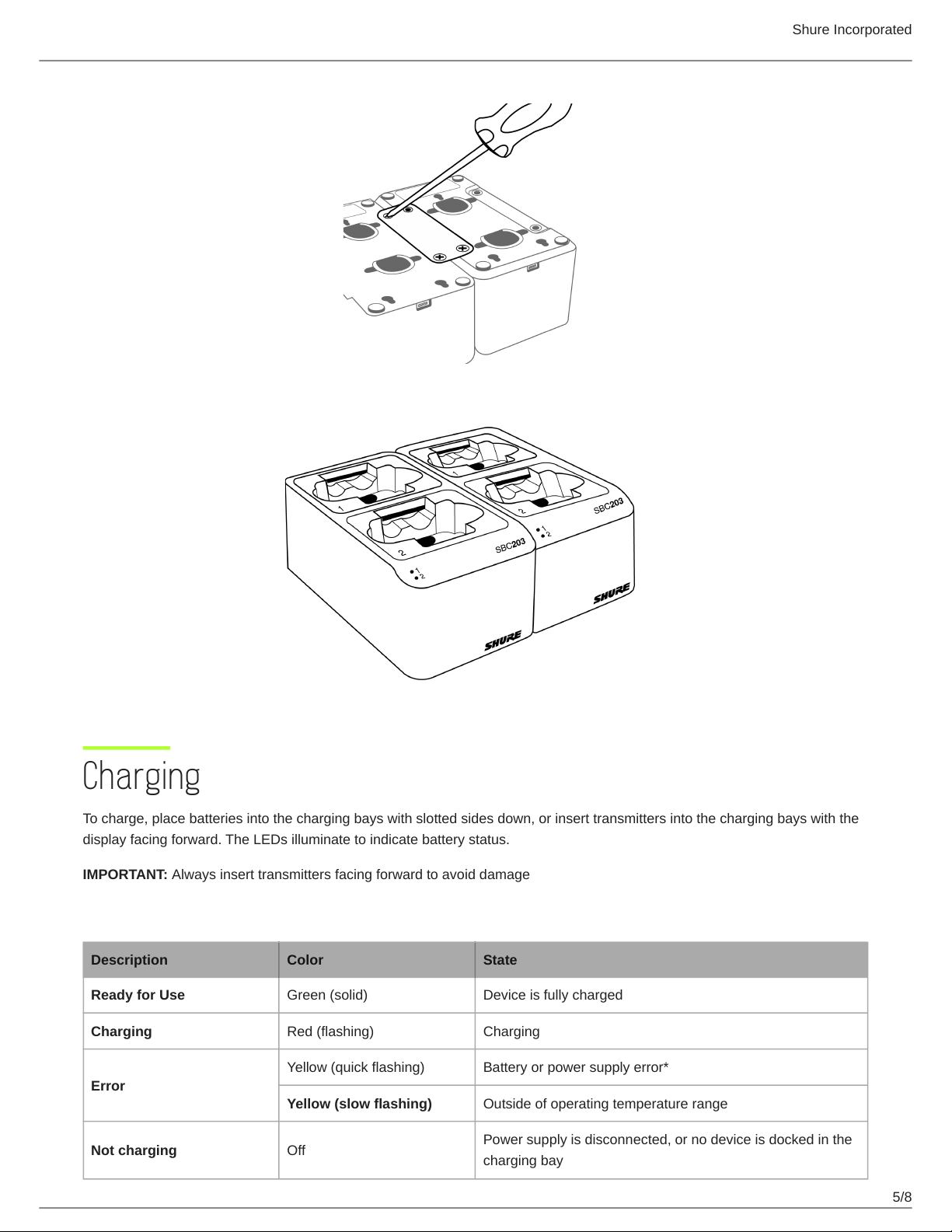

Charging
To charge, place batteries into the charging bays with slotted sides down, or insert transmitters into the charging bays with the
display facing forward. The LEDs illuminate to indicate battery status.
IMPORTANT: Always insert transmitters facing forward to avoid damage
Charging Status LEDs
Description Color State
Ready for Use Green (solid) Device is fully charged
Charging Red (flashing) Charging
Yellow (quick flashing) Battery or power supply error*
Error
Yellow (slow flashing) Outside of operating temperature range
Not charging Off
Power supply is disconnected, or no device is docked in the
charging bay
5/8
Shure Incorporated

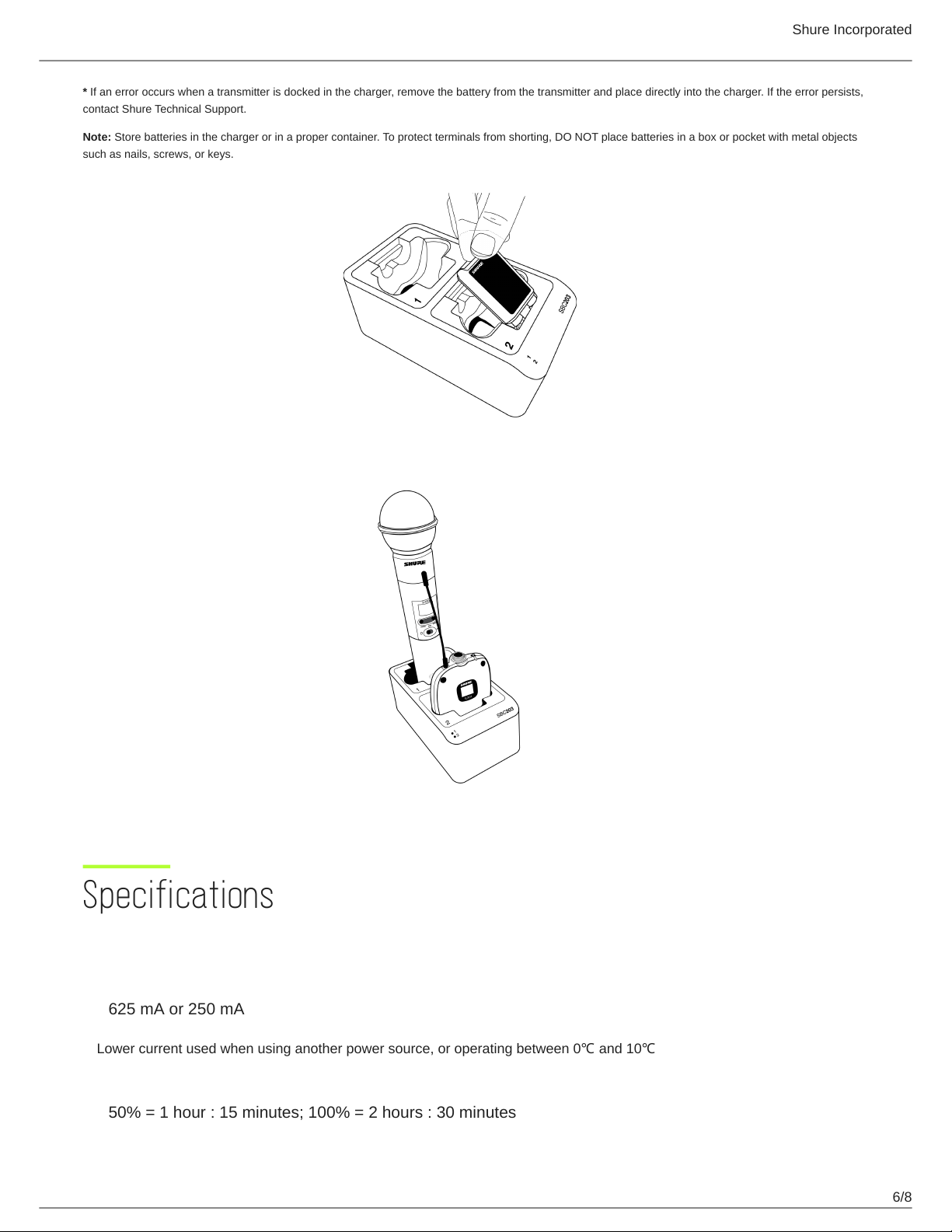

* If an error occurs when a transmitter is docked in the charger, remove the battery from the transmitter and place directly into the charger. If the error persists,
contact Shure Technical Support.
Note: Store batteries in the charger or in a proper container. To protect terminals from shorting, DO NOT place batteries in a box or pocket with metal objects
such as nails, screws, or keys.
Specifications
SBC203
Charge Current
625 mA or 250 mA
Lower current used when using another power source, or operating between 0℃ and 10℃
Charge Time
50% = 1 hour : 15 minutes; 100% = 2 hours : 30 minutes
6/8

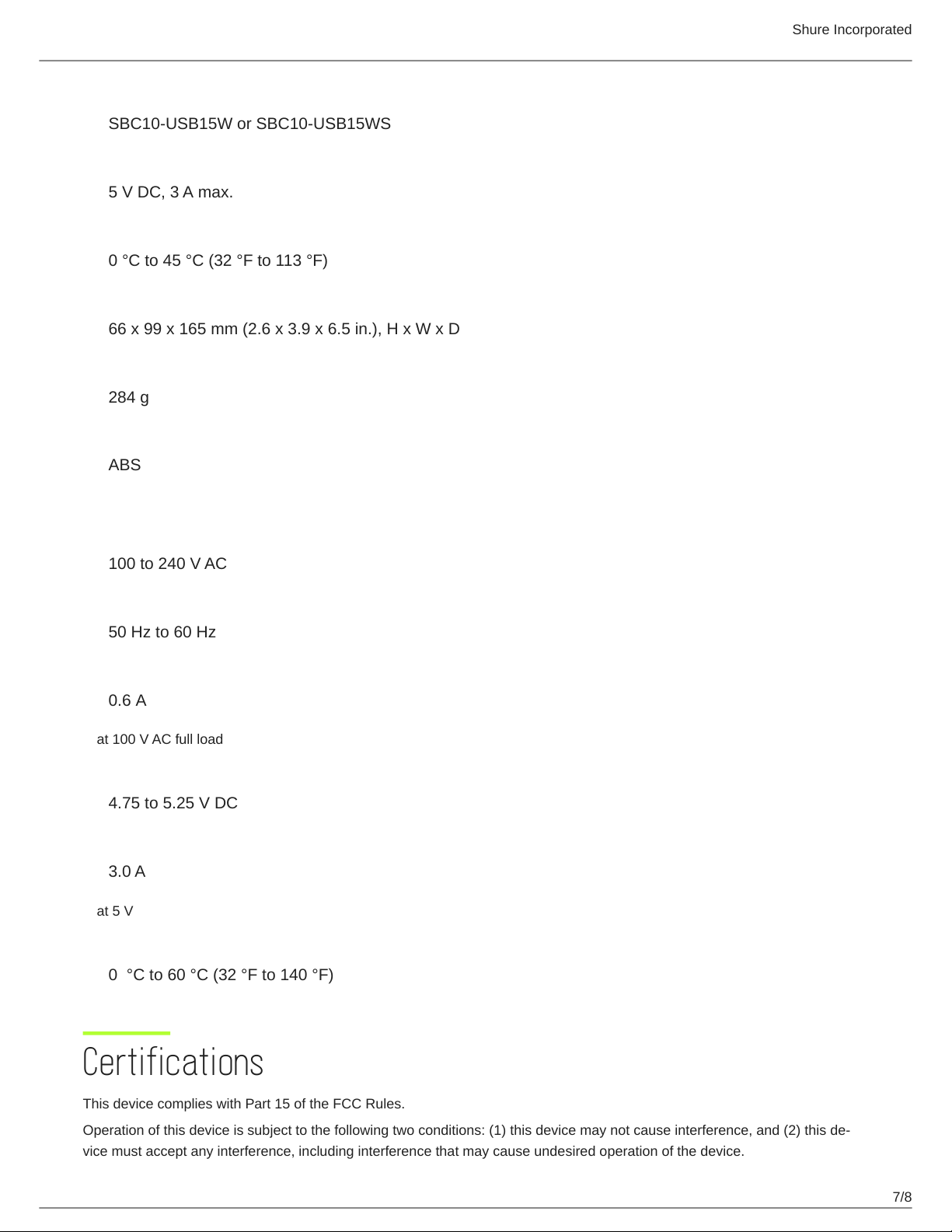

External Power Supply
SBC10-USB15W or SBC10-USB15WS
Power Requirements
5 V DC, 3 A max.
Charging Temperature Range for Battery
0 °C to 45 °C (32 °F to 113 °F)
Dimensions
66 x 99 x 165 mm (2.6 x 3.9 x 6.5 in.), H x W x D
Weight
284 g
Housing
ABS
Shure Incorporated
Power Supply
Input Voltage Range
100 to 240 V AC
Operating Frequency
50 Hz to 60 Hz
Maximum Input Power
0.6 A
at 100 V AC full load
Output Voltage
4.75 to 5.25 V DC
Maximum Output Power
3.0 A
at 5 V
Operating Temperature Range
0 °C to 60 °C (32 °F to 140 °F)
Certifications
This device complies with Part 15 of the FCC Rules.
Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this de
vice must accept any interference, including interference that may cause undesired operation of the device.
7/8
Shure Incorporated
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonction
nement.
Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment.
Please consider the environment, electric products and packaging are part of regional recycling schemes and do not belong to
regular household waste.
臺灣進口商資訊：益誠國際驗證股份有限公司/臺北市中山區長安東路2段108號7樓之5
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: +49-7262-92 49 0
Fax: +49-7262-92 49 11 4
Email: info@shure.de
