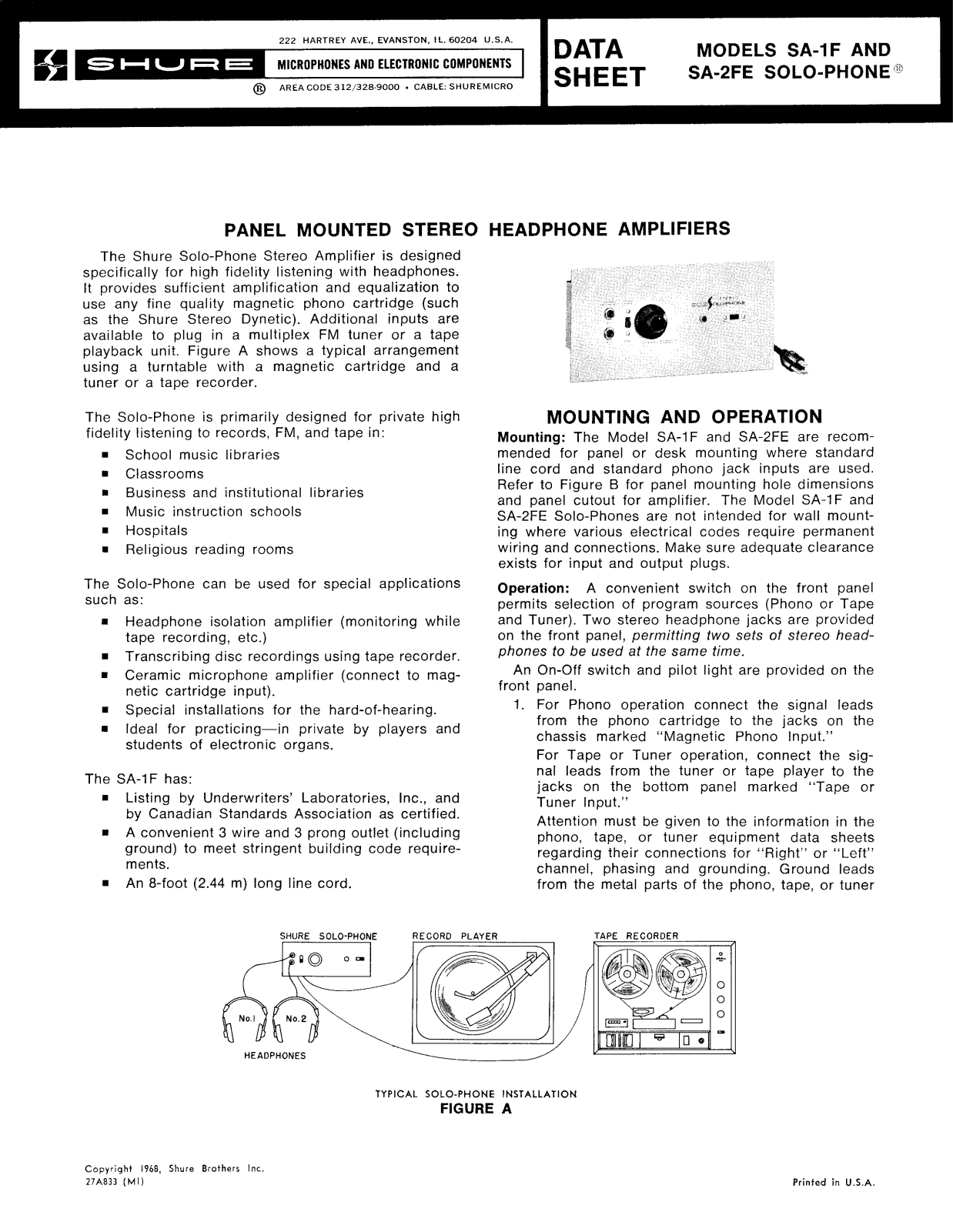

equipment, and the external ground may be connected to the screw below the magnetic phone
input terminals.
2. Plug the headphones into the jack on the front
panel. Set the selector sw~tch to the desired
function (Tape or Tuner, or Phono).
. .
The volume control is a two-part control allowing
separate adjustment of each stereo channel to
achieve proper balance between channels. After
each channel has been adjusted, simple over-all
volume adjustments can be made by turning
either part of the dual control.
3.
Connect the Solo-Phone power line cord to the
proper A.C. power outlet three wire receptacle.
See Operating Voltage under Specifications.
SA-1F is supplied with a three wire, three
The
prong type plug. A two wire receptacle may be
used by obtaining a standard three wire to two
wire adapter. When using the adapters, be sure
to make' proper ~onne~tions with the ground
plug. These adapters are available at hardware
stores and electrical supply houses.
The Model SA-2FE is supplied with a
threeconductor power line cord, but no plug. The
power line cord plug should be installed
by
qualified service personnel. The brown lead
should be connected to the "live" or "hot" terminal of the plug and the blue lead to the neutral
terminal of the plug. The greenlyellow lead is the
grounding conductor and should be connected
to the ground or earth terminal of the plug.
In the Model SA-2FE either operating voltage is
selected by a switch on the back panel. A switch
lock date is provided to prevent accidental
switching to thk 120 VAC position. The SoloPhone is shipped with operating voltage selector

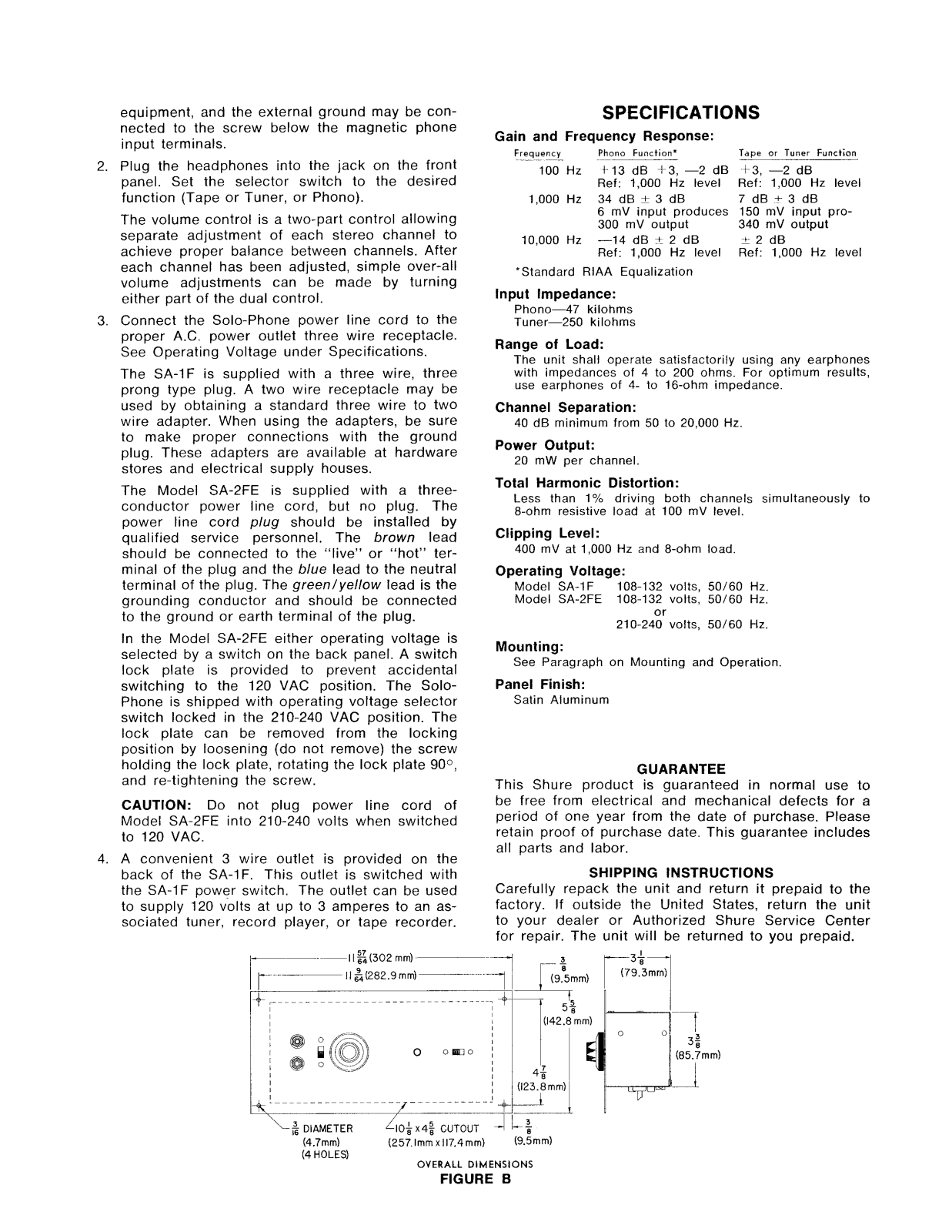

Gain and Frequency Response:
Frequency
- - --
100
1.000
10,000
*Standard
Phono Funct~on* Tape or Tuner Function
Hz
I
13 dB i 3, -2 dB i 3, -2 dB
Ref. 1.000
Hz
34 dB
6 mV input produces 150 mV input pro300 mV output 340 mV output
HZ
-14 dB + 2 dB
Ref: 1,000
RlAA Equalization
-t
Hz
3 dB
Hz
-
level Ref: 1,000
7
dB + 3 dB
&
level Ref: 1,000
2 dB
Hz
Hz
Input Impedance:
Phono-47 kilohms
Tuner-250 kilohms
Range of Load:
The unit shall operate satisfactorily using any earphones
with impedances of 4 to 200 ohms. For optimum results,
use earphones of 4- to 16-ohm impedance.
Channel Separation:
40 dB minimum from 50 to 20.000
Hz
Power Output:
20 mW per channel.
Total Harmonic Distortion:
Less than 1% driving both channels simultaneously to
8-ohm resistive load at 100 mV level.
Clipping Level:
400 mV at 1,000
Hz
and 8-ohm load.
Operating Voltage:
Model SA-IF 108-132 volts, 50160
Model SA-2FE 108-132 volts, 50160
210-240
or
volts, 50160
Hz.
HZ.
HZ.
Mounting:
See Paragraph on Mounting and Operation.
Panel Finish:
Satin Aluminum
switch locked in the 210-240 VAC position. The
lock plate can be removed from the locking
position by loosening (do not remove) the screw
holding the lock plate, rotating the lock plate
and re-tightening the screw.
CAUTION:
D~
not plug
power
line cord
90°,
of
GUARANTEE
This Shure product is guaranteed in normal use to
be free from electrical and mechanical defects for a
~~d~l SA-2FE into 210-240 volts when switched period of one year from the date of purchase. Please
to 120 VAC.
3
4. A convenient
wire outlet is provided on the
back of the SA-IF. This outlet is switched with
the SA-IF power switch. The outlet can be used
to supply 120 volts at up to 3 amperes to an as-
sociated tuner, record player, or tape recorder.
retain proof of purchase date. This guarantee includes
all parts and labor.
SHIPPING INSTRUCTIONS
Carefully repack the unit and return it prepaid to the
factory. If outside the United States, return the unit
to your dealer or Authorized Shure Service Center
for repair. The unit will be returned to you prepaid.
I
I
g(302
F-r=
ll
mrn)
&,(282,9mm)---------
level
level
6
I
I
I
I
:
;
I
I
I
\is
-
- - - - - - - -
.
-
@;(@
@
0
DIAMETER
(4.7~~)
(4
HOLES)
\.-:
- - - - -
(257.1mm
- -
- -
- -
0
000
~117.4mrn)
OVERALL
FIGURE
-
.-
-
-
-
DIMENSIONS
-7
3:
(9.5rnm)
B
