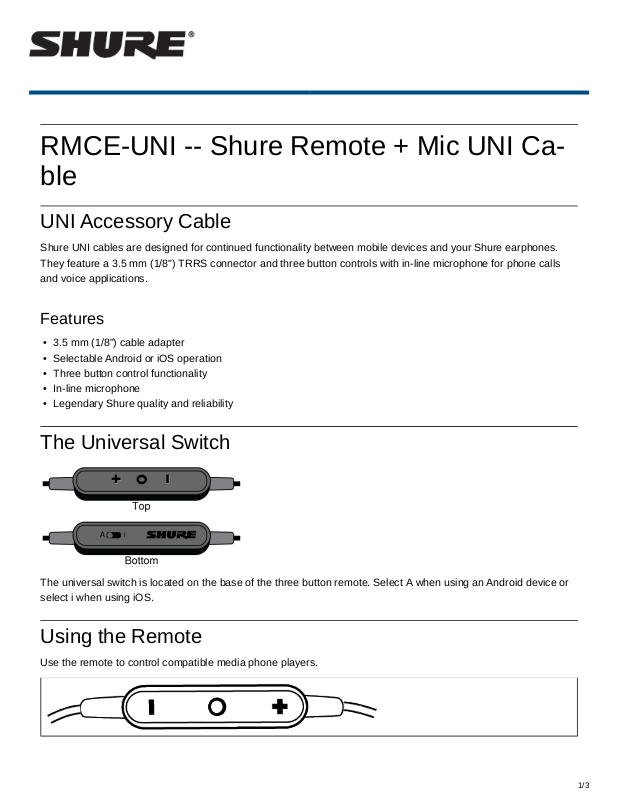

Shure RMCE-UNI USER GUIDE

RMCE-UNI -- Shure Remote + Mic UNI Cable

UNI Accessory Cable

Shure UNI cables are designed for continued functionality between mobile devices and your Shure earphones. They feature a 3.5 mm (1/8") TRRS connector and three button controls with in-line microphone for phone calls and voice applications.

Features

•3.5 mm (1/8") cable adapter

•Selectable Android or iOS operation

•Three button control functionality

•In-line microphone

•Legendary Shure quality and reliability

The Universal Switch

The universal switch is located on the base of the three button remote. Select A when using an Android device or select i when using iOS.

Using the Remote

Use the remote to control compatible media phone players.

1/3

Shure Incorporated

Play music	Click the center button once
Pause music	Click the center button once.
Change volume	Click the volume up (+) or volume down (-) button to
	increase or decrease the volume.
Go to next track	Double-click the center button.
Go to previous track	Triple-click the center button.
Restart current track	Triple-click after 6 seconds.
Fast-forward	Double-click and hold the center button.
Send/End Call	Click the center button once.

For more information about compatible models go to: www.shure.com

Specifications

Connector

3.5 mm (1/8")

Housing

ABS plastic with TPE strain-relief.

Maximum Cable Length

50 in.

Cable Diameter

3 mm

Net Weight

0.7oz.

Certifications

Note: Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC performance.

This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance

Authorized European representative:

2/3
