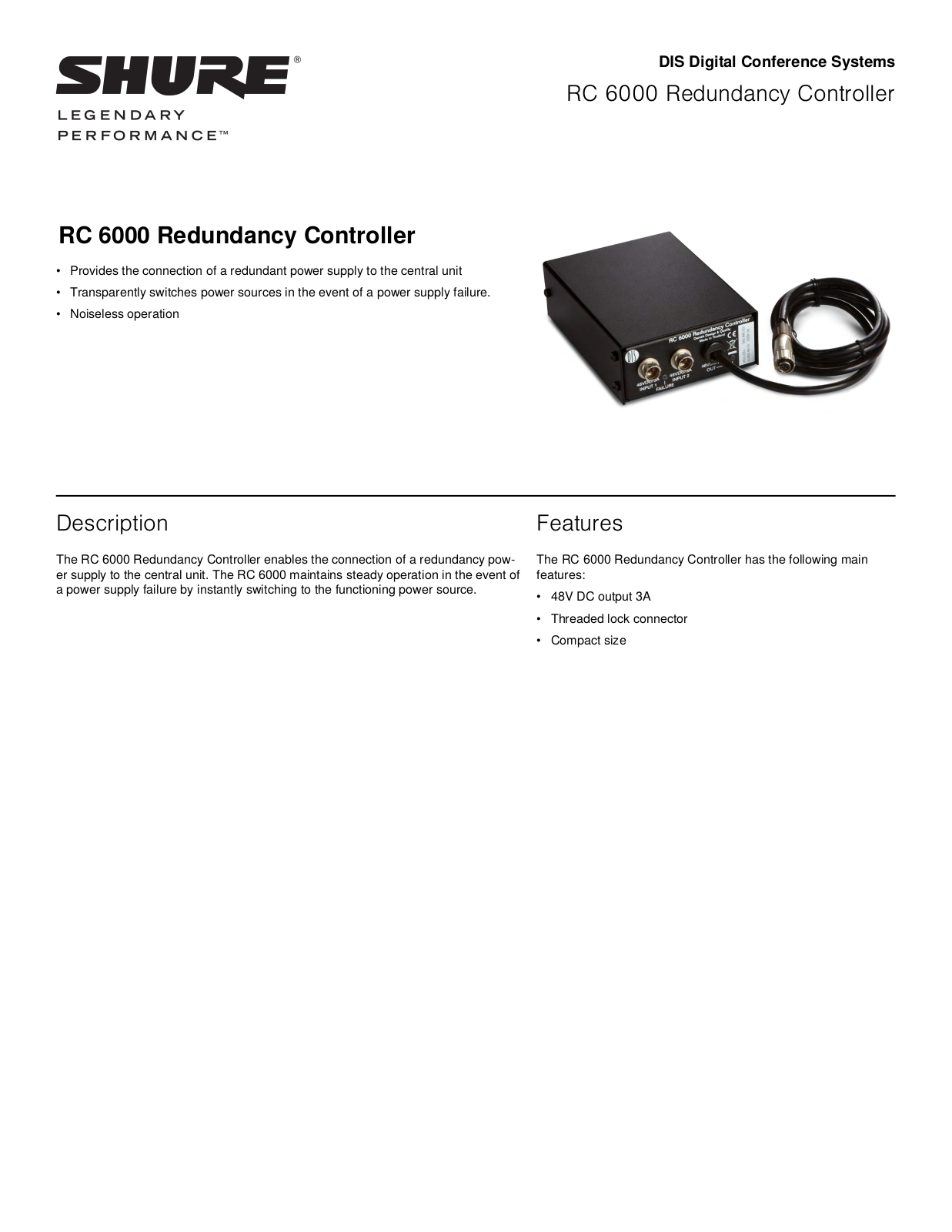

Shure RC 6000 Specification Sheet

RC 6000 Redundancy Controller

• Provides the connection of a redundant power supply to the central unit

• Transparently switches power sources in the event of a power supply failure.

• Noiseless operation

DIS Digital Conference Systems

RC 6000 Redundancy Controller

Description

The RC 6000 Redundancy Controller enables the connection of a redundancy pow­er supply to the central unit. The RC 6000 maintains steady operation in the event of
a power supply failure by instantly switching to the functioning power source.

Features

The RC 6000 Redundancy Controller has the following main
features:

• 48V DC output 3A

• Threaded lock connector

• Compact size

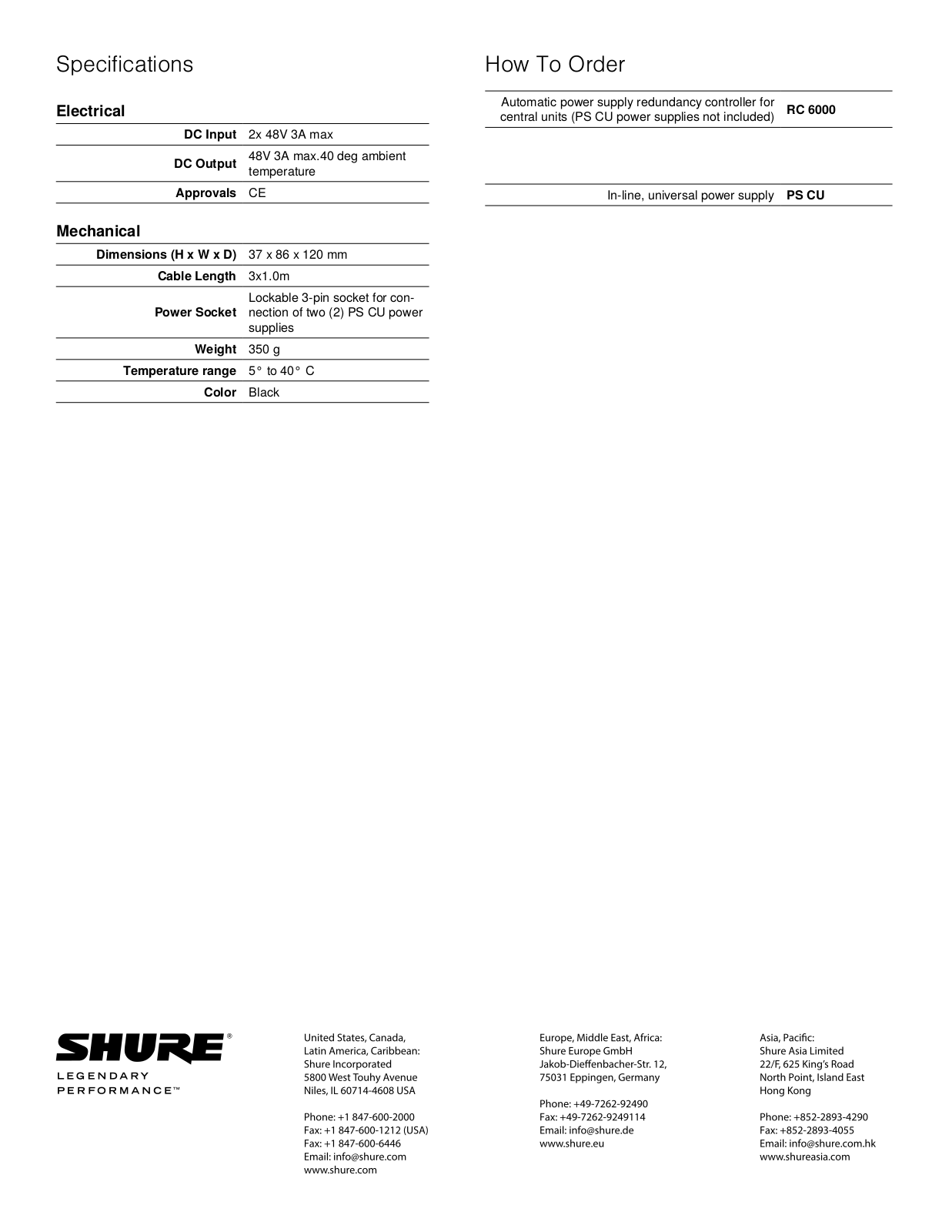

Specifications

How To Order

Electrical

DC Input 2x 48V 3A max

DC Output

Approvals CE

48V 3A max.40 deg ambient
temperature

Mechanical

Dimensions (H x W x D) 37 x 86 x 120 mm

Cable Length 3x1.0m

Power Socket

Weight 350 g

Temperature range 5° to 40° C

Lockable 3-pin socket for con­nection of two (2) PS CU power
supplies

Color Black

Automatic power supply redundancy controller for
central units (PS CU power supplies not included)

In-line, universal power supply PS CU

RC 6000
