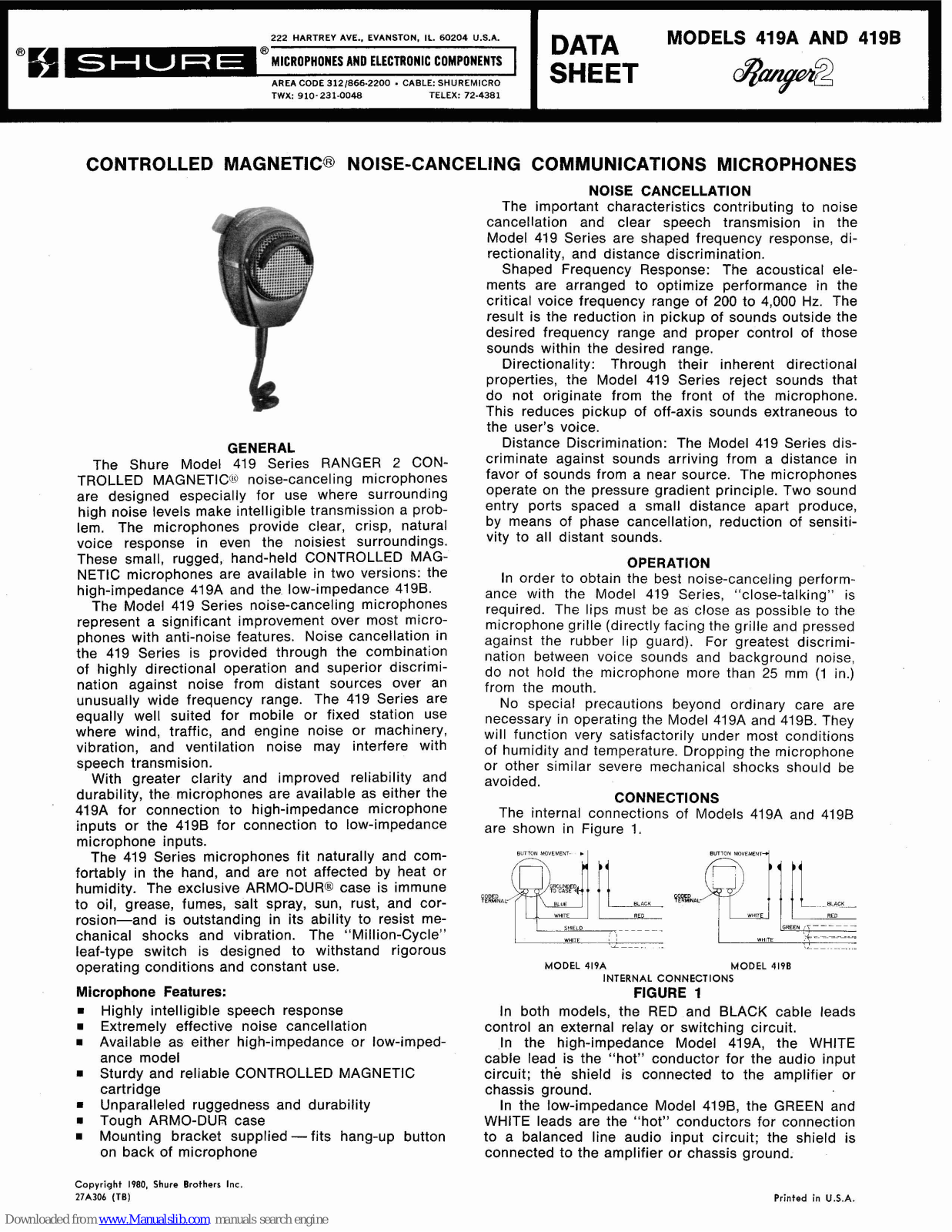

Shure Ranger2 419A, Ranger2 419B Datasheet

222 HARTREY AVE.. EVANSTON.

IL.

60204 U.S.A.

8

MODELS 419A AND 419B

MICROPHONES

AND

ELECTRONIC

COMPONENTS

AREA CODE 3121866-2200 - CABLE: SHUREMICRO
TWX: 910-231-0048 TELEX: 72-4381

I

CONTROLLED MAGNETIC@ NOISE-CANCELING COMMUNICATIONS MICROPHONES

NOISE CANCELLATION

The important characteristics contributing to noise
cancellation and clear speech transmision in the
Model 419 Series are shaped frequency response,

di-

rectionality, and distance discrimination.

Shaped Frequency Response: The acoustical ele­ments are arranged to optimize performance in the
critical voice frequency range of 200 to 4,000 Hz.

The
result is the reduction in pickup of sounds outside the
desired frequency range and proper control of those
sounds within the desired range.

Directionality: Through their inherent directional
properties, the Model 419 Series reject sounds that
do not originate from the front of the microphone.
This reduces pickup of off-axis sounds extraneous to
the user's voice.

GENERAL

Distance Discrimination: The Model 419 Series dis-

The

Shure

Model

419 series

RANGER

2

co~-

criminate against sounds arriving from a distance in

TROLLED

MAGNETIC@

noise-canceling microphones

favor of sounds from a near source. The microphones

are designed

especially for use where surrounding

Operate on the pressure gradient principle. Two sound

high noise levels make intelligible transmission a prob-

entry ports spaced a small distance apart produce,

lem.

~h~

microp~ones

provide

clear,

crisp, natural by

means of phase cancellation, reduction of sensiti-

voice response in even the noisiest surroundings. vity all distant
These small, rugged, hand-held CONTROLLED MAG-

OPERATION

NETlC microphones are available in two versions: the

In order to obtain the best noise-canceling

perform-

high-impedance 419A and the low-impedance 419B.

ance with the Model 419 Series, "close-talking" is

The Model 419 Series noise-canceling microphones

required. The lips must be as close as possible to the

represent a significant improvement over most

microphone grille (directly facing the grille and pressed

phones with anti-noise features. Noise cancellation

in

against the rubber lip guard).

F~~

greatest discrimi-

the 419 Series is provided through the combination

nation between voice sounds and background noise,

of highly directional operation and superior discrimi-

do not hold the microphone more than

25

mm

(1 in,)

nation against noise from distant sources over an

from

the mouth.

unusually wide frequency range. The 419 Series are

No special precautions beyond ordinary care are

equally well suited

for mobile or fixed station

use

necessary in operating the Model 419A and 419B. They

where wind, traffic, and

engine noise or machinery,

will function very satisfactorily under most conditions

vibration, and

ventilation noise may interfere with

of humidity and temperature. Dropping the microphone

speech transmision.

or other similar severe mechanical shocks should be

With greater clarity and improved reliability and

avoided.

durability, the microphones are available as either the

CONNECTIONS

419A for connection to high-impedance microphone

The internal connections of Models 419A and

4198

inputs or the 4198 for connection to low-impedance

are shown in ~i~~~~

1.

microphone inputs.

The 419 Series microphones fit naturally and com­fortably in the hand, and are not affected by heat or
humidity. The exclusive

ARMO-DUR@ case is immune

rosion-and is outstanding in its ability to resist me-

to oil, grease, fumes, salt spray, sun, rust, and cor­chanical shocks and vibration. The "Million-Cycle"

WHITE

WHITE

d

-

-

-

-

.

.

-

----. .

T-

leaf-type switch is designed to withstand rigorous

,L~-

-

.

..

operating conditions and constant use.

MODEL

419~

MODEL

4198

INTERNAL

CONNECTIONS

Microphone Features: FIGURE

1

Highly intelligible speech response In both models, the RED and BLACK cable leads
Extremely effective noise cancellation

control an external relay or switching circuit.
Available as either high-impedance or low-imped- In the high-impedance Model 419A, the WHITE
ance model

cable lead is the "hot" conductor for the audio input
Sturdy and reliable CONTROLLED MAGNETIC circuit; the shield is connected to the amplifier or
cartridge chassis ground.

Unparalleled ruggedness and durability

In the low-impedance Model

4198, the GREEN and

Tough ARMO-DUR case

WHITE leads are the "hot" conductors for connection
Mounting bracket supplied-fits hang-up button to a balanced line audio input circuit; the shield is
on back of microphone

connected to the amplifier or chassis ground.

Copyright

1980,

Shure

Brothers

Inc.

27A306

(TB)

Printed

in

U.S.A.

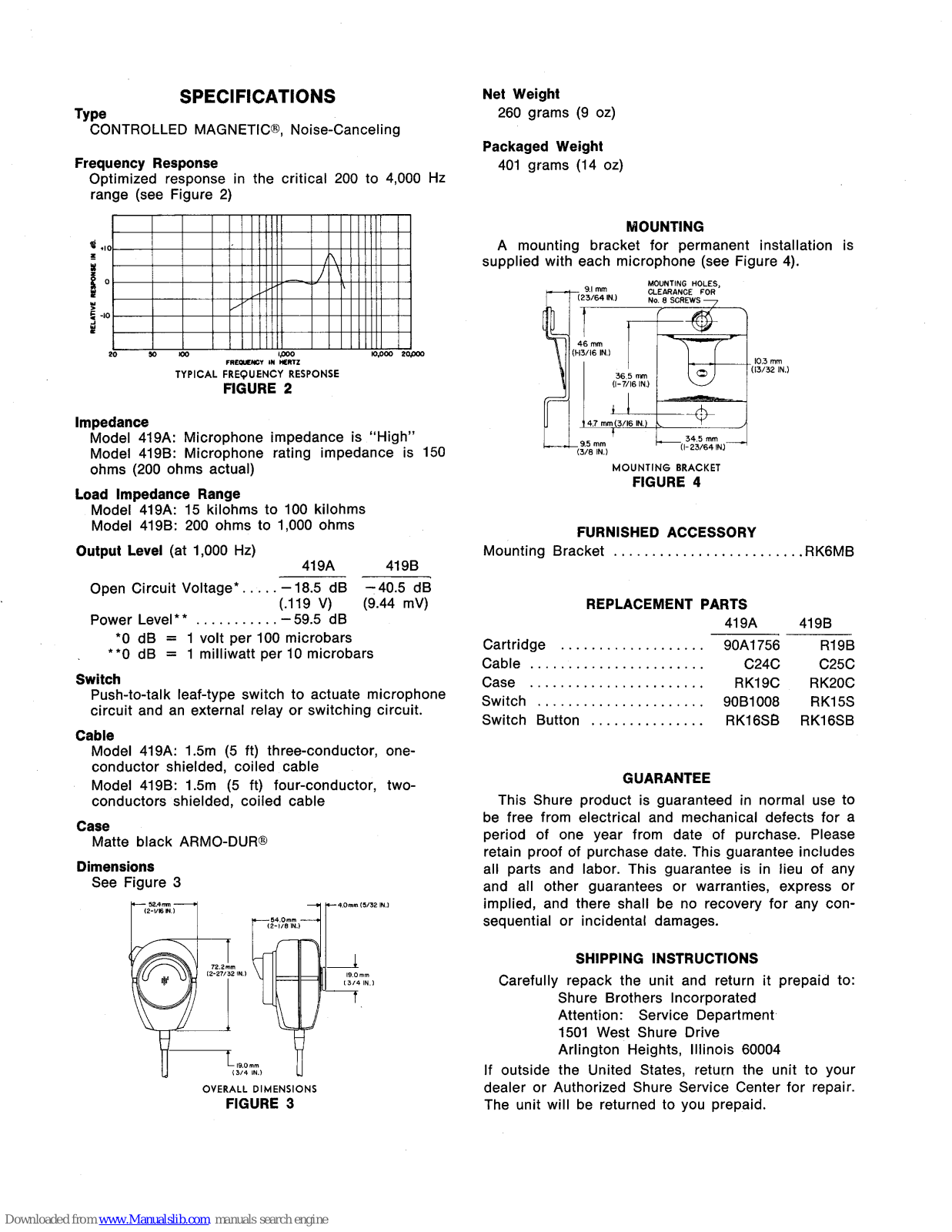

SPECIFICATIONS

TY pe

CONTROLLED MAGNETIC@, Noise-Canceling

Frequency Response

Optimized response in the critical 200 to 4,000 Hz

range (see Figure 2)

d

-

110

z

o

5

-10

J

20

U)

mo

lpO0

FREUXNCY

IN

HERTZ

TYPICAL

FREQUENCY RESPONSE

FIGURE

2

Impedance

Model

419A: Microphone impedance is "High"

Model

419B: Microphone rating impedance is 150

ohms (200 ohms actual)

Load Impedance Range

Model

419A: 15 kilohms to 100 kilohms

Model

4198: 200 ohms to 1,000 ohms

Output Level (at 1,000 Hz)

41

9A 41 9B

Open Circuit Voltage*.

....

-18.5 dB

-40.5 dB

(.I19 V) (9.44 mV)

Power Level*

*

...........

-

59.5 dB

*O dB = 1 volt per 100 microbars

**0 dB

=

1 milliwatt per 10 microbars

Switch

Push-to-talk leaf-type switch to actuate microphone
circuit and an external relay or switching circuit.

Cable

Model

419A: 1.5m (5 ft) three-conductor, one-

conductor shielded, coiled cable
Model

419B: 1.5m (5 ft) four-conductor, two-

conductors shielded, coiled cable

Case

Matte black

ARMO-DUR@

Dimensions

See Figure

3

1-

13/4

9.0mm

IN.)

1

OVERALL

DIMENSIONS

FIGURE

3

Net Weight

260 grams (9 oz)

Packaged Weight

401 grams (14 oz)

MOUNTING

A mounting bracket for permanent installation is

supplied with each microphone (see Figure 4).

MOUNTING

BRACKET

FIGURE

4

FURNISHED ACCESSORY

Mounting Bracket

.........................

RK6MB

REPLACEMENT PARTS

41

9A 41 9B

Cartridge

...................

90A1756 R19B

.......................

Cable

C24C C25C

Case

.......................

RK19C

RK20C

Switch

......................

90B1008 RK15S

Switch Button

...............

RK16SB

RKI6SB

GUARANTEE

This

Shure product is guaranteed in normal use to
be free from electrical and mechanical defects for a
period of one year from date of purchase. Please

retain proof of purchase date. This guarantee includes
all parts and labor. This guarantee is in lieu of any
and all other guarantees or warranties, express or
implied, and there shall be no recovery for any con­sequential or incidental damages.

SHIPPING INSTRUCTIONS

Carefully repack the unit and return it prepaid to:

Shure Brothers Incorporated
Attention:

Service Department
1501 West Shure Drive
Arlington Heights, Illinois 60004

If outside the United States, return the unit to your
dealer or Authorized Shure

Service Center for repair.

The unit will be returned to you prepaid.
