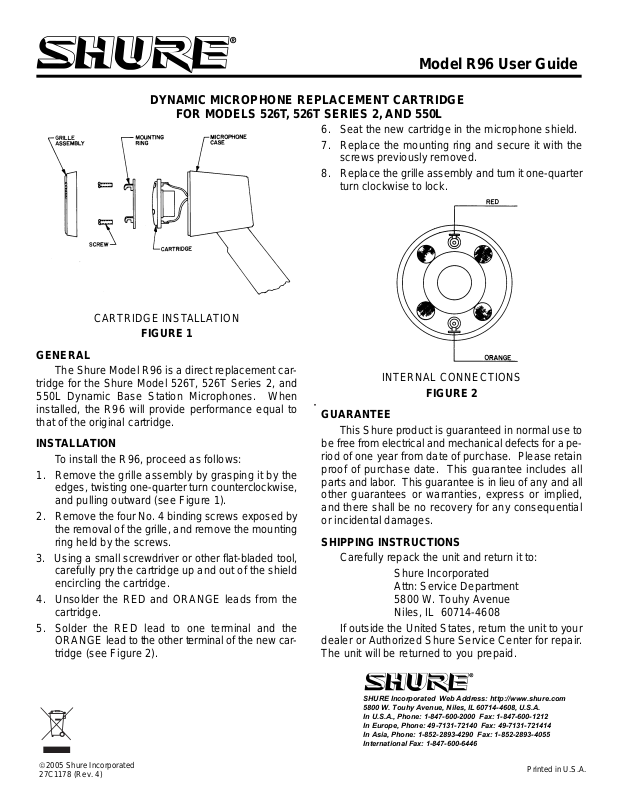

Shure R96 User Guide

DYNAMIC MICROPHONE REPLACEMENT CARTRIDGE

FOR MODELS 526T, 526T SERIES 2, AND 550L

CARTRIDGE INSTALLATION

FIGURE 1

GENERAL

The Shure Model R96 is a direct replacement car­tridge for the Shure Model 526T, 526T Series 2, and
550L Dynamic Base Station Microphones. When
installed, the R96 will provide performance equal to
that of the original cartridge.

INSTALLATION

To install the R96, proceed as follows:

1. Remove the grille assembly by grasping it by the

edges, twisting one-quarter turn counterclockwise,

and pulling outward (see Figure 1).

2. Remove the four No. 4 binding screws exposed by

the removal of the grille, and remove the mounting

ring held by the screws.

3. Using a small screwdriver or other flat-bladed tool,

carefully pry the cartridge up and out of the shield

encircling the cartridge.

4. Unsolder the RED and ORANGE leads from the

cartridge.

5. Solder the RED lead to one terminal and the

ORANGE lead to the other terminal of the new car-

tridge (see Figure 2).

Model R96 User Guide

6. Seat the new cartridge in the microphone shield.

7. Replace the mounting ring and secure it with the
screws previously removed.

8. Replace the grille assembly and turn it one-quarter
turn clockwise to lock.

INTERNAL CONNECTIONS

FIGURE 2

GUARANTEE

This Shure product is guaranteed in normal use to

be free from electrical and mechanical defects for a pe­riod of one year from date of purchase. Please retain
proof of purchase date. This guarantee includes all
parts and labor . This guarantee is in lieu of any and all
other guarantees or warranties, express or implied,
and there shall be no recovery for any consequential
or incidental damages.

SHIPPING INSTRUCTIONS

Carefully repack the unit and return it to:

Shure Incorporated
Attn: Service Department
5800 W. Touhy Avenue
Niles, IL 60714

If outside the United States, return the unit to your

dealer or Authorized Shure Service Center for repair.
The unit will be returned to you prepaid.
