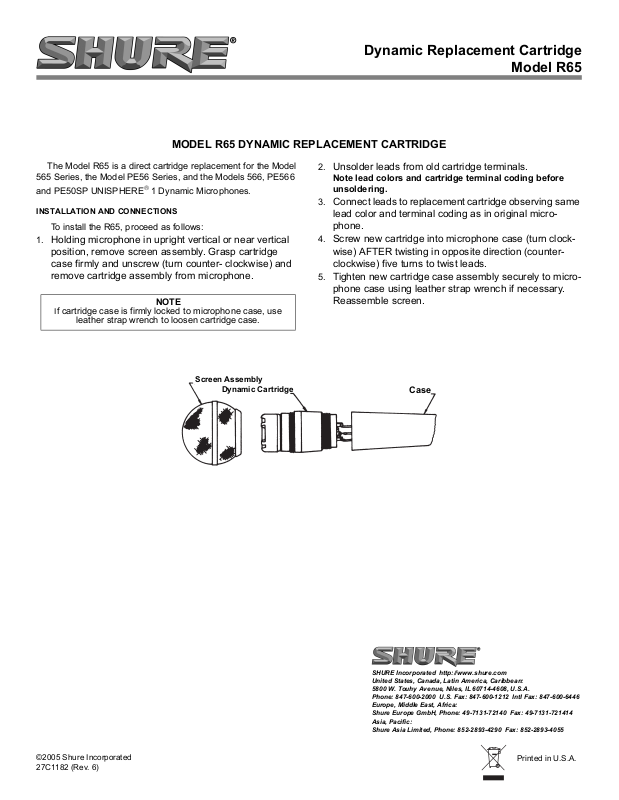

Shure R65 User Guide

Dynamic Replacement Cartridge

MODEL R65 DYNAMIC REPLACEMENT CARTRIDGE

Model R65

The Model R65 is a direct cartridge replacement for the Model

565 Series, the Model PE56 Series, and the Models 566, PE566

and PE50SP UNISPHERE

INSTALLATION AND CONNECTIONS

®

1 Dynamic Microphones.

To install the R65, proceed as follows:

Holding microphone in upright vertical or near vertical

1.

position, remove screen assembly. Grasp cartridge
case firmly and unscrew (turn counter- clockwise) and
remove cartridge assembly from microphone.

If cartridge case is firmly locked to microphone case, use

leather strap wrench to loosen cartridge case.

NOTE

Screen Assembly

Dynamic Cartridge

2. Unsolder leads from old cartridge terminals.

Note lead colors and cartridge terminal coding before
unsoldering.

Connect leads to replacement cartridge observing same

3.

lead color and terminal coding as in original micro­phone.

4. Screw new cartridge into microphone case (turn clock-

wise) AFTER twisting in opposite direction (counter­clockwise) five turns to twist leads.

5. Tighten new cartridge case assembly securely to micro-

phone case using leather strap wrench if necessary.
Reassemble screen.

Case

©2005 Shure Incorporated
27C1182 (Rev. 6)
