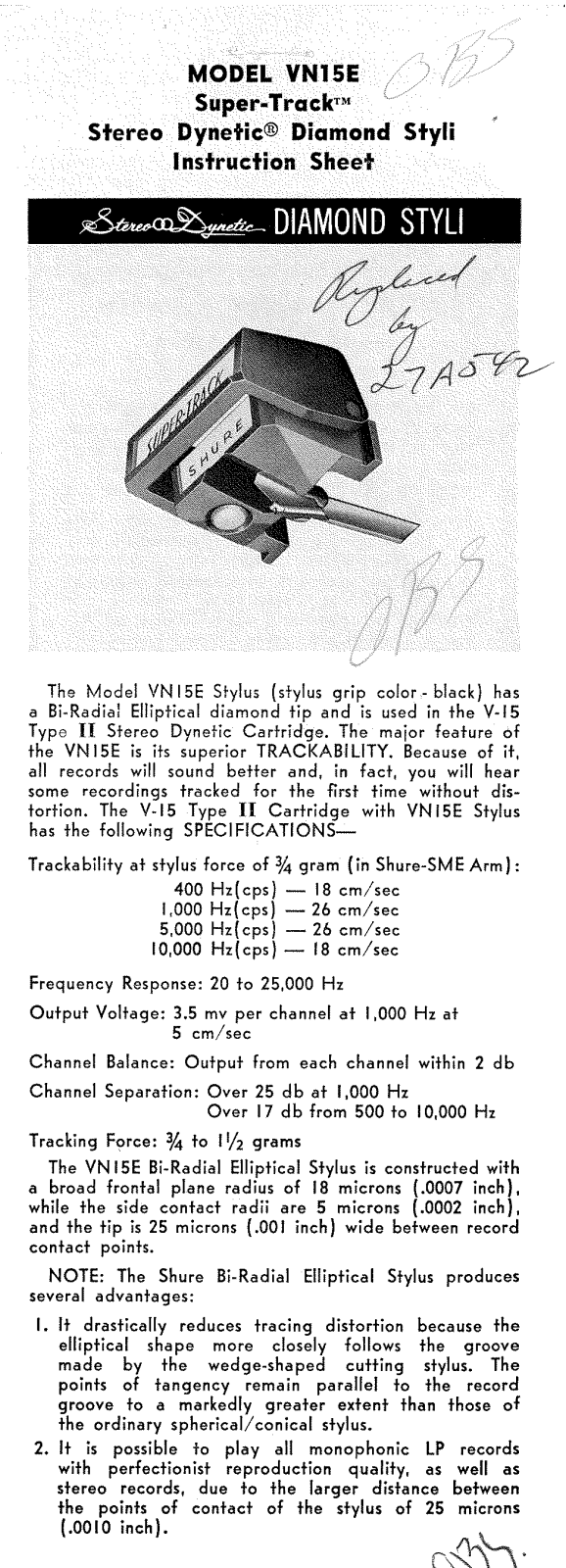

The |
Model VN 15E Stylus (stylus grip |
color - black) |
has |
a Bi-Radial Elliptical diamond t i p and is |
used in the V-15 |
||
Type |
11 Stereo Dynetic Cartridge. The |
major feature |
o f |
the VNI5E is its superior TRACKABILITY. Because of it, all records will sound better and, in fact, you will hear some recordings tracked for the first time without distortion. The V-15 Type I1 Cartridge with VNI5E Stylus has the following SPECIFICATIONS-
Trackability at stylus force of 3/4 gram (in Shure-SME Arm]:
400 Hz(cps) - 18 cm/sec
1,000 Hz(cps) - 26 cm/sec
5,000 Hz(cps) -26 cm/sec
10,000 Hz(cps) - 18 cm/sec
Frequency Response: 20 t o 25,000 Hz |
|
Output Voltage: 3.5 mv per channel a t 1,000 Hz at |
|
5 |
cm/sec |
Channel Balance: |
Output from each channel within 2 d b |
Channel Separation: Over 25 |
d b at 1,000 Hz |
|
|
||||
|
|
Over 17 d b from 500 to |
10,000 Hz |
||||
Tracking Force: 3/4 to 1% grams |
|
|
|
||||
The V N I5E Bi-Radial |
Elliptical Stylus is constructed with |
||||||
a broad |
frontal |
plane |
radius |
of |
18 microns |
(.0007 |
inch), |
while the |
side |
contact |
radii |
are |
5 microns |
(.0002 |
inch), |
and the t i p is 25 microns (.001 inch) wide between record contact points.
NOTE: The Shure Bi-Radial Elliptical Stylus produces several advantages:
I. It drastically |
reduces tracing distortion |
because |
the |
||||||
elliptical shape more closely follows |
the |
groove |
|||||||
made by the wedge-shaped cutting |
stylus. |
The |
|||||||
points o f tangency remain |
parallel |
t o |
the |
record |
|||||
groove t o a |
markedly |
greater extent |
than those |
of |
|||||
the |
ordinary spherical/conical |
stylus. |
|
|
|
|
|||
2. It |
is |
possible |
t o play |
all |
monophonic |
LP |
records |
||
with perfectionist reproduction quality, as well as |
|||||||||
stereo |
records, due t o |
the |
larger distance |
between |
|||||
the |
points o f |
contact |
of the stylus |
of |
25 |
microns |
|||
(.0010 |
inch). |
|
|
|
|
|
|
|
r,cc\&t.

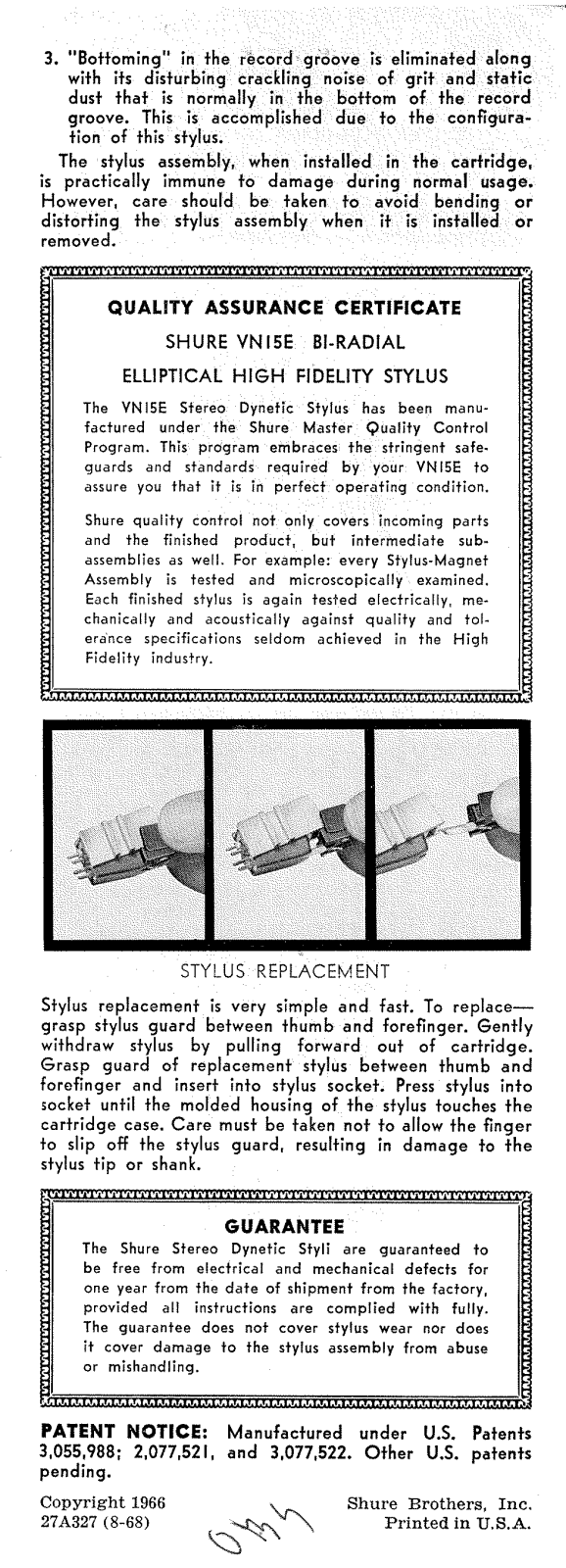

3. "Bottoming" in the record groove is eliminated along
with its disturbing crackling noise |
o f |
grit |
and static |
|||||
dust that is normally in the bottom o f the record |
||||||||
groove. This is accomplished due |
t o |
the |
configura- |
|||||
tion o f |
this stylus. |
|
|
|
|
|
|
|
The stylus |
assembly, |
when installed |
in |
the cartridge, |
||||
is practically |
immune |
t o damage |
during |
normal usage. |
||||
However, |
care should |
be taken |
t o |
avoid |
bending |
o r |
||
distorting the stylus assembly when |
it |
is installed |
o r |
|||||
removed. |
|
|
|
|
|
|
|
|
QUALllTY ASSURANCE CERTIFICATE
SHURE V N l 5 E BI-RADIAL
ELLIPTICAL H I G H FIDELITY STYLUS
The VNISE Stereo Dynetic Stylus has been manufactured under the Shure Master Quality Control Program. This program embraces th e stringent safeguards and standards required b y your VNISE t o assure you that i t is in perfect operating condition.
Shure quality control no t only covers incoming parts and the finished product, bu t intermediate subassemblies as well For example: every Stylus-Magnet Assembly is tested and microscopically examined. Each finished stylus is again tested electrically, mechanically and acoustically against quality and tolerance specifications seldom achieved in the Hig h Fidelity industry.
STYLUS REPLACEMENT
Stylus replacement is very simple and fast. To replacegrasp stylus guard between thumb and forefinger. Gently withdraw stylus by pulling forward out of cartridge. Grasp guard of replacement stylus between thumb and forefinger and insert into stylus socket. Press stylus into rocket until the molded housing o f the stylus touches t h e cartridge case. Care must be taken not t o allow the finger to slip off the stylus guard, resulting in damage to t h e stylus t i p or shank.
GUARANTEE
The |
Shure Stereo |
Dynetic |
Styli are guaranteed |
t o |
|||||
be |
free from |
electrical |
and mechanical defects |
for |
|||||
one year from the date o f shipment from the factory, |
|||||||||
provided all |
instructions |
are |
complied with fully. |
||||||
The guarantee does no t |
cover |
stylus wear |
nor does |
||||||
it cover damage |
t o the |
stylus |
assembly from abuse |
||||||
or |
mishandling. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-.-.- |
PATENT NOTICE: |
Manufactured |
under |
U.S. |
Patents |
|||||
3,055,988; 2,077,521, |
and |
3,077,522. |
Other |
U.S. |
patents |
||||
pending. |
|
|
|
|
|
|
|
|
|
Copyright 1966 |
|
|
|
|
Shure Brothers, Inc. |
||||
27A327 (8-68) |
|
|
|
|
|
Printed in U.S.A. |
