Shure Phonograph SPS2 User Guide

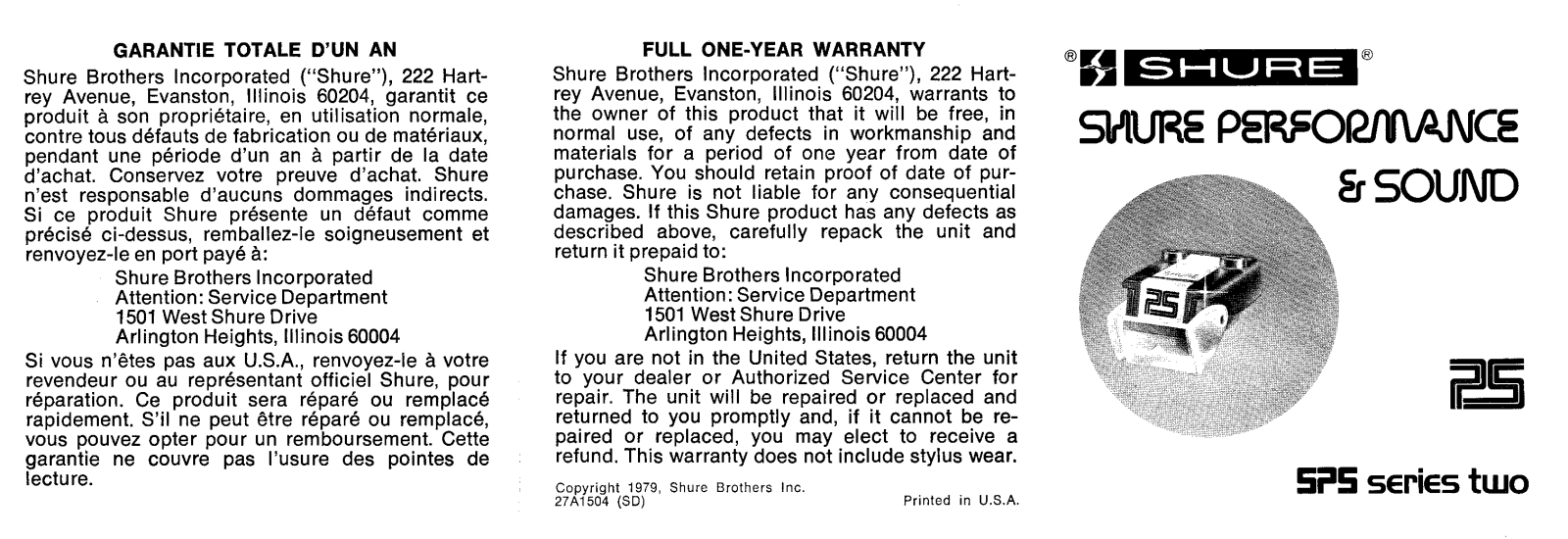

GARANTIE TOTALE D'UN AN
Shure Brothers Incorporated ("Shure"),
rey Avenue, Evanston, Illinois 60204, garantit ce
produit
contre tous defauts de fabrication ou de materiaux,
pendant une periode d'un an
d'achat. Conservez votre preuve d'achat. Shure
n'est responsable d'aucuns dommages indirects.
Si
precise ci-dessus, remballez-le soigneusement et
renvoyez-le en port
Si vous
revendeur ou au representant officiel Shure, pour
reparation. Ce produit sera
rapidement.
vous pouvez opter pour un remboursement. Cette
garantie ne couvre pas I'usure des pointes de
lecture.
a
son proprietaire, en utilisation normale,
a
partir de la date
ce produit Shure presente un defaut comme
paye
a:
Shure Brothers Incorporated
Attention: Service Department
1501 West Shure Drive
Arlington Heights, Illinois 60004
n'6tes pas aux USA., renvoyez-le a votre
S'il ne peut 6tre repare ou remplace,
repare ou remplace
222
Hart-
FULL ONE-YEAR WARRANTY
Shure Brothers Incorporated ("Shure"), 222 Hartrey Avenue, Evanston, Illinois 60204, warrants to
the owner of this product that it will be free, in
normal use, of any defects in workmanship and
materials for a period of one year from date of
purchase. You should retain proof of date of
chase. Shure is not liable for any consequential
damages. If this Shure product has any defects as
described above, carefully repack the unit and
return it prepaid to:
Shure Brothers Incorporated
Attention: Service Department
1501 West Shure Drive
Arlington Heights, Illinois 60004
If you are not in the United States, return the unit
to your dealer or Authorized Service Center for
repair. The unit will be repaired or replaced and
returned to you promptly and, if it cannot be
paired or replaced, you
refund. This warranty does not include stylus wear.
Copyright
27A15o4
1979,
Shure Brothers Inc.
(sD) Printed in
may elect to receive
pur-
re-
u.s.A.
a
@H
-4
gmg
w
8
PwomCE
SOUND
Pi!
SF5
SE~~ES
~UJO

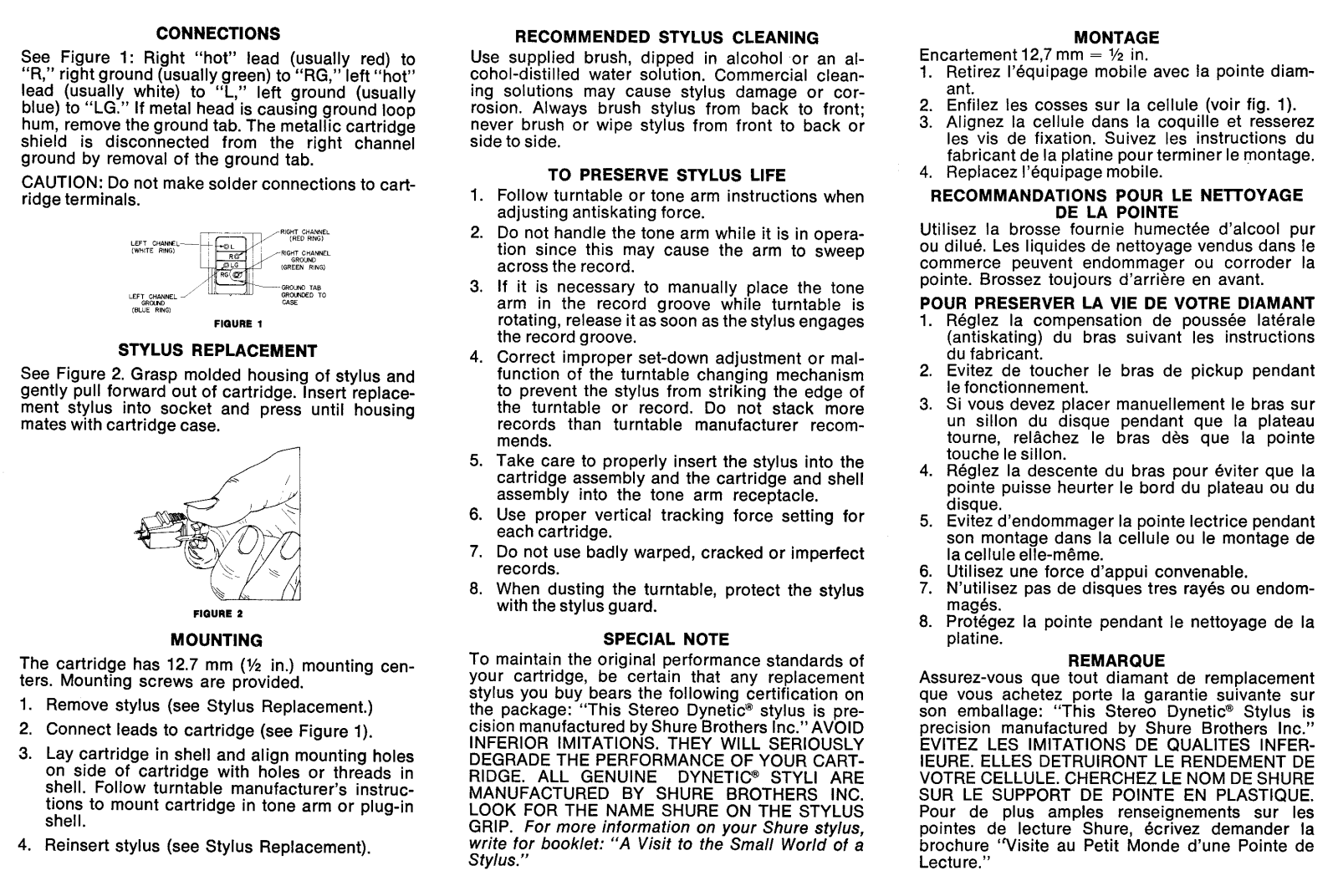

CONNECTIONS
See Figure
1:
Right "hot" lead (usually red) to
"R," right ground (usually green) to "RG," left "hot"
lead (usually white) to "L," left ground (usually
blue) to "LG." If metal head is causing ground loop
hum, remove the ground tab. The metallic cartridge
shield is disconnected from the right channel
ground by removal of the ground tab.
CAUTION: Do not make solder connections to cart-
ridge terminals.
RIGHT
CHAMEL
IRED
--GROW
1
RING)
RIGHT
CHANNEL
GROUND
(GREEN
GROVIDED
w
RlNW
T6.B
TO
LEFT
IWITE
LEFT
(BLUE
CHANKL-
RING)
CHPINNEL
GRWD
RING1
1,'
FIQURE
STYLUS REPLACEMENT
See Figure 2. Grasp molded housing of stylus and
gently pull forward out of cartridge. Insert replace-
ment stylus into socket and press until housing
mates with cartridge case.
MOUNTING
The cartridge has 12.7 mm
(Y2 in.) mounting cen-
ters. Mounting screws are provided.
1.
Remove stylus (see Stylus Replacement.)
2. Connect leads to cartridge (see Figure
3.
Lay cartridge in shell and align mounting holes
1).
on side of cartridge with holes or threads in
shell. Follow turntable manufacturer's instructions to mount cartridge in tone arm or plug-in
shell.
4.
Reinsert stylus (see Stylus Replacement).
RECOMMENDED STYLUS CLEANING
Use supplied brush, dipped in alcohol or an alcohol-distilled water solution. Commercial clean-
ing solutions may cause stylus damage or corrosion. Always brush stylus from back to front;
never brush or wipe stylus from front to back or
side to side.
TO PRESERVE STYLUS
1.
Follow turntable or tone arm instructions when
LIFE
adjusting antiskating force.
2. Do not handle the tone arm while it is in operation since this may cause the arm to sweep
across the record.
3.
If it is necessary to manually place the tone
arm in the record groove while turntable is
rotating, release it as soon as the stylus engages
the record groove.
4.
Correct improper set-down adjustment or malfunction of the turntable changing mechanism
to prevent the stylus from striking the edge of
the turntable or record. Do not stack more
records than turntable manufacturer recommends.
5.
Take care to properly insert the stylus into the
cartridge assembly and the cartridge and shell
assembly into the tone arm receptacle.
6.
Use proper vertical tracking force setting for
each cartridge.
7. Do not use badly warped, cracked or imperfect
records.
8.
When dusting the turntable, protect the stylus
with the stylus guard.
SPECIAL NOTE
To maintain the original performance standards of
your cartridge, be certain that any replacement
stylus you buy bears the following certification on
the package: "This Stereo
cision manufactured by Shure Brothers
Dynetic@ stylus is pre-
Inc."AVOlD
INFERIOR IMITATIONS. THEY WILL SERIOUSLY
DEGRADE THE PERFORMANCE OF YOUR CARTRIDGE. ALL GENUINE
DYNETICB STYLI ARE
MANUFACTURED BY SHURE BROTHERS INC.
LOOK FOR THE NAME SHURE ON THE STYLUS
GRIP. For more information on your Shure stylus,
write for booklet:
"A
Visit to the Small World of a
Stylus."
MONTAGE
Encartement
1.
Retirez l'equipage mobile avec la pointe diam-
12,7 mm = Y2 in.
ant.
2. Enfilez les cosses sur la cellule (voir fig.
3.
Alignez la cellule dans la coquille et resserez
1).
les vis de fixation. Suivez les instructions du
fabricant de la platine pour terminer
4.
Replacez l'equipage mobile.
le montage.
RECOMMANDATIONS POUR LE NETTOYAGE
DE LA
POINTE
Utilisez la brosse fournie humectee d'alcool pur
ou dilue. Les liquides de nettoyage
vendus dans le
commerce peuvent endommager ou corroder la
pointe. Brossez
POUR PRESERVER
1.
Reglez la compensation de poussee laterale
toujours d'arriere en avant.
LA
VIE DE VOTRE DIAMANT
(antiskating) du bras suivant les instructions
du fabricant.
2. Evitez de toucher
le bras de pickup pendant
le fonctionnement.
3.
Si vous devez placer manuellement le bras sur
un sillon du disque pendant que la plateau
tourne,
touche
4.
Reglez la descente du bras pour eviter que la
relachez le bras des que la pointe
le sillon.
~ointe puisse heurter le bord du ~lateau ou du
bisque.'
5.
Evitez d'endommager la pointe lectrice pendant
son montage dans la cellule ou
la cellule
6.
Utilisez une force d'appui convenable.
elle-meme.
7. N'utilisez pas de disques tres rayes ou
le montage de
endom-
mages.
8.
Protegez la pointe pendant le nettoyage de la
platine.
REMARQUE
Assurez-vous que tout diamant de remplacement
que vous achetez porte la
son emballage: "This Stereo
garantie suivante sur
Dynetic Stylus is
precision manufactured by Shure Brothers Inc."
EVITEZ LES IMITATIONS DE QUALITES INFER-
IEURE. ELLES DETRUIRONT LE RENDEMENT DE
VOTRE CELLULE. CHERCHEZ LE NOM DE SHURE
SUR LE SUPPORT DE
Pour de plus amples renseignements sur
POINTE EN PLASTIQUE.
les
pointes de lecture Shure, ecrivez demander la
brochure
'Visite au Petit Monde d'une Pointe de
Lecture."
