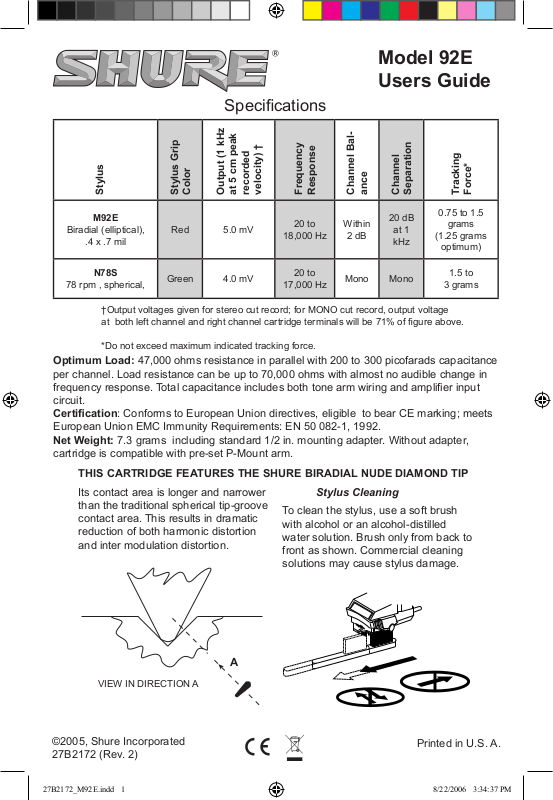

Shure Phonograph M92E User Guide

Model 92E
Users Guide

Specications

Stylus

Stylus Grip

Color

Output (1 kHz

at 5 cm peak

recorded

velocity) †

Frequency

Response

Channel Bal-

ance

Channel

Separation

Tracking

Force*

M92E

Biradial (elliptical),

.4 x .7 mil

Red 5.0 mV

20 to

18,000 Hz

Within

2 dB

20 dB

at 1
kHz

0.75 to 1.5
grams

(1.25 grams

optimum)

N78S

78 rpm , spherical,

Green 4.0 mV

20 to

17,000 Hz

Mono Mono

1.5 to

3 grams

†Output voltages given for stereo cut record; for MONO cut record, output voltage
at both left channel and right channel cartridge terminals will be 71% of gure above.

*Do not exceed maximum indicated tracking force.

Optimum Load: 47,000 ohms resistance in parallel with 200 to 300 picofarads capacitance
per channel. Load resistance can be up to 70,000 ohms with almost no audible change in
frequency response. Total capacitance includes both tone arm wiring and amplier input
circuit.
Certication: Conforms to European Union directives, eligible to bear CE marking; meets
European Union EMC Immunity Requirements: EN 50 082-1, 1992.
Net Weight: 7.3 grams including standard 1/2 in. mounting adapter. Without adapter,
cartridge is compatible with pre-set P-Mount arm.

THIS CARTRIDGE FEATURES THE SHURE BIRADIAL NUDE DIAMOND TIP

Its contact area is longer and narrower
than the traditional spherical tip-groove
contact area. This results in dramatic
reduction of both harmonic distortion
and inter modulation distortion.

To clean the stylus, use a soft brush
with alcohol or an alcohol-distilled
water solution. Brush only from back to
front as shown. Commercial cleaning
solutions may cause stylus damage.

©2005, Shure Incorporated
27B2172 (Rev. 2)

Printed in U.S. A.

Stylus Cleaning

A

VIEW IN DIRECTION A

Mounting

Tracking Force in a P-Mount Arm

After installing the cartridge, it is not usually necessary to adjust the tracking force in a
pre-set arm.

Skating Compensation (where applicable)

Set the skating compensation mechanism according to the tone arm manufacturer’s
instructions.

To Preserve Stylus Life

Protect stylus with stylus guard when dusting turntable
Regulate tone arm set-down to prevent stylus from striking edge of turntable or record.
Do not handle tone arm while record is being played. Use cuing device if available.
If manual set-down is necessary, release arm as soon as stylus engages groove
Do not activate arm without record on turntable.
Do not use damaged records.
Make certain cartridge is correctly mounted in tone arm and stylus is properly inserted in

cartridge.

Use appropriate vertical tracking force for each cartridge and stylus.

1.

2.

3.

4.

5.

6.

7.

8.

red

rouge

rot

rojo

white
blanc
blanco
weiss

green

vert

grün

verde

blue
bleu
blau
azul

R L

RG LG

A B

C

*




























