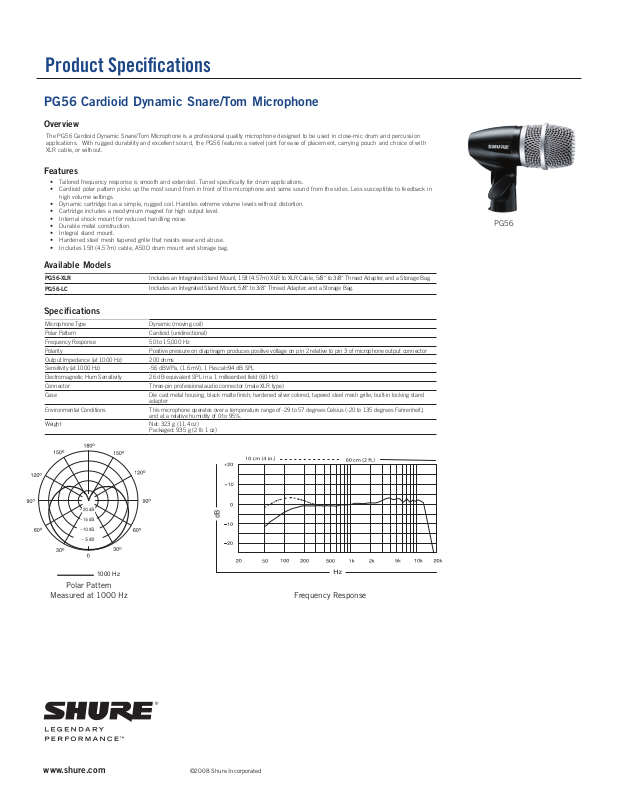

Shure PG56 User Manual
Product Specifications
Microphone Type Dynamic (moving coil)
Polar Pattern Cardioid (unidirectional)
Frequency Response 50 to 15,000 Hz
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector
Output Impedance (at 1000 Hz) 200 ohms
Sensitivity (at 1000 Hz) -56 dBV/Pa, (1.6 mV), 1 Pascal=94 dB SPL
Electromagnetic Hum Sensitivity 26 dB equivalent SPL in a 1 millioersted field (60 Hz)
Connector Three-pin professional audio connector (male XLR type)
Case Die cast metal housing, black matte finish; hardened silver colored, tapered steel mesh grille; built-in locking stand
adapter
Environmental Conditions This microphone operates over a temperature range of -29 to 57 degrees Celsius (-20 to 135 degrees Fahrenheit),
and at a relative humidity of 0 to 95%.
Weight Net: 323 g (11.4 oz)
Packaged: 935 g (2 lb 1 oz)
PG56-XLR
Includes an Integrated Stand Mount, 15ft (4.57m) XLR to XLR Cable, 5/8“ to 3/8“ Thread Adapter, and a Storage Bag.
PG56-LC
Includes an Integrated Stand Mount, 5/8“ to 3/8“ Thread Adapter, and a Storage Bag.
1000 Hz
PG56 Cardioid Dynamic Snare/Tom Microphone
Overview
The PG56 Cardioid Dynamic Snare/Tom Microphone is a professional quality microphone designed to be used in close-mic drum and percussion
applications. With rugged durability and excellent sound, the PG56 features a swivel joint for ease of placement, carrying pouch and choice of with
XLR cable, or without.
Features
Tailored frequency response is smooth and extended. Tuned specifically for drum applications.•
Cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides. Less susceptible to feedback in •
high volume settings.
Dynamic cartridge has a simple, rugged coil. Handles extreme volume levels without distortion.•
Cartridge includes a neodymium magnet for high output level.•
Internal shock mount for reduced handling noise.•
Durable metal construction.•
Integral stand mount.•
Hardened steel mesh tapered grille that resists wear and abuse.•
Includes 15ft (4.57m) cable, A50D drum mount and storage bag.•
Available Models
Specifications
PG56
Polar Pattern
Measured at 1000 Hz Frequency Response
www.shure.com
©2008 Shure Incorporated
