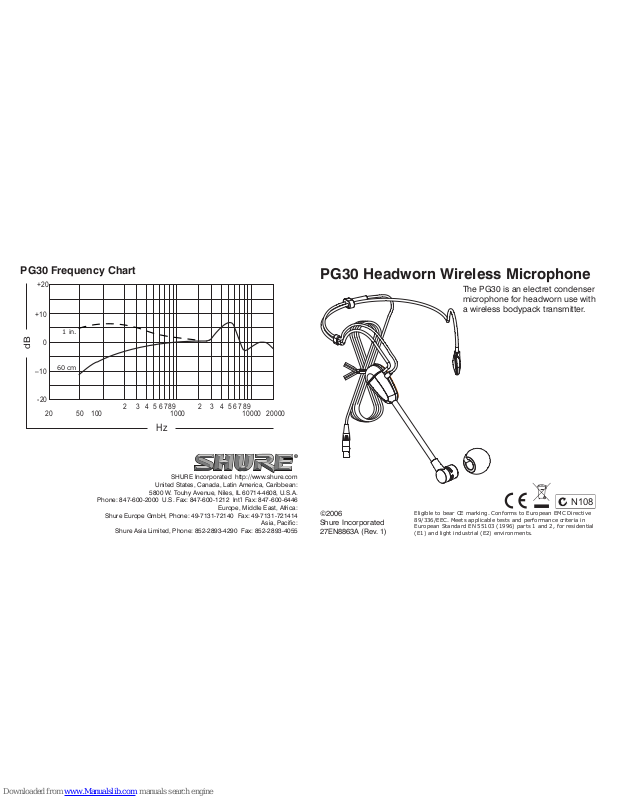

Page 1
PG30 Headworn Wireless Microphone
©2006
Shure Incorporated
27EN8863A (Rev. 1)
The PG30 is an electret condenser
microphone for headworn use with
a wireless bodypack transmitter.
20 200001000 1000050 100
98765432 98765432
+10
0
–10
Hz
dB
-20
+20

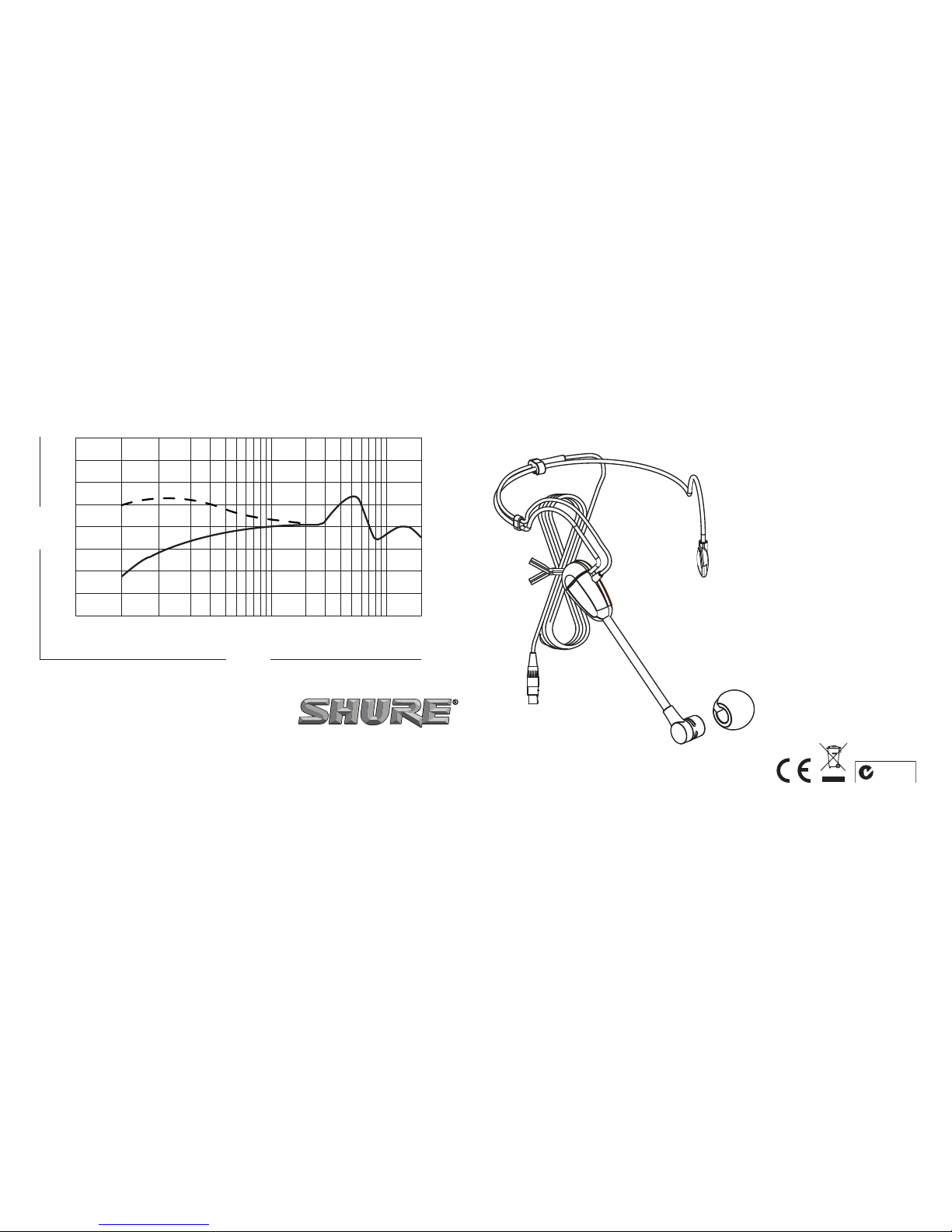

PG30 Frequency Chart
SHURE Incorporated http://www.shure.com
United States, Canada, Latin America, Caribbean:
5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.
Phone: 847-600-2000 U.S. Fax: 847-600-1212 Int’l Fax: 847-600-6446
Europe, Middle East, Africa:
Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414
Asia, Pacific:
Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055
1 in.
60 cm
N108
Eligible to bear CE marking. Conforms to European EMC Directive
89/336/EEC. Meets applicable tests and performance criteria in
European Standard EN 55103 (1996) parts 1 and 2, for residential
(E1) and light industrial (E2) environments.
Page 2

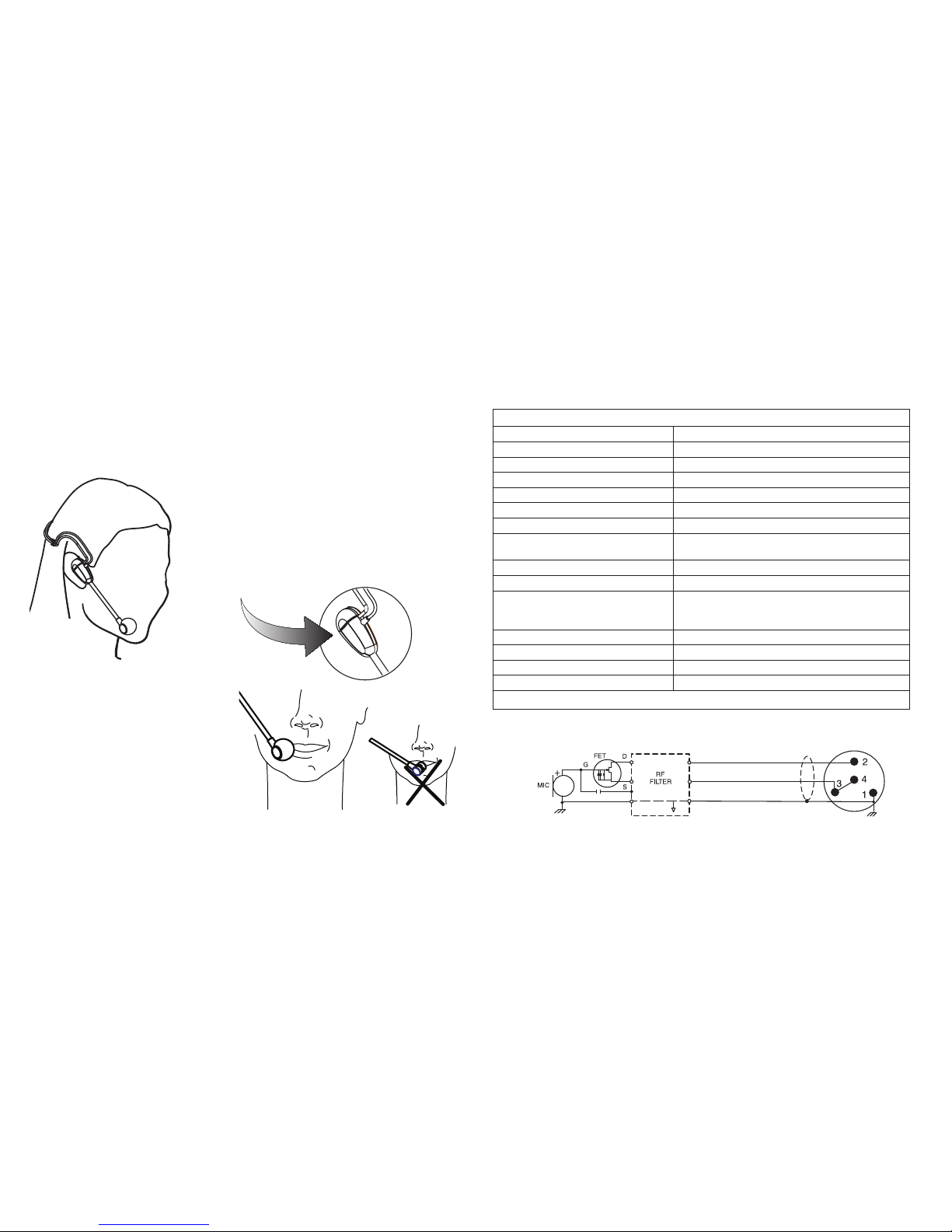

Wearing the microphone
u Place the wireframe around the BACK of
your head. Adjust the wireframe as needed to
fit the headset comfortably.
N DO NOT manipulate the boom housing, or
attempt to adjust the headset by putting force
on the boom housing.
v Place the microphone at the
CORNER of your mouth, so that
the microphone housing rests
about 12 - 25 mm (1/2 - 1 in.) away
from your face.
Wiring Diagram
RED (to drain) (DC bias)
BLACK (to source) (audio)
SHIELD
CARTRIDGE
TA4F CONNECTOR
PG30 Technical Specifications
Type Condenser, electret bias
Frequency Response 60Hz to 18,000Hz* (see Frequency Chart)
Polar Pattern Cardioid (unidirectional)
Output Impedance 1200Ω @1kHz*
Output Level -52dBV/Pa (2.5 mV)*
Signal to Noise Ratio 61dB, 1kHz at 1 Pa*
Maximum SPL 125dB
Dynamic Range
(max. SPL to A-weighted noise level)
92dB*
Output Noise 33dB (typical, A-Weighted)*
Recommended Operating Voltage +5VDC, 10V max (pin 2 to pin 1)
Polarity Positive sound pressure on diaphragm produces
positive voltage on pins 3 and 4 relative to pin 1
(ground) on the mini TA4F connector.
Cable 1.27 m (50 in.) two-conductor shielded
Connector Mini TA4F
Net Weight 51.6 g (1.82 oz)
Replacement Parts Windscreen (2), Clothing Clip...............RK322
*All measurements taken using RK183PK preamp set to 0dB gain
