222 HARTREY AVL, EVANSTON. IL. 60204 U.S.A.
@
AREA
COOEJhttps://manualmachine.com/~~E.~OW
GENERAL

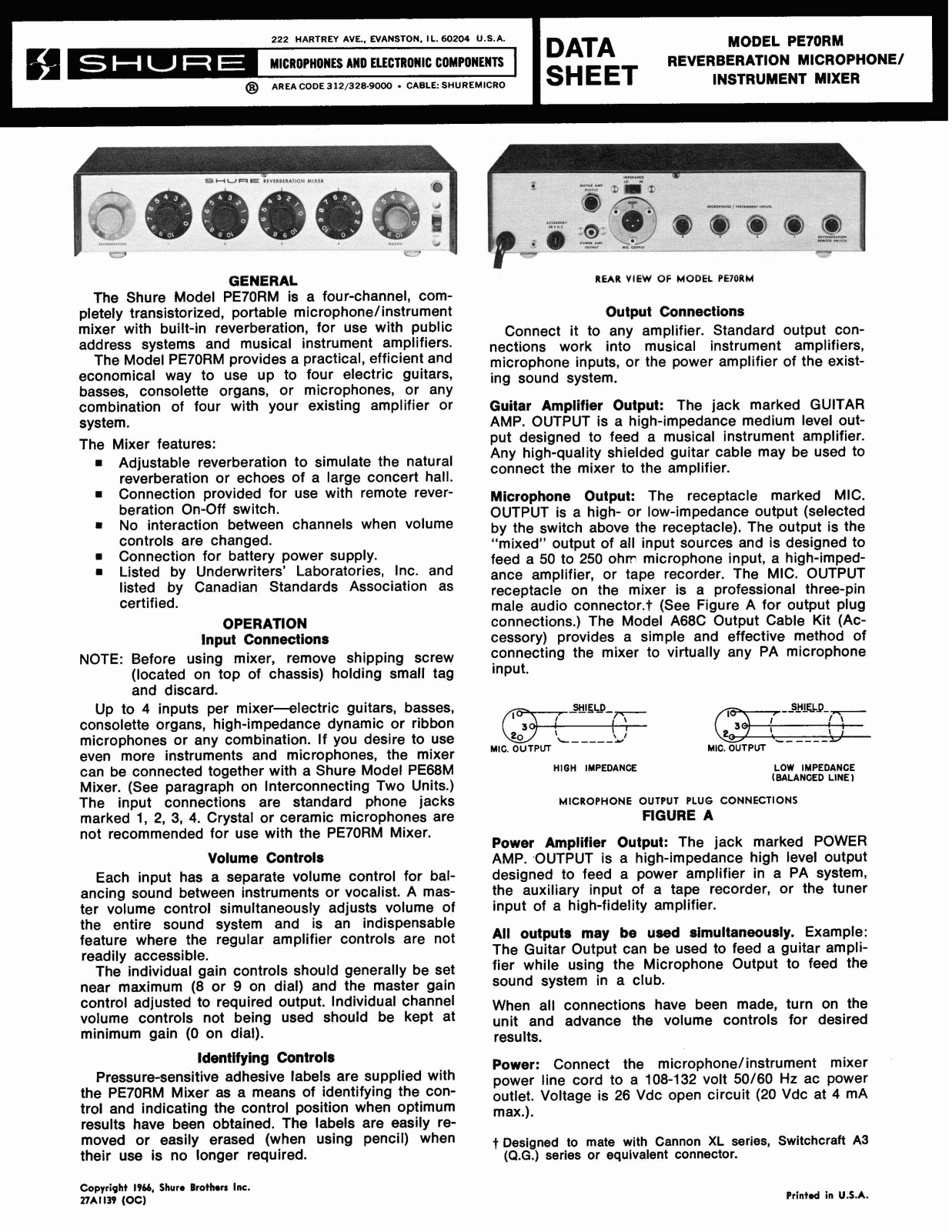

The Shure Model
pletely transistorized, portable
mixer with built-in reverberation, for use with public
address systems and musical instrument amplifiers.
The Model
economical way to use up to four electric guitars,
basses, consolette organs, or microphones, or any
combination of four with your existing amplifier or
system.
The Mixer features:
Adjustable reverberation to simulate the natural
reverberation or echoes of a large concert hall.
Connection provided for use with remote reverberation On-Off switch.
m
No interaction between channels when volume
controls are changed.
Connection for battery power supply.
Listed by Underwriters' Laboratories, Inc. and
listed by Canadian Standards Association as
certified.
NOTE: Before using mixer, remove shipping screw
Up to
consolette organs, high-impedance dynamic or ribbon
microphones or any combination. If you desire to use
even more instruments and microphones, the mixer
can be connected together with a Shure Model
Mixer. (See paragraph on Interconnecting Two Units.)
The input connections are standard phone jacks
marked
not recommended for use with the
Each input has a separate volume control for balancing sound between instruments or vocalist. A master volume control simultaneously adjusts volume of
the entire sound system and is an indispensable
feature where the regular amplifier controls are not
readily accessible.
The individual gain controls should generally be set
near maximum (8 or
control adjusted to required output. Individual channel
volume controls not being used should be kept at
minimum gain
Pressure-sensitive adhesive labels are supplied with
the
PE70RM Mixer as a means of identifying the con-
trol and indicating the control position when optimum
results have been obtained. The labels are easily removed or easily erased (when using pencil) when
their use is no longer required.
PE70RM provides a practical, efficient and
(located on top of chassis) holding small tag
and discard.
4
inputs per mixer--electric guitars, basses,
1,
2, 3,
PE70RM is a four-channel, com-
microphone/instrument
OPERATION
Input Connections
4.
Crystal or ceramic microphones are
PE70RM Mixer.
Volume Controls
9
on dial) and the master gain
(0 on dial).
Identifying Controls
.
CABLE:
PE68M
SHUREMICRO
MODEL PE7ORM
DATA
SHEET
I
REAR
Output Connections
Connect it to any amplifier. Standard output connections work into musical instrument amplifiers,
microphone inputs, or the power amplifier of the exist-
ing sound system.
Guitar Amplifier Output: The jack marked GUITAR
AMP. OUTPUT is a high-impedance medium level output designed to feed a musical instrument amplifier.
Any high-quality shielded guitar cable may be used to
connect the mixer to the amplifier.
Microphone Output: The receptacle marked MIC.
OUTPUT is a high- or low-impedance output (selected
by the switch above the receptacle). The output is the
"mixed" output of all input sources and is designed to
feed a 50 to 250
ance amplifier, or tape recorder. The MIC. OUTPUT
receptacle on the mixer is a professional three-pin
male audio
connections.) The Model
cessory) provides a simple and effective method of
connecting the mixer to virtually any PA microphone
input.
MIC. OUTPU MIC. OUTPUT
HIGH IMPEDANCE
MICROPHONE
Power Amplifier Output: The jack marked POWER
AMP. .OUTPUT is a high-impedance high level output
designed to feed a power amplifier in a PA system,
the auxiliary input of a tape recorder, or the tuner
input of a high-fidelity amplifier.
All outputs may be used simultaneously. Example:
The Guitar Output can be used to feed a guitar amplifier while using the Microphone Output to feed the
sound system in a club.
When all connections have been made, turn on the
unit and advance the volume controls for desired
results.
Power: Connect the
power line cord to a 108-132 volt
outlet. Voltage is 26 Vdc open circuit (20 Vdc at
max.).
f
Designed
(Q.G.)
series
ohrr microphone input, a high-imped-
connect0r.t (See Figure A for output plug
to
mate
with
or
equivalent connector.
REVERBERATION MICROPHONE/
INSTRUMENT MIXER
VIEW
OF
MODEL
PE70RM
A68C Output Cable Kit (Ac-
LOW IMPEDANCE
(BALANCED
OUTPUT
PLUG
CONNECTIONS
FIGURE A
microphone/instrument mixer
50/60
Hz
ac power
Cannon
XL
series,
Switchcraft
LINE
4
l
mA
A3
I
Copyright
27A1139
1966,
(OC)
Shure
Brothers
Inc.
Printd
in
U.S.A.

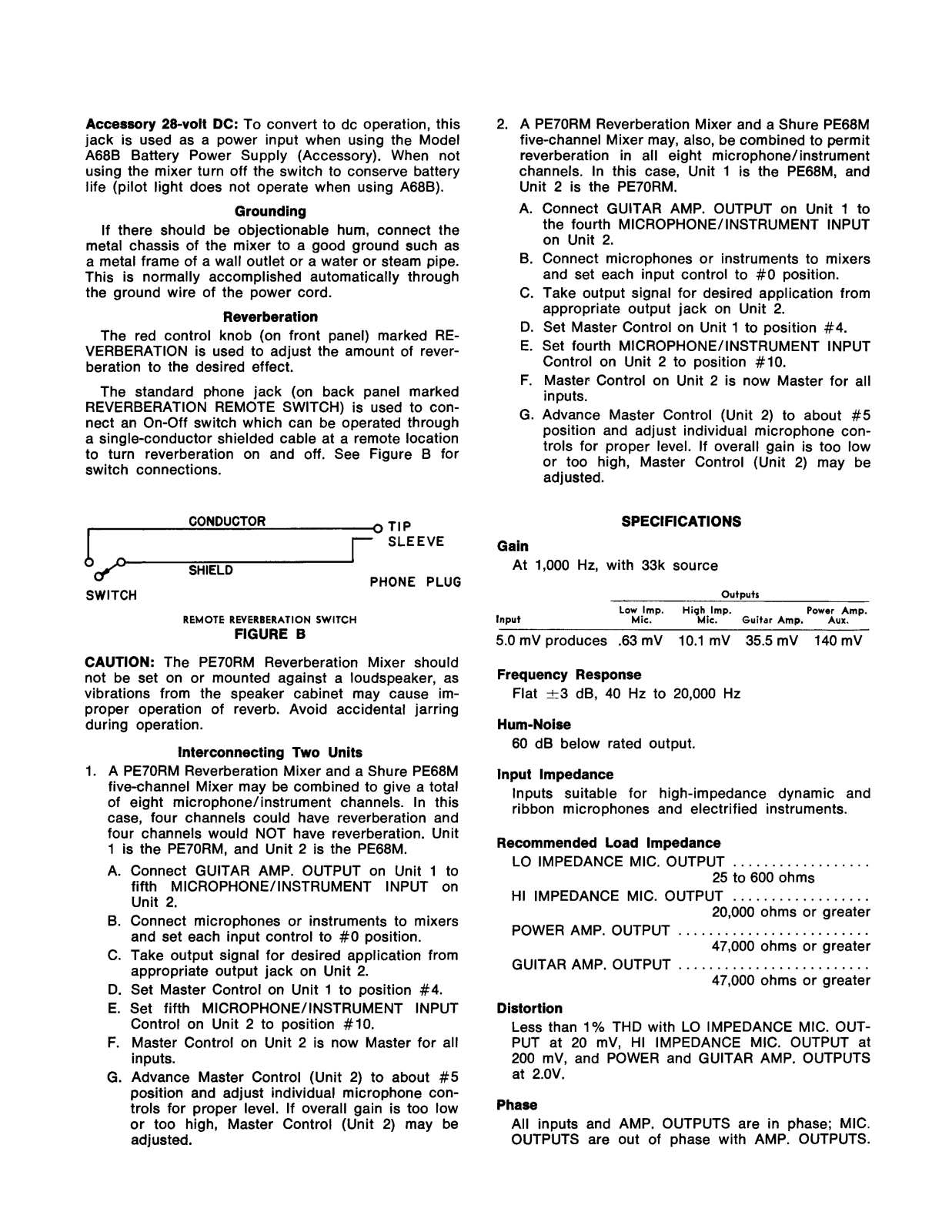

Accessory 28-volt DC: To convert to dc operation, this
jack is used as a power input when using the Model
A68B Battery Power Supply (Accessory). When not
using the mixer turn off the switch to conserve battery
life (pilot light does not operate when using
A68B).
Grounding
If there should be objectionable hum, connect the
metal chassis of the mixer to a good ground such as
a metal frame of a wall outlet or a water or steam pipe.
This is normally accomplished automatically through
the ground wire of the power cord.
Reverberation
The red control knob (on front panel) marked REVERBERATION is used to adjust the amount of reverberation to the desired effect.
The standard phone jack (on back panel marked
REVERBERATION REMOTE SWITCH) is used to connect an On-Off switch which can be operated through
a single-conductor shielded cable at a remote location
to turn reverberation on and off. See Figure B for
switch connections.
PE70RM Reverberation Mixer and a Shure PE68M
A
five-channel Mixer may, also, be combined to permit
reverberation in all eight
microphone/instrument
channels. In this case, Unit 1 is the PE68M, and
Unit 2 is the
PE70RM.
A. Connect GUITAR AMP. OUTPUT on Unit 1 to
the fourth
MICROPHONE/INSTRUMENT INPUT
on Unit 2.
B. Connect microphones or instruments to mixers
#O
and set each input control to
position.
C. Take output signal for desired application from
appropriate output jack on Unit 2.
D. Set Master Control on Unit 1 to position #4.
E. Set fourth
Control on Unit 2 to position
F.
Master Control on Unit 2 is now Master for all
MICROPHONE/INSTRUMENT INPUT
#lo.
inputs.
G. Advance Master Control (Unit 2) to about
#5
position and adjust individual microphone controls for proper level. If overall gain is too low
or too high, Master Control (Unit 2) may be
adjusted.
CONDUCTOR
SHIELD
o
TIP
r
SLEEVE
1
PHONE PLUG
SWITCH
REMOTE
REVERBERATION
FIGURE
SWITCH
B
CAUTION: The PE70RM Reverberation Mixer should
not be set on or mounted against a loudspeaker, as
vibrations from the speaker cabinet may cause im-
proper operation of reverb. Avoid accidental jarring
during operation.
Interconnecting Two Units
1. A
PE70RM Reverberation Mixer and a Shure PE68M
five-channel Mixer may be combined to give a total
of eight
microphone/instrument channels. In this
case, four channels could have reverberation and
four channels would NOT have reverberation. Unit
1 is the
PE70RM, and Unit 2 is the PE68M.
A. Connect GUITAR AMP. OUTPUT on Unit 1 to
fifth
MICROPHONE/INSTRUMENT INPUT on
Unit 2.
B. Connect microphones or instruments to mixers
and set each input control to
#O
position.
C. Take output signal for desired application from
appropriate output jack on Unit 2.
D. Set Master Control on Unit 1 to position #4.
E. Set fifth
Control on Unit 2 to position
Master Control on Unit 2 is now Master for all
F.
MICROPHONE/INSTRUMENT INPUT
#lo.
inputs.
G. Advance Master Control (Unit 2) to about
#5
position and adjust individual microphone controls for proper level. If overall gain is too low
or too high, Master Control (Unit 2) may be
adjusted.
SPECIFICATIONS
Gain
At 1,000 Hz, with 33k source
Input
Mic.
Mic.
Imp.
Guitar
Amp.
Power
Aux.
Low
Imp.
High
5.0 mV produces .63 mV 10.1 mV 35.5 mV 14%
Frequency Response
Flat +3 dB, 40 Hz to 20,000 Hz
Hum-Noise
60 dB below rated output.
lnput lmpedance
Inputs suitable for high-impedance dynamic and
ribbon microphones and electrified instruments.
Recommended Load lmpedance
LO IMPEDANCE MIC. OUTPUT
..................
25 to 600 ohms
HI IMPEDANCE MIC. OUTPUT
..................
20,000 ohms or greater
POWER AMP. OUTPUT
.........................
47,000 ohms or greater
GUITAR AMP. OUTPUT
.........................
47,000 ohms or greater
Distortion
Less than 1% THD with LO IMPEDANCE MIC. OUTPUT at 20
200
mV, and POWER and GUITAR AMP. OUTPUTS
at
2.OV.
mV, HI IMPEDANCE MIC. OUTPUT at
Phase
All inputs and AMP. OUTPUTS are in phase; MIC.
OUTPUTS are out of phase with AMP. OUTPUTS.
Amp.
