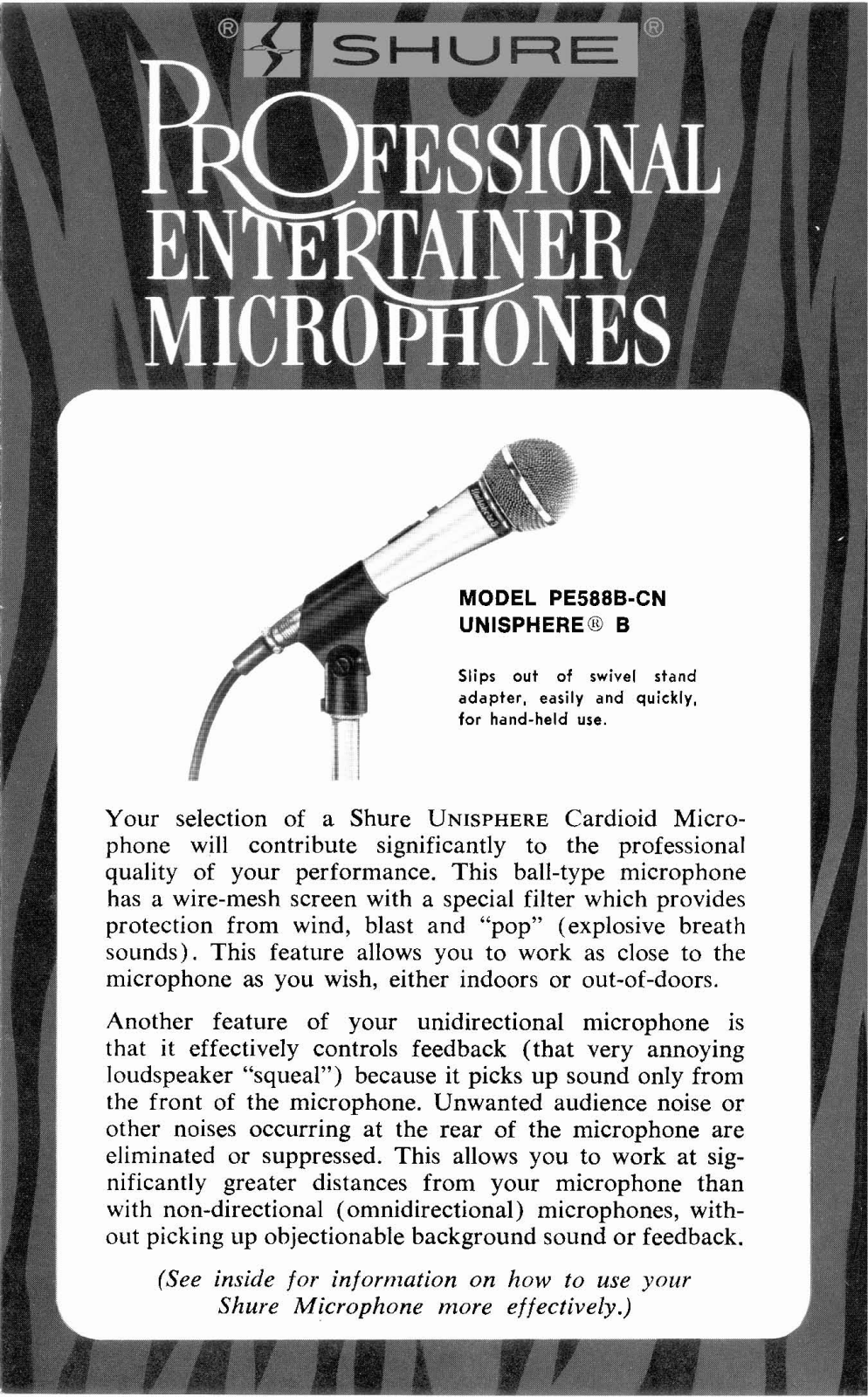

MODEL PE588B-CN
UNISPHEREO B
Slips out of swivel stand
I
adapter, easily and quickly,
for hand-held use
Your selection of a Shure
phone will contribute significantly to the professional
quality of your performance. This ball-type microphone
has a wire-mesh screen with a special filter which provides
protection from wind, blast and "pop" (explosive breath
sounds). This feature allows you to work as close to the
microphone
I
Another feature of your unidirectional microphone is
that it effectively controls feedback (that very annoying
loudspeaker "squeal") because it picks up sound only from
the front of the microphone. Unwanted audience noise or
other noises occurring at the rear of the microphone are
eliminated or suppressed. This allows you to work at sig-
nificantly greater distances from your microphone than
with non-directional (omnidirectional) microphones, without picking
(See inside for infornzation on how to use your
as
you wish, either indoors or out-of-doors.
up objectionable background sound or feedback.
Shure Microphone more effectively.)
UNISPHERE
Cardioid Micro-

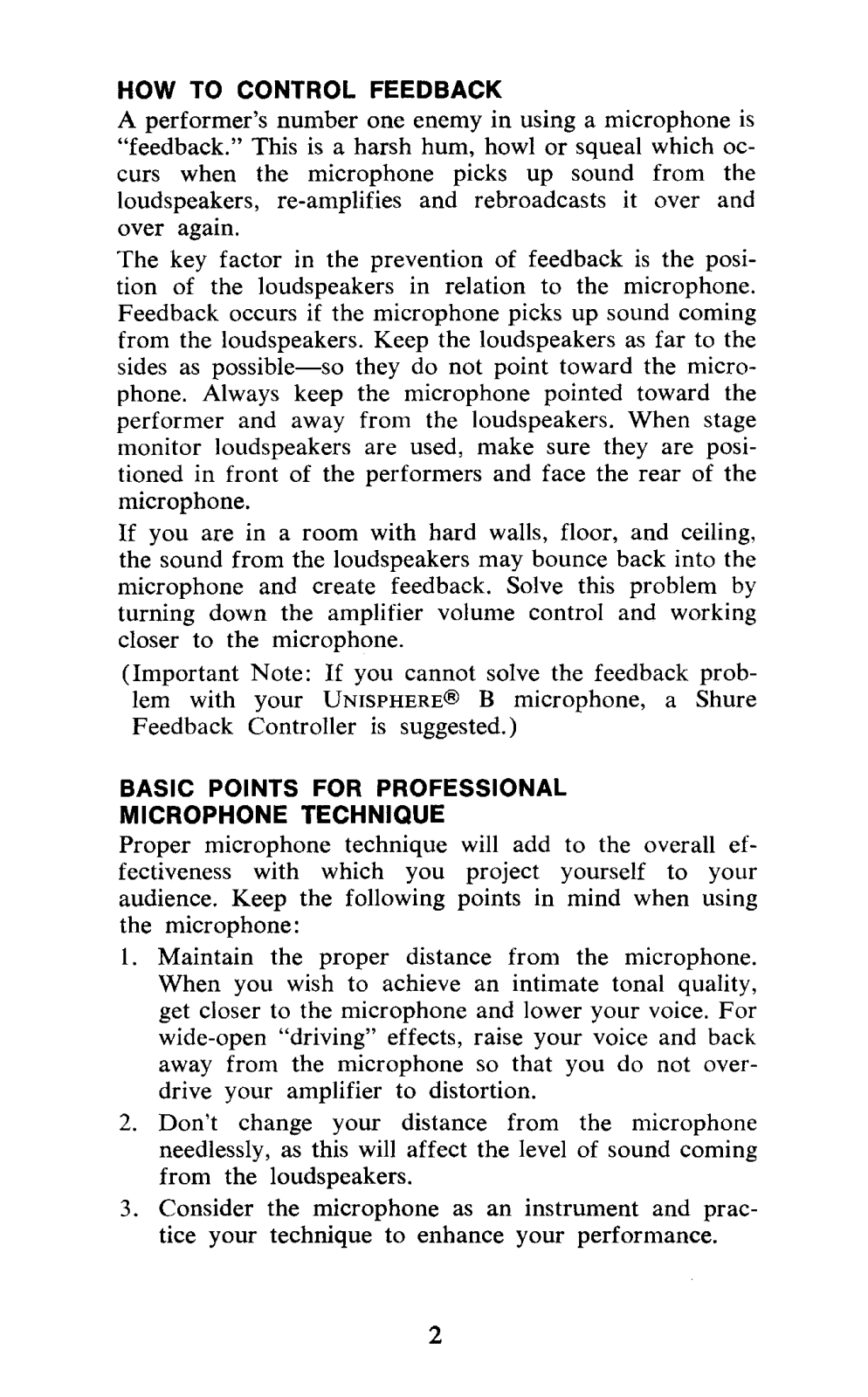

HOW TO CONTROL FEEDBACK
A
performer's number one enemy in using a microphone is
"feedback." This is a harsh hum, howl or squeal which occurs when the microphone picks up sound from the
loudspeakers, re-amplifies and rebroadcasts it over and
over again.
The key factor in the prevention of feedback is the position of the loudspeakers in relation to the microphone.
Feedback occurs if the microphone picks up sound coming
from the loudspeakers. Keep the loudspeakers as far to the
sides as possible-so they do not point toward the microphone. Always keep the microphone pointed toward the
performer and away from the loudspeakers. When stage
monitor loudspeakers are used, make sure they are positioned in front of the performers and face the rear of the
microphone.
If you are in a room with hard walls, floor, and ceiling,
the sound from the loudspeakers may bounce back into the
microphone and create feedback. Solve this problem by
turning down the amplifier volume control and working
closer to the microphone.
(Important Note: If you cannot solve the feedback prob-
lem with your
UNISPHEREB
B
microphone, a Shure
Feedback Controller is suggested.)
BASIC POINTS FOR PROFESSIONAL
MICROPHONE TECHNIQUE
Proper microphone technique will add to the overall effectiveness with which you project yourself to your
audience. Keep the following points in mind when using
the microphone:
1.
Maintain the proper distance from the microphone.
When you wish to achieve an intimate tonal quality,
get closer to the microphone and lower your voice. For
wide-open "driving" effects, raise your voice and back
away from the microphone so that you do not overdrive your amplifier to distortion.
2.
Don't change your distance from the nlicrophone
needlessly, as this will affect the level of sound coming
from the loudspeakers.
3.
Consider the microphone as an instrument and practice your technique to enhance your performance.

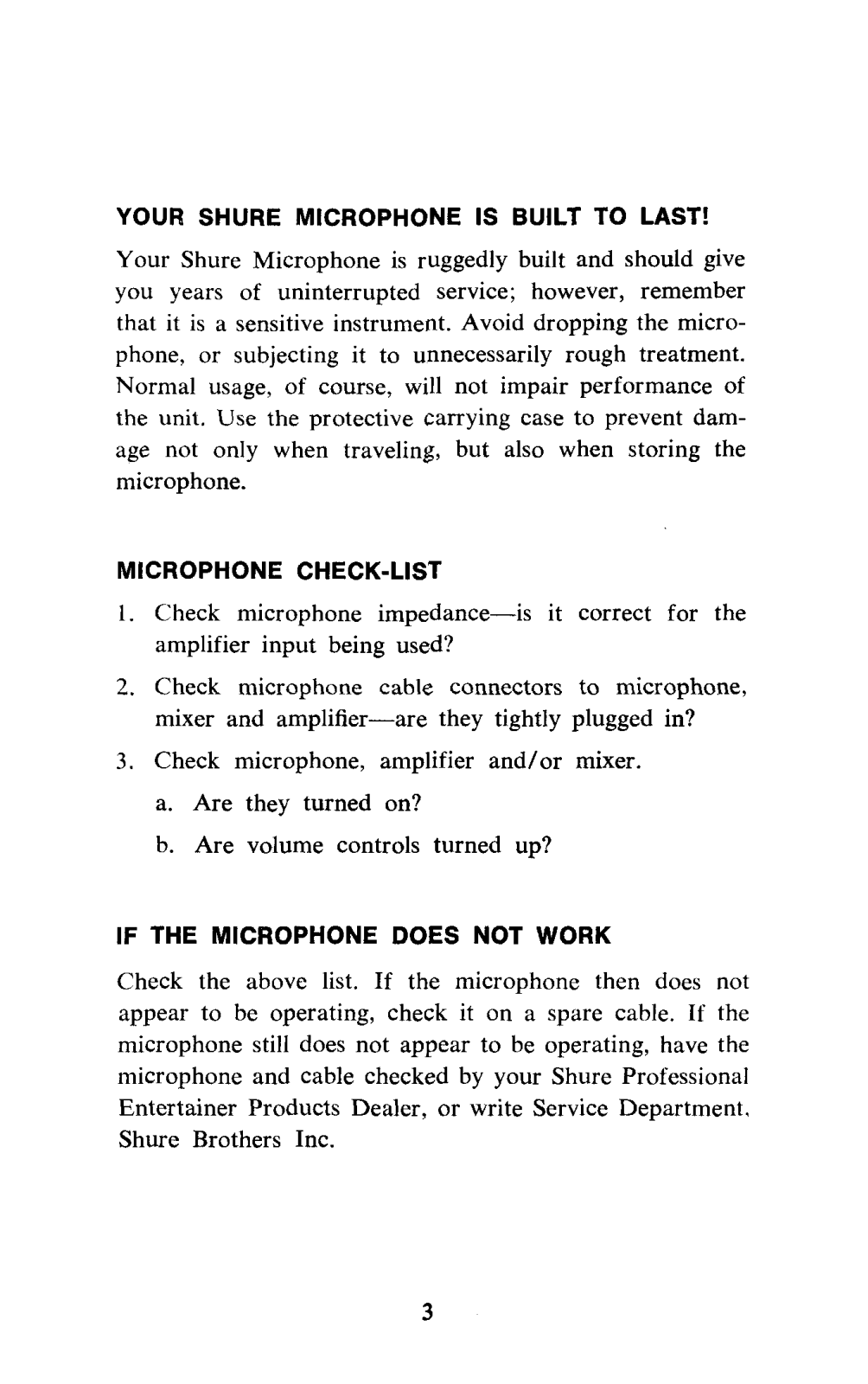

YOUR SHURE MICROPHONE IS BUILT TO LAST!
Your Shure Microphone is ruggedly built and should give
you years of uninterrupted service; however, remember
that it is a sensitive instrument. Avoid dropping the microphone, or subjecting it to unnecessarily rough treatment.
Normal usage, of course, will not impair performance of
the unit.
Use
the protective carrying case to prevent damage not only when traveling, but also when storing the
microphone.
MICROPHONE CHECK-LIST
1.
Check microphone impedance-is it correct for the
amplifier input being used?
2.
Check microphone cable connectors to microphone,
mixer and amplifier-are they tightly plugged in?
3.
Check microphone, amplifier and/or mixer.
a. Are they turned on?
b. Are volume controls turned up?
IF THE MICROPHONE DOES NOT WORK
Check the above list. If the microphone then does not
appear to be operating, check it on a spare cable. If the
microphone still does not appear to be operating, have the
microphone and cable checked by your Shure Professional
Entertainer Products Dealer, or write Service Department.
Shure Brothers Inc.

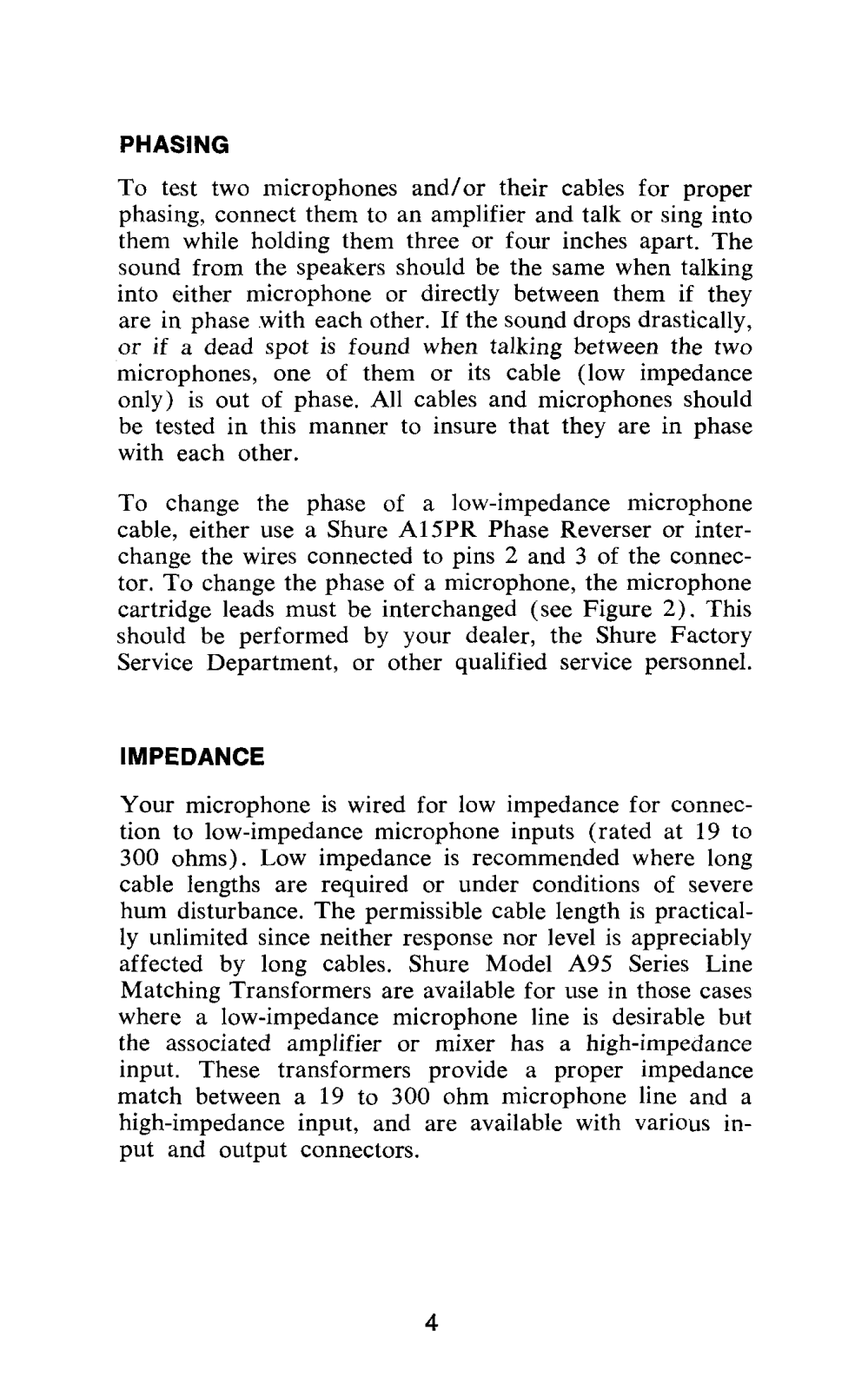

PHASING
To test two microphones andlor their cables for proper
phasing, connect them to an amplifier and talk or sing into
them while holding them three or four inches apart. The
sound from the speakers should be the same when talking
into either microphone or directly between them if they
are in phase with each other. If the sound drops drastically,
or if a dead spot is found when talking between the two
microphones, one of them or its cable (low impedance
only) is out of phase. All cables and microphones should
be tested in this manner to insure that they are in phase
with each other.
To change the phase of a low-impedance microphone
cable, either use a Shure
AISPR
Phase Reverser or interchange the wires connected to pins 2 and 3 of the connector. To change the phase of a microphone, the microphone
cartridge leads must be interchanged (see Figure 2). This
should be performed by your dealer, the Shure Factory
Service Department, or other qualified service personnel.
IMPEDANCE
Your microphone is wired for low impedance for connection to low-impedance microphone inputs (rated at
19
to
300 ohms). Low impedance is recommended where long
cable lengths are required or under conditions of severe
hum disturbance. The permissible cable length is practically unlimited since neither response nor level is appreciably
A95
affected by long cables. Shure Model
Series Line
Matching Transformers are available for use in those cases
where a low-impedance microphone line is desirable but
the associated amplifier or mixer has a high-impedance
input. These transformers provide a proper impedance
19
match between a
to 300 ohm microphone line and a
high-impedance input, and are available with various input and output connectors.

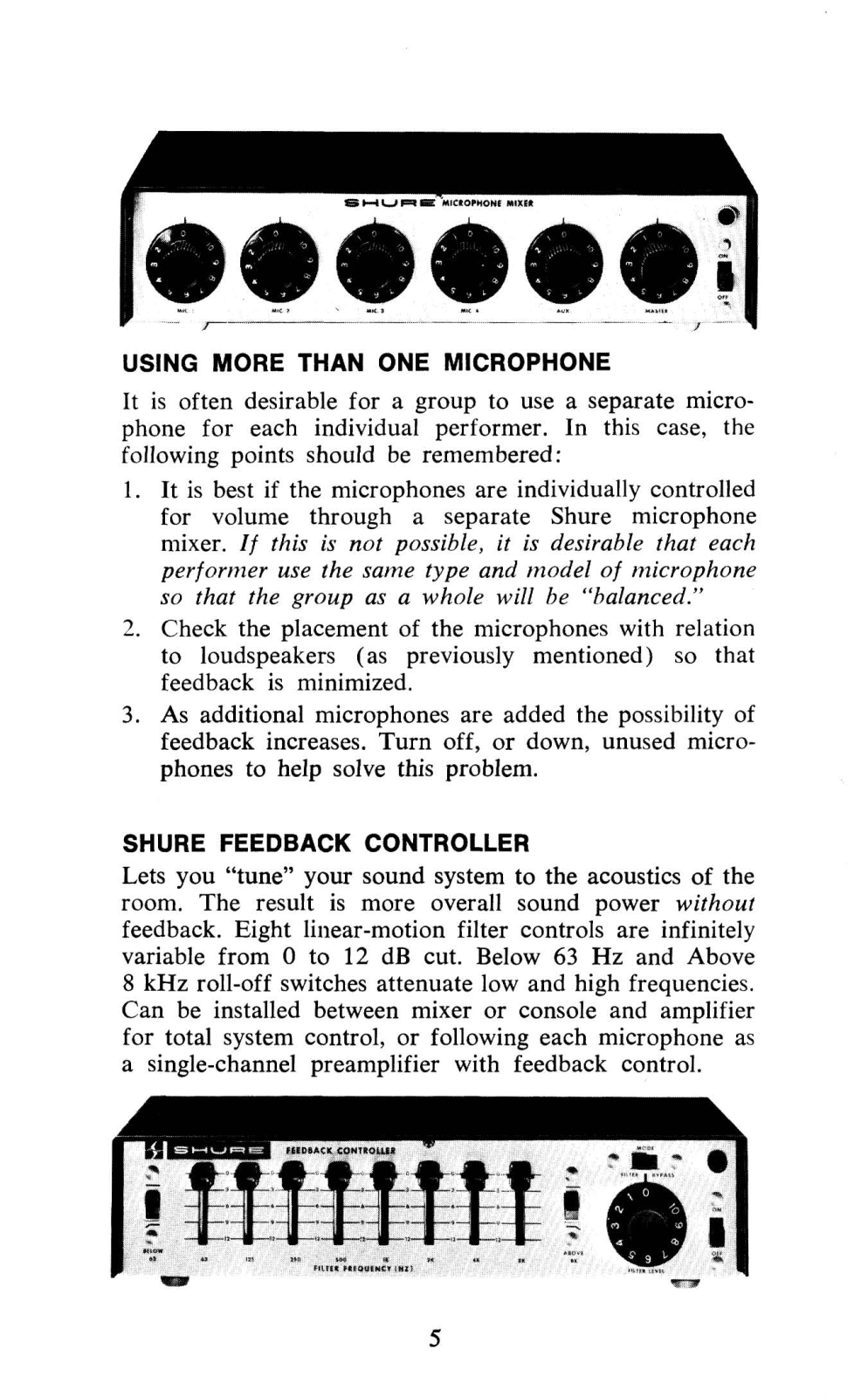

USING MORE THAN ONE MICROPHONE
It
is often desirable for a group to use a separate micro-
phone for each individual performer. In this case, the
following points should be remembered:
1.
It is best if the microphones are individually controlled
for volume through a separate Shure microphone
mixer.
If
this is not possible, it is desirable that each
performer use the sarne type and rnodel
so that the group as a whole wjil1
2.
Check the placement of the microphones with relation
of
he
"halanced."
microphone
to loudspeakers (as previously mentioned) so that
feedback is minimized.
3.
As additional microphones are added the possibility of
feedback increases. Turn off, or down, unused microphones to help solve this problem.
SHURE FEEDBACK CONTROLLER
Lets you "tune" your sound system to the acoustics of the
room. The result is more overall sound power
without
feedback. Eight linear-motion filter controls are infinitely
0
to
12
variable from
8
kHz roll-off switches attenuate low and high frequencies.
dB cut. Below
63
Hz
and Above
Can be installed between mixer or console and amplifier
for total system control, or following each microphone as
a single-channel preamplifier with feedback control.
THE VITAL LINK
BETWEEN
YOU
AND
THE AUDIENCE
SHURE PROFESSIONAL ENTERTAINER
MICROPHONES

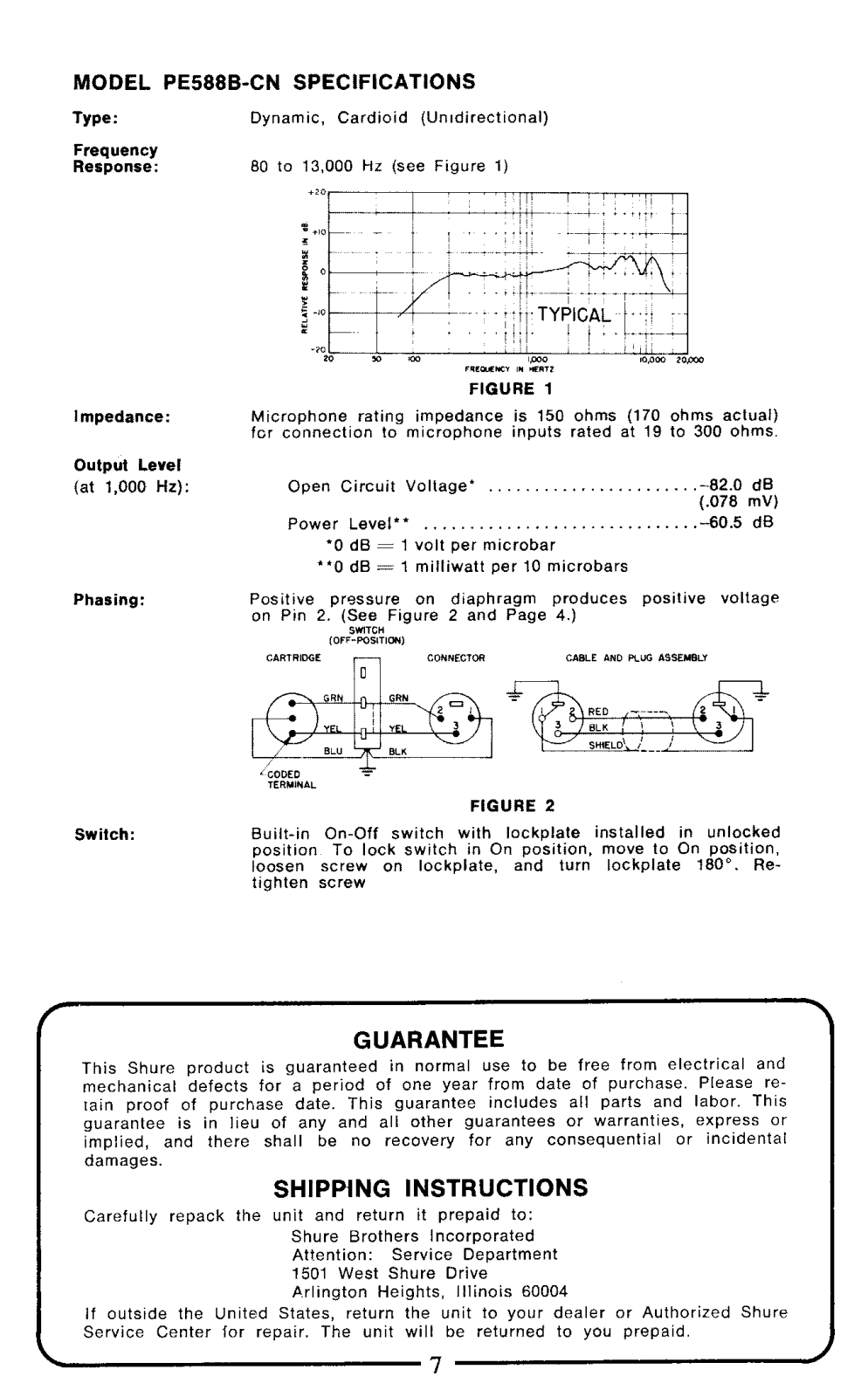

MODEL PE588B-CN SPECIFICATIONS
Type: Dynamlc, Cardloid (Unldirect~onal)
Frequency
Response.
Impedance:
Output Level
(at 1,000
Phasing: Posit~ve pressure on dtaphragm produces poslt~ve voltage
Hz).
80 to 13.000
Microphone
fcr
connection
on Pin
ChRTRIOGL
Hz
-20
:
Open Clrcutt Voltage* -82 0 dB
Power Level" -60 5 dB
(see F~gure
--
0
m
'0 dB = 1 volt per mlcrobar
"0 dB = 1 mllllwatt per 10 mlcrobars
2
lOTF-PO51TID11
I
am
ratlng Impedance
to
microphone
(See Flgure 2 and Page
SWTtlf
'
S.EOU*l
FIGURE
CONNECTOR
1)
"
ma
*
*In
!il""'l
,om.,
r
2-
1
IS
150 ohms (170 ohms actual)
Inputs rated at 19 to 300 ohms
4)
WSLE
AND
RUG
ASSEMSLY
(078
rnV)
n
Swilch:
'/CODED
TERMINAL
Built-in On-Off switch with lockplate installed in unlocked
position To lock
loosen screw on lockplate, and turn lockplate
t~ghten screw
+
FIGURE
2
swltch in On position, move to On position.
180'. Re-
GUARANTEE
This Shure product is guaranteed in normal use to be free from electrical and
mechanical defects for a period of one year from date of purchase. Please rerain proof of purchase date. This guarantee includes all parts and labor.
guarantee is in lleu of any and all other guarantees or warrant~es, express or
implied, and there shall be no recovery for any consequential or incidental
damages.
Thls
SHIPPiNG INSTRUCTIONS
Carefully repack the unit and return it prepaid to:
If
outside
Service Center lor repair. The unit will be returned to you prepaid.
the Unlted States, return the unit to your dealer or Authorized Shure
Shure Brothers Incorporated
Attention: Service Department
1501 West Shure Drive
Arlington Heights, Illinois 60004
7
\
J

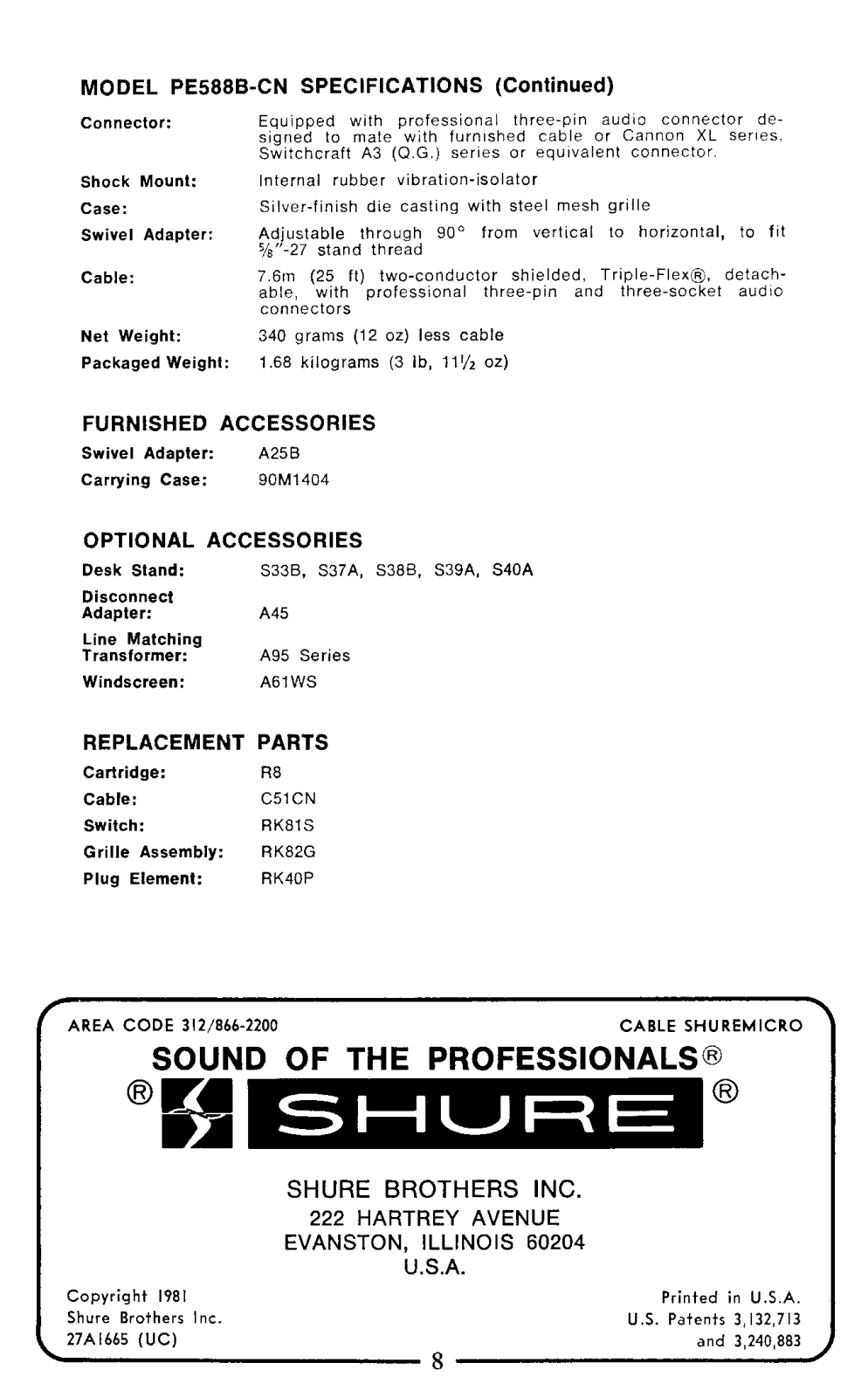

MODEL PE588B-CN SPECIFICATIONS (Continued)
Connector: Equipped wlth professional three-pin audio connector de-
Shock Mount: Internal rubber
Case:
Swivel Adapter: Adjustable through 90' from
Cable:
Net Weight:
Packaged Weight:
s~gned to mate with
Sw~tchcraft A3 (Q.G.) serles or equ~valent connector
S~lver-f~n~sh die castlng with steel mesh
5/B1'-27 stand thread
7.61n (25 ft) two-conductor shielded, Trlple-Flex@, detachable, wlth professional three-p~n and three-socket audio
connectors
340 grams (12
1.68 kilograms (3
furnished
vibrat~on-isolator
oz) less cable
Ib,
11%
oz)
cable or Cannon
grille
vertical
to horizontal, to f~t
XL
series.
FURNISHED ACCESSORIES
Swivel Adapter: A25B
Carrying Case: 90M1404
OPTIONAL ACCESSORIES
Desk Stand: S33B, S37A, 5388, S39A, S40A
Disconnect
Adapter: A45
Line Matching
Transformer: A95 Series
Windscreen: A61
WS
REPLACEMENT PARTS
Cartridge: R8
Cable:
Switch: RK81S
Grille Assembly: RK82G
Plug Element: RK40P
C5l
CN
AREA CODE 312,466-2200 CABLE SHUREMICRO
SOUND OF
H
-44
THE
PROFESSIONALS@
SHURE BROTHERS
B
INC.
8
222 HARTREY AVENUE
EVANSTON, ILLINOIS 60204
U.S.A.
Copyright 1981 Printed in U.S A.
Shure Brothers
27A1665 (UC) and 3,240,883
Inc.
U.S. Patents 3,132,713
8
