Shure PE53 User Manual

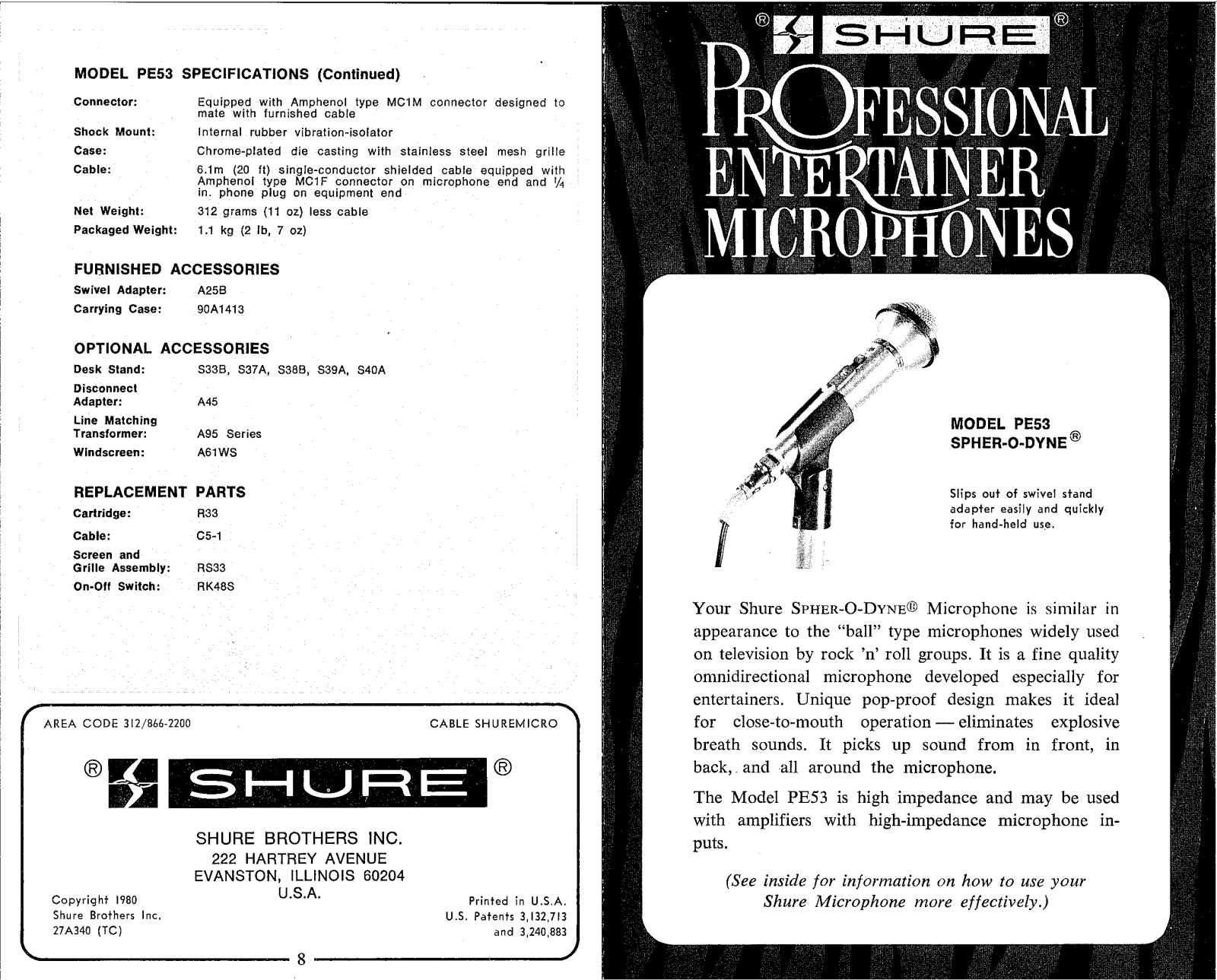

MODEL PE53 SPECIFICATIONS (Continued)
Connector: Equipped with Amphenol type MClM connector designed
Shock Mount: Internal rubber vibration-isolator
Case: Chrome-plated die casting with stainless steel mesh grille
Cable: 6.lm
Net Weight:
Packaged Weight:
mate with furnished cable
(20
ft)
Amphenol type MClF connector on microphone end and
in phone plug on equipment end
312 grams
1.1
kg
single-conductor shielded cable equipped wlth
(11
02)
Ib, 7
less cable
02)
(2
to
y4
FURNISHED ACCESSORIES
Swivel Adapter: A258
Carrying Case: 90A1413
OPTIONAL ACCESSORIES
Desk Stand: S33B, S37A, 5388, S39A, S40A
Disconnect
Adapter: A45
Line Matching
Transformer: A95 Series
Windscreen: A61WS
MODEL
PE53
SPHER-0-DYNE
@
REPLACEMENT PARTS
Cartridge: R33
Cable:
Screen and
Grille Assembly: RS33
On-Off Switch:
7
AREA CODE
312/866-2200
8
Copyright
Shure Brothers
27A340 (TC) and 3,240,883
c
1980
C5-1
RK48S
SHURE BROTHERS
222
EVANSTON, ILLINOIS
Inc.
INC.
HARTREY AVENUE
60204
U.S.A.
8
CABLE SHUREMICRO
8
Printed
US.
Patents 3,132,713
in
U.S.A.
Slips out
of
swivel stand
Your Shure
SPHER-0-DYNE@
Microphone
adapter easily and
for hand-held use.
is
similar
quickly
in
appearance to the “ball” type microphones widely used
’n’
roll
on television by rock
groups. It is a fine quality
omnidirectional microphone developed especially for
it
7
entertainers. Unique pop-proof design makes
for
close-to-mouth operation - eliminates explosive
ideal
breath sounds. It picks up sound from in front, in
back, and all around the microphone.
The Model
PE53
is high impedance and may be used
with amplifiers with high-impedance microphone inputs.
(See inside for information
on
how to use your
Shure Microphone more effectively.)

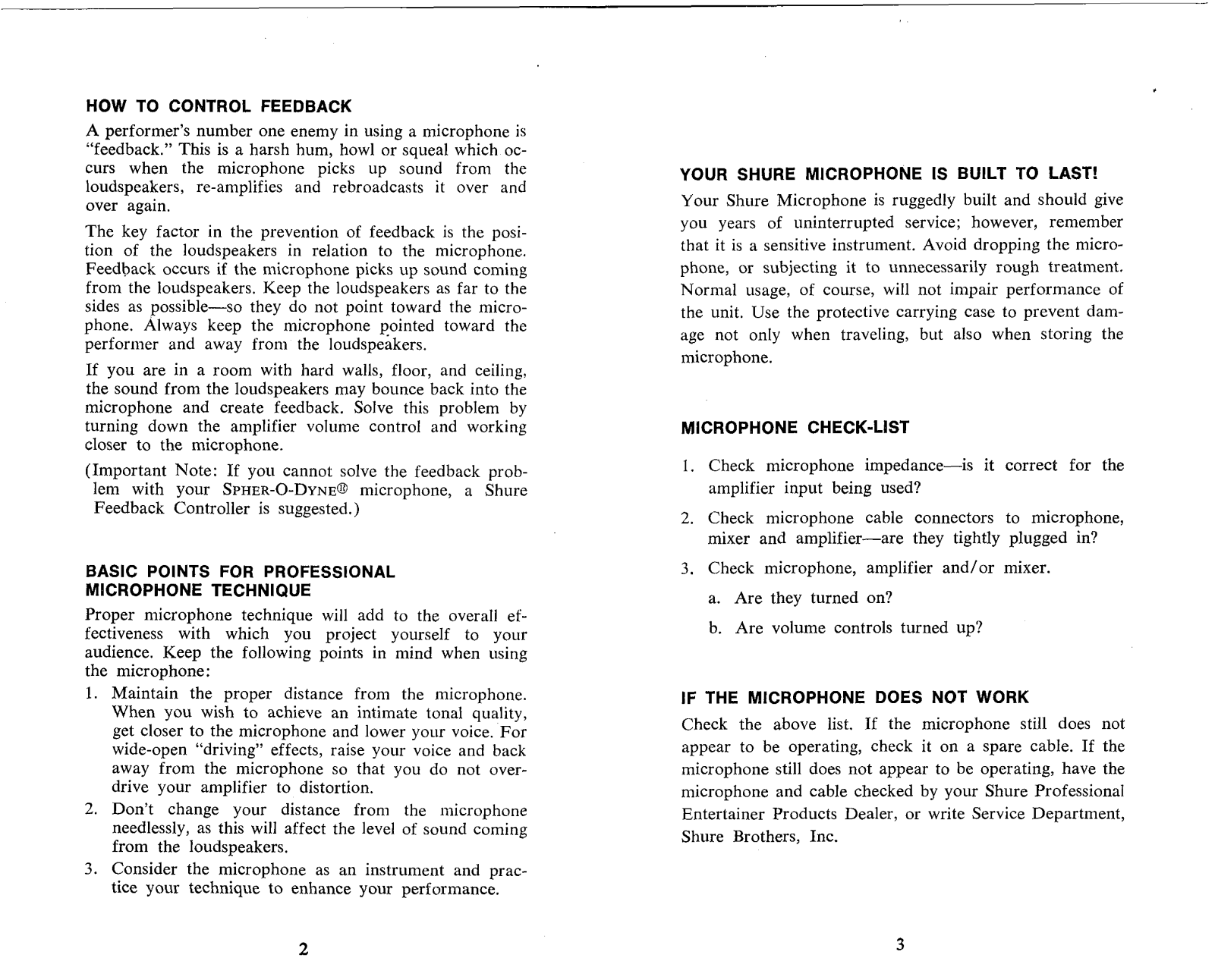

HOW TO CONTROL FEEDBACK
A performer’s number one enemy in using a microphone is
“feedback.” This is
a
harsh hum, howl or squeal which oc-
curs when the microphone picks up sound from the
it
loudspeakers, re-amplifies and rebroadcasts
over and
over again.
The key factor in the prevention of feedback is the posi-
tion of the loudspeakers
in
relation to the microphone.
Feedback occurs if the microphone picks up sound coming
from the loudspeakers. Keep the loudspeakers
as
far to the
sides as possible-so they do not point toward the micro-
phone. Always keep the microphone pointed toward the
performer and away from the loudspeakers.
If you are in
a
room with hard walls, floor, and ceiling,
the sound from the loudspeakers may bounce back into the
microphone and create feedback. Solve this problem by
turning down the amplifier volume control and working
closer to the microphone.
If
(Important Note:
lem with your
you cannot solve the feedback prob-
SPHER-0-DYNE@
microphone, a Shure
Feedback Controller is suggested.)
BASIC POINTS FOR PROFESSIONAL
MICROPHONE TECHNIQUE
Proper microphone technique will add to the overall effectiveness with which you project yourself to your
audience. Keep the following points in mind when using
the microphone:
1.
Maintain the proper distance from the microphone.
When you wish to achieve an intimate tonal quality,
get closer to the microphone and lower your voice. For
wide-open “driving” effects, raise your voice and back
so
away from the microphone
that you do not over-
drive your amplifier to distortion.
2.
Don’t change your distance from the microphone
needlessly,
as
this will affect the level of sound coming
from the loudspeakers.
3.
Consider the microphone
as
an instrument and prac-
tice your technique to enhance your performance.
YOUR SHURE MICROPHONE
IS
BUILT TO LAST!
Your Shure Microphone is ruggedly built and should give
you years
that it is
of uninterrupted service; however, remember
a
sensitive instrument. Avoid dropping the microphone, or subjecting it to unnecessarily rough treatment.
Normal usage, of course, will not impair performance of
the unit. Use the protective carrying case to prevent dam-
also
age not only when traveling, but
when storing the
microphone.
MICROPHONE CHECK-LIST
1.
Check microphone impedance-is it correct for the
amplifier input being used?
2.
Check microphone cable connectors to microphone,
mixer and amplifier-are they tightly plugged in?
3.
Check microphone, amplifier and/or mixer.
a. Are they turned on?
b. Are volume controls turned up?
IF THE MICROPHONE DOES NOT WORK
Check the above list. If the microphone still does not
it
appear to be operating, check
on a spare cable. If the
microphone still does not appear to be operating, have the
microphone and cable checked by your Shure Professional
Entertainer Products Dealer, or write Service Department,
Shure Brothers, Inc.
