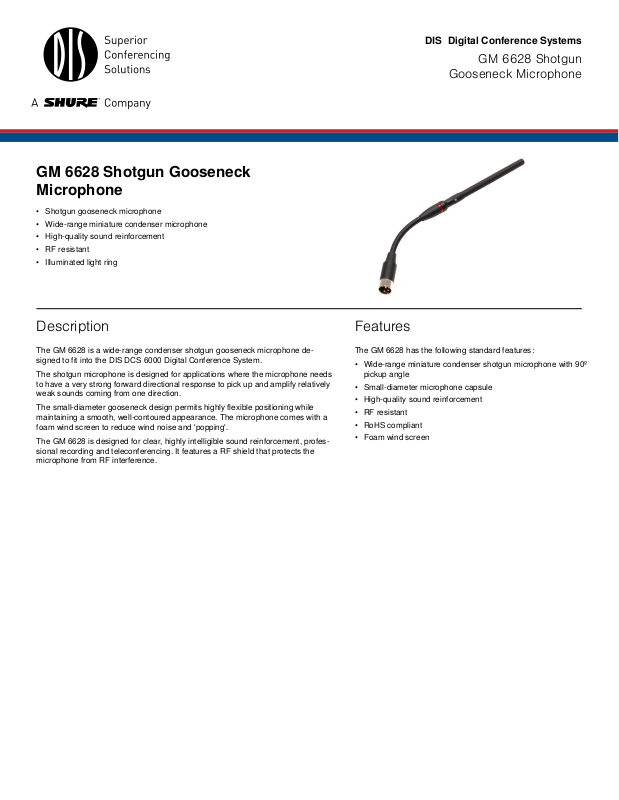

Shure GM 6628 Specification Sheet

GM 6628 Shotgun Gooseneck Microphone

• Shotgun gooseneck microphone

• Wide-range miniature condenser microphone

• High-quality sound reinforcement

• RF resistant

• Illuminated light ring

DIS Digital Conference Systems

GM 6628 Shotgun

Gooseneck Microphone

Description

The GM 6628 is a wide-range condenser shotgun gooseneck microphone designed to fit into the DIS DCS 6000 Digital Conference System.

The shotgun microphone is designed for applications where the microphone needs to have a very strong forward directional response to pick up and amplify relatively weak sounds coming from one direction.

The small-diameter gooseneck design permits highly flexible positioning while maintaining a smooth, well-contoured appearance. The microphone comes with a foam wind screen to reduce wind noise and 'popping'.

The GM 6628 is designed for clear, highly intelligible sound reinforcement, professional recording and teleconferencing. It features a RF shield that protects the microphone from RF interference.

Features

The GM 6628 has the following standard features:

• Wide-range miniature condenser shotgun microphone with 90º pickup angle

• Small-diameter microphone capsule

• High-quality sound reinforcement

• RF resistant

• RoHS compliant

• Foam wind screen

Specifications

How To Order

Electrical

Transducer type

Polar pattern Hypercardioid

Frequency response 30 Hz - 20 kHz

Sensitivity -35 dB (17.7 mV), 1 V at 1 Pa

Maximum input sound level 133 dB SPL, 1 kHz at 1% THD

Impedance 250 ohms

Signal-to-noise ratio 70 dB, 1 kHz at 1 Pa

Dynamic range

Permanently polarized condenser

109 dB, 1 kHz at maximum SPL

Connectors

Connector type 3-pin male XLR

Mechanical

Dimensions (length) 294.5 mm

Weight 108 g

Color Black

Microphone unit

Shotgun microphone with LED indicator

(incl. foam wind screen)

DRAWING

GM 6628

Certifications

The DCS 6000 system conforms to IEC 60914 standard.
