Shure GLXD124R+/85 Digital-Funksystem Kombi User Manual [EN]

Download
GLXD4R+
Wireless Receiver
Online user guide for GLXD4R+ wireless system. Includes setup instructions, specifications, and more.
Version: 1.1 (2023-B)

Table of Contents

Shure Incorporated
Linking Two Transmitters to a Receiver 15
Identifying Linked Transmitters and Receivers with Re
mote ID 15
Multiple Receiver Systems 16
Receiver Band Modes 16
Gain Adjustment 17
Locking and Unlocking the Controls 17
Locking the Receiver Controls 17
Locking the Transmitter Controls 17
Receiver Display Brightness 17
Firmware 18
Resetting Components 18
Resetting the Receiver 18
Resetting the Transmitter 18
Troubleshooting 18
Accessories 20
Specifications 21
Diagrams 26
Frequency Tables 27
IMPORTANT SAFETY INSTRUCTIONS 34
WARNING 35
Note: 35
Information to the user 36
Certifications 36
2/39
Shure Incorporated

GLXD4R+ Wireless Receiver

System Overview

GLX-D+ Dual Band Digital Wireless offers confidence without complexity. Dual-band operation in 2.4 and 5.8 GHz more than
doubles the available bandwidth to avoid interference without audio interruption. The receiver is compatible with a selection of
lavalier, headset, and vocal microphones. The included lithium-ion battery offers up to 12 hours of runtime, and can be charged
directly on the receiver or via USBC. Rackmount receivers can be combined with the GLXD+ Frequency Manager and direc
tional antennas (both sold separately) for installations where a larger number of channels are needed.

Features

•
Exceptional digital audio clarity
•
Compatible with multiple legendary microphone options
•
Automatically moves away from interference without audio interruption
•
Operates in 2.4 and 5.8 GHz spectrum*
•
Rechargeable battery delivers up to 12 hours of runtime
•
Rock-solid RF performance for multiple system installations
•
License-free frequency range
Note: region dependent

Receiver

3/39
Shure Incorporated
① RF status LED
◦
ON = Linked transmitter is on
◦
Flashing = Searching for transmitter
◦
OFF = Linked transmitter off or transmitter unlinked
② Group button
Press and hold for two seconds to enable manual group edit.
③ Data sync LED
◦
ON = Data sync is on (receiver connected to GLX-D+ frequency manager)
◦
Flashing = Searching for frequencies
◦
OFF = Data sync is off (receiver not connected to GLX-D+ frequency manager)
④ Link button
Press to manually link receiver to a transmitter or to activate the remote ID function.
⑤ Channel button
Press to start a channel scan.
⑥ Display
Shows receiver and transmitter status.
4/39
⑦ Gain buttons
Press to increase or decrease transmitter gain in 1 dB increments.
⑧ Battery charging indicator
Illuminates when battery is in charging bay:
◦
Red = Battery charging
◦
Green Flashing = Battery charge at 90%
◦
Green = Battery charged
◦
Amber Flashing = Charging error, replace battery
⑨ Battery charging bay
Charges transmitter battery.
⑩ Power button
Powers the unit on and off.
Shure Incorporated
⑪ Antenna
Two antennas per receiver. Antennas pick up the signal from the transmitter.
⑫ Power supply port
Connect the supplied 15 V DC external power supply.
⑬ USB-C port
Connect to computer to download firmware updates.
⑭ Mic/Line switch
Sets XLR output level to microphone or line level.
⑮ XLR audio output
Supplies microphone-level or line-level audio output.
⑯ Inst/Aux output
TRS ¼" (6.35mm) audio output. Connect to mixers, recorders, and amplifiers.

Receiver Screen

5/39
① Group
Displays the selected group.
② Channel
Displays the selected channel.
③ Transmitter battery runtime
Displays remaining battery life in hours and minutes.
Alternatively displays the following battery status:
◦
CALC = Battery life calculation
◦
Lo = Battery life less than 15 minutes
◦
Err = Replace battery
④ Audio meter
Indicates audio signal level and peaks.
Shure Incorporated
⑤ Gain
Displays transmitter gain settings (dB).
⑥ OL indicator
Indicates audio overload, reduce gain.
⑦ Transmitter locked
Displayed when linked transmitter controls are locked.
⑧ Scanning
Indicates a scan is in progress.
⑨ Auto
Indicates that the selected group has backup channels available.

Set Up the Receiver

1.
Attach the included antennas to the back of the receiver.
2.
Connect the PS43 power supply to the receiver and plug the cord into an AC power source.
3.
Connect the audio output to an amplifier or mixer.
6/39
Shure Incorporated

Transmitters

7/39
① Antenna
Carries wireless signal.
② Status LED
LED color and state indicate transmitter status.
③ Power switch
Turns the transmitter on/off.
④ TA4M input port
Connects to a 4-Pin mini connector (TA4F) microphone or instrument cable.
⑤ USB-C charging port
Connect to USB battery charger.
⑥ Link button
Shure Incorporated
◦
Press and hold within 5 seconds of power-on to manually link with receiver.
◦
Press momentarily to activate remote ID function.
⑦ Battery compartment
Holds 1 Shure rechargeable battery.
⑧ Microphone cartridge
GLXD2+ transmitter models are available with the following cartridge types: SM58, Beta 58, Beta 87A.

Transmitter Status LED

LED is green during normal operation.
LED color or flashing indicates a change in transmitter status as shown in the following table:
Color State Description
Flashing (slow) Transmitter attempting relink with receiver
Green
Red
Flashing (fast) Unlinked transmitter searching for receiver
Flashes 3 times Indicates locked transmitter when power switch is pressed
On Battery life < 1 hour
Flashing Battery life < 30 minutes
Red/Green Flashing Remote ID active
Amber Flashing Battery error; remove and insert again, or replace battery

Wearing the Bodypack

Clip the bodypack to a belt or slide a guitar strap through the bodypack clip as shown.
For best results, the belt should be pressed against the base of the clip.
8/39
Shure Incorporated

Wearing the Headworn Microphone

•
Position the headworn microphone 13 mm (1/2 in.) from the corner of your mouth.
•
Position lavalier and headworn microphones so that clothing, jewelry, or other items do not bump or rub against the micro
phone.

Correct Microphone Placement

•
Hold the microphone within 12 inches from the sound source.
•
For a warmer sound with increased bass presence, move the microphone closer to the sound source.
•
Do not cover grille with hand.

Install Transmitter Batteries

Important: Always fully charge a new battery before first use.
Bodypack:
1.
Move the locking lever to the open position and slide the battery door open.
2.
Place the battery into the transmitter.
3.
Close the battery door.
9/39
Handheld:
1.
Unscrew and remove the battery cover.
2.
Place the battery into the transmitter.
3.
Replace and tighten the battery cover.
Shure Incorporated

Batteries and Charging

GLX-D+ transmitters are powered by Shure SB904 lithium-ion rechargeable batteries. Advanced battery chemistry maximizes
runtimes with zero memory effects, eliminating the need to discharge batteries prior to charging.
When not in use, recommended battery storage temperature is 10°C (50°F) to 25°C (77°F).
Note: The transmitter will not pass RF or audio signals when connected to the charging cable.
The following battery charging options are available:

Receiver Charging Bay

The receiver's built-in charging bay will charge transmitter batteries when the receiver is plugged in to a power outlet.
1.
Insert the battery into the charging bay.
2.
Monitor the battery charging indicator on the front panel.
10/39

Charging from an AC Power Source

1.
Plug the charging cable into the charging port on the transmitter.
2.
Plug the charging cable into an AC power source.
Shure Incorporated

Charging Status LEDs

LED Color Description
Green (solid) Device is fully charged
Red (solid) Charging
Amber (flashing) Out of temperature range, or battery error
Off Power supply is disconnected, or no device is docked in the charging bay

Charging Times and Transmitter Runtimes

Use the following table to determine approximate battery runtime based on the duration of charging time when in 5.8 GHz
mode. Times shown are in hours and minutes. Transmitters automatically poweroff after approximately 1 hour to conserve bat
tery life if the signal from a linked receiver is not detected.
Receiver Bay or AC Power Source Charging Transmitter Runtime
0:15 up to 1:30
0:30 up to 3:00
1:00 up to 6:00
3:00 up to 11:30*
*Storage time or excessive heat will reduce maximum runtime.
11/39
Shure Incorporated
Note: If receiver is powered off and remains plugged in, battery will continue charging.

Important Tips for Care and Storage of Shure Rechargeable Batteries

Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime.
•
Always store batteries and transmitters at room temperature
•
Ideally, batteries should be charged to approximately 40% of capacity for long-term storage
•
During storage, check batteries every 6 months and recharge to 40% of capacity as needed

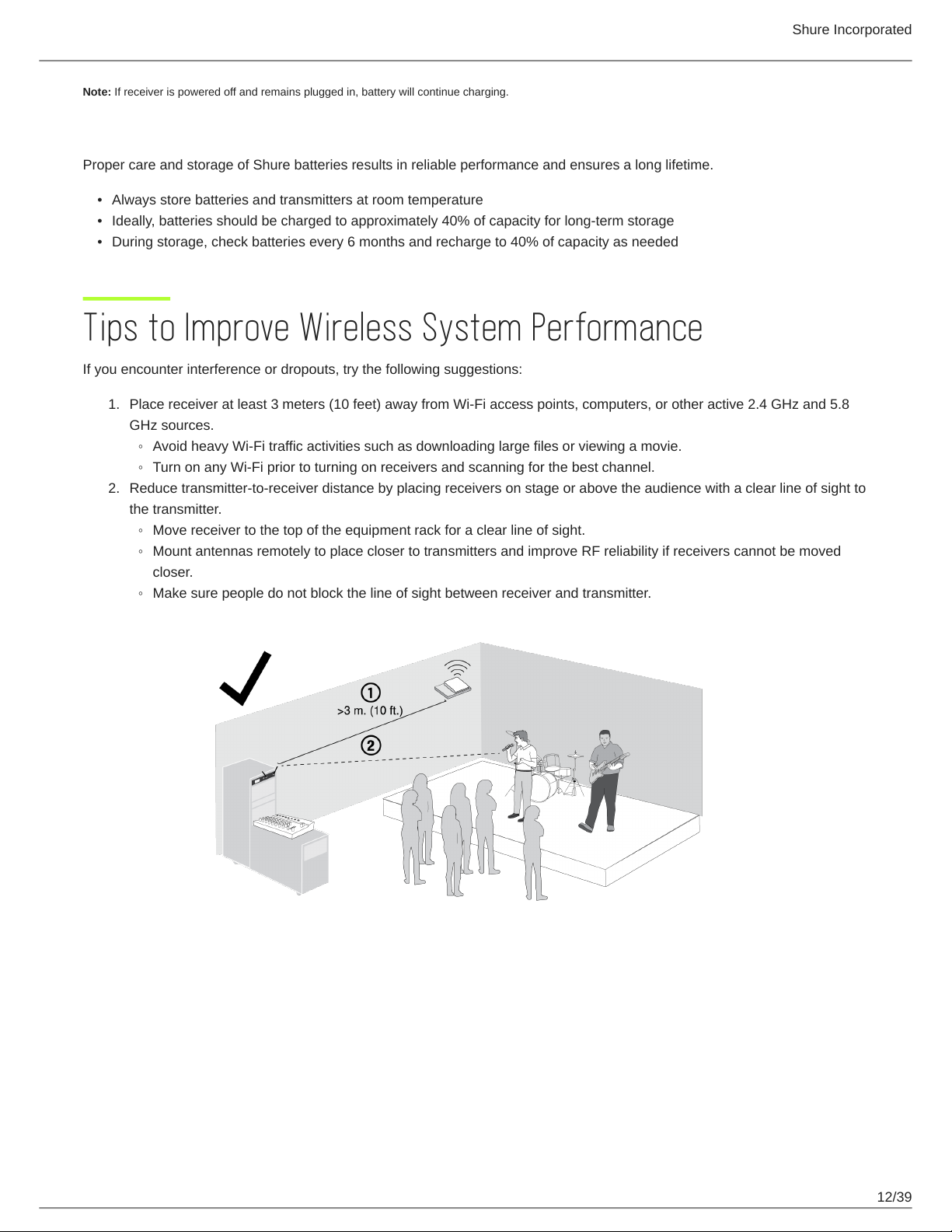

Tips to Improve Wireless System Performance

If you encounter interference or dropouts, try the following suggestions:
1.
Place receiver at least 3 meters (10 feet) away from Wi-Fi access points, computers, or other active 2.4 GHz and 5.8
GHz sources.
◦
Avoid heavy Wi-Fi traffic activities such as downloading large files or viewing a movie.
◦
Turn on any Wi-Fi prior to turning on receivers and scanning for the best channel.
2.
Reduce transmitter-to-receiver distance by placing receivers on stage or above the audience with a clear line of sight to
the transmitter.
◦
Move receiver to the top of the equipment rack for a clear line of sight.
◦
Mount antennas remotely to place closer to transmitters and improve RF reliability if receivers cannot be moved
closer.
◦
Make sure people do not block the line of sight between receiver and transmitter.
12/39

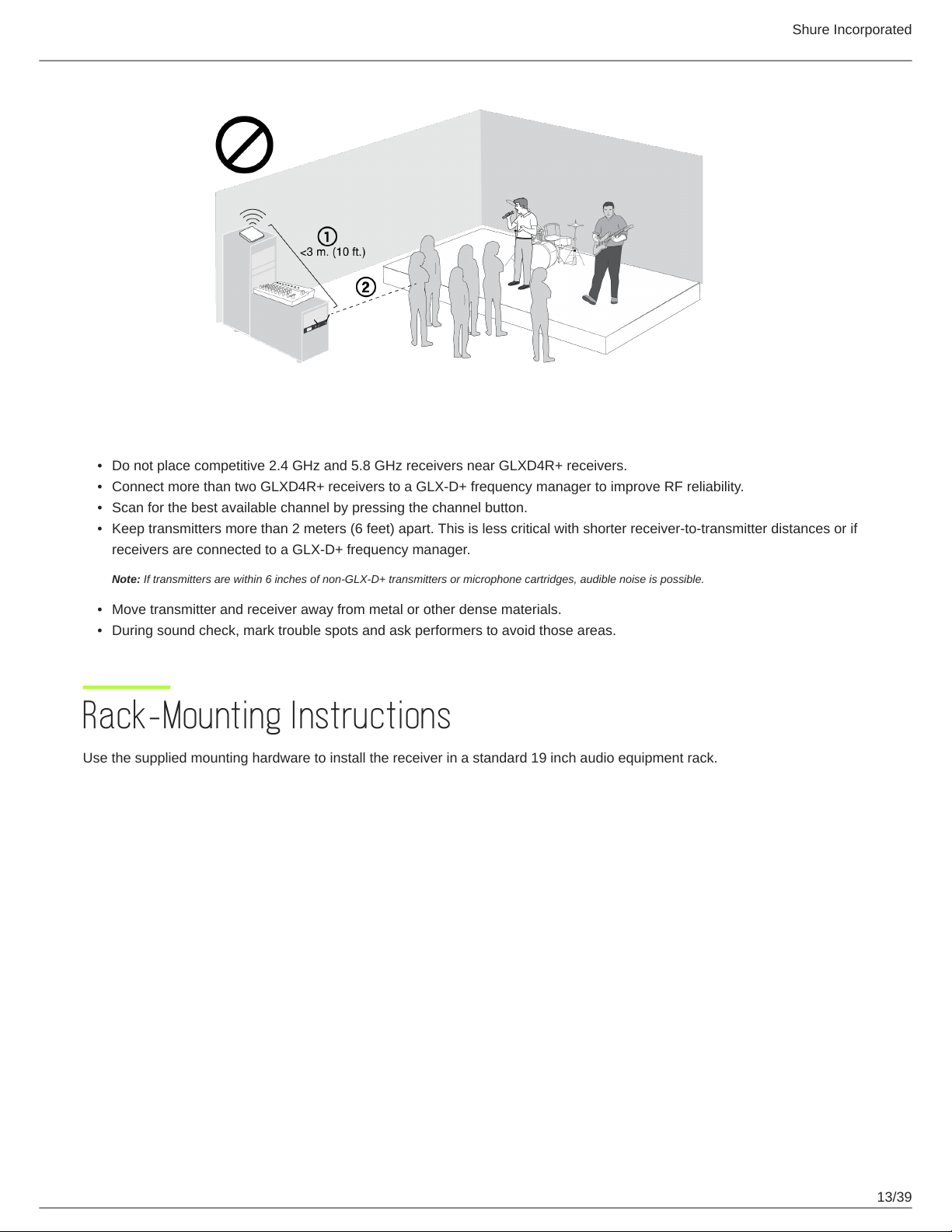

Additional Tips

•
Do not place competitive 2.4 GHz and 5.8 GHz receivers near GLXD4R+ receivers.
•
Connect more than two GLXD4R+ receivers to a GLX-D+ frequency manager to improve RF reliability.
•
Scan for the best available channel by pressing the channel button.
•
Keep transmitters more than 2 meters (6 feet) apart. This is less critical with shorter receiver-to-transmitter distances or if
receivers are connected to a GLX-D+ frequency manager.
Shure Incorporated
Note: If transmitters are within 6 inches of non-GLX-D+ transmitters or microphone cartridges, audible noise is possible.
•
Move transmitter and receiver away from metal or other dense materials.
•
During sound check, mark trouble spots and ask performers to avoid those areas.

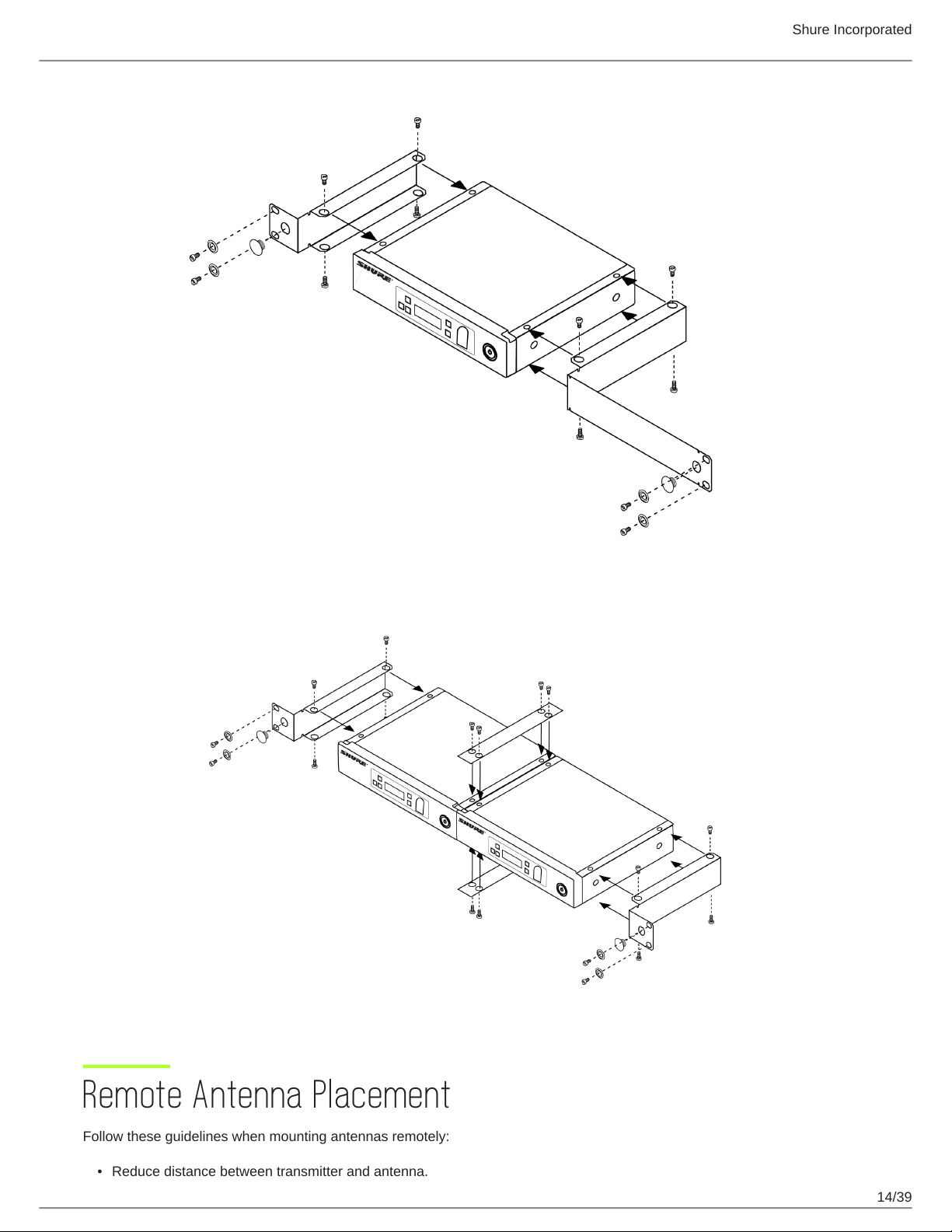

Rack-Mounting Instructions

Use the supplied mounting hardware to install the receiver in a standard 19 inch audio equipment rack.
13/39
Shure Incorporated

Remote Antenna Placement

Follow these guidelines when mounting antennas remotely:
•
Reduce distance between transmitter and antenna.
14/39
Shure Incorporated
•
Mount antennas farther from each other to improve performance.
•
Position antennas so there is nothing obstructing the line of sight to the transmitter, including the audience.
•
Keep antennas away from metal objects and any other antennas.
•
Use only low-loss reverse SMA cable to avoid poor RF signal.
◦
Consult cable's specifications and calculate signal loss for desired cable run.
•
Use one continuous length of cable from the antenna to the receiver to increase signal reliability.
•
Always perform a walkaround test to verify coverage before using a wireless system during a speech or performance. Ex
periment with antenna placement to find the optimum location. If necessary, mark any trouble spots and ask presenters or
performers to avoid those areas.

System Set Up

Important: Before beginning, turn off all receivers and transmitters. Turn on and link each receiver/transmitter pair one at a
time to prevent cross-linking.
1.
Turn on a receiver.
2.
Press and hold the group button to select a group (if necessary). If the group is already set, press the channel button to
scan for the best available channel.
3.
Turn on a transmitter. The blue RF LED will flash while the transmitter and receiver form a link. When the link has suc
cessfully formed, the RF LED will remain illuminated. The transmitter and receiver will remain linked for future usage.
Repeat steps 1-3 for each additional receiver and transmitter. Remember to set each receiver to the same group.
Note: Dashes appearing on the group and channel display after a channel selection indicate that frequencies are not available in the selected group. Choose a
group that supports more receivers and repeat the linking steps.

Manually Linking Receivers and Transmitters

1.
Turn on a transmitter.
2.
Press and hold the link button on the transmitter until the LED begins to flash green.
3.
Press and hold the link button on the receiver. The blue RF LED will flash and then remain illuminated when the link
has been established.
4.
Test the audio to verify the link.

Linking Two Transmitters to a Receiver

Only one transmitter can be active at a time to prevent cross interference. Gain settings for each transmitter can be indepen
dently set and stored when the transmitter is active.
Important! Do not turn on and operate both linked transmitters at any time. Turn off both transmitters before beginning.
1.
Press the group button to select a group. The receiver automatically scans the selected group to find the best available
channel.
2.
Turn on transmitter 1 and link it to the receiver. Adjust the gain, and then turn off the transmitter.
3.
Turn on transmitter 2 and press and hold the link button on the transmitter and the receiver to link them together. Adjust
the gain, and then turn off the transmitter.

Identifying Linked Transmitters and Receivers with Remote ID

Use the remote ID feature to identify linked transmitter and receiver pairs in multiple receiver systems.
To activate remote ID:
1.
Momentarily press the link button on the transmitter or receiver.
15/39
Shure Incorporated
2.
The screen of the linked receiver will blink and display ID, while the status LED on the linked transmitter will flash red/
green.
3.
To exit remote ID mode, momentarily press the link button or allow the function to timeout.

Multiple Receiver Systems

To run more than two receivers at the same time, the GLX-D+ frequency manager is recommended to improve RF reliability
(only compatible with GLXD4R+).
However, you can run multiple receivers without the frequency manager. Select the group by determining the total number of
receivers in your system. All receivers in the system must be set to the same group.

2.4 GHz and 5.8 GHz bands:

Group Number of Receivers Description
1 2 - 5 typical Default setting
2 2 - 5 typical Best multi-channel group if you experience interference
3 1 Best single-channel group if you experience interference
A*
B* Best multi-channel group if you experience interference
Up to 11 typical, 16 maxi
mum
Default setting

2.4 GHz bands only:

Group Number of Receivers Description
1 2 - 4 typical Default setting
2 2 - 4 typical Best multi-channel group if you experience interference
3 2 - 4 typical, 8 maximum
4 1 Best single-channel group if you experience interference
A*
B* Best multi-channel group if you experience interference
*Groups A and B are only for systems with a GLXD4R+ and GLXD+ frequency manager.
See Tips to Improve Wireless System Performance for additional information. See the GLXD+FM user guide for information
about receiver groups when connected to the GLX-D+ frequency manager.
Up to 9 typical, 11 maxi
mum
Only use Group 3 in controlled WiFi environments because there are no back
up frequencies to avoid interference
Default setting

Receiver Band Modes

There are 3 band modes available for GLXD+ receivers.* The band mode options are:
•
2.4 GHz-only mode
•
5.8 GHz-only mode
16/39
Shure Incorporated
•
Best band mode – 2.4 and 5.8 GHz (default)
Note: region dependent
To change the band mode:
1.
Press and hold the channel button while powering on the receiver. Continue to hold the channel button for approximate
ly 5 seconds until the band selection menu opens.
2.
Press the up/down gain button to select a band mode. The screen will flash momentarily and scan for the best channel
to use.
Note: Linked receivers and transmitters must be able to operate in the same band. Transmitters that don’t support the selected band mode will unlink from the
receiver.

Gain Adjustment

Momentarily press the gain buttons on the receiver to adjust the gain of a linked transmitter in 1 dB increments. For faster gain
adjustments, press and hold the gain buttons.
Tip: Monitor the audio and observe the receiver audio meter level while adjusting the gain to prevent signal overload.

Locking and Unlocking the Controls

The controls of the receiver and transmitter can be locked to prevent unauthorized setting changes or poweroff. The lock sta
tus is not changed by power cycles.

Locking the Receiver Controls

Simultaneously press and hold the group and channel buttons until LK appears on the screen. Repeat to unlock.
•
LK is displayed if a locked control is pressed
•
UN is displayed momentarily to confirm the unlock command

Locking the Transmitter Controls

To lock directly from the transmitter:
Start with the transmitter off, then press and hold the link button while turning on the transmitter. Release the link button when
the transmitter powers on to prevent an accidental factory reset. The lock icon appears on the receiver screen when locked.
Repeat sequence to unlock.
To lock from the receiver front panel:
Simultaneously press and hold the group and link buttons for approximately 2 seconds until the flashing lock icon appears on
the receiver screen. Repeat sequence to unlock.
Note: The transmitter status LED will flash if a locked switch is set to the off position.
17/39
Shure Incorporated

Receiver Display Brightness

To adjust the receiver display brightness, press and hold the group button and any gain button simultaneously. Use the gain
buttons to set the brightness of the display to low, medium, or high.
•
Low = Br 1
•
Medium = Br 2
•
High = Br 3

Firmware

New versions of the firmware can be uploaded and installed using the Shure Update Utility tool.
Download Shure Update Utility from shure.com
To update your firmware, connect the device to your computer using a USB-C cable and open the Shure Update Utility.

Resetting Components

Use the reset function if it is necessary to restore the transmitter or receiver to their factory settings.

Resetting the Receiver

Restores the receiver to the following factory settings:
•
Gain level = default
•
Controls = unlocked
Press and hold the link button while turning on the receiver power until the display shows RE.
Note: When reset is complete, the receiver will automatically initiate linking to search for a transmitter. Press and hold the transmitter link button within five
seconds of powering-on to complete the link.

Resetting the Transmitter

Restores the transmitter to the following factory settings:
•
Controls = unlocked
Press and hold the transmitter link button while turning on the transmitter until power LED turns off.
When the link button is released, the transmitter will automatically initiate linking to find an available receiver. Press the link but
ton on an available receiver to relink.

Troubleshooting

Issue
No sound or faint sound
Indicator Sta
tus
Receiver RF
LED on
Solution
Verify all sound system connections or adjust gain as needed.
18/39
Shure Incorporated
Issue
Indicator Sta
tus
Receiver RF
LED off
Receiver dis
play off
Transmitter in
dicator LED
flashing red
Transmitter
plugged into
charger.
Solution
Verify that the receiver is connected to mixer/amplifier.
Turn on transmitter.
Make sure the batteries are installed correctly.
Link transmitter and receiver.
Charge or change transmitter battery.
Make sure AC adapter is securely plugged into electrical outlet.
Make sure receiver is powered on.
Charge or change transmitter battery.
Disconnect transmitter from charger.
Audio artifacts or dropouts
Distortion
Transmitter and receiver link
unsuccessful
RF LED flicker
ing or off
OL indicator ap
pears on receiv
er display
Transmitter and
receiver LEDs
flash to indicate
that linking start
ed, but the link
fails
Change receiver and transmitter to a different group and/or channel.
Identify nearby sources of interference (cell phones, Wi-Fi access
points, signal processor, etc.) and shut down or remove source.
Charge or change transmitter battery.
Ensure that receiver and transmitter are positioned within system
parameters.
System must be set up within recommended range and receiver
kept away from metallic surfaces.
Transmitter must be used in line of sight from receiver for optimal
sound.
Reduce transmitter gain.
Update both components to the latest firmware version.
Sound level variations when
switching to different sources
Receiver/transmitter won't turn
off
N/A Adjust transmitter gain as necessary.
Transmitter LED
flashing rapidly
Controls locked.
19/39
Shure Incorporated
Issue
Receiver gain control cannot
be adjusted
Receiver controls cannot be
adjusted
Transmitter ID function does
not respond
Transmitter information does
not appear on the receiver dis
play
Transmitter powers off after 1
hour
Second frequency manager
does not send RF signal to re
ceivers
Indicator Sta
tus
N/A Check transmitter. Transmitter must be on to enable gain changes.
LK shown on re
ceiver display
when buttons
are pressed
Transmitter LED
flashes green 3
times
N/A Linked transmitter is off or the receiver is not linked to a transmitter.
Transmitter sta
tus LED off
Data sync LED
off
Solution
Controls locked.
Controls locked.
Transmitters automatically turn off after 1 hour to conserve battery
life if the signal from a linked receiver is not detected. Make sure that
linked receiver is turned on.
Verify that antenna A and antenna B ports on second frequency
manager are connected to cascade A and cascade B ports on first
frequency manager.
Move system away from other 2.4 GHz and 5.8 GHz sources such
RF interference while connect
ed to frequency manager
Receiver display
flashes  
as Wi-Fi access points or computers. If using directional antennas,
place interference sources behind antennas in the null to minimize
interference. Place receivers or directional antennas closer to trans
mitters.

Accessories

Frequency Manager GLXD+FM
Passive Directional Antenna PA805DB-RSMA
Reverse SMA Passive Antenna Splitter UA221DB-RSMA
Remote Antenna Mounting Bracket Kit UA505-RSMA
1/2 Wave Antenna, 45 deg. UA8-2.4-5.8GHZ
0.6 m (2 ft.) Reverse SMA Cable UA802-RSMA
1.8 m (6 ft.) Reverse SMA Cable UA806-RSMA
7.6 m (25 ft.) Reverse SMA Cable UA825-RSMA
15.2 m (50 ft.) Reverse SMA Cable UA850-RSMA
20/39
30.4 m (100 ft.) Reverse SMA Cable UA8100-RSMA
Reverse SMA Bulkhead Adapters, lockwasher, nut 95A32436
Shure Incorporated
Cable, Instrument, 2.5 foot (.75 m), 4 Pin Mini Connector (TA4F) to 1/4inch Connec
tor.
Cable, Instrument, 2-foot (0.7m), 4-pin Mini Connector (TA4F) with Right-Angle 1/4-
inch Connector, used with Shure Wireless Bodypack Transmitters
Rack Tray URT2
Shure Rechargeable Battery SB904
USB-C Battery Charger SBC10-USBC
Premium Guitar Cable TQG Threaded Connector WA305
Power Supply PS43
WA302
WA304

Specifications

Tuning Bandwidth

Z2 2400 - 2483.5 MHz
Z3 2400 - 2483.5 MHz and 5725 - 5850 MHz
Z4 2400 - 2483.5 MHz and 5725 - 5875 MHz
Z5 2400 - 2483.5 MHz and 5725 - 5825 MHz
Dependent on frequency band

Transmit Mode

Shure proprietary digital

RF Output Power

10 mW E.I.R.P. maximum

Ambient Temperature Range

Charging: 0°C (32°F) to 40°C (104°F)
Operating: 0°C (32°F) to 45°C (113°F)

Polarity

Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) pro
duces positive voltage on pin 2 (with respect to pin 3 of lowimpedance output) and the tip of the high im
pedance 1/4-inch output.

Audio Frequency Response

20 Hz – 20 kHz
21/39

Dynamic Range

120 dB, A-weighted

RF Sensitivity

-88 dBm, typical

Total Harmonic Distortion

0.07%, typical

Battery Life

Up to 11.5 hours

Channel Count

Shure Incorporated
Without Frequency Manager Up to 4 typical, 8 optimal
With Frequency Manager Up to 11 typical, 16 optimal

GLXD4R+

Power Requirements

14.5 V – 17 V, 600 mA (efficiency level VI power supply)

Antenna Type

Dual-band ½ Wave Sleeve Dipole

Dimensions

7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna

Weight

30.5 oz (866 g)

Housing

Steel
2.4 GHz only: Up to 4 typical, 5
optimal
2.4 GHz only: Up to 9 typical, 11
optimal

Spurious Rejection

> 35 dB, typical

Gain Adjustment Range

-18 to 42 dB, 1 dB increments

Phantom Power Protection

Yes
AUDIO OUTPUT: Configuration
XLR Output Balanced
22/39
6.35 mm (1/4") output Impedance balanced

Impedance

XLR Output 100 Ω
6.35 mm (1/4") output 100 Ω (50 Ω, Unbalanced)

Full Scale Output

6.35 mm (1/4") +12 dBV
Shure Incorporated
XLR
LINE setting = +18 dBV, MIC setting = -12
dBV

Mic/Line Switch

30 dB pad

Pin Assignments

XLR Output 1=ground, 2=hot, 3=cold
6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground
RECEIVER ANTENNA INPUT: Impedance
50 Ω

Maximum Input Level

-20 dBm

GLXD1+

Power Requirements

Shure Rechargeable Li-Ion Battery SB904
USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ

Antenna Type

Dual-band Internal Monopole

Dimensions

4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D)

Weight

5.4 oz (153.1 g), without battery

Housing

Aluminum alloy, ABS plastic

Input Impedance

900 kΩ
23/39
TX INPUT: Connector
4-pin male mini connector (TA4M)

Maximum Input Level

+8.4 dBV (7.5 Vp-p)

Configuration

Unbalanced

Pin Assignments

1 Ground (cable shield)
2 + 5 V bias
3 Audio
Shure Incorporated
4
Tied through active load to ground (on instru
ment adapter cable, pin 4 floats)

GLXD2+

Power Requirements

Shure Rechargeable Li-Ion Battery SB904
USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ

Dimensions

9.69 in. (246 mm)

Weight

SM58 9.7 oz (275 g), without battery
BETA 58 7.9 oz (225 g), without battery
BETA 87A 9.3 oz (265 g), without battery

Housing

Aluminum alloy, ABS plastic

Maximum Input Level

SM58 146 dB SPL
BETA 58 147 dB SPL
BETA 87A 147 dB SPL

SB904

Battery Type

Rechargeable Li-Ion
24/39

Nominal Capacity

2420 mAh (8.71 Wh)

Nominal Voltage

3.6 V

Dimensions

2.87 x 0.83 x 0.82 inches (72.8 x 20.96 x 20.80 mm), (H x W x D)

Weight

1.89 oz. (53.7 g)

Housing

PC/ABS

Ambient Temperature Range

Charging: 0°C (32°F) to 40°C (104°F)
Shure Incorporated
Operating: 18 °C (0 °F) to 45 °C (113 °F)

SBC10-904

DC Input Voltage

5 V

Ambient Temperature Range

Operating:
0°C (32°F) to 40°C (104°F)

SBC10-USB15W Power Supply

Input Voltage Range

100 to 240 V AC

Maximum Input Power

600 mA @ 100 V AC (full load)

Output Voltage

5 v DC @ 3 A

Maximum Output Power

15 W

SBC10-USB Power Supply

Input Voltage Range

100 to 240 V AC
25/39

Maximum Input Power

200 mA @ 100 V AC (full load)

Output Voltage

5 v DC @ 1 A

Maximum Output Power

5 W

Diagrams

Shure Incorporated
26/39
Shure Incorporated

Frequency Tables

Z2 (2.4 GHz only)

Group 1
Gr 1 - Ch 1 2424 2425 2442 2443 2462 2464
Gr 1 - Ch 2 2418 2419 2448 2450 2469 2471
Gr 1 - Ch 3 2411 2413 2430 2431 2476 2477
Gr 1 - Ch 4 2405 2406 2436 2437 2455 2457
Group 2
Gr 2 - Ch 1 2423 2424 2443 2444 2473 2474
Gr 2 - Ch 2 2404 2405 2426 2427 2456 2457
Gr 2 - Ch 3 2410 2411 2431 2432 2448 2449
Gr 2 - Ch 4 2417 2418 2451 2452 2468 2469
Gr 2 - Ch 5 2437 2438 2462 2463 2477 2478
Group 3
Gr 3 - Ch 1 2415 2416 2443
Gr 3 - Ch 2 2422 2423 2439
Gr 3 - Ch 3 2426 2427 2457
Gr 3 - Ch 4 2447 2448 2468
Gr 3 - Ch 5 2409 2451 2452
27/39
Group 3
Gr 3 - Ch 6 2431 2462 2463
Gr 3 - Ch 7 2404 2473 2474
Gr 3 - Ch 8 2435 2477 2478
Group 4
2404 2406 2408 2410 2412 2414
2416 2418 2420 2422 2424 2426
2428 2430 2432 2434 2436 2438
2440 2442 2444 2446 2448 2450
2452 2454 2456 2458 2460 2462
2464 2466 2468 2470 2472 2474
Shure Incorporated
2476 2478
Group A
2405 2412 2418 2425 2431 2438
2444 2450 2457 2464 2471 2477
Group B
2404 2409 2414 2419 2425 2431
2436 2441 2446 2452 2458 2463
2468 2473 2478
Z3
Group 1 (2.4 GHz)
Gr 1 - Ch 1 2405 2323 2441 2465
Gr 1 - Ch 2 2411 2429 2447 2471
Gr 1 - Ch 3 2417 2435 2453 2477
Group 2 (2.4 GHz)
Gr 2 - Ch 1 2404 2424 2444 2464
Gr 2 - Ch 2 2409 2429 2449 2469
Gr 2 - Ch 3 2414 2434 2454 2474
Gr 2 - Ch 4 2419 2439 2459 2478
28/39
Group 3 (2.4 GHz)
2405 2408 2411 2414 2417 2420
2423 2426 2429 2432 2435 2438
2441 2444 2447 2450 2453 2456
2459 2462 2465 2468 2471 2474
2477
Group A (2.4 GHz)
2405 2411 2417 2423 2429 2435
2441 2447 2453 2459 2465 2471
2477
Group B (2.4 GHz)
Shure Incorporated
2404 2409 2414 2419 2424 2429
2434 2439 2444 2449 2454 2459
2464 2469 2474 2478
Group 1 (5.8 GHz)
Gr 1 - Ch 1 5730 5760 5790 5820
Gr 1 - Ch 2 5736 5766 5796 5826
Gr 1 - Ch 3 5742 5772 5802 5832
Gr 1 - Ch 4 5748 5778 5808 5838
Gr 1 - Ch 5 5754 5784 5814 5845
Group 2 (5.8 GHz)
Gr 2 - Ch 1 5729 5759 5789 5819
Gr 2 - Ch 2 5734 5764 5794 5824
Gr 2 - Ch 3 5739 5769 5799 5829
Gr 2 - Ch 4 5744 5774 5804 5836
Gr 2 - Ch 5 5749 5779 5809 5841
Gr 2 - Ch 6 5754 5784 5814 5846
Group 3 (5.8 GHz)
5730 5733 5736 5739 5742 5745
5748 5751 5754 5757 5760 5763
29/39
Group 3 (5.8 GHz)
5766 5769 5772 5775 5778 5781
5784 5787 5790 5793 5796 5799
5802 5805 5808 5811 5814 5817
5820 5823 5826 5829 5832 5835
5838 5841 5845
Group A (5.8 GHz)
5730 5736 5742 5748 5754 5760
5766 5772 5778 5784 5790 5796
5802 5808 5814 5820 5826 5832
5838 5845
Shure Incorporated
Group B (5.8 GHz)
5729 5734 5739 5744 5749 5754
5759 5764 5769 5774 5779 5784
5789 5794 5799 5804 5809 5814
5819 5824 5829 5836 5841 5846
Z4
Group 1 (2.4 GHz)
Gr 1 - Ch 1 2405 2323 2441 2465
Gr 1 - Ch 2 2411 2429 2447 2471
Gr 1 - Ch 3 2417 2435 2453 2477
Group 2 (2.4 GHz)
Gr 2 - Ch 1 2404 2424 2444 2464
Gr 2 - Ch 2 2409 2429 2449 2469
Gr 2 - Ch 3 2414 2434 2454 2474
Gr 2 - Ch 4 2419 2439 2459 2478
Group 3 (2.4 GHz)
2405 2408 2411 2414 2417 2420
2423 2426 2429 2432 2435 2438
2441 2444 2447 2450 2453 2456
30/39
Group 3 (2.4 GHz)
2459 2462 2465 2468 2471 2474
2477
Group A (2.4 GHz)
2405 2411 2417 2423 2429 2435
2441 2447 2453 2459 2465 2471
2477
Group B (2.4 GHz)
2404 2409 2414 2419 2424 2429
2434 2439 2444 2449 2454 2459
2464 2469 2474 2478
Shure Incorporated
Group 1 (5.8 GHz)
Gr 1 - Ch 1 5730 5766 5802 5838
Gr 1 - Ch 2 5736 5772 5808 5844
Gr 1 - Ch 3 5742 5778 5814 5851
Gr 1 - Ch 4 5748 5784 5820 5858
Gr 1 - Ch 5 5754 5790 5826 5864
Gr 1 - Ch 6 5760 5796 5832 5870
Group 2 (5.8 GHz)
Gr 2 - Ch 1 5729 5764 5799 5834
Gr 2 - Ch 2 5734 5769 5804 5839
Gr 2 - Ch 3 5739 5774 5809 5850
Gr 2 - Ch 4 5744 5779 5814 5856
Gr 2 - Ch 5 5749 5784 5819 5861
Gr 2 - Ch 6 5754 5789 5824 5866
Gr 2 - Ch 7 5759 5794 5829 5871
Group 3 (5.8 GHz)
5730 5733 5736 5739 5742 5745
5748 5751 5754 5757 5760 5763
5766 5769 5772 5775 5778 5781
31/39
Group 3 (5.8 GHz)
5784 5787 5790 5793 5796 5799
5802 5805 5808 5811 5814 5817
5820 5823 5826 5829 5832 5835
5838 5841 5844 5847 5851 5855
5858 5861 5864 5867 5870
Group A (5.8 GHz)
5730 5736 5742 5748 5754 5760
5766 5772 5778 5784 5790 5796
5802 5808 5814 5820 5826 5832
5838 5844 5851 5858 5864 5870
Shure Incorporated
Group B (5.8 GHz)
5729 5734 5739 5744 5749 5754
5759 5764 5769 5774 5779 5784
5789 5794 5799 5804 5809 5814
5819 5824 5829 5834 5839 5844
5850 5856 5861 5866 5871
Z5
Group 1 (2.4 GHz)
Gr 1 - Ch 1 2405 2323 2441 2465
Gr 1 - Ch 2 2411 2429 2447 2471
Gr 1 - Ch 3 2417 2435 2453 2477
Group 2 (2.4 GHz)
Gr 2 - Ch 1 2404 2424 2444 2464
Gr 2 - Ch 2 2409 2429 2449 2469
Gr 2 - Ch 3 2414 2434 2454 2474
Gr 2 - Ch 4 2419 2439 2459 2478
Group 3 (2.4 GHz)
2405 2408 2411 2414 2417 2420
2423 2426 2429 2432 2435 2438
32/39
Group 3 (2.4 GHz)
2441 2444 2447 2450 2453 2456
2459 2462 2465 2468 2471 2474
2477
Group A (2.4 GHz)
2405 2411 2417 2423 2429 2435
2441 2447 2453 2459 2465 2471
2477
Group B (2.4 GHz)
2404 2409 2414 2419 2424 2429
2434 2439 2444 2449 2454 2459
Shure Incorporated
2464 2469 2474 2478
Group 1 (5.8 GHz)
Gr 1 - Ch 1 5730 5754 5778 5802
Gr 1 - Ch 2 5736 5760 5784 5808
Gr 1 - Ch 3 5742 5766 5790 5814
Gr 1 - Ch 4 5748 5772 5796 5820
Group 2 (5.8 GHz)
Gr 2 - Ch 1 5729 5753 5778 5803
Gr 2 - Ch 2 5733 5758 5783 5808
Gr 2 - Ch 3 5738 5763 5788 5813
Gr 2 - Ch 4 5743 5768 5793 5817
Gr 2 - Ch 5 5748 5773 5798 5821
Group 3 (5.8 GHz)
5730 5733 5736 5739 5742 5745
5748 5751 5754 5757 5760 5763
5766 5769 5772 5775 5778 5781
5784 5787 5790 5793 5796 5799
5802 5805 5808 5811 5814 5817
5820
33/39
Group A (5.8 GHz)
5730 5736 5742 5748 5754 5760
5766 5772 5778 5784 5790 5796
5802 5808 5814 5820
Group B (5.8 GHz)
5729 5734 5739 5744 5749 5754
5759 5764 5769 5774 5779 5784
5789 5794 5799 5804 5809 5814
5820
Shure Incorporated

IMPORTANT SAFETY INSTRUCTIONS

1.
READ these instructions.
2.
KEEP these instructions.
3.
HEED all warnings.
4.
FOLLOW all instructions.
5.
DO NOT use this apparatus near water.
6.
CLEAN ONLY with dry cloth.
7.
DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance
with the manufacturer’s instructions.
8.
DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (in
cluding amplifiers) that produce heat. Do not place any open flame sources on the product.
9.
DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace
ment of the obsolete outlet.
10.
PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11.
ONLY USE attachments/accessories specified by the manufacturer.
12.
USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13.
UNPLUG this apparatus during lightning storms or when unused for long periods of time.
14.
REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15.
DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the
apparatus.
34/39
Shure Incorporated
16.
The MAINS plug or an appliance coupler shall remain readily operable.
17.
The airborne noise of the Apparatus does not exceed 70dB (A).
18.
Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connec
tion.
19.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
20.
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
21.
Operate this product within its specified operating temperature range.
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
This symbol indicates that there are important operating and maintenance instructions in the literature accom
panying this unit.
In the European Union and the United Kingdom, this label indicates that the batteries in this product should be collected sepa
rately and not be disposed of with household waste. Substances in batteries can have a potential negative impact on health
and environment and you have a role in recycling waste batteries thus contributing to the protection, preservation, and im
provement of the quality of the environment. You should contact your local authority or retailer for details of the collection and
recycling schemes available.
Please consider the environment, electric products and packaging are part of regional recycling schemes and do not belong to
regular household waste.

WARNING

•
Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat
above 140°F (60°C), or incinerate.
•
Follow instructions from manufacturer
•
Only use Shure charger to recharge Shure rechargeable batteries
•
WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
•
Never put batteries in mouth. If swallowed, contact your physician or local poison control center
•
Do not short circuit; may cause burns or catch fire
•
Do not charge or use battery packs other than Shure rechargeable batteries
•
Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
•
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
•
Do not immerse the battery in liquid such as water, beverages, or other fluids.
•
Do not attach or insert battery with polarity reversed.
•
Keep away from small children.
•
Do not use abnormal batteries.
•
Pack the battery securely for transport.

Note:

•
This equipment is intended to be used in professional audio applications.
•
EMC conformance is based on the use of supplied and recommended cable types. The use of other cable types may de
grade EMC performance.
•
Use this battery charger only with the Shure charging modules and battery packs for which it is designed. Use with other
than the specified modules and battery packs may increase the risk of fire or explosion.
•
Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equip
ment.
35/39
Shure Incorporated

Information to the user

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the manufacturer's instruction manual, may cause interference with radio and television reception.
Notice: The FCC regulations provide that changes or modifications not expressly approved by Shure Incorporated could void
your authority to operate this equipment.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip
ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc
tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be de
termined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.
This device may not cause harmful interference.
2.
This device must accept any interference received, including interference that may cause undesired operation.
Certified under FCC Part 15.
Shure has determined that this product is a Class B harmonized product. The following sections provide country-specific EMC/
EMI or product safety information.

Certifications

FCC ID: DD4GLXD4RZ3, DD4GLXD1Z3, DD4GLXD2Z3 IC: 616A-GLXD4RZ3, 616A-GLXD1Z3, 616A-GLXD2Z3
CAN ICES-003 (B)/NMB-003(B)
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the
equipment.
The antenna(s) must be installed such that a minimum separation distance of 20 cm is maintained between the radiator (anten
na) and all persons at all times.
La ou les antennes doivent être installées de telle façon qu'une distance de séparation minimum de 20 cm soit maintenue en
tre le radiateur (antenne) et toute personne à tout moment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20 cm between the radiator & your body.
This product meets the applicable Innovation, Science and Economic Development Canada technical specifications. Certified
by ISED in Canada under RSS-247 and RSS-GEN.
This device contains licenceexempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Develop
ment Canada’s licenceexempt RSS(s). Operation is subject to the following two conditions:
1.
This device may not cause interference.
2.
This device must accept any interference, including interference that may cause undesired operation of the device.
36/39
Shure Incorporated
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
1.
L’appareil ne doit pas produire de brouillage;
2.
L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. End user
must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter.
Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non contrôlé.
L’utilisateur final doit suivre les instructions spécifiques pour satisfaire les normes. Cet émetteur ne doit pas être coimplanté ou
fonctionner en conjonction avec toute autre antenne ou transmetteur.
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no
cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda
causar su operación no deseada.
Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas dev
idamente autorizados. Para maiores informações, consulte o site da ANATEL – http://www.anatel.gov.br.
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음
1.
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及 功能。低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時 方得繼續使用。前述合法通信，指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及 醫療用電波輻射性電機設備之干擾。
2.
應避免影響附近雷達系統之操作。
3.
高增益指向性天線只得應用於固定式點對點系統。
เครื่องโทรคมนาคมและอุปกรณ์นี้มีความสอดคล้องตามมาตรฐานหรือข้อกำหนดทางเทคนิคของ กสทช.
Paraguay Distributor: Microsystems S.R.L., Senador Long 664 c/Dr. Lilio, Asunción, Paraguay
Connection and use of this communications equipment is permitted by the Nigerian Communications Commission.
運用に際しての注意
この機器の使用周波数帯では、電子レンジ等の産業・科学・医療用機器のほか工場の製造ライン等で使用されている移動体識別用の
構内無線局（免許を要する無線局）及び特定小電力無線局（免許を要しない無線局）並びにアマチュア無線局（免許を要する無 線局）が運用されています。
1.
この機器を使用する前に、近くで移動体識別用の構内無線局及び特定小電力無線局並びにアマ 　 チュア無線局が運用さ れていないことを確認して下さい。
2.
万一、この機器から移動体識別用の構内無線局に対して有害な電波干渉の事例が発生した場合には、 速やかに使用周波 数を変更するか又は電波の発射を停止した上、下記連絡先にご連絡頂き、混　 信回避のための処置等（例えば、パーティ ションの設置など）についてご相談して下さい。
3.
その他、この機器から移動体識別用の特定小電力無線局あるいはアマチュア無線局に対して有害な電波干渉の事例が発生 した場合など何かお困りのことが起きたときは、保証書に記載の販売代　 理店または購入店へお問い合わせください。代
理店および販売店情報は Shure 日本語ウェブサイト　 http://www.shure.co.jp でもご覧いただけます。
現品表示記号について
37/39
Shure Incorporated
現品表示記号は、以下のことを表しています。 この無線機器は 2.4GHz 帯の電波を使用し、変調方式は「その他」の方式、想定与 干渉距離は 80m です。 2,400MHz～ 2,483.5MHz の全帯域を使用し、移動体識別装置の帯域を回避することはできません。
Waste Electrical and Electronic Equipment (WEEE) Directive
In the European Union and the United Kingdom, this label indicates that this product should not be disposed of with household
waste. It should be deposited at an appropriate facility to enable recovery and recycling.
Registration, Evaluation, Authorization of Chemicals (REACH) Directive
REACH (Registration, Evaluation, Authorization of Chemicals) is the European Union (EU) and the United Kingdom (UK)
chemical substances regulatory framework. Information on substances of very high concern contained in Shure products in a
concentration above 0.1% weight over weight (w/w) is available upon request.

CE Notice:

Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with Euro
pean Union requirements. The full text of the EU declaration of conformity is available at the following site: https://
www.shure.com/en-EU/support/declarations-of-conformity.
Authorized European Importer / Representative:
Shure Europe GmbH
Department: Global Compliance
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: +49-7262-92 49 0
Fax: +49-7262-92 49 11 4
Email: EMEAsupport@shure.de

UKCA Notice:

Hereby, Shure Incorporated declares that this product with UKCA Marking has been determined to be in compliance with UK
CA requirements. The full text of the UK declaration of conformity is available at the following site: https://www.shure.com/en-
GB/support/declarations-of-conformity.
Authorized UK Importer / Representative:
Shure UK Limited
Unit 2, The IO Centre, Lea Road,
Waltham Abbey, Essex, EN9 1 AS, UK
（一）本产品符合“微功率短距离无线电发射设备目录和技术要求”的具体条款和使用场景；
38/39
Shure Incorporated
（二）不得擅自改变使用场景或使用条件、扩大发射频率范围、加大发射功率（包括额外加装射频功率放大器），不得擅自更改 发射天线；
（三）不得对其他合法的无线电台（站）产生有害干扰，也不得提出免受有害干扰保护；
（四）应当承受辐射射频能量的工业、科学及医疗（ISM）应用设备的干扰或其他合法的无线电台（站）干扰；
（五）如对其他合法的无线电台（站）产生有害干扰时，应立即停止使用，并采取措施消除干扰后方可继续使用；
（六）在航空器内和依据法律法规、国家有关规定、标准划设的射电天文台、气象雷达站、卫星地球站（含测控、测距、接收、
导航站）等军民用无线电台（站）、机场等的电磁环境保护区域内使用微功率设备，应当遵守电磁环境保护及相关行业主管部门 的规定。
39/39
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
